Product Type	Mulching Kit for Mulching Mower
Brand	HUSQVARNA
Model	MK26
Kit Number	429758 (complete mulching plug assembly)
Included Components	Mulching plug, mounting hooks (2), weld nuts, washers, screws
Main Function	Allows mulching (finely chopping grass) during mowing
Conversion for Bagging/Discharge	Remove the mulching plug to switch to discharge mode
Maintenance and Cleaning	Clean after each use to prevent grass buildup
Safety	Do not remove the deflector shield; lift it when attaching the mulching plug
Usage Tips	Mow when grass is dry; cut max 1/3 of height; vary mowing direction
Spare Parts	Mounting hook (ref. 160793), weld nut (2029J), washer (19061216, 10071000), screw (71081010)
Repairability	Complete kit available as a spare part
Approximate Dimensions	Fits lawn mower deck opening (not specified)
Approximate Weight	Metal and plastic parts, lightweight
Power Supply	Not applicable (mechanical accessory)

Frequently Asked Questions - MK26 HUSQVARNA

What is the role of the deflector shield?

The deflector shield protects the user from debris. It should not be removed. It must be lifted and held when attaching the mulching plug, then allowed to rest on it during use.

How to install the mulching plug of the MK26 kit?

Fully lower the accessory lift lever, lift the deflector shield, then position the mulching plug over the deck opening. Hook the front and rear hooks into the designated holes.

Can I use the mower without the mulching plug?

Yes, simply remove the mulching plug and store it. The mower will then be in discharge or bagging mode.

How to maintain the mulching kit?

After each use, clean the parts to prevent grass and debris buildup. Keep the mower deck clean for better performance.

When is it best to mow with mulching?

It is recommended to mow in the early afternoon when the grass is dry. Avoid mowing wet grass as it clumps and hinders shredding.

What cutting height do you recommend for mulching?

Set the cutting height to cut only the top third of the grass. For a more vigorous cut, reduce the cutting range and walk slower.

Should I change the mowing direction regularly?

Yes, vary the mowing direction each week (e.g., north-south one week, east-west the next) to maintain an even and tidy lawn.

What to do if the grass is not well shredded?

You can make a second pass at a diagonal or perpendicular direction to the first. Also ensure the mower is clean and the blades are sharp.

What spare parts are available for the MK26 kit?

The complete kit has reference 429758. Spare parts include the mounting hook (160793), weld nut (2029J), washers (19061216 and 10071000), and screw (71081010).

Where to find the complete manual for the MK26 kit?

The manual is available as a PDF on notice-facile.com. You can download it for free or request a translation.

USER MANUAL MK26 HUSQVARNA

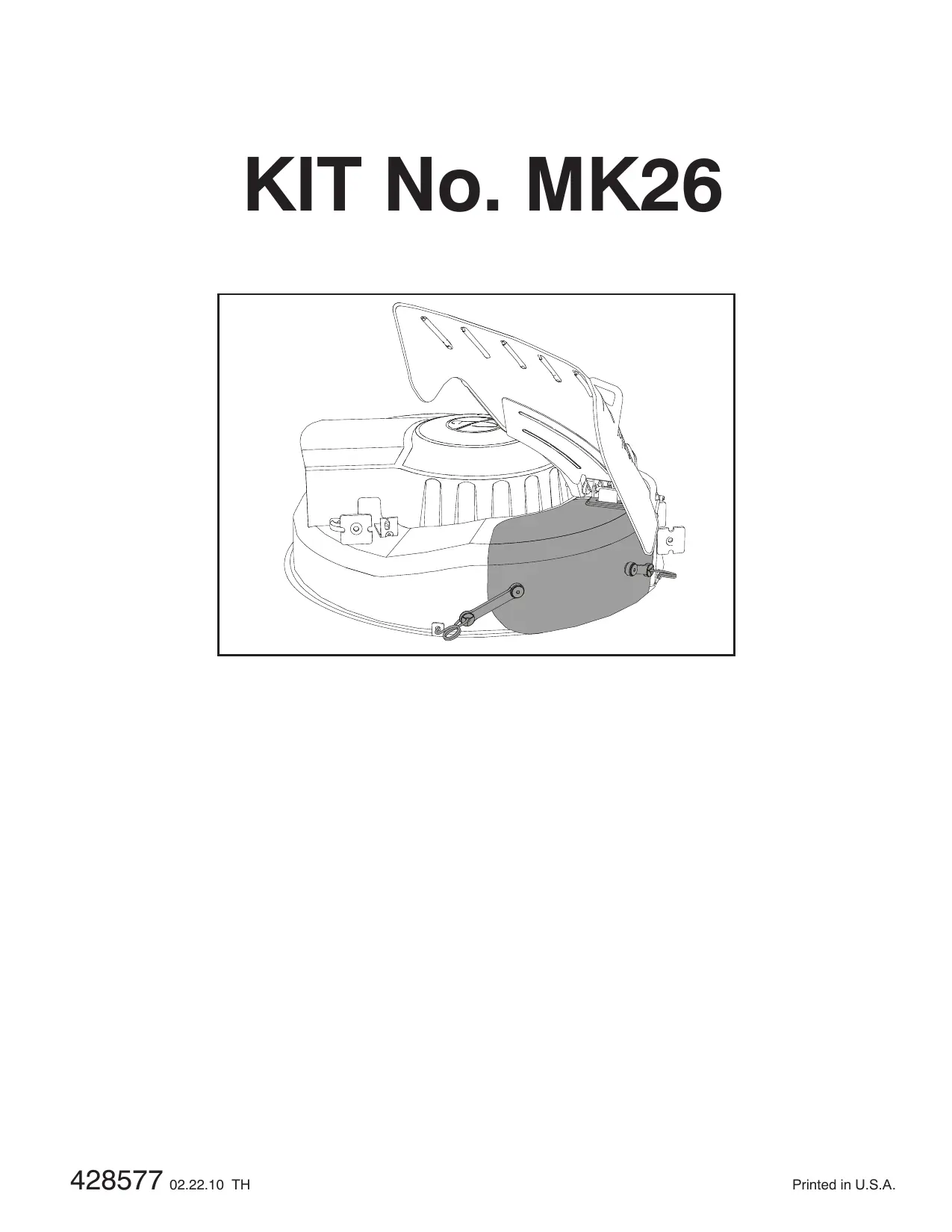

Technical line drawing of a mechanical device with no visible text or symbols

26 INCH MOWER MULCH KIT KIT No. MK26

Kit Contains:

(1) Mulch Cover Assembly

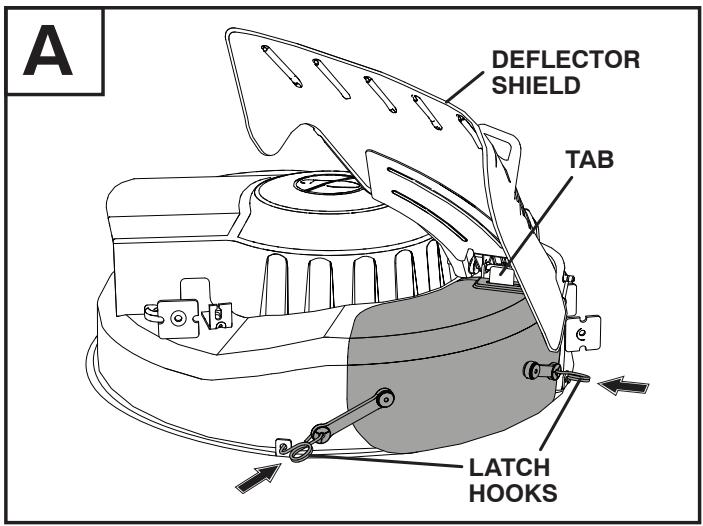

A INSTALL MULCH COVER

• Lower attachment lift lever to its lowest position.
- Raise and hold deflector shield in upright position.
- Place front of mulcher cover over front of mower deck opening and slide into place.
- Place slot in mulcher cover over tab on mower and position cover over mower opening as shown.
- Hook front latch hook into hole on front of mower deck.
- Hook rear latch hook into hole on back of mower deck.

CAUTION: DO NOT REMOVE DEFLECTOR SHIELD FROM MOWER. RAISE AND HOLD SHIELD WHEN ATTACHING MULCH COVER AND ALLOW IT TO REST ON COVER WHILE IN OPERATION.

TO CONVERT TO DISCHARGING

Simply remove mulcher cover and store in a safe place. Your mower is now ready for discharging.

B MULCHING MOWING TIPS

IMPORTANT: FOR BEST PERFORMANCE, KEEP MOWER HOUSING FREE OF BUILT-UP GRASS AND TRASH. CLEAN AFTER EACH USE.

• The blades will recut the grass clippings many times and reduce them in size so that as they fall onto the lawn they will disperse into the grass and not be noticed. Also, the mulched grass will biodegrade quickly to provide nutrients for the lawn.
• Avoid cutting your lawn when it is wet. Wet grass tends to form clumps and interferes with the mulching action. The best time to mow your lawn is the early afternoon. At this time the grass has dried and the newly cut area will not be exposed to the direct sun.

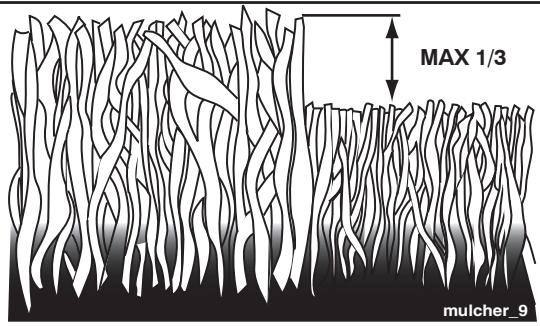

• For best results, adjust the mower cutting height so that the mower cuts off only the top one-third of the grass blades. For extremely heavy mulching, reduce your width of cut and mow slowly.

B

• Certain types of grass and grass conditions may require that an area be mulched a second time to completely hide the clippings. When doing a second cut, mow across or perpendicular to the first cut path.
• Change your cutting pattern from week to week. Mow north to south one week then change to east to west the next week. This will help prevent matting and graining of the lawn.

FOR FUTURE REFERENCE AND REPAIR PARTS ORDERING, KEEP THIS INSTRUCTION SHEET WITH YOUR TRACTOR MANUAL

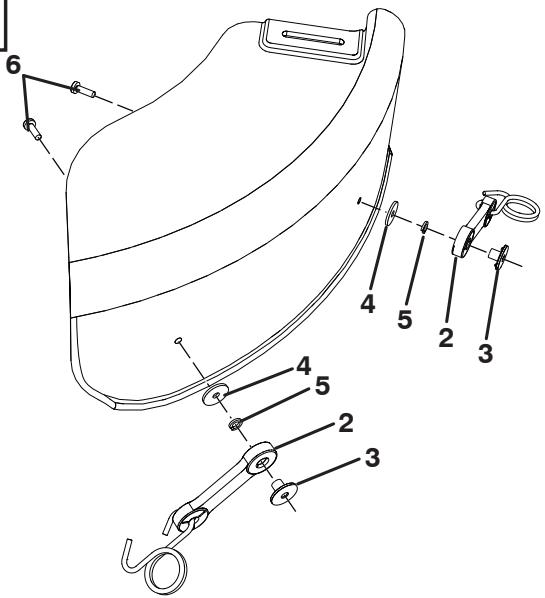

REPAIR PARTS

KIT NO. 429758

KEY PART

NO. NO.

1 429758
2 160793
3 2029J
4 19061216
5 10071000
6 71081010

DESCRIPTION

Mulch Cover Assembly
(Complete)
Latch Hook
Weld Nut
Washer 3/16 x 3/4
Washer, Lock #10
Screw #10 x 5/8

1

KIT MULCHING (BROYAGE D'HERBE) POUR TONDEUSE 26 POUCES

KIT N° : MK26

Le kit contient :

(1) Ensemble cache-paillis de mulcheuse

A INSTALLATION DU CACHE-PAILLIS DE LA MULCHEUSE
