USER MANUAL TS350E-02 HUSQVARNA

Icon of an open book enclosed in a circle (no text or symbols)

DECLARATION OF CONFORMITY WITH EUROPEAN DIRECTIVES

HUSQVARNA CONSTRUCTION PRODUCTS, 433 81 Partille, Sweden, herewith declares that the machine TS350E-02 conforms to the DIRECTIVES :

• "MACHINES" modified (89/392/CEE)
• "LOW VOLTAGE" modified (73/23/CEE)
• "EMC" (89/336/CEE)
• "NOISE" (2000/14/CEE)
- "WASTE ELECTRICAL AND ELECTRNIC EQUIPEMENT (WEEE)" (2002/96/EC)

Technical diagram of a woodworking machine with numbered parts for identification and assembly reference.

FIG: 9 ABB: 9 A B

FIG: 10 ABB: 10

FIG: 11 ABB: 11

FIG: 12 ABB: 12

FIG: 13 ABB: 13 A B

FIG: 14 ABB: 14

FIG: 15 ABB: 15

FIG: 16 ABB: 16 ⑤ ⑥

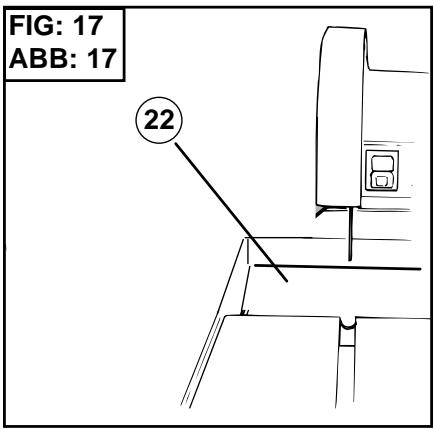

FIG: 17 ABB: 17 22

FIG: 18 ABB: 18 E D

FIG: 19 ABB: 19

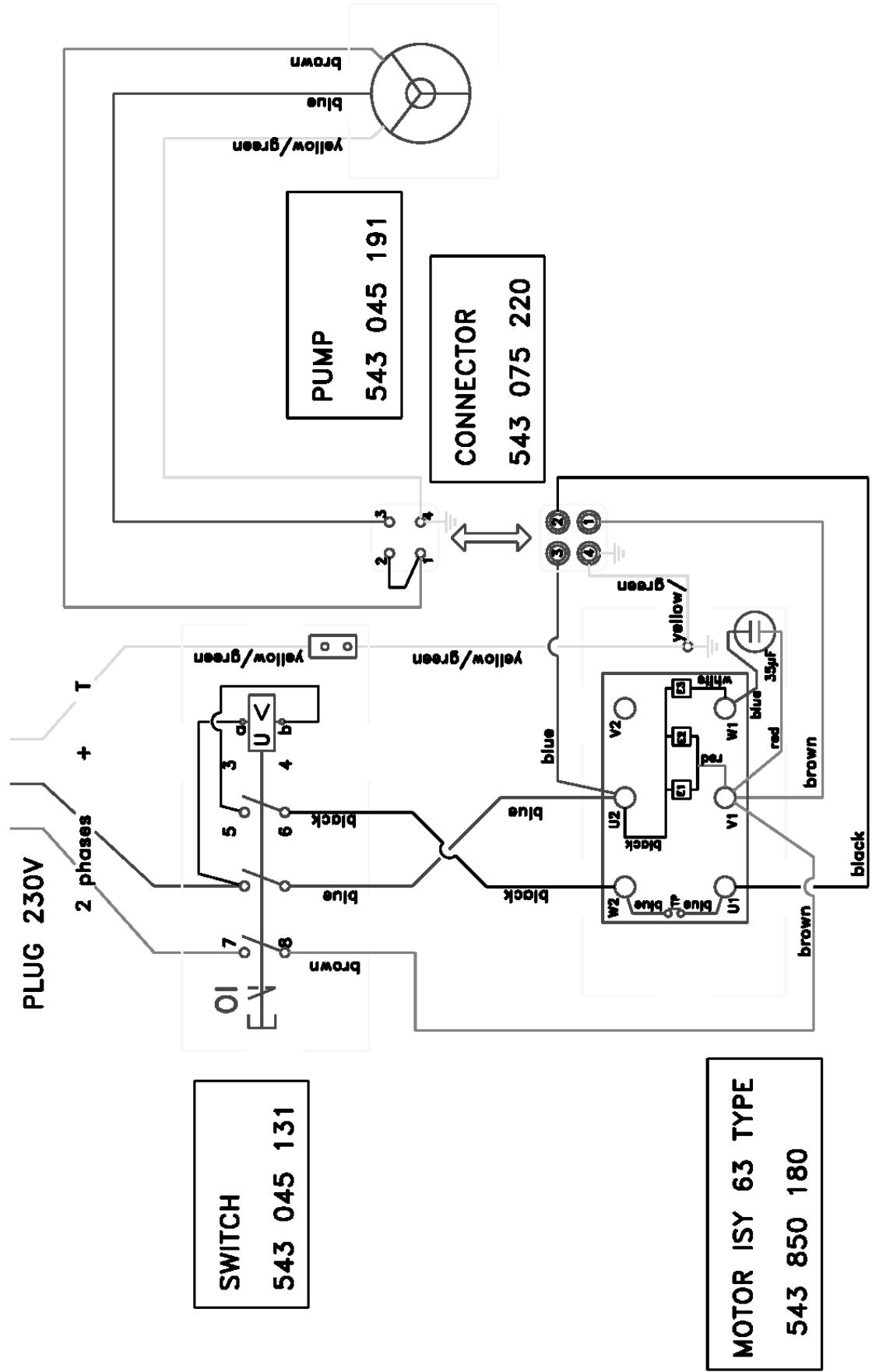

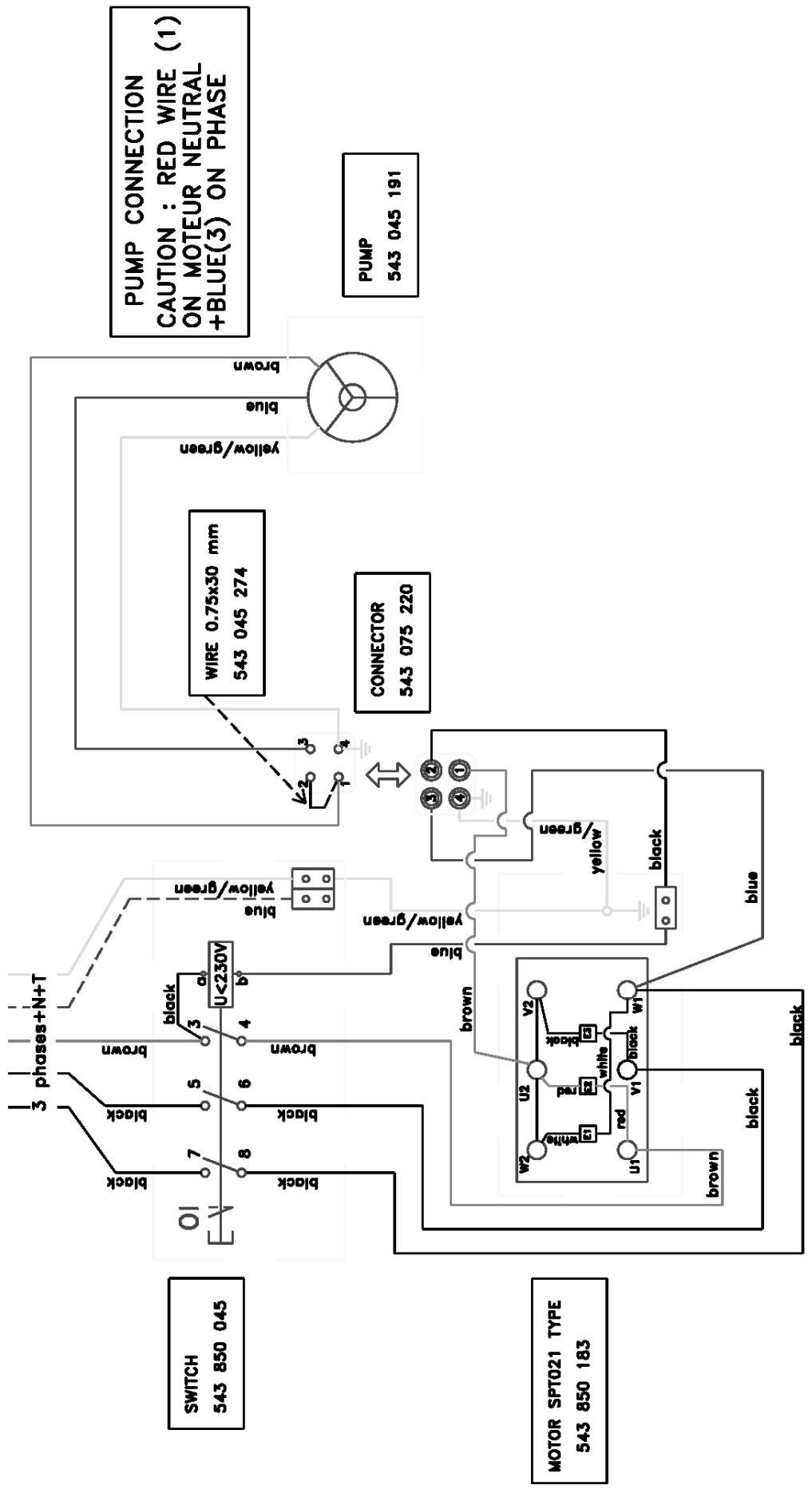

SWITCH 543 850 045 O1 black 7 8 blue black 6 brown U<230V 3 phases+N+T b a blue yellow/green PUMP CONNECTION CAUTION : RED WIRE (1) ON MOTEUR NEUTRAL +BLUE(3) ON PHASE WIRE 0.75x30 mm 543 045 274 blue yellow/green o1 o2 o3 o4 o5 o6 o7 o8 o9 o10 o11 o12 o13 o14 o15 o16 o17 o18 o19 o20 o21 o22 o23 o24 o25 o26 o27 o28 o29 o30 o31 o32 o33 o34 o35 o36 o37 o38 o39 o40 o41 o42 o43 o44 o45 o46 o47 o48 o49 o50 o51 o52 o53 o54 o55 o56 o57 o58 o59 o60 o61 o62 o63 o64 o65 o66 o67 o68 o69 o70 o71 o72 o73 o74 o75 o76 o77 o78 o79 o80 o81 o82 o83 o84 o85 o86 o87 o88 o89 o90 o91 o92 o93 o94 o95 o96 o97 o98 o99 o100 PUMP 543 045 191

4 Manutention - Transport

Before leaving our factory every machine passes an exacting inspection programme in which everything is checked minutely.

Following the instructions will ensure that your machine gives long service, in normal operating conditions.

The user advice and spare parts mentioned in this document are given as an indication, and do not constitute an undertaking. No warrantee will be granted in the event of errors or omissions, or for damage occurring during delivery, or caused by the design or use of the machine. We are very concerned about the quality of our products and we reserve the right to make any technical modifications to improve them, without warning.

This document will:

• provide the user with: information about the machine
• information about its possible uses
- prevent accidents due to unsuitable use, by an untrained person, during maintenance, repairs, overhauls, handling or transport
- improve the reliability and durability of the machine
- ensure correct use, regular maintenance, and fast fault finding in order to reduce repair costs and downtime.

The manual should always be available at the place of work.

It should be read and used by any person installing or using the machine.

The obligatory technical regulations in force in the country where the machine is used must also be adhered to for maximum safety.

GENERAL SAFETY INSTRUCTIONS

The use of symbols on machines (in color) and in the manual identify advice concerning your safety.

WARNING

Danger symbol

OBLIGATION

Blue background, white marking : obligatory safety + red marking : movement forbidden

WARNING

Black triangle and marking on a yellow background : danger if not adhered to. Risk of injury to the user or third parties, with possibility of damage top the machine or the tool.

INTERDICTION

Red circle with or without bar : use or presence prohibited.

INDICATION

Information - Instruction: special instructions concerning use and inspection.

This symbol indicates that the machine is in conformance with the applicable European directive.

SPECIAL INSTRUCTIONS

The disc cutter is designed to provide safe and reliable service in operating conditions corresponding with the instructions, but it can present dangers for the user and risks of damage, consequently regular on site inspection is necessary to ensure :

• Perfect technical condition (use for the purpose for which it is intended and taking into account any risks, and correction of any malfunction detrimental to safety).
• Use of a diamond disc for water lubricated cutting of marble, stone, granite, brick and facings (porcelain, glazed tiles, ceramics, etc). The use of any other disc is forbidden (abrasive, saw, etc).
• Competent personnel (qualifications, age, training, education) who have studied the manual in detail before starting work: any fault of an electrical or other nature must be checked by a competent person (electrician, maintenance foreman, authorized dealer, etc).
• That the warnings and instructions marked on the machine are followed (adequate personal protection, correct use, general safety instructions, etc).
• That no modification, transformation or addition is detrimental to safety and that it is carried out without prior authorization from the manufacturer.
• Respect of the maintenance intervals and periodical checks recommended.
• That only genuine spare parts are used for repairs.

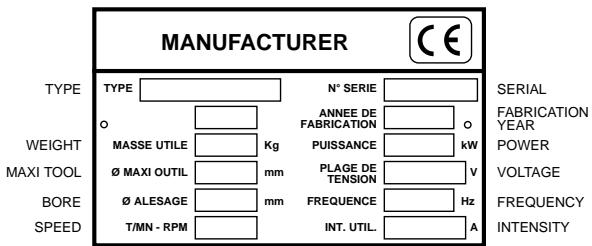

Instruction plate

MANUFACTURER TYPE N° SERIE SERIAL O ANNEE DE FABRICATION O WEIGHT MASSS UTILE Kg PUISSANCE kW POWER MAXI TOOL Ø MAXI OUTIL mm PLAGE DE TENSION V BORE Ø ALESAGE mm FREQUENCY Hz FREQUENCY SPEED T/MN - RPM INT. UTIL. A INTENSITY

1 Use

- Use : Sawing marble, stone, granite, brick, cement and all facings (porcelain, glazed tiles, ceramics, etc).

- Tools : Water lubricated diamond disc diameter 300 mm - diameter 350 mm (D)- bore 25.4 mm (AL). (Information from your usual supplier).

Carborundum disc

Saw blade

Any application not corresponding with the intended use (use of a saw blade, abrasive disc, etc) is prohibited.

2 Technical specifications

	POWER	VOLTAGE ± 5%	CURRENT	PUMP
Standard	2,2 kW (3CV)	230 V 50 Hz	10 A	13 W 230 V
	2,9 kW (4CV)	400 V 50 Hz	11,5A	13 W 230 V
	1,5 kW (2CV)	115 V 50 Hz	20 A	30 W 115 V

• Motor speed : 2800 rpm
  • Disc speed : 2800 rpm
  • Electrical protection : IP 55

• Depth of cut (E) :
• at 90^ : 350 = 100mm - at 45^ : 350 = 60mm
• at 90^ : 300 = 75mm - at 45^ : 300 = 40mm

- Length of cut (L): E = 15 - 650mm

: E = 50 - 600mm

- Useable width (to the right)) (l) : ∅ 350 = 310mm.

: ∅ 300 = 300mm

- Dimensions (mm) L x l x h :

• 1130 x 630 x 1300 (with legs)
• 1130 x 630 x 700 (bench)

- Unladen weight: ± 92 kg (depending on model)

• Disc cooling by water spray into the disc casing

• Minimum tank capacity : 40 liters.

3 Inspection-Description of the machine

• On receiving the machine check its condition.
  • Always keep it perfectly clean.
• Check the supply cable lead periodically.
  • Always keep alert when working.
• Check the mounting of the components (abnormal vibration).

SEE FIG. 1

① Chassis-tank
② Leg
③ Head clamping handle
④ Water pump
⑤ Lifting lever
⑥ Locking handle
⑦ Loading leg
⑧ Drain plug
⑨ Motor
⑩ Lack of voltage switch
⑪ Hood
⑫ Disc casing
⑬ Housing cover
⑭ Movable table
⑮ Table stop
⑯ Movable table stop
⑰ Manufacturer's plate
(18) Cutting guide
⑲ Table locking
20 Carrying handles
21 Transport wheels
22 Water tank
23 Water level

4 Handling - transport

Dismantle your machine into two parts.

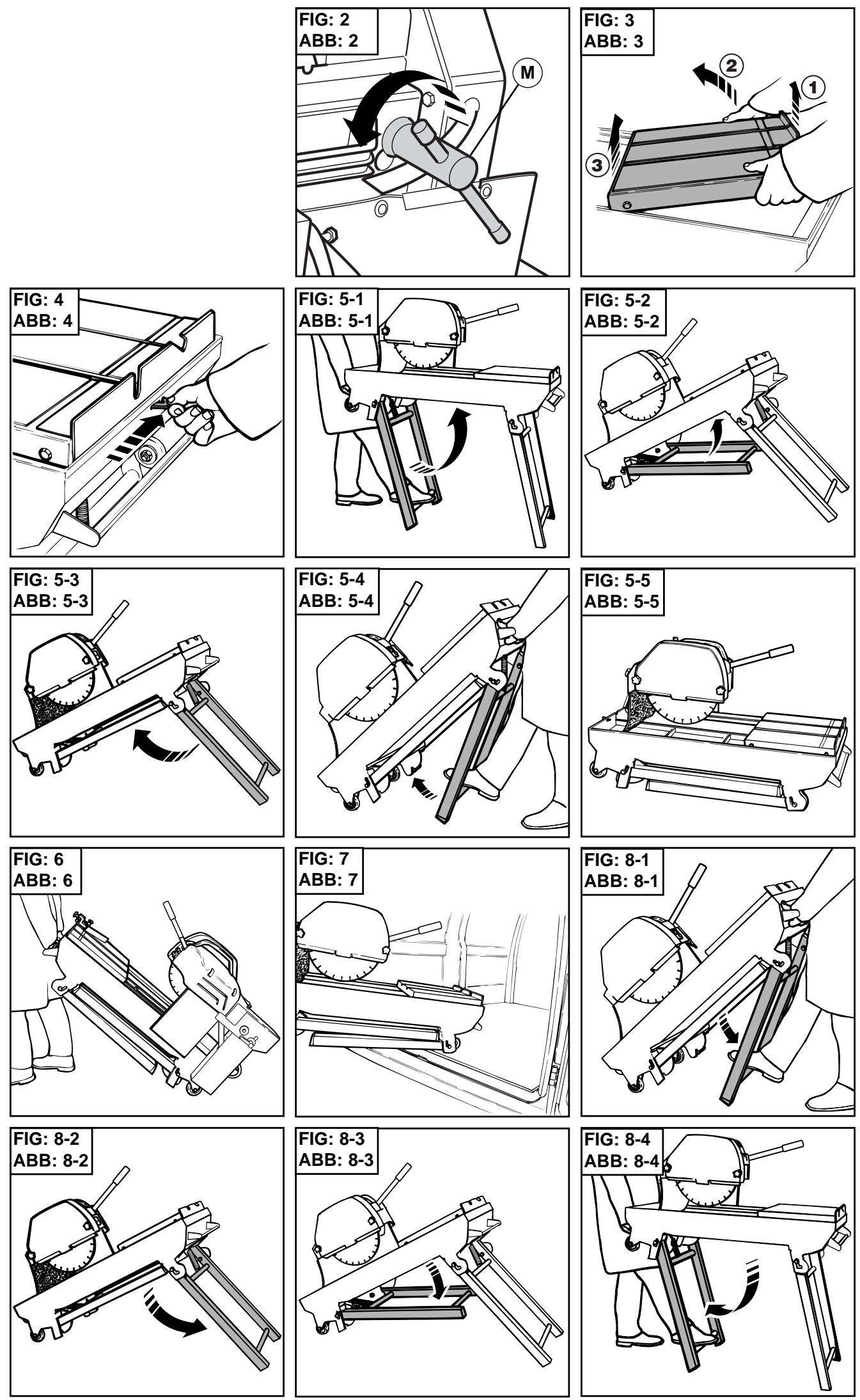

TABLE PART (SEE FIG 3)

- Remove the table by tilting it slightly so as to clear the rear retainer pins

BLOCKING TABLE FOR TRANSPORTATION (SEE FIG 4)

FOLDING THE FEET (SEE FIG 5)

TRANSPORT (SEE FIG 6)

LOADING (SEE FIG 7)

PLACING ON FEET (SEE FIG 8)

5 Inspection before starting

Please read the instructions for use prior to operating the machine for the first time.

The use of ear protection is mandatory.

The operator must wear protective clothing appropriate to the work he is doing. We recommend that this includes both eye and ear protection.

The working area must be completely cleared, well lit and all safety hazards removed (no water or dangerous objects in the vicinity).

Any persons not involved in the work should leave the working area.

Use blades suitable for the work to be done (speed, geometry, application, etc.).

6 Fitting the disc

Disconnect the machine by unplugging the supply cable.

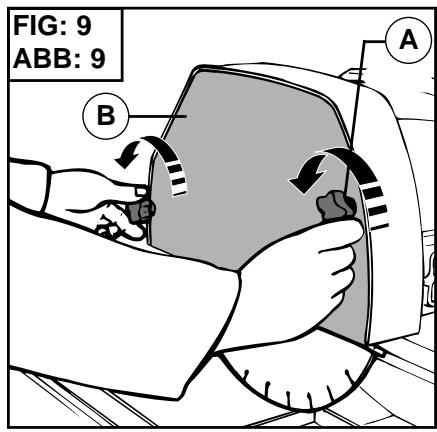

- Remove the two screw knobs (A) and the protective case (B) (SEE FIG 9).

The disc locking nut has a left-hand thread.

If the machine is fitted with a brake motor, do not use the quick-tightening nut.

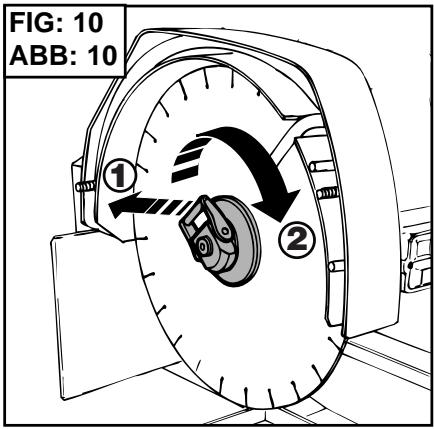

• Remove the locking flange (SEE FIG 10).

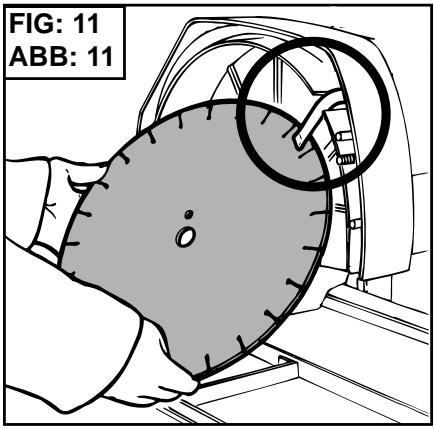

  • Fit the disc.(SEE FIG 11).

Take care about the direction of rotation which is shown by an arrow on one of the faces.

Make sure the contact faces of flanges, of blade and the axle are clean.

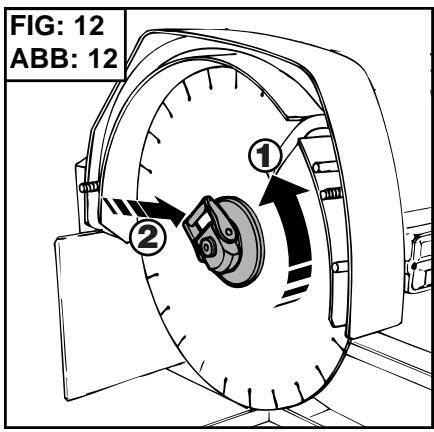

• Tighten the nut (1) and lock (2)
• Refit the protective case (B).

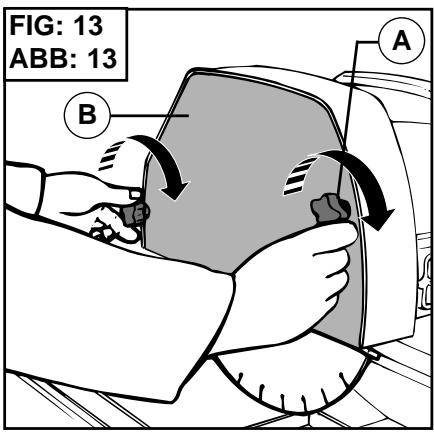

• Tighten the 2 screw knobs (A) (SEE FIG 13)..

7 Electrical connection

- ELECTRICAL SAFETY :

Operate this machine only on a supply equipped with a 30 mA earthed current-limiting circuit-breaker. Otherwise, consult our catalogue for appropriate models.
- The RCCB must be used correctly, including testing it regularly. For tools supplied with an integral RCCB in the cable or in the mains plug, if the cable or plug has been damaged, repairs must be carried out by the manufacturer, one of his agents or by a qualified repair workshop to avoid any risks resulting from errors.

• Make sure that the mains voltage corresponds with that marked on the manufacturer's plate on the machine.
• Three-phase motor

Make sure that the motor rotates in the same direction as the arrow stamped on the casing: if the motor does not turn in the direction required, swap two of the supply wires.

- Use the following types of plug, single phase 2 P + E, or 3 P + E / 3 P + N + E according to the corresponding voltage.

- Extension lead: Cable size sufficient for the electrical power, connection to the mains by a H07 RNF type cable of the following size:

• 3 x 2.5 mm ^4 up to 50 m for 230 V
• 4 or 5 x 1.5 mm ^2 up to 100 m for 400 V
• 3 x 4 mm ^2 up to 40 m for 115 V

8 Starting up

Always pay extreme care and attention to the preparation of the machine before starting up

Remove all adjustment tools and wrenches from floor and machine

Always keep blade guard in place

• Fill the water tank (level 23 FIG 1).
• The water pump starting is coupled with that of the motor.

As each machine is fitted with a self priming pump, the water is sprayed onto the disc as soon as the machine starts.

Ensure that the water supply is abundant, when cutting wet.

The protective case and the motor mounting fitted with a deflector blade provide perfect distribution of the spray.

- To start the machine press the green button on the switch (optional cut-out switch).

- To stop the machine, press the red button.

phase motor protected by a built-in thermal circuit breaker.

9 Cutting method

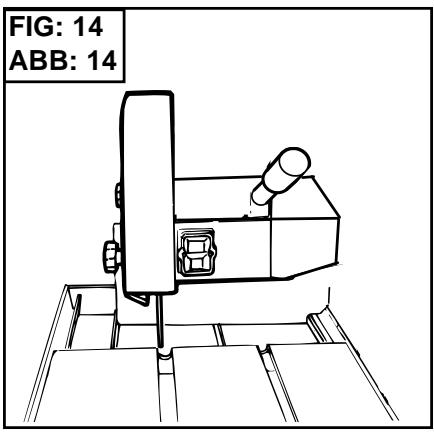

• Straight cuts (SEE FIG 14)

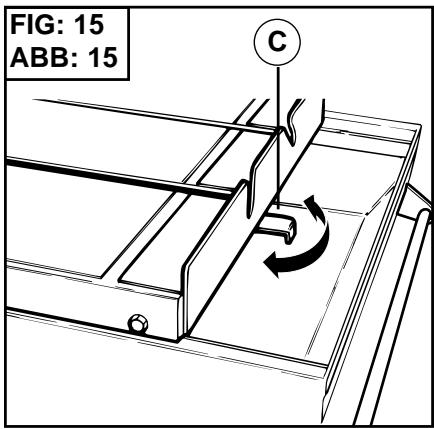

☐ 570 mm : the stop (C) prevents fingers being trapped between the table and the frame (SEE FIG 15).

♂ > 570 et 650 mm : retract the stop (C) under the table to increase the stroke.

A reversible and removable cutting guide enables 45^ to 90^ cuts to be made.

This cutting guide is machined in such a way that it can be fitted in several positions in addition to its right angle position from 0^ to 45^ to the left or to the right.

10 Depth of cut adjustment

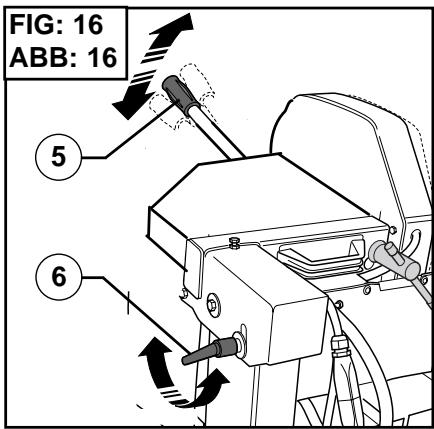

(SEE FIG. 16).

• Slacken off handle (6).
• Use lever (5) to adjust the cutting height.
• Tighten handle (6).

11 Maintenance (the motor must be stopped)

• Clean the machine regularly.
• Drain the tank (22) frequently to remove cutting residue, which otherwise could block the pump and cause it to wear out prematurely. (SEE FIG 17).
• Swill out the tanks (1) and (22) with water.
• Carefully clean the contact faces for the table rollers.

Store in a dry place, not accessible to children.

Maintain the tools carefully.

FAULT FINDING

In the event of faulty operation refer to the tables below to find a solution.

• The machine does not work

CAUSES	REMEDIES
Not plugged in properly or cable damaged	- Make sure that the supply is correctly plugged in (plug, extension lead, etc)- Check the supply cable
No mains voltage	- Test or have tested by an electrician (circuit breaker, plug, etc)
Switch defective, motor cable damaged	- Have tested by an electrician or contact the service department
Motor faulty (no power, unpleasant smell)	- Contact the service department to have the motor replaced

• Difficult starting

CAUSES	REMEDIES
Single phase motor starting condenser	- Replace the condenser
Three-phase supply not correct (on 2 phases, motor cable faulty)	- Have it checked by an electrician or contact the service department

• The pump does not start

CAUSES	REMEDIES
The mains lead is not correctly connected or is damaged	- Check the mains lead
No voltage in pump circuit or mains supply circuit	- Check the pump circuit and mains supply circuit

• The pump does not pump water

CAUSES	REMEDIES
An air bubble may have formed inside the pump body	- Holding the pump of the outlet pipe remove it from the water and reimmerse it
The turbine is jammed	- Unscrew the filter and, using a small screwdriver, remove all dirt from the operating area of the turbine.

12 Adjustments

• The machine is set before leaving the factory and no adjustment is necessary.
• However, after shocks, loosening of nuts and bolts, or sharp movements when tilting the head, if necessary adjust the stop screws(D) and check the squareness (for straight cuts).

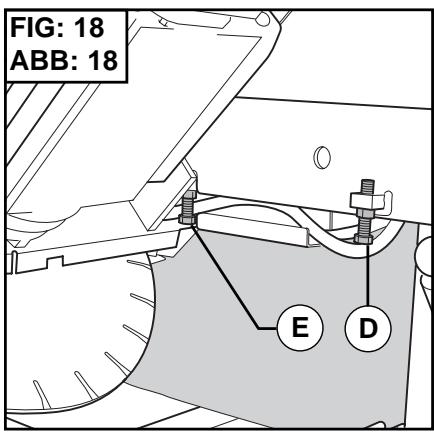

• To correct the bevel cutting setting, adjust the stop screw (E) and lock the nut with a lock- nut (SEE FIG. 18).

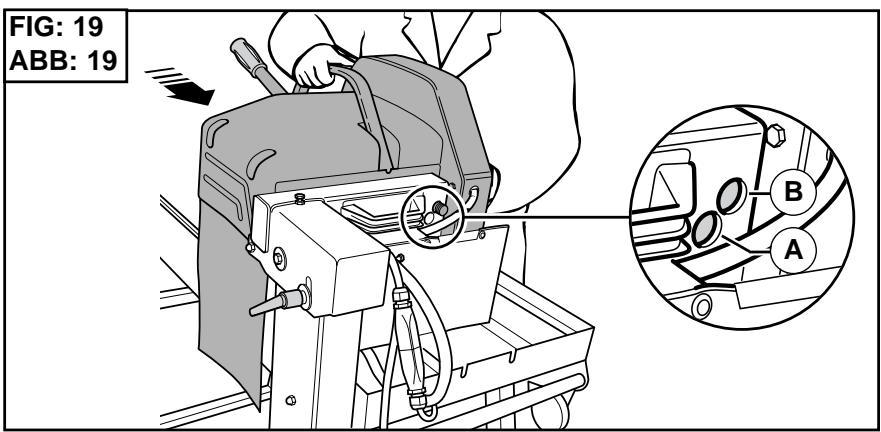

• ∅ 300 and ∅ 350 adaptation (SEE FIG. 19)

$$ \mathbf {A} = \varnothing 3 0 0 $$

$$ \mathbf {B} = \varnothing 3 5 0 $$

13 Important advice

• Retighten the nuts and bolts periodically.
• In the event of a long period of use pay special attention to the maintenance and protection of the disc.
• Make sure that sufficient water is sprayed onto the disc.
• Tighten the disc correctly.
• Make sure that the contact faces of the disc, the flanges and the spindle are clean.

The manufacturer declines all responsibility for loss or damage resulting from misuse or any modification, alteration or powering that does not conform to the manufacturer's original specifications.

At the work station, the sound pressure level may exceed 85 db (A) In this case individual protection measures must be taken.

14 Repairs

S A V

Contact your supplier who is entirely at your service to carry out repairs in the shortest time at the best possible price.

15 Spare parts

For rapid delivery of spares and in order to avoid any wasted time, it is necessary to remind your supplier of the details shown on the instruction plate on the machine with each order, as well as the reference of the part to be replaced.

See exploded view

16 Scrapping

In the event of deterioration and scrapping of the machine, the following items must be disposed of in accordance with the requirements of the legislation in force.

- Main materials :

■ Motor : Aluminium (AL), Steel (AC), Copper (CU), Polyamide (PA)
■ Machine : Steel sheet (AC), Cast iron (FT)

The instructions for use and spare parts found in this document are for information only and are not binding. As part of our product quality improvement policy, we reserve the right to make any and all technical modifications without prior notice.

Handhabung - Transport

Se sprängskissen

16 Avfallshantering

The warranty is acknowledged as of the date of purchase (date of the invoice of the distributor) and is valid for a period of 12 months.

2. WARRANTY

The warranty is limited to the free of charge replacement of parts recognised as defective by Husqvarna (excluding wear components and consumables) providing the repair is made within after-sales service of Husqvarna or a recognised Husqvarna repair centre.

The manufacturer is not responsible for any direct or indirect, material or immaterial, damages caused to persons or things by failure of the machine or the non operation of the machine.

3. WARRANTY CONDITIONS

To benefit the warranty, it is necessary to return the joined warranty certificate, duly completed, to Husqvarna within eight days of the purchase.

In case of failure of the machine during the warranty period, our after-sales services will inform you of the appropriate and most effective method of dealing with your claim and advise you if necessary of your nearest approved service centre.

As an alternative, you may return, at your cost, the machine together with a written description of the problem and damages with a copy of the invoice directly to our after sales department where upon a full investigation will be instigated without delay.

4, EXCLUSIONS

Warranty will not be applied for damages or failures caused by :

- incorrect use, error in transportation, handling or maintenance, - use of incorrect fuel or lubricants not advised by Husqvarna, - use of non-genuine parts or accessories

- repairs made by non approved service centres, - use of incorrect specifications of cutting tools. (We suggest the use of Husqvarna tools).

The goods are returned at the sole responsibility of the Buyer who must appeal against the transporter in the usual manner without delay.

Español

CONDICIONES DE GARANTIA

1. DURACION

CONDITIONS DE GARANTIE

1. DURÉE

Theorem 1.2. (A) Let f be a finite field and let g be the set of all elements of f . Then

Warranty certificate

- Certificat de garantie

• Garantie-Zertifikat

Place here CE sticker with serial N°

To benefit from the warranty, it is mandatory to return, within eight days after the purchase, the attached warranty certificate.

Warranty certificate

Certificat de garantie • Garantie-Zertitikat • Certificato di garanzia • Garantie bewijs • Certificado de garantia • Certificado de garantia • Garanticertifikat

Company :

Société • Gesellschaft • Societa • Maatchappij • Sociedade • sociedad • Företag

Address :

Adresse • Adresse • indirizzo • Adres • Endereco • Direccion • Adress

Date of Acquisition :

Date d'achat • Datum des Kaufs • Data di acquisto • Datum van aankoop • Data de compra • Fecha de comprar • Inköpsdatum

Machine Type :

Type de la machine • Maschinen Type • Tipo della macchina • Machine Type • Tipo de maquina • Tipo de maquina • Maskintyp

Machine Serial Nr :
