GK4075MAT - Cooker Pelgrim - Free user manual and instructions

Product type	Cooker
Brand	Pelgrim
Model	GK4075MAT
Cooking type	Gas
Number of burners	4
Oven type	Electric
Oven capacity	70 L
Dimensions (H x W x D)	85 x 90 x 60 cm
Weight	55 kg
Power supply	230 V / 50 Hz (oven) and gas (hob)
Oven functions	Grill, Convection, Fan-forced, Defrost
Burner ignition	Electronic ignition
Cleaning	Manual cleaning with mild products
Safety	Automatic oven shut-off, child safety, flame detection
Spare parts	Available from Pelgrim customer service
Repairability index	Not communicated
Energy efficiency class of oven	A
Gas connection	Natural gas or butane/propane (convertible)

Frequently Asked Questions - GK4075MAT Pelgrim

How to turn on the oven of the Pelgrim GK4075MAT cooker?

To turn on the oven, turn the function selector to the desired position (e.g., fan-forced) then turn the temperature knob. The heating indicator lights up. For the grill, select the grill function and set the temperature.

How to ignite the burners on the hob?

Press the knob of the chosen burner and turn it counterclockwise to the maximum position. While holding it down, press the electronic ignition button (spark symbol) until the flame ignites. Then release the knob.

What to do if the oven does not heat up?

First check that the appliance is plugged in and the circuit breaker has not tripped. Ensure the function selector and thermostat are set correctly. If the problem persists, contact after-sales service.

How to clean the ceramic hob?

Use a special ceramic hob cleaner and a scraper for stubborn residues. Clean after each use with a soft cloth. Avoid abrasive sponges.

How to maintain the oven?

Regularly clean the oven interior with a damp cloth and mild dish soap. For baked-on stains, use a baking soda paste. Avoid harsh cleaners.

Does the cooker have child safety?

Yes, the oven is equipped with a safety lock. Refer to the manual to activate this function. The hob knobs can be removed to prevent children from operating them.

What type of gas to use for the burners?

The cooker is delivered to run on natural gas (G20/G25). It can be converted for butane or propane. Contact a qualified installer for adjustment.

How to change the oven light bulb?

Unplug the appliance. Remove the glass cover by turning counterclockwise. Replace the bulb (halogen, 25W, 300°C) with an identical bulb. Reassemble the cover.

What to do if the burner flame is irregular?

Clean the burners and injectors. Check that the slots in the crown are not blocked. If the problem persists, have a professional check the gas pressure.

Where to find spare parts for model GK4075MAT?

Spare parts are available from Pelgrim customer service or from authorized spare parts retailers. Have the model number and serial number ready.

USER MANUAL GK4075MAT Pelgrim

Close-up of a gas stove burner with visible flame patterns and flames (no text or symbols)

GK4060RVS

GK4060MAT

GK4075RVS

GK4075MAT

GK4090RVS

GK4090MAT

Handleiding

Gaskookplaat

Illustration of a cooking pot on a gas stove (no text or symbols)

fout

Illustration of a cooking pot on a stove (no text or symbols)

goed

Pannen

Symbol of a trash bin with crossed x's and no accompanying text or labels

Read the separate safety instructions before using the device!

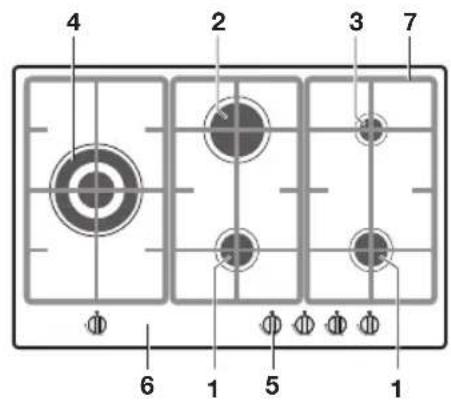

Description

1. standard burner
2. rapid burner
3. simmer burner
4. wok burner
5. control knob
6. drip tray
7. pan support

Igniting and setting

1. zone indication / 0 position
2. high setting
3. low setting

Each burner is fully adjustable between high and low settings.

• Press the control knob and turn it anticlockwise. The burner will ignite.
• Press the control knob fully for at least 3 seconds between high (2) and low (3) settings. The thermocouple safety pilot has been activated.

Use

Illustration of a cooking pot on a stove burner (no text or symbols)

incorrect

Pans

• Always ensure that the flames remain under the pan.
A lot of energy is lost if flames burn around the pan. The handles may also become too hot.
- Do not use pans with a too small base diameter. Too Small pans are not stable on the cooking grid.

Illustration of a cooking pot on a stove (no text or symbols)

correct

The recommended pan base diameters are:

• rapid burner at least 20 cm
  • standard burner at least 14 cm
  • simmer burner at least 10 cm (with reduction grid)
  • wok burner at least 20 cm

Pan support

• Place the pan supports vertically, without sliding over the drip tray.
• Position the pan supports on the drip tray in the correct way.

Important

• Use of the appliance produces heat and moisture in the room where it is installed. Make sure the kitchen is sufficiently ventilated; keep natural ventilation holes open or install mechanical ventilation devices (such as a hood).
• Prolonged use of the appliance may require additional ventilation, such as opening a window.
• On appliances with thermoelectric protection do not keep the ignite button pushed for more than 15 seconds. If the burner has not ignited after 15 seconds, open the door of the room and wait at least one minute before making a further attempt.

Maintenance

Regular maintenance immediately after use prevents spilt food from setting too long and creating stubborn stains that are difficult to remove. Use a mild cleaning agent.

First clean the control knobs, burners and pan supports, and lastly the drip tray. This avoids making the drip tray dirty again during the cleaning process.

Note! Do not clean burner parts in the dishwasher. The detergent may harm the parts!

Stubborn stains on enamel (pan supports, burner covers, drip trays)

The best way to remove stubborn stains is with a liquid cleaning agent or a plastic scourer. Never use abrasive powder, abrasive pads, sharp objects or caustic cleaning agents.

Stubborn stains on stainless steel (drip trays)

The best way to remove stubborn stains from stainless steel is with a special stainless steel cleaning agent. Always wipe in the direction of the structure of the steel to avoid glossy patches (damage caused this way is not covered by the warranty!). The surface of stainless steel can fade slightly after a while.

Refer to the website www.pelgrim.nl or www.pelgrim.be for extra maintenance and cleaning instructions!

Malfunction list

If you are in doubt that your gas hob is not working properly, this does not automatically mean there is a defect. Try to address the problem yourself first by checking the points mentioned below or visit the ‘www.pelgrim.nl or www.pelgrim.be’ website for more information.

Symptom Possible	cause Solution
You can smell gas near the appliance.	The connection to the appliance is leaking.	Turn off the main gas valve. Contact your technician.
A burner does not ignite.	Plug not in socket.Faulty fuse/fuse in meter cupboard is switched off.Spark plug dirty/damp.Burner parts not installed correctly.Burner parts dirty/damp.Main gas valve closed.Gas mains failure.Gas cylinder or tank is empty.Wrong type of gas used.	Put the plug into the socket.Fit a new fuse or switch the fuse back on.Clean/dry the spark plug.Put the parts of the burner in the correct order so they fit together properly.Clean/dry the burner parts. Make sure that the outflow holes are open.Open the main gas valve.Contact your gas supplier.Connect a new gas cylinder or have the gas tank filled.Check whether the gas used is suitable for the appliance. If it is not correct, contact your technician.
The burner is not burning evenly.	Burner parts are not installed correctly.Burner parts dirty/damp.Wrong type of gas used.	Put the parts of the burner in the correct order so they fit together properly.Clean/dry the burner parts. Make sure that the outflow holes are open.Check whether the gas used is suitable for the appliance. If it is not correct, contact your technician.
Burner extinguishes out after igniting.	You did not press the control knob long and/or deep enough (at least 3 seconds).Thermocouple is dirty.	Keep the control knob fully pressed for at least 3 seconds between high and low settings. This can be longer the first time, because of the supply of gas.Clean/dry the thermocouple.

Information according regulation (EU) 66/2014

Measurements according EN60350-2

Model identification		GK4060RVS/MAT	GK4075RVS/MAT	GK4090RVS/MAT
Type of hob Gas hob Gas hob Gas hob
Number of gas burners 4 5 5
Heating technology Gas burner Gas burner Gas burner
Energy efficiency per gas burner (EEgas burner) in %	standard burner:	62.5	62.5	62.5
	rapid burner:	61.3	61.3	61.3
	wok burner:	-	54.3	54.3
Energy efficiency for the gas hob (EEgas hob) in %		62.1 60.2 60.2	2

Tips for energy-efficient cooking with hobs

• Always use the right size of pan for the amount of food you are cooking.
• Put just enough water in the pan to cover vegetables.
• Choose the right size of burner for the pan.
  • Always put lids on pans to keep the heat in.
• Turn down or turn off the burner once the cooking temperature or state is reached.
• Use a steamer to cook vegetables, that way you can layer a number of vegetables on top of each other and still use one ring, or use a pan with a divider.
• Use a pressure cooker for cooking pulses, and even joints of meat, whole meals, or stews. It speeds up the cooking process.

Disposal of the appliance and packaging

Sustainable materials were used in the manufacture of this appliance.

The appliance packaging is recyclable. The following may have been used:

• cardboard;
• paper;
  • polyethylene film (PE);
  • CFC-free polystyrene (PS rigid foam);
  • polypropylene tape (PP).

The materials should be disposed of in a responsible manner and in accordance with government regulations.

The requirement for separate collection of household electrical appliances is highlighted by the symbol of a crossed-out dustbin which is attached to the product.

This means that at the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance such as this hob separately avoids possible negative consequences for the environment and health and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

CE

Declaration of conformity

We hereby declare that our products satisfy the applicable European directives, orders and regulations, as well as the requirements stated in the referenced standards.

Illustration of a cooking pot on a stove burner (no text or symbols)

incorrect

Illustration of a cooking pot with lid and side handles on a stove (no text or symbols)

correct

Casseroles

Illustration of a cooking pot on a stove burner (no text or symbols)

falsch

Illustration of a cooking pot with lid and side handles, placed on a stove (no text or symbols)

richtig

Pfannen und Töpfe

Symbol of a trash bin with crossed x-marks and a blank rectangular base (no text or numbers)

The appliance identification card is located on the bottom of the appliance.
