USER MANUAL 10033598 Klarstein

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 9

Operation 10

Accessories and Connections 11

Hints on Disposal 12

TECHNICAL DATA

Item number 10033595, 10033598
Power supply	220-240 V ~ 50/60 Hz
Power supply DC adaptor DC 12 V

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

643/2009/EC (ErP)

1060/2010/EU (ErP)

SAFETY INSTRUCTIONS

• Prevent the fans from being stuck. The fans being stuck will heat the engine and cause fire. The towel, cloths and the like shall not be put on it.
• Please confirm the sockets of the cords to be tight. The loose socket will result in the cords and sockets heating and broken, even fire.
• Keep the appliance away from the flammable items and dampness to prevent the explosive and fire.
• Do not break up or refit the appliance.
• Do not switch the function of cool/warm abruptly. Switch the function after 30 minutes of being on OFF.
• Do not rinse it with water.
• Prevent the appliance from being upside down.
• Please do not drop or shock it.
  • The appliance must not be exposed to rain
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they arc of the type recommended by the manufacturer.
• The appliance is equipped with type X attachment having a specially prepared cord, if the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
• This appliance is intended to be used in household and similar applications such as:
  -staff kitchen areas in shops, offices and other working environments.
  -farm houses
  -by clients in hotels, motels and other residential type environments;
  -bed and breakfast type environments.

OPERATION

To obtain optimised cooling effect, we suggest putting in pre-chilled foods and drinks. It will take 2 or 3 hours for cooling the unfrozen foods or drinks. The cooler and warmer is not designed to heat cold food but to preserve hot foods at a warm temperature. If necessary, it can heat the foods with more than 2 hours. If it's applied properly following the direction, the temperature of foods can be kept for hours.

1	First make sure the switch at the side of the cooler and warmer is in OFF state, and then insert the plug of the power cord into the socket of the unit. Switching states:A = Cooling modeB = Warming mode
2	Insert the plug of the cigarette lighter into the cigarette lighter in the car.
3	Cooling: set the power switch at the position of COOLING. The green indicator will be on indicating the unit is in cooling mode.
4	Heating: set the switch at the position of HEATING. The red indicator will be on indicating the unit is in heating mode.

ACCESSORIES AND CONNECTIONS

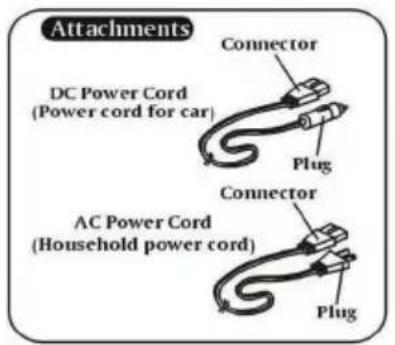

Attachments DC Power Cord (Power cord for car) Connector Plug Connector AC Power Cord (Household power cord) Plug

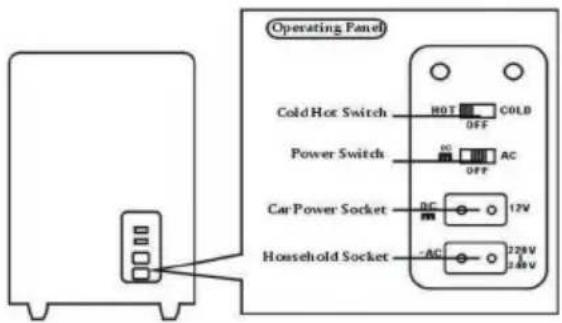

Operating Panel Cold Hot Switch HOT COLD OFF Power Switch AC OFF Car Power Socket DC 12V AC Household Socket -AC 22kV -14kV

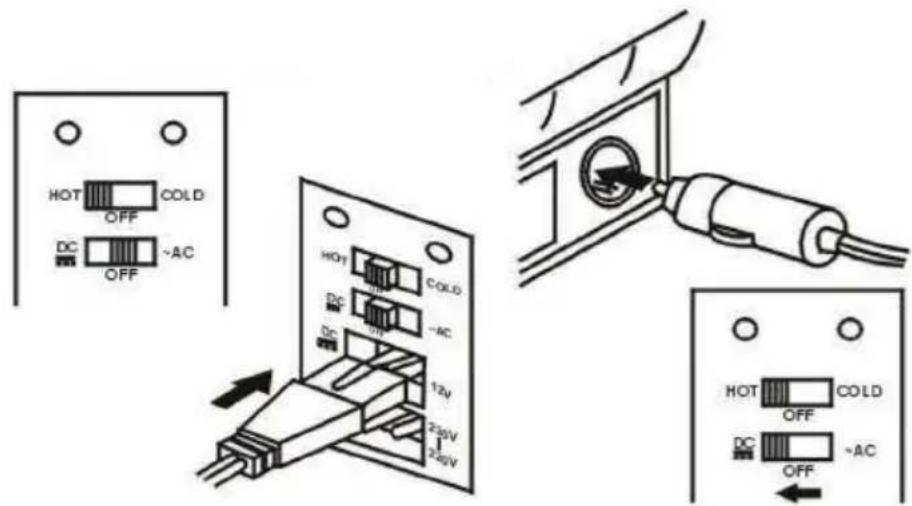

When the DC 12 V car power is used:

HOT OFF COLD DC OFF AC HOT COLD DC OFF AC DC 12V 2-30V 2-40V HOT OFF COLD DC OFF AC

1 For the device to work, the motor must be on.
2 Use the DC power cable for the car and connect the device connector to the AC connector of the cooler.
3 Plug the other end of the power cord into the cigarette lighter in your car.
4 Slide the on/off switch on the unit to „DC“.

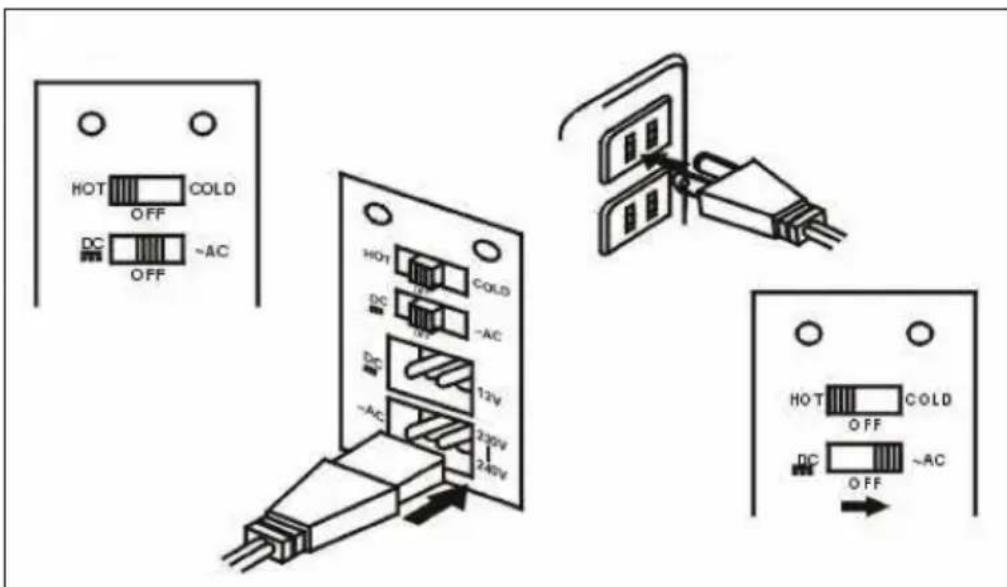

When the 220-240 V household power is used:

HOT COLD OFF ~AC DC ~AC HOT COLD 12V DC ~AC DC 12V ~AC 230V 240V HOT COLD OFF ~AC DC ~AC

1 Connect the connector of AC power cord (household power cord) with the household socket of the product.
2 Insert the power socket into the concentric plug.
3 Turn the power switch to the AC side.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE DE CONTENIDOS

HOT COLD OFF DC ~AC OFF HOT COLD DC ~AC DC 12V 230V 240V HOT COLD OFF DC ~AC OFF

HOT COLD OFF ~AC DC OFF HOT 12V COLD DC 10V ~AC DC 12V ~AC 230V 240V HOT COLD OFF DC OFF ~AC

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

DÉCLARATION DE CONFORMITÉ

C€

Fabricant :

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Allemagne.

HOT OFF COLD DC OFF ~AC HOT COLD DC ~AC DC 12V ~AC 230V 240V HOT OFF COLD DC OFF ~AC

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

QR code image containing encoded data, no visible human-readable text

INDICE

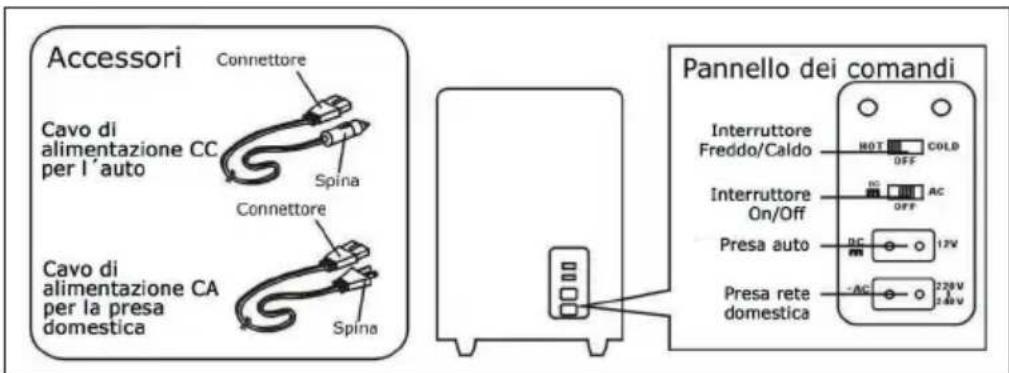

ACCESSORI E ATTACCHI

HOT COLD OFF ~AC DC OFF HOT COLD DC ~AC 12V ~AC 230V 240V HOT COLD OFF ~AC DC OFF

Symbol of a trash bin crossed with a diagonal line, no text or numbers present
