USER MANUAL 10031360 Klarstein

Row of white icons representing kitchen appliances including blender, blender, keyboard, refrigerator, air conditioner, fan, wine glass, and microwave (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid rectangle below (no text or labels)

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Technical Data

Item number 10030509 10030510
Power supply 220-240 V~, 50 /60Hz
Power raiting
DC operation Cooling mode 55 W	Heating mode 40 W
AC operation Cooling mode 11 - 65 W	Heating mode 10-55 W
Capacity 45 litres
Climate class S, SN
Dimensions (B x H x T) 570x400x440 mm

Safety Instructions

• Do not place electrical appliances in the cooler's storage compartment..
• To avoid electrocution hazard, do not pour liquids on appliance surface while in use.
• Also, do not unplug the power plug from the outlet with wet hands.
• Any user modification, disassembly or repair of the appliance by non-qualified persons is prohibited.
• Do not unplug from the outlet by pulling on the power cord. Remove the power cord using its plug.
• Pulling on the power cord may cause an electrocution hazard.
• Do not remove the plug from the outlet while the appliance is in operation. A permanent connection to an electric power source may cause aging of insulation causing risk of electrocution or fire.
• Do not expose to rain.
• Do not expose to direct sunlight.
• DO NOT wash the appliance directly under water.
• This appliance is not intended for use by persons (including children) who have mental or physical difficulties or lack of knowledge, unless they are under the supervision of a person responsible for their safety. Children must be supervised to ensure they do not play with an electrical appliance.
• Do not clean with alcohol or abrasive detergents which may cause discoloration.
• The appliance must not be subjected to major shocks which could damage and destroy circuits
  • and internal electronic parts.
• The appliance must be well ventilated. Be sure that the fan is not blocked.
• If ambient temperature or humidity is high, droplets may form inside the appliance. This is not a symptom of malfunction. Wipe the droplets with a dry cloth.
• To clean greasy dirt, use a damp cloth soaked with a neutral detergent.
• The appliance must be well ventilated. Do not operate in a confined space (in a car boot, for example).

Connections

Caution: Danger of electric shock or fire.

Don not use any other method of connecting power to the appliance.

Turn the Eco mode /Max mode switch to the off position before connecting the power cord.

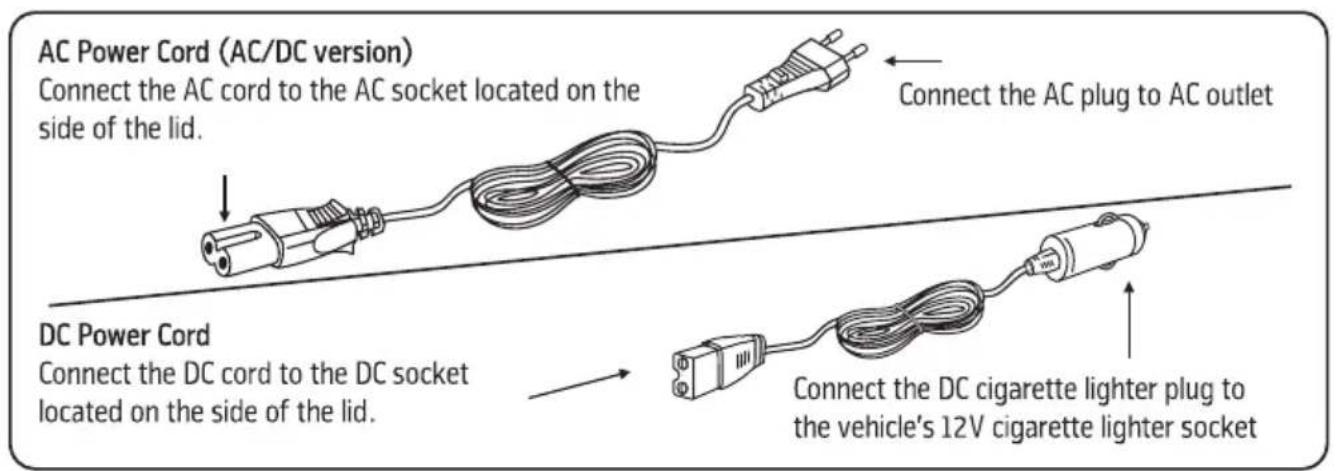

AC Power Cord (AC/DC version) Connect the AC cord to the AC socket located on the side of the lid. DC Power Cord Connect the DC cord to the DC socket located on the side of the lid. Connect the AC plug to AC outlet Connect the DC cigarette lighter plug to the vehicle's 12V cigarette lighter socket

Use

1. Connect power cord. The appliance turns on, in standby mode.
2. Turn the switch to the ECO MODE position.:

If the appliance enters cooling mode and the green light turns on, if the appliance enters heating mode and the red light turns on.

1. Turn the switch to the MAX mode position:

The appliance enters cooling mode and the green light turns on. The appliance enters hot mode and the red light turns on.

MAX MODE 0 ECO MODE

MAX MODE 0 ECO MODE

MAX MODE 0 ECO MODE

Features

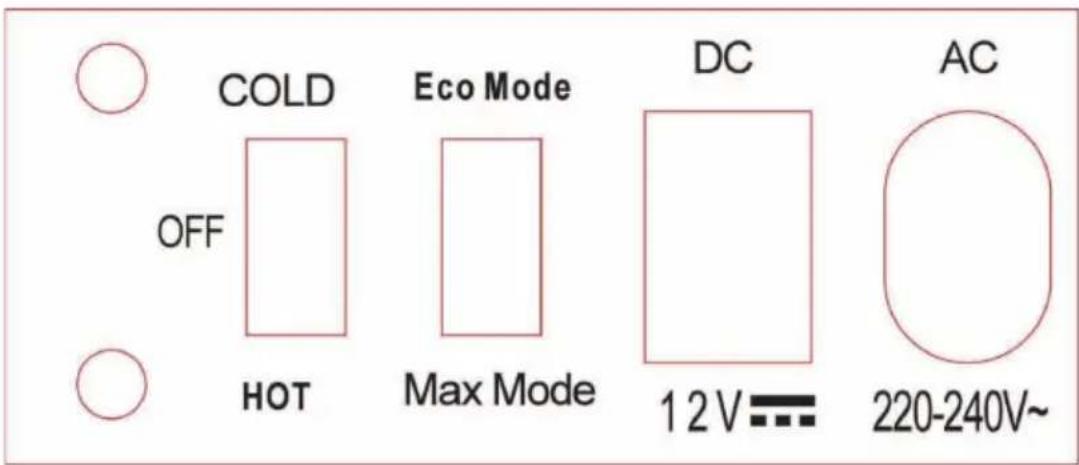

COLD Eco Mode DC AC OFF HOT Max Mode 12V--- 220-240V~

- Chiller function (maximum Mode): The cooler's regulated chiller function lets you chill food and drink. For the best results, use already refrigerated products.

These will hold their temperature. This function is ideal when switching on the appliance and when the outside temperature is warm.

- Chiller function (Eco mode): in Eco mode, the cooler will automatically regulate the temperature, so as to consume as little electricity as possible.

This function is ideal for when the appliance is cold on the inside or the temperature outside is cool.

- Heater function (maximum Mode): The cooler's regulated heater function lets you heat food and drink. This function is ideal when the outside temperature is cold.

- Heater function (Eco mode): in Eco mode, the cooler will automatically regulate the temperature, so as to consume as little electricity as possible.

This function is ideal for the temperature outside is not very hot.

Trouble Shooting

Periodically remove dust build-up on the power plug. Accumulated dust can cause a fire.

Problem Possible	Cause Solution
The cooling function does not work.	Bad contact between the power socket and the power cord.	Make sure the power cord is properly plugged into the appliance socket and the outlet.
	The fan or blade is blocked. Clean the fan or blades.
	The appliance is too close to a wall or object.	Keep the appliance away from walls or other objects..
During operation the appliance makes a strange nose or vibrations.	The appliance is malfunctioning.	To prevent damage, turn the appliance off immediately and disconnect from power. Contact a local service centre.
There is a burning smell or the case is deformed.	The appliance is overheated.	To prevent damage, turn the appliance off immediately and disconnect from power. Contact a local service centre.

Disposal Considerations

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid rectangle below (no text or labels)

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

CE

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin. Germany

This product is conform to the following European Directives:

2014/30/EU (EMC)

2011/65/EU (RoHS)

2014/35/EU (LVD)
