Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Declaration of Conformity 19

Technical Data 20

Safety Instructions 20

Device Overview 22

Installation Components 23

Dimensions 24

Installation 25

Operation 30

Cleaning and Maintenance 31

Troubleshooting 33

Hints on Disposal 34

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

2009/125/EC (ErP)

TECHNICAL DATA

Item number 10034257
Power supply 220-240 V ~ 50/60 Hz

SAFETY INSTRUCTIONS

• Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
• The installation work must be carried out by a qualified electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.
• The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
  • Children under the age of 8 must not use the cooker hood.
• The appliance is not intended for commercial use, but only for household and similar environments.
• The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good working order.
  • Before cleaning, switch the power off at the main supply.
• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
  • Prohibit putting the cooker hood by fire.
• If the appliance does not function normally, contact the manufacturer or a specialist company.
• This appliance may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.
• Do not flambé under the range hood. Accessible parts may become hot when used with cooking appliances.

Important Hints on Installation

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
  • Regulations concerning the discharge of air have to be fulfilled.

Important Notes about the Extraction Mode

WARNING

Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open flue appliance when there is not adequate airflow guaranteed.

Open flue combustion equipment (for example, gas, oil, wood or coal-fired heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms - without sufficient air intake this creates a vacuum. Toxic gases from the chimney or extraction flue can thereby be sucked back into the living spaces.

• Always ensure that a sufficient supply of fresh air is guaranteed and that the air can circulate.
• An air supply / extractor box alone does not ensure compliance with the limit value.

Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can flow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a qualified chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation.

If the hood is used exclusively in the recirculation mode, unrestricted operation is possible.

WARNING

Fire hazard from flying sparks. Only install equipment on a fireplace for solid fuels (for example, wood or coal), if a closed, non-removable cover is available.

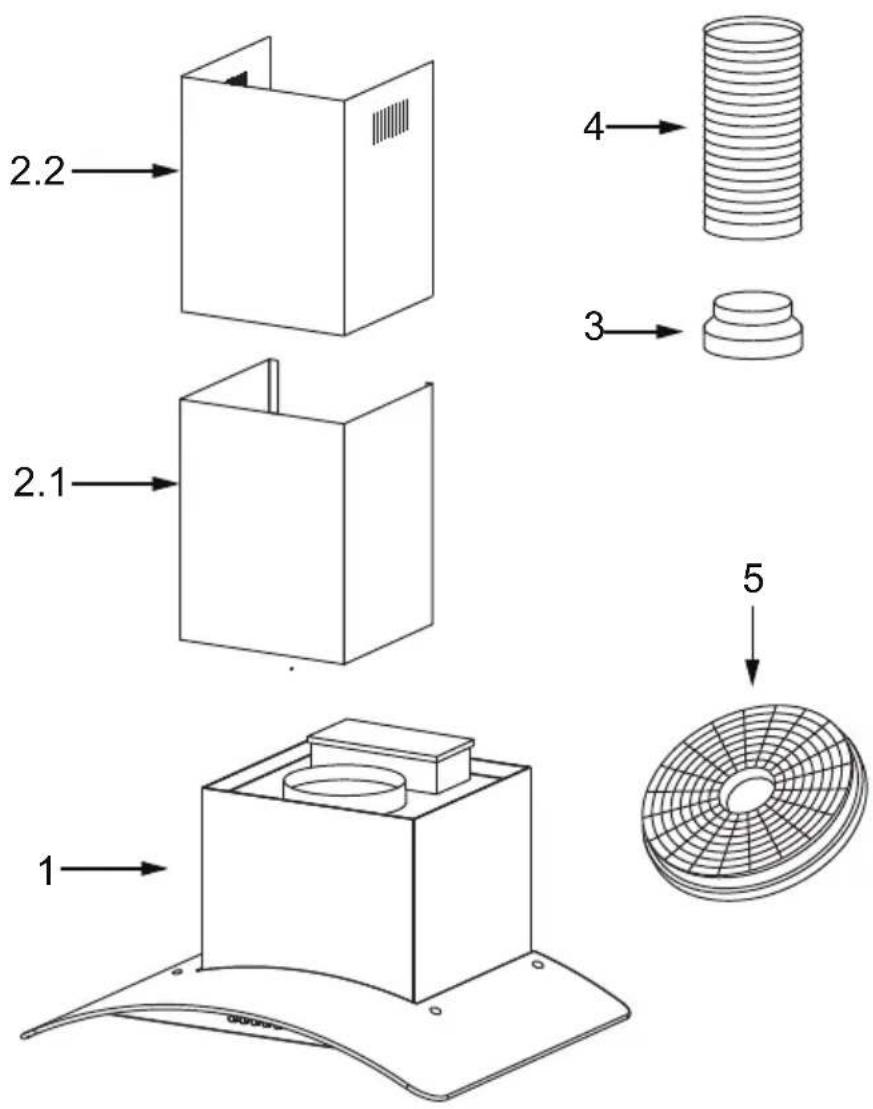

DEVICE OVERVIEW

No.	Product Components Qty.
1	Hood body, complete with: Controls, Light, Blower, Filter	1
2.1	Lower decorative chimney	1
2.2	Upper decorative chimney	1
3	Flange (optional)	1
4	Exhaust pipe	1
5	Activated charcoal filters (optional)	2

Note: The optional accessories are not included.

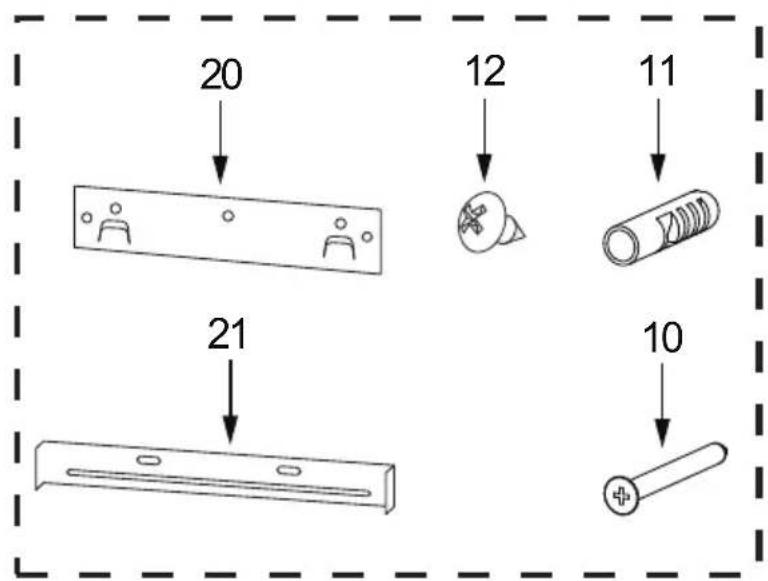

INSTALLATION COMPONENTS

20 12 11 21 10

No.	Components Qty.
10	Screws 5 x 50	7
11	Wall plugs	7
12	Screws 4.2 x 9.5	6
20	Hood fixing bracket	1
21	Chimney fixing bracket	2

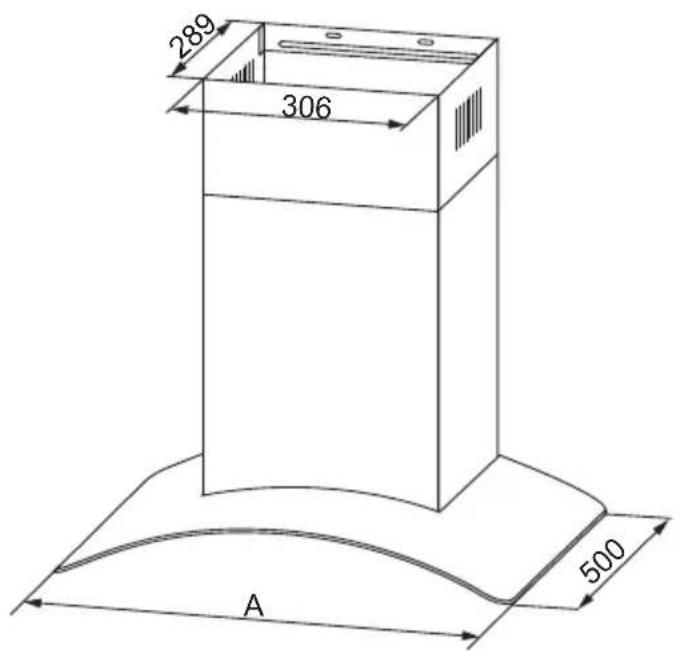

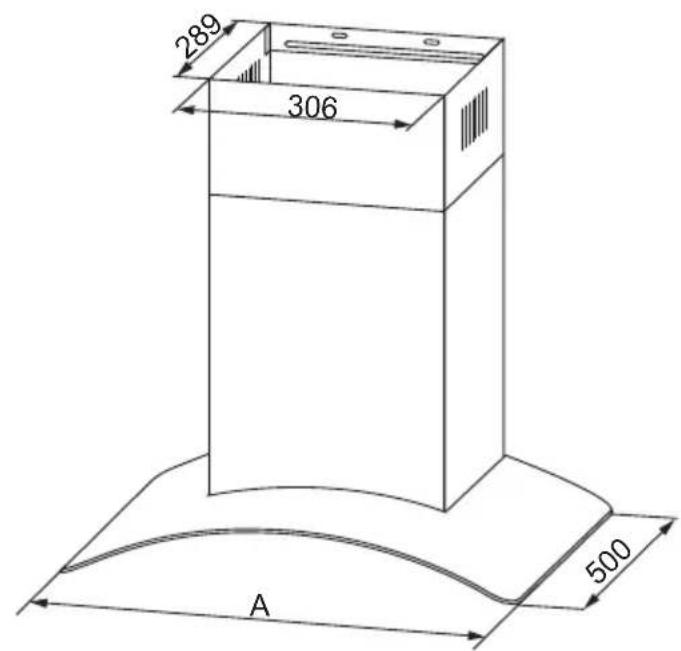

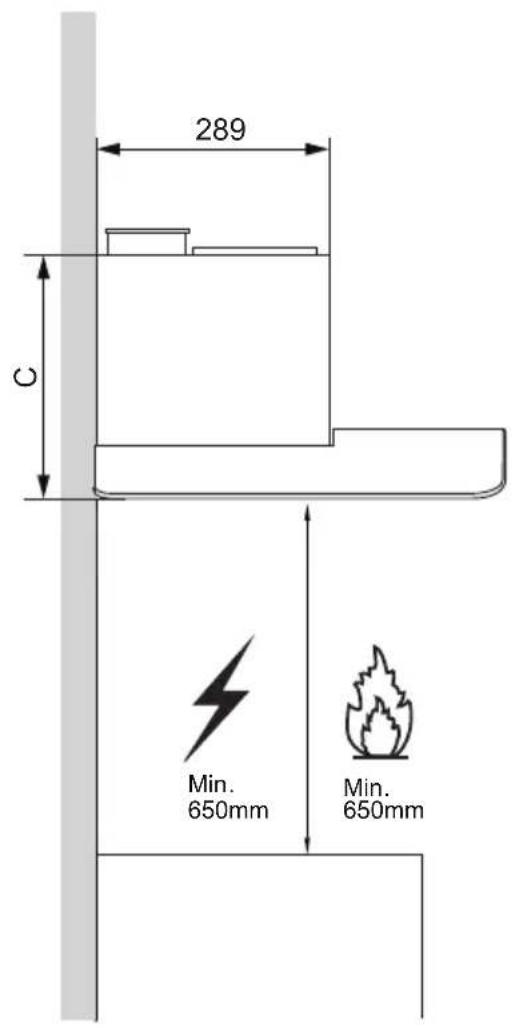

DIMENSIONS

0 500 A

306 B

289 C Min. 650mm Min. 650mm

A B C
600 266 293

289 306 500 A

Note: The specified values are [mm].

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• Maintain the minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood. (When the range hood is located above a gas appliance, this distance shall be at least 65 cm. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. The distance of 65 cm can be reduced for:non-combustible parts of range hoods, and parts operating at safety extra low voltage, Provided these parts do not give access to live parts if deformed.)
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe with a minimum diameter of 120 mm. The route of the flue must be as short as possible.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the range hood is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of ventilation must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening to the outside (e.g. a window) to ensure the supply of fresh air.
• When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Regulations concerning the discharge of air have to be fulfilled.

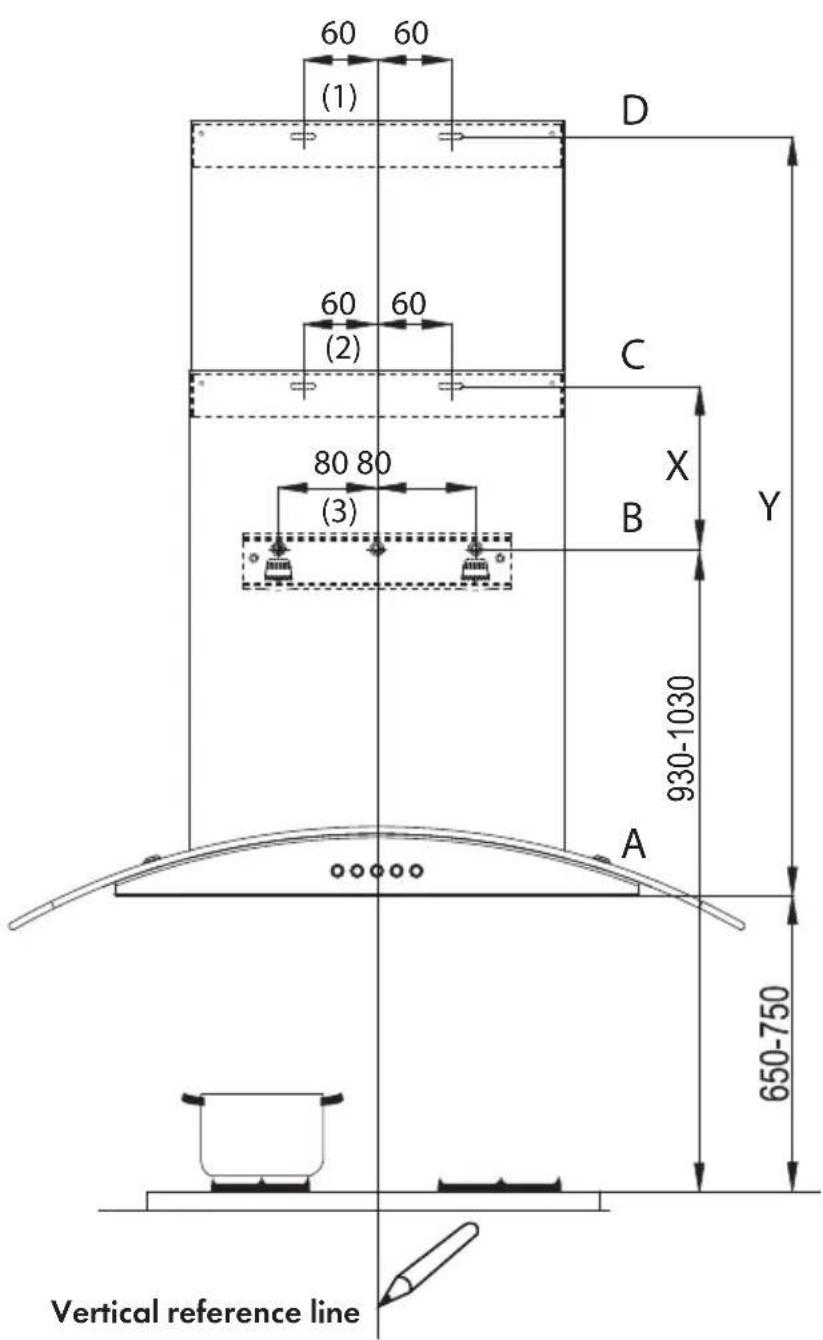

Wall Drilling and Bracket Fixing

Note: The specified values are [mm].

60 60 (1) D 60 60 (2) C 80 80 (3) X B Y 930-1030 A 650-750 Vertical reference line

Option Chimney X Y
1	400 + 400	132 448	-783
2	500 + 500	232 548	-983
3	560 + 560	292 608	-1103

Marking Lines

As a first step, proceed with the following drawings:

- A vertical line up to the ceiling or up to the upper limit, at the centre of the area in which the hood is to be fitted.

(A) A horizontal line A, 650-750 mm above the hob.
(B) A horizontal line B at a minimum 930-1030 mm above the cooker top.
(C) A horizontal line C at a 132 mm above the B.
(D) A horizontal line D at 448-783 mm above the cooker hood.

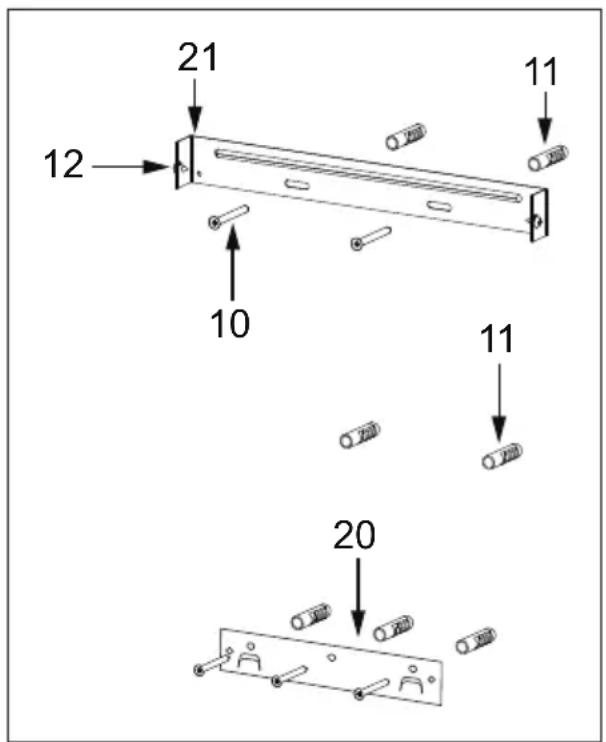

Mark Points:

(1) Mark a point (1) on the horizontal line D, 60 mm to the vertical reference line. Repeat this operation on the other side, checking that the three marks are leveled.
(2) Mark a point (2) on the horizontal line C, 60 mm to the vertical reference line. Repeat this operation on the other side, checking that the three marks are leveled.
(3) Mark a point (3) on the horizontal line B, 80 mm to the vertical reference line. Repeat this operation on the other side, checking that the three marks are leveled.

21 12 10 11 11 20

Fix the Brackets:

• Drill holes at the marked points with a ∅ 10 mm drill bit.
• Insert the Wall Plugs (11) into the holes.
• Fix the hood fixing bracket (20) with 3 screws (5 x 50) (10) supplied with the hood at the horizontal line B.
• Fix a chimney fixing bracket (21) with 2 screws (5 x 50) (10) supplied with the hood at the horizontal line D.

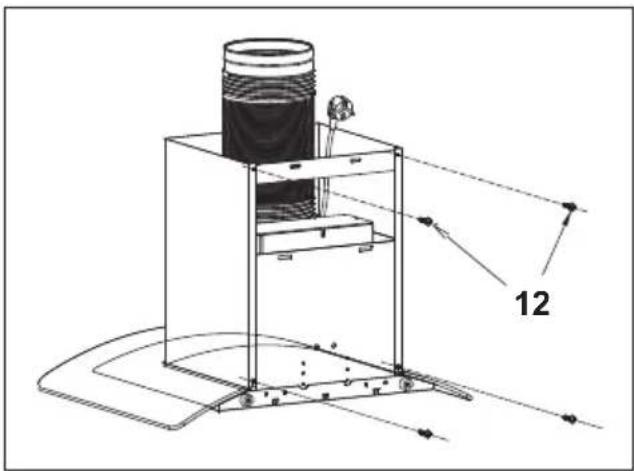

Fix Lower Decorative Chimney

• Fix the exhaust pipe on the hood body.
- Connect the chimney and the hood body with 2 screws (4.2 x 9.5) (12).
- Connect the chimney fixing bracket (21) and the chimney with 2 screws (4.2 x 9.5) (12).

Technical line drawing of a mechanical device with labeled component '12' (no text or symbols beyond label)

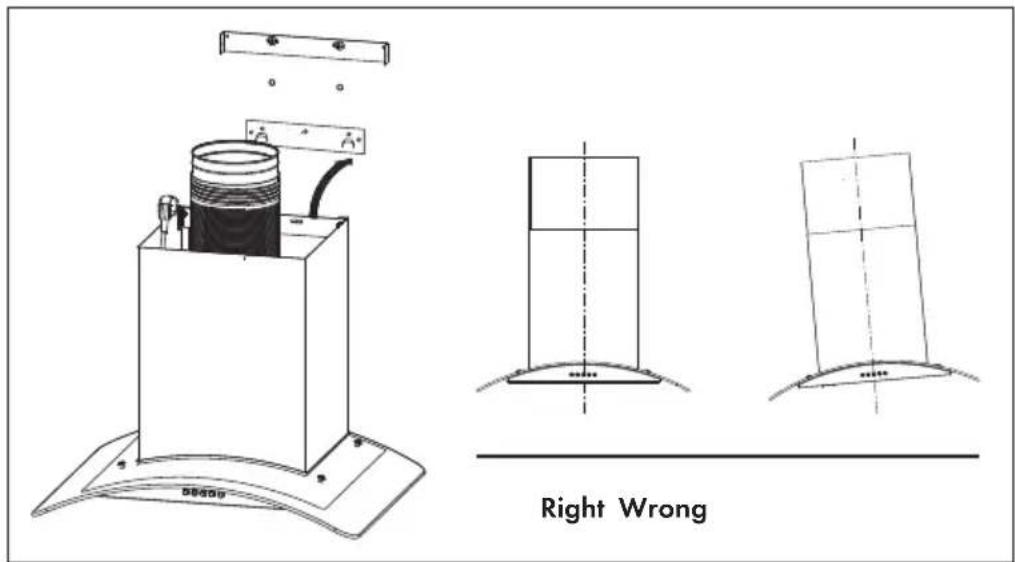

Hook the Hood Body

• Hook the hood body to the hood fixing bracket (20).
  • Level the hood body itself.

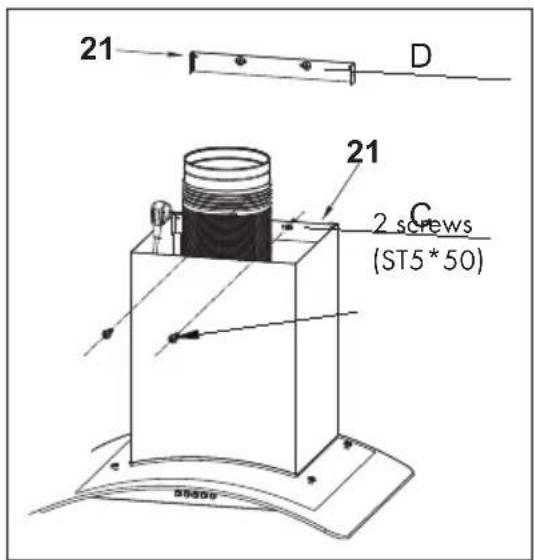

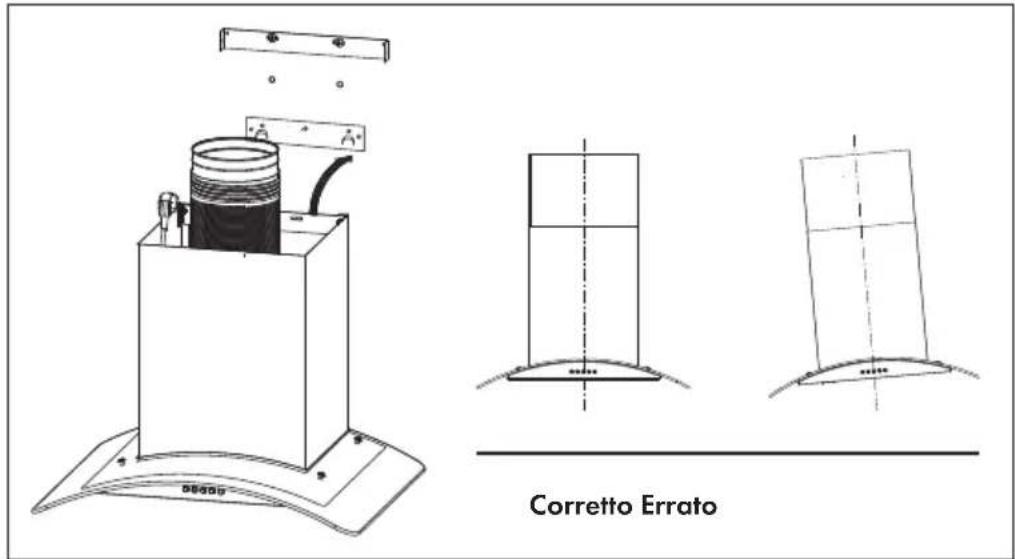

• Fix a chimney fixing bracket (21) with 2 screws (5 x 50) (10) at the horizontal line C to prevent the hood body from accidentally sliding off the hood fixing bracket.

21 D 21 C 2 screws (ST5*50)

Right Wrong

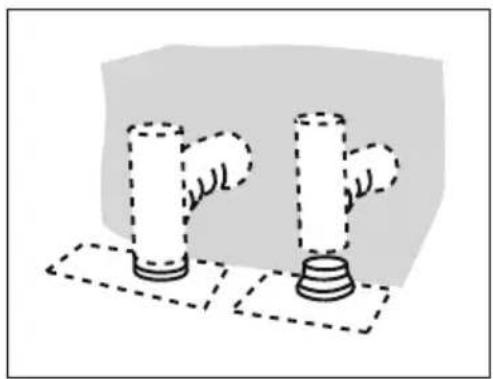

Connections to Ducted Version Air Exhaust System

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe with a diameter of 150 or 120 mm. The choice of which is left to the installer.

• If to install a 120 mm air exhaust connection, insert the reducer flange (3) on the hood body outlet.
• Fix the pipe (4) in position using sufficient pipe clamps (not supplied).
• Remove possible charcoal filters.

Simple line drawing of two cylindrical objects with handles, placed on a dashed base (no text or symbols)

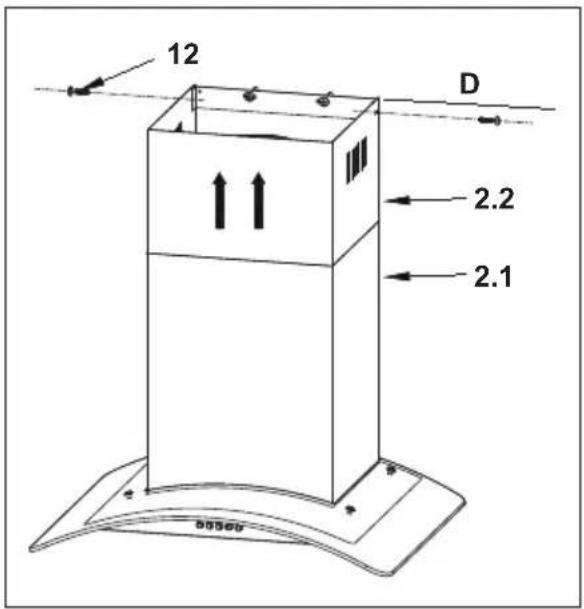

Fix Upper Decorative Chimney

• Insert the upper decorative chimney (2.2) into the lower decorative chimney (2.1) and drag it up to the horizontal line D.
• Connect the upper decorative chimney (2.2) and the chimney fixing bracket (21) with 2 screws (4.2 x 9.5) (12).

12 D 2.2 2.1 50560

OPERATION

Notes on Operation

• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
  • Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Attention: Accessible parts may become hot when used with cooking appliances.

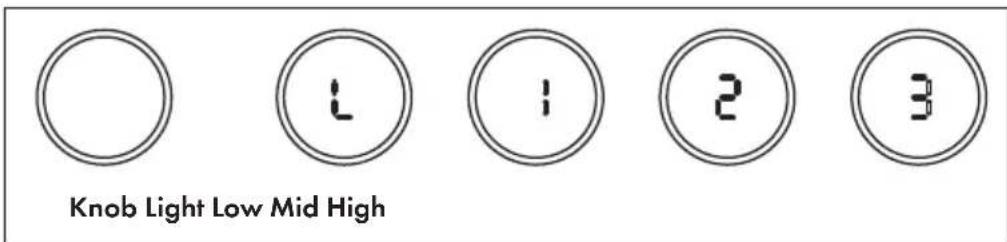

Control Panel and Functions

Knob Light Low Mid High 4 1 2 3

• Turn the knob clockwise to display "L": the two lighting lamps will come on.
• Turn the knob clockwise to display "1": the motor runs at low speed and the two lighting lamps are on.

• Turn the knob clockwise to display "2": the motor runs at mid speed and the two lighting lamps are on.

• Turn the knob clockwise to display "3": the motor runs at high speed and the two lighting lamps are on.

• Turn the knob counterclockwise until there is no display to shut down the unit.

CLEANING AND MAINTENANCE

• The cooker hood and its filter should be cleaned regularly according to the instruction.
• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the filters after the specified period (fire hazard).
• Clean the surfaces of the hood with a damp cloth and a neutral detergent.
• The appliance may be used in conjunction with a maximum of 4 hob elements at the same time.

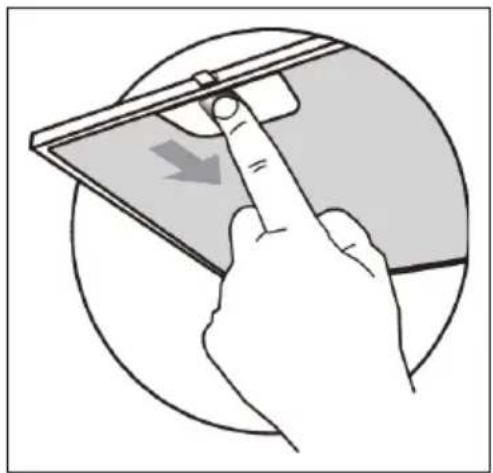

Grease Filters

The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

1. Pull the comfort panels to open them.
2. Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards.
3. Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The colour of the filter surface may change throughout the time but this has no influence to the filter efficiency).
4. When fitting the filters into the hood pay attention that they are mounted in correct position the handle facing outwards.

Illustration of a hand using a smartphone to interact with a screen, showing a finger pointing at the screen (no text or symbols present)

Activated Carbon Filter (Circulating Air Version)

• These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

FIX:

1. Put in
2. Push forward

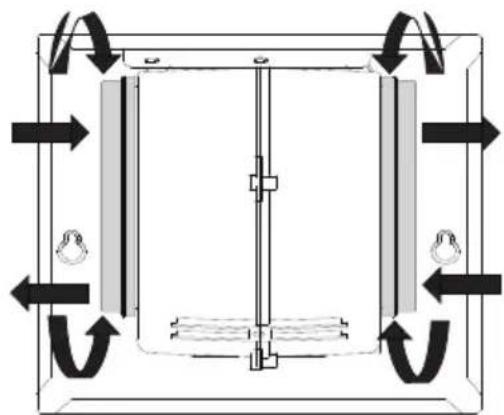

REMOVE:

1. Pull forward
2. Remove

Pure mechanical diagram showing a rectangular frame with internal components and directional arrows, no text or symbols present.

REMOVE:

1. Pull forward
2. Remove

FIX:

1. Put in
2. Push forward

Replacing the Activated Charcoal Filter

1. Remove the metal grease filters.
2. Remove the saturated activated charcoal filter.
3. Insert the new activated charcoal filters.
4. Replace the metal grease filters.

Replacing the Lamp

• You cannot replaced the light bulbs, the entire light module has to be replaced.
• When changing the light modules, the contacts are live.

• Before changing the light module(s), unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

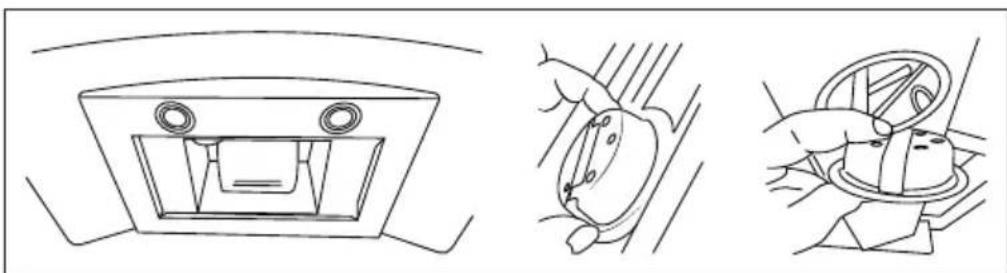

• Remove the grease filter and carefully remove the 4 screws from each side on the opening (a cross headed screwdriver will be needed to remove the screws).

Three technical line drawings showing car interior components: top-down view, side-view hand holding a steering wheel, and rear view with hands adjusting the wheel (no text or symbols)

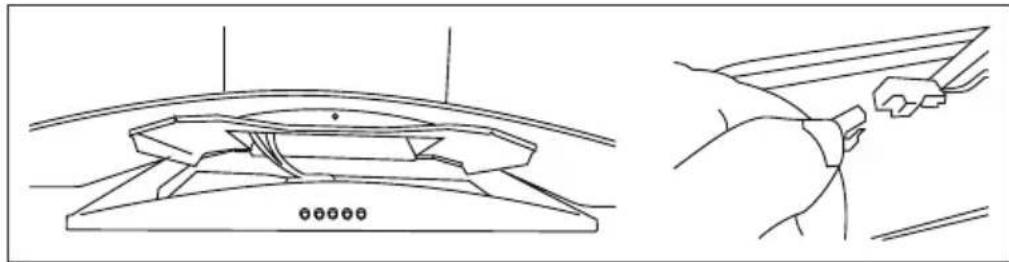

1. Lower the control panel at the front by carefully pulling it downwards. You can now access the light module and terminals. Replace the lamp (commercially available LED lamp, max. 1.5 W).

Technical line drawing showing a mechanical component with a base and a hand interacting with a handle (no text or symbols present)

∅ Max. Power(Watt)	Voltage(Volt)	Picture Lamp	Cap	ILCOS Dcode
70 mm 1,5 W DC 12 V --	DSR-			1.5-S-70

TROUBLESHOOTING

Problem Possible Cause	Possible Solution
Light on, but motor does not work	The blades are blocked. Check the blades.
	The capacitor is damaged. Replace the capacitor.
	The motor is damaged. Replace the motor.
	The internal wiring of the motor is cut off / disconnected. An unpleasant smell may be produced.	Replace the motor.
Both light and motor do not work	Apart from the above mentioned, check the following:
	The light is damaged.	Replace the light module.
	The power cord is loose.	Connect the wires according to the electric diagram.
Oil leaks.	The air outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal it with glue.
Problem Possible Cause Possible Solution
Vibration The blade, if damaged, can cause vibrating.		Replace the blades.
		The motor is not tightly fastened.
		The cooker hood is not tightly fixed.
Insufficient suction The distance between the cooker hood and the cooker top is too large.		Readjust the distance.
		Too much ventilation from open doors or windows.
The machine inclines. The fixing screws are not tight enough.		Tighten the fixing screws and align the cooker hood horizontally.
		The hanging screws are not tight enough.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

DÉCLARATION DE CONFORMITÉ

Fabricant :

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Allemagne.

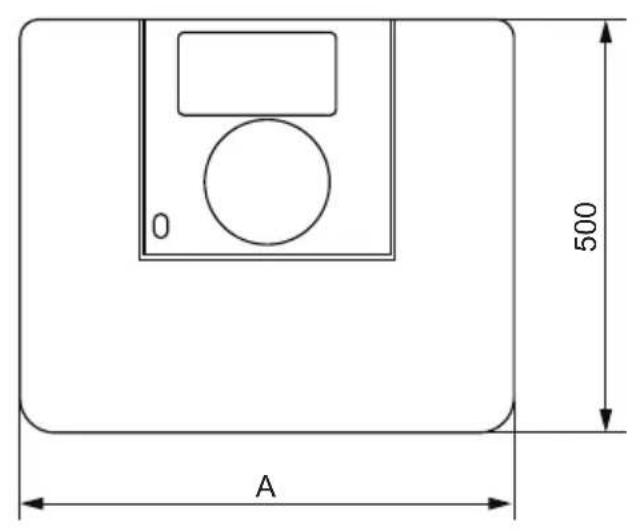

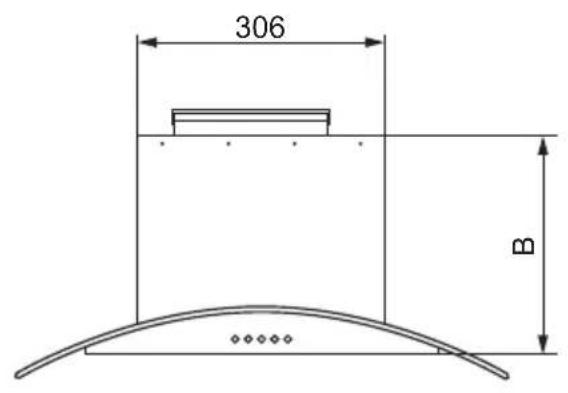

DIMENSIONS ET ESPACEMENT

0 500 A

306 B

289 C Min. 650mm Min. 650mm

A B C
600 266 293

289 306 500 A

Technical line drawing of a mechanical device with labeled component '12' (no text or symbols beyond label)

Correct Incorrect

Simple line drawing of two cylindrical objects with handles, placed on a dashed base (no text or symbols)

Fixation de la hotte aspirante

12 D 2.2 2.1 50mm

UTILISATION

Illustration of a hand using a smartphone to press a device into a circular frame (no text or symbols)

Three technical line drawings showing car interior components: top-down view, side view with hand holding a steering wheel, and rear view with hands adjusting the wheel (no text or symbols)

Technical line drawing showing a mechanical component with mounting base and hand grip (no text or symbols)

∅ Puissance max. (watts)	Tension (volts)	Illustration Culot ILCOS D	Code
70 mm 1,5 W DC 12 V --	DSR-		1.5-S-70

IDENTIFICATION ET RÉSOLUTION DES PROBLÈMES

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Technical line drawing of a mechanical device with labeled component '12' (no text or symbols beyond label)

Simple line drawing of two cylindrical objects with dashed outlines, placed on a base (no text or symbols)

Fijar la campana extractora

Illustration of a hand using a smartphone to interact with a device, showing a finger pointing at the screen (no text or symbols present)

Pure mechanical diagram showing a rectangular frame with internal components and directional arrows, no text or symbols present.

FIJAR:

Three technical line drawings showing car interior components: top-down view, side-view with hand holding a steering wheel, and rear view with hands adjusting the wheel (no text or symbols)

Technical line drawing showing a mechanical component with a base and a close-up of its handle (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

QR code image containing encoded data, no visible human-readable text

INDICE

Technical line drawing of a mechanical device with labeled component '12' (no text or symbols beyond label)

21 D 21 C 2 viti (ST5*50)

Corretto Errato

Simple line drawing of two cylindrical objects with dashed outlines, no text or symbols present

12 D 2.2 2.1 50mm

UTILIZZO

Note sull'utilizzo

Illustration of a hand using a smartphone to interact with a device, showing a finger pointing at the screen (no text or symbols present)

Pure mechanical diagram showing a rectangular frame with internal components and directional arrows, no text or symbols present.

RIMOZIONE:

Three technical line drawings showing mechanical components inside a vehicle (top, side, and side views), with no visible text or symbols.

Technical line drawing showing a mechanical component with a base and a hand holding a tool (no text or symbols present)

Symbol of a trash bin crossed with a diagonal line, no text or labels present
