CONTENT

Safety Instructions 18

Installation 20

Button Functions 23

Cleaning and Care 24

Troubleshooting 25

Product Data Sheet 26

Notes on Environmental Protection 28

Disposal Considerations 28

Manufacturer & Importer (UK) 28

TECHNICAL DATA

Item number 10033744, 10035287, 10035288
Power supply 220-240 V ~ 50/60 Hz
Note: You can purchase an activated carbon filter separately for this cooker hood under item number 10032843. Please visit our website: www.hifi-tower.co.uk

SAFETY INSTRUCTIONS

• Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
• The installation work must be carried out by a qualified electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.
• The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
  • Children under the age of 8 must not use the cooker hood.
• The appliance is not intended for commercial use, but only for household and similar environments.
• The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good working order.
  • Before cleaning, switch the power off at the main supply.
• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
  • Prohibit putting the cooker hood by fire.
• If the appliance does not function normally, contact the manufacturer or a specialist company.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.
• Do not flambé under the range hood. Accessible parts may become hot when used with cooking appliances.

Important hints on installation

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
  • Regulations concerning the discharge of air have to be fulfilled.

Important notes about the extraction mode

WARNING

Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open flue appliance when there is not adequate airflow guaranteed.

Open fl ue combustion equipment (for example, gas, oil, wood or coal-fi red heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms - without sufficient air intake this creates a vacuum. Toxic gases from the chimney or extraction fl ue can thereby be sucked back into the living spaces.

• Always ensure that a sufficient supply of fresh air is guaranteed and that the air can circulate.
• An air supply / extractor box alone does not ensure compliance with the limit value.

Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can flow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a qualified chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation.

If the hood is used exclusively in the recirculation mode, unrestricted operation is possible.

Important note on disassembly of the device

• Disassembly is similar to installation/assembly in reverse order.
  • Take a second person to help you during disassembly to avoid injuries.

INSTALLATION

Preparation

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminium, flexible pipe or inflammable material with an interior diameter of 150 mm)

• Before installation, turn the unit off and unplug it from the outlet.
• The cooker hood should be placed at a distance of 65-75 cm above the cooking plane for best effect.

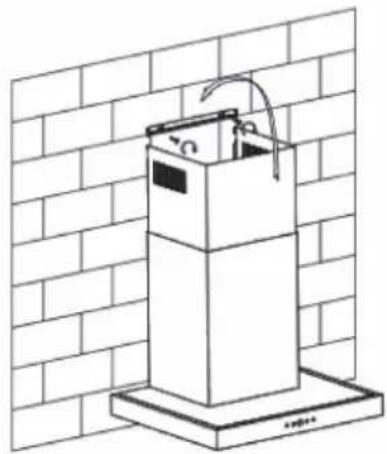

Diagram of airflow around a mechanical structure with directional arrows indicating movement (no text or symbols)

Installation (Vent outside)

Note: When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must be not exceed 4 Pa ( 4 × 10^-5 Bar).

1

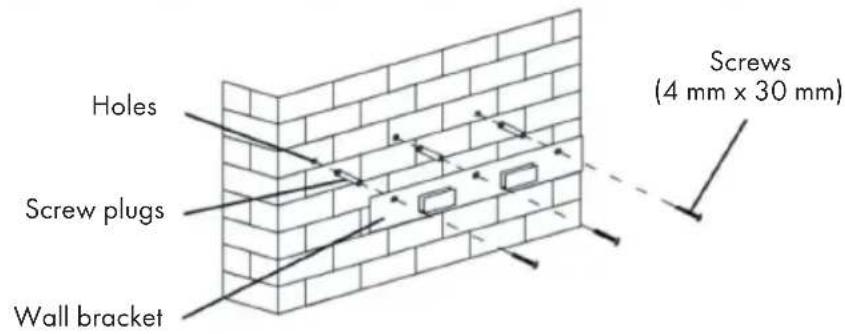

Holes Screw plugs Wall bracket Screws (4 mm x 30 mm)

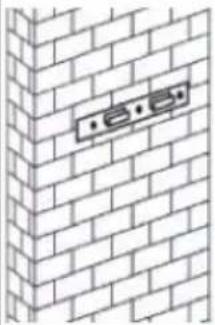

Drill 3 x 8 mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws & screw plugs provided.

3		4
Leave up the cooker hood and hang onto the wall bracket hook.		Fix the one-way-valve to the air outlet of the cooker hood. Then, attached the exhaust pipe onto the one-way-valve.

Chimney installation

Put the upper chimney into lower chimney. Then pulling out the upper chimney upwards. Adjust to reach the height required. Measure the appropriate height and dill 2×8 mm holes to accommodate the plate. Screw and tighten the upper wall with 2 screws provided.

Simple line drawing of a brick wall with a pedestal and a small object inside (no text or symbols)

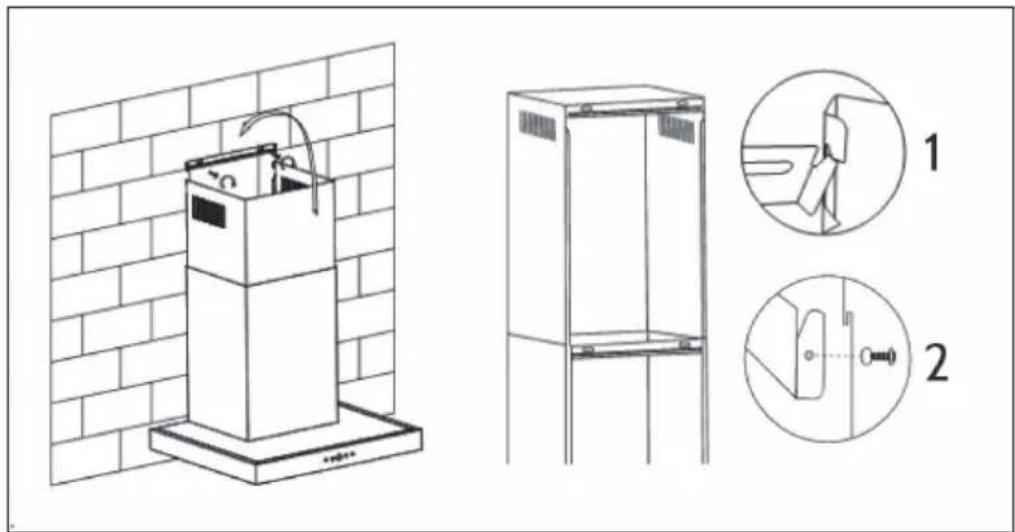

There are 2 methods for installation the chimney cover (see below pic for reference).

Technical diagram showing a cabinet with mechanical components and two labeled diagrams (1 and 2) illustrating different parts of the cabinet.

1 After drilled the 2 holes and fixed the hook, hang the chimney cover by matching the both side lock (Pic 1).

2 After drilled the 2 holes and fixed the hook, install the chimney cover by locking with 2 screws in both side holes (Pic 2).

Installation (Vent inside)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section "Installation (Vent outside)".

Installing the Carbon Filter

Note: An activated carbon filter (item number 10032843) is not included. But you can buy it as an extractor hood.

1	2
Activated carbon filter can be used to trap odours.	In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.
3

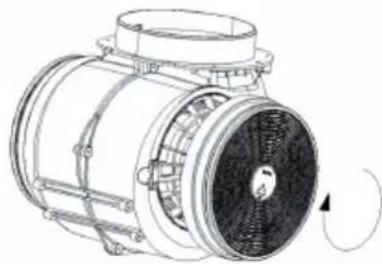

	Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous. When activated carbon filter attached, the suction power will be lower.

BUTTON FUNCTIONS

	Press this button to switch the unit and motor on and off.
	When the power is on, hold down the Timer button to set the current time. Press the light button to adjust the hours. Press and hold the light button to quickly adjust the hours. Press the fan button to adjust the minute. Press and hold the Fan button to quickly adjust the minutes. If the time is set correctly, press the Timer button to confirm or wait 10 seconds for the time to be set automatically.
	With the fan shaded, press the Timer button to set the off timer (1-60 minutes). When you have set the timer, wait 10 seconds. The set time is then automatically accepted and the timer counts the time down. As soon as the set time has elapsed, the unit automatically switches to standby mode.
	When the unit is switched on, briefly press the light button to switch the light on and off.
	When the light is on, briefly press the fan button to start the motor at high speed. Press the button several times to set the speed in the following order: High > Medium > Low > Off > High...

CLEANING AND CARE

Monthly Cleaning for Grease Filter

Clean the filter every month can prevent any risk of fire. The filter collects grease, smoke and dust, so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

Annual Cleaning for Activated Filter

Apply solely to unit that installed as a recirculation unit (not vented to the outside). This filter traps odours and must be replaced at least once a year depending on how frequent the cooker hood used.

Lamp Replacement

1. Switch off the device and pull the plug.
2. Remove the lamp cover by loosening the 2 screws.
3. Loosen the lamp.
   4 Replace the lamp with a lamp of the same type.

TROUBLESHOOTING

Fault Cause Solution
Light on, but fan does not work	The fan blade is jammed. Switch of the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Light bulb burn. Replace the bulb with correct rating.
	Power cord looses. Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged. Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75 cm

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number	10033744, 10035287, 10035288
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	41,8 kWh/Year
Energy Efficiency class A
Fluid Dynamic Efficiency FDE	hood	28,3
Fluid Dynamic Efficiency class A
Lighting Efficiency LE	hood	53,2 Lux/W
Lighting Efficiency class		A
Grease Filtering Efficiency	GFBhood	83,4 %
Grease Filtering Efficiency class		C
air flow at minimum and maximum speed in normal use, intensive or boost excluded		374,0 / 574,3	m^3/h
air flow at intensive or boost setting		-	m^3/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		59 / 71	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
power consumption in off mode	Po	-	W
power consumption in standby mode	Ps	0,34	W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20

11+A11:2014+A12:2015

Item number	10033744, 10035287, 10035288
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	41,8 kWh/Year
Time increase factor f 1,0
Fluid Dynamic Efficiency FDE	hood	28,3
Energy Efficiency Index EEI	hood	53,7
Measured air flow rate at best efficiency point	Q_BEP	300,9 m^3/h
Measured air pressure at best efficiency point	PBEP	375	Pa
Maximum air flow Q	max	574,3	m^3/h
Measured electric power input at best efficiency point	WBEP	110,8	W
Nominal power of the lighting system	W_L	3	W
Average illumination of the lighting system on the cooking surface	Emiddle	160	Lux
Measured power consumption in standby mode	P_o	0,34	W
Measured power consumption off mode	P_s	-	W
Sound power level	L_WA	71	dB
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

NOTES ON ENVIRONMENTAL PROTECTION

• During cooking, make sure that there is sufficient air supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
• If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
  • Always put the lid on when cooking to reduce cooking steam and condensation.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or numbers present)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom
