FTKG 29 C1 - Grill FLORABEST - Free user manual and instructions

Product Type	Charcoal Kettle Grill
Brand	Florabest
Model	FTKG 29 C1
Overall Dimensions (Approx.)	47 cm diameter x 30 cm height
Weight	6.5 kg
Fuel Type	Charcoal
Primary Material	Steel with heat-resistant paint
Cooking Grate Material	Chrome-plated steel
Diameter of Cooking Grate	42 cm
Number of Cooking Levels	1 (height adjustable via chain)
Air Control	Bottom air vent for temperature regulation
Ash Catcher	Removable steel ash pan for easy cleaning
Thermometer	Built-in lid thermometer
Handles	Heat-resistant handles on lid and bowl
Legs	3 steel legs with cross brace for stability
Wheels	2 fixed wheels for portability
Assembly Required	Yes, simple assembly with included tools
Cleaning	Wipe grate with brush after use; empty ash catcher regularly
Safety Features	Stable base, heat-resistant handles, air vent control
Repairability	Spare parts available (grate, handles, ash pan) via manufacturer
Warranty	2 years

Frequently Asked Questions - FTKG 29 C1 FLORABEST

How do I assemble the Florabest FTKG 29 C1 grill?

Can I use this grill on a balcony?

What type of charcoal should I use?

How do I control the temperature?

How long does it take to preheat?

Is the cooking grate dishwasher safe?

How do I clean the ash catcher?

Can I replace the handles if they get damaged?

What is the maximum load on the cooking grate?

How do I store the grill during winter?

USER MANUAL FTKG 29 C1 FLORABEST

BARBACOA REDONDA DE SOBREMESA BARBECUE SFERICO DA TAVOLO FTKG 29 C1

ES

BARBACOA REDONDA DE SOBREMESA

Operating instructions

IT MT

BARBECUE SFERICO DA TAVOLO

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/MT Operating instructions Page 25

Índice

Introducción....2

Paso 2

Paso 3

Paso 4

Paso 5

ES

Puesta en servicio

INDICACIÓN

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

ES

Indice

Introduzione....14

Fase 2

Fase 3

◆ Fissare le chiusure a leva ^8 e gli angoli ^9 al braciere ^7 tramite viti M3x10 ^D e dadi M3 ^J .

Fase 4

Fase 5

Messa in funzione

AVVERTENZA

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

IT MT

Table of contents

Introduction 26

Information about these operating instructions 26

Copyright 26

Intended use 26

Safety....27

Basic safety instructions 27

Scope of delivery / part names 28

Assembly material 28

Assembly 29

Preparing for assembly 29

Required Tools 29

Using the device....32

Cleaning and care 33

Disposal 33

Appendix 34

Technical details. 34

Warranty 34

Service 35

Importer 35

Introduction

Information about these operating instructions

Congratulations!

With your purchase you have decided in favour of a high quality product.

Familiarise yourself with the product before installation and before taking it into use for the first time. In this regard, please read the following assembly instructions and safety notices with care. Use this appliance only as described and only for the specified areas of application. Retain these instructions for future reference.

Please also, pass these documents onto any future owner(s) of the product.

Copyright

This documentation is subject to copyright protection.

Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Intended use

This round barbecue is intended exclusively for the preparation of grilled foods. It is suitable only for use outdoors. This round barbecue is intended for use only in domestic environments, not for commercial applications.

No liability will be assumed for damage caused by misuse or improper handling, the use of force or unauthorised modification.

Claims of any kind for damage resulting from unintended use, incompetent repairs, unauthorised modification or the use of unauthorised spare parts will not be accepted.

The user is the sole bearer of the risk.

Safety

This section provides you with important safety information about handling the device.

The device complies with the statutory safety regulations.

Incorrect usage can lead to personal injury and property damage.

Basic safety instructions

WARNING

Risk of burns

1. Place the round barbecue on a secure, level and firm surface during use, otherwise it could tip over.
2. CAUTION! Do not use spirit or petrol to ignite or reignite the grill! Use only ignition aids that comply with EN 1860-3. The deflagration could cause an uncontrollable development of heat.
3. ATTENTION! During use, the round barbecue will become very hot and may not be moved, otherwise it could tip over.
4. ATTENTION! Keep children and pets well away from it!
5. When grilling, wear appropriate grilling gloves and use grilling tongs.
6. Never leave the round barbecue unsupervised when hot.
7. Allow the round barbecue to cool down completely before cleaning it.
8. Never use water to extinguish the glowing charcoal.

WARNING

Risk of suffocation!

▶ CAUTION! Danger of carbon monoxide poisoning. Never operate the grill in an enclosed space, but only outdoors!

Scope of delivery / part names

1 x handle for hood
② 3 x ventilation plates
③ 1 x hood
4 1 x cooking grill
5 1 x handle for cooking grill
6 1 x charcoal bowl
⑦ 1 x firebowl
8 3 x bracket closures
9 3 x brackets
10 3 x support legs

This operating manual

Assembly material

NOTE

▶ Check the contents for completeness and for signs of visible damage.
▶ If the contents are not complete, or are damaged due to defective packaging or through transportation, contact the Service Hotline (see chapter Service).

Assembly

Preparing for assembly

Allow yourself plenty of time to assemble the round barbecue. Find a level work surface about one to two square metres in size. Remove all individual items from the packaging and place them where they are conveniently handy.

Required Tools

Phillips head screwdriver

Open-ended spanners width across flats 5,5 mm, width across flats 8 mm

WARNING

▶ To avoid possible injury, the screw heads should always face outwards.

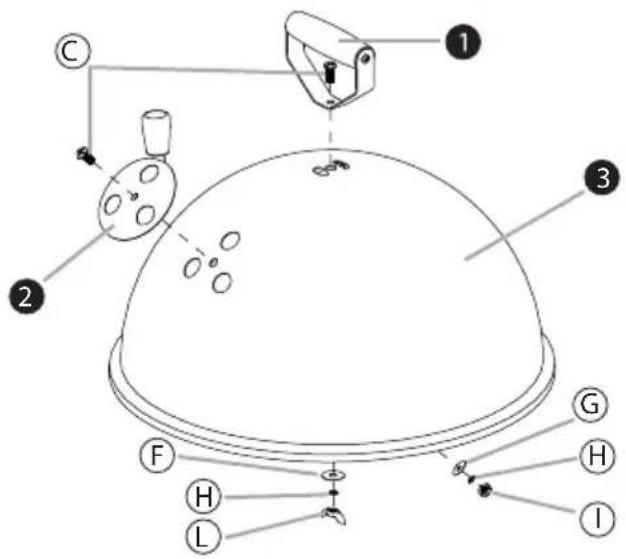

Step 1

♦ Screw the handle 1 to the hood 3 using bolt M5 x 10 Ⓒ, washers ∅6 x 16 Ⓕ, spring ring ∅5 Ⓗ and wing nut M5 Ⓛ.
Secure the air vent ^2 to the hood ^3 using bolt M5 x 10 ©, washer ∅6 x 12 ©, spring washer ∅5 Ⓗ and nut M5 ⏱.

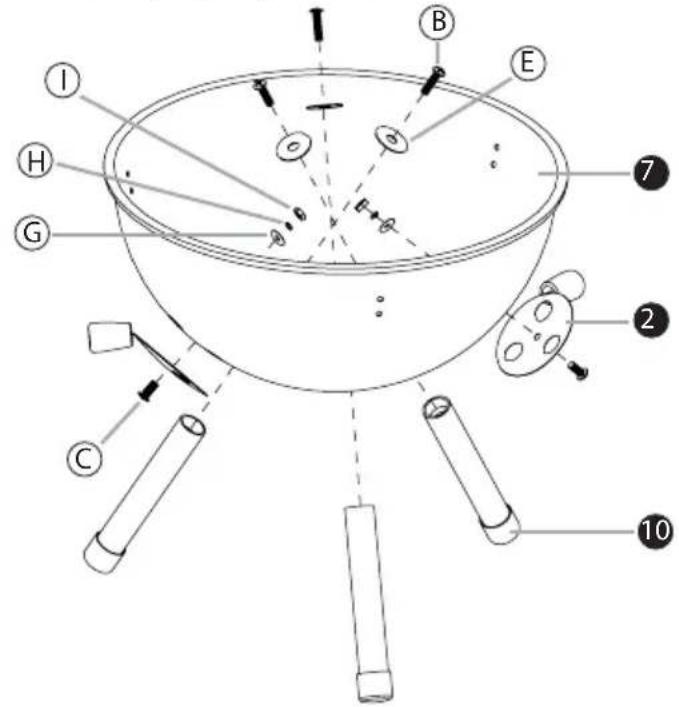

Step 2

♦ Screw the support legs 10 to the firebowl 7 using bolts M6 x 30 B and washers ∅6 x 25 E.
◆ Secure the ventilation plates ② to the firebowl ⑦ using screws M5 x 10 Ⓒ, washers ∅6 x 12 Ⓖ, spring rings ∅5 Ⓗ and nuts M5 Ⓘ.

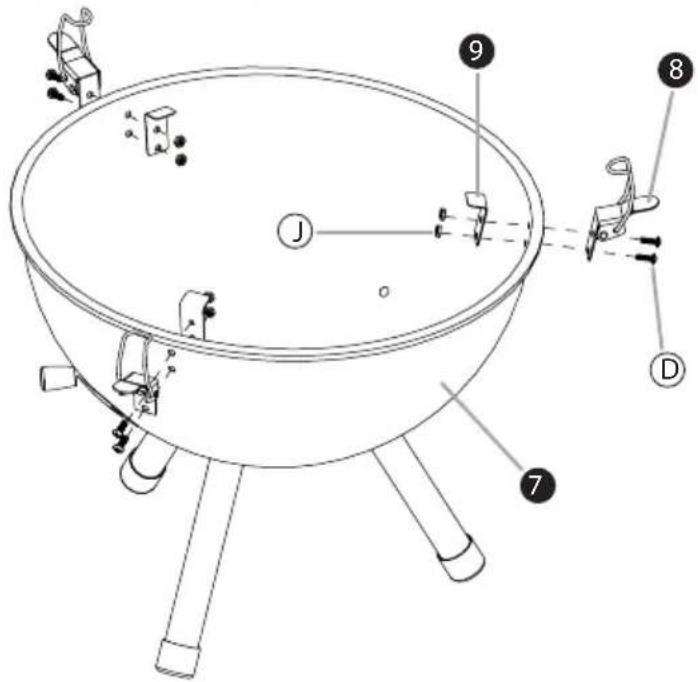

Step 3

◆ Secure the bracket closures ⑧ and the brackets ⑨ to the firebowl ⑦ using bolts M3x10 ⑭ and nuts M3 ⑮.

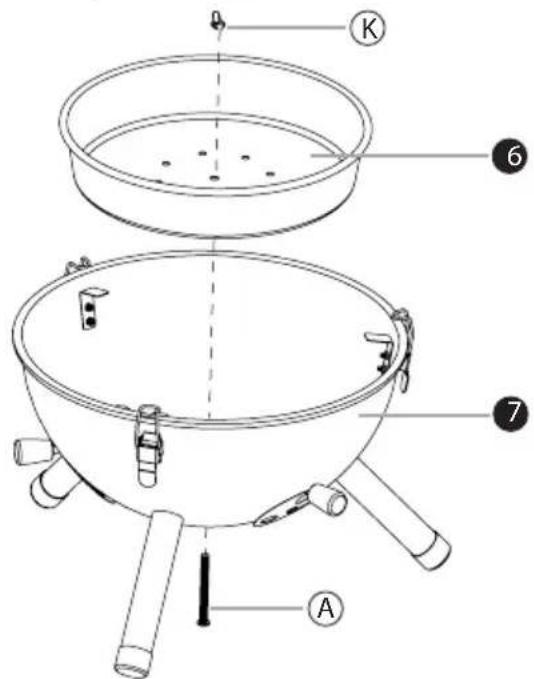

Step 4

Place the charcoal bowl 6 into the firebowl 7 and screw in place using bolt M6 x 60 A and wing nut M6 K.

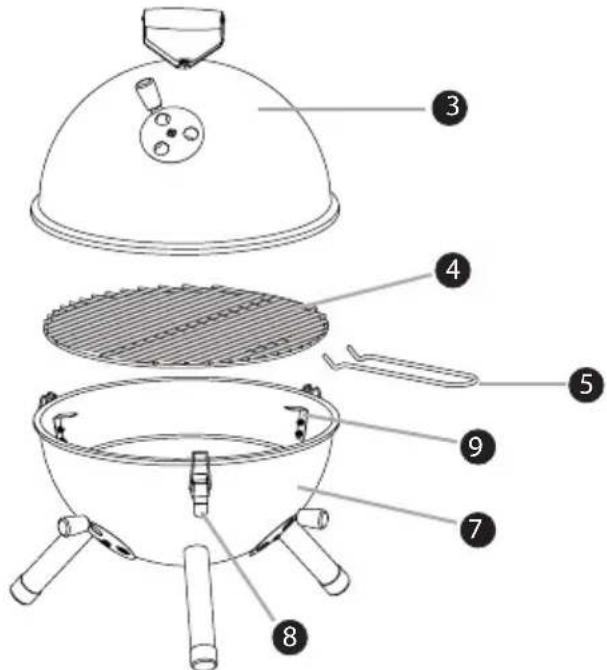

Step 5

- Attach the handle 5 to the cooking grill 4 and place it onto the brackets 9. You can now remove the handle 5 from the cooking grill 4 again, so that it does not interfere when you are barbecuing.

If you would like to transport the round barbecue, place the hood ③ onto the firebowl ⑦ and secure it with the bracket closures ⑧.

Using the device

NOTE

▶ Before initial use, the round barbecue must be warmed up for at least 30 minutes.

WARNING

Warning about burns!

• Place the round barbecue on a secure, level and firm surface during use, otherwise it could tip over.
  ▶ CAUTION! Do not use spirit or petrol to ignite or reignite the grill! Use only ignition aids that comply with EN 1860-3. The deflagration could cause an uncontrollable development of heat.

■ Layer a portion of the charcoal into the charcoalbow ^6 .
Place one or two solid firelighters on the existing layer of charcoal and ignite the solid firelighters with a match or lighter.
- Allow the firelighters to burn for 2 to 4 minutes. Then slowly fill the charcoal-bowl ⑥ with charcoal.
■ After about 20 minutes the charcoal will display a white coating of ash. The optimal burning temperature has now been reached.

■ Use a suitable metal tool to distribute the charcoal evenly in the charcoal-bowl 6.

■ Hook in the ^4 cooking grill and start barbecuing.

If you are barbecuing using the hood ^3 , ensure that the ventilation plates ^2 on the firebowl ^7 and the hood ^3 are open in order to provide a supply of oxygen.

Cleaning and care

WARNING

Risk of burning

▶ Allow the round barbecue to cool down completely before cleaning it or putting it into storage. NEVER use water to extinguish the glowing charcoal.

CAUTION

▶ Do not use abrasive or aggressive cleaning agents, they can damage the enamelled components.

For normal cleaning, use a cloth and water with normal detergent.

Clean the cooking grill with detergent and a household sponge.

Disposal

Dispose of flammable materials carefully and in an environmentally friendly manner. Only dispose of residual waste in containers made of metal and intended for this purpose or made of non-flammable materials.

Dispose of the round barbecue via an approved waste management centre or at your community waste facility. Observe the currently applicable regulations. Please contact your waste management centre should you be in any doubt.

Dispose of all packaging materials in an environmentally friendly manner.

Appendix

Technical details

Dimensions (assembled): approx. 42 x 31 x 31 cm

Cooking grill approx. ∅ 29 cm

Weight 2.3 kg approx.

Fuel Charcoal

Charcoalbowl capacity max. 400 g

Warranty

The warranty provided for this device is 3 years from the date of purchase. This device has been manufactured with care and inspected meticulously prior to delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact Customer Service by telephone. This is the only way to guarantee free dispatch of your goods.

NOTE

The warranty only covers claims for material and manufacturing defects, not for transport damage, parts subject to wear and tear or damage to fragile components such as switches.
The warranty does not cover colour changes and the formation of corrosion and surface rust due to the effects of the weather or the improper use of chemicals.

This device is intended solely for private use and not for commercial purposes. The warranty is deemed void if this product has been subjected to improper or inappropriate handling, abuse or modifications not carried out by one of our authorised service centres. Your statutory rights are not restricted in any way by this warranty.

The warranty period is not prolonged by repairs made under the warranty. This also applies to replaced and repaired parts. Damage and defects present at the time of purchase must be reported immediately after unpacking, or no later than two days after the date of purchase. Repairs made after expiry of the warranty period are chargeable.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 103982

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail]

IAN 103982

Hotline availability: Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
