Product type	Charcoal barbecue with active ventilation
Brand	Florabest
Model	FLG 40 A1
Dimensions (without legs)	40.0 × 40.0 × 29.5 cm (W × D × H)
Dimensions (with legs)	40.0 × 40.0 × 89.0 cm
Weight	Approximately 8.3 kg
Power supply	4 AA 1.5 V batteries (non-rechargeable)
Grill grate material	Stainless steel
Grill grate diameter	343 mm
Ventilation	Continuous fan speed adjustment
Features	Operating indicator, removable leg, fire starter cup
Protection rating	IPX4
Certification	TÜV SÜD
Maintenance	Grill grate and collection tray dishwasher safe (max 60 °C)
Safety	Safety instructions, outdoor use only
Warranty	3 years
Use	Outdoor, private (non-commercial)

Frequently Asked Questions - FLG 40 A1 FLORABEST

How to light the barbecue?

Place the charcoal container with about 0.5 kg of charcoal. Apply fire starter gel in the cup. Light the gel with a match, then turn the control knob to MAX position to activate the fan. Replace the charcoal container and grill grate.

How many batteries are needed and what type?

The barbecue requires 4 AA 1.5 V alkaline batteries. Rechargeable batteries are not compatible.

Can the barbecue be used indoors?

No, the barbecue must only be used outdoors due to the risk of carbon monoxide poisoning. Do not use in an enclosed space.

How to clean the grill grate and collection tray?

Allow the barbecue to cool completely. Remove the grill grate and collection tray. They can be washed in the dishwasher at max 60 °C or by hand with dish soap. The housing and leg can be cleaned with a damp cloth.

What to do if the fan does not start?

Check that the batteries are inserted correctly (observe polarity) and that they are not worn out. Replace the batteries if necessary. Ensure the control knob is turned to MAX position.

How to add charcoal during use?

Turn off the fan (OFF position), remove food and grill grate using heat-resistant gloves. Add new charcoal to the container, then replace the lid and grill grate. Reactivate the fan to MAX position.

What safety precautions are important?

Never use indoors. Keep a distance of at least 100 cm from any flammable material. Wear heat-resistant gloves. Do not move the barbecue during use. Do not use alcohol or gasoline to light the fire.

Can the barbecue be used on a table?

Yes, it can be placed directly on a dining table, provided the surface is stable and heat-resistant. It is also possible to use the supplied leg to place it next to the table.

What is the warranty period?

The warranty is 3 years from the date of purchase. It covers material and manufacturing defects. Keep the receipt as proof.

How to store the barbecue after use?

Allow it to cool completely, clean it, remove the batteries if not used for a long time. Unscrew the leg, fold its branches, and store everything in a dry and dust-free place.

USER MANUAL FLG 40 A1 FLORABEST

Illustration of a FLG 40 A1 air conditioner unit with tripod base and open lid, no text or symbols on the device itself.

HOLZKOHLEN-STANDGRILL MIT AKTIVBELÜFTUNG CHARCOAL BARBECUE WITH ACTIVE VENTILATION BARBECUE À CHARBON DE BOIS AVEC VENTILATION ACTIVE

TARGA GMBH

Coelarweg 45 DE59424 Scent

GEIMANY

(四) 民币种

Operating instructions and safety instructions

NL BE

Deutsch......2

English 25

Français....47

Nederlands 75

Češtna 99

Español....121

Português....145

V 1.2

Inhalt

WARNUNG!

3D rendering of a black industrial enclosure with ventilation grilles and a mesh roof (no text or symbols visible)

Simple black tripod stand with three legs (no text or symbols)

Standfuß

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

Diagram of a mechanical device with three blades and a rotating shaft, mounted on a base (no text or symbols)

7.3 Bedienung

Line drawing of a plastic crate with cutouts and internal compartments (no text or symbols)

Line drawing of a hand pouring liquid into a square container with a curved tube (no text or symbols)

Line drawing of a hand using a tool to adjust or install a circular device (no text or symbols present)

Illustration of a hand operating a portable radio with a fan inside, showing no text or symbols.

Diagram of a portable air conditioner unit with airflow direction and internal components, shown in two views (no text or labels)

1. Intended use.... 26
2. Package contents ...... 27
3. Controls and displays 28
4. Technical specifications 28
5. Safety instructions 29
6. Before you start.... 36
7. Getting started 36

7.1 Inserting the batteries....36

7.2 Fitting the stand (optional) 37

7.3 Usage....37

7.4 Tips for good grilling results....40

7.5 Topping up the charcoal....41

1. Maintenance/cleaning 42

8.1 Storing the charcoal barbecue....43

1. Troubleshooting 43
2. Environmental regulations and disposal information.... 43
3. Conformity 44
4. Warranty Information 45

Congratulations!

By purchasing the charcoal barbecue with active ventilation FLORABEST FLG 40 A1 you have opted for a quality product.

Before first using it, familiarise yourself with the way the charcoal barbecue works and read these operating instructions through carefully. Be careful to follow the safety instructions and only use the charcoal barbecue as described in the operating instructions and for the applications given.

Keep these operating instructions in a safe place. If you pass the charcoal barbecue on to someone else, make sure to give them all the relevant documents with it.

1. Intended use

The charcoal barbecue with active ventilation FLORABEST FLG 40 A1 can be used for grilling (e.g. meat, fish, vegetable, sausages, chicken, etc.). It can be set on or up next to the dining table.

This charcoal barbecue is not intended for commercial use. This charcoal barbecue is intended for outdoor use. Always make sure the charcoal barbecue is on a stable surface.

The appliance fulfils all relevant norms and standards relating to CE conformity. Any modifications to the appliance other than recommended changes by the manufacturer may result in these standards no longer being met.

WARNING!

Do not operate the device in sealed and/or residential areas, e.g. buildings, tents, camper vans, caravans, boats. This could lead to carbon monoxide poisoning, which is potentially fatal.

WARNING!

This barbecue will become very hot, do not move it during operation!

WARNING!

Do not use spirit or petrol for lighting or relighting! Use only firelighters complying with EN 1860-3!

WARNING!

Keep children and pets away!

Do not use indoors!

Predictable misuse

Do not use the charcoal barbecue in closed rooms.

Do not use the charcoal barbecue as heater.

Risk of burns!

Do not place other items (e.g. cutlery, utensils, pan lids, etc.) on the charcoal barbecue. These can become very hot and cause burns.

2. Package contents

3D rendering of a black industrial enclosure with ventilation slots and a mesh roof (no text or symbols visible)

Charcoal barbecue with active ventilation FLORABEST FLG 40 A1

Simple black tripod stand with three legs and a central hub (no text or symbols)

Stand

4 AA batteries, 1.5 V These operating instructions (no image)

3. Controls and displays

These operating instructions have a fold-out cover. On the inside of the cover, the charcoal barbecue is shown with figures indicated. The meanings of the numbers are as follows:

1 Stainless steel grate
2 Bracket for securing the stainless steel grate
3 Cover for charcoal container
4 Charcoal container
5 Tray for fire gel
6 Grease collection tray/reflector
7 Latch
8 Housing
9 Control dial with fan indicator (lights up, while fan is powered on)
10 Battery compartment (on the underside of the housing)
11 Stand

4. Technical specifications

Manufacturer: TARGA GmbH

Model name: FLORABEST FLG 40 A1

Operating voltage: 6 V DC (4 x 1.5 V AA batteries, 2,000 mAh)

Operation: Continuous control dial for fan speed, engages in the "Off" position

Operation lamp if fan is powered on

Dimensions: Barbecue: 40.0 x 40.0 x 29.5 cm (W x D x H)

Barbecue with stand: 40.0 × 40.0 × 89 cm (W x D x H)

Weight: approx. 8.3 kg

IP degree of protection: IPX4

TÜV SÜD: Tested safety

5. Safety instructions

Before you use this device for the first time, please read the following notes in this manual and heed all warnings, even if you are familiar with handling electronic devices and charcoal barbecues. Keep these operating instructions in a safe place for future reference. If you sell the appliance or give it away, pass on the operating instructions at the same time. It forms part of the product.

Explanation of symbols

In this user manual, warnings are used as follows.

Risk of burns!

This symbol warns of hot surfaces.

WARNING!

This symbol denotes important information for the safe operation of the product and user safety. It warns against risks which could, if left unheeded, cause danger to life and limb, injuries or material damage.

Risk of fire!

This symbol warns that fires could start if the warning is left unheeded.

This symbol means that the stainless steel grate (1) and the grease collection tray/reflector (6) are dishwasher-safe to a maximum of 60 °C .

This symbol denotes further information on the topic.

Children and persons with disabilities

This appliance may be used by children over the age of 8 and by persons with reduced physical, sensory, or intellectual abilities or with limited experience or knowledge, if under supervision or if they have been instructed in the safe use of the device and have understood the resulting dangers. Do not allow children to play with the appliance. Children may clean and perform maintenance on the appliance only under supervision.

Children under the age of 8 must be kept away from the appliance.

Risk of suffocation!

Packaging material is not a toy. Do not allow children to play with plastic bags. There is a risk of suffocation.

Batteries and small parts represent potential choking hazards. Keep the batteries in a safe place. If a battery is swallowed, seek medical help immediately.

Keep the appliance out of the reach of children.

General safety instructions

Risk of burns!

• Do not place other items (e.g. cutlery, utensils, pan lids, etc.) on the stainless steel grate (1). These can become very hot and cause burns.
• Do not touch the stainless steel grate (1), the grease collection tray/reflector (6) or the charcoal container (4) during operation.

Hold and carry the device only from the outside or the bottom on the housing (8).

• Transport or move the appliance only after it has completely cooled down. Hold and carry the device only from the outside or the bottom on the housing (8).
• Clean the appliance only after it has completely cooled down.
• When grilling, always wear heat-resistant gloves in accordance with the PPE Ordinance (category II for heat protection, DIN-EN 407).
• You should always wear barbecue gloves when preparing meals, adding charcoal or handling the stainless steel grate (1). Use barbecue cutlery with long, heat-resistant handles.

Risk of fire!

- Only use the charcoal barbecue outdoors. Do not ever use it in closed rooms.

• Do not use the charcoal barbecue as heater.
• Do not place the charcoal barbecue on or near textile surfaces such as tablecloths.
• Never place the charcoal barbecue under or directly next to flammable items such as curtains or drapes.
• Maintain a clearance of at least 100 cm around the appliance to flammable and combustible materials.
• Do not use the charcoal barbecue in potentially explosive atmospheres or at locations with flammable materials. These include fuel storage areas such as below deck on a boat, fuel line or tank areas, as well as areas in which the air contain chemicals or particles, e.g. cereal, dust, or metal powder, and all other environments in which you are normally instructed to switch off your fuel engine.

- If the fat ignites during cooking and flames appear, turn the control dial (9) counterclockwise to the “OFF” position and take the meat from which the fat is dripping off the stainless steel grate (1). Once the flames have disappeared, you can increase the fan speed again using the control dial (9) and place the food back onto the grate. Do not extinguish the flames with water.

Warning about property damage

• Never place any objects on the stainless steel grate (1).
• Place the charcoal barbecue on an even, sturdy and fireproof surface protected against spray water.
• Do not expose the charcoal barbecue to extremely high or low temperatures.

Batteries

- Insert the batteries with the correct polarity.

Refer to the diagram inside the battery compartment. Do not attempt to recharge the batteries and do not dispose of the batteries in a fire. Do not mix battery types (old and new or carbon and alkaline, etc.). Remove the batteries when the device is not to be used for an extended period. Improper use may cause explosions and danger to life.

- Batteries must never be opened or deformed, as this could result in chemicals leaking out which could cause injuries. If the battery fluid becomes in contact with the skin or eyes, rinse immediately with plenty of water and seek medical aid.

- Remove the batteries when the charcoal barbecue is not to be used for an extended period.

6. Before you start

Unpack the appliance. First check whether all the parts are complete and undamaged (see "Package contents" on page 27). If any items are missing or damaged, please phone our hotline (see "Warranty information" on page 45). Keep the packaging material away from children and dispose of appropriately.

7. Getting started

You can place the charcoal barbecue directly on the dining table to prepare food there or use the stand supplied to position the charcoal barbecue next to the table.

Risk of fire!

• Do not place the charcoal barbecue on or near textile surfaces such as a tablecloth.
- Never place the charcoal barbecue under or directly next to flammable items such as curtains or drapes.
- Maintain a clearance of at least 100 cm around the appliance to flammable and combustible materials.

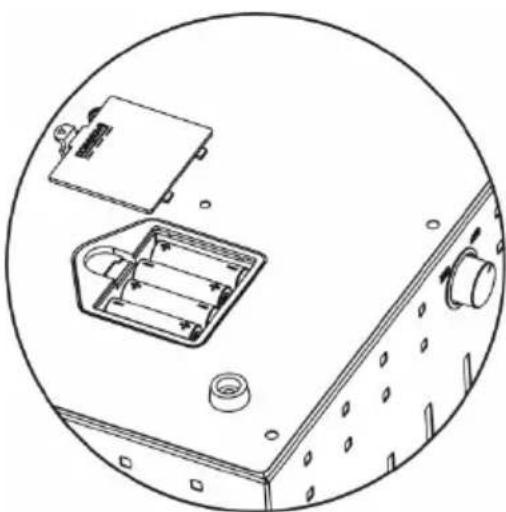

7.1 Inserting the batteries

Rechargeable batteries are not suitable for this charcoal barbecue. Use conventional alkaline batteries only.

The battery compartment (10) is located on the underside of the housing (8).

1. Turn the charcoal barbecue upside down and carefully place it on a sturdy and even surface.
2. Open the battery compartment cover (10). To do this, slide your finger or fingernail under the latch of the battery compartment cover and pull it gently in the direction of the arrow (▷).
3. Insert four AA batteries into the battery compartment (10). Always pay attention to the polarity.
4. Close the battery compartment cover (10). Make sure that the latch engages again so that the cover cannot open and the batteries fall out accidentally.

Technical line drawing of a mechanical device interior with no visible text or symbols

1. Place the charcoal barbecue upright again. The charcoal barbecue is operational.

If the grill performance deteriorates or the unit takes a long time to fire up, check or replace the batteries.

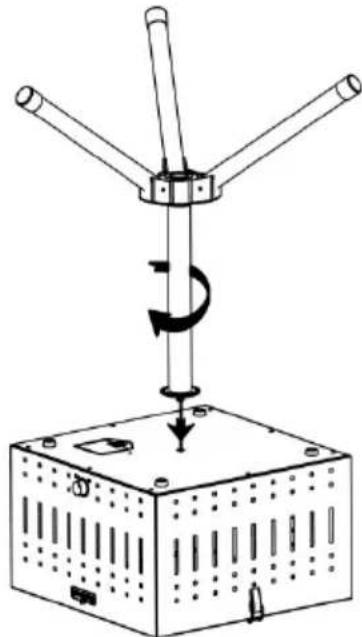

7.2 Fitting the stand (optional)

If you do not wish to place the charcoal barbecue on the table, you can fit the stand (11). Proceed as follows:

1. Fold out the three legs on the stand (11).
2. Loosen the knurled screw and remove it completely.
3. Push the central shaft up as far as it will go and lock it in place using the knurled screw. To do this, insert the knurled screw into the hole and then tighten it.
4. Turn the charcoal barbecue upside down and place it carefully on an even, stable surface.
5. Turn the stand (11) upside down and carefully insert the screw on the end of the shaft into the threaded opening in the middle of the bottom of the charcoal barbecue.
6. Twist the stand (11) clockwise to screw it to the charcoal barbecue.
7. Turn the charcoal barbecue and stand (11) the right way around again. It is then ready to use.

Diagram of a mechanical device with three rods and a rotating shaft, showing no text or symbols.

7.3 Usage

Before using for the first time, clean the stainless steel grate (1) and the grease collection tray/reflector (6). This removes dust and any packaging residue. For more on this, please refer to the "Maintenance/cleaning" section on page 42.

When powering the barbecue on for the first time, have the charcoal glow for 30 minutes, before using it to prepare food.

Minor smoke development can occur when the device is heated first when starting a new barbecue session. For this reason, the device should be heated for 10 to 15 minutes prior to preparing grilled food for the first time.

1. Loosen both latches (7) and remove the stainless steel grate (1).

2. Place the device on an even, non-slip and dry surface.

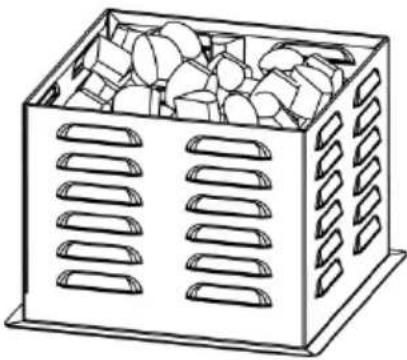

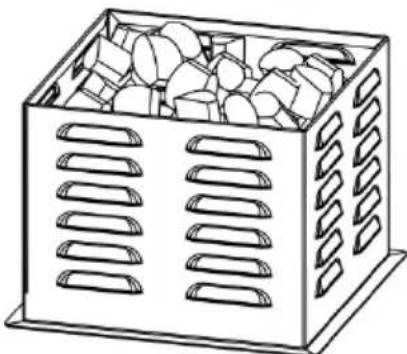

3. Remove the charcoal container (4) and its cover (3) and fill the charcoal container (4) with approx. 0.5 kg charcoal up to the upper edge of the container.

For optimum cooking results you should use barbecue charcoal and not charcoal briquettes.

Do not use any other fuel than charcoal.

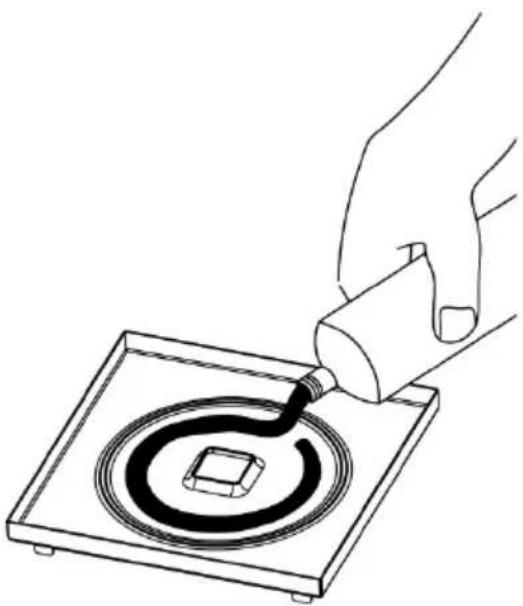

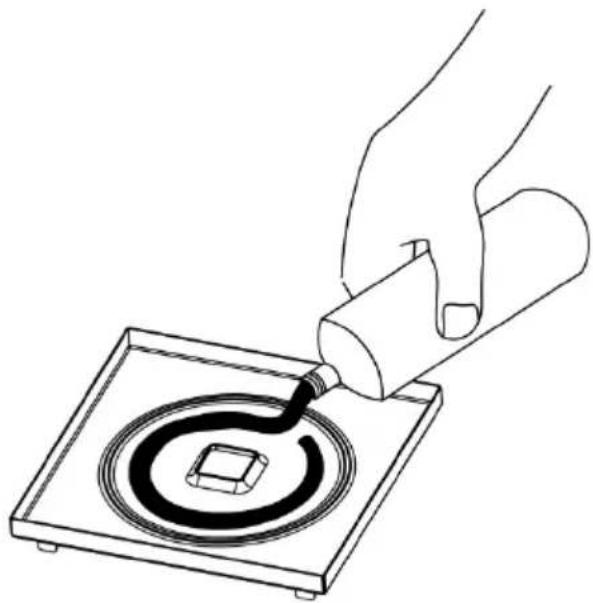

1. Apply a 10 mm thick ring of fire gel around the centre of the fire gel tray (5). The fire gel should be within the circle stamped on the fire gel tray (5). Otherwise, the flame will be smothered. Should the fire gel tray (5) move out of place, insert it again into the centre of the grease collection tray/reflector (6).

Simple line drawing of a 3D rectangular object with a small protrusion on top (no text or symbols)

Line drawing of a rectangular metal crate filled with circular objects, no text or symbols present

Line drawing of a hand pouring liquid into a square container with a spiral pattern (no text or symbols)

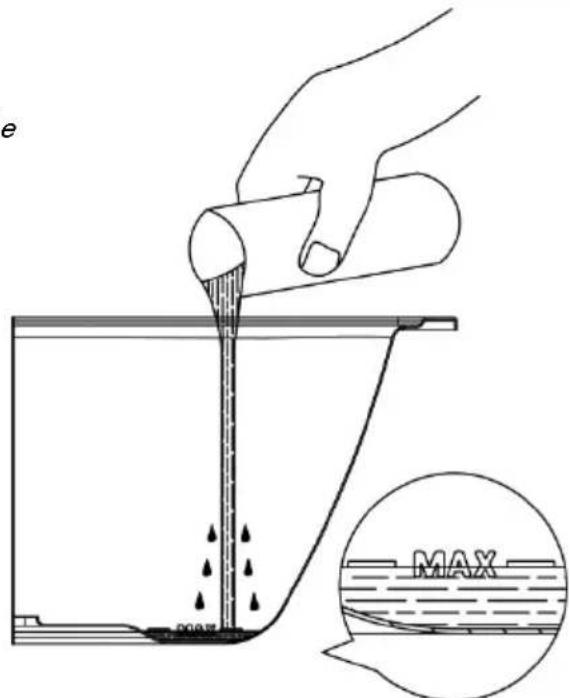

If you fill a little water (no higher than the MAX mark) into the grease collection tray/reflector (6), not only does it make it easier to clean the grease collection tray/reflector (6) later, it also makes it harder for any drops of fat to ignite.

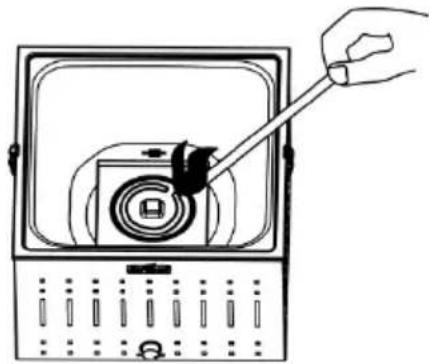

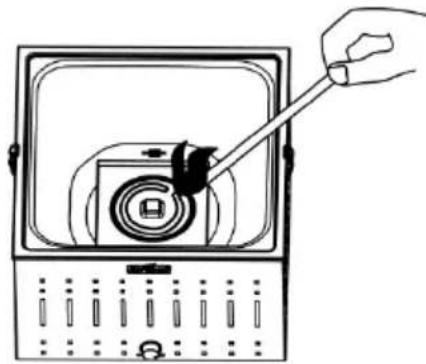

1. Hold a burning match to the fire gel, until it burns.

Risk of burns!

Do not reach into the naked flame!

Line drawing of a hand using a tool to adjust or install a device into a circular component (no text or symbols visible)

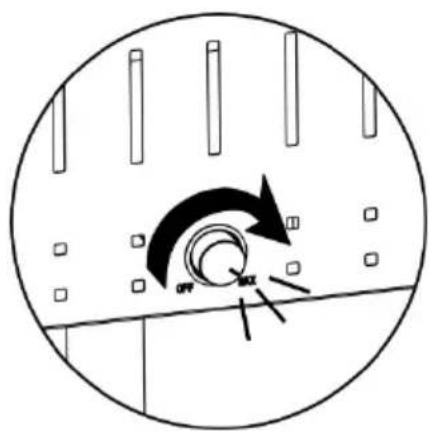

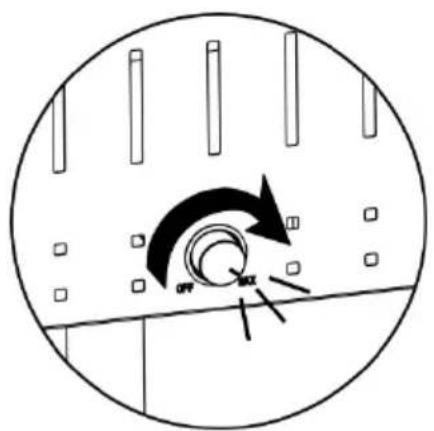

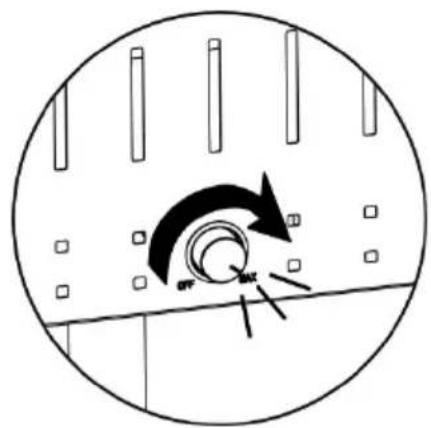

1. Turn the control dial (9) to the MAX position (clockwise until it stops) to power on the fan.

You must power on the fan prior to inserting the charcoal container (4). Otherwise, the flame will be smothered.

Circular diagram showing a mechanical or electrical component with arrows and symbols, no readable text or labels present.

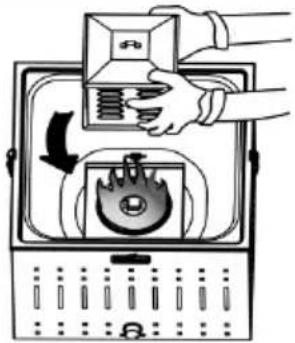

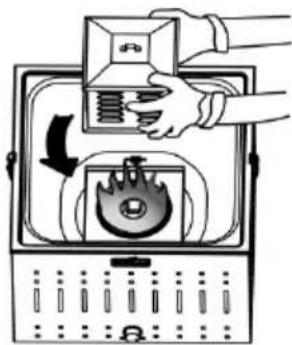

1. Insert the charcoal container (4) again with its cover (3).

Risk of burns!

Use heat-resistant gloves in accordance with the PPE Ordinance (category II for heat protection, DIN-EN 407). Otherwise you could get burnt!

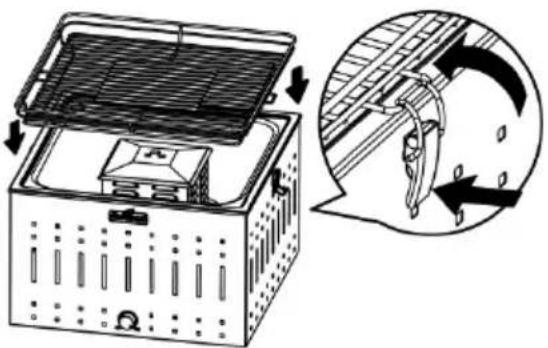

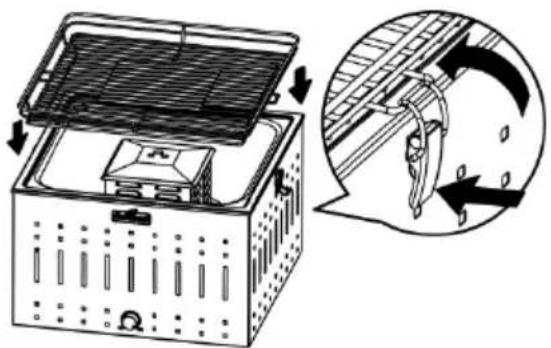

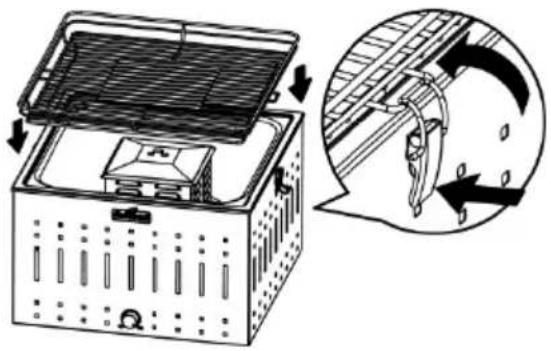

1. Replace the stainless steel grate (1). Make sure that the two brackets (2) are lined up with the latches (7). Lock the stainless steel grate (1) into place.

Illustration of a hand operating a portable radio with a fan inside, showing no text or symbols.

Diagram of a portable air conditioner unit with open lid and internal components, shown alongside with magnified view of airflow direction (no text or symbols)

• Place the grilled food onto the stainless steel grate (1), as soon as the charcoal is covered with a layer of ash. This normally takes 5 minutes at maximum fan speed.
• If undesired flame formation occurs during charcoal glowing, reduce the air supply using the control dial (9). To do this, turn it anti-clockwise.

Next, you can prepare grilled dishes using your charcoal barbecue. With a little practice, you can regulate the fan speed and thus the heat using the control dial (9). This way, you can either grill your dishes crispier or cook them gently.

1. Once you are done grilling, switch the charcoal barbecue off. Turn the control dial (9) counterclockwise to the OFF position, until it engages.
2. Remove the prepared dishes from the stainless steel grate (1).

Risk of burns!

After the fan is switched off, the charcoal can still be glowing for some time and the stainless steel grate (1) can be very hot. Be careful not to burn yourself.

7.4 Tips for good grilling results

- After firing up, leave the control dial (9) in the maximum position (clockwise until it stops) so that the charcoal barbecue can heat up evenly. If unwanted flames appear during the charcoal warming up phase, reduce the fan speed by turning the control dial (9). To do this, turn it counter-clockwise.

• The unit allows low-fat, healthy cooking of meat, fish, sausages, poultry and vegetables. It may be necessary to cut large or thick pieces of meat into smaller pieces or thinner slices.
• Do not pierce the meat so it does not lose liquid. Otherwise it can dry out.
• Season the food and turn it occasionally. We recommend the use of wooden barbecue tongs. You can also brush fish with butter.
• At the top fan speed, the charcoal barbecue heats up very quickly. Keep an eye on thin pieces of food and sausages to stop them burning. Turn it frequently or turn the fan speed down.
• The charcoal barbecue develops the most heat in the centre. Put bread on the edges to toast it. Put thick slices of meat in the centre to cook.
• Do not grill pickled or smoked meat.
• Cut any charred or burnt pieces of food off and do not eat them. Also, make sure you do not drip any beer on meat or sausages. Crusts and burnt bits can be carcinogenic!
• Cut the fat from the edge of the meat and, for best results, only use lean meat cut into small pieces. If the fat ignites and flames appear, turn the control dial (9) counter-clockwise to the "OFF" position and take the meat from which the fat is dripping off the stainless steel grate (1). Once the flames have disappeared, you can increase the fan speed again using the control dial (9) and place the food back onto the grate. Do not extinguish the flames with water.

7.5 Topping up the charcoal

You can top up the charcoal if necessary. It is best to do this before the charcoal in the charcoal container (4) is used up. This means the new charcoal can be kindled from the existing embers.

Risk of burns!

Use heat-resistant gloves in accordance with the PPE Ordinance (category II for heat protection, DIN-EN 407). Otherwise you could get burnt.

Warning about property damage

Only put the charcoal container (4) and its cover (3) on heat-resistant surfaces. Otherwise, the surface could be damaged by these hot accessories.

1. Switch the charcoal barbecue off if you wish to top up the charcoal. Turn the control dial (9) counterclockwise to the OFF position, until it engages.
2. Remove any remaining food from the stainless steel grate (1).
3. Loosen both latches (7) and remove the stainless steel grate (1). Place the stainless steel grate (1) on a suitable surface.
4. Remove the cover of the charcoal container (3). It is best to do this with barbecue tongs and always wear barbecue gloves. Use heat-resistant gloves in accordance with the PPE Ordinance (category II for heat protection, DIN-EN 407) Otherwise you could get burnt.

5. Place the cover of the charcoal container (3) on a suitable surface.

6. Add the new charcoal to the charcoal container (4). When you do so, make sure that you do not overfill the charcoal container (4) so that you can close it again once you have finished.

7. Place the cover (3) onto the charcoal container (4). Place the stainless steel grate (1) down again. Turn the grate such that the two brackets (2) are aligned with the latches (7). Lock the stainless steel grate (1).
8. Turn the control dial (9) to the MAX position (clockwise until it stops) to power on the fan. Wait a few minutes for the new charcoal to kindle and for any smoke to dissipate. You can then continue grilling.

8. Maintenance/cleaning

In order to avoid burning food residues, clean the charcoal barbecue after every use.

Risk of burns!

Wait until the charcoal barbecue is completely cool before cleaning it. Otherwise you could get burnt.

Warning about property damage

Do not use abrasive or astringent detergents or tools which could scratch the surface (e.g. metal sponges). These could damage the charcoal barbecue.

1. Loosen both latches (7) and remove the stainless steel grate (1).
2. Remove the charcoal container (4) with its cover (3).
3. Remove the grease collection tray/reflector (6).
4. Clean the stainless steel grate (1) and the grease collection tray/reflector (6) in the sink using washing-up liquid. You can carefully tap the charcoal container (4) with its cover (3) and clean it using a brush or dry cloth as needed. Clean the casing (8) and the stand (11) with a slightly damp cloth.

8.1 Storing the charcoal barbecue

It is best to unscrew the stand (11) before storing the charcoal barbecue. Loosen and remove the knurled screw on the stand (11) and push the shaft fully down. Next insert the knurled screw into the hole and then tighten it. Then fold the legs together.

Store the charcoal barbecue and stand (11) in a dry place free of dust.

Remove the batteries when the charcoal barbecue is not to be used for an extended period.

9. Troubleshooting

If your charcoal barbecue does not work as normal, follow the instructions below to try to solve the problem. If working through the tips below does not fix the fault, please contact our hotline (see "Warranty information" on page 45).

Problem	Possible causes	yRemed
Charcoal does not light.	Fan is not powered on.	Turn the control dial (9) to the maximum position (clockwise until it stops) to power on the fan.
	Control dial (9) adjusted to too low position.	Turn the control dial (9) to the maximum position (clockwise until it stops).
Fan cannot be powered on.	Batteries inserted incorrectly or empty.	Insert the batteries with the correct polarity (+ and -). Replace the batteries with new ones as needed.
Barbecue becomes too hot or undesired flame formation.	Control dial (9) adjusted to too high position.	Reduce the air supply using the control dial (9). To do this, turn it counter-clockwise.
Barbecue does not become hot enough.	Control dial (9) adjusted to too low position.	Increase the air supply using the control dial (9). To do this, turn it in a clockwise direction.
	Grease collection tray/reflector (6) dirty.	Clean the grease collection tray/reflector (6). If the radiated heat is not reflected upwards, there may not be sufficient heat to cook your food.

10. Environmental regulations and disposal information

A symbol depicting a crossed-out rubbish bin on a product means it is subject to European Directive 2012/19/EU. All electrical and electronic devices must be disposed of separately from household waste at official disposal centres.

Do not dispose of the appliance in household waste or bulky waste collections. Information on collection points and pick-up times can be obtained from your local council or waste disposal company.

Old batteries must not be disposed of with domestic waste. They must be handed in at a collection point for waste batteries. Please note that batteries must be disposed of fully discharged at appropriate collection points for old batteries. If disposing of batteries which are not fully discharged, take precautions to prevent short circuits.

Dispose of all packaging in an environmentally friendly manner. Cardboard packaging can be taken to paper recycling centres or public collection points for recycling. Any film or plastic contained in the packaging should be taken to your public collection points for disposal.

11. Conformity

This device complies with the basic and other relevant requirements of EMC Directive 2014/30/EC and the RoHS Directive 2011/65/EU. The complete EU Declaration of Conformity is available for download from this link:

www.targa.de/downloads/conformity/297425.pdf

12. Warranty Information

Dear Customer,

This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.

Warranty conditions

The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.

Warranty period and legal warranty rights

The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.

Scope of warranty

The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.

Submitting warranty claims

To ensure speedy handling of your complaint, please note the following:

Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.
- Always have your receipt, the product article number as well as the serial number (if available) to hand as proof of purchase.
- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

Service

Phone: 020 - 70 49 04 03

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: 02 - 20 09 025

E-Mail: [e-mail]

IAN: 297425

Manufacturer

Please note that the following address is not a service address. First contact the service point stated above.

TARGA

GmbH

Coesterweg 45

DE-59494 Soest

GERMANY

Table des matières

ATTENTION!

3D rendering of a black industrial enclosure with ventilation grilles and a top-mounted fan (no text or symbols visible)

Simple black tripod stand with three legs (no text or symbols)

Pied

Technical line drawing of a mechanical assembly with housing, mounting holes, and internal components (no text or symbols)

Diagram of a mechanical device with three rods and a rotating shaft, no text or symbols present

Line drawing of a 3D rectangular object with a small protrusion on top (no text or symbols)

Line drawing of a rectangular metal crate filled with plastic waste, showing slots and contents (no text or symbols)

Avertissement

Circular diagram showing a mechanical or electrical component with arrows indicating motion or direction (no text or symbols)

Illustration of a hand operating a portable radio with a fan and keyboard (no text or symbols visible)

Diagram of a portable air conditioner unit with airflow indicators and a close-up view showing internal components (no text or symbols)

Cher client, chère cliente,

Cher client, chère cliente,

WAARSCHUWING!

3D rendering of a black industrial enclosure with ventilation grilles and a top-mounted fan (no text or symbols visible)

Simple black tripod stand with three legs (no text or symbols)

Onderstel

Technical line drawing of a mechanical assembly with housing, mounting holes, and internal components (no text or symbols)

Diagram of a mechanical device with three rods and a rotating shaft, mounted on a base (no text or symbols)

7.3 Gebruik

Line drawing of a plastic crate with cutouts and internal compartments (no text or symbols)

Line drawing of a hand pouring liquid into a square container with a spiral pattern (no text or symbols)

Line drawing of a hand using a tool to adjust or install a circular device (no text or symbols present)

Circular diagram showing a mechanical or electrical component with arrows and symbols, no readable text or labels present.

Illustration of a hand operating a portable radio with a fan inside, showing no text or symbols.

Diagram of a portable air conditioner unit with internal components and airflow direction arrows (no text or symbols)

VÝSTRAHA!

3D rendering of a black industrial enclosure with perforated windows and a mesh roof (no text or symbols visible)

Simple black tripod stand with three legs (no text or symbols)

Podstavec

Technical line drawing of a mechanical assembly with internal components and mounting holes (no text or symbols)

Diagram of a mechanical device with three rods and a rotating shaft, mounted on a base (no text or symbols)

7.3 Využití

Line drawing of a plastic crate with internal compartments and a lid (no text or symbols)

Line drawing of a hand pouring liquid into a square electronic component with a curved coil (no text or symbols)

Circular diagram showing a device with an arrow indicating rotation or movement, no text or symbols present.

Illustration of a hand operating a portable radio with a fan inside, showing no text or symbols.

Diagram of a portable air conditioner unit with airflow direction and internal components (no text or symbols)

¡ADVERTENCIA!

3D rendering of a black industrial enclosure with ventilation slots and a top-mounted fan (no text or symbols visible)

Simple black tripod stand with three legs (no text or symbols)

Trípode

Technical line drawing of a mechanical assembly with housing, components, and mounting holes (no text or symbols)

Diagram of a mechanical device with three rods and a rotating shaft, no text or symbols present

7.3 Uso

Line drawing of a 3D rectangular object with a small protrusion on top (no text or symbols)

Line drawing of a rectangular metal crate filled with circular objects, no text or symbols present

Line drawing of a hand pouring liquid into a square container with a spiral pattern (no text or symbols)

Line drawing of a hand using a tool to adjust or install a circular device (no text or symbols present)

Circular diagram showing a mechanical or electrical component with arrows and symbols, no readable text or labels present.

Illustration of a hand operating a portable radio with a fan inside, showing no text or symbols.

Diagram of a portable air conditioner unit with airflow direction and internal components, shown in two views (no text or labels)

AVISO!

3D rendering of a black industrial container with ventilation grilles and a top-mounted fan (no text or symbols visible)

Simple black tripod stand with three legs (no text or symbols)

Suporte

7.1 Instalar as pilhas

Technical line drawing of a mechanical assembly with housing, mounting holes, and internal components (no text or symbols)

Diagram of a mechanical device with three blades and a rotating shaft, mounted on a base (no text or symbols)

7.3 Utilização

Line drawing of a plastic crate filled with plastic bottles, placed above an open lid (no text or symbols)

Line drawing of a hand pouring liquid into a square electronic component with a coiled cable (no text or symbols)

Illustration of a hand placing a fire extinguisher into a portable stove burner (no text or symbols)

Diagram of a portable air conditioner unit with internal components and airflow direction arrows (no text or symbols)
