USER MANUAL FHA 1100 A1 FLORABEST

Translation of original operation manual

ES

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

Industrial pressure pump with control panel and motor (no visible text or symbols)

Contenido

Grizzly Service-Center 49

garantizada 98,0 dB(A)

Grizzly Service-Center 49

Grizzly Service-Center 49

Symbols in the manual 28

Symbols on the equipment ..... 28

General notes on safety 29

Areas of Application 30

General Description 30

Functional description ...... 30

Overview 31

Scope of Delivery 31

Initial Operation 31

Assembly 31

Mains Connection 31

Setting up 31

Connecting the hoses 31

Filling the pump 32

Operational start-up 32

Starting the unit 32

Restarting the appliance 32

Maintenance Instructions 32

General cleaning instructions ..... 32

Storage 33

Waste Disposal and Environmental

Protection 33

Guarantee Notes 33

Spare Parts Order 34

Technical Data 34

CE Declaration of Conformity ..... 45

Exploded Drawing 47

Grizzly Service-Center 49

Before initial start-up, please read through these operating instructions carefully prior to using the machine. Keep the instructions safe and pass them on to any subsequent user so that the information is always available.

Notes on Safety

This section deals with the general safety regulations for working with the equipment.

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

Symbols on the equipment

Read and follow the operating instructions provided for the device!

Attention: Remove the plug from the socket as soon as the power lead is damaged or cut.

Water inlet

Water outlet

Electric appliances should not be disposed of in the domestic garbage.

General notes on safety

Working with the equipment:

Caution: to avoid accidents and injuries:

- This appliance is not intended for operation by persons (including children) with reduced physical, sensory or mental capabilities, or lacking experience and/or knowledge, unless they are under the supervision of or have been instructed on how to use the appliance by a person responsible for their safety.

- Keep the equipment away from children and pets. Children must be supervised in order to ensure that they do not play with the equipment.

• People who are unfamiliar with the operating instructions are not permitted to use the equipment. The operation of the equipment is not authorised for people under the age of 16.

- Should there be people in the water, do not operate the equipment.

• Take appropriate measures to keep children away from the equipment whilst it is running.

- Dispose of the packaging material correctly.

- Do not use the equipment in the vicinity of flammable liquids or gases. Non-observance will result in a risk of fire or explosion.

- Do not use for water containing abrasive particles such as sand. The dispensing of aggressive, abrasive (grinding effect), corrosive, combustible (e.g. motor fuels) or explosive liquids, salt water, cleaning agents and foodstuffs is not permitted. Liquid temperature not to exceed 35°C.

- Store the equipment in a dry place and out of reach of children.

Caution! To avoid damage to the equipment and any possible person injury resulting from this:

- Do not work with damaged or incomplete equipment, or with equipment that has been converted without the approval of the manufacturer. Before initial operation, have a specialist check that the required electrical protection measures are in place.

- Do not carry or fix the equipment by the cable or pressure line.

- Protect the equipment from frost and from running dry.

- Use only original accessories and do not carry out conversion work on the equipment.

- Please read the notes in the operating instructions on the topic of "maintenance and cleaning". Any measures above and beyond these, particularly opening the equipment, are to be carried out by an electrician. In the case of repairs, always contact our service centre.

Electrical safety:

Caution: to avoid accidents and injuries from electric shocks:

• After erection, the mains plug must be freely accessible when the equipment is in operation.

- Before operating your new pump, have a specialist check:

- The earthing, the protective multiple earthing; the residual current circuit breaking must be compliant with the safety regulations of the energy supply company and function without fault,

- The protection of the electrical plug connections from the wet.

- If there is a risk of flooding, fix the plug connections in an area that is safe from flooding.

- Ensure that the mains voltage matches the specifications on the rating plate.

- The electrical installation shall be according to national wiring rules.

- Connect the equipment only to a socket with a residual current protection device (residual current circuit breaker) with a rated current of not more than 30 mA; minimum fuse 10 amperes.

- Before each use, check the equipment, cable and plug for damage. Defective cables are not to be repaired, but rather replaced by new ones. Have any damage to your equipment repaired by a specialist.

- If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.

- Do not pull the plug from the socket by the cable. Protect the cable from heat, oil and sharp edges.

- Do not carry or fix the equipment by the cable.

- Use only extension cables that are protected from spray water and designed for outdoor use. Always fully unroll a cable drum before use. Check the cable for damage.

- Before any work on the equipment, during work breaks and in the case of non-use, remove the plug from the socket.

- The cross-section of mains connection lines must be no smaller than rubber hose lines with the designation H07RN-F. The line must be 10 m long.

Areas of Application

The home water dispenser is intended for use in private homes and gardens. The unit is suitable for service water supply and the irrigation of gardens. It is solely intended for pumping clear and rain water up to temperatures of no more than 35^ C.

Any other use, not expressly authorised in these instructions (e.g. for transporting foodstuffs, salt water, motor fuels, chemical products or water with abrasive materials), may cause damage to the equipment and represent a serious risk for the user.

The home water dispenser is not suitable for continuous duty. Continuous operation reduces the durability and shortens the guarantee period.

The operator or user is responsible for accidents or damage to other people or their property.

The manufacturer shall not be liable for damages caused by use other than for which the equipment is intended or by incorrect operation.

General Description

Functional description

The home water dispenser pumps water automatically. The pump will turn on and convey water at turn-on pressure. The turn-on point is set in the factory and cannot be adjusted by the user.

Read the sections below to learn more about each operating element's function.

The diagram of the most important functional elements can be found on the foldout side.

Overview

1 Water outlet, automatic switch
2 Power cable, automatic switch

3 Water outlet, home water dispenser

4 Water inlet, home water dispenser

5 On/Off switch

6 Power cable, home water dispenser

7 Home water dispenser

8 Carrying handle

9 Water inlet, automatic switch

10 Automatic switch

11 Restart switch

12 "Power On" indicator

13 "Pump On" indicator

16 Thread of rest screw

17 Draining screw

Scope of Delivery

• Home water dispenser
• Automatic switch
• Rest

Initial Operation

Assembly

• Screw the rest (15) from the package into the thread (16) in the bottom of the home water dispenser (7).
• Push the carry handle (8) onto the carry handle holder and screw these together using the screws with washers. To do this, use the hex key.
• To permanently install the home water dispenser, screw it to the ground. Screwing it to a fixing panel will prevent the appliance from moving. Mind not to obstruct the access to the draining screw (17).

- Connect the home water dispenser's power cable (A6) to the socket of the automatic switch (B18).

Mains Connection

The pump you have purchases is already fitted with an earthed plug. The pump is intended for connection to an earthed socket at 230 V \~ 50Hz.

Setting up

• Place the unit on a firm, horizontal, non-flooding surface.
  • Always put up the home water dispenser at a point higher than the water surface you wish to pump water from.
  Where this is impossible, install a low pressure-resistant shut-off implement between the appliance and the suction hose.
• Remove the cap from the home water dispenser's water outlet (A3). Mount the automatic switch (A10) on the home water dispenser's water outlet (A3).

Connecting the hoses

On the suction side, attach a hose with reflow stopper and install a prefilter. On the suction side, do not use any quick-action connection systems.

• Attach a suction hose to the home water dispenser's water inlet fitting (A4).
• Attach a pressure hose to the automatic switch's water outlet fitting (A 1).

Air in the suction hose will stop the house water dispenser from working properly.

Filling the pump

Fill up the house water dispenser every time before you start using it. This will ensure an immediate start. Running dry will destroy the pump.

• Use a wrench (SW17) to unscrew the filler screw (B 20) at the back of the home water dispenser.
• Fill in water up to the mark and screw in the filler screw (B 20).
• Mind to also fill the suction hose with water.

Operational start-up

- Check that the electrical connection is 230V \~50Hz

- Check the proper status of the electrical plug socket and make sure that the plug socket is sufficiently fused (at least 10 A). Insert the pump plug into the plug socket and the pump is ready for operation.

• Make sure that moisture or water never come in contact with the mains connection.

There is a risk of electrocution.

Starting the unit

- Connect the power cable of the automatic switch (A 2) to the power supply.

When you connect the appliance to the mains, all lamps will first of all light up.

• Set the On/Off switch ( A5) to turn on the unit.

• The "Power On" indicator (A 12) will light up to indicate that the unit is ready to operate.

• The "Pump On" indicator (A 13) tells you that the pump is working.

• The "Alarm" indicator (A 14) lights up when the appliance turns itself off automatically.

Restarting the appliance

• Following automatic switch-off of the appliance, press the restart switch (A 11).
• If restarting the appliance fails several times, fill up the pump with new water.

Maintenance Instructions

Clean and maintain your equipment regularly. This will guarantee its performance and long durability.

Ask our service centre to carry out any work that is not described in these instructions. Use only original parts.

Pull out the power plug before every maintenance operation. There is a risk of electrocution or of injury from moving parts.

General cleaning instructions

In case the unit clogs up, remove the suction and pressure hoses. Remove the automatic switch (A 10) and use water to wash out the obstructing particle.

Any measures above and beyond these, particularly opening the equipment, are to be carried out by an electrician. In the case of repairs, always contact our service centre.

Storage

- Keep the equipment clean, dry and out of the reach of children.

- To keep the pump when not in use, open the draining screw (B 19) with an SW21 wrench and carefully drain the pump.

Waste Disposal and Environmental Protection

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them. Hand the tool in at a recycling centre. The plastics and metal parts can be separated and recycled. Ask your Service Center about this.

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.

Guarantee Notes

- This appliance has a 36-month guarantee; a shorter 12-month guarantee applies if the appliance is to be used for commercial purposes or for replacement appliances according to statutory regulations.

- Damage due to natural wear and tear, overload or incorrect use is excluded

from the guarantee. Certain components are subject to normal wear and tear and are excluded from the guarantee.

In the case of pumping water containing sand or aggressive liquids or other incorrect, non-design-appropriate use, as well as in case of non-observance of the operating manual, application of force in use or inappropriate or insufficient maintenance, no guarantee claim exists, since seals, impeller wheel, motor or other parts are damaged by this. Also, sewage water pumps are not suitable for the pumping of abrasive materials (sand, stone).

• Furthermore, the prerequisite for guarantee services is that the references indicated in the operating instructions regarding cleaning and maintenance have been adhered to.

- Damage, which has been caused from material or manufacturing faults, will be made good free of charge, by replacement delivery or repair.

This requires that the appliance is returned to our service center undis-mantled and with proof of purchase and guarantee.

- Repairs, which are not covered by the guarantee, can be carried out for charge by our service center. Our service center will be glad to provide you with a cost estimate.

We can only process devices which have been packaged sufficiently and which have been dispatched with correct stamping.

• Devices sent in freight collect - by bulk freight, express or with other special freight - are not accepted.

- If you have a justified guarantee claim, please contact our service centre by telephone, which will then advise you on how the claim will be processed.

- Defective units returned to us will be disposed of for free.

Spare Parts Order

Use the service address or fax number supplied to order replacement parts.

Technical Data

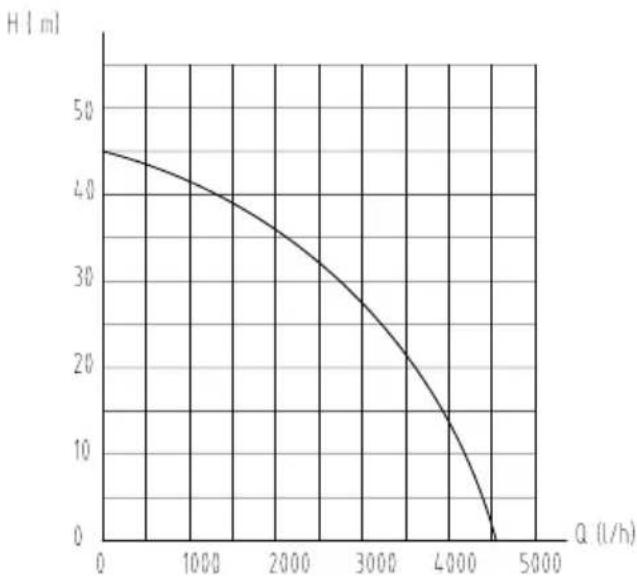

Home water dispenser .....FHA 1100 A1

Mains connection..... 230V\~, 50 Hz

Power consumption 1100 Watt

Suction lift 7 m

Max. discharge rate 4.600 l/h

Max. discharge head 45 m

Max. water temperature.... 35 °C

Hose connection 1"

Turn-on pressure 2,0 bar

Turn-off pressure 4,5 bar

Safety class .... I

Degree of protection IPX4

Noise pressure

level (LpA) .....90,8 dB(A); KpA = 3,0 dB(A)

Noise performance level

(measured) / (LWA)

94,4 dB(A); K_WA = 3,0 dB(A)

Noise performance level

(guaranteed) 98,0 dB(A)

Technical and optical changes can be carried out in the course of further development without notice. All dimensions, references and information of this instruction manual are without guarantee. Legal claims, which are made on the basis of the instruction manual, cannot thus be considered as valid.

Inhalt

Grizzly Service-Center 49

Grizzly Service-Center

Oxford Street Industrial Park

Vulcan Road

Bilston, West Midlands WV14 7LF

Tel: [phone]

Tel from Ireland: 0044 870 787 6177

Fax: [phone]

Fax from Ireland: 0044 870 787 6168

Email: [e-mail]

Grizzly Service Malta

Fax: [phone]

e-mail: [e-mail]

A.S.A. Marina AG

Postfach Nr. 406

6906 Lugano Cassarate

Tel.: [phone]

Fax: [phone]

e-mail: [e-mail]

Simple white outline of a seven-pointed star on a solid green background (no text or symbols)
