SSMN 3 A1 - Massage device SILVERCREST - Free user manual and instructions

Product type	Shiatsu neck massager
Model	SSMN 3 A1
Brand	SilverCrest
Use	Private, domestic use
Power supply	AC adapter 12 V / 2 A (type OH-1024A1202000U-VDE)
Input voltage	100-240 V ~, 50/60 Hz
Power consumption (adapter)	650 mA
Output voltage	12 V
Output current	2000 mA
Functions	Shiatsu massage (2 speeds), vibration, heat
Automatic shut-off	After 15 minutes
Dimensions (approx.)	Approx. 30 x 20 x 15 cm
Weight (approx.)	Approx. 0.6 kg
Included accessories	AC adapter, instruction manual
Cleaning	Damp cloth, do not immerse
Warranty	3 years
Customer service France	0800 919270
IAN	75922
Importer	KOMPERNASS GMBH, Burgstrasse 21, 44867 Bochum, Germany
Compliance	CE (Directives 2004/108/EC and 2006/95/EC)

Frequently Asked Questions - SSMN 3 A1 SILVERCREST

How to use the massager?

Place the device around the neck, fasten the Velcro straps, plug in the AC adapter, then press the On/Off button. You can choose between shiatsu massage (low/high speed), vibration, and heat. To stop, press On/Off.

What is the recommended maximum usage time?

It is recommended not to use the device for more than 15 minutes continuously. An automatic shut-off activates after this time.

Can I use the device on other body parts?

The device is designed only for the neck. Do not use it on the face, larynx, feet, or other sensitive areas.

Does the device heat up?

Yes, you can activate the heat function using the dedicated button. The massage heads then heat up. Caution: the surface becomes hot during use.

How to clean the device?

Always unplug the adapter. Wipe the device with a damp cloth (optionally with a little detergent). Never immerse the device in water.

What to do if the device does not work?

Check that the adapter is properly plugged in and the connector is inserted into the socket. Make sure the device is turned on. If the problem persists, contact customer service at 0800 919270.

Is the device suitable for people with neck pain?

In case of pain or problems in the neck or spine, consult a doctor before use. Do not use the device if you suffer from dislocations or neck pain.

How long is the warranty?

The device comes with a 3-year warranty from the date of purchase. Keep the receipt as proof of purchase.

Where can I get spare parts?

Spare parts are not mentioned in the manual. For any repairs, contact customer service at 0800 919270.

Can the device be used by children?

The device is intended for adults. Do not massage infants, young children, or fragile persons. Supervise children to prevent them from playing with the device.

USER MANUAL SSMN 3 A1 SILVERCREST

Product photo of a gray ergonomic headband device with control buttons and a website URL (no text on device body)

MASSAGE SHIATSU POUR LA NUQUE SSMN 3 A1

序·图

Before reading, untold the page containing the illustrations and familiarise yourself with all functions of the device.

KOMPERNASS GMAH

21

041867 Bocch

www.corporosw.com

SHIATSU NECK MASSAGE CUSHION Operating instructions

GB Operating Instructions Page 37

IAN 75922 IAN 75922

2

2

Electrical setup with a black plug, coiled cable, and terminal connector (no text or symbols visible)

Sommaire

Introduction 2

Droits d'auteur 2

Utilisation conforme .... 2

Accessoires fournis .... 3

Wat is Shiatsu-massage?....19

Bediening 19

Omleggen 19

Aansluiten 19

Gebruiken 19

Na de massage....20

Reinigen 20

Opbergen 21

Problemen oplossen....21

VAARSCHUWING! LETSELGEVAAR!

⚠ WAARSCHUWING! LETSELGEVAAR!

Wat is Shiatsu-massage?

Disposal of the packaging....39

Appliance description 40

Technical data 40

Safety instructions 41

What is Shiatsu massage? 43

Operation 43

Fitting 43

Connection 43

In use 43

After the massage 44

Cleaning 44

Storage 45

Troubleshooting 45

Disposal of the appliance 45

Notes on the Declaration of Conformity 46

Importer 46

Warranty 46

Service 46

Introduction

Congratulations on the purchase of your new appliance.

You have clearly decided in favour of a quality product.

These operating instructions are a component of the Shiatsu Neck Massage Cushion SSMN 3 A1 (henceforth designated as the appliance) and they provide you with important information about the intended use, safety and connection as well as operation of the appliance.

These operating instructions must be constantly kept available close to the appliance. They are to be read and applied by everyone assigned to operate, and eliminate faults in, the appliance.

Retain these operating instructions and pass them on, together with the appliance, to any future owner.

Copyright

This documentation is copyright protected.

Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Intended use

This appliance is intended for massaging the napes of adults.

This appliance is intended solely for personal use in the domestic sector, it is not to be used for medical or commercial applications and may not substitute for medical treatment. The appliance is designed for use in dry indoor rooms. It is not intended for use in the medical/therapeutic or commercial fi elds.

WARNING

Risks from unintended use!

Risks can be engendered if this appliance is used for purposes not intended for it and/or for other types of use.

▶ Use the appliance exclusively for its intended purposes.

▶ Pay heed to the procedures described in these operating instructions.

NOTICE

Risks can be engendered if this appliance is used for purposes not intended for it and/or for other types of use. Use the appliance exclusively for its intended purposes. Observe the procedures described in these operating instructions. Claims of any kind for damage resulting from unintended use, incompetent repairs, unauthorised modification or the use of unauthorised spare parts will not be accepted. The operator alone bears liability.

Items supplied

The appliance is delivered with the following components as standard:

● Shiatsu Neck Massage Cushion
- Mains adapter
- Operating Instructions

1) Remove all parts of the appliance and the operating instructions from the carton.
2) Remove all packaging material.
3) Clean all parts of the appliance as described in the section "Cleaning".

NOTICE

▶ Check the contents to ensure that everything is present and for signs of visible damage.
▶ If the delivery is not complete or something is damaged due to defective packaging or through transportation contact the Service Hotline (see chapter Service).

Disposal of the packaging

The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.

The recirculation of packaging into the material circuit saves on raw material and reduces the amount of waste generated. Dispose of packaging material that is no longer needed as per the regionally established regulations.

NOTICE

▶ If possible, preserve the appliance's original packaging during the warranty period so that, in the event of a warranty claim, you can package the appliance appropriately for its return.

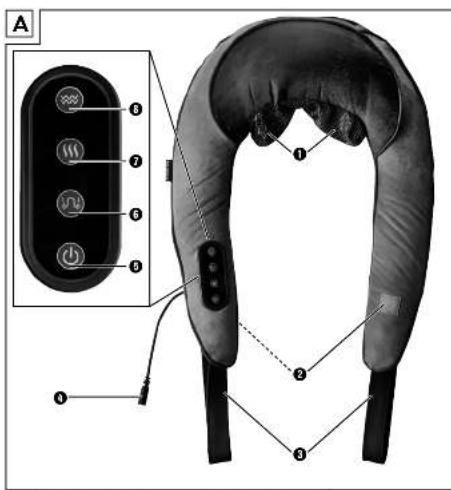

Appliance description

① Massage heads
② Hook and loop fastener
③ Hand loops
4 Socket
⑤ "On/Off " button
6 "Massage" button
⑦ "Warmth" button
8 "Vibration" button
9 Mains adapter
10 Connection plug

Technical data

Mains adapter 9
Type OH-1024A1202000U-VDE
Input voltage 100 - 240 V	~, 50/60 Hz
Current consumption 650 mA
Output voltage 12 V	==
Output current 2000 mA
Protection class	II /□
Polarity	⊖ ⊙ ⊕
Appliance
Input voltage 12 V	==
Current consumption 2000 mA

Safety instructions

RISK OF ELECTRIC SHOCK

• Connect the appliance only to correctly installed and earthed mains power sockets. Ensure that the rating of the local power supply tallies completely with the details given on the rating plate of the appliance.
  ▶ Ensure that the power cable cannot become wet or damp while the appliance is in operation. Place it such that it cannot be crushed or damaged.

▶ Keep the power cable away from hot surfaces.

▶ Do not perform any repairs on the appliance. All repairs must be performed by our Customer Services or by qualified personnel.
▶ Always remove the plug from the mains power socket before you clean the appliance.
▶ Do not use the appliance in damp areas, such as in the bathroom.
▶ To avoid risks, arrange for defective plugs and/or cables to be replaced at once by qualified technicians or our Customer Service Department.
▶ Do not insert needles or other sharp objects into the appliance.

ARNING! RISK OF INJURY!

▶ Do not use an external timing switch or a separate remote control system to operate the appliance.

This appliance is not intended for use by individuals (including children) with restricted physical, physiological or intellectual abilities or deficiencies in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used. Children should be supervised to ensure that they do not play with the appliance.

▶ Do not massage infants, young children, helpless persons or animals with the appliance.
▶ NEVER use the appliance if you have injuries or pain in the neck or cervical spine.

WARNING! RISK OF INJURY!

▶ Stop treatment with the appliance IMMEDIATELY if you feel it to be uncomfortable or painful.
▶ During use the appliance has a hot surface. Individuals who are insensitive to heat must take care when using the appliance.
▶ Do not use the appliance on swollen, burnt, inflamed, diseased or injured regions of the skin and body areas. If in doubt, obtain medical advice before using the appliance.
▶ Ensure that your fingers or other body parts do not come between the rotating massage heads. Risk of crush injuries!
The appliance may not be used in the face (e.g. eyes), on the throat, feet or other sensitive body parts.
▶ During use do not cover the appliance (with a pillow, blanket, etc.). NEVER use the appliance in the vicinity of petrol or other infl ammable materials.

WARNING - PROPERTY DAMAGE!

▶ Use the appliance only indoors.
▶ Operate the appliance only with the supplied power adapter.

What is Shiatsu massage?

Shiatsu (shi = fi nger, atsu = pressure) is a form of massage developed in Japan, which itself emerged from traditional Chinese medicine. Shiatsu massage consists of a relaxing and powerful massage with fi ngers, thumbs or palms. This massager mimics the movements of shiatsu massage with the help of rotating massage heads ①.

Operation

Fitting

1) Place the appliance around your neck so that the massage heads ① lie on the sides of the neck. You can use the hand loops ③ to align it.

2) Secure the appliance in that the hook and loop fasteners ② lie one above the other.

Connection

1) Connect the connection plug ⑩ on the mains adapter ⑨ with the socket ④ on the appliance.

2) Connect the mains adapter ⑨ into a mains power socket.

Inuse

Preferably, lie back for the massage and relax. Provide for a relaxing atmosphere. For example, dim the lights a little.

NOTICE

▶ Ensure that you experience the massage as comfortable and relaxing. If needs be, vary the pressure and/or your position. Stop the massage immediately if it is painful or uncomfortable.

INFORMATION

▶ Never use the appliance for more than 15 minutes. A longer massage may lead to tension caused by overstimulation of the muscles.

You can select between 3 massage functions:

- Shiatsu massage with the massage heads ① (fast and slow)

-Vibration massage

- Warmth (the massage heads ① glow and warm themselves)

You can combine various massage functions with each other or use them individually:

■ Press the "On / Off" button ⏻ ⑤. The massage heads ① begin with the slow massage.

■ Press the button "Massage" ⑥ to increase the massage speed. Press the button Massage ⑦ once again to stop the massage heads ①.

■ Press the button "Warmth" ⑦ to switch the warmth on. Press the button "Warmth" ⑦ once again to switch the warmth function off.

■ Press the button "Vibration" ⑧ to switch the vibration on. Press the button "Vibration" ⑧ once again to switch the function "Vibration" off.

NOTICE

The appliance switches off automatically after 15 minutes.

If you want to terminate the massage before the end of 15 minutes and wish to switch the appliance off, press the "On/Off" button.

After the massage

1) Disconnect the connection plug ⑩ from the socket ④.
2) Undo the hook and loop fastening ② and remove the appliance.
3) Disconnect the mains adapter ⑨ from the mains power socket.

Cleaning

RISK OF ELECTRIC SHOCK

Before you clean the appliance, always disconnect the mains adapter ⑨ from the mains power socket.
▶ UNDER NO CIRCUMSTANCES should you immerse the appliance in water or other liquids during cleaning!

WARNING - PROPERTY DAMAGE!

▶ Do not use any aggressive cleaning liquids or solvents. They could damage the surface.

NOTICE

The zipper on the appliance must not be opened, because it is fitted only for production-technical reasons.

1) Wipe the appliance with a damp cloth. If necessary, add a little mild detergent onto the cloth.

2) Wipe the mains adapter ⑨ off with a damp cloth.

3) Let all parts dry thoroughly before re-use.

Storage

■ Clean the appliance as described in the chapter "Cleaning".

■ Store the appliance at a clean and dry location.

Troubleshooting

Defect Cause Remedy
The appliance does not work.	The plug is not connected into a mains power socket.	Connect the plug with a mains power socket.
	The appliance is not switched on.	Switch the appliance on.
	The appliance is defective.	Contact Customer Services.
	The connection plug 10 is not connected to the socket 4 on the appliance.	Connect the connection plug 10 with the socket 4.

Disposal of the appliance

Do not dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2002/96/EC.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Pay heed to the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Notes on the Declaration of Conformity

With regard to conformity with essential requirements and other relevant provisions, this appliance complies with the guidelines of the Electromagnetic Compatibility Directive 2004/108/EC as well as the Directive for Low Voltage appliances 2006/95/EC.

The complete original Declaration of Conformity can be obtained from the importer.

CE

GB

Importer

KOMPERNASS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com

Warranty

You receive a 3-year warranty for this appliance as of the purchase date. This appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service department. Only in this way can a post-free despatch for your goods be assured.

NOTICE

The warranty is valid only for material or manufacturing faults, not for transport damage, parts subject to wear or damage to fragile parts, e.g. switches.

This product is for domestic use only and is not intended for commercial use. The warranty becomes void in the event of abusive and improper handling, use of force and modifications not carried out by our authorised Service Centre.

Your statutory rights are not restricted in any way by this warranty.

The warranty period is not extended by repairs eff ected under warranty.

This applies also to replaced and repaired parts.

Damages or defects discovered after purchase are to be reported directly after unpacking, at the latest two days after the purchase date.

Repairs carried out after lapse of the warranty period are subject to charge.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 75922
