Product type	Rugged tablet
Brand	Logic Instrument
Model	Fieldbook K122
Dimensions (L x W x H)	271 x 186 x 23 mm
Weight	950 g
Power	Li-Ion battery 9500 mAh, 12V AC adapter
Screen	12.2-inch touchscreen, shock-resistant
Protection rating	IP65 (dust, water jets)
Main functions	Outdoor use, document reading, GPS navigation, camera
Operating system	Windows 10 or Android (depending on version)
Connectivity	Wi-Fi, Bluetooth, USB, serial port
Care and cleaning	Clean with a soft dry cloth, avoid solvents
Safety	Use in a dry environment, do not expose to extreme temperatures
Spare parts and repairability	Battery, AC adapter, cables available
General information	Designed for professionals, 2-year warranty

Frequently Asked Questions - Fieldbook K122 Logic Instrument

How to turn on and off the Fieldbook K122 tablet?

To turn on, press the power button on the right side of the tablet for 3 seconds. To turn off, hold the same button and select 'Shut down' on the screen.

How to reset the tablet to factory settings?

Go to system settings, then 'Reset' and choose 'Erase all data'. Confirm the operation. Warning: this action deletes all your personal data.

How to connect the tablet to Wi-Fi?

Go to 'Settings' > 'Network & Internet' > 'Wi-Fi'. Turn on Wi-Fi and select your network. Enter the password if necessary.

How to use the camera of the Fieldbook K122?

Open the 'Camera' app from the menu. You can take photos by pressing the on-screen button or use the dedicated physical buttons. The tablet has an LED flash.

How to replace the tablet battery?

The battery is removable. Remove the back cover by unscrewing the security screws. Disconnect the old battery and insert the new one. Close carefully.

What to do if the touchscreen is unresponsive?

Try a forced restart (hold the power button for 10 seconds). If the problem persists, clean the screen with a soft cloth. If still faulty, contact customer service.

How to update the operating system?

Go to 'Settings' > 'Update & Security' > 'Check for updates'. Download and install available updates. Make sure you are connected to the internet and have sufficient battery.

What accessories are compatible with the Fieldbook K122?

The tablet is compatible with a docking station, a rugged keyboard, an additional battery, and various cables (USB, serial). Preferably use Logic Instrument brand accessories.

What is the warranty period?

The standard warranty is 2 years from the date of purchase. It covers manufacturing defects. Keep your invoice for any claim.

Can I use the tablet in the rain?

Yes, thanks to its IP65 rating, it resists water jets. However, do not immerse it and dry it after exposure to moisture.

USER MANUAL Fieldbook K122 Logic Instrument

Description of the tablet 5

Replacing the battery 8

Inserting mini SIM & Micro-SD cards 10

Windows

Getting started 12

Connecting to a WiFi 14

Getting familiar with Windows 10 15

The Windows 10 interface 16

Windows notification center 18

Android

Getting started 20

4G & WiFi connections 22

Google & Contacts 24

Hints & tips 26

As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide.

Package Contents

Check your product box for the following items:

-Fieldbook K101 with hand strap and battery
-Active Stylus pen
-Battery for stylus pen
-Micro USB cable
-USB host cable
-AC adapter with EU, UK and US plug

The items supplied with your device and available accessories may vary depending on your region or service provider.

The supplied items are designed only for your device and may not be compatible with other devices.

Unapproved accessories may cause your device to malfunction.

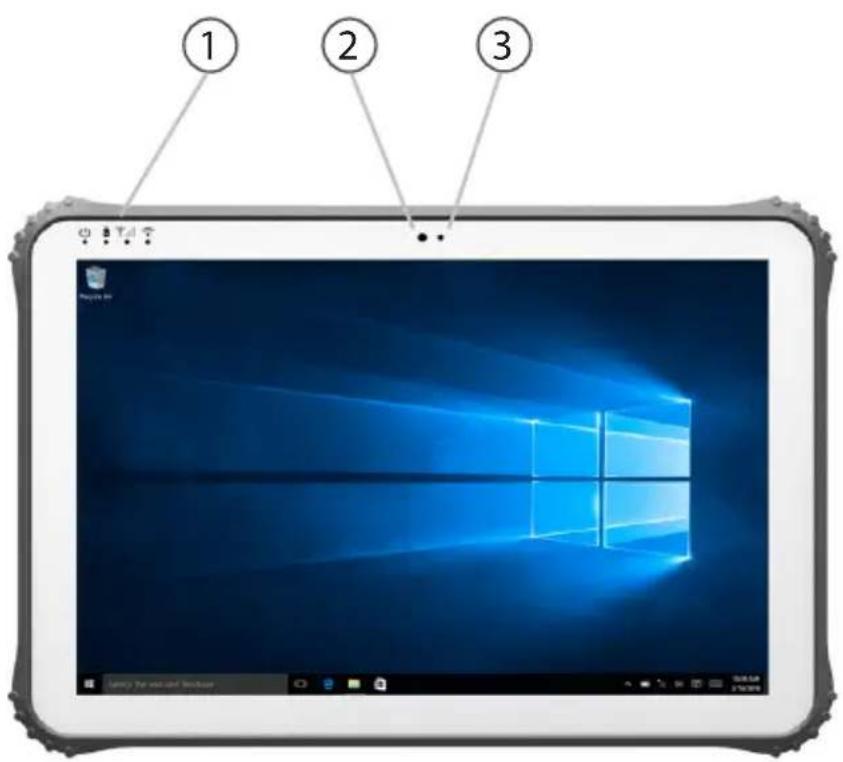

Description of the tablet

① Status LED
② Webcam
③ Ambient light sensor

① ② ③

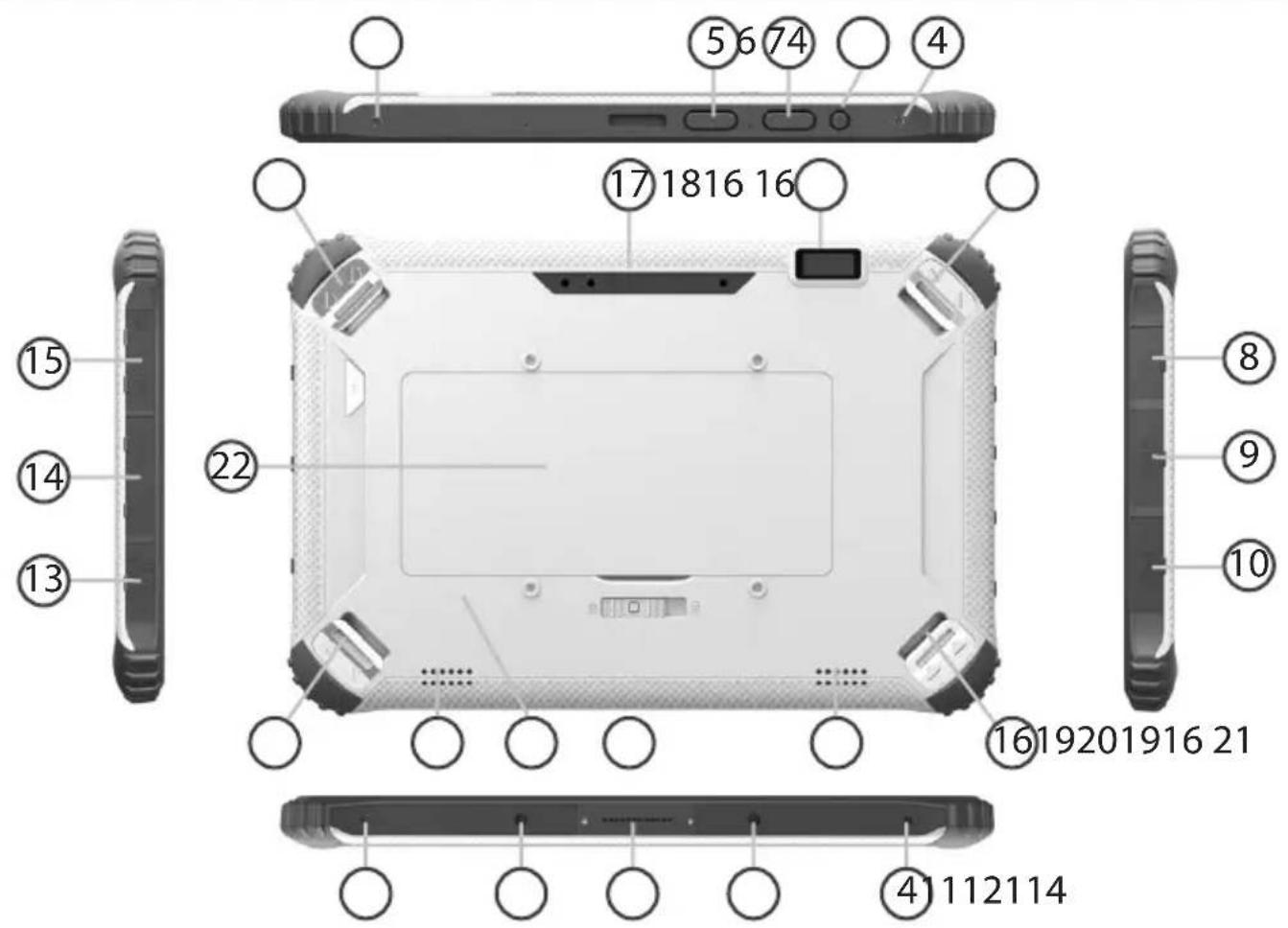

Description of the tablet

Labeled diagram of a tablet device showing internal components with numbered annotations

④ Screw thread for accessory
⑤ Programmable buttons P1 and P2
⑥ Volume buttons +/-
⑦ Power button
⑧ USB Type A
⑨ COM2 - RS232
⑩ COM1 - RS232
⑪ Guide for docking station
⑫ Docking connector
⑬ RJ45 & DC-In
⑭ USB 3.0 Type A & USB 2.0 Type A
⑮ 3.5mm Audio & mini HDMI & micro USB

⑯ Fixation hand strap
⑰ Camera
18 Barcode scanner (option)
19 Speaker
20 VESA 100 threads
21 Battery lock
22 Battery

Replacing the battery

WARNING: Make sure to turn off your Fieldbook before removing the battery.

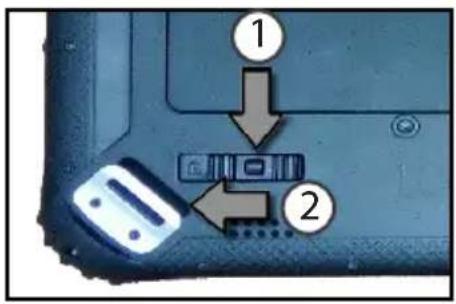

Removing the battery

1. Press and hold down the button in the center of the battery lock (Picture 8.1 ①)
2. Slide the battery lock to the left (Picture 8.1 ②)
3. Release the center button

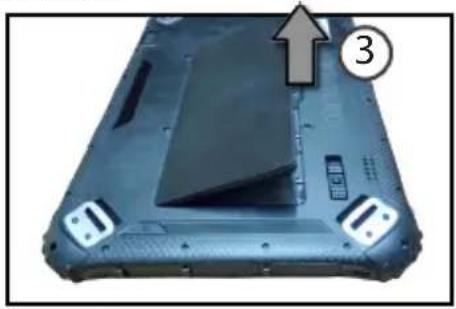

4. Pull out the battery (Picture 8.2 ③)

Picture 8.1

Diagram showing two labeled components (① and ②) pointing to a device interface with arrows indicating movement or assembly.

Picture 8.2

Close-up of a laptop's front panel with a highlighted screen and mounting holes, marked with an arrow and circled number 3 (no text or symbols on the device itself)

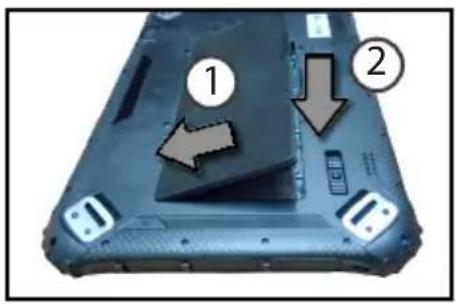

Inserting the battery

1. Insert the battery in the compartment like shown in the picture (Picture 9.1 ①)
2. Push down the other side of the battery (Picture 9.1 ②)

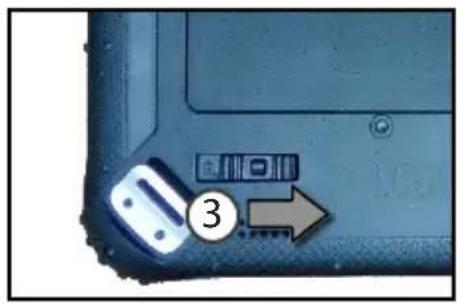

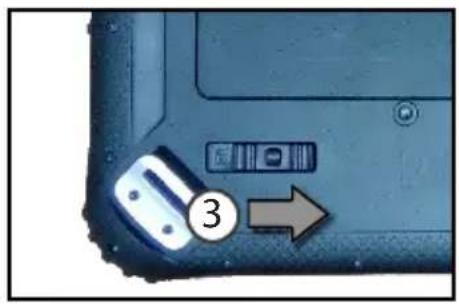

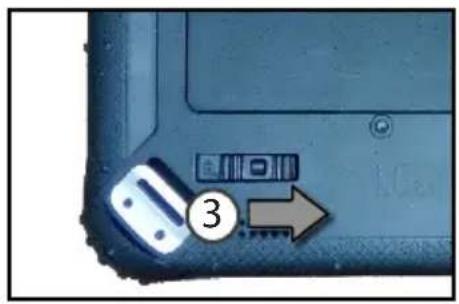

3. Slide the battery lock to the right to secure the battery in place (Picture 9.2 ③)

Picture 9.1 Picture 9.2

Laptop front panel with numbered arrows indicating movement or change, labeled ① and ②

Close-up of a device rear panel with labeled buttons and an arrow pointing to button 3

WARNING: Make sure to turn off your device before inserting a SIM or memory card.

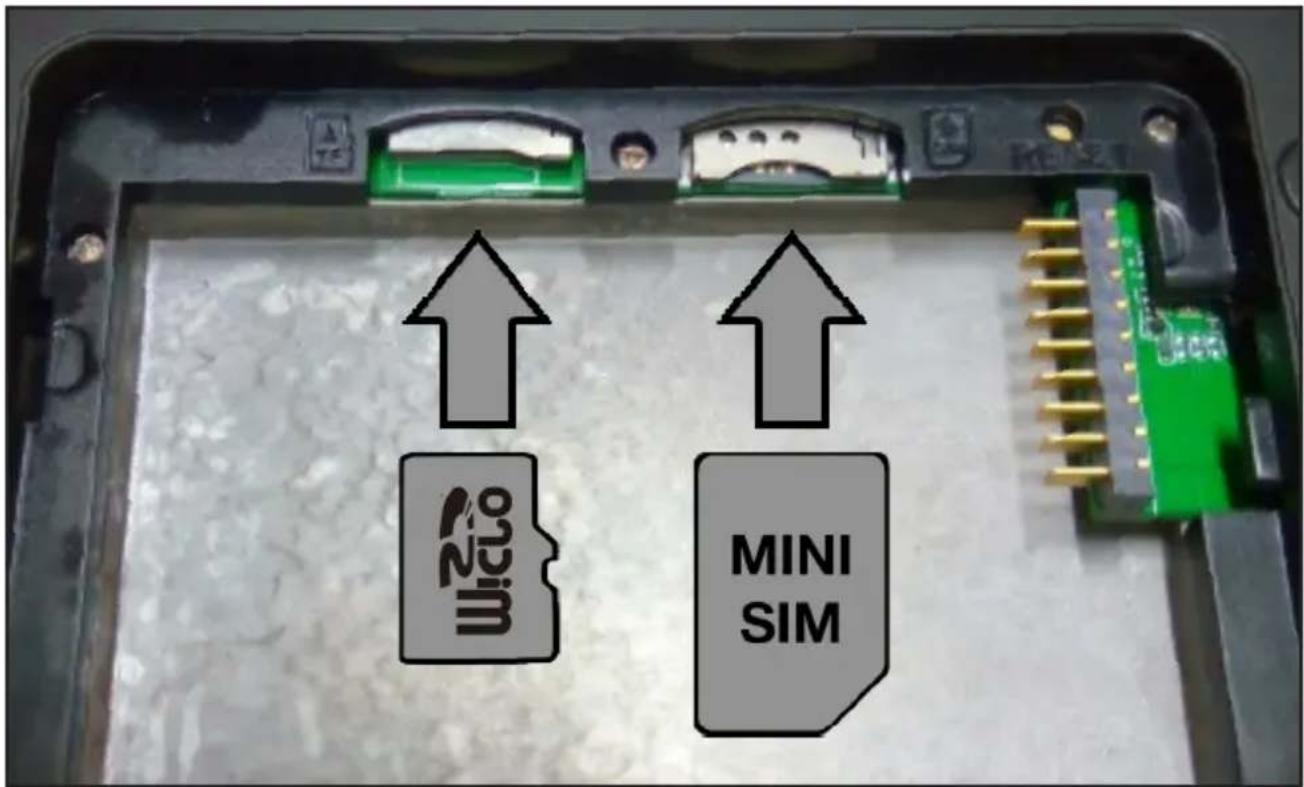

To install or remove a SIM or SD card, the battery has to be removed first. Please refer to "Removing the battery" on page 8.

The slot accepts only mini SIM cards. Insert the card into the SIM slots like shown in the picture on the right.

Inserting a SD card

Insert the micro SD card like show in the picture on the right.

Closing

Please refer to "Inserting the battery" on page 9.

Tip:

For the SIM card, a Pin number may be requested. Enter the SIM card pin number and tap OK.

Wi-Fi MINI SIM

Windows // Getting started

Turn ON

1. Press and hold the ON/OFF button to turn on the device.

Turn OFF

1. Click on the Windows symbol on the lower left corner of the screen.
2. Select the Power button, then select Shut down.

Initial setup

The first time you start up your device, the Windows Startup Screen will be the first screen displayed. Follow the on-screen instructions on each screen in order to properly install the operating system. We strongly recommend that you create a Microsoft account, so you can enjoy more features.

Tip:

If the Fieldbook is used by more than one person, it is recommended to create an user account for each person. Every user can set its default parameters to his needs.

Microsoft account

A Microsoft account is an email address and password that you use to sign in to Windows. It's free and easy to set up, and you can do so with any email address you choose, or get a new email address (for example, you can use an Outlook.com, Gmail, or Yahoo! address for your Microsoft account.). With a Microsoft account, you can:

• get apps from the Windows Store
• back up all your important data and files using free cloud storage
• link your social networking accounts to the People app, and you'll see your friends' contact info and status updates in one place

For detailed information about how to use Windows 10, please visit:

http://windows.microsoft.com/en-us/windows-10/getstarted-get-to-know-windows-10

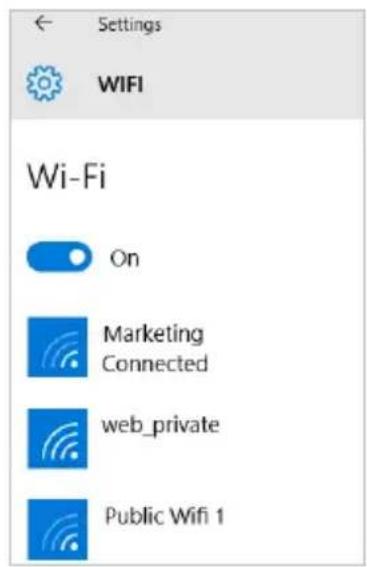

Windows // Connecting to a WiFi network

Settings WIFI Wi-Fi On Marketing Connected web_private Public Wifi 1

Make sure that you are in a WiFi zone.

1. Click on the arrow ☐ on the lower right corner and select the WiFi icon ✗
2. Select the name of network you want to connect to, tap on Connect and enter a password if required.

Tip:

• To get the correct WiFi password (or settings) for the network, contact the WiFi network provider.
• If you want to connect to this network every time it's in range, select the 'Connect automatically' check box.

Windows // Getting familiar with Windows 10

EN

Turning the device off

In Shut Down Mode, no data will be saved and the tablet will boot to the operating system's main screen the next time it is turned on. If you have entered data, either save it to the internal storage or to other storage media.

1. On the left side of the screen, select the Windows button.
2. Select the Power button, then select Shut down.

Or press and hold the power button for about 2-10 seconds till the screen 'Slide to shut down your PC' appears and then use the touchpad to slide down the screen.

Start screen tiles customisation

Pinning icons: Use the touchpad and the touchpad buttons to select the icon you want to move from your apps list to the Start screen.

Moving icons: If you want to move an icon, Use the touchpad and the touchpad buttons to select the icon and drag it to where you want it and drop it.

More options for icons: Use the touchpad and the right touchpad button to click a tile and show options.

Windows // The Windows 10 interface

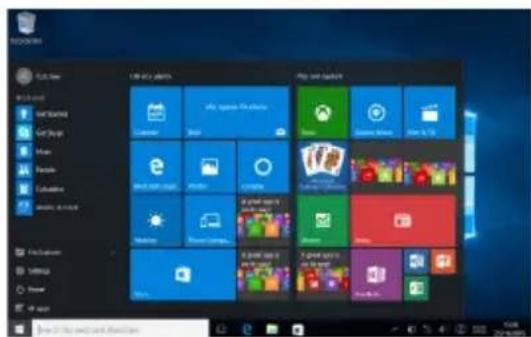

Start Screen

GO Get Now Get Up Get Down Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up NOW Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get Up Now Get UpNow

The "Start" screen is the launching pad to access your favourite apps and websites with only one click. To access this screen, click the Windows button on the lower left corner of the screen.

Slide to the right

Tablet screen displaying a login interface with Chinese text and a red car background

Slide from the left side of the screen to the right to open the running programs

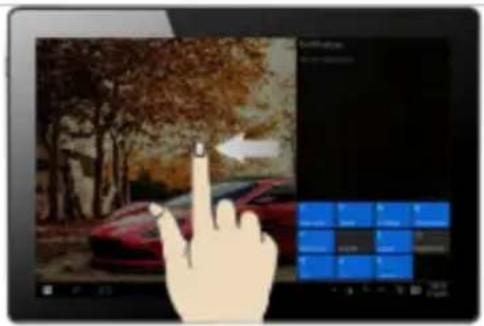

Slide to the left

Digital interface screenshot showing a hand interacting with a touchscreen display, featuring a cartoon car scene and UI elements.

Slide from the right side of the screen to the left to open the notification center

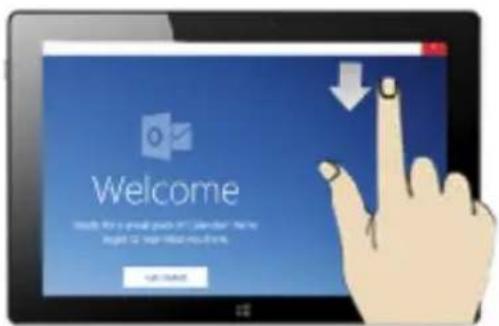

Slide down

Welcome Made for a great guide to Calendar Name Target 32: http://localhost.mdbh. Get OK!

Slide down from the upper side of the screen while a window is open. You can then place the window on either side to start the split screen.

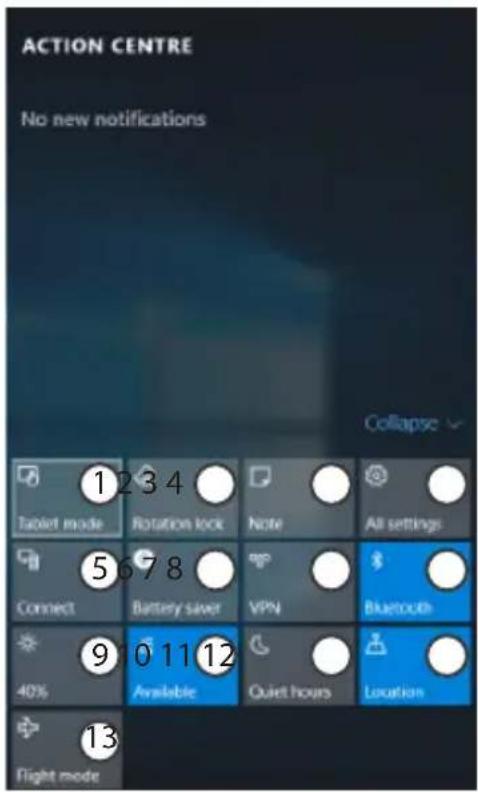

Windows // Windows notification center

ACTION CENTRE No new notifications Tablet mode Rotation lock Note All settings Connect Battery silver VPN Bluetooth 40% Available Quiet hours Location Flight mode

Click the ☐ton in lower right corner of the screen to display the notification center.

1 - To change from PC mode to tablet mode
2 - To turn on/off the screen rotation
3 - To take notes
4 - To access all settings
5 - To connect other devices
6 - To manage the device's battery
7 - To make a VPN connection
8 - To turn on/off the Bluetooth connection
9 - To adjust the screen brightness
10 - To turn on/off the WiFi connection
11 - To turn on/off the Quiet hours option
12 - To turn on/off location services
13 - To turn on/off the flight mode

EN

Android // Getting started

Turn ON

1. Press and hold the ON/OFF button to turn on the device.
   When you turn on your device, a PIN code may be requested.
2. Type the PIN code supplied with your SIM card.
   Beware of typing a wrong PIN code.
3. Select 'OK'.

Turn OFF

To turn off your device, press and hold the ON/OFF button, and then select Power off > OK.

Sound & Notification profiles

1. When the device is turned on, press the Volume Up/Down button.
2. Select an option.

Tip:

Your device goes in standby mode when you do not use it for a specified period of time. To wake up your device, press the ON/OFF button.

To set the duration, go to Settings > Display > Sleep.

Through the wizard

The first time you start up your Fieldbook, the installation wizard will help you set up your device:

-Language
-Date & time
- WiFi connection
- Location service options

Touch screen actions:

Tap: Touch once to select or launch a menu, option, or application.

Tap and hold: Tap an item and hold it for more than 2 seconds.

Drag: Tap an item and move it to a new location.

Double-tap: Tap an item twice quickly.

Flick: Briskly scroll up, down, left, or right to move through lists or screens.

Pinch: Place two of your fingers far apart, and then pinch them together.

Android // 4G & WiFi connections

4G connection

With your SIM card, you should be connected to the Internet without any further setup. The Fieldbook will only have signal if you are in an area covered by your provider's network. When connected to the 4G network, the 4G icon is displayed in the status bar.

Activating the mobile data

To be able to access Internet, mobile data must be activated.

1. Drag down the status bar.
2. Tap the "Settings" icon to open the settings menu.
3. Tap "SIM cards"
4. Tap "Mobile data" to activate it.

WiFi connection

Make sure that you are in a WiFi zone. You can access the WiFi settings quickly from the status bar.

1. Drag down the status bar.
2. The status dashboard is displayed.
3. Tap the "Settings" icon to open the settings menu.
4. Tap "Wi-Fi"
5. If Wi-Fi is off, slide the Wi-Fi switch to the "ON" position. Once the WiFi is on, the Fieldbook will scan and display the Wi-Fi networks in range.
6. Tap the name of the network you want to connect to. Private networks are shown with a lock icon and will require to enter your password.

Android // Google & Contacts

Adding a Google account

A Google account lets you take full advantage of Google apps and services

1. Go to "Settings" > "Accounts" > "Add account".
2. Select the account type "Google" to add.
3. Follow the onscreen instructions to enter information about the account.

Once the account is created, you can access Play Store, Gmail, Hangouts, Maps and many other apps.

Synchronizing info

Information must be sync to be saved. Your data are backed up on Google servers.

1. Go to "Settings" > "Accounts" > "Google".

2. Select your account.

The list of information that can be sync are displayed.

1. Check all information in order to sync them.

You can get them back in case of loss of your device or SIM card.

When your Google account is added to a new device, all your saved information are collected.

Saving your contacts

When your contacts are saved, they are always available on the web and can be synced to any Android phone that's set up with your Google account.

1. Install the SIM card with your contacts in your phone.
2. Tap on the All Apps screen,
3. Tap "Contacs"
4. Tap the Menu button > "Import/Export".
5. In Import/export contacts, select "Import from SIM card".
6. Select your Google account.
7. Check contacts to be imported and validate.
8. Once the contacts are imported in the Google account, go to "Settings" > "Accounts" > "Google".
9. Select you Google account. Make sure "Contacts" is checked.
10. Select the Menu button, then "Sync now".

Your contacts are saved to via your Google account.

Android // Hints & tips

The extended home screen:

Navigate between different home screen panels by swiping left and right.

Home button

Short press the Home button to go back to the main screen.

Tap and hold the Home button to display all the apps you have opened. Swipe any app left or right to close it.

Moving a home screen item:

Tap and hold an item until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item:

Tap and hold the item you wish to delete. Slide your finger towards the top of the screen and drop it over the "Remove" icon.

Uninstalling an item:

From the "All apps" screens, tap and hold an item, slide your finger towards the top of the screen and drop it over "Uninstall" bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined in a folder.

Widgets:

Tap the "Menu" button > tap "Widgets". From the main Widget screen, you can move around widgets just as you do for app icons.

Changing your wallpaper:

Tap the "Menu" button > tap "Wallpapers".

Locking the touchscreen:

From the quick settings dashboard in the status bar, touch "Settings". In "Settings", scroll down and touch "Security". Touch "Screen lock". Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, pin or other specified key.

Table des matières

FR

Labeled diagram of a tablet device showing internal components with numbered labels for identification.

Diagram showing two labeled components (① and ②) pointing to a device interface with connectors and buttons.

Picture 8.2

Top-down view of a laptop with visible buttons and a numbered arrow pointing to the front panel (no text or symbols on the device itself)

Laptop screen with labeled parts showing front and back views, marked with arrows indicating movement or change.

③

Wi-Fi MINI SIM

Windows // Mise en route

Allumer

Settings WIFI Wi-Fi On Marketing Connected web_private Public Wifi 1

Tablet screen displaying a login interface with Chinese text and a red car background

Digital interface screenshot showing a hand interacting with a touchscreen display, featuring a cartoon car scene and UI elements.

Welcome Made for a great pick in Calendar® We're agent or help to check you. OK OK

ACTION CENTRE No new notifications 1 2 3 4 Tablet mode Rotation lock Note All settings Connect Battery saver VPN Bluetooth 9 0 1 2 Available Quiet hours Location 40% Flight mode

Labeled diagram of a laptop chassis showing interior components with numbered parts for identification.

Diagram showing two labeled components (① and ②) pointing to a device interface with connectors and indicators.

Picture 8.2

Top-down view of a laptop back with visible circuit breakers and a numbered arrow pointing to the front panel (no text or symbols on the device itself)

Laptop screen with labeled parts showing front and back views, numbered 1 and 2 indicating specific areas of interest.

Close-up of a device component with labeled parts and an arrow pointing to a numbered section marker '3'

Wi-Fi MINI SIM

Settings WIFI Wi-Fi On Marketing Connected web_private Public Wifi 1

I can't use a desktop I can't use a folder I can't use a list I can't use a folder icon I can't use a list icon I can't use a list icon icon I can't use a list icon icon I can't use a list icon icon I can't use a list icon icon I can't use a list icon icon I can't use a list icon icon I can't use a list icon icon I can't use a list icon icon I can't use a list icon icon I can't use a list icon icon I can't use a list icon icon I can't use a list icon I can't use a list icon icon I can't use a list icon icon I can't use a list icon icon I can't use a list icon icon I can't use a list icon icon I can't use a list icon icon I can't use a list icon icon I can't use a list icon icon I can't use a list icon icon I can't use a list icon icon

Tablet screen displaying a login interface with Chinese text and a red car image, held by a hand pointing at it.

Digital interface screenshot showing a hand interacting with a touchscreen display, featuring a cartoon car scene and a grid of blue squares.

Welcome Made for a small push-in calendar that is night to help me you're OK OK

ACTION CENTRE No new notifications 1 2 3 4 Tablet mode Rotation lock Note All settings Connect Battery saver VPN Bluetooth 9 0 1 2 40% Available Quiet hours Location Flight mode

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country Restriction Reason/	remark
Bulgaria None General authorization required for outdoor use and public service
France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz	Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
Italy None If used outside of own premises, general authorization is required.
Luxembourg None General authorization required for network and service supply (not for spectrum)
Norway Implemented This subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund

Country Restriction Reason/

remark

Russian

None Only for indoor applications

Federation

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an “AS IS” basis to the maximum extent permitted by applicable law.

For the open source files contained herein, please access "Open source license" section located at: Settings\About tablet\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of Apache License, Version 2.0 at http://www.apache.org/licenses/LICENSE-2.0. You may also obtain a copy of GNU General Public License, Version 2 at the Free Software Foundation, INC, 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting LOGIC INSTRUMENT customer service at www.logic-instrument.com and Logic Instrument will send you a link to such source code or will provide instructions to get the source on a physical medium.

This offer is valid to anyone in receipt of this information.
