Product Type	Solo Microwave
Brand	Candy
Model	CMW 7117 DW RU
Capacity	17 L
Power Output	700 W
Power Consumption	1200 W
Voltage	220-240 V ~ 50 Hz
Product Dimensions (W x D x H)	458 x 385 x 279 mm
Cavity Dimensions (W x D x H)	290 x 290 x 190 mm
Net Weight	10.2 kg
Control Type	Electronic with LED display
Defrost Function	Yes, by weight or time
Auto Cook Menus	8 preset programs
Clock & Timer	Yes, digital
Interior Light	LED
Turntable	Yes, 270 mm diameter
Child Lock	Yes
Door Interlock System	Yes, 3 safety switches
Cleaning Method	Wipe interior with damp cloth; do not use abrasives
Spare Parts Availability	Contact authorized service centers
Repair Index (French score)	8.2/10 (estimated)

Frequently Asked Questions - CMW 7117 DW RU CANDY

What is the capacity of the Candy CMW 7117 DW RU microwave?

The microwave has a capacity of 17 liters, suitable for small to medium dishes.

How do I set the clock on this microwave?

Press the Clock button, then use the + and - buttons to set hours and minutes. Confirm by pressing Clock again.

Can I use metal containers in this microwave?

No, metal containers can cause arcing and damage the oven. Use microwave-safe glass, ceramic, or plastic.

How do I activate the child lock?

Press and hold the Stop/Clear button for 3 seconds until a lock icon appears. Repeat to unlock.

What does the defrost function do?

The defrost function uses low power to thaw frozen food evenly. You can set by weight or time.

How do I clean the microwave interior?

Wipe with a damp cloth and mild detergent. Avoid abrasive cleaners. For odors, boil a bowl of water with lemon juice.

Why does the turntable not rotate?

Ensure the turntable and roller ring are correctly placed. If still not rotating, the drive motor may need servicing.

What does the error code 'E01' mean?

'E01' indicates a door switch malfunction. Contact customer support for repair.

Can I use the microwave without the turntable?

No, the turntable ensures even heating. Operating without it may cause uneven cooking and potential damage.

Where can I find spare parts for this model?

Contact Candy authorized service centers or visit the official website for parts ordering.

USER MANUAL CMW 7117 DW RU CANDY

Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

GB

Specifications

Model:	CMG 1773 DW-CMG 1774 DS
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1150 W
Rated Output Power(Microwave):	700 W
Rated Input Power(Grill):	1000 W
Oven Capacity:	17 L
Turntable Diameter:	245 mm
External Dimensions(LxWxH):	461 x 375 x 280 mm
Net Weight:	12.3 kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
2. Warning: It is hazardous for anyone other than a competent person to remove a cover which gives protection against exposure to microwave energy.
3. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
4. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (only for grill series)
5. Only use utensils suitable for use in microwave ovens.
6. The oven should be cleaned regularly and any food deposits should be removed.
7. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
9. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
10. Do not overcook food.
11. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
12. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

13. Install or locate this oven only in accordance with the installation instructions provided.

14. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

15. Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.
16. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
17. Do not store or use this appliance outdoors.
18. Do not use this oven near water, in a wet basement or near a swimming pool.
19. The temperature of accessible surfaces may be high when the appliance is operating. Keep cord away from heated surface, and do not cover any events on the oven.
20. Do not let cord hang over edge of table or counter.
21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
22. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
23. Microwave heating of beverages can result in delayed eruptive boiling, therefore take care when handling the container.

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

CLEANING

Be sure to disconnect the oven from the power supply.

1. Clean the inside of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

Two-round-pin plug

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 2-pronged plug with a grounding slot & 2 grounding plates. A 2-slot receptacle, with a grounding prong or grounding terminal(s), will accept the plug of the appliance.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
   1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
   2) The extension cord must be a grounding-type 3-wire cord.
   3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks

Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

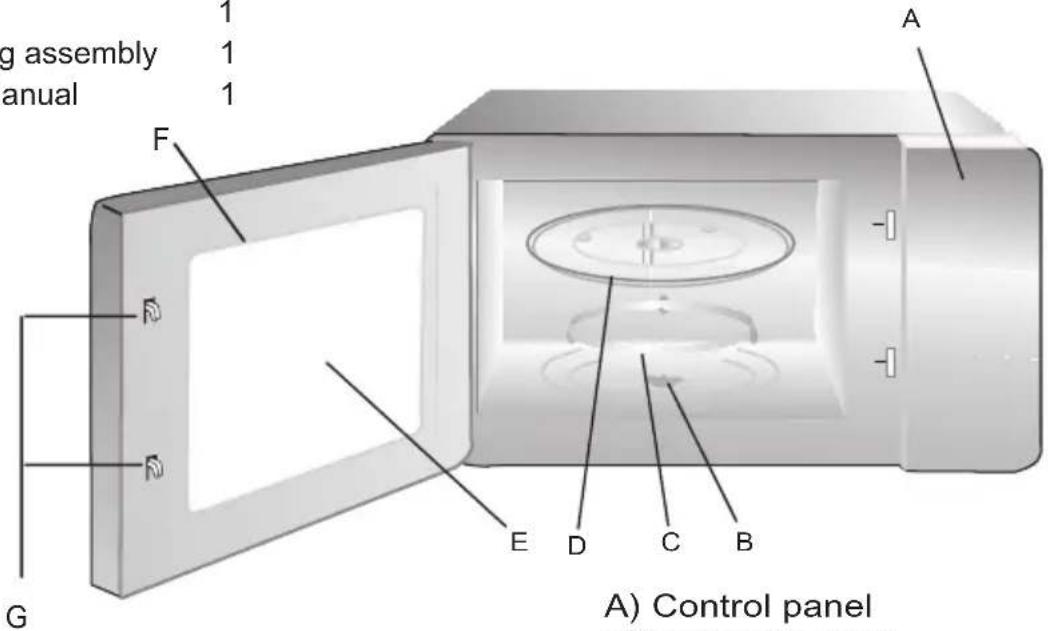

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1 Turntable ring assembly 1 Instruction Manual 1

g assembly manual 1 1 1 A F G E D C B A) Control panel

Warning: Do not use grill rack in microwave mode! Always take it out when using the microwave!

Simple line drawing of a circular metal grate structure with three legs and supports (no text or symbols)

Grill ( Only for Grill series )

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

Shuts off oven power if the door is opened during operation.

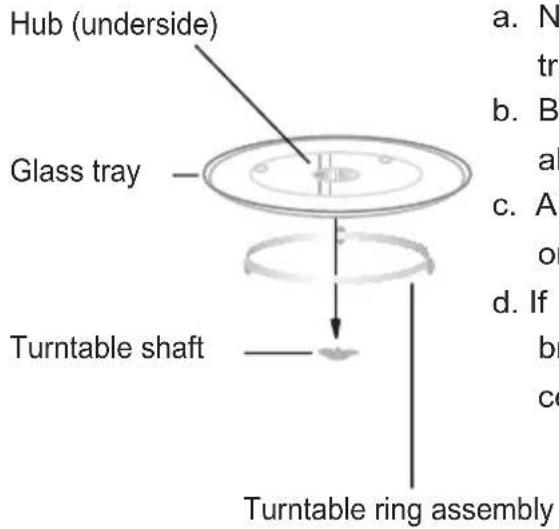

Turntable Installation

Hub (underside) Glass tray Turntable shaft Turntable ring assembly a. N b. B c. A d. If be ce

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

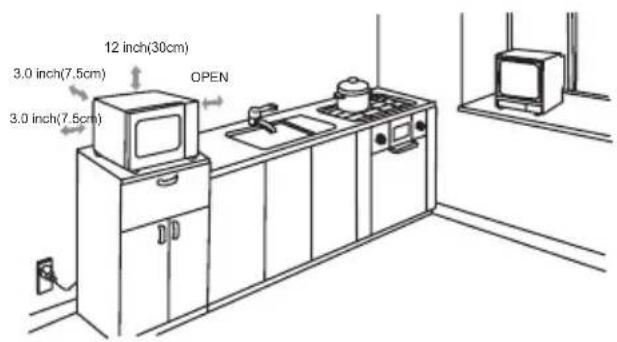

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

3.0 inch(7.5cm) 3.0 inch(7.5cm) 12 inch(30cm) OPEN

A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open.

(1) Leave a minimum clearance of 12 inches (30cm) above the oven.

(2) Do not remove the legs from the bottom of the oven.

(3) Blocking the intake and/or outlet openings can damage the oven.
(4) Place the oven as far away from radios and TV as possible.

Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press "Clock/Pre-set", the hour figures will flah.
2) Turn " 🔥 " to adjust the hour figures, the input time should be within 0--23.
3) Press "Clock/Pre-set", the minute figures will flash.
4) Turn " 🔍 " to adjust the minute figures, the input time should be within 0--59.
5) Press "Clock/Pre-set" to finish clock setting. ":" will flash.
Note: 1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if you press "Stop/Clear" or no operation in one minute, the oven will exit the setting.

2. Microwave Cooking

Press "Micro/Grill/Combi" several times to select the function you want. Turn "to adjust the cooking time. Press "Start/Express" to start cooking.

Example: If you want to use 80% power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press "Micro/Grill/Combi" once, the LED will display "P100", "☐" indicator will be lighted.

2) Press "Micro/Grill/Combi" once again to choose 80% power, the LED will display "P80".

3) Turn " " to adjust the cooking time until the oven display"20:00"(The maximum cooking time is 95 minutes.)

4) Press " Start/ Express " to start cooking, ":" will light and the " 🔊" indicator will flash (Buzzer will sound five times after finishing).

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

Press	Once Twice Thrice 4 times 5 times
Microwave Power		80%	50%	30%	10%	100%

3. Grill Cooking

1) Press the "Micro/Grill/Combi" key six times, "G" displays and grill function is selected.

2) Turn " 🔍 " to adjust the cooking time. The maximum cooking time is 95 minutes.
3) Press the "Start/Express" key to start cooking. The "will flash,":" will be lighted.

Note: If half the grill time passes, the oven pause and beep twice. This is normal. You can just press "Start/Express" to continue cooking. But in order to have a better effect of grilling food, you should turn the food over, close the door, and then press "Start/Express" to continue cooking. If there is no operation in 1 minute, the oven will continue working and beep once.

4. Combination Cooking

1) Press the "Micro/Grill/ Combi" key for times, "C-1" or "C-2" display and combination function is selected. " " and " " will light.

2) Turn " 🔍 " to adjust the cooking time. (The maximum cooking time is 95 minutes.)
3) Press " Start/ Express " key to start cooking. The cooking indicators will flash and ":" will light.

Note: Combination instructions

Instructions	LED Display	Microwave Power	Grill Power
1		55%	45%
2		36%	64%

5. Speedy Cooking

When the oven is in the waiting states, press "Start/Express" key to start cooking with full microwave power for 30 seconds. The cooking time will add 30 seconds by every press on "Start/Express" key, and the maximum setting time is 95 minutes.

Note: Be invalidation under other program during cooking.

6. Defrost by Weight

1) Press "Defrost By Weight" pad once, the LED will display "dEF1".

2) Turn " 🔍" to select the weight of food. At the same time, "g" will light. The weight should be 100-2000g.

3) Press "Start/Express" key to start defrosting. " " and " indicators will flash and "g" indicator will go out.

7. Defrost By Time

1) Press "Defrost By Time" key twice, the LED will display "dEF2".

88:88

2) Turn " 🔍 " to select the cooking time. At the same time, " ✉ " and " ✏ " will be lighted. The time setting is from 00:05 to 95:00.

88:00

The default power level is P30. It is not adjustable.

3) Press " Start/ Express " key to start defrosting.

and

" indicators will flash .

8. Auto Menu

1). In waiting states, press "Auto Menu" to choose the menu you need. "A-1", "A-2".... "A-8" will display in order.

88:88:

2). Turn " 🔍 " to select the weight or portion of the menu.
3) Press "Start/ Express" to start cooking.

When cooking finish, buzzer will sound five times. If the clock has been set before, the current time will be displayed, otherwise, 0:00 will be displayed.

For example: to cook the pasta of 150g.

1) Press "Auto Menu" for three times, "A-3" displays and pasta menu is selected.

" and "

" indicator will light.

2). Turn " 🔍 " to select the weight of the menu. Stop turning when "150" displays.
3) Press " Start/ Express " to start cooking.

When cooking finish, buzzer will sound five times. Then turn back to waiting states.

9.Multi-Stage Cooking

Two stages of cooking can be maximally set. If one stages is defrosting, it will be put in the first stage automatically. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu cannot be set as one of the multi-stage.

Example: if you want to defrost the food of 500g + 80% microwave power for 5 minutes.

The steps are as following:

1) Press "Defrost By Weight", "dEF1" displays;

88:88

2) Turn " " to adjust the weight of the food. Stop turning when "500" displays;

3) Press"Micro/Grill/ Combi" twice to choose 80% microwave power;

88:88

4) Turn " " to adjust the cooking time of 5 minutes;

89:00

5) Press "Start/ Express" to start cooking.

Note: When the first stage finish, buzzer sounds once then the second stage begins. When all of them finish, buzzer sounds five times and the unit turn back to the waiting states.

10. Pre-set Function

1) Set the clock first. (Consult the instruction of clock setting.)
2) Input the cooking program. Two stages can be set at most. Defrosting should not be set here.

3) Press "Clock/Pre-set". The current clock is displayed. The hour figure flash;

4) Turn " [icon] " to adjust the hour figures, the input time should be within 0--23.	8:00:
5) Press " Clock/Pre-set ", the minute figures will flash.	8:00:
6) Turn " [icon] " to adjust the minute figures, the input time should be within 0--59.	8:05:

7) Press " Start/ Express " to finish setting. ":" will light, buzzer will ring twice when the time arrives, then cooking will start automatically.

Note: 1) Clock must be set first. Otherwise, pre-set function will not work. 2) If the pre-set program has been set without the cooking program, the whole setting will be used as an alarm clock. That means when pre-set time arrives, buzzer will sound five times only.

11. Inquiring Function

(1) In cooking state, press "Micro/ Grill/ Combi", the current microwave power will be displayed for 3 seconds.
(2) In pre-set state, press "Clock/Pre-set" to inquire the time for delay start cooking. The pre-set time will flash for 3 seconds, then the oven will turn back to the clock display.
(3) During cooking state, press "Clock/Pre-set" to check the current time. It will be displayed for 3 seconds.

12. Lock-out Function for Children

Lock: In waiting state, press "Stop/Clear" for 3 seconds, there will be a long "beep" denoting entering into the children-lock state and LED will display "88:83:" and "☐" will light.

Lock quitting: In locked state, press "Stop/Clear" for 3 seconds, there will be a long "beep" denoting that the lock is released, and LED will turn back to the clock stae, "Will go out.

13. Protection of Fan

When the microwave or combination cooking works over 5 minutes, it stops working at the last 15 seconds, only fan runs.

14. Protection Function of Magnetron Control Pipe

When the unit runs for 30 minutes with high power level, it will adjust to 80% microwave power to protect the magnetron control pipe.

This function works under multi-stage and other states.

15. Automatic Going Out Function

When the door is kept open for 10 minutes, the oven light will be off. Press any key after opening the door, time will count down again. The oven lamp will light.

16. Specification

(1) The buzzer will sound once when turning the knob at the beginning;
(2) "Start/ Express" must be pressed to continue cooking if the door is opened during cooking;
(3) Once the cooking programme has been set, "Start/Express" is not pressed in 1 minutes. The current time will be displayed. The setting will be cancelled.
(4) The buzzer sounds once by efficient press, inefficient press will be no response.

GB

Menu	Weight(g)	Display
A-1 AUTO REHEAT	150	150
	250	250
	350	350
	400	400
A-2 VEGETABLE	150	150
	350	350
	500	500
A-3 PASTA	50(with water 450g)	50
	100(with water 800g)	100
	150(with water 1200g)	150
A-4 MEAT	150	150
	300	300
	450	450
	600	600
A-5 PIZZA	1(About 80g)	1
	2(About 160g)	2
	3(About 250g)	3
A-6 POTATO	1(About 220 ± 10g)	1
	2(About 440 ± 10g)	2
	3(About 660 ± 10g)	3
A-7 FISH	150	150
	250	250
	350	350
	400	400
	450	450
A-8 SOUP	500	500
	750	750
	1000	1000

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It does no damage to oven if oven operates empty for quite short time. But it should be avoided.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

CookingGuide

MICROWAVES

Microwaveenergyactuallypenetratesfood, attracted and absorbed by its water, fat and sugar content.

Themicrowavescausethemoleculesinthefoodtomoverapidly. Therapid movementofthesemoleculescreatesfrictionandtheresultingheatcooksthe food.

COOKING

Cookwareformicrowavecooking:

Cookware must allow microwave energy to pass through it for maximum efficiency. Microwaves can penetrate through ceramic, glass, porcelain and plastic as well as paper and wood, but they are reflected by metal, such as stainless steel, aluminium and copper. So food must never be cooked in metal containers.

Foodssuitableformicrowavecooking:

Manykindsoffoodaresuitableformicrowavecooking,includingfreshorfrozen vegetables,fruit,pasta,rice,grains,beans,fish,andmeat.Sauces,custard, soups,steamedpuddings,preserves,andchutneyscanalsobecookedina microwaveoven.Generallyspeaking,microwavecookingisidealforanyfood thatwouldnormallybepreparedonahob.

Coveringduringcooking

Tocoverthefoodduringcookingisveryimportant,astheevaporatedwaterrises assteamandcontributestocookingprocess.Foodcanbecoveredindifferent ways:e.g.withaceramicplate,plasticcoverormicrowavesuitableclingfilm.

Standingtimes

Aftercookingisoverfoodthestandingtimeisimportanttoallowthetemperature toevenoutwithinthefood.

CookingGuide

CookingGuideforfrozenvegetables

Useasuitableglasspyrexbowlwithlid.Cookcoveredfortheminimumtime-see table.Continuecookingtogettheresultyouprefer.

Stirtwiceduringcookingandonceaftercooking.Addsalt,herbsorbutterafter cooking.Coverduringstandingtime..

FoodPortion	Power		Time (min.)	Standing Time(min.)	Instructions
Spinach	150gP	805-62-3			Add15ml(1tablespoon) coldwater.
Broccoli	300gP	808-92-3			Add 30 ml (2 t b sp.) cold water.
Peas	300gP	807-82-3			Add 15 ml (1 t b sp.) cold water.
GreenBeans	300gP	807^1/2-8^1/22-3			Add 30 ml (2 t b sp.) cold water.
Mixed Vegetables (carrots/peas/corn)	300gP	807-82-3			Add 15 ml (1 t b sp.) cold water.
Mixed Vegetables (Chinesestyle)	300gP	807^1/2-8^1/22-3			Add 15 ml (1 t b sp.) cold water.

GB

CookingGuide

CookingGuideforfreshvegetables

Useasuitableglasspyrexbowlwithlid.Add30-45mlcoldwater(2-3tbsp.)for every250gunlessanotherwaterquantityisrecommended-seetable.Cook coveredfortheminimumtime-seetable.Continuecookingtogettheresultyou prefer.Stironceduringandonceaftercooking.Addsalt,herbsorbutterafter cooking.Coverduringastingtimeof3minutes.

Hint: Cutthefreshvegetablesintoevensizedpieces. Thesmallerthey arecut, thequickertheywillcook.

All fresh vegetables should be cooked using full microwave power (P100).

Food	Portion	Time (min.)	Standing Time(min.)	Instructions
Broccoli	250g500g	31⁄2-46-7	3	Prepareevensizedflorets.Arrange thestemstothecentre.
Brussels Sprouts	250g5	51⁄23		Add60-75ml(5-6tbsp.)water.
Carrots	250g3	1⁄2-43		Cutcarrotsintoevensizedslices.
Cauliflower	250g500g	4-41⁄261⁄2-71⁄2	3	Prepareevensizedflorets.Cutbig floretsintohalves.Arrangestemsto thecentre.
Courgettes	250g3	31⁄23		Cutcourgettesintoslices.Add30ml (2tbsp.)wateroraknobofbutter. Cookuntiljusttender.
EggPlants	250g2	1⁄2-33		Cuteggplantsintosmallslicesand sprinklewith1tablespoonlemon juice.
Leeks	250g3	31⁄23		Cutleeksintothickslices.
Mushrooms	125g250g	1-11⁄22-21⁄2	3	Preparesmallwholeorsliced mushrooms.Donotaddanywater. Sprinklewithlemonjuice.Spicewith saltandpepper.Drainbefore serving.
Onions	250g4	41⁄23		Cutonionsintoslicesorhalves.Add only15ml(1tbsp.)water.
Pepper	250g3	1⁄2-43		Cutpepperintosmallslices.
Potatoes	250g500g	3-46-7	3	Weighthepeeledpotatoesandcut themintosimilarsizedhalvesor quarters.
Turnip Cabbage	250g	41⁄2-5	3	Cutturnipcabbageintosmallcubes.

CookingGuide

CookingGuideforriceandpasta

Rice: Usealargeglasspyrexbowlwithlid-ricedoublesinvolumeduring cooking. Cookcovered. Afterthecookingtimeisover, stirbeforestandingtimeandsaltor addherbsandbutter. Remark: thericemaynothaveabsorbedallwaterafterthecooking timeisfinished.

Pasta: Usealargeglasspyrexbowl.Addboilingwater, apinchofsalt and stirwell. Cookuncovered. Stiroccasionally during and after cooking. Cover during standing time and drain thoroughly afterwards.

FoodPortionPower			Time (min.)	Standing Time(min.)	Instructions
WhiteRice (parboiled)	250g375g	P100	15-16 1712-1812	5	Add500mlcoldwater.Add750mlcoldwater.
BrownRice (parboiled)	250g375g	P100	20-2122-23	5	Add500mlcoldwater.Add750mlcoldwater.
MixedRice (rice+wild rice)	250gP	10016-175			Add500mlcoldwater.
MixedCorn (rice+grain)	250gP	10017-185			Add400mlcoldwater.
Pasta	250gP	10010-115			Add1000mlhotwater.

REHEATING

Yourmicrowaveovenwillreheatfoodinafractionofthetimethatconventional ovenshobsnormallytake.

Usethepowerlevelsandreheatingtimesinthefollowingchartasaguide. The timesinthechartconsiderliquidswitharoomtemperatureofabout+18to+20°C orachilledfoodwithatemperatureofabout+5to+7°C.

Arrangingandcovering

Avoidreheatinglargeitemssuchasjointofmeat-theytendtoovercookanddry outbeforethecentreispipinghot.Reheatingsmallpieceswillbemore successful.

Powerlevelsandstirring

Somefoodscanbereheated using maximum powerwhileothersshouldbe reheated using lower power.

Checkthetablesforguidance.Ingeneral,itisbettertoreheatfoodusingalower powerlevel,ifthefoodisdelicate,inlargequantities,orifitislikelytoheatup veryquickly(mincepies,forexample).

Stirwellorturnfoodoverduringreheatingforbestresults.Whenpossible,stir againbeforeserving.

CookingGuide

Takeparticularcarewhenheatingliquidsandbabyfoods.Topreventeruptive boilingofliquidsandpossiblescalding,stirbefore,duringandafterheating. Keeptheminthemicrowaveovenduringstandingtime.Werecommendputtinga plasticspoonorglassstickintotheliquids.Avoidoverheating(andtherefore spoiling)thefood. Itispreferabletounderestimatecookingtimeandaddextraheatingtime,if necessary.

Heatingandstandingtimes

When reheating food for the first time, it is helpful to make an annotation of the time taken-for-future reference.

Alwaysmakesurethatthereheatedfoodispipinghotthroughout.

Allowfoodtostandforashorttimeafterreheating-toletthetemperatureeven out. Therecommendedstandingtimeafterreheatingis2-4minutes,unless another time is recommended in the chart..

Takeparticularcarewhenheatingliquidsandbabyfood.Seealsothechapter withthesafetyprecautions.

REHEATINGLIQUIDS

Alwaysallowastandingtimeofatleast20secondsaftertheovenhasbeen switchedofftoallowthetemperaturetoevenout.Stirduringheating,if necessary,andALWAYSstirafterheating.Topreventeruptiveboilingand possiblescalding,youshouldputaspoonorglassstickintothebeveragesand stirbefore,duringandafterheating.

REHEATINGBABYFOOD

BABYFOOD:

Emptyintoadeepceramicplate.Coverwithplasticlid.Stirwellafterreheating! Letstandfor2-3minutesbeforeserving.Stiragainandcheckthetemperature. Recommendedservingtemperature:between30-40°C.

BABYMILK:

Pourmilkintoasterilisedglassbottle.Reheatuncovered.Neverheatababy's bottlewithteaton,asthebottlemayexplodeifoverheated.Shakewellbefore standingtimeandagainbeforeserving!Alwayscarefullycheckthetemperature ofbabymilkorfoodbeforegivingittothebaby.Recommended serving temperature:ca.37°C.

REMARK:

Babyfoodparticularlyneedstobecheckedcarefullybeforeservingtoprevent burns.

Usethepowerlevelsandtimesinthenexttableasaguidelinesforreheating.

ReheatingLiquidsandFood
Usethepowerlevelsandtimesinthistableasaguidelinesforreheating.

FoodPortionPower			Time (min.)	Standing Time (min.)	Instructions
Drinks (coffee,milk, tea,water withroom temperature)	150ml (1cup)300ml (2cups)450ml (3cups)600ml (4cups)	P100	1-112 112-2 212-3 3-312	1-2	Pourintoaceramiccupand reheatuncovered.Place1 cup in the centre, 2 oppositeofeachotherand 3or4inacircle.Stir carefullybeforeandafter standingtime,becareful whiletakingthemoutof oven.
Soup (chilled)	250g350g450g550g	P100	2-212 212-3 3-312 312-4	2-3	Pourintoadeepceramic plateordeepceramicbowl.Coverwithplasticlid.Stir wellafterreheating.Stir againbeforeserving.
Stew (chilled)	350gP80		412-512 2-3		Putstewinadeepceramic plate.Coverwithplastic lid.Stiroccasionallyduring reheatingandagainbefore standingandserving.
Pastawith sauce (chilled)	350gP80	312-412 3			Putpasta(e.g.spaghettior eggnoodles)onaflat ceramicplate.Coverwith microwaveclingfilm.Stir beforeserving.
Filledpasta withsauce (chilled)	350gP80		4-53		Putfilledpasta(e.g.ravioli, tortellini)inadeepceramic plate.Coverwithplasticlid.Stiroccasionallyduring reheatingandagainbefore standingandserving.
PlatedMeal (chilled)	350g450g550g	P80	412-512 5-6 512-612	3	Plateamealof2-3chilled componentsonaceramic dish.Coverwithmicrowave cling-film.

CookingGuide

ReheatingBabyFoodandMilk

Usethepowerlevelsandtimesinthistableasguidelinesforreheating.

FoodPortionPowerTime				Standing Time (min.)	Instructions
Babyfood (vegetables +meat)	190gP8030sec.2-3				Emptyintoceramicdeepplate.Cookcovered.Stiraftercooking time.Standfor2-3minutes.Beforeserving,stirwelland checkthetem-peraturecarefully.
Baby porridge (grain+ milk+fruit)	190gP8020sec.2-3				Emptyintoceramicdeepplate.Cookcovered.Stiraftercooking time.Standfor2-3minutes.Beforeserving,stirwelland checkthetem-peraturecarefully.
Babymilk	100ml200ml	P30	30-40 sec.1 min to 1 min 10sec.	2-3	Stirorshakewellandpourintoa sterilisedglassbottle.Placeinto thecentreofturntable.Cook uncovered.Shakewellandstand foratleast3minutes.Before serving,shakewellandcheckthe tempera-turecarefully.

CookingGuide

GRILL

Thegrill-heatingelementislocatedunderneaththeceilingofthecavity. It operateswhilethedoorisclosedandtheturntableisrotating. Theturntable's rotationmakesthefoodbrownmoreevenly. Preheatingthegrillfor4minuteswill makethefoodbrownmorequickly.

Cookwareforgrilling:

Shouldbeflameproofandmayincludemetal.Donotuseanytypeofplastic cookware,asitcanmelt.

Foodsuitableforgrilling:

Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions, sandwiches and all kind soft to ast with toppings.

IMPORTANTREMARK:

Please remember that food must be placed on the high rack, unless another instruction is recommended.

MICROWAVE+GRILL

This cooking mode combines the other that this coming from the grill with the speed of microwave cooking. It operates only while the door is closed and the turntable is rotating. Duet other rotation of the turntable, the food brown sevenly.

Cookwareforcookingwithmicrowave+grill

Pleaseusecookwarethatmicrowavescanpassthrough.Cookwareshouldbe flameproof.Donotusemetalcookwarewithcombinationmode.Donotuseany typeofplasticcookware,asitcanmelt.

Foodsuitableformicrowave+grillcooking:

Foodsuitableforcombinationmodecookingincludeallkindsofcookedfood whichneedreheatingandbrowning(e.g.bakedpasta),aswellasfoodswhich requireashortcookingtimetobrownthetopofthefood.Also,thismodecanbe usedforthickfoodportionsthatbenefitfromabrownedandcrispytop(e.g. chickenpieces,turningthemoverhalfwaythroughcooking).Pleaserefertothe grilltableforfurtherdetails.

The food must be turned over, if it is to be browned on both sides.

CookingGuide

GrillGuideforfreshfood

Preheathegrillwiththegrill-functionfor4minutes.

Usethepowerlevelsandtimesinthistableasguidelinesforgrilling.

FreshFoodPortionPower			1.Side Time (min)	2.Side Time (min)	Instructions
ToastSlices	4pcs(each25g)	Grill only	3^1/2-4^1/23	-4	Putthetoastsslicessidebyside ontherack.
BreadRolls(already baked)	2-4 pieces	Grill only	2^1/2-3^1/21	1/2-2^1/2	Putbreadrollsfirstwiththe bot to m side u p in a circle directlyontheturntable.
Grilled Tomatoes	200g(2pcs)400g(4pcs)	C2	3^1/2-4^1/2 5-6	-	Cuttomatoesintohalves.Put somecheeseontop.Arrange inacircleinaflatglasspyrex dish.Placeitontherack.
Tomato-Cheese Toast	4 pcs(300g)	C24-5-			Toastthebreasslicesfirst.Put thetoastwithtoppingonthe rack.Standfor2-3minutes.
Toast Hawaii(pineapple,ham,cheese slices)	2 pcs(300g)4 pcs(600g)	C1	3^1/2-4^1/2 6-7	-	Toastthebreadslicesfirst.Put thetoastwithtoppingonthe rack.Put2toastsopposite directlyontherack.Standfor 2-3minutes.
Baked Potatoes	250g500g	C1	4^1/2-5^1/2 6^1/2-7^1/2	-	Cutpotatoesintohalves.Put h e min a c r i c l e o n t h e r a c k with thecutsidetothegrill.
Gratin Potatoes/vegetables(chilled)	500g	C1	9-11-		Put t h e f r e s h g r a t i n i n t o a small glass Grillpyrexdish.Putthe dishontherack. Aftercooking standfor2-3minutes.
Chicken Pieces	450g(2pcs)650g(2-3pcs)850g(4pcs)	C2	7-89-1011-12	7-88-99-10	Brushchickenpieceswithoil andspices.Puttheminacircle withthebonestothemiddle.Putonechickenpiecenotinto thecentreoftherack.Standfor 2-3minutes.
Roast Chicken	900g1100g	C1	10-1212-14	9-1111-13	Brushchickenwithoiland spices.Putchickenfirstbreast sidedown,secondsidebreast sideupdirectlyonturntable. Standfor5minutesafter grilling.

CookingGuide

GrillGuideforfreshfood

FreshFoodPortionPower			1.Side Time (min)	2.Side Time (min)	Instructions
LambChops (medium)	400g (4pcs)	Grill only	10-128-9		Brushthelambchopswithoil andspices.Laythemina circleontherack.After grillingstandfor2-3minutes.
PorkSteaks	250g (2pcs) 500g (4pcs)	MW + Grill	C2 6-7 8-10	(Grill only) 5-6 7-8	Brushtheporksteakswithoil andspices.Laythemina circleontherack.After grillingstandfor2-3minutes.
RoastFish	450g 650g	C2	6-7 7-8	7-8 8-9	Brushskinofwholefishwith oilandherbsandspices.Put fishsidebyside(headtotail) onrack.
Baked Apples	2apple (ca.400g) 4apples (ca.800g)	C2	6-7 10-12	-	Coretheapplesandfillthem withraisinsandjam.Put somealmondslicesontop. Putapplesonaflatglass pyrexdish.Placethedish directlyontheturntable.

GB

CookingGuide

GrillGuideforfrozenfood

Usethepowerlevelsandtimesinthistableasguidelinesforgrilling.

FreshFoodPortionPower			1.Side Time (min)	2.Side Time (min)	Instructions
BreadRolls(eachca.50g)	2 pcs4 pcs	MW+ Grill	C2 112-2 212-3	Grill only2-32-3	Arrangerollsinacircle withthebottomsideup directlyontheturntable.Grillthesecondsideof therollsuptothecrispyouprefer.Standfor2-5 minutes.
Baguettes/GarlicBread	200-250g(1pc)	MW+ Grill	C1 312-4	Grill only2-3	Putfrozenbaguette diagonallyonbaking paperontherack.After grillingstandfor2-3 minutes.
Gratin(vegetablesor potatoes)	400gC1		13-15-		Putfrozengratinintoa smallglasspyrexdish.Putthedishontherack.Aftercookingstandfor2-3minutes.
Pasta(Cannelloni, Macaroni, Lasagne)	400gC1	14-16-			Putfrozenpastaintoa smallflatrectangular glasspyrexdish.Putthe dishdirectlyontheturntable.Aftercooking standfor2-3minutes.
FishGratin400gC1			16-18-		Putfrozenfishgratinintoasmallflatrectangular glasspyrexdish.Putthe dishdirectlyontheturntable.Aftercooking standfor2-3minutes.

CANDY

Forno a microonde

MANUALE DI ISTRUZIONI MODELLI: CMG 1773 DW CMG 1774 DS

9. Cotture in sequenza

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple diagram showing a circular object with a pointer and a downward arrow, no text or symbols present.

Anillo de soporte

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)
