IAN 86522 - Scale SILVERCREST - Free user manual and instructions

Product Type	Digital Scale
Model	IAN 86522
Brand	SilverCrest
Power Supply	2 x 1.5V AAA batteries (not included)
Maximum Weight Capacity	150 kg / 330 lb
Graduation	0.1 kg / 0.2 lb
Display	LCD with backlight
Units	kg, lb, st
Auto-Off	Yes, after 10 seconds of inactivity
Overload Indicator	Yes
Low Battery Indicator	Yes
Tare Function	Yes
Platform Material	Tempered glass
Dimensions (approx.)	30 x 30 x 2.5 cm
Weight (device only)	1.2 kg
Cleaning	Wipe with damp cloth; do not immerse
Safety	Place on hard flat surface; step gently
Repairability	For qualified personnel only; no user-serviceable parts
Spare Parts Available	Batteries only
General Information	For indoor use only; keep away from water

Frequently Asked Questions - IAN 86522 SILVERCREST

How do I change the batteries?

Open the battery compartment on the bottom, remove old batteries, insert two new AAA batteries with correct polarity, and close the compartment.

What is the maximum weight the scale can measure?

The maximum capacity is 150 kg (330 lb). Exceeding this may damage the scale.

Why does the display show 'Lo' or 'Err'?

'Lo' indicates low battery. Replace the batteries. 'Err' may indicate overload or unstable surface. Check the weight and surface.

How do I switch between weight units?

Press the UNIT button on the back or bottom of the scale to toggle between kg, lb, and st.

Can I use the scale on carpet?

For accurate readings, place the scale on a hard, flat, and level surface. Using it on carpet may cause inaccurate results.

How do I clean the scale?

Wipe the surface with a soft, damp cloth. Do not use abrasive cleaners or immerse the scale in water.

What is the tare function and how do I use it?

The tare function allows you to zero out the weight of a container. Place the container on the scale, press TARE, then add the item.

Why does the scale turn off automatically?

The auto-off feature saves battery. The scale shuts off after about 10 seconds of inactivity. Step on it again to power on.

How accurate is the scale?

The scale has a graduation of 0.1 kg (0.2 lb) and is accurate for home use. For medical purposes, consult a professional.

Where can I get spare parts or service?

Only batteries are user-replaceable. For other repairs, contact SilverCrest customer service. Do not attempt to open the device.

USER MANUAL IAN 86522 SILVERCREST

SPRECHENDE PERSONENWAAGE SPWS 180 A1

DE AT CH

SPRECHENDE PERSONENWAAGE

Bedienungsanleitung

GB CY

TALKING SCALE

Operating instructions

HR

OSOBNA VAGA KOJA GOVORI

Upute za upotrebu

ES

GB/CY Operating instructions Page 17

Overview of the appliance 18

Introduction 19

Intended Use 19

Items supplied 19

Description of the appliance 19

Technical Data 19

Safety instructions 19

Using the scale 20

Warning indicators 21

Replacing the batteries 22

Usage and safe-keeping 22

Cleaning 22

Troubleshooting 22

Disposal 23

Warranty and Service 23

Importer 24

Read the operating instructions carefully before using the device for the first time and preserve this booklet for later reference. Pass this manual on to whoever might acquire the device at a future date.

Overview of the appliance

Model example

Introduction

Congratulations on the purchase of your new appliance.

You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. In addition, pass these documents on, together with the product, to any future owner.

Intended Use

This scale is intended solely

• for use as a bathroom scale
• in a domestic environment.

This appliance is not intended for commercial or industrial use.

Items supplied

Talking Scale

3 x Batteries Type AAA/Micro/LR03

Operating instructions

Before using the appliance for the first time, check to ensure that the contents are complete and undamaged.

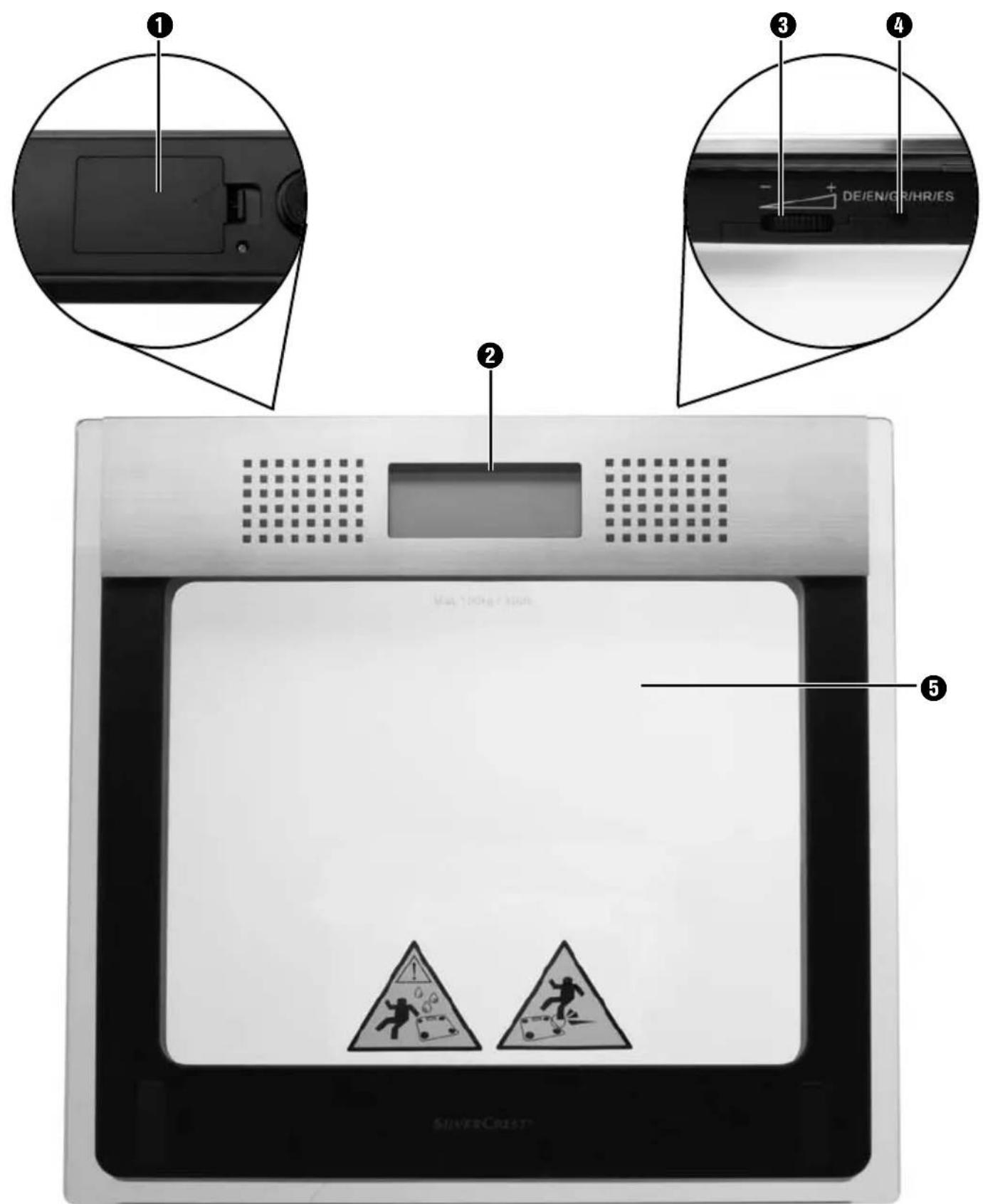

Description of the appliance

① Battery compartment
② Display
③Volume control
4 Language button
⑤ Safety glass

Technical Data

Maximum weighing capacity: 180 kg / 396 lb

Tolerance range: +/- 3%

Minimum measurable

weight/Minimum Weight: 3 kg / 6.6 lb

Division: 0.1 kg / 0.2 lb

Operating temperature: 10°C - 40°C

Power supply: 4.5 V =

Batteries: 3 x 1.5 V DC

(Type AAA/Micro/LR03)

Display for weak battery

Overload indicator

Error indicator

Safety instructions

⚠️ Danger!

• Ensure that no liquids permeate into the scale, the display or the speaker. There is a risk of receiving an electric shock!
• This appliance is not intended for use by individuals (including children) with restricted physical, physiological or intellectual abilities or deficiencies in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used. Children should be supervised to ensure that they do not play with the appliance.

⚠ Warning!

- Do not place the scale in the immediate vicinity of sources of heat. The scale and the display may only be operated at temperatures between 10^ and 40^ . Higher or lower temperatures can lead to malfunctions or to permanent damage.

- Never burden these bathroom scales with a weight of more than 180 kg / 396 lb! This could irreparably damage the scales.

⚠️ Information regarding the handling of batteries

This appliance uses batteries. For your interaction with batteries, please take note of the following:

Risk of explosion!

Do not throw batteries into a fire. Do not recharge the batteries.

• Never open batteries, never solder or weld batteries. The risk of explosions and injuries exists!
• Regularly check the condition of the batteries. Leaking batteries can cause damage to the appliance.
• If you do not intend to use the appliance for an extended period, remove the batteries.
• In the event of the batteries leaking acids, put on a pair of protective gloves. Then clean the battery compartment and the battery contacts with a dry cloth.
• In the event of skin contact with leaked battery acid, immediately rinse the affected area with lots of clean water.
• Keep batteries away from children. Children can put batteries into their mouths and swallow them. If a battery is swallowed, medical assistance must be sought immediately.

① Notice!

Avoid electrostatic charging and discharging. These can cause erroneous displays and/or the sudden deactivation of the scales.

For damage caused by...

• opening of the scales housing
  • repairs attempted by non-qualified personnel and
• improper usage of the scales no liability/warranty will be accepted by the manufacturer!

Using the scale

1. Open the battery compartment ①. Insert the batteries as per the polarity diagram in the battery compartment ①.
2. Close the battery compartment ①. The battery compartment lid must audibly engage.
3. Place the scale on a flat and stable surface. Ensure that neither the floor at the location of the scale nor the upper surface of the scale are wet, otherwise there is a risk of slipping!

① Notice!

This scale contains sensitive electronic components and it should therefore NOT be located:

• close to sources of heat
  • in environments with extreme air humidity.

Attention:

Never burden the scales one-sidedly. Always step onto the scales in the middle and with both feet. Otherwise, the scales could tip and become irreparably damaged. Additionally, there is the risk of falling over!

Attention:

Never use the scale if it is wet or moist. Never step onto the scale with wet or moist feet. There would be a serious risk of slipping and personal injury!

⚠ Attention:

NEVER jump onto the glass scale, this could irreparably damage it.

1. Stand briefly on the scales so that the device turns itself on.

2. Press the language button ④ repeatedly until the desired language appears on the left of the display ②.

3. Set the desired volume level using the volume control ③. To deactivate the voice, turn the volume control ③ all the way to the right until it clicks into place.

① Notice!

The language and the sound volume must only be adjusted on the first use.

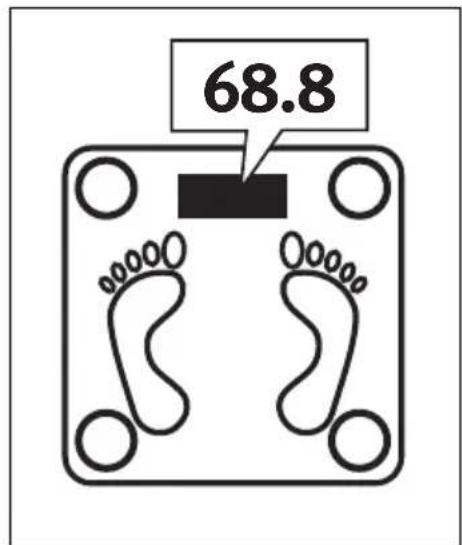

1. Stand with both feet on the scales. Stand as still as possible and without displacing your weight.

2. During the weighing process (about 5 seconds) the displayed value increases until your weight is determined.

3. When your weight is determined, the result blinks twice on the display ② and it speaks your determined weight.

After you have stepped down from the scale it sounds "Ready for operation" and you can then start another measurement.

If you simply wait, the scale will indicate by a double beep that it has switched itself off.

Warning indicators

Should your weight exceed the maximum weighing capacity of 180 kg / 396 lb, "0 - Ld" is shown in the display ②. You should IMMEDIATELY step down from the scale, otherwise it could be damaged.

If the display ② shows "LO" and "Low Battery" sounds, you must replace the batteries.

If the display ② shows "Err" and "Error" sounds, the scale cannot measure. In this case, step down from the scale, wait a few seconds and then try again. Take note that you need to both stand still and not interrupt the weighing procedure.

Replacing the batteries

1. Open the battery compartment ① and remove the batteries.
2. Insert 3 new batteries of the type Micro/AAA/LR03 as per the polarities specified in the battery compartment ①.
3. Close the battery compartment ①. The battery compartment lid must click in audibly.

Usage and safe-keeping

• Avoid unnecessary battery discharge.
  Accordingly, do not place objects on the glass scale when it is not being used.
  Remove the batteries if you do not intend to use the scale for an extended period.
• Keep the scale at a clean and dry location.
• Avoid electrostatic charging.
• Your scale is a sensitive electronic device. As such, it can occasionally be disturbed by other high-frequency appliances that are being operated in the immediate vicinity (e.g. mobile telephones, CB radio stations, radio remote controls and microwave ovens).

Should irregular or inaccurate errors be indicated in the display ②, either remove the scale from the source of the disturbance or switch the source of the disturbance off whilst you are using the appliance.

Cleaning

Clean your scale exclusively with a neutral detergent and a soft cloth.

Troubleshooting

⚠ Warning of potential appliance damage:

Do not attempt to dismantle the scale or to carry out repairs yourself. You could potentially damage the sensitive electronic components.

Repairs to your scale may only be carried out by qualified service personnel!

No liability will be accepted for damage resulting from improper use and/or the opening of the appliance!

If incorrect displays appear, please verify that the correct language is set. It could be that the weight is displayed in the wrong unit (kg or lb).

In cases when nothing is indicated in the display ②, please check to ensure the batteries are installed according to their polarities. If need be, correct the batteries insertions as appropriate.

If these measures do not correct the problem, please contact the appropriate service partner for your country.

Disposal

Do not dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2002/96/EC.

Dispose of the appliance through an approved disposal centre or at your community waste facility.

Observe the currently applicable regulations.

In case of doubt, please contact your waste disposal centre.

Disposal of batteries/accumulators

Used batteries/rechargeable batteries may not be disposed of in household waste.

Every consumer is legally obliged to dispose of batteries at a collection site of his community/city district or at a retail store.

The purpose of this obligation is to ensure that batteries are disposed of in a non-polluting manner. Only dispose of batteries/cells when they are fully discharged.

Dispose of all packaging materials in an environmentally friendly manner.

Warranty and Service

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch.

Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made under warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E Mail: [e-mail]

IAN 86522

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E Mail: [e-mail]

IAN 86522

Service Cyprus

Tel.: [phone]

E Mail: [e-mail]

IAN 86522

Importer

KOMPERNASS GMBH

BURGSTRASSE 21

44867 BOCHUM, GERMANY

www.kompernass.com

Περιεχόμενα Σελίδα

(Tip AAA/Micro/LR03)

Prikaz za slabe baterije
