Product Type	LED TV
Brand	Tesla
Model	55S606SUS
Screen Size	55 inches (140 cm diagonal)
Resolution	3840 x 2160 (4K UHD)
Audio Output Power	8 W + 8 W
Operating Voltage	100-240 V ~ 50/60 Hz
Power Consumption (Typical)	130 W
Dimensions (W x H x D)	1246.2 x 767.5 x 229.6 mm
Net Weight	15.1 kg
Tuner System	DVB-T/T2/C/S/S2, ATV
Video Systems	PAL, SECAM, NTSC
HDMI Inputs	3 (HDMI1 with MHL, HDMI2 with ARC)
USB Ports	2 (USB1, USB2)
Other Inputs	SCART, PC VGA, PC Audio, AV (RCA), Antenna, LAN, S/PDIF, CI slot
Smart TV Features	YouTube, Web Browser, Opera TV Store, SkyShare, Media Player
PVR Function	Yes (USB recording, timeshift)
EPG	Yes (Electronic Programme Guide)
Remote Control	Infrared, 2 x AAA batteries
Cleaning Instructions	Unplug TV. Use soft, dry cloth. Do not use liquids or abrasive cleaners.
Safety Features	Child lock, parental guidance, auto sleep, ventilation requirements
Repairability / Spare Parts	Contact manufacturer or authorized service center for replacement parts. Do not attempt self-repair.

Frequently Asked Questions - 55S606SUS TESLA

How do I connect my Tesla TV to Wi-Fi?

Go to Home > Settings > Network > Wireless Network. Turn it ON, select your Wi-Fi network, enter the password using the on-screen keyboard, and press the green button to connect.

How do I perform an initial channel scan?

Press MENU, go to Channel > Auto Tuning. Select your source (e.g., DVB-T), choose country if prompted, and press ENTER to start. The TV will automatically scan and store channels.

Can I record TV shows to a USB drive?

Yes. Insert a USB drive (FAT32/FAT16/NTFS). Press the REC button on the remote during a DTV program to start recording. Use PVR LIST to view recorded files. Note: Format the USB drive via Menu > Setup > PVR File System before first use.

How do I reset the TV to factory settings?

Go to Menu > Setup > Restore Default. Confirm when prompted. This will erase all user data including channels and network settings.

Why is my remote control not working?

Check if the batteries are inserted correctly (polarity) and have sufficient charge. Remove any obstructions between the remote and the sensor. If the sensor is exposed to direct sunlight, change the lighting or move closer.

How do I enable subtitles on digital TV?

Press the SUBTITLE button on the remote control during a DTV broadcast. You can also set preferred subtitle language in Menu > Setup > Subtitle Language.

What media formats does the USB player support?

The USB player supports common video, music, and photo formats. For details, refer to the manual but typical formats include MP4, AVI, MKV, MP3, JPEG, PNG. If a file shows unsupported, it may be corrupted or use an incompatible codec.

How do I set a sleep timer?

Press the SLEEP button on the remote (or go to Menu > Time > Sleep Timer). Select the desired time (10, 20, 30, 60, 90, 120, 180, or 240 minutes). The TV will automatically turn off after that period.

Can I use a universal remote with this TV?

Yes, if the universal remote supports Tesla TVs. You may need to enter a code (refer to your universal remote manual). Alternatively, use the original remote that came with the TV.

Why is there no picture but sound?

Check if the video source is properly connected and selected. Try a different HDMI port or cable. If the picture is black but menu appears, it might be a source issue. Also ensure the TV is not in standby or sleep mode.

USER MANUAL 55S606SUS TESLA

Please read these instructions before operating your set and retain them for future reference.

UPUTSTVO ZA UPOTREBU

Prije upotrebe uređaja pročitati ova uputstva i zadržati ih radi kasnijih referenci.

UPUTE ZA KORIŠTENJE

WARNINGS AND PRECAUTIONS....4

Panel Buttons....6

Terminals....7

REMOTE CONTROL FUNCTIONS 8

PERSONAL VIDEO RECORDING (PVR) 11

ELECTRONIC PROGRAMME GUIDE (EPG) 12

Initial Setup & Home Features 13

Menu Control 15

Menu Operation.... 15

Picture 15

Sound 15

Time....16

Channel....16

Setup 18

Lock 18

Network 19

USB Control 19

USB Menu.... 19

Gentle Reminder When Using the USB Player 19

Movie Menu....20

Music Menu 20

Photo Menu 21

TROUBLESHOOTING....22

SPECIFICATIONS....24

Note

1. The graphics in this manual are intended for reference only.
2. OSD on your TV may be slightly different from that shown in this manual.
3. The information provided in this document is subject to change without prior notice.
   The manufacturer accepts no liability for damage resulting directly or indirectly from faults, incompleteness or discrepancies between the user manual and the product described.

WARNINGS AND PRECAUTIONS

Read all of the instruction before operating the set. Keep the instruction for later use.

Warnings

• Use only the attachments/accessories specified or provided by the manufacturer (such as the exclusive supply adapter, battery etc).
• Please refer to the information on exterior back enclosure for electrical and safety information before installing or operating the device.
  • To reduce the risk of fire or electric shock, do not expose this device to rain or moisture.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspaper, table-cloths, curtains, etc.
• The device should not be exposed to dripping or splashing and no liquid-containing vessels, such as vases, should be placed on the device.
• The terminals marked with the symbol "may have sufficient power to pose a risk of electric shock. The external wiring connected to the terminals has to be installed by a trained person or ready-made leads or cords should be used.
• To prevent injury, this device must be safely attached to the floor/wall in accordance with the installation instructions.
• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent battery type.
• The battery (battery or batteries or battery pack) should not be exposed to excessive heat such as sunshine, fire or the like.
  • Excessive sound pressure from earphones and headphones can cause hearing loss.
• Listening to music at high volume levels and for prolonged periods of time can damage your hearing. In order to reduce the risk of damage to hearing, one should lower the volume to a safe, comfortable level, and reduce the amount of time spent listening loud music.
• If the mains plug or appliance coupler is used to disconnect the device, it should be easily approached.
• When not used or when being moved, please take care of the power cord set, e.g. tie up the power cord set with cable tie or the like. It should be protected from sharp edges and the like that can cause damage to the power cord set. When you decide to use it again, please make sure that the power cord set is not damaged. If you discover any damages, please contact a service person to replace the damaged power cord set with the one specified by the manufacturer or having the same characteristics as the original one.
• Symbols, markings, signal lamps or similar indicators show that the device is completely disconnected from the mains.
  • Attention should be drawn to environmental aspects of battery disposal.
  • No open flame sources, such as lighted candles, should be placed on the device.
  • To prevent the spread of fire, always keep candles or other open flame sources away from this product.
  • Each USB terminal should be loaded with 500mA under normal operation.
• Protective earthing terminal. A CLASS I device should be connected to MAINS socket outlet with a protective earthing connection.

WEEE Directive

Correct disposal of the product. The symbol indicates that this product should not be used of with other household waste throughout the EU. To prevent possible harm to environment or human health from uncontrolled waste disposal, recycle it responsibly to note the sustainable reuse of material resources. To return your used device, please use return and collection systems or contact the retailer where the product was purchased. can perform environmentally safe recycling of the product.

Positioning of the TV Set

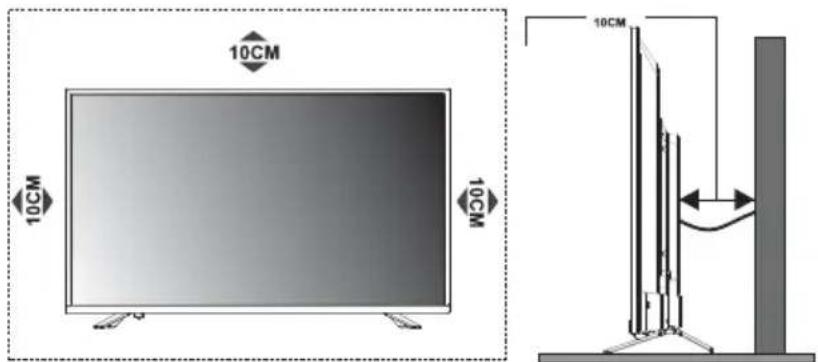

Install the device on a firm horizontal surface such as a table or desk. For ventilation, leave open space of at least 10 cm all around the set. To prevent any faults or unsafe situations, please do not place any objects on top of the set. This device can be used in tropical and/or moderate climates.

Operating Environment

• Do not install this device in confined spaces such as bookcases or similar units.
• Do not use the set in damp and cold areas. Protect the set from overheating.
- Keep away from direct sunlight.
• Do not use the set in dusty areas.
- Do not place candles to accessible, open areas to avoid flammable foreign material from entering the TV.

Precautions for Using Remote Control

• Use the remote control by pointing it towards the remote sensor. The items between the remote control and the remote sensor will interfere with the normal operation.
• Do not expose the remote control to violent vibrations. Also, do not splash liquid on the remote control and do not place the remote control in high humidity areas.
• Do not expose the remote control to direct sunlight which can cause deformation of the unit due to heat.
• When the remote sensor is exposed to direct sunlight or strong light, the remote control will not work. If this is the case, please change the light direction or the position of the TV, or use the remote control closer to the remote sensor.

Precautions for Using Battery

Inadequate use of batteries may cause leakage. Therefore, please follow the steps below and use them with care.

1. Please note the batteries polarity to avoid short circuit.
2. If the battery voltage is insufficient, which affects the remote control range, you should replace used batteries with the new ones. Remove batteries from the remote control unit if you do not intend to use it for a long time.
3. Do not use different types of batteries (for example, manganese and alkaline batteries) together.
4. Do not put the batteries into fire. Do not charge or disassemble batteries.
5. Please dispose of batteries in accordance with the relevant environmental protection regulations.

Remote Control Battery Replacement

Place two AAA batteries in the remote control battery compartment, making sure that the polarity markings inside the compartment are matched.

Note: The images are intended for reference only. Actual items may differ.

1
Slide the cover horizontally.

Simple line drawing of a curved surface with a small rectangular feature and an arrow indicating direction (no text or symbols)

2
Place two AAA batteries and make sure that the polarity is correct.

Simple line drawing of two batteries in a battery pack (no text or symbols)

3
Slide horizontally to close the cover.

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

PANEI BUTTONS

Note: The images are intended for reference only.

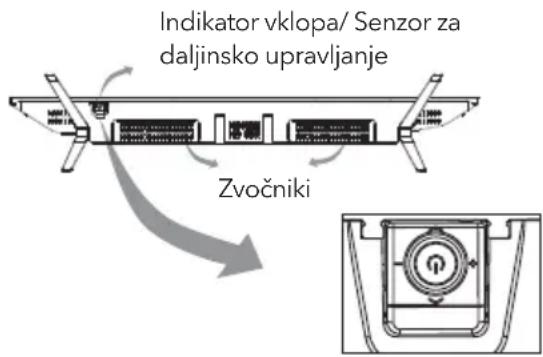

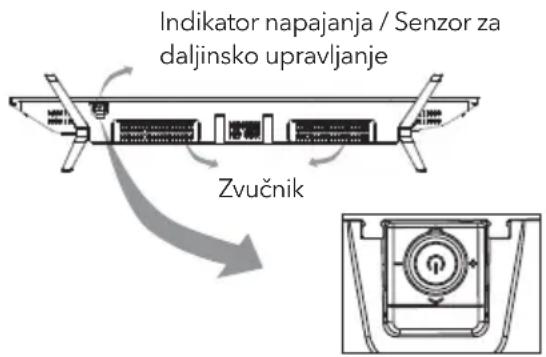

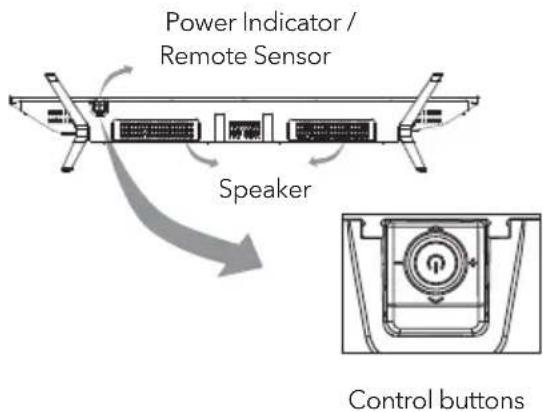

Bottom view

Press middle button:

1. In standby mode, press it to turn on the TV;
2. Without OSD, short press it to access source menu; long press to turn the TV to standby;
3. With OSD, short press it to confirm a selection; long press it to turn off the TV.

Push left: decrease volume or go to left. Push right: increase volume or go to right. Push forward: channel up or go to above Push backward: channel down or go to below.

Note: When the input ports has no signal input, the TV will go into standby mode.

TERmINAIS

Note: The images are intended for reference only.

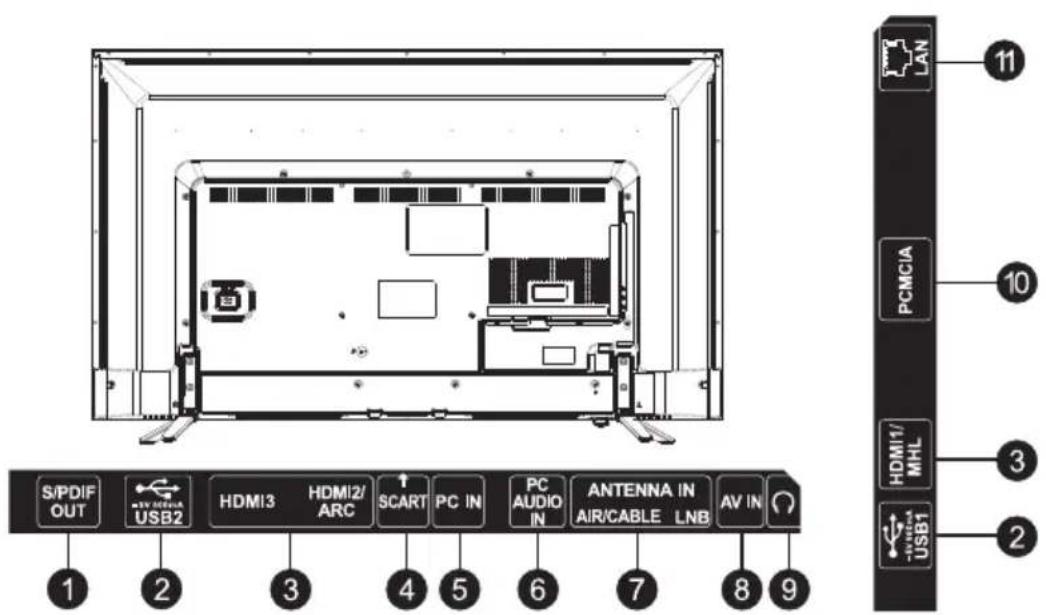

1. S/PIDF OUT: Use a RCA cable to connect your TV to a compatible audio receiver.
2. USB1: USB port.
3. HDMI1 (MHL) / HDMI2: Connect HDMI input signal from signal source such as DVD. HDMI1 port supports MHL function, while HDMI2 port supports ARC function. All HDMI ports support 4K2K input
4. SCART: SCART port
5. PC IN: Connect a PC to the TV by using a VGA cable.
6. PC AUDIO IN: Audio input for PC and Audio input for HDMI when the signal is DVI timing.
7. ANTENNA IN: Connect a coaxial cable to receive signal from the antenna, cable or satellite.
8. AV IN: Connect VIDEO input signal from signal source such as DVD.
9. EARPHONE: Audio output, speakers will be muted when earphone is plugged when select headphone.
10. PCMCIA: PCMCIA port.
11. LAN IN: Ethernet RJ45 Terminal.

REMOTE CONTROL FUNCTIONS

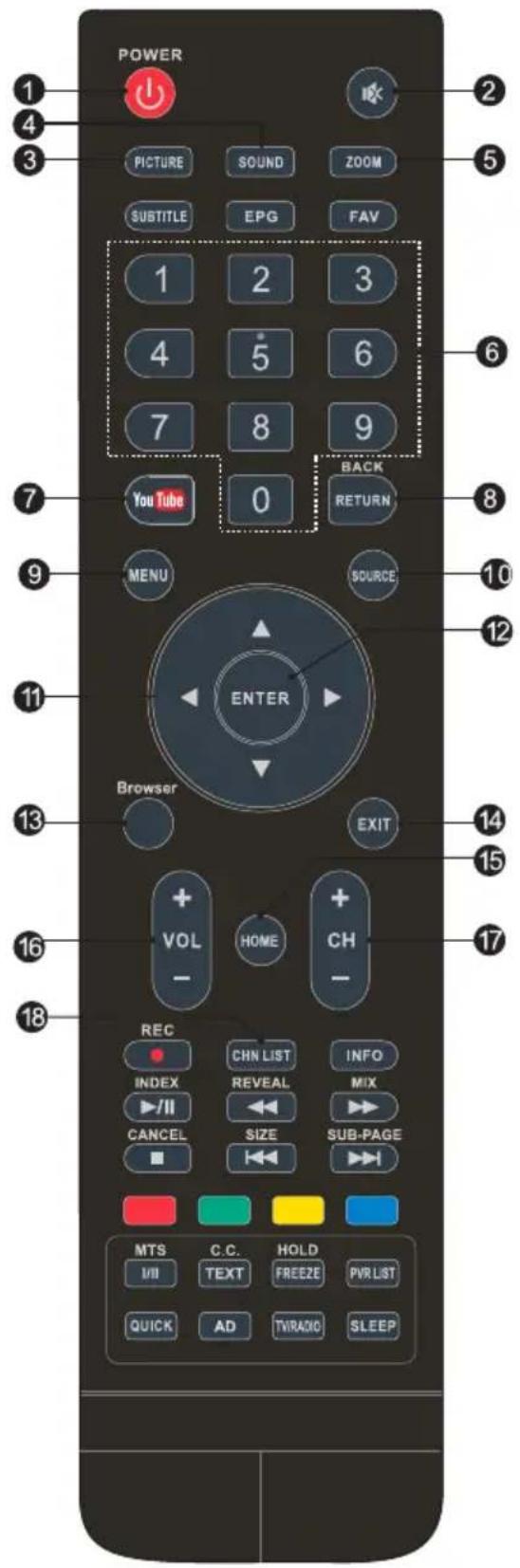

Remote Control

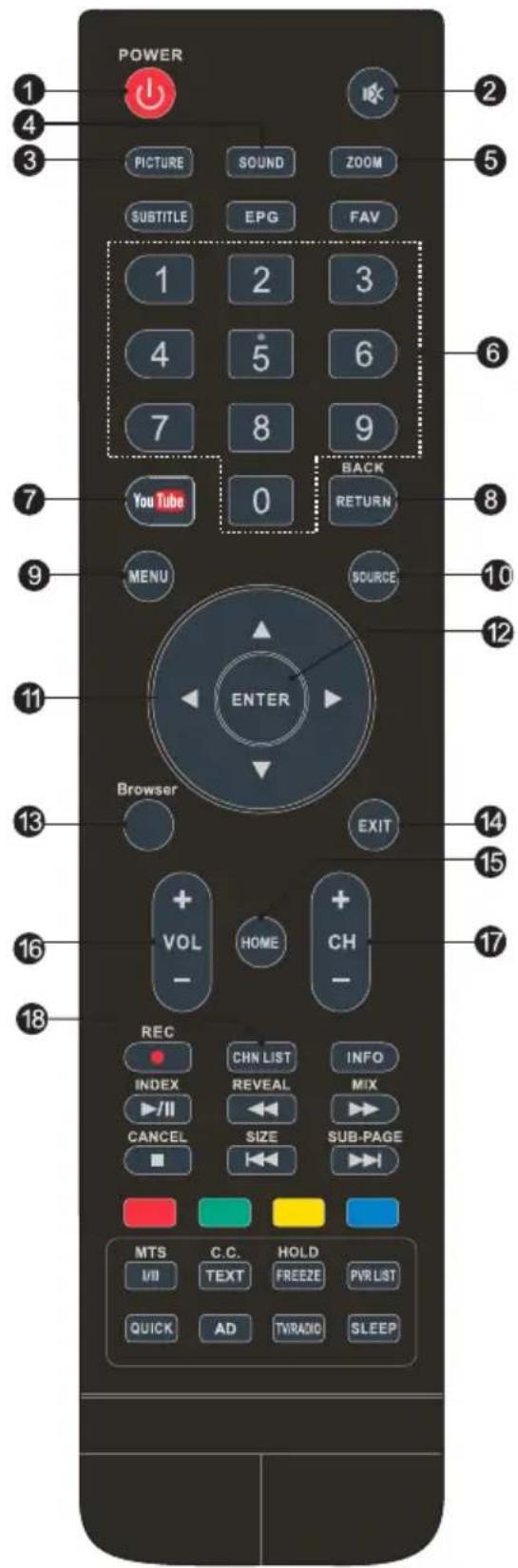

1. POWER (⏻) Press to turn the TV on or to put it in standby.
2. MUTE (☒) Press to mute or restore the volume.
3. PICTURE Change picture mode.
4. SOUND Change sound mode.
5. Zoom Change aspect ratio.
6. Numeric buttons Choose channel directly.
7. YouTube Access the YouTube function.
8. RETURN Press to go back to a previously viewed channel.
9. MENU Enter the menu options.
10. SOURCE Select the input source mode.
11. Up/Down/Left/Right (▲ /▼/◄ /►)
    Navigate through the menu.
12. ENTER Confirm the selection.
13. Browser Access the TV browser.
14. EXIT Exit the current menu.
15. HOME Access the home screen for smart and advanced features.
16. Volume Up/Down (VOL+/VOL-)
    Adjust the volume level.
17. Program Up/Down (PR+/PR-)
    Change programs up or down.
18. CHN LIST Press to enter the channel list.

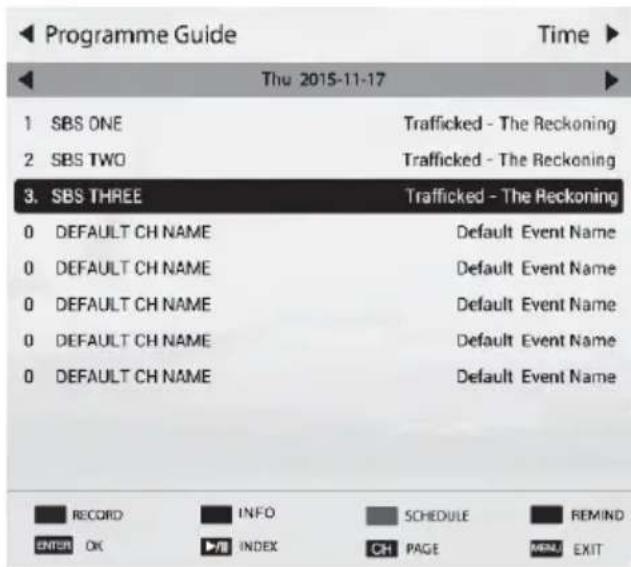

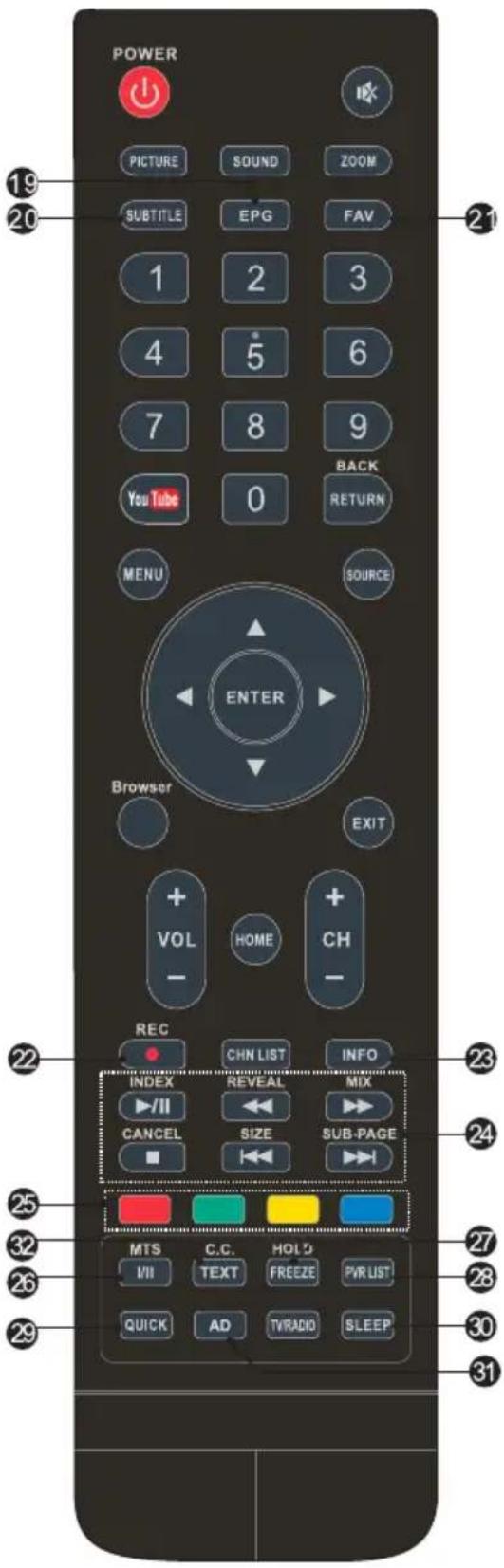

1. EPG Press to display the current EPG information in DTV mode.
2. SUBTITLE Enable/disable subtitles in DTV/USB mode.
3. FAV. (Favorite Channel)

Press to view your assigned favorite channels. When using the TV browser, press this button can add a bookmark.

1. Record (REC) Press to record the current programme (available in DTV mode only).
2. INFO Press to display information about current source.
3. USB Play Control Buttons Play & Pause (▶/II)

Press to pause playback, then press again to continue playback.

Stop ( )

Press to stop playback.

Fast Backward Button (◀)

Press to fast reverse.

Fast Forward (▶)

Press to fast forward.

Previous (◀)

Press to play the previous file.

Next (▶)

Press to play the next file.

1. Color buttons Press to execute the fast-link function in TV or DTV mode.
2. MTS (I/II) Press to select desired sound output depending on the broadcasting channel.
3. FREEZE (HOLD) Freeze the picture on the screen (not available in USB mode).
4. PVR LIST Press to display the list of recorded files.
5. QUICK No function.
6. SLEEP Select the sleep time, such as 10min, 20min etc.
7. AD (Audio Description)

Press to turn on audio description. Narrator will describe to blind or visually impaired viewers what is happening on the screen. Press again to turn this function off (available in DTV mode only).

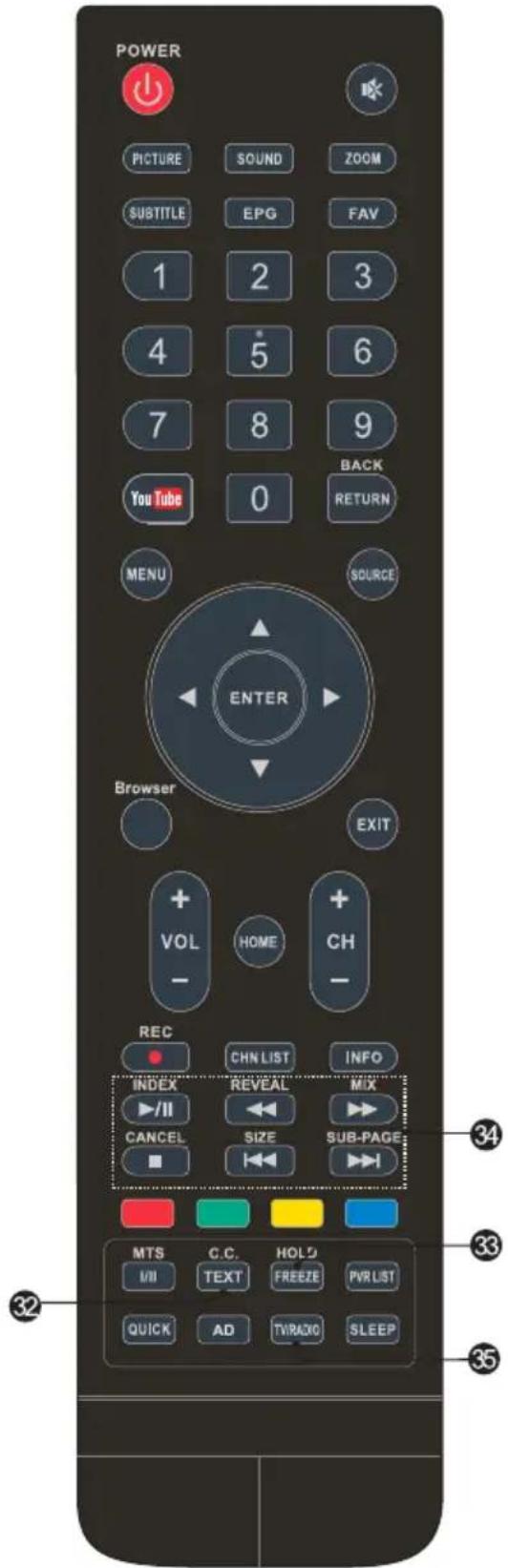

Teletext Control Buttons (Only for DTV mode)

1. TEXT Press to enter or exit the teletext menu.

33. HOLD

Press to hold the teletext page on screen without update and changes. Press again to release the hold state.

34. Other Buttons

SIZE

Enlarge the teletext display: Press this button once to enlarge upper half of the screen. Press this button again to enlarge lower half of the screen. Press this button again to return to normal screen size.

REVEAL

Press this button to display concealed information, such as solutions to riddles or puzzles. Press gain to remove the information from the display.

MIX

Press this button to superimpose the teletext over the TV programme. Press again to return to normal teletext

SUB-PAGE

Press this button to enter or exit subpage mode (if subpage is available). Press Red / Green button to select the desired subpage.

INDEX

Press this button to display index page.

CANCEL

Press this button to temporarily return to TV programme while searching for a Teletext page. When the search is done, the page number will be displayed on the upper left of the screen. Press again to return to the Teletext page.

35. TV/RADIO

Switch between the TV mode and radio mode.

In DTV mode and with a USB device properly plugged in, you can record the channel you are watching and view at a later, more convenient time. Use it to record a program when your viewing is interrupted or delayed.

IMPORTANT NOTES:

1. Please insert an external high-speed storage devices into the appropriate USB port at the back of the TV, and make sure the device has enough free space.
2. Before the recording, suggest to format your USB device to ensure the operating speed. In Option menu, select "PVR File System" to format the USB device.
3. During the recording, do not change channels or operate another function.
4. If the signal is interrupted or removed, the recording will stop until the signal is established. This may cause you to lose program content.
5. Please do not turn the TV OFF during recording. This will make the TV exit the PVR and turn to standby.
6. The file recorded can only be used in this TV, any copy communication is strictly prohibited.
7. Use high-quality mobile device to record HD programs, otherwise the videos will be jammed during the playback.
8. Back up all of the data in the USB storage device in case data was lost due to an unexpected accident. We do not assume any liability for the losses by misuse or malfunction. Data backup is consumer's responsibility.

Instant one-touch recording and playback

Press [REC] button to start the recording, at the same time below control bar will show at the bottom of the screen, and the "STOP" icon is highlighted.

• Want to watch the recorded video while recording the program, press left direction button to select ▶ and press ENTER button, the recorded video will start playing. Select ◀ or 📋 can fast backward or fast forward the playing.

- If want to stop and exit the recording, select and press ENTER button.

Timeshift

Time-shift is the recording of television programs to a storage medium (such as your USB device) for viewing at a later, more convenient time. Use it to record a program when your viewing is interrupted or delayed. If you want to leave a while and watch the program without missing the contents, you can press ▶/□ button to stop the program, and press ▶button again to start watching when you come back.

Note:

1. Before time-shift, you'd better format the USB device to ensure the enough space for recording.

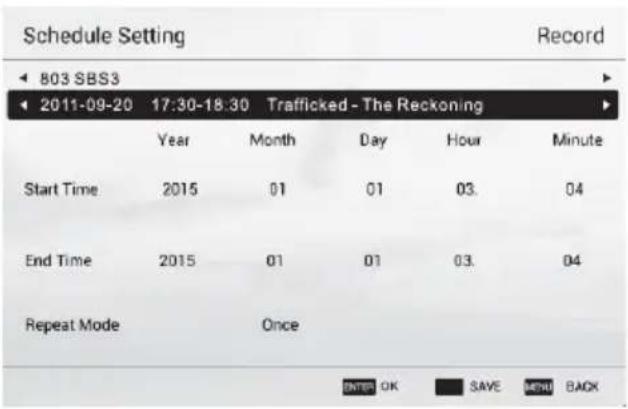

2. You can also set the preset time of recording in EPG function (Refer to next page).

ELECTRONIC PROGRAMmE GUIDE (EPG)

EPG stands for Digital Electronic Programme Guide. It is supplied by the programme providers and offers information about the programmes to be broadcast. You can access it in digital mode by pressing the EPG button on the remote control.

1. Press the EPG button to enter the EPG interface. Current date and time will be displayed on the second bar from the top. On the list below, the channel you are currently watching will be highlighted.
2. To check programmes to be broadcast in future, scroll up using the ▲ button to the date field. Use the ▶ button to select the date you want to check.
3. Press the ▲ button to scroll up to the top bar in the display, then press the ▶ button to select "Time", you can check the program list of a channel of someday.

Schedule

Press the yellow button to display the recording schedule list. You can delete an appointment by press the red button.

Reminder

Press the blue button to display a reminder menu. You can set up the remind time and repeat mode.

Recorder

Press the RED button to display the schedule setting menu. By using navigation buttons, set the schedule time by highlight the number of year, month, day, hour or minute and press ENTER button, then use up and down buttons to adjust the number. Using same method to set up the repeat mode, and then select SAVE" button to save the setting.

Info

Press the GREEN button to show information about the selected program.

INITIAL SETUP & HOME FEATURES

Initial setup

The first time you power on the TV, there will show a setup wizard, press ENTER button to start and finish following steps:

Step 1 Select the OSD language as you need;

Step 2 Select the environment between "HOME" and "STORE";

Step 3 Select the country;

Step 4 Set up the TV clock (time setting), default is "Auto Sync";

Step 5 Read the legal statements;

Step 6 Set up the network configuration;

Step 7 Start auto tuning to search for programs, when finished, the programs will be stored into memories and the initial setup will be completed.

NOTE: Before power on the TV, you need to connect the TV signal cable to the tuner terminal well on the back of the TV.

Home

Press Home button to access the home page. Use navigation and OK buttons to select and access a shortcut.

SkyShare (May not be available on some models)

1. Connect TV and mobilephone to the same router, then select Skyshare on the home page and press ENTER to access; (Review Settings for network settings.)
2. Open the miracast function of the mobile phone;
3. Select TV device name on mobile phone (Such as "Android_7a2b"), TV device will connect to the mobile phone automatically, and the content on the mobile phone will be played on the TV.

Source

Select input source.

Network Applications

Such social applications as Facebook / YouTube / Twitter are provided for you.

For example, select the Facebook icon on the home page, press ENTER can access.

TV Browser

Select the TV Browser icon on the home page and press ENTER to access the internet surfing. Features include speed dial and bookmarks etc.

Note: The browser may not support some web pages or videos due to network failure, difference of regions or service interruption, which has nothing to do with the TV.

Media Player

Connect a USB device to the TV and select the Media Player on the home page, you can play a video/music/photo file in your USB on the TV.

Opera TV Store

It is an on-line application store made for TV. Open it you can experience various types of apps, such as News & Weather, Nature & Travel, Kids, Lifestyle, Sports, Music, Live TV & Video, Games, Movies & TV etc.

Note 1 Some of the applications on the home page may not be available on some models, and this manual doesn't include the operation instructions of all applications on the home screen.

Note 2 Browser only supports the HTML5 video file format.

Note 3 If service providers upgrade or modify their servers, applications such as YouTube and Facebook may not function on this Television.

Note 4 Your remote control may not be compatible well with some network applications or fail due to service interruption, that has nothing to do with this TV.

Note 5 Network application contents and services are controlled by network application providers by means of networks and transmission facilities, which are subject to alteration, suspension, removal, termination or interruption, or invalid access at any time without further notice in that the manufacturer is unable to control or to be informed of the aforesaid change. The manufacturer makes a further declaration that it disclaims any responsibility or liability arising from customer's failure to use the network application contents and services caused by, including but not limited to, failure of network connection or communication lines, technological updates, or the alteration, suspension, interruption, termination, disabling, or removal of any contents or services by the network application providers etc.

Setting > Network > Wireless Network/ Wired Network

Wireless Network

1. Select "Wireless Network" and press ENTER button, and then select "ON" to turn on this feature;
2. Wait a few seconds, the wi-Fi spots will be shown on the list, select and press ENTER button to open the interface of inputting password.
3. Use navigation buttons to input the password, when finished, press the green button on the remote control to start the connection. When connected successfully, the screen will pop out a tip of "Success".

Wired Network

1. Access main menu and select network sub-menu.
2. Select "Wired Network", and then select "Auto Input", wait a few seconds, the network configuration will be finished successfully.

Note: Before getting started, make sure that your router is working well.

mENU CONTROI

For lasting update and upgrade, below descriptions of menu settings may not be in compliance with your TV, this is normal and the actual content on your TV shall govern. We have listed all functions of this model, and for those may not be in compliance with your TV, there will be a mark (◆) before them, please pay attention to that and refer them if you are confused.

menu Operation

Press "MENU" key to enter the main menu.

Press the [◀] / [▶] key to select a menu.

Press the [▲] / [▼] key to select a menu.

Press "ENTER" key to enter the item.

Press "MENU" key to exit the item.

Note: The below menu options are under Antenna source.


Picture Mode: Choose between Standard, Movie, User and Dynamic.

Color Temperature: Choose between Nature, Warm, User and Cool.

Aspect Ratio: Choose between 4:3, Movie, Subtitle, Native, Panorama, Auto and 16:9.

Note1: Some options may not be available under some sources and video content.

Note 2: "Native" only works for the high definition signal.

Note 3: This manual is for universal use, your TV may not have "Panorama" mode, it is normal and your actual product shall govern.

Noise Reduction: Choose between Off, Low, Middle and Strong.

MPEG Noise Reduction: Choose between Off, Low, Middle and Strong.

Dynamic Contrast: Set to On or Off as desired.

Film Mode: Set to On or Off as desired.

Screen (May not be available)

Select PC-VGA source, in picture settings select screen, you can set below items.

Auto Adjust: Adjust the screen automatically.

Horizontal Pos.: Adjust the horizontal position.

Vertical Pos.: Adjust the vertical position.

Size: Adjust the size.

Phase: Adjust the phase.

Sound

Sound Mode: Choose between Standard, Music, Movie, Sport, User.

Balance: Control the sound balance between the right and left speaker.

Auto Volume: Choose between On and Off.

Surround Sound: Turn virtual surround sound mode On or Off.

AD Switch (May not be available): Turn on or turn off the Audio description. When turn on the audio description, a narrator will describe what is happening on the screen for blind or visually impaired viewers.

SPDIF Mode: Set the SPDIF sound output mode to PCM or Auto.

Audio Out: Choose between Headphone out and Line out.

Note

1. "SPDIF" may not be available for some regions, your actual TV should govern.

Time

Auto Sync: Includes auto and manual two options.

Clock: Set the time. Only available when Auto Sync option is set to Manual.

Sleep Timer: Set the auto Off time to Off, 10, 20, 30, 60, 90, 120, 180 or 240 minutes.

Auto Sleep: TV set auto to standby when there is no signal. Contain On and Off.

Time Zone: Select the time zone.

Summer Time: Select On or Off.

Note: Time Zone and Summer Time may not be available for some models.

Channel

5V Antenna Power

This option is only available in DVB-T source, select On to supply power for the TV's antenna; Select Off to turn off this function.

Program Edit

Edit the programs. You can press colored buttons on the remote control to skip programs, delete programs, and add programs to the favorite list by pressing FAV button.

Signal Information

Showing the information of current DTV channel.

CI Information (Only available in DTV mode)

Enables the user to select from the CAM-provided menu. Select the CI menu based on the menu PC Card.

Software Update (OAD) (Only for some regions and only available in DVB-T mode)

Select On to allow the TV to update the system software over the air. Select Off will turn off this function.

OAD Scan (Only for some regions and only available in DVB-T mode)

When software update (OAD) is off, this option is disable. Select OAD scan mean that go to scan channel to find the OAD update information.

Auto Tuning

Select desired source (DVB-S, DVB-T, DVB-C, ATV) from the source list before starting the auto tuning.

DVB-S

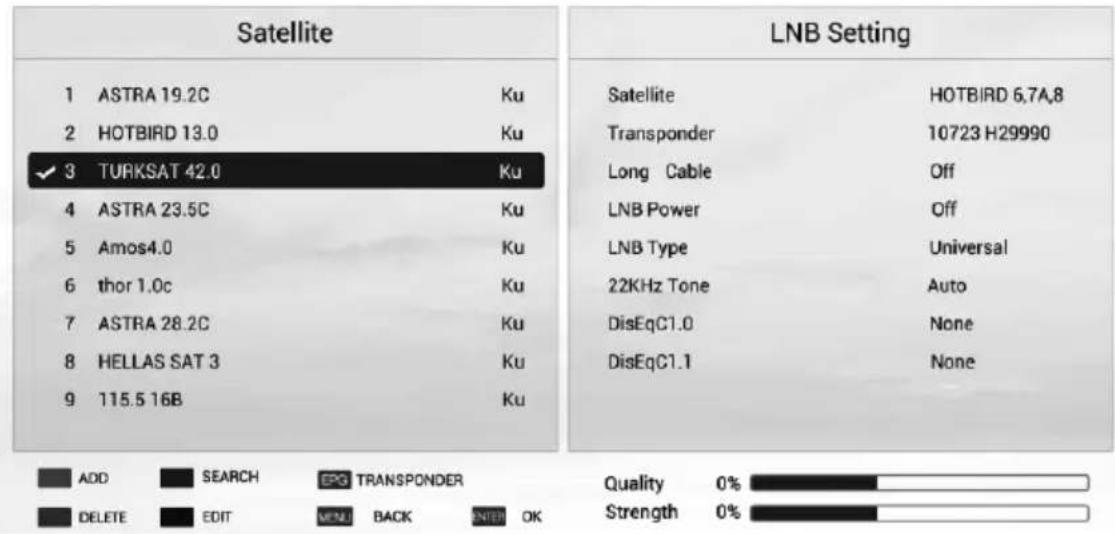

Satellite Dish Settings (Step 1-3, refer to Fig1)

A set of satellite dish settings must be configured for each wanted satellite before performing a channel scan.

Satellite: Select the satellite for this TV.

LNB Type: Make sure the LNB type is corresponding to your dish.

LNB Power: Enable or disable the power supply for the LNB.

22KHz: Select the 22KHz to set 22K switch to ON/OFF. The auto mode is used to switch 22KHz on or off depending on the LNB type.

DiSEqC1.0/1.1: Select the DiSEqC mode for the selected LNB.

DVB-S Tuning Setting

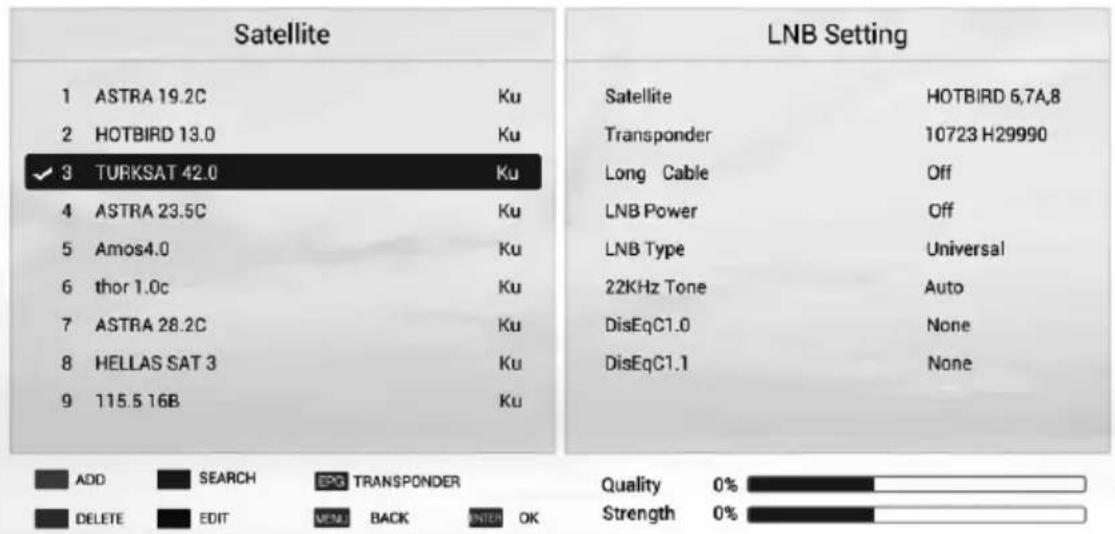

Figure 1

Step1 Highlight Satellite and press ENTER to access the satellite list and select one.

Step 2 Highlight LNB Type and press ENTER to select the LNB type.

Step 3 Make sure the 22KHz, DiSEqC1.0/1.1 switch is corresponding to the selected satellite.

After the above steps are finished, press the blue button to search for channels.

DVB-T/ DVB-C/ATV

Select "Auto Tuning" to search the programs automatically. Before searching, you may need to select the country or tuner mode. If you want to stop the auto search, press MENU button or EXIT button, a exiting dialog is popped out.

• Press ◀ to confirm exit.
• Press ▶ to continue searching.

DTV Manual Tuning

Search and store programs manually.

DVB-T/ DVB-C

In DVB-T mode, select DTV manual tuning and press ENTER to access the searching interface, then press left and right buttons to search the programs manually.

1. Press ◀ or ▶ to select a channel No., highlight Search and then press ENTER to start the search.

2. The search stops when a program is found and this program will be stored in the current channel position. If you want to stop the search, press MENU button.

In DVB-C mode, select "DTV manual tuning", then select "Search" to search the programs manually.

ATV Manual Tuning

In ATV mode, select ATV Manual Tuning and press ENTER button to access.

Highlight and press or to select Storage To 1 (maybe other number), TV System and channel No.. Then select search and press ENTER to start the search.

• Press ▶ for the unit to search towards higher frequency;

• Press ◀ for the unit to search towards lower frequency;

• When a program is found, press the red button to stored it at the current channel position. If you want to stop the search, press MENU button.

Fine-Tune

Use to make small adjustments to tuning of an individual channel. Fine-tune is not necessary under normal conditions. However, in area of inferior broadcast conditions where adjustments is necessary for a better picture and sound, use fine-tune.

1. Select a channel that you want to fine tune.
2. In Channel menu, select ATV Manual Tuning and press to highlight Fine-Tune.
3. Press ◀ or ▶ to fine tune until the best possible picture and sound are obtained.

Setup

OSD Language: Select your desired OSD language.

Audio Language: Set the primary or secondary digital audio language corresponding to the signal.

Subtitle Language: Select the subtitle language.

HBBTV (May not be available): Turn on or turn off this feature.

PVR File System: Personal Video Record setting. If you want to use this function, you must receive a digital program and plug a USB disk.

Note: Suggest to use a high speed mobile hard disk, or your TV may get stuck when using the PVR and time shift function.

Restore Default: Restore Menu options to the factory defaults.

Note: User data on this TV will lose completely after operating this feature.

Link: HDMI link setting.

Network Upgrade: Connect the TV to the internet and you can upgrade the TV system and network applications.

Software Update (USB): Select to update Software from USB.

Sticker Demo: Turn sticker Demo On or Off.

HDMI EDID: Switch the version of EDID.

Location: Select the environment you use this TV, options include home and store. If select "store", open the "Sticker Demo" and the TV will appear the function introduction on the screen to help selling.

Note:

1. Audio Language and PVR File System only work under DTV source.
2. Do not power off the TV during the software upgrading process, otherwise the TV may not work, and the customer should be responsible.
3. Network Upgrade and HBBTV may not be available for some regions, your actual TV should govern.

lock

Lock System: Select On to enable the following three menu items. you will be prompted to enter the password. The default password is 0000.

Set Password: Use to change the current Lock Password.

Block Program (Only in TV mode): Allows you to password restrict access to specific channels.

Parental Guidance (Only in TV mode): Allows you to password restrict access to shows programs based on their parental rating.

Note:

1. If you change the password and forget it, you can enter the master password 8899 to reset it back to the default.

Network

Wired Network: Connect the TV to network by using a network cable.

Wireless Network: Connect the TV though Wi-Fi network.

Network Status: Check the network information such as IP, DNS and gateway etc.

Note: For details about network setting, please press HOME button to open the home features, select "Settings" and select "Wired Network" or "Wireless Network" to set up.

For more information please refer to Page12 Settings part.

USB Control

USB Menu

You can view movie, music and photo files from your USB storage devices.

1. Connect USB storage device to USB input terminal.
2. Press Home button and select "Media Player".
3. Press ▲ or ▼ to select the types of media modes: MOVIE, MUSIC and PHOTO.

MOVIE: Play movies from USB.

MUSIC: Play music from USB.

PHOTO: View photos from USB.

Reminder When Using the USB Player

1. Some USB storage devices may not be compatible to operate smoothly with this TV.
2. Back up all of the data in the USB storage device in case data was lost due to an unexpected accident. We do not assume any liability for the losses by misuse or malfunction. Data backup is consumer's responsibility.
3. For large file sizes, the loading speed may be slightly longer.
4. The recognition speed of a USB storage device may depend on each device.
5. When connecting or disconnecting the USB storage device, ensure that the TV is not in USB mode otherwise the USB storage device or the files stored in it may be damaged.
6. Please use only a USB storage device which is formatted in FAT16, FAT32, NTFS file system provided with the Windows operating system. In case of a storage device formatted as a different utility programme which is not supported by Windows, it may not be recognized.
7. When using a USB Hard Disk Drive which requires electric power source, ensure its power does not exceed 500mA. If the power of the USB hard Disk exceeds 500mA, the TV system will be changed into standby mode, you must pull away the USB hand Disk and restart the TV system.
8. An "Unsupported File" message will be displayed if the file format is unsupported or corrupted.
9. FHD big picture needs longer time to process, which is not caused by the TV. Please be patient to wait.
10. This TV may not support some multimedia files changed and upgraded as the change of encoding format or other technical advances.

movie menu

1. Press [▲]/[▼] to select MOVIE. Press [ENTER] to enter.
2. Press [◀]/[▶] or [▲]/[▼] to select the desired folder and Press [ENTER] to open the folder, press [▶/||] to start playing.
3. Press [■] to stop movie playing and return to movie list.
4. Press "EXIT" to the previous menu screens.

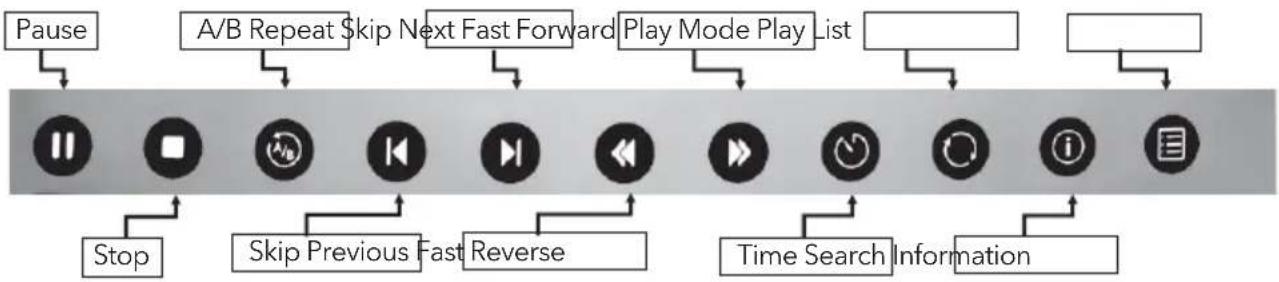

Movie Control Bar

• Press [MENU] to display Movie Control Bar while playing the movie.
• Press [◀] / [▶] to select the desired settings.
• Press [ MENU ] to exit from Movie Control Bar.

music menu

1. Press [▲]/[▼] to select MUSIC. Press [ENTER] to enter.
2. Press [◀]/[▶] or [▲]/[▼] to select the desired folder and Press [ENTER] to open the folder, press [▶/II] to start playing.
3. Press [■] to stop music playing and return to music list.
4. Press "EXIT" to the previous menu screens.

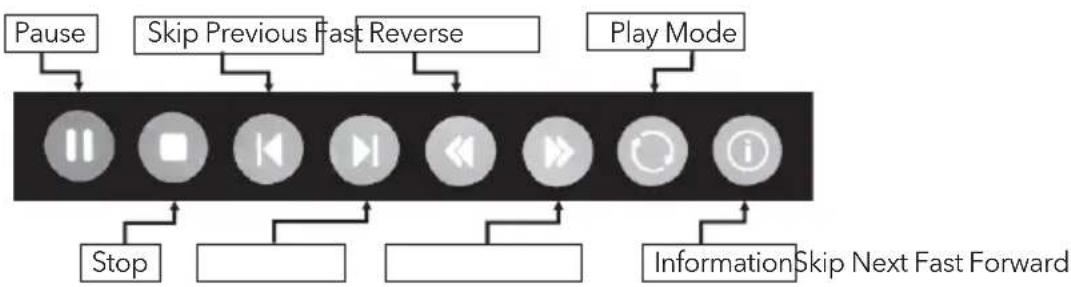

Music Control Bar

• Press [MENU] to display Music Control Bar while playing the music.
• Press [◀] / [▶] to select the desired settings.
• Press [ MENU ] to exit from Music Control Bar.

Photo menu

1. Press [▲]/[▼] to select PHOTO. Press [ENTER] to enter.

2. Press [◀]/[▶] or [▲]/[▼] to select the desired folder and Press [ENTER] to open the folder, press [▶/ll] to start playing.

3. Press [■] to stop photo playing and return to photo list.

4. Press "EXIT" to the previous menu screens.

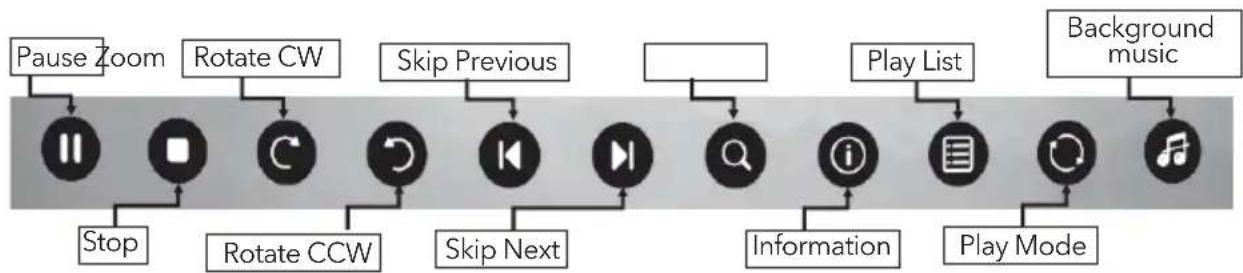

Photo Control Bar

- Press [MENU] to display Photo Control Bar during photo slide show.

- Press [◀] / [▶] to select the desired settings.

- Press [MENU] to exit from Info bar.

TROUBIESHOOTING

Before calling a service technician, review following information for possible causes and solutions for the problem you are experiencing.

Symptom Solution
Remote control does not work.	1. Check the remote sensor on the remote control.2. Change the batteries.3. Batteries are not installed correctly.4. Main power is not connected.
Poor signal This is usually caused by interference from cell phones, walkie-talkie, automotive ignition system; neon, electric drill or other electronic equipment or radio interference sources.
No picture, No sound 1. Check the signal source.2. Plug another electrical device into the outlet to make sure it is working or turned on.3. Power plug is bad contact with the outlet.4. Check the signal.
Abnormal picture 1. For no color or bad picture quality, you may:Adjust the color option in menu settings.Keep the TV at a sufficient distance from other electronic products.Try another channel, maybe exist broadcasting signal problem.Bad TV signal (Display mosaic or snowflakes)Check the signal cable and adjust the antenna.Fine tune the channel.Try another channel.
Normal picture, no sound 1. If no sound, unmute or increase the sound volume.2. Open the sound menu and adjust “Balance”.3. Check if a headphone has been inserted in, if so, pull out the headphone.
A “This file is invalid” message appears or audio is normal but video is abnormal.	1. The media file maybe damaged, Check if the file can be played on the PC.2. Check if video and audio codec is supported.
A “Unsupported audio” message appears or video is normal but audio is abnormal.	1. The media file maybe damaged, Check if the file can be played on the PC.2. Check if video and audio codec is supported.
Network failure 1. Check if the router works well.2. For models need ing USB dongle to connect to internet, check if the USB dongle is inserted well.Make sure the TV has connected to the router successfully.
Web page can not be displayed completely.	1. Flash is not supported.2. Supported formats: JPEG, PNG, GIF, BMP, WMV (ASF), WMA, MP3 and MP4.
Browser is foreced to be shut down.	Web page include too many large pictures, thus lead to insufficient memory and close the browser.
Applications downloaded from browser can not work.	Suggest download applications from Opera store.

Note: If the problem persists after solutions, please contact your local support centre.

SPECIFICATIONS

43" 49" 55"
Screen size - diagonal 109cm 124cm	140cm
Screen resolution 3840x2160
Audio output power (L+R) 8W +8W	8W +8W 8W +8W
Working voltage 100-240V~ 50/60Hz
Rated power consumption 70W 120W	130W
Dimensions (W mm) 973.2 1107.4	1246.2
Dimensions (H mm) 604.5 687 767.5
Dimensions (Dmm) 202.6 229.6 229.6
Net weight	9.5 12.2	15.1
Environment(only for Tropical climates zone):	Working temperature: 5°C~45°CWorking humidity: 20%~80%Storage temperature: -15°C~50°CStorage humidity: 10%~90%
Environment(only for Moderate climates zone)	Working temperature: 5°C~35°CWorking humidity: 20%~80%Storage temperature: -15°C~45°CStorage humidity: 10%~90%
Channel coverage	54MHz~864MHz
System	DTV: DVB-T/T2/C/S/S2TV: PAL-BG/DK/I, SECAM-BG/DKAV: PAL, SECAM, NTSC
Preset programmes	ATV: 100; DTV: 1000
Status displaying method	On screen display
Function adjustment indicator	Menu display
Language of OSD	Multiple options
RF aerial input	75 ohm unbalanced
AV video input	75 ohm, 1.0Vp-p, RCA
AV audio input	10k ohm, 0.5Vrms

SADRŽAJ

UPOZORENJA I MJERE OPREZA 26

TASTERI NA TV UREĐAJU....28

Priključci....29

FUNKCIJE DALJINSKOG UPRAVLJAČA 30

PVR (Personalno video snimanje) 33

Simple line drawing of a curved object with a small protrusion and an arrow indicating direction (no text or symbols)

Simple line drawing of two batteries with positive and negative terminals, no text or symbols present

Diagram of a device with an arrow indicating leftward motion (no text or symbols present)

TASTERI NA TV UREĐAJU

- Ako želite gledati snimljeni video tokom snimanja programa pritisnite lijevu tipku smjera za odabir ▶ apritisnite ENTER, snimljeni video će početi s reprodukcijom. Pritisnite 📄️ 🎨 za brzu reprodukciju naprijed ili unazad.

- Ako želite zaustaviti i izaći iz snimanja odaberite i pritisnite tipku ENTER.

DVB-S Tuning Setting

Slika 1

Korak 1: Označite Satelit i pritisnite UNOS (ENTER) kako biste pristupili listi satelita i odabrali željeni.

Korak 2: Označite LNB tip i pritisnite UNOS (ENTER) kako biste odabrali tip LNB-a.

Korak 3: Uvjerite se da prekidač 22KHz DiSEqC1.0/1.1 odgovara odabranom satelitu.

Nakon što izvršite prethodne korake pritisnite plavu tipku za pretraživanje kanala.

DVB-T/ DVB-C/ATV

Za automatsko pretraživanje programa odaberite Automatsko podešavanje. Možda ćete prije pretraživanja morati odabrati državu ili režim prijemnika. Ukoliko želite prekinuti automatsku pretragu, pritisnite tipku MENI (MENU) ili tipku IZLAZ (EXIT) i pojaviće se prozor za dijalog o napuštanju pretrage.

- Pritisnite ◀ da biste potvrdili izlazak iz menija.

- Pritisnite ▶ da biste nastavili sa pretragom.

Ručna pretraga DTV signala

Link: Podešavanja HDMI linka.

Ažuriranje mreže: Spojite TV na internet i tako možete nadograditi TV sistem i mrežne aplikacije.

Simple line drawing of a curved object with a handle and internal slot, no text or symbols present.

② Stavite dvije AAA baterije vodeći računa o polaritetu.

Simple diagram of two batteries with positive and negative terminals, no text or symbols present

Diagram of a device with an arrow indicating direction, showing internal components without any text or symbols.

TIPkE NA TV UREĐAJU

DVB-S Tuning Setting

Slika 1

Korak 1: Označite Satelit i pritisnite UNOS (ENTER) kako biste pristupili listi satelita i odabrali željeni.

Korak 2: Označite LNB tip i pritisnite UNOS (ENTER) kako biste odabrali tip LNB-a.

Korak 3: Provjerite odgovara li 22 KHz, DiSEqC1.0/1.1 prekidač odabranom satelitu.

Nakon što izvršite prethodne korake, pritisnite plavu tipku za pretraživanje kanala.

DVB-T/ DVB-C/ATV

Za automatsko pretraživanje programa odaberite Automatsko podešavanje. Prije pretraživanja možda ćete morati odabrati državu ili način rada prijamnika. Ako želite prekinuti automatsku pretragu, pritisnite tipku IZBORNIK (MENU) ili tipku IZLAZ (EXIT) i pojavit će se prozor za dijalog o napuštanju pretrage.

Simple diagram of two batteries with positive and negative terminals, no text or symbols present

Diagram of a device with an arrow indicating leftward movement, showing internal components without any text or symbols.

КоПЧИЊА НА ПАНЕЛот

DVB-S Tuning Setting

Слика 1

Чекор 1 Означете Satellite (Сателит) и притиснете ENTER (Внеси) за да пристапите до списокот на сателити и изберете еден.

Чекор 2 Означете тип на LNB и притиснете ENTER (Внеси) за да изберете тип на LNB.

EPG (Electronic Program Guide) 100

Simple line drawing of a curved surface with a small protrusion and an arrow indicating direction (no text or symbols)

② Vstavite dve bateriji AAA in se prepričajte, da sta pravilno obrnjeni.

Simple diagram of two batteries with positive and negative terminals, no text or symbols present

③ Namestite pokrov.

Diagram of a device with an arrow indicating direction, showing internal components without any text or symbols.

GUmBI NA TEIEVIZIJSkEm SPREJEmNIkU

Opomba: Slike so namenjene le prikazu.

Spodnji pogled

1. AD (Audio Description)

• Če želite gledati posnetek med snemanjem programa, pritisnite gumb Levo in izberite ter pritisnite gumb ENTER. Posnetek se bo začel predvajati. Izberite ali za previjanje nazaj ali naprej.
• Če želite prekiniti snemanje, izberite in pritisnite gumb ENTER.

Časovni zamik

EPG (Electronic Program Guide)

DVB-S Tuning Setting

Slika 1

Note: The images are intended for reference only. Actual items may differ.

1 Horizontalnim prevlačenjem skinite poklopac.

Simple line drawing of a door handle with an arrow indicating direction (no text or symbols)

Simple diagram of two batteries with positive and negative terminals, no text or symbols present

Diagram of a device with internal components and an arrow indicating direction (no text or symbols)

TASTERI NA TV UREĐAJU

Napomena: Ilustracija služi isključivo kao primer.

Pogled odozdo

Pritisnite taster u sredini:

1. U režimu pripravnosti pritisak na taster uključuje televizor;
2. Ako nema OSD (On Screen Display) menija, kratkim pritiskom otvara se osnovni meni; duži pritisak stavlja TV u režim pripravnosti;
3. U slučaju postojanje OSD menija, kratkim pritiskom potvrđujete izbor; dužim pritiskom isključujete TV.

Levi deo tastera: smanjivanje zvuka ili pomeranje ulevo.

Desni deo tastera: povećavanje zvuka ili pomeranje udesno.

Gornji deo tastera: menjanje kanala ili pomranje prema gore.

Donji deo tastera: menjanje kanala ili pomeranje prema dolje.

Napomena: Ukoliko u ulaznim priključcima nema ulaznog signala, TV će biti u režimu pripravnosti.

PRIklJUČCI

Napomena: Ilustracija služi isključivo kao primer

1. S/PDIF OUT: Kako biste TV povezali s kompatibilnim audio prijemnikom koristite RCA kabl.
2. USB: USB priključak.
3. HDMI: Povezivanje priključka za HDMI signal s izvorom signala kao što je DVD. Priključak za HDMI1 podržava MHL funkciju, a HDMI2 priključak podržava ARC funkciju. Svi HDMI priključci podržavaju 4K2K ulaz.
4. SCART: SCART priključak.
5. PC IN: Povezivanje računara s TV-om pomoću VGA kabla.
6. PC AUDIO IN: Audio ulaz za PC i Audio ulaz za HDMI, kada je signal DVI vremenski podešen.
7. ANTENNA IN: Spojite koaksijalni kabl za primanje signala s antene, kablovske televizije ili satelita.
8. AVIN: Povezivanje ulaza za VIDEO signal s izvorom signala kakav je DVD.
9. SLUŠALICE: Audio izlaz. Kada su slušalice priključene zvučnici ne emituju zvuk.
10. PCMCIA: PCMCIA priključak.
11. LAN IN: Ethernet RJ45 Terminal.

FUNKCIJE DALJINSKOG UPRAVLJAČA

Daljinski upravljač

1. TASTER ZA UKLJUČIVANJE / ISKLJUČIVANJE (POWER ⏻) Pritisnite da uključite TV ili da ga stavite u režim pripravnosti.

2. ISKLJUČIVANJE ZVUKA ( ) Pritisnite da isključite zvuk ili da vratite zvuk na prethodnu jačinu.

3. SLIKA (PICTURE) Za promenu režima slike.

4. ZVUK (SOUND) Za promenu režima zvuka.

5. Zumiranje (Zoom) Za promenu formata slike.

6. Numerički tasteri Za direktno biranje kanala.

7. YouTube Pristup funkciji YouTube.

8. POVRATAK/NAZAD (RETURN/BACK) Pritisnite da biste se vratili na prethodni kanal.

9. MENI (MENU) Za ulazak u opcija menija.

10. IZVOR (SOURCE) Za biranje režima izvora ulaznog signala.

11. Gore/Dole/Levo/Desno (▲ /▼/◄ /►) Za kretanje po meniju.

12. UNOS (ENTER) Za potvrdu izbora.

13. Pretraživač Pristup TV pretraživaču.

14. IZLAZ (EXIT) Za izlazak iz menija u kome se trenutno nalazite.

15. POČETNA STRANICA (HOME) Za ulazak na početnu stranicu za početne i napredne funkcije.

16. Povećavanje/Smanjivanje jačine zvuka (VOL+/VOL-) Za podešavanje jačine zvuka.

17. Sledeći/Prethodni program (PR+/PR-) Za menjanje programa na sledeći ili prethodni.

18. LISTA KANALA (CHN LIST) Pritisnite da biste ušli u listu kanala.

1. Elektronski programski vodič (EPG) Pritisnite za prikaz aktuelnih EPG informacija u DTV režimu.
2. TITL (SUBTITLE) Za uključivanje/isključivanje titlova u DTV/USB režimu.
3. Omiljeni kanali (FAV) Pritisnite za prikaz omiljenih programa koje ste označili. Ukoliko koristite TV pretraživač, pritisnite ovo dugme za dodavanje markera/obeleživača.
4. Snimanje (REC) Pritisnite kako biste snimili program koji se trenutno emituje (dostupno jedino u DTV režimu).
5. INFORMACIJE (INFO) Pritisnite za prikaz informacija o trenutnom izvoru signala.
6. Kontrolni tasteri za reprodukovanje sa USB-a Reprodukovanje i Pauziranje (▶/II)

- Ako želite gledati snimljeni video tokom snimanja programa pritisnite levo dugme smera za biranje ▶ pritisnite ENTER, snimljeni video počeće s reprodukcijom. Pritisnite 📄 za brzu reprodukciju napred ili unazad.

- Ako želite zaustaviti i izaći iz snimanja odaberite i pritisnite dugme ENTER.

Vremensko pomeranje

Vremensko pomeranje je snimanje televizijskog programa na medij za skladištenje podataka (kao što je USB uređaj) za naknadno gledanje u prikladnije vreme. Funkciju koristite za snimanje programa kada morate prekinuti ili odgoditi gledanje programa. Ukoliko želite otići na neko vreme i gledati program bez propuštanja sadržaja, možete pritisnuti ▶/□ dugme za zaustavljanje programa, te ponovo pritisnuti dugme za početak gledanja kada se vratite ▶/□

Napomena:

DVB-S Tuning Setting

Slika 1

Korak 1: Označite Satelit i pritisnite UNOS (ENTER) kako biste pristupili listi satelita i izabrali koji želite.

Korak 2: Označite LNB tip i pritisnite UNOS (ENTER) kako biste izabrali tip LNB-a.

Korak 3: Uverite se da prekidač 22KHz DiSEqC1.0/1.1 odgovara izabranom satelitu.

Korak 3: Uvjerite se da prekidač 22KHz DiSEqC1.0/1.1 odgovara odabranom satelitu.

Nakon što izvršite prethodne korake pritisnite plavo dugme za pretraživanje kanala.

DVB-T/ DVB-C/ATV

Za automatsko pretraživanje programa odaberite Automatsko podešavanje. Možda ćete pre pretraživanja morati odabrati državu ili režim prijemnika. Ukoliko želite prekinuti automatsko pretraživanje, pritisnite dugme MENI (MENU) ili dugme IZLAZ (EXIT) i pojaviće se prozor za dijalog o napuštanju pretrage.

- Pritisnite ◀ da biste potvrdili izlazak iz menija.

Link: Podešavanja HDMI linka.

Ažuriranje mreže: Spojite TV na internet i tako možete nadograditi TV sistem i mrežne aplikacije.
