PR4 - Radio BLAUPUNKT - Free user manual and instructions

Product Type	Radio
Brand	Blaupunkt
Model	PR4
FM Frequency Range	87.5 - 108 MHz
AM Frequency Range	522 - 1620 kHz
Power Output	0.3 W RMS
Power Source	DC 3V (2 x 1.5V AAA batteries)
Power Consumption	0.8 W
Standby Power Consumption	< 0.5 W
Battery Type	AAA (included)
Antenna	Telescopic antenna for FM/AM
Headphone Jack	3.5mm stereo
Controls	Power/AM-FM selector, Tuning knob, Volume knob
Dimensions	Approx. 120 x 70 x 30 mm (estimated)
Weight	Approx. 150 g (with batteries, estimated)
Cleaning Instructions	Wipe with a soft cloth moistened with mild soap and water; unplug before cleaning. Do not use benzene or thinner.
Safety Precautions	Do not expose to water or moisture; avoid object or liquid entry; do not attempt self-service; use manufacturer-specified replacement parts.
Battery Safety	Do not expose batteries to excessive heat; install correctly (+/-); remove if not used for long time; dispose properly.
Waste Disposal	Do not dispose with household waste; follow local regulations for electronic products and batteries.
Conformity	Complies with Directive 2014/53/EU; Declaration of conformity available at www.blaupunkt.com

Frequently Asked Questions - PR4 BLAUPUNKT

How do I turn on the Blaupunkt PR4 radio?

Push the Power off and AM/FM selector switch to turn on the unit and select the AM or FM band.

What type of batteries does the PR4 require?

It requires 2 x AAA 1.5V batteries (included). Insert them with correct polarity in the battery compartment.

Why is the radio reception weak?

Try moving the radio near a window, fully extend the telescopic antenna, and adjust the frequency with the tuning knob for better reception.

How do I clean my Blaupunkt PR4?

Use a soft cloth moistened with mild soap and water. Do not use benzene, thinner, or similar chemicals. Unplug the unit before cleaning.

Can I use headphones with the PR4?

Yes, connect a 3.5mm stereo headphone to the jack on the unit. The built-in speaker will mute automatically.

How long do the batteries last?

Battery life depends on usage, but typical portable radios with 0.3W output can last several tens of hours on fresh AAA batteries.

What should I do if the radio does not turn on?

Check that batteries are installed correctly (+/-) and are fresh. If the issue persists, try replacing the batteries. Do not attempt internal repairs.

Is the Blaupunkt PR4 water-resistant?

No, it is not water-resistant. Avoid exposing it to water, moisture, dripping, or splashing to prevent electric shock or fire.

How can I dispose of the PR4 or its batteries?

Follow local regulations for electronic waste and battery disposal. Do not dispose with household waste. The product is covered by EU Directive 2012/19/EC.

Where can I find the user manual?

The user manual is available for free download in PDF format at notice-facile.com or from the Blaupunkt website.

USER MANUAL PR4 BLAUPUNKT

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.

2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.

3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.

4. Follow instructions - All operating and users' instructions should be followed.

5. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).

6. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.

7. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

8. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

9. Clean your unit with a soft cloth moistened only with mild soap and water. Stronger agents such as benzene, thinner or similar materials can damage the surface of the unit. Make sure the unit is unplugged before cleaning.

10. Battery

1) The batteries must not be exposed to excessive heat such as sunshine, fire or the like.

2) The batteries should be drawn to the environmental aspects of battery disposal.

3) Battery usage CAUTION - to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

- Install all batteries correctly, + and – as marked on the apparatus.

- Remove batteries when the unit is not used for a long time.

NOTICE

Conformity

Hereby, Blaupunkt Competence Center 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirement and other relevant provisions of Directive 2014/53/EU. Declaration of conformity can be obtained from the product page at www.blaupunkt.com.

Responsible party: 2N-Everpol Sp. z o.o, Puławska 403A, 02-801

Warsaw, Poland, Phone: [phone], E-mail: [e-mail]

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please cat according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam(buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

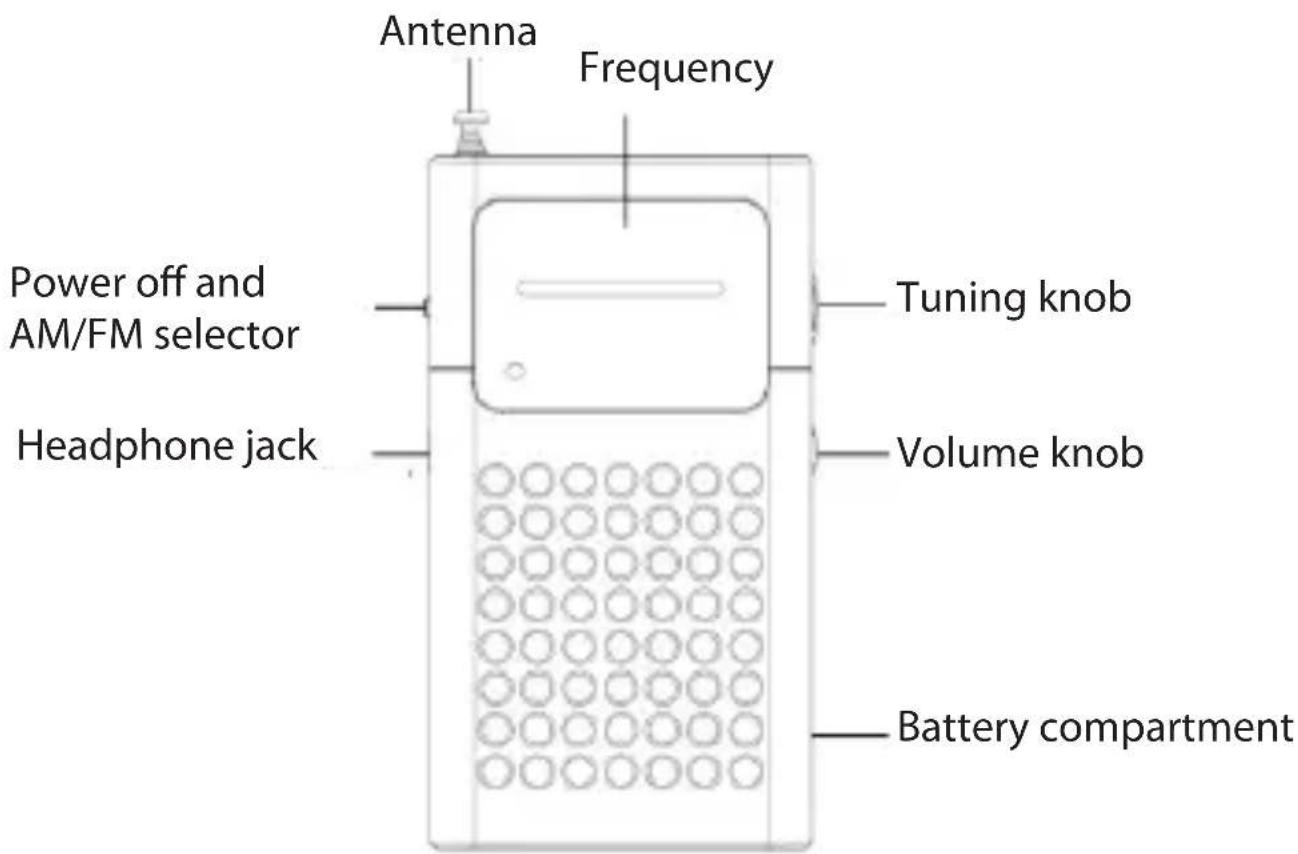

Operation

Power source(battery power only): Open the battery compartment (rear bottom side of unit), insert 2 x AAA batteries (include) into the compartment according to the engraved negative and positive polarity symbol, then close the battery door.

If the radio sound output is getting weak and weak, please kindly replace the power with fresh battery due to exhaust power.

Caution: Please do not mix up install different brand battery, or old and new battery together; Please take out the battery in case of no operation in a long time; please disposal the exhausted battery in environmental friendly way.

Radio: Pull the power off and AM/FM selector to power on the unit and select AM or FM band; adjust the frequency by using the tuning knob in order to get radio station; adjust the output sound level by using the volume knob.

Headphone: You can connect the headphone (not include) with the 3.5mm stereo phone jack for listening, and the loudspeaker will mute.

Better reception: For better radio reception, you can try to move the radio next window; full extent the telescopic antenna; try to adjust the frequency by tuning knob;

Specification

FM frequency: 87.5\~108MHz

AM frequency: 522\~1620KHz

Power Output: 0.3W RMS

Power source: DC 3V (2 x 1.5V AAA battery)

Power consumption: 0.8W

Standby power consumption: <0.5W

(The above spec may update without prior notice)

INSTRUKCJE DOTYCZĄCE BEZPIECZEŃSTWA

Symbol of a trash bin crossed with no text or labels

Symbol of a trash bin crossed with a diagonal line, representing waste or disposal (no text or numbers present)

Technical line drawing of a mobile phone with grid layout and antenna (no text or symbols)

Sag edu ste hää les t us n upp

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

02-801 Warsaw, Poland

phone: [phone]

e-mail:[e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their

respective owners. Specifications are subject to change without prior notice.
