USER MANUAL SBS 2211 IX BOMANN

Exterior view of a modern stainless steel refrigerator with dual doors and control panel (no visible text or symbols)

Bediediengsagsleitleging/Garantie

Instruction Manual

DEUTSCHDEUTSCH

InhaltInhalt

Special safety Information for this Unit......Page 17

Transport and Packaging......Page 19

Appliance Equipment......Page 19

Installation......Page 20

Startup / Operation......Page 21

Water dispenser....Page 23

Cleaning and Maintenance......Page 25

Troubleshooting......Page 25

Technical Data......Page 26

Diagram of a refrigerator interior with numbered compartments for identification

Simple line drawing of a hand holding a cup and a device with an arrow pointing to it (no text or symbols)

Simple line drawing of a ladder with two horizontal bars, no text or symbols present

Simple line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Diagram showing a door mechanism transforming from a rectangular frame to a vertical panel with a hand holding a device (no text or symbols present)

Simple line drawing of a kitchen sink with a handle and outlet, showing an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical component or bracket (no text or symbols)

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols In these instructions for Usections for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNINGING

This warns you of dangers to your health and indicates possible injury risks.

CAUTIONCAUTION

This refers to possible hazards to the machine or other objects.

IOTENOL highlights tips and information.

General Notes General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, please also pass on the operating instructions.

IOTENOTE

The illustrations in this instruction manual can deviate from the original appliance.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose. Any other use is not intended and can result in damages or personal injuries.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNINGING

Do not allow small children to play with the foil.

There is a danger of suffocation!

Special safety Information for this Unit

- This unit is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING: WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery).
• Do not damage the refrigerant circuit.
• Do not operate any electrical devices inside the appliance.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance is safe way and understand the hazards involved.

- ChildrenChildnot play with the appliance.

- Cleaning and user maintenance shall maintain made by children or older, they are older 8 years and supervised.

- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.

- Use the provided collection points of electrical equipment for the disposal of the appliance.

CoolantCoolant

WARNINGING

The coolant circuit of this appliance contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

CAUTION: Transport protection; AUUTION: Transport protecti

Pull off the foil from the appliance sides.

NOTENOTE

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter “Cleaning and Maintenance”.

Appliance Equipment

If the coolant circuit is damaged: If the coolant circuit is damaged, Appliance overview

• avoid any open flames or ignition source,
• disconnect the plug,
• thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

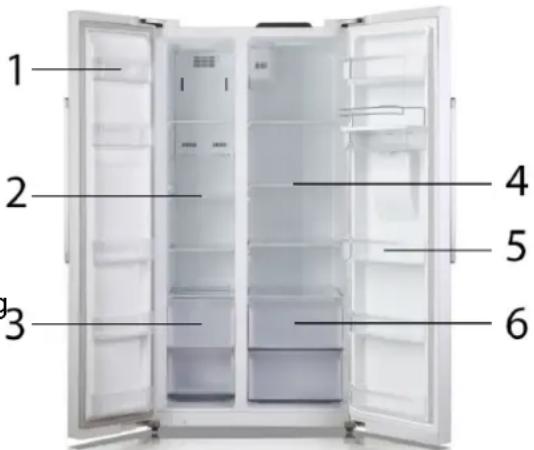

1 2 3 4 5 6

Transport and Packaging and Packaging

Transport the appliance Transport the appliance

Transport the appliance, if possible, only in vertical position. Otherwise, it is absolutely necessary to allow the appliance standing upright for a few hours before installation “Prior to first use”. Protect the appliance during transport against weather influences.

1 Door shelf 4 Glass shelf
2 Glass shelf 5 Door shelf
3 Freezer box 6 Vegetable box

IOTENOTE

The appliance has castors which facilitate the transport and installation of the appliance.

Unpack the appliance Unpack the appliance

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

Delivery scope

Fridge: 3 x height-adjustable glass shelf, 2 x vegetable box with glass cover, 5 x door shelf,

1 x egg tray

Freezer: 3 x height-adjustable glass shelf, 2 x freezing drawer, 5 x door shelf

Water dispenser, tube, return valve

Installation Installation

Conditions for the installation locations for the installation

- Good ventilation is required around the appliance, in order to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Sufficient clearance is necessary.

• Gap to the back approx. 5 cm and to the side walls each approx. 10 cm;

• Place the appliance so that the appliance door can open without being impeded.

• Only install at a location with an ambient temperature suitable for the climate class of the appliance. For information on the climate class, please refer to chapter “Technical Data” or to the rating label located in the interior or on the rear side of the appliance.

• Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust the feet accordingly.

• Avoid the installation: Avoid the installation:

• near heaters, next to a stove, direct sunlight or any other heat sources;

• at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;
• near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages).
• Do not expose the appliance any weather.

Height adjustment of the door Height adjustment of the door

Before adjusting the height of the door, rotate the downward adjusting nut clockwise for 2 circles with a wrench, and loosen the downward adjusting nut.

Rotate the upward adjusting nut to adjust the height, and then tighten the downward adjusting nut counterclockwise again.

1. When the door of refrigerator is low:

Open the door, use the accompanying wrench to cation rotate the upward adjusting nut counterclockwise, to move it upward until it is parallel and level.

1. When the door of refrigerator is high:

Open the door, use the accompanying wrench to rotate the upward adjusting nut clockwise, to move it downward, until it is parallel and level.

The total height can be adjusted to 5 mm! The total height can be

Electrical connection Electrical connection

WARNING: WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric electric shockshock
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.

WARNING:WARNING:

- The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

CAUTION:

In case of disconnection or power failure:

• Wait for approx. 5 minutes before restarting.
• Check the operation settings.

• Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the rating label.

• Connect the mains cable to a properly installed and earthed wall outlet.

• If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Startup / OperationStartup / Operation switched off and the temperature of the freezer is

Prior to first use Prior to first use

CAUTIONCAUTION

After transport, the appliance should be left standing upright for about 24 hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and Maintenance".

Control panelControl panel

A 5 6 7 B GEFL TEMP MODUS -88t 8" KUHL TEMP SUPER-DENTURE 100 MHz C 1 2 3 4 D

switched automatically to -18^ C.

2 Quick freeze

Upon activation of the quick freeze function the appliance is working at maximum power to speed up the freezing process. After about 24 hours the function switches off automatically. The indoor temperature adapts to the preset temperature. You can even stop manually the function previously.

3 Quick cooling

Upon activated of the quick cooling function the appliance is working at maximum power to speed up the cooling process. After 150 minutes the temperature will change to the preset temperature.

4 Lock/UnlockLock/Unlock

Control panel is locked for operation
Control panel is unlocked for operation

5 Temperature display freezer

Indicates the temperature selection.

A Temperature setting freezer Tel open to set freezing late the inside temperature in the range of -16°C to -24°C

B Temperature setting fridge: Allow temperature setting fridge: the inside temperature in the range of 2°C to 8°C.

C Mode button used to select between the various operating modes Vacation mode -> quick freeze -> quick cooling and quick freeze -> quick cooling -> no function

D Lock/Unlock Lpress/lock button for about 3 seconds to lock/unlock the operation of the control panel. After a few seconds, the control panel lock automatically.

1 Vacation mode

CAUTIONCAUTION

Do not store any food in the fridge during this time.

Cause of longer absence you can put the appliance into vacation mode. The operation of the fridge is

6 Temperature display fridge

Indicates the temperature selection.

e: Locking symbol

The ,OFF' symbol will come out when the vacation mode is turned on.

Starting the appliance

• Connect the appliance to the power supply.
• Set the operating conditions. See also the following section "Settings".

Settings

Note that the temperature will change depending on the ambient temperature, frequency of door opening and the amount of food in the appliance.

During initial operation, adjust the lowest possible temperature level, or select the quick freeze and/or quick cooling function first, until the appliance has

reached the desired operating temperature. Afterwards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier.

Recommended temperature settings:

• Refrigerator: +4°C
• Freezer: -18°C

Interior light Interior light

When opening the appliance door, the respectively interior light will turn on automatically.

Storing foodStoring food

i NOTE: Recommendation! daion!

To guarantee that the temperature is low enough, you should pre-cool the appliance a few times before initial loading foods.

CAUTION:CAUTION:

Always pay attention to the storage instructions on the sales packaging.

Fridgeridge

Always store food covered or packed in order to prevent drying-out and transfer of odor or taste onto other food items. You may pack the food with e.g.

• Polyethylene plastic bags or foil

- Special plastic covers with elastic strip

- Plastic bowl with lid

- Aluminum foil

Recommendations Recommendations

• Store fresh packed items on the glass shelves, fresh fruits and vegetables in the vegetable box.
• Place bottles in the door storage rack.
• By the air circulation different climate zones arises.

- The coldest zone is located at the rear and the lower fridge part. Recommended for the storage of foods such as fish, sausages and meat.

- The warmest zone is located at the door and the upper fridge part. Suitable for the storage of e.g. cheese and butter.

- Let warm food cool down first.

Freezerreezer

The 4-Star freezer allows you to store frozen food at a temperature of -18°C or colder for several months; to produce ice cubes and to freeze fresh food.

CAUTION:CAUTION:

The two lower door trays (2-Star) are for short-term storage and ice-cream only.

FreezingFreezing

• 24 hours before freezing we recommend to set the temperature to the highest performance level and to keep this setting even after freezing for a few hours. The appliance is not compromised if the setting will not revert to a normal operating temperature after the freezing process, but for economic reasons you should possibly avoid it.
• Fresh food should be frozen as fast as possible to the core. Therefore during freezing operation, the temperature of fresh food should be lowered as fast as possible in order to keep formation of ice crystals as little as possible and not to damage the food structure.
• Frozen food should be kept in contact with the bottom of the compartment.
• Keep a space between the individual items, so that the cold air can circulate.

Storing frozen foodStoring frozen food

• Packed frozen merchandise should be stored in a 4-star-freezer compartment in accordance with the manufacturer's data. Make sure the food items do not defrost after purchase and to store them as fast as possible in the freezer.
• It is possible to store food for longer periods of time, up to three months. This period might vary,

so observe the storage information on the packaging of the merchandise.

General safety precautions General safety precautions

• Do not exceed the maximum freezing capacity. See data under "Technical Data" and on the rating label.
• Do not store bottles or cans. These can break when the contents freeze – or even explode, if they contain carbonated drinks.
• Once products have been defrosted halfway or completely, they should be consumed as soon as possible and should not be frozen again, except they have been processed to a ready meal.
• Do not open the door in case of power failure. If the failure does not take longer than 10 hours, then food will not be affected.
• Do not eat food that is still frozen. Do not eat ice cream directly from the freezer. The cold can cause injuries in the oral cavity.
• Touching metal parts inside the appliance can cause symptoms similar to burns if the skin is very sensitive.
• Never touch frozen food with moist or wet hands.

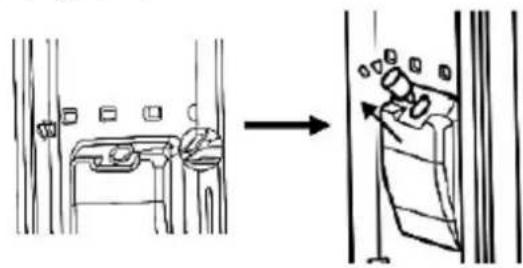

Water dispenser Water dispenser

Fill water tank with waterFill water tank with water

The maximum capacity of the water tank is 3 litres, do not exceed.

Leave the water in the container for at least 4 hours with the door closed so that it can become cool.

To fill the water tank with water there are 2 variants:

1) Open the small cover on the big cover of the water container and fill the water into the container through the opening
2) Remove the big cover of the water container and fill the tank directly.

Use the water dispenser Use the water dispenser When the water tank is empty, do not push the dispenser lever strongly as this can damage the mechanism.

Do not touch the dispenser lever without a cup underneath the dispenser.

1. Before dispensing the water you have to ensure all parts are correctly fitted and that the door of the appliance is closed.
2. Place an appropriately sized container or cup into the dispenser and push the dispenser lever.
3. Once a sufficient amount of water has been dispensed remove the container or cup away from the dispenser lever.

Simple line drawing of a hand holding a cup and a device with an arrow pointing to it (no text or symbols)

Cleaning of the dispenser Cleaning of the dispenser Clean all parts of the

water container and the dispenser using hot soapy water before you use the dispenser for the first time.

You have to remove the water container for cleaning. Hold both sides of the container tightly, then lift and remove it from the door at an angle of 45^ .

Remove the seal ring from the water tank by gently pulling it from the bottom of the water tank.

Technical line drawing of a mechanical assembly or bracket (no text or symbols)

Simple line drawing of a container with an arrow indicating direction, no text or symbols present

Gently insert a flathead-screwdriver between the edge(s) of the water valve and the dispenser moulding. Lift the edges on both sides of the water valve slowly and carefully using the screwdriver. The wa-

ter valve should raise and then be removed by hand at an angle of 45^ .

Diagram showing a vehicle interior and its side view with a magnified inset of the dashboard (no text or symbols)

Clean all parts (water tank, cover, seal ring and water valve) using hot soapy water, then rinse thoroughly and dry.

The dispenser can be cleaned by running it with hot soapy water instead of drinking water. You have to flush the dispenser afterwards using at least 6 big cups of clear water.

It is recommended to clean the dispenser, container, seal ring and water valve at least once per month in this way.

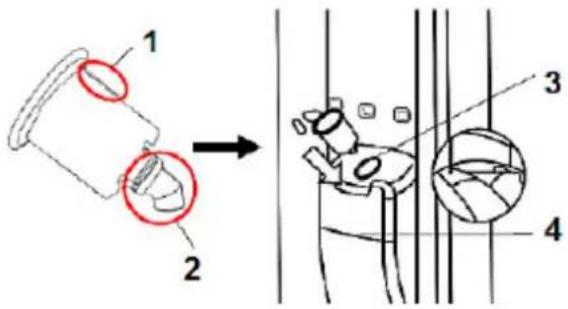

Re-installation:

Ensure that the nozzle of the water valve points downwards and that the groove on the body of the water valve is aligned with the groove on the opening of the dispenser moulding. Place the water valve in proper position by pushing it downwards at an angle of 45^ until it locks.

1 2 3 4

1 Groove

3 Opening on moulding Install the seal ring on the bottom of the water tank. Ensure that no creases or wrinkles oc- cur.

2 Nozzle

4 Moulding

Simple line drawing of a bathroom sink with a handle and drawer, no text or symbols present

Install the water container on the door. Ensure that the seal ring has been inserted into the water valve before. Hold both sides of the water

Simple line drawing of a mechanical or architectural component with no visible text, numbers, or symbols.

container tightly and install the container at an angle of 45^ .

Operating noise Operating noise

Type of soundT	Ca#use
Mumbling Compressor during its operation
Liquid sounds Circulation of the refrigerant
Click sounds The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching Soffing

To switch off the appliance discontecoff from the plastic disconnect it from power supply.power supply.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Thoroughly clean the appliance (see "Cleaning and Maintenance").
• Leave open the appliance door to prevent unpleasant odours.

Tips for Energy saving

• Disconnect the appliance from the power supply if the appliance is not in use.

• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.

• Ensure sufficient ventilation at the bottom and rear side. Never block ventilation openings.

• Allow warm dishes to cool down before putting into the appliance.

• Do not adjust the temperature colder than necessary.

• Do not open the door longer than necessary.
• The seal of the appliance door must be completely intact, so that the door closes properly.

LightingLighting

CAUTION:CAUTION:

Do NOT Remove the cover of the interior light.

The LED light may be replaced / repaired in case of failure / defect only by an authorized specialist.

Cleaning Gled Maintenance and Maintenance

WARNING: WARNING:

• Always switch off and disconnect the appliance from the power supply before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Risk steel electric shock damage the plastic parts.
• The appliance must be dry before restarting operation.

CAUTION:CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not damage the refrigerant circuit.

Cleaning the appliance including InteriorCleaning the app

• Clean the appliance interior, the exterior surfaces, the accessories and the door seal regularly with warm water and mild detergent.
• Remove for that the appliance content and storage at a cool location.
• After everything was thoroughly dried, you can restart the operation.

DefrostingDefrosting

The freezerkeeper free from ice inside because of NoFrost System. A defrosting procedure isn't necessary.

Troubleshooting Troubleshooting

Before you contact an authorized specialist Before you contact an

Problem	Cause / Action
Appliance is not working or not properly	- Insert the power plug correctly or check the fuse.- Check the temperature setting.- Check the ambient temperature.- Unblock the ventilation openings, install the appliance freely.
Stored food is too warm	- Check the temperature setting.- Open the door only as long as necessary.- Check the location.
Loud noise during operation	- Check the appliance position.- See the section “Operating noise”.
Water on the appliance including bottom	Check the temperature setting. interior
Interior light is not working	- Insert the power plug correctly or check the fuse.- See the section “Lighting”.

NOTE:

If a problem still persists after following the steps above, contact your trader or an authorized technician.

Technical Data Technical Data

Electrical connElectrical connetion

Mains voltage: 220-240 V\~

Mains frequency: 50 Hz

Power input: 1.55 A

Dimension H x W x D / Weight......Dim

Appliance size: 178.8 x 89.5 x 74.5 cm

Net weight: ....approx. 90.0 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

Product information for household refrigerators / Product freezers abreeding to regulation (EU) No. 1060/2010ccor

Brand Brand ANN	BOMANNB
Model MRS12	SBS 2211 IX
Category1)	7
Energy Efficiency class2)	A++
Annual Energy consumption3)	329 kWh/a
Net capacity cooling total	338 l
thereof cold storage compartment	- l
thereof wine storage compartment	- l
thereof cellar compartment	- l
thereof storage compartment for fresh-food	338 l
Net capacity freezing total	175 l
Star rating4)	4
Design temperature of other compartments	- °C
Coldest storage temperature of wine storage compartment	- °C
Frost-free	•
Temperature rise time	10 h
Freezing capacity	10 kg/24h
Climate class5)	SN/N/ST/T
Noise emission	43 dB(A)
Built-in appliance	-
Wine storage appliance	-

1) Category: 1 = Refrigerator with one or more fresh-food storage compartments, 2 = Refrigerator-cellar, Cellar and Wine storage appliances,
3 = Refrigerator-chiller and Refrigerator with a 0-star compartment,
4 = Refrigerator with a one-star compartment, 5 = Refrigerator with a two-star compartment, 6 = Refrigerator with a three-star compartment,
7 = Refrigerator-freezer, 8 = Upright freezer, 9 = Chest freezer,
10 = Multi-use and other refrigerating appliances
2) A+++ (highest efficiency) to G (lowest efficiency)

2019 Annual Energy Consumption (kWh per year based on standard test results for 24 h. Actual energy consumption will depend on how the appliance is used and where is located.

4)* = compartment: a frozen-food storage compartment in which the temperature is not warmer than -6°C

** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -12°C

*** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -18°C

* (***)= food freezer compartment in which the temperature is not warmer

information for household refrigerators /

5) Climate class SN: ambient temperature of +10°C up to +32°C ding to regulation (EU) No. 1060/2010

Climate class N: ambient temperature of +16°C up to +32°C

Climate class ST: ambient temperature of +16°C up to +38°C

Climate class T: ambient temperature of +16°C up to +43°C

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal Disposal

Meaning of the "Dustbin" Symbol Meaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING: WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

BOMANN®
