Brand	Mabe
Model	MMT12CABWCAM8
Product Type	Window Air Conditioner
Cooling Capacity	12,000 BTU
Energy Efficiency	EER 12.0
Voltage	115 V
Frequency	60 Hz
Dimensions (W x H x D)	18 x 18 x 12 inches
Weight	50 lbs
Refrigerant	R410A
Operating Modes	Cool, Fan, Dehumidify
Control Type	Remote control and digital display
Air Flow (Max)	350 CFM
Filter	Washable mesh filter
Noise Level (Indoor)	52 dB
Power Cord Length	6 ft
Installation Type	Window mounting kit included
Safety Features	Overload protection, tip-over switch
Maintenance	Clean filter monthly; professional service for refrigerant

Frequently Asked Questions - MMT12CABWCAM8 Mabe

How often should I clean the air filter?

It is recommended to clean the washable mesh filter every month under normal use. More frequent cleaning may be needed in dusty environments.

What is the proper way to install this window air conditioner?

The unit requires a standard double-hung window. Use the included mounting kit to secure the unit. Ensure the window sash is lowered onto the top of the unit and seal gaps with foam insulation.

How do I switch between cooling, fan, and dehumidifier modes?

Use the remote control or the control panel on the unit. Press the Mode button to cycle through Cool, Fan, and Dry (dehumidify) modes. The display will show the selected mode.

What should I do if the air conditioner is not cooling enough?

Check if the filter is dirty and clean it if necessary. Ensure the thermostat is set to a lower temperature. Verify that windows and doors are closed. If the problem persists, the unit may need professional servicing.

Can I use an extension cord with this air conditioner?

No, using an extension cord is not recommended. It can cause voltage drop and overheating. Plug the unit directly into a dedicated 115V outlet.

How do I reset the air conditioner after a power outage?

After power is restored, the unit may resume operation with previous settings. If it does not, unplug the unit for 5 minutes, then plug it back in and set desired mode.

What is the recommended temperature setting for energy saving?

For energy efficiency, set the thermostat to 78°F (26°C) when you are at home and higher when away. Use the timer feature if available.

How do I clean the exterior of the air conditioner?

Wipe the exterior with a soft, damp cloth. Do not use harsh chemicals or water directly on the unit. Ensure the unit is unplugged before cleaning.

Why is the air conditioner making a clicking sound?

Clicking sounds are normal when the compressor or fan cycles on and off. If the sound is persistent or loud, check for loose parts or obstructions.

What type of refrigerant does this unit use and is it environmentally friendly?

This unit uses R410A refrigerant, which is non-ozone depleting. However, it is a greenhouse gas; proper disposal and recycling are required.

USER MANUAL MMT12CABWCAM8 Mabe

for the English version, go to page 47

lea este instructivo antes de instalar su aire acondicionado read this manual before installing your new air conditioner

modelos/models

MMT12HABWCAM8

MMT12HDBWCAM8

MMT12CDBWCAM8

MMT12CABWLCAM8

MMT12CDBWLCAM8

MMT12HABWLCAM8

MMT12HDBWLCAM8

MMT12CABWCAM8

MMT12CABSCAM8

MMT12HABSCAM8

MMT12CDBSCAM8

MMT12HDBSCAM8

MMT18CDBWCAM8

MMT18HDBWCAM8

MMT18CDBSCAM8

MMT18HDBSCAM8

MMT24CDBWCAM8

MMT24HDBWCAM8

MMT24CDBSCAM8

MMT24HDBSCAM8

PM01

mabe

contenido

Four simple clock icons with symbols: circle, plus, alarm clock, and circular arrow

Diagram of an air conditioner unit with numbered parts labeled 1 to 4

Diagram of a device with numbered components, showing internal structure and directional arrows

Notas:

Illustration of a cartoon character holding a box next to a rectangular container (no text or symbols)

Diagram of a hand holding a rectangular device with a grid and directional arrow indicating motion (no text or symbols)

Illustration of two children playing badminton, one holding a bat and the other standing with a net (no text or symbols)

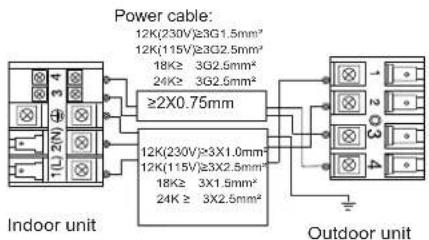

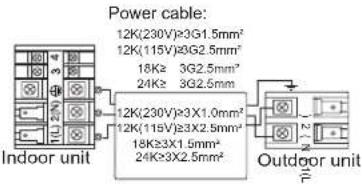

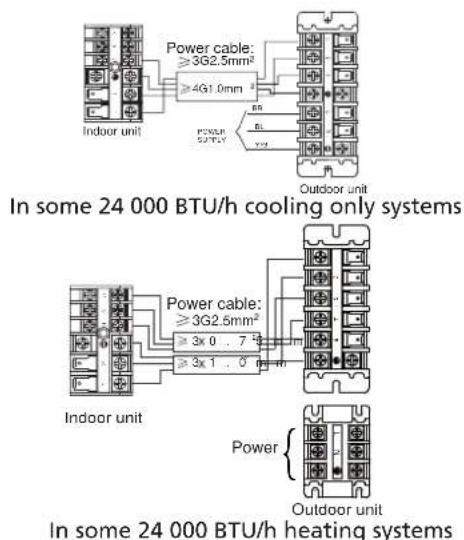

Canton electric ≥3G2.5mm² ≥3x 0 7 ≥3x 1 0 Unaid extension Unaid extension

Important Safety Instructions 48

Parts and features 49

Operation instructions .... 51

Remote control 51

Emergency and Test operation 58

Air flow direction adjustment 59

SLEEP function 60

Healthy Airflow 61

Timer On/Off operation 62

TURBO operation 62

Installing the batteries 63

Maintenance 64

WARNINGS 67

Troubleshooting 70

Installation instructions 73

Selection of installation place 73

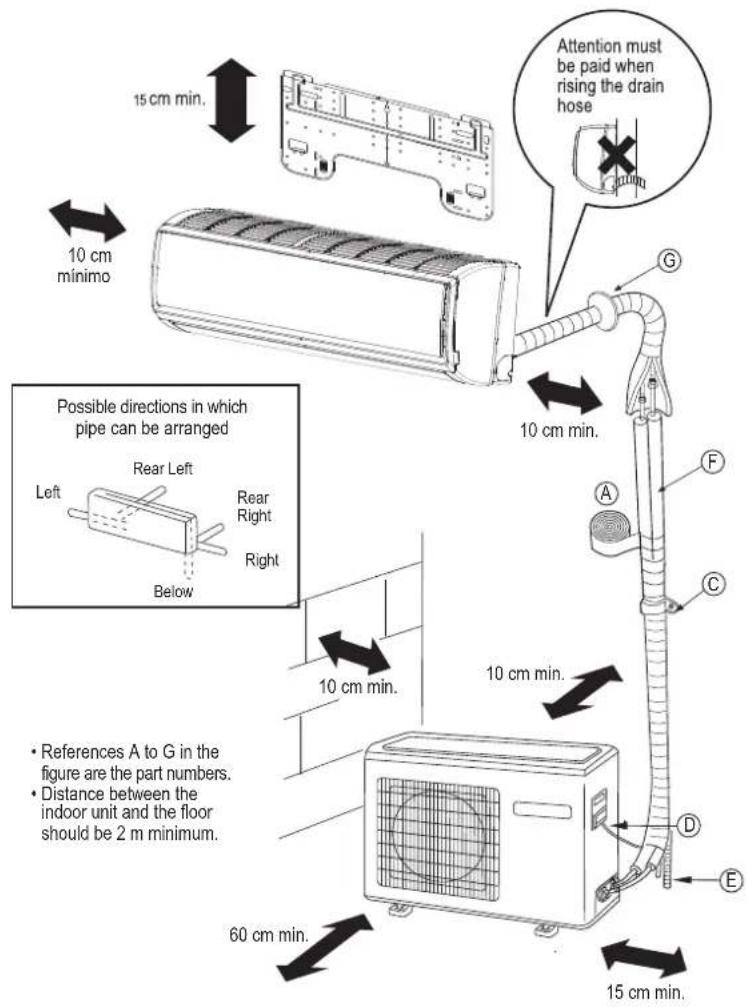

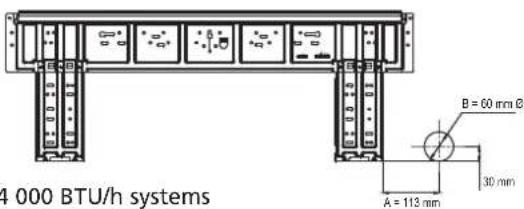

Installation of indoor and outdoor units 74

Indoor Unit 77

Outdoor Unit 81

Installation checklist and test run 87

Rated electrical specifications 88

welcome

Everything you need to know for the proper operation of your product can be found here and in our web sites. We invite you to get to know your product, read this manual and get the most out of it.

Important Safety Instructions

• Your own safety is important for us. Please read this information before using your new product.
• Do not use extension cords.
• Do not plug other electric appliances to the same power outlet.
• Hold the connector by the power plug, not by the cord.
• This product is equipped with a "Y" type polarized plug having a built-in grounding wire.
• Do not remove the grounding terminal or use outlet adapters.
• If the power cord is damaged, it must be replaced by the manufacturer, its authorized service agent or by qualified personnel in order to avoid a hazard.
• If voltage variations are usual in your area, have a voltage regulator installed.
• This appliance is not intended for use by persons (including children) having reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
  • Children should be supervised to make sure they do not use the appliance as a toy.
• IMPORTANT: Failure to follow these warnings, will make you entirely responsible for personal injuries or material damages that may occur from using this equipment.
• If the appliance will be connected to a fixed power supply wiring, a surge protector must also be installed and a main power switch and/or fuse rated 1.5 times the maximum current of the unit should be used.

The following conditions are not considered as a normal use of the appliance:

• If it has not been operated in accordance with the provided operation instructions.
• Damages caused by accidents, electrical overloads, voltage fluctuations, using an energy other than the specified, or catastrophes.
• If it has been used with commercial or industrial purposes, or for other than the indicated in the operation instructions.
• If the product has been repaired by unauthorized persons and/or service workshops.

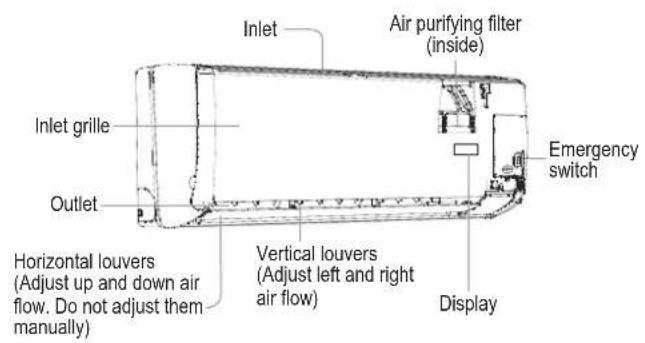

indoor unit

Inlet Air purifying filter (inside) Inlet grille Outlet Horizontal louvers (Adjust up and down air flow. Do not adjust them manually) Vertical louvers (Adjust left and right air flow) Display Emergency switch

display board B

1 2 88 3

1. Signal receiver hole.
2. Ambient temp. display. When receiving the remote control signal, display the set temperature.
3. Operation mode indicator (lights up when the compressor is on.)

display board C (on models having only LED indicators)

Four simple clock icons with symbols: one with a circle, one with an '2' and a '1' clock, one with a 'L' clock, and one with a circular arrow indicating rotation.

1. Remote control signal receiver. A beep is heard when a signal from the remote control is received.
2. Power indicator. Lights up when the unit starts.
3. TIMER mode indicator. Lights up when the TIMER operation is selected.
4. Operation mode indicator. Lights up when the compressor is on.

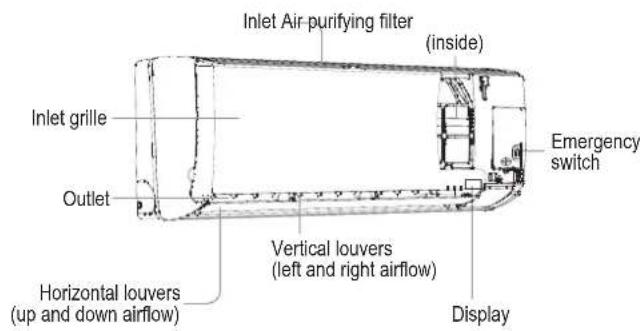

display board

Inlet Air-purifying filter (inside) Inlet grille Outlet Horizontal louvers (up and down airflow) Vertical louvers (left and right airflow) Display Emergency switch

display board A

①—○ ②—* ③— ④— 88.5℃—△—⑤ ⑥—

1. Signal receiver hole.
2. Ambient temp. display. When receiving the remote control signal, display the set temperature.
3. COOL display
4. HEAT display
5. HEALTH display
6. DRY display

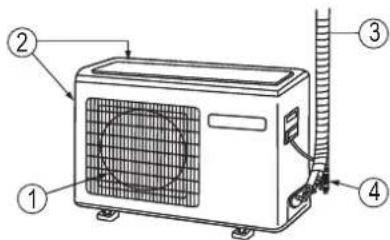

outdoor unit

Diagram of an air conditioning unit with numbered components labeled 1 to 4

1. Outlet
2. Inlet
3. Connecting piping and electrical wiring
4. Drain hose

operation Instructions

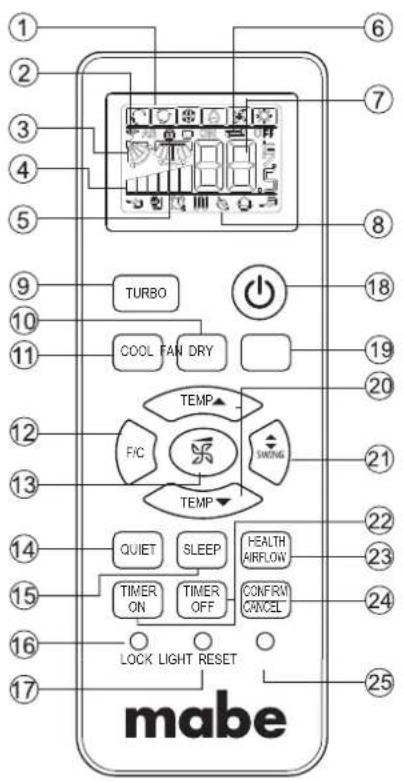

remote control

1 2 3 4 5 6 7 8 9 TURBO COOL FAN DRY TEMP F/C SIMONG TEMP 10 11 12 13 14 15 16 LOCK LIGHT RESET 21 22 23 24 25 mabe

1. Mode display

Operation Mode		COOL	DRY FANAUTO
Remote Control

1. Signal sending display
2. SWING display
3. FAN SPEED display

1. LOCK display
2. TIMER OFF display TIMER ON display
3. TEMP display

8. Additional functions display

Operation mode QUIET SLEEP TURBO

Remote control

9. TURBO button

1. FAN button

2. COOL button

3. F/C button (Fahrenheit degrees/Celsius degrees)

4. FAN SPEED button

5. QUIET button

6. SLEEP button

7. LOCK button

8. LIGHT button. Turns ON and OFF the indoor unit LED display.

9. POWER/SOFT button

10. DRY button

11. TEMP button

12. SWING UP/DOWN button

13. TIMER OFF/ON button

14. HEALTH AIRFLOW button

15. CANCEL/CONFIRM button. Function: Setting and cancel to the timer and other additional functions.

16. RESET button. If the remote control is not operating properly, use a sharp pointed item to press this button to reset the remote control.

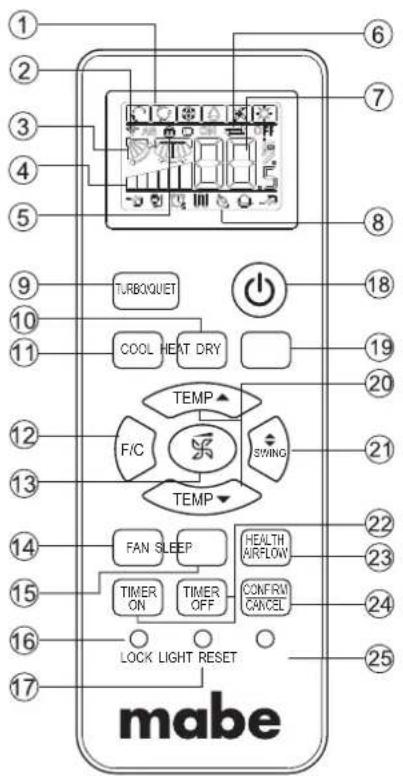

remote control

1 2 3 4 5 6 7 8 9 10 11 TURBOQUET COOL HEAT DRY TEMP F/C SWING TEMP 12 13 14 15 16 LOCK LIGHT RESET 17 mabe 20 21 22 23 24 25

1. Mode display

Operation Mode		COOL	DRY FANAUTO	HEAT
Remote Control

1. Signal sending display
2. SWING display
3. FAN SPEED display

1. LOCK display
2. TIMER OFF display

TIMER ON display

1. TEMP display

8. Additional functions display

Operation mode	QUIET	SLEEP	HEALTH	TURBE	SupplementedElectricalheating
Remote control

9. TURBO button

1. HEAT button
2. COOL button
3. F/C button (Fahrenheit degrees/Celsius degrees)
4. FAN SPEED button
5. FAN button
6. SLEEP button
7. LOCK button
8. LIGHT button. Turns ON and OFF the indoor unit LED display.
9. POWER/SOFT button
10. DRY button
11. TEMP button
12. SWING UP/DOWN button
13. TIMER OFF/ON button
14. HEALTH AIRFLOW button
15. CANCEL/CONFIRM button

Function: Setting and cancel to the timer and other additional functions.

1. RESET button

If the remote control is not operating properly, use a pen point or similar object to press this button to reset the remote control.

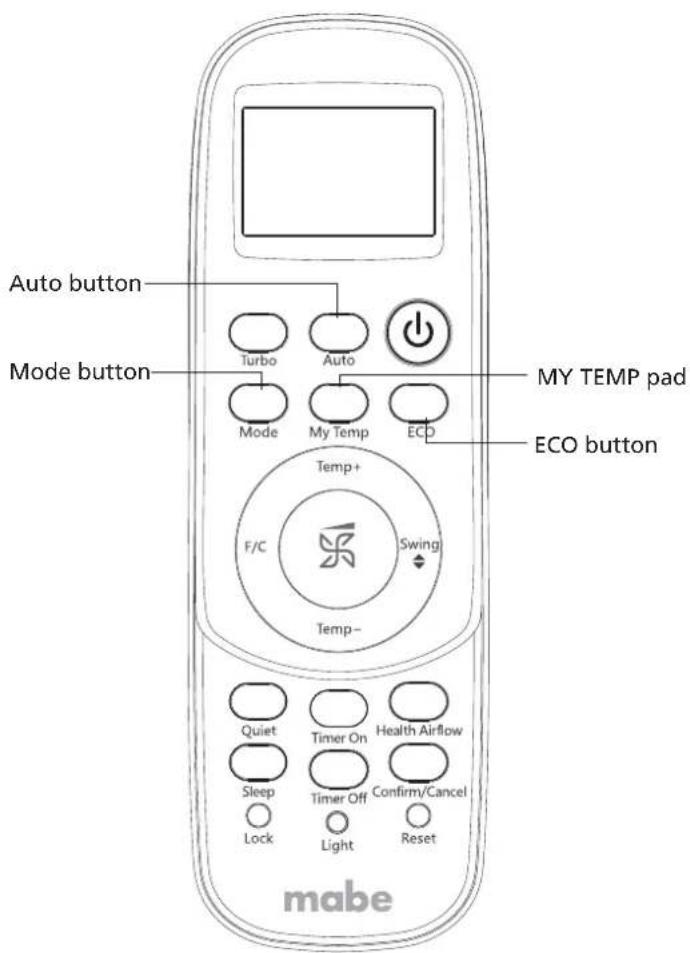

remote control for cool-only models equipped with the MY TEMP feature

Auto button Mode button Turbo Auto Mode My Temp ECD Temp+ F/C Swing Temp- Quiet Timer On Health Airflow Sleep Timer Off Confirm/Cancel Lock Light Reset my TEMP pad ECO button mabe

When the MYTEMP function is activated, the remote control will sense and display the temperature around it in order to achieve the desired temperature.

The distance between the remote control and the indoor unit should be 7 m maximum, without obstacles.

Press AUTO then enter auto mode.

MODE button, it will follow cycle "cooling---dehumidify---air blowing---heating---cooling" (For cooling only model, heating mode is invalid).

Energy saving function, it works under cooling only mode, after enter ECO function, the logo of "ECO" will display on the remote screen.

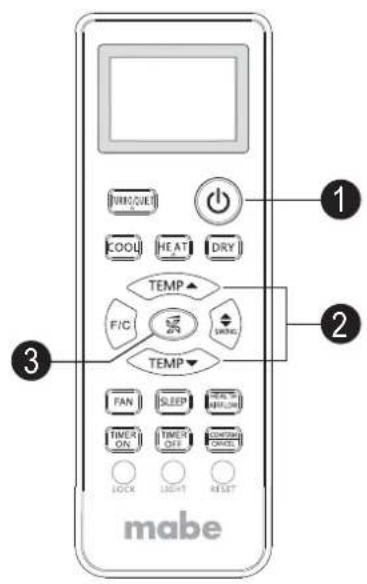

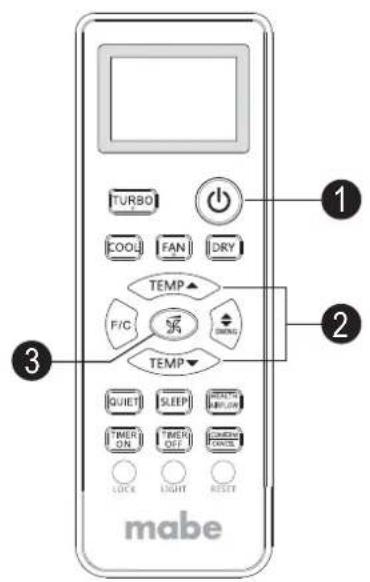

basic operation

1 2 3 mabe

TURBO COOL FAN DRY TEMP F/C TEMP QUIET SLEEP CREAM TIMER ON TIMER OFF CREAM LOCK LIGHT RESET mabe

1. Unit start

Press ON/OFF on the remote controller, unit starts.

1. Select a temperature setting

Press the TEMP+ or TEMP- button

TEMP+ Every time the button is pressed, the temperature setting increases 1 °C, if kept depressed, it will increase rapidly.

TEMP- Every time the pad is pressed, the temperature setting decreases 1 °C, if kept depressed, it will decrease rapidly.

Select a desired temperature.

1. Fan function

Press the FAN pad.

Each time the FAN SPEED button is pressed, the fan speed will change as follows:

Remote control:

Air conditioner is running under displayed fan speed.

When FAN is set to AUTO, the air conditioner automatically adjusts the fan speed according to room temperature.

Operation mode	Remote control Note
AUTO Under the mod		Auto operation, air conditioner will automatically select Cool or Heat operation according to room temperature.When FAN is set to AUTO, the air conditioner automatically adjusts the fan speed according to room temperature.
COOL		Cooling only units do not have displays and functions related with heating.
DRY		In DRY mode, when room temperature becomes lower than temp. setting + 2 °C, unit will run intermittently at LOW speed regardless of FAN setting.
HEAT (only on some models)		In HEAT mode, warm air will blow out after a short period of the time due to cold-draft prevention function.
FAN		In FAN operation mode, the unit will not operate in COOL or HEAT mode but only in FAN mode. AUTO is not available in FAN mode. Temperature setting is disabled. When FAN is set to AUTO, the air conditioner automatically adjusts the fan speed according to room temperature. In FAN mode, SLEEP operation is not available.

emergency and test operation

emergency operation

• Use this operation only when the remote control is defective or lost, and with function of Emergency running air conditioner can run automatically for a while.
• When the emergency operation switch is pressed, a "Pi" sound is heard once, which means the start of this operation.

Pi

• When POWER switch is turned on for the first time and emergency operation starts, the unit will run automatically in the following mode:
• It is not possible to change the temperature setting or fan speed setting. It is also not possible to operate the timer or the DRY mode.

Room temperature

Designated temperature

TIMER mode Fan Speed

Operation mode

Above 23 °C COOLING26 °C No AUTOMATIC

test operation

• Test operation switch is the same as emergency switch.
• Use this switch in the test operation when the room temperature is below 16 °C, do not use it in the normal operation.
• Continue to press the test operation switch for more than 5 seconds. After you hear two "Beeps", release your finger from the switch: the cooling operation starts with the air flow speed at "Hi".

- Under this operation mode, the fan motor of the indoor unit will run at HIGH speed.

air flow direction adjustment

vertical air flow

Pos. 1: → √→ √→ √→ √→ √→ √→ AUTO Swing Initial State

Pos. 2: No initial state displayed on remote control. The vertical louvers will be fixed on the current position.

CAUTIONS:

• Before adjusting the louvers manually, turn off the unit.
• When humidity is high, condensate water might occur at air outlet if all vertical louvers are adjusted to the right.
• It is advisable not to keep horizontal flap at downward position for a long time in COOL or DRY mode, otherwise, condensate water might occur.
• When restarting after turning the unit OFF with the remote control, the remote will automatically return to the previous set swing position.

SLEEP function

Press the SLEEP button, the remote control will show 📄, and then achieve to the sleep function. Press again the SLEEP pad, the sleep function will be cancelled.

Operation mode

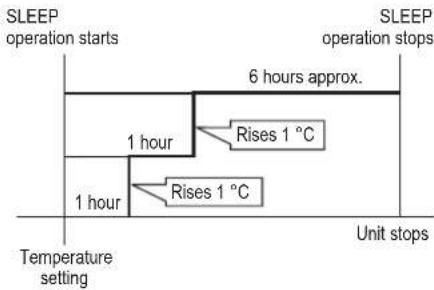

1. In COOL or DRY mode

1 hour after SLEEP mode starts, the temperature will become 1 °C higher than temperature setting. After another hour, the temperature will rise another 1 °C. The unit will run for further 6 hours then stops. Temperature is higher than temperature setting so that room temperature won't be too low for your sleep.

In COOL and DRY modes

2. In HEAT mode (only on some models)

1 hour after SLEEP mode starts, temperature will become 2 °C lower than temperature setting. After another 1 hour, the temperature decreases by 2 °C further. After another 3 hours, temperature rises by 1 °C further. The unit will run for another 3 hours then stops. Temperature is lower than temperature setting so that room temperature won't be too high for your sleep.

In HEAT mode

3. In AUTO mode

The unit operates in corresponding sleep mode adapted to the automatically selected operation mode.

4. In FAN mode

The SLEEP function will not be available under the FAN mode.

1. When quiet sleeping function is set to 8 hours the quiet sleeping time can not be adjusted. When TIMER function is set, the quiet sleeping function can't be set up. After the sleeping function is set up, if user resets TIMER function, the sleeping function will be cancelled; the machine will be in the state of timing-on, if the two modes are set up at the same time, either of their operation time is ended first, the unit will stop automatically, and the other mode will be cancelled.

Note:

• When TIMER function is set, the sleeping function can't be set up. After the sleeping function is set up, if user resets TIMER function, the sleeping function will be cancelled; the machine will be in the state of timing-on.
• Power failure resume: Press the sleep pad ten times within five seconds and enter function after hearing four sounds. And press the sleep pad ten times within five seconds and leave this function after hearing two sounds.
• Power failure resume function: If the unit is started for the first time, the compressor will not start running unless 3 minutes have elapsed. When the power resumes after power failure, the unit will run automatically, and 3 minutes later the compressor starts running.

healthy airflow

1. Press ⏻ to start.
2. Repeatedly press the HEALTH AIRFLOW button (HEALTH AIRFLOW). The louver position will cycle between the following three settings. Select the position you require.

Notes:

• Do not adjust the position of the louver manually. Otherwise, the louver will not operate correctly. If the louver does not run correctly, stop it for a minute and then restart using the remote control.
• After setting the healthy airflow function, the position of the louver will be fixed.
• During COOLING, it is better to select this mode
• Under COOLING and DRY modes, using the air conditioner for a long time when air humidity is high can result in condensed water on the louver.

timer On/Off operation

1. After unit starts, select the desired operation mode.
2. Press the TIMER ON or TIMER OFF button to change TIMER mode. When pressing TIMER ON button, the display will show "ON 0.5". After 10 seconds the time display will be blank.
   When pressing TIMER OFF button, the display will show "OFF 0.5". After 10 seconds the time display will be blank. Then select the desired TIMER mode, (TIMER ON or TIMER OFF or TIMER ON-OFF). "ON" or "OFF" will flash.
3. Press TIMER ON or TIMER OFF button to set time.
   Each time you press the button, the time setting will be increased by 0.5 hours until reaching 12 hours, then each press will increase the time by 1 hour until reaching 24 hours.
4. Confirm TIMER setting. After setting the desired time press the CONFIRM/CANCEL button to CONFIRM your selection "ON" or "OFF" will stop flashing.

To cancel the TIMER

Press the CONFIRM/CANCEL button again. The set TIME will be deleted.

After replacing batteries or a power failure, the time should be reset.

According to the time setting sequence of TIMER ON or TIMER OFF, either Start-Stop or Stop-Start can be achieved.

TURBO operation

When you need rapid heating or cooling, you can use this function. Press the TURBO pad, the remote control will show ↗, and then the unit starts the TURBO function.

To turn off TURBO, press again the TURBO pad.

Note: During TURBO operation, in rapid cool mode, the room could show uneven temperature distribution.

installing the batteries

1. Remove the battery cover.
2. Insert 2 "AAA" batteries as illustrated noting battery polarity.
3. Reinstall the battery cover.

Diagram of a device with labeled parts, showing internal components and directional arrows

Notes:

• The distance from the remote control to the receiver should be less than 7 meters with no obstructions.
• If the remote control display is weak or the operating distance has diminished, the batteries may need to be replaced.
• Remote control malfunctions can sometimes be corrected by removing the batteries from the remote for a few minutes and then reinstalling them.
• Remove the batteries from the remote control if the unit will not be in use for an extended period of time.
• If any segments of the display remain active after battery removal, press the reset button.

maintenance

Set a proper room temperature. Do not block air inlets and outlets.

Close doors and windows during operation.

During cooling operation, avoid direct sunlight using curtains or blinds.

Use the timer effectively.

If the unit is not to be used for a long time, turn off the power supply main switch.

Use the louvers effectively.

remote control

Do not use water, wipe the remote control with a dry cloth. Do not use glass cleaners or a chemical cloth.

indoor unit body

Wipe the air conditioner using a soft and dry cloth. For serious stains, use a neutral detergent diluted with water. Wring the water out of the cloth before wiping. Then wipe off the detergent completely.

do not use the following for cleaning

Gasoline, benzine, thinner or cleanser may damage the finish of the unit.

Hot water over 40 °C (104 °F) may cause discoloration or deformation.

air filter cleaning

1. Open the inlet grille by pulling it upwards.
2. Remove the filter. Push up the filter's center tab slightly until it is released from the stopper, and remove the filter downward.

Illustration of a hand placing a component into a rectangular device with an arrow indicating rotation (no text or symbols)

1. Clean the filter. Use a vacuum cleaner to remove dust, or wash the filter with water. After washing, dry the filter completely in the shade.

2. Attach the filter. Attach the filter correctly so that the "FRONT" indication is facing to the front. Make sure that the filter is completely fixed behind the stopper. If the right and left filters are not attached correctly, that may cause defects.

1. Close the inlet grille.

replacing the air purifying filter

NOTE: The air purifying filter is an optional part.

1. Open the inlet grille. Prop up the inlet grille by using a small device named grille-support which is located in the right side of the indoor unit.

1. Detach the standard air filter.

Slide the knob slightly upward to release the filter, then remove it.

Detach the old purifying filter

1. Attach the air purifying filter.

Place air purifying filter into the right and left filter frames.

1. Attach the standard air filter.

(Necessary installation).

ATTENTION: The white side of the photocatalyst air purifying filter faces outside, and the black side faces the unit. The green side of the bacteria-killing medium air and the white side faces the unit.

1. Securely close the inlet grille.

Notes:

• The photocatalyst air purifying filter will be solarized in fixed time. In normal family, it will be solarized every 6 months.
• The bacteria-killing medium air purifying filter will be used for a long time, no need for replacement. But in the period of using them, you should remove the dust frequently using a vacuum cleaner or flapping them lightly, otherwise its performance will be affected.
• Please keep the bacteria-killing medium air purifying filter under cool and dry conditions and avoid long time directly sunshine when you stop using it, or its ability of sterilization will be reduced.

WARNINGS

WARNINGS:

• CALL SALES/SERVICE DEPARTMENT FOR THE INSTALLATION.
• DO NOT ATTEMPT TO INSTALL THE AIR CONDITIONER FOR YOURSELF BECAUSE AN IMPROPER INSTALLATION MAY CAUSE ELECTRIC SHOCK, FIRE, WATER LEAKAGE.

- If an abnormality is found such as burnt-smell, immediately stop the operation pad and contact sales department.

- Check proper installation of the drainage securely.

- Use an exclusive power source with a circuit breaker.

- Connect power supply cord to the outlet completely. Use the proper voltage.

• Do not use an extension power supply cord or connected half-way.
• Do not install in a place where there is a possibility of inflammable gas leakage around the unit.
• Do not get the unit to be exposed to vapor or oil steam.
• Do not use power supply cord in a bundle.

- Do not try to repair or reconstruct the system by yourself.

- Do not direct the air flow directly at people, especially at infants or the aged.

• Take care not to damage the power supply cord.

- Connect the grounding cable.

- Do not insert objects into the air inlet or outlet.

- Do not start or stop the operation by disconnecting the power supply cord and so on.

CAUTION

- Do not use for the purpose of storage of food, art work, precise equipment, breeding, or cultivation.

- Do not install the unit near a fireplace or other heating appliance.

- Do not operate the switch with wet hands.

- Do not pour water onto the unit for cleaning.

- Check good condition of the installation stand.

- Do not place animals or plants in the direct path of the air flow.

• Take fresh air occasionally especially when gas appliance is running at the same time.

- Do not place any objects on or climb on the unit.

- Do not place flower vase or water containers on the top of the unit.

troubleshooting

Before calling for service, check the following:

Problem Possible cause and points to check

The system does not restart immediately.	After stopping the unit, it won't restart immediately until 3 minutes have elapsed to protect the system.When the electric plug is pulled out and reinserted, the protection circuit will work for 3 minutes to protect the air conditioner.
Noise • During unit operation or at stop, a swishingor gurgling noise may be heard. At first 2-3 minutes after unit start, this noise is more noticeable. (This noise is generated by refrigerant flowing in the system.)During unit operation, a cracking noise may be heard. This noise is generated by the case expanding or shrinking because of temperature changes.Should there be a big noise from air flow in unit operation, air filter may be too dirty.
Bad odor • This is because the system circulates odorsfrom the interior air such as the odor of furniture, paint, cigarettes.
Mist or steam are blown out	During COOL or DRY operation, indoor unit may blow out mist. This is due to the sudden cooling of indoor air.
In dry mode, fan speed can't be changed.	In DRY mode, when room temperature becomes lower than temperature setting +2 °C, unit will run intermittently at LOW speed regardless of FAN setting.

Problem Possible cause and points to check

Unit won't start. • Is power plug inserted?

• Is there a power failure?
- Is fuse blown out?

Poor cooling. • Is the air filter dirty? Normally it should be cleaned every 15 days.

• Are there any obstacles before inlets and outlets?
  • Is temperature set correctly?
• Are there some doors or windows left open?
• Is there any direct sunlight through the window during the cooling operation? (Use curtains).
• Are there too much heat sources or too many people in the room during cooling operation?

CAUTIONS

The machine is adaptive in following situation

• Applicable ambient temperature range:

For T1

Cooling	Indoor unit	Maximum: D.B./W.B. Minimum: D.B./W.B.	89,6 °F/73,4 °F 64,4 °F/57,2 °F	32 °C/23 °C 18 °C/14 °C
	Outdoor unit	Maximum: D.B. Minimum: D.B.	109,4 °F/78,8 °F 64,4 °F	43 °C/26 °C 18 °C
Heating	Indoor unit	Maximum: D.B. Minimum: D.B.	80,6 °F/59 °F 59 °F	27 °C/15 °C 15 °C
	Outdoor unit	Maximum: D.B./W.B. Minimum: D.B./W.B.	75,2 °F/64,4 °F 19,4 °F/17,6 °F	24 °C/18 °C -7 °C/-8 °C

T3: Temperature range of air conditioner -7 °C to 52 °C

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person. The type of connecting wire is H05RN-F or H07RN-F
• If the fuse on PC board is broken please change it with a fuse type T. 3.15A/250V. If the fuse of outdoor unit on PC board is broken, please change it with the type of T. 25A/250V.
• The distance between the indoor unit and the floor should be more than 2 m.
• The wiring method should be in line with the local wiring standard.
• The used batteries should be disposed of properly.
• The appliance is not intended to use by young children or infirm persons without supervision.
• Young children should be supervised to ensure that they do not play with the appliance.
• The appliance must be installed on a strong enough support.
• The wiring diagram is attached inside the machine.

installation instructions

preparation

Necessary tools for installation

• Driver
• Nipper
• Hacksaw
• Hole core drill
• Spanner (17, 19 and 26 mm)
  • Gas leakage detector or soap and water solution
• Torque wrench (17 mm, 22 mm, 26 mm)
• Pipe cutter
• Flaring tool
• Knife
• Measuring tape
• Reamer

power source

• Before inserting the power plug into the receptacle, check the voltage without fail. The power source must be the same as the corresponding name plate.
  • Install an exclusive branch circuit for the power.
• A receptacle must be set up in a distance where the power cable can be reached. Do not extend the cable by cutting it.

Important: The appliance must be installed in accordance with the national regulations for electrical installations.

selection of installation location

Indoor Unit

• Place, robust not causing vibration, where the body can be supported sufficiently.
• Place not affected by heat or steam generated in the vicinity, where inlets and outlets of the unit are not disturbed.
• Place possible to drain easily, where piping can be connected with the outdoor unit.
• Place where cold air can be spread in a room entirely.
• Place where the distance of more than 1 m from television sets, radios, wireless apparatuses and fluorescent lamps can be left.
• In the case of fixing the remote control on a wall, place where the indoor unit can receive signals when the fluorescent lamps in the room are lightened.

Outdoor Unit

• Place which is less affected by rain or direct sunlight, and is sufficiently ventilated.
• Place sturdy enough to bear the unit, where vibration and noise are not increased.
• Place where discharged wind and noise do not cause a nuisance to the neighbors.
• Place where a distance marked is available as illustrated in the above figure.

installation of indoor and outdoor units

These models adopt HFC free refrigerant R410A.

15 cm min. 10 cm minimo 10 cm min. Possible directions in which pipe can be arranged Left Rear Left Rear Right Below 10 cm min. 60 cm min. 15 cm min. Attention must be paid when rising the drain hose A C D E References A to G in the figure are the part numbers. Distance between the indoor unit and the floor should be 2 m minimum.

optional parts for piping

A. Nonadhesive tape
B. Adhesive tape
C. Saddle (L. S) with screws
D. Connecting electric cable for indoor and outdoor
E. Drain hose
F. Heating insulating material
G. Piping hole cover

• Please refer to the actual product purchased, the above picture is just for reference.
• Read this manual before installation.
• Explain sufficiently the operating means to the user according to this manual.

accessories

Reference	Part		Quantity
1	Remote control		1
2	Dry battery R-03		2
3	Mounting plate		1
4	Drain hose		1
5	Stail nail, cement	∅4X12	2
6	∅4X25 Screw	Plastic anchor	5
7	Drain elbow		1
8	Cover		1
9	Cushion		4
10	Pipe support plate		1
11	Connecting cable		1

Note:
1. COOLING only units do not include the drain elbow.
2. Some units do not include the stall nail.

256 140 500 140

Outdoor unit floor fixing dimensions. Units in mm

For 9 000 BTU/h, 12 000 BTU/h and 18 000 BTU/h systems

319,5 113,5 583 113,5

Outdoor unit floor fixing dimensions. Units in mm

For 24 000 BTU/h systems

317 130 500 150

Outdoor unit floor fixing dimensions. Units in mm

For 24 000 BTU/h systems

selection of pipes

	9000 and some 12000 BTU systems	18000 and some 12000 BTU systems	24000 BTU systems
Liquid pipe (diameter)	6,35 mm (1/4")	6,35 mm (1/4")
Gas pipe (diameter)	9,52 mm (3/8")	15,187mm (5,182")

NOTE: The thickness of the pipe must be 0.8 mm at least.

In order to know the pipe diameter of the acquired model, check the model label located on one side of the unit.

indoor unit

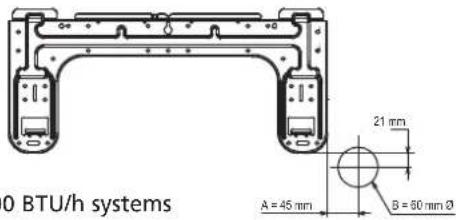

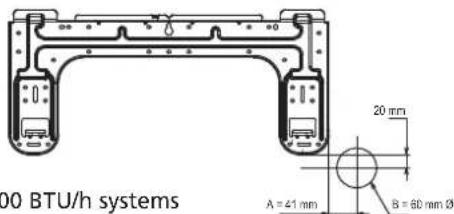

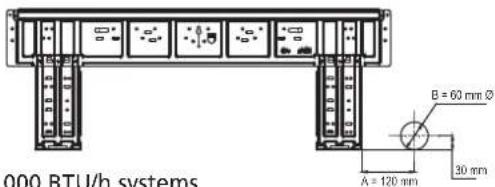

1. Fitting of the mounting plate and positioning of the wall hole.

When the mounting plate is first fixed

1. Carry out based on the neighboring pillars or lintels, a proper leveling for the plate to be fixed against the wall, then temporarily fasten the plate with one steel nail.
2. Check again the proper level of the plate by hanging a thread with a weight from the central top of the plate, then fasten securely the plate with the attachment steel nail.
3. Find the wall hole location "A" using a measuring tape.

0 BTU/h systems A = 45 mm 21 mm B = 80 mm Ø

For 9 000 BTU/h systems

00 BTU/h systems A = 41 mm B = 60 mm Ø 20 mm

For 12 000 BTU/h systems

000 BTU/h systems B = 60 mm Ø A = 120 mm 30 mm

For 18 000 BTU/h systems

4 000 BTU/h systems B = 60 mm Ø A = 113 mm 30 mm

For 24 000 BTU/h systems

When the mounting plate is fixed side bar and lintel

1. Fix to side bar and lintel a mounting bar, which is separately sold, and then fasten the plate to the fixed mounting bar.
2. Refer to the previous section, "When the mounting plate is first fixed" for the position of wall hole.

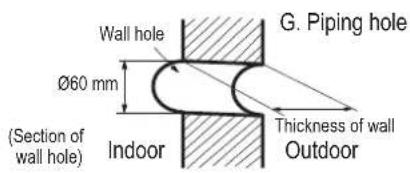

2. Make a hole on the wall and fit the piping hole cover.

• Make a hole of 60 mm in diameter, slightly descending to outside the wall.
  • Install piping hole cover and seal it off with putty after installation.

Wall hole Ø60 mm (Section of wall hole) Indoor G. Piping hole Thickness of wall Outdoor

3. Routing the pipes

Rear piping

- Draw pipes and the drain hose, then fasten them with the adhesive tape.

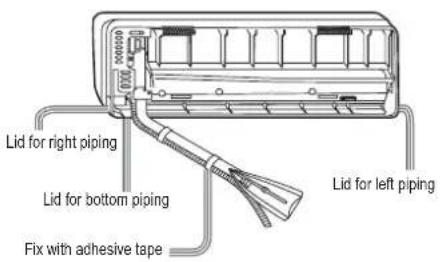

Left-Left-rear piping

• In case of left side piping, cutaway with a nipper the lid for left piping.

• In case of left-rear piping, bend the pipes according to the piping direction to the mark of hole for left-rear piping which is marked on heat insulation materials.

• Insert the drain hose into the dent of heat insulation materials of indoor unit.

• Insert the indoor/outdoor electric cable from backside of indoor unit, and pull it out on the front side, then connect them.
• Coat the flaring seal face with refrigerant oil and connect pipes. Cover the connection part with heat insulation materials closely, and make sure fixing with adhesive tape.

Lid for right piping Lid for bottom piping Fix with adhesive tape Lid for left piping

Heat insulation material Drain hose Piping Pipe support plate Indoor/Outdoor unit electric cable

- Indoor/outdoor electric cable and drain hose must be bound with refrigerant piping by protecting tape.

Other direction piping

- Cut with a nipper, the lid for piping according to the piping direction and then bend the pipe according to the position of wall hole. When bending, be careful not to crash pipes.

- Connect beforehand the indoor/outdoor electric cable, and then pull out the connected to the heat insulation of connecting part specially.

fixing the indoor unit body

- Hang surely the unit body onto the upper notches of the mounting plate. Move the body from side to side to verify its secure fixing.

- In order to fix the body onto the mounting plate, hold up the body aslant from the underside and then put it down perpendicularly.

Mounting plate

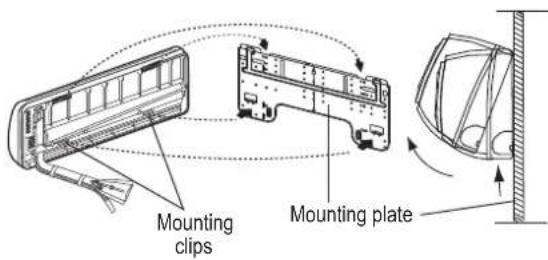

unloading of indoor unit body

- When you unload the indoor unit, please use your hand to arise the body to leave agraffe, then lift the bottom of the body outward slightly and lift the unit aslant until it leaves the mounting plate.

Mounting clips Mounting plate

connecting the indoor/outdoor electric cable

1. Remove terminal cover at right bottom corner of indoor unit, then take off wiring cover by removing its screws.
2. Insert from outside the room cable into left side of the wall hole, in which the pipe has already existed.
3. Pull out the cable on the front side, and connect the cable making a loop.
4. Insert the cable from the back side of the unit, then pull it out on the front side.
5. Loosen the screws and insert the cable ends fully into terminal block, then tighten the screws.
6. Pull the cable slightly to make sure the cables have been properly inserted and tightened.
7. After the cable connection, never fail to fasten the connected cable with the wiring cover.

Three technical diagrams showing mechanical assembly, a device with sensor, and a grid connection (no text or symbols)

Note: When connecting the cable, confirm the terminal number of indoor and outdoor units carefully. If wiring is not correct, proper operation can not be carried out and will cause defect.

Power cable: 12K(230V)≥3G1.5mm² 12K(115V)≥3G2.5mm² 18K≥ 3G2.5mm² 24K≥ 3G2.5mm² 12K(230V)≥3X1.0mm² 12K(115V)≥3X2.5mm² 18K≥3X1.5mm² 24K≥3X2.5mm² Indoor unit Outdoor unit

In 12 000 BTU/h, 18 000 BTU/h and some 24 000 BTU/h cooling only systems

Power cable: 12K(230V)≥3G1.5mm² 12K(115V)≥3G2.5mm² 18Kz 3G2.5mm² 24Kz 3G2.5mm² ≥2X0.75mm² Indoor unit 12K(230V)≥3X1.0mm² 12K(115V)≥3X2.5mm² 18Kz 3X1.5mm² 24Kz ≥ 3X2.5mm² Outdoor unit

In 12 000 BTU/h, 18 000 BTU/h and some 24 000 BTU/h heating systems

Power cable: ≥3G2.5mm² ≥4G1.0mm Indoor unit Outdoor unit In some 24 000 BTU/h cooling only systems Power cable: ≥3G2.5mm² ≥3x 0 . . . 7 ° ≥3x 1 . . . 0 ° Indoor unit Power Outdoor unit In some 24 000 BTU/h heating systems

NOTE: Consult the electrical wiring diagram for each particular model.

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person. The type of connecting wire is H05RN-F or 245 IEC57.
• If the fuse on PC board is broken, please change it with the type of T. 3.15 A/250 V.
• The wiring method should be in line with the local wiring standard.
  • After installation, the power plug should be easily reached.
• A breaker should be incorporated into fixed wiring. The breaker should be all—pole switch and the distance between its two contacts should be not less than 3 mm.

outdoor unit

Install according to drawing for the installation of indoor and outdoor units.

connection of pipes

• To bend a pipe, give the roundness as large as possible not to crush the pipe, and the bending radius should be 30 to 40mm or longer.
• Connecting the pipe of gas side first makes working easier.
  • The connection pipe must be specialized for R410A.

Half union Flare nut Wrench Torque wrench

IMPORTANT: Forced fastening without careful centering may damage the threads and cause a leakage of gas.

Pipe diameter (Ø)	Fastening torque
Liquid side 6,35 mm (1/4")	18 N·m
Liquid/Gas 9,52 mm (3/8")	42 N·m
Gas side 12,7 mm (1/2")	55 N·m
Gas side 15,9 mm (5/8")	60 N·m

Be careful that matters, such as wastes of sands, etc. shall not enter the pipe.

The standard pipe length is 5 m, if it is over 7 m, the function of the unit will be affected. If the pipe has to be lengthened, the refrigerant should be charged according to 20 g/m. But the charge of refrigerant must be conducted by professional air conditioner engineer. Before adding additional refrigerant, perform air purging from the refrigerant pipes and indoor unit using a vacuum pump, then charge additional refrigerant.

Outdoor Unit B Indoor Unit A

Outdoor Unit A B Indoor Unit

Outdoor Unit B Oil Trap A Indoor Unit

• Maximum elevation: (A) max = 10 m
- In case the elevation (A) is more than 5 m, oil trap should be installed every 5 to 7 m
• Maximum length: (B) max = 15 m
- In case the pipe length B is more than 7 m, the refrigerant should be charged, according to 20 g/m.

connection

• Use the same method on indoor unit. Loosen the screws on terminal block and insert the plugs fully into terminal block, then tighten the screws.
• Insert the cable according to terminal number in the same manner as the indoor unit.
• If wiring is not correct, proper operation can not be carried out and controller may be damaged.
  • Fix the cable with a clamp.

attaching a drain elbow

- If a drain elbow is used, please attach it as figure. (Note: Only on heat pump units.)

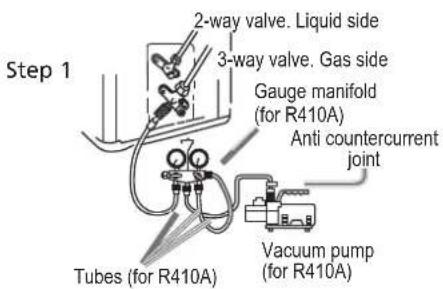

using a vacuum cleaner as purging method

1. Detach the service port's cap of 3-way valve, the valve rod's cap for 2-way valve and 3-way's, connect the service port into the projection of charge hose (low) for gauge manifold. Then connect the projection of charge hose (center) for gauge manifold into vacuum pump.
2. Open the handle at low in gauge manifold, operate vacuum pump. If the scale moves of gauge (low) reach vacuum condition in a moment, check 1 again.
3. Vacuum for over 15 minutes and check the level gauge which should read -0,1 MPa (76 cm Hg) at low pressure side. After the completion of vacuum, close the handle "LO" in gauge manifold and stop the operation of the vacuum pump. Check condition of the scale and hold it for 1-2 min. If the scale moves back in spite of tightening, make flaring work again, the return to the beginning of 3.
4. Open the valve rod for the 2-way valve to an angle of anticlockwise 90 degrees. After 6 seconds, close the 2-way valve and make the inspection of gas leakage.
5. No gas leakage?
   In case-of gas leakage, tighten parts of pipe. If leakage stops, then proceed to step 6.
   If it does not stop, discharge whole refrigerants from the service port. After flaring work again and vacuum, fill up prescribed refrigerant from the gas cylinder.

6. Detach the charge hose from the service port, open 2-way valve and 3-way. Turn the valve rod anticlockwise until hitting lightly.

7. To prevent gas leakage, turn the service port's cap. The valve rod's cap for 2-way valve and 3 way's a little more than the point where the torque increases suddenly.

8. After attaching each cap, check for gas leakage around the caps.

Step 1 2-way valve. Liquid side 3-way valve. Gas side Gauge manifold (for R410A) Anti countercurrent joint Tubes (for R410A) Vacuum pump (for R410A)

Step 3 Close

Step 7 2-way valve 3-way valve Valve rod cap Valve rod cap Service port cap

CAUTION

• If the refrigerant of the air conditioner leaks, it is necessary to discharge all the refrigerant. Vacuum first, then charge the liquid refrigerant into air conditioner according to the amount marked on the name plate.
• Please do not let other cooling medium except the specified one (R410A) or air enter into the cooling circulation system. Otherwise there will be abnormal high pressure in the system to make it crack and lead to personal injuries.

power source

• The power source must be exclusively used for air conditioner (over 10 A).
• In case of installing an air conditioner in a moist place, please install a ground leakage breaker.
• For installation in other places, use a circuit breaker as far as possible.

cutting and flaring work of piping

- Pipe cutting is carried out with a pipe cutter and burs must be removed.

Flare die A

Illustration of hands using a tool to apply a component, alongside a magnified view of a funnel (no text or symbols)

1. Flare pipe.

1. Cut pipe

2. Remove burs

3. Insert flare nut

Correct Incorrect
		Lean Damagedflare	Cracking

Correct Incorrect

drainage

• Install the drain hose so as to be downward slope without fail.

- Do not install the drainage as shown below.

Too high midway

End immersed in water

Waves

Clearance with floor is too small

Bad odor from ditch

• Pour water in the drain pan of the indoor unit and confirm that drainage is carried out securely outdoors.
• In case that the attached drain hose is in a room, please apply heat insulation to it without fail.

refrigerant charge label

Contains fluorinated greenhouse gases covered by the Kyoto Protocol ____A

This product contains fluorinated greenhouse gases covered by the Kyoto Protocol. Do not vent into the atmosphere.

Refrigerant type: R410A

GWP* value: 2088

GWP = global warming potential

Please fill in with indelible ink

1: The factory refrigerant charge.
2: The additional refrigerant amount charged in the field and
1+2: the total refrigerant charge

The filled out label must be adhered in the proximity of the product charging port (e.g. onto the inside of the stop valve cover).

A. Contains fluorinated greenhouse gases covered by the Kyoto Protocol.
B. Factory refrigerant charge of the product: see unit name plate

C. Additional refrigerant amount charged in the field.

D. Total refrigerant charge.

E. Outdoor unit.

F. Refrigerant cylinder and manifold for charging.

installation check and test run

□ Gas leak from pipe connections?
□ Heat insulation of pipe connecting?
□ Are the connecting wirings of indoor and outdoor firmly inserted to the terminal block?
□ Is the connecting wiring of indoor and outdoor firmly fixed?
□ Is drainage securely carried out?
□ Is the ground line securely connected?
□ Is the indoor unit securely fixed?
□ Is power source voltage abided by the code?
□ Is there any noise?
□ Is the lamp normally lighting?
□ Are cooling and heating performed normally?
□ Is the operation of room temperature regulator normal?

rated electrical specifications

Model	MMT12HABWCAM8	MMT12HDBWCAM8
Supply voltage	115 V ~	220 - 230 V ~
Power consumption	1 300 W	1 300 W
Current consumption	12 A	5,9 A
Frequency	60 Hz	60 Hz
Capacity	12 000 BTU/h	12 000 BTU/h
Protection rating outdoor unit	IPX4	IPX4
Protection rating indoor unit	IPX0	IPX0
Refrigerant/Charge	R410A/820 g	R410A/740 g

Model	MMT12CDBWCAM8	MMT12CABWLCAM8
Supply voltage	220 - 230 V ~	115 V ~
Power consumption	1 300 W	1 300 W
Current consumption	5,9 A	12 A
Frequency	60 Hz	60 Hz
Capacity	12 000 BTU/h	12 000 BTU/h
Protection rating outdoor unit	IPX4	IPX4
Protection rating indoor unit	IPX0	IPX0
Refrigerant/Charge	R410A/600 g	R410A/610 g

Model	MMT12CDBWLCAM8	MMT12HABWLCAM8
Supply voltage	220 - 230 V ~	115 V ~
Power consumption	1 300 W	1 300 W
Current consumption	5,9 A	12 A
Frequency	60 Hz	60 Hz
Capacity	12 000 BTU/h	12 000 BTU/h
Protection rating outdoor unit	IPX4	IPX4
Protection rating indoor unit	IPX0	IPX0
Refrigerant/Charge	R410A/600 g	R410A/820 g

Model	MMT12HDBWLCAM8	MMT12CABWCAM8
Supply voltage	220 - 230 V ~	115 V ~
Power consumption	1 300 W	1 300 W
Current consumption	5,9 A	12 A
Frequency	60 Hz	60 Hz
Capacity	12 000 BTU/h	12 000 BTU/h
Protection rating outdoor unit	IPX4	IPX4
Protection rating indoor unit	IPX0	IPX0
Refrigerant/Charge	R410A/740 g	R410A/610 g
Model	MMT12CABSCAM8	MMT12HABSCAM8
Supply voltage	115 V ~	115 V ~
Power consumption	1 300 W	1 300 W
Current consumption	12 A	12 A
Frequency	60 Hz	60 Hz
Capacity	12 000 BTU/h	12 000 BTU/h
Protection rating outdoor unit	IPX4	IPX4
Protection rating indoor unit	IPX0	IPX0
Refrigerant/Charge	R410A/610 g	R410A/820 g

Model	MMT12CDBSCAM8	MMT12HDBSCAM8
Supply voltage	220 - 230 V ~	220 - 230 V ~
Power consumption	1 300 W	1 300 W
Current consumption	5,9 A	5,9 A
Frequency	60 Hz	60 Hz
Capacity	12 000 BTU/h	12 000 BTU/h
Protection rating outdoor unit	IPX4	IPX4
Protection rating indoor unit	IPX0	IPX0
Refrigerant/Charge	R410A/600 g	R410A/740 g

Model	MMT18CDBWCAM8	MMT18HDBWCAM8
Supply voltage	220 - 230 V ~	220 - 230 V ~
Power consumption	1 950 W	1 950 W
Current consumption	9,2 A	9,2 A
Frequency	60 Hz	60 Hz
Capacity	18 000 BTU/h	18 000 BTU/h
Protection rating outdoor unit	IPX4	IPX4
Protection rating indoor unit	IPX0	IPX0
Refrigerant/Charge	R410A/850 g	R410A/1 300 g

Model	MMT18CDBSCAM8	MMT18HDBSCAM8
Supply voltage	220 - 230 V ~	220 - 230 V ~
Power consumption	1 950 W	1 950 W
Current consumption	9,2 A	9,2 A
Frequency	60 Hz	60 Hz
Capacity	18 000 BTU/h	18 000 BTU/h
Protection rating outdoor unit	IPX4	IPX4
Protection rating indoor unit	IPX0	IPX0
Refrigerant/Charge	R410A/850 g	R410A/1 300 g
Model	MMT24CDBWCAM8	MMT24HDBWCAM8
Supply voltage	220 - 230 V ~	220 - 230 V ~
Power consumption	2 550 W	2 550 W
Current consumption	12,3 A	12,3 A
Frequency	60 Hz	60 Hz
Capacity	24 000 BTU/h	24 000 BTU/h
Protection rating outdoor unit	IPX4	IPX4
Protection rating indoor unit	IPX0	IPX0
Refrigerant/Charge	R410A/1 700 g	R410A/1 770 g

Model	MMT24CDBSCAM8	MMT24HDBSCAM8
Supply voltage	220 - 230 V ~	220 - 230 V ~
Power consumption	2 550 W	2 550 W
Current consumption	12,3 A	12,3 A
Frequency	60 Hz	60 Hz
Capacity	24 000 BTU/h	24 000 BTU/h
Protection rating outdoor unit	IPX4	IPX4
Protection rating indoor unit	IPX0	IPX0
Refrigerant/Charge	R410A/1 700 g	R410A/1 770 g

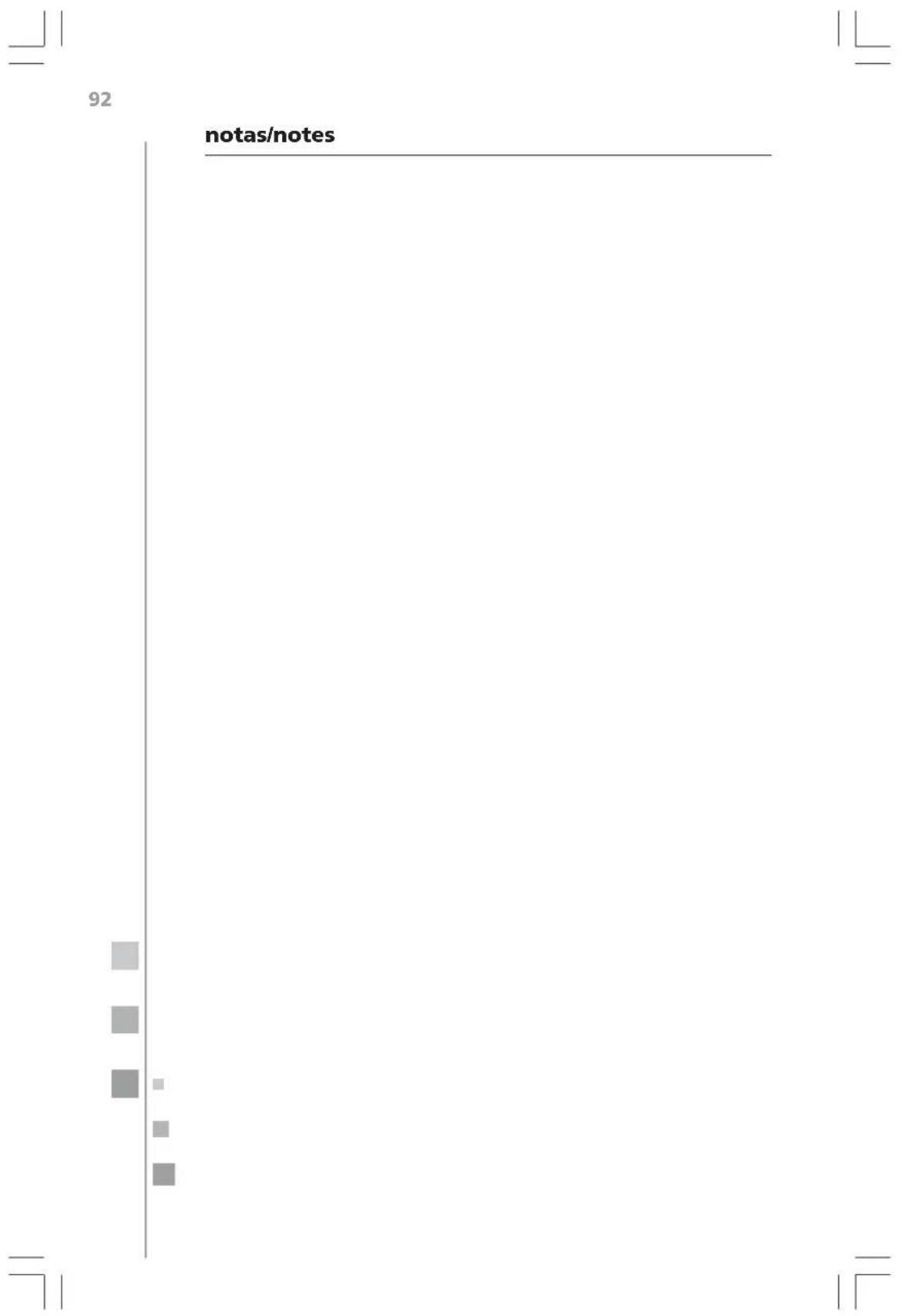

notas/notes

R.F.C.: MAB911203RR7

Carrera 21 No. 74-100

Abstract geometric pattern with vertical gray bars and horizontal lines, no text or symbols present

Blank gray rectangle with corner alignment markers (no text or symbols)
