MMT24HDBWCAM8 - Air-conditioner Mabe - Free user manual and instructions
Find the device manual for free MMT24HDBWCAM8 Mabe in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Window Air Conditioner |
| Brand | Mabe |
| Model | MMT24HDBWCAM8 |
| Cooling Capacity | 24,000 BTU |
| Dimensions (W x H x D) | 660 x 428 x 680 mm |
| Weight | 50 kg |
| Power Supply | 230V / 60Hz |
| Refrigerant | R410A |
| Functions | Cool, Dehumidify, Fan Only |
| Air Flow Speeds | 3 (Low, Medium, High) |
| Thermostat | Adjustable, 16-32°C |
| Filter Type | Washable mesh |
| Control Method | Remote control + manual panel |
| Installation Requirement | Window mounting kit included |
| Room Size Recommendation | Up to 1500 sq ft (140 m²) |
| Maintenance | Clean air filter every month during use |
| Safety Features | Circuit breaker, auto restart after power failure |
| Spare Parts Available | Filter, remote control, fan motor, compressor |
| Warranty | 1 year parts and labor |
Frequently Asked Questions - MMT24HDBWCAM8 Mabe
How often should I clean the air filter?
Clean the air filter every month during regular use. A dirty filter reduces efficiency and can cause cooling problems.
Can I install the air conditioner myself?
Yes, the unit comes with a window mounting kit. Follow the installation instructions in the manual. Ensure the window frame is strong enough to support the weight (50 kg).
What does error code E1 mean?
Error code E1 indicates a room temperature sensor failure. Check the sensor connections and restart the unit. If persistent, contact service.
How do I use the remote control?

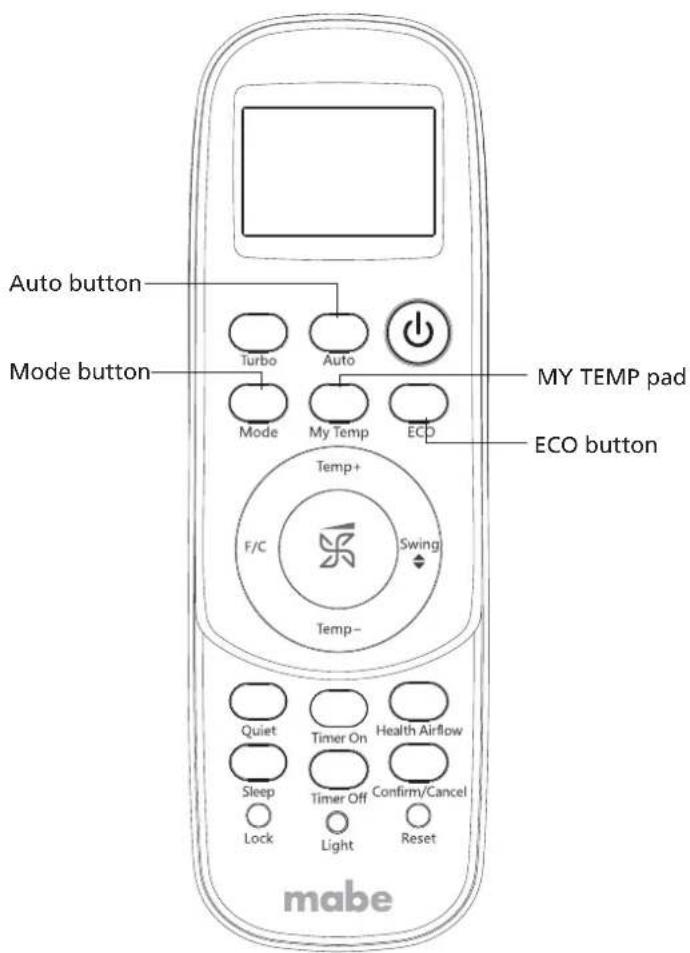

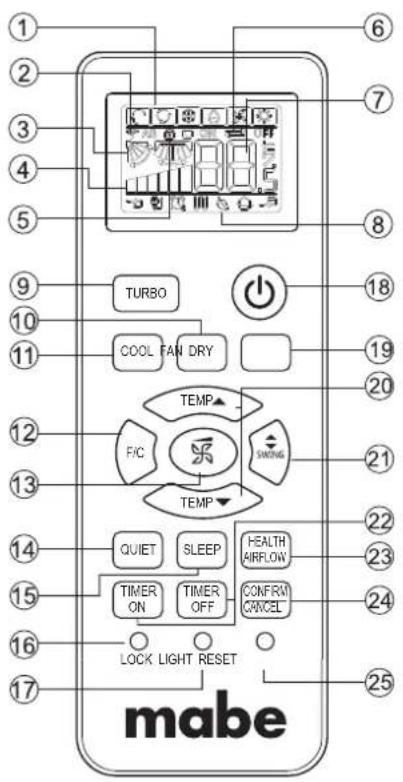

The remote control lets you set mode (Cool/Fan/Dry), temperature, fan speed, and timer. Point it at the unit's receiver. Replace batteries when range decreases.
What is the recommended room size for this unit?
The MMT24HDBWCAM8 is designed for rooms up to 1,500 sq ft (140 m²). For larger spaces, consider multiple units or a higher capacity.
How do I switch between cooling and fan mode?
Press the MODE button on the remote or control panel to cycle through Cool, Dehumidify, and Fan. The display shows the current mode.
The unit is not cooling properly. What should I check?
First, ensure the air filter is clean. Check that the thermostat is set lower than room temperature. Verify that doors and windows are closed. If still not cooling, contact service.
How do I reset the system?
To reset, unplug the unit from the power outlet for 5 minutes, then plug it back in. This clears minor electronic glitches.
Is there a warranty?
Yes, Mabe offers a 1-year warranty on parts and labor. Register your product online or keep the proof of purchase.
Where can I purchase spare parts?
Spare parts like air filters, remote controls, and fan motors are available from Mabe authorized service centers or online retailers.
