Executive Ii 80574 - Montre-bracelet Elysee - Free user manual and instructions

Product Type	Wristwatch
Brand	Elysee
Model	Executive II 80574
Movement Type	Automatic mechanical (self-winding)
Display	Analog with hour, minute, second hands
Calendar	Day and date display at 3 o'clock
Crown Positions	3 positions: 0 (normal), 1 (day/date), 2 (time)
Water Resistance	5 ATM (50 meters) per DIN 8310 (typical for model)
Initial Winding	Turn crown clockwise approx. 20 turns to start
Day Setting	Turn crown clockwise in position 1
Date Setting	Turn crown counterclockwise in position 1
Time Setting	Pull crown to position 2, turn to adjust
Screw-Down Crown	Loosen before setting, tighten after adjustment (if applicable)
Date Adjustment Restriction	Avoid adjusting date between 9 PM and 3 AM
Power Source	Automatic winding via rotor (no battery)
Warranty	2 years from date of purchase against manufacturing defects
Exclusions	Bracelet, glass, battery (if applicable), damage from unauthorized access
Country of Origin	Made in Germany
Manufacturer	Elysee Uhren GmbH, Heerdter Lohweg 212, 40549 Düsseldorf, Germany
Customer Service	Phone: [phone], Email: [e-mail]
Manual Format	PDF, 19 pages, available for download

Frequently Asked Questions - Executive Ii 80574 Elysee

How do I start my Elysee automatic watch for the first time?

Turn the crown clockwise in the normal position (0) about 20 turns to wind the mainspring. The movement will then start automatically via the rotor.

How do I set the day and date on my Executive II 80574?

Pull the crown out to position 1. Turn the crown clockwise to set the day to the previous day. Turn counterclockwise to set the date to the previous day. Then pull to position 2 and advance the time until the day and date change to the current day/date at midnight. Finally adjust to the correct time.

What is the water resistance of this watch?

The water resistance rating is indicated on the case back. Typical ratings for this model are 5 ATM (50 meters), suitable for splashes and rain but not swimming. Higher ratings are available on some versions.

How do I adjust the time?

Pull the crown out to position 2. Turn the crown to set the hour and minute hands. Ensure the AM/PM is correct by observing the date change at midnight. Push the crown back to position 0 after adjustment.

What should I avoid when setting the date?

Do not adjust the date between 9 PM and 3 AM as the gear change mechanism is engaged, which could cause damage.

How do I use the screw-down crown?

If your watch has a screw-down crown, first unscrew it by turning counterclockwise to release it. After setting the time/date, press the crown in and screw it clockwise back to position 0 to ensure water resistance.

What is the warranty period?

Your Elysee watch comes with a 2-year warranty from the date of purchase against manufacturing defects. Exclusions include bracelet, glass, battery, and damage from unauthorized access.

Where can I get my watch repaired?

Send your watch with the original receipt to: Elysee Uhren GmbH, Heerdter Lohweg 212, 40549 Düsseldorf, Germany. For service inquiries, call [phone] or email [e-mail].

How do I contact Elysee customer service?

You can reach Elysee customer service by phone at [phone] or by email at [e-mail].

What type of movement does this watch have?

This watch features an automatic mechanical movement (self-winding) that uses a rotor to wind the mainspring. It has manual winding capability as well.

USER MANUAL Executive Ii 80574 Elysee

Settings for automatic movement 14

Water resistance 17

Warranty and guarantee ....19

Close-up of interlocking mechanical gears in a mechanical assembly (no text or symbols visible)

Close-up of interlocking mechanical gears and gears in a mechanical assembly (no text or symbols visible)

Since 1960 ELYSEE stands for classic watchmaking and finest watch design. Here in Düsseldorf, we are producing high quality time pieces – Made in Germany. A constant motivation to do even better, is for the entire team living company philosophy:

"At the heart of our work is the sum of design, quality and great value for money, of course, connected with the varied desires of watch lovers."

We would like to congratulate you on your new ELYSEE and we hope that you will enjoy it.

With best regards, your ELYSEE team

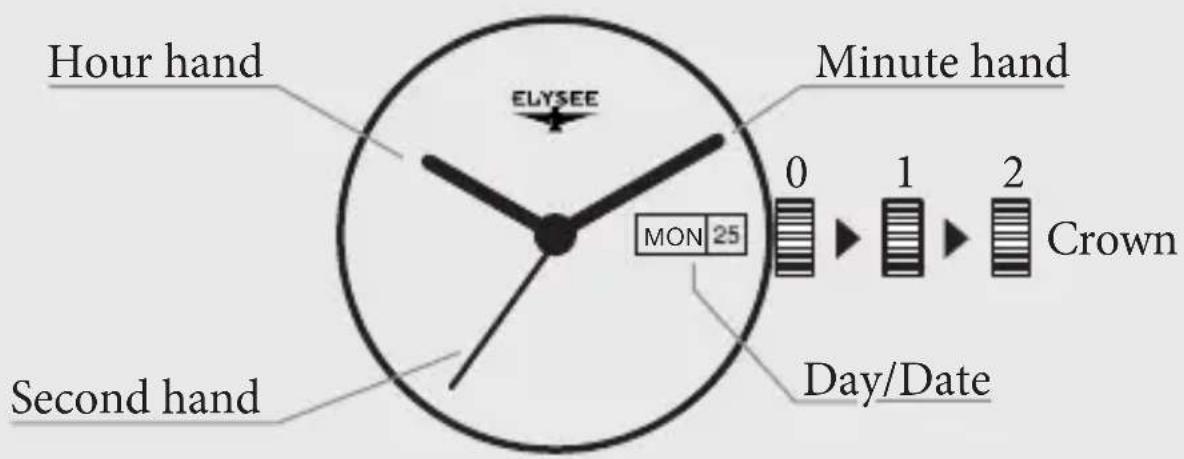

EVERYTHING AT A GLANCE

Please note that this is only a schematic diagram for explaining the settings. The design and various functions can therefore differ from your watch.

SET YOUR AUTOMATIC WATCH

To start the movement of your new ELYSEE for the first time, turn the crown clockwise in the normal position (0). Usually about 20 turns. The spring tension is now applied by the movement of the weight, the so-called “rotor”, on the bottom of the movement. If the watch has a display of the power reserve, the spring tension can be read on the dial.

Please note that for mechanical watches the date adjustment is between 9pm and 3am. Please do not adjust during this time, as otherwise the gear will be engaged and damage may occur.
Some ELYSEE watches have a screw-down crown. You must first loosen these to set the clock. To do this, simply turn the crown. After adjustment, screw the crown back into its normal position (0).

SETTING DAY / DATE / TIME

1. Pull the crown out to position 1 and turn it to set the day of the week to the previous day. Turn the crown counter clockwise to set the date to the previous day, too.
2. Pull the crown out to position 2. To ensure that the indication of the day and date will not change at noon, turn the hour and minute hand until the day and date switch to the current day and date at midnight.
3. Now, by turning the crown, adjust the hour and minute hand to the current time and make sure that the current time is before or after noon.
4. Push the crown back to its normal position (0).

WATER RESISTANCE (DIN 8310)

3 ATM Resistant to splashes, sweat and rain drops

5 ATM Waterproof, but not suitable for swimming

10 ATM Suitable for swimming or snorkeling

20 ATM Suitable for swimming, snorkeling and diving

The details of the water resistance can be found on the case back of your watch.

Close-up of interlocking mechanical gears and gears in a mechanical assembly (no text or symbols visible)

WARRANTY AND GUARANTEE

Your ELYSEE has a warranty of 2 years from the date of purchase against all manufacturing defects. This excludes the use of bracelet, glass, battery and damage caused by unauthorized access.

Should you need the warranty or a repair, please send your ELYSEE with the original receipt to the following address:

ELYSEE Uhren GmbH

Heerdter Lohweg 212

40549 Düsseldorf

Germany

Should you have any questions regarding the service processing, please do not hesitate to contact us by phone [phone] or just write an e-mail to [e-mail].

ELYSEE Uhren GmbH
