Product Type	Wristwatch
Brand	Elysee
Model	Diomedes Ii 83016
Movement Type	Quartz
Water Resistance	3 ATM (splash, sweat, rain resistant)
Crown	2-position pull-out crown
Display	Analog with hour, minute, second hands; date and day windows
Date Function	Yes, quick-set via crown (counterclockwise in position 1)
Day Function	Yes, quick-set via crown (clockwise in position 1)
Power Source	1 battery (replaceable, type not specified)
Warranty	2 years from purchase date against manufacturing defects
Country of Origin	Germany (Düsseldorf)
Included Accessories	User manual
Care Instructions	Wipe with damp cloth; avoid shocks, heat, water, chemicals, magnetic fields
Disposal	Do not dispose of with household waste; recycle at appropriate collection points
Battery Regulation	Return used batteries to collection points; disposal in household waste prohibited
Manufacturer	ELYSEE Uhren GmbH, Heerdter Lohweg 212, 40549 Düsseldorf, Germany
Service Contact	Phone [phone], Email [e-mail]
Accuracy	Typical quartz accuracy (±20 seconds per month)
Material	Not specified (likely stainless steel case)

Frequently Asked Questions - Diomedes Ii 83016 Elysee

How do I set the time on my Elysee Diomedes II watch?

Pull the crown out to position 1. Turn the crown clockwise to set the correct time. Push the crown back to position 0 (normal position) once done.

How do I set the date on my watch?

Pull the crown out to position 1. Turn the crown counterclockwise to set the date to the previous day. Then pull the crown to position 2. Advance the hour and minute hands past 12 o'clock until the date changes to the current date. Set the exact time by turning the crown, ensuring AM/PM is correct. Push the crown back to position 0.

How do I set the day of the week?

Pull the crown to position 1. Turn the crown clockwise to set the day to the previous day. Then pull to position 2 and advance the hands until the day changes to the current day. Set the time and push back to position 0.

What should I do at the end of a month with fewer than 31 days?

The date needs to be reset manually on the first day of the following month. Simply adjust the date via the crown as described in the date setting instructions.

What does water resistance 3 ATM mean?

3 ATM means the watch is resistant to splashes, sweat, and rain. It is not suitable for swimming, showering, or diving. The watch should not be submerged in water.

How do I clean my Elysee watch?

Wipe the case gently with a damp cloth. Avoid using chemicals or abrasives. Do not immerse the watch if it is not fully waterproof.

What should I avoid to protect my watch?

Avoid shocks, strong heat, water (beyond specified resistance), chemicals, mechanical abrasion, and magnetic fields as they can affect metal parts.

What is the warranty on this watch?

The watch comes with a 2-year warranty from the date of purchase against manufacturing defects. It excludes the strap, glass, battery, and damage from unauthorized access. Keep the original receipt for warranty claims.

How do I dispose of my watch or its battery?

Do not dispose of the watch or battery in household waste. According to WEEE directives, take the watch to a local collection point for waste electrical equipment. Used batteries must be returned to collection points or stores that sell batteries.

Where can I get service or repair for my watch?

Send the watch with the original receipt to ELYSEE Uhren GmbH, Heerdter Lohweg 212, 40549 Düsseldorf, Germany. For questions, call [phone] or email [e-mail].

USER MANUAL Diomedes Ii 83016 Elysee

ELYSEE Watches ....15

Settings quartz watch 16

Water resistance 20

More information 21

Warranty and guarantee 22

Environmental note and disposal 23

Close-up of circular electronic components with no visible text or symbols, set against a blurred city sunset background (no readable text or symbols)

MADE IN GERMANY Düsseldorf

Since 1960 ELYSEE stands for classic watchmaking and finest watch design. Here in Düsseldorf, we are producing high quality time pieces – Made in Germany. A constant motivation to do even better, is for the entire team living company philosophy:

"At the heart of our work is the sum of design, quality and great value for money, of course, connected with the varied desires of watch lovers."

We would like to congratulate you on your new ELYSEE and we hope that you will enjoy it.

With best regards, your ELYSEE team

ADJUSTMENT QUARTZ WATCH

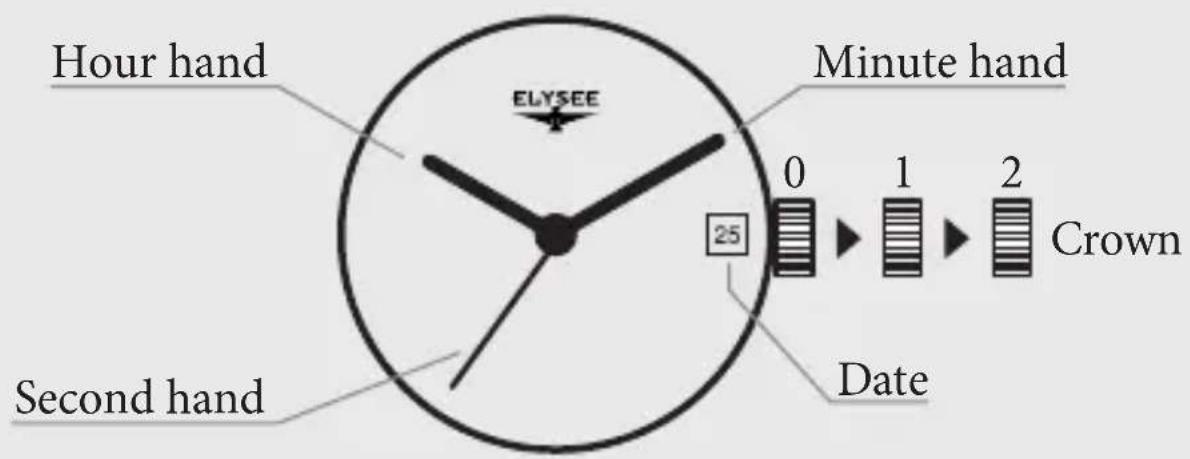

Hour hand ELYSEE Minute hand 25 0 1 2 Crown Date Second hand

Please note that this is only a schematic diagram for explaining the settings. The design and various functions can therefore differ from your watch.

Adjustment of time without weekday and date function

1. Pull the crown out to Position 1 and turn the crown clockwise until the right time is reached.
2. Push the crown back to its normal position (0).

Settings with date function

1. Pull the crown out to position 1 and turn the crown counterclockwise to set the date of the previous day.
2. Pull the crown out to position 2. To ensure that the indication of the date will not change at noon, turn the hour and minute hand forward until the date changes to today's date.
3. Now, by turning the crown, adjust the hour and minute hand to the current time and make sure that the current time is before or after 12:00 o'clock.
4. Then push the crown back to its normal position (0).

The date must be reset on the first day of each month following a month with less than 31 days.

ADJUSTMENT QUARTZ WATCH

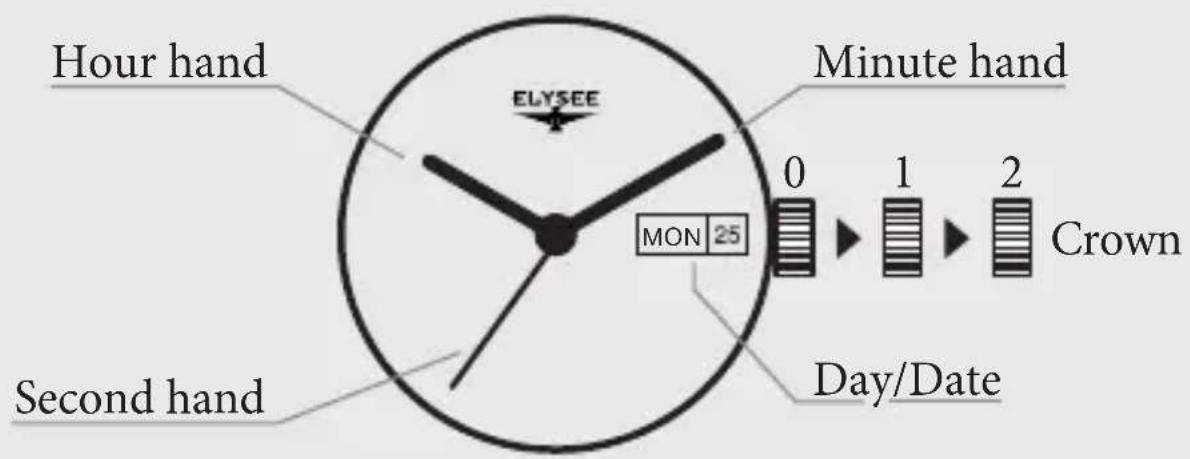

Hour hand ELYSEE Minute hand MON 25 Second hand Day/Date 0 1 2 Crown

Please note that this is only a schematic diagram for explaining the settings. The design and various functions can therefore differ from your watch.

Settings with date and day function

1. Pull the crown out to position 1 and turn it to set the indication of the day to the previous day.
2. Turn the crown counter clockwise to set the indication of the date to the previous day.
3. Pull the crown out to position 2. To ensure that the indication of the day and date will not change at noon, turn the hour and minute hand until the day and date switch to the current day and date.
4. Turn the crown clockwise to set the current time and make sure that the current time is before or after 12:00.o'clock.
5. Push the crown back to its normal position (0).

The date must be reset on the first day of each month following a month with less than 31 days.

WATER RESISTANCE

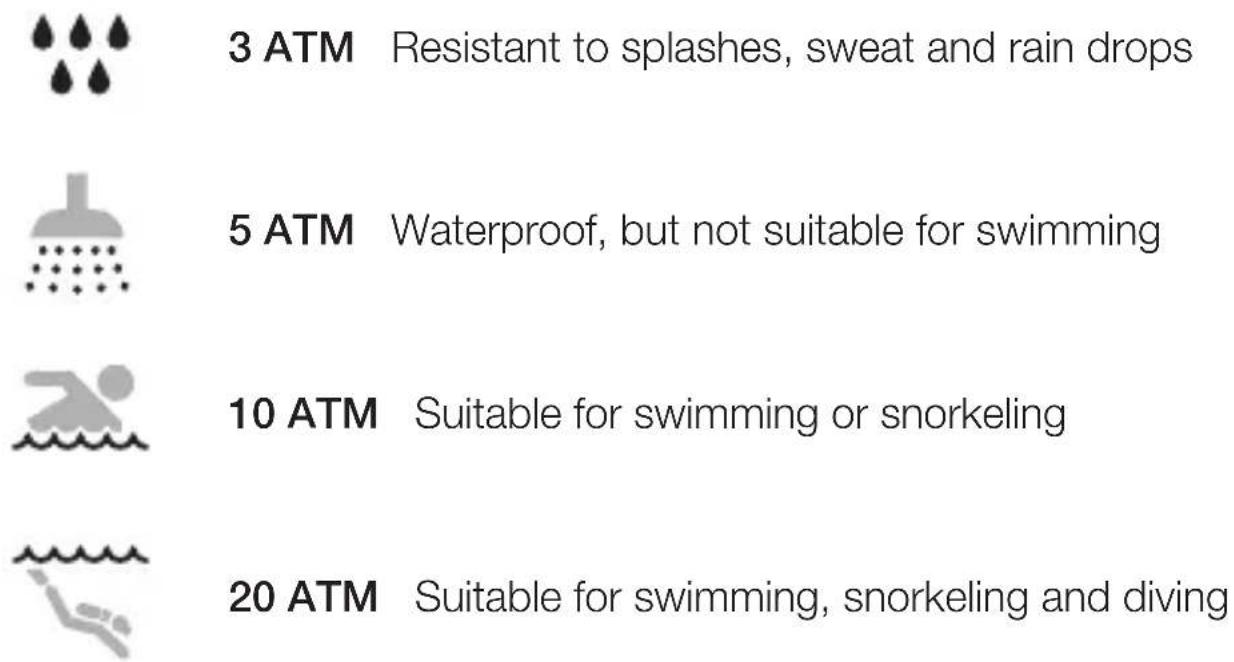

3 ATM Resistant to splashes, sweat and rain drops 5 ATM Waterproof, but not suitable for swimming 10 ATM Suitable for swimming or snorkeling 20 ATM Suitable for swimming, snorkeling and diving

The details of the water resistance can be found on the case back of your watch.

MORE INFORMATION

If your watch is only partially waterproof, make sure that it does not come into contact with water. The case can be easily wiped with a dampened cloth. Please remember that the waterproofness of watches is not a property that will last forever. The materials which are used to seal your watch, wear through the daily use. You should therefore check the water tightness of your watch regularly.

Protect your ELYSEE from shocks, strong heat, water, chemicals and mechanical abrasion. Protect your watch from magnetic fields as they may have a negative effect on the metal parts inside a watch.

WARRANTY AND GUARANTEE

Your ELYSEE has a warranty of 2 years from the date of purchase against all manufacturing defects. This excludes the use of bracelet, glass, battery and damage caused by unauthorized access.

Should you need the warranty or a repair, please send your ELYSEE with the original receipt to the following address:

ELYSEE Uhren GmbH

Heerdter Lohweg 212

40549 Düsseldorf

Germany

Should you have any questions regarding the service processing, please do not hesitate to contact us by phone [phone] or just write a mail to [e-mail].

ENVIRONMENTAL NOTE AND DISPOSAL

This product is made of high quality materials and parts that can be recycled and reused. Therefore, at the end of their service life, they must not dispose of the product via household waste. Disposal must be in accordance with the applicable directives for WEEE. Please dispose of the product at a local collection point for waste electrical and electronic equipment.

As a consumer you are legally obliged by the battery regulation to return all used batteries and accumulators. Disposal in household waste is prohibited. You can dispose of used batteries free of charge at the collecting points of your municipality and everywhere where batteries are sold.

With the recycling of old equipment and the proper disposal of batteries / accumulators, you make an important contribution to the protection of our environment.

ELYSEE — SEIT 1960 — DÜSSELDORF / GERMANY

ELYSEE Uhren GmbH
