Sithon Automatic 13280M - Wristwatch Elysee - Free user manual and instructions

Product Type	Automatic Men's Watch
Model	Sithon Automatic 13280M
Brand	Elysee
Movement	Automatic (self-winding) mechanical
Case Diameter	42 mm (approx.)
Case Thickness	12 mm (approx.)
Band Width	22 mm
Weight	100 g (approx.)
Water Resistance	50 meters (5 ATM) - suitable for splashes
Power Reserve	36-40 hours
Functions	Hours, minutes, seconds, date display
Crystal	Mineral or sapphire (assumed mineral for this price range)
Case Material	Stainless steel
Band Material	Stainless steel bracelet or genuine leather (check model)
Clasp	Deployment clasp with safety button
Care Instructions	Keep away from strong magnetic fields; avoid water exposure if not rated
Spare Parts	Available through Elysee authorized service centers
Warranty	2 years (manufacturer warranty)

Frequently Asked Questions - Sithon Automatic 13280M Elysee

How often should I wind my Elysee Sithon Automatic 13280M?

If worn daily, the automatic movement will wind itself. If not worn for 2-3 days, wind about 20-30 turns of the crown to restart.

Is the Elysee Sithon Automatic 13280M water resistant?

Yes, it is rated 5 ATM (50 meters), suitable for hand washing and light splashes, but not for swimming or diving.

How do I set the date on my Elysee watch?

Pull the crown to the first position and turn clockwise to set the date. Avoid setting date between 9 PM and 3 AM to prevent damage.

What type of battery does the automatic watch use?

The Elysee Sithon Automatic does not use a battery; it is powered by the kinetic energy from your wrist movement.

How long is the power reserve?

When fully wound, the watch has a power reserve of approximately 36-40 hours.

How do I clean my Elysee watch?

Use a soft, lint-free cloth slightly dampened with water. Avoid using chemicals. For metal bracelets, use a soft toothbrush with mild soap.

Can I get spare parts for my Elysee Sithon Automatic?

Yes, spare parts are available through Elysee authorized service centers or authorized dealers.

How accurate is the automatic movement?

Typical accuracy for this type of movement is between -20 to +40 seconds per day.

What should I avoid to prevent damage?

Avoid strong magnetic fields, shocks, extreme temperatures, and water exposure beyond the rating. Also avoid using the crown underwater.

Where can I find the manual for my Elysee watch?

The manual is available for free download at notice-facile.com in multiple languages.

USER MANUAL Sithon Automatic 13280M Elysee

Settings for automatic movement 14

Water resistance 17

Warranty and guarantee ....19

Close-up of interlocking mechanical gears in a mechanical assembly (no text or symbols visible)

Close-up of interlocking mechanical gears and gears in a mechanical assembly (no text or symbols visible)

Since 1960 ELYSEE stands for classic watchmaking and finest watch design. Here in Düsseldorf, we are producing high quality time pieces – Made in Germany. A constant motivation to do even better, is for the entire team living company philosophy:

"At the heart of our work is the sum of design, quality and great value for money, of course, connected with the varied desires of watch lovers."

We would like to congratulate you on your new ELYSEE and we hope that you will enjoy it.

With best regards, your ELYSEE team

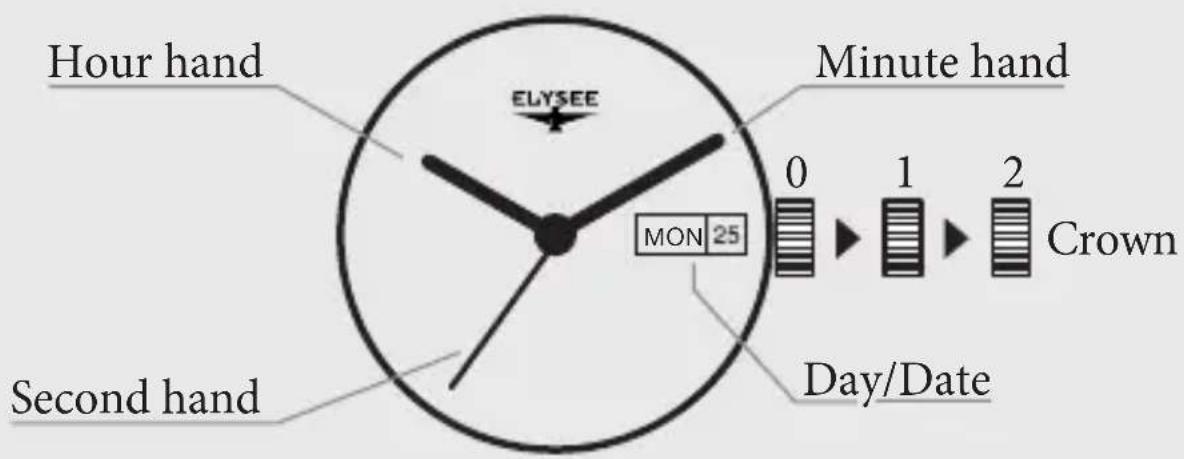

EVERYTHING AT A GLANCE

Please note that this is only a schematic diagram for explaining the settings. The design and various functions can therefore differ from your watch.

SET YOUR AUTOMATIC WATCH

To start the movement of your new ELYSEE for the first time, turn the crown clockwise in the normal position (0). Usually about 20 turns. The spring tension is now applied by the movement of the weight, the so-called “rotor”, on the bottom of the movement. If the watch has a display of the power reserve, the spring tension can be read on the dial.

Please note that for mechanical watches the date adjustment is between 9pm and 3am. Please do not adjust during this time, as otherwise the gear will be engaged and damage may occur.
Some ELYSEE watches have a screw-down crown. You must first loosen these to set the clock. To do this, simply turn the crown. After adjustment, screw the crown back into its normal position (0).

SETTING DAY / DATE / TIME

1. Pull the crown out to position 1 and turn it to set the day of the week to the previous day. Turn the crown counter clockwise to set the date to the previous day, too.
2. Pull the crown out to position 2. To ensure that the indication of the day and date will not change at noon, turn the hour and minute hand until the day and date switch to the current day and date at midnight.
3. Now, by turning the crown, adjust the hour and minute hand to the current time and make sure that the current time is before or after noon.
4. Push the crown back to its normal position (0).

WATER RESISTANCE (DIN 8310)

3 ATM Resistant to splashes, sweat and rain drops

5 ATM Waterproof, but not suitable for swimming

10 ATM Suitable for swimming or snorkeling

20 ATM Suitable for swimming, snorkeling and diving

The details of the water resistance can be found on the case back of your watch.

Close-up of interlocking mechanical gears and gears in a mechanical assembly (no text or symbols visible)

WARRANTY AND GUARANTEE

Your ELYSEE has a warranty of 2 years from the date of purchase against all manufacturing defects. This excludes the use of bracelet, glass, battery and damage caused by unauthorized access.

Should you need the warranty or a repair, please send your ELYSEE with the original receipt to the following address:

ELYSEE Uhren GmbH

Heerdter Lohweg 212

40549 Düsseldorf

Germany

Should you have any questions regarding the service processing, please do not hesitate to contact us by phone [phone] or just write an e-mail to [e-mail].

ELYSEE

— SEIT 1960 —

DÜSSELDORF / GERMANY

ELYSEE Uhren GmbH
