Sithon Automatic 13282M - Wristwatch Elysee - Free user manual and instructions

Brand	Elysee
Model	Sithon Automatic 13282M
Product Type	Automatic mechanical watch
Movement	Self-winding automatic
Case Material	Stainless steel
Crystal	Mineral glass
Dial	Analog with hour markers and hands
Functions	Time, date
Water Resistance	50 meters (5 ATM)
Case Diameter	42 mm
Case Thickness	12 mm
Strap Material	Leather
Weight	90 g
Power Source	Automatic rotor movement
Power Reserve	40 hours
Maintenance	Service every 3-5 years; avoid strong magnetic fields
Cleaning	Wipe with a soft, dry cloth
Safety	Keep away from extreme temperatures and shocks
Spare Parts	Available through Elysee authorized service centers

Frequently Asked Questions - Sithon Automatic 13282M Elysee

How do I wind an automatic watch?

If the watch has stopped, wind it manually by turning the crown clockwise about 20-30 times. After that, normal wrist movement will keep it running.

What is the power reserve of the Sithon Automatic 13282M?

The power reserve is approximately 40 hours when fully wound.

Is the watch water resistant?

Yes, it is water resistant to 50 meters (5 ATM), suitable for splashes and brief immersion, but not for swimming or diving.

How do I set the date?

Pull the crown out to the first position and turn it clockwise to adjust the date. Avoid changing the date between 9 PM and 3 AM to prevent damage.

What type of battery does it use?

It does not require a battery; it is powered by an automatic movement that winds itself with wrist motion.

How often should I service the watch?

We recommend servicing every 3-5 years to maintain accuracy and longevity.

Can I wear the watch while playing sports?

It is suitable for everyday wear, but avoid high-impact sports or activities that may cause strong shocks.

What is the accuracy of an automatic watch?

Typical accuracy is within -20 to +40 seconds per day, depending on usage and position.

How do I care for the leather strap?

Keep it away from water and humidity; clean with a slightly damp cloth and condition periodically.

Where can I get replacement parts?

Contact an Elysee authorized service center or visit the official website for spare parts and repairs.

USER MANUAL Sithon Automatic 13282M Elysee

Settings for automatic movement 14

Water resistance 17

Warranty and guarantee ....19

Close-up of interlocking mechanical gears in a mechanical assembly (no text or symbols visible)

Close-up of interlocking mechanical gears and gears in a mechanical assembly (no text or symbols visible)

Since 1960 ELYSEE stands for classic watchmaking and finest watch design. Here in Düsseldorf, we are producing high quality time pieces – Made in Germany. A constant motivation to do even better, is for the entire team living company philosophy:

"At the heart of our work is the sum of design, quality and great value for money, of course, connected with the varied desires of watch lovers."

We would like to congratulate you on your new ELYSEE and we hope that you will enjoy it.

With best regards, your ELYSEE team

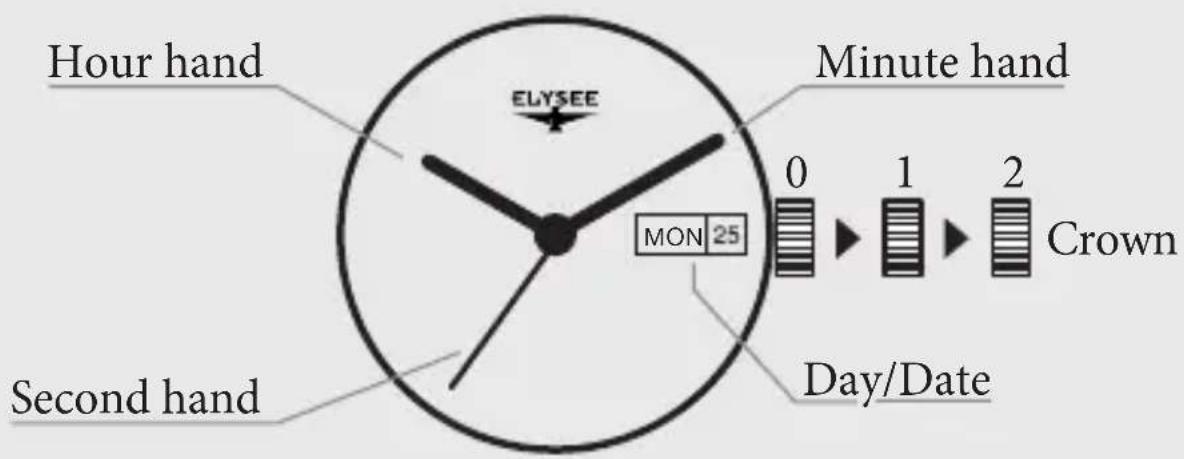

EVERYTHING AT A GLANCE

Please note that this is only a schematic diagram for explaining the settings. The design and various functions can therefore differ from your watch.

SET YOUR AUTOMATIC WATCH

To start the movement of your new ELYSEE for the first time, turn the crown clockwise in the normal position (0). Usually about 20 turns. The spring tension is now applied by the movement of the weight, the so-called “rotor”, on the bottom of the movement. If the watch has a display of the power reserve, the spring tension can be read on the dial.

Please note that for mechanical watches the date adjustment is between 9pm and 3am. Please do not adjust during this time, as otherwise the gear will be engaged and damage may occur.
Some ELYSEE watches have a screw-down crown. You must first loosen these to set the clock. To do this, simply turn the crown. After adjustment, screw the crown back into its normal position (0).

SETTING DAY / DATE / TIME

1. Pull the crown out to position 1 and turn it to set the day of the week to the previous day. Turn the crown counter clockwise to set the date to the previous day, too.
2. Pull the crown out to position 2. To ensure that the indication of the day and date will not change at noon, turn the hour and minute hand until the day and date switch to the current day and date at midnight.
3. Now, by turning the crown, adjust the hour and minute hand to the current time and make sure that the current time is before or after noon.
4. Push the crown back to its normal position (0).

WATER RESISTANCE (DIN 8310)

3 ATM Resistant to splashes, sweat and rain drops

5 ATM Waterproof, but not suitable for swimming

10 ATM Suitable for swimming or snorkeling

20 ATM Suitable for swimming, snorkeling and diving

The details of the water resistance can be found on the case back of your watch.

Close-up of interlocking mechanical gears and gears in a mechanical assembly (no text or symbols visible)

WARRANTY AND GUARANTEE

Your ELYSEE has a warranty of 2 years from the date of purchase against all manufacturing defects. This excludes the use of bracelet, glass, battery and damage caused by unauthorized access.

Should you need the warranty or a repair, please send your ELYSEE with the original receipt to the following address:

ELYSEE Uhren GmbH

Heerdter Lohweg 212

40549 Düsseldorf

Germany

Should you have any questions regarding the service processing, please do not hesitate to contact us by phone [phone] or just write an e-mail to [e-mail].
