USER MANUAL Zelos 98005 Elysee

Settings quartz watch 16

Water resistance 20

More information 21

Warranty and guarantee 22

Environmental note and disposal 23

Close-up of circular electronic components with no visible text or symbols, set against a blurred city sunset background (no readable text or symbols)

MADE IN GERMANY Düsseldorf

Since 1960 ELYSEE stands for classic watchmaking and finest watch design. Here in Düsseldorf, we are producing high quality time pieces – Made in Germany. A constant motivation to do even better, is for the entire team living company philosophy:

"At the heart of our work is the sum of design, quality and great value for money, of course, connected with the varied desires of watch lovers."

We would like to congratulate you on your new ELYSEE and we hope that you will enjoy it.

With best regards, your ELYSEE team

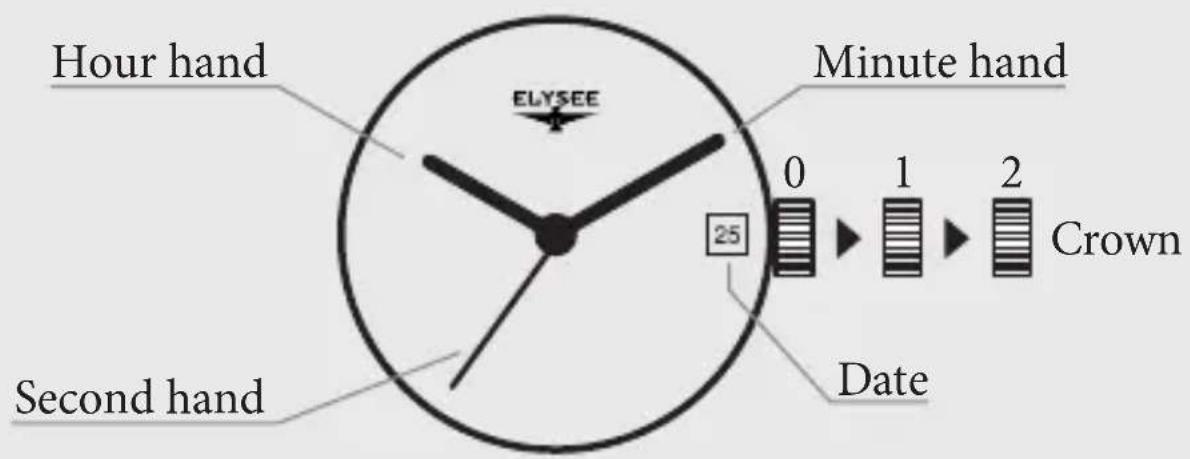

ADJUSTMENT QUARTZ WATCH

Hour hand ELYSEE Minute hand 0 1 2 Crown Date Second hand 25

Please note that this is only a schematic diagram for explaining the settings. The design and various functions can therefore differ from your watch.

Adjustment of time without weekday and date function

1. Pull the crown out to Position 1 and turn the crown clockwise until the right time is reached.
2. Push the crown back to its normal position (0).

Settings with date function

1. Pull the crown out to position 1 and turn the crown counterclockwise to set the date of the previous day.
2. Pull the crown out to position 2. To ensure that the indication of the date will not change at noon, turn the hour and minute hand forward until the date changes to today's date.
3. Now, by turning the crown, adjust the hour and minute hand to the current time and make sure that the current time is before or after 12:00 o'clock.
4. Then push the crown back to its normal position (0).

The date must be reset on the first day of each month following a month with less than 31 days.

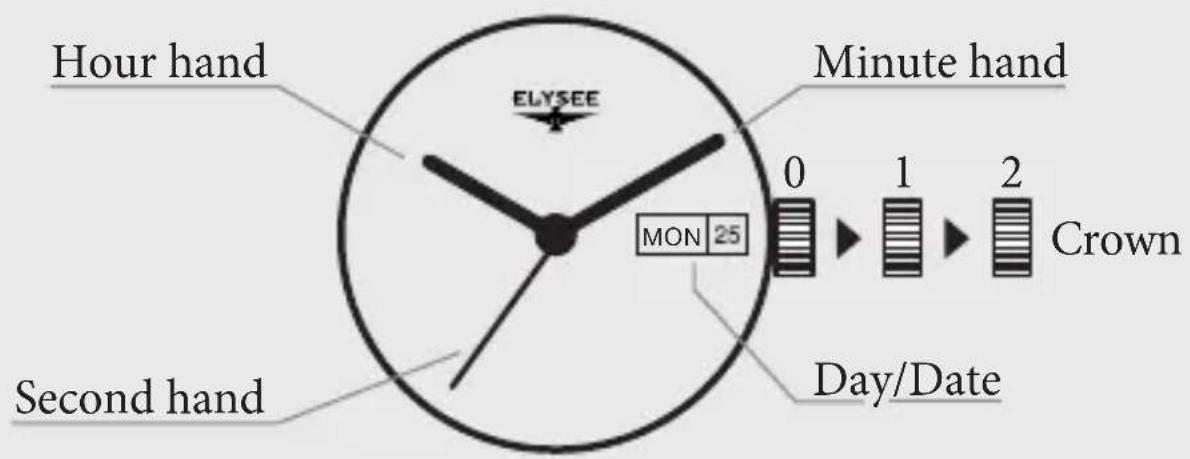

ADJUSTMENT QUARTZ WATCH

Hour hand ELYSEE Minute hand MON 25 Second hand Day/Date Crown 0 1 2

Please note that this is only a schematic diagram for explaining the settings. The design and various functions can therefore differ from your watch.

Settings with date and day function

1. Pull the crown out to position 1 and turn it to set the indication of the day to the previous day.
2. Turn the crown counter clockwise to set the indication of the date to the previous day.
3. Pull the crown out to position 2. To ensure that the indication of the day and date will not change at noon, turn the hour and minute hand until the day and date switch to the current day and date.
4. Turn the crown clockwise to set the current time and make sure that the current time is before or after 12:00.o'clock.
5. Push the crown back to its normal position (0).

The date must be reset on the first day of each month following a month with less than 31 days.

WATER RESISTANCE

3 ATM Resistant to splashes, sweat and rain drops

5 ATM Waterproof, but not suitable for swimming

10 ATM Suitable for swimming or snorkeling

20 ATM Suitable for swimming, snorkeling and diving

The details of the water resistance can be found on the case back of your watch.

MORE INFORMATION

If your watch is only partially waterproof, make sure that it does not come into contact with water. The case can be easily wiped with a dampened cloth. Please remember that the waterproofness of watches is not a property that will last forever. The materials which are used to seal your watch, wear through the daily use. You should therefore check the water tightness of your watch regularly.

Protect your ELYSEE from shocks, strong heat, water, chemicals and mechanical abrasion. Protect your watch from magnetic fields as they may have a negative effect on the metal parts inside a watch.

WARRANTY AND GUARANTEE

Your ELYSEE has a warranty of 2 years from the date of purchase against all manufacturing defects. This excludes the use of bracelet, glass, battery and damage caused by unauthorized access.

Should you need the warranty or a repair, please send your ELYSEE with the original receipt to the following address:

ELYSEE Uhren GmbH

Heerdter Lohweg 212

40549 Düsseldorf

Germany

Should you have any questions regarding the service processing, please do not hesitate to contact us by phone [phone] or just write a mail to [e-mail].

ENVIRONMENTAL NOTE AND DISPOSAL

This product is made of high quality materials and parts that can be recycled and reused. Therefore, at the end of their service life, they must not dispose of the product via household waste. Disposal must be in accordance with the applicable directives for WEEE. Please dispose of the product at a local collection point for waste electrical and electronic equipment.

As a consumer you are legally obliged by the battery regulation to return all used batteries and accumulators. Disposal in household waste is prohibited. You can dispose of used batteries free of charge at the collecting points of your municipality and everywhere where batteries are sold.

With the recycling of old equipment and the proper disposal of batteries / accumulators, you make an important contribution to the protection of our environment.

ELYSEE — SEIT 1960 — DÜSSELDORF / GERMANY

ELYSEE Uhren GmbH
