V-PLOUGH - Snow removal accessory HUSQVARNA - Free user manual and instructions

Product type	Snow removal accessory
Brand	HUSQVARNA
Model	V-PLOUGH
Usage	For garden tractor or tiller
Main function	Snow removal with blade adjustable to left or right
Angle adjustment	By lever, with integrated shock function
Sliding shoes	Adjustable in 5 mm increments, identical adjustment on both sides
Lubrication	9 grease fittings (5 in the center, 4 at the ends) with ball bearing grease
Connection	Hydraulic hoses and electrical cable under the base plate
Power supply	Solenoid valve with shock function, connection via Hirschmann connector
Cylinder	Must be extended at least 50 mm for optimal operation
Compatibility	Mounting on PT 26D tractor (and other compatible models)
Safety	Stop the engine and remove the key before maintenance
Maintenance	Daily check of lubrication points
Shock function	Adjustable, do not use with piston fully extended
Delivery	Blade delivered lubricated

Frequently Asked Questions - V-PLOUGH HUSQVARNA

How to adjust the angle of the V-PLOUGH blade?

To adjust the blade to the left, press the left side of the button then move the lever to the right or left. For the right, press the right side. Ensure the engine is stopped and the key is removed before any operation.

How to lubricate the blade?

The blade has 9 grease fittings. Lubricate them regularly with ball bearing grease. Check the lubrication points daily.

What to do if the blade does not move?

First check that the engine is running and the key is in the ON position. Perform a no-load run by turning the key and moving the lever several times to lower the pressure in the cylinder.

How to adjust the height of the shoes?

The shoes are adjustable in 5 mm increments. Loosen the cotter pin, adjust the height, then secure the cotter pin. Make sure the right and left sides are at the same height.

Can I use the blade with a tractor other than PT 26D?

Compatibility is indicated for mounting on PT 26D. For other models, consult the manual or an authorized dealer. Hydraulic and electrical connections must be adapted.

What does the shock function mean?

The shock function allows the blade to shake to prevent snow accumulation. The solenoid valve must be adjusted to the opening pressure and the piston must not be fully extended.

How to maintain the blade after use?

After each use, clean the blade and check the condition of the fittings. Lubricate if necessary. Store in a dry place.

The blade sparks at the Hirschmann connector.

Ensure a diode is mounted between the positive and negative terminals of the Hirschmann connector. Without a diode, sparks may occur and damage the switch.

How to install the blade for the first time?

Mount the blade on the tractor by securing all cotter pins. Connect the hydraulic hoses and electrical cable under the base plate. Perform a no-load run to purge air. Check that the cylinder is extended at least 50 mm.

What to do if the blade does not move correctly?

Check the hydraulic pressure and alignment. Ensure the hoses are not kinked and the solenoid valve works. Consult the manual for shock function adjustment.

USER MANUAL V-PLOUGH HUSQVARNA

Owner's manual, p. 18-25

Read through the owner's manual carefully before you begin using the product.

Study and understand the owner's manual before use.

Turn off the engine and remove the key before maintenance, cleaning or repair.

Risk of crush injuries! Keep hands and feet away from moving parts when the V- plough is in operation.

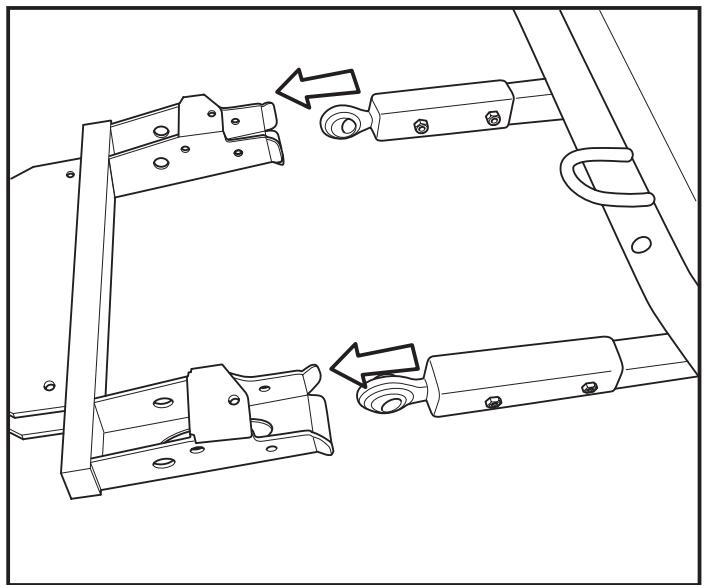

Fit the bracket.

If necessary adjust the plough so that it operates in the horizontal position, by pulling the lever forward or backward.

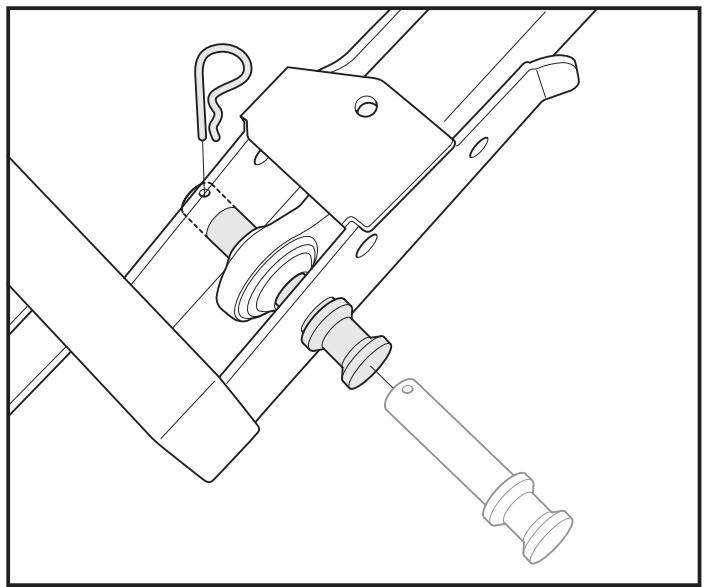

Make sure all the sprinters are securely locked when the V-plough unit is mounted to the PT 26D.

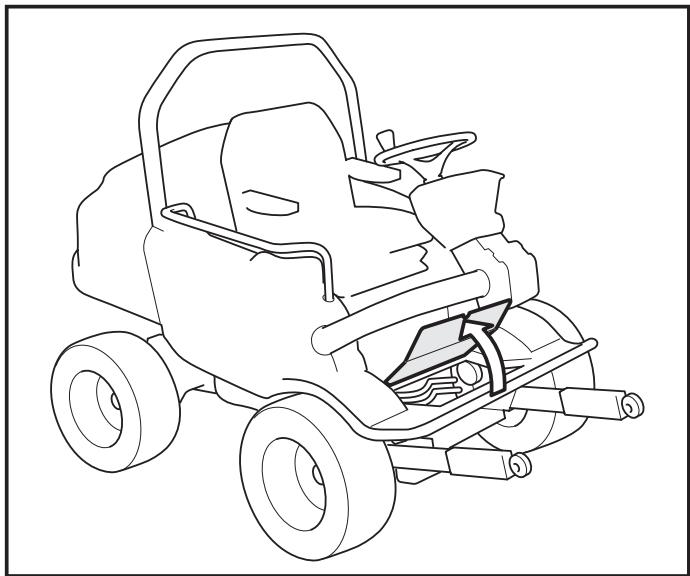

The hydraulic hoses and the electric cable are connected under the hatch in the footplate.

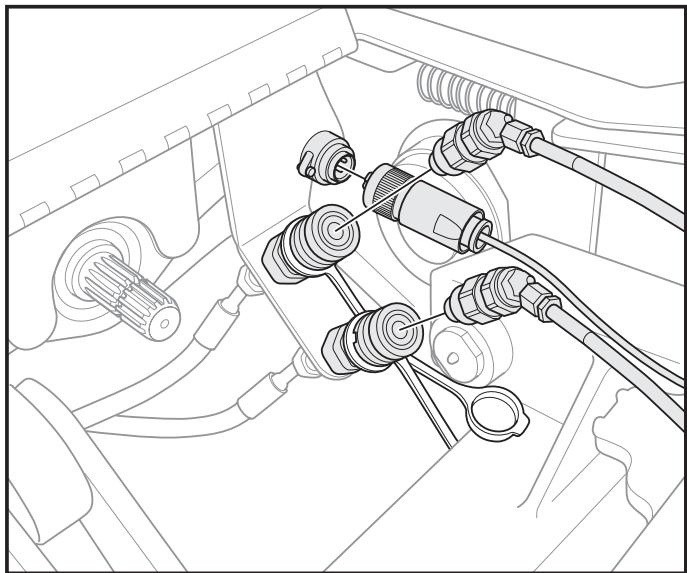

Connect hoses and the electric cable.

NOTE! In some cases it can be necessary to post tension the hoses and quick couplings the first time the V- plough is used.

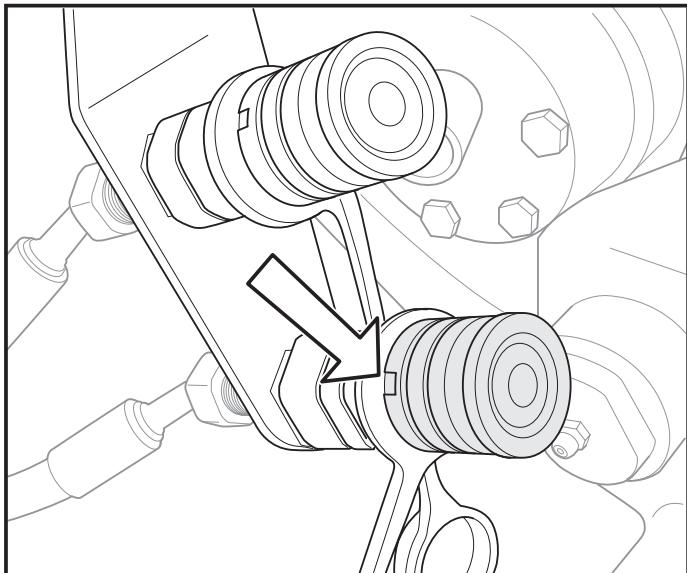

To facilitate engagement and disengagement the notch must be in this position.

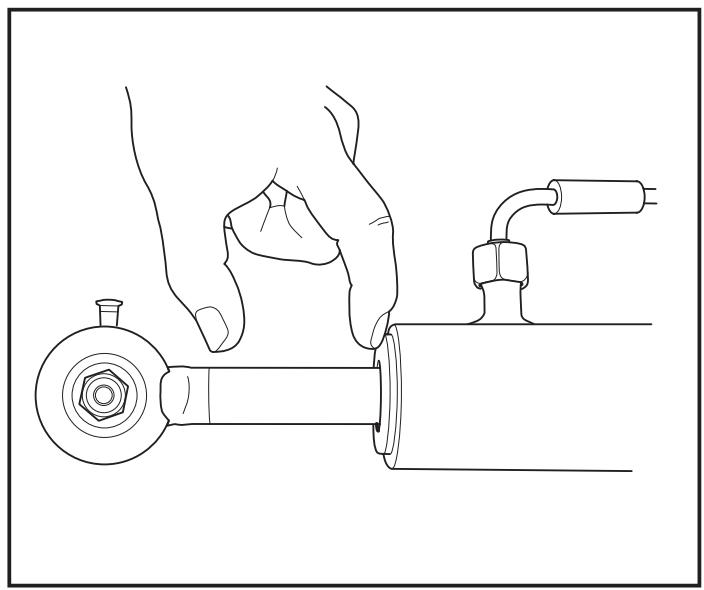

Position of the cylinder

The cylinder should always be extended at least 50~mm .

Reducing pressure

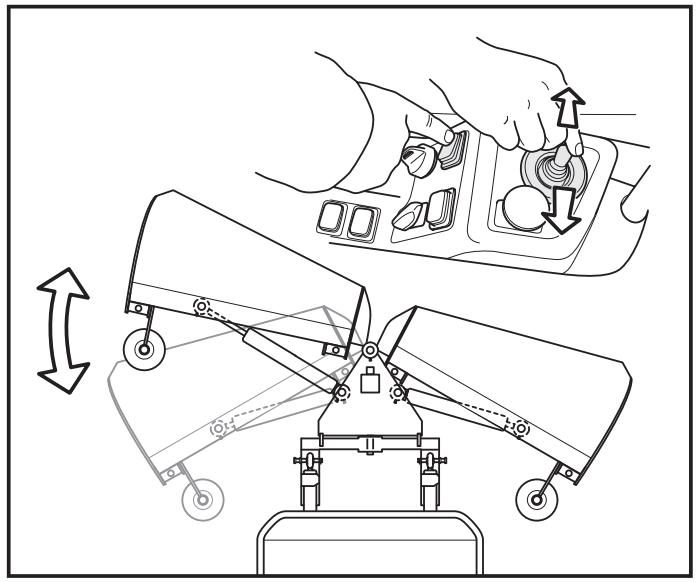

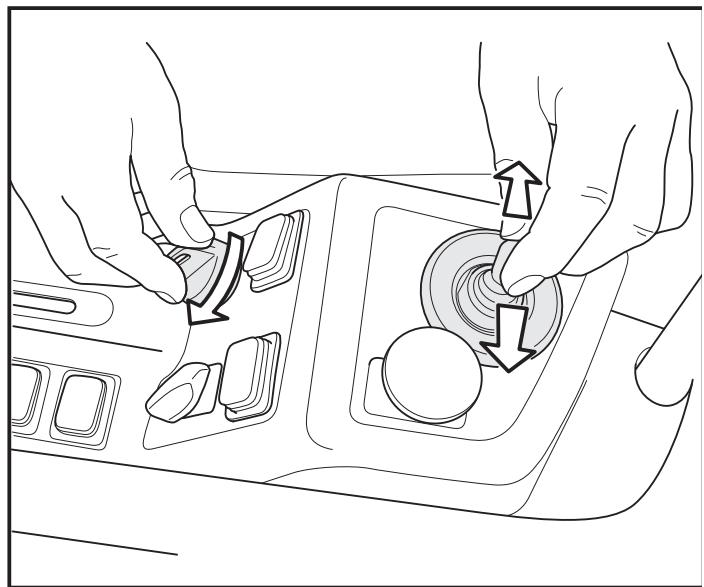

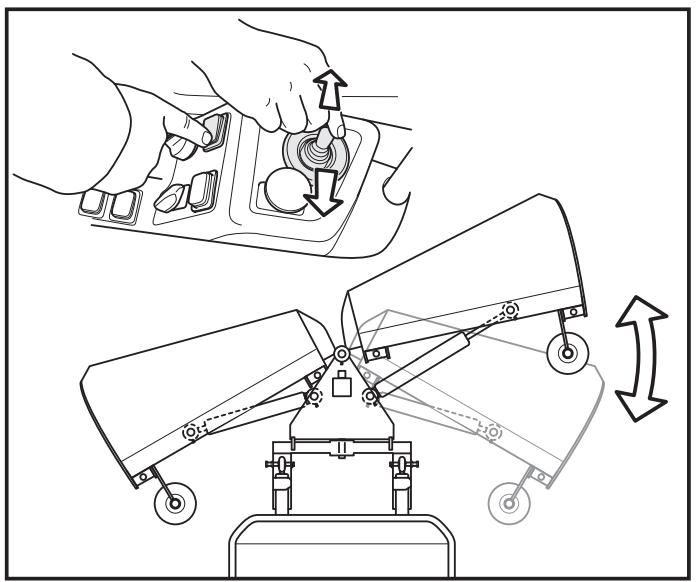

Turn the key to ON for a few seconds and simultaneously pull the lever to the right and left a few times to reduce the pressure in the plough's cylinder.

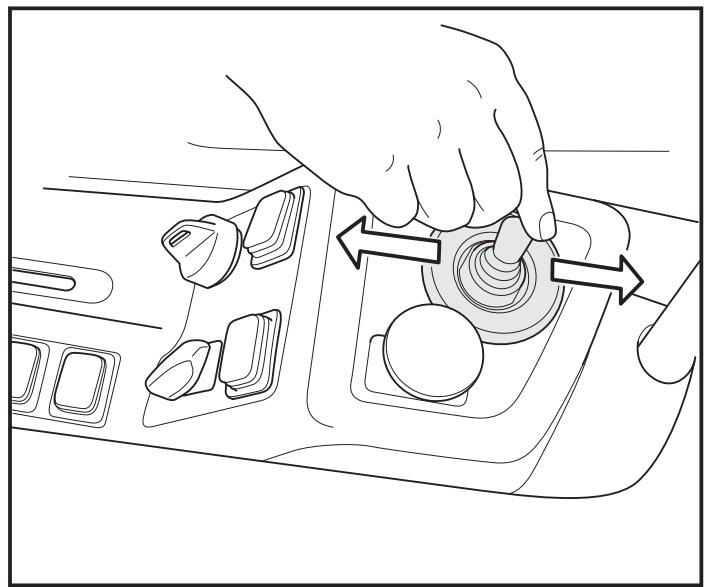

Press down the button's left side and then move the lever to right and left to adjust the left plough plough

Press down the button's right side and then move the lever to right and left to adjust the right plough plough.

Lubricate with ball bearing grease.

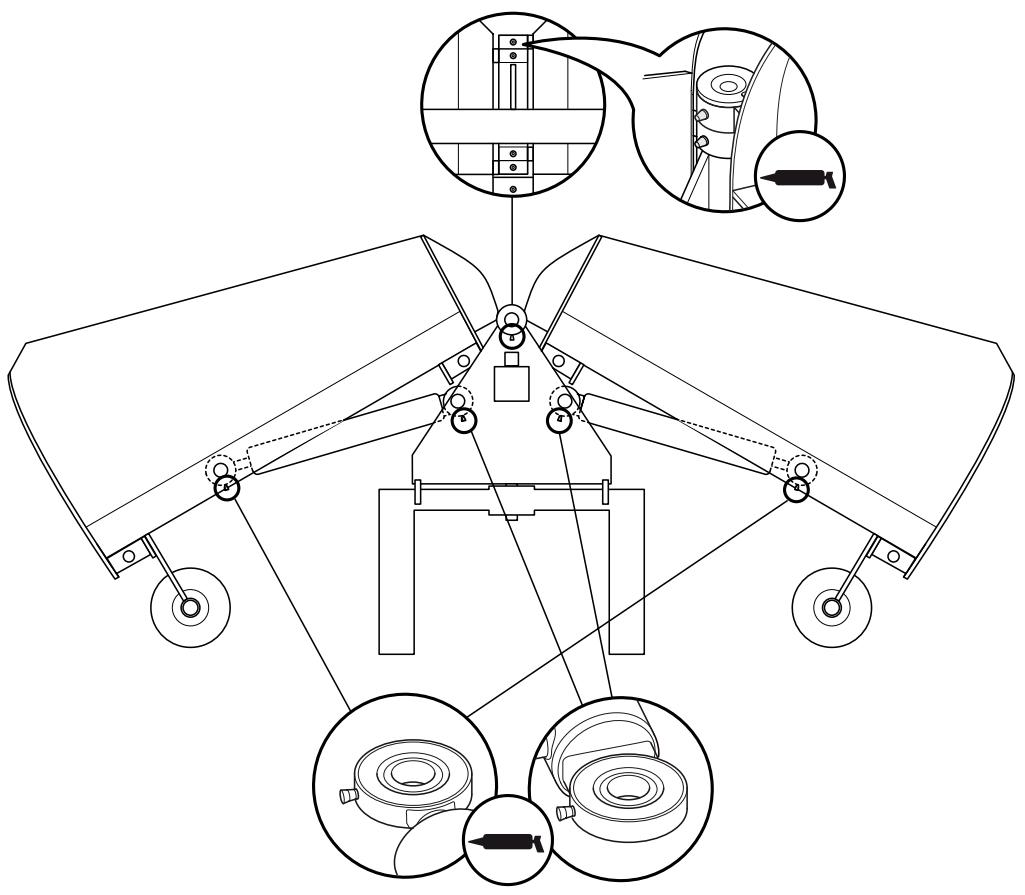

There are nine grease nipples on the plough. Five of them are located on the centre joint. The remaining four are on the cylinder's ends (joints').

Lubricate them regularly with ball bearing grease. Check the lubrication points before each day of use.

The plough is lubricated on delivery.

With or without shock function: 1 / 4", 3 / 8", 3 / 8" shock

Hose mounting:

Content:

• Diode*
• Fuse holder
• Hirschman socket
• 4 m twin conductor
• Terminal; female + male
• Lever with switch (not standard)

*NOTE! The diode must be fitted between plus and minus inside the Hirschman socket. Otherwise there is a risk of the switch in the lever breaking due to sparking.

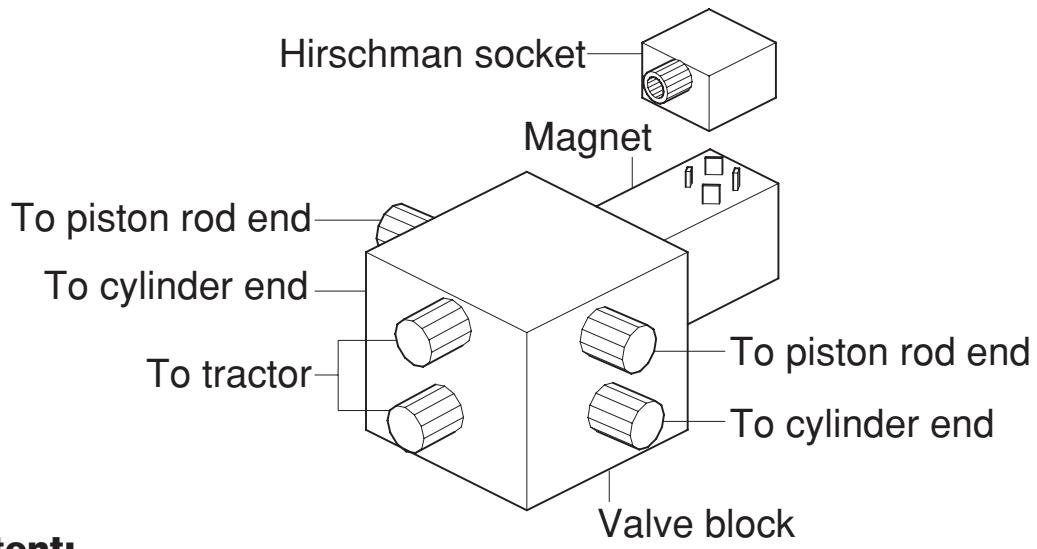

Electric valve with shock function

When in use ploughs equipped with this type of electric valve should not be operated with the pistons fully retracted. They should be extended approx. 50~mm . Otherwise the shock function is triggered.

The valve is adjustable with respect to opening pressure.

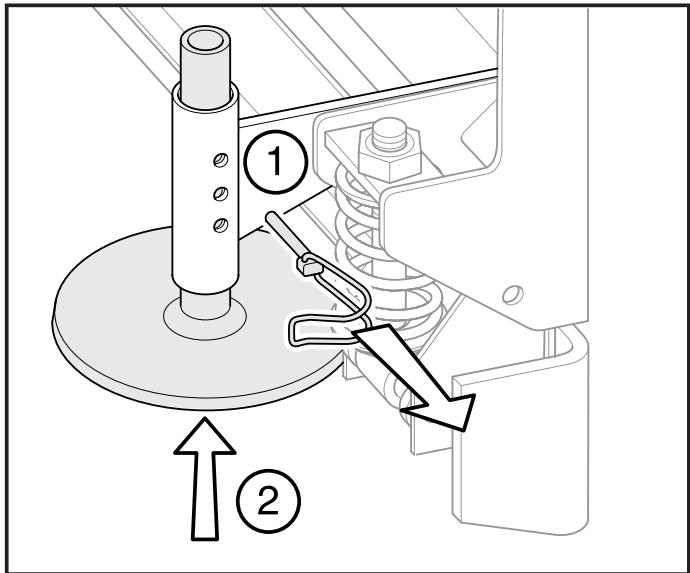

The collector shoes can be adjusted in steps of 5mm . For maximum use of the plough they should be adjusted to a suitable height.

Check that right and left are at the same height.

1. Remove the pin
2. Adjust the height
3. Secure the pin
