USER MANUAL Sports TT0J001B ORIENT

ANALOGUE QUARTZ WATCH 1/20 sec. CHRONOGRAPH

INSTRUCTION MANUAL

Thank you for choosing our product. To ensure prolonged use and optimum performance, please read this instruction manual carefully and familiarize your-self with the terms of the guarantee.

Please keep this Instruction Manual handy for future reference.

◆ SAFETY PRECAUTIONS

Make absolutely sure to observe the demarcated contents indicated below to prevent any possible physical danger and property damage to you as well as other people concerned.

... A demarcation with this symbol represents the contents assuming imminent danger for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility for death or serious injury when the product is used in any manner different from given instructions.

... A demarcation with this symbol represents the contents assuming possibility of causing human injury or material damage only when a product is used in any manner different from given instructions.

◆ IN HANDLING THE WATCH

(1) Water-resistance

Type\Conditions of use			Underwater operation of crown and operation of crown with drops of water on it	Exposure to small amounts of water (face-washing, rain, etc.)	Water sports (swimming, etc.), frequent contact with water (car-washing, etc.)	Skin diving (air tanks are not used)	Scuba diving (air tanks are used)	Mixed-gas Diving (using helium gas)
Non water resistant		Without WATER RESISTANT (WATER RESIST)	× ×	× ×	× ×
Water resistant watches	Water resistant for daily life	WATER RESISTANT (WATER RESIST)	×	○	× ×	× ×
	Reinforced water resistance for daily life I	WATER RESISTANT (WATER RESIST) 50m (5bar)	×	○	○	× ×	×
	Reinforced water resistance for daily life II	WATER RESISTANT (WATER RESIST) 100m (10bar) 200m (20bar)	×	○	○	×	×	×
Diver's watches	Diver's watch for Air Diving	AIR DIVER'S 100m / 150m 200m	×	○	○	○		×
	Diver's watch for Mixed-gas Diving	He-GAS DIVER'S 200m / 300m /...	×	○	○	○	○

* It is recommended that you use the watch correctly following the above-mentioned scope of usage after ascertaining water resistance precautions marked on the dial or caseback.

CAUTION

① A watch with water resistance for daily life 30m (3 bar) can be used during face-washing, etc. but cannot be used in an environment in which it will be submerged in water.
② A watch with reinforced water resistance for daily life I 50m (5 bar) can be used while swimming, etc. but cannot be used during any type of diving including skin diving.
③ A watch with reinforced water resistance for daily life II 100m or 200m (10 or 20 bar) can be used while skin diving, but cannot be used while scuba diving using oxygen tanks or saturation diving using helium gas, etc.
④ Keep the crown pushed in at all times (in the normal position) while using the watch. If the crown is the screwed-down type, check that it is securely screwed down.
⑤ Do not operate the crown underwater, or while the watch is wet. Water may enter the interior of the watch and defeat the water resistance.
⑥ If your watch is non-water resistant, beware of splashes of water (during face washing, rain, etc.) and sweat. If the watch becomes wet from water or sweat, wipe the moisture off with a dry, soft cloth.
⑦ Even with a water resistant watch for everyday use, avoid directing strong jets of mains water onto the watch. Water pressure above the limit can apply, which may defeat the water resistance.
⑧ With a water resistant watch for everyday use, rinse sea water off the case after exposure, then wipe it thoroughly to avoid corrosion and other effects.
⑨ The interior of the watch contains some amount of moisture, which may cause fogging on the inside of the glass when the outside air is cooler than the internal temperature of the watch. If the fogging is temporary it causes no harm inside the watch, but if prolonged, or if water enters the watch, consult your place of purchase and do not leave the problem untreated.

(2) Handling the Battery

① If a button battery or coin battery is ingested, it may cause chemical burns or perforation of mucous membrane even in a short period of time, and in the worst-case scenario, may result in death. Never leave button batteries or coin batteries within the reach of infants or young children.

If a button battery or coin battery is ingested, or there is a possibility that one was ingested, it must be removed at once. Please treat as an emergency situation and contact a doctor immediately.

② Do not remove the battery from the watch. Contact the place of purchase of the watch or your nearest ORIENT authorized service center for assistance when wanting to remove the battery.
③ The battery used in this watch is not a rechargeable battery, so it cannot be recharged and used again. Do not attempt to charge the battery as doing so could cause it to overheat or explode.
④ A skin rash or other symptom may develop if leaking battery fluid comes into contact with skin. Do not leave depleted batteries sitting around for long periods of time.

(3) Replacing the Battery

① Depleted batteries that are left sitting in the watch for long periods of time may begin to leak battery acid, which could lead to malfunction. Be sure to replace depleted batteries as soon as possible.
② Replace the watch battery only with the specified battery type.
③ Battery replacement requires special-purpose tools, techniques, etc. Reversing the polarities when inserting the battery may cause the battery to overheat or explode. Contact the place of purchase or your nearest ORIENT authorized service center for assistance when wanting to replace the battery.

④ The watch comes equipped with a battery end of life indicator.

If the small second hand begins to advance two tick marks for every movement, it means that the battery is nearing the end of its life and will need to be replaced.

Contact the place of purchase or your nearest ORIENT authorized service center immediately for assistance with battery replacement.

⑤ Steps to be taken after the battery is replaced

After you have the battery replaced, be sure to set the time and set the stopwatch hands to the "0" position.

(Refer to ◆ SETTING THE TIME AND ADJUSTING THE STOPWATCH HAND POSITION (Hands for time display and stopwatch hands) for more information.)

(4) Shock

① Be sure not to carry the watch when you engage in strenuous sports, whereas playing such light sports as golf, etc., will not adversely influence the watch.

② Avoid a violent shock such as dropping the watch on the floor.

Simple line drawing of a person using a tool to dig or walk (no text or symbols)

(5) Magnetism

① If the watch is left at a location with strong magnetism for an extended period of time, the components may be magnetized, resulting in malfunction. Be careful.

② The watch may temporarily speed up or slow down when exposed to magnetism. Precision is restored when placed away from magnetism. In such a case, reset the time.

(6) Vibration

The watch may lose precision if subjected to strong vibrations such as from riding motorcycles, using jackhammers, chain saws, etc.

Simple line drawing of a person riding a three-wheeled vehicle (no text or symbols)

(7) Temperature

In the environment below and above the normal temperatures <5^35^> , the watch may malfunction and stop.

CAUTION

Do not use the watch at high temperatures, such as in a sauna. The watch may heat and cause burns.

(8) Chemicals, Gases, etc.

Utmost caution must be exercised when coming into contact with gases, mercury, chemicals (paint thinner, gasoline, various solvents, detergents containing such components, adhesives, paint, drugs, perfumes, cosmetics, etc.), and so forth. Such may cause discoloration of the watchcase, watchband, and dial face. Discoloration, deformation, and damage to various resin-based component parts may also occur.

(9) About accessory parts

CAUTION

Do not attempt to disassemble or modify the watch.

WARNING

Store the bracelet/strap pin and other small parts out of the reach of children.

If any small parts are swallowed, immediately contact a doctor.

(10) Allergic reactions

CAUTION

If you develop a skin rash or your skin becomes abnormally irritated due to contact with the watch or strap, stop wearing the watch immediately and consult a doctor.

(11) About "luminous light"

Some models have luminous light on the hands and dial.

The luminous light is a safe paint that stores sunlight and artificial light without using any radioactive material, and emits that light in a dark setting. As the paint discharges the stored light, it will become dimmer

over time. The amount of light emitted and the time that light is emitted depends on various factors when the light is stored, such as the shape of the glass, the thickness of the paint, surrounding brightness level, the distance from the watch to the light source, and the light absorption level. Please note that when not enough light energy is stored, the watch may emit weak light or emit light for only a short time.

(12) Water resistant watchband

Some models employ leather and nylon bands on which a special treatment to resist perspiration and water absorption have been applied. Please understand that the water resisting effect of this watchband can be lost depending on the period and conditions of use.

◆ FEATURES

(1) This is an analog crystal oscillator watch.
(2) The current time is indicated by the hour, minute, and small second hands.
(3) The watch also comes with a calendar function (date) and stopwatch function (measures up to 12 hours in 1/20 sec. increments) in addition to the time display.
(4) The stopwatch function also records split times (the amount of time that elapses from when the stopwatch is started until a certain point, while the watch continues to record total time elapsed).
(5) When the battery life begins to run out, the small second hand starts to move in 2-sec. intervals to warn that the battery is getting low. (Battery End Of Life indicator)

◆ SPECIFICATIONS

(1) Crystal oscillator frequency: 32,768 Hz (Hz = Oscillations per second)

(2) Wrist-worn accuracy: Mean monthly rate: ±20sec.

(at normal temperature <5^ 35^> )

(3) Operating temperature range: -5^ +50^

(4) Drive system: Step motor (4 pieces)

(5) Display system:

[Time function]

Hour and minute hands with a small second hand that moves at one-second intervals.

[Stopwatch function]

Stopwatch 1/20 second hand turns a full circle in a second at 1/20 second intervals.

Stopwatch minute hand turns a full circle in 60 minutes at one-minute intervals.

Stopwatch second hand turns a full circle in 60 seconds at 1/5 sec. intervals.

Stopwatch hour hand turns a full circle in 12 hours while moving correspondingly with the stopwatch minute hand.

(6) Additional function: Reset switch, accumulated elapsed time counter, split time function, battery end of life indicator
(7) Battery: SR927SW ; 1 piece
(8) Battery life: Approx. 3 years if the stopwatch is used for less than 2 hours a day.
(9) IC (Integrated Circuit): C-MOS-1C ; 1 piece

* The above specifications are subject to change without notice for improvement.

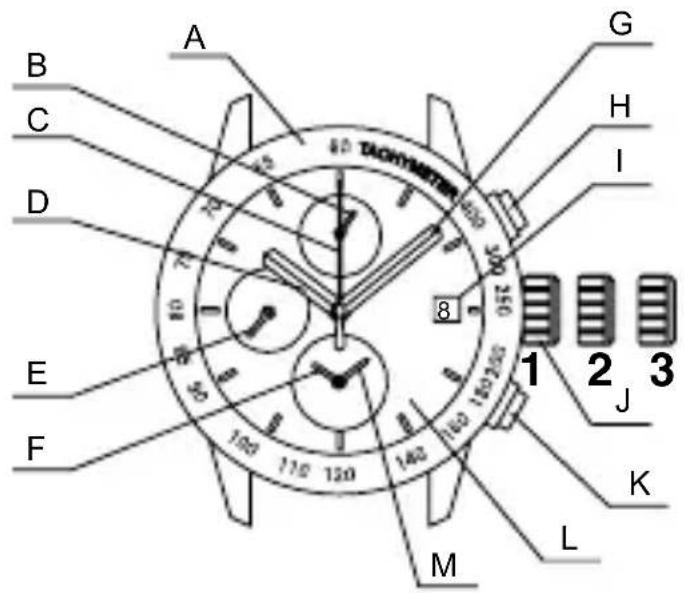

◆ NAMES AND FUNCTIONS OF INDIVIDUAL COMPONENT PARTS

A : Tachymeter scale

B : Stopwatch 1/20 second hand

C:Stopwatch second hand

D : Hour hand

E : Small second hand

F : Stopwatch hour hand

G : Minute hand

H : Button Ⓐ

I : Date

J : Crown

K : Button Ⓑ

L : Dial

M : Stopwatch minute hand

A B C D E F G H I J K L M 1 2 3 40 TACHMeyer

1. Normal position
2. First click : Date setting
3. Second click : Time setting and adjusting the stopwatch hand position

* Some models may not come with tachymeter scales.
* The position of the date indicator may vary on some models.

◆ MODELS WITH SCREWED-DOWN CROWN

Depending on the model, you may not be able to pull the crown out without unscrewing it (models with screwed-down crown).

Operate this type of watch as follows:

(1) Before setting the date and time, first turn the crown to the left to loosen the screw lock.
(2) After setting the date and time, turn the crown to the right while pressing in, until it stops turning to securely tighten the screw.

◆ MODELS WITH A SCREWED-DOWN BUTTON RING

Some models may have a configuration that allows the button ring (ring on the outer periphery) to be locked (fixed) into place by being screwed down.

Use the following operating method for this type of watch.

(1) When wanting to use the buttons, first turn the button ring to the left, and then loosen it until the screw stops.
* The buttons may not be able to be used if the button ring cannot be loosened enough. Do not turn it more forcefully than necessary.
(2) After finishing using the buttons, turn the button ring to the right, and firmly tighten it until the screw stops.
* Do not tighten it more forcefully than necessary.

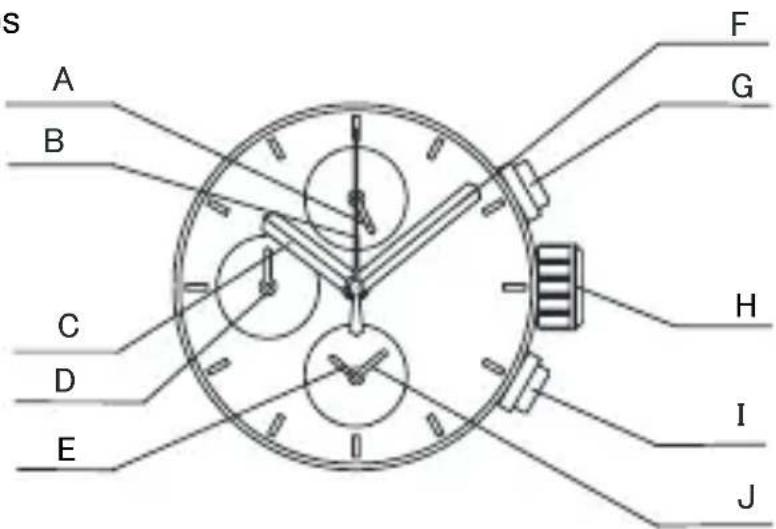

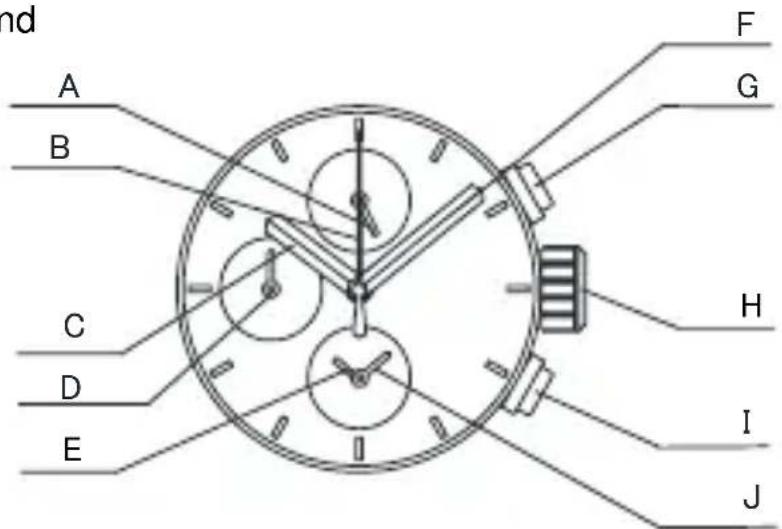

◆ SETTING THE TIME AND ADJUSTING THE STOPWATCH HAND POSITION (Hands for time display and stopwatch hands)

This watch allows you to both set the time and set the stopwatch hands to the "0" position with the crown at the second click position. Once the crown is pulled out to the second click, check the following two items, and if necessary, make adjustments, and then push the crown back in.

(1) Time of the basic watch
(2) "0" position of the 4 stopwatch hands

A : Stopwatch 1/20 second hand

B:Stopwatch second hand

C : Hour hand

D : Small second hand

E : Stopwatch hour hand

F : Minute hand

G : Button Ⓐ

H : Crown

I : Button Ⓑ

J : Stopwatch minute hand

nd A B C D E F G H I J

■ How to set the time

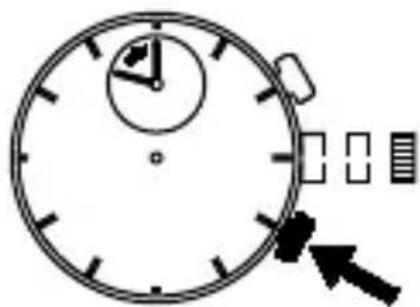

(1) Pull out the crown to the second click when the small second hand is at the 12 o'clock position.

The small second hand stops on the spot.

Diagram showing a stopwatch with an exclamation mark and a rightward arrow, indicating a time or sequence.

* If the stopwatch is measuring, the stopwatch hands are automatically reset to "0" position.

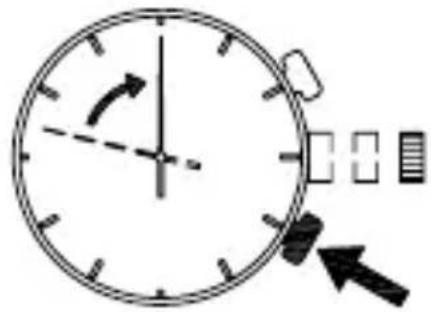

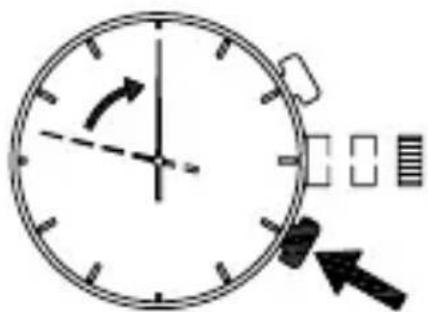

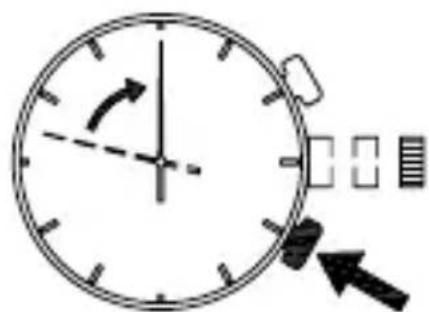

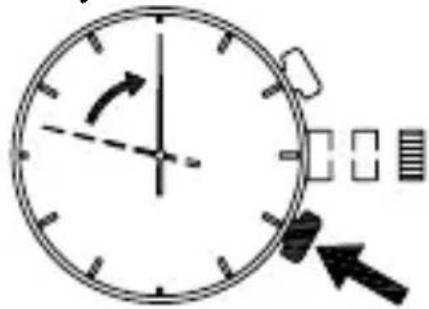

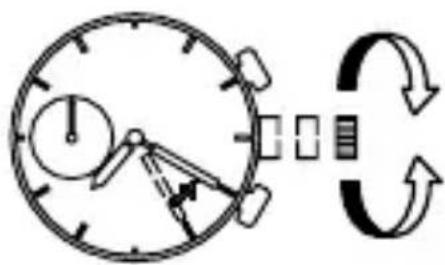

(2) Turn the crown to set the hour and minute hands to the current time.

Diagram showing a clock with directional arrows and a circular arrow indicating rotation or synchronization.

After setting the time, also set the stopwatch hands to the "0" position.

It is recommended that the hands be set to the time a few minutes ahead of the current time, taking into consideration the time required to push the crown back in when all the adjustments are completed.

* When setting the hour hand, check that AM/PM is correctly set. The date changes around midnight.
* When setting the minute hand, first advance it 4 to 5 minutes ahead of the current time, and then, turn it back to the exact minute.

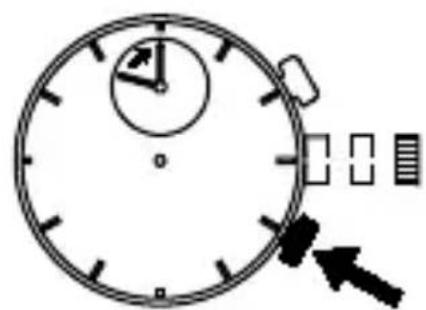

(3) Reset the four stopwatch hands to "0" position.

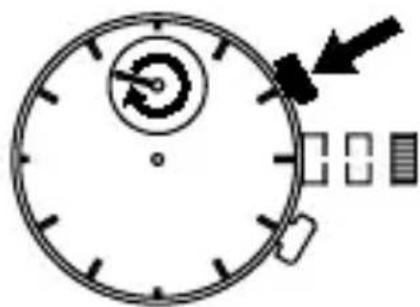

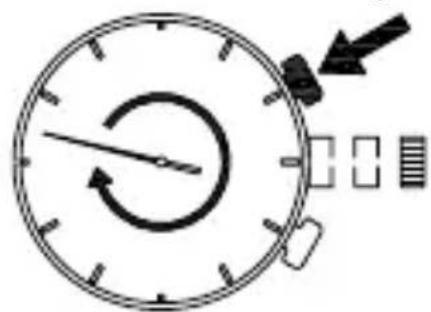

Press button Ⓐ for 2 seconds. The stopwatch 1/20 second hands turn.

Press button Ⓑ and adjust the stopwatch 1/20 second hands to the "0" position.

It moves quickly if button Ⓑ is kept pressed

Press Ⓐ for 2sec.

Simple stopwatch with no visible text, numbers, or symbols on the face (pure diagram)

Simple line drawing of a stopwatch with an arrow pointing to it (no text or symbols)

B

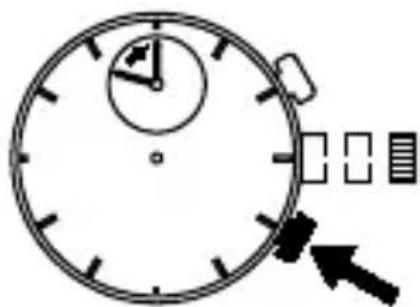

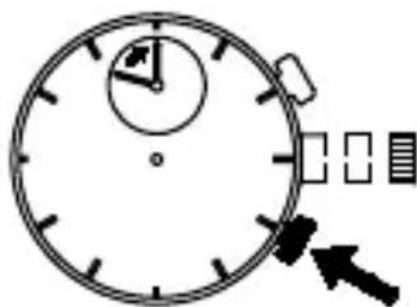

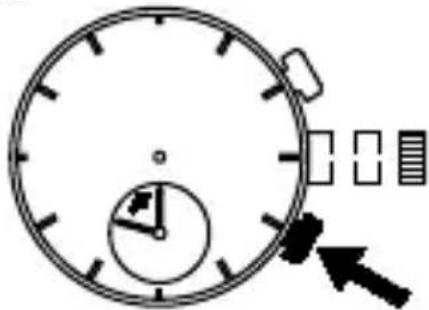

Press button Ⓐ for 2 seconds. The stopwatch second hand turns a full circle.

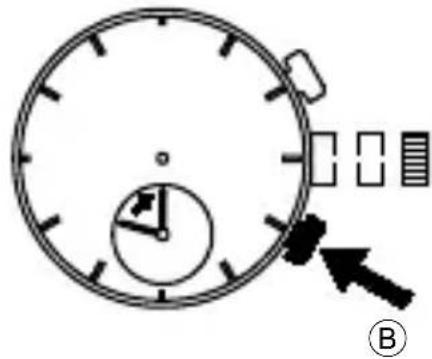

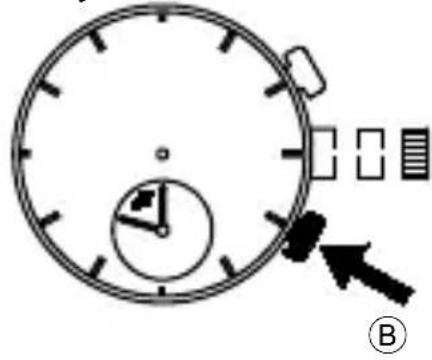

Press button Ⓑ to reset the selected stopwatch second hand to "0" position.

It moves quickly if button Ⓑ is kept pressed.

Press Ⓐ for 2sec.

Simple stopwatch icon with no text or symbols, showing a circular dial and directional arrow (no readable text)

Diagram of a clock face with directional arrow and measurement indicators, showing time and duration.

B

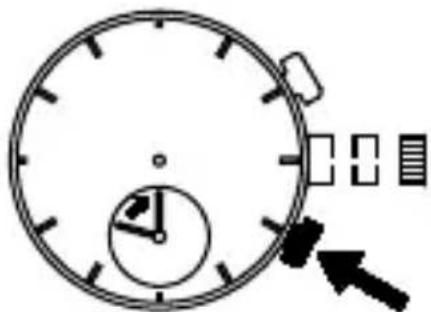

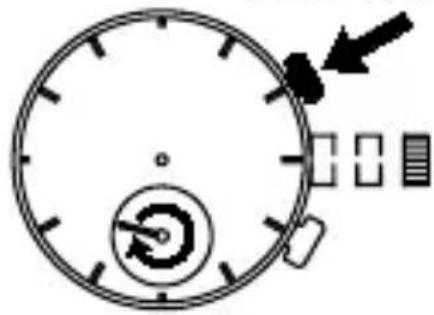

Press button full circle. ① for 2 seconds. The stopwatch hour and minute hands turn a Press button position. ② and adjust the stopwatch hour and minute hands to the “0”

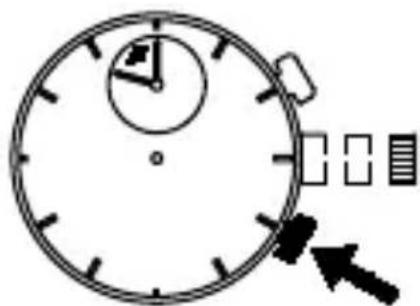

If you continue to press button Ⓑ, the hour and minute hands will move quickly. Press Ⓐ for 2sec.

Simple stopwatch with arrow and control buttons, no text or symbols present

Diagram of a stopwatch with directional arrows and a labeled section B, likely illustrating time or speed measurement.

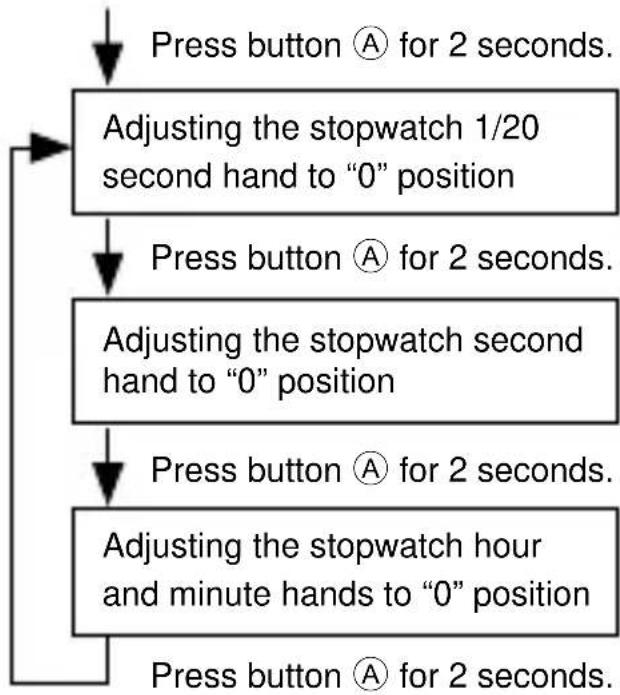

(4) You can redo adjustments that have already been made by completing the steps in the order given.

The stopwatch 1/20 second hand turns a full circle to indicate that it is ready for adjustment. Press button Ⓑ to reset it to "0" position.

The stopwatch second hand turns a full circle to indicate that it is ready for adjustment. Press button Ⓑ to reset it to "0" position.

The stopwatch hour and minute hands turn a full circle to indicate that they are ready for adjustment. Press button Ⓑ to reset it to "0" position.

* Adjustments can be redone any number of times.

(5) After all the adjustments are completed, push the crown back in to the normal position.

ENGLISH

◆ HOW TO SET THE DATE

* Do not set the date during the period from 9:00 p.m. to 1:00 a.m., as the date on the watch switches over during this time.

Setting the date during this time period may cause the date to fail to change even after the day switches over and may cause the watch to malfunction.

* When setting the date, move the hour hand to a time outside of this period before proceeding.

(1) Pull out the crown to the first click.

* The crown on this watch can be pulled out to either of two clicks.

5

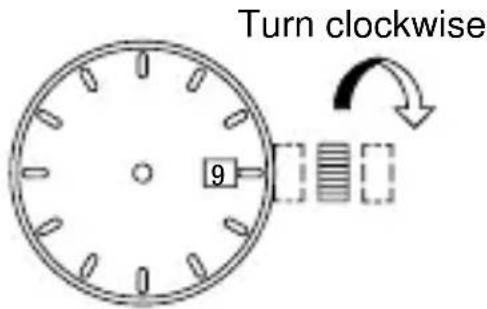

(2) Turn the crown clockwise to set the date.

Turn clockwise 9

(3) After all the adjustments are completed, push the crown back in to the normal position.

* The position of the crown or date indicator may vary on some models.

* About date correction at month's end:

Date correction is necessary for months with 30 days or less. In this case, set the date to the [1st day] on the first day of the next month.

9

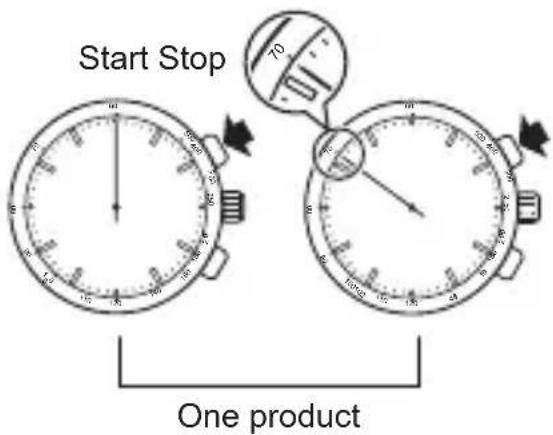

◆ HOW TO USE THE STOPWATCH

The stopwatch can measure up to 12 hours in 1/20 second increments. After 12 hours, it will automatically stop.

The time measured is indicated by the four stopwatch hands that move independently of the hands for time display.

After the stopwatch is started, the stopwatch 1/20 second hand moves for about 10 minutes and automatically stops at "0" position. When split time is measured or the measurement is stopped, it moves to indicate the elapsed 1/20 seconds.

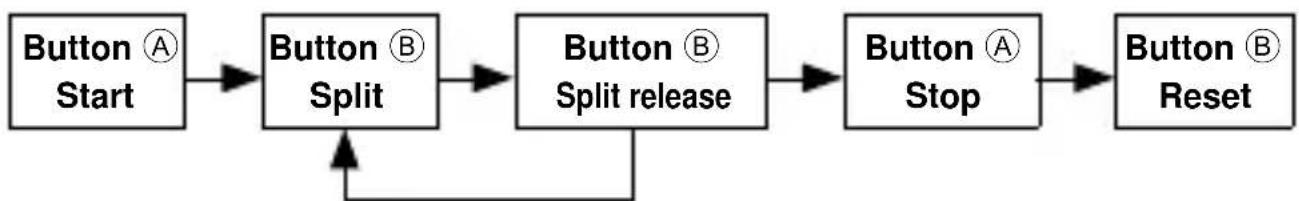

Split time measurement is available.

[How to read the stopwatch hands]

The time measured is indicated by the four stopwatch hands (stopwatch 1/20 second, second, minute and hour hands).

If the stopwatch hands do not return to "0" position when the stopwatch is reset, follow the procedure in "♦ SETTING THE TIME AND ADJUSTING THE STOPWATCH HAND POSITION" to reset them.

In that case, be sure to adjust the hands for time display to the current time.

[Notes on the movement of the stopwatch 1/20 second hand]

After the stopwatch is started, the stopwatch 1/20 second hand moves for about 10 minutes and automatically stops at "0" position.

When split time is measured or the measurement is stopped, if moves to indicate the elapsed 1/20 seconds.

After split time is released or the measurement is restarted, it moves for about 10 minutes and stops automatically.

In the same manner, if the stopwatch is stopped and restarted repeatedly or split time is measured and released repeatedly, it moves for about 10 minutes and stops automatically.

■ How to reset the stopwatch

When the stopwatch hands are counting:

(1) Press button Ⓐ to stop the stopwatch.
(2) Press button Ⓑ to reset the stopwatch.

When the stopwatch hands are stopped:

One of the following three stopwatch operations has occurred. Reset the stopwatch accordingly.

A B

[The stopwatch was stopped in “Standard measurement” or “Accumulated elapsed time measurement.”]

(1) Press button Ⓑ to reset the stopwatch.

[Split time was measured and remains displayed “Split time measurement.”]

(1) Press button Ⓑ. The split time is released and the stopwatch hands move quickly to indicate the measurement in progress.
(2) Press button Ⓐ to stop the stopwatch.
(3) Press button Ⓑ to reset the stopwatch.

[The time of the 2nd competitor was measured in “Measurement of two competitors.”]

(1) Press button Ⓑ. The stopwatch hands move quickly and stop.
(2) Press button Ⓑ to reset the stopwatch.

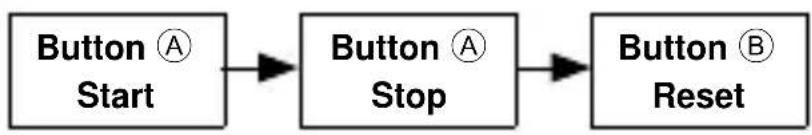

■ Standard measurement


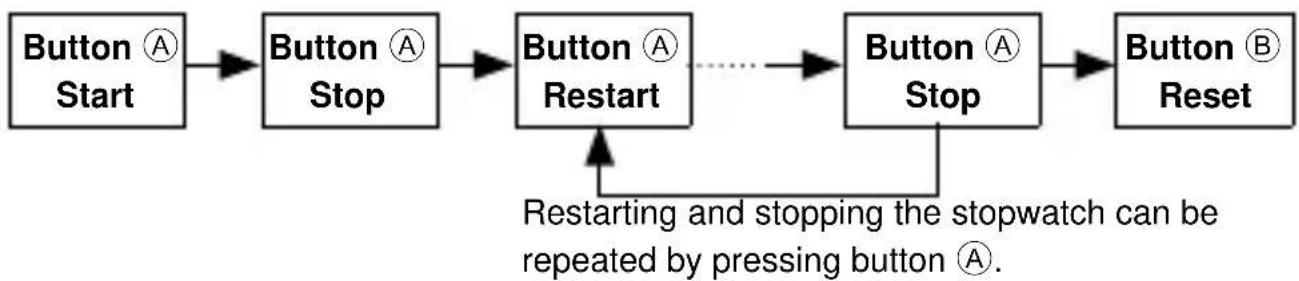

■ Accumulated elapsed time measurement

■ Split (intermediate) time measurement

Measurement and release of the split time can be repeated by pressing button Ⓑ.

■ Measurement of two competitors

The hands indicate the first competitor's time while the measurements are being taken.

◆ HOW TO USE THE TACHYMETER

Some models may come with a tachymeter scale printed around the bezel or dial. Check your watch to see if it comes with a tachymeter scale, and follow the steps listed below to use it, if it does have one.

A tachymeter is a function that enables users to determine average speed based on a measurement of the amount of time it takes to travel a certain distance (1 km). The tachymeter can also be used to determine the rate of production per unit of time (per hour). (measuring range: maximum 60 seconds)

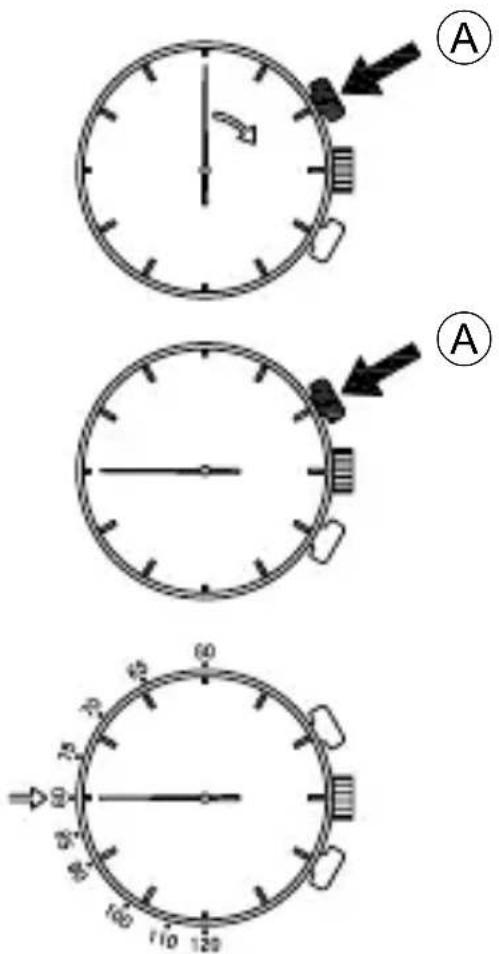

(1) Press button Ⓐ at the start point or when a product begins to be made.

(2) Press button Ⓐ again once 1 km have been passed or the product is completed.

(3) Read the numeral on the tachymeter scale at which the stopwatch second hand is pointing.

(In this case, the hand is pointing at 80 on the tachymeter scale, which would give an average speed of 80 km/hr. or a rate of production of 80 units/hr.)

Three analog clocks labeled A, showing different hand positions and scale markings

* The measurement time of the tachymeter is 1 minute or less. Please note that if the measurement time exceeds 1 minute, the average speed or the rate of production per hour cannot be read.

◆ USING THE ROTATING ORIENTATION RING

Turning the crown will rotate the rotating orientation ring. If you point the hour hand in the direction of the sun while keeping the watch horizontal, the direction between the hour hand and twelve o'clock will face south.

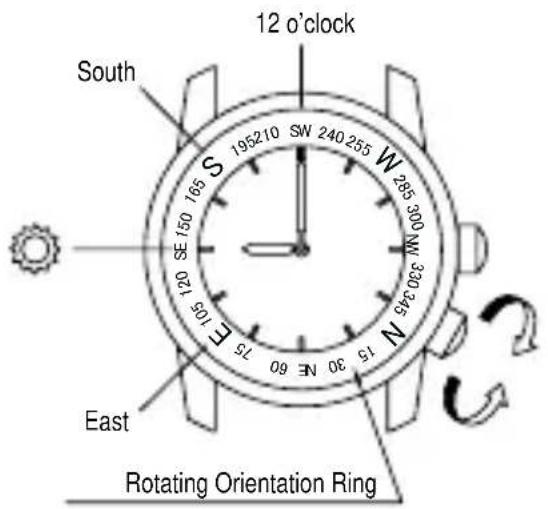

(1) In the morning, with twelve o'clock as the origin, "the position midway between twelve o'clock and the hour hand counterclockwise from twelve o'clock" will point toward south. Refer to FIG. 1.

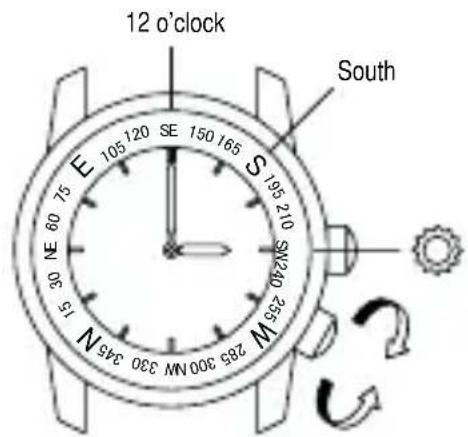

(2) In the afternoon, with twelve o'clock as the origin, "the position midway between twelve o'clock and the hour hand clockwise from twelve o'clock" will point toward south. Refer to FIG. 2.

The orientation ring is labeled with indications for north, south, east, and west (N, S, E, and W) as well as numbers for degrees of angles to allow directions to be known quickly.

12 o'clock South 1952 210 SW 240 255 W 285 300 N 330 345 N 165 SE 150 170 180 190 200 210 220 230 240 250 E 105 100 SE 95 SE 85 SE 75 SE 65 SE 55 SE 45 SE 35 SE 25 SE 15 SE E 30 NE 60 SE 75 SE 65 SE 55 SE 45 SE 35 SE 25 SE 15 SE Rotating Orientation Ring

FIG. 1

12 o'clock South E 105 120 SE 150 165 S 195 210 SW240 235 M 285 300 MW 330 345 N NE 60 75 30 35 15 1 SE 285 300 MW 330 345 N

FIG. 2

* The position of the inner ring crown and details of the date indicator may vary depending on the model.

◆ HOW TO USE THE ROTATING INDICATOR BEZEL

Please notice that some models come with a rotating indicator bezel, which should be used properly.

Turn the bezel by pointing the ▽ mark to the minute hand.

While certain time goes by, you can measure the elapsed time from the distance between minute hand and figures on the rotating indicator bezel.

You can also set the ▽ mark as a desired time to remind you how long time is still remain for an appointment.

You cannot turn the bezel reversely since it comes with a protection mechanism for preventing wrong operation by force or shock. Figures on the bezel could also help you to read the current time easily.

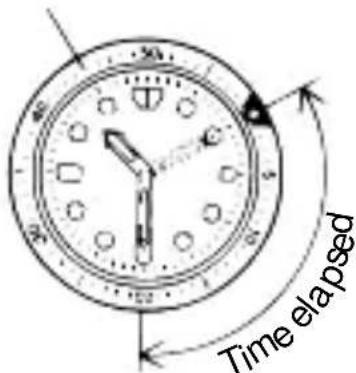

Rotating indicator bezel

Time elapsed

The above shows that 20 minutes have elapsed from 10:10.

* Depending on design, anti-reversely and 1 minute "click" sound mechanism on rotating indicator ring does not apply to some models.

DEUTSCH

ANALOGE QUARZUHR 1/20 Sek. CHRONOGRAPH

BEDIENUNGSANLEITUNG

Simple line drawing of a child playing a golf club (no text or symbols)

Simple line drawing of a person riding a three-wheeled motorcycle (no text or symbols)

(7) Temperatur

A B C D E F G H I J

■ Stellen der Uhr

Simple line drawing of a stopwatch with an arrow pointing right (no text or symbols)

Diagram showing a clock with hand gestures and a circular arrow indicating rotation or synchronization.

Simple stopwatch icon with no text or symbols, showing a circular dial and directional arrow (no readable text)

Simple line drawing of a stopwatch with an arrow pointing to it (no text or symbols)

B

Diagram of a stopwatch with directional arrows and a small display panel below, indicating time or progress.

Diagram of a clock face with directional arrows and a partial view showing two square buttons, likely indicating time or duration.

B

Simple line drawing of a stopwatch with an arrow pointing to it, no text or symbols present.

Simple line drawing of a stopwatch with an arrow pointing to it (no text or symbols)

B

Simple line drawing of a circular stopwatch with an arrow pointing to it (no text or symbols)

Diagram showing three analog clocks with labeled arrows and scale markings, likely illustrating a dial or gauge mechanism.

Simple line drawing of a child playing a golf club (no text or symbols)

Simple line drawing of a person riding a three-wheeled motorcycle with motion lines (no text or symbols)

(7) Temperatura

A B C D E F G H I J K L M 1 2 3 80 TACHMeyer

A B C D E F G H I J

Diagram showing a clock with time and directional arrows, indicating cycle or refresh behavior.

Simple line drawing of a stopwatch with no text or symbols

Simple line drawing of a stopwatch with an arrow pointing to it (no text or symbols)

B

Simple stopwatch icon with circular dial and directional arrow (no text or symbols)

Diagram of a clock face with directional arrows and a partial view indicator, likely illustrating time or speed measurement.

B

Simple line drawing of a stopwatch with an arrow pointing to it, no text or symbols present.

Simple line drawing of a stopwatch with an arrow pointing to it (no text or symbols)

B

Simple line drawing of a clock face with an arrow pointing to the left (no text or symbols)

◆ COME IMPOSTARE LA DATA

ATTEN IONE

senso era 9

Diagram showing three analog clocks with labeled arrows and scale markings, likely illustrating a dial or timer system.

Simple line drawing of a child using a tool to dig or sweep (no text or symbols)

(6) Vibraciones

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

J : Stopwatch minute hand

S A B C D E F G H I J

Diagram showing a clock with an hour and minute hands, followed by a rightward arrow indicating time or duration.

Diagram showing a clock with directional arrows and a circular arrow indicating rotation or synchronization.

Simple line drawing of a stopwatch with an arrow pointing to it, no text or symbols present.

Simple line drawing of a stopwatch with an arrow pointing to it (no text or symbols)

B

Simple stopwatch with hand and arrow indicators (no text or symbols)

Diagram of a clock face with directional arrows and a partial view showing a grid of square units.

B

Simple line drawing of a stopwatch with an arrow pointing to it, no text or symbols present.

Simple line drawing of a stopwatch with an arrow pointing to it (no text or symbols)

B

Simple line drawing of a circular stopwatch with an arrow pointing left (no text or symbols)

♦ AJUSTE DE LA FECHA

5 Circ basis

Three analog clocks with arrows pointing to the face of each clock, labeled A and 60.

◆ USO DEL ANILLO GIRATORIO DE ORIENTACI N

Simple line drawing of a child using a tool to dig or walk (no text or symbols)

(7) Температура

Simple line drawing of a person riding a three-wheeled vehicle (no text or symbols)

A B C D E F G H I J

Diagram showing a clock with directional arrows and a circular arrow indicating rotation or synchronization.

Simple stopwatch with arrow pointing to the top dial (no text or symbols)

Diagram of a stopwatch with directional arrows and a timer, indicating time measurement or navigation

B

Diagram of a stopwatch with directional arrows and a timer, showing time measurement interface

Diagram of a clock face with directional arrows and measurement indicators, likely illustrating time or speed adjustment.

B

Diagram of a stopwatch with directional arrows and a circular dial indicator showing speed, time, and color.

Diagram of a stopwatch with an arrow pointing to it, labeled with circled number B

Simple line drawing of a clock face with an arrow pointing to the left (no text or symbols)

◆ УСТАНОВКА ДАТЫ

ВНИМАНИЕ

Diagram showing three analog clocks with labeled arrows and scale markings, likely illustrating a time measurement or dial adjustment.

* قد يختلف وضع قرصABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS ABSICS

Diagram of an analog clock face with a hand pointing to the left side, labeled with letter A and arrow.

Simple line drawing of a clock face with an arrow pointing to it, no text or symbols present.

Diagram of a stopwatch with directional arrows and a labeled section B, likely illustrating time or speed measurement.

Diagram of a stopwatch with an arrow pointing to it, showing time and progress indicators

Simple line drawing of a stopwatch with an arrow pointing to it (no text or symbols)

B

Diagram of a stopwatch with directional arrows and a timer, indicating speed or refresh function

Diagram of a clock face with directional arrows and a partial view showing a segmented object, likely illustrating time or movement.

B

Diagram showing a clock with directional arrows and a circular arrow indicating rotation or synchronization.

A B C D E F G H I J

Simple line drawing of a child wearing a hat and holding a tool, standing on a horizontal surface (no text or symbols)

Simple line drawing of a person riding a three-wheeled vehicle (no text or symbols)

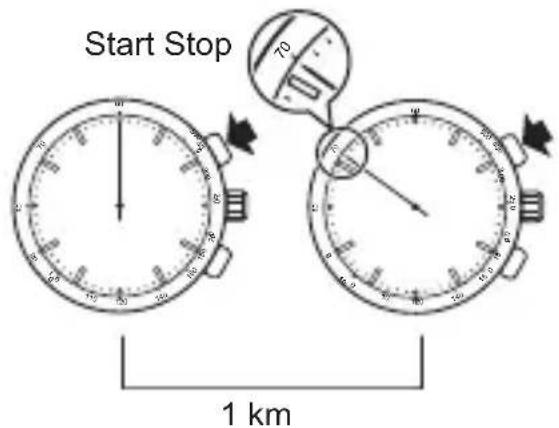

(for a item that has tachymeter scale on the dial)

Start Stop 1 km

• Measurement of speed per hour

1. Measure the time required to run 1 km.

2. Read the tachymeter figure which the second hand is indicating. (70 km/hour)

Start Stop One product

• Measurement of output per hour

1. Measure the time required to produce one product.

2. Read the tachymeter figure which the second hand is indicating. (70 pieces/hour)

DEUTSCH
