IAN 288890 - Watch AURIOL - Free user manual and instructions

Product Type	Wristwatch
Brand	Auriol
Model Number	IAN 288890
Water Resistance	5 bar (50 meters) according to DIN 8310
Crown Positions	Normal and 1st position (setting)
Rotating Bezel	Present on models HG02853A/B/J for timing
Battery Replacement	By specialist shop only
Time Setting	Pull crown to 1st position, turn to set hour and minute hands
Cleaning Instructions	Use a soft, dry cloth on the outside only
Warranty Period	3 years from purchase date
Disposal	Recycle packaging and product; batteries separately
Battery Disposal	Do not dispose with household waste; recycle at collection points
CE Marking	Yes
Languages Included	EN, DE, ES, FR, IT, PT
Page Count	46 pages

Frequently Asked Questions - IAN 288890 AURIOL

How do I set the time on my Auriol IAN 288890 watch?

To set the time, pull the crown out to the 1st position. Turn the crown to set the hour and minute hands. Push the crown back to the normal position; the second hand will start running.

What is the water resistance of this watch?

This watch is water resistant to 5 bar (50 meters) according to DIN 8310. It is suitable for swimming but not for diving. The water resistance is not permanent and should be checked annually.

How do I use the rotating bezel for timing?

The bezel (rotating outer ring) is used to indicate elapsed time. Turn the bezel anti-clockwise to mark the start of timing. The elapsed time can then be read from the bezel.

How do I replace the battery?

Battery replacement should be done by a specialist shop. The manual advises against doing it yourself to avoid damage to the watch's sealing.

How should I clean my Auriol watch?

Clean the watch on the outside only with a soft, dry cloth. Avoid using water or cleaning agents to preserve the water resistance.

What is the warranty period for this watch?

The warranty is 3 years from the date of purchase. It covers defects in materials or manufacture but not normal wear, consumables (like batteries), or damage from improper use.

How do I dispose of the watch and battery?

Dispose of the packaging at local recycling facilities. The product and batteries must not go in household waste; recycle them at designated collection points following local regulations.

Why does the second hand not move after setting the time?

The second hand only starts when the crown is pushed back to the normal position. Ensure you push the crown fully in.

Can I wear this watch while showering?

Yes, with 5 bar water resistance, it is suitable for showering. However, avoid hot water and steam as they can degrade the seals.

What models have the rotating bezel?

The rotating bezel is present on models HG02853A/B/J. Other variations may not have this feature.

USER MANUAL IAN 288890 AURIOL

ES

RELOJ DE PULSERA

Operation and safety notes

DE AT CH

ARMBANDUHR

ES	Página	5
IT/MT	Pagina	13
PT	Página	21
GB/MT	Page	29
DE/AT/CH	Seite	37

HG02853A/B/J

B
HG02853C-I

	3 BAR	✓	✘	✘
	5 BAR	✓	✓	✘
	10 BAR	✓	✓	✘
	20 BAR	✓	✓	✓

RELOJ DE PULSERA

Introducción

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

● Preparations for use

- Changing the battery

Note: Have batteries changed in a specialist shop.

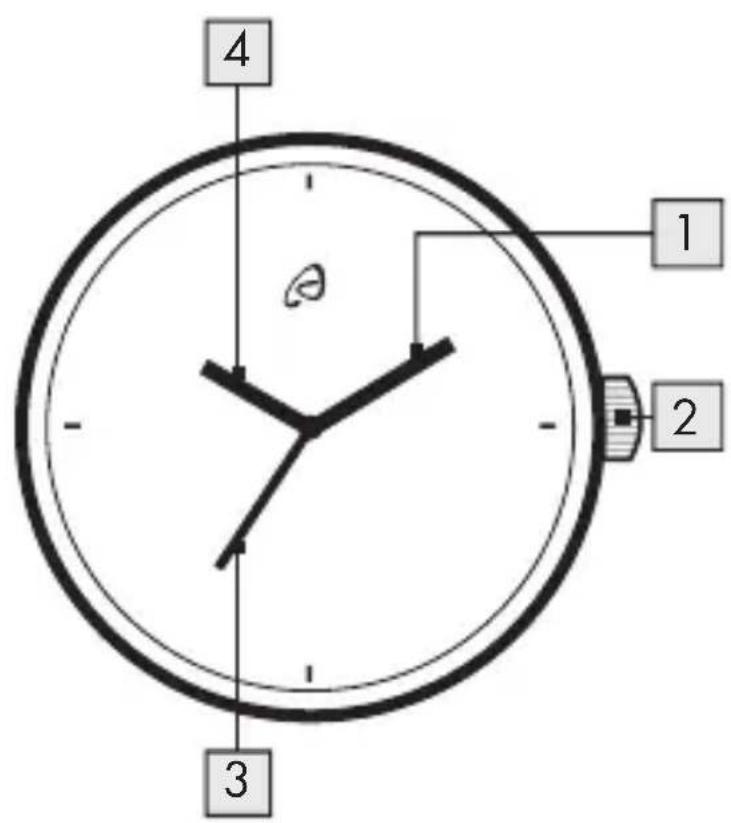

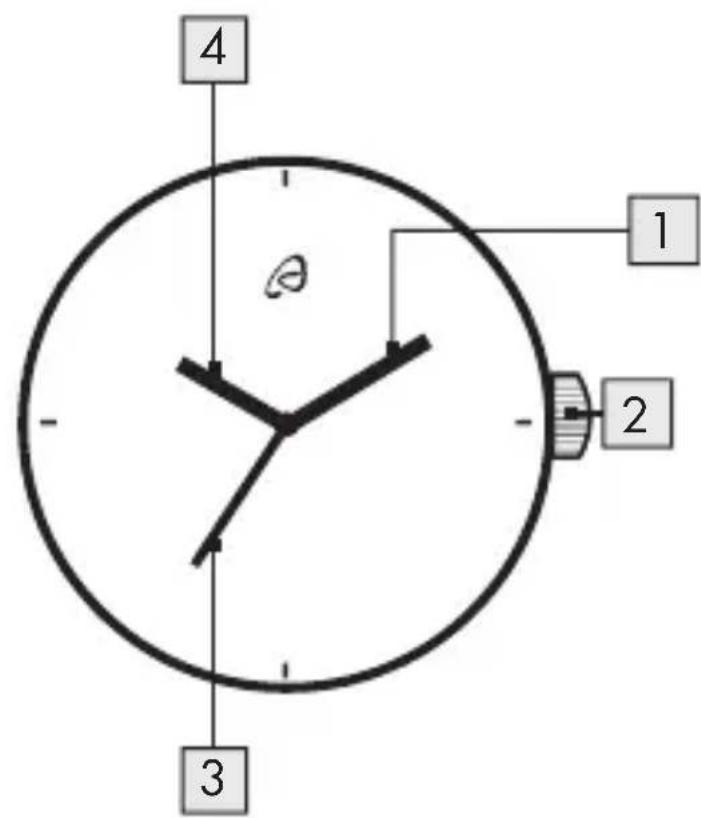

Display

1 Minute hand
2 Crown
3 Second hand
4 Hour hand
5 1st position
6 Bezel (rotating outer ring)
(HG02853A/B/J)

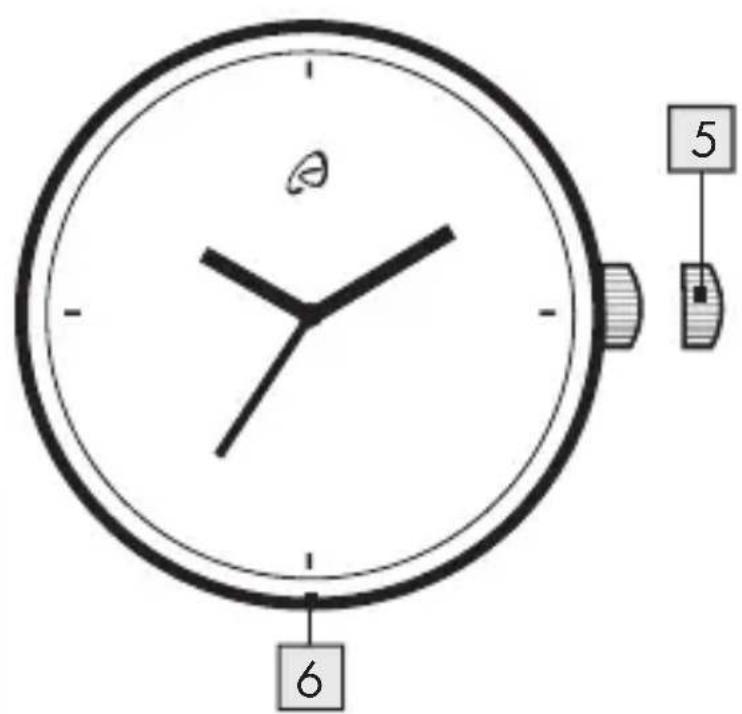

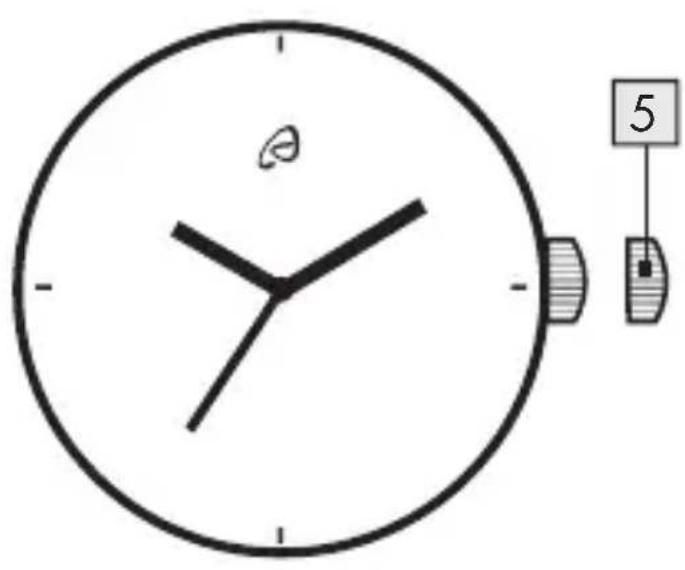

Setting the time

1. To set the time, pull the crown 2 out to the 1st position 5.
2. Turn the crown 2 to set the hour 4 and minute hands 1.
3. When the crown 2 is pushed back to the normal position the second hand 3 begins to run.

Watertightness

This watch is watertight to 5 bar in accordance with DIN 8310. Figure C shows the permissible areas of use.

Please note that the watertightness is not a permanent feature. It should be checked annually and particularly before subjecting it to special conditions, as the function of the inbuilt sealing elements diminishes with daily use.

Timing (HG02853A/B/J)

The bezel 6 is used to indicate a period of time (e.g. jogging time).

The amount of time elapsed can be read easily from the bezel.

■ Turn the bezel in anti-clockwise direction to mark the start of timing.

● Cleaning and maintenance

- Clean the product on the outside only with a soft, dry cloth.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics / 20–22: paper and fibreboard / 80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste.

Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.

Environmentaldamage through incorrect disposal of the batteries / rechargeable batteries!

Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

The warranty further excludes a reduction in water tightness. The state of water tightness is not a permanent property and should therefore be regularly maintained. Please note, opening and repairs performed by unauthorized individuals will void any warranty.

CE

ARMBANDUHR

Einleitung
