USER MANUAL 40/402UHD BUSH

4K Ultra HD Slim LED TV with USB Media Player

User Guide

Line drawing of a flat-screen computer monitor with no text or symbols on the screen

Model No

40/402UHD

Important Safety Instructions

IMPORTANT - Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Warnings

• To reduce the risk of fi re, electric shock or damage to the television, do not expose it to dust, rain or moisture, or place any objects fi lled with liquids on or near the television.
• Do not place the television in a confined space. Ensure that nothing can obstruct the ventilation openings at the rear of the television.

To prevent the spread of fi re, keep candles or other open fi ames away from this product at all times

- Dispose of this television and any components including batteries in an environmentally friendly manner. If in doubt, please contact your local authority for details of recycling.

Safety

• For your safety, this appliance is fitted with a fused moulded 3 pin mains plug. Should the fuse need to be replaced, ensure that any replacement is of the same amperage and approved with the BSI mark.
• The television should be connected to a main socket outlet with a protective earthing connection.
• Never try and replace the mains plug unless you have adequate qualifications and are legally authorised to do so. In the event that a replacement Mains cable is required, contact the manufacturer for a suitable replacement.
• Never use the television if it is damaged in any way.
• Always place the television on a fl at level surface avoiding anywhere which may be subject to strong vibration.
• Ensure the television is not placed on top of the power cable as the weight of the television may damage the cable and cause a safety hazard.
• Never place mobile phones, speakers or any other device which may cause magnetic or radio interference with the television. If interference is apparent, move the device causing the interference, near the television.

• To disconnect the apparatus from the mains, please use the mains plug located on the underside/rear of the TV. The mains plug shall remain readily operable.

• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

• Install the product at least 5cm from the wall for ventilation.
• Ensure that the power switch on the unit and the mains plug are always easily accessible.

WARNING: Excessive noise when using earphones and headphones can cause loss of hearing.

Maintenance

• To clean this unit, wipe with a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a mild detergent solution.
• Never use alcohol, paint thinner or benzene to clean this unit.
• Before using a chemically treated cloth, read the instructions that came with the cloth carefully.

CAUTION: If water or other liquid enters the television through the display panel surface or back cover a malfunction may occur.

Packaging

• The safest way to transport your item is in the original box/packaging - please save your packaging for this.
• You will need original box/packaging in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package the item correctly.

Important Safety Instructions

IMPORTANT - Please read these instructions. All the safety and operating instructions should be read before the appliance is operated.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

Important Information - Regarding Use of Video Games, Computers, Captions or Other Fixed Image Displays

The extended use of fi xed image program material can cause a permanent “shadow image” on the LCD/LED panel.

This background image is viewable on normal programs in the form of a stationary fixed image. This type of irreversible LCD/LED panel deterioration can be limited by observing the following steps:

1. Reduce the brightness/contrast setting to a minimum viewing level.
2. Do not display the fixed image for extended periods of time.
3. Turn the power off when not in actual use.

Examples of images that you need to watch out for are as follows (this is not an exhaustive list):

• TV Channel Logos: e.g. Shopping channel logos and pricing displays-especially if they are bright and stationary.
• Moving or low contrast graphics are less likely to cause ageing of the screen.
• Time Displays
• Teletext: Do not view a stationary page for a long period of time
  • TV/DVD Menus: e.g. Listings of DVD disc content
• Pause Mode: Do not leave the TV in pause mode for long periods of time, e.g. When watching DVDs or videos.

Important - Once 'shadow image/screen burn' occurs, it will never disappear and is not repairable under warranty.

How do I dispose of this product?

UK: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. For your nearest facilities, please see www.recycle-more.co.uk or in store for details.

ROI: Waste electrical products should not be disposed of with household waste. Separate disposal facilities exist. Check with your Local Authority or retailer for recycling advice.

Batteries

• Do not expose batteries to high temperatures, excessive heat, prolonged sunshine or fire as this may cause leakage, explosion or ignition.
• Observe the correct polarity when inserting batteries.
• Do not use different types of batteries together or mix old and new batteries.
• Dispose of batteries in an environmentally friendly way.
• Certain regions may regulate the disposal of batteries.

Please consult your local authority.

Cd

dts®

TruSurround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruSurround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

Contents

Manufacturers Guarantee Information 3

Important Safety Instructions 4-5

What is included in the box 9

Attaching the stand 10

Detaching the stand and securing the TV to a wall 11

Wall mounting 12

Getting Started - Initial Set Up 13

Ultra High Definition 4K/2K TV Information 14

Remote Control 15

TV Buttons and Input Source Menu 16

Connections 17-19

TV Menu Operation 21-27

Channel Menu 21

Picture Menu 22-23

Sound Menu 24

Time Menu 25

Settings Menu 26

Lock Menu 27

Network 29

7 Day TV Guide and Channel List 30

USB Record Digital / Freeview 31

USB Mode / Media Player 32

General Information 33-37

Using your TV with a Sky digital set top box 33

Frequently Asked Questions 34-35

Technical Specifications 36-37

What Is Included In The Box

Accessories

Included with this TV are the following accessories:

1 x User Guide

User Guide

1 x Remote Control & 2 x AAA Batteries

Black remote control with keypad and two cylindrical batteries (no visible text or symbols)

1 x Quick Start Guide

1 x Mini-AV cable

Close-up of a black USB cable with multiple connectors (no text or symbols visible)

1 x TV

Front view of a blank computer monitor with a stand (no text or symbols visible)

1 x Mini Component/YPbPr

Close-up of a black audio jack cable with three connected ports (no text or symbols visible)

1 x RF Cable

1 x Stand Installation Pack

Technical illustration of three types of screw fasteners: a flat plate, a threaded fastener, and a coiled spring (no text or symbols present)

(A) 6 × M(4 × 14)

(B) 5 x ST(3.7x20)

Please save your box/packaging as you will need this in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to package your item in the event of warranty/service repair is in its original box/packaging.

Attaching The Stand

To complete the stand installation you will require a cross head screw driver.

The Stand Installation pack comes with two different types of screws.

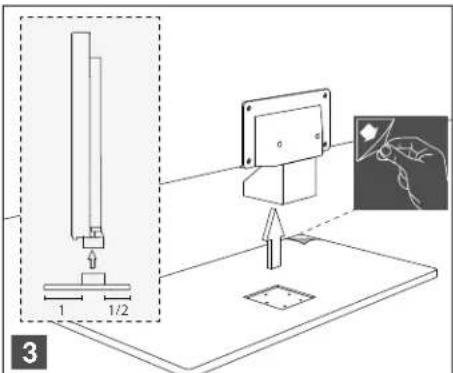

fi g 1) Attach the stand neck to the rear of the TV set.

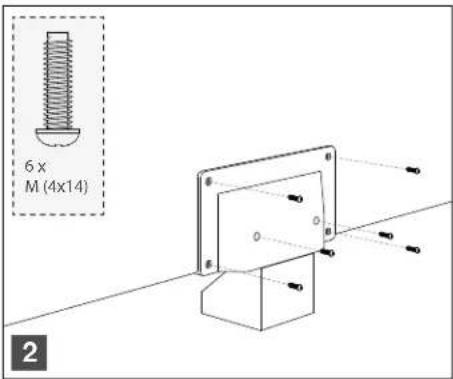

fig 2) Secure the neck to the TV using the (A) 6 x M (4x14) screws provided.

fig 3) Attach the wire base to the stand neck.

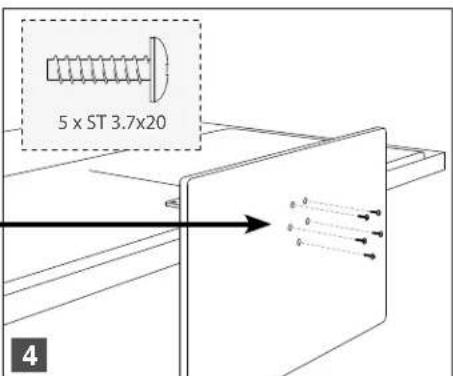

fig 4) Secure the wire stand to the neck using the (B) 5 x ST (3.7x20) screws provided.

HELPFUL ADVICE FOR FIRST TIME STAND INSTALLATION

When securing the self-tapping screw/s into the base of the stand (on first installation) the screw/s will be naturally tight as they create a thread in the plastic of the stand neck in order to support a TV of this size.

a) Ensure the cross head screw driver tip fills correctly into the head of the screw and that it is not too big or small.

b) Screw in all screws individually and partially before tightening all of the screws fully.

c) If they become very tight try loosening them slightly and then re-lightening them once again as this will continue the process of creating the thread for the screws.

(A) 6 × M(4 × 14)

(B) 5 x ST(3.7x20)

Pure technical line drawing of a mechanical bracket or mounting bracket without any text, numbers, or symbols

6 x M (4x14) 2

1 1/2 3

5 x ST 3.7x20 4

Detaching the stand and securing the TV to a wall

Detaching the Stand

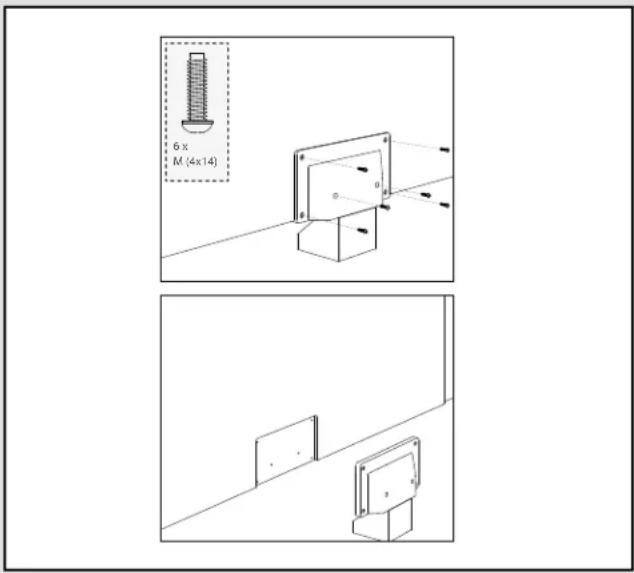

To detach the stand please remove the 3 screws highlighted then remove the stand neck and base from the rear of the TV set.

6 x M (4x14)

Securing the TV to a Wall

For maximum security in the home when using a TV with its stand anti-tip straps should be fitted. These are available from supermarket websites and other websites and are an easy, inexpensive and effective way of ensuring your TV stays safely upright. Straps are designed to be attached to the rear of the TV and then tethered to the wall of the furniture the TV is stood on.

Note - Please ensure that children do not climb on the TV set.

A) Using one or both of the top wall-mounting holes and screws (the screws are already supplied in the wall mounting holes) fasten one end of the fastening cord/s to the TV.

B) Secure the other end of the fastening cord/s to your wall. (you will need screws/fi xings suitable for your wall type - available separately from most DIY stores)

A B

Simple line drawing of a vertical monitor or stand with a vertical line extending from the top (no text or symbols)

The Royal Society for the Prevention of Accidents is urging people to take care with flat-screen televisions.

RoSPA stated in 2010 that “Toddlers are particularly at risk of pulling flat-screen televisions on to themselves. They are unsteady on their feet and are attracted by colourful television images.”

The risk is increased as televisions become lighter.

Wall Mounting

IMPORTANT - Before drilling any holes in the wall ensure you are not drilling where there could be any electric wires, water or gas pipes.

Diagram of a computer monitor with directional arrows indicating orientation (no text or symbols)

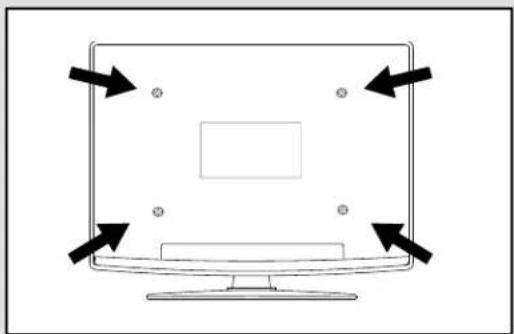

1) Remove the four screws highlighted below.
2) The wall mount can now be easily attached to the mounting holes on the rear of the TV. These holes are indicated in the picture below.

IMPORTANT – If wall mounting this TV, only use the screws already provided in the wall mounting holes. Using other screws which are longer could cause irreparable damage to internal parts.

For optimum viewing, if wall mounting the TV higher than eye level, the TV should be tilted downwards so that the TV's screen is 'face on'.

See fig 1 and 2 below.

Fig 1 INCORRECT TV Viewing angle Fig 2 CORRECT TV Viewing angle

Getting Started - Initial Set Up

1) Connect the power cable to the electrical outlet (Fig A).

Using the RF cable supplied, connect the TV to the TV Aerial wall socket (Fig B).

2) Switch on the television using the power on/off switch located on the side/underside of the TV.

3) Insert the batteries supplied into the Remote control and press the Standby button to power on the TV.

4) You will now be welcomed with the initial set-up screen. If it does not appear, on the remote control, please press [MENU] then 8-8-8-8 and the menu will appear. Press OK on the remote control and tuning will start.*

If you are missing channels, the reason for this is likely to be signal strength, you should consider connecting signal booster and re-tuning the TV.

* Screen shots/images are shown for illustration purposes only and may change dependent on model/region.

Important

As part of our ongoing development to reduce power consumption, we have added an extra function to this Television called 'Home Mode' (you will see this during the first time installation set up). Power consumption using the Home Mode function is approximately 25% lower than some other modes. The picture brightness is reduced using the Home Mode function. If this function is not suitable for your viewing environment, you can select other modes as necessary. (Please note, 'Store mode' is for optimum default picture settings, however, power consumption is approximately 25% higher than 'Home Mode').

Please refer to the user guide section 'Picture settings' in order to change the mode to one that maybe more suitable for your environment. There is also a shortcut button on the remote control called 'P-Mode' should you wish to change to another mode.

1

Fig A Power cable Fig B RF cable

2

Power on/off

3

Illustration showing a hand holding a remote device and a control panel with icons (no text or symbols on the devices themselves)

4

First Time Installation Language < English > Country < UK > Environment < Home Mode > Auto Tuning > Move Adjust Select Back

Connect between TV and TV Aerial socket Signal Booster

Ultra High Definition 4K/2K TV Information

ULTRA HD 4K/2K (3840x2160) represents the next level of picture quality and clarity, boasting a resolution four times higher than Full HD (1920x1080). Full HD TV displays over 2 million pixels that make up the image, but on a 4K Ultra HD TV there are over 8 million pixels.

Note: not all HDMI inputs will allow the TV to display the same resolution, please see the table below.

Port Resolution Displayed
HDMI 1 (1.4)	4K up to 30Hz
HDMI 2 (1.4)	4K up to 30Hz
HDMI 3 (1.4)	Full HD Only
HDMI 4 (2.0)	4K up to 60Hz

Giving your UHD TV a High Resolution input signal eliminates loss of picture quality allowing it to perform at its very best. It is best to connect a 4K Device using the necessary 4K content to view Ultra HD picture quality. With an up-scaling/1080p device the signal is essentially “stretched” to fill over 8 million pixels.

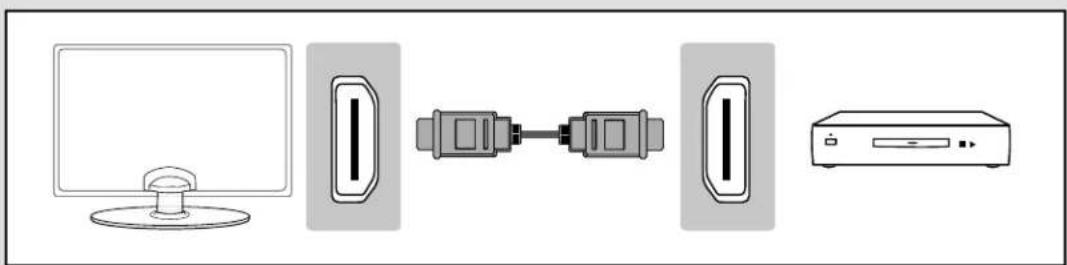

Connecting a Full HD 1080p/1080i device.

Connect your 1080P device (Sky HD/BluRay) to perform TV picture enhancement, see (a) for details of connection.

(a)

Illustration of a desktop computer setup with monitor, USB cable, and CD card (no text or symbols)

(b)

1080p@24Hz HDMI1

To check your input resolution (1920x1080) simply press the button marked "i" (info) on your remote control (b).

Connecting a 4K 2160p/up-scaling device.

It is possible to ‘upscale’ your regular 1080p content to 4k using an ‘up scaling’ device/cable. These are available to purchase separately from your retailer, see (c) for details of connection.

(c)

Diagram showing connection between a computer monitor, printer, and printer (no text or symbols present)

(d)

3840x2160@24Hz HDMI1

To check your input resolution (3840x2160) simply press the button marked "i" (info) on your remote control (d).

You are now ready to enjoy the full 4K experience. For Troubleshooting see our ‘frequently asked questions page’ or visit www.umc-uk.co.uk.

Remote Control

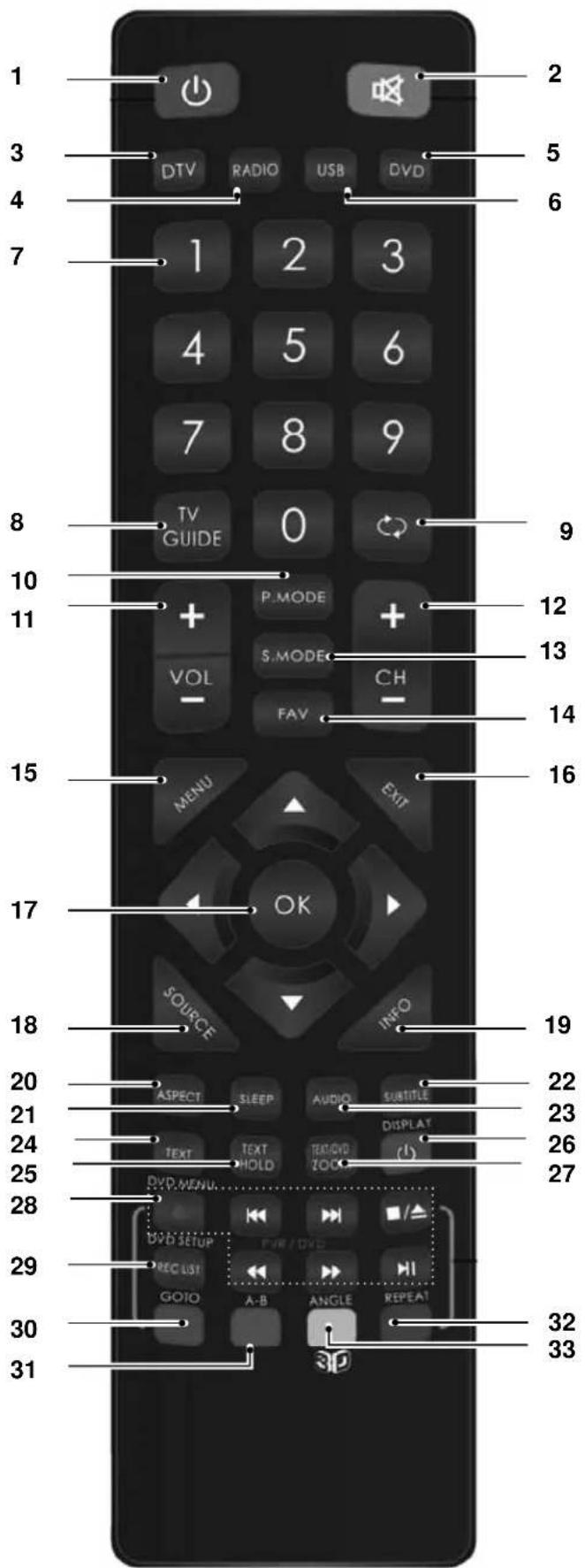

Viewing remote control - TV

1. STANDBY
2. MUTE
3. DTV
4. RADIO
5. DVD
6. USB
7. NUMBER BUTTONS
8. TV GUIDE
9. To return to the previous channel viewed
10. P.MODE - Scrolls through picture mode options
11. VOL ▲/▼
12. CH ▲/▼
13. S.MODE - Scrolls through sound mode options
14. FAV - To display favourites menu
15. MENU
16. EXIT
17. (▲/▼/◄/►/OK) - Allows you to navigate the on-screen menus and adjust the system settings to your preference
18. SOURCE/AV
19. INFO - Press once for now/next channel information. Press twice for programme information about current programme
20. ASPECT
21. SLEEP
22. SUBTITLE
23. AUDIO
24. TEXT
25. TEXT HOLD
26. DISPLAY
27. TEXTZOOM/DVD ZOOM
28. DVD Menu/Record
29. To restart the current chapter
30. To advance forward to the next chapter
31. To stop/eject Disc (hold for 4 seconds to eject disc)
32. To play in fast rewind mode
33. To play in fast forward mode
34. To play/pause

35. ANGLE/ 3D - Change to 3D mode
    For Models with Integrated DVD players
    For Models with PVR Function
    For Models with USB Playback
    For Models with 3D Feature

36. REC LIST

37. GOTO
38. A-B
39. REPEAT

1 2 3 DTV RADIO USB DVD 4 6 7 1 2 3 4 5 6 7 8 9 TV GUIDE 0 8 9 10 P.MODE + 11 S.MODE CH VOL FAV 12 13 14 15 MENU EXIT 16 17 OK SOURCE INFO 18 19 20 ASPECT SLEEP AUDIO SUBTITLE 21 TEXT TEXT DISPLAY 24 TEXT HOLD VIDEO () 25 DVD MENU. 26 27 28 DVD SETUP ▼/▲ 29 RECUST ▼HI GOIO A-B ANGLE REPEAT 30 32 31 33

TV Buttons and Input Source Menu

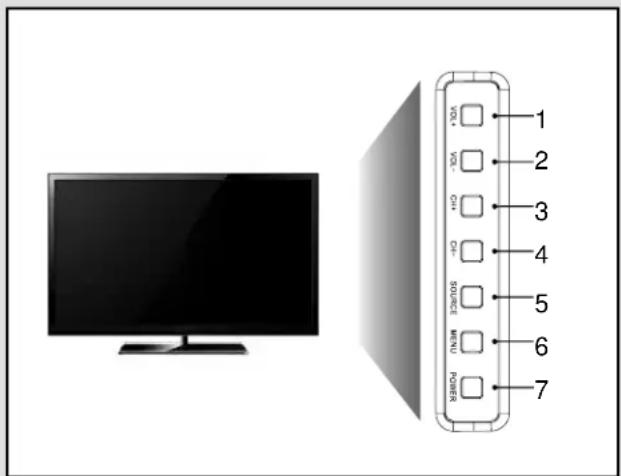

Diagram showing a monitor and a labeled rectangular device with seven numbered ports, likely representing a TV or audio interface.

1. Volume up and menu right
2. Volume down and menu left
3. Programme/Channel up and menu up
4. Programme/Channel down and menu down
5. Displays the input source menu
6. Displays Menu/OSD
7. Standby Power On/Off

Choosing Mode Input/Source

To switch between the different input/connections.

A) Using the buttons on the remote control:

1) Press [SOURCE] - The source menu will appear.

2) Press [V] or [A] to select the input you require.

3) Press [OK].

B) Using the buttons on the Television:

1) Press [SOURCE].
2) Scroll up / down using CH+/CH- buttons to the input/source you require.
3) Press Vol+ to change input/source to the one selected.

Input Source Freeview TV Analogue TV Composite/AV Component / YPbPr HDMI 1 HDMI 2 HDMI 3 HDMI 4 USB Media Move OK ← EXIT

Example of Source menu depending on the TV model

Connections

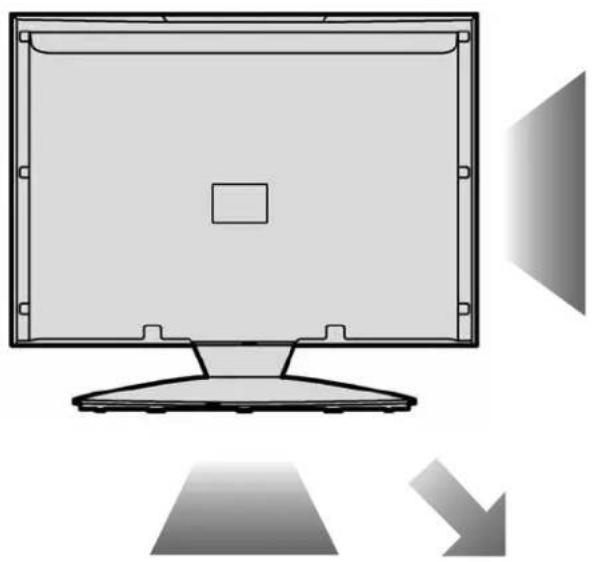

Illustration of a computer monitor with a blank screen and two gray geometric shapes below (no text or symbols)

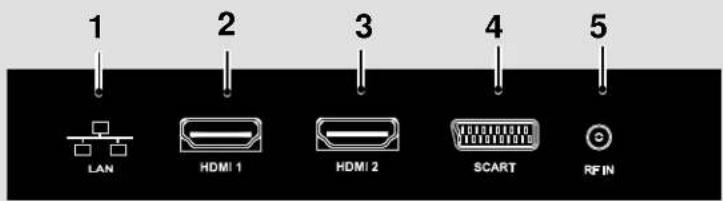

1 LAN Network Connection
2 HDMI 1 HDMI input (1.4) ^*
3 HDMI 2 HDMI input (1.4)*
4 SCART SCART input
5 RF IN RF / TV Aerial Input
6 Digital Audio Digital Optical Audio Output
7 EARPHONE Earphone Socket
8 HDMI 3 HDMI input (1.4)*
9 CI CARD IN Common Interface module
10 COMPONENT (HD) Component input (YPbPr)
11 AV IN Audio Video Input
12 HDMI 4 HDMI input (2.0)*
13 USB USB Input

*Not all HDMI inputs will allow the TV to display the same resolution, please see the table below.

Port	Resolution Displayed
HDMI 1 (1.4)	4K up to 30Hz
HDMI 2 (1.4)	4K up to 30Hz
HDMI 3 (1.4)	Full HD Only
HDMI 4 (2.0)	4K up to 60Hz

1 LAN 2 HDMI 1 3 HDMI 2 4 SCART 5 RF IN

6 7 8 9 10 11 12 13 Digital Audio Output EARPHONE HDMI 3 CI CARD IN Y Pb Pr AV IN HDMI 4 USB

**The LAN/Ethernet port is used only for Freeview HD/Pay TV services. It is not intended to be used for internet/network use.

Connections

Note: Connecting cables are shown for example only and may not be included. Please check 'What Is Included In The Box' page.

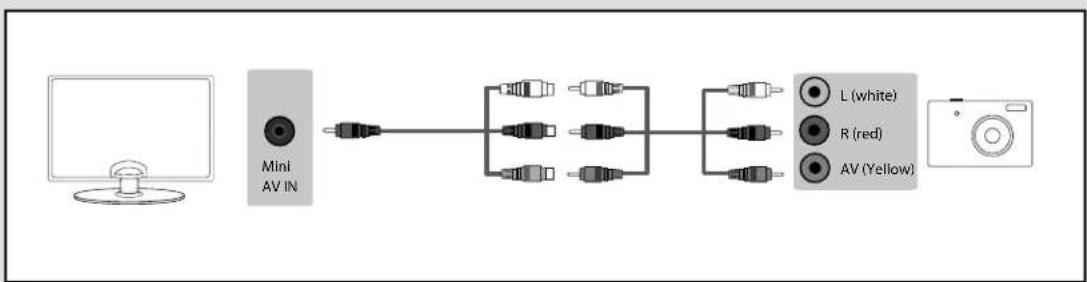

Connecting a Camcorder, Camera or Games Console

Source should be set to Composite/AV


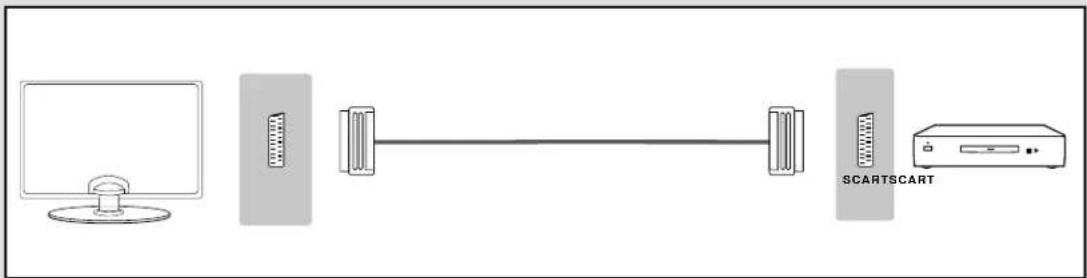

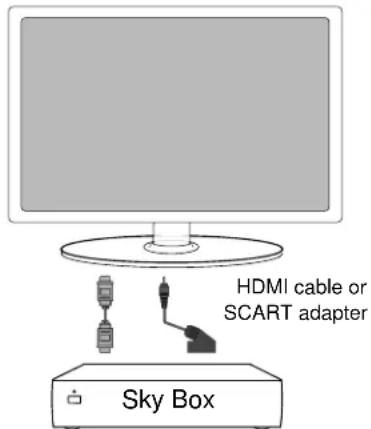

Connecting a DVD Player/Recorder, Video Recorder or Cable/Satellite Box

Source should be set to SCART

Connecting a High Definition (HD) Device

Option 1 - via HDMI to HDMI cable

A HDMI cable can output both video and audio and enables you to enjoy digital-quality video and audio with minimal loss of quality.

Source should be set to the corresponding HDMI Port (HDMI 1, HDMI 2, etc)

Diagram showing connection between a computer monitor, USB drive, and CD-ROM (no text or symbols)

Note: This model TV can not be used as a PC/laptop monitor via HDMI input. The HDMI Input is provided to view digital content with compatible external devices..

Connections

Connecting a High Definition (HD) Device

Option 2 - via Component cable

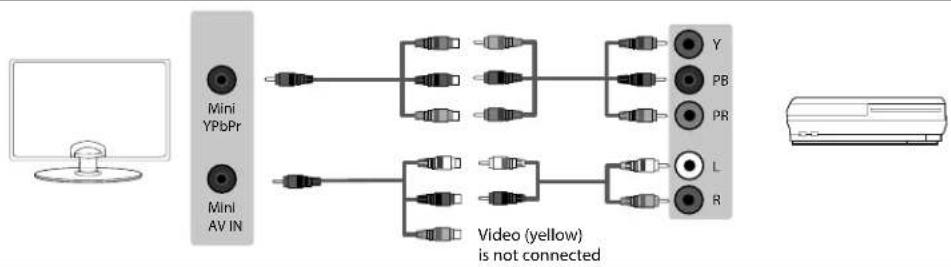

If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you must connect via Component (for picture) and by phono cable (for sound).

TV Source should be set to Component/YPbPr

Connecting to an external audio device (Amplifiers, Surround Sound, Sound Bars etc)

When connecting via the TV's 3.5mm Earphone output, this will disable the TV speakers.

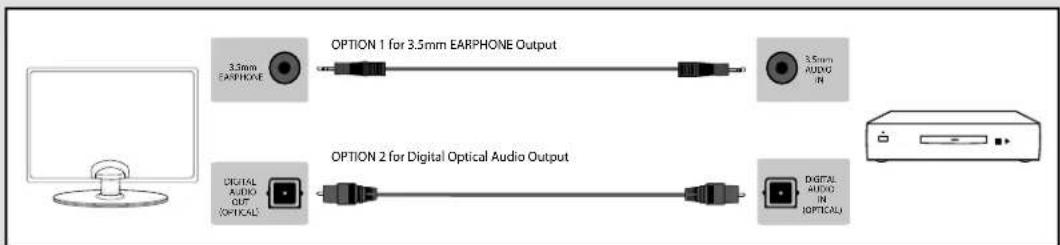

There are two options when connecting a device via the 3.5mm Earphone Output and the Digital Optical Audio Output

Connecting an Ethernet/Network cable

The Ethernet port is used only for Freeview HD/Pay TV services. It is not intended to be used for internet/network use.

Channel Menu

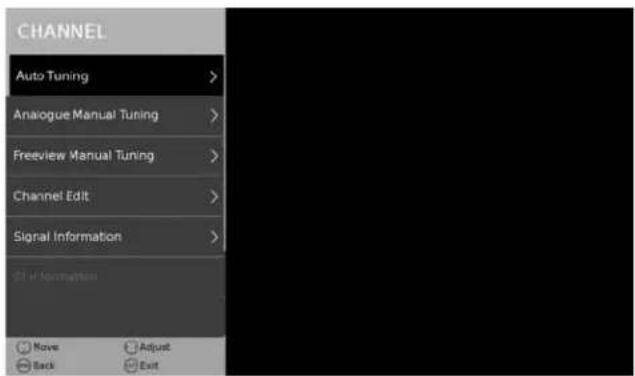

CHANNEL Auto Tuning > Analogue Manual Tuning > Freeview Manual Tuning > Channel Edit > Signal Information > CI Information Move Adjust Back Exit

Auto Tuning

Allows you to retune the television for all digital channels, digital radio stations and analogue channels.

Analogue Manual Tuning

Allows you to manually tune your analogue signal

Freeview Manual Tuning

Allows you to manually tune your digital signal

Channel Edit

Allows you to delete, move, skip and add favourite channels.

Signal Information

Displays signal strength information

CI Information

Pay per view services require a "smartcard" to be inserted into the TV. If you subscribe to a pay per view service the provider will issue you with a 'CAM' and a "smartcard". The CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In).

Recorded List

Lists your recorded programmes

Schedule List

Lists your programme reminders

Software Update (OAD)

Switch on/off OAD updates

Tip: If you do not press any buttons for 30 seconds, the menu will automatically exit. You can change the length of time before the menu exits automatically - see 'OSD Timer' in the Time Menu.

MENU ENI OK SOURCE NZO

To access this menu, press [MENU] button on the remote control. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

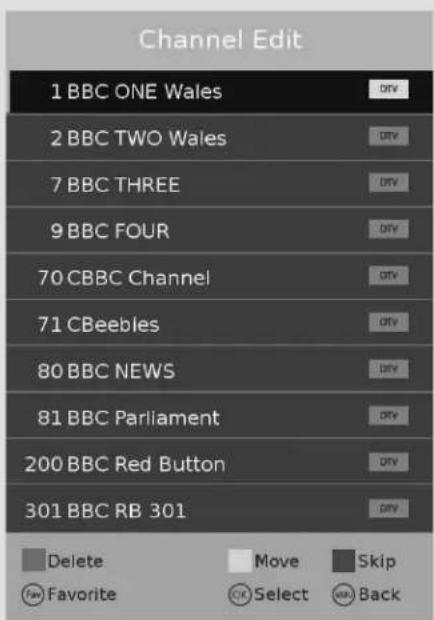

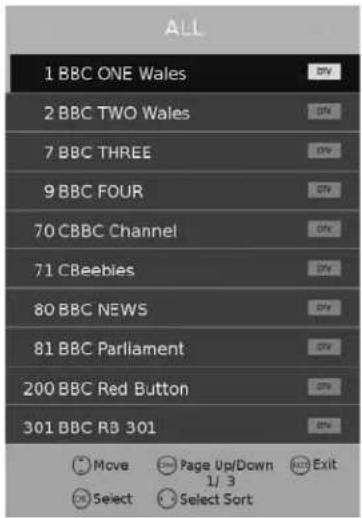

Channel Edit 1 BBC ONE Wales 2 BBC TWO Wales 7 BBC THREE 9 BBC FOUR 70 CBBC Channel 71 CBeebles 80 BBC NEWS 81 BBC Parliament 200 BBC Red Button 301 BBC RB 301 Delete Move Skip Favorite Select Back

Important:

To receive Freeview channels, in particular Freeview HD channels, you will need a Digital TV aerial and be in a good Freeview coverage area. You can check coverage for your postcode at www.freeview.co.uk

Please note that any Freeview HD channels found during tuning will be placed in channel positions above 100.

For example, 101 (BBC1 HD) 102 (BBC2 HD) etc.

Picture Menu

PICTURE Picture Mode < Economy > Contrast < 50 > Brightness < 50 > Saturation < 50 > Sharpness < 50 > Colour Temp < Standard > Aspect Ratio < Auto > Move Adjust Lack Exit

Completely black image with no visible content or text.

Picture Mode

• Dynamic - Recommended settings for fast moving pictures
- Standard - Default settings
- Mild - Set to be lighter in colour and less bright
- Personal - Lets you manually alter all the settings
- Economy - Power saving mode which reduces the energy used by up to 25% (by reducing the power to the LED/LCD panel). In Economy mode, the TV will switch itself to Standby mode after 3-5 hours in the event that the TV buttons or remote control buttons are not pressed (change the picture mode to another setting to de-activate this function)

Contrast

Switch the balance between black and white

Brightness

Increase or decrease the brightness of the picture

Saturation

Increase or decrease the saturation of the picture

Sharpness

Increase or decrease the sharpness of the picture

Colour Temperature

• Normal - Default settings
- Warm - Increases red within the picture
- Cool - Increases blue within the picture

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right.

To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Picture Menu

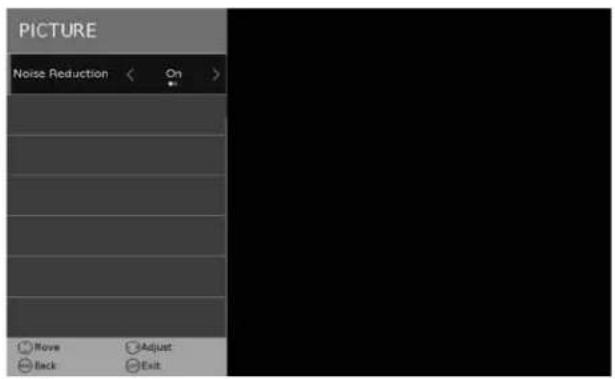

PICTURE Noise Reduction < On > Move Adjust Back Exit

Aspect Ratio

Within the UK the picture format varies depending on the channel/broadcast. There are a number of different options to best meet your needs

- Point2Point

Automatically displays the best picture format. So the picture is in the correct position. May have black lines at the top/bottom and/or sides.

- Original - Will display the picture from the broadcaster without any change

Noise Reduction

• Off - Turns noise reduction off
• Low - Minor system adjustment
• Middle - Medium system adjustments
  • High - Maximum system adjustments

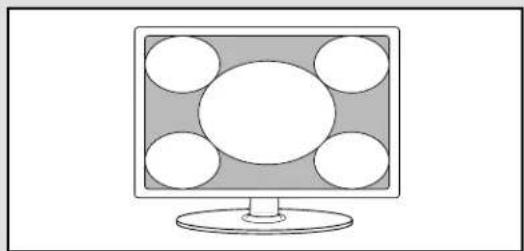

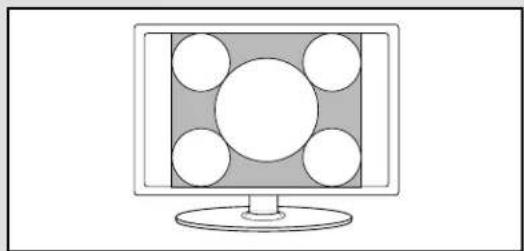

• 4:3 - Displays the 4:3 picture in its original size. Side bars are shown to fill the 16:9 screen

Simple line drawing of a computer monitor with five circular windows on the left (no text or symbols)

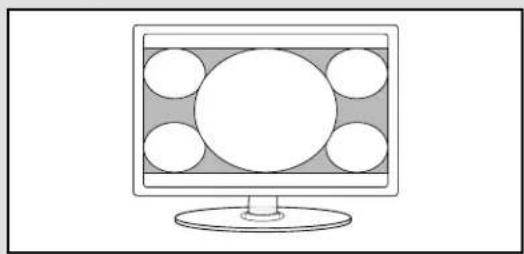

• 16:9 - Fills the screen with a regular 16:9 signal and 4:3 will stretch to fill the screen

Simple line drawing of a computer monitor with five circular windows on the screen (no text or symbols)

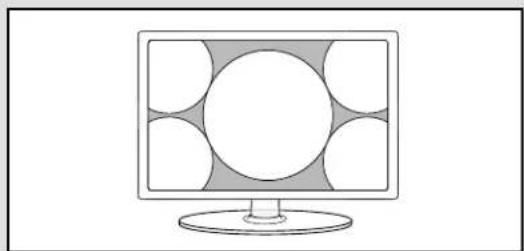

- 14:9 - Displays the 14:9 picture in the correct proportion. As a result side bars are shown on the screen

Simple line drawing of a computer monitor with five circular windows on the screen (no text or symbols)

- Zoom1 and Zoom 2 - The picture is the correct proportion but zoomed in to fill the screen

Line drawing of a computer monitor with a circular screen and six surrounding circular elements (no text or symbols)

Sound Menu

SOUND Sound Mode < Standard > Treble < 30 > Bass < 30 > Balance < 8 > Auto Volume Level < Off > DTS TruSurround < On > Digital Output < Auto > Move Adjust Back Exit

Completely black image with no visible content or text.

Sound Mode

• Standard - Default settings
  • Music - Emphasises music over voices
• Movie - Provides live and full sound for movies
  • Sports - Emphasises sound for sports
  • Personal - Selects your personal sound settings

Treble

To adjust the amount of high frequency within the sound

Bass

To adjust the amount of low frequency within the sound

Balance

To switch the sound between the left and right speakers

Auto Volume Level (AVL)

When 'on' is selected, the volume will stay at a constant level regardless of input/source

DTS TruSurround

• Off - Off
• On - DTS TruSurround™ creates an immersive, feature-rich surround sound experience from two speakers, complete with rich bass, high frequency detail and clear dialog

Tip: Treble and bass levels can only be adjusted when the sound mode 'Personal' is selected.

MENU EXIT OK SOURCE N/O

Digital Output

• Off - Off
  • Auto - Selects the best settings automatically
• PCM - Select this option if you are connecting to a Stereo Hi-fi via coax cable (Pulse-code modulation (PCM) is a digital representation of an analogue signal)

AD switch

(Audio Description is a service available on certain programmes. It provides a description of what is happening during the selected programme for a person who is visually impaired)

AD Volume

This allows the user to increase and decrease the AD (Audio Description) volume level.

Speaker Delay

Enables the user to adjust setting to sync picture and audio

SPDIF Delay

Enables the user to adjust setting to sync picture and audio for external sound devices

TruSurround

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS TruSurround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

Time Menu

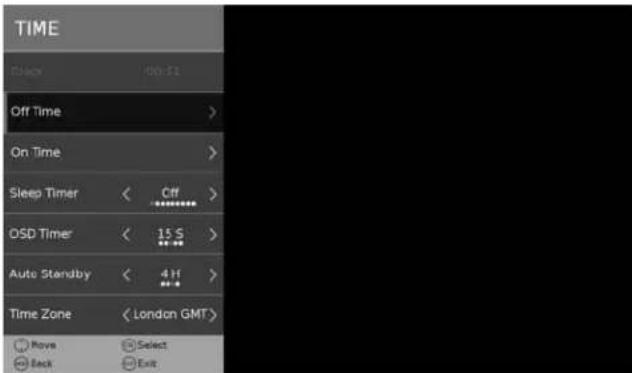

TIME Track 00:52 Off Time > On Time > Sleep Timer < Cff OSD Timer < 15 S Auto Standby < 4 H > Time Zone < London GMT > Move Select Back Exit

Clock

Shows the date and time

Off Time

Allows you to set a specific time for your TV to turn off

On Time

Allows you to set a specific time for your TV to turn on, the channel it will then display, the source it will be on and also the volume. This function can then be toggled to repeat every day or a certain day.

Sleep Timer

Lets you set the sleep timer so the television automatically switches off after a set amount of time. Off -> 10min -> 20min -> 30min -> 60min -> 90min -> 120min -> 180min -> 240min

OSD Timer

Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing

Auto standby

Set Auto standby between 3 hours, 4 hours and 5 hours ( to turn off this function you must exit Home Mode in the Picture Menu)

Time Zone

Change your current time zone

MENU EXIT OK SOURCE INFO

To access this menu, press [MENU] button on the remote control and scroll right. To enter a menu press [OK]

If you wish to make changes to any of the default settings, use the scroll ▲▼▶◀ buttons. To confirm any settings press [OK] button.

To exit this menu at anytime, press [EXIT] button.

Settings Menu

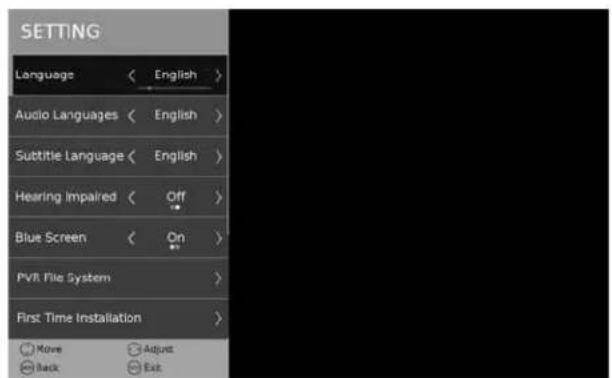

SETTING Language < English > Audio Languages < English > Subtitle Language < English > Hearing Impaired < Off > Blue Screen < On > PVT File System > First Time Installation > Move Adjust Back Exit

Language

Allows you to change the language of the menu

Audio language

Allows the user to change the audio language

Subtitle Language

Allows the user to change the subtitle language

Hearing Impaired

This allows the user to turn on the Hearing Impaired function, this produces subtitles on the screen which provide a description of what is happening during the selected program.

Blue Screen

Changes the background when there is no input between clear and a blue background (Only available on some sources)

PVR File System

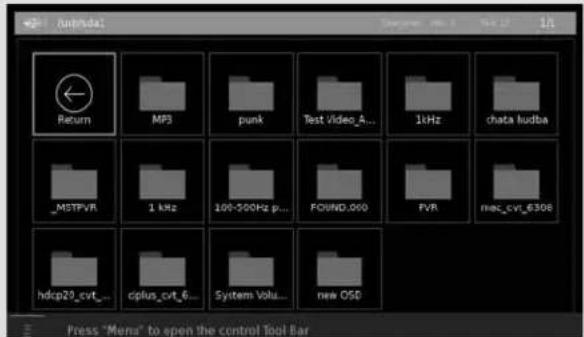

Allows you to view the format and performance of a USB key

First Time Installation

Allows you to retune the television for all digital channels, digital radio stations and analogue channels

Software Update (USB)

This menu lets you install the new software/fi rmware onto the television. Further details of how to do this will be issued with the fi rmware. Contact the helpline or refer to the 'product support' section of the website

This resets the menus to factory settings and will erase all TV channels stored on the television

MENU EXIT OK SOURCE N/O

HDMI CEC (Consumer Electronic Control)

Allows HDMI devices to control each other and allows the user to operate multiple devices with one remote control. (only available with compatible devices)

LED status

Allows the user to switch the LED Power indicator light ON or OFF, when the TV is being operated. (When this option is set to OFF the LED Power indicator light will flash when the remote control is used)

Lock Menu

LOCK System/Hotel Lock < On > Change Password > Channel Lock > Parental Guidance < Off > TV Button Lock < Off > Default Source < Off > Default Channel Move Adjust Back Exit

Completely black image with no visible content or text.

MENU EXIT OK SOURCE INFO

System/Hotel Lock

Allows you to lock or unlock the menu. You will be asked to enter a 4 digit password use the ◀button to quit the password input. Use the ▶button to clear. Default password is 0000

Change Password

Allows you to change the password

Channel Lock

Allows you to lock certain channels manually

Parental Guidance

Allows you to set the rating to block certain content based on age information

TV Button Lock

Allows you to lock the buttons on the side of the TV set

Default Source

Allows the user to set the default source. The default source is the source the TV starts on when first switched on

Default Channel

Allows the user to set a channel as the default channel on the Digital source. The default channel is the channel the TV starts on when first switched on

Max Volume

Allows you to adjust and set the maximum volume

Source Lock

Allows you to lock the source menu

Network Configuration

For the network configuration to work the TV will need to be connected to your home network via an Ethernet cable, with these requirements in place the TV will connect to the network automatically.

If you are looking to change the configuration to a static IP address this can be done by following the instructions below.

1)

Network IP Config > Network Info > Network Test > Move Adjust Back Ext

2)

IP Config Mode (Auto) 182 168 3 40 255 255 248 0 192 168 1 1 192 168 1 16 MUT Adds: DO 28.90 IP-CL-17 Connected! Move Select Back Exit

3)

IP Config Mode IP 0 0 0 0 Netmask 0 0 0 0 Gateway 0 0 0 0 DNS 192 168 1 1 MAC Addr: 00:25:92 d9.0c.1f OK Move Back Select Exit

1) In the Network Menu you will need to highlight and select IP Config.
2) Once IP Config has been selected you can now choose between Auto or Manual.

AUTO - will automatically connect the TV to your home network (this is the default setting and is highly recommended)

MANUAL - is an advanced option and allows you to manually change the IP, Netmask, Gateway and DNS information.

3) If the manual option is chosen you will able to scroll down and manually change the IP, Netmask, Gateway and DNS information.

4) 5) 6)

MAG Add: 00:25:92:d9:0c:1! Connected! Move Back On Select Exit

Network Info CurService: Cable IP Addr: 197.168.1.40 Mask: 255.255.248.0 Gateway: 197.168.1.1 DNS1: 197.168.1.16 DNS2: 197.168.1.17 MAC Addr: 00:25:92 d9:0c.1f Move Select Back Exit

NetWork Test Cur Device: Available IP Addr: 197.168.1.40 Gateway: 197.168.1.1 DNS Service: 197.168.1.16 Internet Service: Available Wire MAC: 0025.92 d9.0c1f Move Select Back Exit

4) When the connection process is successful via the auto or manual option the "Connected" message will appear.
5) Network info allows you to view the IP, Netmask, Gateway and DNS information.
6) Network test allows you to test the connection and view IP, Netmask, Gateway and DNS information.

7 Day TV Guide and Channel List

TV Guide is available in Digital TV mode. It provides information about forthcoming programmes (where supported by the freeview channel). You can view the start and end time of all programmes and on all channels for the next 7 days and set reminders.

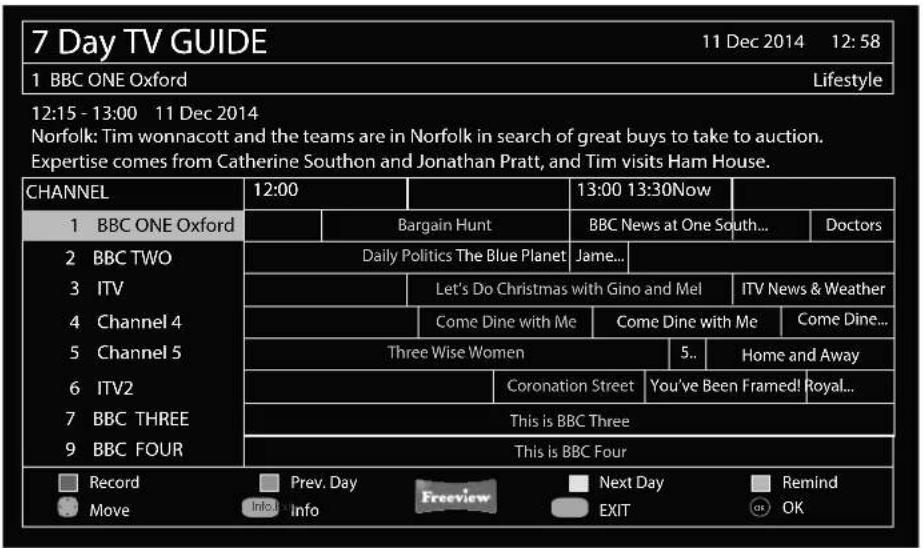

1) Press [TV GUIDE]. The following 7 Day TV Guide will appear.

7 Day TV GUIDE 11 Dec 2014 12:58 1 BBC ONE Oxford Lifestyle 12:15 - 13:00 11 Dec 2014 Norfolk: Tim wonnacott and the teams are in Norfolk in search of great buys to take to auction. Expertise comes from Catherine Southon and Jonathan Pratt, and Tim visits Ham House. CHANNEL 12:00 1 BBC ONE Oxford Bargain Hunt BBC News at One South... Doctors 2 BBC TWO Daily Politics The Blue Planet Jame... 3 ITV Let's Do Christmas with Gino and Mel ITV News & Weather 4 Channel 4 Come Dine with Me Come Dine with Me Come Dine... 5 Channel 5 Three Wise Women 5.. Home and Away 6 ITV2 Coronation Street You've Been Framed! Royal... 7 BBC THREE This is BBC Three 9 BBC FOUR This is BBC Four Record Prev. Day Next Day Remind Move Info Info EXIT OK

2) Navigate through the menu using ▲▼▶◀

You can now:

Record a programme by pressing RED (USB device must be connected)

View a previous day by pressing GREEN

View the next day by pressing YELLOW

Set a reminder by pressing BLUE

3) Press [EXIT] to exit the 7 day TV Guide.

Channel List

To view the channel list, please ensure that the TV is set to either the analogue or digital source and no menus or TV notifications are displayed.

ALL 1 BBC ONE Wales 2 BBC TWO Wales 7 BBC THREE 9 BBC FOUR 70 CBBC Channel 71 CBeebles 80 BBC NEWS 81 BBC Parliament 200 BBC Red Button 301 BBC RB 301 Move Page Up/Down Exit 1/3 Select Select Sort

1) Press [OK] on the remote control and the channel list menu will appear.
2) Scroll through the channel list by using ▲buttons then press [OK] to view the channel that is currently highlighted.
3) Press [EXIT] to exit the channel list.

USB Record - Digital / Freeview Mode

USB Record – Digital/Freeview Mode

Built into this television is a USB record facility. This function is available in Digital/Freeview mode when used in conjunction with a compatible USB memory stick or USB hard drive. The benefits of this are as follows:

• Pause live TV and then playback, fast forward and rewind (up to live TV)
• One button record, if you decide you want to record the current programme
• Easy programmable recording from the 7 day TV Guide
• Record TV and watch/listen back on your computer/laptop

Due to the nature of the product, it is necessary to use a high speed USB memory stick (as the TV reads from and writes to the memory stick at the same time, some memory sticks may not be suitable)

You can purchase high speed memory sticks from some computer stores, alternatively, we have a selection of tested and compatible memory sticks available to purchase directly from the helpline/web site.

Minimum Specification - USB Memory Stick

Read Speed 20 MB/s (Mega Byte Per Second)

Write Speed 6 MB/s (Mega Byte Per Second)

If you wish to use a USB portable hard drive larger than 32GB, please refer to the FAQ section at the rear of this user guide.

Pause Live TV (Time Shift)

Pausing Live TV is very simple.

▶I - Press the play/pause button and the television will pause and the live content will be recorded. To resume watching press play/pause again.
▶ - Press fast forward to go forward in a recording (i.e. to skip adverts)
◀ - Press fast rewind to go back in a recording (i.e. if you fast forwarded too far)

Tip: When you switch the TV to standby or change channel the Time Shift memory is wiped. To restart time shift you must press play/pause button.

One Button Record

At any point in time you may decide to record the current channel that you are watching. To do this you need to press the red button highlighted below.

Tip: This television contains one TV tuner, therefore it can only record the channel you are watching or record one channel while the television is in standby mode.

Note: USB record function is only available in Digital/Freeview TV mode. Due to copyright laws and illegal copying/recording it is not possible to record to/from any other input/output source.

USB Mode / Media Player

USB mode offers playback of various different types of content that you have saved on your USB Memory Stick.

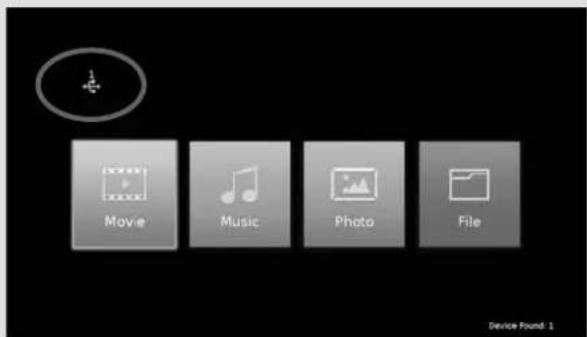

On switching to USB source the menu screen will appear. The content will be divided into Photo, Music, Movie and Text based on file type.

1) You can navigate through the menus using the scroll buttons. To confirm the item you wish to play/view press [OK] button.
2) Select the drive you require. (If your drive only has 1 partition you will only see 1 item).
3) You can now access the item. Press OK to view.
4) While viewing you control the item using (Fig A) or by pressing (i) and using ▲and (OK)

Tips:

• If you experience a playback issue, please ensure the fi les being used are the correct format (example - the picture plays but no sound).
• USB extension cables are not recommended as they can cause a reduction in picture/audio quality and stoppages during play back of USB content.

See technical specification page for compatible file types.

1)

Movie Music Photo File

2)

Movie Music Photo File Device Found: 1

3)

Autobsdat Return MP3 punk Test Video_A... 1kHz chata hudba _MSTPVR 1 kHz 100-500Hz p... FOUND.000 FVR mac_cvt_6308 hdcp29_cvt... cplus_cvt_6... System Volu... new OSD Press "Menu" to open the control Tool Bar

4)

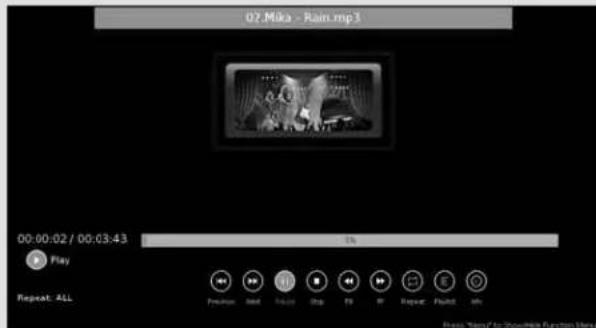

07.Mika - Rain.mp3 00:00:02 / 00:03:43 Play Repeat: ALL 1% Prevent, End, Play, Stop, Print, Repeat, Flight, On Press "Mia" to Show/Play Function Libya

Fig A

Using Your TV With a Sky Digital Set Top Box

Option 1) Connecting your TV to your Sky box (when both the TV and Sky Box are located in the same room)

Depending on your Sky Box & TV model, connect either by SCART or HDMI cables (available separately).

If connecting by SCART, select the 'Input source' on the TV as Composite/AV.

If connecting by HDMI, select the 'Input source' on the TV as HDMI (if the TV has more than 1 HDMI port, ensure you select the input source to match the HDMI numbered port on the rear of the TV).

If you wish to use your Sky remote to operate the TV's functions, you will need a Sky remote control (Revision 9 or later) and you will need to programme a 4 digit code into it. See bottom of this page.

HDMI cable or SCART adapter Sky Box

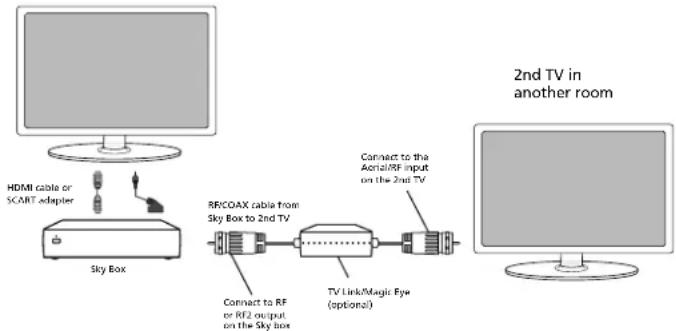

Option 2) Connecting your TV to your Sky box (when your Sky box is located in a different room to the TV)

Please note, if you are adding a 'Magic Eye/TV Link' to your system so that you can use your Sky remote control to change the Sky channel in the room where the 2nd TV is located, please refer to the instructions included with the TV link/magic eye in order to ensure the RF or RF2 output on your Sky box is powered on. (The red LED light on the TV link/magic eye will light up if the RF / RF2 output is correctly set up) If you do not have the instructions that came with the TV link/magic eye, instructions on how to do it can be found on our web site.

1) To tune the TV to the Sky box, on the 2nd TV, select the 'Analogue' input source.
2) Select the channel that you wish to store the Sky box/channel on. (If you do not use channels 1-5 because you no longer have analogue terrestrial channels after digital switchover, you may choose to select channel 1 to store the Sky box/channel, if you still have and use analogue channels 1-5, you may for example decide that channel 6 is the best option for you)
3) Press the corresponding number on the remote control to select the desired analogue channel chosen as per point 2 above.
4) On the TV remote control, press Menu. Now navigate through the menus to select Manual Tuning or Analogue Manual tuning (refer to the Tuning/Channel menu section of this user guide if necessary)
5) Manually tune in the channel (usually, the Sky box is at a frequency between 800Mhz and 850Mhz) once the Sky box/channel is found, press 'OK' to store it.

If you wish to use your Sky remote to operate the TV's functions, you will need a Sky remote control (Revision 9 or later) and you will need to programme a 4 digit code into it. Please see below.

Using a Sky Remote or a Universal Remote to operate your TV - Sky Remote Control, If you wish to use your Sky remote to operate the basic functions of your TV, you need to programme a 4 digit code into it. Please note. you will need the latest Sky Revision 9 remote control as this is the only version that includes the latest software/firmware necessary to operate this model of TV. The code required for this television is 2134. If you wish to upgrade/replace your existing Sky remote control to the latest version, you can do so on our web site.

Universal Remote Control, If you wish to use a Universal remote control to operate your TV, please refer to the web site for a full list of codes. (Please note we only have codes for One for All branded remote controls, if you have an alternative brand of Universal remote, please refer to the manufacturer for the code.)

Frequently Asked Questions

General I would like to have louder sound by connecting additional speakers.	1) Use the 3.5mm headphone output and a 3.5mm to phono cable (available separately) to connect to an amplifier/surround sound system. Please note this will deactivate the TV's built in speakers.2) Connect a Digital Optical Audio cable from the TV's Digital Optical Audio output to your amplifier/surround systems Digital Optical Audio input.
General Why are some options in the menu unavailable and greyed out.	Some options are only available in certain sources, i.e. HDMI, PC/VGA. They are unavailable in the other sources where they have no affect.
General Can stop my TV turning off after 4hrs?	Yes.In the time settings menu, scroll down to Auto standby and select OFF.
TV I have tuned in Digital TV but I am not receiving any or all of the channels and/or the channels I receive are breaking up.	1) Check you are in an area that can receive Freeview. Visit www.freeview.co.uk2) Check you are using an aerial that is able to receive a good digital signal. In most cases, you will need an outdoor digital hi-gain/wideband aerial. In areas that have excellent Freeview coverage, you may be able to use a loft type aerial but it is highly likely that you will also need to connect a booster between the back of the TV and the TV aerial wall socket. Unfortunately, to receive a good enough digital signal, it is not possible to use a portable/indoor type aerial. This may change once the analogue signal is switched off in 2012 and the Digital signal strength is increased.
TV I have re-tuned my television but when I switch it off it is not storing the channels.	Complete a first time installation, please refer to the set-up menu section of the manual of how to do this.
TV I cannot find the Freeview HD channels	Freeview HD channels found during tuning will be placed in channel positions above 100. For example, 101 (BBC1 HD), 102 (BBC2 HD) etc.
VCR/DVD Recorder	I have connected the TV to my VCR or DVD Recorder via SCART but it is not recording.
Game Consoles	I have connected my PS3 to the TV via HDMI, but I am not receiving any pictures or sound on my TV.
Freeview HD	I cannot access all Freeview channels

Frequently Asked Questions

Game Consoles	I have connected my Xbox 360 to the TV via Component Cables (Red, Green & Blue) but I am not receiving any sound.	Component cables only provide HD Pictures. For the sound you will need to connect the Red & White audio cables on the Xbox to the Red & White phono inputs on the rear of the TV. Please refer to the ‘Connections’ pages.
USB Mode I have inserted a USB Memory Key, but the TV does not recognise it.		Ensure the USB Memory Key is formatted to type FAT32.
USB Mode Using a USB portable hard drive.		If you wish to use a portable hard drive larger than 32GB, please note that it must be formatted to the FAT32 file system in order to operate on this TV. Windows XP/Vista computers are only capable of formatting up to 32GB, therefore, you will need a software programme/utility to format larger hard drives. Please refer to the web site for more information.
USB Record / TV models only	I cannot change the channel, access the menu or use the red button	During Time Shift you cannot change the channel, access the menu or use the red button
USB Record / TV models only	When using the USB to record the picture ‘breaks up’ or experience loss of sound.	Check the USB Memory Stick meets the minimum requirements of Read Speed - 20 MB/s (Mega Byte Per Second), Write Speed - 6 MB/s (Mega Byte Per Second)
System Lock	I have changed the password on the television and now forgotten it.	There is a master password of 4711, to gain access to the TV menu and reset the normal password.
4k UHD How do I get the best 4K picture on my TV.		You must have a 4K device connected to the TV Via a HDMI cable and UHD content.
4k UHD I have downloaded UHD video content to USB, but it will not play via the USB port.		The USB port will display the maximum resolution of 1920x1080 therefore 4K content is not compatible via USB.
4k UHD What does Upscaling mean?		Please refer to the ‘Ultra High Definition 4K/2K TV Information’ page in this user guide.
Sound What can I do If the sound and picture are not in time?		In the Sound Menu adjust the Speaker Delay option until the sound and picture are aligned.

Note:
Supplier may change TV software and on screen graphics without warning

Technical Specification

Product Fiche

Supplier	Bush
Model ID	40/402UHD
Energy effi ency class A
Visible screen size (diagonal) 102 cm / 40 inches
On mode model average power consumption 60 W
Annual energy consumption *1 88 kWh
Standby power consumption *2 <0.5 W
Off mode power consumption	0 W
Screen resolution 3840 (H) x 2160 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.*2: When the TV is turned off with the remote control/standby button and no function is active.

Additional Technical Information
RF	75 ohm Antenna / Analog / DVB
Video Inputs 4 x HDMI, 1 x USB, 1 x SCART, 1	x RJ45 (Ethernet), 1 x Mini Component/YPbPr,1 x Mini Composite/Video & L/R Audio shared for Composite/Video & Component/YPbPr
Sound Outputs 1 x Digital Optical Audio output	1 x output for headphones
Speaker / Amplifier Watts (RMS)	2 x 10W / 2 x 8W
Dimensions including stand (mm)	897W x 570H x 210D
Net weight	13.5kg
Energy Consumption Info
Voltage and power consumption	110-240v 50 / 60Hz60 / 75 / 90W (ecomode/standard/max)EEI - A (Energy Rating)
Wallmounting VESA	200 x 200 (mm)

Technical Specification

Compatible fi les in USB Mode

Media File Ext.		Video Decoder		Remark
		Video Audio
Movie	.mpg/.mpeg/.dat	MPEG-1, MPEG-2	MP3, WMA, AAC,LPCM,DTS(DMP),IMA-aDPCM/MS-ADPCM,LBR(cook),G711A/mu-law	Max Solution: 1920×1080Max Data Rate: 40 Mbps
	.ts/.trp/.lp/.m2ts	MPEG-2, H.264,VC1,AVS
	.vob	MPEG-2
	.mp4	MPEG-4, Xvid, H.264
	.rm/.rmvb	Rm code
	.mkv	MPEG-1, MPEG-2, MPEG-4,H.264
	.avi	MPEG-2, MPEG-4,Xvid, H.264
	Motion JPEG	JPEG		Max Solution: 640×480Max Data Rate: 10 Mbps
	.asf,wmv	VC1		Max Solution: 1920×1080Max Data Rate: 40 Mbps
	.flv/.swf	H.264, AVC, SorensonH.263
Music	.mp3	--	MPEG1/2 (Layer1,Layer2, Layer3)	SampleRate: 16KHz~48KHzBitRate: 32K~448Kbps
	.wma/.asf	--	WMA	BitRate: 128Kbps~320KbpsSampling rate :8KHz-48KHz
			WMA pro	BitRate: <768KbpsSampling rate : ~96KHz
	.ogg	--	OGG	Sample Rate: ~48KHz
	.m4a/.aac	--	AAC HEAAC	Sample Rate: 8K~48KHzBit Rate: 24K~384Kbps
Photo	.jpg/.jpeg	Progressive JPEG		Max Resolution: 1024×768
		Baseline JPEG		Max Resolution:1920×8×1088×8
	.bmp	BMP		Max Resolution:9600×6400
	.png	Non-Interlaced		Max Resolution:9600×6400
		Interlaced		Max Resolution: 1200×800
