USER MANUAL IDLCD2210HD BUSH

Black-and-white photo of a BUSH TV displaying a snowy mountain landscape with evergreen trees (no text or symbols visible on screen)

IDLCD2210HD

The Gold Technical Support Line: 1902 215 259

Personal Product Support

(Charges will apply at \$2.95 per minute)

Thank you for buying this Bush product, which is designed to give you many years of trouble-free service.

You may already be familiar with using a similar unit, but please take time to read these instructions. They are designed to familiarise you with the unit's many features and to ensure you get the very best from your purchase.

Safety is important

Your safety and the safety of others is important. Therefore, please ensure you read the Safety Instructions before you operate this unit.

Warranty

In the unlikely event that your product fails to work normally, please call the below Bush warranty number to discuss the problem with one of our qualified service engineers.

Australia

Bush Warranty: 1800 509 394

New Zealand

Bush Warranty: 0800 450 259

1. INTRODUCTION....1
2. SAFETY INSTRUCTIONS....3
3. INSTALLATION....3

ACCESSORIES....4
FRONT PANEL....4
KEY BOARD 5
REAR PANEL....5
ANTENNA CONNECTION....6
CONNECTING TO PC....7
PC PRESET....8
CONNECTING TO AV EQUIPMENTS....9
4. REMOTE CONTROL....10
BATTERY INSTALLATION....10
KEYS FUNCTION....11
5. OPERATION....12
BASIC OPERATION....12
TELETEXT....13
MENU OPERATION....14-18
6. TROUBLESHOOTINGS....19
7. TECHNICAL SPECIFICATION.... 20
8. WARRANTY....21

1. Do not use this apparatus near water.
2. Clean only with dry cloth.
3. Do not block any ventilation openings. Install in accordance with the manufacturers instructions.
4. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
5. Protect the power cord from being walked on or pinched particularly at plugs convenience receptacles, and the point where they exit from the apparatus.
6. Only use attachments/accessories specified by the manufacturer.
7. Unplug this apparatus during lightning storms or when unused for long periods of time.
8. Refer all servicing to a qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
9. The apparatus should not be exposed to dripping or splashing and no objects filled with liquids, such as vases, should be placed on the apparatus.
10. If the television is to be built into a compartment or similar enclosed, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

ADDITIONAL SAFETY NOTES

Never tamper with any components inside the TV, or any other adjustment controls not mentioned in this manual.

All LCD-TVs are high voltage instruments. When you clean up dust or water drops on the LCD PANEL or CABINET, the power cord should be pulled out from the receptacle, then wipe the TV with a dry soft cloth.

During thunder and lighting, unplug the power cord and antenna cord to prevent damage to your TV.

All repairs to this TV should only be performed by qualified TV service personnel.

INSTALLATION NOTES

This TV can be connected to AC 100-240 Volts, 50/60HZ power supply. Never connect to a DC supply or any other power supply.

Locate the TV in the room where light does not strike the screen. Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.

Allow enough space between the TV and the wall to permit ventilation.

Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.

Do not cover the ventilation openings when using the TV.

ACCESSORIES

Infrared Remote Control......1

User's Manual 1

Battery(AAA).... 2

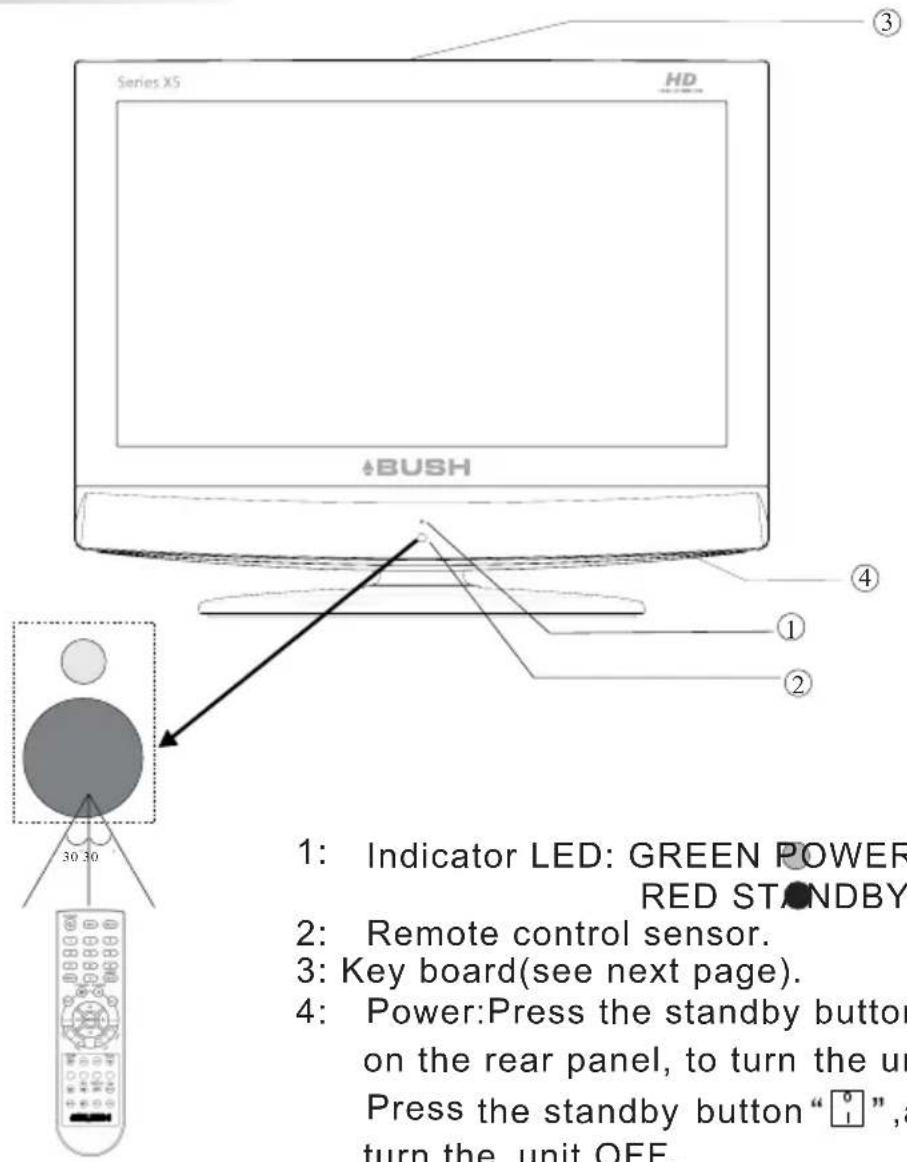

FRONT PANEL

Series X5 HD BUSH ③ ④ ① ② 30 30 1: Indicator LED: GREEN POWER RED STANDBY 2: Remote control sensor. 3: Key board(see next page). 4: Power:Press the standby button on the rear panel, to turn the unit OFF. Press the standby button "☐", a turn the unit OFF.

1: Indicator LED: GREEN POWER ON. RED STONDBY.
2: Remote control sensor.
3: Key board(see next page).
4: Power:Press the standby button “☐” on the rear panel, to turn the unit on. Press the standby button “☐”, again to turn the unit OFF.

KEY BOARD

INPUT MENU VOL- VOL+ CH- CH+ standby ① ② ③ 4 5 INPUT MENU - VOL+ - CH +

1. INPUT Press to display the Input Source Menu.

2. MENU Press to display the Main Menu.

3. VOL+/VOL- Press to adjust the sound level. In Menu mode, press VOL+/VOL- buttons to select the desired menu

4. CH+/CH- In TV mode, press the CH+/CH- buttons to change the channel up and down. In MENU mode, to select the menu items.

5. ⏻ Standby button turns the TV on & off.

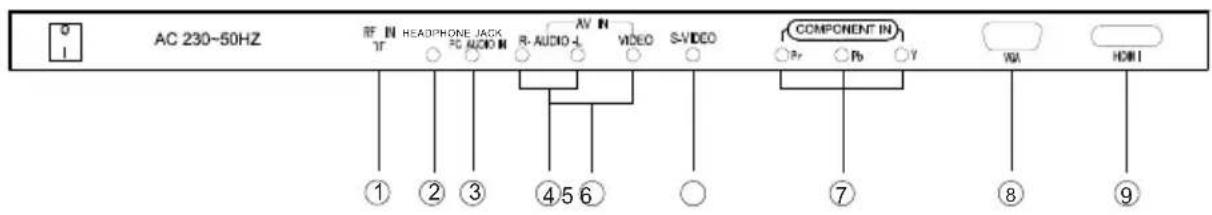

REAR PANEL

AC 230-50HZ RF IN HEADPHONE JACK 17 FC AUDIO IN AV IN R-AUDIO-L VIDEO S-VIDEO COMPONENT IN Pr Pb Y VIA HDMI ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

1. ANTENNA INPUT
2. HEADPHONE JACK

3. VGA-AUDIO INPUT

4. VIDEO AND YPbPr AUDIO INPUT

5. AV INPUT

6. S-VIDEO INPUT

7. YPbPr INPUT

8. VGA INPUT
9. HDMI INPUT

ANTENNACONNECTION

Plug ANT 75Ω Adaptor (NOT SUPPLIED) TWIN-LEAD FEEDER(300Ω) An outdoor antenna An indoor antenna CATV net Loosen the screws Insert the feeder in Wires Tighten the screws

Note:
AerialconnectionsIECfemale: ( ) .
Inputimpendanceunbalanced: 75.

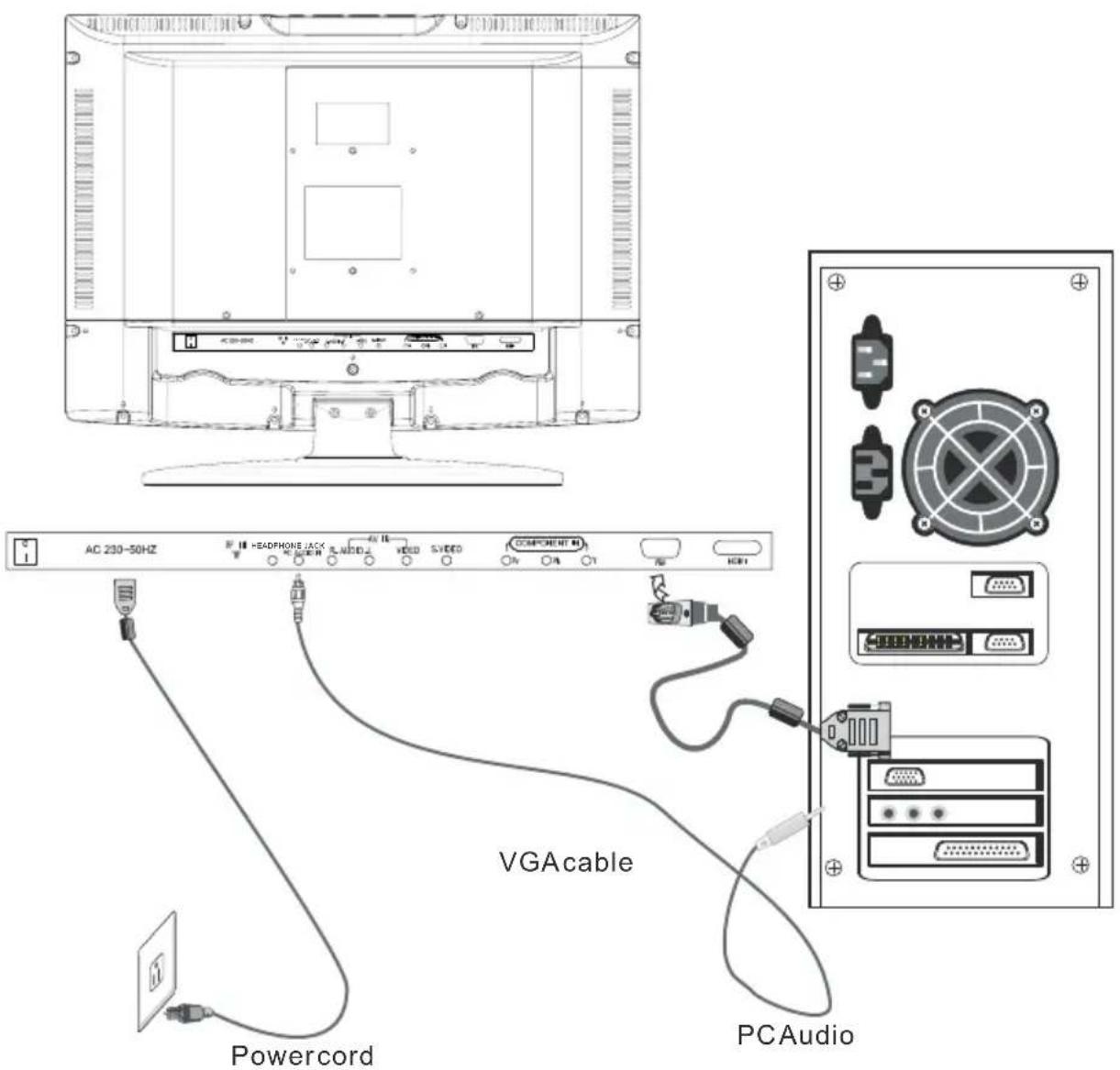

CONNECTINGTOPC

STEPS:

BesureboththeTVandcomputeraresettoPoweroff.

1. . ConnectVGAandaudiocable
2. . Connectthepowercord
3. . . PowerontheTVswitchtheinputsourcetoVGAmode PoweronthePC.

Thissequence is very important.

AC 230-50HZ EADPHONE JACK SWEED COMPONENT M VGAcable Powercord PCAudio

PC PRESET

PRESET MODE(recommended resolution is 1024*768@60Hz)

	RESOLUTION	V.Freq.(Hz) H.Freq.(KHz)
1	720*400	70	31.47
2	640*480	60	31.47
3	800*600	56	35.156
4	800*600	60	37.88
5	800*600	75	46.88
6	800*600	72	48.08
7	1024*768	60	48.36
8	1024*768	70	56.48
9	1024*768	75	60.02

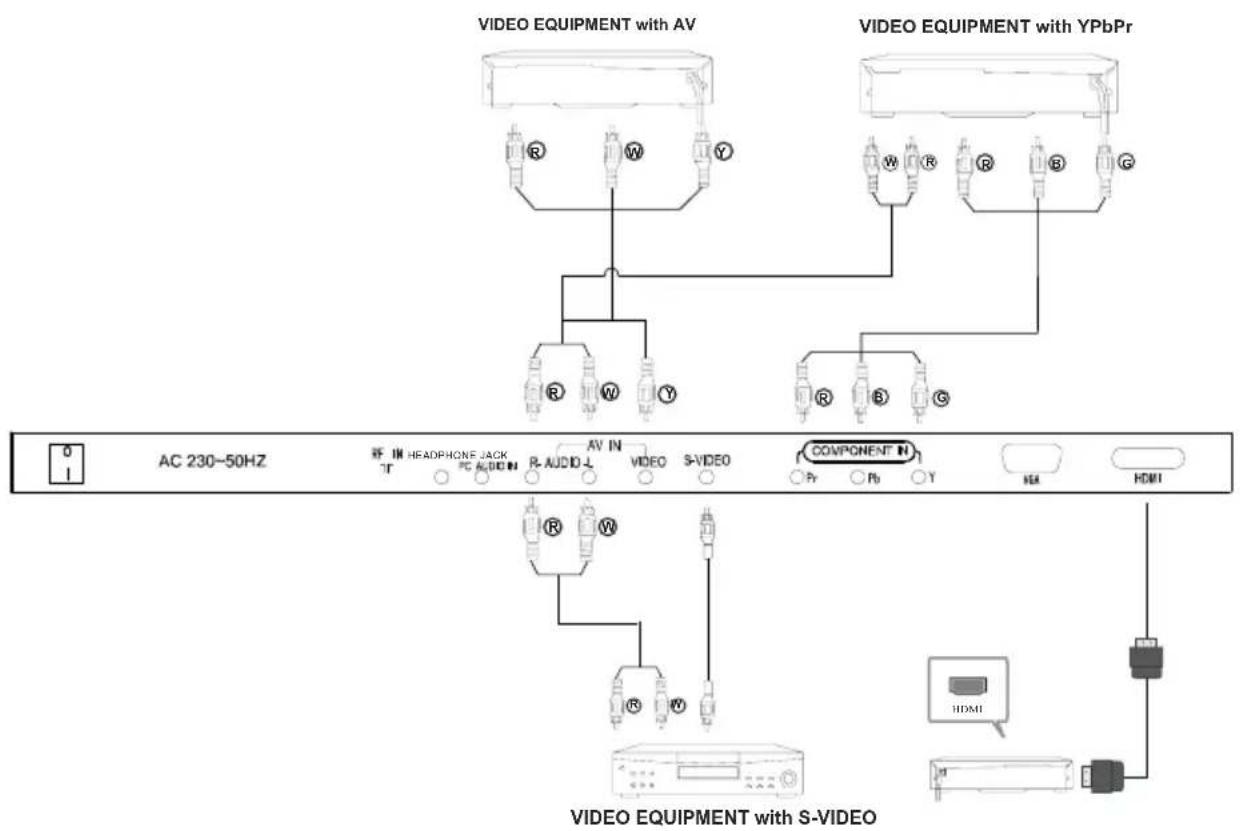

CONNECTING TO AV EQUIPMENTS

This TV provides three groups of AV, two groups of YPbPr for convenient connection to VCR, DVD or other video equipment, and an HDMI for HD signal input.

You can use the input terminals on TV set rear as follows.

VIDEO EQUIPMENT with AV VIDEO EQUIPMENT with YPbPr AC 230-50HZ R W Y R W Y R B G R IN HEADPHONE JACK AV IN T PC AUDIO R AUDIO L VIDEO S-VIDEO COMPONENT IN HUA HDMI R W R W VIDEO EQUIPMENT with S-VIDEO HDMI

It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo system as well as a number of other electronic items.

YPbPr can support these video fomats:480i,576i,480p,576p,720p,1080i,1080p.

BATTERY INSTALLATION

1. Remove the battery cover.
2. Inserting the 2 AAA 1.5V batteries making sure the polarity (+ or -) of the batteries matches the polarity marks inside the unit.
3. Mount the battery cover.

Replace with new batteries when the TV set begins to show the following symptoms: Operation is unsteady or erratic. Sometimes the TV set does not function with Remote Control Unit.

Black cylindrical object with a white cross symbol on its surface (no text or symbols visible)

Close-up of a black remote control switch with internal components and a curved handle (no text or symbols visible)

Remark:

1) Alkaline Battery Recommended.
2) Remove batteries when they are exhausted or if the remote control is not to be used for an extended period of time.

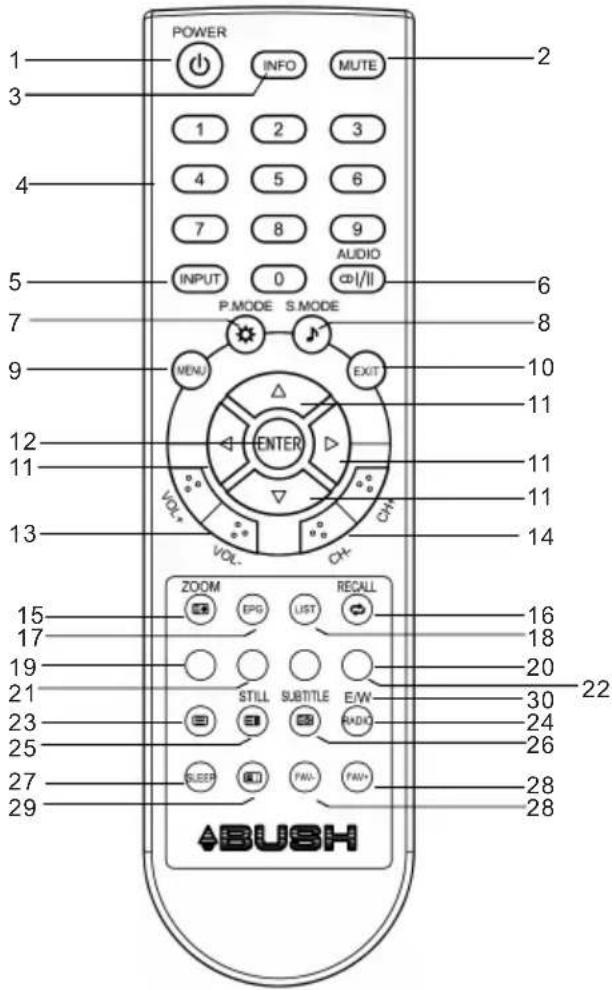

KEYS FUNCTION

POWER INFO MUTE 1 2 3 4 5 6 7 8 9 AUDIO INPUT 0 φI/II P.MODE S.MODE MENU EXIT ENTER VOL-V CH- VOL- CH- ZOOM RECALL EPG UST STILL SUBTITLE E/W RADIO SLEEP FAW ABUSH

9 【MENU】:Press the Menu button to turn on the menu.

10【EXIT】: Press the Exit button to exit the menu.

11 [↑]/[↓]/[←]/[→]: Use the Arrow buttons to navigate the menu.

12【ENTER】:Press the Enter button to select and confirm your desired options.

13 【VOL+/-】: Press the Volume button to adjust the volume level up or down.

14【CH+/-】:Press the Channel button to adjust the channel up or down.

15【ZOOM】:Press the ZOOM button to select different screen sizes and to change size of the Teletext.

16【RECALL】: Press the Recall button to return to the previous program.

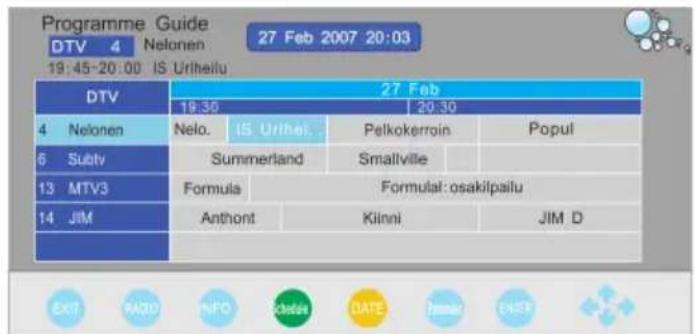

17 EPG: Press the EPG (Electronic Program Guide) button to turn on or off the guide in DTV mode.

18 LIST: Press the List button to view the channel list.

19 Green button: Press the Green button to access the edit option at the lower part of the screen.

20 Blue button: Press the Blue button to access the edit option at the lower part of the screen.

21 Red button: Press the Red button to access the edit option at the lower part of the screen.

22 Yellow button: Press the Yellow button to access the edit option at the lower part of the screen.

23 : Press the Teletext button to view the Teletext menu.

24 RADIO: Press the Radio button to turn the Radio on or off.

25 ≡ : Press the Still button to hold the Teletext page on display to prevent the page from changing.

26【SUBTITLE】: Press the Subtitle button to enter into the subtitle mode or subpage.

27【SLEEP】: Press the Sleep button to set sleep timer on or off.

28【FAV+】/【FAV-】:Press the FAV buttons to select the favourite channels in ascending or descending order.

29 i:Press the Index button to view the index page.

30【E/W】:Press the E/W button to switch between Eastern Europe and Western Europe languages in the teletext menu.

1【↓】: Turns Power On or Off.

2【MUTE】: Turns Sound On or Off.

3【INFO】: Turns Program information menu On or Off.

4【0-9】Number buttons: These buttons are used to select a channel number or to enter your code to unlock your password

5【INPUT】: Press the Input button to select signal source.

6 AUDIO 【∞I/Ⅱ】: This button can be used to switch between Audio options & Audio languages in DTV mode.

7【P. MODE ⚙️ : Press the P.Mode button to select the Picture mode.

8【S.MODE】: Press the S.Mode button to select the Sound mode.

BASIC OPERATION

TURN ON /OFF THE UNIT

1. Connect the TV unit to the power source using the power cord.
2. Turn on the main power switch.
3. When the power indicator is red, the TV is in Standby mode. Press the "button on remote control or on the top panel to turn on the TV. The indicator will now be green. Press the "button again to turn the TV back to standby."
4. To turn off the TV, press①" button on the back of the front panel.
5. The power consumption is less than 1W in Standby mode. Unused for a long time, please disconnect the power cord from the wall outlet.

Note: The TV set can turn off automatically after 5 minutes while there is no signal input.

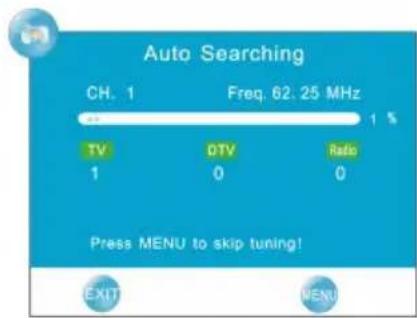

CHANNEL SEARCH

Press the INPUT button on the remote control to select the TV or DTV input mode and press the ENTER button to confirm. If you are using the unit for the first time, an Installation Guide menu will be displayed to guide you through the Channel Scan. Use the remote control to finish Channel Scan.

Channel Channel 1 Sound System | Auto Search ► Manual Search ► Skip Off Edit Enter

Auto Searching CH. 1 Freq: 62.25 MHz 1 % TV DTV Ratio 1 0 0 Press MENU to skip tuning! EXIT MENU

CHANGING THE CHANNEL

Press the CH- or CH+ button to select the previous or next channels or press the 0-9 buttons to enter a channel number directly. Press LIST button to view the channels list and press the buttons to select the desired TV programmes.

CHANGING THE VOLUME

Press the VOL - or VOL + button to adjust the volume level. Press the VOL - button repeatedly to decrease the volume. Press the VOL + button repeatedly to increase the volume.

CHANGING THE PICTURE MODE

Press theP.MODEbutton repeatedly to cycle through the availablepicture modes.

CHANGING THE SOUND MODE

Press the SMODE repeatedly to cycle through the available sound modes.

VIEW CHANNEL INFORAMTION

Press the INFO button to display the preset channel information.

MUTE

Press the Mutter to cut off the sound output, press this button again to resume sound output.

CHANGE INPUT SOURCE

Press the INPUT to trigger the press stance and press the ENTER button to confirm.

TELETEXT

Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language.

Display Teletext

1. Select a TV station with a teletext signal.

2. Press the ☐ button to enter the teletext mode.

3. Press the ☐ button again to enter the Mix mode.

4. Press the ☐ button a third time to exit.

Page selection

1. Enter the page number (three digit) using the number buttons. If you press a wrong number during input, you must complete the three digit number and then re-enter the correct page number.

2. The【↑】/↓】buttons and CH+/CH- keys can be used to select the following page.

Hold

You can press the ☐ button to hold a page and press it again to release the page.

≡i Index

Press the i button to enter the main index page directly.

Enlarging Text

When a page is displayed, you can double the size of the text to make it easier to read.

1. Press the ☐ button to enlarge the top half of the page.

2. Press the ☐ button again to enlarge the bottom half of the page.

3. Press the ☐ button once more to return to the normal display.

Subpage

Some teletext may contain several sub-pages which are automatically paged in a certain cycle by the TV station.

1. You can select a certain subpage by pressing the SUBTITLE button directly and selecting the page number with the NUMBER buttons. Enter the subpage number, e.g.0003 for the third subpage.

2. Press the ☐ button, again to exit the subpage mode.

3. Press the ☐ button to return to the normal TV mode.

Colour buttons(Red, Green, Yellow, Cyan)

Press these buttons when promoted by the on screen Menu. Each colour will correspond with the appropriate option.

Using the Function

Menu overview

Many function settings and adjustments of the LCD TV will begin from the main menu.

Press the 【MENU】button to display the main menu.

【MENU】buttensone[←] / [→] buttons to cycle

through the main menu: Channel, Picture, Sound, Timer, Option and Lock. Press the【↑】/↓ buttons to select the submenu you want. When an item in the MENU is grey, it means that the item is not available or cannot be adjusted.

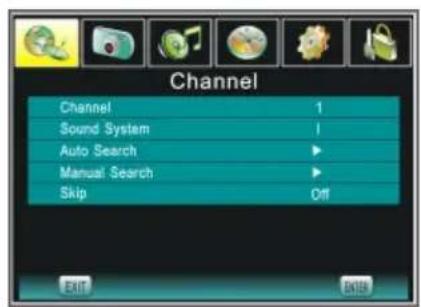

Channel Menu (In TV, DTV mode)

1. Press the MENU button to select the Channel Menu. Press [←] / [→] buttons to cycle through the main menu.
2. Press the [↑] / [↓] buttons to highlight the item to be adjusted.
3. Press the [←] / [→] buttons to adjust the submenu or subitem.
4. When you are satisfied with your adjustment, press the EXIT button to exit the Main Menu.
5. If the channel is locked or Lock System is On, you should enter the password before channel searching.

Channel

To display the current channel number and to adjust it press the

[←] / [→] buttons.

Channel Channel 1 Sound System 1 Auto Search ▶ Manual Search ▶ Skip Off EXIT ENTER

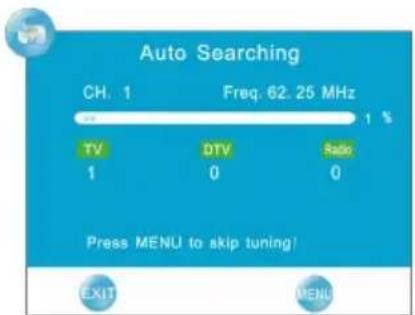

Auto Search

Press the [→] button to start Auto Search. Once the progress bar is full, the found channels will be stored. If you press the MENU button it will skip from TV to DTV searching mode.

Auto Searching CH. 1 Freq: 62.25 MHz 1 % TV DTV Sole 1 0 0 Press MENU to skip tuning! EXIT MENU

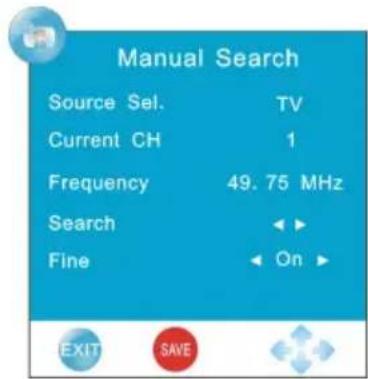

Manual Search

The Manual search option allows you to preset programs one by one. The first Source Sel. is TV, the other one is DTV. Press the RED button to save your program of choice.

Source Sel.: To display the current input source (TV/DTV)

Current CH: To display the channel number.

Frequency: To display the frequency of the program.

Search: To decrease and increase the frequency.

Fine: To adjust the frequency (In TV mode). After adjustment, the current channel number changes to yellow.

NOTE: In DTV mode, when highlighting Current CH or Frequency, the TV will begin DTV Manual Search.

Manual Search Source Sel. TV Current CH 1 Frequency 49.75 MHz Search ◀◀ Fine ◀◀ On ▶ EXIT SAVE

Skip

You can select the skipped program function by pressing the number buttons directly. After adjustment, the current channel number changes to red.

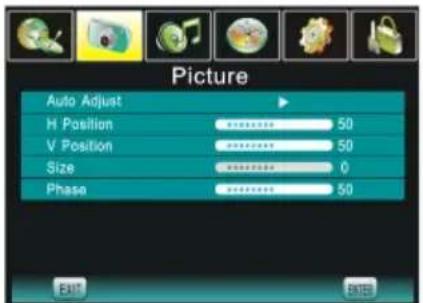

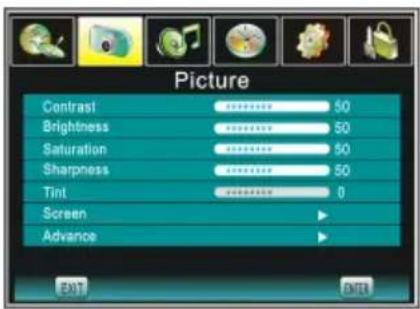

Picture Menu

1. Press the MENU button to select the Picture Menu. Press the [←] / [→] buttons to cycle through the Main Menu.
2. Press the [↑] / [↓] buttons to highlight the item to be adjusted.
3. Press the [←] / [→] buttons to adjust the submenu or subitem.
4. When you are satisfied with your adjustment, press the EXIT button to exit the Main Menu.

Contrast

Press the 【←】/【→】buttons to adjust the contrast of the picture.

Brightness

Press the [←] / [→] buttons to adjust the brightness of the picture.

Saturation

Press the [←] / [→] buttons to adjust the colour saturation.

Sharpness

Press the 【←】/【→】 buttons to adjust the Sharpness level of the picture.

Tint

Press the 【←】/【→】 buttons to adjust the tint of the picture (NTSC)

Screen(In PC-RGB mode)

Auto Adjust : Press the [→]button to adjust the position of the picture automatically.

H Position: Press the [←] / [→] buttons to adjust the horizontal position.

V Position: Press the [←] / [→] buttons to adjust the vertical position.

Size: Press the [←] / [→] buttons to adjust the size of picture.

Phase: Pressthe [←] / [→] buttons to adjust the phase of picture.

Picture Contrast 50 Brightness 50 Saturation 50 Sharpness 50 Tint 0 Screen Advance

Picture Auto Adjust H Position **** 50 V Position **** 50 Size **** 0 Phase **** 50 EXIT ENTER

Advance

ZOOM : Press the [←] / [→] buttons to select the ZOOM mode.

Colour Temp: Press the【←】/【→】buttons to select the Colour Temp mode.

DNR: Provide the picture with dymatic noise reduction treatment.

Picture ZOOM 16:9 Cloour Temp Cool DNR On EXIT ENTER

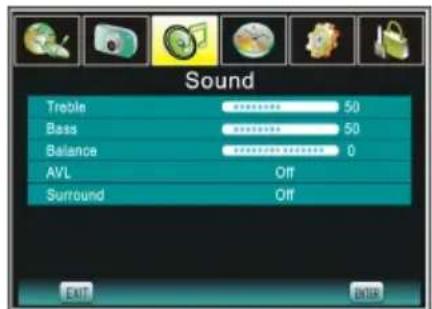

Sound Menu

1. Press the MENU button to select the Sound Menu. Press the 【←】/【→】 buttons to cycle through the Main Menu.
2. Press the 【↑】/【↓】 buttons to highlight the item to be adjusted.
3. Press the [←] / [→] buttons to adjust the submenu or subitem.
4. When you are satisfied with your adjustment, press the EXIT button to exit the Main Menu.

Treble

Press the [←] / [→] buttons to increase and decrease the level of the pitch.

Bass

Press the []/[] buttons to increase and decrease the level of the pitch.

Balance

Press the [←] / [→] buttons to adjust the audio output between left and right speakers.

AVL

AVL(Automatic Volume Control) is used to control the volume automatically.

Sound Treble 50 Bass 50 Balance 0 AVL Off Surround Off EXIT Enter

Surround

Press the 【←】/【→】buttons to switch the surround sound.

Timer Menu

MENU button to select the Timer Menu. Press the Pressthe buttons to cycle through the Main Menu to select it.

1. Press the [↑] / [↓] buttons to highlight the item to be adjusted.
2. Press the [←] / [→] buttons to adjust the submenu or subitem.
3. When you are satisfied with your adjustment, press the EXIT button to exit the Main Menu.

Clock

You can display either the DTV Signal Stream Time or set the System Time.

Off time

Press the [→] button to set the time for the TV to switch off.

On Time

Press the [→] button to set the time for your TV to turn on.

Sleep

Press the [←] / [→] buttons to select the Sleep Time you want.

Summer Time

Press the [←] / [→] buttons to switch the Summer Time on or off.

Time Zone

Press the [←] / [→] buttons to select your time zone.

Timer Clock 01/Jan 13:11 Off Time Off On Time Off Sleep Off Summer Time Off Time Zone London GMT EXIT BASE

Option Menu

MENU buffers to select the Option Menu. Press the [←] / [→] buttons to cycle through the Main Menu.

1. Press the [↑] / [↓] buttons to highlight the item to be adjusted.
2. Press the [←] / [→] buttons to adjust the submenu or subitem.
3. When you are satisfied with your adjustment, press the EXIT button to exit the Main Menu.

Language

Press the 【←】/【→】 buttons to select OSD language

Panel Lock

Press the [←] / [→] buttons to switch the Panel Lock. When the Panel Lock is set to On, all of the buttons are locked. Press any button for more than 5 seconds to release it. When it is set as Off, the buttons of TV are in normal mode.

Option Language English Panel Lock Off System Default Advance EXIT EXIT

System

Press the [→] button to display the System Information: Software Information and Signal Information (Signal Information only in DTV mode).

Default

Press the [→] button to clear all programs or reset default setting.

Clear All Programm:Press the [→] button to clear all programs or information.

Factory Setting: Press the [→] button to restore factory setting.

NOTE: Lock Setting and Hotel Setting can't be restored.

Default Clear All Program Factory Setting EXIT ENTER

Advance

Audio Language: Press the [←] / [→] buttons to set the default Audio Language.

Subtitle Language: Press the [←] / [→] buttons to set the default Subtitle Language.

Hearing Impaired: When hearing impaired is ON, the TV screen will turn on the subtitles and turn off when the functions is off.

Option Audio Language English Subtitle Language English Hearing Impaired Off EPG List

EPG (In DTV mode)

This function gives you detailed information about the channel you are watching, indicating the time of the program playing. From the EPG it is possible to check the program information for the next eight days (If the information is available from the broadcaster .)

ENTER: Press the ENTER button to change channel.

RADIO: Press the RADIO button to switch between RADIO and DTV.

INFO: Press the INFO button to see the detailed information of the current channel.

Schedule: Press the GREEN button to see the schedule information.

DATE: Press the YELLOW button to see the detailed information of the next eight days, and you can press the [←] / [→] buttons to select the date information.

ReminderPress the BLUE button to book a program.

Programme Guide DTV 4 Nelonen 27 Feb 2007 20:03 19:45-20:00 IS Urihelu DTV 27 Feb 19:30 20:30 4 Nelonen Nelo. IS Urihel. Pelkokerroin Popul 6 Subtv Summerland Smallville 13 MTV3 Formula Formula: osakilpailu 14 JIM Anthont Kiinni JIM D EXIT ARDO INFO Sodav DATE Jaman ENER

List (In TV/DTV mode)

Press the [→] button to display the Channel List picture. The list of programs will include all TV, DTV and Radio. When you press the [↑] / [↓] buttons to change programs, the signal quality, singal strength, frequency will display on screen.

(Only frequency in TV mode.)

DELETE: Press the RED button to delete a channel.

FAV: Press the GREEN button to set a channel as your favorite channel.

MOVE: Press the YELLOW button to move the position of the channel (In TV mode).

ChannelList el. TV DTV Radio TV 1 S-02 TV 2 C-42 TV 3 C-44 Frequency 85.25MHz EXIT DELETE FAV MOVE ENTER

Lock Menu

1. Press the MENU button to select the Lock Menu. Press the [←] / [→] buttons to cycle through the Main Menu. The default password is "0000".
2. Press the 【↓】 button to enter password menu, then input the password to enter the Lock Menu.
3. Press the [↑] /↓ buttons to highlight the item to be adjusted.
4. Press the 【←】 / 【→】 buttons to adjust the submenu or subitem.
5. When you are satisfied with your adjustment, press the EXIT button to exit the Main Menu.

Lock Lock System Off Set Password ► Program Blocked ► Parent Lock Off

※ If you forget your private password, the super password is "1225", this will always unlock your TV.

Press the NUMBER buttons on the remote control to set the new password. When the new password has been input twice, the password is set. The TV will go back to the previous menu.

Set Password

Press the 【→】 button to see the Set Password submenu. Press the NUMBER buttons to enter the new password.

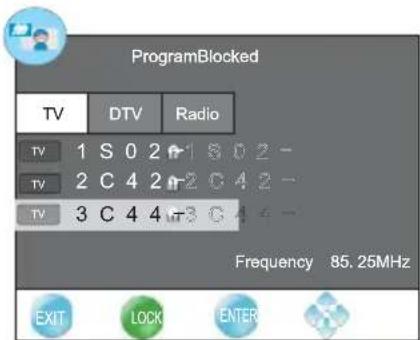

Program Blocked (In TV, DTV mode)

Press the GREEN button to lock the available program you want. Press the GREEN button again to unlock it.

ProgramBlocked TV DTV Radio TV 1 S 0 2 1 S 0 2 - TV 2 C 4 2 2 C 4 2 - TV 3 C 4 4 3 C 4 4 - Frequency 85.25MHz EXIT LOCK ENTER

Parent Lock (In DTV mode)

You can rate and lock programmes based on the censor age ratings.

NOTE: When you select "default factory settings" the Lock Setting won't change.

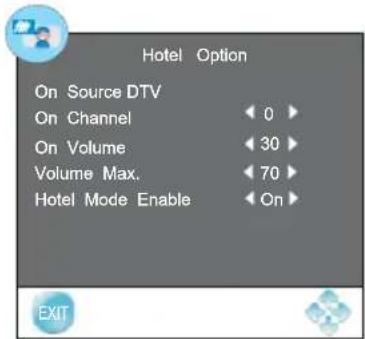

Hotel Mode

Press the INPUT button to display the Source Menu, then press → 1 → 4 → 7 → 0 in turn to enter into the Hotel Mode to adjust the relative settings.

On Source

Set the default signal source by pressing the 【←】 or 【→】 buttons. (The default signal source will be displayed when the TV turns on.) Optional signal sources are as follows: DTV, TV, Component, PC-RGB, HDMI, AV, S-Video.

On Channel

Set the default channel by pressing the [←] /* buttons (The default channel will be displayed when the TV turns on).

Hotel Option On Source DTV On Channel 0 On Volume 30 Volume Max. 70 Hotel Mode Enable On

On Volume

Set the default volume by pressing the [←] button (The default volume is the volume when the TV turns on. Remember the default volume should be less than the maximum volume).

Volume Max.

Set max volume by pressing the [←] +×] buttons. When the max volume is lower than the default volume, the max volume is the priority.

Hotel Mode Enable

Set the hotel mode ON/OFF by pressing the [←] / [→] buttons. When it is "ON" and switch off at the AC power supply, the hotel mode is enabled. The TV will automatically enter into hotel mode when turns on next time.

NOTE:

When "HOTEL MODE" is "ON", the tuning and list function is locked.

When you select "default factory setting" the Hotel Setting won't change.

Problem			Check
Picture Audio
	Snow Noise		Check the Antenna position, direction and connection
	Ghost	Normal audio	Check the Antenna position, direction and connection
	Interference	Noise	Check the Antenna connection Check for electrical interference, by moving other electrical products away from the TV.
	Normal Picture	Mute	Check if the Mute function is on Check the volume level Check the audio connections
	No picture Mut		Check the main power is on Check the system connections are correct and connected firmly.
	No colour Nor		Check the contrast, brightness and colour settings
	Picture breaking up	Normal audio or weak	Check the antenna connection Check the cable connection

LCD:
ViewIng Picture Size(diagonal)	22"
Resolution	1366x768
Aspect Ratio	16:9
Display colours	16.7M
Brightness	400 CD/M2
Contrast ratio	1000:1
Response time	5 ms
View angle	170(H)/160(V)
TV:
TV system	Digital TV: DVB-TAnalog TV: PAL
DVB-T decode	Audio: MPEG2 Audio Layer I&IVideo: MPEG2 Transport MP@HL
DVB-T de-modulation	Demodulator: COFDMOFDM Mod.: 2K, 8K FFT, SFN and MFNPacked Carries: 2K/8KGuard Interval: 1/4, 1/8, 1/16, 1/32
Terminals:
RF IN Input	1
ear phone Input	1
VGA-audio Input	1
AV Input	1
S-VIDEO Input	1
Y Pb Pr Input	1
Analog RGB(VGA) Input	1
HDMI Input	1
Others:
Input Power Voltage	100V-240V~ 50/60Hz
Power consumption	60W
Audio Output Power (THD≤7%)	2x2W

NOTE: The specification shown above may be changed without prior notice for quality improvement.

Please keep your receipt as proof of purchase. This product is warranted for any defect in materials or workmanship for one year after purchase. This product is for normal domestic and office use only. This warranty does not cover damage from misuse or neglect, accidental damage, vermin infestation, excessive voltages such as lightning or power surges or any alteration that affects the performance or reliability of the product.

In the unlikely event that your product fails to work normally, please contact tBush Warranty on 1800 509 394 (Australia) or 0800 450 259 (New Zealand) and have your receipt of purchase on hand.

This warranty is subject to the following provisions:

• It is only valid within boundaries of the country of purchase.
• The product must be correctly assembled and operated in accordance with the instructions contained in the manual.
• This product must be used solely for domestic purposes.
• The warranty does not cover accidental damage.
• The warranty will be rendered invalid if the product is resold or has been damaged by inexpert repair.
• The manufacturer disclaims any liability for incidental or consequential damaged.

This warranty is in addition to, and does not diminish, your statutory or legal rights.

PO BOX 6287

Silverwater NSW 1811

www.bushaustralia.com.au

Bush Warranty: 1800 509 394 Australia

Bush Warranty: 0800 450 259 New Zealand

PO BOX 6287

Silverwater NSW 1811

www.bushaustralia.com.au
