Product Type Meat Grinder
Brand Zelmer
Model ZMM5548W
Power Consumption 500 W
Voltage 220-240 V ~ 50/60 Hz
Dimensions (L x W x H) 30 x 20 x 30 cm
Weight 3.5 kg
Capacity 1.5 kg/min
Cutting Plate Diameter 50 mm
Functions Grinding, Mincing
Speed Settings 1 speed
Reverse Function Yes
Accessories 3 cutting plates (fine, medium, coarse), sausage filler, kibbe attachment
Material Stainless steel blade and housing
Safety Features Overload protection, non-slip feet
Cord Length 1.2 m
Dishwasher Safe Parts Removable parts (hopper, tray, plates) are dishwasher safe
Warranty 2 years
Included Items Meat grinder, accessories, user manual
Color White

Frequently Asked Questions - ZMM5548W Zelmer

Can I grind bones with this meat grinder?
It is not recommended to grind hard bones as it can damage the blade and motor. Use only for boneless meat.
How do I clean the meat grinder?
Disassemble the grinder and wash removable parts with warm soapy water; they are dishwasher safe. Wipe the motor base with a damp cloth. Dry all parts thoroughly before storing.
Why does the motor overheat?
Overheating can occur if you run the grinder continuously for more than 10 minutes or if the meat is too fibrous. Allow the motor to cool for 5-10 minutes between uses.
Can I use the grinder for vegetables or fruits?
This appliance is designed for meat only. Using it for vegetables or fruits may cause clogging and damage.
How to assemble the meat grinder?
Place the housing on the motor base, insert the spiral screw, then attach the cutting plate and blade. Secure the ring nut and place the hopper on top.
What is the maximum continuous runtime?
Do not run the grinder for more than 10 minutes continuously. After that, let it cool for 10 minutes before resuming.
Where can I find replacement parts?
Replacement parts can be ordered from Zelmer authorized service centers or online retailers. Common parts include cutting plates, blades, and the spiral screw.
Is the grinder BPA free?
All parts that come into contact with food are made of stainless steel and BPA-free plastic. It is safe for food use.
Can I put the entire motor base in the dishwasher?
No, only the removable parts (hopper, tray, cutting plates, blade) are dishwasher safe. The motor base must be cleaned with a damp cloth only.
How do I adjust the grind size?
Swap the cutting plate to change grind size: fine for pâtés, medium for burgers, coarse for sausages. Ensure the blade is properly aligned.

User questions about ZMM5548W Zelmer

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Meat Grinder in PDF format for free! Find your manual ZMM5548W - Zelmer and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ZMM5548W by Zelmer.

USER MANUAL ZMM5548W Zelmer

natural_image White electrician meat maker with a side blade and control panel, no visible text or symbols on the device itself.

PLF iNSTRUKCJA UŻYTKOWANIA MASZYNKA DO MIELENIA 7–13
EN USER MANUAL MEAT MINCER 14–19
DE BEDIENUNGSANLEITUNG FLEISCHWOLF 20–26
RO INSTRUCTIUNI DE UTILIZARE DISPOZITV PENTRU TOCAT 27-33

ИНСТРУКЦИЯ ЗА УПОТРЕБА МАШИНКА ЗА МЕЛЕНЕ 34–40
RU ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ МЯСОРУБКА 41-47
UA ІНСТРУКЦІЯ З ВИКОРИСТАННЯ М'ЯСОРУБКА 48–54

ZMM55...

MASZYNKA DO MIELENIA meat mincer

zelmer

Multifunction meat mincer.

Zelmer ZMM5548W - zelmer - 1

natural_image Black-and-white photo of a Zeimer brand electric shaver with food items on plates (no visible text or symbols)

A
Exploded view diagram of a kitchen appliance with numbered parts for identification and assembly.

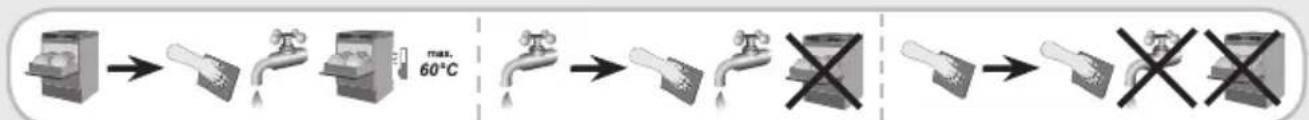

max. 60°C → → × → ×

B

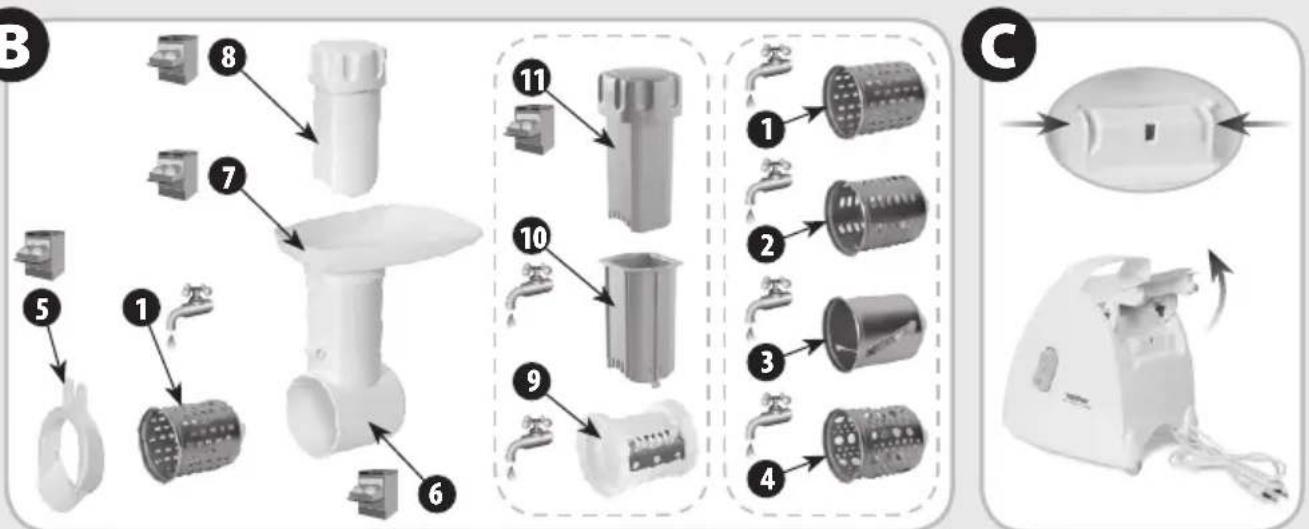

Diagram illustrating the assembly steps of a kitchen brush, showing numbered parts and final product view.

D
D ⑫23

Zelmer ZMM5548W - zelmer - 6

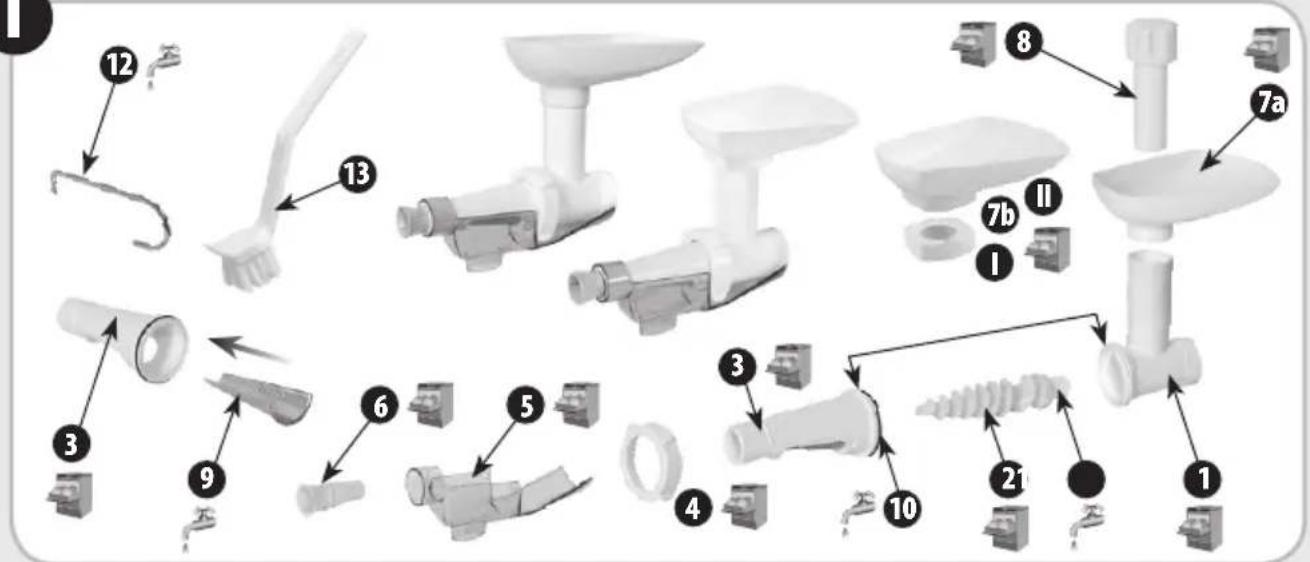

I
Exploded view diagram of a food kitchen with numbered parts for identification and assembly.

J
Zelmer ZMM5548W - zelmer - 8

natural_image Close-up of a mechanical component with threaded shaft and housing, showing directional arrows (no text or symbols)

Zelmer ZMM5548W - zelmer - 9

natural_image Close-up of a hand holding a mechanical component with a close-up inset showing a cable being inserted (no text or symbols visible)

Zelmer ZMM5548W - zelmer - 10

natural_image Close-up of hands using a handheld tool to interact with a white plastic device (no visible text or symbols)

Zelmer ZMM5548W - zelmer - 11

natural_image Close-up of hands applying adhesive to a white cylindrical object, with an inset magnified view showing the same object (no text or symbols visible)

Zelmer ZMM5548W - zelmer - 12

natural_image Close-up of hands performing a massage or pressure technique on a white plastic pipe (no text or symbols visible)

Zelmer ZMM5548W - zelmer - 13

natural_image Close-up of hands performing a finger massage on a pipe fitting (no text or symbols visible)

Zelmer ZMM5548W - zelmer - 14

natural_image Hand inserting a device into a device with a magnified inset showing the device's internal structure (no text or symbols visible)

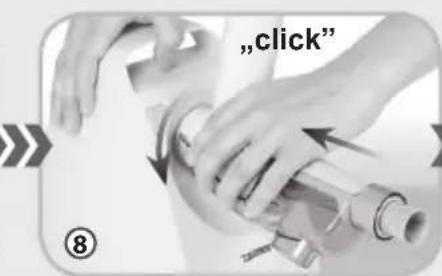

"click" ⑧

Zelmer ZMM5548W - zelmer - 16

natural_image Medical procedure images showing hand placement and movement of a device (no text or symbols)

Zelmer ZMM5548W - zelmer - 17

natural_image Person pouring liquid into a white cup and another small bowl, with page number 101112 in corner (no text or symbols on main subject)

Zelmer ZMM5548W - zelmer - 18

natural_image Hand holding a tool with a pen, next to a small bowl and an electrical outlet (no text or symbols visible)

Zelmer ZMM5548W - zelmer - 19

natural_image Person using a handheld device to interact with a white object, no visible text or symbols

K
Zelmer ZMM5548W - zelmer - 20

natural_image Two-step robotic arm manipulation diagram showing hand positioning and tool movement (no text or symbols)

"click"

Zelmer ZMM5548W - zelmer - 22

natural_image Illustration of a robotic device with hands performing a press or handling operation (no text or symbols visible)

L
STOP 1 2 3 8 9 76

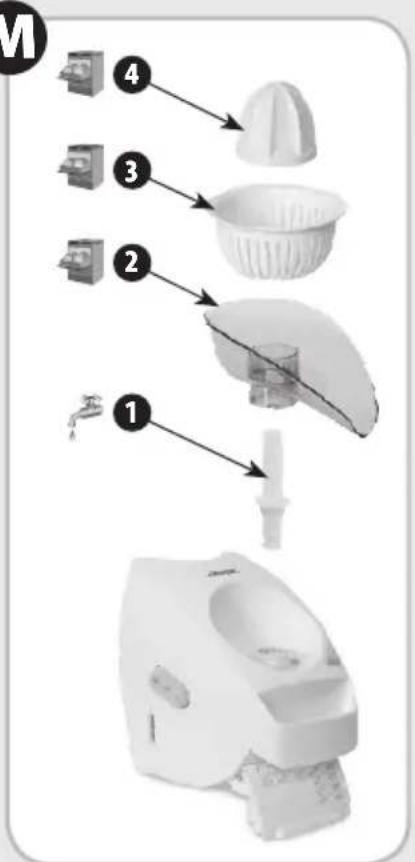

M
Exploded view diagram of a medical device with numbered parts and labeled parts in Chinese

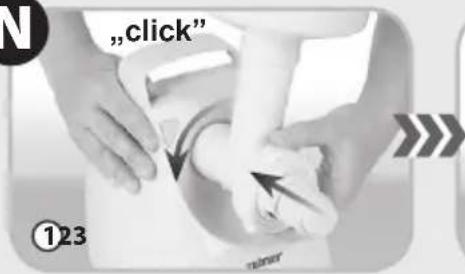

N
"click" ①23

Zelmer ZMM5548W - zelmer - 26

natural_image Hand pouring dark granular substance into a white container with small particles (no text or symbols visible)

Zelmer ZMM5548W - zelmer - 27

natural_image Close-up of hands holding a white pipe fitting with a black arrow indicating rotation (no text or symbols visible)

Zelmer ZMM5548W - zelmer - 28

natural_image Close-up of hands performing a medical procedure on a white object, with no visible text or symbols.

Zelmer ZMM5548W - zelmer - 29

natural_image White electric shaver with powder being poured into a bowl (no visible text or symbols)

zeimer

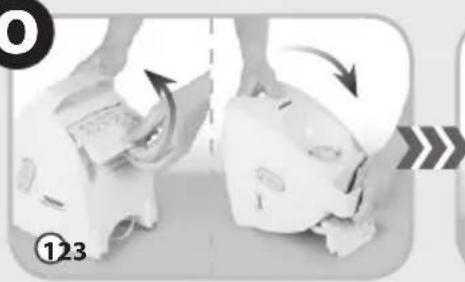

0
Zelmer ZMM5548W - zelmer - 31

natural_image Two-step illustration of a person performing a medical procedure on a device, showing hand placement and motion arrows (no text or symbols)

Zelmer ZMM5548W - zelmer - 32

natural_image Close-up of hands performing a medical procedure on a white object (no visible text or symbols)

"click"

Zelmer ZMM5548W - zelmer - 34

natural_image Two-step illustration of hands using a cleaning or cleaning tool on a device, showing step 456 (no text or symbols)

Zelmer ZMM5548W - zelmer - 35

natural_image Close-up of a hand holding a white object with a curved line and a small inset image (no text or symbols visible)

Zelmer ZMM5548W - zelmer - 36

natural_image Close-up of a hand using a kitchen knife to cut a bowl of food (no text or symbols visible)

PL

Szanowni Klienci!

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

Please read this user manual carefully. Pay special attention to important safety instructions. Keep this user manual for future reference.

Safety instructions and instructions concerning the proper use of the appliance

Before starting to use the appliance, become familiar with the whole content of this user manual.

Make sure that you understand the instructions given below.

Zelmer ZMM5548W - Safety instructions and instructions concerning the proper use of the appliance - 1

DANGER! / WARNING! Risk of injury

- Do not operate the appliance when the power cord is damaged or the housing shows visible damage.

- If the non-detachable power cord is damaged, it should be replaced by the manufacturer or at specialist service centre or by a qualified person in order to avoid any hazards.

- The appliance may only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case of defects contact ZELMER specialist service centre.

- Take special care when operating the appliance in the presence of children.

- Turn off and unplug the appliance before replacing accessories or approaching its movable parts.

• Always unplug the appliance from the electrical outlet when it is left unattended and before assembling, disassembling and cleaning.

  • This product is not intended for use by children. Keep the appliance and the power cable out of reach of children.
  • Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance.

  • The appliance must only be used with the feeder tray.
  • Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Zelmer ZMM5548W - DANGER! / WARNING! Risk of injury - 1

WARNING! Risk of property damage

Do not disconnect the plug from the socket by pulling the power cord.
Always plug the appliance to the mains (AC only) with voltage corresponding to that indicated on the rating plate.
Do not expose the appliance to temperatures above 60°C. The appliance can be damaged.
Use the pusher only when pushing the food. Using objects other than the pusher may cause damage to the mincer and the motor.
Do not overload the appliance with too much product or by pushing too hard with the pusher.
Carefully assemble the mincer unit, as the improper assembly results in poor mincing quality and may cause the knife and the screen to blunt. Replace the blunt cutter or screen with the new ones.
Do not obstruct the ventilation openings in the housing during operation.
Do not place the appliance on a soft surface.
Do not immerse the appliance drive unit in water and do not wash it under running water.
Do not wash accessories when mounted on the drive unit. Do not use abrasive cleaning agents such as emulsions, creams, pastes, etc. for cleaning the appliance housing. They may remove graphical symbols, such as scales, markings, warning signs, etc.

Zelmer ZMM5548W - WARNING! Risk of property damage - 1

Information on the product and hints on its use

Unplug the appliance after you finish using it. Put away the cord, pushing it gently through the opening and place the plug in the compartment.

If the appliance cannot be switched on, bring it to a service centre.

Separate the meat to be minced from bones, sinews, gristles and veins.

Cut large portions of the product into smaller pieces before mincing.

Do not grind dry poppy seed. The poppy seed must be scalded and soaked for dozen or so hours before mincing.

Use a soft brush for cleaning the metal parts.

Do not wash the metal parts in dishwashers. Abrasive detergents used in dishwashers may cause the metal parts to become dark. Wash them manually using traditional washing-up liquids.

TYPES OF ZELMER MINCERS

VIBAccessories
Mincing unit Citrus juicer ShredderVegetable cube cutterJuicer Querngrinder
ZMM5580*● ● ● ○ ● ●
ZMM5548*● ○ ● ○ ○ ○
ZMM5588*● ○ ○ ○ ○ ○
ZMM5598*● ○ ● ● ○ ○
*appliance colour, ● - basic accessories, ○ - additional equipment, which you can buy in shops, — - unavailable accessories

Technical parameters

The technical parameters are indicated on the rating label.

Permissible duration of uninterrupted operation 15 minutes.

Break before the next use 30 minutes.

Noise level ( L_WA ) 77 dB/A.

MBP – Motor Blocked Power 2000 W

Description

Zelmer ZMM5548W - Description - 1

The food mincer consists of:

1 Mincer motor – each motor is adapted to install each ZELMER mincing unit, citrus juicer, juicer, coffee grinder and shredder.

1a On/Off button

1b „Reverse“ switch

1c Lock button

The mincer unit consists of:

2 Mincer body

3 Scroll with clutch

4 Double-side cutter

5 Mincer screen with 4 mm openings

6 Ring nut

7a Food tray

7b I Adaptor

II Shredder bowl

(the mincer may be equipped with one set of bowls or 7b)

Zelmer ZMM5548W - Description - 2

8 Pusher

And additional accessories:

9 Base plate
10 Sausage filler nozzle
11 Mincer screen with 8 mm openings
12 Mincer screen with 2,7 mm openings

Mechanical safety device for the motor

Zelmer ZMM5548W - Mechanical safety device for the motor - 1

13 Scroll

14 Clutch

15 Screw M4x20

The mincer is equipped with a mechanical safeguard, which protects the motor against damage – the teeth in the clutch break when the mincer is overloaded (e.g. when bones get inside).

Replace the damaged clutch:

twist off the screw (15) from the scroll with the damaged clutch,
remove the damaged clutch (14),
attach the new clutch and tighten it with the screw (15).

"Reverse" function

The motor has a special function allowing to temporarily change the direction of the scroll. It is used if mincing is limited and/or if there is too much product in the mincer body (the scroll does not take the product). Press the „R” switch for a short period of time, the product will be removed from the inside of the mincer body. Press the „I” button once again to continue operation.

If the scroll is still blocked by the excess of product, use the „R” switch once again, remove the product from the mincer body and next remove product parts which make it difficult to mince (e.g. sinews, etc.).

In some cases it is necessary to dismantle the mincer body and remove the above-mentioned obstacles.

Working with the mincer unit

Zelmer ZMM5548W - Working with the mincer unit - 1

Insert the following parts into the mincer body (2):

① Insert the scroll (3) with the coupling facing inside.
② Fit the knife (4) onto the pin of the scroll (3).
③ Place the screen (e.g. 5) over the knife so that the protrusion in the mincer body will fit into the groove in the circumference of the screen.
④ Tightly fit all the elements of the mincer unit.
⑤ Fit the assembled mincer unit onto the drive unit (1) and turn it until you hear a click of the lock. It means that the body has been properly installed.
⑥a Place the tray (7a) on the mincer body (2).
6h Insert the adaptor ① into the bowl ⑪. Mount the bowl and the adaptor (7b) on the mincing chamber (2).

Preparing the appliance for operation and switching on the appliance

Zelmer ZMM5548W - Preparing the appliance for operation and switching on the appliance - 1

Take out a sufficient length of the supply cord and the appropriate accessories from the compartment.

① Place the motor (1) near the socket, on a hard, stable surface. Do not cover the ventilation openings of the housing.
Open the compartment on the back of the housing and take out an appropriate screen (Fig. C).

A screen with 4 mm openings is installed in the mincer body as a standard.

Wash all accessories thoroughly before the initial use. Assemble the appropriate accessories and install them on the motor.

② Plug in the appliance.
③ Switch on the appliance using the „I” switch (1a) (the appliance starts to operate after about 2 seconds).

Operation with the sausage filler nozzle

Zelmer ZMM5548W - Operation with the sausage filler nozzle - 1

Insert the following parts into the mincer body (2):

① Insert the scroll (3) with the coupling facing inside.
② Fit the insert (9) onto the pin of the scroll (3).
③ Fit the sausage stuffing tube (10).
④ Tightly fit all the elements with the threaded ring (6).
⑤ Fit the assembled mincer unit onto the drive unit (1) and turn it until you hear a click of the lock.
⑥a Place the tray (7a) on the mincer body (2).
⑥ Insert the adaptor ① into the bowl ⑪. Mount the bowl and the adaptor (7b) on the mincing chamber (2).

Soak the casing for about 10 minutes before fitting.

Fit the wet casing on the sausage filler nozzle.

Make sure the not to block the ventilation openings on the nozzle.

The meat cannot be „too thin”. A large liquid content may cause its leakage to the inside of the mincer.

Juicer

Zelmer ZMM5548W - Juicer - 1

The juice squeezer is an equipment included to some types of mincers. It allows to squeeze juice from fruits such as: raspberries, currants, strawberries, gooseberry and additionally from grapes and tomatoes. Berry fruits such as currants can be squeezed with stalks. Fruits with large stones for example plums, cherries etc can be squeezed in the appliance after removing the stones.

Appliance elements:

1 Chamber
2 Worm
3 Body
4 Nut
5 Juice channel
6 Adjusting screw
7a Food tray
7b I Adaptor
II Shredder bowl

(the mincer may be equipped with one set of bowls or 7b)

Zelmer ZMM5548W - Juicer - 2

8 Pusher (from the mincer unit)

9 Screen - 2 pieces

No. 1 – smaller openings

No. 2 – larger openings

10 Large sealing ring for the body (3)

11 Small sealing ring for the worm (2)

12 Hook

13 Brush

Zelmer ZMM5548W - Juicer - 3

Use only the pusher to push fruits (8).

① Make sure that the sealing rings (10) and (11) are fitted onto the body (3) and the worm (2). If not, insert them into the sealing grooves in these elements (the body and the worm).
② Insert the screen (9) into the body (3) and press firmly home.

In order to remove the sieve (9) out of the body (3), it is helpful to use the hook (12). Put the shorter end of the hook (12) into the hole of the sieve (9), and pull the sieve (9) outside.

③ Insert the worm (2) into the chamber (1).
④ Insert the body with the screen onto the worm making sure that the sieve faces downwards, and the positioning slot fits into the protrusion in the chamber.
⑤ Screw on the nut (4) to attach the body to the chamber (1).
⑥ Screw the adjusting screw (6) into the body (3).
⑦ Slide the juice channel (5) over the adjusting screw until it snaps on the body (3) – “click”.
⑧ Attach the assembled juicer to the drive unit in the same way as the mincer body.
⑨a Insert the bowl (7a) and the pusher (8) – from the mincer unit – onto the feeding tube.
9h Insert the adaptor ① into the bowl ⑪. Insert the bowl (7b) and the pusher (8) – from the mincer unit – onto the feeding tube.
10 Place the appropriate dishes for the juice and pomace under the outlet of the juice channel (5) and the adjusting screw (6).
⑪ Plug in the appliance.
⑫ Turn the appliance on by means of the switch button (1a), and then feed the fruit, pushing with the pusher.

In order for the juice squeezing process to run properly do not screw the adjustment screw too deeply in the initial operation phase. After assessing the amount of juice in the processed fruits, adjust the screw in order to obtain an adequate effectiveness and to avoid clogging the appliance.

Observe the pomace dryness during squeezing. If it is too dry, unscrew the adjusting screw (6), to avoid clogging the appliance with the pomace.

The screw adjustment depends on the type of processed fruits, in case of juicy and ripe fruits adjust the screw deeper, and for fruits that are not as juicy, the level of screw adjustment should be lower.

If the screw adjustment does not provide an adequate squeezing effectiveness, you can process the pomace once again.

The clogging of the chamber outlet (in the adjustment screw (6)) with the pomace of juicy fruits can cause the flooding of the drive unit.

Unplug the appliance if the chamber outlet becomes clogged. Pay special attention on the juice squeezing process, make sure the screen openings are not clogged. Disconnect the juicer from the drive unit (as in the case of the mincer body), dismantle the juicer, clean (wash) the juicer elements. Use the included brush to clean the appliance, especially the screen.

Shredder with vegetable cutter

Zelmer ZMM5548W - Shredder with vegetable cutter - 1

1 Fine grating disc
2 Coarse grating disc
3 Slicing disc
4 Pureeing disc
5 Locking tab
6 Body
7 Tray
8 Pusher

Zelmer ZMM5548W - Shredder with vegetable cutter - 2

Remove the adaptor when using the shredder.

The shredder is equipped with two grating discs for fine (1) and coarse (2) grates (cheese, carrot, celery, cooked beetroots etc.). The slicing disc (3) is used to slice vegetables (potatoes, cucumbers, onions, etc.). The purée disc (4) is used to purée potatoes, beetroots, fruits, etc.

9 Drum
10 Dicing insert
11 Pusher

The vegetable cube cutter is the shredder's additional accessory. It is used for dicing cooked vegetables, such as potatoes, beetroots, carrots, celery, parsley, etc. Cook all vegetables before dicing. When cooked, cut large vegetables into smaller pieces so that they fit into the dicing insert (10).

WORKING WITH THE SHREDDER

Zelmer ZMM5548W - WORKING WITH THE SHREDDER - 1

① Pull the locking tab (5) and place one of the discs with the clutch facing the inside of the body.
② Snap the tab shut (5).
③ Assemble the shredder body (6) in the same way as the mincer body.
Cut larger products into pieces.
Do not grind soft fruits with hard stones.
Switch off and unplug the appliance after operation.
Remove the remaining products from the inside of the disc or body using a wooden spoon.

Zelmer ZMM5548W - WORKING WITH THE SHREDDER - 2

blades of the discs do to require renovation.

Zelmer ZMM5548W - blades of the discs do to require renovation. - 1

The blades of the cube cutter drum are extremely sharp. Handle carefully.

① Release the locking tab (5) and fit the drum (9) with the coupling facing the inside of the body.
Snap the locking tab.
② Fit the shredder body onto the mincer drive and turn until it clicks into place.
③ Fit the feed tray (7) and the dicing insert (10).

Guide the vegetables through the feed tube using the pusher (11).

The pusher (11) is intended for use only with the dicing insert. Never use the pusher (11) without the dicing insert (10) placed on the body (6).

Cut large products into smaller pieces that can easily fit into the dicing insert (10).

When finished, turn off and unplug the appliance.

Remove any food remaining in the drum or dicing insert using a wooden spoon.

Disassemble the cube cutter.

To remove the dicing insert (10) first pull out the feed tray (7).

Never use the appliance for dicing any raw vegetables.

If the products are too soft (overcooked), they may not be diced as well as intended.

Quern grinder

Zelmer ZMM5548W - Quern grinder - 1

1 Nut
2 Quern regulator
3 Body with handle
4 Internal quern
5 External quern
6 Worm
7 Grinder chamber
8 Pan
9 The groove of the body has to hit the protrusion of the grind chamber

DEVICE DESCRIPTION

Presented device can be used to grinding such products as: corns, oily seeds and the dry comestibles.

The quern grinder enables grinding of such products as: wheat, oat, rice, granular coffee, all-spice, charlock, walnuts, hazelnuts dried mushrooms, almonds, soya. linseed, buckwheat groats, peeled sunflower seeds etc.

Don't grind the oily products by the minimal granulation set up. Grinding device can be glued or blocked.

Device is not dedicated for grinding the very hard products as f. e. dried pea, maize, popcorn.

THE INSTALLATION OF THE GRINDER ON THE DEVICE

Zelmer ZMM5548W - THE INSTALLATION OF THE GRINDER ON THE DEVICE - 1

① When the grinder chamber is turned right through the angle of 45, put the assembled grinder on the drive by putting the protrusions of grinder chamber (VII) on the recesses of the drive, and then, turn left to the position in which you will hear "clicking" of the blocking. It means that the grinder has been assembled correctly.

USAGE AND REGULATION OF THE GRINDER

Zelmer ZMM5548W - USAGE AND REGULATION OF THE GRINDER - 1

Before the first use, wash (see "CLEANING") and dry a disassembled grinder, and then grind around 50 grams of product (f. e. corns) - set-up the grinding option of the device with the medium comminute. The grinded product is not fit to use cause it's polluted and its necessary throw it away.

Maximal time of uninterrupted work is around 15 minutes. This condition is connected with maximal work time of machine, for which it should be done the 45 minutes of pause after 15 minutes of operation.

The devices cannot operate without loading. Each time before staring the device, fill it up with product.

② Fill the pan (8) with grain.
③ Set the body handle (3) to coarse grinding.
④ Turn on the mincer motor.
⑤ The ground product will pour out through the opening.
⑥ Depending on the desired grinding level or the type of grain, adjust the burr regulator (2) with the body handle in order to obtain the product with the adequate granulation level. By turning it clockwise you will obtain a finer ground product, by turning it counter-clockwise – coarser ground product.

The finest (minimum) grinding level is achieved by setting the handle to line 1, and the coarsest (maximum) grinding level by setting it to the STOP line. See the graphic on the body (3) and burr regulator (2).

By attempting to twist or turn the handle beyond the STOP line during the operation you can damage the device.
Is recommended to set the quern regulator during the grinder work time between the line 1 and STOP line.
It's FORBIDDEN to use the REVERSE function in the machine when the grinder is installed.
Remember about the accurate washing the grinder before grinding of the different products. It will permit to avoid the mutual penetration of odors.
For the soft corns as oat or linseed it's necessary to select the coast-grained set up.
Do not look into the grinding chamber during operation, as the beans which pop out sometimes, can hurt you (i.e. your eye).

CLEANING AND MAINTENANCE

The grinder does not require the cleaning after each operation (if it's grinded one kind of product), cause the worm prevents falling the seeds residues into grinder. Dry the steel quern (4, 5) using a soft cloth after cleaning to prevent corrosion. In case of long-term storage, conserve the quern by greasing them (you can use edible oil). Do not immerse the quern into boiling water. The part of plastic (don't containing the graphic) can be washed in the dishwasher (max. of 60°C).

Citrus juicer

Zelmer ZMM5548W - Citrus juicer - 1

The citrus juicer is an additional appliance, which enables to squeeze juice from citrus fruits together with the pulp.

Construction of the appliance:

1 Clutch
2 Bowl
3 Screen
4 Squeezer

USING THE APPLIANCE

Zelmer ZMM5548W - USING THE APPLIANCE - 1

① Open the lid of the compartment on the back of the housing, which enables to operate the appliance in a vertical position. Place the appliance on a hard, even surface.
② Slide the coupling onto the drive.
③ Fix the bowl to the motor and turn left until you hear a click. It means that the bowl has been properly installed.
④ Attach the screen and the squeezer to the protruding part of the bowl.

Prepare the fruits by cutting them into halves.

Plug in the appliance.

⑤ Switch on the appliance using the „I” switch (1a) and place the fruit on the squeezer with the pulp facing the squeezer.
⑥ Push to start the squeezing process.

Zelmer ZMM5548W - USING THE APPLIANCE - 2

ase the sieve is blocked with the pulp of extracted fruit, it is necessary to switch off the appliance, disassemble the sieve and empty it, as the excess of the pulp can cause leakage to the motor chamber of the appliance.

Zelmer ZMM5548W - USING THE APPLIANCE - 3

citrus juicer spins during operation. Pay special attention to your fingers while pushing the fruits on the squeezer.

After operation

Zelmer ZMM5548W - After operation - 1

Switch off and unplug the appliance.

① Remove the pusher (8) and take out the tray (7a) from the mincer body or the juicer body (in case of the citrus juicer separately remove the squeezer and screen) or the shredder tray off the shredder chamber.

① Remove the pusher (8) and remove the shredder bowl with an adaptor (7b) from the mincer body or the juicer body (in case of the citrus juicer separately remove the squeezer and screen) (disassemble the adapter in the reverse order in which it was assembled) or the shredder tray off the shredder chamber.
② Press the lock button, turn the mincing unit, the shredder body (or the citrus juicer bowl) to the right and remove it.

In case of the citrus juicer take out the clutch from the motor.

③ Dismantle the elements of the mincing unit, the body with the sausage filler nozzle, the juicer body or the shredder.
Store the clean and dry screens in the compartment. In order to do so:
④ Open the compartment on the back of the housing.

Press the compartment lock on both sides and pull (as shown earlier).

⑤ Store up to two screens and close the compartment and the back lid.
⑥ Put away the cord, pushing it gently through the opening.

Place the plug in the compartment.

Cleaning and maintenance

Wipe the motor with a damp cloth with dishwashing liquid.

Wash plastic elements in warm soapy water or in the dishwasher according to the denotations.
Wash metal elements in hot soapy water.
Dry all elements thoroughly.
Assemble dry elements of the mincer body or the shredder.

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Zelmer ZMM5548W - Disposal - 1

The manufacturer does not accept any liability for any damages resulting from unintended use or inappropriate handling.

The manufacturer reserves his rights for modifying the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade aesthetic or other reasons, without notifying it in advance.

natural_image Black-and-white photo of a kitchen setup with kitchen grilles, fresh ingredients, and a salad bowl (no visible text or symbols)

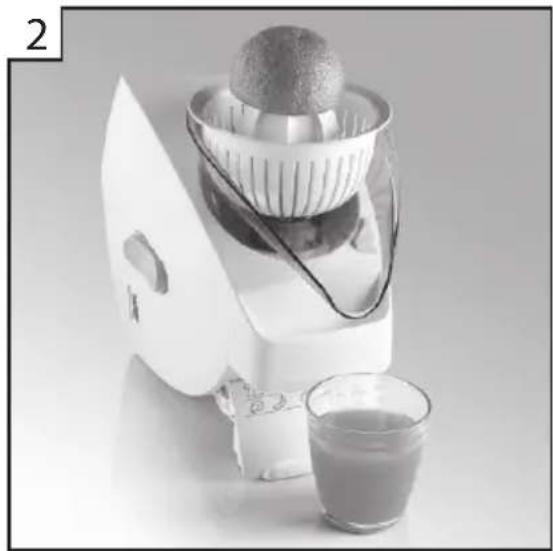

Zelmer ZMM5548W - Disposal - 2

natural_image White hand mixer with a round fruit in a glass, accompanied by a small cup of juice (no text or symbols visible)

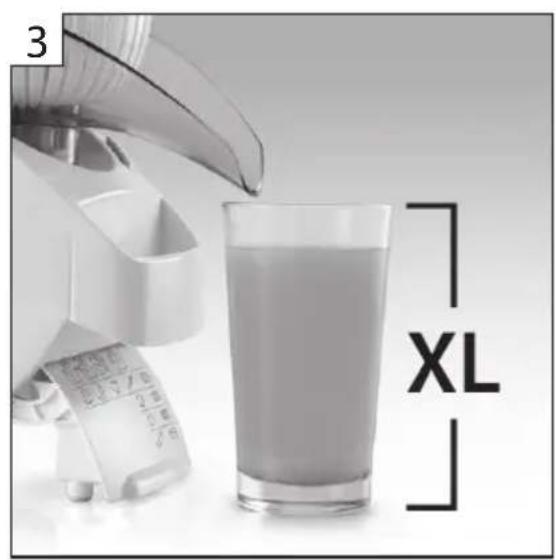

3 XL

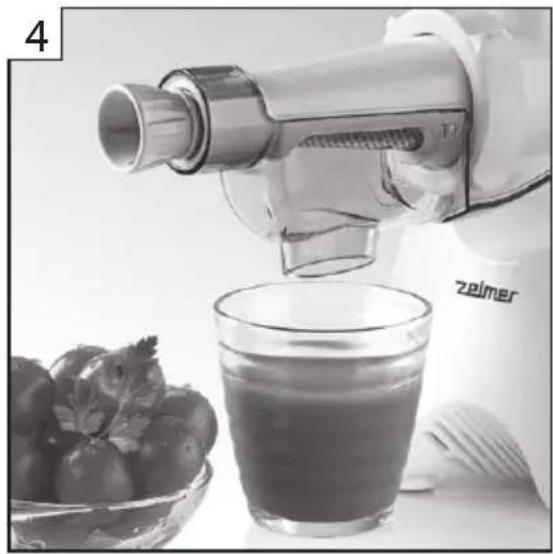

Zelmer ZMM5548W - Disposal - 4

natural_image Black-and-white photo of a zelmer processing juice into a glass with fresh tomatoes nearby (no text or symbols visible)

PL 1. Szatkownica w komplecie z tarkami na cienkie, grube wiórka, krojenie w plasterki i przecieranie ziemniaków 2. Cytrusiarka – zdrowe soki każdego dnia 3. Możliwość podstawienia do cytrusiarki wysokiej szklanki XL 4. Wyciskarka do miękkich owoców i warzyw – domowe przetwory
EN 1. Shredder attachments with barrels in the set for cutting into thin or thick chips, and slicing or grating potatoes 2. Citrus press – healthy juice every day 3. Possible to use with citrus press high – XL glass 4. Juicer for soft fruits and vegetables – homemade preserves
DE 1. Gemüseschneider im Set mit Aufsätzen zum groben und feinen Raspeln, Schneiden in feine Scheiben sowie Reiben von Kartoffeln 2. Fruchtpresse – gesunde Säfte jeden Tag 3. Platz für hohe XL-Gläser 4. Presse für weiches Obst und Gemüse – für Eingemachtes
RO 1. Răzătoarea în set cu cilindru pentru bucăți fine, mari, felierea și cartofi dati pe rozătoare 2. Storcător – suc sănătos în fiecare zi 3. Posibilitatea de a pune un pahar înalt XL 4. Storcătorul pentru legume și fructe moi – preparatelor de casă

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Zelmer

Model : ZMM5548W

Category : Meat Grinder
