USER MANUAL QM-65 AG Neovo

SAFETY INFORMATION .... 1

Federal Communications Commission (FCC) Notice (U.S. Only)....1

CE 1

Polish Center for Testing and Certification Notice....1

Electric, Magnetic and Electromagnetic Fields ("EMF") 2

Information for U.K. only....3

North Europe (Nordic Countries) Information....4

End-of-Life Disposal 5

Waste Electrical and Electronie Equipment-WEEE 5

Turkey RoHS....6

Ukraine RoHS 6

PRECAUTIONS 7

Cautions When Setting Up....7

Cautions When Using....8

Cleaning and Maintenance....8

Notice for the LCD Display 9

CHAPTER 1: PRODUCT DESCRIPTION ...... 10

1.1 Unpacking 10
1.2 Package Contents....10
1.3 Preparing for the Installation 11
1.4 Wall Mounting Installation.... 11

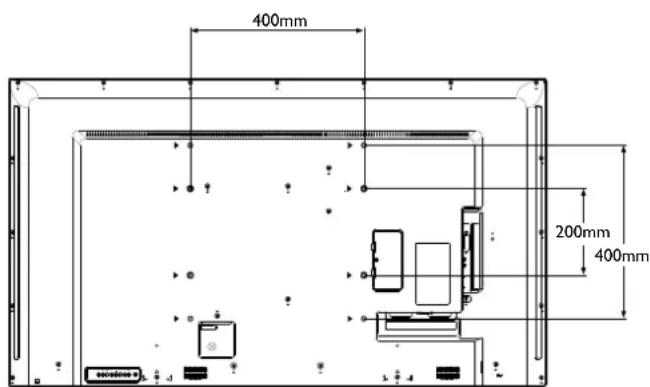

1.4.2 Ventilation Requirements for Enclosure Locating.... 12
1.4.1 VESA Grid 12

1.5 Using the Remote Sensor and Power Status Indicator 13
1.6 LCD Display Overview 14

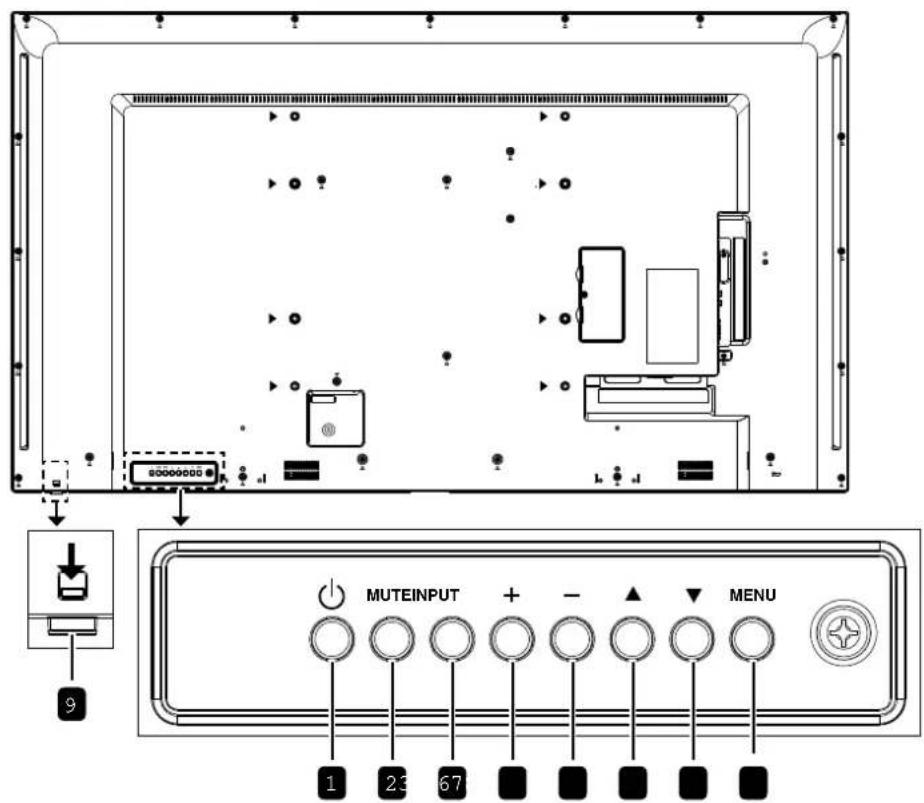

1.6.1 Control Panel....14
1.6.2 Input/Output Terminals 16

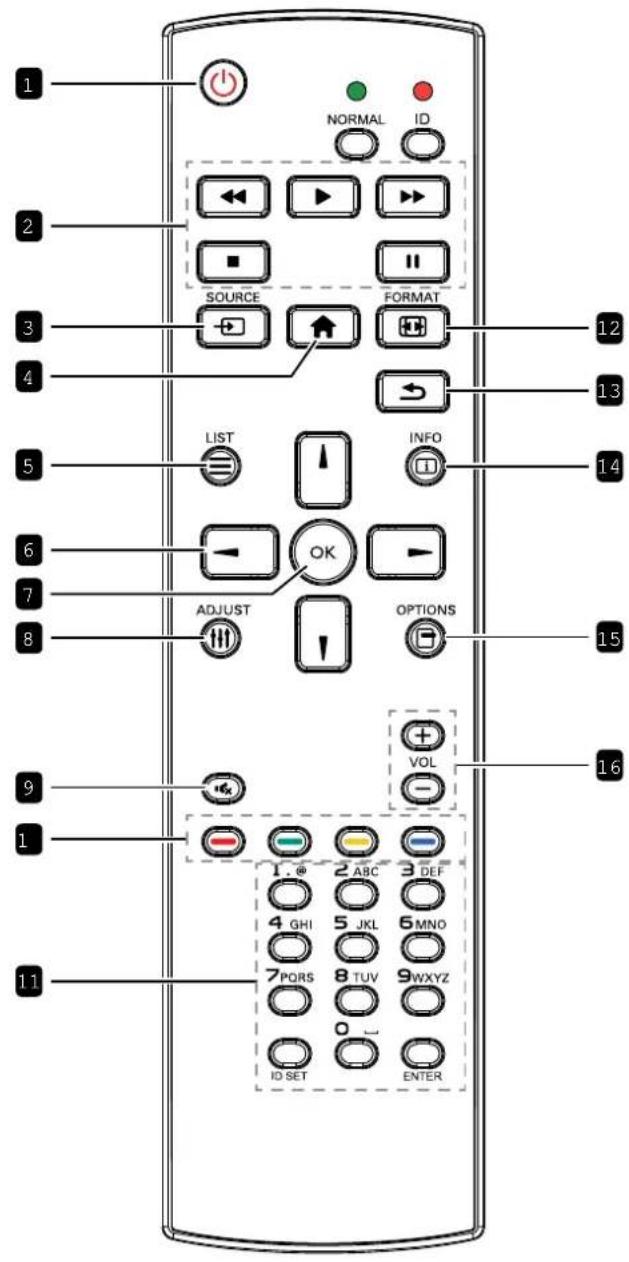

1.7 Remote Control 18

1.7.1 General Functions....18
1.7.2 ID Remote Control....20
1.7.3 Remote Control buttons on Android source 21
1.7.4 Inserting the Batteries in the Remote Control 23
1.7.5 Handling the Remote Control....23
1.7.6 Operating Range of the Remote Control....23

CHAPTER 2: MAKING CONNECTIONS ...... 25

2.1 Connecting the Power 25

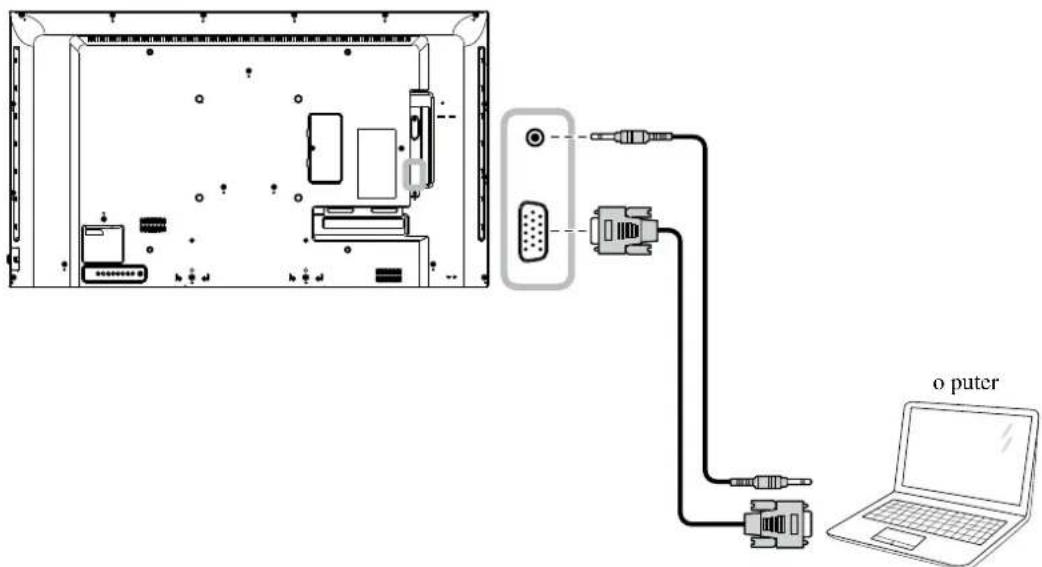

2.2 Connecting a Computer 26

2.2.1 Using VGA Input 26
2.2.2 Using DVI Input 27
2.2.3 Using HDMI Input 28

2.3 Connecting External Equipment (Video Player) 29

2.3.1 Using HDMI Video Input....29

TABLE OF CONTENTS

2.4 Connecting Audio Equipment 30

2.4.1 Connecting an External Audio Device 30

2.5 Using the Card Reader....31

2.6 Connecting Multiple Displays in a Daisy-chain Configuration 32

2.6.1 Display Control Connection....32

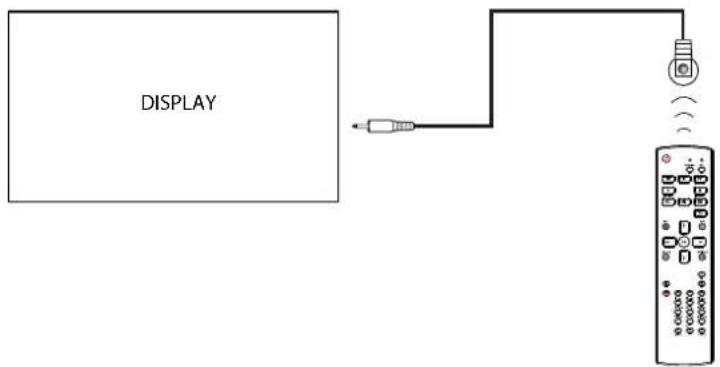

2.7 IR Connection....33

2.8 IR Pass-Through Connection 33

CHAPTER 3: USING THE LCD DISPLAY .... 34

3.1 Turning on the Power 34

3.1.1 Initial Setup....34

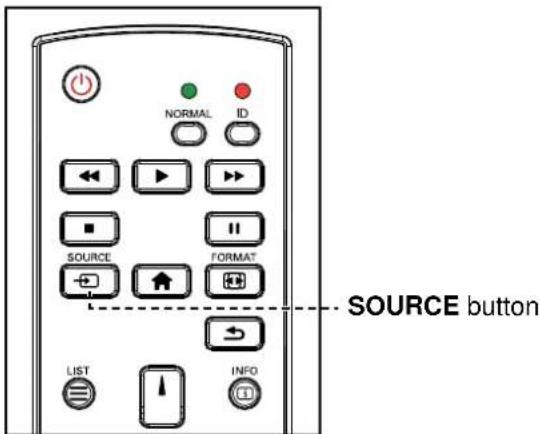

3.2 Selecting the Input Source Signal 35

3.3 Adjusting the Volume 35

3.4 Changing the Picture Format 36

CHAPTER 4: MULTIMEDIA MENU .... 37

4.1 Accessing the Multimedia Menu....37

4.2 Media Player 38

4.2.1 Creating a Playlist 38

4.2.2 Modifying a Playlist....40

4.2.3 Playing Files in a Playlist....40

4.2.4 Media Player Settings 40

4.3 Browser 41

4.3.1 Adding an URL 41

4.3.2 Managing URLs List 43

4.4 Content Management Software (CMS) 44

4.4.1 Using a CMS Server for Content Source 45

4.4.2 Displaying Content from an Attached Storage Device 46

4.5 PDF Player 47

4.5.1 Creating a Playlist 47

4.5.2 Modifying a Playlist.... 49

4.5.3 Displaying PDF Files in a Playlist.... 49

4.5.4 PDF Player Settings....49

4.6 Custom 50

4.6.1 Entering the Admin Mode 50

4.6.2 System Settings 51

4.6.3 Accessing Apps in Admin Mode 53

4.6.4 Installing Apps to the LCD Monitor 53

4.6.5 Accessing Network Settings in Admin Mode 54

4.6.6 Managing Storage in Admin Mode 54

CHAPTER 5: ON SCREEN DISPLAY MENU .... 56

5.1 Using the OSD Menu 56

5.2 OSD Menu Tree 58

TABLE OF CONTENTS

CHAPTER 6: ADJUSTING THE LCD DISPLAY ...... 60

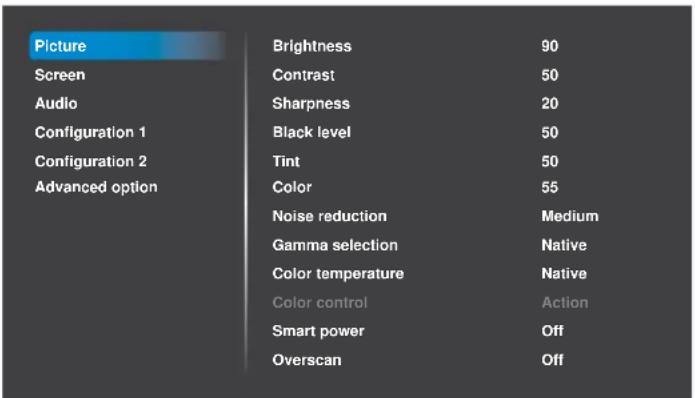

6.1 Picture Settings 60

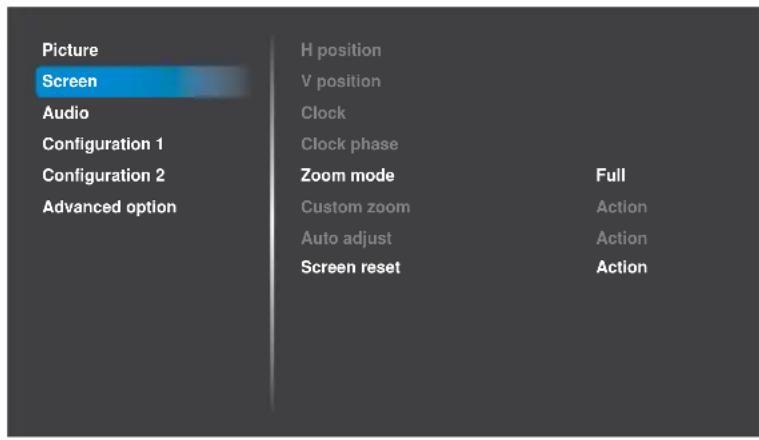

6.2 Screen Settings 64
6.3 Audio Settings 66
6.4 Configuration1 Settings 68
6.5 Configuration2 Settings 72
6.6 Advanced option Settings....74

CHAPTER 7: APPENDIX....85

7.1 Warning Messages....85
7.2 Supported Media Formats 85
7.3 Input Mode 87
7.4 Cleaning 89
7.5 Troubleshooting....90
7.6 Transporting the LCD Display 91

CHAPTER 8: SPECIFICATIONS ...... 93

8.1 Display Specifications 93
8.2 Display Dimensions....94

SAFETY INFORMATION

F

C

C

FCC N

U.S. O

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Use only an RF shielded cable that was supplied with the display when connecting this display to a computer device.

To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture.

THIS CLASS A DIGITAL APPARATUS MEETS ALL RE UIREMENTS OF THE CANADIAN INTERFERENCE CAUSING E UIPMENT REGULATIONS.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CE

ARNING: This equipment is compliant with Class A of EN55032/CISPR 32. In a residential environment this equipment may cause radio interference.

Polish Center for Testing and Certification Notice

The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source.

The phasing conductor of the room s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A).

To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which should be located near the equipment and easily accessible.

A protection mark "B" confirms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107 and PN-89/E-06251.

We manufacture and sell many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals.

One of our leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products.

We are committed to develop, produce and market products that cause no adverse health effects.

We confirm that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.

We play an active role in the development of international EMF and safety standards, enabling us to anticipate further developments in standardization for early integration in its products.

SAFETY INFORMATION

I U.K.

WARNING - THIS APPLIANCE MUST BE EARTHED.

(A) (B)

Important

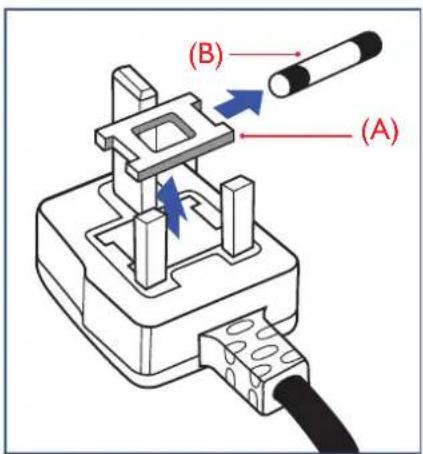

This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows

1 Remove fuse cover and fuse.
2 Fit new fuse which should be a BS 1362 5A,A.S.T.A. or BSI approved type.
3 Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate 3-pin plug fitted in its place.

If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5A.

Note

The severed plug must be destroyed to avoid a possible shock hazard should it be inserted into a 13A socket elsewhere.

Diagram of a plug socket with colored wires (green, blue, red) showing internal components and connections (no text or labels)

H

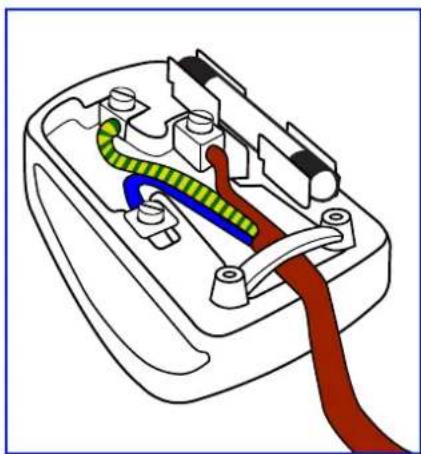

The wires in the mains lead are coloured in accordance with the following code

BLUE - "NEUTRAL" ("N")

BROWN - "LIVE" ("L")

GREEN ELLOW - "EARTH" ("E")

The GREEN ELLOW wire must be connected to the terminal in the plug which is marked with the letter "E" or by the Earth symbol or coloured GREEN or GREEN ELLOW.

The BLUE wire must be connected to the terminal which is marked with the letter "N" or coloured BLACK.

The BROWN wire must be connected to the terminal which marked with the letter "L" or coloured RED. Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the three wires.

N E N C I

Placering/Ventilation

ARNING: F RS KRA DIG OM ATT HUVUDBR TARE OCH UTTAG R L T TKOMLIGA, N R DU ST LLER DIN UTRUSTNING P PLATS.

Placering/Ventilation

AD ARSEL: S RG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGN GELIGE.

Paikka/Ilmankierto

AROITUS: SIO ITA LAITE SITEN, ETT VERKKOO HTO VOIDAAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA.

Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of.

Please find out about the local regulations on how to dispose of your old display from your local dealer.

F C U.S.A.

This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations. For additional information on recycling contact www.eia.org (Consumer Education Initiative).

E E E EEE

A E U

This marking on the product or on its packaging illustrates that, under European Directive 2012/19/EU governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. ou are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection. To determine the locations for dropping off such waste electrical and electronic, contact your local government office, the waste disposal organization that serves your household or the store at which you purchased the product.

A U S :

Please dispose of according to all Local, State and Federal Laws. For the disposal or recycling information, contact www.mygreenelectronics.com or www.eiae.org.

E L D R

our new Public Information Display contains several materials that can be recycled for new users.

Please dispose of according to all Local, State, and Federal laws.

R H S I

This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight and 0.01 weight for cadmium, except for the exemptions set in Schedule 2 of the Rule.

E D I

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For EU The crossed-out wheeled bin implies that used batteries should not be put to the general household waste There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation.

Please contact your local authority for details on the collection and recycling schemes.

For Switzerland: The used battery is to be returned to the selling point.

For other non-EU countries Please contact your local authority for correct method of disposal of the used battery.

According to EU directive 2006/66/EC, the battery can t be disposed improperly. The battery shall be separated to collect by local service.

T RHS

	This icon indicates the existence of a potential haa rd that could result in personal injury or damage to the product.
	This icon indicates important operating and servicing information.

N

Read this User Manual carefully before using the LCD display and keep it for future reference.

The product specifications and other information provided in this User Manual are for reference only. All information is subject to change without notice. Updated content can be downloaded from our web site at

To register online, go to ____.

To protect your rights as a consumer, do not remove any stickers from the LCD display. Doing so may affect the determination of the warranty period.

C S U

Do not place the LCD display near heat sources, such as a heater, exhaust vent, or in direct sunlight.

Do not cover or block the ventilation holes in the housing.

Place the LCD display on a stable area. Do not place the LCD display where it may subject to vibration or shock.

Place the LCD display in a well-ventilated area.

Do not place the LCD display outdoors.

To avoid the risk of shock or permanent damage to the set, do not expose the display to dust, rain, water or an excessively moist environment.

Do not spill liquid or insert sharp objects into the LCD display through the ventilation holes. Doing so may cause accidental fire, electric shock or damage the LCD display.

c u

Use only the power cord supplied with the LCD display.

The power outlet should be installed near the LCD display and be easily accessible.

If an extension cord is used with the LCD display, ensure that the total current consumption plugged into the power outlet does not exceed the ampere rating.

Do not allow anything to rest on the power cord. Do not place the LCD display where the power cord may be stepped on.

If the LCD display will not be used for an indefinite period of time, unplug the power cord from the power outlet.

To disconnect the power cord, grasp and pull by the plug head. Do not tug on the cord; doing so may cause fire or electric shock.

Do not unplug or touch the power cord with wet hands.

When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation.

Do not knock or drop the display during operation or transportation.

C M

To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your display, grasp the frame to lift do not lift the display by placing your hand or fingers on the LCD panel.

Unplug the display if you need to clean it with a slightly damp cloth. The screen may be wiped with a dry cloth when the power is off. However, never use organic solvent, such as, alcohol, or ammonia-based liquids to clean your display.

If your display becomes wet, wipe it with dry cloth as soon as possible.

If a foreign substance or water gets in your display, turn the power off immediately and disconnect the power cord. Then remove the foreign substance or water, and send the unit to the maintenance center.

In order to maintain the best performance of your display and ensure a longer lifetime, we strongly recommend using the display in a location that falls within the following temperature and humidity ranges.

♦ Temperature 0-40 C (32-104 F)
◆ Humidity 20-80 RH

:

Unplug the power cord from the power outlet and refer to qualified service

personnel under the following conditions

• When the power cord is damaged.
• If the LCD display has been dropped or the housing has been damaged.
  ◆ If the LCD display emits smoke or a distinct odor.

N LCD D

In order to maintain the stable luminous performance, it is recommended to use low brightness setting.

Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time.

When static images are displayed for long periods of time, the image may cause an imprint on the LCD display. This is called image retention or burn-in.

◆ To prevent image retention, do any of the following

Set the LCD display to turn off after a few minutes of being idle.

Use a screen saver that has moving graphics or a blank white image.

Execute the ANTI-BURN-IN function of the LCD display. See Configuration 1 P S

ANTI URN IN section.

Switch desktop backgrounds regularly.

Adjust the LCD display to low brightness settings.

Turn off the LCD display when the system is not in use.

◆ Things to do when the LCD display shows image retention

Turn off the LCD display for extended periods of time. It can be several hours or several days.

Use a screen saver and run it for extended periods of time.

Use a black and white image and run it for extended periods of time.

There are millions of micro transistors inside the LCD display. It is normal for a few transistors to be damaged and to produce spots. This is acceptable and is not considered a failure.

IMPORTANT: Always activate a moving screen saver program when you leave your display unattended.

Always activate a periodic screen refresh application if the unit will display unchanging static content. Uninterrupted display of still or static images over an extended period may cause "burn in", also known as "after-imaging" or "ghost imaging", on your screen. This is a well-known phenomenon in LCD panel technology. In most cases, the "burned in" or "after-imaging" or "ghost imaging" will disappear gradually over a period of time after the power has been switched off.

ARNING Severe "burn-in" or "after-image" or "ghost image" symptoms will not disappear and cannot be repaired. This is also not covered under the terms of your warranty.

CHAPTER 1: PRODUCT DESCRIPTION

1.1 U

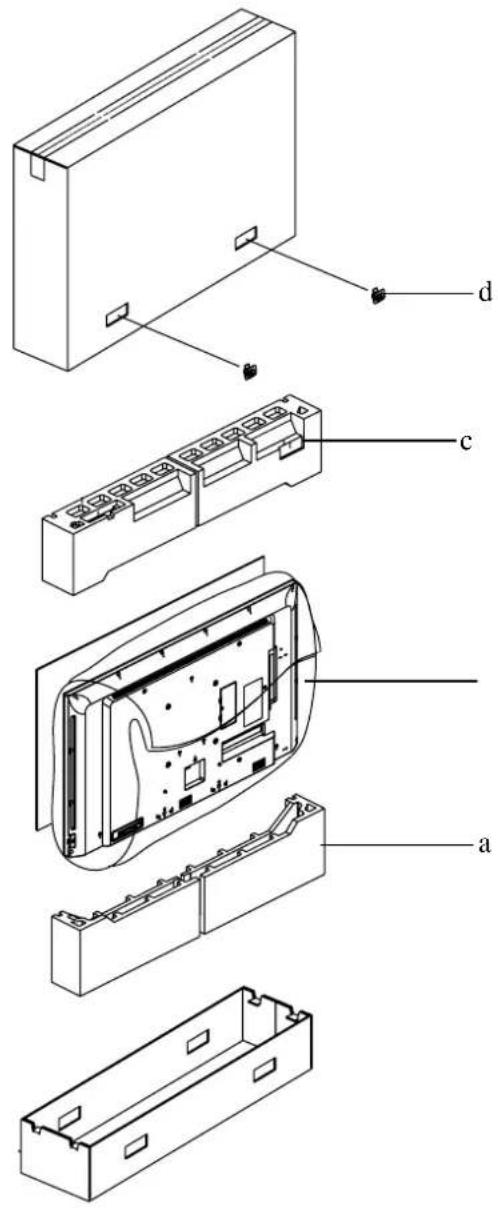

This product is packed in a packaging box which contains standard accessories.

Any other optional accessories will be packed separately.

Considering the sie and weight of the display, it is recommended that this product is carried out by two persons.

After opening the packaging box, ensure that the included items are in good condition and complete.

1.2 P C

When unpacking, check if the following items are included in the package. If any of them is missing or damaged, contact your dealer.

LCD D

Plain light blue background with no visible text, symbols, or objects

R

S G

HDMI

P

Line drawing of a straight cord with a power plug and connector (no text or symbols)

RS232

N :

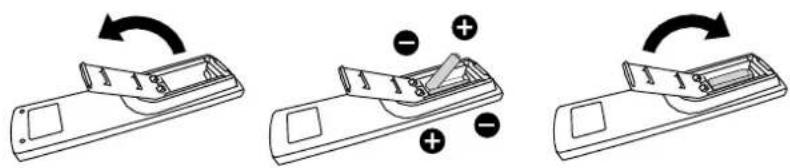

◆ Remote control is shipped with the supplied AAA batteries.
For all other regions, apply a power cord that conforms to the AC voltage of the power socket and has been approved by and complies with the safety regulations of the particular country (Type H05W-F, 2G or 3G, 0.75 or 1mm^2 should be used).

• ou might like to save the package box and packing material for shipping the display.
• The pictures are for reference only. Actual items may vary upon shipment.

PRODUCT DESCRIPTION

1.3 P

Due to the high power consumption, always use the plug exclusively designed for this product. If an extended line is required, please consult your service agent.

The product should be installed on a flat surface to avoid tipping. The distance between the back of the product and the wall should be maintained for proper ventilation. Avoid installing the product in the kitchen, bathroom or any other places with high humidity so as not to shorten the service life of the electronic components.

The product can normally operate only under 3000m in altitude. In installations at altitudes above 3000m, some abnormalities may be experienced.

1.4

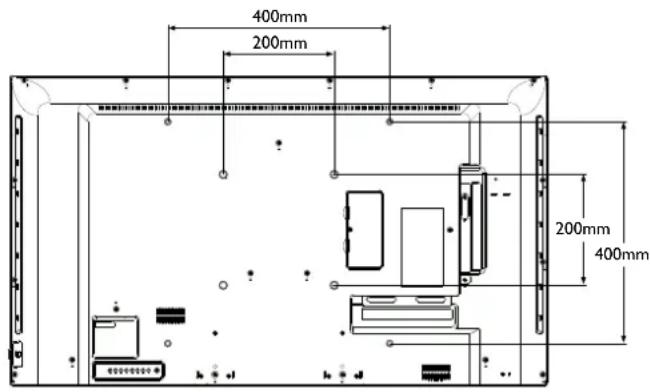

To mount this display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). We recommend using a mounting interface that complies with TUV-GS and/or UL1678 standard in North America.

To wall-mount the LCD display, screw the mounting bracket to the VESA holes at the rear of the LCD display.

M 43A

400mm 200mm 200mm 400mm

M 55A

400mm 200mm 400mm

:

Do not press too hard on the LCD panel or edge of the frame, as this may cause the device to malfunction.

N :

• Avoid the wall-mounting kit to block the ventilation holes on the back of the display.
• Secure the LCD display on a solid wall strong enough to bear its weight.
• Lay a protective sheet on a table, which was wrapped around the display when it was packaged, beneath the screen surface so as not to scratch the screen face.
  ◆ Ensure you have all accessories for mounting this display (wall mount, ceiling mount, etc).
• Follow the instructions that come with the base mounting kit. Failure to follow correct mounting procedures could result in damage to the equipment or injury to the user or installer. Product warranty does not cover damage caused by improper installation.

1.4.1 ESA G

Model Name VESA Grid
M-43A 200(W) x 200(H)mm /	400(W) x 400(H)mm
M-55A 200(W) x 400(H)mm /	400(W) x 400(H)mm

C

To prevent the display from falling

For wall or ceiling installation, we recommend installing the display with metal brackets which are commercially available.
For detailed installation instructions, see the guide received with the respective bracket.
To lessen the probability of injury and damage resulting from fall of the display in case of earthquake or other natural disaster, be sure to consult the bracket manufacturer for installation location.

1.4.2

R

E

L

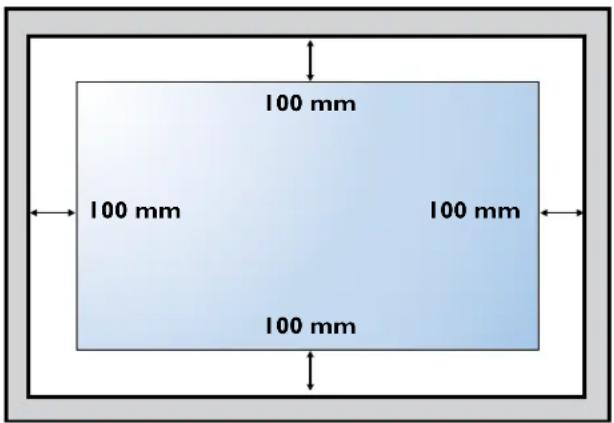

To allow heat to disperse, leave space between surrounding objects as shown in the diagram below.

100 mm 100 mm 100 mm 100 mm

N :

For the wall-mounting kit, use M6 mounting screws (having a length 10 mm longer than the thickness of the mounting bracket) and tighten them securely.
Unit without base weight M-43A 8.7 kg / M-55A 16.0 kg. The equipment and its associated mounting means still remain secure during the test. For use only with UL Listed Wall Mount Bracket with minimum weight/load M-43A 13.4 kg / M-55A 22.2 kg.

PRODUCT DESCRIPTION

1.5 U

R

S

P

s

|

If you want to obtain a better reception of remote control function, please adjust the indicator location to easily check the power status indicator.

If you want to mount the display to the wall, please push the indicator switch inward (M-43A) or upwards (M-55A) before installation.

When adjusting the indicator location, make sure to push/pull the indicator switch firmly until it clicks into place.

M 43A

Pure electrical circuit lines without any symbols

Push outward to reveal the indicator

Pure diagram of a belt buckle with arrow indicating direction, enclosed in a dashed border (no text or symbols)

Pull inward to hide the indicator

M 55A

Simple line drawing of a download icon above a table, enclosed in a dashed border (no text or symbols)

Push downward to reveal the indicator

Simple line drawing of a mechanical component with an upward arrow and base, enclosed in a dashed border (no text or symbols)

Pull upward to hide the indicator

PRODUCT DESCRIPTION

1.6 LCD D O

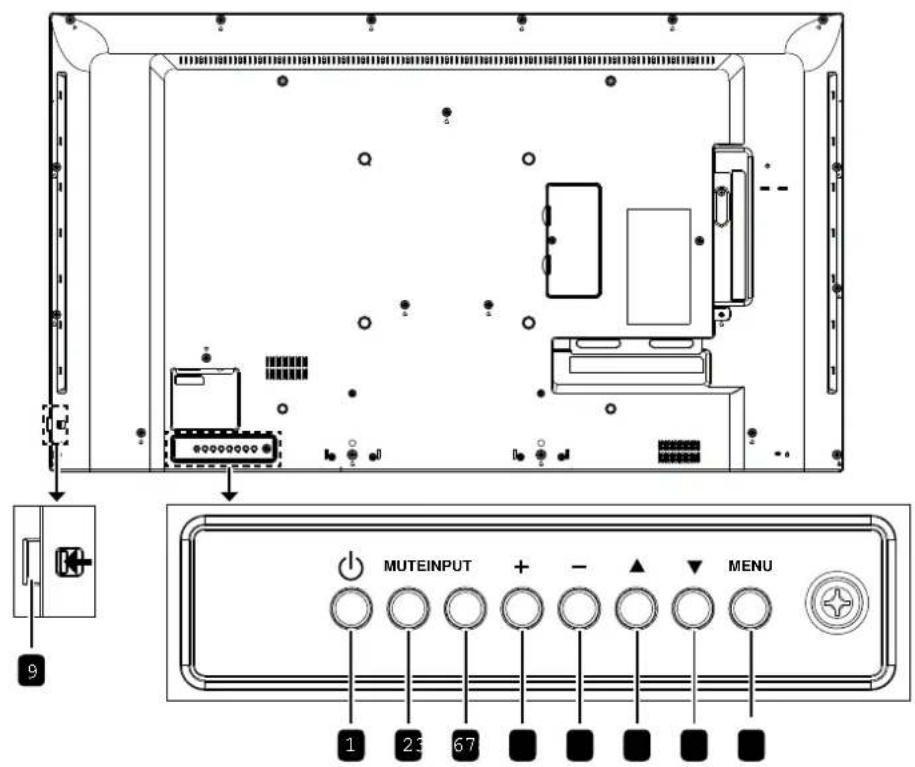

1.6.1 C P

M 43A

MUTEINPUT MENU 1 2 3 6 7

M 55A

MUTEINPUT MENU 1 23 67

PRODUCT DESCRIPTION

1 ⏻ P

Turn the display on or put the display to standby.

2 MUTE

Switch the audio mute ON/OFF.

3 INPUT

Choose the input source.

4 +1

Enter the submenu.

Increase the audio output level while OSD menu is off.

5 - D

Return to the previous menu.

Decrease the audio output level while OSD menu is off.

6 ▲ U

Move the highlight bar up to select an option or increase the adjustment while OSD menu is on.

7 ▼ D

Move the highlight bar down to select an option or decrease the adjustment while OSD menu is on.

8 MENU

Activate the OSD menu when OSD menu is off.

Hide the OSD menu while OSD menu is on.

9 R

Receive command signals from the remote control.

Indicate the operating status of the display

- Lights green when the display is turned on

- Lights red when the display is in standby mode

- Blinks green and red when "Advanced option, Schedule" is enabled

- Blinks red when a failure has been detected

- Lights off when the main power of the display is turned off

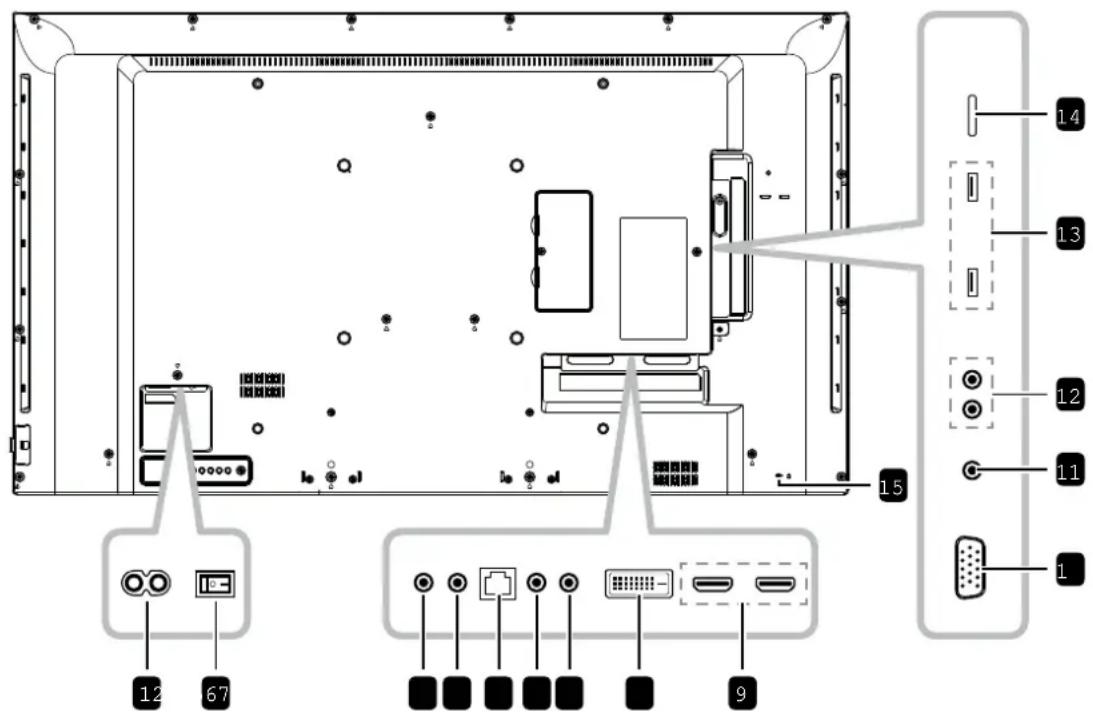

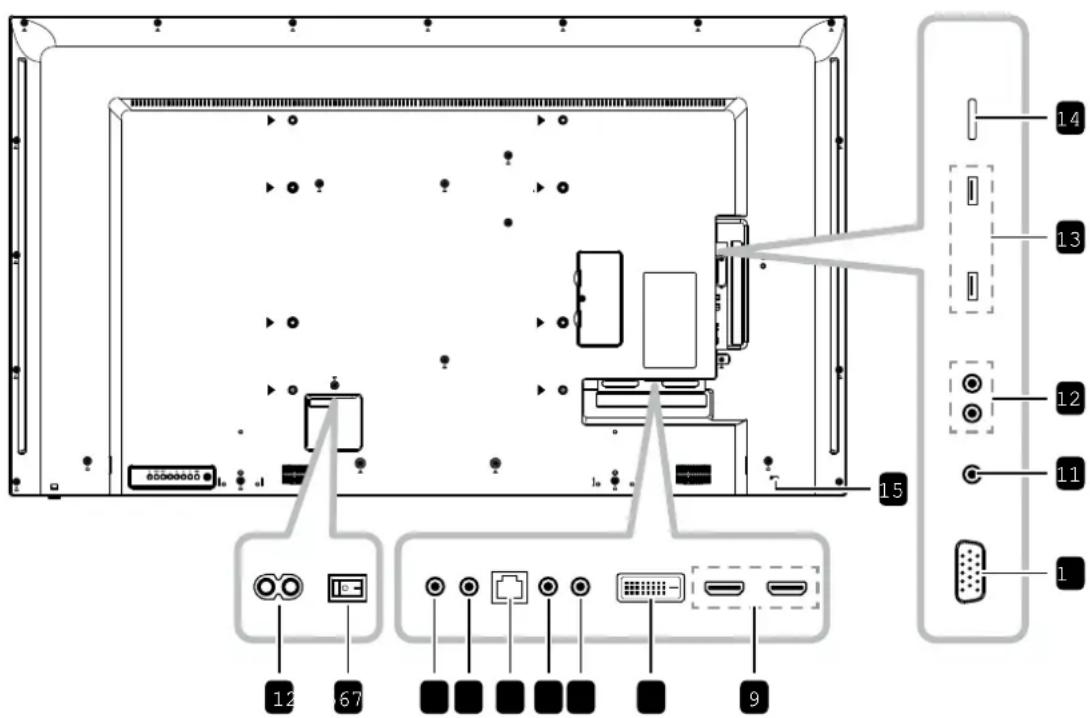

1.6.2 I O T

M 43A

Diagram of a computer monitor rear panel with labeled ports and connectors, showing numbered labels from 1 to 15.

M 55A

Diagram of a computer monitor rear panel with labeled ports and connectors, showing numbered labels from 1 to 15.

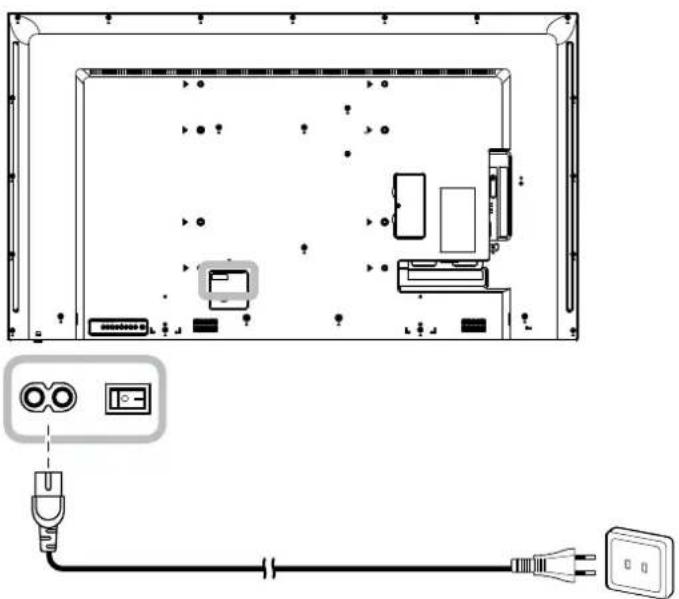

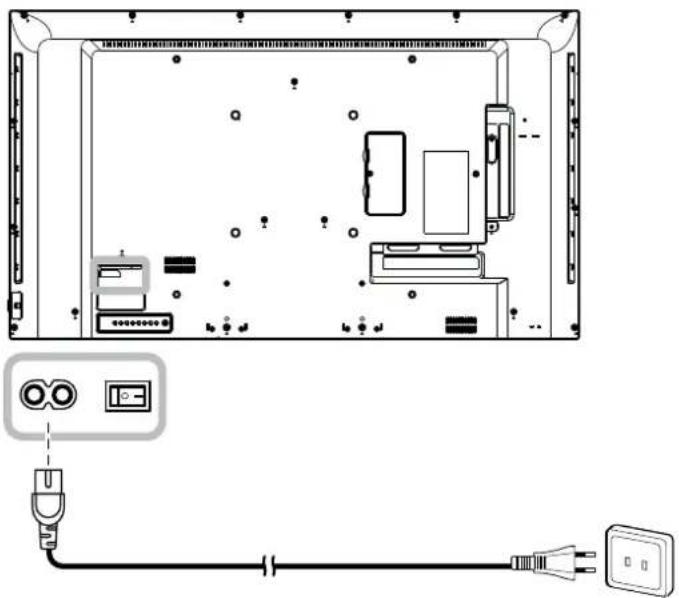

1 AC IN

AC power input from the wall outlet.

2 M

Switch the main power on/off.

3 RS232 IN

RS232 network input for the loop-through function.

4 RS232 OUT

RS232 network output for the loop-through function.

5 RJ45

LAN control function for the use of remote control signal from the control center.

6 IR IN

IR signal input for the loop-through function.

N :

• This display's remote control sensor will stop working if the IR IN jack is connected.

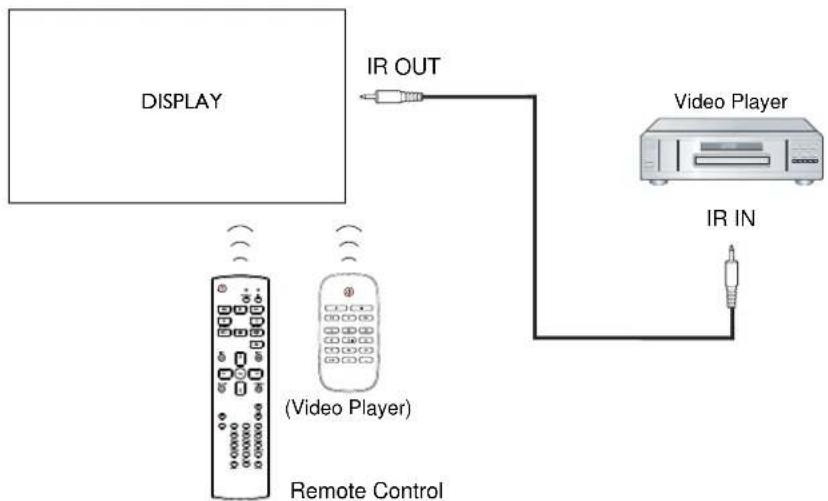

• To remotely control your A/V device via this display, see page 33 for IR Pass-Through connection.

7 IR OUT

IR signal output for the loop-through function.

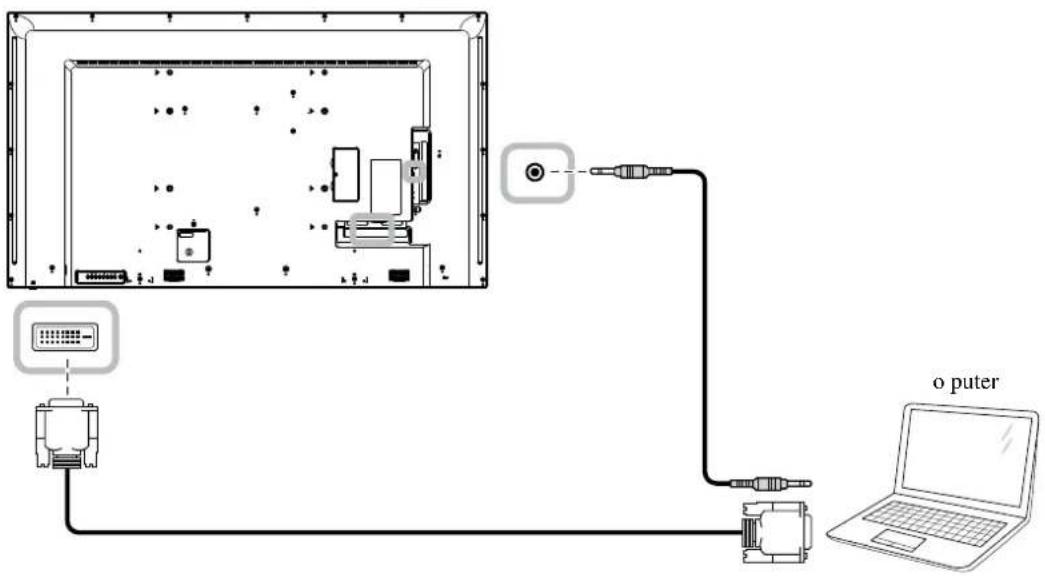

8 DI IN

DVI-D video input.

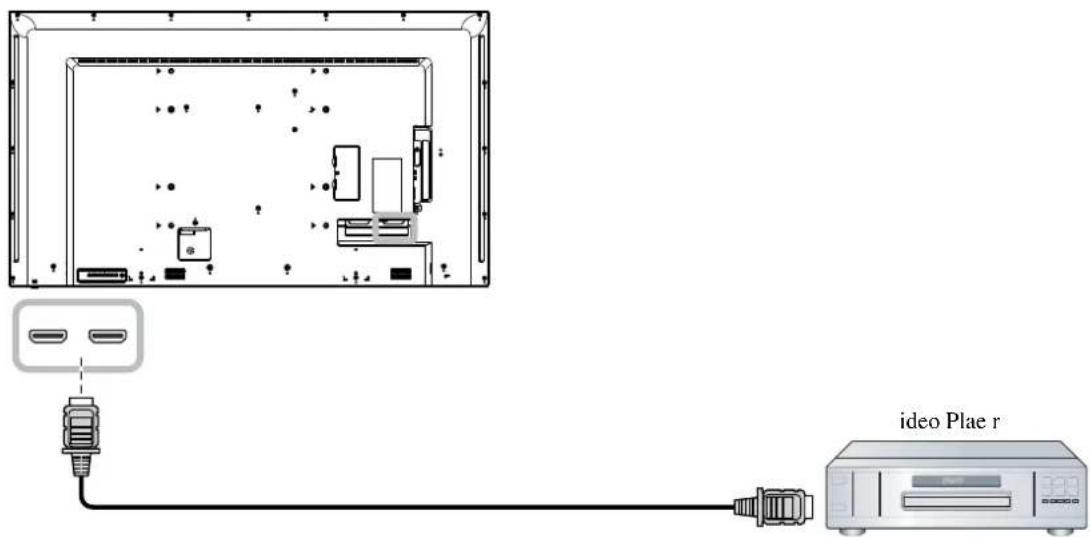

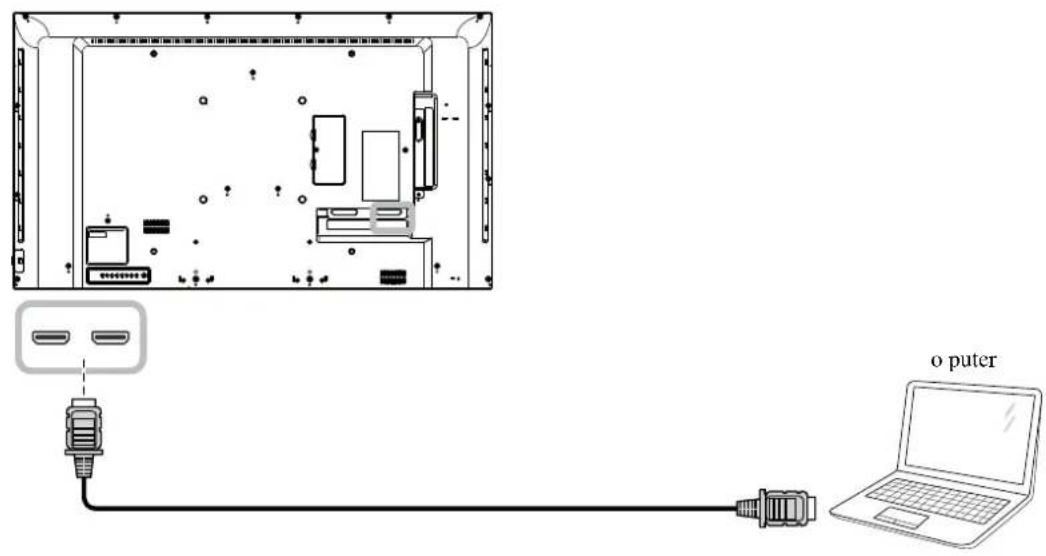

9 HDMI1 HDMI2 IN

HDMI video/audio input.

10 GA IN DS

VGA video input.

11 AUDIO IN

Audio input from external AV device (3.5mm phone jack).

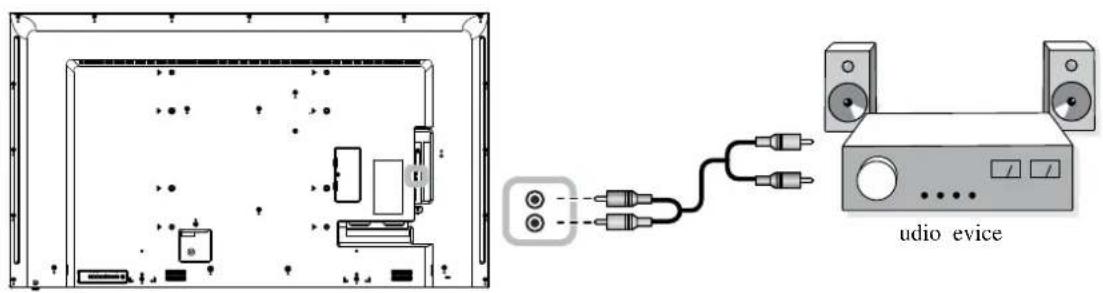

12 AUDIO OUT

Audio output to external AV device (RCA).

13 US 2.0 3.0 PORT

Connect your USB storage device.

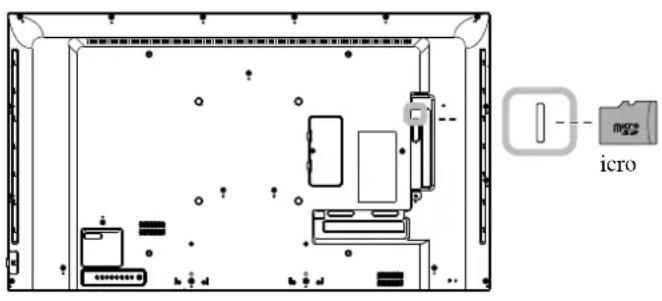

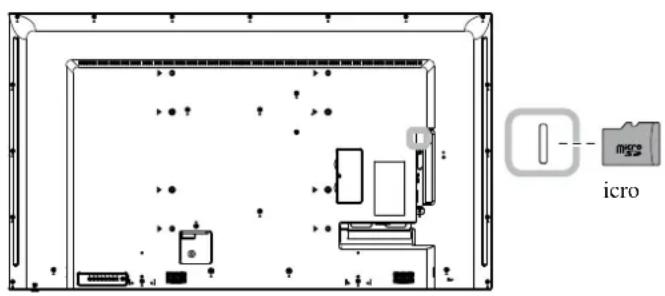

14 MICRO SD CARD SLOT

Insert a micro SD card into the slot.

15 SECURITY LOCK

Used for security and theft prevention.

PRODUCT DESCRIPTION

1.7 R C

1.7.1 G F

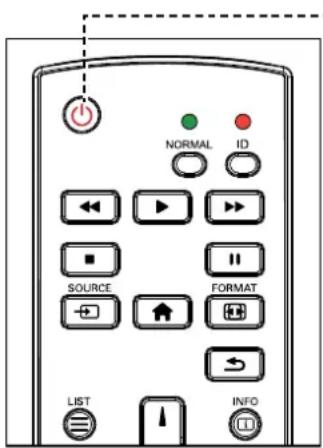

1 NORMAL ID 2 SOURCE FORMAT 3 LIST INFO 4 OK 5 ADJUST OPTIONS 6 VOL 7 1 11 12 13 14 15 16 1 2 ABC 3 DEF 4 GHI 5 JKL 6 MNO 7 PQRS 8 TUV 9 WXYZ 0 ID SET ENTER

1 PO ER

Turn the display on or to put the display into standby mode.

2 PLAY

Control playback in multimedia mode.

Freee feature

• 11 Freee hot key for all inputs content.
• ▶ Unfreee hot key for all input content.

3 SOURCE

Root Menu Go to Video source OSD.

4 HOME

• Root Menu Access the OSD menu.
• Others Exit the OSD menu.

5 ≡ LIST

No function.

6 NA IGATION

• Root Menu Go to Smart picture OSD.
• Main Menu Move the highlight bar up to adjust the selected item.
• IR Daisy Chain Menu Increase controlled Group ID number.

• Root Menu Go to Audio source OSD.
• Main Menu Move the highlight bar down to adjust the selected item.
• IR Daisy Chain Menu Decrease controlled Group ID number.

• Main Menu Return to the previous menu page.

• Source Menu Exit the source menu.
  • Volume Menu Decrease the volume level.

• Main Menu: Enter the submenu or confirm a selection.

• Source Menu: Confirm the selected source.
  • Volume Menu Increase the volume level.

7 OK OK

• Root Menu Go to IR daisy chain OSD in Primary/Secondary mode.
• Main Menu: Confirm an entry or selection.

8 ADJUST

Go to Auto Adjust OSD (for VGA input only).

PRODUCT DESCRIPTION

9 MUTE

Turn the mute function on/off.

10

Choose tasks or options.(for Media Input only).

Hot key for Window selection function.

11

N ID SET ENTER

Enter text for network setting.

Set the display ID. See 1.7.2 ID Remote Control for more detail.

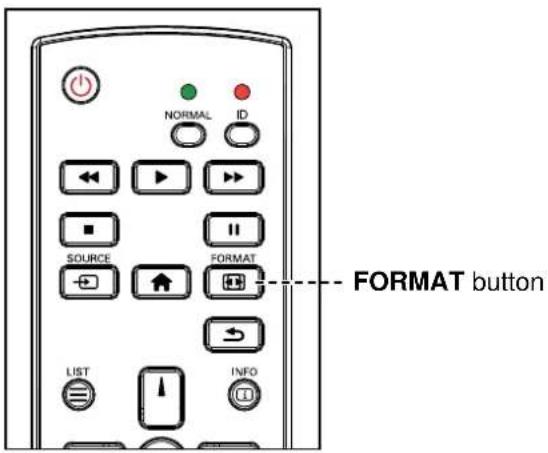

12

FORMAT

Change the aspect ratio.

13

Return to the previous menu or exit from the previous function.

14

View the information about the display.

15

No function.

16

Adjust the volume level.

PRODUCT DESCRIPTION

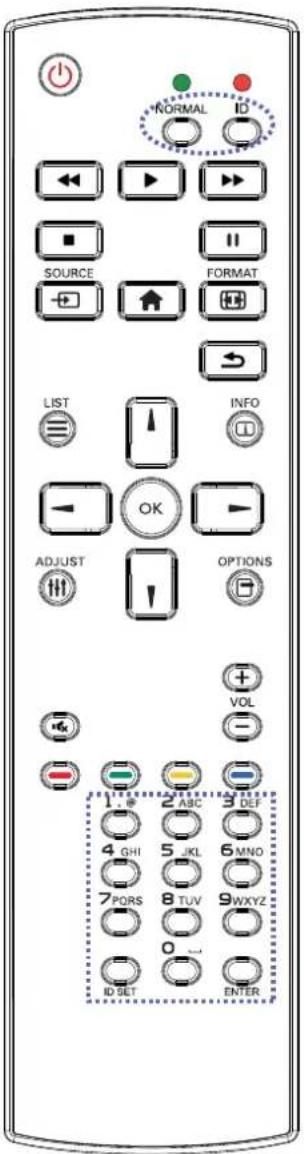

1.7.2 IDR C

ou can set the remote control ID when you want to use this remote control on one of several different displays.

NORMAL ID SOURCE FORMAT LIST INFO OK ADJUST OPTIONS VOL 1. IF 2 ABC 3 DEF 4 GHI 5 JKL 6 MNO 7 PORS 8 TUV 9 WXYZ 0 ... ID SET ENTER

To set the remote control ID

1 Press the ID button. The red LED blinks twice.
2 Press the ID SET button for more than 1 second to enter the ID mode. The red LED lights up.
Press the ID SET button again will exit the ID mode. The red LED lights off.

3 Press the digit numbers 0 9 to select the display you want to control. For example

Display ID 1 press 0, 1

Display ID 11 press 1, 1

The numbers available are from 01255.

Not pressing any button within 10 seconds will exit the ID mode.

If an error pressing of buttons other than the digits occurred, wait 1 second after the red LED lights off and then lights up again, then press the correct digits again.

4 Press the ENTER button to confirm.

The red LED blinks twice and then lights off.

N :

• Press the NORMAL button. The green LED blinks twice, indicating the remote control returns to normal operation.
  It is necessary to set up the ID number for each display before selecting its ID number.

PRODUCT DESCRIPTION

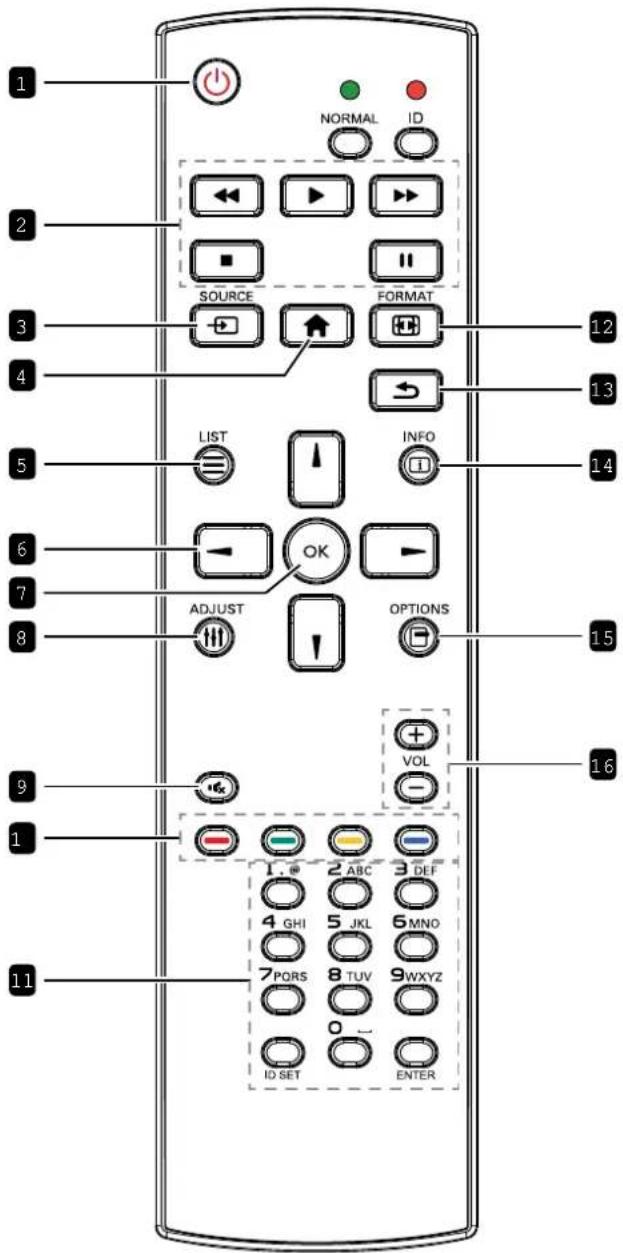

1.7.3

R

C

A

NORMAL ID SOURCE FORMAT LIST INFO OK ADJUST OPTIONS VOL 1. 2 ABC 3 DEF 4 GHI 5 JKL 6 MNO 7 PQRS 8 TUV 9WXYZ 0 ID SET ENTER

PO ER

Turn the display on or to put the display into standby mode.

The button is only controlled by Scalar.

PLAY

Control playback of media (video/photo/music) files.

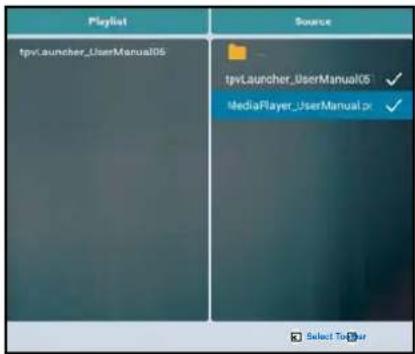

There are 4 ways to play media files

1) File Manager

Find the media file from the File Manager and select it to play.

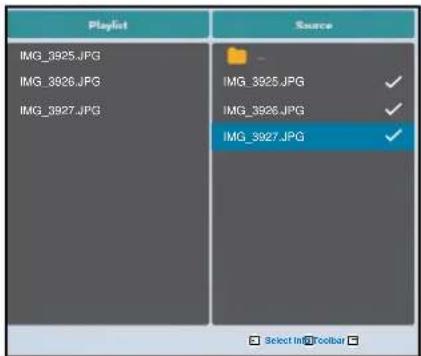

2) M

P

C

edit or new

add playlist > choose any media files >

press the ▶ button to play the media file

directly.

[Non-Text]

[Non-Text]

[Non-Text]

3) M

P

P

ch

pose non-

empty playlist press the OK button to play all the media files in the playlist.

4) Se

p

list

n B

ot

on

So

by

SD

nei

Play PDF file

There are 3 ways to play media files.

1) File Manager

Find the pdf file from the File Manager and select it to play.

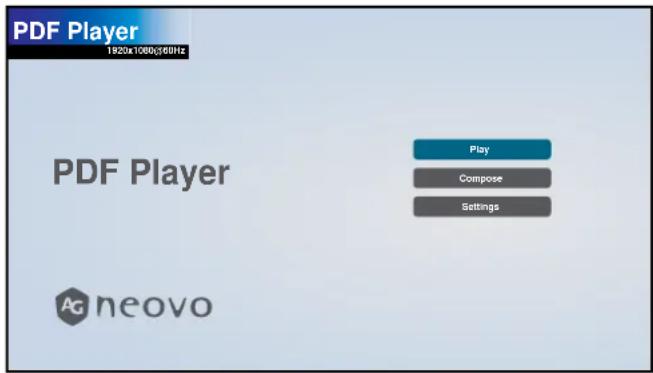

2) PDF P

P

ch

pose

701

en

playlist press the OK button to play all the PDF files in the playlist.

3) Se

ay

t in

Bo

ot

So

by

OS

When playing the PDF or video file, press the ■ button to stop playing. Press the

▶ button to replay the media file from the beginning.

When playing PDF or video file, press the "button to pause playing.

All media files should be put at the folder, which is named "agn" with sub-folder, under the root directory of the specified storage (internal/USB/SD Card). All sub-folders (video/photo/music/pdf) are named by media types and should not be changed.

:

:

:

:

Note that the root directories of three storages are

1

[Non-Text]

US

:

SD

:

PRODUCT DESCRIPTION

3 SOURCE

Choose input source.

The button is only controlled by Scalar.

4 HOME

Access the OSD menu.

The button is only controlled by Scalar.

5 LIST

In the content of the web page, move the focus up to the next clickable item.

Move the focus up to the next control or widget such as buttons.

6 NA IGATION

Navigate through menus and choose items.

In the content of the web page, press the following button to control the scroll bar of the screen

M Move the vertical scroll bar up or down.

→ Move the horio ntal scroll bar left or right.

When browsing the PDF files:

In oom mode, press the 1/1/1 button to adjust the position of the screen.

In Viewing mode, press the - / - button to go to the previous/next page.

7 OK

Confirm an entry or selection.

8 ADJUST

In the content of the web page, move the focus down to the next clickable item.

Move the focus down to the next control or widget such as buttons.

9 MUTE

Turn the mute function on/off.

The button is only controlled by Scalar.

10 COLOR

/ No function on Android source.

These two buttons are only controlled by Scalar.

When browsing the PDF files:

Perform o om-in.

Perform o om-out.

After o om-in or o om-out, press the OK button to revert the pdf file to the original sie.

11 N ID SET ENTER

ID SET/ENTER No function on Android source. These two buttons are only controlled by Scalar.

When browsing the PDF files, enter the page number by pressing number buttons and then press the OK button to jump to the specific page.

12 FORMAT

Change the aspect ratio.

The button is only controlled by Scalar.

13 ACK

Return to the previous menu or exit from the previous function.

14 i INFO

Display information about current input signal. It is shown by Scalar.

M P C edit or new add playlist > choose any media files > press the i button to show the information of the chosen media file.

15 OPTIONS

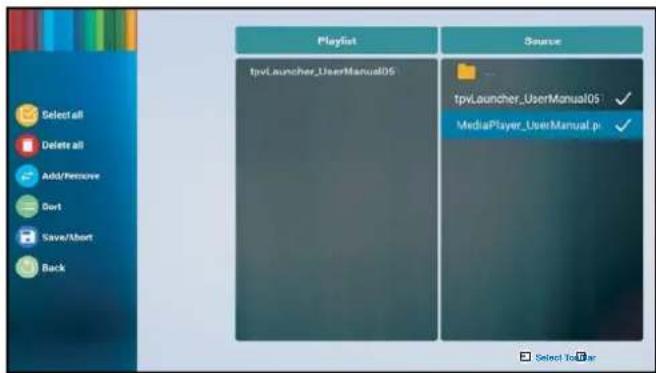

Open toolbar in Media Player or PDF Player.

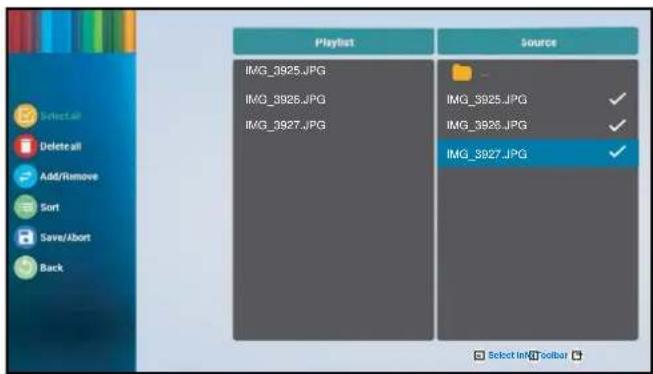

M P C edit or new add playlist press the □ button to open toolbar. Toolbar is displayed on the left side of the screen.

PDF P C edit or new add playlist press the □ button to open toolbar. Toolbar is displayed on the left side of the screen.

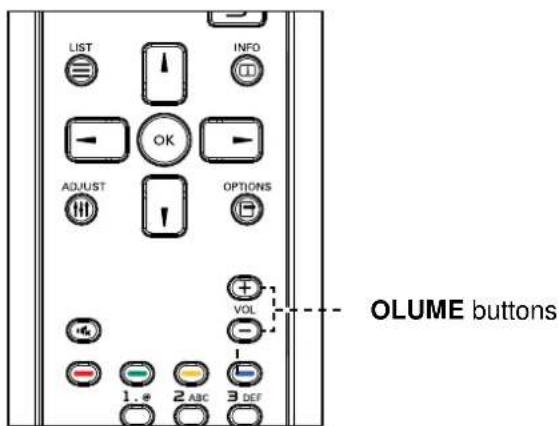

16 - + OLUME

Adjust the volume level. The buttons are only controlled by Scalar.

PRODUCT DESCRIPTION

1.7.4 I

R C

The remote control is powered by two 1.5V AAA batteries.

To install or replace batteries

1 Press and then slide the cover to open it.
2 Align the batteries according to the ( ) and (-) indications inside the battery compartment.
3 Replace the cover.

Three-step diagram showing a remote control device with rotation arrows and polarity indicators (no text or symbols)

1.7.5 H

R C

Do not subject to strong shock.

Do not allow water or other liquid to splash the remote control. If the remote control gets wet, wipe it dry immediately.

Avoid exposure to heat and steam.

Other than to install the batteries, do not open the remote control.

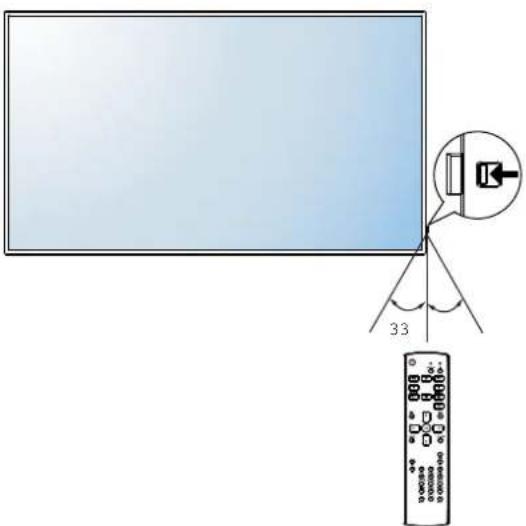

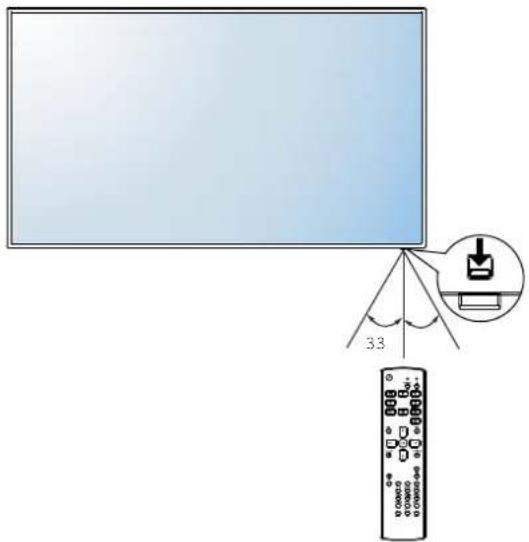

1.7.6 O

R R C

Point the top of the remote control toward the display s remote control sensor (on the left or right side) when pressing a button.

When using the remote control, the distance from the remote control to the sensor on the display should be less than 8m/26ft, and the horizontal and vertical angles should be less than 30°.

M 43A

Diagram showing a monitor with a screen icon and a remote control labeled '33', likely illustrating a TV or media interface setup.

C :

The incorrect use of batteries can result in leaks or bursting. Be sure to follow these instructions

Place "AAA" batteries matching the ( ) and ( ) signs on each battery to the ( ) and ( ) signs of the battery compartment.
Do not mix battery types.
Do not combine new batteries with used ones. It causes shorter life or leakage of batteries.
Remove the dead batteries immediately to prevent them from liquid leaking in the battery compartment. Don't touch exposed battery acid, as it can damage your skin.

N :

If you do not intend to use the remote control for a long period, remove the batteries.
The remote control may not function properly when the remote control sensor on this display is under direct sunlight or strong illumination, or when there is an obstacle in the path of signal transmission.

PRODUCT DESCRIPTION

M 55A

3.3

CHAPTER 2: MAKING CONNECTIONS

2.1 C

P

1 Connect one end of the power cord to the AC IN connector at the rear of the LCD display.
2 Connect the other end of the power cord to a power outlet or a power supply.
3 Set the M P switch to ON.

M 43A

Diagram of an electronic device rear panel with connected power outlet and cable (no text or symbols)

M 55A

Diagram showing a device layout with labeled components and an electrical outlet connection

C :

Make sure that the LCD display is not connected to the power outlet before making any connections. Connecting cables while the power is ON may cause electric shock or personal injury.
When unplugging the power cord, hold the power cord by the plug head. Never pull by the cord.

MAKING CONNECTIONS

2.2 C

C

2.2.1 U GAI

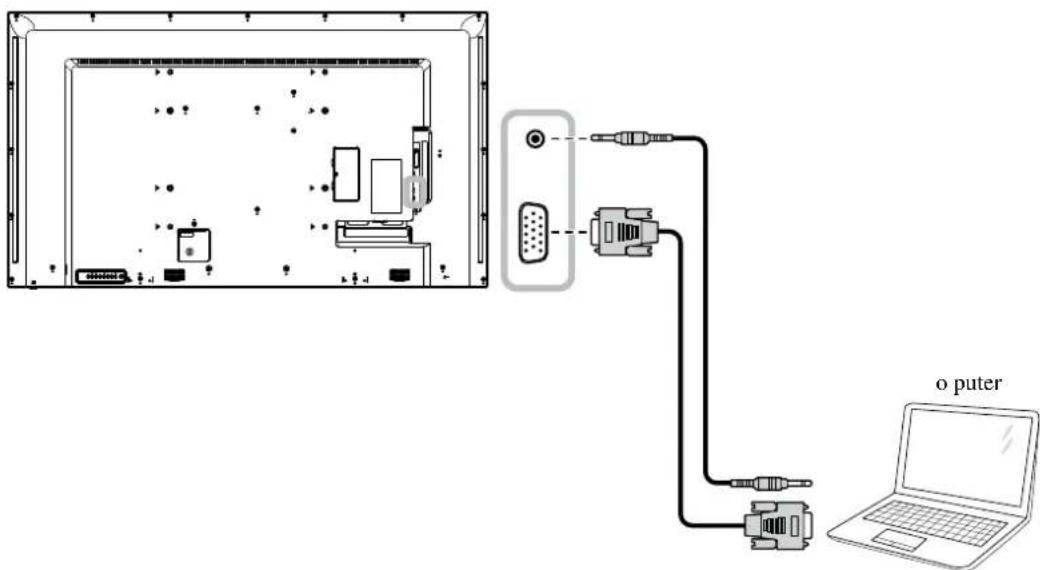

Connect one end of a D-sub cable to the VGA IN connector of the LCD display and the other end of a D-sub cable to the VGA OUT (D-Sub) connector of the computer.

For audio input, connect one end of an audio cable to the AUDIO IN connector of the LCD display and the other end of an audio cable to the AUDIO OUT connector of the computer.

M 43A

Diagram showing computer setup with labeled components including a monitor, VGA, and a laptop labeled 'o puter'

u pin

M 55A

Diagram showing a device setup with an open panel, connected to an VGA and a laptop labeled 'o puter'.

u pin

MAKING CONNECTIONS

2.2.2 U DII

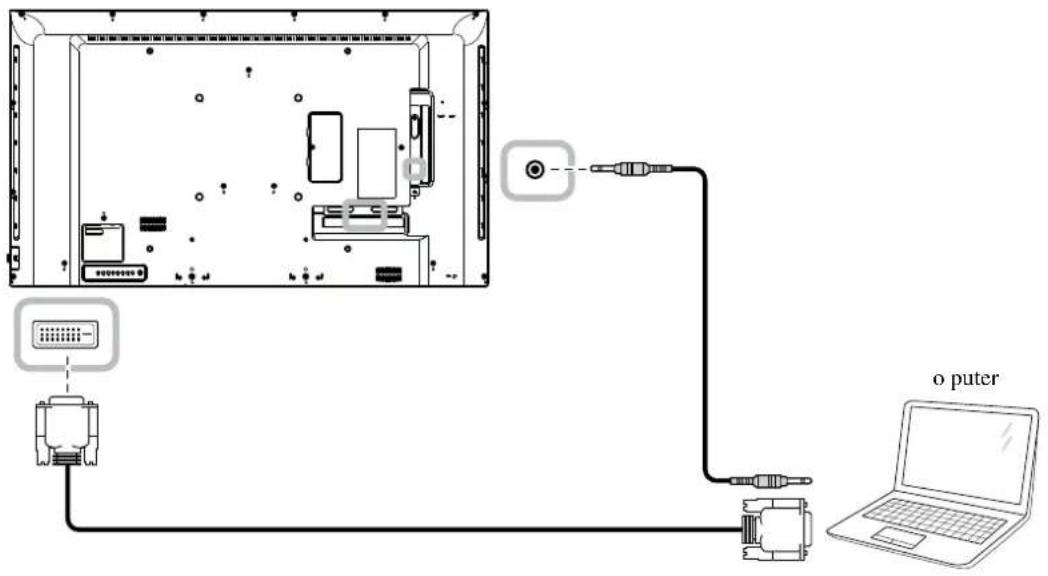

Connect one end of a DVI cable to the DVI IN connector of the LCD display and the other end of a DVI cable to the DVI connector of the computer.

M 43A

Diagram showing connection between a computer via an Oputer, with labeled components and wiring connections.

M 55A

MAKING CONNECTIONS

2.2.3 U HDMI I

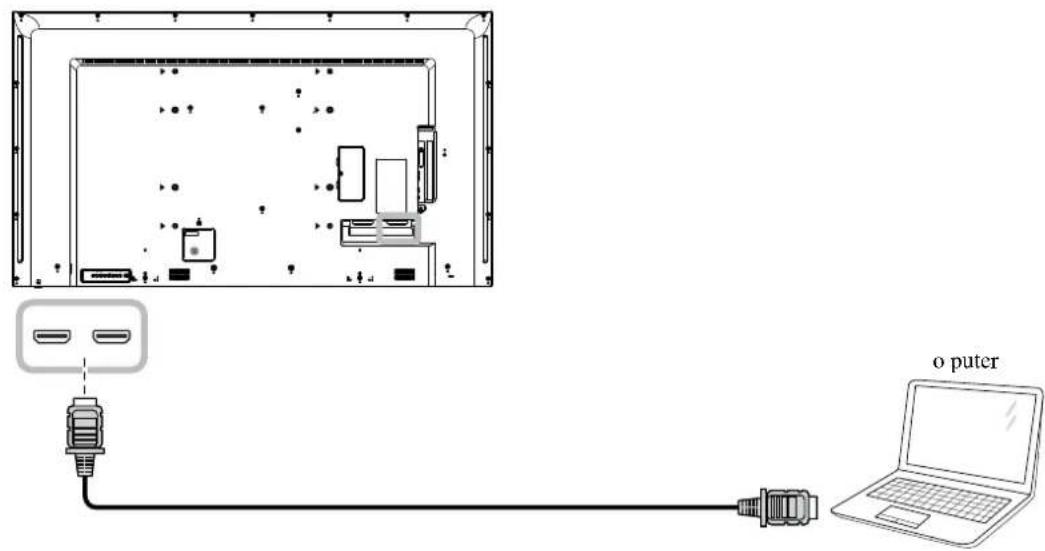

Connect one end of an HDMI cable to the HDMI IN connector of the LCD display and the other end of an HDMI cable to the HDMI OUT connector of the computer.

M 43A

o puter

M 55A

o puter

MAKING CONNECTIONS

2.3 C

E

E

P

2.3.1 U HDMI I

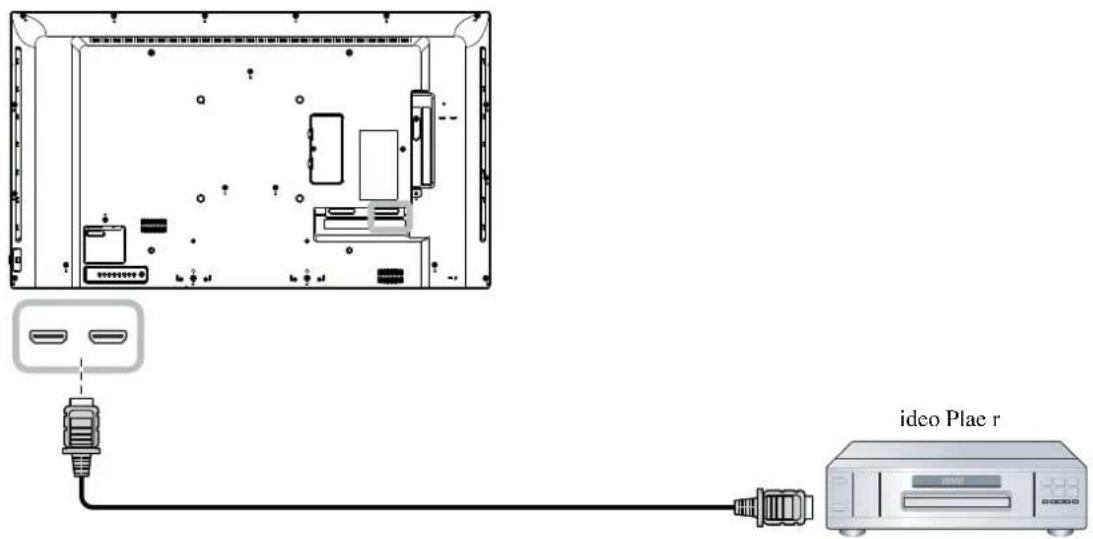

Connect one end of an HDMI cable to the HDMI IN connector of the LCD display and the other end of an HDMI cable to the HDMI OUT connector of the video player.

M 43A

ideo Plae r

M 55A

ideo Plae r

MAKING CONNECTIONS

2.4 C A E

2.4.1 C E A D

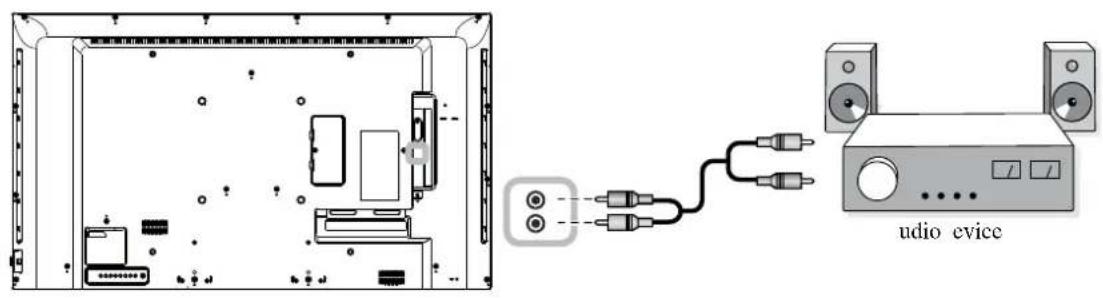

Connect one end of an audio cable to the AUDIO OUT connectors of the LCD display and the other end of an audio cable to the AUDIO IN connectors of the audio device.

M 43A

audio evice

M 55A

audio evice

MAKING CONNECTIONS

2.5 U

C R

Insert a micro SD card into the slot.

M 43A

micro icro

M 55A

micro micro

MAKING CONNECTIONS

2.6 Connecting Multiple Displays in a Daisy-chain Configuration

You can interconnect multiple displays to create a daisy-chain configuration for applications such as a video wall.

C :

To avoid unnecessary strain on the bee I, it is highly recommended to keep a minimum space of 0.5mm in which a business card is able to slip between all displays on all sides.

0.5 mm

2.6.1

D

C

C

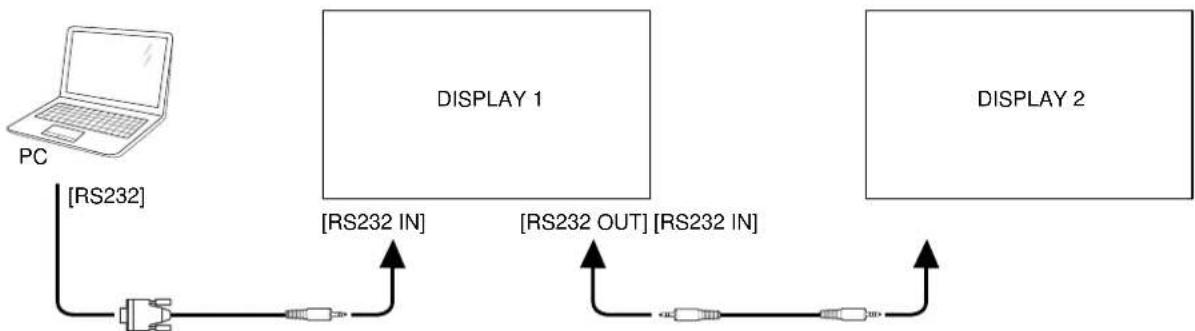

Connect the RS232 OUT connector of DISPLA 1 to the RS232 IN connector of DISPLA 2.

MAKING CONNECTIONS

2.7 IR C

Connect the IR sensor cable to the IR IN connector of the LCD display.

DISPLAY

N :

This display's remote control sensor will stop working if the IR IN is connected.
◆ IR loop through connection can support up to 9 displays.
◆ IR in daisy chain via RS232 connection can support up to 9 displays.

2.8 IR P T C

Connect one end of an IR extender cable to the IR OUT connector of the LCD display and the other end of an IR extender cable to the IR IN connector of the video player.

CHAPTER 3: USING THE LCD DISPLAY

3.1 T

P

NORMAL ID SOURCE FORMAT LIST INFO

PO ER button

1 Plug the power cord to a power outlet or power supply.
2 Press the ⏻ button to turn the LCD display on.

When the LCD display is turned on, press the ⏻ button to turn off the LCD display.

3.1.1 I S

After you turn on the LCD display, a Welcome screen opens. You are prompted to select the default OSD language, configure network settings, and more. Follow the on-screen instructions to complete the initial setup.

Welcome Deutsch English Spanish Start

N :

The LCD display still consumes power as long as the power cord is connected to the power outlet. Disconnect the power cord to completely cut off power.

USING THE LCD DISPLAY

3.2 S

NORMAL ID SOURCE FORMAT SOURCE button LIST INFO

1 Press the

button.

2 Press the

or button to choose a device, then press the

OK button.

3.3 A

LIST INFO ADJUST OPTIONS VOL 1.# 2 ABC 3 DEF OLUME buttons

Press the -or button to adjust the volume.

N :

After pressing the button, a menu with available input sources will be displayed on the screen.

HDMI1 HDMI2 DVI-D VGA Media Player Browser CMS PDF Player Custom

If the selected input source signal is not connected to the LCD display or is turned off, the screen will display multi-color screen.

N :

- After pressing the—or + button, the volume icon is displayed on the screen automatically.

- Press the button to mute the audio.

USING THE LCD DISPLAY

3.4 C

NORMAL ID SOURCE FORMAT LIST INFO -- FORMAT button

Press the 📄 button repeatedly to change the picture format.

N :

The available picture formats include

◆ F Restores the correct proportions of pictures transmitted in 16 9 using the full screen display.
4:3 The picture is reproduced in 4:3 format and a black band is displayed on either side of the picture.
R This mode displays the image pixel-by-pixel on screen without scaling the original image sie.
◆ 21:9 The picture is reproduced in 21:9 format and a black band at the top and bottom.
♦ C Choose to apply the custom o om settings set in the S C submenu.

CHAPTER 4: MULTIMEDIA MENU

4.1 A

M

M

N :

◆ The control buttons described in this section are on the remote control.
- Press the button once in any menu to return to the previous menu or repeatedly to return to the Hint screen as illustrated below.

Press SOURCE Key to Exit Press INFO + T7 to Launch Quick Info

The multimedia menu consists of five items, such as Media Player, Browser, CMS, PDF Player, and Custom. To access the multimedia menu items, do the following:

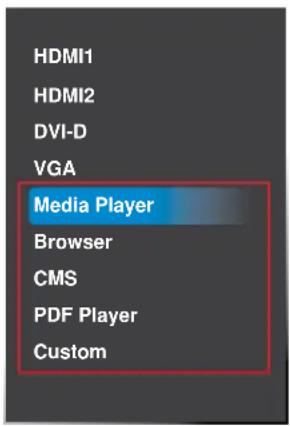

HDMI1 HDMI2 DVI-D VGA Media Player Browser CMS PDF Player Custom

1 Press the button to open a list of input sources.
2 Press the ▪ or ▪ button to select M P , , CMS, PDF P , or C from the list.
3 Press the OK button on the remote control to open the item.

4.2 M P

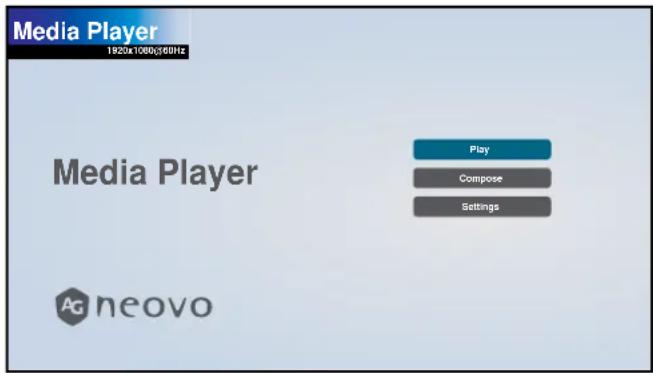

Use the Media Player to play your favorite photo, video, and/or music files. The files can be grouped into playlists from various storage devices, such as internal storage, USB storage, and SD card. The total number of playlists can be up to seven but the media content of a single playlist is not limited.

Media Player 1920x1080(60Hz) Media Player Play Compose Settings Ag neovo

4.2.1 C P

To create a playlist, do the following:

1 Copy your photo, video, and/or music files on the storage device to the following paths respectfully:

— Photo: {root dir of storage}/agn/photo/
— Video: {root dir of storage}/agn/video/
— Music: {root dir of storage}/agn/music/

N :

◆ Music files can be selected and used as background music for a slideshow.

2 Connect the storage device to the LCD monitor (if necessary).
3 Set the input source to M P . See "4.1 Accessing the Multimedia Menu".
4 Press the ▲ or ▼ button to select the C tab and then press the OK button to open the PlayList

menu.

5 Press the ▲ or ▶ button to select a file among F 1 to F 7 where you want to add your media files and then press the OK button.
6 Press the or button to select a storage device where are saved your media files and then press the OK button.

N :

◆ Press the OK button again if prompted to confirm the path.

A file browser opens where your media files on the storage device are displayed in the Source column and the content of the playlist is displayed in the Playlist column.

7 Press the ▲ or ▶ button to select the P or folder and then press the OK button. The folder content is displayed in the Source column.

PlaySet IMG_3925.JPG IMG_3926.JPG IMG_3927.JPG Source IMG_3925.JPG ✓ IMG_3926.JPG ✓ IMG_3927.JPG ✓ Select Image Toolbar

8 Press the ▲ or ▼ button to select a media file for reviewing (if necessary). Press any of the following buttons:

— OK S : To select a single file. Press the OK button again to deselect the file.

— i I : To review the detailed information on the media file.

9 Press the O button to start adding or modifying the playlist.

Playlist IMG_3925.JPG IMG_3926.JPG IMG_3927.JPG Source IMG_3925.JPG IMG_3926.JPG IMG_3927.JPG Select in Toolbar

Then press the ▲ or ▶ button and press the OK button to select any of the following actions:

— S : Select all the visible media files on the storage device.

— D : Delete all the media files in the playlist.

— A R : Add or remove the selected files from the playlist.

— S : Sort the media files in the playlist one by one. The Sort menu opens.

a) Press the ▲ or ▼ button and then press the OK button to select the file. Next to the selected file appears 📁 icon.

b) Press the ▲ or ▶ button to adjust the file order in the Slideshow.

—S A : Save the playlist or discard the modifications. Press the →or →button to select S or A and then press the OK button to confirm. If you have added to the playlist only photos then you are prompted to add background music to the slideshow. Press the I or J button to select Y or N and press the OK button to confirm. If you decide to add background music to the slideshow, you are prompted to select a music file from the Music folder.

— : Close the toolbar.

10 Repeat steps 1 to 9 for creating more playlists.

4.2.2 M P

To modify a playlist, do the following:

1 Set the input source to M P . to "4.1 Accessing the Multimedia Menu".
2 Press the I or I button to select the C tab and then press the OK button to open the PlayList menu.
3 Press the ▲ or ▼ button to select the playlist that you want to modify and then press the OKton.

N :

◆ ou can modify only playlists that have the 📋 icon next to the F , where “#” is the file number.

Those playlists that do not have the icon are empty.

4 Press the or button to select E or D the playlist and then press the OK button to confirm.
5 Perform any of the modifications as described in steps 7 and 9 in "4.2.1 Creating a Playlist" section.

4.2.3 P F P

To play files in a playlist, do the following:

1 Set the input source to M P . See "4.1 Accessing the Multimedia Menu".
2 Press the ▲ or ▶ button to select the P tab and then press the OK button to open the PlayList menu.
3 Press the ▲ or ▼ button to select the playlist that you want to play and then press the Ⓤkton.

N :

◆ ou can play only playlists that have the ➕ icon next to the F , where “#” is the file number.

Those playlists that do not have the icon are empty.

4.2.4 M P S

To configure Media Player settings, do the following:

1 Set the input source to M P . See "4.1 Accessing the Multimedia Menu".
2 Press the ▲ or ▼ button to select the S tab and then press the OK button to open the Settings menu.

MULTIMEDIA MENU

3 Press the I or I button to select any of the menu items and then press the OK button to enter its configuration menu:

— R M : Press the

or button to set the playlist repeat mode to R

or R

and then press the OK button to save the setting.

— S E : Press the ▲ or ▼ button to set the slideshow effect to R , , F

，T

,L

，R

F , C

, or N

and then press

the OK button to save the setting.

Settings Repeat Mode Slideshow Effect Effect Duration ✓ 5s 10s 15s 20s

— E D : Press the ▪ or ▪ button to set the slideshow effect duration to 5 , 10 , 15 , or 20 and then press the OK button to save the setting.

4.3

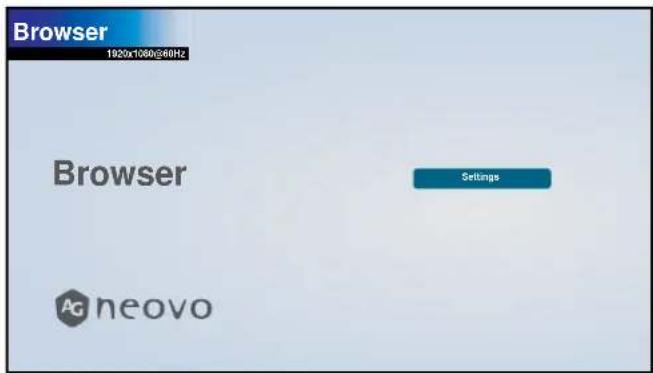

Use the Browser app to save up to seven bookmarks (URLs) manually or import a list of URLs from a storage device, such as internal storage, USB storage, and SD card.

Browser 1920x1080:246Hz Browser Ag neovo Settings

4.3.1 A URL

To add an URL, do the following:

1 Set the input source to . See "4.1 Accessing the Multimedia Menu".

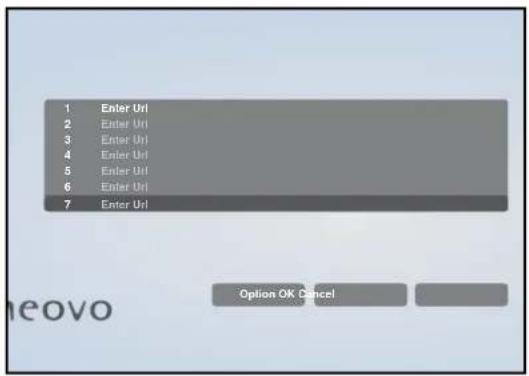

2 Press the OK button to open the S tab. A list of URLs opens.

1 Enter UI 2 Enter UI 3 Enter UI 4 Enter UI 5 Enter UI 6 Enter UI 7 Enter UI Option OK Cancel

3 Do any of the following to add an URL:

-A URL

a) Press the ▲ or ▼ button to select an available URL field (E ) and then press the OK button.

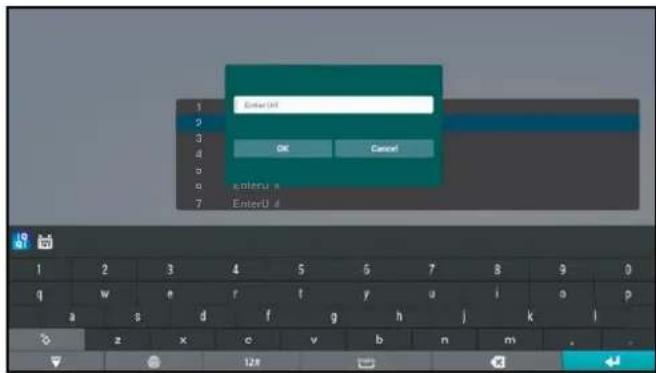

b) Press the OK button again to open the virtual keyboard.

Enter Int OK Cancel enter u Enter U

c) Press the ↓, ↑, —, and/or — button to pick each character that appears in the URL name. After selecting a character, press the OK button to enter the character. Continue this step until all the characters in the URL are entered.

d) Press the ➕ button to close the virtual keyboard.

e) Press the I button and select OK to save the URL or C to discard the modifications. Then press the OK button to confirm the selection.

-A URL

a) Save a list of URLs in a text-file with the extension “*.txt” where “*” is the file name.

b) Copy the text-file with the URLs to the storage device to the following path:

{root dir of storage}/agn/browser/

c) Connect the storage device to the LCD monitor (if necessary).

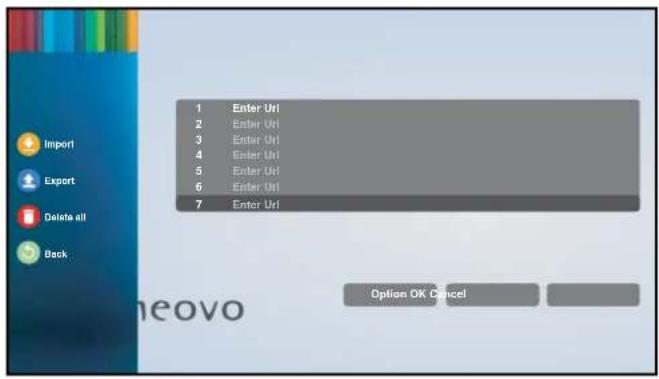

d) Press the 1 button repeatedly to scroll through the URLs in the list and access the O button on the screen. Then press the OK button. A toolbar opens on the screen.

e) Press the ▲ or ▼ button to select I and then press the OK button.

1 Enter Url 2 Enter Url 3 Enter Url 4 Enter Url 5 Enter Url 6 Enter Url 7 Enter Url Option OK Cancel

f) Press the or button to select a storage device where is saved your text-file and then press the OK button.

N :

◆ Press the OK button again if prompted to confirm the path.

A Please choose file menu opens.

Please choose file Increase Cancel

g) Press the button to open the folder.

h) Press the → or → button to select the text-file where are saved the URLs. Then press the OK button. You are prompted to confirm importing the file or cancel the procedure.

i) Press the or button to select I or C and then press the OK button.

After importing the text-file, the URLs appear in the URLs' list in the Browser app.

4.3.2 M URL L

To manage URLs list on Browser app, do the following:

1 Set the input source to . See "4.1 Accessing the Multimedia Menu".

2 Press the OK button to open the S tab. A list of URLs opens.

3 To modify or open an URL, press the ▲ or ▶ button and select an URL. Then press the Ⓤ button.

You are prompted to modify the URL or open the web page.

N :

You need an active Internet connection to open a web page. To configure the network parameters, see "4.6.5 Accessing Network Settings in Admin Mode" on page 54.

Press the — or — button and then press the button to do any of the following:

— E : Modify the URL. See “— Adding an URL manually” on page 42 steps c to d.

— P : Open the webpage on the screen.

4 To perform other actions with the URLs list, such as export the list or delete all the entries, press the button repeatedly until you can select the O button. Then press the OK button. A toolbar opens on the screen.

5 Press the ▲ or ▼ button and then press the Ⓞ button to do any of the following:

— E : Press the — or — button to select the storage device where you want to save the current URLs list. Then press the OK button. After selecting the storage device, you are prompted to confirm the location and the file name of the URLs list. Press the — or — button to S or C the procedure.

N :

If you wish to save the URLs list to an external storage device, make sure to connect the storage device to the LCD monitor before exporting the file.

— D : Delete all the URL entries in the list.

— : Close the toolbar.

4.4 C M S CMS

Using the CMS app, you can display any content through the CMS Server or from a storage device directly on your LCD monitor's screen.

CMS AG neovo

4.4.1 U CMS S C S

To access the content from a CMS Server, your LCD monitor needs to be connected to the same network segment with the CMS Server and you need to configure the connection parameters on your LCD monitor.

To configure your LCD monitor for displaying a content from a CMS Server, do the following:

1 Connect your LCD monitor to the network.
2 Set the input source to C . See "4.1 Accessing the Multimedia Menu".
3 Enter the Admin Mode. See "4.6.1 Entering the Admin Mode" on page 50.
4 Press the or button to select the S tab and then press the OK button.
5 Press the ▲ or ▼ button and then press the OK button to select S D S CMS
6 Press the ▲ or ▶ button and then press the OK button to select and configure the CMS Server connection parameters, such as S S / A / PIN C .

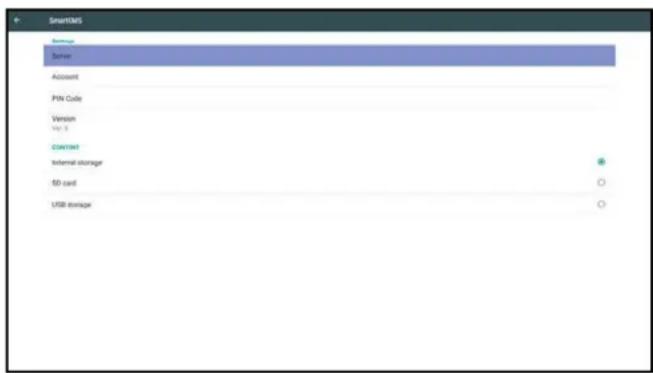

SmartIMS Server Account PN Code Version Vcc 5 CONTINT Internal storage SD card USB storage

N :

After the connection parameters are configured on the LCD monitor, the CMS Server detects a new device. The CMS Server manager can schedule the content displaying for the LCD monitor.

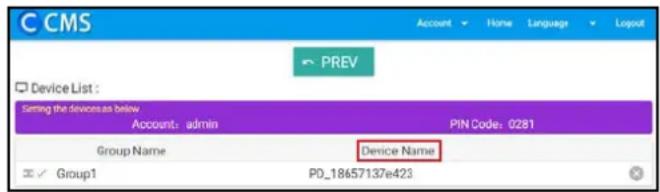

When adding the LCD monitor as a new device to the CMS Server then use the Signage Display name as a Device Name.

CMS Account Home Language Layout PREV Device List : Sitting the devices as below Account: admin PIN Code: 0281 Group Name Device Name Group1 PD_18657137e423

7 To view the content from the CMS Server, set the input source to CMS. See "4.1 Accessing the Multimedia Menu".

MULTIMEDIA MENU

4.4.2

D

C

A

s

D

You can configure the LCD monitor to use content from a storage device, such as internal storage, USB storage, and SD card.

To configure your LCD monitor to display CMS content from a storage device, do the following:

1 Copy the source files to the storage device in the following path:
— {root dir of storage}/agn/CMS/
2 Connect the storage device to the LCD monitor (if necessary).
3 Set the input source to C . See "4.1 Accessing the Multimedia Menu".
4 Enter the Admin Mode. See "4.6.1 Entering the Admin Mode" on page 50.
5 Press the or button to select the S tab and then press the OK button.
6 Press the ▲ or ▶ button and then press the OK button to select S D S CMS
7 Press the ▲ or ▼ button to select the storage device where the CMS content is saved and then press the OK button.
8 To view the content, set the input source to CMS. See "4.1 Accessing the Multimedia Menu".

4.5 PDF P

Use the PDF Player to display your PDF files on the screen. The files can be grouped into playlists from various storage devices, such as internal storage, USB storage, and SD card. The total number of playlists can be up to seven but the PDF file content of a single playlist is not limited.

PDF Player 1920x1080(60Hz) PDF Player Play Compose Settings AG neovo

4.5.1 C P

To create a playlist, do the following:

1 Copy your PDF files on the storage device to the following path:

— {root dir of storage}/agn/pdf/

2 Connect the storage device to the LCD monitor (if necessary).

3 Set the input source to PDF P . See "4.1 Accessing the Multimedia Menu".

4 Press the I or I button to select the C tab and then press the OK button to open the PlayList menu.

5 Press the ▲ or ▶ button to select a file among F 1 to F 7 where you want to add your PDF files and then press the OK button.

6 Press the or button to select a storage device where are saved your PDF files and then press the button.

N :

◆ Press the OK button again if prompted to confirm the path.

MULTIMEDIA MENU

A file browser opens where your PDF files on the storage device are displayed in the Source column and the content of the playlist is displayed in the Playlist column.

7 Press the ▲ or ▶ button to select the PDF folder and then press the OK button. The folder content is displayed in the Source column.

Playlist tpvLauncher_UserManual05 source tpvLauncher_UserManual05 ✓ MediaPlayer_UserManual pr ✓ Select Toolbar

8 Press the ▲ or ▼ button to select a PDF file and then press the OK button. To select all the PDF files in the folder, proceed to step 9.

9 Press the O button to add or modify the playlist.

Playlist tpvLauncher_UserManualOS Source tpvLauncher_UserManualOS ✓ MediaPlayer_UserManual.p ✓ Select all Delete all Add/Remove Sort Save/Short Back Select To Bar

Then press the ▶ or ▶ button and press the OK button to select any of the following actions:

— S : Select all the PDF files on the storage device.
— D : Delete all the files in the playlist.
— A R : Add or remove the selected files from the playlist.
— S : Sort the PDF files in the playlist one by one. The Sort menu opens.

a) Press the ▲ or ▼ button and then press the OK button to select the file. Next to the selected file appears 📁 icon.

b) Press the ▲ or ▼ button to adjust the file order in the Slideshow.

—S A : Save the playlist or discard the modifications. Press the —or — button to select S or A and then press the OK button to confirm.

— : Close the toolbar.

10 Repeat steps 1 to 9 for creating more playlists.

4.5.2 M P

To modify a playlist, do the following:

1 Set the input source to PDF P . See "4.1 Accessing the Multimedia Menu".
2 Press the I or I button to select the C tab and then press the OK button to open the PlayList menu.
3 Press the ▲ or ▼ button to select the playlist that you want to modify and then press the OKton.

N :

◆ ou can modify only playlists that have the 📋 icon next to the F , where “#” is the file number.

Those playlists that do not have the icon are empty.

4 Press the or button to select E or D the playlist and then press the OK button to confirm.
5 Perform any of the modifications as described in steps 7 to 9 in "4.5.1 Creating a Playlist" section.

4.5.3 D PDF F P

To display the PDF files in a playlist, do the following:

1 Set the input source to PDF P . See "4.1 Accessing the Multimedia Menu".
2 Press the ▲ or ▶ button to select the P tab and then press the OK button to open the PlayList menu.
3 Press the ▲ or ▼ button to select the playlist that you want to display and then press the Ⓤ button.

N :

◆ ou can display only playlists that have the ➕ icon next to the F , where “#” is the file number.

Those playlists that do not have the icon are empty.

4.5.4 PDF P S

To configure PDF Player settings, do the following:

1 Set the input source to PDF P . See "4.1 Accessing the Multimedia Menu".
2 Press the ▲ or ▼ button to select the S tab and then press the OK button to open the Settings menu.

MULTIMEDIA MENU

3 Press the ▲ or ▶ button to select any of the menu items and then press the OK button to enter its configuration menu:

— R M : Press the

or button to set the playlist repeat mode to R

or R

and then press the OK button to save the setting.

— E D : Press the ▪ or ▼ button to set the slideshow effect duration to 5 , 10 , 15 , or 20 and then press the OK button to save the setting.

Settings Repeat Mode Effect Duration ✓ 5s 10s 15s 20s

4.6 C

In Custom screen, you can enter the Admin Mode. The Admin Mode enables you full access to the system configuration settings, applications, network configuration parameters, and storage.

The default Custom screen is empty to prevent unauthorized access to the system.

Completely black image with no visible content, text, or symbols.

4.6.1 E A M

To enter the Admin Mode, do the following:

1 Set the input source to C. See "4.1 Accessing the Multimedia Menu".

2 Enter the Admin Mode by pressing the 🔗 button once followed by entering numbers "1", "6", "6", and "8" on the remote control. The Admin Mode screen opens.

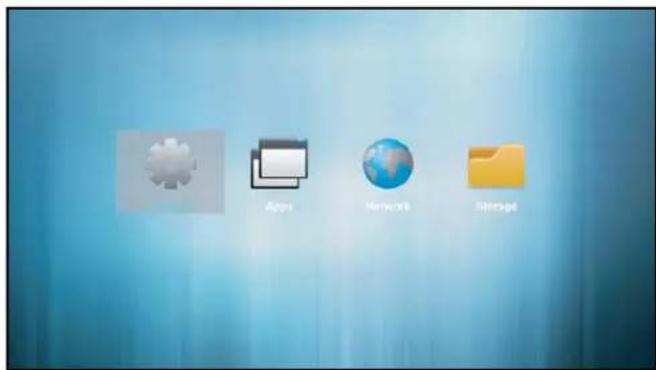

App Store Network Storage

4.6.2 S S

To access the system settings, do the following:

1 Enter the Admin Mode. See "4.6.1 Entering the Admin Mode" on page 50.
2 Do any of the following to access the system settings:

— Press the

or button to select the S

tab and then press the OK button.

— Press the

→ or → button and then press the

OK button to open A

tab S

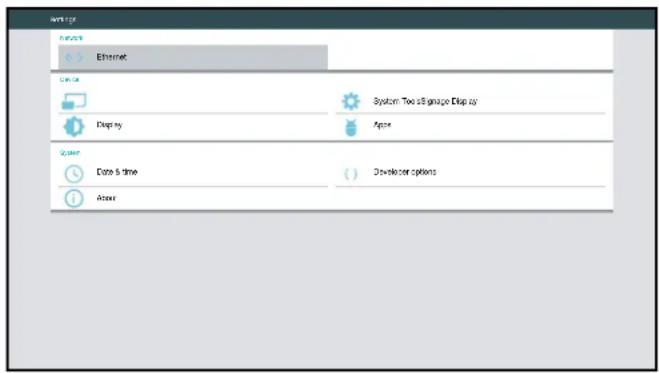

Network Ethernet Device Display System Two & Group Display Apple System Clock & time Developer options Access

3 Modify any of the following settings:

N :

Use the -, -, !, and/or OKon on the remote control to select items and adjust settings. If you need to enter characters, the virtual keyboard opens automatically on the screen after you select the item.

— N E M S : Enable or disable configuring Ethernet settings.
— Network > Ethernet > Ethernet Configuration: Review MAC address and configure the network

connection settings, such as C

T (DHCP or static IP), IP A, N, DNS

A, and G.

—D S D G S D N : Review or modify the

signage display name if necessary.

— D S D G L : Set boot animation. The system

checks for the "boot animation.zip" file from the connected USB storage or SD card.

—D S D G S M S : Enable or disable

configuring screenshot settings.

—D S D G S S : Configure

screenshot capturing settings, such I

, S E , R , S (storage

selection), P S, and S

— Device > Signage Display > Server settings > Email Notification > Main Switch: Enable or disable configuring email notification settings.

— Device > Signage Display > Server settings > Email Notification > SMTP: Configure SMTP settings, such as S , E , P , SMTP S name, S , and P .

— Device > Signage Display > Server settings > Email Notification > Manager Email: Enter manager email.

—D S D S FTP M S : Enable or disable configuring FTP settings.

—D S D S FTP FTP: Configure FTP server connection settings, such as A , P , S P , and P .

—D S D S SICP N P M S : Enable or disable configuring Serial / Ethernet Interface Communication Protocol (SICP) settings.

—D S D S SICP N P SICP N P : Set the SICP connection port (used for controlling the LCD monitor via RS232 / Ethernet).

—D S D S M P : Access to E P L or E E S . For more information on Media Player, see “4.2 Media Player” on page 38.

—D S D S : Access to Edit Bookmark. More information on adding bookmarks, see “4.3 Browser” on page 41.

—D S D S CMS S : Configure CMS Server connection settings, such as S , A , PIN C , and (Ver. 2 or Ver. 3). For more information on CMS, see “4.4 Content Management Software (CMS)” on page 44.

—D S D S CMS C : Select the CMS content from a storage device, such as I , SD , or US . For more information on CMS, see “4.4 Content Management Software (CMS)” on page 44.

—D S D S PDF P : Access to E P L or E E S . For more information on PDF Player, see “4.5 PDF Player” on

— D S D S C A : Select the custom app.

—D S D S E S : Check to lock or ulock using the external storage, such as SD card and USB storage.

— D D F : Set the font size to S , N , L , or H .

— D S T C : Clear data on A storage devices, I

US, or SD.

—D S T R : Perform F R to reset all system settings to the factory defaults.

—D S T I E :E S D S or I S D S to a specified storage device.

— D S T C C S : Select a storage device among I , SD , and US for cloning.

MULTIMEDIA MENU

—D S T C T L : Set the storage device among I

, SD , and US as a target location for cloning.

— D A : Review and manage apps that are installed on your LCD monitor. The apps are categorized as DO NLOADED, RUNNING, and ALL.

— S D : Access to S and review NTP S

— S A : Set location for S , review L , A

K, and

— S D : Configure advanced system settings (for Android system developers).

4.6.3 A A A M

To access installed apps in Admin Mode, do the following:

1 Enter the Admin Mode. See "4.6.1 Entering the Admin Mode" on page 50.
2 Press the or button to select the A tab and then press the OK button. The apps screen opens.

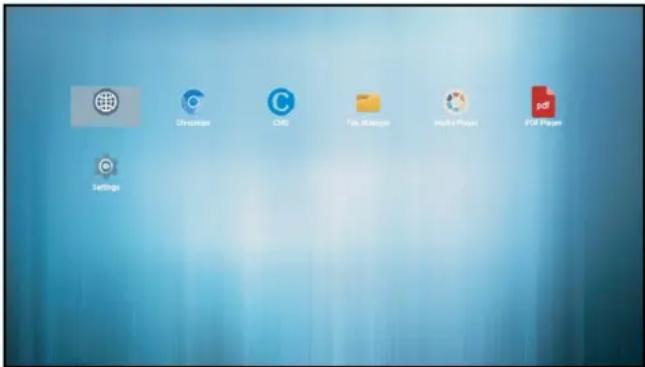

Internet CMB Fox 3000 Intel Player PDF Player Settings

3 Press the or button to select the app and then press the OK button to open the app.

4.6.4 I A LCD M

To install new apps to your LCD monitor, do the following:

1 Download and copy the Android installation file named "*.apk" where "*" is the app's name to the USB storage or SD card.
2 Connect the storage device with the installation file to the LCD monitor.
3 Enter the Admin Mode. See "4.6.1 Entering the Admin Mode" on page 50.
4 Press the or button to select S tab and then press the OK button.
5 Press the or button to select the storage device where is saved the installation file and press the OK button.
6 Press the ▲ or ▲ button to select the installation file and then press the OK button. A pop-up menu opens.
7 Press the ▲ or ▶ button to select O and then press the OK button. Follow the on-screen instructions to install the app. After the installation is complete, the app becomes visible in A tab where you can access it.

N :

◆ ou can uninstall apps in S

D

A

DO NLOADED section.

4.6.5 A N S A M

To access network configuration settings in Admin Mode, do the following:

1 Enter the Admin Mode. See "4.6.1 Entering the Admin Mode" on page 50.
2 Do any of the following to access the network settings:

— Press the ← or → button and then press the OK button to select the S

tab N

E Ethernet Configuration.

— Press the ← or → button to select N

tab and then press the OK button.

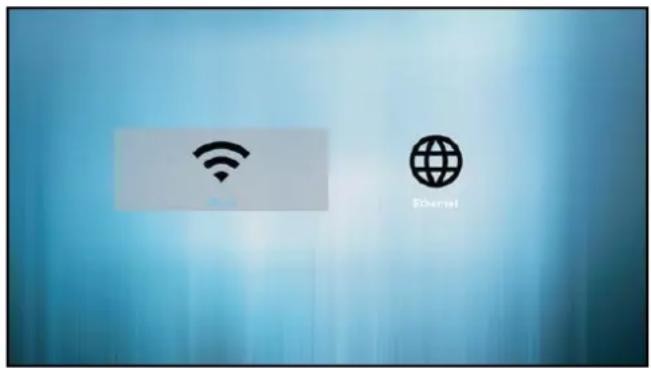

Image showing Wi-Fi and Ethernet icons with labels, set against a blue gradient background.

3 Press the or button to select the start configuring the connection settings.

F tab or the E

tab and then press the OK button to

N :

The Wi-Fi configuration settings are visible only if you have connected a compatible Wi-Fi dongle to the LCD display. For a wireless connection, QM-Series displays are compatible with following Wi-Fi dongles: TP-LINK TL-WN725N (V3.0), TP-LINK Archer T4U (V3.0), and D-LINK DWA-182 (D1).

4.6.6 M S A M

To access and manage storage in Admin Mode, do the following:

1 Enter the Admin Mode. See "4.6.1 Entering the Admin Mode" on page 50.
2 Do any of the following to access the storage:

— Press the ← or ▶ button to select S

tab and then press the OK button.

— Press the ← or → button and then press the OK button to select A

tab F M

3 Press the or button to select the internal storage or any connected external storages, such as USB storage or SD card.

4 Press the ▲ or ▼ button to select the desired file and then press the OK button. A pop-up menu opens.
5 Press the ▲ or ▼ button and then the Ⓞ button to do any of the following:

— 0 : Open the file on the screen.

— D : Delete the file.

— C : Press the ▲ or ▲ button and select the destination storage device where you want to copy the file. Then press the OK button to complete the procedure.

— M : Press the ☐ or ☐ button and select the destination storage device where you want to move the file. Then press the OK button to complete the procedure.

— S : Enter the file Select Mode. Press the ▲ or ▲ button and then press the OK button to select file(s). After the file selection is done, press the OK button. Then press the ▲ or ▲ button to select an action from the pop-up menu among D S , C S , M S ,

U, and U

A. Press the OK button to complete the procedure.

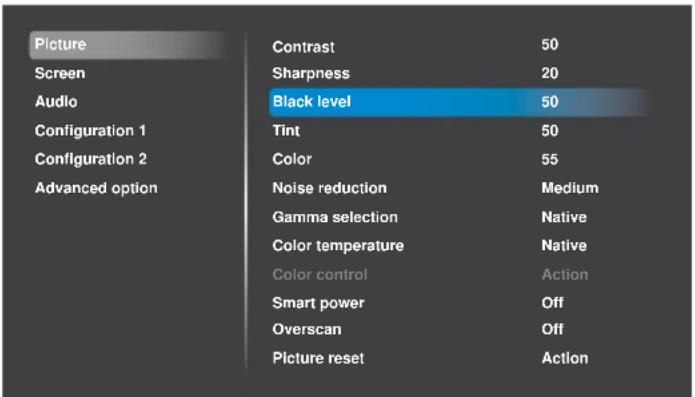

CHAPTER 5: ON SCREEN DISPLAY MENU

5.1 U OSD M

M	N	O
		C	P
1	Display the main menu screen.	Press the MENU button.	Press the ↑ button.
2	Enter the submenu. The highlighted item (blue) indicates the active submenu.	1 Press the ▲ or ▼button to select the menu item. 2 Press the + button to enter the submenu.	1 Press the ↓or ↓ button to select the menu item. 2 Press the OK or → button to enter the submenu.
3	Adjust the settings. For example	1 Press the ▲ or ▼button to select the submenu item. 2 Press the + button to open the submenu item. 3 Press the ▲ or ▼button to adjust the value of the menu item.	1 Press the ↓or ↓ button to select the submenu item. 2 Press the OK button to open the submenu item. 3 Press the → or → button to adjust the value of the menu item.
4	Exit the submenu. Press the MENU or	— button to return to the previous menu.	Press the OK or → button to return to the previous menu.

ON SCREEN DISPLAY MENU

M	N	O
		C	P
5	Close the OSD window. Press the MENU	button or buttonseveral times.	Press the ↑buttonor the buttonseveral times.

When settings are modified, all changes are saved when the user does the following:

Proceeds to the another menu.

Exits the OSD menu.

Waits for the OSD menu to disappear.

N :

◆ Availability of some menu items depend on the input source signal. If the menu is not available, it is disabled and grayed out.

ON SCREEN DISPLAY MENU

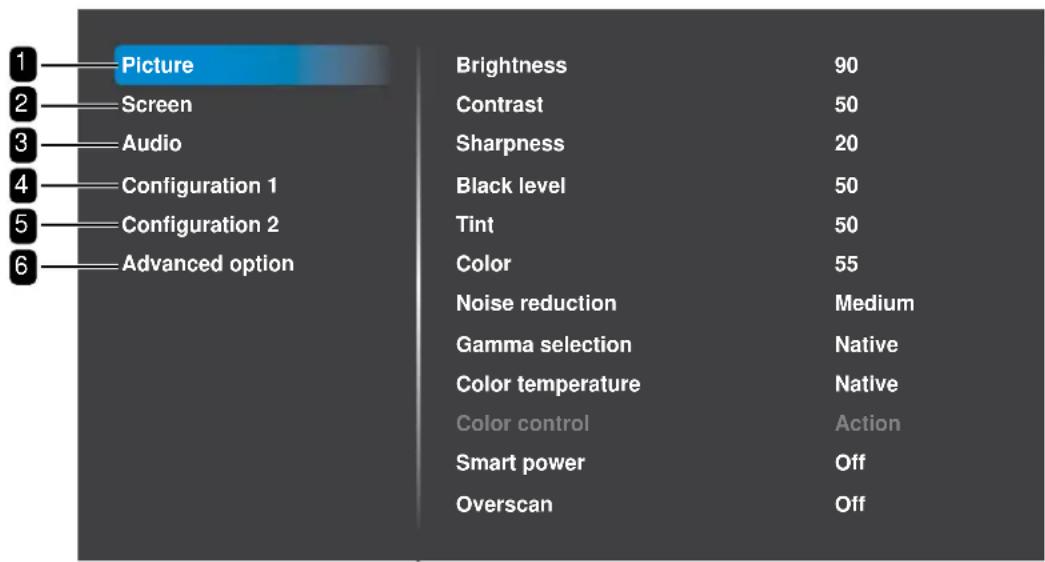

5.2 OSD M T

Picture Screen Audio Configuration 1 Configuration 2 Advanced option Brightness 90 Contrast 50 Sharpness 20 Black level 50 Tint 50 Color 55 Noise reduction Medium Gamma selection Native Color temperature Native Color control Action Smart power Off Overscan Off

MMSR
1. Picture Brightness	ContrastSharpnessBlack levelTintColorNoise ReductionGamma selectionColor temperatureColor controlSmart powerOverscanPicture reset	See page 60.
2. Screen H position	V positionClockClock phaseoom modeCustom o omAuto adjustScreen reset	See page 64.

ON SCREEN DISPLAY MENU

MMSR
3. Audio Balance	TrebleBassVolumeAudio out (line out)Maximum volumeMinimum volumeMuteAudio sourceAudio resetAudio Out Sync	See page 66.
4. Configuration1 Switch on state	Panel savingRS232 routingBoot on sourceWOLRGB RangeConfiguration1 resetFactory reset	See page 68.
5. Configuration2 OSD turn off	OSD H positionOSD V positionInformation OSDLogoMonitor IDHeat statusMonitor informationHDMI VersionConfiguration2 reset	See page 72.
6. Advanced option IR control	Power LED lightKeyboard controlOff TimerDate and timeScheduleHDMI with One WireLanguageOSD TransparencyPower SaveAdvanced option reset	See page 74.

CHAPTER 6: ADJUSTING THE LCD DISPLAY

6.1 P S

Picture	Brightness	90
Screen	Contrast	50
Audio	Sharpness	20
Configuration 1	Black level	50
Configuration 2	Tint	50
Advanced option	Color	55
	Noise reduction	Medium
	Gamma selection	Native
	Color temperature	Native
	Color control	Action
	Smart power	Off
	Overscan	Off

I F O	R
Brightness	Adjust the luminance of the screen image.	Press the ▲/▼ button on the control panel or the −button on the remote control to adjust the value.	0 to 100
	Ori inal Settin	i h Settin o Settin
Contrast	Adjust the difference between the black level and the white level.	Press the ▲/▼ button on the control panel or the −button on the remote control to adjust the value.	0 to 100
	Ori inal Settin	i h Settin o Settin
	ZZ58]
Sharpness	Adjust the clarity and focus of the screen image.	Press the ▲/▼ button on the control panel or the −button on the remote control to adjust the value.	0 to 100

ADJUSTING THE LCD DISPLAY

I F O	R
Black level	Adjusts the black level of the screen image. Low brightness setting makes black colour darker.	Press the ▲▼button on the control panel or the ↗button on the remote control to adjust the value.	0 to 100
Tint Adjust the colour tint. 0 to 100
Color	Adjust the color saturation of the picture.		0 to 100
Noise reduction	Adjust the noise reduction to help remove noise from images. This helps produce clearer and crisper images.	1 Press the ▲▼button on the control panel or the √ button on the remote control to select the setting.2 Press the button on the control panel or the OK button on the remote control to set the value.	OffLowMediumHigh
	oise Re uction O	oise Re uction On
Gamma selection	Adjust the non-linear setting for picture luminance and contrast.	1 Press the + button on the control panel or the OK button on the remote control to open the settings.2 Press the ▲ button on the control panel or the √ button on the remote control to select the setting.3 Repeat step 1 to set the setting.4 Press the √ button and then the + button on the remote control to select CANCEL or OK.5 Press the + button on the control panel or the OK button on the remote control to confirm the setting.	Native2.22.4S gammaD-imageCancelOK

ADJUSTING THE LCD DISPLAY

IF O	R
Color temperature	Select a color temperature for the image. A lower color temperature will have a reddish tint, whilst a higher color temperature gives off a more bluish tint.	1 Press the + button on the control panel or the OKton on the remote control to open the settings.2 Press the /▲button on the control panel or the /▼button on the remote control to select the setting.3 Repeat step 1 to set the setting.4 Press the ↓button and then the ←button on the remote control to select CANCEL or OK.5 Press the + button on the control panel or the OKton on the remote control to confirm the setting.	6500K7500K9300K10000KNativeUser 1User 2OKCancel
Color control	Adjust the color tones of the image precisely by changing the User-R (Red), User-G (Green) and User-B (Blue) settings independently.N :Color control option becomes available if you set the Color temperature to U 1 or U 2.	1 Press the ▲/▼button on the control panel or the /▼button on the remote control to select the setting.2 Press the button on the control panel or the OKton on the remote control to set the value.3 Press the ▲/▼button on the control panel or the ←button on the remote control to adjust the value.	User-R (0-255) (User 1)User-G (0-255) (User 1)User-B (0-255) (User 1)2000K - 10000K (User 2)

ADJUSTING THE LCD DISPLAY

IF O	R
Smart power	Smart Power control is not relative to the brightness controlInitial setting Brightness»70 (in the range from 0-100)»Power consumption70 of maximum power consumptionSmart Power»Off No adaptation.»Medium 80 of power consumption is relative to the current settings.»High 65 of power consumption is relative to the current settings.	1 Press the ▲/▼ button on the control panel or the √/ button on the remote control to select the setting.2 Press the button on the control panel or the OK/ton on the remote control to set the value.	OffMediumHigh
Overscan	Change the display area of the image.On Set to display area about 95 .Off Set to display area about 100 .	1 Press the ▲/▼ button on the control panel or the √/ button on the remote control to select the setting.2 Press the button on the control panel or the OK/ton on the remote control to set the value.	OffOn
Picture reset	Reset all settings in the Picture menu to the factory preset values.	1 Press the ▲/▼ button on the control panel or the ← button on the remote control to select the setting.2 Press the button on the control panel or the OK/ton on the remote control to set the value.	CANCELRESET

ADJUSTING THE LCD DISPLAY

6.2 S S

Picture Screen Audio Configuration 1 Configuration 2 Advanced option H position V position Clock Clock phase Zoom mode Custom zoom Auto adjust Screen reset Full Action Action Action

1 Press the MENU button on the control panel or the button on the remote control to call out the OSD window.
2 Press the ▲/▼ button on the control panel or the √ button on the remote control to select S . Then press the -button on the control panel or the OK button on the remote control.
3 Press the ▲/▼ button on the control panel or the √ button on the remote control to select an option.
4 Press the +button on the control panel or the Button on the remote control to open the submenu item.

I	F	O	R
H position	Move the image to the right or left.N :This option is available only if the input source is VGA.	Press the ▲▼button on the control panel or the ←button on the remote control to adjust the value.	0 to 100
V position	Move the image up or down.N :This option is available only if the input source is VGA.		0 to 100
Clock	Adjust the width of the image.N :This option is available only if the input source is VGA.		0 to 100
Clock phase	Adjust to improve the focus, clarity and stability of the image.N :This option is available only if the input source is VGA.		0 to 100

ADJUSTING THE LCD DISPLAY

I F O R
oom mode	The pictures you receive may be transmitted in 16 9 format (wide screen) or 4 3 format (conventional screen). The 16 9 pictures sometimes have a black band at the top and bottom of the screen (letterbox format). oom mode will be deactivated when Anti-Burn-inTM is activated.N :This option is not available in the following modes Media Player, Browser, CMS, PDF Player, and Custom.	1 Press the +button on the control panel or the OKton on the remote control to open the settings.2 Press the /▲button on the control panel or the /▼button on the remote control to select the setting.3 Repeat step 1 to set the setting.4 Press the ▼button on the control panel or the ↓button on the remote control. Then press the ▲button on the control panel or the ≠button on the remote control to select CANCEL or OK.5 Press the +button on the control panel or the OKton on the remote control to confirm the setting.	Full4 3Real21 9CustomCancelOK
Custom o om	Use this function to further customie the o om settings to suit the image you want to display.N :This option is not available in the following modes Media Player, Browser, CMS, PDF Player, and Custom.Custom o om option becomes available if you set the oom mode to C .
	oom Expand the horio ntal and vertical sie s of the image simultaneously.	1 Press the ▲/▼button on the control panel or the /▼button on the remote control to select the setting.2 Press the button on the control panel or the OKton on the remote control to enter value adjustment menu.3 Press the ▲/▼button on the control panel or the ≠button on the remote control to adjust the value.	oomH oomV oomH PositionV Position0 to 100
	H oom Expand the horio ntal sie of the image only.
	V oom Expand the vertical sie of the image only.
	H position Move the horio ntal position of the image left or right.
	V position Move the vertical position of the image up or down.

ADJUSTING THE LCD DISPLAY

I F O	R
Auto adjust	Use this function to automatically optimie the display of VGA input image.N :This option is available only if the input source is VGA.	1 Press the ▲/▼ button on the control panel or the ← button on the remote control to select the setting.2 Press the button on the control panel or the OK button on the remote control to set the value.	CANCEL OK
Screen reset	Reset all settings in the Screen menu to the factory preset values.This option is not available in the following modes Media Player, Browser, CMS, PDF Player, and Custom.	1 Press the ▲/▼ button on the control panel or the ← button on the remote control to select the setting.2 Press the button on the control panel or the OK button on the remote control to set the value.	CANCEL RESET

6.3 A S

Picture	Balance	50
Screen	Treble	50
Audio	Bass	50
Configuration 1	Volume	20
Configuration 2	Audio out(line out)	20
Advanced option	Maximum volume	100
	Minimum volume	0
	Mute	Off
	Audio source	Digital
	Audio reset	Action
	Audio Out Sync	Off

1 Press the MENU button on the control panel or the 🔗 button on the remote control to call out the OSD window.
2 Press the ▲/▼ button on the control panel or the √ button on the remote control to select A . Then press the + button on the control panel or the ⊕ button on the remote control.
3 Press the ▲/▼ button on the control panel or the √ button on the remote control to select an option.
4 Press the +button on the control panel or the Okitton on the remote control to open the submenu item.

I F O	R
Balance	Adjust to emphasise left or right audio output balance.	Press the ▲/▼button on the control panel or the ≠button on the remote control to adjust the value.	0 to 100
Treble	Adjust to increase or decrease higher-pitched sounds.		0 to 100

ADJUSTING THE LCD DISPLAY

I F O	R
Bass	Adjust to increase or decrease lower-pitched sounds.	Press the ▲/▼ button on the control panel or the ↗ button on the remote control to adjust the value.	0 to 100
Volume	Adjust to increase or decrease the audio output level.		0 to 100
Audio out (line out)	Adjust to increase or decrease line out output level.		0 to 100
Maximum volume	Adjust your own limitation for the maximum volume setting. This stops the volume from being playing at too loud.		0 to 100
Minimum volume	Adjust your own limitation for the minimum volume setting.		0 to 100
Mute Turn the mute function on/off.		Press the MUTE button on the control panel or the × button on the remote control to set the value.	Off On
Audio source	Select the audio input source. Without video signal there is no audio output.Analog Audio from audio input.Digital Audio from HDMI/DVI audio.	1 Press the ▲/▼ button on the control panel or the √ button on the remote control to select the setting.2 Press the Button on the control panel or the OKton on the remote control to set the value.	Analog Digital
Audio reset	Reset all settings in the Audio menu to the factory preset values.	1 Press the ▲/▼ button on the control panel or the ↗ button on the remote control to select the setting.2 Press the Button on the control panel or the OKton on the remote control to set the value.	CANCEL RESET
Audio Out Sync	Enable/disable audio out (line out) volume adjustability to sync with internal speakers.	1 Press the ▲/▼ button on the control panel or the √ button on the remote control to select the setting.2 Press the Button on the control panel or the OKton on the remote control to set the value.	Off On

6.4 Configuration1 Settings

Picture	Switch on state	Force on
Screen	Panel saving	Action
Audio	RS232 routing	RS232
Configuration 1	Boot on source	Action
Configuration 2	WOL	Off
Advanced option	RGB Range	Full Range
	Configuration1 reset	Action
	Factory reset	Action

1 Press the MENU button on the control panel or the button on the remote control to call out the OSD window.
2 Press the ▲/▼ button on the control panel or the √ button on the remote control to select Configuration 1. Then press the + button on the control panel or the OK button on the remote control.
3 Press the ▲/▼ button on the control panel or the √ button on the remote control to select an option.
4 Press the +button on the control panel or the O button on the remote control to open the submenu item.

IF O	R
Switch on state	Select the display status used for the next time you connect the power cord.Power off The display will remain off when the power cord is connected to a wall outlet.Forced on The display will turn on when the power cord is connected to a wall outlet.Last status The display will return to the previous power status (on/off/standby) when removing and replacing the power cord.	1 Press the ▲▼button on the control panel or the 1 button on the remote control to select the setting.2 Press the button on the control panel or the button on the remote control to set the value.	Power offForce onLast status

ADJUSTING THE LCD DISPLAY

I F O	R
Panel saving	Choose to enable the panel saving functions and thus reduce the risk of “image persistence” or “ghost-imaging”.	1 Press the ▲▼ button on the control panel or the √l button on the remote control to select the setting.2 Press the button on the control panel or the OKitten on the remote control to set the value.	BrightnessANTI-BURN-IN
	Brightness Select to O and the image brightness will be reduced to an appropriate level. The Brightness setting in the Picture menu will be unavailable when selected.		OffOn
	Select the time interval for the display to slightly expand the image sie and shift the position of pixels in four directions (up, down, left, or right).N :Activating Anti-Burn-inTMwill disable H Position, V Position and oom Mode in the Screen Menu.	Press the ▲▼ button on the control panel or the ← button on the remote control to adjust the value.	OffAuto10 to 900Seconds
RS232-Routing S	Select the network control port.	1 Press the ▲▼ button on the control panel or the √l button on the remote control to select the setting.2 Press the button on the control panel or the OKitten on the remote control to set the value.	RS232LAN - RS232
Boot on source	Set the default source at boot up.
	Last Input Input source is the same as at last boot.	1 Press the ▲▼ button on the control panel or the ← button on the remote control to select L I option.2 Press the button on the control panel or the OKitten on the remote control to set the value.	CANCELSAVE
Boot on source	Input Input can be set to Media Player, Browser, CMS, PDF Player, Custom, DVI-D, VGA, HDMI1, or HDMI2.	1 Press the + button on the control panel or the OKiton on the remote control to uncheck the L I option.2 Press the ▲▼ button on the control panel or the 1/1 button on the remote control to select the I option.3 Press the button on the control panel or the OKiton on the remote control to set the value.N : If you set the input to MP , , or PDF P then continue with setting the Playlist option in the following section (Playlist). If you set another input then follow steps 4 to 5.4 Press the ▼button on the control panel or the 1 button on the remote control. Then press the ▲button on the control panel or the + button on the remote control to select CANCEL or OK.5 Press the + button on the control panel or the OKiton on the remote control to set the value.	HDMI1HDMI2DVI-DVGAMedia PlayerBrowserCMSPDF PlayerCustom
	Playlist Select playlist index for Media Player, Browser, or PDF Player.	1 Repeat steps 1 to 3 in the previous (Input) section.2 Press the ▼button on the control panel or the 1 button on the remote control. Then press the ▲button on the control panel or the 1/1 button on the remote control to select the playlist index.3 Press the + button on the control panel or the OKiton on the remote control to set the value.4 Repeat steps 4 to 5 in the previous (Input) section.	0 to 7CANCELSAVE

ADJUSTING THE LCD DISPLAY

IF O	R
WOL	Enable this feature to allow the display to be switched on over the network.	1 Press the ▲/▼button on the control panel or the √/ button on the remote control to select the setting.2 Press the button on the control panel or the OKiton on the remote control to set the value.	OffOn
RGB Range	Set the black level and white level for the RGB format.N :This option is not available in VGA mode.		AutoFull RangeLimited Range
Configuration1 reset	Reset all settings in the Configuration1 menu to the factory preset values.	1 Press the ▲/▼button on the control panel or the ← button on the remote control to select the setting.2 Press the button on the control panel or the OKiton on the remote control to set the value.	CANCELRESET
Factory reset	Reset all your customie d settings to the factory preset values, including Android settings.	1 Press the ▲/▼button on the control panel or the ← button on the remote control to select the setting.2 Press the button on the control panel or the OKiton on the remote control to set the value.	CANCELRESET

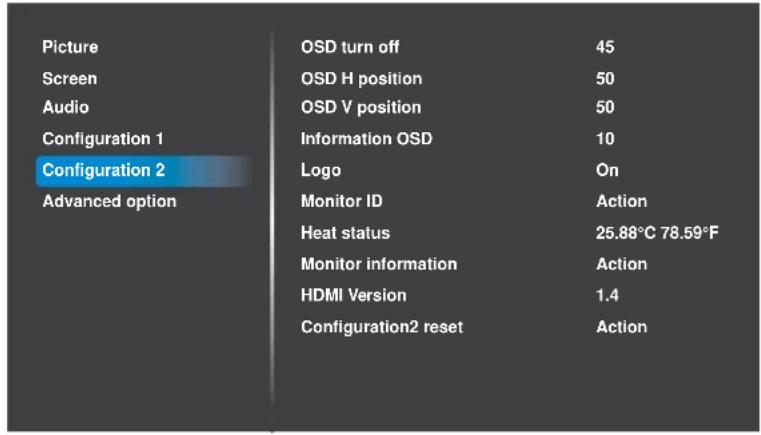

6.5 Configuration2 Settings

1 Press the MENU button on the control panel or the button on the remote control to call out the OSD window.
2 Press the ▲/▼ button on the control panel or the √ button on the remote control to select Configuration 2. Then press the + button on the control panel or the ⭕ button on the remote control.
3 Press the ▲/▼ button on the control panel or the √ button on the remote control to select an option.
4 Press the +button on the control panel or the Button on the remote control to open the submenu item.

I F O	R
OSD turn off	Set the period of time the OSD menu stays on the screen.	Press the ▲▼button on the control panel or the ←button on the remote control to adjust the value.	Off5 to 120
OSD H position	Set the OSD menu hori ontal position on the screen.		50
OSD V position	Set the OSD menu vertical position on the screen.		50
Information OSD	Set the period of time the information OSD is displayed on the upper left corner of the screen. The information OSD will appear on the screen when the input signal is changed. The information OSD will remain on the screen if the setting is set to ○ .		Off1 to 60

ADJUSTING THE LCD DISPLAY

I F O	R
Logo	Choose to enable or disable the picture of Logo when you turn on your LCD display.N :If Logo is set toO then the OTS logo will show.If Log is set toO then the scalar OTS logo will not show.If Logo is set toU then there will be no boot logo when power on.Logo will not rotate with rotation setting/detection.	1 Press the ▲/▼button on the control panel or the √/ button on the remote control to select the setting.2 Press the button on the control panel or the button on the remote control to set the value.	OffOnUser
Monitor ID	Adjust the ID number for controlling the display via the RS232 connection. Each display must have a unique ID number when multiple sets of this display are connected.	1 Press the ▲/▼button on the control panel or the √/ button on the remote control to select the setting.2 Press the + button on the control panel or the button on the remote control to set the value.3 Press the ▲/▼button on the control panel or the + button on the remote control to adjust the value.	Monitor IDMonitor Group
Heat status View	the thermal status of the LCD display.
Monitor information	View the information about your LCD display, including model name, serial number, operation hours, and software version.	N/A
HDMI Version	Set the HDMI version to 1.4 or 2.0.N :This option is available only if the input source is HDMI1 or HDMI2.	1 Press the ▲/▼button on the control panel or the √/ button on the remote control to select the setting.2 Press the button on the control panel or the button on the remote control to set the value.	1.42.0

ADJUSTING THE LCD DISPLAY

IF O R
Configuration2 reset	Reset all settings in the Configuration2 menu to the factory preset values.	1 Press the ▲/▼ button on the control panel or the ← button on the remote control to select the setting.2 Press the button on the control panel or the C button on the remote control to set the value.	CANCEL RESET

6.6 A

s

Picture	IR control	Unlock
Screen	Power LED Light	On
Audio	Keyboard control	Unlock
Configuration 1	Off timer	Off
Configuration 2	Date and time	Action
Advanced option	Schedule	Action
	HDMI with One Wire	Off
	Language	English
	OSD transparency	Off
	Power Save	Mode 1
	Advanced option reset	Action

1 Press the MENU button on the control panel or the 🔗 button on the remote control to call out the OSD window.
2 Press the ▲/▼ button on the control panel or the √ button on the remote control to select A. Then press the + button on the control panel or the Ⓞ button on the remote control.
3 Press the ▲/▼ button on the control panel or the √ button on the remote control to select an option.
4 Press the +button on the control panel or the Button on the remote control to open the submenu item.

ADJUSTING THE LCD DISPLAY

IF O	R
IR control	Select the operation mode of the remote control when multiple displays are connected via an RS232 connection.Normal All displays can be operated normally by the remote control unit.Primary Designate this display as the primary display for the remote control operation. Only this display can be operated by the remote control. (In primary mode, IR key will always be processed regardless the monitor id/group settings).Secondary Designate this display as the secondary display. This display can not be operated by the remote control, and will only receive the control signal from the primary display via the RS232 connection.Lock All / Lock all but Volume / Lock all but Power / Lock all except PWR VOL Lock the remote control function of this display. To unlock, press and hold the i button on the remote control for 6 (six) seconds.	1 Press the ▲/▼button on the control panel or the √ button on the remote control to select the setting.2 Press the button on the control panel or the button on the remote control to set the value.	UnlockLock AllLock All butVolumeLock All butPowerLock All except PWR VOLPrimary Secondary
Power LED light	Set the display LED indicator on or off.	1 Press the ▲/▼button on the control panel or the √ button on the remote control to select the setting.2 Press the button on the control panel or the button on the remote control to set the value.	OnOff

ADJUSTING THE LCD DISPLAY

I F O	R
Keyboard control	Enable or disable the keyboard (control panel buttons) function of the LCD display.Unlock Enable the keyboard function.Lock All / Lock all but Volume / Lock all but Power / Lock all except PWR VOL Disable all the keyboard function.N :To disable the Keyboard control function, press both the +on the control panel and the ▲ button on the remote control for more than 3 seconds.	1 Press the ▲/▼button on the control panel or the √ button on the remote control to select the setting.2 Press the Button on the control panel or the OKton on the remote control to set the value.	UnlockLock AllLock butVolumeLock All butPowerLock all exceptPWR VOL
Off Timer	Switch off the display after a specified time.	Press the ▲/▼button on the control panel or the ← button on the remote control to adjust the value.	Off1 to 24 Hours
Date and time	Adjust the current date and time for the display s internal clock.N : The NTP Server is set automatically and cannot be altered.
	Auto Sync Date and time are set automatically by the web server.	1 Press the ▲/▼button on the control panel or the ← button on the remote control to select A S option.2 Press the Button on the control panel or the OKton on the remote control to set the value.	Auto Sync

ADJUSTING THE LCD DISPLAY

IF O	R
Date and time	Set date Set date manually.	1 Press the + button on the control panel or the OKton on the remote control to uncheck the AS option.2 Press the ▲/▼ button on the control panel or the √/ button on the remote control to select the S option.3 Press the button on the control panel or the OKton on the remote control to open the year field.4 Press the ▲/▼ button on the control panel or the √/ button on the remote control to select the year.5 Press the + button on the control panel or the OKton on the remote control to set the value.6 Press the▼ button on the control panel or the -button on the remote control to select the month field.7 Repeat steps 4 to 5 to set the month.8 Repeat steps 6 to 7 to set the day.9 Press the▼ button on the control panel or the √ button on the remote control. Then press the ▲/▼ button on the control panel or the -button on the remote control to select CANCEL or OK.	CANCEL OK
	Set time Set time manually.	Repeat steps 1 to 9 in the previous section (Set date) to set time.	CANCEL OK

ADJUSTING THE LCD DISPLAY

IF O	R
Date and time	Choose time o ne Set the time o ne in your area.	1 Press the ▲/▼ button on the control panel or the √ button on the remote control to select the C field.2 Press the button on the control panel or the Ⓞtton on the remote control to set the value.3 Press the ▲/▼ button on the control panel or the √ button on the remote control to select the time o ne.4 Press the button on the control panel or the Ⓞtton on the remote control to set the time o ne.	N/A (manually set)
Schedule	This function allows you to program up to 7 different scheduled time intervals for this display to activate.ou can setWhich input source the display will use for each scheduled activation period.The time for the display to turn on and turn off.The days in a week for the display to activate.N :We recommend you to set up current date and time in the Date and time menu before using this function.After changing the Date and time option in the Advanced option menu, you need to set this Scheduling again.
	After all the schedule parameters are set, you need to save the schedule.	Press the ▼ button on the control panel or the √ button on the remote control to access the ACK or SA E option. Then press the ▲/▼ button on the control panel or the —/→button on the remote control to select ACK or SA E.	BACK SAVE

ADJUSTING THE LCD DISPLAY

I F O	R
Schedule	Schedule list Select the schedule from the list that you want to configure.	1 Press the + button on the control panel or the OKton on the remote control twice to access the S option.2 Press the ▲/▼ button on the control panel or the √/ button on the remote control to select the schedule list from S 1 to S 7.3 Press the + button on the control panel or the OKton on the remote control to set the schedule list.4 Press the ▼ button on the control panel or the √/ button on the remote control. Then press the ▲/ button on the control panel or the + button on the remote control to select CANCEL or OK.	Schedule list 1Schedule list 2Schedule list 3Schedule list 4Schedule list 5Schedule list 6Schedule list 7 CANCEL OK
	Enable Enable or disable the schedule.	1 Press the ▲/▼ button on the control panel or the √/ button on the remote control to select the setting.2 Press the button on the control panel or the OKton on the remote control to set the setting.3 Press the ▲/▼ button on the control panel or the √/ button on the remote control to select the option.4 Press the + button on the control panel or the OKton on the remote control to set the option.	Off On

ADJUSTING THE LCD DISPLAY

IF O	R
Schedule	Start time Set time when the schedule is turned on.	1 Press the ▲/▼ button on the control panel or the 1/1 button on the remote control to select the S option.2 Press the Button on the control panel or the 0/1 button on the remote control to open the start time field.3 Press the ▲/▼ button on the control panel or the 1/1 button on the remote control to select the hours.4 Press the + button on the control panel or the 0/1 button on the remote control to set the hours.5 Press the ▼ button on the control panel or the 1/1 button on the remote control. Then press the ▲/▼ button on the control panel or the + button on the remote control to select CANCEL or OK.6 Press the ▼ button on the control panel or the -button on the remote control to select the minutes field and repeat steps 2 to 5 to set the minutes.	CANCEL OK
	End time Set time when the schedule is turned off.	Repeat steps 1 to 6 in the previous section (Start time) to set end time.	CANCEL OK

ADJUSTING THE LCD DISPLAY

I F O	R
Schedule	Input Set the input source.	1 Press the ▲/▼ button on the control panel or the 1/1 button on the remote control to select the 1 option.2 Press the Button on the control panel or the OKton on the remote control twice to open the input field.3 Press the ▲/▼ button on the control panel or the 1/1 button on the remote control to select the input source.4 Press the + button on the control panel or the OKton on the remote control to set the input source.5 Press the ▼ button on the control panel or the 1 button on the remote control. Then press the ▲ button on the control panel or the + button on the remote control to select CANCEL or OK.	HDMI1HDMI2DVI-DVGAMedia Player Browser CMS PDF Player Custom
	Playlist If you set the input to M P , , or PDF P then you can set the playlist option.	Repeat steps 1 to 5 in the previous section (Input) to set the playlist option from 1 to 7.	CANCEL OK
Schedule	Days of the week Select the days of the week when the schedule is active.	1 Press the ▲/▼ button on the control panel or the 1/1 button on the remote control to select the D option.2 Press the button on the control panel or the OKiton on the remote control twice to open the days of the week field.3 Press the ▲/▼ button on the control panel or the 1/1 button on the remote control to select the day.4 Press the + button on the control panel or the OKiton on the remote control to set the day. Repeat steps 3 to 4 to set more days.5 Press the ▼ button on the control panel or the 1 button on the remote control repeatedly to access the SA E option. Then press the -button on the control panel or the OKiton on the remote control to save the settings.	SUN MON TUE WED THU FRI SAT SAVE
	Every week Check this option to run the schedule every week.	1 Press the ▲/▼ button on the control panel or the 1/1 button on the remote control to select the E option.2 Press the button on the control panel or the OKiton on the remote control to set the value.	N/A
HDMI with One Wire	CEC control.Off Disable CEC.On Enable CEC.	1 Press the ▲/▼ button on the control panel or the 1/1 button on the remote control to select the setting.2 Press the button on the control panel or the OKiton on the remote control to set the value.	Off On

ADJUSTING THE LCD DISPLAY

I F O	R
Language Set the OSD language.	1 Press the + button on the control panel or the OKtion on the remote control to select the value.2 Press the ▲/▼ button on the control panel or the 1/1 button on the remote control to select the setting.3 Press the button on the control panel or the OKtion on the remote control to set the setting.4 Press the ▼ button on the control panel or the 1 button on the remote control. Then press the ▲ button on the control panel or the ≠ button on the remote control to select CANCEL or OK.	English Deutsch 简体d→Frana is Italiano Espa ol Русский Polski Tr ke繁體d→日木語Portugu sالعربية Danish Swedish Finnish Norwegian Dutch CANCEL OK
OSD Transparency	Adjust OSD transparency.Off Transparency is off.5-100 Transparency level is 5-100.	Press the ▲/▼ button on the control panel or the ≠ button on the remote control to adjust the value.	Off5 to 100

ADJUSTING THE LCD DISPLAY

IF O	R
Power Save	Mode 1	If the LCD display cannot detect any input source signal, the No Signal message will appear on the screen, and the display will automatically turn off after 60 seconds. At this time, even if an input source is connected, the screen will unable to be awakened.	1 Press the ▲/▼ button on the control panel or the I/II button on the remote control to select the setting.2 Press the button on the control panel or the OK button on the remote control to set the value.	Mode 1Mode 2Mode 3Mode 4
	Mode 2 Not supported
	Mode 3	If the LCD display cannot detect any input source signal, the “No Signal” message will appear on the screen, and the display will automatically enter standby mode after 60 seconds. At this time, if an input source is connected, the screen can be awakened.
	Mode 4	If the LCD display cannot detect any input source signal, the “No Signal” message will appear on the screen, and the display will not automatically turn off or enter standby mode.
Advanced option reset	Reset all settings except Date and Time in the Advanced option menu to factory preset values.		1 Press the ▲/▼ button on the control panel or the I/II button on the remote control to select the setting.2 Press the button on the control panel or the OK button on the remote control to set the value.	CANCEL RESET

CHAPTER 7: APPENDIX

7.1 M

M	C	S
N/A	The resolution or the refresh rate of the graphics card of the computer is set too high.	Change the resolution or the refresh rate of the graphics card.
Multi-color screen	The LCD display cannot detect the input source signal.	Check if the input source is turned ON.Check if the signal cable is properly connected.Check if any pin inside the cable connector is twisted or broken.
N/A	The operation using the control panel buttons has been locked by the user.	Disable the keyboard lock function in AK menu. See page 76.
N/A	The operation using the remote control buttons has been locked by the user.	Disable the remote control lock function in AIR menu. See page 75.

7.2 S M F

US M C F

D
T	C	CD		R
MPEG1/2	MPEG1/2	MPEG program stream (.DAT, .VOB, .MPG, .MPEG)	V	Max Resolution 1080P 60fps Max Bit Rates 40Mbps
		MPEG transport stream (.ts, .trp, .tp)
		MP4 (.mp4, .mov)
		3GPP (.3gpp, .3gp)
		AVI (.avi)
		MKV (.mkv)
MPEG-4	MPEG4	MP4 (.mp4, .mov)	V	Max Resolution 1080P 60fps Max Bit Rates 40Mbps
		3GPP (.3gpp, .3gp)
		AVI (.avi)
		MKV (.mkv)
H.263	H.263	FLV (.flv)	V	Max Resolution 1080P 60fps Max Bit Rates 40Mbps
		AVI (.avi)

APPENDIX

D
T	C	C D R
H.264 H.264	FLV (.flv)	V	Max Resolution 1080P 60fpsMax Bit Rates 135Mbps4k2k 30fps
	MP4 (.mp4, .mov)
	3GPP (.3gpp, .3gp)
	MPEG transport stream (.ts, .trp,.tp)
	ASF (.asf)
	WMV (.wmv)
	AVI (.avi)
	MKV (.mkv)
H.265 H.265	MP4 (.mp4, .mov)	V	Max Resolution 4K2K 60fpsMax Bit Rates 100Mbps
	3GPP (.3gpp, .3gp)
	MPEG transport stream (.ts, .trp,.tp)
	MKV (.mkv)
GOOGLEVP8	VP8	MKV (.mkv)	V	Max Resolution 1080P 30fpsMax Bit Rates 20MbpsWebM (.webm)
MotionPEG	M PEG	AVI (.avi)		Max Resolution 1920 108030fpsMax Bit Rates 40Mbps
		3GPP (.3gpp, .3gp)
		MP4 (.mp4, .mov)
		MKV (.mkv)

A D
T	A C	C	D	C	R
MPEG Audio	MPEG1/2/2.5	MP3	V	2	Bit Rate 8kbps 320KbpsSampling Rate 16KH 48KH
	Audio Layer1/2/3
Windows Media Audio	WMA Version 7, 8, 9,10 pro M0, 10 Pro M1, M10 Pro M2	Decode WMA	V	2	Bit Rate 8kbps 768KbpsSampling Rate 8KH 96(M10) KHNon-support LBR
AAC Audio	MAIN, ADIF ,ATDS Header AAC-LC and AAC-HE	File Format AAC, M4A	V	5.1	Bit Rate N/ASampling Rate 8KH 48KH

APPENDIX

I D

T I C C D R
PEG JFIF file format 1.02		File Format PG, PEG	V	Max Resolution 7000 x 7000The limitation of max resolution depends on DRAM
BMP BMP File Format BMP V				Max Resolution 15360 x 8640The limitation of max resolution depends on DRAM
PNG	PNG	File Format PNG	V	Max Resolution 15360 x 8640The limitation of max resolution depends on DRAM

N :

Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table above.
- Video content with a Bit rate or Frame rate larger than the rate specified in the table above can cause choppy video during playback.

7.3 I M

GAR

SR	A R		R R	P R	A R	S M
	H P	L
VGA	640	480	60 H	25.175 MH	4 3	Video Graphic Array
			72 H	31.5 MH
			75 H	31.5 MH
WVGA	720	400	70 H	33.75 MH	16 9	Wide Video Graphic Array
SVGA	800	600	60 H	40 MH	4 3	Super VGA
			75 H	49.5 MH
GA	1024	768	60 H	65 MH	4 3	Extended Graphic Array
			75 H	78.75 MH
W GA	1280	768	60 H	79.5 MH	5 3	Wide GA
W GA	1280	800	60 H	79.5 MH	16 10	Wide GA
S GA	1280	1024	60 H	108 MH	5 4	Super GA
U GA	1600	1200	60 H	162 MH	4 3	Super GA
HD1080	1920	1080	60 H	148.5 MH	16 9	HD1080

N :

◆ 1280x768 60H can be supported but not shown in EDID table.

APPENDIX

SD R

S R	A R		R R	P R	A R
	H P	L
480i	720 480		29.97 H 13.5 MH		4 3
480p 59.94 H 27 MH
576i	720 576		25 H 13.5 MH		4 3
576p 50 H 27 MH

HDT R

S R	A R		R R	P R	A R
	H P	L
720p	1280	720	50 H	74.25 MH	16 9
			60 H
1080i	1920	1080	25 H	74.25 MH	16 9
			30 H
1080p	1920	1080	50 H	148.5 MH	16 9
			60 H
2160p (HDMI only)	3840	2160	30 H	297 MH	16 9
			50 H	594 MH
			60 H

G

:

The PC text quality is optimum in HD 1080 mode (1920 x 1080, 60H).

our PC display screen might appear different depending on the manufacturer (and your particular version of Windows).

Check your PC instruction book for information about connecting your PC to a display.

If a vertical and horio ntal frequency-select mode exists, select 60H (vertical) and 31.5KH (horio ntal). In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turned off (or if the PC is disconnected). If so, press the SOURCE button to enter the video mode. Also, make sure that the PC is connected.

When horio ntal synchronous signals seem irregular in RGB mode, check PC power saving mode or cable connections.

The display settings table complies to the IBM/VESA standards, and based on the analog input.

The DVI support mode is regarded as same to the PC support mode.

The best timing for the vertical frequency to each mode is 60H.

APPENDIX

7.4 C

C

U

D

Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. Placing any object near the top of the display could also result in heat related damage to the object as well as the display itself.

Be sure to disconnect all cables before moving the display. Moving the display with its cables attached may damage the cables and thus cause fire or electric shock.

Disconnect the power plug from the wall outlet as a safety precaution before carrying out any type of cleaning or maintenance procedure.

F

P

C

|

The front of the display has been specially treated. Wipe the surface gently using only a cleaning cloth or a soft, lint-free cloth.

If the surface becomes dirty, soak a soft, lint-free cloth in a mild detergent solution. Wring the cloth to remove excess liquid. Wipe the surface of the display to remove dirt. Then use a dry cloth of the same type to dry.

Do not scratch or hit the surface of the panel with fingers or hard objects of any kind.

Do not use volatile substances such as insert sprays, solvents and thinners.

C

C

|

If the cabinet becomes dirty, wipe the cabinet with a soft, dry cloth.

If the cabinet is extremely dirty, soak a lint-free cloth in a mild detergent solution. Wring the cloth to remove as much moisture as possible. Wipe the cabinet. Use another dry cloth to wipe over until the surface is dry.

Do not allow any water or detergent to come into contact with the surface of the display. If water or moisture gets inside the unit, operating problems, electrical and shock haa rds may result.

Do not scratch or hit the cabinet with fingers or hard objects of any kind.

Do not use volatile substances such as insert sprays, solvents and thinners on the cabinet.

Do not place anything made from rubber or PVC near the cabinet for any extended periods of time.

7.5 T

S P C R
No picture is displayed The power cord has been disconnected.The main power switch on the back of the display is not switched on.The selected input has no connection.The display is in standby mode.	1 Plug in the power cord.2 Make sure the power switch is switched on.3 Connect a signal connection to the display.
Interference displayed on the display or audible noise is heard	Caused by surrounding electrical appliances or fluorescent lights.	Move the display to another location to see is the interference is reduced.
Colour is abnormal The signal cable is not connected properly.	Make sure that the signal cable is attached firmly to the back of the display.
Picture is distorted with abnormal patterns	The signal cable is not connected properly.The input signal is beyond the capabilities of the display.	Make sure that the signal cable is attached firmly.Check the video signal source to see if it is beyond the range of the display. Please verify its specifications with this display's specification section.
Display image doesn't fill up the full sie of the screen	The picture format is not set correctly.	Press the button and select a suitable picture format.
Can hear sound, but no picture Improperly connected source signal cable.	Make sure that both video inputs and sound inputs are correctly connected.
Can see picture but no sound is heard	Improperly connected source signal cable.Volume is turned all the way down.MUTE function is turned on.No external speaker connected.	Make sure that both video and sound inputs are correctly connected.Press the +or -button to hear the sound.Switch the MUTE function off by using the × button.Connect the external speakers and adjust the volume to a suitable level.
Some picture elements do not light up	Some pixels of the display may not turn on.	This display is manufactured using an extremely high level of precision technology however, sometimes some pixels of the display may not display. This is not a malfunction.
After-Images can still be seen on the display after the display is powered off. (Examples of still pictures include logos, video games, computer images, and images displayed in 4 3 normal mode)	A still picture is displayed for an over extended period of time.	Do not allow a still image to be displayed for an extended period of time as this can cause a permanent after-image to remain on the display.

APPENDIX

7.6 T

LCD D

To transport the LCD display for repair or shipment, place the display in its original packaging carton.

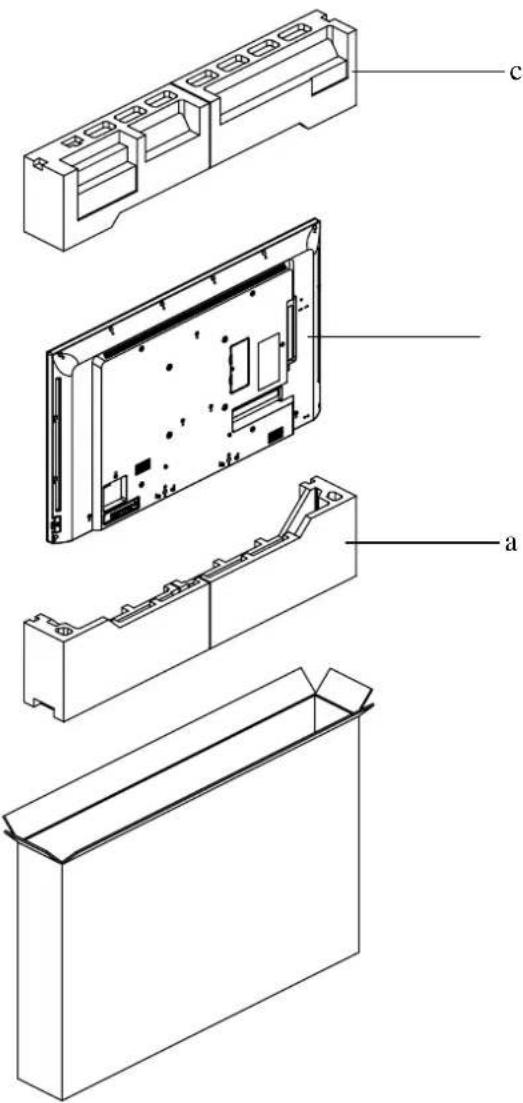

M 43A

1 Place the LCD display inside the supplied protective bag.
2 Place the lower foam cushion inside the box (a).
3 Place the LCD display down in the box (b).
4 Place the upper foam cushion on top of the LCD display (c).
5 Place the accessories on the designated area (if necessary).
6 Close and tape the box.

Technical diagram of a device's internal structure with labeled components (a, c)

APPENDIX

M 55A

1 Place the LCD display inside the supplied protective bag.
2 Place the lower foam cushion inside the lower box (a).
3 Place the LCD display down in the lower box (b). Then place the thin foam cushion in front of the screen.
4 Place the upper foam cushion on top of the LCD display (c).
5 Place the accessories on the designated area (if necessary).
6 Place the upper box on LCD display.
7 Secure the upper box to the lower box with the supplied locks (d).

Exploded view diagram of a device showing internal components labeled a, c, d

CHAPTER 8: SPECIFICATIONS

8.1 Display Specifications

M 43A M 55A
Panel Panel Type LED	-Backlit TFT LCD (VA Technology)	LED-Backlit TFT LCD (VA Technology)
	Panel Sie 42.5" 54.6"
	Max. Resolution UHD 3840 x	2160 UHD 3840 x 2160
	Pixel Pitch 0.245 mm 0.315 mm
	Brightness 350 cd/m	^2	350 cd/ m^2
	Contrast Ratio	5000 1	4000 1
	Viewing Angle (H/V)	176 /176	178 /178
	Disply Colour	1.07B	1.07B
	Response Time	5 ms	5 ms
	Surface Treatment	Anti-Glare Treatment (Hae 2 ),2H Hard Coating	Anti-Glare Treatment (Hae 2 ),3H Hard Coating
Frequency (H/V)	H Freq.	31 kH- 92 kH	31 kH- 92 kH
	V Freq.	48 H- 85 H	48 H- 85 H
Input VGA	15-Pin D-Sub	15-Pin D-Sub
	DVI	24-Pin DVI-D	24-Pin DVI-D
	HDMI	2.0 x 2	2.0 x 2
External Control	IR in/out	3.5 mm Phone a ck	3.5 mm Phone a ck
	RS232 in/out	2.5 mm Phone a ck	2.5 mm Phone a ck
	LAN	R4 5 x 1	R4 5 x 1
Embedded Player	OS	Android 5.0.1	Android 5.0.1
	CPU	1 Gh uad Core Full HD	1 Gh uad Core Full HD
	Memory	2 GB DDR3	2 GB DDR3
	Storage	8 GB eMMC	8 GB eMMC
Other Connectivity	USB	2.0 x 1 (Service Port / Media Playback)3.0 x 1 (Media Playback)	2.0 x 1 (Service Port / Media Playback)3.0 x 1 (Media Playback)
	Micro SD Card Slot	es	es
Audio	Audio In	Stereo Audio a ck (3.5 mm) x 1	Stereo Audio a ck (3.5 mm) x 1
	Audio Out	Stereo Audio a ck (RCA) x 1	Stereo Audio a ck (RCA) x 1
	Internal Speaker	10W x 2	10W x 2
Power	Power Supply	Internal	Internal
	Power Requirements	AC 100-240V, 50/60 H	AC 100-240V, 50/60 H
	On Mode	110W (On)	145W (On)
	Stand-by Mode	0.5W	0.5W
	Off Mode	0.5W	0.5W
Operating Conditions	Temperature	5 C-40 C (41 F-104 F)	5 C-40 C (41 F-104 F)
	Humidity	20 -80 (non-condensing)	20 -80 (non-condensing)
Storage Conditions	Temperature	-20 C-60 C (-4 F-140 F)	-20 C-60 C (-4 F-140 F)
	Humidity	10 -90 (non-condensing)	10 -90 (non-condensing)
Mounting	VESA FPMPMI	es (400 x 400 mm 200 x 200 mm)	es (400 x 400 mm 400 x 200 mm)
Dimensions	w/o base (W x H x D)	968.2 x 559.4 x 59.9 mm(38.1" x 22.0" x 2.4")	1239.2 x 711.6 x 61.7 mm(48.8" x 28.1" x 2.4")
	Packaging (W x H x D)	1070.0 x 696.0 x 159.0 mm(42.1" x 27.4" x 6.3")	1366.0 x 864.0 x 185.0 mm(53.7" x 34.0" x 7.3")
Weight	w/o base	8.7 kg (19.2 lb)	16.0 kg (35.3 lb)
	Packaging 12.2 kg (26.9 lb)	23.0 kg (50.7 lb)

Note:

All specifications are subject to change without prior notice.

SPECIFICATIONS

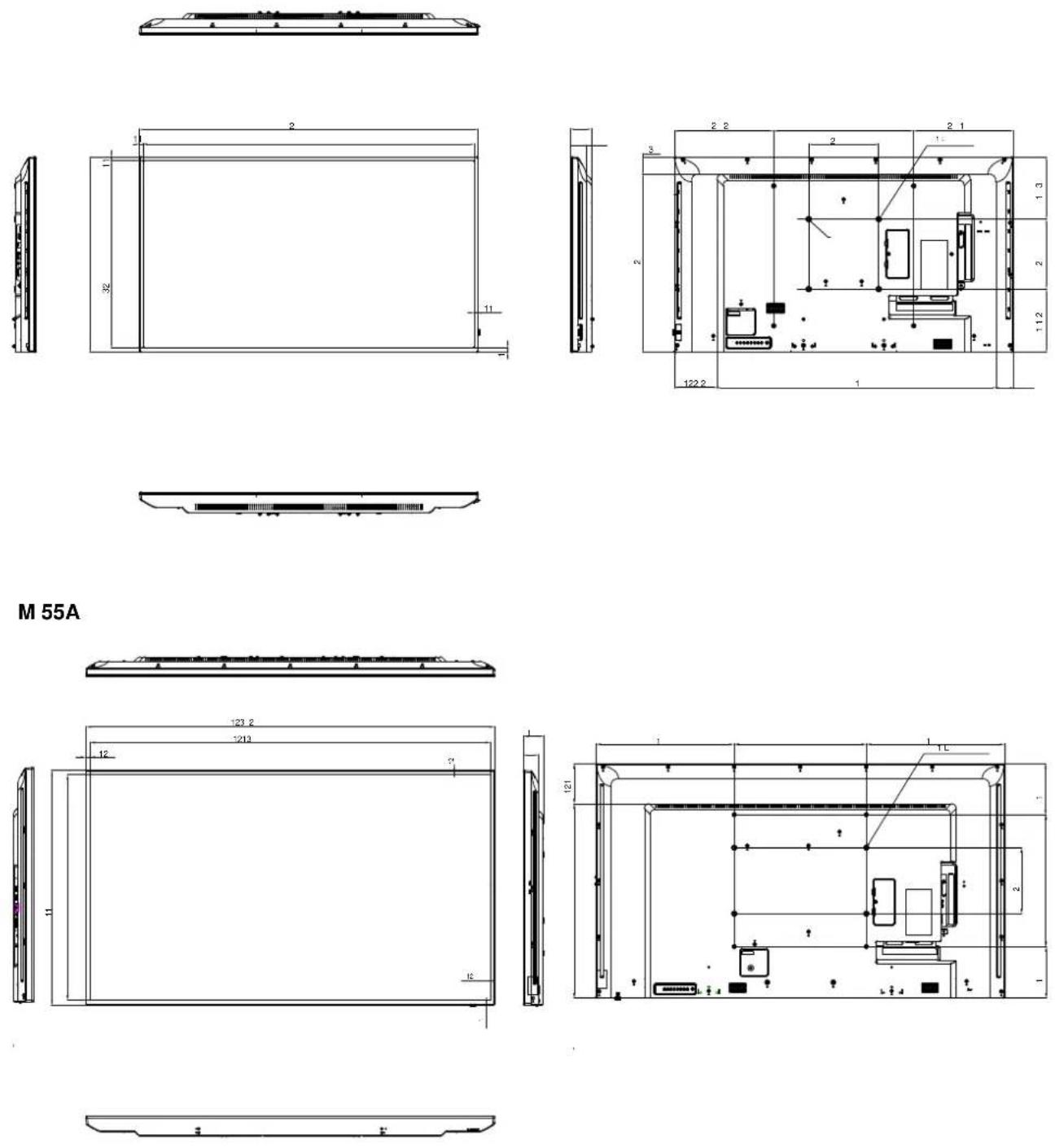

8.2 Display Dimensions

M 43A

AG Neovo

Company Address 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan.
