USER MANUAL IPCA62510 ABUS
3D mechanical component diagram showing a pipe fitting with two labeled parts (1 and 2), no readable text or symbols present.natural_image
Two circular diagrams showing concentric rings and three central circles, no text or symbols present.natural_image
Close-up of a white electrical insulator with a black cable inserted, showing its side profile (no text or symbols visible)natural_image
Close-up of a white mechanical component with concentric rings and directional arrows indicating force or movement (no text or symbols)natural_image
Exterior view of a white autonomous security camera (ABUS) mounted on a rectangular base, showing lens and mounting holes (no text or symbols visible beyond branding)Installation manual
Version 12/2018
CE
English translation of the original German user manual. Retain for future reference.
Dear Customer,
Thank you for purchasing this product.
IPCA62510
This device complies with the requirements of the following EU directives: the EMC Directive (2014/30/EU) and the RoHS Directive (2011/65/EU).
To ensure this condition is maintained and that safe operation is guaranteed, it is your obligation to observe this user manual.
Please read the entire user manual carefully before putting the product into operation, and pay attention to all operating instructions and safety information.
All company names and product descriptions are trademarks of the corresponding owner. All rights reserved.
If you have any questions, please contact your specialist installation contractor or specialist dealer.

Disclaimer
This user manual has been produced with the greatest of care. Should you discover any missing information or inaccuracies, please let us know about them.
ABUS Security-Center GmbH & Co. KG does not accept any liability for technical and typographical errors, and reserves the right to make changes to the product and user manuals at any time and without prior warning.
ABUS Security-Center GmbH is not liable or responsible for any direct or indirect damage resulting from the installation, performance and use of this product. No guarantee is made for the contents of this document.
Important safety information

All guarantee claims are invalid in the event of damage caused by non-compliance with this user manual. We cannot be held liable for resulting damage.

We cannot be held liable for material or personal damage caused by improper operation or non-compliance with the safety information. All guarantee claims are void in such cases.
Dear Customer,
The following safety information and hazard notes are not only intended to protect your health but also to protect the device from damage. Please read the following points carefully:
- There are no components inside the product that require maintenance by the operator. Opening or dismantling the product invalidates the CE certification and guarantee claims/warranty.
- The product may be damaged if it is dropped, even from a low height.
Avoid the following adverse conditions during operation:
- Moisture or excess humidity
• Extreme heat or cold - Direct sunlight
- Dust or flammable gases, vapours or solvents
- Strong vibrations
• Strong magnetic fields (e.g. next to machines or loudspeakers) - The camera must not be installed on unstable surfaces.
General safety information:
- Do not leave packaging material lying around. Plastic bags, sheeting, polystyrene packaging, etc. can pose a danger to children if played with.
- The video surveillance camera contains small parts which could be swallowed and must be kept out of the reach of children for safety reasons.
- Do not insert any objects into the device through the openings.
- Only use replacement devices and accessories that are approved by the manufacturer. Do not connect any non-compatible products.
- Please pay attention to the safety information and user manuals for the other connected devices.
- Check the device for damage before putting it into operation. Do not put the device into operation if you identify any damage.
- Adhere to the normal voltage limits specified in the technical data. Higher voltages could destroy the device and pose a health risk (electric shock).

When installing the device in an existing video surveillance system, ensure that all devices have been disconnected from the mains power circuit and low-voltage circuit.

If in doubt, have a specialist technician carry out assembly, installation and connection of the device. Improper or unprofessional work on the power supply system or domestic installation puts both you and other persons at risk.
Connect the installations so that the mains power circuit and low-voltage circuit always run separately
from each other. They should not be connected at any point or become connected as a
result of a malfunction.
Contents
- INTENDED USE 19
- EXPLANATION OF SYMBOLS 19
- CONNECTIONS AND FUNCTIONS.... 20
3.1 CONNECTIONS....20
3.2 HOUSING OVERVIEW 20
3.3 RESET OF FACTORY DEFAULT SETTINGS 21
3.4 SD CARD SLOT 22
3.5 NOTE FOR USING THE JUNCTION BOX.... 22
3.6 ALIGNMENT OF CAMERA BRACKET 24
- MAINTENANCE AND CLEANING....25
4.1 FUNCTION TEST 25
4.2 CLEANING 25
- DISPOSAL 25
1. Intended use
This camera is used for indoor and outdoor video surveillance (depending on the model) in conjunction with a recording device or appropriate display unit (e.g. PC).

Use of this product for any other purpose than that described may lead to damage to the product and other hazards. All other uses are not as intended and will result in the invalidation of the product guarantee and warranty. No liability can be accepted as a result. This also applies to any alterations or modifications made to the product.
Read the user guide carefully and in full before putting the product into operation. The user guide contains important information on installation and operation.
2. Explanation of symbols

The triangular high voltage symbol is used to warn of the risk of injury or health hazards (e.g. caused by electric shock).

The triangular warning symbol indicates important notes in this user manual which must be observed.

This symbol indicates special tips and notes on the operation of the device.

This user manual describes the software functions in the camera browser interface. For information about how to install the hardware for the respective camera, please read the quick start manual or the hardware installation manual, if you have it.
You can download a PDF version of the user manuals in your language at www.abus.com via the product search.
3. Connections and functions
3.1 Connections
![]() | ATTENTION!Before you begin the installation, make sure that the supply voltage and the nominal voltage of the camera match. |
![]() | Network connector (RJ45, PoE 802.3af) |
![]() | +~ / -~: Power connector, 12 VDC / 24 VAC, No polarity |
![]() | Switching input / Switching outputOUT: OutputGND: GroundIN: InputGND: Ground |
![]() | Audio input / Audio outputIN: Audio inputGND: GroundOUT: Audio outputGND: Ground |
3.2 Housing overview
![]() | Lens/IR/Light sensorSunshield (movable, not removable)Camera bodyOpening for RESET Button, microSD card slot, Micro-USB ConnectorCamera bracket (3-axis)Junction/installation box |

- Light sensor for Day/Night switch
- Infrared LEDs
- Lens

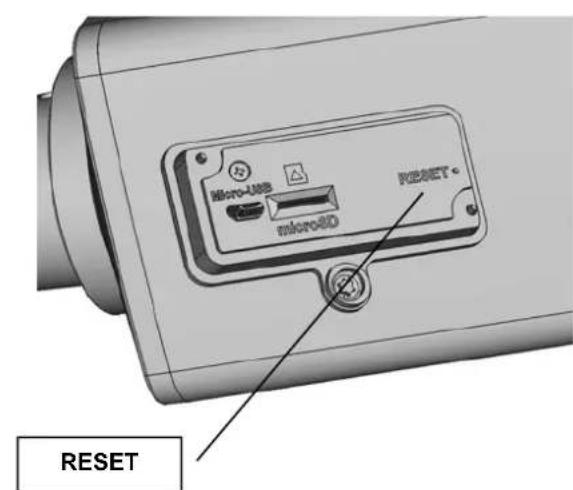

3.3 Reset of factory default settings

To operate the reset button please remove the bottom cover on the downside of the camera.
A different duration for pressing the Reset Button will release following funcitons:
- 0\~5 seconds: Reboot
- 5\~10 seconds: User and password reset
- 10\~30 seconds: Reset of all settings to Factory Default
3.4 SD card slot

To install the micro-SD card please remove the cover on the downside of the camera. The micro-SD card slow is located under the cover.
Max. SD card size: 265 GByte

Before usage of micro SD card the card must be formatted.
3.5 Note for using the junction box

- Backside routing using rubber seal

Rubber seal for other cables (Audio input/output, Switching input/output):


Note for the installation of rubber seals:
First, run the cable through the rubber grommet. Since the cable is often kinked during installation, it may happen that the rubber is not fully attached to the cable. This can also occur due to too thin cable types.
Fix the cable grommet with insulating tape on the cable. This guarantees the tightness.

First loosen the corresponding fixing screw (s). Orient the camera as desired. Then fix the fixing screws.
A Rotation
B Tilt
C Tilt
4. Maintenance and cleaning
4.1 Function test
Regularly check the technical safety of the product, e.g. check the housing for damage.
If it appears to no longer be possible to operate the product safely, stop using it and secure it to prevent unintentional use.
It is likely that safe operation is no longer possible in the event that:
- the device shows signs of visible damage
- the device no longer works correctly
• the device has been stored in adverse conditions for a long period of time - the device has been exposed to stresses during transportation.

Please note:
You do not need to perform any maintenance on the product. There are no components requiring servicing or checking inside the product. Never open it.
4.2 Cleaning
Clean the product with a clean, dry cloth. The cloth can be dampened with lukewarm water to remove stubborn dirt.

Make sure that no liquids enter the inside of the device, as this will destroy it. Do not use any chemical cleaning agents, as these could damage the surface of the housing.
5. Disposal

Devices displaying this symbol may not be disposed of with domestic waste. At the end of its service life, dispose of the product according to the applicable legal requirements.
Please contact your dealer or dispose of the products at the local collection point for electronic waste.
