User Manual

2K HDMI over IP Extender with IR and RS232

Model: PT-IPAV-E2-TX | PT-IPAV-E2-RX

Designed in Germany

Introduction

This HDMI over IP Extender use the advanced H.264 as the compression type, which makes it occupy lower bandwidth and transmit over the LAN more smoothly. It supports 120m over single cat5e/6 cable at point to point, as well as point to many and many to many over Ethernet switch. The over IP solution is widely used in various locations, like meeting room, class room, metro, airport, home, mall advertisement...etc.

1. Features

1. Using H.264 compression encoding, support resolution up to 1080p@60hz
2. Transmit up to 120m over single Cat5e/6 cable, with 1x looping HDMI output
3. With IR Remote to choose the source, with LED to show the Group ID
4. Comply with TCP/IP protocol, streaming bit rate is up to 15Mbps
5. Support LPCM audio format
6. Smart IP Address Setting: Dynamic Host Configuration Protocol (DHCP)
7. Wide-band IR pass through to control the source (38khz to 56khz)
8. By pass 2 way UART/RS232 (Up to 115200), use remote controller to select 8 group Baud rate
9. Support one to one, one to many, many to one, many to many modes, with large cascade
10. Dual power input: 802.3af compliant POE & DC 5V (No need power supply when connecting with POE Switch)
11. HDCP Compliant

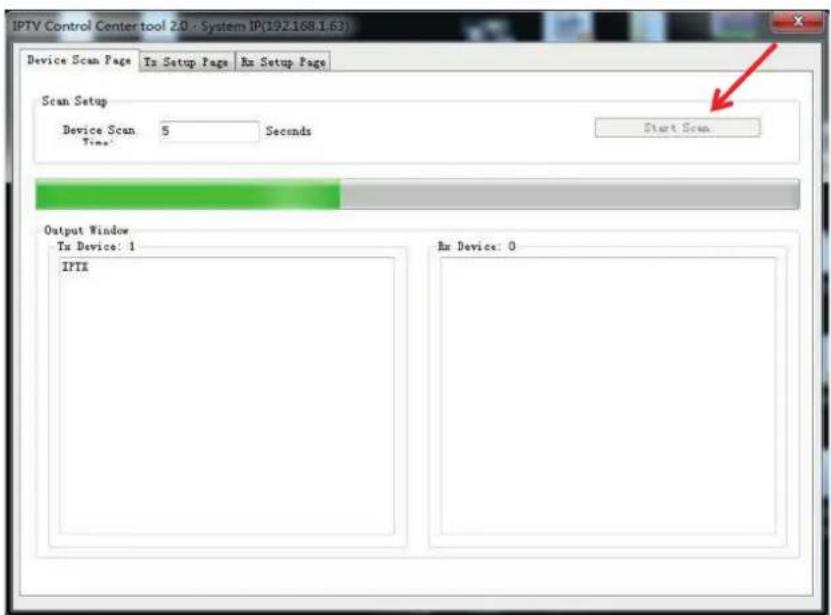

12. Support PC tool control
13. DC 5V 1A power supply

Package Contents TX

1x Transmitter

1x IR-TX cable

1x IR Ext cable

1x Manual

4x screws

2x detachable mounting ears

1x Phoenix plugs for RS232 cable termination

1x Remote controller

1x Power adapter 5V 1A

Package Contents RX

1x Receiver

1x IR-RX cable

1x IR Ext Cable

1x Manual

4x screws

2x detachable mounting ears

1x Phoenix plugs for RS232 cable termination

1x Remote controller

1x Power adapter 5V 1A

3.1 Specifications

Performance
Protocol H.264 encoder over TCP/IP
Support Video format 480i/480p/576i/576p/720p/1080i/1080p@60HZ
Support Audio format LPCM, Audio sampling rate 48KHZ
Streaming Bit Rate 15Mbps
HDCP Compliant
IR Frequency 38 -56 KHZ
RS232 Baud rate Default 2400bps, total 8 kinds optional
IP setting &Group ID setting
Default IP TX: 192.168.1.11; RX: 192.168.1.12
Group ID Group 00 ~ group 63
Request for Switch/Router Support IGMP, support DHCP
Connectors on Transmitter
Input 1xHDMI Female port
Output 1x RJ45 output, 1x HDMI looping output
RS232 Phoenix RS232 port
IR	IR TX port (Support 38K-56KHz)IR Ext port (Support 38KHz)
Connectors on Receiver
Input 1xRJ45 input
Output 1x HDMI Female port looping output
RS232 Phoenix RS232 port
IR	IR RX port (Support 38K-56KHz)IR Ext port (Support 38KHz)
Environmental & Power Requirements
Operating temperature -5 to +35°C (+23 to +95°F)
Operating Humidity Range 5 to 90%RH (No Condensation)
Power supply	DC 5V 1A
Power consumption	Max 3 watt
Physical
Dimension	TX: 119x79.5x28mm; RX: 119x79.5x28mm
Net Weight	TX: 0.28KG; RX:0.28KG

3.1 Supported input resolution

Frequency Resolution
50Hz	576i
	576P
	720P
	1080P
	1080i
60Hz/59.94Hz	480i
	480P
	720P
	1080P
30Hz/29.97Hz 1080P
24Hz 1080P
25Hz 1080P

3.2 VESA resolution

Frequency Resolution
50Hz	576i
	576P
	720P
	1080P
	1080i
60Hz/59.94Hz	480i
	480P
	720P
	1080P
30Hz/29.97Hz 1080P
24Hz 1080P
25Hz 1080P

4. Panel description

TX

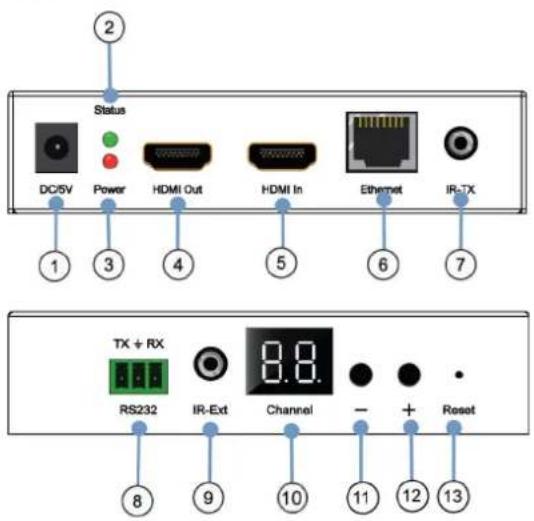

Status DC/5V Power HDMI Out HDMI In Ethernet IR+TX ① ③ ④ ⑤ ⑥ ⑦ TX + RX RS232 IR-Ext Channel - + Reset ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭

1. DC 5V 1A input
2. Green indicator of data status
3. Red indicator of power input
4. HDMI output for local display
5. HDMI input
6. CAT5e/6 output
7. IR-TX
8. RS232 port
9. IR-Ext
10. LED to show the Group ID
11. Press the button for the previous Group ID
12. Press the button for the next Group ID
13. Reset button

NOTE:

1. The green LED will blink once the unit is working.
2. The LED indicator will glow bright red once the power supply is connected.

RX

Status DC/5V Power HDMI Out Ethernet IR-RX 1 3 4 5 6 TX + RX RS232 IR-Ext Channel - + Reset 7 8 9 10 11 12

1. DC 5V 1A input
2. Green indicator of data status
3. Red indicator of power input
4. HDMI output
5. CAT5e/6 input
6. IR-RX
7. RS232 port
8. IR-Ext
9. LED to show the Group ID
10. Press the button for the previous Group ID
11. Press the button for the next Group ID
12. Reset button

NOTE:

1. The green LED will blink once the unit is working.
2. The LED indicator will glow bright red once the power supply is connected.

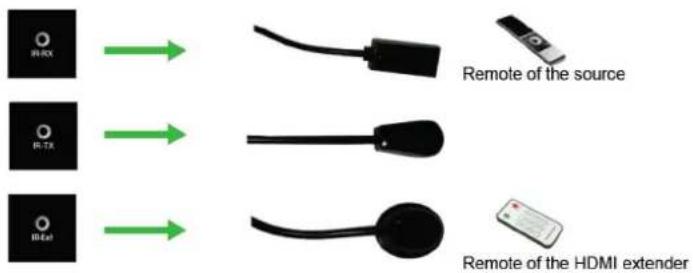

How to connect the IR Cable

R-8X R-TX B-Ext Remote of the source Remote of the HDMI extender

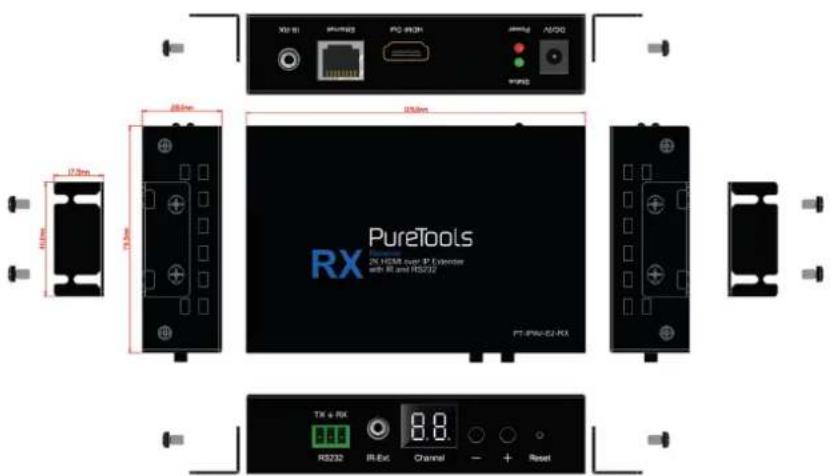

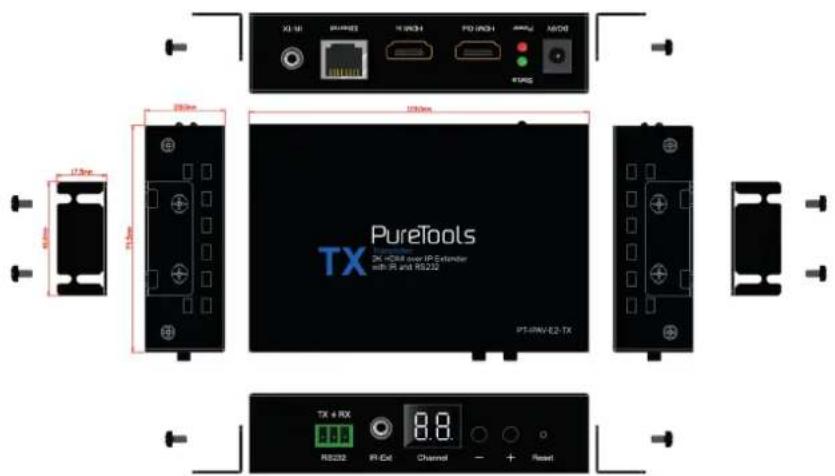

4.1 Panel Drawing

Transmitter

XU-UI IP-RESET IP-RESET PRO-RESET AMD 1000nm 1.5nm TX PureTools TX <368 over IP Extender with 36 and 50/25 IP-368/IE2-TX TX + RX RE232 IP-Ext 8.8 Channel + Reset

Receiver

X8131 XJ49623 PG 90301 JPM25g ASQO +9030 17.5m 17.5m RX PureTools 2K HSCM over IP Extender with RT and RS332 PT-IPW-B2-RX TX + RX RS232 IR-Ex 8.8. Channel + Reset

7

5. Installation and Configuration

5.1 Setup HDMI TX and RX

When connecting point to point, no need to configure TX and RX,

When connecting point to many, many to point and many to many, please make sure every TX and RX has unique IP and MAC address, every TX has unique group ID.

Our this over IP Extender has been assigned unique default MAC address for every TX and RX, so you don't have to set the MAC for the units.

You just need to set the IP address and Group ID following bellowing steps.

5.1.1 Setting the IP address

A). DHCP (Dynamic host configuration protocol)

If you are using a Switch that supports DHCP, please enable DHCP so that the Switch will assign an unique IP for TX and RX, and you don't need to change the IP for the units manually.

Ethernet: Use DHCP Default IP address: 192 168 1 11 Default Netmask: 255 255 255 0 Default Gateway: 192 168 1 1 Submit Uart Setting: Band Rate: 115260 # Submit File to Upgrade Encoder Firmware: 进度... Upgrade! Encoder Reset Reboot LogOut

Use DHCP Default IP address: 192 168 1 12 Default Netmask: 255 255 255 0 Default Gateway: 192 168 1 1 Update DHCP Multicast Group: Group 01(239.255.42.43) Port: 5004 Update Uart Baud Rate: 115200 Update Reboot

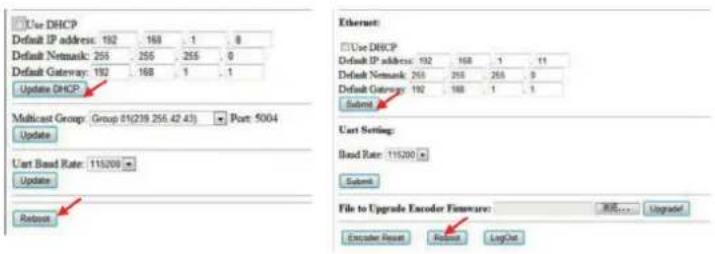

B). Set the IP via web browser

If you are using a Switch that doesn't support DHCP, please change the default IP for TX (192.168.1.11) and RX (192.168.1.12) manually.

A HTTP server is embedded in each TX and RX. You can set up IP address for HDMI Extender via web browser. The default IP address of the TX is 192.168.1.11, user name: admin, password: admin

The default IP address of the RX is 192.168.1.12

Operating Instructions

Step 1:

Make sure the Transmitter and PC are in the same domain.

Access the Network Setting Control Panel in Windows and locate your Lan connection. Under Windows 7, this can be done by clicking Start > Control Panel > Network Sharing center > Change adapter settings > Properties >Internet Protocol Version4 (TCP/IPv4). Change the IP address field to 192.168.1.1 (0-255). After that press „OK“ to save the configuration.

NOTE: The PC and TX/RX should be in the same domain.

The IP address of PC should be different from the IP address of TX and RX.

Step 2:

Use an Ethernet Cable to connect the PC (or laptop) and the extender. the power LED for the extender is red and the green status is blinking.

Step 3:

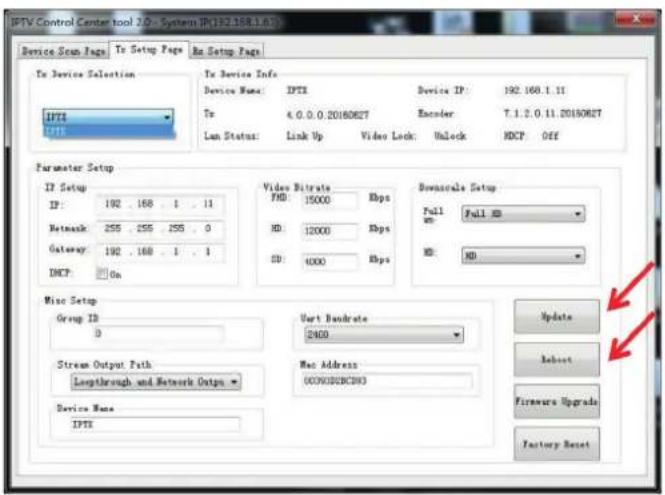

Login in IE: 192.168.1.11 (default IP for TX) or 192.168.1.12 (default IP for RX), You can setup IP address for the TX and RX. TX requires user name: admin and password: admin

Please set IP address for each TX and each RX, IP: 192.168.1.XX (XX:1-255. all IP address for TX and RX must be different and can't be same as the PC's address.)

Step 4:

After selecting "Use DHCP" or reset the IP Address, click "Submit" (transmitter) or "update DHCP" (Receiver).

Step 5:

Click "Reboot".

Use DHCP Default IP address: 192 168 1 8 Default Network: 255 255 255 0 Default Gateway: 192 168 1 1 Update DHCP Multicast Group: Group 01(239.256.42.43) Part: 5004 Update Cart Band Rate: 115/200 Update Return Ethernet: Use DHCP Default IP address: 192 168 1 11 Default Network: 255 255 255 9 Default Gateway: 192 168 1 1 Submit Cart Setting: Band Rate: 115/200 Submit File to Upgrade Encoder Firmware: Backup Upgrade Encoder Reset Reset LogOut

Step 6:

Restart the extender after resting the IP Address.

5.1.2 Choose the Group ID and Baud Rate by Remote controller

(When the LED shows "00", it's ready to work)

1. Press the button, switch to choose the Group ID or Baud rate.

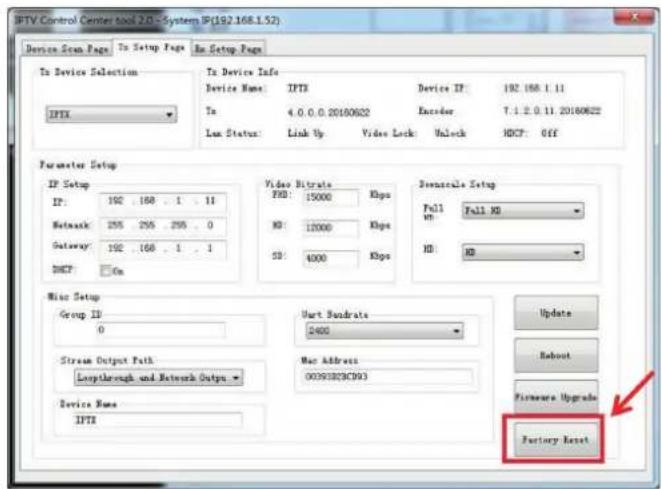

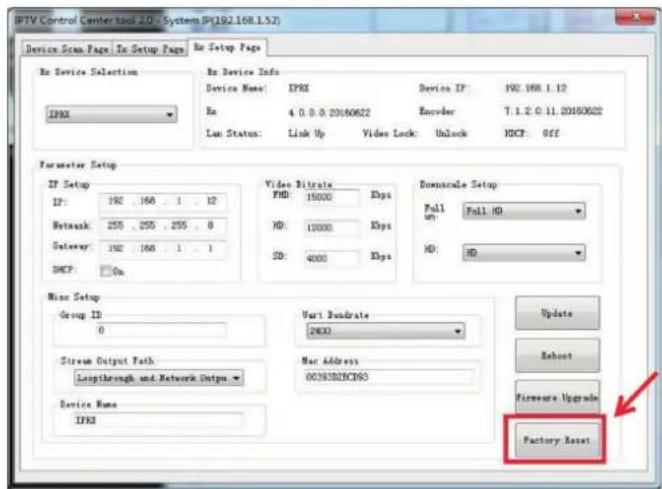

2. Factory reset. Press the button for 3 seconds, the LED will flicker then turn to "00", you have successfully finished the factory reset.

Choose Group ID 00-63

1. Press "+" or "-" to change to the previous or next Group ID.
2. Press the No to change Group ID. For example, if you need change to 01, press "0", then press "1".

Choose the Baud Rate

Press the Button, switch to Baud Rate mode, press "+" or "-" to change the Baud Rate.

Group Switch 1 2 3 4 5 6 7 8 9 Group Switch

F0 F1 F2	F3 F4 F5 F6 F7
2400 (default)	4800 9600	0 19200 28800	0 38400 57600	0 115200

3. How to choose the source:

For example, when the connection is:

Source (DVD1) - TX (TX1) - Gigabit Switch - RX (RX1) - TV1

Source (DVD2) - TX (TX2) - Gigabit Switch - RX (RX2) - TV2

Source (DVD3) - TX (TX3) - Gigabit Switch - RX (RX3) - TV3

The group ID of transmitters is:

TX1 (01)

TX2 (02)

TX3 (03)

If you need display Source on TV1, then just set Group ID of RX1 same as TX1: 01(see below picture).

TX 1 RX 1

5.1.3 Set the group ID for TX and RX via web browser

Step 1:

Make sure the Transmitter and PC are in the same domain. (Refer to 5.1.1)

Step 2:

Use an Ethernet Cable to connect the PC (or laptop) and the Extender. the power LED for the extender is red and the green status LED is blinking.

Step 3:

Power on the TX or RX with 5V 1A power supply.

Step 4:

Login in IE: 192.168.1.11 (default IP for TX) or 192.168.1.12 (default IP for RX), TX requires user name: admin and password: admin.

Step5:

Change the group ID at "Stream setting", "00" means group "00" here which can be chosen from 00 to 63.

Step 6:

Click "Submit" (transmitter) or update (receiver).

Stream Setting:

Multicast Group: Group 00(239.255.42.42) ▼ Port: 5004 Update

Transfer: ☑ Multicast

Multicast IP: 00(239.255.42.42) ▼ Port: 5004

Note: When you change the group ID on both Web browser and Remote controller, the units will follow the latest one.

If you change the Group ID on web browser, it can't be shown on the LED.

5.2 Preparing the switch

When doing point to many and many to many, it requires a switch to distribute the sources. We suggest you use the Switch that supports IGMP and DHCP. IGMP feature help to manage the group ID which is related to switch the sources; DHCP allow the switch to assign an IP for TX and RX automatically, please enable DHCP of the switch.

5.3 Connection

Note: Please don't insert into or pull out HDMI cable when power on. Please connect cable only when power is off.

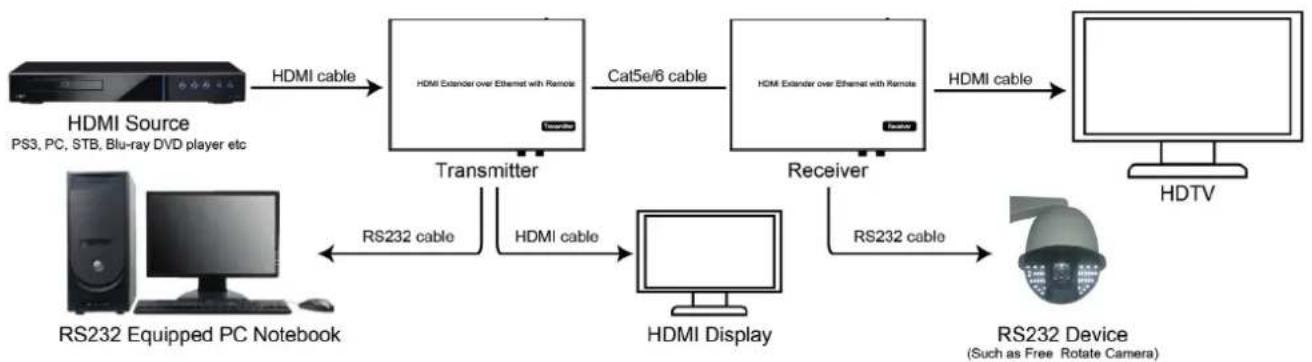

5.3.1 Point to point

1. Connect the source device and the Transmitter unit with HDMI Cable.
2. Connect the HDMI looping output of the Transmitter to the local HDMI display.
3. 1. Connect another HDMI display and the HDMI Receiver unit with HDMI Cable.
4. Connect the Transmitter and Receiver with Cat5e/6 cable
5. Connect the IR TX cable into "IR TX" port of the transmitter; Connect the IR RX cable into "IR RX" port of the receiver. Then you can control the source at the RX side with IR.
6. Connect one RS-232 Cable from the PC or automation system to the RS-232 port on the Transmitter; Connect one RS-232 cable from the Receiver to the RS-232 device to be controlled.
7. Power on Transmitter and Receiver with adapter 5V 1A.

Note: Insert/Extract cables gently.


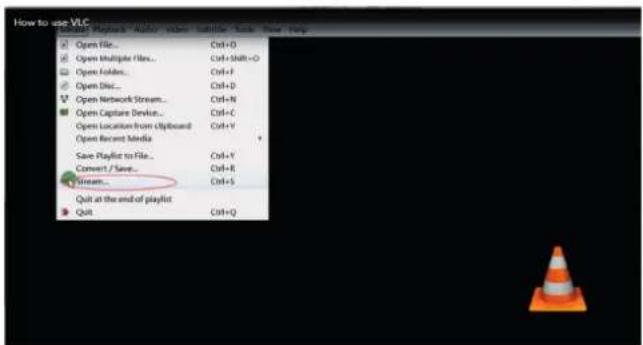

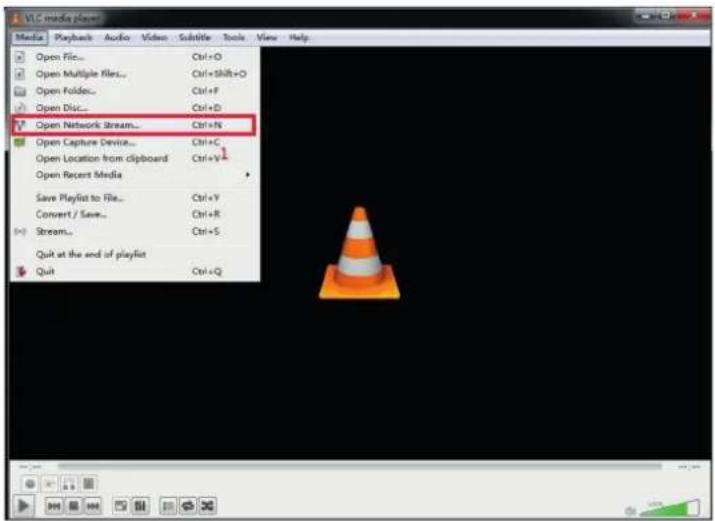

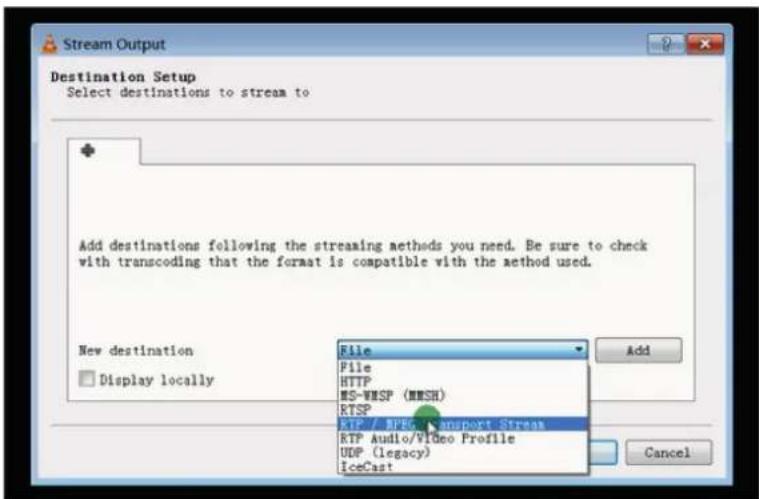

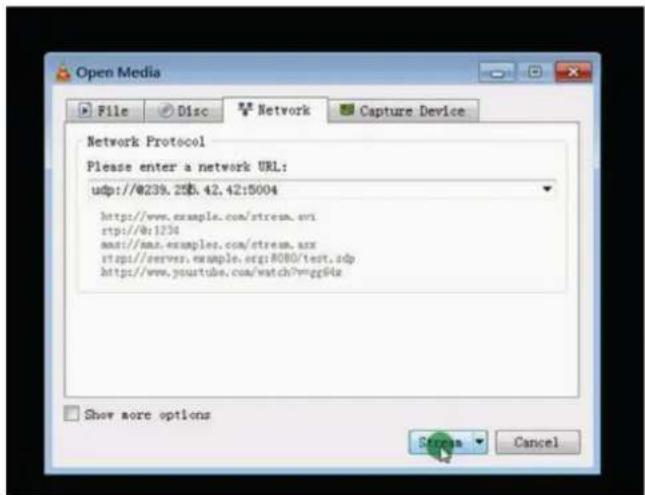

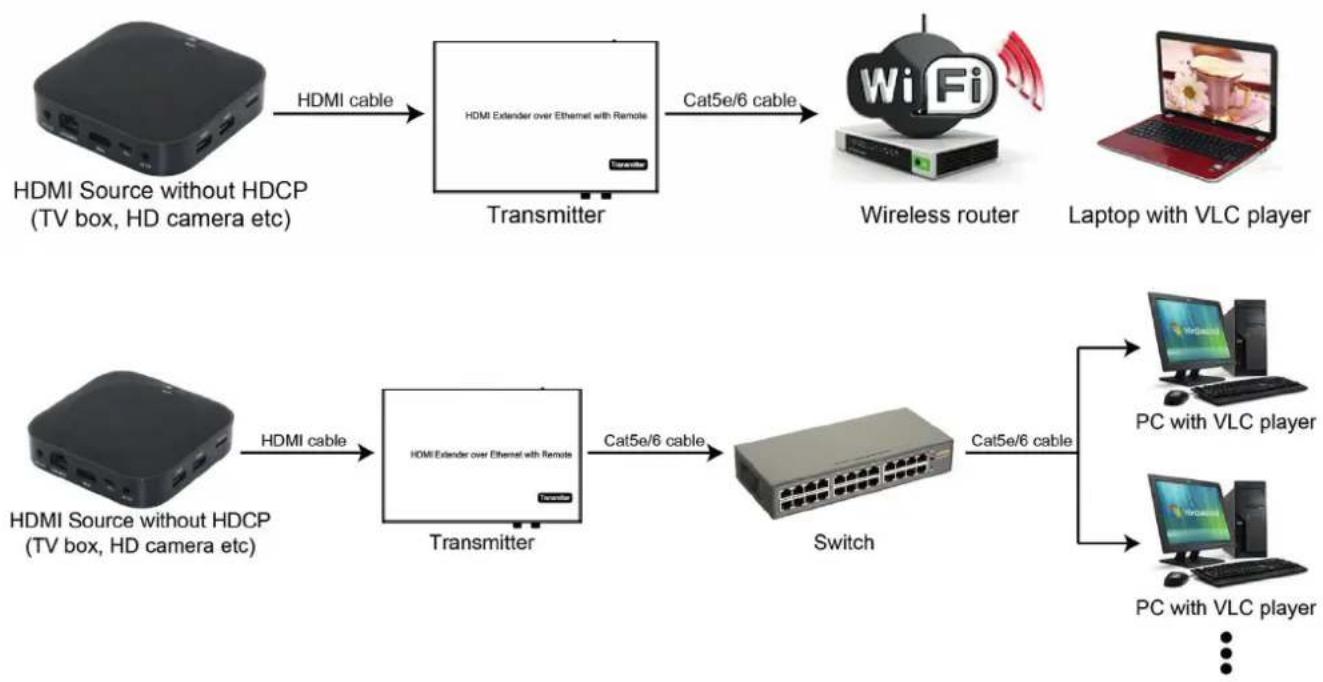

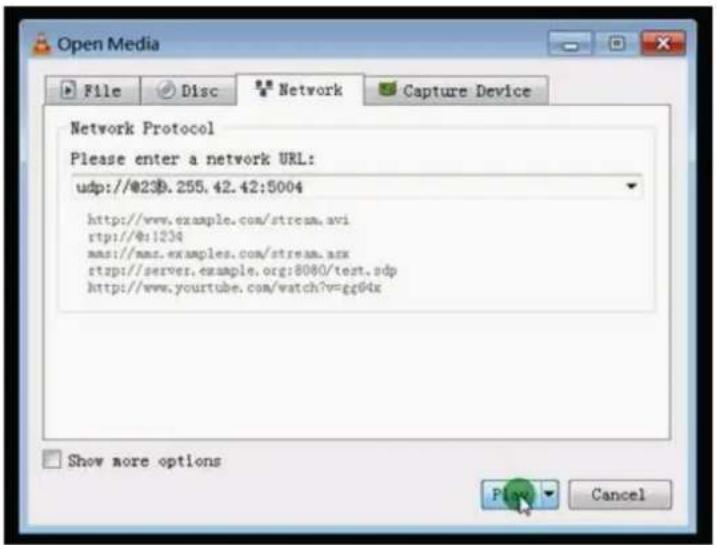

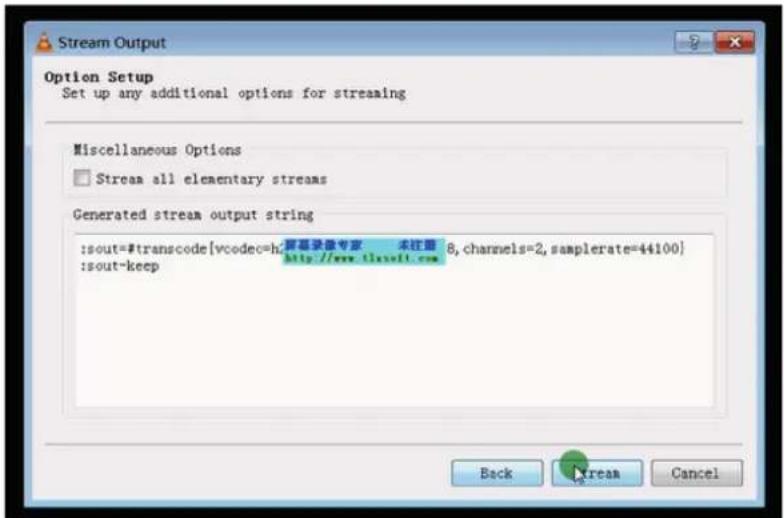

5.3.2 Compatible with Video Player such as VLC etc.


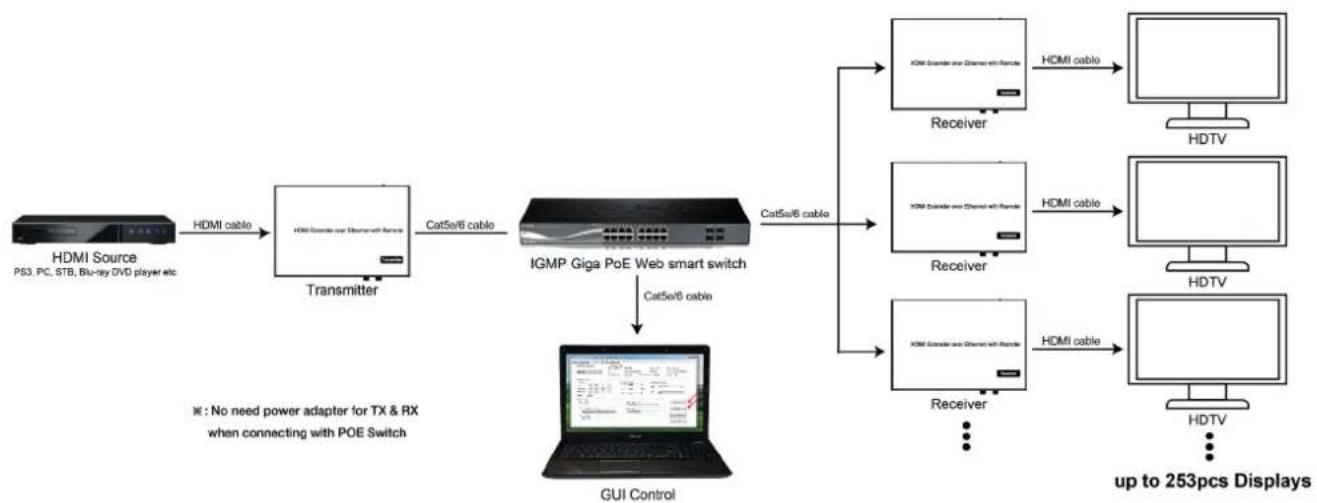

5.3.3 Point to many

1. Setting the IP address for Transmitter & Receiver and preparing the switch following the steps as instructed above (5.1.1&5.2)
2. Connect the source device and the Transmitter unit with HDMI Cable.
3. Connect the HDMI looping output of the Transmitter to the local HDMI Display.
4. Connect the transmitter and the switch/router with cat5e or cat6 cable.
5. Connect all the Receivers and the switch/ router with Cat5e/6 cable.
6. Connect the HDMI displays and the HDMI Receiver units with HDMI Cable.
7. Connect the IR TX cable into "IR TX" port of the transmitter; Connect the IR RX cable into "IR RX" port of the receiver. Then you can control the source at the RX side with IR.
8. Connect one RS-232 Cable from the PC or automation system to the RS-232 port on the Transmitter; Connect one RS-232 cable from the Receiver to the RS-232 device to be controlled.
9. Power on Transmitter and Receiver with adapter 5V1A, power on the switch with its adapter.

Note: Daisy chain the switch if its RJ45 port is not enough.

The quantity of Receiver is up to 255pcs.

    subgraph HDTV Cable
        F["HDMI Cable"] --> G["HDTV"]
    end

    H["HDMI Cable"] --> I["HDTV"]
    J["HDMI Cable"] --> K["HDTV"]
    L["HDMI Cable"] --> M["HDTV"]
    N["HDMI Cable"] --> O["HDTV"]
    P["HDMI Cable"] --> Q["HDTV"]
    R["HDMI Cable"] --> S["HDTV"]
    T["HDMI Cable"] --> U["HDTV"]
    V["HDMI Cable"] --> W["HDTV"]
    X["HDMI Cable"] --> Y["HDTV"]
    Z["HDMI Cable"] --> AA["HDTV"]
    AB["HDMI Cable"] --> AC["HDTV"]
    AD["HDMI Cable"] --> AE["HDTV"]
    AF["HDMI Cable"] --> AG["HDTV"]
    AH["HDMI Cable"] --> AI["HDTV"]
    AJ["HDMI Cable"] --> AK["HDTV"]
    AL["HDMI Cable"] --> AM["HDTV"]
    AN["HDMI Cable"] --> AO["HDTV"]
    AP["HDMI Cable"] --> AQ["HDTV"]
    AR["HDMI Cable"] --> AS["HDTV"]
    AT["HDMI Cable"] --> AU["HDTV"]
    AV["HDMI Cable"] --> AW["HDTV"]
    AX["HDMI Cable"] --> AY["HDTV"]
    AZ["HDMI Cable"] --> BA["HDTV"]
    BB["HDMI Cable"] --> BC["HDTV"]
    BD["HDMI Cable"] --> BE["HDTV"]
    BF["HDMI Cable"] --> BG["HDTV"]
    BH["HDMI Cable"] --> BI["HDTV"]
    BJ["HDMI Cable"] --> BK["HDTV"]
    BL["HDMI Cable"] --> BM["HDTV"]
    BN["HDMI Cable"] --> BO["HDTV"]
    BP["HDMI Cable"] --> BQ["HDTV"]
    BR["HDMI Cable"] --> BS["HDTV"]
    BT["HDMI Cable"] --> BU["HDTV"]
    BV["HDMI Cable"] --> BW["HDTV"]
    BX["HDMI Cable"] --> BY["HDTV"]
    BZ["HDMI Cable"] --> CA["HDTV"]
    AZH["HDMI Cable"] --> CB["HDTV"]
    CC["HDMI Cable"] --> CD["HDTV"]
    CE["HDMI Cable"] --> CF["HDTV"]

5.3.4 Many to many

1. Setting the IP address for Transmitter & Receiver and preparing the switch following the steps as instructed above (5.1.1&5.2)
2. Connect the source device and the Transmitter unit with HDMI Cable.
3. Connect the HDMI looping output of the Transmitter to the local HDMI Display.
4. Connect the transmitters and the switch/router with cat5e or cat6 cable
5. Connect the Receivers and the switch/ router with Cat5e/6 cable
6. Connect the HDMI displays and the HDMI Receiver units with HDMI Cable.
7. Connect the IR TX cable into "IR TX" port of the transmitter; Connect the IR RX cable into "IR RX" port of the receiver. Then you can control the source at the RX side with IR.
8. Connect one RS-232 Cable from the PC or automation system to the RS-232 port on the Transmitter; Connect one RS-232 cable from the Receiver to the RS-232 device to be controlled.
9. Power on Transmitter and Receiver with adapter 5V1A, power on the switch with its adapter.
10. Choose the source by Remote controller or Web browser as instructed above (5.1.2)

Note: Daisy chain the switch if its RJ45 port is not enough.

The quantity of Transmitter is no more than 64 pcs.

The total quantity of Transmitter and Receiver is less than 256 pcs

Note: The total qty of TX, RX, Switch is less than 256pcs.

6. RS232 and Baud rate

The unit provides a path to pass through the RS232 signal, RS232 passes from TX to RX or from RX to TX, connect to your RS232 devices, such as PC, IP Camera, Creston control panel, Smart Matrix, printer and Scanner and so on. It works when TX, RX and your RS232 devices baud rate is the same. The default baud rate of TX and RX is 2400 which is frequently used for most devices.

6.2 Baud rate setting

6.2.1 Setting the Baud rate via Web Browser

Login TX and RX with their default IP (TX: 192.168.1.11; RX: 192.168.1.12) to modify the Baud Rate which range from default 2400 to 115200.

Uart Setting:

Baud Rate: 115200

Note: When you change the Baud rate on both Web browser and Remote controller, the units will follow the latest one.

Please send the data in the same group ID.

7. Firmware update

We provide the firmware to upgrade the units when it is necessary. Please follow up bellowing steps to update the firmware.

Step1:

Connect TX / RX to the PC with a short Cat5e cable

Step2:

Power on TX/ RX with power adapter 5V1A.

Step3:

Login TX or RX with their default IP (TX: 192.168.1.11; RX: 192.168.1.12) on web browser, TX requires user name: admin and password: admin

Step4:

Click "choose File" on the interface and find out the latest version firmware

Step5:

Click "Upgrade", the process will takes seconds, please DO NOT interrupt or power off the units during the time.

File to Upgrade Firmware:

Choose File No file chosen

Upgrade!

8. One key recovery to default setting

9. PC Tool Instructions

Step 1:

Make sure the Transmitter and PC are in the same domain. (Refer to 5.1.1)

Step 2:

Open the PC Tool.

Step 3:

Click "Start Scan".

M F C IPTV_Control_C enter

IPTV Control Center tool 2.0 - System IP(192.168.1.63) Device Scan Page Tx Setup Page Rx Setup Page Scan Setup Device Scan Time: 5 Seconds Start Scan Output Window Tx Device: 1 IPTX Rx Device: 0

Step 4:

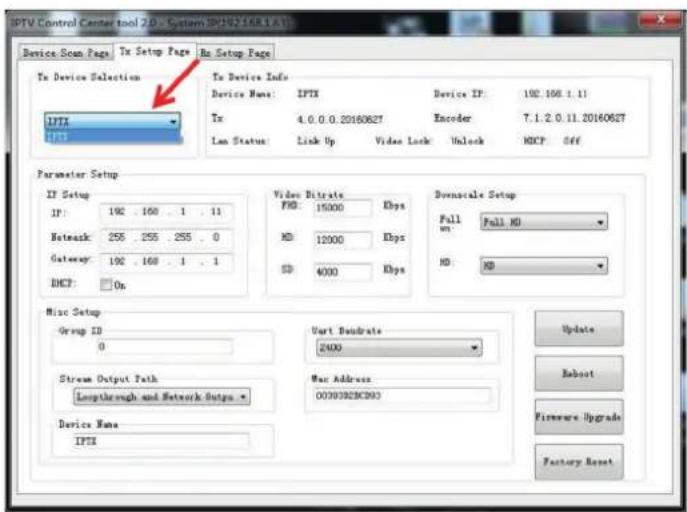

Choose the TX or RX Name.

IPTV Control Center tool 2.0 - System IPTV 168.1.1 Device Scan Page Tx Setup Page Rx Setup Page Tx Device Selection IPTX IPTX Tx Device Info Device Name: IPTX Device IP: 19C.168.1.11 Tx 4.0.0.0.20160627 Encoder 7.1.2.0.11.20160627 Lat Status: Link Up Video Lock Unlock DHCP Off Parameter Setup IF Setup IP: 192 160 1 11 Network: 255 255 255 0 Gateway: 192 160 1 1 DHCP: On Video Ditrates FND: 15000 Kbps KD: 12000 Kbps SD: 4000 Kbps Downscale Setup Full: Full MD HD: MD Misc Setup Group ID 0 Uart Doubletate 2400 Stream Output Path Longthrough and Network Outputs - Mac Address 00393828CD93 Device Name IPTX Update Reboot Fireworks Upgrade Factory Reset

9.1 Firmware Upgrade

Upgrade for TX

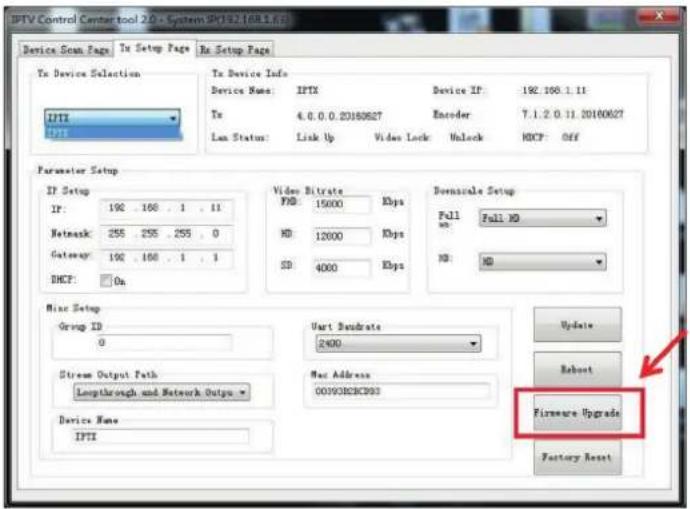

Step 1:

Click "Firmware Upgrade".

IPTV Control Center tool 2.0 - System IPTV1921681.82 Device Scan Page Tx Setup Page Rx Setup Page Tx Device Selection IPTI IPTI Tx Device Info Device Name: IPTX Device IF: 192.100.1.11 Tx 4.0.0.0.20160627 Encoder 7.1.2.0.11.20160627 Lat Status: Link Up Video Lock: Unlock HCP: Off Parameter Setup IF Setup IF: 192 168 1 11 Network: 255 255 255 0 Gateway: 190 168 1 1 DHCP: On Video Bitrate FID: 15000 Ebps HD: 12000 Ebps SD: 4000 Downscale Setup Full HD: Full HD HD: HD Max Setup Group ID 0 Vart Deudrate 2400 Stream Output Path Lengththrough and Network Outputs > Mac Address: 003V03C9D93 Device Name IPTI Firmware Upgrade Factory Reset Update Reboot

Step 2:

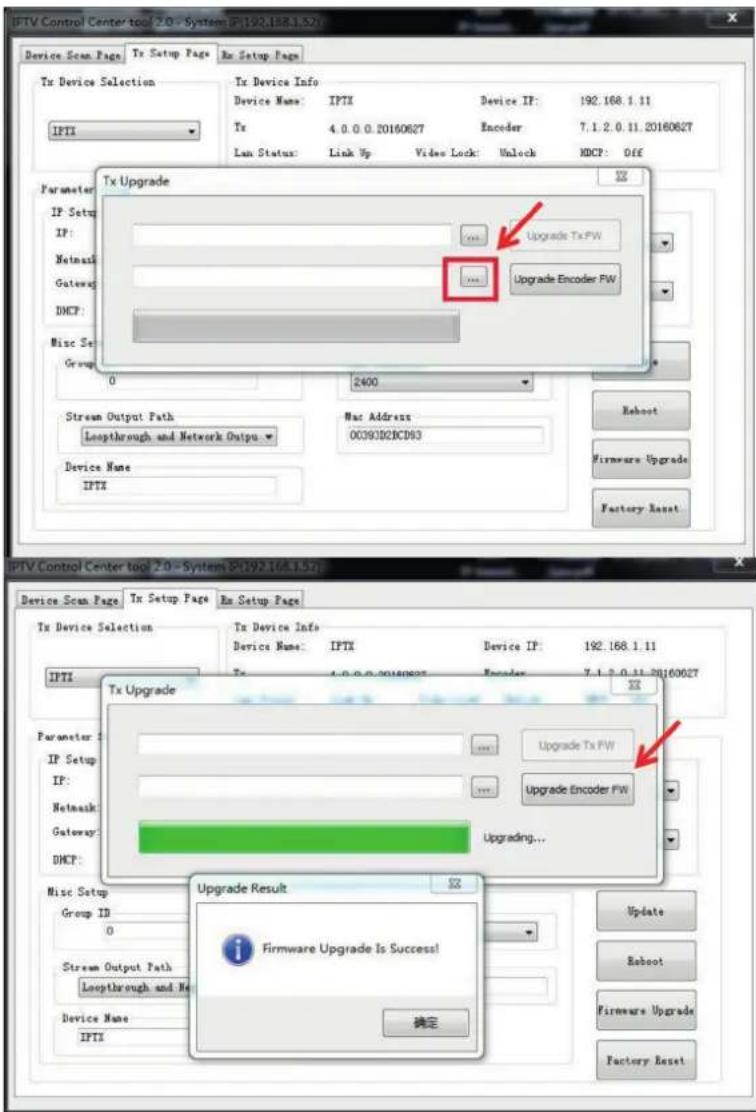

Click "Upgrade Encoder FW" first.

IPTV Control Center tool 2.0 - System (P192.168.1.57) Device Scan Page Tx Setup Page Tx Device Selection Tx Device Info Device Name: IPTX Device IP: 192.168.1.11 Tx 4.0.0.0.20160627 Encoder 7.1.2.0.11.20160627 Lan Status: Link Up Video Lock: Unlock HDCP: Off Parameter IP Setup IP: Network Gateway DNCP: Misc Set Group 0 2400 Stream Output Path Loopthrough, and Network Outputs Mac Address 00393D2BCD93 Device Name IPTX Upgrade Tx FW Upgrade Encoder FW Reboot Firmware Upgrade Factory Reset IPTV Control Center tool 2.0 - System (P192.168.1.57) Device Scan Page Tx Setup Page Rx Setup Page Tx Device Selection Tx Device Info Device Name: IPTX Device IP: 192.168.1.11 Tx 4.0.0.0.20160627 Encoder 7.1.2.0.11.20160627 Tx Upgrade Upgrade Tx FW Upgrade Encoder FW Upgrading... Parameter: IP Setup IP: Network Gateway: DNCP: Misc Setup Group ID 0 Stream Output Path Loopthrough, and Net Device Name IPTX Upgrade Result i Firmware Upgrade Is Success! 确定 Update Reboot Firmware Upgrade Factory Reset

Step 3:

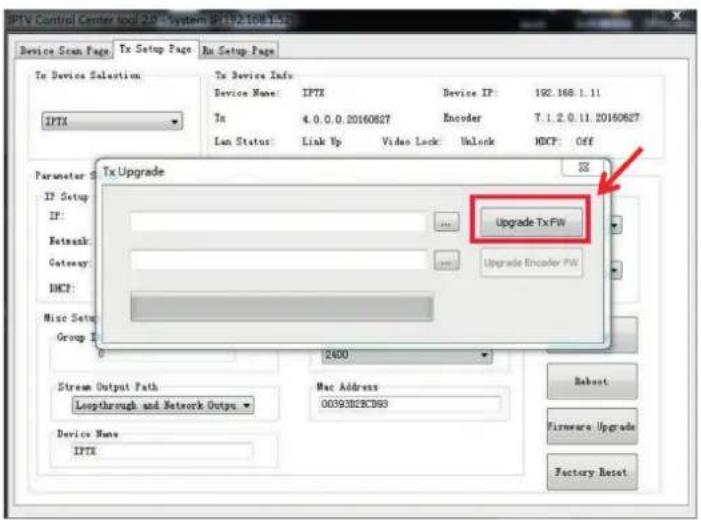

After the step 2 is finished, click "Firmware Upgrade" again, then click "Upgrade TX FW".

IPTV Control Center Tool 2.0 - System IP:192.168.1.52 Device Scan Page Tx Setup Page Rx Setup Page Tx Device Selection IPTX Tx Device Info Device Name: IPTX Device IP: 192.168.1.11 Tx 4.0.0.0.20160627 Encoder 7.1.2.0.11.20160627 Lat Status Link Up Video Lock Unlock HDCP OFF Parameter S Tx Upgrade IF Setup IP: Retnack: Gateway: BDC? Misc Setu Group I Stream Output Path LoepThrough and Network Outputs Mac Address 0039382BCB93 Device Name IPTX Upgrade TxFW Upgrade Encoder FW Reboot Firmware Upgrade Factory Reset

Upgrade for RX

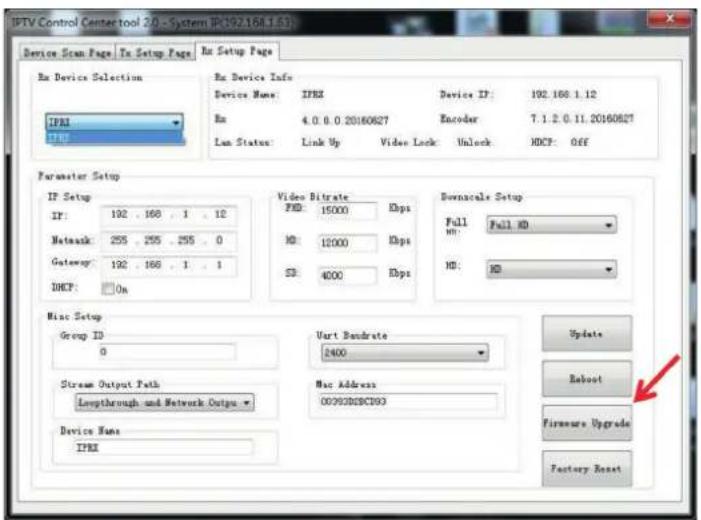

Step 1:

Click "Firmware Upgrade".

IPTV Control Center tool 2.0 - System (IP:192.168.1.51) Device Scan Page | Tx Setup Page | Rx Setup Page | Rx Device Selection IPBI IPBI Rx Device Info Device Name: IFRX Device ID: 192.168.1.12 Rx 4.0.0.0.20160627 Encoder 7.1.2.0.11.20160627 Lan Status: Link Up Video Lock Unlock HDCP: OFF Parameter Setup IF Setup IF: 192..168..1..12 Network: 255..255..255..0 Gateway: 192..168..1..1 HCP: On Video Bitrate FID: 15000 Ebps HD: 12000 Ebps SS: 4000 Ebps Downscale Setup Full HD: Full HD HD: HD Misc Setup Group ID 0 Virt Bandrate 2400 Stream Output Path Lengththrough and Network Outputs Mac Address 00393838C193 Device Name: IPBI Update Reboot Firmware Upgrade Factory Reset

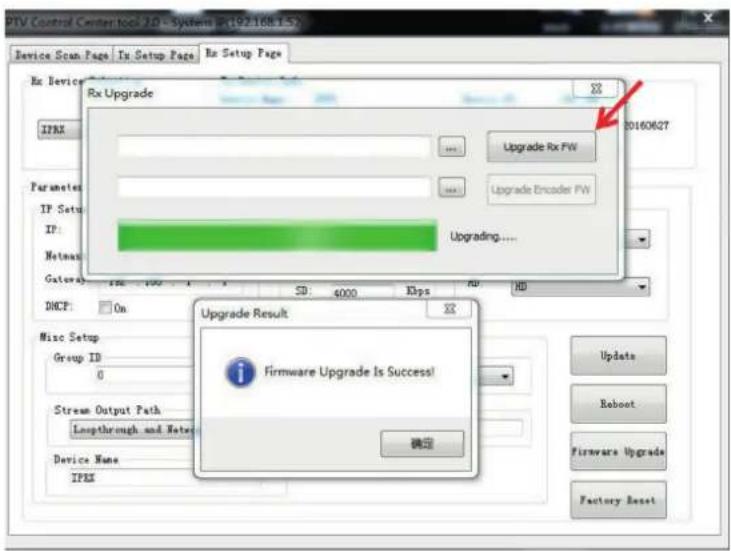

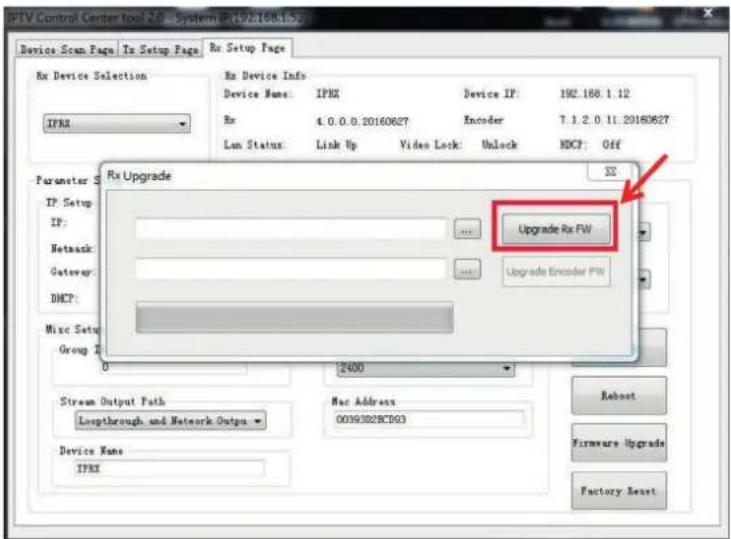

Step 2:

Click "Upgrade Rx FW".

PTV Control Center tool 2.0 - System 4:192.168.1-52 Device Scan Page | Rx Setup Page | Rx Setup Page Rx Device Selection IFRX Rx Device Info Device Name: IFRX Device IP: 192.168.1.12 Rx 4.0.0.0.20160627 Encoder 7.1.2.0.11.20160627 Lam Status: Link Up Video Lock: Unlock HDCP: Off Parameter S IP Setup IP: Network: Gateway: BDCP: Misc Setu Group T Rx Upgrade Upgrade Rx FW Upgrade Encoder FW 2400 Stream Output Path Loopthrough and Network Outputs Mac Address 00393828CDG3 Device Name IFRX Reboot Firmware Upgrade Factory Reset

PTV Control Center tool 3.0 - System IP:192.168.157 Device Scan Page Tx Setup Page Rx Setup Page Rx Device Rx Upgrade IPRX Parameters IP Setup IP: Network Gateway SD: 4000 Kips HD HD DHCP: On Misc Setup Group ID 0 Stream Output Path Loopthrough, and Rate Device Name IPRX Upgrade Rx FW Upgrade Encoder FW Upgrading.... Upgrade Result Firmware Upgrade Is Success! 确定 Update Reboot Firmware Upgrade Factory Reset

9.2 Other settings

Step 1:

Change the

IP/Netmask/Gateway/DHCP/

Uart Baudrate/Group ID/Mac Address/

Device name

on the PC tool interface.

IPTV Control Center tool 2.0 - System IP(192.168.1.0.1) Device Scan Page To Setup Page Rx Setup Page To Device Selection IPTI IPTI To Device Info Device Name: IPTI Device ID: 192.168.1.11 To 4.0.0.0.20160827 Encoder 7.1.2.0.11.20160827 Lat Status: Link Up Video Lock: Unlock HDCP OFF Parameter Setup IF Setup ID: 192 . 168 . 1 . 11 Network 255 . 255 . 255 . 0 Gateway 192 . 168 . 1 . 1 DNCP On Video Bitrate FMD: 15000 Mbps HD: 12000 Mbps SD: 4000 Mbps Downscale Setup Full Full HD HD: HD Misc Setup Group ID 0 Urt Bandrate 2400 Stream Output Path Lengththrough and Network Outputs - Mac Address CONOSURCCHD Device Name IPTI Update Reset Firmware Upgrade Factory Reset

Step 2:

Click "Update",

after "Update" is finished,

click "Reboot".

IPTV Control Center tool 2.0 - System IPTV2.168.17 Device Scan Page | Tx Setup Page | No Setup Page Rx Device Selection IPDX IPDX Rx Device Info Device Name: IPDX Device ID: 192.168.1.12 Rx 4.0.0.0.20160627 Encoder 7.1.2.0.11.20160627 Lat Status: Link Up Video Lock Unlock HDCP OFF Parameter Setup IF Setup ID: 192 168 1 12 Network: 255 255 255 0 Gateway: 192 168 1 1 HCP: On Video Bitrate FMD: 15000 Kbps HD: 12000 Kbps SD: 4000 Kbps Demscale Setup Full HD HD: HD Misc Setup Group ID 0 Var Baudrate 2400 Stream Output Path: Longthrough and Network Outputs Mac Address: 0039182NCB93 Device Name: IPDX Update Labset Firmware Upgrade Factory Reset

9.2 Click "Factory Reset" on TX or RX.

IPTV Control Center Tool 7.05-System IP(192.168.1.52) Device Scan Page To Setup Pages To Device Info Device Name: IPTX Device ID: 192.168.1.11 To: 4.0.0.0.20160622 Encoder: 7.1.2.0.11.20160622 Lock Status: Link Up Video Lock: Unlock HDCF: Off Parameter Setup IP Setup IP: 192 168 1 11 Network: 255 255 255 0 Gateway: 192 168 1 1 DHCP: On Video Bitrate FID: 15000 Kbps BD: 12000 Kbps SB: 4000 Downscale Setup Full: VD: Fall HD HD: HD Wire Setup Group ID 0 Uart Bandrate 2400 Stream Output Path: Loopthrough and Network Outputs Mac Address: 00393829C993 Device Name: IPTX Update About Firmware Upgrade Factory Reset

IPTV Control Center Tool (IPTV) System IP(192.168.1.52) Device Scan Page | In Setup Page | In Setup Page In Device Selection IPRX In Device Info Device Name: IPRX Device ID: 192.168.1.12 Ex: 4.0.0.0.20160622 Encoder: T.1.2.0.11.20160622 Lat Status: Link Up Video Lock: Unlock HDF: Off Parameter Setup IF Setup IP: 192 168 1 12 Network: 255 255 255 8 Gateway: 192 168 1 1 DHCP: On Video Bitrate FMD: 15000 Ebps HD: 13000 Ebps SD: 4000 Ebps Downsample Setup Full HD HD: HD Minor Setup Group ID 0 Vari Substrate 2400 Stream Output Path: Loopthrough and Network Outputs Mac Address: 0039382BCD63 Device Name: IPRX Update Reboot Firearm Upgrade Factory Reset

10. After sale Service and Warranty.

11. How to use VLC

Step 1:

Make sure the Transmitter and PC are in the same domain.

(Refer to 5.1.1)

Step 2:

Connect the HDMI Source without HDCP with the transmitter and power on the device.

Step 3:

Connect the transmitter to the PC.

Step 4:

Check the Multicast Group on the web (refer to 5.1.3).

Step 5:

Open the VLC media Player, click "Stream"> "Network", Input "UDP://@239.255.42.42:5004"

Note: 239.255.42.42 (Multicast Group) 5004 (Port)

How to use VLC Open File... Ctrl+O Open Multiple Files... Ctrl+Shift+O Open Folds... Ctrl+F Open Disc... Ctrl+D Open Network Stream... Ctrl+N Open Capture Device... Ctrl+C Open Location from clipboard Ctrl+Y Open Recent Media Save Playlist to File... Ctrl+Y Convert / Save... Ctrl+R Stream... Ctrl+S Quit at the end of playlist Quit Ctrl+Q

Open Media File Disc Network Capture Device Network Protocol Please enter a network URL: udp://@239.25B.42.42:5004 http://www.example.com/stream.sri rtp://@1236 msd://msd.example.com/stream.xxx stp//server.example.org:8080/test.sdp http://www.yourtube.com/watch?v=gg44s Show more options Stress Cancel

Step 6:

Click "Next".

Stream Output Source Set up media sources to stream This wizard will allow you to stream or convert your media for use locally, on your private network, or on the Internet. You should start by checking that source matches what you want your input to be and then press the "Next" button to continue. Source: udp://239.255.42.42:5004 Type: udp Back Next Cancel

Step 7:

Choose "RTP / MPEC Transport Stream".

Stream Output Destination Setup Select destinations to stream to Add destinations following the streaming methods you need. Be sure to check with transcoding that the format is compatible with the method used. New destination □ Display locally File File HTTP MS-WHSP (MMSH) RTSP RTP / RPEG Transport Stream RTP Audio/Video Profile UDP (legacy) IceCast Add Cancel

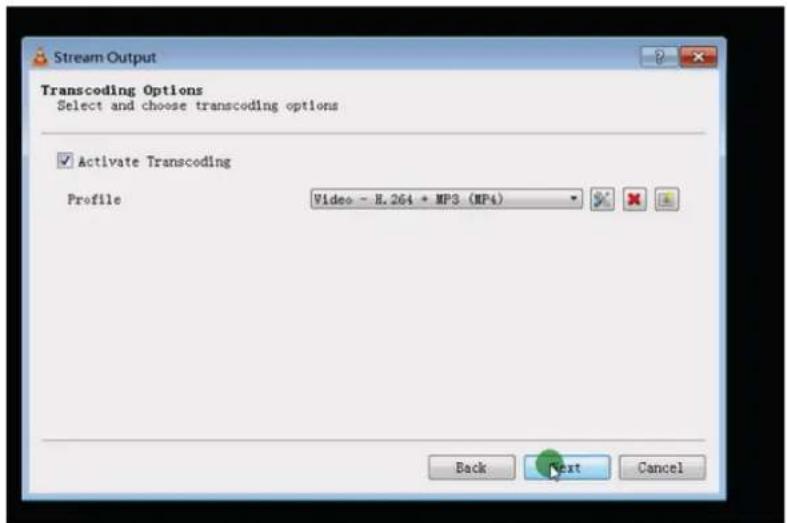

Step 8:

Click "Next".

Stream Output Transcoding Options Select and choose transcoding options ✓ Activate Transcoding Profile Video - R.264 + MP3 (MP4) Back Next Cancel

Step 9:

Click "Stream".

Stream Output Option Setup Set up any additional options for streaming Miscellaneous Options Stream all elementary streams Generated stream output string :sout=#transcode[vcodec=h/屏幕录像专家 未注册 8, channels=2, samplerate=44100] :sout-keep Back Stream Cancel

Step 10:

Click "Open Network Stream", then you can click "Play" to view the video.

VLC media play Media Playback Audio Video Subtitle Tools View Help Open File... Ctrl+O Open Multiple Files... Ctrl+Shift+O Open Folder... Ctrl+F Open Disc... Ctrl+D Open Network Stream... Ctrl+N Open Capture Device... Ctrl+C Open Location from clipboard Ctrl+V1 Open Recent Media Save Playlist to File... Ctrl+Y Convert / Save... Ctrl+R Stream... Ctrl+S Quit at the end of playlist Quit Ctrl+Q

Network Protocol Please enter a network URL: udp://@23#.255.42.42:5004 http://www.example.com/stream.avi rtp://@1234 msi://msz.examples.com/stream.axx rtp://server.example.org:8080/test.sdp http://www.yourtube.com/watch?v=gg64x Show more options Play Cancel

WARRANTY

If your product does not work properly because of a defect in materials or workmanship, our Company (referred to as „the warrantor“) will, for the length of the period indicated as below, (Parts(2)Year, Labor(90) Days) which starts with the date of original purchase („Limited Warranty period“), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a new of a refurbished product. The decision to repair or replace will be made by the warrantor.

During the „Labor“ Limited Warranty period there will be no charge for labor.

During the „Parts“ warranty period, there will be no charge for parts. You must mail-in your product during the warranty period. This Limited Warranty is extended only to the original purchaser and only covers product purchased as new. A purchase receipt or other proof of original purchase date is required for Limited Warranty service.

MAIL-IN SERVICE

When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone and/or email address where you can be reached.

LIMITED WARRANTY LIMITS AND EXCLUSIONS

a. This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or service by anyone other than a Factory Service center or other Authorized Server, or damage that is attributable to acts of God.
b. THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER „LIMITED WARRANTY COVERAGE“. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, travel to and from the service, loss of or damage to media or images, data or other recorded content. The items listed are not exclusive, but are for illustration only.)
c. PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

Asking for Assistance

Technical Support:

Phone: [phone] - 0

Fax: [phone] - 99

Technical Support Hours:

8:30 AM to 5:00 PM Monday thru Thursday

8:30 AM to 4:00 PM Friday

Write To:

PureLink GmbH
