USER MANUAL KG 7301 BOMANN

Line drawing of a double refrigerator with a horizontal shelf and side legs (no text or symbols)

Special safety Information for this Unit......Page 23

Transport and Packaging......Page 25

Appliance Equipment......Page 26

Installation......Page 26

Startup / Operation......Page 28

Cleaning and Maintenance......Page 32

Troubleshooting......Page 33

Technical Data......Page 34

Thank you for choosing our product. We hope you will enjoy using the appliance.

i NOTENOTE

Illustrations can deviate from the original appliance.

Symbols in the Symbolisms for Usese In

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNING: WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:CAUTION:

This refers to possible hazards to the machine or other objects.

NOTENOThighlights tips and information.

- The appliance is designed exclusively for private use and for the envisaged actions for Use purpose. This appliance is not fit for commercial use.

- The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose. Any other use is not intended and can result in damages or personal injuries.

- Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.

- When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.

- The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.

- For safety reasons, alterations or modifications of the appliance are prohibited.

General Notes General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, please also pass on the operating instructions.

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING: WARNING:

Do not allow small children to play with the foil. There is a danger of suffer danger of s focation!focation!

Special safety Information for this UnitSpecial sat

- This unit is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING:ARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery).

WARNING: WARNING:

• Do not damage the refrigerant circuit.
• Do not operate any electrical devices inside the appliance.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance safety and understand the hazards involved.

• Children/Childrent play with the appliance.
• Cleaning and user maintenance shall maintain a break by children until they are older 8 years and supervised.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer

service or by qualified person and with a cable of the same type.

- Use the provided collection points of electrical equipment for the disposal of the appliance.

CoolantCoolant

WARNING: WARNING:

The coolant circuit of this appliance contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

tion "Prior to first use". Protect the appli- ance during transport against weather influences.

NOTENOTE

The appliance has wheels which facilitate the transport and installation of the appliance. Tilt the appliance back slightly and move it gently.

If the coolant circuit is damaged: If the coolant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,
  • thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

Unpacking the appliabrepacking the applia t circuit is damaged:

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
  • In case of damage, do not put the

Transport and Packaging and Packagingpliance into operation. Contact your

distributor.

Transport the appliance Transport the appliance

Transport the appliance, if possible, in vertical position. Otherwise, it is absolutely necessary to allow the appliance standing upright for a few hours before installa-

NOTENOTE

Production residue or dust may have collected on the appliance. We recom-

mend cleaning the appliance according to chapter "Cleaning and Maintenance".

• Gap to the back and to the side walls each approx. 10 cm;
• Place the appliance so that the appliance door can open without ipment being impeded.

Appliance Equipment Appliance Equipment being impeded.

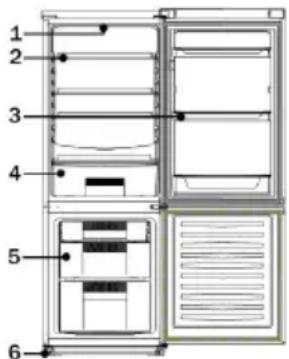

Appliance overviewAppliance overview

1 2 3 4 5 6

1 Temperature control / interior light
2 Glass shelves
3 Door storage racks
4 Vegetable box
5 Freezing drawers
6 Feet

Delivery scopeDelivery scope

4x Glass shelf, 1x vegetable box, 3x door storage rack, 1x egg tray, 3x freezing drawer, 1x ice-cube tray, 1x ice-scrapper, for reversing the door opening: 1x blind cover (b), 1x doorstop (d)

Installation Installation

Conditions for other installation locations for the installation location

- Good ventilation is required around the appliance, in order to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Sufficient clearance is necessary.

- Only install at a location with an ambient temperature suitable for the climate class of the appliance. For information on the climate class, please refer to the “EU Product Data Sheet” or to the rating label located in the interior or on the appliance rear.

- Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust the feet accordingly.

• Avoid the therapist installation:

- near heaters, next to a stove, direct sunlight or any other heat sources; - at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible stallation location to corrosion under such circumstances;

- near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages).

- Do not expose the appliance any weather.

Electrical connection Electrical connection

WARNING: WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shockelectric shock
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

- Make sure that the voltage supply matches the specifications on the rating label before connecting.

- Connect the mains cable to a properly installed and earthed wall outlet.

- If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Reverse the door opening Reverse the door opening

If required, the door openings can be moved from the right (supplied condition) to the left side.

WARNING: WARNING:

When replacing the door stops, the appliance must be disconnected from the power supply first.

NOTENOTE

• Ask another person to assist.
• You possibly need: screw wrench, Phillips screwdriver as well as a thin-blade screwdriver.
• *Delivery scope! Keep the parts to be replaced for another possible door stop change.

• (1) Remove the cover caps and loosen the screws underneath.
• (2) Remove the appliance cover; loosen the blind cover (a) and insert the blind cover (b)*.

• (3) Disassemble the upper door hinge; lift out the upper unit door.
• (4) + (5) Move the blind cover, after changing the positions of the blind plug and the hinge pin holder on the top of the door.
- (6) Release the doorstop (c) and fasten the doorstop (d)* on the underside of the door. Set the door safely aside.
• (7) Disassemble the middle door hinge; lift out the lower unit door.
• (8) Change the positions of the blind plug and the hinge pin holder on the top of the door.
• (9) Move the doorstop on the underside of the door. Set the door safely aside.
• (10) Move the blind cap and plugs on the exposed holes of the middle door hinge.
• (11) Tilt the unit slightly backwards and lock it in this position. Unscrew the feet and disassemble the lower door hinge.
- (12) + (13) Transfer and fasten the lower door hinge to the opposite appliance side; after moving the pin to limit the door opening into the exposed hole. Screw in the feet.

• Put the appliance back in the upright position. Put on the lower door and fix it in its intended position.
  • (14) Turn the middle door hinge about 180^ , transfer and fasten it to the opposite appliance side.
• Put on the upper appliance door and fix in its intended position.
  • (15) + (16) Transfer and fasten the upper door hinge to the opposite appliance side after unscrewing the hinge pin and replacing it from the other hinge side.
  • (17) Replace the appliance cover, fasten it and put on the cover caps.

Check that the doors are aligned vertically and horizontally to ensure proper opening and closing of the doors.

Startup / OperationStartup / Operatio

Prior to first use Prior to first use

CAUTION:CAUTION:

After transport, the appliance should be left standing upright for 24 hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instruc-

tions which we provide in the chapter "Cleaning and Maintenance".

Starting the appliance

• Connect the appliance to the power supply.
• Operate the temperature control. See also the section "Settings".

SettingsSettings

Setting [0] means that the appliance is in the off state. Turn the temperature control clockwise, starting from this setting; the appliance will turn on automatically.

The power levels [1-7] regulate the different values of the internal temperature.

Setting 0:SettingState

Setting 1: SlotWest setting (warmest inside temperature)

Setting 7: Setting: setting (coldest inside temperature)

Note that the temperature will change depending on the ambient temperature, frequency of door opening and the amount of food in the appliance.

During initial operation, turn the temperature control to the highest setting first, until the appliance has reached the desired operating temperature. Afterwards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier.

Interior light Interior light

When opening the fridge door, the interior light will turn on automatically.

Storing foodStoring food

NOTE: Recommendation!Recommendation!

To guarantee that the temperature is low enough, you should pre-cool the appliance a few times before initial loading foods.

CAUTION:CAUTION:

Always pay attention to the storage instructions on the sales packaging.

Fridgeridge

Always store food covered or packed in order to prevent drying-out and transfer of odor or taste onto other food items. You may pack the food with e.g.

• Polyethylene plastic bags or foil
- Plastic bowl with lid
- Special plastic cover with elastic strip
- Aluminum foil

Recommendations Recommendations

• Store fresh packed items on the glass shelves, fresh fruits and vegetables in the vegetable box.
• Place bottles in the door storage racks.
• By the air circulation different climate zones arises.

- The coldest zone is located at the rear and the lower fridge part. Recommended for the storage of foods such as fish, sausages and meat.

- The warmest zone is located at the door and the upper fridge part. Suitable for the storage of e.g. cheese and butter.

- Let warm food cool down first.

Freezerreezer

The 4-star freezer allows you to store frozen food at a temperature of ≤ -18^ for several months; to produce ice cubes and to freeze fresh food. The temperature of the freezer is automatically controlled by the temperature control in the fridge.

i NOTE:NOTE:

Make sure that the temperature in the freezer does not rise above -18°C. For this, the unit should be defrosted regularly. A thick frozen layer deteriorates the

cooling and increases the power consumption.

FreezingFreezing

- 24 hours before freezing we recommend turning the temperature control to the highest power level and to keep this setting even after freezing for a few hours. The appliance is not compromised if the setting will not revert to a normal operating temperature after the freezing process, but for economic reasons you should possibly avoid it.

• Fresh food should be frozen as fast as possible to the core. Therefore during freezing operation, the temperature of fresh food should be lowered as fast as possible in order to keep formation of ice crystals as little as possible and not to damage the food structure.
• Frozen food should be kept in contact with the bottom of the compartment.
• Keep a space between the individual items, so that the cold air can circulate.

Storing frozen f Storing frozen f

- Packed frozen merchandise should be stored in a 4-star-freezer compartment in accordance with the

manufacturer's data. Make sure the food items do not defrost after purchase and to store them as fast as possible in the freezer.

- It is possible to store food for longer periods of time, up to three months. This period might vary, so observe the storage information on the packaging of the merchandise.

General safety precautions General safety pre

• Do not exceed the maximum freezing capacity. See data under "EU Product Data Sheet" or on the rating label.
• Do not store bottles or cans. These can break when the contents freeze – or even explode, if they contain carbonated drinks.
• Once products have been defrosted halfway or completely, they should be consumed as soon as possible and should not be frozen again, except they have been processed to a ready meal.
• Do not open the door in case of power failure. If the failure does not take longer than 19 hours, the food will not be affected.

• Do not eat food that is still frozen. Do not eat ice cream directly from the freezer. The cold can cause injuries in the oral cavity.

• Touching metal parts inside the appliance can cause symptoms similar to burns if the skin is very sensitive.

• Never touch frozen food with moist or wet hands.

Operating operations

Type of sound Type of sound
Mumbling Compressor during its operation
Liquid sounds Circulation of the refrigerant
Click sounds The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching Switching

To switch off the appliance turn the temperature control to the off state.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Disconnect the appliance from the power supply.
• Clean the appliance thoroughly (see "Cleaning and Maintenance").
• Leave open the appliance door to prevent unpleasant odours.

Tips for Energy saving Tips for Energy saving

• Disconnect the appliance from the power supply, if it isn't in use.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure sufficient ventilation at the bottom and rear side. Never block ventilation openings.
• Do not adjust the temperature colder than necessary.
• Do not leave open the door for longer than required.
• The appliance should be defrosted regularly, if necessary.
• The seal of the appliance door must be completely intact, so that the door closes properly.

electric shock! hottate shock build damage the plastic parts.

- The appliance must be dry before restarting operation.

CAUTION:CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not damage the refrigerant circuit.

Cleaning the appliance including interlocking the ap

- Clean the appliance interior, the exterior surfaces, the accessories and the door seal regularly with warm water and mild detergent; or with a clean, damp microfibre cloth without cleaning agent.

- Remove the appliance content and storage it at a cool location.

- Clean the thaw water discharge channel / opening carefully e.g. with a g and Maintenance pipe cleaner.

- After everything was thoroughly dried, you can restart the operation.

Cleaning and Maintenance Cleaning and Maintenance

WARNING: WARNING:

• Always disconnect the appliance from the power supply before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of Risk of

DefrostingDefrosting

CAUTION:CAUTION:

Never use metal objects (e.g. knives) to remove ice from the evaporator. Otherwise it can be damaged. A defect evaporator can cause serious damage.

NOTE:NOTE:

If necessary, use the included ice scraper.

The fridgefidgean automatic defrosting system. During defrosting water drops drains off at the back of the cooling chamber. The thaw water running through a channel, is collected in a drip tray located on the compressor, where it will evaporate. Make sure the water discharge opening does not get clogged. A light formation of ice on the interior back during operation is normal.

To achieve better cooling and to save energy, defrost the freezer regularly as follows:

• To start the defrosting process turn the temperature control to the off state and disconnect the plug or turn off the fuse.

• Remove the food items and keep covered at a cool location.

• When the ice has melted, wipe the condensate away and dry the appliance interior.

• Then you may restart the appliance by connecting the plug and turning the temperature control.

Changing the bulbChanging the bulb

Lamp data: 220L240V840max20 W, max. 10 W

• Remove the lamp cover carefully.
• Replace the defective illuminant.
• Replace the lamp cover.

Troubleshooting Troubleshooting

Before you contact a specialist

Problem	Cause / Action
Unit is not working properly or at all	· Check the power supply / temperature setting / ambient temperature. · Unblock the ventilation openings, install the appliance freely.
Loading is too warm	· Check the temperature setting / ambient temperature. · Open the door only as long as necessary.
Loud noise during operation	· Check the appliance position. · See the section “Operating noise”.
Water on the unit bottom	· Check the temperature setting / water discharge channel or opening.
Problem Protection Cause / Action
Light does not work	• Check the power supply.• See “Changing the bulb”.

i NOTE:NOTE:

If a problem still persists after following the steps above, contact your trader or an authorized technician.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Technical Data Technical Data

Electrical connectrical cdione....

Power voltage: 220-240 V\~ / 50 Hz

Connection power: 75 W

Dimension H x W x D / Weight....

Appliance size: 169.2 x 54.5 x 54.5 cm

Net weight: ....approx. 48.0 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

EU Product Data Sheet EU Product Data Sheet

Data sheet for household refrigerators/freezers according to regulation Noef1020 regulated by 60/2

BrandBrand	BOMANNBOMA
ModelModel	KG 730G 730
Category1)	77
Energy Efficiency class2)	A++
Annual Energy consumption3) kWh/a	184
Net capacity cooling total	165
- thereof cold storage compartment	-
- thereof wine storage compartment	-
- thereof cellar compartment	-
- thereof storage compartment for fresh-food	165
Net capacity freezing total	64
Star rating4)	4
Design temperature of other compartments °C	-
Coldest storage temperature of wine storage compartment °C	-
Frost-free	-
Temperature rise time h	19
Freezing capacity kg/24h	3
Climate class5)	N/ST
Noise emission dB(A) re1 pW	40
Built-in	-
Wine storage appliance	-

1) Category: 1 = Refrigerator with one or more fresh-food storage compartments, 2 = Refrigerator-cellar, Cellar and Wine storage appliances,

3 = Refrigerator-chiller and Refrigerator with a 0-star compartment, 4 = Refrigerator with a one-star compartment, 5 = Refrigerator with a two-star compartment, 6 = Refrigerator with a three-star compartment, 7 = Refrigerator-freezer, 8 = Upright freezer, 9 = Chest freezer, 10 = Multi-use and other refrigerating appliances

2) A+++ (highest efficiency) to G (lowest efficiency)

3) Annual energy consumption „XYZ“ kWh per year based on standard test results for 24 h. Actual energy consumption will depend on how the appliance is used and where is located.

4) * = compartment: a frozen-food storage compartment in which the temperature is not warmer than -6°C

** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -12°C

*** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -18°C

* (***)= food freezer compartment in which the temperature is not warmer than -18^ and a min. freezing capacity in 24 h

5) Climate class SN: ambient temperature of +10°C up to +32°C

Climate class N: ambient temperature of +16°C up to +32°C

Climate class ST: ambient temperature of +16°C up to +38°C

Climate class T: ambient temperature of +16°C up to +43°C

BOMANN®
