USER MANUAL FINEPIX Z30 FUJIFILM

Thank you for your purchase of this product. This manual describes how to use your FUJIFILM FinePix Z30 digital camera and the supplied software. Be sure that you have read and understood its contents before using the camera.

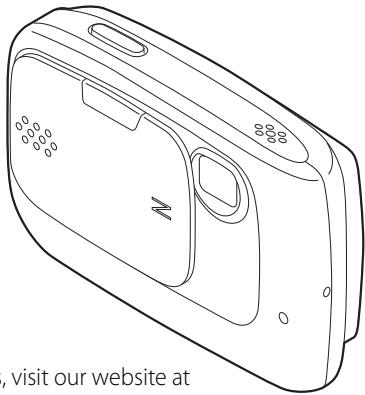

Line drawing of a digital camera with buttons and display screen (no text or symbols)

For information on related products, visit our website at http://www.fujifilm.com/products/index.html

Before You Begin

First Steps

Basic Photography and Playback

More on Photography

More on Playback

Movies

Connections

Menus

Technical Notes

Troubleshooting

Appendix

About This Manual

Before using the camera, read this Owner's Manual and the other supplied documents. For information on specific topics, consult the sources below.

√ Camera Q & A ...... pg. iii

Know what you want to do but don't know the name for it? Find the answer in "Camera Q & A."

√ Table of Contents ......pg. viii

The "Table of Contents" gives an overview of the entire manual. The principal camera operations are listed here.

√ Troubleshooting ......pg. 89

Having a specific problem with the camera? Find the answer here.

√ Warning Messages and Displays ......pg. 96

Find out what's behind that flashing icon or error message in the monitor.

√ Glossary ......pg. 100

The meanings of some technical terms may be found here.

Memory Cards

Pictures can be stored in the camera's internal memory or on optional SD and SDHC memory cards. In this manual, SD memory cards are referred to as "memory cards." For more information, see page 8.

Camera Q & A

Find items by task.

Camera Setup

Question	Key phrase	See page
How do I set the camera clock?	Date and time	14
Can I set the clock to local time when I travel?	Time difference	86
How do I keep the monitor from turning off automatically?	Auto power off	85
How do I make the monitor brighter or darker?	LCD brightness	85
How do I stop the camera beeping and clicking?	Silent mode	27
	Volume	84
What are the parts of the camera called?	Parts of the camera	2
What do the icons in the monitor mean?	Monitor	3
How do I use the menus?	Menus	59
What's behind that flashing icon or error message in the monitor?	Messages and displays	96
How much charge is left in the battery?	Battery level	16

Sharing Pictures

Question	Key phrase	See page
Can I print pictures on my home printer?	Printing pictures	47
Can I copy my pictures to my computer?	Viewing pictures on a computer	52

Taking Pictures

Question	Key phrase	See page
How many pictures can I take?	Memory capacity	101
Is there a quick and easy way to take snapshots?	mode	16
How can I make good portraits?	Intelligent Face Detection	21
Can the camera automatically select the most suitable mode?	mode	32
Is there a simple way to adjust settings for different scenes?	Shooting mode	31
How do I shoot close-ups?	Macro mode (Close-ups)	25
How do I keep the flash from firing?	Flash mode	26
How do I stop my subjects' eyes glowing red when I use the flash?
How do I "fill-in" shadows on back-lit subjects?
How do I take a group portrait that includes the photographer?	Self-timer mode	28
How do I frame pictures with the subject off to one side?	Focus lock	23
How do I shoot movies?	Recording movies	42
Can I join short clips into a longer movie?	Successive movie	43

Viewing Pictures

Question	Key phrase	See page
How do I view my pictures?	Single-frame playback	36
How do I view pictures of only one type?	Choose type	68
Is there a simple way to delete one image?	Deleting pictures	20
How do I delete one or all images at once?	Erase	40

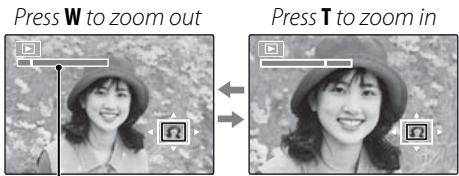

Can I zoom in on pictures during playback?	Playback zoom	37
How do I view a lot of pictures at once?	Multi-frame playback	38
How do I view all pictures taken on the same day?	Sort by date	39
Can I protect my pictures from accidental deletion?	Protect	73

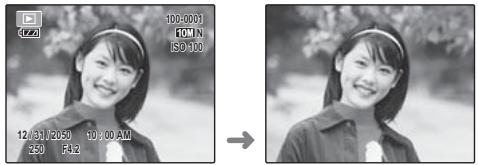

Can I hide the icons in the monitor when viewing my pictures?	Choosing a display format	36
Can I view my pictures in a slide show?	Slide show	71
Can I add a short voice memo to my pictures?	Voice memo	77
Can I crop unwanted elements out of my pictures?	Crop	74
Can I copy pictures from internal memory to a memory card?	Copy	75
Can I add effects to my pictures?	Adding effects to pictures	68

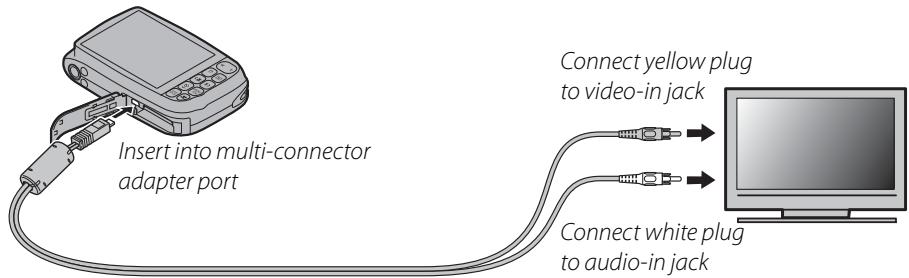

How do I view my pictures on TV?	Viewing pictures on TV	46

Memo

Memo

Table of Contents

About This Manual....ii

Camera Q & A....iii

Camera Setup....iii

Sharing Pictures....iii

Taking Pictures....iv

Viewing Pictures....v

Before You Begin

Introduction....1

Symbols and Conventions....1

Supplied Accessories....1

Parts of the Camera....2

The Monitor....3

First Steps

Charging the Battery 4

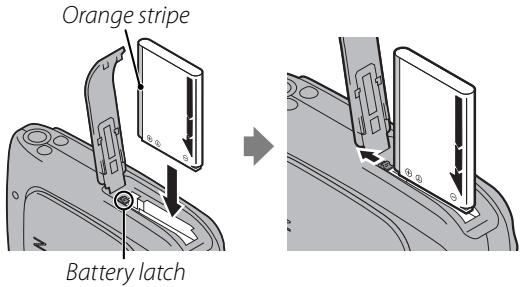

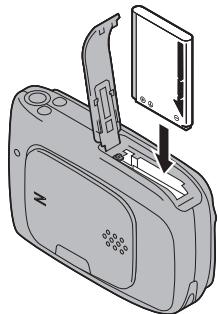

Inserting the Battery....6

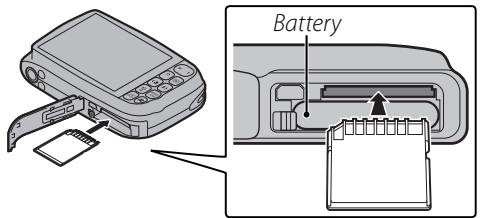

Inserting a Memory Card....8

Turning the Camera on and Off....13

Shooting Mode....13

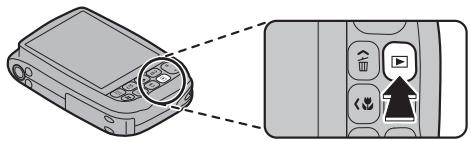

Playback Mode....13

Basic Setup 14

Basic Photography and Playback

Taking Pictures in 📄 (AUTO) Mode....16

Viewing Pictures....20

More on Photography

Intelligent Face Detection and Red-Eye Removal...21

Focus Lock 23

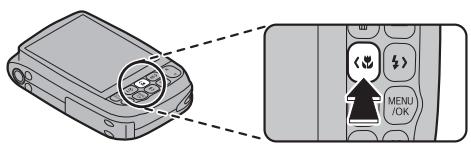

Macro mode (Close-ups)....25

4 Using the Flash (Intelligent Flash)......26

◎ Using the Self-Timer....28

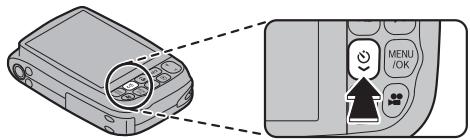

Setting the Self-Timer 28

COUPLE TIMER....28

GROUP TIMER 29

10 SEC/ 2 SEC....29

Shooting Mode....31

Selecting a Shooting Mode....31

Shooting Modes 31

SR AUTO SCENE RECOGNITION....32

More on Playback

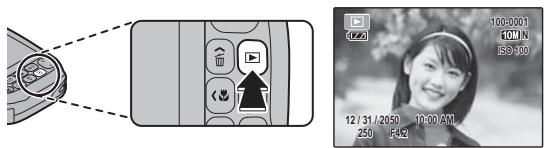

Single-Frame Playback 36

Playback Zoom....37

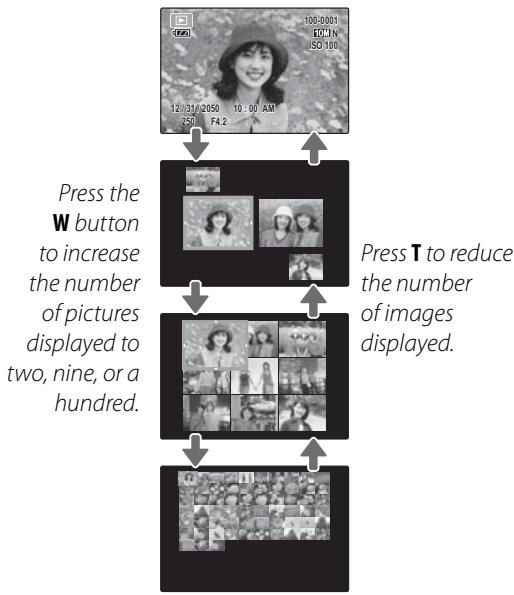

Multi-Frame Playback 38

Sort by Date 39

Deleting Pictures....40

Movies

Recording Movies....42

▶ Successive Movie....43

▶ Viewing Movies 45

Connections

Viewing Pictures on TV 46

Printing Pictures via USB 47

Connecting the Camera 47

Printing Selected Pictures 47

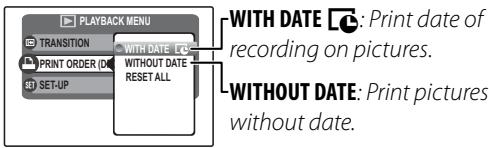

Printing the DPOF Print Order 48

Creating a DPOF Print Order....50

Viewing Pictures on a Computer....52

Installing FinePixViewer 52

Installing FinePixViewer: Windows....52

Installing FinePixViewer: Macintosh....55

Connecting the Camera 57

Menus

The Shooting Menu....59

Using the Shooting Menu....59

Shooting Menu Options....60

EXP. COMPENSATION....61

WB WHITE BALANCE....62

IMAGE QUALITY....62

ISO ISO....63

FINEPIX COLOR....63

HIGH-SPEED SHOOTING....64

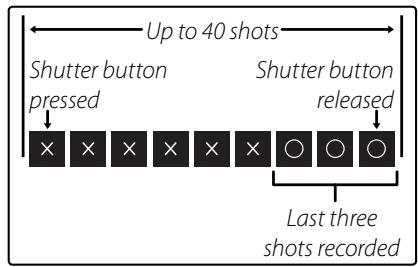

CONTINUOUS....64

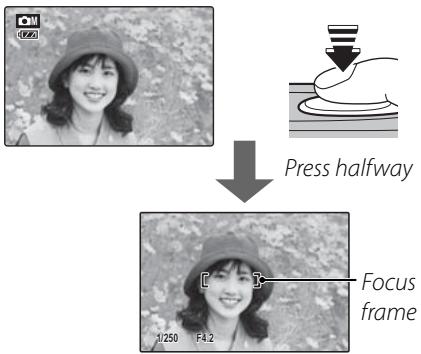

AF AF MODE 66

The Playback Menu....67

Using the Playback Menu 67

Playback Menu Options....67

PLAYBACK TYPE 68

Blog TRIMMING FOR BLOG 68

SLIDE SHOW 71

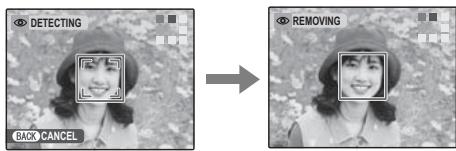

RED EYE REMOVAL....71

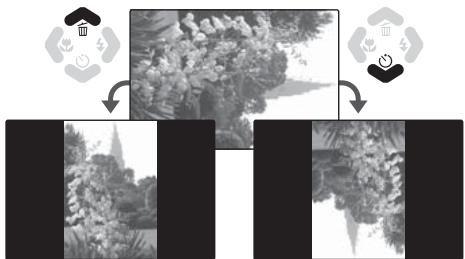

# IMAGE ROTATE....72

PROTECT....73

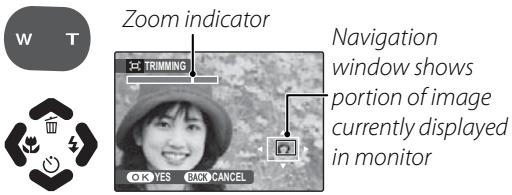

TRIMMING....74

COPY COPY....75

VOICE MEMO....77

TRANSITION....79

8 MOVIE TRIMMING ....79

The Setup Menu....80

Using the Setup Menu 80

Setup Menu Options....81

☑ IMAGE DISP....82

No! FRAME NO....83

ILLUMINATION....83

DIGITAL ZOOM....84

fps LCD MODE 84

VOLUME....84

SOUND 85

LCD BRIGHTNESS....85

FORMAT 85

AUTO POWER OFF....85

TIME DIFFERENCE....86

Technical Notes

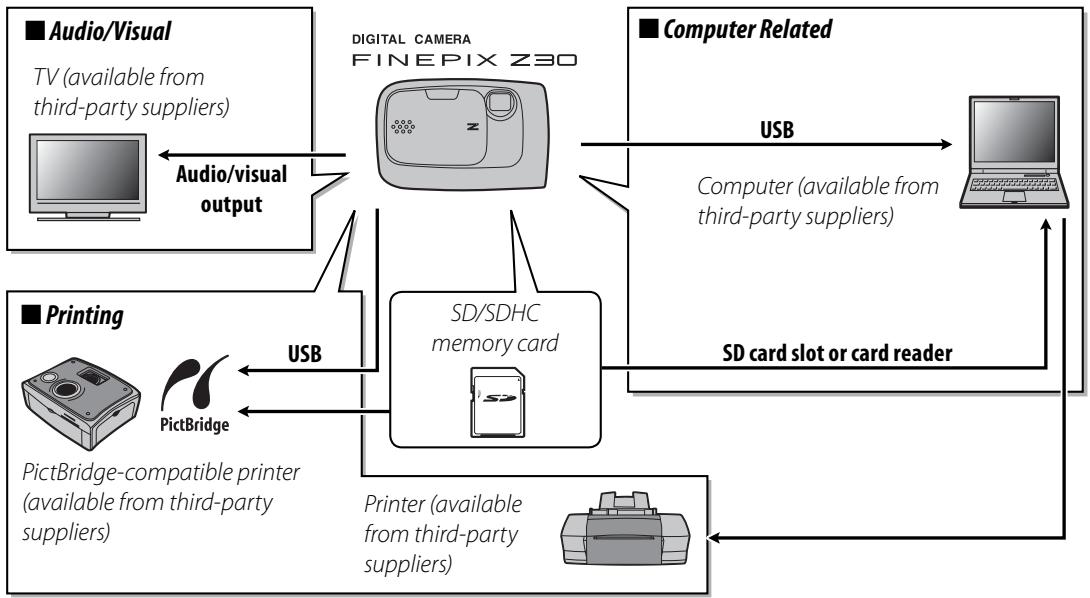

Optional Accessories 87

Accessories from Fujifilm 88

Troubleshooting

Troubleshooting....89

Warning Messages and Displays....96

Appendix

Glossary 100

Internal Memory/Memory Card Capacity....101

HTML Color Codes 101

Specifications.... 102

Caring for the Camera 106

Symbols and Conventions

The following symbols are used in this manual:

Caution: This information should be read before use to ensure correct operation.
Note: Points to note when using the camera.
Tip: Additional information that may be helpful when using the camera.

Menus and other text in the camera monitor are shown in bold. In the illustrations in this manual, the monitor display may be simplified for explanatory purposes.

Supplied Accessories

The following items are included with the camera:

Illustration of a 3.5-inch floppy disk with a black arrow indicating leftward motion (no text or symbols)

NP-45 rechargeable battery

3D technical illustration of a mechanical component with internal slots and mounting holes (no text or symbols)

BC-45W battery charger

USB cable

FUJIFILM Software for FinePix

FinePix software CD (IMPORTANT: read the End User License Agreement before opening.)

Illustration of a coiled cable or rope with a looped end (no text or symbols)

Strap

Attaching the Strap

Attach the strap as shown.

Diagram showing a cable being inserted into a device component, with no visible text or symbols

Diagram showing a cable being inserted into a car body, with no text or symbols present.

Owner's Manual (may be distributed on CD in some countries or regions)

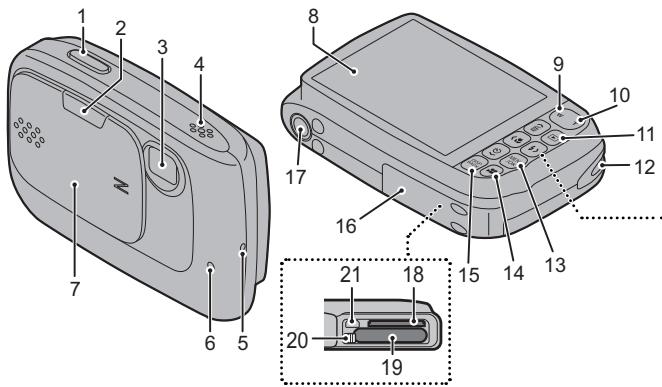

Parts of the Camera

For more information, refer to the page listed to the right of each item.

Diagram of a digital camera module with numbered parts for identification and assembly reference.

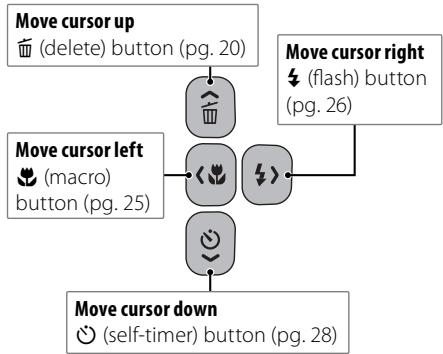

Selector button


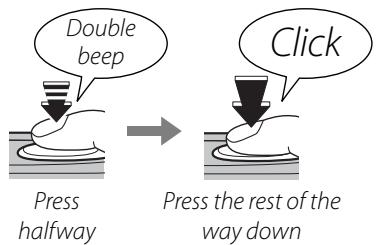

1 Shutter button....19
2 Flash....26
3 Lens

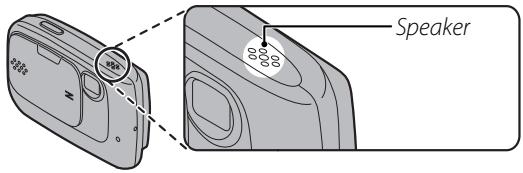

4 Speaker....78

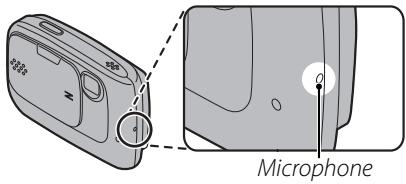

5 Microphone....77
6 Shooting indicator 83

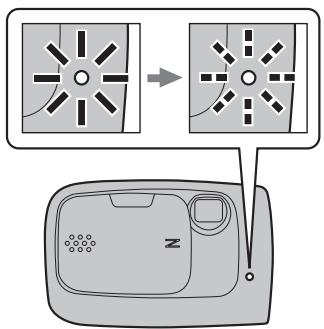

Self-timer lamp....30
7 ON/OFF switch and lens cover.....13
8 Monitor....3

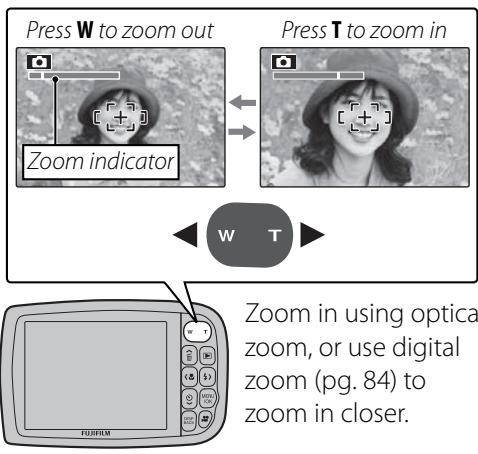

9 W (zoom out) button....17, 38

10 T (zoom in) button....17, 37
11 ▶ ( playback) button....36
12 Strap eyelet.... 1
13 MENU/OK button....14
14 (movie recording) button.....42
15 DISP (display)/BACK button.....18, 36
(silent mode) button....27
16 Battery-chamber cover 6
17 Tripod mount
18 Memory card slot....9

19 Battery chamber....6
20 Battery latch 6
21 Connector for multi-connector adapter....46

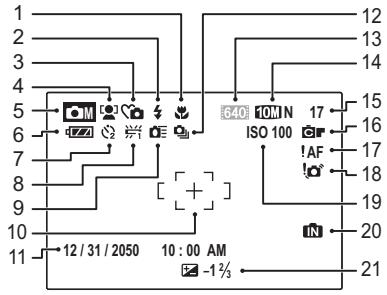

The Monitor

The following indicators may appear in the monitor during shooting and playback:

■ Shooting

1 2 3 4 5 6 7 8 9 10 11 12 / 31 / 2050 12 / 31 / 2050 10:00 AM -1½ 640 10MN 17 ISO 100 17 18 19 20 21 12 13 14 15 16 17 18 19 20 21

1 Macro (close-up) mode......25
2 Flash mode......26
3 Silent mode 27
4 Intelligent Face Detection indicator 21
5 Shooting mode....31
6 Battery level....16
7 Self timer indicator......28
8 White balance 62
9 High speed mode....64
10 Focus frame....18
11 Date and time....14

12 Continuous mode 64
13 Movie quality......42
14 Image quality......62
15 Number of available frames 101
16 FINEPIX COLOR 63
17 Focus warning 18
18 Blur warning......26
19 Sensitivity......63
20 Internal memory indicator*......8
21 Exposure compensation......61

* Indicates that no memory card is inserted and that pictures will be stored in the camera's internal memory (pg. 8).

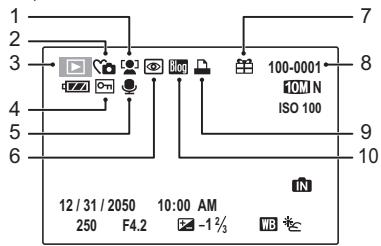

■ Playback

1 2 3 4 5 6 7 8 9 10 100-0001 10M N ISO 100 IN 12 / 31 / 2050 10:00 AM 250 F4.2 -1½ WB

1 Intelligent Face Detection indicator....37
2 Silent mode indicator......27
3 Playback mode indicator ..... 36
4 Protected image....73
5 Voice memo indicator......77

6 Red-eye removal indicator ..... 22
7 Gift image 36
8 Frame number....83
9 DPOF print indicator....51
10 Blog image....68

Charging the Battery

The battery is not charged at shipment. Charge the battery before use.

1 Place the battery in the charger. Insert the battery into the supplied battery charger as shown, making sure that the battery is in the correct orientation.

Rechargeable battery Arrow FIFETM Terminals

Diagram of a device with an arrow indicating rotation or movement, showing a rectangular component with a base and a switch (no text or symbols present)

Battery charger

2 Plug the charger in. The charging indicator will light.

The Charging Indicator

The charging indicator shows battery charge status as follows:

Charging indicator	Battery status	Action
Off	Battery not inserted.	Insert the battery.
	Battery fully charged.	Remove the battery.
Glows	Battery charging.	—
Blinks	Battery fault.	Unplug the charger and remove the battery.

3 Charge the battery.

Charging is complete when the charging indicator turns off.

Cautions: Caring for the Battery

• Do not affix stickers or other objects to the battery. Failure to observe this precaution could make it impossible to remove the battery from the camera.
• Do not short the battery terminals. The battery could overheat.
• Use only NP-45 batteries. Failure to observe this precaution could result in product malfunction.
• Do not remove the labels from the battery or attempt to split or peel the outer casing.
• The battery gradually loses its charge when not in use. Charge the battery one or two days before use.
• Read the supplied documentation for additional cautions concerning battery use.

Caution: Battery Life

A noticeable decrease in the length of time the battery will hold a charge indicates that it has reached the end of its service life and should be replaced.

Cautions: Using the Battery Charger

• Unplug the charger when it is not in use.
• Remove dirt from the battery terminals with a clean, dry cloth. Failure to observe this precaution could prevent the battery from charging.
• Charging times increase at low temperatures.

Inserting the Battery

After charging the battery, insert it in the camera as described below.

1 Open the battery-chamber cover.

Illustration of a gray digital camera with a scroll wheel and indicator lights (no text or symbols)

Note

Be sure the camera is off before opening the battery-chamber cover.

Cautions

• Do not turn the camera on or off while the battery-chamber cover is open. Failure to observe this precaution could result in damage to image files or memory cards.
• Do not use excessive force when handling the battery-chamber cover.

2 Insert the battery.

Face the gold terminals downward and align the orange stripe on the battery with the orange battery latch and slide the battery into the camera, keeping the battery latch pressed to the side. Confirm that the battery is securely latched.

Diagram of a device's internal structure with a clip and connector (no text or symbols)

Orange stripe Battery latch

Caution

Insert the battery in the correct orientation. Do NOT use force or attempt to insert the battery upside down or backwards. The battery will slide in easily in the correct orientation.

3 Close the battery-chamber cover.

Illustration of a digital camera with an arrow indicating rotation (no text or symbols)

Removing the Battery

After turning the camera off, open the battery-chamber cover, press the battery latch to the side, and slide the battery out of the camera as shown.

Battery latch

Inserting a Memory Card

Although the camera can store pictures in internal memory, SD memory cards (sold separately) can be used to store additional pictures.

When no memory card is inserted, IN appears in the monitor and internal memory is used for recording and playback. Note that because camera malfunction could cause internal memory to become corrupted, the pictures in internal memory should periodically be transferred to a computer and saved on the computer hard disk or on removable media such as CDs or DVDs. The pictures in internal memory can also be copied to a memory card (see page 75). To prevent internal memory from becoming full, be sure to delete pictures when they are no longer needed.

When a memory card is inserted as described below, the card will be used for recording and playback.

■ Compatible Memory Cards

SanDisk SD and SDHC memory cards have been tested and approved for use in the camera. A complete list of approved memory cards is available at http://www.fujifilm.com/products/digital_cameras/index.html. Operation is not guaranteed with other cards. The camera can not be used with MultiMediaCard (MMC) or xD-Picture cards.

Caution

SD memory cards can be locked, making it impossible to format the card or to record or delete images. Before inserting an SD memory card, slide the write-protect switch to the unlocked position.

Write-protect switch 100% S

■ Inserting a Memory Card

1 Open the battery-chamber cover.

Illustration of a gray digital camera with an arrow indicating rotation (no text or symbols)

Note

Be sure the camera is off before opening the battery-chamber cover.

Cautions

• Do not turn the camera on or off while the battery-chamber cover is open. Failure to observe this precaution could result in damage to image files or memory cards.
• Do not use excessive force when handling the battery-chamber cover.

2 Insert the memory card.

Holding the memory card in the orientation shown below, slide it all the way in.

Battery

• Be sure card is at correct orientation; do not insert at an angle or use force.
• If the battery-chamber cover cannot be closed, do not attempt to close it with excessive force, check that the card is correctly orientated.

S2 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

3 Close the battery-chamber cover.

Illustration of a digital camera with a scroll wheel and display screen (no text or symbols)

Removing Memory Cards

Be sure the camera is off before opening the battery-chamber cover. Press the card in and then release it slowly. The card can now be removed by hand.

Illustration of a handheld device with a hand inserting a cable into the case (no text or symbols visible)

Cautions

• The memory card may spring out if you remove your finger immediately after pushing the card in.
• Memory cards may be warm to the touch after being removed from the camera. This is normal and does not indicate a malfunction.

Cautions

• Format SD memory cards before first use, and be sure to reformat all memory cards after using them in a computer or other device. For more information on formatting memory cards, see page 85.
  • Memory cards are small and can be swallowed; keep out of reach of children. If a child swallows a memory card, seek medical assistance immediately.

- Do not use miniSD or microSD adapters that expose the back of the card. Failure to observe this precaution may cause damage or malfunction. Adapters that are larger or smaller than the standard

Illustration of a gray hard drive pad with no visible text or symbols

dimensions of an SD card may not eject normally; if the card does not eject, take the camera to an authorized service representative. Do not forcibly remove the card.

• Do not turn the camera off or remove the memory card while the memory card is being formatted or data are being recorded to or deleted from the card. Failure to observe this precaution could damage the card.
• Do not affix labels to memory cards. Peeling labels can cause camera malfunction.

• Movie recording may be interrupted with some types of SD memory card.

• The data in internal memory may be erased or corrupted when the camera is repaired. Please note that the repairer will be able to view pictures in internal memory.

• Formatting a memory card or internal memory in the camera creates a folder in which pictures are stored. Do not rename or delete this folder or use a computer or other device to edit, delete, or rename image files. Always use the camera to delete pictures from memory cards and internal memory; before editing or renaming files, copy them to a computer and edit or rename the copies, not the originals.

Turning the Camera on and Off

Shooting Mode

To turn the camera on, open the lens cover fully. The camera turns off when the lens cover is closed.

Camera On

Diagram showing hands holding a device with a labeled component 'z' and an arrow indicating left motion.

Camera Off

Illustration of a hand holding a device with a black arrow pointing to the screen (no text or symbols)

Tip: Switching to Playback Mode

Press the ▶ button to start playback. Press the shutter button halfway to return to shooting mode.

Cautions

• Pictures can be affected by fingerprints and other marks on the lens. Keep the lens clean.
• Closing the cover does not completely cut power to the camera.

Playback Mode

If the lens cover is closed, the camera can be turned on in playback mode by pressing the ▶ button for about a second.

Diagram showing a mobile phone with control panel and navigation buttons, alongside a separate screen interface with play button and up arrow.

If the lens cover is closed, pressing the ▶ button during playback will turn the camera off.

Tip: Switching to Shooting Mode

To exit to shooting mode, press the shutter button halfway. Press the ▶ button to return to playback.

Tip: Auto Power Off

The camera will turn off automatically if no operations are performed for the length of time selected in the AUTO POWER OFF menu (see page 85). To turn the camera on, close and reopen the lens cover or press the button for about a second.

Basic Setup

A language-selection dialog is displayed the first time the camera is turned on. Set up the camera as described below (for information on resetting the clock or changing languages, see page 80).

1 Choose a language.

START MENU bilingual/LANG. 日本語 ENGLISH FRAVICAS DEUTSCH ESPANOL ITALIANO 中文簡 繁體 한규 PYKCKNII PORTUGUES MEDERLINDS TÜRKÇE ČESKY MAGYAR POLSKI SVENSKA 1 V1 11 OK SET BACK NO

1.1 Press the selector up, down, left, or right to highlight a language.
1.2 Press MENU/OK.

2 Set the date and time.

DATE / TIME NOT SET 2011 2010 YY.MM.DD 2009 1. 1 12:00 2008 AM 2007 OK SET BACK NO

2.1 Press the selector left or right to highlight the year, month, day, hour, or minute and press up or down to change.

To change the order in which the year, month, and day are displayed, highlight the date format and press the selector up or down.

2.2 Press MENU/OK.

MENU /OK

3 Choose power management options.

POWER MANAGEMENT POWER SAVE PERFORMANCE UP Power saving for longer battery life OK SET BACK NO

3.1 Press the selector up or down to highlight one of the following options:

• POWER SAVE: Save battery power.
• PERFORMANCE UP: Intelligent Face Detection (pg. 21) turns on and LCD MODE (pg. 84) is set to STANDARD for improved display quality.

3.2 Press MENU/OK.

Tip: The Camera Clock

If the battery is removed for an extended period, the camera clock will be reset and the language-selection dialog will be displayed when the camera is turned on. If the battery is left in the camera for about ten hours, the battery can be removed for about 24 hours without resetting the clock, language selection, or power management options.

Taking Pictures in 📄 (AUTO) Mode

This section describes how to take pictures in AUTO mode. AUTO mode is automatically selected the first time the camera is turned on; for information on restoring AUTO mode after shooting in other modes, see page 31.

1 Turn the camera on.

Fully open the lens cover.

Camera On z

2 Check the battery level.

Check the battery level in the monitor.

Diagram showing two labeled components: one with a battery icon and three connected battery cells, the other with a battery symbol.

Indicator	Description
1 (white)	Battery partially discharged.
2 (white)	Battery more than half discharged.
3 (red)	Low battery. Charge as soon as possible.
4 (blinks red)	Battery exhausted. Turn camera off and charge battery.

3 Frame the picture.

Position the main subject in the focus area and use the zoom buttons to frame the picture in the monitor.

Holding the Camera

Hold the camera steady with both hands and brace your elbows against your sides. Shaking or unsteady hands can blur your shots.

To prevent pictures that are out of focus or too dark (underexposed), keep your fingers and other objects away from the lens and flash.

Illustration of a person holding a mobile phone, with no visible text or symbols

Illustration of hands holding a smartphone with a no-smoking symbol overlay (no text or symbols on the device itself)

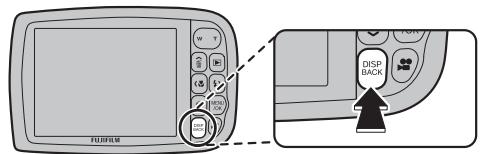

The Framing Grid

To display best framing (the framing grid) or to view or hide other indicators in the monitor, press the

DISP/BACK button.

FUERIFM DISP BACK

Two black-and-white photos showing a woman holding hands, with no visible text or symbols.

Indicators displayed

Grid of grayscale beach scenes with camera and gear overlays, no visible text or symbols

Best framing

To use best framing, position the main subject at the intersection of two lines or align one of the horizontal lines with the horizon. Use focus lock (pg. 23) to focus on subjects that will not be in the center of the frame in the final photograph.

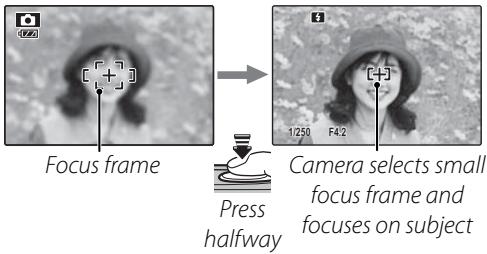

4 Focus.

Press the shutter button halfway to focus on the main subject in the focus frame.

Focus frame Press halfway Camera selects small focus frame and focuses on subject

If the camera is able to focus, it will beep twice.

If the camera is unable to focus, the focus frame will turn red and a !AF indicator will appear in the monitor. Change the composition or use focus lock (pg. 23).

Note

The lens may make a noise when the camera focuses. This is normal.

5 Shoot.

Smoothly press the shutter button the rest of the way down to take the picture.

Tip: The Shutter Button

The shutter button has two positions. Pressing the shutter button halfway sets focus and exposure; to shoot, press the shutter button the rest of the way down.

Double beep Press halfway Click Press the rest of the way down

Note

If the subject is poorly lit, the flash may fire when the picture is taken. To take pictures without the flash, choose another flash mode (pg. 26).

Viewing Pictures

Pictures can be viewed in the monitor. When taking important photographs, take a test shot and check the results.

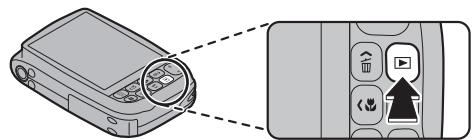

1 Press the ▶ button.

Diagram showing a mobile phone with control panel and navigation buttons, no text or symbols present

The most recent picture will be displayed in the monitor.

100-0001 10M N ISO 100 12 / 31 / 2050 10:00 AM 250 F4/2

2 View additional pictures.

Press the selector right to view pictures in the order recorded, left to view pictures in reverse order.

Press the shutter button to exit to shooting mode.

Deleting Pictures

To delete the picture currently displayed in the monitor, press the selector up (☐). The following dialog will be displayed.

Diagram showing a device with a circular component and a mobile phone interface with an upward arrow and control buttons.

ERASE OK? OK CANCEL OK SET

To delete the picture, press the selector left to highlight OK and press MENU/OK.

To exit without deleting the picture, highlight CANCEL and press MENU/OK.

Tip: The Playback Menu

Pictures can also be deleted from the playback menu (pg. 40).

Intelligent Face Detection and Red-Eye Removal

Intelligent Face Detection allows the camera to automatically detect human faces and set focus and exposure for a face anywhere in the frame for shots that emphasize portrait subjects. Choose for group portraits to prevent the camera from focusing on the background. Intelligent Face Detection also offers a red-eye removal option for removing “red-eye” effects caused by the flash.

1 Turn Intelligent Face Detection on.

1.1 Press MENU/OK to display the shooting menu.

SHOOTING MENU SHOOTING MODE FACE DETECTION OFF IMAGE QUALITY 100 IN MOVIE QUALITY 640 ISO AUTO

1.2 Press the selector up or down to highlight 📷 FACE DETECTION.

1.3 Press the selector right to display Intelligent Face Detection options.

1.4 Press the selector up or down to highlight the desired option.

Option	Description
OFF	Intelligent Face Detection and red-eye removal off.
ON	Intelligent Face Detection and red-eye removal on. Use with the flash.
ON
ON	Intelligent Face Detection on; red-eye removal off.

1.5 Press MENU/OK to select the highlighted option and return to shooting mode.

A [icon] icon appears in the monitor when Intelligent Face Detection is on.

2 Frame the picture.

If a face is detected, it will be indicated by a green border. If there is more than one face in the frame, the camera will select the face closest to the center; other faces are indicated by white borders.

Black-and-white photo of two people in a field, one with three facial bounding boxes (no visible text or symbols)

Green border

3 Focus.

Press the shutter button halfway to set focus and exposure for the subject in the green border.

4 Shoot.

Press the shutter button all the way down to shoot.

If [●] ON Ⓞ ON is selected, the picture will be processed to reduce red-eye before it is recorded.

Black-and-white photo of a smiling person wearing a hat, with a pixelated face overlay (no readable text or symbols)

Intelligent Face Detection

Intelligent Face Detection is recommended when using the self-timer for group portraits or self-portraits (pg. 28).

Black-and-white portrait of a smiling person with a camera lens icon overlay (no readable text or symbols)

When a picture taken with Intelligent Face Detection is displayed, the camera can automatically select faces for playback zoom (pg. 37), slide shows (pg. 71), printing (pg. 50), and cropping (pg. 74).

Cautions

• If no face is detected when the shutter-release button is pressed halfway (pg. 91), the camera will focus on the subject at the center of the monitor and red-eye will not be removed. If the camera is unable to detect a face, turn Intelligent Face Detection off and use focus lock (pg. 23).
• If the subject moves as the shutter button is pressed, their face may not be in the area indicated by the green border when the picture is taken.
• In each shooting mode, the camera will detect and focus on faces but exposure will be optimized for the entire scene rather than the selected portrait subject.

Focus Lock

To compose photographs with off-center subjects:

1 Position the subject in the focus frame.

Black-and-white photo of two people walking together, one holding hands (no visible text or symbols)

2 Focus.

Press the shutter button halfway to set focus and exposure. Focus and exposure will remain locked while the shutter button is pressed halfway (AF/AE lock).

Press halfway

[+] 250 F4.2

Repeat steps 1 and 2 as desired to refocus before taking the picture.

3 Recompose the picture.

Keeping the shutter button pressed halfway, recompose the picture.

[+] 250 FA12

4 Shoot.

Press the shutter-release button the rest of the way down to take the picture.

Press the rest of the way down

Autofocus

Although the camera boasts a high-precision autofocus system, it may be unable to focus on the subjects listed below. If the camera is unable to focus using autofocus, use focus lock (pg. 23) to focus on another subject at the same distance and then recompose the photograph.

• Very shiny subjects such as mirrors or car bodies.
- Fast-moving subjects.
- Subjects photographed through a window or other reflective object.
- Dark subjects and subjects that absorb rather than reflect light, such as hair or fur.
- Insubstantial subjects, such as smoke or flame.
- Subjects that show little contrast with the background (for example, subjects in clothing that is the same color as the background).
- Subjects positioned in front of or behind a high-contrast object that is also in the focus frame (for example, a subject photographed against a backdrop of highly contrasting elements).

Front view of a modern sedan with visible headlights and grille lines (no text or symbols)

Illustration of a person riding a motorcycle with motion blur effect (no text or symbols)

To select macro mode, press the selector left (💡).

Diagram showing a device with control buttons and a directional arrow labeled 'MENU/OK' pointing to the right panel.

[1] [+] ]

icon appears in monitor when camera is in macro mode

When macro mode is in effect, the camera focuses on subjects near the center of the monitor. Use the zoom buttons to frame pictures.

To exit macro mode, press the selector left (💡). Macro mode can also be cancelled by turning the camera off or selecting another shooting mode.

Note

Use of a tripod is recommended to prevent blur caused by camera shake.

↓ Using the Flash (Intelligent Flash)

When the flash is used, the camera's Intelligent Flash system instantly analyzes the scene based on such factors as the brightness of the subject, its position in the frame, and its distance from the camera. Flash output and sensitivity are adjusted to ensure that the main subject is correctly exposed while preserving the effects of ambient background lighting, even in dimly-lit indoor scenes. Use the flash when lighting is poor, for example when shooting at night or indoors under low light.

To choose a flash mode, press the selector right (✗). The flash mode changes each time the selector is pressed; in modes other than AUTO, the current mode is indicated by an icon in the monitor. Choose from

the following options (some options are not available in all shooting modes; see the restrictions in another supplied document):

Diagram showing a device with a control panel and its corresponding keyboard interface with an upward arrow and dollar sign icon.

Mode	Description
AUTO (no icon)	The flash fires when required. Recommended in most situations.
⚡ (fill flash)	The flash fires whenever a picture is taken. Use for backlit subjects or for natural coloration when shooting in bright light.
💡 (suppressed flash)	The flash does not fire even when the subject is poorly lit. 👉 will appear in the monitor at slow shutter speeds to warn that pictures may be blurred. Use of a tripod is recommended.
S⚡ (slow sync)	Capture both the main subject and the background when shooting at night (note that brightly lit scenes may be overexposed). If 👉* is selected for ➕ SHOOTING MODE, shutter speed may be slow. Use a tripod.

Caution

The flash may fire several times with each shot. Do not move the camera until shooting is complete.

Red-Eye Removal

When ON is selected for Intelligent Face Detection (pg. 21), red-eye removal (○) is available in AUTO (AUTO), fill flash (○), and slow sync (SLOW)

modes. Red-eye removal minimizes "red-eye" caused when light from the flash is reflected from the subject's retinas as shown in the illustration at right.

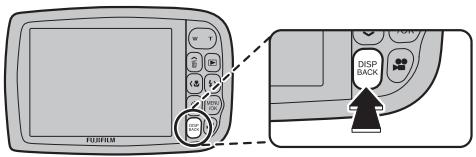

Silent Mode

In situations in which camera sounds or light from the flash may be unwelcome, press the DISP/BACK button until 🤒 is displayed in the monitor.

FUSIKM DISP BACK

The camera speaker, shooting indicator, flash, and indicator and self-timer lamps turn off (note that the flash will still fire in ⏻ mode). Flash and volume settings (pg. 84) can not be adjusted while silent mode is in effect. To restore normal operation, press the DISP/BACK button until the 🎨 icon is no longer displayed.

The camera offers four types of self-timer mode, which enable group portraits, self-portraits and reduction of camera shake.

Setting the Self-Timer

The self-timer mode changes each time you press ⚙.

Diagram showing a device with a circular dial and a control panel labeled 'MENU/OK' with an upward arrow.

The current self-timer mode is displayed in the monitor.

❤️: The picture is taken when 2 faces come close together.
: The picture is taken when all members get together.
^10 : The picture is taken after 10 seconds.
2 : The picture is taken after 2 seconds.

COUPLE TIMER

The picture is taken automatically when 2 faces come close together.

Set the self-timer mode to 😊️ COUPLE TIMER (pg. 28).

Press ⬇. Each time ⬇ is pressed, the setting for ♥ DISTANCE changes.

FAST DISTANCE BACK CANCEL

♥ : NEAR ♥ ♥ : CLOSE UP ♥ ♥ ♥ : SUPER CLOSE

The more ♥ icons, the closer the 2 faces must be when taking a picture.

As the 2 faces come closer and the ♥ indicator(s) becomes full, countdown starts. Then the picture is automatically taken.

Tips

• Pressing DISP/BACK cancels 😊️ COUPLE TIMER.
• Set Macro mode (close-up) when taking a self portrait by holding the camera.

GROUP TIMER

The picture is taken automatically when all members get together.

Set the self-timer mode to 🎨 GROUP TIMER (pg. 28).

Press ∧. Each time ∧ is pressed, the setting for

NUMBERS changes.

NUMBERS BACK CANCEL

Available setting for Group timer is 1 to 4 persons.

When the camera recognizes the set number of persons and the ⚙ indicator(s) becomes full, countdown starts. Then the picture is automatically taken.

Tips

• Pressing DISP/BACK cancels 📋 GROUP TIMER.
• Set Macro mode (close-up) when taking a self portrait by holding the camera.

10 SEC/2 SEC

Set the self-timer mode to Ⓤ₁₀ 10 SEC or Ⓤ₂ 2 SEC (pg. 28).

1 Focus.

Press the shutter button halfway to focus.

Caution

Stand behind the camera when using the shutter button. Standing in front of the lens can interfere with focus and exposure.

2 Start the timer.

Press the shutter button the rest of the way down to start the timer. The display in

the monitor shows the number of seconds remaining until the shutter is released. To stop

the timer before the picture is taken, press DISP/BACK.

ξ10

The self-timer lamp on the front of the camera will blink immediately before the picture is taken. If the two-second timer is selected, the self-timer lamp will blink as the timer counts down.

Diagram showing a device with a fan-shaped panel before and after transformation, labeled 'N' on the screen.

Intelligent Face Detection

Because it ensures that the faces of portrait subjects will be in focus, Intelligent Face Detection (pg. 21) is recommended when using the self-timer for group portraits or self-portraits. To use the self-timer with Intelligent Face Detection, set the timer as described in Step 1 and then press the shutter button all the way down to start the timer. The camera will detect faces while the timer is counting down and adjust focus and exposure immediately before the shutter is released. Be careful not to move until the picture has been recorded.

Choose a shooting mode according to the scene or type of subject.

Selecting a Shooting Mode

1 Press MENU/OK to display the shooting menu.

SHOOTING MENU SHOOTING MODE FACE DETECTION OFF IMAGE QUALITY 10.1N MOVIE QUALITY 640 ISO ISO AUTO

2 Press the selector up or down to highlight Ⓞ SHOOTING MODE.
3 Press the selector right to display shooting mode options.

AUTO MANUAL AUTO SCENE RECOGNITION NATURAL& Automatic mode setting according to shooting conditions. OK SET BACK Cancel

4 Press the selector up or down to highlight the desired mode.

5 Press MENU/OK to select the highlighted option.

Note

See the restrictions in another supplied document for flash mode setting.

Shooting Modes

M MANUAL

Choose this mode for complete control of shooting settings, including exposure compensation (pg. 61), white balance (pg. 62), and AF mode (pg. 66).

AUTO

Choose for crisp, clear snapshots (pg. 16). This mode is recommended in most situations.

SCENE RECOGNITION

Simply by pointing the camera at the subject, the camera automatically analyzes and selects the most appropriate setting using scene recognition.

Black-and-white photo collage showing two people with facial images overlaid on their face, including UI icons and a camera symbol.

The camera analyzes a subject based on scene recognition, then an icon appears in the bottom left of the monitor. (The illustration shows camera

analysis of a portrait subject.)

Subject	Icon	Description
PORTRAIT		For soft-toned portraits with natural skin tones.
LANDSCAPE		For crisp, clear daylight shots of buildings and landscapes.
NIGHT		For night and twilight scenes, using a high sensitivity setting to minimize blurring.
MACRO		For clear close-ups of flowers, etc.
BACKLIGHT PORTRAIT		For a subject backlit against the sun, preventing the background from becoming dim.

Subject	Icon	Description
NIGHTPORTRAIT		For a subject in a dim place, reducing blur.

Tip

When a subject can not be analyzed by the camera,

AUTO mode will be set.

Notes

• [●] Intelligent Face Detection is turned on automatically.
• The camera continuously adjusts focus on a face, or the center area of the monitor.
• Continuous auto focus will be audible and battery drain will increase.

↓ NATURAL & ↓ (Dual Shot Mode)

This mode helps ensure good results with backlit subjects and in other situations with difficult lighting. Each time the shutter button is pressed, the camera takes two shots: one shot without the flash to preserve natural lighting, followed immediately by a second shot with the flash. Do not move the camera until shooting is complete.

Notes

• Do not use where flash photography is prohibited. The flash fires even in silent mode (pg. 27).
• Only available if memory remains for two pictures.
  • Continuous shooting is not available.

N NATURAL LIGHT

Capture natural light indoors, under low light, or where the flash can not be used. The flash turns off and sensitivity is raised to reduce blur.

AUCTION MODE

Choose this mode to combine up to four consecutive shots in a single image 640 × 480 pixels in size (03M). This can be used to record an object from different angles when posting pictures to a web auction. To take pictures in auction mode:

1 Select ✪ AUCTION MODE (pg. 31).
2 Press the selector up to display the following layout options:

1 1 2 1 2 3 1 3 2 4

3 Press the selector left or right to highlight an option.

4 Press MENU/OK to select the highlighted option.

5 Take a picture. The picture will appear in the first frame in layout.

6 Press MENU/OK to proceed to the next picture. Repeat steps 5 and 6 until all the frames are filled.

MENU /OK MENU /OK

PORTRAIT

Choose this mode for soft-toned portraits with natural skin tones.

LANDSCAPE

Choose this mode for crisp, clear daylight shots of buildings and landscapes.

SPORT

Choose this mode when photographing moving subjects. High-speed shooting mode (OE) is selected automatically and priority is given to faster shutter speeds.

NIGHT

A high sensitivity setting is selected automatically to minimize blurring for recording night and twilight scenes.

NIGHT (TRIPOD)

Slow shutter speeds are used to record night scenes. Use of a tripod is recommended to prevent camera shake.

SUNSET

Choose this mode to record the vivid colors in sunrises and sunsets.

SNOW

Choose for crisp, clear shots that capture the brightness of scenes dominated by shining white snow.

BEACH

Choose for crisp, clear shots that capture the brightness of sunlit beaches.

OFF MUSEUM

Choose where flash photography is prohibited or the sound of the shutter may be unwelcome. The flash, speaker, and shooting indicator turn off automatically.

Note

Photography may be prohibited altogether in some settings. Obtain permission before shooting.

PARTY

Capture indoor background lighting under low-light conditions.

\* FLOWER

Choose for vivid close-ups of flowers. The camera focuses in the macro range and the flash turns off automatically.

TEXT TEXT

Take clear pictures of text or drawings in print. The camera focuses in the macro range.

ANTI-BLUR (Picture Stabilization)

Choose this mode for fast shutter speeds that reduce blur caused by camera shake or subject movement.

SUCCESSIVE MOVIE

Join a series of movie clips into a single movie (pp. 43–44).

Single-Frame Playback

To view the most recent picture in the monitor, press the ▶ button.

Diagram showing a mobile phone interface connected to a screen with a play button, alongside a photo of a person recording at 10:00 AM.

Press the selector right to view pictures in the order recorded, left to view pictures in reverse order. Keep the selector pressed to scroll rapidly to the desired frame.

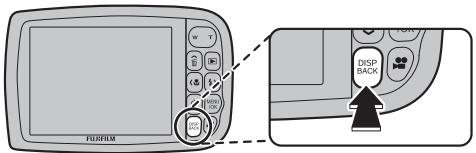

Choosing a Display Format

Press the DISP/BACK button to cycle through playback display formats as shown below.

Diagram showing a device with a control panel and a labeled DSP back button, likely illustrating a remote control interface.

100:0001 10 M N ISO 100 12/31 2050 10:00 AM 250 F42

Indicators displayed

2050 12/31 1/13

Indicators hidden
Sort by date

Note

Pictures taken using other cameras are indicated by a 📋 ("gift image") icon during playback.

Playback Zoom

Press T to zoom in on images displayed in single-frame playback; press W to zoom out.

Press W to zoom out Press T to zoom in

Zoom indicator

When the picture is zoomed in, the selector can be used to view areas of the image not currently visible in the display.

Black-and-white photo of a smiling person wearing a hat, with two overlaid UI icons (play and photo) pointing to their faces.

Navigation window shows portion of image currently displayed in monitor

Press DISP/BACK to exit zoom.

Note

The maximum zoom ratio varies with image size. Playback zoom is not available with pictures taken in ⚠ mode or at an image size of O3M, or Blog blog images.

Intelligent Face Detection

If the current picture was taken using Intelligent Face Detection (pg. 21), [●] will appear in the monitor. Press the √ button to cycle

through the subjects detected by Intelligent Face Detection, or use the W and T buttons to zoom the current subject in and out as described above.

Multi-Frame Playback

To change the number of images displayed, press W when a picture is shown full-frame in the monitor.

Use the selector to highlight images and press MENU/OK to view the highlighted image full frame. In the nine- and hundred-frame displays, press the selector up or down to view more pictures.

Tip: Two-Frame Display

Two-frame display can be used to compare pictures taken in

N NATURAL & ♣ (dual shot) mode.

Black-and-white photo collage of three people outdoors, no visible text or symbols

Sort by Date

1 In single-frame playback, press DISP/BACK until the sort-by-date screen is displayed.

The picture displayed in the single-frame playback remains selected.

Black-and-white portrait of a smiling woman with a headband, displayed within a photo editing interface (no readable text or symbols on the image itself)

2 Press the selector up or down to select a date.

3 Press the selector left or right to select a picture.

Tips: Rapid Scroll

• Press and hold the selector up or down to scroll dates rapidly.
• Press and hold the selector left or right to rapidly scroll pictures taken on the same date.

The ERASE option in the playback menu can be used to delete still pictures and movies, increasing the amount of space available on the memory card or in internal memory (for information on deleting pictures in single-frame playback, see page 20). Note that deleted pictures can not be recovered. Copy important pictures to a computer or other storage device before proceeding.

1 Press MENU/OK to display the playback menu.

PLAYBACK MENU ERASE PLAYBACK TYPE TRIMMING FOR BLOG SLIDE SHOW RED EYE REMOVAL

2 Press the selector up or down to highlight ERASE.
3 Press the selector right to display delete options.

PLAYBACK MENU ERASE BACK PLAYBACK TYPE FRAME ALL FRAMES BLOG TRIMMING FOR BLO SLIDE SHOW RED EYE REMOVAL

Two identical gray icons representing environmental protection and waste management, each with a recycling symbol inside a shield-like frame (no text or symbols)

4 Press the selector up or down to highlight FRAME or ALL FRAMES.

MENU /OK

5 Press MENU/OK to display options for the selected item (see pg. 41).

Tips: Deleting Pictures

• When a memory card is inserted, pictures will be deleted from the memory card; otherwise, pictures will be deleted from internal memory.
• Protected pictures can not be deleted. Remove protection from any pictures you wish to delete (pg. 73).
• If a message appears stating that the selected images are part of a DPOF print order, press MENU/OK to delete the pictures.

■ FRAME: Deleting Selected Images

Selecting FRAME displays the dialog shown at right.

ERASE OK? OK YES BACK CANCEL

Press the selector left or right to scroll through pictures and press MENU/OK to delete the current picture (the picture is deleted immediately; be careful not delete the wrong picture).

MENU /OK

Press DISP/BACK to exit when all the desired pictures have been deleted.

■ ALL FRAMES: Deleting All Images

Selecting ALL FRAMES displays the confirmation shown at right.

ERASE ALL OK? IT MAY TAKE A WHILE OK CANCEL OK SET

Press MENU/OK to delete all unprotected pictures.

The dialog shown at right is displayed during deletion. Press DISP/BACK to cancel before all pictures have been deleted (any pictures deleted before the button was pressed can not be recovered).

BACK CANCEL

The 🧑 button can be used to shoot short movies in all shooting modes except 🔒. Sound is recorded via the built-in microphone; do not cover the microphone during recording.

1 Frame the scene using the zoom buttons.

Zoom indicator

Optical zoom can not be adjusted once recording begins. Digital zoom can be used during recording if ON is selected for the DIGITAL ZOOM option in the setup menu (pg. 84).

Choosing the Frame Size

To choose the frame size, press MENU/OK and select

MOVIE QUALITY.

Choose 640 (640×480 pixels) for better quality,

320 (320×240 pixels) for longer movies. Press MENU/OK to return to movie recording mode.

SHOOTING MODE MOVIE QUALITY ISO 640 99m59s FINEPIX COLOR 320 999m59s HIGH-SPEED SHOO CONTINUOUS

2 Press the ➕ button to start recording.

REC 32s 12s

- REC and time remaining are displayed in monitor

3 Press the 🎨 button again to end recording. Recording ends automatically when the movie reaches maximum length or memory is full.

Notes

• See below for information on recording movies in mode.
• Focus is set when recording begins; exposure and white balance are adjusted automatically throughout recording. The color and brightness of the image may vary from that displayed before recording begins.

Successive Movie

Join a series of short clips into a single movie.

2 Choose the frame size and total length of the completed movie.

Option	Frame size	Max. length
15 320	320 × 240	15 s
60 320		60 s
60 640	640 × 480

3 Press MENU/OK to enter movie recording mode.

STANDBY 320 15s

4 Press the 🔊 button to begin recording a clip.

REC 32 12s

- REC and time remaining are displayed in monitor. Time remaining displayed in yellow if less than 5 s remain.

Note

If a clip reaches maximum length, shooting will end and the clips recorded to that point will be joined together into a single movie.

5 Press the 🎨 button again to end the clip. Repeat steps 4 and 5 to record additional clips. To pause, press the selector down.

Do not insert or remove memory cards while recording is paused. While recording is paused, the camera can be turned off or other modes selected. Recording can be resumed as described below.

Tip: Previewing the Most Recent Clip

When a clip is completed, the first frame appears in the monitor. To preview the clip, press the selector up. Press DISP/BACK to re-record the last clip.

STANDBY 472 320 5s ▲PREVIEW BACK RETRY OK FINISH ▼PAUSE

6 Press MENU/OK to end recording and join the clips together.

MENU /OK

Resuming Recording

To resume a paused successive movie, select

SUCCESSIVE MOVIE for Ⓞ SHOOTING MODE

and highlight CONTINUE. Press MENU/OK and continue recording as described in steps 4–6.

Tip: During Recording

When recording is resumed, the three most recent clips are shown in the monitor, with the most recent clip at the top.

STANDBY 320 5s OK FINISH

Viewing Movies

During playback (pg. 36), movies are displayed in the monitor as shown at right.

100-006 640 PLAY 12/31/2050 10:00 AM

Press the selector down to start playback.

15s STOP PAUSE

Progress is shown in the monitor.

Progress bar

To end playback, press the selector up; to pause playback, press the selector down. Press the selector left or right to view other pictures. Volume can be adjusted in the setup menu (pg. 84).

Tip: Deleting Movies

To delete movies during playback, press the selector up (播放) once to end playback and then press the button again.

Note

Fast forward and rewind are not available.

Cautions

• Do not cover the speaker during playback.
• Vertical or horizontal streaks may appear in movies containing very bright subjects. This is normal and does not indicate a malfunction.

Viewing Pictures on TV

Connect the camera to a TV and tune the television to the video channel to show pictures and slide shows (pg. 71) to a group.

1 Press the ▶ for about a second to turn the camera on.
2 Open the battery-chamber cover.
3 Connect an A/V cable (optional), as shown below.

Insert into multi-connector adapter port Connect yellow plug to video-in jack Connect white plug to audio-in jack

4 Tune the television to the video channel. The camera monitor turns off and pictures, voice memos, and movies are played back on the TV. Note that the camera volume controls have no effect on sounds through the TV; use the television volume controls to adjust the volume.

Note

Image quality deteriorates slightly during movie playback.

Caution

When making the A/V cable connection, be sure the connectors are fully inserted.

Printing Pictures via USB

If the printer supports PictBridge, the camera can be connected directly to a printer and pictures can be printed without first being copied to a computer. Note that depending on the printer, not all the functions described below may be supported.

Connecting the Camera

1 Press the ▶ for about a second to turn the camera on.
2 Open the battery-chamber cover.
3 Connect the supplied USB cable as shown and turn the printer on.

Illustration of a handheld device connected to a compact case via cable (no text or symbols)

USB will be displayed in the monitor, followed by the PictBridge display shown below at right.

USB PICTBRIDGE TOTAL: 00000 00 SHEETS FRAME OK OK DISP SET

Printing Selected Pictures

1 Press the selector left or right to display a picture you wish to print.

2 Press the selector up or down to choose the number of copies (up to 99).

3 Repeat steps 1–2 to select additional pictures. Press MENU/OK to display a confirmation dialog when settings are complete.

PRINT THESE FRAMES TOTAL: 9 SHEETS OK YES BACK CANCEL

4 Press MENU/OK to start printing.

MENU /OK

Tip: Printing the Date of Recording

To print the date of recording on pictures, press DISP/BACK in steps 1–2 to display the PictBridge menu (see "Printing the DPOF Print Order," below). Press the selector up or down to highlight PRINT WITH DATE and press MENU/OK to return to the PictBridge display (to print pictures without the date of recording, select PRINT WITHOUT DATE). The date will not be printed if the camera clock was not set when the picture was taken.

Note

If no pictures are selected when the MENU/OK button is pressed, the camera will print one copy of the current picture.

Printing the DPOF Print Order

To print the print order created with Ⓞ PRINT ORDER (DPOF) in the playback menu (pg. 50):

1 In the PictBridge display, press DISP/BACK to open the PictBridge menu.

DISP BACK

PICTBRIDGE PRINT WITH DATE PRINT WITHOUT DATE PRINT DPOF

2 Press the selector up or down to highlight 📄 PRINT DPOF.

3 Press MENU/OK to display a confirmation dialog.

MENU /OK

PRINT DPOF OK? TOTAL: 9 SHEETS OK YES BACK CANCEL

4 Press MENU/OK to start printing.

MENU /OK

During Printing

The message shown at right is displayed during printing.

Press DISP/BACK to cancel before all pictures are printed (depending on the printer, printing may end before the current picture has printed).

PRINTING BACK CANCEL

If Printing is interrupted, disconnect the USB cable from the camera, close the battery-chamber cover, turn off the camera, and then repeat the steps on page 47.

Disconnecting the Camera

Confirm that "PRINTING" is not displayed in the monitor and disconnect the USB cable.

Notes

• Print pictures from internal memory or a memory card that has been formatted in the camera.
• If the printer does not support date printing, the PRINT WITH DATE ☐ option will not be available in the PictBridge menu and the date will not be printed on the pictures in the DPOF print order.
• Default printer page size and print quality settings are used when printing via direct USB connection.

Creating a DPOF Print Order

The ⚠️ PRINT ORDER (DPOF) option in the playback menu can be used to create a digital "print order" for PictBridge-compatible printers (pg. 47) or devices that support DPOF.

DPOF

DPOF (Digital Print Order Format) is standard that allows pictures to be printed from "print orders" stored in internal memory or on a memory card. The information in the includes the pictures to be printed and the r of copies of each picture.

■ WITH DATE 📄/WITHOUT DATE

To modify the DPOF print order, select 📄 PRINT ORDER (DPOF) in the playback menu and press the multi selector up or down to highlight WITH DATE 📋 or WITHOUT DATE.

PLAYBACK MENU TRANSITION PRINT ORDER (DA) SET-UP WITH DATE: Print date of recording on pictures. WITHOUT DATE: Print pictures without date.

Press MENU/OK and follow the steps below.

1 Press the selector left or right to display a picture you wish to include in or remove from the print order.
2 Press the selector up or down to choose the number of copies (up to 99). To remove a picture from the order, press the selector down until the number of copies is 0.

Total number of prints

Number of copies

3 Repeat steps 1–2 to complete the print order. Press MENU/OK to save the print order when settings are complete, or DISP/BACK to exit without changing the print order.
4 The total number of prints is displayed in the monitor. Press MENU/OK to exit.

The pictures in the current print order are indicated by a 📄 icon during playback.

100-0001 10M N ISO 100 12 / 31 / 2050 10 : 00 AM 1/250 F4.2

■ RESET ALL

To cancel the current print order, select RESET ALL in the Ⓞ PRINT ORDER

(DPOF) menu. The confirmation shown at right will be displayed; press MENU/OK to remove all pictures from the order.

RESET DPOF OK? OK YES BACK CANCEL

Notes

• Remove the memory card to create or modify a print order for the pictures in internal memory.
• Print orders can contain a maximum of 999 pictures.
• If a memory card is inserted containing a print order created by another camera, the message shown at right will be displayed. Pressing

MENU/OK cancels the print order; a new print order must be created as described above.

RESET DPOF OK? OK YES BACK NO

Viewing Pictures on a Computer

The supplied FinePixViewer software can be used to copy pictures to a computer, where they can be stored, viewed, organized, and printed. Before proceeding, install FinePixViewer as described below. The latest FinePixViewer is available at http://www.fujifilm.com/. Do NOT connect the camera to the computer until installation is complete.

Installing FinePixViewer

FinePixViewer is available in a Windows version and a Macintosh version. Installation instructions for Windows are on pages 52–54, those for the Macintosh on pages 55–56.

Installing FinePixViewer: Windows

1 Confirm that the computer meets the following system requirements:

OS	Preinstalled versions of Windows Vista, Windows XP Home Edition (Service Pack 2), Windows XP Professional (Service Pack 2), or Windows 2000 Professional (Service Pack 4)
CPU	• Windows Vista: 800 MHz Pentium 4 or better (3 GHz Pentium 4 or better recommended)• Windows XP: 800 MHz Pentium 4 or better (2 GHz Pentium 4 or better recommended)• Windows 2000: 200 MHz Pentium or better
RAM	• Windows Vista: 512 MB or more (1 GB or more recommended)• Windows XP: 512 MB or more• Windows 2000: 128 MB or more
Free disk space	A minimum of 450 MB required for installation with 600 MB available when FinePixViewer is running (15 GB or more recommended under Windows Vista, 2 GB or more recommended under Windows XP)
Video	800×600 pixels or more with 16-bit color or better (1,024×768 pixels or more with 32-bit color recommended)
Other	• Built-in USB port recommended. Operation is not guaranteed other USB ports.• Internet connection (56 kbps or faster recommended) required to use FinePix Internet Service; Internet connection and e-mail software required to use e-mail option

Caution

Other versions of Windows are not supported. Operation is not guaranteed on home-built computers or computers that have been upgraded from earlier versions of Windows.

2 Start the computer. Log in to an account with administrator privileges before proceeding.
3 Exit any applications that may be running and insert the installer CD in a CD-ROM drive.

Windows Vista

If an AutoPlay dialog is displayed, click SETUP.exe. A "User Account Control" dialog will then be displayed; click Allow.

The installer will start automatically; click Installing FinePixViewer and follow the on-screen instructions to install FinePixViewer. Note that the Windows CD may be required during installation.

If the Installer Does Not Start Automatically

If the installer does not start automatically, select Computer or My Computer from the Start menu (Windows Vista/XP) or double-click the My Computer icon on the desktop (Windows 2000), then double-click the FINEPIX CD icon to open the FINEPIX CD window and double-click SETUP or SETUP.exe.

4 If prompted to install Windows Media Player or DirectX, follow the on-screen instructions to complete installation.
5 When prompted, remove the installer CD from the CD-ROM drive and click Restart to restart the computer. Store the installer CD in a dry location out of direct sunlight in case you need to re-install the software. The version number is printed at the top of the CD label for reference when updating the software or contacting customer support.

Installation is now complete. Proceed to "Connecting the Camera" on page 57.

Installing FinePixViewer: Macintosh

1 Confirm that the computer meets the following system requirements:

CPU	PowerPC or Intel
OS	Preinstalled version of Mac OS X version 10.3.9–10.4 (visit http://www.fujifilm.com/ for more information)
RAM	256 MB or more
Free disk space	A minimum of 200 MB required for installation with 400 MB available when FinePixViewer is running
Video	800×600 pixels or more with thousands of colors or better
Other	Built-in USB port recommended. Operation is not guaranteed other USB ports.Internet connection (56 kbps or faster recommended) required to use FinePix Internet Service; Internet connection and e-mail software required to use e-mail option

2 After starting the computer and quitting any applications that may be running, insert the installer CD in a CD-ROM drive. Double-click the FinePix CD icon on the desktop and double-click Installer for Mac OS X.
3 An installer dialog will be displayed; click Installing FinePixViewer to start installation. Enter an administrator name and password when prompted and click OK, then follow the on-screen instructions to install FinePixViewer. Click Exit to quit the installer when installation is complete.

4 Remove the installer CD from the CD-ROM drive. Note that you may be unable to remove the CD if Safari is running; if necessary, quit Safari before removing the CD. Store the installer CD in a dry location out of direct sunlight in case you need to re-install the software. The version number is printed at the top of the CD label for reference when updating the software or contacting customer support.
5 Select Applications in the Finder Go menu to open the applications folder. Double-click the Image Capture icon and select Preferences... from the Image Capture application menu.

The Image Capture preferences dialog will be displayed. Choose Other... in the When a camera is connected, open menu, then select FPVBridge in the "Applications/FinePixViewer" folder and click Open.

Image Capture About Image Capture Preferences... Services Hide Image Capture Hide Others Show All Quit Image Capture Use TWAIN software whenever possible Figure Preferences open: Photo open: Image Capture

Select Quit Image Capture from the Image Capture application menu. Installation is now complete. Proceed to "Connecting the Camera" on page 57.

From FileViewer DP Editor EXTENSIONS FRAPUL/CARON.LB HDFUL/CARON.LB FGUR FOMAP.LB HOSAP.LB FCA/PWM FilePage FSA.LB Units Chap. Units PUB Kind Application Size: 112 KB Created: 6/25/03 Modified: 6/25/03 Go to: Add to Favorites Cancel E-Open

Connecting the Camera

1 If the pictures you wish to copy are stored on a memory card, insert the card into the camera (pg. 9). If no card is inserted, pictures will be copied from internal memory.

Caution

Loss of power during transfer could result in loss of data or damage to internal memory or the memory card. Check the battery level.

2 Press the ▶ for about a second to turn the camera on.
3 Open the battery-chamber cover.
4 Connect the supplied USB cable as shown, making sure the connectors are fully inserted. Connect the camera directly to the computer; do not use a USB hub or keyboard.

Illustration of a handheld device connected to a laptop via cable (no text or symbols)

5 Transferring starts. FinePixViewer will start automatically and the "Save Image Wizard" will be displayed. Follow the on-screen instructions to copy pictures to the computer. To exit without copying pictures, click CANCEL.

Caution

If FinePixViewer does not start automatically, the software may not be correctly installed. Disconnect the camera and reinstall the software.

For more information on using FinePixViewer, select How to Use FinePixViewer in the FinePixViewer Help menu.

Cautions

• Use only memory cards that have been formatted in the camera and contain pictures taken with the camera. If a memory card containing a large number of images is inserted, there may be a delay before FinePixViewer starts and FinePixViewer may be unable to import or save images. Use a memory card reader to transfer pictures.
• Opening or closing the lens cover during transfer could result in loss of data or damage to internal memory or the memory card.
• Disconnect the camera before inserting or removing memory cards.
• In some cases, it may not be possible to access pictures saved to a network server using FinePixViewer in the same way as on a standalone computer.
• The user bears all applicable fees charged by the phone company or Internet service provider when using services that require an Internet connection.

Disconnecting the Camera

After confirming that transferring has finished, follow the on-screen instructions to disconnect the camera and the computer. Close the battery-chamber cover and turn off the camera.

Uninstalling FinePixViewer

Only uninstall FinePixViewer before reinstalling the software or when it is no longer required. After quitting FinePixViewer and disconnecting the camera, drag the "FinePixViewer" folder from "Applications" into the Trash and select Empty Trash in the Finder menu (Macintosh), or open the control panel and use "Programs and Features" (Windows Vista) or "Add/Remove Programs" (other versions of Windows) to uninstall FinePixViewer. Under Windows, one or more confirmation dialogs may be displayed; read the contents carefully before clicking OK.

The Shooting Menu

The shooting menu is used to adjust settings for a wide range of shooting conditions.

Using the Shooting Menu

1 Press MENU/OK to display the shooting menu.

SHOOTING MENU SHOOTING MODE FACE DETECTION OFF IMAGE QUALITY 10MN MOVIE QUALITY 640 ISO ISO AUTO

Note

The options displayed in the shooting menu vary depending on the shooting mode.

2 Press the selector up or down to highlight the desired menu item.

3 Press the selector right to display options for the highlighted item.

AUTO MANUAL AUTO SCENE RECOGNITION NATURAL& Automatic mode setting according to shooting conditions. OK SET BACK CANCEL

4 Press the selector up or down to highlight the desired option.
5 Press MENU/OK to select the highlighted option.

MENU /OK

Shooting Menu Options

Menu item	Description	Options	Default
SHOTING MODE	Choose a shooting mode according to the type of subject (pg. 31).
FACE DETECTION	Turn Intelligent Face Detection and red-eye removal on or off (pg. 21).	ON ON ON OFF/OFF	OFF
EXP. COMPENSATION	Adjust exposure for bright, dark, or high-contrast scenes (pg. 61).	-2 EV to +2 EV in increments of 13 EV	± 0
WHITE BALANCE	Adjust color for different light sources (pg. 62).	AUTO/ON/ON/OFF	AUTO
IMAGE QUALITY	Choose image size and quality (pg. 62).	10M F/10M N/9M 3:2/5M/3M/2M/08M	10M N
MOVIE QUALITY	Choose the frame size for movies (pg. 42).	640/320	640
ISO ISO	Adjust ISO sensitivity (pg. 63). Choose higher values when the subject is poorly lit.	AUTO/1600/800/400/200/100/64	AUTO
FINEPIX COLOR	Shoot pictures in standard or saturated color or in black-and-white (pg. 63).	STD/CF/BF	STD
HIGH-SPEED SHOOTING	Choose for quick shutter response (pg. 64).	ON/OFF	OFF
CONTINUOUS	Shoot a series of pictures (pg. 64).		OFF
AF MODE	Control how the camera focuses (pg. 66).
SET-UP	Perform basic camera setup such as choosing a language and setting the time and date (pg. 80).		—

EXP. COMPENSATION

Use exposure compensation when photographing very bright, very dark, or high-contrast subjects.

Choose positive (+) values to increase exposure

Black-and-white photo of a bird perched on rocks, no visible text or symbols

Choose negative (−) values to reduce exposure

Black-and-white photo of a bird in flight, no visible text or symbols

Black-and-white photo of a bird perched on rocks, no visible text or symbols

Choosing an Exposure Compensation Value

• Backlit subjects: choose values from + 33 EV to +1 33 EV (for an explanation of the term "EV", see the Glossary on page 100)
  • Highly reflective subjects or very bright scenes (e.g., snowfields): +1 EV

• Scenes that are mostly sky: +1 EV

• Spotlit subjects (particularly if photographed against dark backgrounds): -213 EV
• Subjects with low reflectivity (pine trees or dark-colored foliage): -213 EV

Illustration of a person standing outdoors with mountains and water in the background (no text or symbols)

Illustration of a person in winter clothing standing on a snowy slope with evergreen trees in the background (no text or symbols)

Note

At settings other than ±0 , a ☐ icon is displayed in the monitor. Exposure compensation is not reset when the camera is turned off; to restore normal exposure control, choose a value of ±0 .

WB WHITE BALANCE

For natural colors, choose a setting that matches the light source (for an explanation of "white balance," see the Glossary on page 100).

Option	Displayed in
AUTO	White balance adjusted automatically.
	For subjects in direct sunlight.
	For subjects in the shade.
	Use under “daylight” fluorescent lights.
	Use under “warm white” fluorescent lights.
	Use under “cool white” fluorescent lights.
	Use under incandescent lighting.

If AUTO does not produce the desired results (for example, when taking close-ups), choose the option that matches the light source.

Note

Results vary with shooting conditions. Play pictures back after shooting to check colors in the monitor.

IMAGE QUALITY

Choose the size and quality at which still pictures are recorded. Large pictures can be printed at large sizes with no drop in quality; small pictures require less memory, allowing more pictures to be recorded.

Option	Prints at sizes up to
10M F	31 × 23 cm/12 × 9 in. (10M) or 31 × 21 cm/12 × 8 in. (9M 3:2). Choose 10M F for high-quality prints, 9M 3:2 for an aspect ratio of 3:2.
10M N
9M 3:2
5M	22 × 16 cm (8.5 × 6.5 in.)
3M	17 × 13 cm (7 × 5 in.)
2M	14 × 10 cm (5.3 × 4 in.)
03M	5 × 4 cm (2 × 1.5 in.). Suited to e-mail or the web.

The number of pictures that can be taken at current settings (pg. 101) is displayed to the right of the image quality icon in the monitor.

Note

Image quality is not reset when the camera is turned off or another shooting mode is selected.

Aspect Ratio

Pictures taken at an image quality setting of 9M 3:2 have an aspect ratio of 3:2, the same as a frame of 35-mm film. Pictures taken at other settings have an aspect ratio of 4:3.

Black-and-white photo of a person wearing a hat and cap, outdoors with blurred foliage background (no visible text or symbols)

4:3

Black-and-white portrait of a smiling person wearing a hat, with no visible text or symbols.

3:2

ISO ISO

Control the camera's sensitivity to light with 📄. Higher values can be used to reduce blur when lighting is poor; note, however, that mottling may appear in pictures taken at high sensitivities. If AUTO is selected, the camera will adjust sensitivity automatically in response to shooting conditions.

Settings other than AUTO are shown by an icon in the monitor if you use 📄M.

10V ISO 100

FINEPIX COLOR

Enhance contrast and color saturation or take pictures in black and white.

Option	Displayed in
F-STANDARD	Standard contrast and saturation. Recommended in most situations.
CF-F-CHROME	Vivid contrast and color. Choose for vivid shots of flowers or enhanced greens and blues in landscapes. Available only in [IMAGE], [IMAGE], [IMAGE], [IMAGE], and [IMAGE] modes.
BF-F-B&W	Take pictures in black and white.

Settings other than F-STANDARD are shown by an icon in the monitor.

Notes

• FINEPIX COLOR is not reset when the camera is turned off or another shooting mode is selected.
• Depending on the subject, the effects of C F-CHROME may not be visible in the monitor.

HIGH-SPEED SHOOTING

Selecting ON reduces focusing time, ensuring a quick shutter response. The camera will focus at distances of about 1 m (3 ft. 3 in.) to infinity.

SHOOTING MENU FINEPIX COLOR HIGH-SPEED SHOOTING CONTINUOUS SET-UP ON OFF

Notes

• The fps LCD MODE option in the setup menu is not available when high-speed shooting is on (pg. 84).
• Choosing ON increases the drain on the battery. Choose OFF to save battery power.

CONTINUOUS (Continuous shooting)

Capture motion in a series of pictures.

SHOOTING MENU MOVIE QUALITY ISO FINEPIX COLOR HIGH-SPEED SH CONTINUOUS LONG PERIOD FINAL 3 TOP 3 OFF

Note

Frame rate varies with shutter speed.

CONTINUOUS: LONG PERIOD

The camera takes pictures while the shutter button is pressed. Shooting ends when the shutter button is released or memory is full.

CONTINUOUS: FINAL 3

While the shutter button is pressed, the camera takes up to 40 pictures, but only the last three shots are recorded.
    note1["Up to 40 shots"]
    note2["Shutter button released"]
    note3["Last three shots recorded"]

CONTINUOUS: TOP 3

While the shutter button is pressed, the camera takes up to three pictures.

Notes: FINAL 3/TOP 3

- Focus and exposure are determined by the first frame in each series. - The number of pictures that can be recorded depends on the memory available. Additional time may be required to record pictures when

shooting ends. The pictures are displayed in the monitor while recording is in progress.

Four grayscale portrait photos of a woman in different angles, no text or symbols visible

Note: The Self-Timer

If the self-timer is used, only one picture will be taken when ☐ LONG PERIOD or ☑ FINAL 3 is selected.

AF AF MODE

In shooting mode

(pg. 31), this option controls how the camera focuses when Intelligent Face Detection is off (pg. 21).

SHOOTING MENU AF AF MODE SET-UP CENTER + MULTI

Regardless of the option selected, the camera will focus on the subject in the center of the monitor when macro mode is on (pg. 25).

AF AF MODE: CENTER

The camera focuses on the subject in the center of the monitor. This option can be used with focus lock.

Simple diagram with a camera icon and a grid of square symbols (no text or labels)

■ AF AF MODE: + MULTI

When the shutter button is pressed halfway, the camera detects high-contrast subjects near the center of the monitor and selects the focus area automatically.

Press halfway Focus frame 1:250 F4.2

Note

The focus area will not be displayed if the camera is unable to detect the subject. Select 📄 CENTER and compose the picture using focus lock (pg. 23).

The Playback Menu

The playback menu is used to manage the pictures in internal memory or on the memory card.

Using the Playback Menu

1 Press ▶ to enter playback mode (pg. 36).
2 Press MENU/OK to display the playback menu.

PLAYBACK MENU ERASE PLAYBACK TYPE TRIMMING FOR BLOG SLIDE SHOW RED EYE REMOVAL

3 Press the selector up or down to highlight the desired menu item.
4 Press the selector right to display options for the highlighted item.

PLAYBACK MENU ERASE BACK FRAME ALL FRAMES PLAYBACK TYPE Bip TRIMMING FOR BLO SLIDE SHOW RED EYE REMOVAL

5 Press the selector up or down to highlight the desired option.

6 Press MENU/OK to select the highlighted option.

Playback Menu Options

The following options are available:

Option	Description
ERASE	Delete all or selected pictures (pg. 40).
PLAYBACK TYPE	View images of a selected type (pg. 68).
TRIMMING FOR BLOG	Process still images for posting to a blog (pg. 68).
SLIDE SHOW	View pictures in a slide show (pg. 71).
RED-EYE REMOVAL	Create copies with reduced red eye (pg. 71).
IMAGE ROTATE	Rotate pictures (pg. 72).
PROTECT	Protect pictures from accidental deletion (pg. 73).
TRIMMING	Create cropped copies of pictures (pg. 74).
COPY	Copy pictures between internal memory and a memory card (pg. 75).
VOICE MEMO	Add voice memos to pictures (pg. 77).
TRANSITION	Choose the transition between pictures during playback (pg. 79).
MOVIE TRIMMING	Create an edited copy of a movie (pg. 79).
PRINT ORDER (DPOF)	Select pictures for printing on DPOF- and PictBridge-compatible devices (pg. 48).
SET-UP	Perform basic camera setup (pg. 80).

PLAYBACK TYPE

You can display images of a type that you want to see.

Option	Displayed in
STILL	Display only still pictures.
MOVIE	Display only movies.
BLOG	Display only blog images.
ALL	Display all types of images.

Caution

Note that the following options apply to all images, regardless of the option selected for Ⓞ PLAYBACK TYPE.

• ERASE > ALL FRAMES: all images will be erased.
• PRINT ORDER (DPOF) > RESET ALL: all print orders will be canceled.
• PROTECT > RESET ALL: all images will be unprotected.

Blog TRIMMING FOR BLOG

You can process still images for posting to a blog.

500 TRIMMING FOR BLOG 640 ▲ EFFECT V/T TRIMMING ▼ REC BACK/ CANCEL

1 Select the frame (file) to process.
2 The processing menu screen appears.

ASPECT RATIO BRIGHTNESS CONTRAST COLOR SEPIA ILLUSTRATION OK SET BACK CANCEL

3 Select the menu.

4 Press MENU/OK to open the setting screen. The screen type varies, depending on the selected menu.
5 Change the setting. This step is unnecessary in some menus.
6 Press MENU/OK to process the image. The original image remains unaltered.

Notes

• Press the W and T buttons to zoom the picture in or out and use the selector to display the portion of the picture you wish to save before processing it. Press MENU/OK to crop the picture and return to the image selection display.
• Blog image size is adjustable in the setup menu.
• Small copies are saved using filenames that begin with "BLOG." During playback, small copies are indicated by a Blog icon and a black border. Small copies can not be further cropped or rotated.

■ List of Processing menu options

menu	Functions	Settings	Factory default
ASPECT RATIO*1	Crops an image to change the aspect ratio.	Wide image: 4:1, 8:3, 16:9, 3:2, 4:3, 1:1, 3:4, 1:3	Wide image:4:3Tall image:3:4
		Tall image: 3:1, 4:3, 1:1, 3:4, 2:3, 9:16, 3:8, 1:4
BRIGHTNESS	Changes the brightness of an image.	-5 to +5	0
CONTRAST	Changes the contrast of an image.	-5 to +5	0
COLOR	Emphasizes red and blue hues of an image. + increases red hues; - increases blue hues.	-5 to +5	0
SEPIA	Converts an image to black and white, or sepia.	0 to 5	0
ILLUSTRATION	Applies a drawing effect to an image.	—	—
PAINTING EFFECT	Applies a painting effect to an image.	—	—
MINIATURE EFFECT	Applies a miniature effect to an image such as a landscape.	—	—
ZOOMING	Applies a zooming effect to an image. If an image is taken with Intelligent Face Detection set to ON, the effect will be to zoom into a face.	—	—
DROP SHADOW*1	Applies a shadow effect to the border of an image. A color can be selected.*2	8 types	FFFFFF
DIAGONAL CROP*1	Crops the image in a diamond shape and applies a shadow effect to the border of an image. A color can be selected.*2	8 types	FFFFFF
FACE MOSAIC	Applies a mosaic effect to faces in an image. If the image is taken with Intelligent Face Detection set to ON, the effect can be applied on up to 4 faces. If the image is taken with Intelligent Face Detection set to OFF, the effect will be applied at the center of the image.	0 to 5	0

*1 When a ☐ menu is used, other menus cannot be used for that image.

*2 Each setting is described by the HTML color codes which are useful to match the background color of a home page or blog (pg. 101).

SLIDE SHOW

View pictures in an automated slide show. After choosing the background music, choose the type of show and press MENU/OK to start. Press DISP/BACK at any time during the show to view on-screen help. When a movie is displayed, movie playback will begin automatically, and the slide show will continue when the movie ends. The show can be ended at any time by pressing MENU/OK.

Option	Displayed in
NORMAL	Press selector left or right to go back or skip ahead one frame. SelectFADE-INfor fade transitions between frames.
FADE-IN
NORMAL [IMAGE]	As above, except that camera automatically zooms in on faces selected with Intelligent Face detection.
FADE-IN [IMAGE]
MULTIPLE	Display several pictures at once.
SCRAP BOOK VIEW	As forMULTIPLE, except that the pictures are chosen randomly.
SELECT BGM	Choose background music.

RED EYE REMOVAL

This option is used with pictures taken using Intelligent Face Detection to create copies that have been processed to remove red eye.

1 Play the picture back in the monitor (pictures taken with Intelligent Face Detection are indicated by a [icon) and select RED EYE REMOVAL in the playback menu (pg. 37).

REMOVAL OK? OK YES BACK CANCEL

2 Press MENU/OK. The message shown below at left will be displayed while the camera analyses the image; if red-eye is detected, the message shown below at right will be displayed while the camera processes the image to create a copy with reduced red-eye.

DETECTING REMOVING BACK CANCEL

Notes

• Red eye may not be removed if the camera is unable to detect a face or the face is in profile. Results may differ depending on the scene. Red eye can not be removed from pictures that have already been processed using red-eye removal or pictures created with other devices.
• The amount of time needed to process the image varies with the number of faces detected.
• Copies created with 📄 RED EYE REMOVAL are indicated by a 📄 icon during playback.

IMAGE ROTATE

By default, pictures taken in tall orientation are displayed in wide orientation. Use this option to display pictures in the correct orientation in the monitor. It has no effect on pictures displayed on a computer or other device.

Notes

• Protected pictures can not be rotated. Remove protection before rotating pictures (pg. 73).
• The camera may not be able to rotate pictures created with other devices.

1 Press the selector left or right to display the desired picture in the monitor.

IMAGE ROTATE OK SET BACKCANCEL

2 Press the selector down to rotate the picture 90° clockwise, up to rotate the picture 90° counterclockwise.

3 Press MENU/OK to confirm the operation (to exit without rotating the picture, press DISP/BACK).

The next time the picture is played back, it will automatically be rotated.

PROTECT

Protect pictures from accidental deletion. The following options are available.

FRAME

Protect selected pictures.

1 Press the selector left or right to display the desired picture.

PROTECT OK? OK YES BACK CANCEL

Picture not protected

UNPROTECT OK? OK YES BACK CANCEL

Protected picture

2 Press MENU/OK to protect the picture. If the picture is already protected, pressing MENU/OK will remove protection from the image.

MENU /OK

3 Repeat steps 1–2 to protect additional images. Press DISP/BACK to exit when the operation is complete.

DISP BACK

SET ALL

Press MENU/OK to protect all pictures, or press DISP/BACK to exit without changing picture status.

On SET ALL OK? IT MAY TAKE A WHILE OK YES BACK CANCEL

■ RESET ALL

Press MENU/OK to remove protection from all pictures, or press DISP/BACK to exit without changing picture status.

ON RESET ALL OK? IT MAY TAKE A WHILE OK YES BACK CANCEL

If the number of pictures affected is very large, the display at right will appear in the monitor while the operation is in progress. Press DISP/BACK to exit before the operation is complete.

BACK CANCEL

Caution

Protected pictures will be deleted when the memory card or internal memory is formatted (pg. 85).

TRIMMING

To create a cropped copy of a picture, play the picture back and select ☑ TRIMMING in the playback menu (pg. 67).

1 Press the zoom buttons to zoom in and out and use the selector to scroll the picture until the desired portion is displayed (to exit to single-frame playback without creating a cropped copy, press DISP/BACK).

Zoom indicator TRIMMING Navigation window shows portion of image currently displayed in monitor OK YES BACK CANCEL

Tip: Intelligent Face Detection

If the picture was shot with Intelligent Face Detection (pg. 21), 📄 will be displayed in the monitor. Press the √ button to zoom in on the selected face.

TRIMMING OK YES BACK/CANCEL

2 Press MENU/OK. A confirmation dialog will be displayed.

Copy size (5M, 3M, 2M, or 03M; see page 62) is shown at the top; if the size is 03M, OK is displayed in yellow.

OK REC OK? OK REC BACK CANCEL

Larger crops produce larger copies; all copies have an aspect ratio of 4:3.

3 Press MENU/OK to save the cropped copy to a separate file.

COPY COPY

Copy pictures between internal memory and a memory card.

1 Press the selector up or down to highlight IN INTERNAL MEMORY → SD CARD (copy pictures from internal memory to the memory card) or SD CARD →

IN INTERNAL MEMORY (copy pictures from a memory card to internal memory).

2 Press the selector right to display options for the highlighted item.

COPY COPY IN INTERNAL MEMORY → S SD CARD → IN INTERNAL FRAME ALL FRAMES OK YES BACK CANCEL

3 Press the selector up or down to highlight FRAME or ALL FRAMES.

4 Press MENU/OK.

FRAME

Copy selected frames.

COPY OK? IN → SD 100-0001 OK YES BACK CANCEL

1 Press the selector left or right to display the desired picture.
2 Press MENU/OK to copy the picture.
3 Repeat steps 1–2 to copy additional images. Press DISP/BACK to exit when the operation is complete.

ALL FRAMES

Press MENU/OK to copy all pictures, or press DISP/BACK to exit without copying pictures.

COPY | COPY ALL OK? IT MAY TAKE A WHILE IN → S1 100-0001 OK YES BACK CANCEL

Cautions

• Copying ends when the destination is full.
  • DPOF print information is not copied (pg. 48).

VOICE MEMO

To add a voice memo to a still picture, select

VOICE MEMO after displaying the picture in playback mode.

REC STANDBY 30s OK START BACK CANCEL

Note

Voice memos can not be added to movies or protected pictures. Remove protection from pictures before recording voice memos (pg. 73).

Microphone

1 Press MENU/OK to start recording. Hold the camera at a distance of about 20 cm (8 in.) and face the microphone.

RECORDING 28s Time remaining Blinks red OK REC END-RE-REC

2 Press MENU/OK again to end recording. Recording ends automatically after 30 seconds.

FINISH OK REC BACK/RE-REC

Notes

• If a voice memo already exists for the current picture, the options at right will be displayed. Select RE-REC to replace the existing memo.
• Voice memos are recorded as PCM-format WAV files (pg. 100) with a maximum size of about 480 KB.

PLAYBACK MENU IMAGE ROTATE PROTECT TRIMMING COPY VOICE MEMO BACK RE-REC

Playing Voice Memos

Voice memo playback starts automatically when a picture with a voice memo is displayed (pg. 36; pictures with voice memos are indicated by a 🎨 icon).

Playback repeats until another picture is displayed. To pause, press the selector down; to end playback, press the selector up. Press the selector left or right to view other pictures. Volume can be adjusted in the setup menu (pg. 84).

Note

The camera may not play voice memos recorded with other devices.

Caution

Do not cover the speaker during playback.

15s STOP PAUSE

Progress is shown in the monitor.

Progress bar

Speaker

TRANSITION

Choose the transition between images during playback.

PLAYBACK MENU TRANSITION PRINT ORDER (DPOF) SET-UP WIPE SLIDE-IN FADE-IN OFF

MOVIE TRIMMING

To create a shorter copy of the movie currently displayed in playback mode, select ➤ MOVIE

TRIMMING from the playback menu.

MOVIE TRIMMING 0m00s PLAY OK IN POINT BACK CANCEL

1 Pressing the selector down to start or pause playback, play the movie until the first frame you wish to include in the new movie is displayed.

MOVIE TRIMMING 0m00s PLAY OK IN POINT BACK CANCEL

Indicator shows the position of the starting frame.

2 Press MENU/OK.

3 Pressing the selector down to resume or pause playback, play the movie until the last frame you wish to include in the new movie is displayed.

Indicator shows the position of the final frame.

To return to step 1 and choose a new starting point, press DISP/BACK.

4 Press MENU/OK to save the edited movie to a new file and return to playback with the new movie displayed. The original image is left as it was.

MENU /OK

Using the Setup Menu

1 Display the setup menu.

1.1 Press MENU/OK to display the menu for the current mode.
1.2 Press the selector up or down to highlight SET SET-UP.
1.3 Press the selector right to display the setup menu.

SET-UP IMAGE DISP. 1.5 SEC FRAME NO. CONT. ILLUMINATION ON DIGITAL ZOOM OFF LCD MODE

2 Choose a page.

2.1 Press the selector left or right to choose a page.
2.2 Press the selector down to enter the menu.

3 Adjust settings.

3.1 Press the selector up or down to highlight a menu item.
3.2 Press the selector right to display options for the highlighted item.

SET-UP FORMAT 言語/LANG. AUTO POWER OFF TIME DIFFERENCE BACKGROUND COLOR 5 MIN 2 MIN OFF

3.3 Press the selector up or down to highlight an option.
3.4 Press MENU/OK to select the highlighted option.

MENU /OK

Setup Menu Options

	Menu item	Description	Options	Default
	IMAGE DISP.	Choose how long pictures are displayed after shooting (pg. 82).	3 SEC/1.5 SEC/ZOOM (CONTINUOUS)	1.5 SEC
	FRAME NO.	Choose how files are named (pg. 83).	CONT./RENEW	CONT.
	ILLUMINATION	Turn the shooting indicator on or off (pg. 83).	ON/OFF	ON
	DIGITAL ZOOM	Enable or disable digital zoom (pg. 84).	ON/OFF	OFF
	LCD MODE	Enable or disable power-saving display mode (pg. 84).	/ s	s
1	DATE/TIME	Set the camera clock (pg. 14).	—	—
	VOLUME	Adjust volume for the shutter, controls, and playback (pg. 84).	—	—
	SOUND	Choose shutter, start-up, and control sounds (pg. 85).	—	—
	BLOG IMAGE SIZE	Choose blog image size (pg. 68).	640 STANDARD/320 SMALL	640
	LCD BRIGHTNESS	Control the brightness of the monitor (pg. 85).	-5 - +5	0
2	FORMAT	Format internal memory or memory cards (pg. 85).	—	—
	言語/LANG.	Choose a language (pg. 14).	See page 103	ENGLISH
	AUTO POWER OFF	Choose the auto power off delay (pg. 85).	5 MIN/2 MIN/OFF	2 MIN
	TIME DIFFERENCE	Set the clock to local time (pg. 86).	/
	BACKGROUND COLOR	Choose a background color for the monitor display.	—	—
3	GUIDANCE DISPLAY	Choose whether to display tool tips.	ON/OFF	ON
	VIDEO SYSTEM	Choose a video mode for connection to a TV (pg. 46).	NTSC/PAL	—
	RESET	Reset all settings except Frame number, DATE/TIME, TIME DIFFERENCE, BACKGROUND COLOR, and VIDEO SYSTEM to default values. A confirmation dialog will be displayed, press the selector left or right to highlight OK and press MENU/OK.	—	—

IMAGE DISP.

Choose how long pictures are displayed in the monitor after shooting.

• 3 SEC: Pictures are displayed for about 3 s before being recorded to the memory card.
• 1.5 SEC: Pictures are displayed for about 1.5 s before being recorded to the memory card.
- ZOOM (CONTINUOUS): Pictures are displayed until the MENU/OK button is pressed. Pictures taken at qualities larger than 03M can be zoomed in to check fine details (see page 37). Note that this option is disabled in continuous mode (pg. 64) and when ⚪ or ⚠ is selected for ⏻ SHOOTING MODE.

Notes

• The colors displayed at settings of 3 SEC and 1.5 SEC may differ from those in the final picture.
• IMAGE DISP. is not available when ☐ LONG PERIOD is selected for ⚙ CONTINUOUS (pg. 64).

FRAME NO.

New pictures are stored in image files named using a four-digit file number assigned by adding one to the last file number used. The file number is displayed during playback as shown at right. FRAME NO. controls whether file numbering is reset to 0001 when a new memory card is inserted or the current memory card or internal memory is formatted.

Frame number 100-0001 File number Directory number 12 / 31 / 2050 10 : 00 AM 1/250 F4.2

• CONT.: Numbering continues from the last file number used or the
  first available file number, whichever is higher. Choose this option to reduce the number of pictures with duplicate file names.
• RENEW: Numbering is reset to 0001 after formatting or when a new memory card is inserted.

Notes

• If the frame number reaches 999-9999, the shutter release will be disabled (pg. 97).
• Selecting ⚙* RESET (pg. 81) does not reset frame numbering.
  • Frame numbers for pictures taken with other cameras may differ.

ILLUMINATION

If ON is selected, the shooting indicator will light when the camera is turned on. It will also light after a picture is taken to let the subjects know that shooting is complete.

DIGITAL ZOOM

If ON is selected, pressing T at the maximum optical zoom position will trigger digital zoom, further magnifying the image. To cancel digital zoom, zoom out to the minimum digital zoom position and press W.

Zoom indicator

Zoom indicator, DIGITAL ZOOM off

W T

Optical zoom

Zoom indicator, DIGITAL ZOOM on

W T

Optical zoom
Digital zoom

Caution

Digital zoom produces lower quality images than optical zoom.

fps LCD MODE

Control the quality of the display in the monitor. Choose STANDARD for improved display quality, POWER SAVE for increased battery life. This option has no effect in playback mode, high-speed shooting mode, or movie mode.

VOLUME

Choose the volume for the shutter, camera controls, and playback.

• SHUTTER VOLUME/OPERATION VOL.: Choose the volume for the shutter and camera controls from three levels, or select OFF to turn the sound off. Press the selector left or right to highlight an option and press MENU/OK to select.
• PLAYBACK VOLUME: Press the selector right to display the menu shown at right.

Press the selector up or down to choose the

volume for movie and voice memo playback and press MENU/OK to select.

VOLUME + 7 OK SET BACK CANCEL

SOUND

Choose the sounds used for the shutter, at start up, and for camera controls. Press the selector up or down to highlight an option and press left or right to select a sound. Press MENU/OK to select.

LCD BRIGHTNESS

Press the selector up or down to choose monitor brightness and press MENU/OK to select.

LCD BRIGHTNESS + - 0 OK SET BACK CANCEL

FORMAT

Format internal memory or a memory card. If a memory card is inserted in the camera, SD will be displayed in the dialog shown at right and this option will format the memory card. If no memory card is inserted, IN will be displayed and this option will format internal memory. Press the selector left to highlight OK and press MENU/OK to begin formatting.

FORMAT IN FORMAT OK? ERASE ALL DATA OK CANCEL OK SET

Cautions

• All data—including protected pictures—will be deleted. Be sure important files have been copied to a computer or other storage device.
• Do not open the battery cover during formatting.

OFF AUTO POWER OFF

Choose the length of time before the camera turns off automatically when no operations are performed. Shorter times increase battery life; if OFF is selected, the camera must be turned off manually. Note that regardless of the option selected, the camera will not turn off automatically when connected to a printer (pg. 47) or computer (pg. 52), while recording or viewing a movie or when a slide show is in progress (pg. 71).

Tip: Reactivating the Camera

For shooting, close the lens cover, and then open it fully. For playback, press the ▶ button for a second.

TIME DIFFERENCE

When travelling, use this option to switch the camera clock instantly from your home time zone to the local time at your destination.

1 Specify the difference between local time and your home time zone.

1.1 Press the selector up or down to highlight + LOCAL.
1.2 Press the selector right to display the time difference.

TIME DIFFERENCE 12 / 31 / 2050 10 : 00 AM 12 / 31 / 2050 10 : 00 AM + 00 : 00 OK SET BACK CANCEL

1.3 Press the selector left or right to highlight +, -, hours, or minutes; press up or down to edit. The minimum increment is 15 minutes.

1.4 Press MENU/OK when settings are complete.

2 Switch between local time and your home time zone.

To set the camera clock to local time, highlight ✦ LOCAL and press MENU/OK. To set the clock to the time in your home time zone, select ⏻ HOME. If ✦ LOCAL is selected, ✦ will be displayed in the monitor for three seconds after the camera enters shooting mode, and the date will be displayed in yellow.

M [70] [+] ] +12 31 / 2050 10 : 00 AM

After changing time zones, check that the date and time are correct.

Optional Accessories

The camera supports a wide range of accessories from FUJIFILM and other manufacturers.

Accessories from Fujifilm

The following optional accessories were available from FUJIFILM. Check with your local Fujifilm representative for information on the accessories available in your region.

• NP-45 rechargeable Li-ion battery (supplied): Additional NP-45 slimline batteries can be purchased as required.
• AV-C1 A/V cable: Connects the camera and a TV.

Illustration of a USB cable with two external connectors (no text or symbols)

For the latest information on accessories available from FUJIFILM, visit http://www.fujifilm.com/products/digital_cameras/index.html.

Power and Battery

Problem		Possible cause	Solution	Page
Power supply	The camera does not turn on.	The battery is exhausted.	Charge the battery or insert a fully-charged spare battery.	4, 6
		The battery is not in the correct orientation.	Re-insert the battery in the correct orientation.	6
		The battery-chamber cover is not latched.	Latch the battery-chamber cover.	7
	The battery runs down quickly.	The battery is cold.	Warm the battery by placing it in a pocket or other warm place and re-insert it in the camera immediately before taking a picture.	6
		There is dirt on the battery terminals.	Clean the terminals with a soft, dry cloth.	—
		HIGH SPEED SHOOTING is on.	Turn HIGH SPEED SHOOTING off to reduce battery drain.	64
		The camera is in SR mode.	Choose a different shooting mode.	31
		The battery has been charged many times.	The battery has reached the end of its charging life. Purchase a new battery.	—
	The camera turns off suddenly.	The battery is exhausted.	Charge the battery or insert a fully-charged spare battery.	4, 6
Battery charger	Charging does not start.	The battery is not correctly inserted.	Re-insert the battery in the charger.	4
		The battery is not in the correct orientation.	Re-insert the battery in the correct orientation.	4
	Charging is slow.	The temperature is low.	Charge the battery at room temperature.	5
	The charging lamp lights, but the battery does not charge.	There is dirt on the battery terminals.	Clean the terminals with a soft, dry cloth.	—
		The battery has been charged many times.	The battery has reached the end of its charging life. Purchase a new battery. If the battery still fails to charge, contact your FUJIFILM dealer.	—

Menus and Displays

Problem	Possible cause	Solution	Page
Menus and displays are not in English.	English is not selected for the 言語/LANG option in the setup menu.	Select ENGLISH.	14

Shooting

Problem		Possible cause	Solution	Page
Taking pictures	No picture is taken when the shutter button is pressed.	Memory is full.	Insert a new memory card or delete pictures.	8, 40
		Memory is not formatted.	Format the memory card or internal memory.	85
		There is dirt on the memory card contacts.	Clean the contacts with a soft, dry cloth.	9
		The memory card is damaged.	Insert a new memory card.	8
		The battery is exhausted.	Charge the battery or insert a fully-charged spare battery.	4, 6
		The camera has turned off automatically.	Turn the camera on.	13, 85
	The monitor goes dark after shooting.	The flash has fired.	The monitor may darken while the flash charges. Wait for the flash to charge.	26
Focus	The camera does not focus.	The subject is close to the camera.	Select macro mode.	25
		The subject is far away from the camera.	Cancel macro mode.
		The subject is not suited to autofocus.	Use focus lock.	23
Close-ups	Macro mode is not available.	The camera is in a shooting mode which makes macro (close-up) mode unavailable.	Choose a different shooting mode.	31
Intelligent Face Detection	Face detection not available.	The camera is in a shooting mode which makes Intelligent Face Detection unavailable.	Choose a different shooting mode.	31
	No face is detected.	The subject's face is obscured sunglasses, a hat, long hair, or other objects.	Remove the obstructions.	21
		The subject's face occupies only a small area of the frame.	Change the composition so that the subject's face occupies a larger area of the frame.
		The subject's head is tilted or horizontal.	Ask the subject to hold their head straight.
		The camera is tilted.	Hold the camera straight.	17
		The subject's face is poorly lit.	Shoot in bright light.	—
	Wrong subject selected.	The selected subject is closer to the center of the frame than the main subject.	Recompose the picture or turn face detection off and frame the picture using focus lock.	21, 23
Flash	The flash does not fire.	The camera is in a shooting mode in which the flash does not fire.	Choose a different shooting mode.	31
		The battery is exhausted.	Charge the battery or insert a fully-charged spare battery.	4, 6
		The camera is in continuous mode.	Select OFF for CONTINUOUS.	64
		The camera is in silent mode.	Turn silent mode off.	27
		The flash is off (3).	Choose a different flash mode.	26
	Some flash modes are not available.	The camera is in a shooting mode which makes some flash modes unavailable.	Choose a different shooting mode.	31
		The camera is in silent mode.	Turn silent mode off.	27
	The flash does not fully light the subject.	The subject is not in range of the flash.	Position the subject in range of the flash.	103
		The flash window is obstructed.	Hold the camera correctly.	17
mode	Can not take pictures.	The battery is low.	Charge the battery or insert a fully-charged spare battery.	4, 6
Movies	Can not record movies.	The camera is in mode.	Choose a different shooting mode.	31
Problem images	Pictures are blurred.	The lens is dirty.	Clean the lens.	106
		The lens is blocked.	Keep objects away from the lens.	17
		!AF is displayed during shooting and the focus frame is displayed in red.	Check focus before shooting.	18, 23, 96
		!of is displayed during shooting.	Use the flash or a tripod.	26
	Pictures are mottled.	The ambient temperature is high and the subject is poorly lit.	This is normal and does not indicate a malfunction. Choose a lower sensitivity.	63
Continuous	The camera takes one picture at a time	The self timer is on in FINAL 3 or LONG PERIOD modes.	Turn the self-timer off.	28

Playback

Problem		Possible cause	Solution	Page
Pictures	Pictures are grainy.	The pictures were taken with a different make or model of camera.	—	—
	Playback zoom unavailable.	The pictures were taken in ⚠ modes, at an image size of 08M, saved as Blog Blog Images, or with a different make or model of camera.	—	—
	Pictures are not displayed.	The wrong option is selected for Ⓞ PLAYBACK TYPE.	Select a different option.	68
Audio	No sound in voice memo and movie playback.	Playback volume is too low.	Adjust playback volume.	84
		The microphone was obstructed.	Hold the camera correctly during recording.	42, 77
		The speaker is obstructed.	Hold the camera correctly during playback.	45, 78
Deletion	Selected pictures are not deleted.	Some of the pictures selected for deletion are protected.	Remove protection using the device with which it was originally applied.	73
Frame no.	File numbering is unexpectedly reset.	The battery-chamber cover was opened while the camera was on.	Turn the camera off before opening the battery-chamber cover to replace the battery or insert a memory card.	83

Connections

Problem		Possible cause	Solution	Page
TV	No picture or sound.	The camera is not properly connected.	Connect the camera correctly.	46
		The supplied A/V cable was connected during movie playback.	Connect the camera once movie playback has ended.	45, 46
		Input on the television is set to “TV”.	Set input to “VIDEO”.	—
		The camera is not set to the correct video standard.	Match the camera NISG VIDEO SYSTEM setting to the TV.	45, 80
		The volume on the television is too low.	Adjust the volume.	—
	No color.	The camera is not set to the correct video standard.	Match the camera NISG VIDEO SYSTEM setting to the TV.	45, 80
Computer	The computer does not recognize the camera.	The camera is not properly connected.	Connect the camera correctly.	57
PictBridge	Pictures can not be printed.	The camera is not properly connected.	Connect the camera correctly.	47
		The printer is off.	Turn the printer on.	—
	Only one copy is printed.	The printer is not PictBridge-compatible.	—	—
	The date is not printed.

Miscellaneous

Problem	Possible cause	Solution	Page
Nothing happens when the shutter button is pressed.	Temporary camera malfunction.	Remove and reinsert the battery.	6
	The battery is exhausted.	Charge the battery or insert a fully-charged spare battery.	4, 6
The camera does not function as expected.	Temporary camera malfunction.	Remove and reinsert the battery. If the problem persists, contact your FUJIFILM dealer.	6
The camera accidentally turns off.	The memory card has been inserted or pulled out.	Insert the memory card, close the battery-chamber cover, and then turn on the camera.	9
No sound.	The camera is in silent mode.	Turn silent mode off.	27

Warning Messages and Displays

The following warnings are displayed in the monitor:

Warning	Description	Solution
( red )	Low battery.	Charge the battery or insert a fully-charged spare battery.
(blinks red)	Battery exhausted.
!	Slow shutter speed. Picture may be blurred.	Use the flash or mount the camera on a tripod.
!AF(displayed in red with red focus frame)	The camera can not focus.	· Use focus lock to focus on another subject at the same distance, then recompose the picture (pg. 23).· If the subject is poorly lit, try focusing at a distance of about 2 m (6 ft. 7 in.).· Use macro mode to focus when taking close-ups.
Aperture or shutter speed displayed in red	The subject is too bright or too dark. The picture will be over- or under-exposed.	If the subject is dark, use the flash.
PRESS THE SHUTTER BUTTON TO GO BACK TO SHOOTING MODE CLOSE THE LENS COVER TO TURN OFF THE CAMERA	button pressed while lens cover is open.	To exit to shooting mode, press the shutter button. Close the lens cover to turn the camera off.
FOCUS ERROR	Camera malfunction.	Turn the camera off and then on again, taking care not to touch the lens. If the message persists, contact a FUJIFILM dealer.
ZOOM ERROR
NO CARD	No memory card inserted when COPY is selected in the playback menu.	Insert a memory card.
CARD NOT INITIALIZED	The memory card or internal memory is not formatted.	Format the memory card or internal memory (pg. 85).
	The memory card contacts require cleaning.	Clean the contacts with a soft, dry cloth. If the message is repeated, format the memory card (pg. 85). If the message persists, replace the memory card.
	Camera malfunction.	Contact a FUJIFILM dealer.
PROTECTED CARD	The memory card is locked.	Unlock the memory card (pg. 8).
BUSY	The memory card is incorrectly formatted.	Use the camera to format the memory card (pg. 85).
CARD ERROR	The memory card is not formatted for use in the camera.	Format the memory card (pg. 85).
	The memory card contacts require cleaning or the memory card is damaged.	Clean the contacts with a soft, dry cloth. If the message is repeated, format the memory card (pg. 85). If the message persists, replace the memory card.
	Camera malfunction.	Contact a FUJIFILM dealer.
MEMORY FULL	The memory card or internal memory is full; pictures can not be recorded or copied.	Delete pictures or insert a memory card with more free space.
MEMORY FULL
INTERNAL MEMORY IS FULL INSERT A NEW CARD
WRITE ERROR	Memory card error or connection error.	Re-insert the memory card or turn the camera off and then on again. If the message persists, contact a FUJIFILM dealer.
	Not enough memory remaining to record additional pictures.	Delete pictures or insert a memory card with more free space.
	The memory card or internal memory is not formatted.	Format the memory card or internal memory (pg. 85).
READ ERROR	The file is corrupt or was not created with the camera.	The file can not be played back.
	The memory card contacts require cleaning.	Clean the contacts with a soft, dry cloth. If the message is repeated, format the memory card (pg. 85). If the message persists, replace the memory card.
	Camera malfunction.	Contact a FUJIFILM dealer.
FRAME NO. FULL	The camera has run out of frame numbers (current frame number is 999-9999).	Format the memory card and select RENEW for the FRAME NO. option in the SETUP menu. Take a picture to reset frame numbering to 100-0001, then return to the FRAME NO. menu and select CONT.
TOO MANY FRAMES	Date for which more than 4,999 pictures exist selected in sort-by-date view.	Choose a different date.
PROTECTED FRAME	An attempt was made to delete, rotate, or add a voice memo to a protected picture.	Remove protection before deleting, rotating, or adding voice memos to pictures.
ERROR	Voice memo file is corrupt.	The voice memo can not be played back.
	Camera malfunction.	Contact a FUJIFILM dealer.
NO IMAGE	The source device selected in the playback COPY menu contains no pictures.	Select a different source.
NO IMAGE
CAN NOT TRIM	An attempt was made to crop a O3M picture.	These pictures can not be cropped.
CAN NOT TRIM	The picture selected for cropping is damaged or was not created with the camera.
CAN NOT TRIM	An attempt was made to crop a blog image.
DPOF FILE ERROR	The DPOF print order on the current memory card contains more than 999 images.	Copy the pictures to internal memory and create a new print order.
CAN NOT SET DPOF	The picture can not be printed using DPOF.	—
CAN NOT SET DPOF	Movies can not be printed using DPOF.	—
CAN NOT ROTATE	The picture can not be rotated.	—
CAN NOT ROTATE	Movies can not be rotated.	—
CAN NOT EXECUTE	TRIMMING FOR BLOG can not be used with movies, pictures created with other devices, pictures that can not be viewed, or pictures created using TRIMMING FOR BLOG.	—
CAN NOT EXECUTE
CAN NOT EXECUTE
CAN NOT EXECUTE
CAN NOT EXECUTE	The shutter button was pressed in mode when the battery was low.	Charge the battery or insert a fully-charged spare battery.
CAN NOT EXECUTE	The successive movie file has been overwritten or renamed by computer or other make of camera.	Clips can not be added to files that have been overwritten or renamed by a computer or other make of camera.
PRESS AND HOLDTHE DISP BUTTON TODEACTIVATE SILENT MODE	An attempt was made to choose a flash mode or adjust the volume with the camera in silent mode.	Exit silent mode before choosing a flash mode or adjusting the volume.
COMMUNICATION ERROR	A connection error occurred while pictures were being printed or copied to a computer or other device.	Confirm that the device is turned on. If the device is connected via USB, check that the cable is connected.
PRINTER ERROR	Printer out of paper or ink, or other printer error.	Check printer (see printer manual for details). To resume printing, turn the printer off and then turn it back on.
PRINTER ERRORRESUME?		Check printer (see printer manual for details). If printing does not resume automatically, pressMENU/OKto resume.
CAN NOT BE PRINTED	An attempt was made to print a movie, a picture not created with the camera, or a picture in a format not supported by the printer.	Movies and some pictures created with other devices can not be printed. If the picture was created with the camera, check the printer manual to confirm that the printer supports the JFIF-JPEG or Exif-JPEG format. If it does not, the pictures can not be printed.

Glossary

Digital zoom: Unlike optical zoom, digital zoom does not increase the amount of visible detail. Instead, details visible using optical zoom are simply enlarged, producing a slightly “grainy” image.

DPOF (Digital Print Order Format): A standard that allows pictures to be printed from "print orders" stored in internal memory or on a memory card. The information in the order includes the pictures to be printed and the number of copies of each picture.

DPOF

EV (Exposure Value): The exposure value is determined by the sensitivity of the image sensor and the amount of light that enters the camera while the image sensor is exposed. Each time the amount of light doubles, EV increases by one; each time the amount of light is halved, EV decreases by one. The amount of light entering the camera can be controlled by adjusting aperture and shutter speed.

Exif Print: A standard that allows information stored with pictures to be used for optimal color reproduction during printing.

JPEG (Joint Photographic Experts Group): A compressed file format for color images. The higher the compression rate, the greater the loss of information and more noticeable drop in quality when the picture is displayed.

Smear: A phenomenon specific to CCDs which causes white streaks to appear when very bright light sources, such as the sun or reflected sunlight, appear in the frame.

WAV (Waveform Audio Format): A standard Windows audio file format. WAV files have the extension “*.WAV” and may be compressed or uncompressed. The camera uses uncompressed WAV. WAV files can be played using Windows Media Player or QuickTime 3.0 or later.

White balance: The human brain automatically adapts to changes in the color of light, with the result that objects that appear white under one light source still appear white when the color of the light source changes. Digital cameras can mimic this adjustment by processing images according to the color of the light source. This process is known as “white balance.”

Internal Memory/Memory Card Capacity

The following table shows the recording time or number of pictures available at different image qualities. All figures are approximate; file size varies with the scene recorded, producing wide variations in the number of files that can be stored. The number of exposures or length remaining may not diminish at an even rate.

		€ IMAGE QUALITY							€ MOVIE QUALITY
		10M F	10M N	9M 3:2	5M	3M	2M	03N	640 (30 fps)	320 (30 fps)
Image size (pixels)		3648 × 2736		3648 × 2432	2592 × 1944	2048 × 1536	1600 × 1200	640 × 480	640 × 480	320 × 240
File size		4.9 MB	2.5 MB	2.2 MB	1.2 MB	780 KB	630 KB	130 KB	32 KB	20 KB
Internal memory (approx. 50 MB)		10	20	23	40	62	78	321	56 sec.	89 sec.
SD card	512 MB	100	190	220	380	600	750	3,090	9 min.	14 min.
	1 GB	200	390	440	770	1,210	1,510	6,190	18 min.	28 min.
	2 GB	400	790	900	1,550	2,390	2,960	12,430	35 min.	57 min.
SDHC card	4 GB	800	1,590	1,790	3,100	4,770	5,900	24,820	71 min.*	114 min.*
	8 GB	1,610	3,190	3,600	6,220	9,570	11,850	49,800	143 min.*	230 min.*

* A movie recording will stop automatically when a movie file becomes approx. 2GB. If you want to continue recording, press the shutter button again. The available recording time is displayed based on approx. 2GB.

HTML Color Codes

HTML codes	Colors	HTML codes	Colors
FFFFFF	White	EEEECC	Pale green
F6F6F6	Gray	EDF5FC	Pale blue
000000	Black	F4EBE4	Cream
FDF5D5	Pale yellow	FFF4F4	Pink

* HTML color codes used in the camera are listed above.

Specifications

System
Model	FinePix Z30 digital camera
Effective pixels	10.0 million
CCD	12.3 -in., square-pixel CCD with primary color filter
Storage media	Internal memory (approx. 50 MB)SD/SDHC memory cards (see page 8)
File system	Compliant with Design Rule for Camera File System (DCF), Exif 2.2, and Digital Print Order Format (DPOF)
File format	Still pictures: Exif 2.2 JPEG (compressed)• Audio: Monaural WAV• Movies: Motion JPEG AVI
Image size (pixels)	10M F: 3,648×2,736• 3M : 2,048×1,536• 10M N: 3,648×2,736• 2M : 1,600×1,200• 9M 3:2: 3,648×2,432• 5M : 2,592×1,944• 03M : 640×480
File size	See page 101
Lens	Fujinon 3× optical zoom lens, f/3.7 (wide angle) – 4.2 (telephoto)
Focal length	F=6.3 mm–18.9 mm (35-mm format equivalent: 35 mm–105 mm, or 40 mm–120 mm at 9M 3:2)
Digital zoom	Approx. 5.7× (up to 17.1× when combined with optical zoom)
Aperture	[Wide angle] F3.7 to F8.0 (three steps) / [Telephoto] F4.2 to F9.0 (three steps)
Focus range (distance from front of lens)	Approx. 60 cm (2 ft.)–infinity (wide angle/telephoto)Macro mode: approx. 8 cm–80 cm/3.1 in.–2 ft. 7 in. (wide angle); 60 cm–3 m/2 ft.–9 ft. 11 in. (telephoto)
Sensitivity	Equivalent to ISO 64, 100, 200, 400, 800, 1600; AUTO (Standard Output Sensitivity)
Metering	256-segment through-the-lens (TTL) metering
Exposure control	Programmed autoexposure
Exposure compensation	-2 EV – +2 EV in increments of 12 EV (mode and modes)
Scene modes	(NTN) (NATURAL & N) (NATURAL LIGHT) (AUCTION MODE) (PORTRAIT) (LANDSCAPE) (SPORT) (NIGHT) (NIGHT (TRIPOD)) (SUNSET) (SNOW) (BEACH), OFF (MUSEUM), (PARTY) (FLOWER), (TEXT) (SUCCEEDIVE MOVIE)
Image Stabilization	Available
Intelligent Face Detection	Available

System
Shutter speed	1⁄4 s-1⁄2,000 s (mode); 3 s-1⁄2,000 s (other modes); combined mechanical and electronic shutter
Continuous	• TOP 3: Up to 0.6 fps; max. 3 frames• LONG PERIOD: Up to 0.3 fps (one frame every 3.5 s); frame rate and maximum number of frames vary with image size and available memory	• FINAL 3: Up to 0.6 fps; last 3 frames recorded
Focus	• Mode: Single AF• Focus-area selection: AF CENTER and AF MULTI	• Autofocus system: Contrast-detect TTL AF
White balance	Automatic scene detection; six manual preset modes for direct sunlight, shade, daylight fluorescent, warm white fluorescent, cool white fluorescent, and incandescent lighting
Self-timer	Couple timer/Group timer/Approx. 2 sec./10 sec.
Flash	Auto flash; effective range when sensitivity is set to AUTO is approx. 70 cm–3.1 m/2 ft. 4 in.–10 ft. 2 in. (wide angle), 70 cm–2.7 m/2 ft. 4 in.–8 ft. 10 in. (telephoto), or 30 cm–80 cm/1 ft.–2 ft. 7 in. (macro mode)
Flash modes	Auto, fill flash, off, slow sync (red-eye removal off); auto with red-eye removal, fill flash with red-eye removal, off, slow sync with red-eye removal (red-eye removal on)
Monitor	2.7-in., 230k-dot low-temperature polysilicon TFT color LCD monitor; frame coverage approx. 97%
Movies	Camera can record movies with monaural sound and a frame size of 640×480 (640) or 320×240 (320) at a frame rate of 30 fps
Shooting options	Scene recognition, Intelligent Face Detection with red-eye removal, high-speed shooting, best framing, and frame number memory
Playback options	Intelligent Face Detection, micro thumbnail, multi-frame playback, sort-by-date, trimming for blog, blog effects, cropping (still pictures and movies), slide show, transition, image rotation, voice memo, and playback type
Other options	PictBridge, Exif Print, FinePix COLOR, language selection (Simplified Chinese, Traditional Chinese, Czech, Dutch, English, French, German, Hungarian, Italian, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Thai, and Turkish), time difference
Input/output terminals
A/V OUT (audio/video output)	NTSC or PAL with monaural sound
Digital input/output	USB 2.0 High Speed with MTP/PTP connection

Power supply/other
Power sources	NP-45 rechargeable battery
Battery life (NP-45)	Approx. 200 frames, based on CIPA (Camera and Imaging Products Association) standard; measured at 23°C (73°F) with the monitor on, the camera zoomed from widest angle to maximum zoom and back once every 30 s, the flash fired with every other shot, and the camera turned off and then on again every 10 shots. Note that the number of shots that can be taken with a fully-charged battery varies with temperature and shooting conditions.
Camera dimensions	90.5 mm × 59.0 mm × 20.5 mm/3.6 in. × 2.3 in. × 0.8 in. (W × H × D), excluding projections
Camera weight	Approx. 116.5 g/4.1 oz., excluding battery, accessories, and memory cards
Shooting weight	Approx. 133.6 g/4.7 oz., including battery and memory card
Operating conditions	• Temperature: 0°C – +40°C/+32°F – +104°F • Humidity: 10%–85% (no condensation)

NP-45 rechargeable battery
Nominal voltage	DC 3.7V
Nominal capacity	740 mAh
Operating temperature	0°C – +40°C/+32°F – +104°F
Dimensions (W × H × D)	31 mm × 39.4 mm × 5.7 mm/1.2 in. × 1.6 in. × 0.2 in.
Weight	Approx. 15 g/1.0 oz.

BC-45W battery charger
Rated input	100–240V AC, 50/60 Hz
Input capacity	8.0 VA (100 V)/12 VA (240 V)
Rated output	4.2 V DC, 550 mA
Supported batteries	NP-45 rechargeable battery
Charging time	Approx. 110 minutes(measured at +20°C (+68°F))
Dimensions (W × H × D)	91 mm × 62 mm × 23 mm/3.6 in. × 2.4 in. × 0.9 in.
Weight	Approx. 67 g/2.4 oz., excluding battery
Operating temperature	0°C – +40°C/+32°F – +104°F

* The weight and dimensions vary depending on the country or region of sale.

Notes on the Battery and Battery Charger

• The battery and charger may become warm to the touch during charging. This is normal and does not indicate a malfunction. If possible, charge the battery in a well-ventilated location.
• The battery charger may vibrate when in use. This is normal and does not indicate a malfunction.
• If the charger causes radio interference, increase the distance between the charger and the radio receiver.
• Do not leave the charger in locations that are very dusty or exposed to strong vibration, extreme humidity, or high temperatures (for example, in direct sunlight or next to a heater).
• The battery charger can be used with input voltages of 100–240V AC and 50 or 60Hz. The shape of the plug varies with the country of sale; consult your travel agent to determine whether the charger can be used abroad.

Color Television Systems

NTSC (National Television System Committee) is a color television telecasting specification adopted mainly in the U.S.A., Canada, and Japan. PAL (Phase Alternation by Line) is a color television system adopted mainly in European countries and China.

Notices

• Specifications subject to change without notice. FUJIFILM shall not be held liable for damages resulting from errors in this manual.
• Although the monitor is manufactured using advanced high-precision technology, small bright points and anomalous colors (particularly in the vicinity of text) may appear. This is normal for this type of monitor and does not indicate a malfunction; images recorded with the camera are unaffected.
• Digital cameras may malfunction when exposed to strong radio interference (e.g., electric fields, static electricity, or line noise).
• Due to the type of lens used, some distortion may occur at the periphery of images. This is normal.

Caring for the Camera

To ensure continued enjoyment of the product, observe the following precautions.

Storage and Use

If the camera will not be used for an extended period, remove the battery and memory card. Do not store or use the camera in locations that are:

• exposed to rain, steam, or smoke
  • very humid or extremely dusty
• exposed to direct sunlight or very high temperatures, such as in a closed vehicle on a sunny day
  • extremely cold
• subject to strong vibration
• exposed to strong magnetic fields, such as near a broadcasting antenna, power line, radar emitter, motor, transformer, or magnet
• in contact with volatile chemicals such as pesticides
• next to rubber or vinyl products

Water and Sand

Exposure to water and sand can also damage the camera and its internal circuitry and mechanisms. When using the camera at the beach or seaside, avoid exposing the camera to water or sand. Do not place the camera on a wet surface.

Condensation

Sudden increases in temperature, such as occur when entering a heated building on a cold day, can cause condensation inside the camera. If this occurs, turn the camera off and wait an hour before turning it on again. If condensation forms on the memory card, remove the card and wait for the condensation to dissipate.

Cleaning

Use a blower to remove dust from the lens and monitor, then gently wipe with a soft, dry cloth. Any remaining stains can be removed by wiping gently with a piece of FUJIFILM lens-cleaning paper to which a small amount of lens-cleaning fluid has been applied. Care should be taken to avoid scratching the lens or monitor. The camera body can be cleaned with a soft, dry cloth. Do not use alcohol, thinner, or other volatile chemicals.

Travelling

Keep the camera in your carry-on baggage.

Checked baggage may suffer violent shocks that could damage the camera.

FUJIFILM

FUJIFILM Corporation

http://www.fujifilm.com/products/digital_cameras/index.html
