DH06111 - Tankless Water Heater SIEMENS - Free user manual and instructions

Product Type	Tankless Water Heater
Model	DH06111
Brand	Siemens

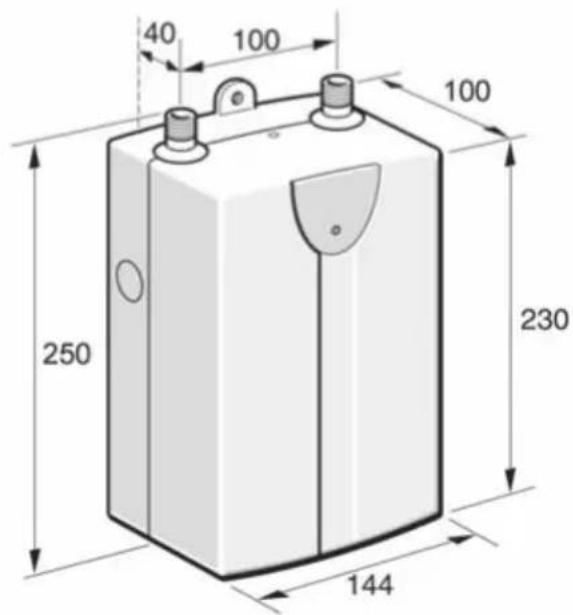

Dimensions (H x W x D)	250 x 144 x 100 mm
Weight	1.8 kg
Power Supply	220-240 V AC, 50 Hz, 6.0 kW (at 230 V)
Protection Class	IP24 (splash-proof)
Electrical Connection	Permanent (hardwired)
Fuse Protection	32 A
Water Connection Size	1/2 inch
Minimum Flow Pressure	0.1 MPa (1.0 bar)
Maximum Flow Pressure	1.0 MPa (10.0 bar)
Flow Rate at Switch-On	Approx. 2.3 L/min
Flow Rate at Switch-Off	Approx. 1.8 L/min
Typical Hot Water Output at 37°C	3.0 L/min
Energy Efficiency Class	A
Load Profile	XXS
Annual Energy Consumption	481 kWh
Sound Power Level	15 dB
Water Heating Efficiency	38.3%
Operation Type	Hydraulically controlled, automatic
ON Indicator	Yes (DH06111 only)
Cleaning	Wipe with damp cloth; avoid abrasive cleaners
Safety Features	Overtemperature protection, automatic shut-off when water flow stops
Installation	Requires qualified professional; permanent electrical connection

Frequently Asked Questions - DH06111 SIEMENS

How do I turn on the Siemens DH06111 water heater?

Open the tap fully. The appliance switches on automatically and the ON indicator lights up. The water is heated as it flows through.

How do I adjust the water temperature?

Open the tap fully to turn on the appliance. Then reduce the water flow volume to increase the temperature. The lower the flow, the hotter the water.

What should I do if the water is not hot enough in winter?

In winter, the incoming water temperature may be lower. To compensate, reduce the water quantity on the tap until the desired temperature is achieved.

Can I use this water heater with preheated water?

No, the appliance must not be operated with preheated water, otherwise the overtemperature protection will be triggered.

How do I clean the Siemens DH06111?

Simply wipe the appliance with a damp cloth. Do not use acidic or abrasive cleaning materials. Clean the filter in the jet regulator if needed.

Does the appliance need descaling?

Normally, descaling is not necessary. However, extremely hard water and frequent use of very hot water may cause scaling. In that case, contact our after-sales service.

What are the electrical requirements for installation?

The appliance requires a permanent electrical connection (hardwired) with a 32 A fuse, 220-240 V AC, 50 Hz. It must be installed by a qualified professional.

What is the warranty period for the Siemens DH06111?

Warranty conditions depend on the country of purchase. Please refer to the dealer or the bill of sale for specific details. The appliance must be used according to the manual.

What safety features does the appliance have?

The water heater has overtemperature protection, automatic switch-off when water flow stops, and is IP24 splash-proof. It also requires a protective earth connection.

Can I install the appliance myself?

No, the continuous-flow heater must be installed and put into operation by a qualified professional. Improper installation can cause electric shock or water damage.

USER MANUAL DH06111 SIEMENS

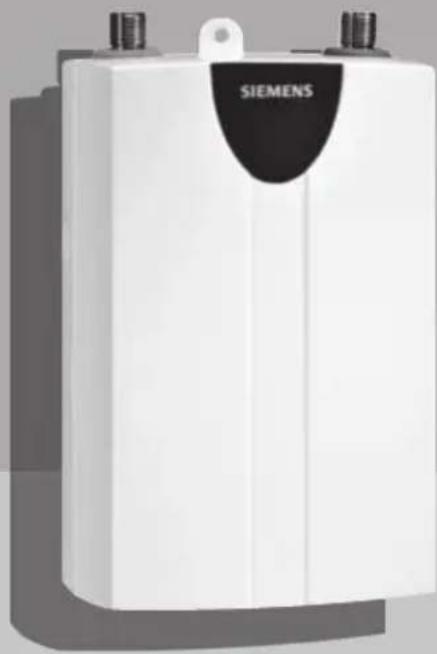

Exterior view of a Siemens water heater unit (no text or symbols on body)

White Siemens air purifier unit with black branding and mounting flange (no visible text or symbols beyond brand name)

Installation and operating instructions

This appliance is intended for domestic use or for household-based, non-commercial applications. Household-based applications include, e.g. usage in employees catering facilities for shops, offices, agricultural and other commercial operations, as well as usage by guests of guest houses, small hotels and similar residential establishments.

• Install and operate the appliance as described in the text and illustrations. We do not accept liability for damage resulting from failure to heed these instructions.
  This appliance is intended for use up to an altitude of 2000 m above sea level.
  The appliance may only be installed and stored in a frost-free room (due to residual water).

Risk of electric shock!

Switch off the mains voltage supply immediately if a fault occurs (DH05101, DH06101, DH06111) or disconnect the mains plug (DH04101).

Immediately shut off the cold water supply to the appliance should it leak.

The continuous-flow heater may only be connected and put into operation by a qualified professional.
In order to avoid potential sources of danger, repairs and maintenance may only be undertaken by a suitably qualified specialist.
■ Never open the appliance without disconnecting the power supply beforehand.
The statutory regulations of the respective country, as well as those of the local electricity and water suppliers, must be adhered to.
IEC 600364-7-701 (DIN VDE 0100, part 701) must be observed when installing the appliance and/or electrical accessories.
The continuous-flow heater is a Class I appliance and must be connected to the protective earth.
The appliance must be permanently connected to installed pipes. The conductor cross-section must comply with the installed appliance power.
■ Caution: Earthed water pipes may give the appearance of a connected protective earth.

To guarantee compliance to relevant safety regulations, an all-pole separator must be fitted during installation. The contact opening must be at least 3 mm.
- Do not use plastic pipes. Steel or copper pipes are suitable for the cold-water supply. Insulated copper pipes are particularly suitable for the hot-water pipes.
■ Disconnect the electrical connection cable from the supply and shut off the water supply before connecting the appliance!
■ Connect the water supply and then connect the electrical supply.
- Do not touch electrically live parts after installation.
The appliance should be disconnected from the electrical mains supply when working on the water supply. After service work is complete, proceed as during the first-time appliance start-up.
No changes may be made to the appliance.
The appliance may only be used for heating drinking water for household use.

This appliance can be used by children aged 8 years and older as well as by persons with diminished bodily, sensory or mental perception, or those who lack knowledge or experience, if they are monitored or have received instruction concerning use and comprehend the possible dangers that can result. Children may not play with the appliance. Cleaning and maintenance by the user may not be performed by unsupervised children.

• Keep children away from the appliance.
  ■ Please monitor children to ensure that they do not play with the appliance.
  The mixer and the warm water pipe may be hot. Please inform and instruct children appropriately.
• Do not use aggressive or abrasive cleaning detergents!
• Do not use a steam cleaner.

Congratulations on purchasing this Siemens appliance. You have acquired a top-quality product, which will give you a lot of enjoyment.

Please read this installation and operating instruction manual carefully, then act accordingly! Store for future reference.

Product description

This instruction manual describes various appliance models.

Only for permanently connected appliances: The appliance complies with IEC 61000-3-12.

The hydraulically controlled flow-through water heater is suitable for either an open (depressurised) or closed (pressurised) connection.
The flow-through water heater continuously heats water while it flows through the appliance.
The appliance must not be operated with preheated water, otherwise the overtemperature protection will be triggered.
DH04101: This appliance is connected to the mains by a plug.
DH05101, DH06101, DH06111: These appliances are designed for permanent electrical connection.

Installation instructions

Install the continuous-flow heater as described in the illustrated section. Observe the instructions in the text.

The illustrations can be found in the centre of the instruction manual.

Installation

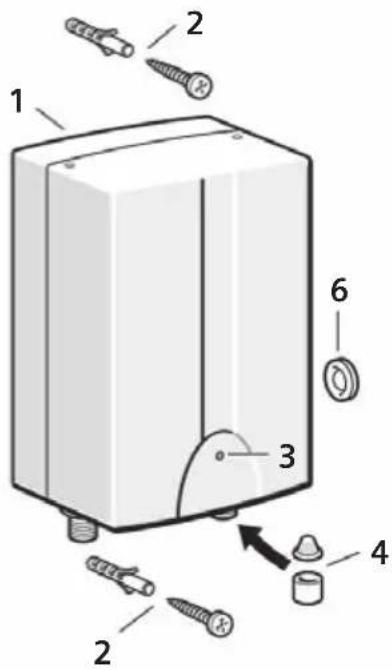

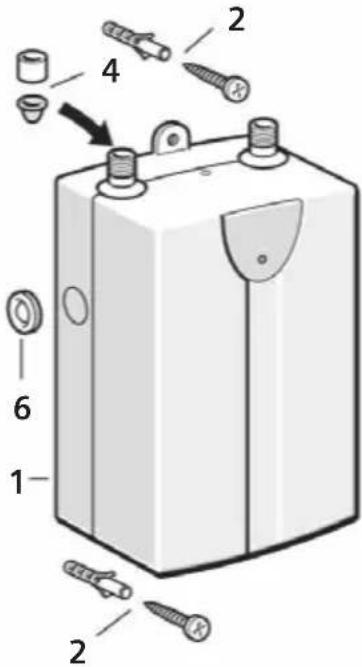

1. Unpacking/scope of supply

• Unpack the appliance and check for transport damage.
  ■ Dispose of the packaging and, where applicable, the old appliance, in an environmentally conscious manner.

1 Housing
2 Mounting (2 screws, 2 wall plugs)
3 ON indicator (only on the DH06111)
4 Filter and sleeve (inserted in inlet)
5 Jet regulator and seal
6 Only for appliances with a permanent electrical connection: Rubber grommet

Preparation for installation

Important: Only use the enclosed installation set.

• Shut off water supply. The electrical connection (connection cable) must be disconnected from the power supply. Unscrew the fuse or switch off the circuit breaker.
  There must be a clearance of approximately 60mm on all sides of the appliance for installation
• Observe the thechnical data for the appliance.

DH05101, DH06101, DH06111: Unscrew the screws on the housing cover and remove the lid.

II. Wall mounting

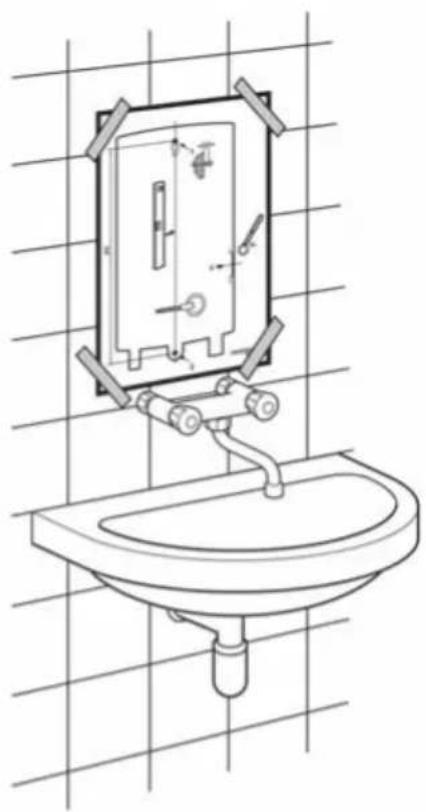

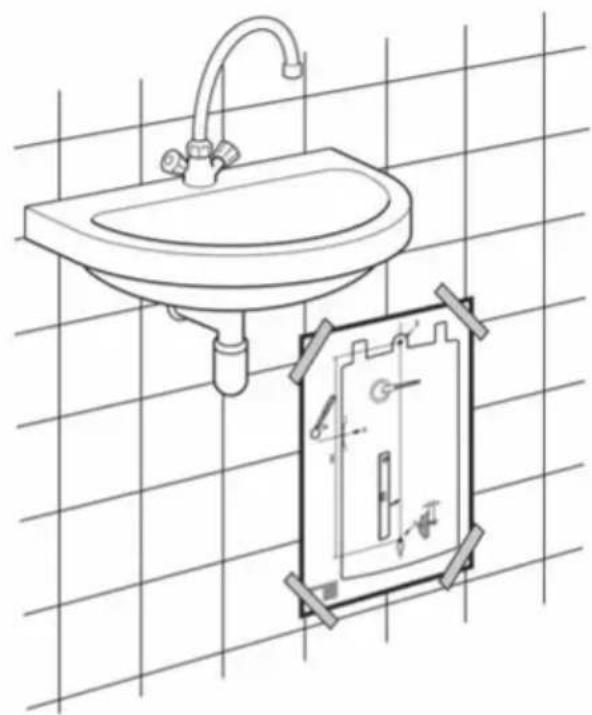

- Secure the appliance using the installation template, screws and wall plugs so that it is vertical and flush against the wall:

1. Locate the appliance on the screw and press down.
2. Screw in the second screw through the mounting tab and tighten.

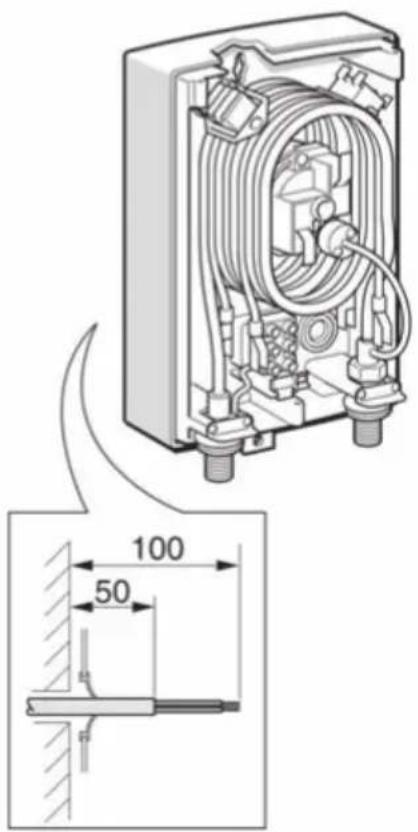

DH05101, DH06101, DH06111: For an exposed electrical connection, the different methods of routing the supply line found on the assembly template must be observed.

DH05101, DH06101, DH06111: The sleeve must fit tightly round the connection cable. If the sleeve is damaged during installation, the holes must be sealed water-tight.

Water connection

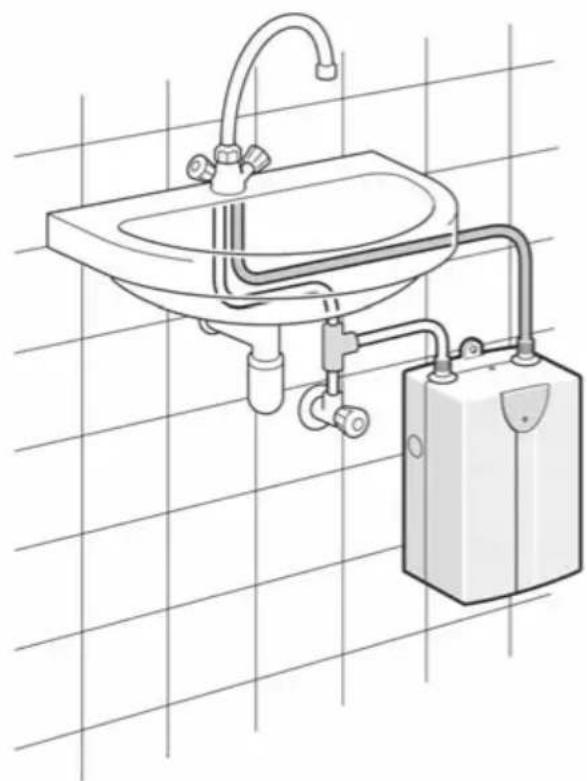

A Pressurised connection

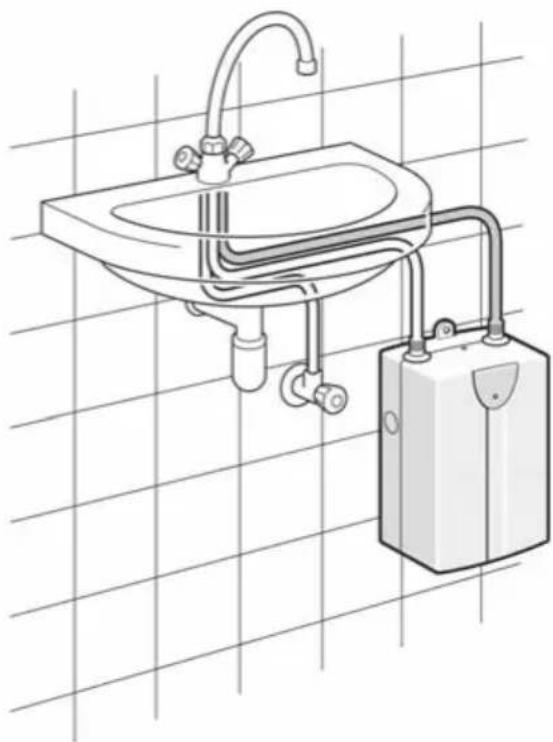

B Depressurised connection

■ Fit the jet regulator supplied.
- Check the inserted filter and sleeve in the water inlet.
- Ensure that the connection pipes are fitted to the adapter along the axis of the pipes.
- Tighten the union nuts firmly to the adapter with an open-jawed spanner.

The T-piece and flexible connecting hose (for pressurised connection) are available from a specialist store.

For a depressurised connection, a depressurised fitting must be used, e.g. fitting BZ13051 which can be obtained as a special accessory.

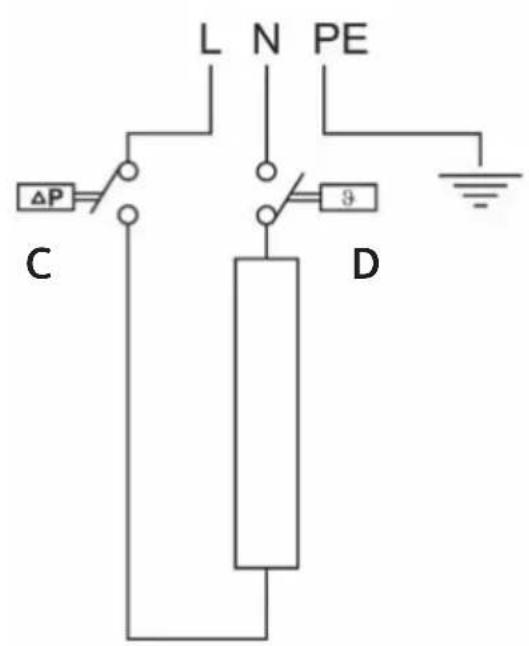

IV. Electrical connection

C Flow switch
D Temperature limiter

DH04101: Connect the appliance to the mains.

The installation of non plug-in ready appliances must be undertaken by the respective utility operator or by a qualified specialist company, who can also assist you when you are requesting the approval of the utility company for installation of the appliance.

The appliances must be connected with a NYM-J3x4 (mm ^2 ) mains lead. Leads with a larger cross-section must not be used.

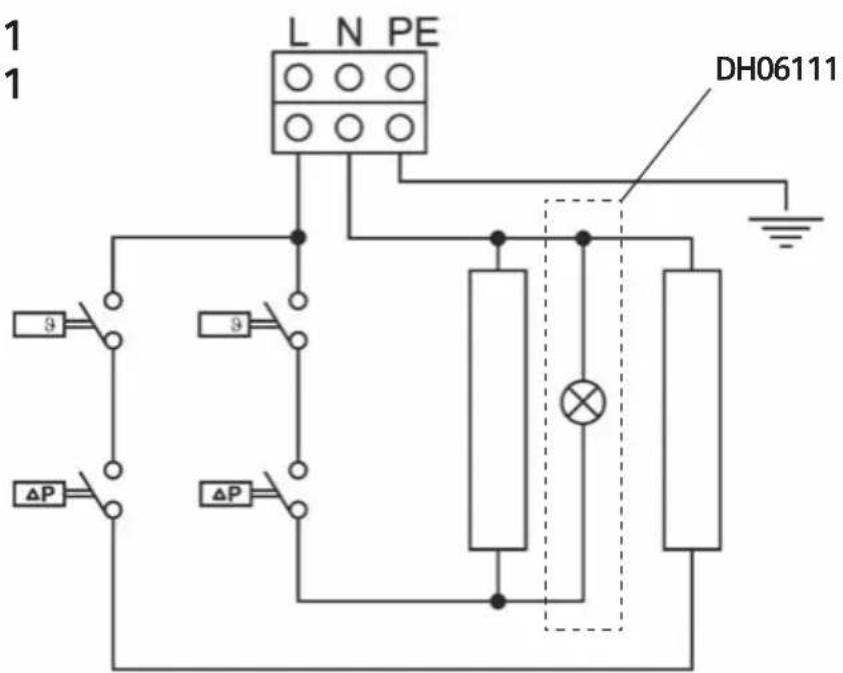

■ Connect the appliance in accordance with the connection diagram on the strip terminal.
■ Screw the housing cover back on.

■ After installation, give the user the operating instructions and explain how the appliance works.

Specifications

Type		DH04101 DH05101 DH06101 DH06111
Model	pressurised	(closed) – depressurised (open)
Weight	[kg] 1.4 1.8	1.8 1.8
Dimensions	[mm] 250x1	44x100
Operating mode		continuous
Mains connection		Mains plug P	permanent electrical connection
Nominal voltage	[V] 220–240
Nominal power (230 V)	[kW] 3.5 4.6	6.0 6.0
Class of protection in accordance with IEC 335-1		I	I	I	I
Class of protection in accordance with IEC 529		IP 24 (splash-proof)
Fuse protection	[A] 16 20 32	32
Frequency	[Hz] 50 50 50	50
Fittings connection	[Inch] 3/8 3/8	3/8 1/2
Minimum flow pressure	[MPa (bar)]	0.1 (1.0)
Maximum flow pressure	[MPa (bar)]	1.0 (10.0)
Water volume at switch-on approx.	[l/min]	1.3 1.8 2.3 2.3
Water volume at switch-off approx.	[l/min]	1.0 1.4 1.8 1.8
Typical warm water output at 37 °C	[l/min]	1.8 2.5 3.0 3.0
Energy efficiency class		A	A	A	A
Load profile		XXS	XXS	XXS	XXS
Annual energy consumption	[kWh]	480	481 481	481
Daily energy consumption	[kWh]	2.21	2.215	2.22	2.22
Sound power level	[dB] 15 15 15	15
Hot water heating energy efficiency	[%]	38.4	38.4	38.3	38.3

Operating instructions

Please read and observe the detailed safety instructions at the start of these instructions!

Important: The appliance may never be exposed to frost!

Risk of electric shock!

Switch off the mains voltage supply immediately if a fault occurs (DH05101, DH06101, DH06111) or disconnect the mains plug (DH04101).

Immediately shut off the cold water supply to the appliance should it leak.

Operating the appliance

Flow-through water heaters in this product series work automatically.

To switch on

Open the tap fully.

The flow-through water heater switches on and the ON indicator (DH06111 only) lights up. The water is heated as it flows through the appliance.

To switch off

- Close the tap, the appliance switches off.

To regulate the water temperature

• Open the tap fully, the appliance switches on.
  Now increase the temperature by reducing the water flow volume.

Winter operation

Note: It is possible in winter that the supply temperature of the water is reduced and the required outlet temperature is no longer achieved.

In order to compensate for this temperature reduction, please reduce the water quantity on the tap until the required water temperature is achieved.

Cleaning

■ Simply wipe the appliance with a damp cloth. Do not use acidic or abrasive cleaning materials.
- Clean dirt and lime deposits from the filter in the jet regulator.

Notes: It is normally not necessary to descale the appliance. However, extremely hard water and the frequent flows of very hot water can cause the appliance to scale up. In this case please contact our after-sales service.

Maintenance

In order to avoid potential sources of danger, repairs and maintenance may only be undertaken by a suitably qualified specialist.
The appliance must be disconnected from the power supply and the connection to the water supply must be shut off when any work is carried out.

If you call the after-sales service for assistance, please specify the E no. and FD no. of your appliance.

Disposal

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE).

The guideline determines the framework for the return and recycling of used appliances as appli cable throughout the EU.

Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.

Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.

Illustration of an open book with a curved arrow indicating rotation or change (no text or symbols)

DH06101

Line drawing of a sink and adjacent bathroom door panel on a grid background (no text or symbols)

Technical line drawing of a bathroom sink with faucet and wall-mounted door (no text or symbols)

A

Line drawing of a bathroom sink and water heater connected to a wall-mounted unit (no text or symbols)

B

Line drawing of a bathroom sink and water dispenser on tiled floor (no text or symbols)

DH05101

DH06101

DH06111

C

D

European Trade Center Building, 5th floor 1784 Sofia

Tel.:[phone]

Fax:[phone]

mailto:[e-mail]

www.siemens-home.bg

CH Schweiz, Suisse, Svizzera, Switzerland

BSH Hausgeräte AG

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com.hk

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com/hr

LU Luxembourg

www.siemens-home.com/lu

ME Crna Gora, Montenegro

Elektronika komerc

UI. Slobode 17

84000 Bijelo Polje

Tel./Fax: [phone]

Mobil: 069 324 812

mailto:[e-mail]

MK Macedonia, Makedonija

GORENEC

Jane Sandanski 69 lok. 3

1000 Skopje

Tel.:[phone]

Mobil: 070 697 463

mailto:[e-mail]

PH Philippines

Häfele Philippines, Incorporated

Levi Mariano Avenue, Brgy. Ususan,

Taguig City 1632

Metro Manila

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

PL Polska, Poland

2034/1-5 Ital Thai Building,

1st Floor, New Petchburi Road

Bangkapi, Huaykwang,

Bangkok,10310

Tel.: [phone]

Fax:[phone]

Service Call Center 02 351 8995

Spareparts 02 769 7975

www.siemens-home.com/th

TR Türkiye, Turkey

BSH Ev Aletleri Sanayi ve Ticaret A. S.

Fatih Sultan Mehmet Mahallesi

Balkan Caddesi No: 51

34771 Ümraniye, Istanbul

Tel.:[phone]

Fax:[phone]

mailto:[e-mail]

www.siemens-home.com/tr

BSH group is a Trademark Licensee of Siemens AG. Manufacturer's Service for Siemens Home Appliances.
