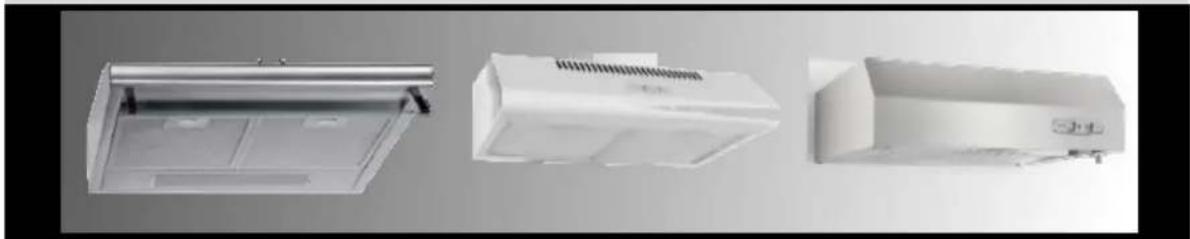

USER MANUAL UBH4060-2H PKM

Built-under Extractor Hood

UBH PKM 3001H Edelstahl

UBH PKM 3001H stainless steel

UBH PKM 4060-1H white/stainless steel

UBH PKM 4061H white

UBH PKM 4062H silver-grey

UBH PKM 5000H white/black/silver

UBH PKM 5001H white/black/silver

UBH PKM 5050H white/black/silver

UBH PKM 6002 H white/silver

Three white industrial air ducts with ventilation grilles, shown from different angles (no text or symbols visible)

Please read this manual before you activate the appliance for the first time. Please retain this manual in a safe place for future reference.

INHALTSVERZEICHNIS

Pure technical diagram of a mechanical or electrical component with internal channels and directional arrows, no text or symbols present.

Abb. ähnlich

Abluftbetrieb:

UBH PKM 4060/4061/4062

Technical line drawing of a rectangular electronic component with circular features and mounting holes, labeled A (no text or symbols on the diagram itself)

Technical line drawing of a rectangular device with circular components and an arrow indicating rotation (no text or symbols)

Technical line drawings of two electronic devices labeled A and C, showing internal components and wiring (no text or symbols present)

Technical line drawing of a device with internal components and a base plate, labeled B and D (no text or symbols present)

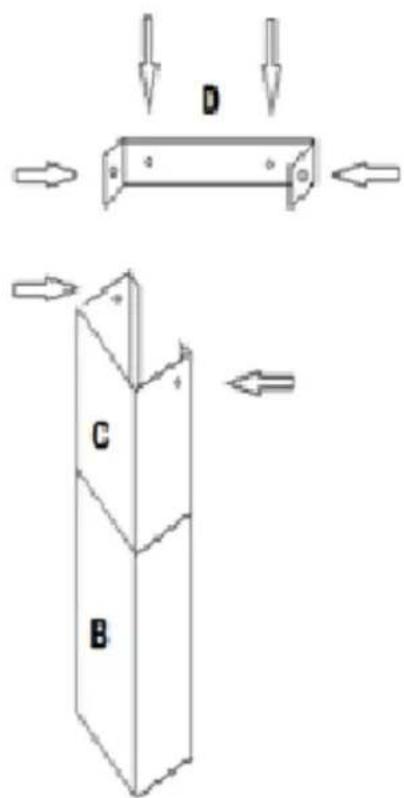

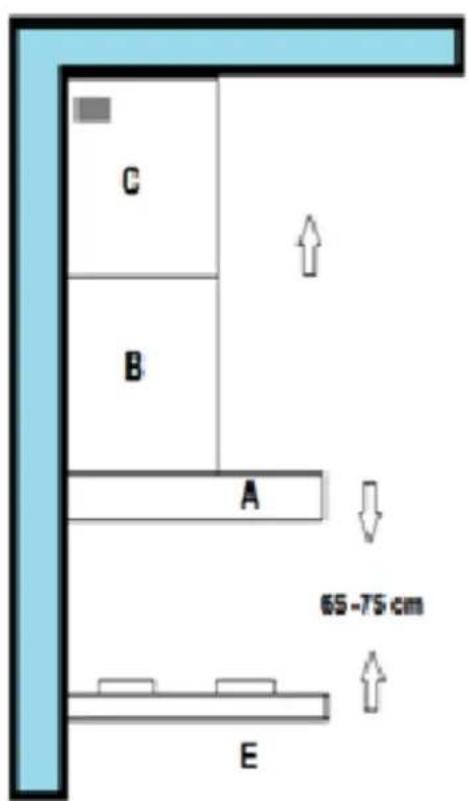

Technical diagram showing two mechanical components labeled B and C with directional arrows indicating force or movement.

Abb. 2

A	Haube
B	Basisschacht
C	Teleskopschacht
D	Montageleiste
E	Kochfeld

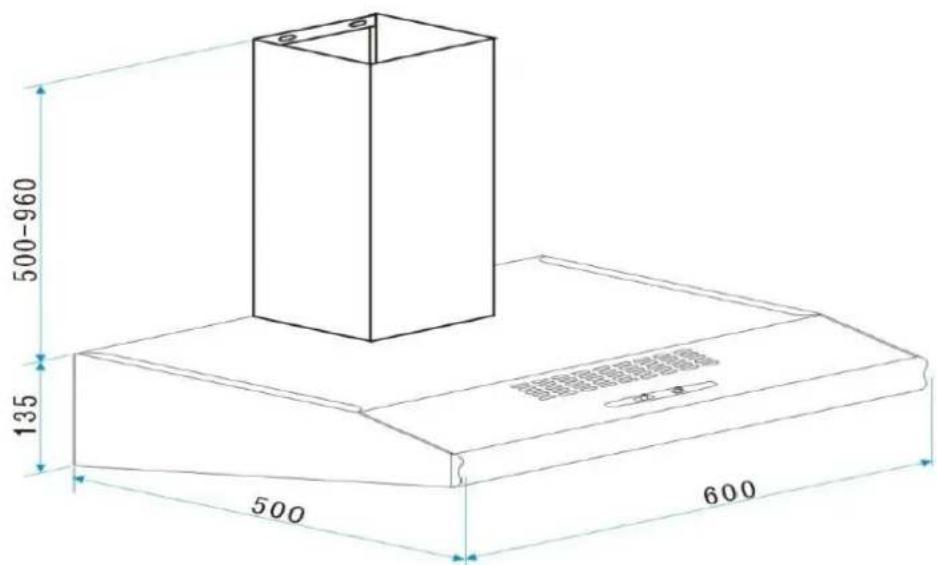

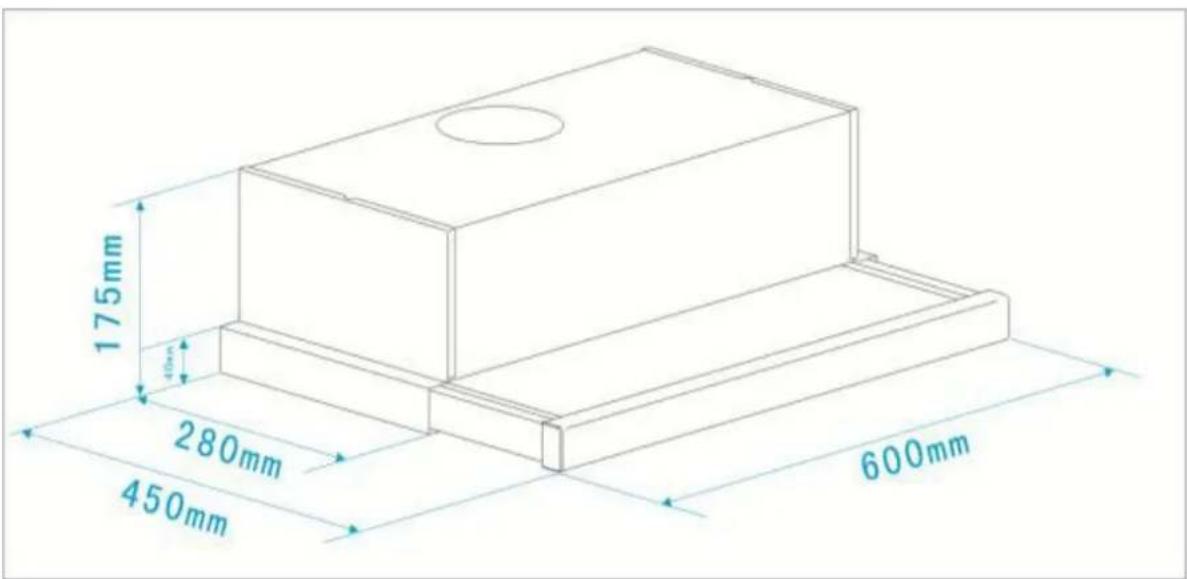

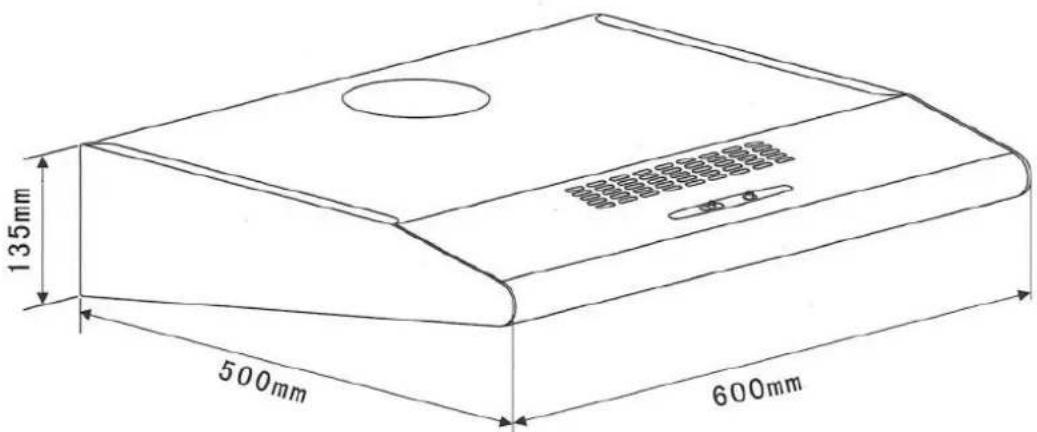

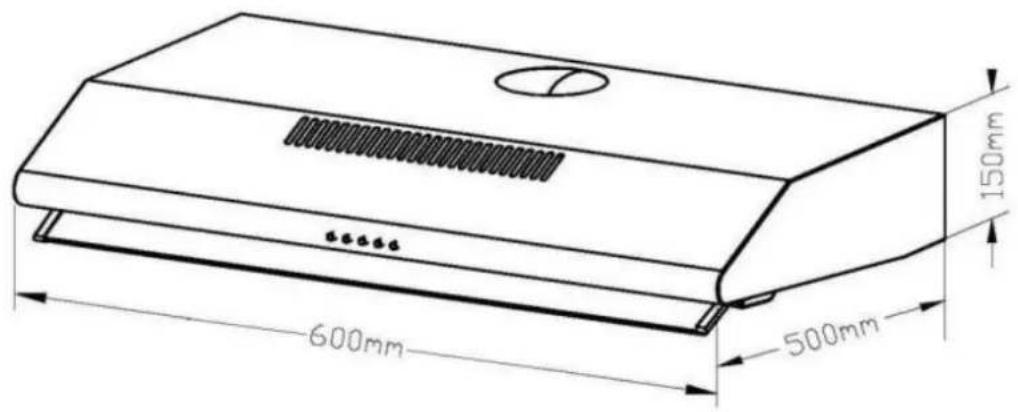

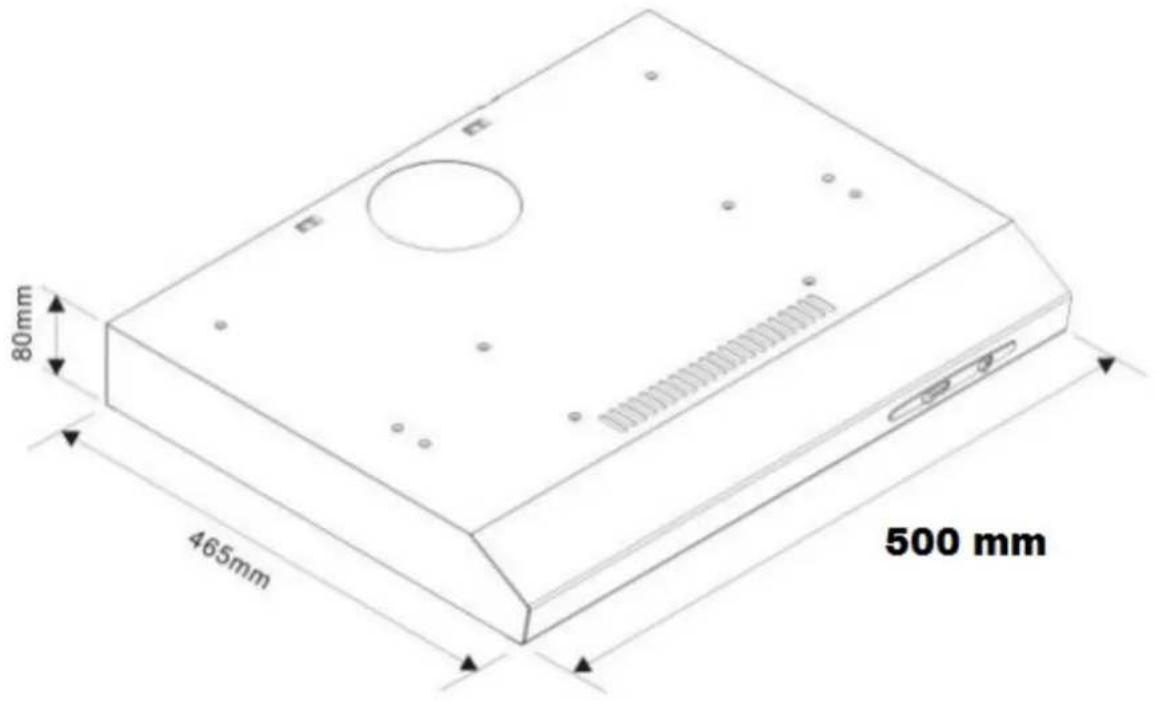

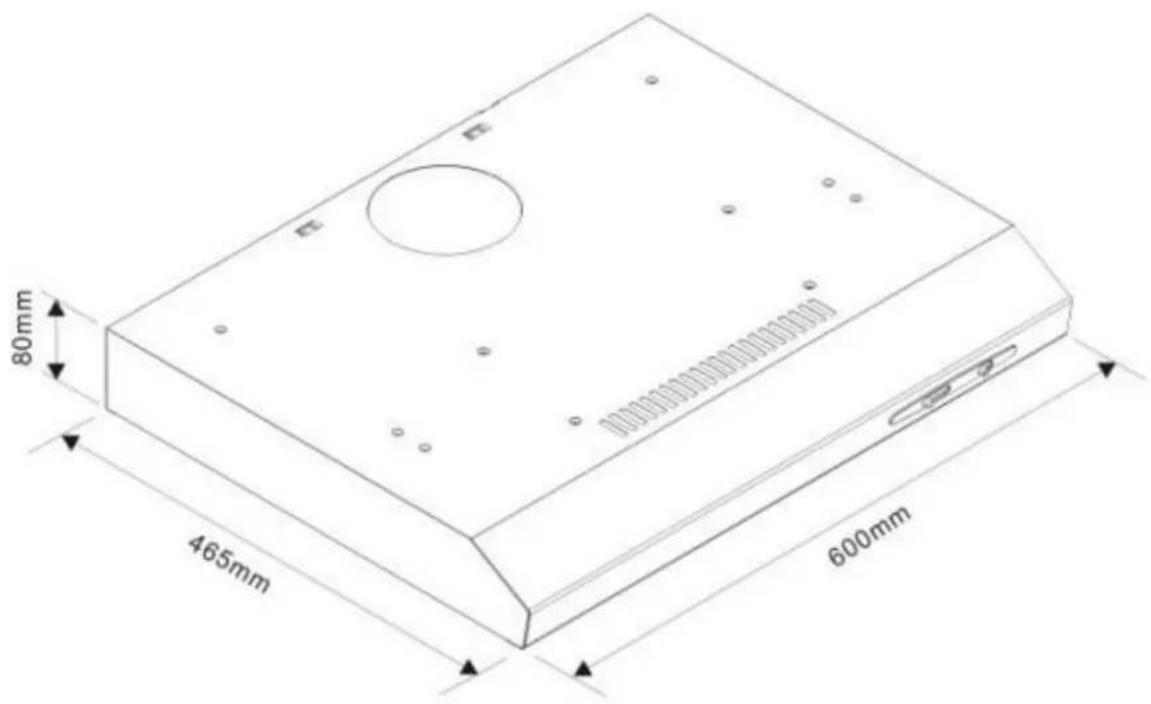

Einbaumaße

600mm 500mm 150mm

80mm 465mm 600mm

80mm 465mm 500 mm

175mm 450mm 280mm 450mm 600mm

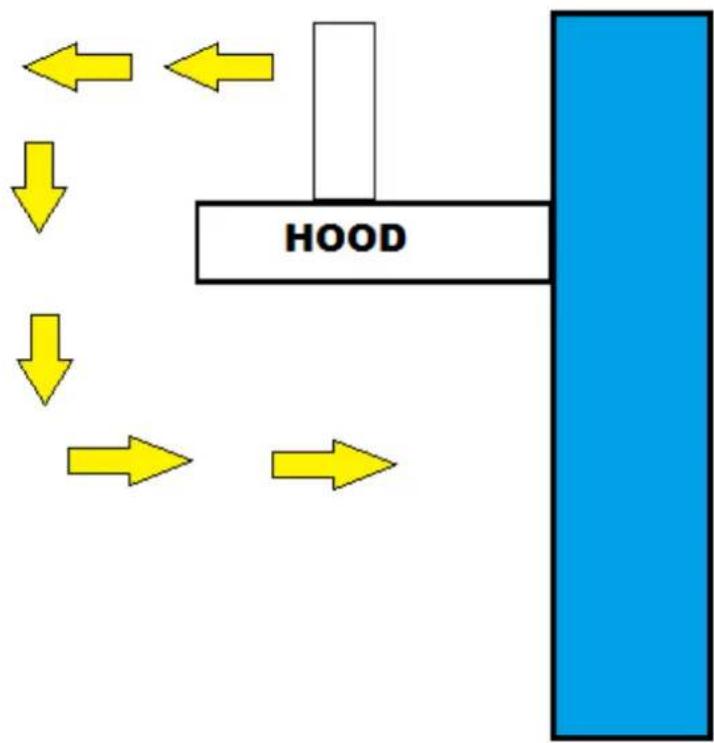

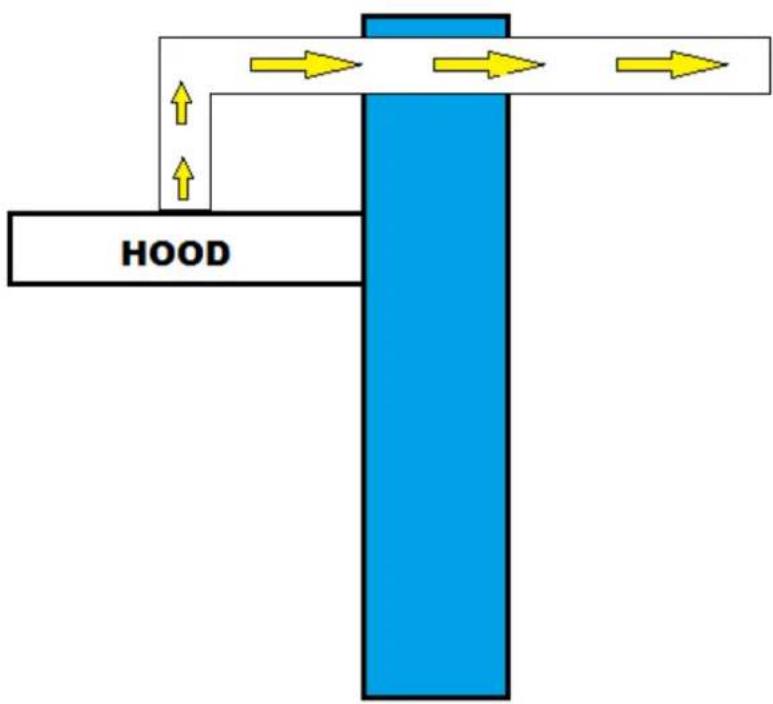

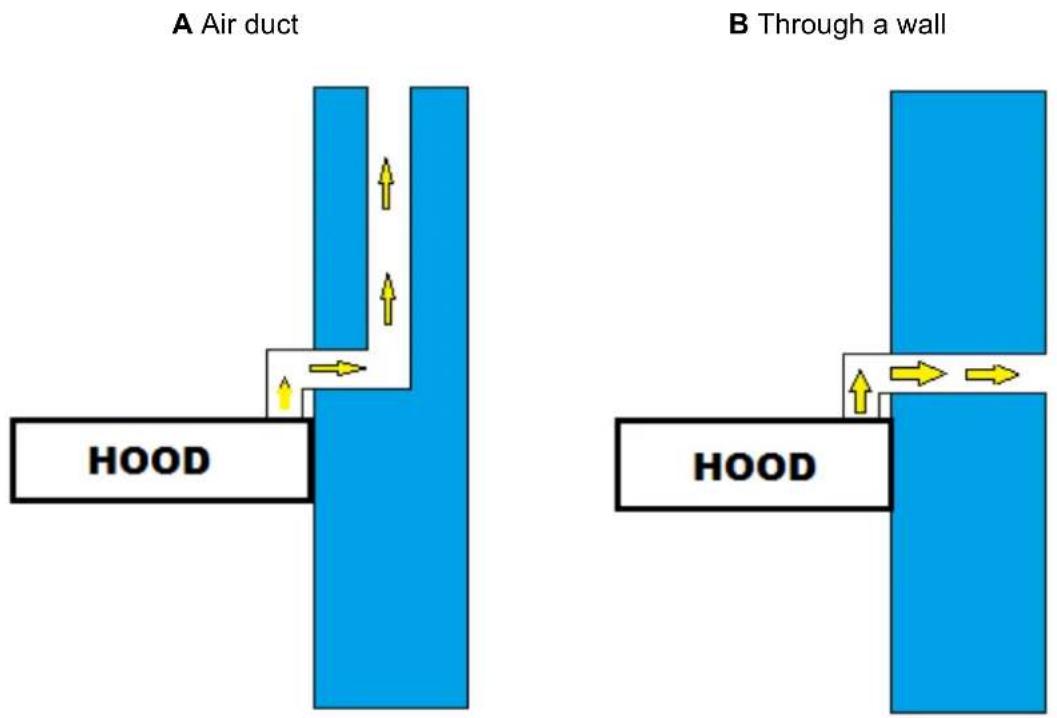

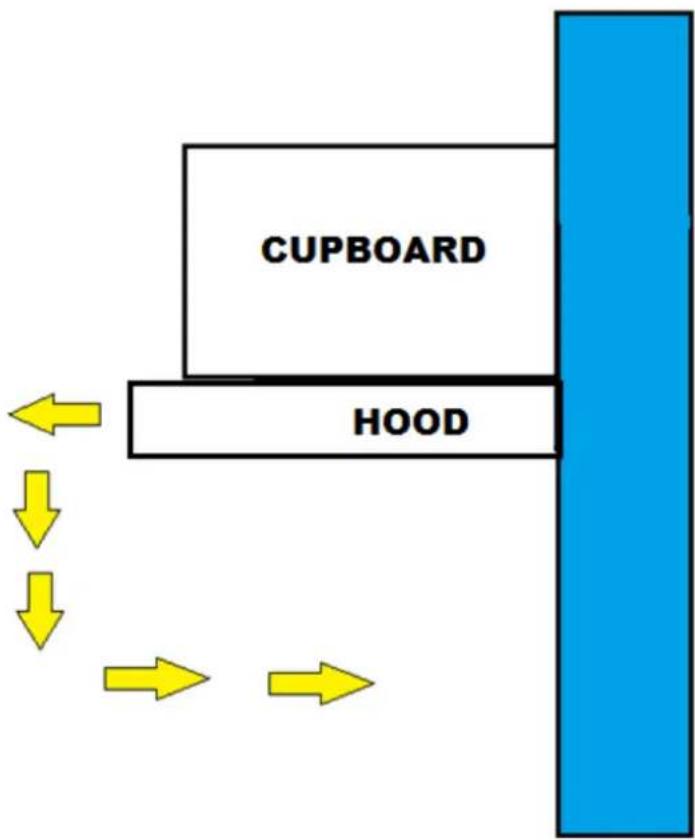

Luftstrom Abluft

HAUBE


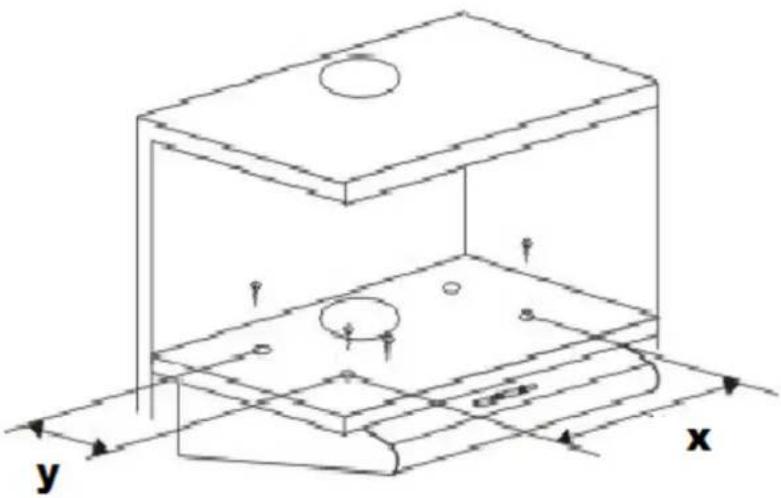

Montage der Haube

Isometric line drawing of a 3D mechanical assembly with labeled x and y axes (no text or symbols beyond axis labels)

Technical line drawing of a mechanical component with two circular parts, one mounted on a bracket and the other in view (no text or symbols)

Diagram of a rotating mechanical component with curved arrows indicating rotation direction (no text or symbols)


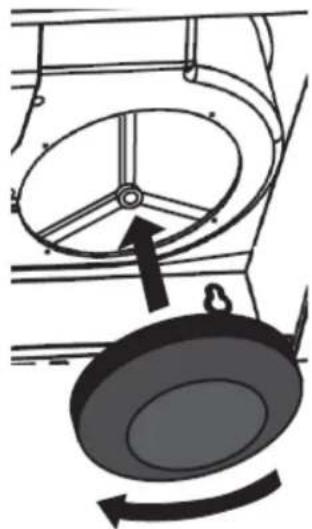

UBH PKM 4060H / 4061H / 4062H / 6002H

Diagram of a mechanical device with a rotating fan and rotating blade, showing no text or symbols.

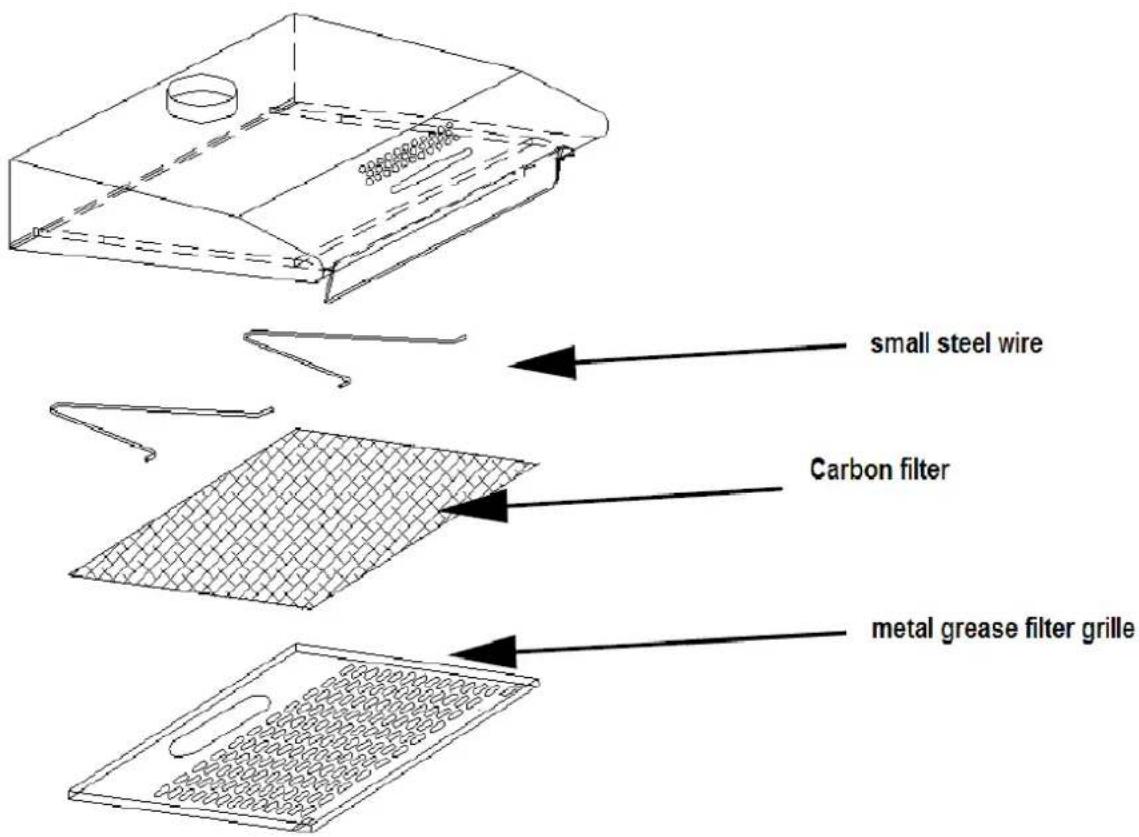

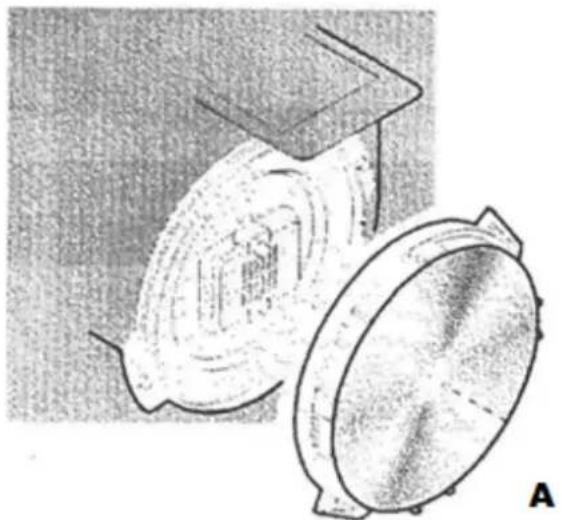

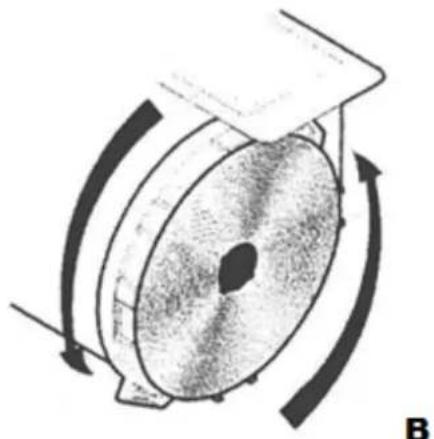

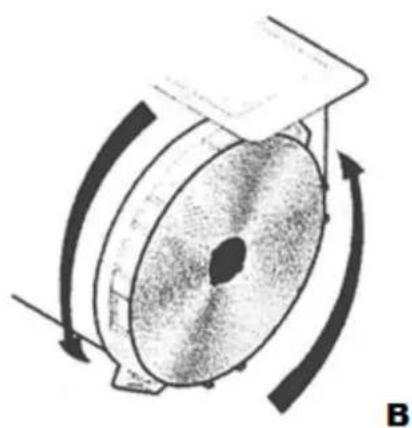

(Aktiv)Kohlefilter

Interior view of a large industrial machine with control panels and mounting fixtures (no visible text or symbols)

2

Hand holding a blackboard with two small buttons, next to a metallic kitchen appliance (no visible text or symbols)

4

Diagram showing a 3D cube placed on a flat base with two separate grid-patterned plates below (no text or symbols)

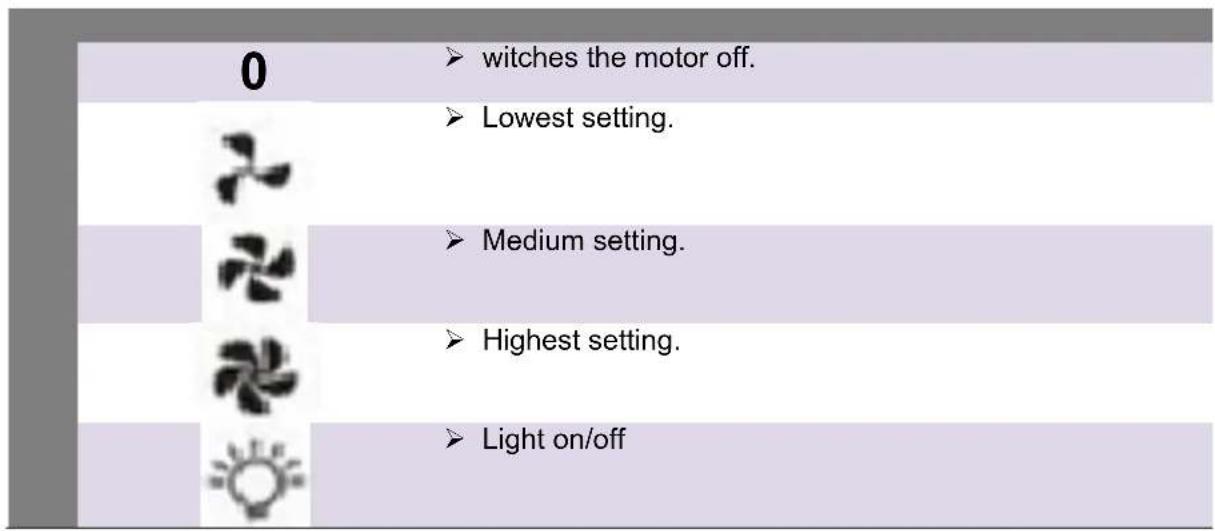

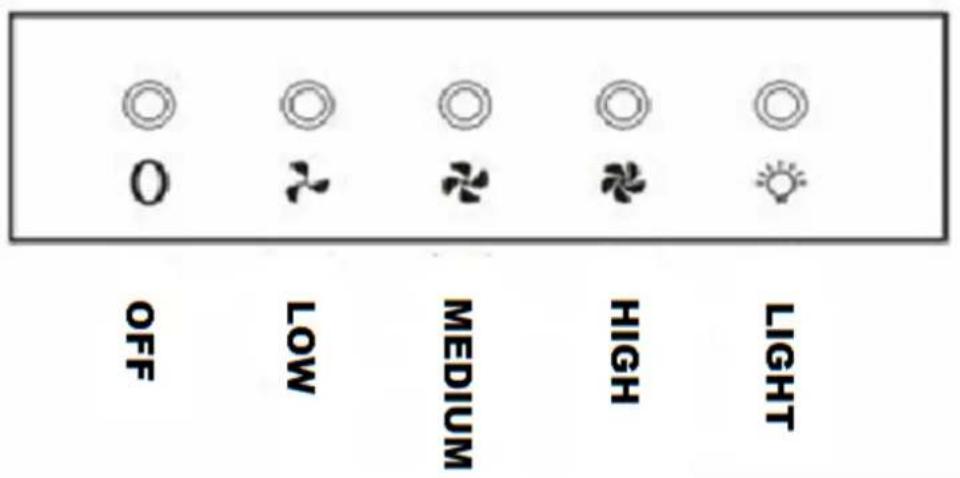

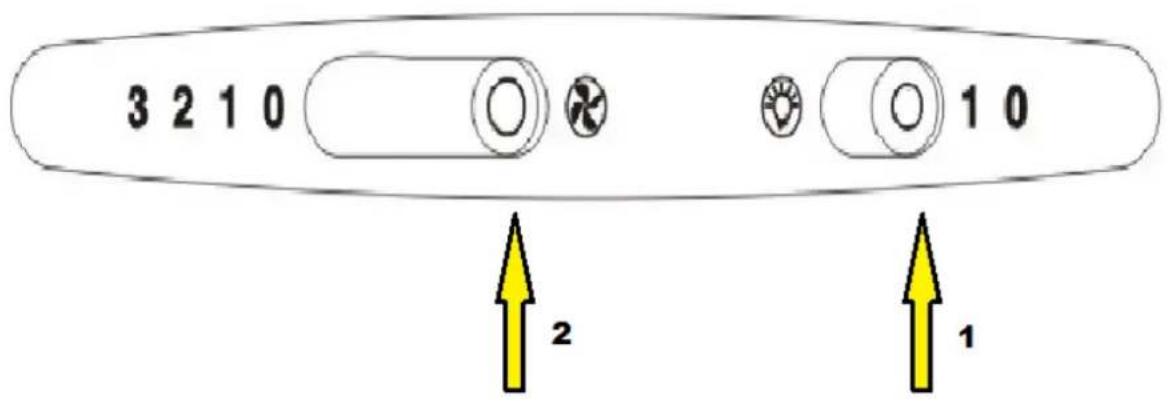

6. Bedientafel

UBH PKM 3001H Edelstahl / UBH PKM 4061H weiß / UBH PKM 4062H silbergrau

PE< = Polyethylen
PS<= Styropor
PP< = Polypropylen

CHAPTER	SUBJECT	PAGE
1	Preface / EU Conformity Declaration	45
2	Explanation of the warning notice	46
3	Basic advice	47
4	Safety instructions and warnings	48
5	Installation	51
6	Control panel	69
7	Cleaning and maintenance	71
8	Trouble shooting	74
9	Waste management	75
10	Technical data	77
11	Guarantee conditions	82

Technical modifications as well as misprints shall remain reserved.

Please read this manual carefully before you use or install the appliance.

Order consumable parts such as carbon filters at

(Tel. [phone], Fax 21950)

Phone number spare parts service

01805-242464

14 Cent / Min. using German land-line; mobile-phone charges may be different

E-mail spare parts service

[e-mail]

1. PREFACE

Dear customer

We would like to thank you for purchasing a Extractor Hood type 3000 - 6000. When you are familiar with this instruction manual operating the appliance will not cause you any problems.

Before your appliance was allowed to leave manufacturer's works, it was carefully checked according to its safety and operating standards.

If your appliance is visibly damaged do not connect it to the power supply. Contact the shop you purchased the appliance at.

Please, read this instruction manual carefully so you will be able to use all functions and options of your appliance at their best performance.

Please, adhere to the safety instructions so you will enjoy your appliance for a long period of time.

Please dispose of the packing with respect to your current local and municipal regulations.

Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.

Your UBH PKM-Team

EU - Conformity Declaration (extract)

(according to EN ISO/IEC 17050-1:2004) for the products:

UBH PKM Extractor Hoods

UBH PKM 3001H with halogen-light; UBH PKM 4060-1H with halogen-light; UBH PKM 4061H with halogen-light; UBH PKM 4062H with halogen-light; UBH PKM 5000H with halogen-light; UBH PKM 5001H with halogen-light; UBH PKM 5050H with halogen-light; UBH PKM 6002H with halogen-light

The product named above corresponds to the essential protection requirements which are determined by the council for the alignment of the different legislation of the member states according to electro-magnetic compatibility (2004 / 108 / EG and 2006 / 95 / EC).

2. EXPLANATION OF THE WARNING NOTICE

Strictly observe the below mentioned warning notice.

Please note the meaning of each warning notice.

DANGER!	DANGER indicates a hazardous situation which, if ignored, will result in death or serious injury.
WARNING!	WARNING indicates a hazardous situation which, if ignored, could result in death or serious injury.
CAUTION!	CAUTION indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.
NOTICE!	NOTICE indicates possible damage to the appliance.
	RISK OF FIRE indicates a possible risk of fire when you do not observe the corresponding information and/or warning.
	RISK OF ELECTRIC SHOCK indicates a possible risk of electric shock when you do not observe the corresponding information and/or warning.

This symbol indicates, that you are not allowed to dispose of the appliance with your domestic waste

3. BASIC ADCIVE

Dear client

Please read this manual carefully before using the appliance for the first time. You will avoid malfunctions by thoroughly following the advice.

Please store this instruction manual in a safe place so you can use it whenever it is needed.

The instructions and descriptions this manual contains are designed for various types of cooker hoods. So the manual may contain some descriptions of functions or accessories which are not part of your current appliance.

You should only run the appliance when you are familiar with the subject matter of this manual.
Only use this appliance in a private household.

Modifications of the appliance which do not influence its main functions shall remain reserved by the manufacturer.

Important addendum

Please pay attention to the following safety-advice before you connect or operate the appliance.

Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or may they be time-worn and do not match the efficiency of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional.
All connections and energy-leading components (also wires inside a wall) must be checked by an authorized professional.

WARNING!

Do not connect your appliance to the electric supply unless all packaging and transit protectors have been removed.

4. SAFETY INSTRUCTIONS AND WARNINGS

NOTICE!

Strictly observe the following safety instructions to avoid any damage to your appliance.

Transport and handling

1. The appliance must be transported by at least two persons.
2. The supply cord must not be caught behind the appliance while or after moving it.
3. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later time.

General safety instructions

DANGER!

Do not use the appliance unless you have read this instruction manual. The appliance is designed for private household use only.

Strictly observe the following instructions. Do not allow anybody, who is not familiar with this instruction manual, to use the appliance.

Energy supply

1. Remove the plug from the socket before you start to clean or maintain the appliance.
2. Always connect the appliance to a dedicated socket.
3. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
4. Do not use an extension cord. Please check, that the appliance does not hinder the power cord, when the installation is completed.
5. Do not carry out any modifications to your appliance.
6. If the power cord is damaged, it must be replaced by the manufacturer or its service

agent or a similar qualified person in order to avoid any kind of hazard.

1. Do not attempt to repair the appliance alone. Repairs carried out by unauthorized persons can cause serious damage. Always contact the nearest service centre and use original spare parts only.

Fire prevention

1. If gas is set free in your home:

▶ Open all windows.
Do not unplug the appliance and do not use the thermostat knob.
Do not touch the appliance until the gas has gone.
- Otherwise sparks can be generated which will ignite the gas.

1. Do not cook any a la flambé dishes below the extractor hood. The flames may destroy your appliance and/or cause fire.
2. Do not use the gas jets of a gas hob without cookware. The flames may destroy your appliance and/or cause fire.
3. If you fry, permanently keep an eye on the oil, as it can catch fire. The risk of auto-ignition rises after using the oil many times.
4. Do not perform any other activities using naked light or fire. The flames may destroy your appliance and/or cause fire.
5. The exhaust hose must not be made of flammable materials or contain any flammable materials.
6. Keep all components of the appliance away from fire and other sources of ignition before you dispose of the appliance.

CAUTION!

Accessible parts may become hot when used with cooking appliances.

Measures for safe use

1. The extracted air must not be conducted by an exhaust pipe of a heater or similar, not electrically-operated appliances.
2. Run the appliance with inserted grease filters only. Otherwise recirculating-transported fat will deposit in the appliance and the exhaust system.
3. Constant cleaning and maintenance grants perfect function and best performance of your appliance.
4. Whenever you use extractor hoods in combination with non electrically-operated appliances (gas and oil-fired appliances), the negative pressure of the corresponding room must not be more than 4 Pa (4 * 10bar). In this particular case we recommend you install a window control switch or an air pressure control device.
5. The relevant room must be well-ventilated.
6. Clean the appliance regularly.
7. Clean or replace the grease filters regularly.

Special measures extraction mode

1. The extracted air is conducted by an exhaust hose. You need an exhaust duct or an exhaust pipe, which conduct the extracted air outside your home.
2. Whenever the hood is run in company with chimney-conducted firing (e.g. coal furnace), ensure there is sufficient air supply to the room where the appliance is installed.
3. Regulations concerning the discharge of air have to be fulfilled.
4. If there is not a stationary exhaust pipe or an exhaust duct, you must convert your appliance to recirculating mode.

Always consult your local chimney-sweep master.

Special measures recirculating mode

1. The extracted air runs through a carbon filter (also named active carbon filter) back into the room. The carbon filter extracts the odours produced by cooking.
2. The fresh air is leaded back by air outlets on the sides or on the back of the appliance.
3. When you run the appliance in the recirculating mode, you can simultaneously run room-air dependent fireplaces.

Final safety instructions

1. This appliance is designed for the use by adults only. Children must neither play around nor play with the appliance.
2. Do not use the appliance for camping.
3. Do not use the appliance in public transport.
4. The appliance is designed for indoor use only.

WARNING!

Strictly observe the following safety instructions if you decommission and dispose of your old appliance.

1. Remove the plug out of the socket.
2. Cut off the power cord directly at the appliance.
   This appliance is not intended to be run by persons (including children) with reduced physical, sensory and mental capabilities or lack of experience or knowledge, unless they are supervised or instructed concerning the use of the appliance by a person

who is responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

5. INSTALLATION

Unpacking and positioning

WARNING!

While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children.

1. Unpack the appliance carefully. Dispose of the packaging as described in the chapter waste management.
2. Completely remove the transport-protection. Be very careful and do not use any aggressive or abrasive detergents to remove residuals of the transport-protection.
3. Check before installation if the power cord or the appliance itself are not damaged.
4. The appliance must be connected to the mains with a properly grounded socket only.
5. Do not install the appliance in an area where it may come in contact with water or rain in order that the insulation of the electrical components would not be damaged.
6. The appliance is designed for indoor use only.
7. The appliance must be correctly connected to the mains.

General information

Strictly observe the minimum distance between hood and hob.

Minimum distance hood to

Glass-ceramic and cooking ring	65 cm
Gas jet	70 cm
Coal / oil / stove wood firing	85 cm

1. Strictly observe the consecutive numbering of the installation steps and the additional instructions.

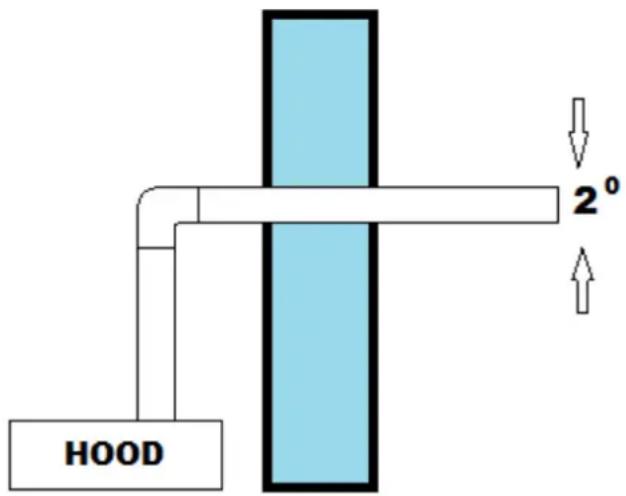

2. Models which lead the exhaust outwards: the exhaust is conducted by an exhaust hose which is connected with a connecting ring.

3. The diameter of the exhaust hose has to meet the diameter of the connecting ring.

4. When a one-way valve is used, check after installation of the hose if the valve works properly.
5. Depending on the model the hood is equipped with one (top) or two (top, back) outlets.
6. The extractor hood is normally preset for the use of the top outlet as well as for extraction mode.
7. The idle outlet is covered by a plastic cap. You can remove this cap by turning it anticlockwise. Use the cap to cover the idle outlet.
8. If your appliance is equipped with a carbon filter, remove the carbon filter before you run the appliance in the extraction mode. The carbon filter should be used in the recirculating mode only.

NOTICE!

There is further information about suitable filters in the data sheets.

Setting of operation mode extractor mode-recirculation mode

WARNING!

Disconnect the appliance from the mains before you set or change the operation mode.

If the hood is installed without an exhaust duct it must run in recirculation mode only.
The air outlets on the upper front side must be open; otherwise the capacity of the hood is reduced.
The appliance is preset for recirculation mode.

Complaints caused by faulty-set operation mode cannot be accepted.

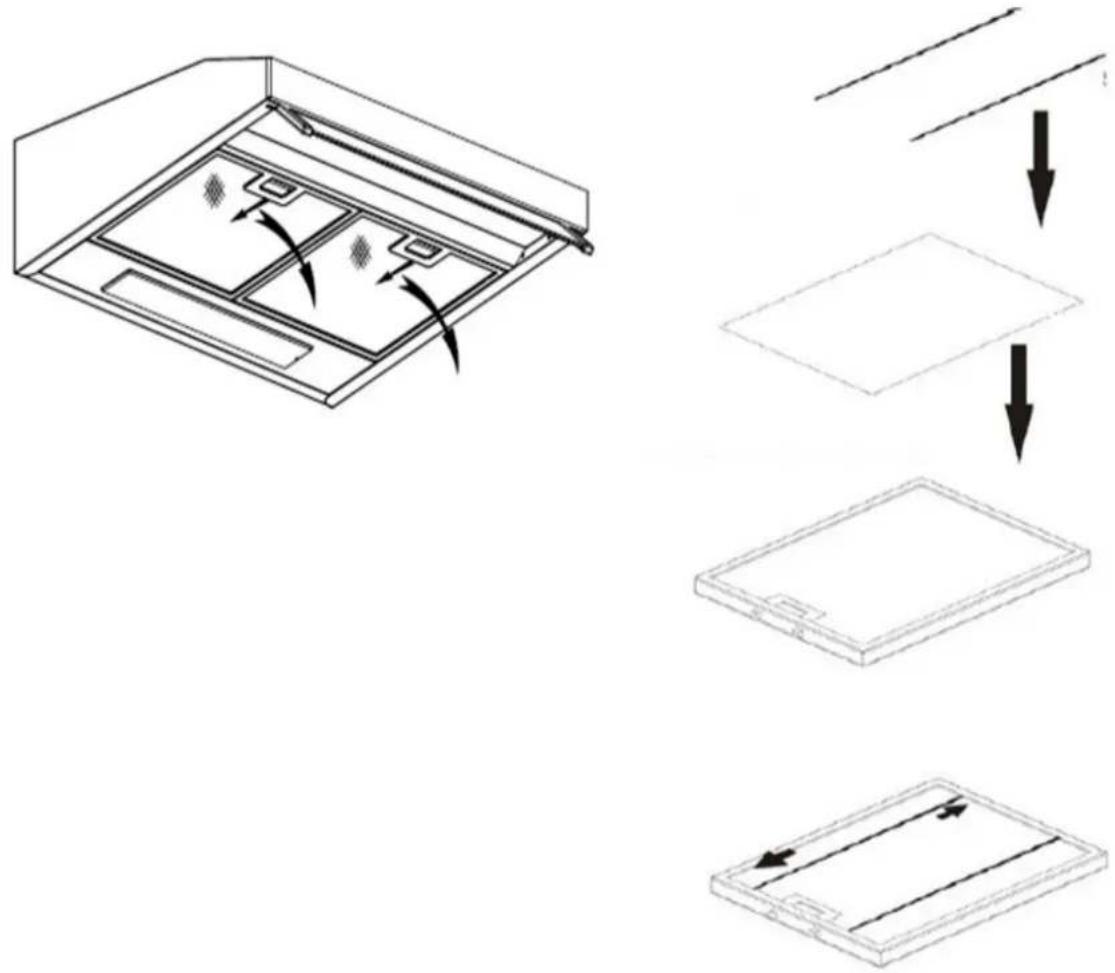

UBH PKM 3001 UBH PKM 5000/5001/5050

You can choose extractor mode as well as recirculation mode. You can choose one of these modes at the same time only.

Extractor mode:

After removing the small plastic plate / cover ^5 you (optionally) can install the adapter. Insert the exhaust hose into the adapter.

There is a small plastic plate inside the hood on the front left side of the plastic housing to change the operating mode ( pull slightly and insert into the next opening ).Before you remove the aluminium filter to set the desired model disconnect the appliance from the mains.

The appliance is preset for recirculation mode (the opening on the front top side is open). If you want to run the appliance in extractor mode, you have to change the mode with the small plastic plate.

Extractor mode: the opening on the front top side must be closed.

Recirculation mode: the opening on the front top side is angular opened so the extracted air can escape.

Recirculation mode: the round plastic cover should cover the air outlet on the top of the appliance (for UBH PKM 5000 it is firmly mounted).

Recirculation mode: filtering by activated carbon filters is not arranged. It is possible to put a filter mat between grease filter and motor

Operating without filter mat does not cause damage to the motor and electric components.

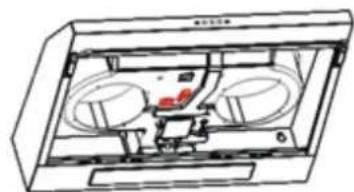

UBH PKM 4060/4061/4062

You can choose extractor mode as well as recirculation mode. You can choose one of these modes at the same time only.

Technical line drawing of a rectangular electronic component with circular features and mounting holes, labeled A (no text or symbols on the diagram itself)

Technical line drawing of a rectangular device with circular components and directional arrows, labeled B (no text or symbols on the diagram itself)

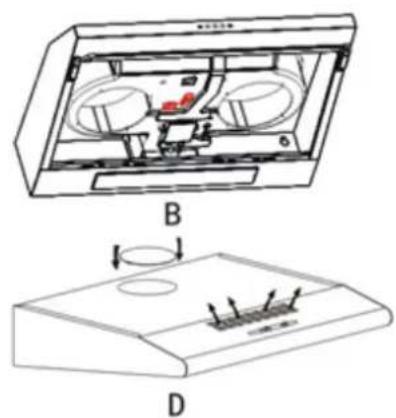

Extraction through openings A or B; remove the corresponding cover.

Technical line drawing of a mechanical device with two circular components and a central handle (no text or symbols)

Technical line drawing of a mechanical device with two circular components and internal wiring (no text or symbols)

A

Technical line drawing of a rectangular electronic device with a circular component and mounting holes (no text or symbols)

C

Technical line drawing of a mechanical component with mounting holes and a circular feature (no text or symbols)

D
fig. shows model UBH PKM 4060-2

Extraction mode: set controller in the centre to outdoor position.
➢ Recirculation mode: set controller in the centre to indoor position.

You can run the extractor hood with a carbon filter which prevents unwanted cooking smells.

It is not imperative to use a carbon filter.

Replace the filter, when it does not clean the air any longer ( approx. 3-6 months ).This depends on how often you use the hood.

Replace the carbon filter by removing the grease filter; then place the carbon filter on the socket (centre of the motor) by turning it clockwise.

The activated carbon filter has a central socket.

General instructions air duct

1. The air duct should be as short and straight as possible.
2. Extractor mode: installation with ventilation stack or air duct outwards only, wall penetration = 120 mm diameter, drilling about 130 mm diameter.
3. The diameter of the exhaust hose should be at least 120 mm. Otherwise you have to expect increased noise and decreased capacity of your appliance.
4. Ensure that the diameter is met if you need bends. Otherwise the capacity of your appliance will be decreased.
5. Use smooth tubes or flexible, non-inflammable exhaust hoses only.
6. If the air duct is connected horizontally, a minimum falling gradient of 1 cm/m or an inclination of 2^0 is required. Otherwise condensate will get into the motor of the hood (look at figure 1).
7. When an exhaust duct is used the ending of the exhaust hose must be adjusted to the direction of flow.
8. If the air duct passes through cool areas (e.g. an attic), a temperature gradient may occur in the different parts of the air duct so condensate will be generated. Proper insulation of the corresponding parts of the air duct will then be needed.
9. Equip such an air duct with a condensate trap if need be.

HOOD 2°

fig. 1

NOTICE!

The manufacturer is not liable for any damage or malfunction which may occur in consequence of disregarding the instructions and information in this manual.

Extractor hoods components

C B A 65-75 cm E

Technical diagram showing two mechanical components labeled B and C with directional arrows indicating force or movement.

fig. 2

A hood
B Base chimney
C Telescopic chimney
D Mounting rail
E Hob

All instructions concerning air conduction are not value for the use of the recirculation mode.

Fitting dimensions

UBH PKM 3001H with chimney

500-960 135 500 600

UBH PKM 3001H built-under

135mm 500mm 600mm

UBH PKM 4060-1H white; UBH PKM 4060-1H stainless steel

UBH PKM 4061H white

UBH PKM 4062H silver-grey

600mm 500mm 150mm

UBH PKM 5000H white, black, silver

UBH PKM 5001H white, black, silver

80mm 465mm 600mm

UBH PKM 5050H white, black, silver

80mm 465mm 500 mm

UBH PKM 6002 H silver/white

175mm 40mm 280mm 450mm 600mm

Airflow extractor mode

HOOD

Airflow recirculation mode via chimney

Airflow recirculation mode built-under

Installation of the hood

1. Strictly observe the minimum distance between hood and hob.
2. Clean the surrounding of the installation area before you install the appliance so the appliance will not extract any dust or construction waste.
3. The exhaust hose must not run in the same air duct as gas tubes, hot air tubes et cetera.
4. Lead away the exhaust hose from the hood as straight as possible.
5. The proper maximum bending angle outwards is 120^ .
6. Check with a level if the appliance is horizontally positioned while installing and after having installed it.

NOTICE!

Use carbon filters in recirculation mode only.

Installation of the hood

You do not need the instructions for fixing the chimney when you install the hood as a built-under.

1. Position the suspension device on the wall. Choose a proper position which meets the dimensions of the chimney.
2. Mark the position of the holes with a pencil.
3. Now drill the holes and fix the suspension device with the screws and dowels/plugs.
4. Suspend the hood. (fig. 2)
5. Now connect the exhaust hose to the corresponding outlet of the hood.
6. Install the exhaust hose to the corresponding outlet
7. Now fix the chimney back brace onto the chimney.
8. Now fix the complete chimney onto the hood.
9. Fix the chimney mounting rail into the desired position on the wall with the screws and dowels.
10. Pull the telescopic part to the mounting rail and fix it on the rail.
11. Put in the plug and insert the grease filters.

Installation of the hood / built-under

1. For the use of the hood as a built-under fix it under a cupboard.

2. Mark the corresponding drilling points on the bottom of the cupboard.

3. Check the proper dimensions of x and y.

4. Check if the dimensions meet the proper position of the appliance before you start drilling.

5. Drill the holes and fix the appliance.

Isometric technical diagram of a mechanical assembly with labeled x and y axes (no text or symbols beyond axis labels)

Electrical connection

An electrical supply of 220-240V AC / 50 Hz is required. Only use a suitable and properly grounded socket near the appliance.

For your personal safety, the appliance must be grounded. The appliance is equipped with a 3-phase grounding plug. Use a suitable socket to minimize the risk of an electric shock.

Before you switch your appliance on, check if the voltage of your energy supplier meets the values on the model plate.

Do not connect the appliance to the mains if the values of the model plate do not meet the values of your energy supplier.

If the appliance is not equipped with a plug, you must install a 2-pole plug which meets all legal requirements with a contact opening of at least 3 mm. The installation must be performed by an authorized professional.

WARNING!

Do not use a socket board or a multi socket when using 220 V – 240 V/50 Hz alternate current (AC). All electrical connections which may be damaged must be repaired by a qualified professional.

All repairs should be performed by your authorized after sales service.

Carbon filter

DANGER!

Before you install any carbon filters: switch the appliance off and disconnect it from the mains.

1. Remove the grease filters.
2. Insert the carbon filters on both sides of the motor (A) and fix them (B).
3. Replace the grease filters.

Technical line drawing of a mechanical component with two circular parts, one mounted on top and the other on a flat surface (no text or symbols)

Diagram of a rotating mechanical component with curved arrows indicating rotational motion (no text or symbols)

Appliances with carbon filter type CF 120

The carbon filter type CF 120 is rectangular. Please insert the carbon filter into the relevant slot on both sides of the motor.
The black-coloured part of the filter should point downwards after installation.

UBH PKM 5000 H

1. Remove the grease filters.
2. Place the carbon filter foam onto the grease filter.
3. Fix the carbon filter with the small steel wire. Fix the carbon filter properly adjusted and unremovable.
4. Replace the grease filters.

small steel wire Carbon filter metal grease filter grille

UBH PKM 3001 H

1. Remove the grease filters.
2. Place the carbon filter foam onto the grease filter.
3. Fix the carbon filter with the small steel wire. Fix the carbon filter properly adjusted and unremovable.
4. Replace the grease filters.

UBH PKM 4060H / 4061H / 4062H / 6002H

1. Remove the grease filters.
2. Press the carbon filter against the relevant part of the motor: the fixing point is in the centre of the carbon filter
3. Turn the carbon filter clockwise until it clicks into place.
4. Replace the grease filters.

Diagram of a mechanical device with a rotating fan and rotating base, showing no text or symbols.

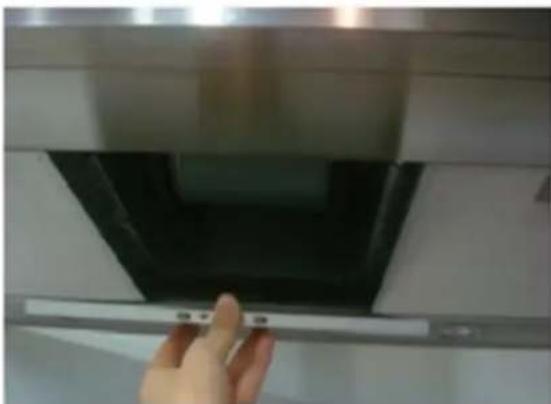

(Activated)Carbon filters

Order consumable parts such as carbon filters at

(Tel. [phone], Fax 21950)

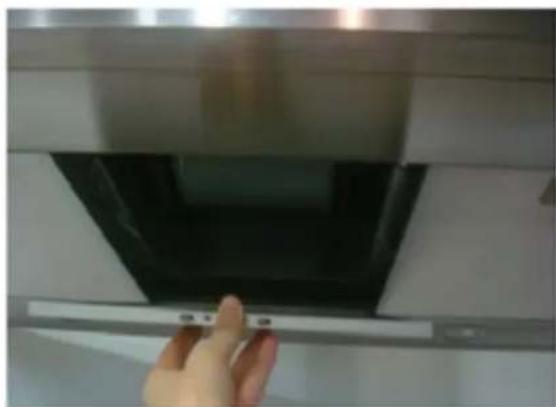

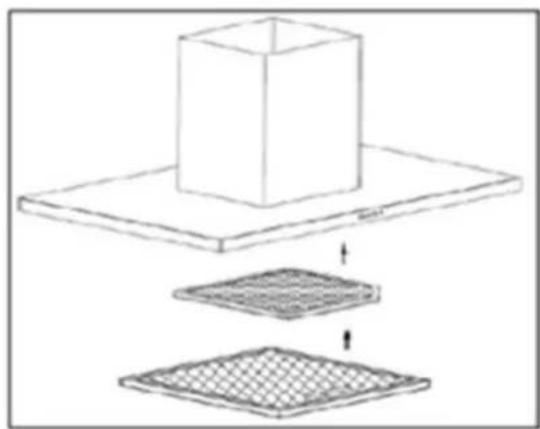

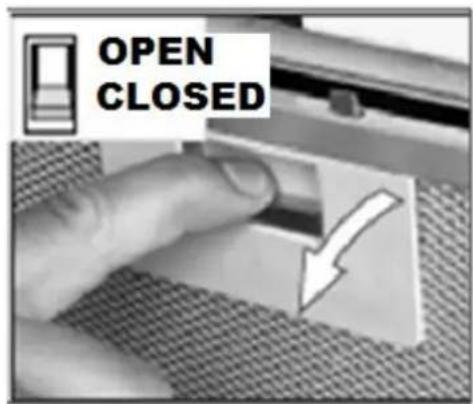

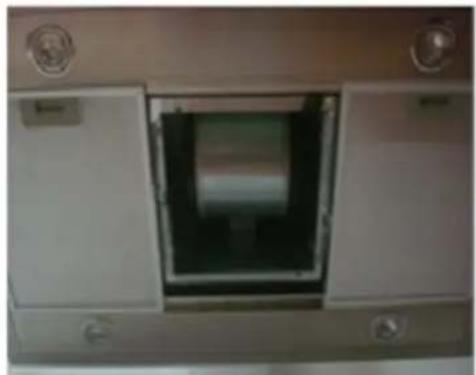

Changing the filters Models with acrylic filters

1

OPEN CLOSED

3

Interior view of a large industrial machine or enclosure with control panels and mounting holes (no visible text or symbols)

2

Hand holding a blackboard with a metallic tray, mounted on a silver shelf (no visible text or symbols)

4

Diagram showing a 3D cube placed on a flat base with two separate grid-patterned plates below (no text or symbols)

6. CONTROL PANEL

UBH PKM 3001H stainless steel / UBH PKM 4061H white / UBH PKM 4062H silver-grey

UBH PKM 5000H white, black, silver / UBH PKM 5050H white, black, silver /

UBH PKM 6002 H white, silver

3 2 1 0 2 1

1 Light on/off
2 Power setting of hood

The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.

Use of the control panel

1 ➤ Switches the light on/off

2 ➢ Adjust the slide control to levels 1 - 3 as needed. When you set back the control to 0, the motor is switched off.

UBH PKM 4060-1H white / UBH PKM 4060-1H stainless steel UBH PKM 5001H white, black, silver

OFF LOW MEDIUM HIGH LIGHT

Use of the control panel

0 witches the motor off. Lowest setting. Medium setting. Highest setting. Light on/off

The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.

7. CLEANING AND MAINTENANCE

WARNING!

Disconnect the appliance from the mains before you clean or maintain it.

Cleaning appliance

1. Never use any alcohol-containing detergents for cleaning coloured appliances for these detergents cause changes of the colour.
2. Clean or replace the grease filters regularly. Fat-saturated filters will easily catch fire and cause unpleasant odours.
3. Contaminated grease filters increase the capacity of the appliance.
4. Clean the surfaces with warm water and a mild, non-acrid detergent.
5. When you clean or replace the grease filters or the carbon filters also clean all visible components on the bottom side of the appliance with a mild, non-acrid and fat-solving detergent.
6. The motor and electric components of the appliance must not come in contact with water.
7. Do not clean the control panel with a wet cloth. Use a damp cloth; otherwise water will get into the panel and damage the electric components.
8. Do not use a steam cleaner.
9. Do not use any abrasive detergents.

Cleaning Appliances with stainless steel housing

1. Use a non-abrasive detergent for stainless steel available at your supermarket.
2. Use a maintenance product for stainless steel. Use such a product carefully and economically.
3. Do not clean the control panel with a detergent for stainless steel. Use a damp cloth.
4. When you clean or replace the grease filters or the carbon filters also clean all visible components on the bottom side of the appliance with a mild, non-acrid and fat-solving detergent.
5. Do not damage the grid of metal-made grease filters. The colour of the metal surface may change due to frequently cleaning them as well as the use of aggressive detergents.
6. Such changes do not influence the capacity of the appliance and do not constitute any reason of complaint.

WARNING!

Disregarding the cleaning and maintenance instructions will cause an increased risk of fire.

Changing the grease filter

You must replace the grease filters periodically. Follow the instructions given below.

Type of filter		Replacement
	Acrylic grease filter	Once or twice a month depending on frequency of use
	Metal	You do not need to replace metal filters. Clean them once a month by hand or in a dishwasher ( 30^0 ). Do not use any acrid or corrosive detergents. Do not put the filter in the dishwasher together with tableware Filters which are blocked with food debris do not carry a guarantee. Dry the filters properly before you reinstall them.

Do not use any abrasive detergents! Do not use any alkaline dishwasher-detergents! ( ph more than 7 ).

Carbon filter

Conventional carbon and active carbon filters cannot be cleaned. The capacity of these filters is limited. You can use such filters for about 3-6 months. Replace a depleted filter. You can get further information on the packaging of the filter.

Changing the illuminant - halogen

Do not touch the illuminant with your hands. The sweat of your fingers will reduce the operating time of your new illuminant. Use a thin cloth or a cloth glove.

1. Disconnect the appliance from the energy supply.
2. The illuminate is placed in an E 14-28 W socket.
3. The Illuminant should have cooled down before you remove it.
4. Remove the old illuminant.
5. Replace it by a new one of the same kind and power.

Attention! The illuminants as well as all kinds of filters do not carry a guarantee!

Replacing of the power cord

DANGER!

The power cord must be replaced by a qualified and authorized professional only.

8. TROUBLE SHOOTING

MALFUNKTION	POSSIBLE CAUSE	MEASURE
The appliance does not work at all.	The plug of the appliance is not connected to the socket.The plug has become loose.The socket is not supplied with energy.The fuse is switched off.	Check the corresponding socket by connecting it with another appliance.Check the fuse.The voltage is too low. Compare the data on the model plate with the data of your energy supplier.
Light is on but motor does not workThe motor smells doubtful	ventilation damper blockedcondenser defectivemotor mounting defectivemotor defective	remove blockagereplace condenserreplace motorreplace motor
Appliance juddersInsufficient extracting capacityLight does not workAppliance is unstable	motor not properly fixedhood not properly fixedtoo much distance hood-hobtoo much draught because of open doors and/or windowsilluminate is defective	fix motor properlyfix hood properlylower position of hoodclose the doors/windowsReplace illuminate.
	mounting rail is not firmly fixedscrews are not firmly screwed down	fix mountain rail properlytighten down the screws

If the hood does not work properly and/or you can hear increased operating noise, check the schedule given below:

incorrect dimension of the air duct.
▶ obstruction in the air duct.
the diameter of the air duct from hood to wall-box inclusive should add up to 150 mm; otherwise the capacity of the motor may be decreased.
➢ if you have installed a fly screen on the wall-box, the air vent may be obstructed. Check by removing the fly screen.
➢ if the cover panel of the wall box is equipped with firm and sloping slats, the air vent may be obstructed. Check by removing the cover panel.

install a cover panel with moveable slats, which do not obstruct the air vent.
check condition and cleanness of the filters.
check if the air which is extracted by the hood is compensated to avoid negative pressure.
when you run your appliance in recirculation mode, check if the carbon filter has been replaced in time (min. every 6 months).

If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact a service department.

DANGER!

If your appliance does not seem to run correctly, please contact the shop you purchased the appliance at.

DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF

9. WASTE MANAGEMENT

➢ Old appliances should not simply be disposed of with normal household waste, but should be delivered to a collection and recycling centre for electric and electronic waste.
Materials used inside the appliance are recyclable and are labelled with information concerning this. By recycling materials or other parts from used devices you make a significant contribution to the protection of our environment.

Packaging

The packaging is recyclable. The recommended modus operandi is:

➢ Dispose of any paper and cardboard into the corresponding containers.
➢ Dispose of any plastics into the corresponding containers.
If such a suitable container is not available at your residential area, you can dispose of these materials with your domestic waste; but to bring it to a corresponding facility for waste recycling would be best.

WARNING!

During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children.

Materials with this symbol on are recyclable.

PE< = Polyethylene
PS<= Styrofoam
PP< = Polypropylene

These materials can be recycled when you depose them of in a suitable collecting container of your local facilities.

Appliance

Do not dispose of the appliance with your domestic waste.
➢ Waste separation is essential so that the single components of the appliance will be recycled according to their appropriate use.
Do not dispose of electric appliances as unsorted domestic waste. Use the local or municipal facilities for waste separation.
If electric appliances are disposed of at landfills, substances which are dangerous to one's health can get into the ground water. Such substances will become part of the food chain and cause damage to your health.
➢ Please contact your local authorities to receive detailed information in view of waste separation.

Environmental issue

➢ Please help our environment! Dispose of old appliances and their packing with respect to your national, local and municipal regulations in view of waste management.
➢ Old appliances are not unusable waste. A lot of valuable resources can be gained by a serious waste management.
Before you dispose of an old appliance, render it inoperative.

1. Always remove the plug from the socket.
2. Afterwards cut off the power cord directly at the appliance. Dispose of the power cord with the plug immediately.
   The above mentioned materials are environmental-friendly and recyclable.
   Receive more detailed information from your retailer or your local and municipal facilities.

10. TECHNICAL DATA

UBH PKM 3001H stainless steel

180m ^3 - 2*50 chimney - halogen

DATASHEET 1

Model	Extractor hood
Material	Stainless steel with alum-front, glass shade
Maximum extracting capacity / extractor mode		180 m^3/h
Width		60 cm
Wall installation / built-under / ceiling mounting	yes	yes	-
Sliding switch		2
Telescopic chimney from - to		50-96 cm
Total height with telescopic chimney		109,50 cm
Extractor mode^6		yes
Recirculation mode		yes
Capacity in m^3/h	102	138	180
Capacity in Watt	50	62	100
Operating noise in db/A	43	48	55
Grease filter amount / material / dishwasher-proof	2	aluminium	yes
Light amount / Watt / type	2	2*28 Watt	halogen
Power rating		156 Watt
Voltage		220 - 240 V/50Hz
required amount carbon filters / type		2 * CF152
Supplied accessories:
Flap valve		-
Exhaust hose		-
Fixing material		yes
Instruction manual		yes
Carbon filter		-
Dimensions appliance H/W/D in cm	13,50-109,50	60,00	50,00
Dimensions packaging H/W/D in cm	20,00	65,00	55,00
Weight net / gross in kg	6,00		7,00
Labels		CE / GS

UBH PKM 3001H stainless steel

180m ^3 - halogen

Modification of datasheet 1

DATASHEET 1a

Total height with telescopic chimney		-
Telescopic chimney from - to		-
Light amount / Watt / type	1	1*28 Watt	halogen
Power rating		128 Watt
Dimensions appliance H/W/D in cm	13,50	60,00	50,00

UBH PKM 4060-1H white

250m ^3 - halogen

DATASHEET 2

Model	Extractor hood
Material	Steel sheet white, glass shade
Maximum extracting capacity / extractor mode	250 m^3/h
Width	60 cm
Wall installation / built-under / ceiling mounting	yes	yes	-
Push buttons	5
Extractor mode ^7	yes
Recirculation mode	yes
Capacity in m^3/h	125	172	250
Capacity in Watt	55	61	100
Operating noise in db/A	46	50	56
Grease filter amount / material / dishwasher-proof	2	aluminium	yes
Light amount / Watt / type	2	2*28 Watt	halogen
Power rating	156 Watt
Voltage	220 - 240 V/50Hz
required amount carbon filters / type	1 * CF110
Supplied accessories:
Flap valve	-
Exhaust hose	-
Fixing material	yes
Instruction manual	yes
Carbon filter	-
Dimensions appliance H/W/D in cm	15,00	60,00	50,00
Dimensions packaging H/W/D in cm	22,00	65,00	55,00
Weight net / gross in kg	7	8,00
Labels	CE / GS

UBH PKM 4060-1H Stainless steel

250 ~m^3 - halogen

Modification of datasheet 2

DATASHEET 2a
Material	Stainless steel, Glass shade
Carbon filter	yes

UBH PKM 4061H white

250m ^3 - halogen

Modification of datasheet 2

DATASHEET 2b
Material		Steel sheet, white
Sliding switch		2
Grease filter amount / material / dishwasher-proof	1	Acrylic	no
required amount carbon filters / type		1 * CF130

UBH PKM 4062H silver-grey

250m ^3 - halogen

Modification of datasheet 2

DATASHEET 2c
Material	Steel sheet, silver-grey

UBH PKM 5000H white, black, silver 180m^3 - halogen

DATASHEET 3

Model	Extractor hood
Material	Steel sheet white, black or silver
Maximum extracting capacity / extractor mode	180 m^3/h
Width	60 cm
Wall installation / built-under / ceiling mounting	yes	yes	-
Sliding switch		2
Extractor mode^8		yes
Recirculation mode		yes
Capacity in m^3/h	114	139	180
Capacity in Watt	45	54	75
Operating noise in db/A	44	48	54
Grease filter amount / material / dishwasher-proof	1	Acrylic	no
Light amount / Watt / type	1	1*28 Watt	halogen
Power rating		103 Watt
Voltage	220 - 240 V/50Hz
required amount carbon filters / type	1 * CF152
Supplied accessories:
Flap valve		-
Exhaust hose		-
Fixing material		yes
Instruction manual		yes
Carbon filter		-
Dimensions appliance H/W/D in cm	8,00	60,00	46,50
Dimensions packaging H/W/D in cm	12,50	64,50	52,00
Weight net / gross in kg	5,00		6,00
Labels	CE / GS

UBH PKM 5001H white, black, silver

180m ^3 - halogen

Modification of datasheet 3

DATASHEET 3a

Push buttons

5

UBH PKM 5050H white, black, silver

180m ^3 - halogen

Modification of datasheet 3

DATASHEET 3b

Width		50 cm
Dimensions appliance H/W/D in cm	8,00	50,00	46,50
Dimensions packaging H/W/D in cm	12,50	54,50	52,00

UBH PKM 6002H white / silver

440m ^3 - halogen

BLATT 4

Model	Pull out extractor hood
Material	Steel sheet white or silver
Maximum extracting capacity / extractor mode	440m^3/h
Width	60 cm
Wall installation / built-under / ceiling mounting	yes	yes	-
Sliding switch		2
Extractor mode^9		yes
Recirculation mode		yes
Capacity in m^3/h	286	320	440
Capacity in Watt	103	128	200
Operating noise in db/A	45	48	53
Grease filter amount / material / dishwasher-proof	2	Aluminium	yes
Light amount / Watt / type	2	2*28 Watt	Halogen
Power rating		256 Watt
Voltage		220 - 240 V/50Hz
required amount carbon filters / type		2 * CF110
Supplied accessories:
Flap valve		yes
Exhaust hose		-
Fixing material		yes
Instruction manual		yes
Carbon filter		-
Dimensions appliance H/W/D in cm	17,50	60,00	28-45
Dimensions packaging H/W/D in cm	37,00	66,00	23,50
Weight net / gross in kg	9,00		10,00
Labels		CE / GS

11. GUARANTEE CONDITIONS

Guarantee conditions for large electric appliances UBH PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers

This appliance was made and checked according to the most modern production methods. This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication.

The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. The guarantee is valid without prejudice to stringent legal liability regulations, e.g. the product liability law, in the case of malice and of wanton negligence in view of harm of life, body or health by UBH PKM or its agents.

The right on the guarantee is not granted, when the purchase is made in the course of a commercial activity.

The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. This has to be reported to us or in the Federal Republic of Germany to the shop you purchased the hood at. This report has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee.

The guarantee for our appliances is valid under the following conditions:

Defects of the appliance which are verifiably caused by material or fabrication deficiency will be rectified free of charge by the shop you purchased the hood at. When the defect appears within 6 months we suppose that there is a material or fabrication deficiency.

Within the guarantee we will repair deficient components free of charge using components of our own choice or they will be replaced by flawless components. Appliances, which can, due to their dimensions, be reasonably transported by an automobile, should be given over or submitted to the shop you purchased the hood at.

If the repair work is refused by us or if the repair work finally fails, the old appliance, if requested, will be replaced by an appliance of the same kind, quality and type within the period of guarantee. If the old appliance is no longer produced at the time the defect occurred, UBH PKM will be entitled to deliver a similar appliance.

The exchange of the appliance principally takes place in the shop the first vendee bought the appliance in unless the appliance is too large to be transported by the vendee.

The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction.

Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;

2. minor modifications of the UBH PKM-products concerning their authorized condition if they do not influence the utility value of the product;

3. damage caused by handling errors or false operation;

4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a UBH PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The guarantee period for installed replacement parts ends with the guarantee.

Provided that a product-related malfunction is not covered by this guarantee the vendee has to bear the cost, when the appliance is checked, including any labour costs that may arise.

If the holder of the guarantee has requested repair work, then the holder of the guarantee must be informed about the non-intervention of the guarantee and possible costs, that may arise, and thereafter he must bear all costs for spare parts and wages.

The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

August 2012

Attention! The illuminants as well as all kinds of filters do not carry a guarantee!

PKM

Order carbon filters at PKM Tel. [phone] Fax 21950

www.UBH PKM-online.de

CE

Stand:28.01.2013

Updated: 01/28/2013
