USER MANUAL NR-BD28AB1 PANASONIC

Operating Instructions

Refrigerator-Freezer

(Household use)

Model No. NR-BD28AB1

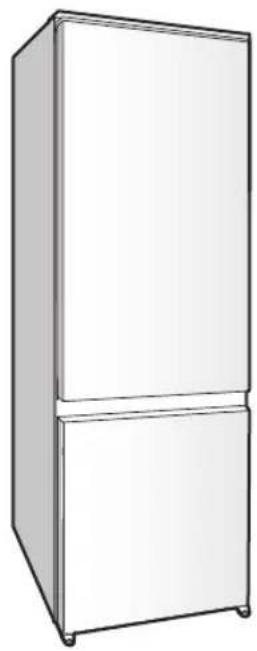

Line drawing of a two-tier refrigerator with front and back panels (no text or symbols)

English 2-15

Thank you for purchasing this Panasonic product. Please read these instructions carefully before using this product. Please keep this manual for future reference. Included installation Instructions.

Deutsch 16-29

Safety instructions ....2

Caring for the environment ....4

Installation 5

Parts 7

Control panel 8

Setting the temperature 8

Making ice cubes 9

Removing and attaching shelves 9

Defrosting the appliance ....10

Care and Cleaning instructions ....11

FAQs 13

Specifications 15

Safety instructions

What the symbols mean:

Do not

Make sure you do this Do not take apart

Indicates the appliance must be earthed to prevent electric shock

WARNING

Indicates risk of death or serious injury.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Do not use a multiple socket adaptor and plug several appliances into the same socket adaptor.

• This can cause overheating, fire or short circuit.

Do not pinch, knot, or bend the mains lead, or place heavy objects on it.

- This increases the risk of fire or electric shock. If the mains lead or plug of the appliance is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

Do not unplug the refrigerator by pulling on the mains lead.

- This can damage to the mains lead. Always grip the mains plug and pull firmly from the socket.

Do not place any water container on the top of the refrigerator.

• Water can damage insulation of electrical components and cause short circuit, fire or electric shock.

Do not spray infl ammable gas near the refrigerator.

• This can cause explosion or fire.

Do not spray water onto or into the refrigerator.

• This can cause fire or electric shock.

Do not touch the mains plug with wet hands.

• This can cause electric shock.

Do not install the refrigerator in a damp place, or where it may come into contact with water.

• Deteriorated insulation of electrical parts can cause short circuit, electric shock or fire.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Flammable substances such as benzene, thinners, alcohol, ether and Liquid Petroleum Gas (LPG) can cause explosions.

Do not store pharmaceuticals or other temperature-sensitive products in the refrigerator.

- You should not store products that require strict temperature controls in the refrigerator.

Do not let children climb, swing or hang on the refrigerator door.

• This can cause serious injury, as well as damaging the refrigerator.

Do not operate the refrigerator in the presence of explosive fumes or fl ammable gas.

• This can cause explosion or fire.

Do not store petrol or other fl ammable liquids and vapours in the refrigerator, or use them near the appliance.

• This can cause explosion or fire.

Safety instructions (continued)

-WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- This can cause damage to the interior of the refrigerator or cause an explosion.

-WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• This can cause explosion or fire.

-WARNING: Do not damage the refrigerant circuit.

• This can cause explosion or fire.

-WARNING: Do not open the lighting cover of the fridge interior.

- This can cause electric shock. If the lighting does not work correctly, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

-WARNING: The appliance must be fixed according to the instruction manual in order to avoid danger that may be caused by its instability.

Do not try to disassemble, repair or modify the refrigerator yourself.

- You may injure yourself – or others – with burns or electric shock, or damage the refrigerator. If your appliance needs alterations or repair, please consult authorized service centre.

Ensure that the refrigerator is plugged into an earthed mains socket. DO NOT plug into an unearthed mains socket.

- A short circuit could cause an electrical shock.

Make sure the mains lead and plug are not squashed or damaged.

- A damaged mains plug or lead can cause short-circuit, fire or electric shock.

- If the mains lead is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Do not attempt to replace it yourself.

Remove any dirt or dust from the mains plug's pins before connecting to the power supply.

- Dust build-up on the mains plug can cause insulation failure, especially in humid conditions. This can cause short circuit, fire or electric shock. Unplug the mains lead and wipe it with a dry cloth. Never use a wet or damp cloth.

Plug your appliance into the socket, making sure the connection is secure.

- A loosely connected mains plug can cause fire or electric shock.

Install the refrigerator in a well-ventilated area.

- The more refrigerant there is in an appliance, the larger the room it should be installed in. If there's a refrigerant fluid leak, and the appliance is in a small room, the build up of combustible gases is more likely. This can cause fire or explosion. As a guide, for every 8 g of coolant, you'll need at least 1 cubic metre of space in the room. The data plate inside the appliance tells you how much refrigerant your refrigerator contains.

The refrigerant (R600a) used in the refrigerator and the gases in the insulation material (cyclopentane) are both fl ammable. They also require special disposal procedures.

- Before you dispose of the appliance, make sure none of the pipes on the back are damaged. Refrigerant or gas leaks can cause fire or explosion.

Unplug the refrigerator before cleaning and servicing.

- Failure to do this can cause electric shock.

If you smell burning or see smoke coming from the refrigerator, disconnect the power immediately and please consult authorized service centre.

- Failure to do this can cause fire or electric shock.

-WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Failure to do this could result in fire or explosion because refrigerant cannot disperse if it leaks.

Indicates risk of injury or damage to property.

Do not put glass bottles or containers in the freezer.

- When the contents freeze, the glass may break and cause injury.

Do not touch the inside walls of the freezer or items stored in the freezer with wet hands.

- Your skin can become frozen onto the interior wall, or items stored in the freezer.

Safety instructions (continued)

If there's a power cut, avoid opening the refrigerator frequently or putting unchilled food in it.

• This can cause the temperature in the refrigerator to rise and adversely affect sanitation.

Also, be careful of the gap between the fridge and freezer doors, especially if they are both open at the same time.

• This may cause personal injury.

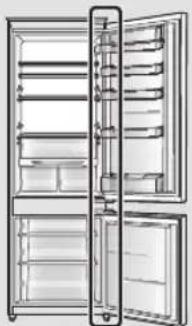

When opening the refrigerator, be careful not to pinch your fingers at the "pinch point" areas. In particular, when opening the fridge door, be careful to avoid the potential pinch point between the fridge and freezer doors.

• This can cause personal injury.

Illustration of a double refrigerator with open doors and shelves (no text or symbols)

Potential pinch point

Caring for the environment

Disposing of the packaging

Please recycle where possible (e.g. cardboard, plastic bags, adhesive tape and polystyrene) and make sure you dispose of all other packing materials safely.

Keep the packaging out of the reach of babies and young children, to avoid injury or suffocation.

Disposal of Old Equipment

Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment. For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Illustration of an open refrigerator with shelves and doors (no text or symbols)

Before disposing of your old appliance

Please follow either the disposal instructions from the manufacturer of the old appliance, or local disposal regulations for the appliance. Where this is not available, please follow the three step instructions below.

1. Remove the mains plug from the socket.
2. Cut the mains lead off, and safely dispose of it with the mains plug still attached.
3. Until the old appliance is collected, or you take it to a Recycling Centre, make sure it's out the reach of small children.

- Remove all sealing materials from the door and leave all the shelves and drawers in place. This way, children are less likely to climb in and become trapped.

Installation

This section explains how to install your appliance for the most energy-efficien, safe and quiet operation.

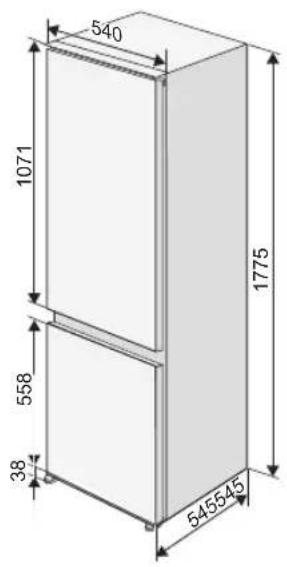

Dimensions

W540 x D545 x H1775 (mm)

Unpacking your appliance

Remove all packaging and tape.

Positioning the appliance

540 1071 558 38 545545 1775

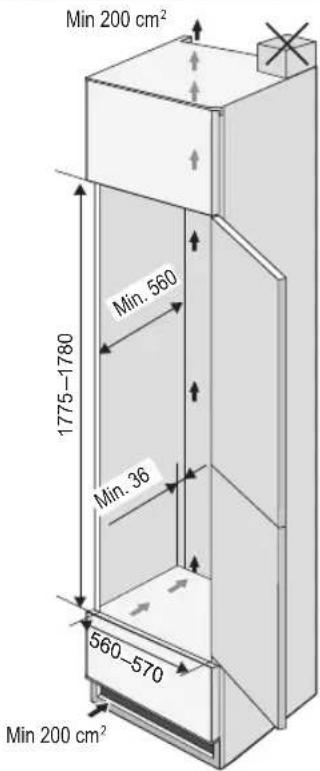

Min 200 cm² 1775-1780 Min. 560 Min. 36 560-570 Min 200 cm²

English

Ventilation

When installing the appliance into a kitchen cabinet, make sure that the openings for heat releasing and ventilation are at least 200 cm ^2 , which enables adequate cooling of the condenser.

When installing built-in appliances into a cupboard or cabinet in a side-by-side layout, the condensation prevention installation kit should also be purchased and installed.

For safety reasons, the condensation prevention kit may only be installed by an authorized service technician!

Order code: 376078 (appliances higher than 1,700 mm)

Temperature

The room temperature affects the refrigerator's energy-efficiency, i.e. how much electricity it uses to chill and freeze foods. For the best results, install your refrigerator:

• away from direct sunlight
• away from radiators, cookers or other heat sources
- where the room temperature corresponds to the climate classification for which the appliance is designed. Refer to the Specifications Section for your appliance's climate classification.
- Extreme temperatures or environmental conditions may have negative impact on its performance.
Stored food may spoil.

Refrigerator door

The refrigerator's door hinges can be swapped over, from the right side to the left, so that the doors open in the opposite direction. If this is more convenient in your home, please contact our service centre listed on the attached sheet or access to our Web site (http://www.panasonic.com).

We could not be held responsible if you replace the hinges by yourself.

Installation (continued)

Cleaning

After installation, wipe the appliance clean with warm water.

Connecting the mains plug to the household mains socket

• Do not connect the mains plug inside the kitchen cabinet if a socket is located behind or above the refrigerator. Make sure that the mains plug is connected outside of the kitchen cabinet.
  • Cooling may take longer in the summer months or at other times when the room temperature is higher.
• If you need to unplug the refrigerator, wait at least 10 minutes before you plug it back in again. If not, you might damage the compressor.
• If you're not going to use the refrigerator for a long time, unplug it from the mains.

Ambient room temperature

You'll find your refrigerator's climate classification on the rating plate in the left side of the fridge compartment. It shows the room temperature the appliance is designed to work in.

Climate classification Permitted ambient temperature
SN (Extended Temperate) +10 °C to 32 °C
N (Temperate) +16 °C to 32 °C
ST (Subtropical) +16 °C to 38 °C
T (Tropical) +16 °C to 43 °C

For saving energy

1. Install the refrigerator in a dry, cool and well-ventilated room. (Please refer to the Mounting Instructions for dimensions and clearance.)
2. The combination of drawers and shelves that result in the largest in volume and the most efficient use of energy for the refrigerator.

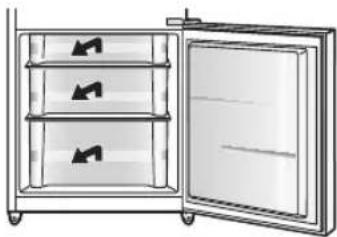

3. Remove the freezer drawers.
4. Attach the drawers and shelves in the refrigerator to the positions illustrated on the section of "Parts" (P.7).
5. Do not over fill the refrigerator to allow the air to circulate.
6. Open the doors only when necessary and as briefly as possible.
7. Occasionally clean the ventilation openings at the bottom of the refrigerator with a vacuum cleaner, etc.
8. Do not cover the ventilation openings on the lower front, back, and top back of the refrigerator.

Simple illustration of a two-tier refrigerator with no text or symbols

Fridge compartment

Cooked food, drinks, eggs, cakes, dairy products

Freezer compartment

Frozen meat, poultry, fish, ice cream

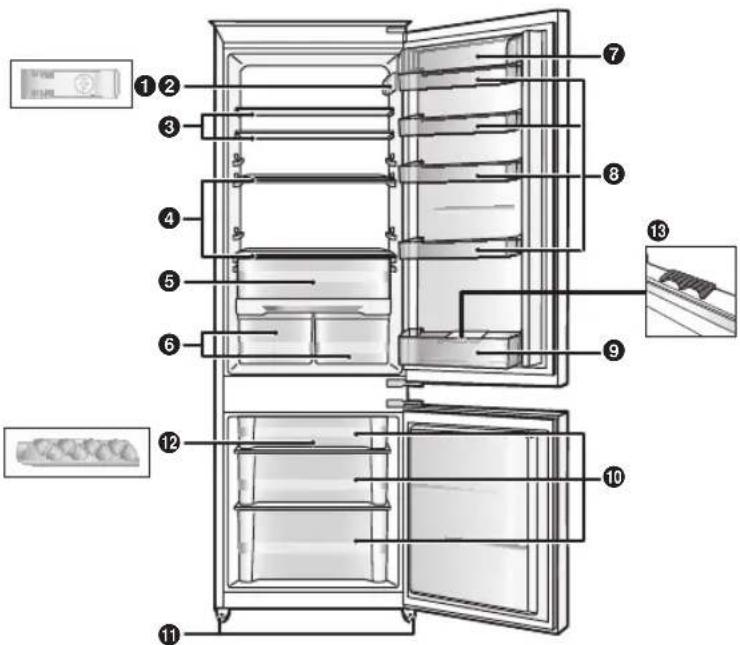

Labeled diagram of a refrigerator interior showing numbered compartments and internal structure with Chinese annotations

① Lighting of fridge interior
② Control panel
③ Divisible glass shelves
4 Glass shelves
⑤ Fresh zone drawer

⑥ Vegetable drawer
⑦ Door shelf with cover
⑧ Door shelf
⑨ Bottle shelf
10 Freeze drawer

11 Leg
12 Ice box
⑬ Bottle stopper

Note:

• You can change the positions where the Glass shelves and Door shelves are installed. Please use caution, however, because stored food and beverages could fall out when the door is opened and closed depending on the shelf positions.
• When opening the door, please take care to avoid collisions with people or objects in the vicinity.

Control panel

STOP 0 1 2 3 4 5 6 7 8 9 ①

① Thermostat knob

Turning the appliance on/off

Turn on: rotate the thermostat knob clockwise towards position 7. Turn off: rotate the knob back to position STOP (0).

Fridge compartment

The temperature can be set between positions 1 to 7.

Freezer compartment

The freezer cannot be separately set to a desired temperature.

Fridge temperature settings will impact the temperature of the freezer.

Freezer temperature will fall if the fridge temperature is set to below the recommended level, and rise if set above the recommended level.

Setting the temperature

STOP 0 1 2 3 4 5 6 7 8 9

Setting the temperature

• When the ambient temperature is normal, a medium setting is recommended.
  You can set a higher or lower temperature as you wish by setting the thermostat knob.
• Settings towards position 7, selected with the knob, correspond to lower (cooler) temperatures.
  The temperature in the refrigerator interior may drop below 0 °C.
  Settings towards position 1 correspond to higher (warmer) temperatures. Only use settings towards position 7 when a lower temperature is desired or recommended, or when the ambient temperature is lower than 16 °C.

- A change in the ambient temperature affects the temperature in the appliance. Hence, the thermostat setting should be adjusted accordingly.

- When the thermostat knob is set to position STOP (0), the appliance will not operate (cooling system is off); however, the appliance is still powered (a light will illuminate the interior when the refrigerator door is opened).

The temperature setting for the refrigerator compartment also indirectly affects the temperature in the freezer compartment.

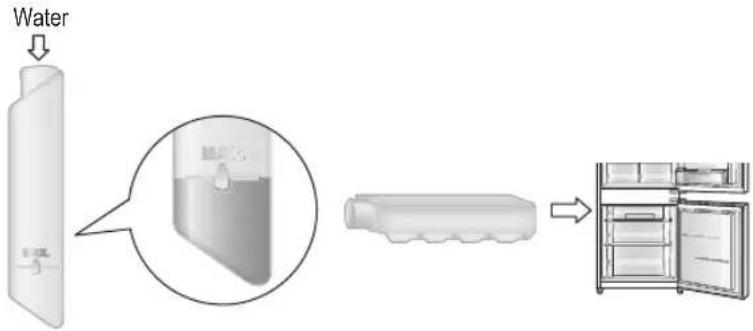

Making ice cubes

Pour water up to the MAX line of the ice box and place the ice box in the freezer drawer with the triangular convex portions facing down.

Water B: 10L →

English

Removing and attaching shelves

Fridge

Glass shelves

Diagram showing two labeled components (1 and 2) with directional arrows indicating movement or flow in a mechanical or electrical assembly.

To remove a shelf from the refrigerator, pull it out to the point when it is stopped by the guide. Then, lift it slightly at the front part and pull it all the way out.

Divisible glass shelves

1 2

Lift the rear part of the shelf and pull it out towards the front.

Fresh zone drawer

Diagram of a refrigerator with labeled parts and directional arrows indicating movement or change.

Pull out the case as far as it will go. Then, lift the front part and pull it out completely.

Vegetable drawer

Technical diagram showing a mechanical assembly with labeled components 1 and 2, including directional arrows indicating movement or flow.

Pull out the case as far as it will go. Then, lift the front part and pull it out completely.

Door shelves and bottle shelf

Pure mechanical component diagram without any text, numbers, or symbols

To remove a shelf from the appliance, lift it as far as it will go and pull it out.

Freezer

The drawers are protected against pulling out. To remove a drawer from the appliance, open it, then lift the front part and pull it out.

Diagram of a refrigerator with three drawers and one door open, showing directional arrows (no text or symbols)

Defrosting the appliance

Freezer

Defrost the freezer when an approximately 3-5 milimeter layer of frost or ice has built up.

After turning off the switch of the appliance, remove the food from the freezer and protect it from defrosting.

• Do not use any defrosting sprays as they may melt the plastic parts or harm your health.
• Do not use a knife or any other sharp object to remove the frost, because you may damage a pipe of the cooling system.
• As frost melts, water and ice will build up in the case and in lower portions of the compartment. Please wipe these away. In natural defrosting, it may take time for frost to melt due to surrounding temperatures.
• Clean and dry the appliance interior.
• Put the food back into the freezer once the inside of the appliance is sufficiently cooled.

Fridge

The refrigerator does not need defrosting because the ice on the back interior wall is thawed automatically.

Any accumulated ice will melt when the compressor unit is inactive.

Drops will flow through an opening in the refrigerator rear wall into a tray fitted above the compressor, from where they will evaporate.

If an excessive layer of ice is formed on the rear wall of refrigerator interior (3-5 mm), switch off the appliance and defrost the appliance manually.

Care and cleaning instructions

Line drawing of an open refrigerator with multiple compartments and doors (no text or symbols)

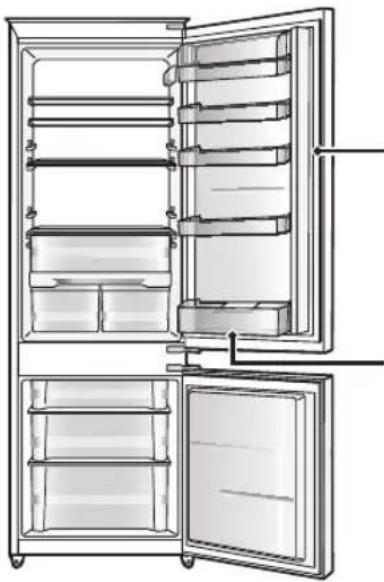

Daily cleaning

Wipe regularly with a dry cloth.

Places to pay particular attention to:

Door opening seal

If the seal gets dirty and damaged, cold air is more likely to leak.

Bottle shelf

Wipe away any dirt and liquid before it builds up.

Each year, unplug your refrigerator, remove the shelves and give them a thorough clean.

Parts you can wash with water

Fridge Freezer

Simple line drawing of a hand holding a tool above a tray, with no text or symbols present.

• Divisible glass shelves
- Glass shelves
- Fresh zone drawer
- Vegetable drawer
- Door shelves
- Bottle shelf
- Bottle stopper

• Freezer drawers
• Ice box

Note:

- Do not use abrasive cleaners such as Bicarbonate of Soda, as they can damage the plastic.

Cleaning the control panel

Do not clean the refrigerator's control panel with solvent based chemicals. Simply wipe it with a dry or slightly damp cloth.

Cleaning the outside of the refrigerator

Use a warm, damp, soft cloth to clean the outside of your refrigerator. For more stubborn marks, use a mild kitchen detergent and wipe away with a soft damp cloth. Remove any remaining surface water with a dry cloth.

Notes for cleaning

When cleaning inside or outside your refrigerator, do not use:

• alkaline detergents - they can crack plastic parts.
• grinding dust, soap powder, oil-based cleaners, hot water, brushes, acids, benzenes, solvents or alcohol-based solutions - all can damage the refrigerator's surfaces and plastic parts.
  Make sure you wipe off any stains from edible oils, which can also damage plastic parts.

Care and cleaning instructions (continued)

Maintenance check

• Is the mains lead damaged?
- Does the mains plug get hot?
- Is the mains plug firmly in the mains socket?

If the mains lead is damaged, please consult an authorized service centre. DO NOT attempt to replace these items yourself.

Extended disuse

If you're not going to use the refrigerator for a long time, unplug it and clean the mains plug as described above. Then leave the doors open for 2-3 days. This lets the interior dry out properly, and prevents odour and the build up of mould. Do not switch the refrigerator on and off repeatedly. It will last longer if you leave it switched on during normal use.

Fridge

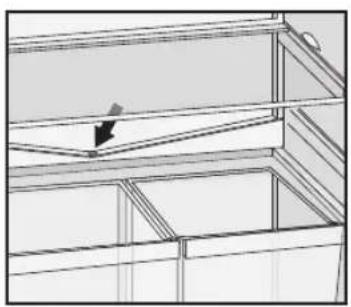

- A gutter and opening for water from melted ice to flow through are located underneath the interior cooling panel. The gutter and opening must not become clogged. Inspect often and clean if necessary (e.g. with a plastic straw).

Freezer

- Frost or ice build-up, 3-5 mm thick, will increase power consumption. Therefore, it should be regularly removed. Do not use any sharp objects, solvents, or sprays.

Architectural line drawing of a multi-level cabinet or storage unit with an arrow indicating a component (no text or symbols present)

Before moving or transporting your refrigerator

① Remove all items.
② Unplug it.
③ Pull, or 'walk' the refrigerator towards you.
④ Use a cloth, for example, to absorb the water in the evaporation pan.

Pure electrical circuit lines without any symbols

(Lower back of the refrigerator)

Moving and transporting your refrigerator

At least two people are needed to carry the refrigerator safely. ① Hold the legs at one end, and corners at the other, as shown.

Note:

- Do not carry the refrigerator by holding its doors. Always transport the refrigerator in its normal upright position.

Secure the doors with adhesive tape

Illustration of two workers carrying a large box with triangular load (no text or symbols)

If you feel that the refrigerator is not working properly, check out the following points first.

If the trouble persists, disconnect the mains plug and contact your dealer or an authorized service centre.

General

You hear unusual sounds from the refrigerator.	Has the refrigerator been installed on a sturdy and level floor?Have sufficient clearances been provided around the refrigerator?Is anything vibrating on the top of the refrigerator?It's normal to hear some noises when the refrigerator starts or stops operation.
You hear a sound after the compressor has shut down.	This is normal, and is often caused by refrigerant flowing back to the compressor.
You hear a sound after you have opened or closed the door.	This is normal, and is due to the difference in air pressure between the inside and outside of the refrigerator.
You hear the sound of air or water flowing after you have opened the door.	This is caused by refrigerant flowing the internal pipework.
The compressor is quite loud.	Has the food been packed too tightly together or is the room temperature high?In cases like these, the compressor runs hard so it's normal for the compressor to be louder.
The compressor has been running for a long time.	When the mains plug has been connected for the first time, the compressor runs longer than usual in order to cool down the inside of the refrigerator until the set temperatures are reached.Have the doors been opened and closed frequently? Are the doors completely shut?Have the food items been packed too tightly together or is the room temperature high?When many food items are placed in the refrigerator at one time, the compressor will need to run for a longer period.
Condensation forms on the outside of the refrigerator.	Condensation may form when the humidity in the room is high and is normal.Wipe it off using a dry cloth.
The outside of the refrigerator feels hot to the touch.	After the power of the refrigerator is turned on, the refrigerator may become warm until the interior of the compartment is sufficiently cooled down. The refrigerator may become warm even after the compartments have been cooled down. This is due to the operation of the heat radiation pipe equipped on the refrigerator for the purpose of preventing condensation, and is not malfunction.
Bulb replacement	Before replacing the light bulb, disconnect the appliance from the power supply (pull the power cord from the wall socket).Insert a screwdriver into the cover slot, lift it and remove the cover.Replace the bulb with an equivalent new bulb (same voltage and input) and replace the cover back to its position.Don't forget that the old bulb is not to be disposed with organic waste.The light bulb is a consumable item and is not covered by the warranty!Bulb lamps used in this appliance are special-purpose lamps selected for household appliance use only.They are not suitable for household room illumination.

FAQs (continued)

Fridge and freezer

The fridge is not chilling (and the freezer is not freezing).	• Is the power to the refrigerator on?
The fridge is not chilling (and the freezer is not freezing) satisfactorily.	• Is the set temperature too high?• Is the refrigerator exposed to direct sunlight or positioned near a heating appliance?• Have sufficient clearances been provided around the refrigerator?• Have the food items been packed too tightly together or is the room temperature high?• Have the doors been opened and closed frequently?Are the doors completely shut?• When warm food is put inside the refrigerator, the temperature will rise temporarily.• During the cold season or when the room temperature is low, it may feel as if the refrigerator is not chilling.• If room temperature is low, the freezer may not cool properly.
There is a difference between the set temperature and actual temperature.	• When warm food is put inside the refrigerator, the temperature will rise temporarily.
Food in the fridge freezes. • Is the set temperature for the fridge too low?• Has the food been placed at the back of the fridge?The area near the back wall is where the temperatures are coldest so avoid placing food which may freeze easily here.
Condensation forms in the fridge and drawers.	• Condensation may form when the door has been opened and closed frequently or when it has not been shut completely, or when the room humidity is high.Wipe off the condensation using a dry cloth.
Condensation forms on interior refrigerator walls (internal compartment)	• Condensation may form when the temperature is high, when the door has been open for an extended period, when the door is repeatedly opened and closed, and in similar situations. Furthermore, as the back surface of the internal compartment is the condenser, frost may form on it, melt, and become condensation, but this is not a malfunction.
It is hard to open the freezer door.	• The door is sometimes difficult to open just after it has been closed.• The difference in air pressure between the inside and outside of the freezer may sometimes make it hard to open the freezer door. Wait a few moments, and then try opening the door.
It smells inside the refrigerator.	• Were any food items with strong odours sealed before they were placed in the fridge?Place the items inside a sealed container and store them.• Odours may stick to the surfaces inside the refrigerator. Wipe the surfaces using a soft cloth which has been dipped in lukewarm water.

Specifications

Product fi che (EU Regulation 1060/2010)
SUPPLIER'S NAME Panasonic
MODEL NR-BD28AB1-E
CATEGORY 7 (Refrigerator-Freezer)
ENERGY EFFICIENCY CLASS A++
ANNUAL ENERGY CONSUMPTION 230 kWh/year*	1
NET FRIDGE VOLUME 223 L
NET FREEZER VOLUME 61 L
STAR RATING OF THE FREEZER Four-star
'FROST FREE' COMPARTMENTS -
TEMPERATURE RISE TIME 15 hours
FREEZING CAPACITY 5 kg/24 h
CLIMATE CLASS SN-T*	2
AIRBORNE ACOUSTICAL NOISE EMISSIONS	40 dB
Other Information
TOTAL GROSS VOLUME	293 L
TOTAL NET VOLUME	284 L
OUTSIDE DIMENSIONSWIDTH × DEPTH × HEIGHT	540 mm x 545 mm x 1775 mm
NET WEIGHT	59 kg
RATED VOLTAGE	220 V - 230 V
RATED FREQUENCY	50 Hz
REFRIGERANT/CHARGE	R600a/80 g
BLOWING AGENT	Cyclo-Pentane
BUILT-IN APPLIANCE	YES

Notes:

^1 The energy consumption per year is based on the standard test results for 24 hours in accordance with EN153. Actual energy consumption vary depending on how the appliance is used and where it is located.
The energy consumption when in use may vary depending on where the unit is installed, the temperature setting of each of the compartments, the ambient temperature and humidity, how often the doors are opened/closed, the volume and temperature of the food stuffs and how the appliance is used.

^2 Permitted ambient temperature: 10 °C to 43 °C

Inhaltsverzeichnis

Diagram of an open refrigerator with shelves and doors, showing internal compartments (no text or labels)

Illustration of an open refrigerator with doors open, showing internal compartments and a handle (no text or symbols)

B540 x T545 x H1775 (mm)

Simple illustration of a two-tier refrigerator with no text or symbols

Labeled diagram of a refrigerator interior showing numbered compartments and a close-up inset view of the door panel.

Diagram illustrating the process of a refrigerator with labeled parts and a magnified view of the interior portion.

Deutsch

Technical diagram showing a mechanical assembly with labeled components 1 and 2, likely illustrating a motion or assembly process.

Diagram of a refrigerator with labeled parts and directional arrows indicating movement or change.

Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating movement or force.

Pure mechanical component diagram without any text, numbers, or symbols

Diagram of a two-door refrigerator with directional arrows indicating flow or movement (no text or symbols)

Abtauen des Geräts

Gefrierraum

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Tägliches Reinigen

Simple line drawing of a hand holding a tool above a tray, with no text or symbols present.

Architectural line drawing of a multi-level building facade with a directional arrow indicating a flow or movement (no text or symbols present)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Pursuant to the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

©Panasonic Corporation 2015

Y0415-0

Printed in Europe
