VS4PT2200 - Vacuum Cleaner Profilo - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Profilo
Model	VS4PT2200
Intended Use	Domestic only
Power Supply	Mains (corded)
Cord Type	Retractable
Suction Control	Electronic rotary dial
Dust Bag Type	Self-sealing (replaceable)
Dust Bag Capacity	Approx. 3.5 liters
Filtration System	Motor protection filter + optional micro-hygiene/HEPA
Motor Protection Filter	Washable (rinse and dry 24h)
Accessories Included	Floor tool, crevice nozzle, upholstery nozzle, telescopic tube, hose, handle
Optional Accessories	Hard floor nozzle, TURBO-UNIVERSAL® brushes, HEPA filter, replacement filter pack
Weight	Approx. 5 kg
Safety Features	Parking aid, storage aid, automatic cord rewind, dust bag change indicator
Maintenance	Replace dust bag when indicator yellow; clean motor protection filter regularly
Warranty	Standard (varies by country)
Color	Black/Red (typical)

Frequently Asked Questions - VS4PT2200 Profilo

How do I replace the dust bag?

Open the lid by moving the locking lever. Seal the full bag by pulling the sealing strip, then remove. Slide a new original Profilo dust bag into the holder until it stops. Close the lid.

How do I clean the motor protection filter?

Open the dust bag compartment and pull out the filter. Tap it clean or rinse under water. Let it dry for at least 24 hours before reinserting.

Can I vacuum liquids?

No. The vacuum cleaner is not designed for damp or liquid substances. Vacuuming liquids can damage the appliance.

What accessories are compatible with the VS4PT2200?

Only use original Profilo accessories. Optional accessories include a hard floor nozzle, TURBO-UNIVERSAL® upholstery/floor brushes, and HEPA filter.

Why is the suction power reduced?

Check if the dust bag is full (indicator yellow). Also inspect the motor protection filter, hose, and nozzles for blockages. Clean or replace as needed.

How do I store the vacuum cleaner?

Use the storage aid on the underside. Stand the vacuum upright, slide the floor tool catch into the groove on the bottom. Alternatively, use the parking aid on the rear for brief pauses.

How do I adjust the suction power?

Turn the on/off button (which also serves as a rotary dial) in the direction of the arrow to adjust suction from min to max.

Is the vacuum suitable for pet hair?

Yes, especially with the optional TURBO-UNIVERSAL® upholstery or floor brush, which uses suction to drive a roller for effective pet hair removal.

How often should I replace the HEPA filter?

The HEPA filter (optional) should be replaced every year for optimal exhaust air quality, especially for allergy sufferers.

What should I do if the power cord is damaged?

Stop using the appliance immediately and contact an authorized after-sales service for repair. Do not attempt to replace the cord yourself.

USER MANUAL VS4PT2200 Profilo

Instructions for use

Line drawing of a vacuum cleaner with attached hose and handle (no text or symbols)

VS4PT...

Close-up illustration of a computer mouse with a threaded handle and scroll wheel (no text or symbols)

Diagram showing a cylindrical object being inserted into a tube, with arrows indicating the process (no text or symbols)

Illustration of a hairdryer with a tool inserted, showing the tip and handle (no text or symbols)

Close-up of a hand holding a tool inside a device, showing a mechanical component with an arrow indicating rotation (no text or symbols visible)

Close-up of a mechanical device with a circular component and an arrow pointing to it, no visible text or symbols.

Illustration of two hands using a tool on a flat surface, with icons and arrows indicating process steps (no text or symbols)

Diagram showing a mechanical component being inserted into a base, with no visible text or symbols.

Illustration of a tool applying material to a textured surface, labeled '10* c' (no text or symbols on the diagram itself)

Mechanical assembly diagram showing a tool interacting with a component (no text or symbols visible)

Illustration of a vacuum cleaner with hose and control panel (no text or symbols)

Illustration of a hand holding a medical device with a bulb inserted, showing no text or symbols.

Illustration of a hand using a screwdriver to adjust or install a mechanical component (no text or symbols visible)

Illustration of a plug being inserted into a device (no text or symbols visible)

Mechanical device with a lever and handle, showing internal components (no text or symbols visible)

Illustration of a hand pressing down on a mechanical component with a tool, no text or symbols present

Illustration of a person in protective gear with a device and a magnifying glass (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or assembly (no text or symbols present)

Illustration of a hand placing a grid-like object into a device, with an arrow indicating upward motion (no text or symbols)

Illustration of a mechanical component with a central square and circular hole (no text or symbols)

Simple line drawing of a rectangular grid structure with no text or symbols

3D rendered mechanical component with two cylindrical parts and a curved base, labeled 'D' in the top-left corner (no text or symbols on the component itself)

3D rendered mechanical component with a handle and central knob (no text or symbols)

Illustration of a pushpin applying adhesive to a textured surface (no text or symbols)

A

Cihaz açıklaması

Technical illustration of two mechanical components with labeled parts (1 and 2), no text or symbols present.

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

3 Telescopic tube with sliding switch*

4 Telescopic tube with adjusting sleeve

5 Handle*

6 Hose

7 Upholstery nozzle*

8 Crevice nozzle*

9 Cover

10 On/off button with electronic suction regulator*

11 Power cord

12 Parking aid

13 Motor protection filter

14 Storage aid (on underside of unit)

15 Dust bag

16 Carrying handle

17 Exhaust grille

18 Dust bag change indicator*

*depending on equipment

Spare parts and accessories

Technical illustration of two mechanical components with labeled parts (1 and 2), no text or symbols present.

Filament lever (1) and polishing strips (2) can be obtained from the customer services and can also be replaced there

A Replacement filter pack VZ51PT1AFG

Contains:

5 self-sealing dust bags

1 micro-hygiene filter

B Textile filter (long-term filter) VZ10PT0TFG\*

Reusable filter with Velcro fastening.

C HEPA Filter VZ54000\*

additional filter for pure exhaust air.

Recommended for those with allergies.

Replace every year.

D TURBO-UNIVERSAL®-upholstery brush VZ46001\*

Simultaneously brush and vacuum upholstered furniture, mattresses, car seats, etc..

Particularly suitable for vacuuming animal hair and fur.

The brush roller is driven by the suction force of the vacuum cleaner.

No electrical connection required.

E TURBO-UNIVERSAL®- floor brush VZ102TBB\*

Simultaneously brush and vacuum short-pile carpets and fitted carpets or any kind of covers. Particularly suitable for vacuuming animal hair and fur. The brush roller is driven by the suction force of the vacuum cleaner.

No electrical connection required.

F Hard floor nozzle VZ123HD\*

To vacuum smooth flooring (parquet, tiles, terracotta...).

*Depending on the model, special accessories are available in our After Sales Service.

Congratulations on your purchase of a Profilo VS4PT vacuum cleaner.

This instruction manual describes various VS4PT models, which means that some of the equipment features and functions described may not be available on your model.

You should only use original Profilo accessories, which have been specially developed for your vacuum cleaner to achieve the best possible vacuuming results.

Please keep this instruction manual in a safe place. If you pass the vacuum cleaner on to someone else, please also pass on this instruction manual.

Intended use

This vacuum cleaner is intended for domestic use only, not for commercial use.

Only use this vacuum cleaner in accordance with the instructions in this instruction manual.

The manufacturer will not accept any responsibility for damage caused by improper use or incorrect operation.

Therefore, you must note the following points.

The vacuum cleaner must only be operated with:

■ Manufacturer's original dust bags
■ Manufacturer's original replacement parts, accessories or special accessories

Safety information

This vacuum cleaner complies with the generally accepted standards of technology and relevant safety regulations.

■ Always observe the information on the rating plate when using the vacuum cleaner and connecting to the power supply.
■ Never use the vacuum cleaner without a dust bag fitted.

=> This can damage the appliance.

■ Only allow children to use the vacuum cleaner under supervision.
■ This appliance must not be used by children or persons with limited physical, sensory or mental abilities or with a lack of experience and knowledge (including children) unless they have been instructed in the use of the appliance by a responsible person.

The vacuum cleaner may not be used for:

■ cleaning persons or animals
■ vacuuming up:

• hazardous, sharp-edged, hot or red hot substances.

• damp or liquid substances
  – highly flammable or explosive substances and gases

• ash, soot from tiled stoves and central heating systems

• toner dust from printers and copiers.

• Keep suction away from your head when using the handle, nozzles or pipe.
  => Risk of injury.
  ■ Stand the appliance on a firm, secure surface when vacuuming.
  ■ When vacuuming stairs, the appliance must always be lower down than you.
  ■ In the following cases, stop using the appliance immediately and contact the after-sales service:

• if the mains connection cable is damaged.

• if you have accidentally vacuumed up some liquid or liquid has entered the inside of the appliance
• if the appliance has been dropped.

■ Do not use the power cord to carry the vacuum cleaner.
■ Fully extend the power cord when using the vacuum cleaner continuously for several hours.
■ When disconnecting the appliance from the mains, pull on the plug, not the power cord.
■ Do not pull the power cord around sharp corners or allow it to become trapped.
■ Unplug the power cord from the mains before carrying out any work on the vacuum cleaner or its accessories.
■ Do not use the vacuum cleaner if it is damaged. Unplug the power cord from the mains if a fault is detected.
■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.
■ Protect the vacuum cleaner from outside weather conditions, moisture and sources of heat.
■ The vacuum cleaner is not suitable for use on building sites.

=>Vacuuming up building rubble could damage the appliance.

■ Switch off the appliance when it is not in use.
■ At the end of its life, the appliance should be rendered unusable, then disposed of in an appropriate manner.
■ Plastic bags and films must be kept out of the reach of children before disposal (risk of suffocation).
■ do not pour any flammable substances or substances containing alcohol onto the filters (filter bag, motor protective filter, exhaust filter, etc.).

Disposal information

■ Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can be recycled.

Dispose of packaging that is no longer required at an appropriate recycling point.

■ Used vacuum cleaners

Used vacuum cleaners still contain many valuable materials. Therefore, please take your used vacuum cleaner to your retailer or recycling centre to be recycled. For current disposal methods, please enquire at your retailer or your local council.

■ Disposal of filters and dust bags

Filters and dust bags are made from environmentally friendly materials.

As long as they do not contain substances that are not permitted to be disposed of in the household rubbish, you can dispose of them with your normal household rubbish.

Please note

- The mains socket must be protected by at least a 16 amp fuse.

If a fuse should blow when you switch on the appliance, this may be because other electrical appliances which have a high current draw are connected to the same power circuit.

To prevent the fuse from blowing, select the lowest power setting before switching the appliance on, and increase the power only once it is running.

Fold out picture pages.

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Before using for the first time

Figure 1*

Push the handle onto the flexible tube and until it engages.

Setting up

Figure 2

a) Push the hose connector into the opening on the vacuum cleaner until it engages.
b) To remove the hose, press the two lugs together and pull the hose out.

Figure 3\*

Connect the handle and suction hose/telescopic tube together.

Figure 4\*

Connect the floor tool and suction hose/telescopic tube together.

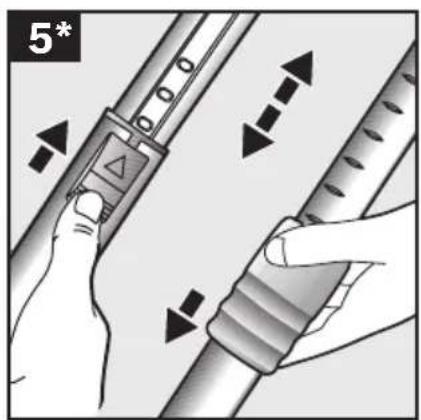

Figure 5\*

Disconnect the telescopic tube and unlock it to adjust its length by moving the sliding button/sliding sleeve in the direction of the arrow.

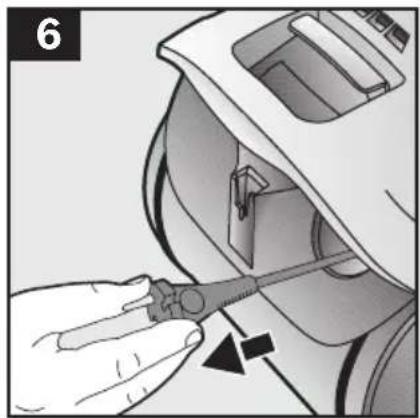

Figure 6

Holding the power cord by the plug, pull out the required length and plug it into the mains socket.

Figure 7

Press the on/off button in the direction of the arrow to switch your vacuum cleaner on/off.

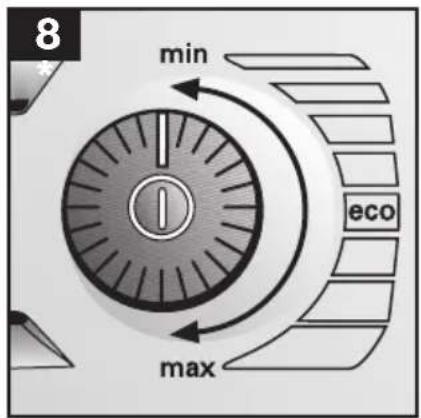

Figure 8\*

Adjust the suction by turning the on/off button in the direction of the arrow.

Vacuuming

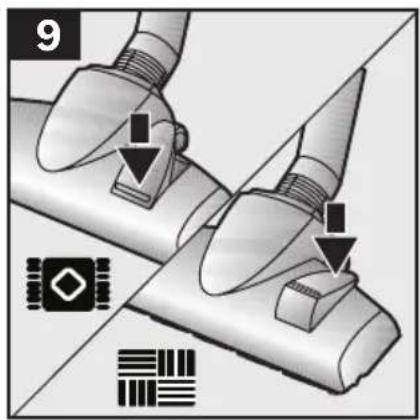

Figure 9

Adjusting the floor tool:

■ Rugs and carpets =>

■ hard floors =>

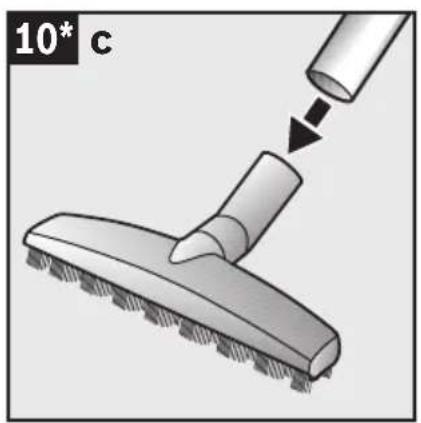

Figure 10\*

Vacuuming with accessories

(attach to handle or suction hose as required).

a) Crevice nozzle for vacuuming crevices and corners, etc..
b) Upholstery nozzle for vacuuming upholstered furniture, curtains, etc.
c) Hard-floor brush

For vacuuming hard floor coverings (tiles, parquet flooring, etc.)

Figure 11

When stopping cleaning for a moment, you can use the parking aid on the back of the vacuum cleaner.

Slide the catch on the floor tool into the groove at the rear of the appliance.

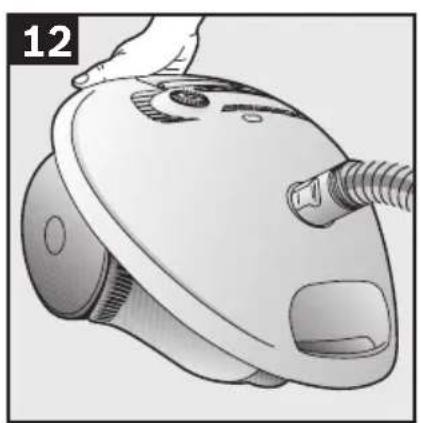

Figure 12

The appliance can also be carried using the two handles when vacuuming steps, for example.

When the work is done

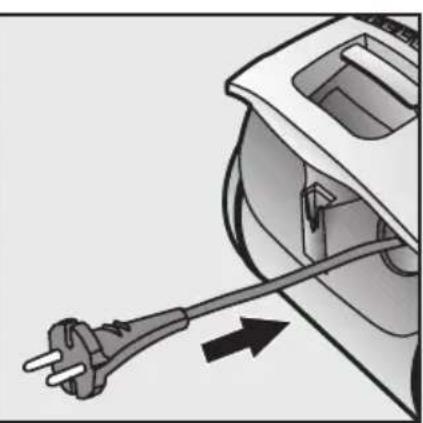

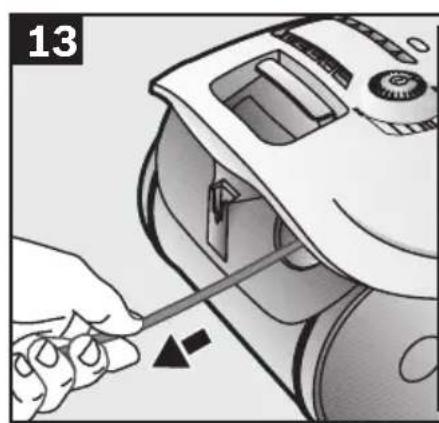

Figure 13

Unplug the vacuum cleaner.

Tug the power cord briefly and let go. The cable then rewinds automatically.

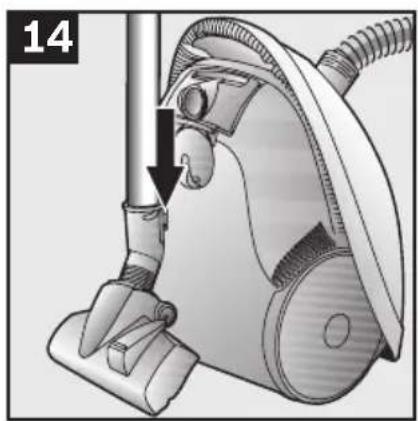

Figure 14

To store or transport the vacuum cleaner, use the storage aid on the underside of the vacuum cleaner.

Stand the vacuum cleaner up on its end. Slide the catch on the floor tool into the groove on the underside of the appliance.

Changing the filter

Replacing the dust bag

Figure 15\*

If the dust bag change indicator is completely yellow when the floor tool is lifted from the floor and the highest suction power is selected, the dust bag must be changed, even though it may not yet be full. In this case it is essential to change the dust bag due to the type of material it contains.

The nozzle, suction pipe and flexible tube must not be blocked, as this would also lead to dust bag change indicator being triggered.

Figure 16

Open the lid by moving the locking lever in the direction of the arrow.

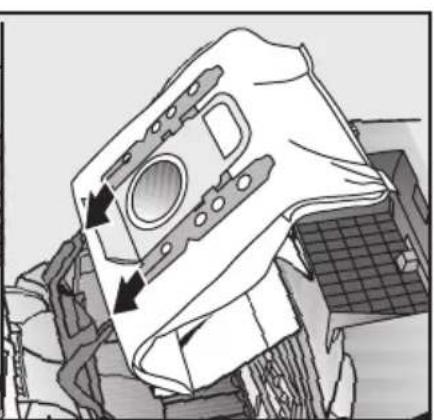

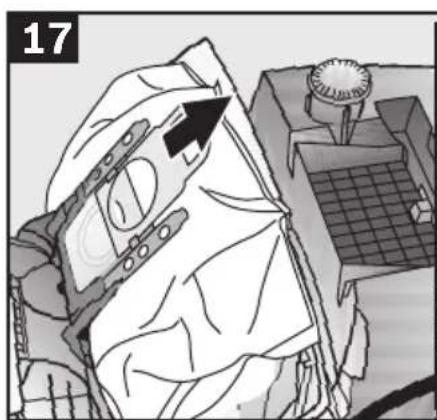

Figure 17

a) Seal the dust bag by pulling the sealing strip and then remove it.
b) Slide the new dust bag into the holder to the stop.
■ Caution: The cover can only be closed when
- a dust bag is inserted.

If you have used the vacuum cleaner for fine dust particles (such as plaster or cement), clean the motor protection filter and, if necessary, replace the microfilter.

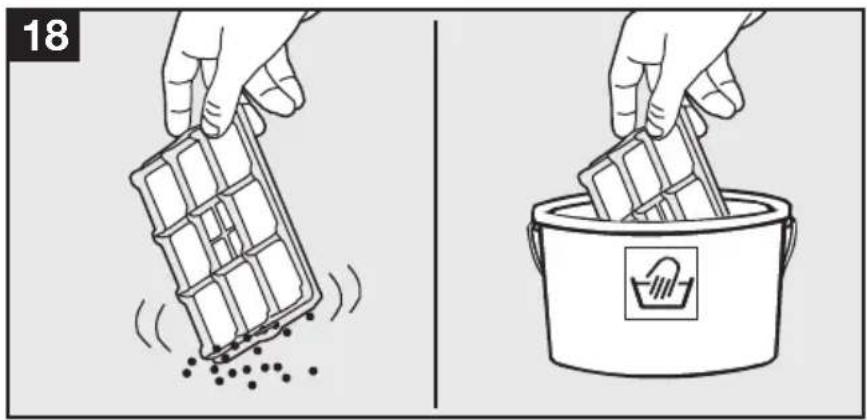

Cleaning the motor protection filter

The motor protection filter should be cleaned regularly by knocking out the dirt and rinsing.

Illustration 18\*

■ Open the dust bag compartment lid.
■ Pull out the motor protection filter in the direction of the arrow.
■ Clean the motor protection filter by tapping it.
■ If it is very dirty, the motor protection filter should be rinsed.

The filter must then be left to dry for at least 24 hours.

■ After cleaning, slide the motor protection filter into the vacuum cleaner and close the dust bag compartment lid.

Care

Always switch the vacuum cleaner off and disconnect the power cord from the mains before cleaning the vacuum cleaner.

The vacuum cleaner and plastic accessories can be cleaned with a commercial plastics cleaner.

Do not use abrasive, glass or all-purpose cleaners.
● Never immerse the vacuum cleaner in water.

The dust compartment can, if necessary, be cleaned with a second vacuum cleaner or simply wiped with a dry cloth or a duster.

Subject to technical changes.

Описание прибора

Technical illustration of two different vacuum cleaner components with labeled parts (no text or symbols present)

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Technical illustration of two mechanical components with labeled parts (1 and 2), no text or symbols present.

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Technical illustration of a mechanical component with a handle and labeled part (no text or symbols present)

AE United Arab Emirates,

HEATHERTON, Victoria 3202

Tel.: [phone]

Fax: [phone]

valid only in AUS

mailto:[e-mail]

www.siemens-home.com.au

BA Bosnia-Herzegovina, Bosna i Hercegovina

"HIGH" d.o.o.

Odobašina 57

71000 Sarajewo

Info-Line: 061 10 09 05

Fax: [phone]

mailto:[e-mail]

To arrange an engineer visit, to order spare parts and accessories

or for product advice please visit: www.siemens-home.cu.uk or call

Tel.:[phone]*

*Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A. B. E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

145 64 Kifisia

Greece – Athens

Tel.:[phone]

Fax: [phone]

North-Greece – Thessaloniki

Tel.:[phone]

Fax: [phone]

South-Greece – Heraklion/Kreta

Tel.:[phone]

Fax: [phone]

Central-Greece – Patras

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com

HK Hong Kong, 香港

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.:[phone]

Fax: [phone]

mailto:service.siemens@

bshg.com

www.siemens-home.com.hk

HR Hrvatska, Croatia

Andabaka d.o.o.

Gunduliceva 10

21000 Split

Info-Line: 021 481 403

Info-Fax: [phone]

mailto:[e-mail]

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and

Accessories

Tel.: [phone]

Fax: [phone]

www.siemens-home.com

IL Israel,

C/S/B Home Appliance Ltd.

Uliel Building

1. Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

LT Lietuva, Lithuania

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

LU Luxembourg

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

PL Polska, Poland

Union Industrial Building

Block A, #01-03

577177 Singapore

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.:[phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.siemens-home.com

TR Garanti Şartları

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

Symbol of a trash bin crossed with two crossed lines, representing no waste or discharge (no text or labels)

tr

"This appliance is labelled in accordance with the European directive 2002/96/EG concerning waste electrical and electronic equipment – WEEE."

The directive provides the framework for the return and recycling of used appliances as applicable throughout the EU."

ru
