USER MANUAL PSU7POW Profilo

White Profileo vacuum cleaner with coiled hose and control panel, no visible text or symbols on device body

Safety information ....23

Diagram illustrating the step-by-step installation of a vacuum cleaner, showing how to change from a single brush to a second brush.

Simple diagram of a wall socket connected to a plug, labeled with number 2 (no text or symbols on the diagram itself)

Illustration of a hand holding a small electrical plug connected to a device with a cable, showing the process (no text or symbols present)

Close-up of a white vacuum cleaner with a threaded handle and circular warning symbol (no text or labels)

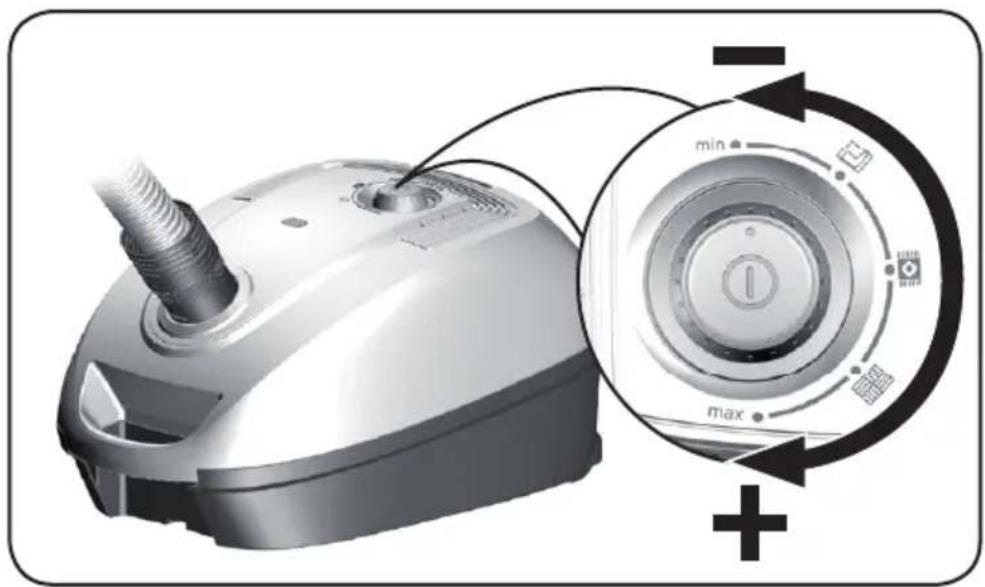

Diagram showing a vacuum cleaner with labeled control knob and plus/minus indicators, illustrating mechanical operation.

3 or or

Simple line drawing of a mechanical component with a numbered label '4' (no text or symbols on the object itself)

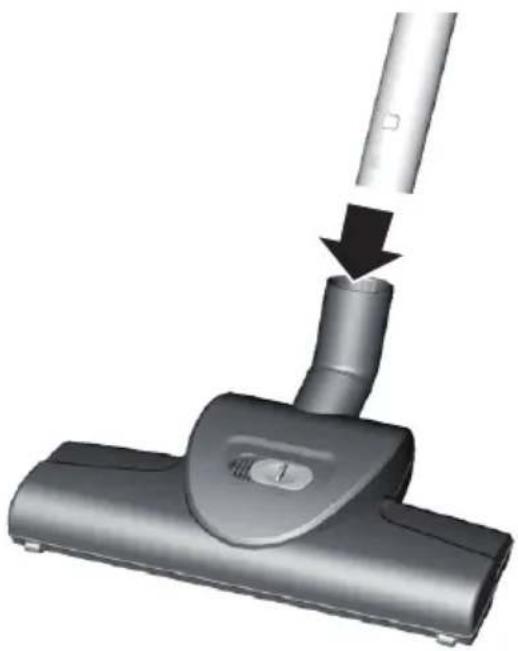

3D rendering of a black vacuum cleaner with a handle and arrow indicating insertion or repair (no text or symbols)

Technical illustration of a hair dryer with a close-up view showing the blade and handle (no text or symbols)

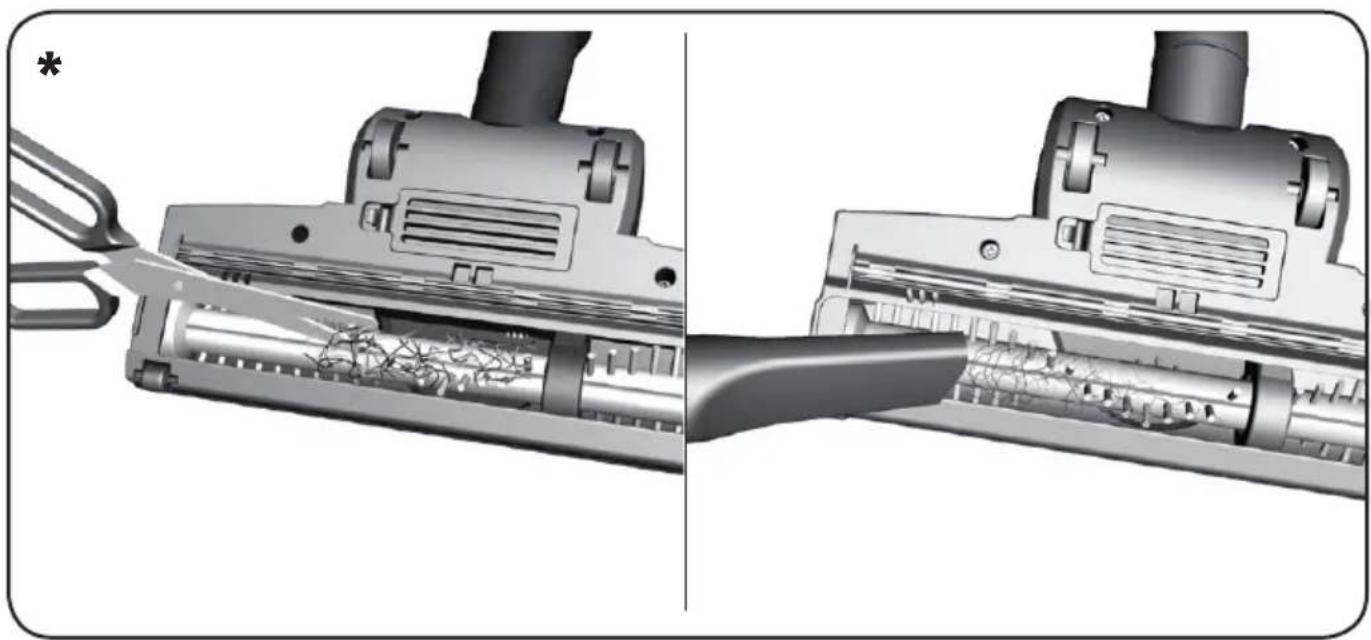

Cross-sectional diagram of a device showing internal components and a tool interacting with a cable (no text or symbols present)

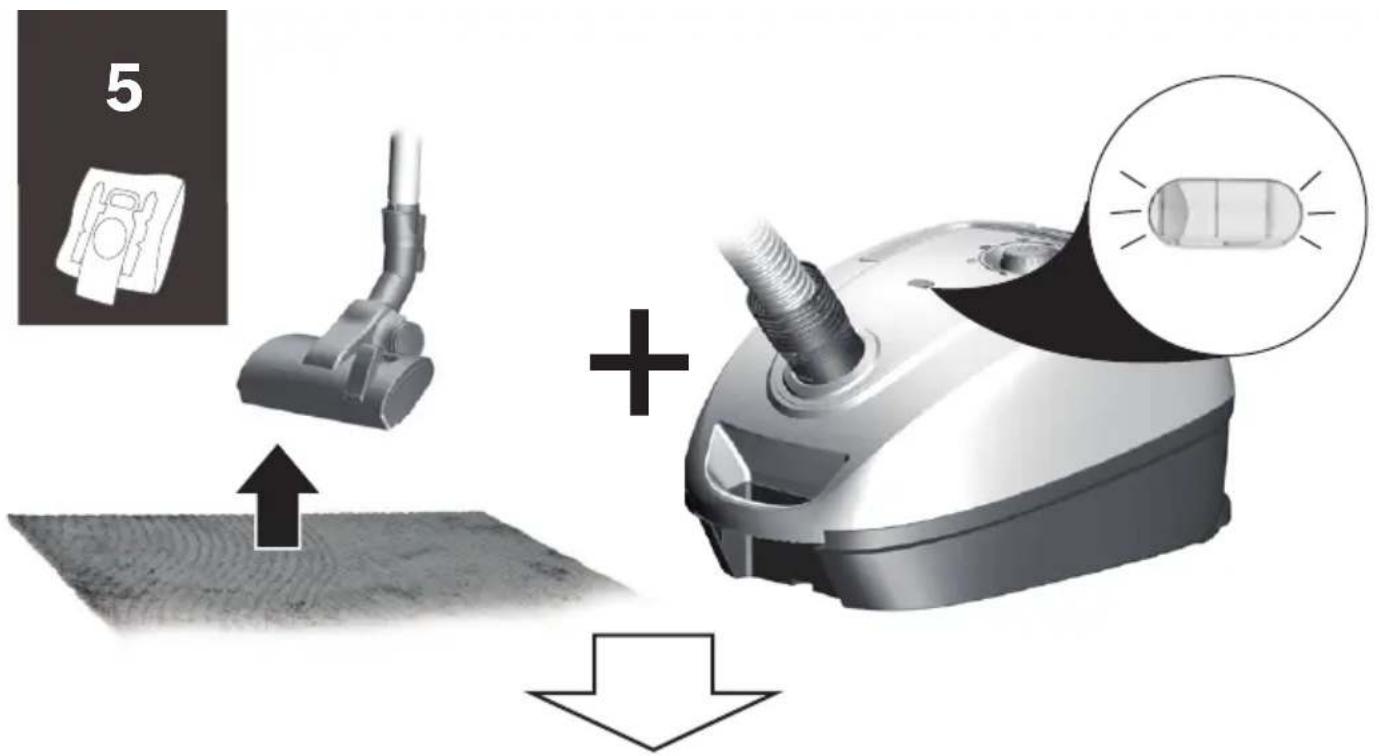

5 + ↓

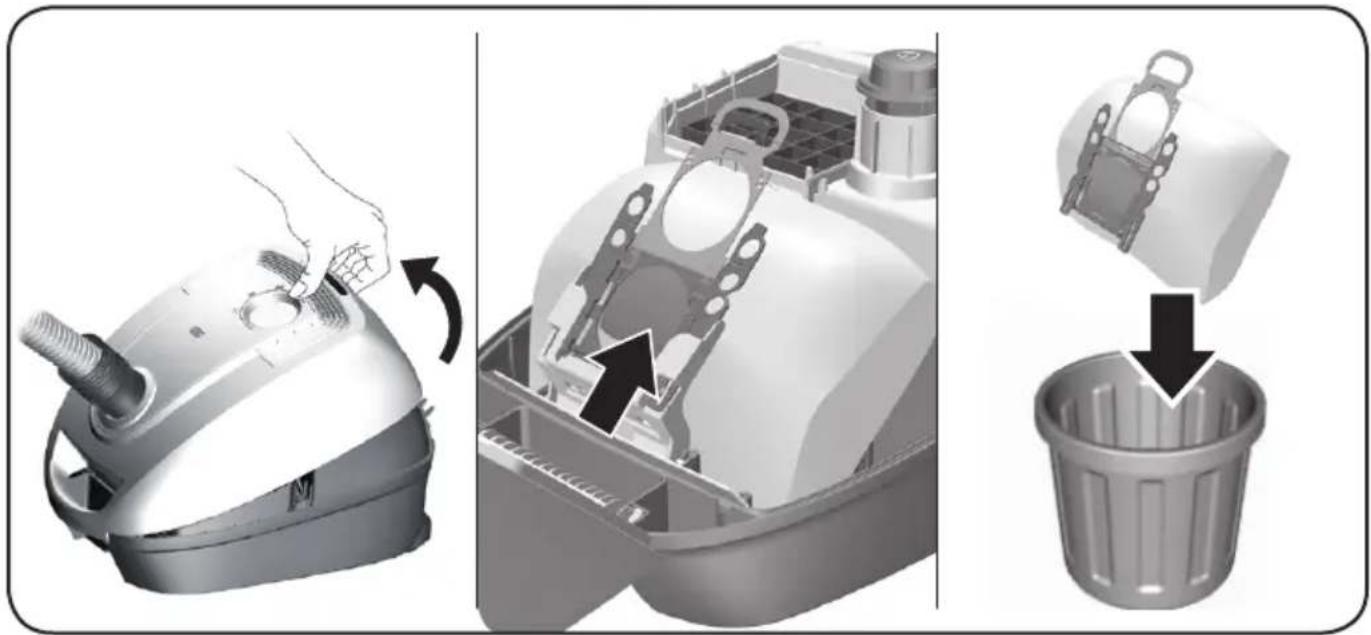

Illustration of a vacuum cleaner's internal components being processed, showing part assembly and disposal (no text or symbols)

PROFiLO Typ PowerProtect

Simple line drawing of a fan or vent with a number 6 above it, no text or symbols present.

Hand operating a vacuum cleaner with a rotating arrow indicating clockwise motion (no text or symbols visible)

12M

3D mechanical assembly diagram showing internal components and a highlighted section with an upward arrow (no text or symbols)

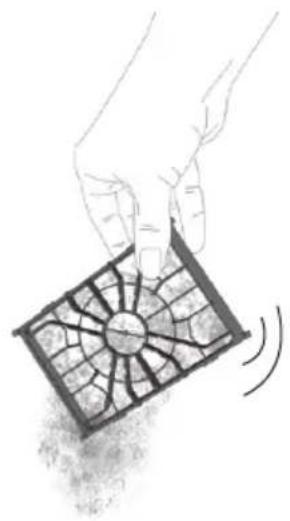

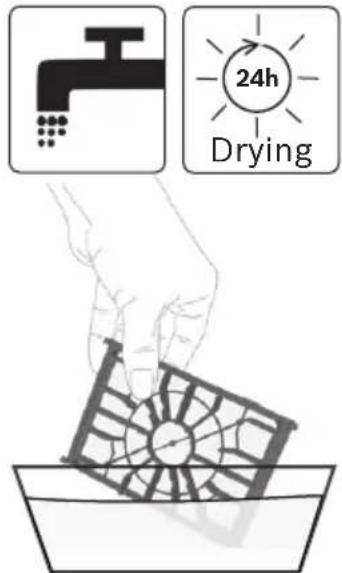

Hand holding a grid-like object with radial lines, emitting motion lines (no text or symbols)

24h Drying

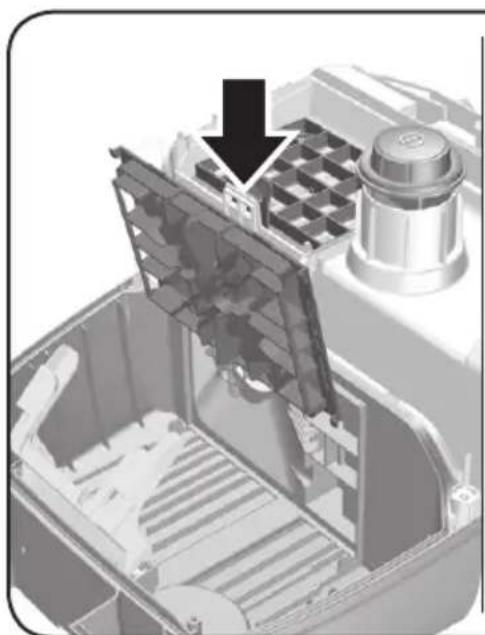

3D mechanical assembly diagram showing internal components with a black arrow indicating a specific part (no text or symbols present)

Hand operating a square-shaped vacuum cleaner with a black circular arrow indicating rotation (no text or symbols visible)

Simple line drawing of a grid cube with the number 7 above it, no text or symbols present.

Hand operating a vacuum cleaner with a rotating arrow indicating clockwise motion (no text or symbols visible)

24M

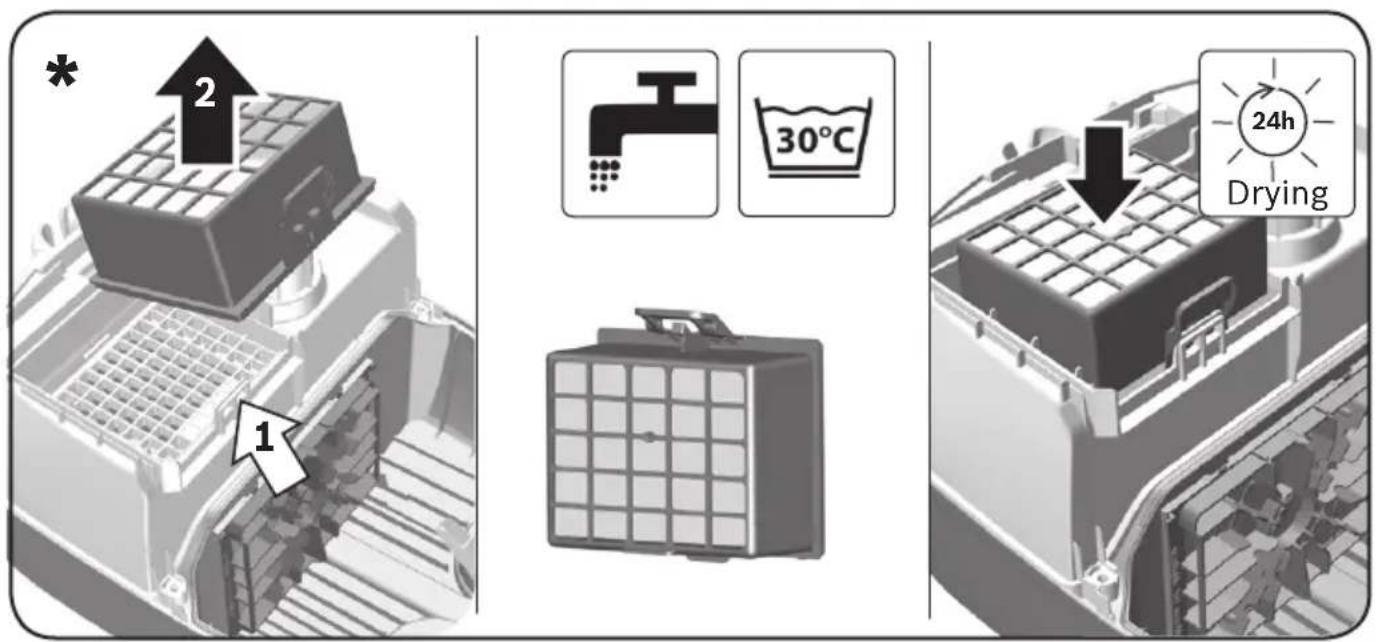

* 2 1 30°C 24h Drying

Diagram illustrating three steps of a chemical extraction process: heating, drying, and cleaning, with labeled arrows and icons.

Simple line drawing of a cleaning or cleaning tool with a number 8 above it (no text or symbols on the tool itself)

Illustration of a hand holding a small electronic device with a cable, showing the process from top to bottom (no text or symbols present)

3D rendering of a vacuum cleaner with attached pipe and valve (no text or symbols visible)

Three-step diagram showing a vacuum cleaner's internal structure, body positioning, and usage of the air conditioner (no text or symbols present)

tr

Symbol of a trash bin with crossed lines indicating no waste or discharge, plus a solid black rectangle below (no text or labels)

tr

Simple red analog clock face with hour and minute hands (no numbers or text)

Illustration of a pair of shoes, one blue and one white, with no text or symbols present.

Temiz Hizmet

Red icon of a delivery truck inside a rounded square frame (no text or symbols)

Yaygın Servis Ağı

Red icon showing a person carrying a basket next to a house, with bidirectional arrows indicating movement (no text or symbols)

Evden Alıp Eve Teslim

Red icon depicting a person sitting with a box and pouring liquid into a container (no text or symbols)

Geçici Ürün Temini

Simple red icon of a human figure inside a rounded square (no text or symbols)

Uzman Personel

Please keep this instruction manual. When passing the vacuum cleaner on to a third party, please also pass on this instruction manual.

Intended use

This appliance is intended for domestic use only. This appliance is intended for use up to a maximum height of 2000 metres above sea level. Only use this vacuum cleaner in accordance with the instructions in this instruction manual.

In order to prevent injuries and damage, the vacuum cleaner must not be used for:

■Vacuum-cleaning persons or animals
■Vacuuming up:

• hazardous, sharp-edged, hot or glowing substances.
• damp or liquid substances.
• highly flammable or explosive substances and gases.
• ash, soot from tiled stoves and central heating systems.
• toner dust from printers and copiers.

Spare parts, accessories, dust bags

Our original spare parts, original (special) accessories and original dust bags are designed to work with the features and requirements of our vacuum cleaners. We therefore recommend that you only use our original spare parts, original (special) accessories and original dust bags. This will ensure that your vacuum cleaner has a long service life and that the quality of its cleaning performance will remain consistently high throughout.

Please note:

Using unsuitable or inferior-quality spare parts, (special) accessories and dust bags can damage your vacuum cleaner. Damage caused by the use of such products is not covered by our guarantee.

Safety information

This vacuum cleaner complies with the recognised rules of technology and the relevant safety regulations.

■The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed on the safe use of the appliance and the have understood the potential dangers of using the appliance.

■Children must never play with the appliance.
■Cleaning and user maintenance must never be carried out by children without supervision.
■Plastic bags and films must be kept out of the reach of children before disposal.

= Risk of suffocation.

Proper use

■Only connect and use the vacuum cleaner in accordance with the specifications on the rating plate.
■Never vacuum without the dust bag or dust container, motor protection or exhaust filter.

= This may damage the vacuum cleaner.

■Always keep the vacuum cleaner away from your head when using nozzles and tubes.

= This could cause injury!
■Never use a damaged turbo brush*.
■Do not reach into the running brush roller.*
■Do not drive over the supply while the brush roller is running.*
■Do not leave the turbo brush standing on the carpet when the brush roller is rotating, it must be kept moving (could damage the pile).*
■Wool or velour carpets, particularly those with a loose pile, should only be cleaned occasionally with the turbo brush*, must leave sufficient intervals in between.

Please observe

Do not leave the running turbo brush* in the immediate vicinity a long hair, scarves, ties etc..

■When vacuuming stairs, the appliance must always be positioned below the user.
■Do not use the power cord or the hose to carry or transport the vacuum cleaner.

■For safety reasons, if this appliance's mains power cable becomes damaged, it must be replaced by the manufacturer, their after-sales service department or a similarly qualified person.
■If using the appliance for longer than 30 minutes, pull out the power cord completely.
■When disconnecting the appliance from the mains, pull on the plug itself to remove it; do not pull on the power cord.
■Do not pull the power cord over sharp edges or allow it to become trapped.

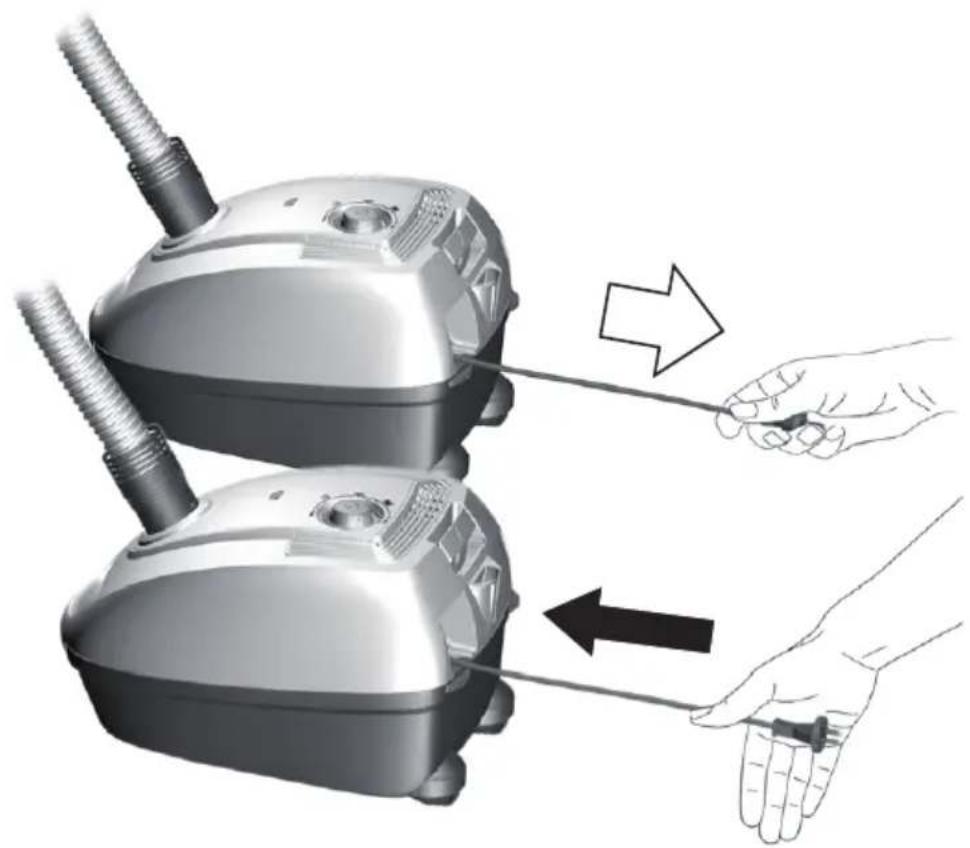

■When the cable is being automatically rewound, ensure that the mains plug is not thrown towards persons, body parts, animals or objects.

= Use the mains plug to guide the power cord.

■Pull out the mains plug before carrying out any work on the vacuum cleaner.
■Do not operate the vacuum cleaner if it is damaged. Unplug the appliance from the mains if a fault is detected.
■For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.
■Protect the vacuum cleaner from the weather, moisture and sources of heat.
■Do not pour flammable substances or substances containing alcohol onto the filters (dust bag, motor protection filter, exhaust filter, etc.).
■The vacuum cleaner is not suitable for use on construction sites.

= Vacuuming up building rubble could damage the appliance.

■When not in use, switch off the appliance and pull out the mains plug.
■At the end of its life, the appliance should immediately be rendered unusable, then disposed of in an appropriate manner.

Please note

The mains socket must be protected by at least a 16 amp circuit breaker.

If a circuit breaker is tripped when you switch on the vacuum cleaner, this may be because other electrical appliances which have a high current draw are connected to the same power circuit.

To prevent the circuit breaker from tripping, select the lowest power setting before switching the appliance on, and increase the power only once it is running.

Disposal information

Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can therefore be recycled. Dispose of packaging that is no longer required at an appropriate recycling point.

■Old appliance

Old appliances still contain many valuable materials. Therefore, please take appliances that have reached the end of their service life to your retailer or recycling centre so that they can be recycled. For current disposal methods, please enquire at a retailer or your local council.

■Disposal of filters and dust bags

Filters and dust bags are manufactured from environmentally friendly materials. Provided they do not contain substances that are not permitted in household waste, you can dispose of them with your normal household waste.

General information

■ Replacement filter package

Type G ALL

Contents:

- 4 dust bags with fasteners

PLEASE NOTE

We therefore recommend that you only use our original dust bags.

Your appliance is a highly efficient vacuum cleaner that achieves excellent cleaning results when used with high-quality dust bags. Only by using high-quality dust bags (such as Profilo original dust bags) can you ensure that your vacuum cleaner is working at the energy efficiency class, dust pick-up rate and dust retention capacity listed on its EU energy label.

The use of inferior-quality dust bags (e.g. paper bags) can have a negative effect on the service life and performance of your appliance. Using unsuitable or inferior-quality dust bags can also damage your vacuum cleaner. Such damage is not covered by our guarantee.

You can find more information about this at www.profilo.tr. You can order our original vacuum cleaner bags here.

■Accessories

Your accessories (nozzle, suction pipe, etc.) may look different from but work in the same way as those depicted in the illustrations in this instruction manual.

Symbols

For vacuuming upholstered furniture, cushions and curtains.

For vacuuming rugs and carpets

For vacuuming hard floors

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

en

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.
