Brand	Profilo
Model	VS6PT24XXL
Product Type	Canister Vacuum Cleaner
Power Consumption	2000 W (estimated)
Voltage	220-240 V, 50 Hz
Fuse Protection	Min 16 A
Dust Bag Type	Self-sealing dust bag
Dust Bag Capacity	3.5 L (estimated)
Motor Protection Filter	Washable
Exhaust Filter	Micro-hygiene filter (replace with new bag pack)
Optional Filters	HEPA (yearly), Active carbon (twice yearly)
Suction Control	Electronic, variable via dial on button
Power Cord Length	6 m (estimated)
Weight	6 kg (estimated)
Dimensions (HxWxD)	250 x 300 x 400 mm (estimated)
Noise Level	76 dB (estimated)
Accessories Included	Crevice nozzle, upholstery nozzle, floor tool, telescopic tube, handle
Special Features	Parking aid, storage aid, cord rewind, carrying handles
Intended Use	Domestic only
Warranty	Conditions per country of sale

Frequently Asked Questions - VS6PT24XXL Profilo

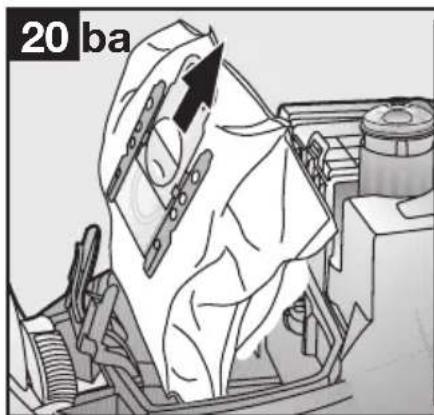

How do I change the dust bag?

Open the dust bag compartment lid using the locking lever. Pull the sealing strip to close the full bag and remove it. Slide a new self-sealing dust bag into the holder until it stops. The lid can only close when a bag is inserted.

When should I replace the micro-hygiene filter?

Replace the micro-hygiene filter when you start a new pack of dust bags. It is located behind the filter holder accessible via the dust bag compartment.

How often should I clean the motor protection filter?

Clean the motor protection filter regularly by tapping out dirt. If very dirty, rinse it and let it dry for at least 24 hours before reinserting.

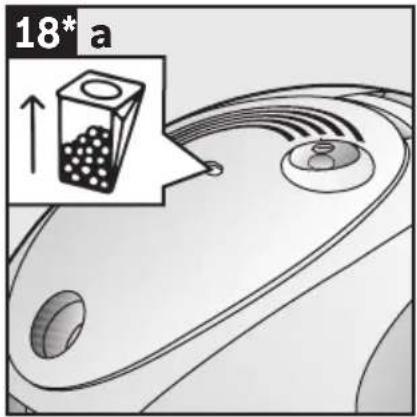

What does the dust bag change indicator mean?

When the indicator is completely yellow with the floor tool lifted and highest suction selected, the dust bag needs changing. First check for blockages in the nozzle, tube, or hose.

Can I use the vacuum cleaner without a dust bag?

No, never use the vacuum cleaner without a dust bag fitted. Doing so can damage the appliance.

How do I adjust the suction power?

Turn the on/off button in the direction of the arrow to adjust suction electronically. The button also serves as the power switch.

What accessories are available for this vacuum?

Accessories include a crevice nozzle, upholstery nozzle, furniture brush, turbo brush, hard-floor brush, and replacement filters. Use only original Profilo accessories.

How do I maintain the turbo brush (if equipped)?

Consult the separate instruction manual for the turbo brush. It is driven by airflow and requires no electrical connection. Clean as directed.

Is the vacuum suitable for allergy sufferers?

Yes, the vacuum can be equipped with a HEPA filter (VZ153HFB) for cleaner exhaust air. Replace the HEPA filter once a year.

How should I dispose of the vacuum cleaner at end of life?

Do not dispose of with household waste. Take the used vacuum to a recycling centre or retailer. Filters and dust bags can be disposed of with household rubbish if they contain no prohibited substances.

USER MANUAL VS6PT24XXL Profilo

Instructions for use

Line drawing of a vacuum cleaner with attached hose and bulb (no text or symbols)

VS6PT...

Illustration of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Illustration of a cleaning brush applying material to a surface, showing a tool and brush tip (no text or symbols)

Diagram showing a vacuum cleaner emitting a powder onto a surface, with an arrow indicating the process (no text or symbols present)

Illustration of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Illustration of a hand using a vacuum cleaner to clean the air (no text or symbols visible)

Illustration of a hand using a power tool to adjust or install a small electronic device (no text or symbols visible)

Illustration of a steam purifier with attached power plug and valve (no text or symbols)

Illustration of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Illustration of a cleaning brush applying material to a surface, showing a tool and brush tip (no text or symbols)

Diagram showing a vacuum cleaner emitting a powder onto a surface, with an arrow indicating the process (no text or symbols present)

Illustration of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols)

Illustration of a hand using a vacuum cleaner to clean the air (no text or symbols visible)

Illustration of a hand using a power tool to adjust or install a small electronic device (no text or symbols visible)

Illustration of a steam purifier with attached power plug and valve (no text or symbols)

Mechanical device with a downward arrow indicating a component (no text or symbols visible)

Illustration of a hand using a power tool to press or adjust a device with no visible text or symbols

Technical illustration of a mechanical assembly with no visible text or symbols

Diagram of a mechanical component with a highlighted section and arrow, no readable text or symbols present

Hand holding a grid of cubes with scattered dots below, illustrating a physical process (no text or symbols)

Line drawing of a hand placing food into a container with a recycling symbol (no text or labels)

Diagram of a mechanical component with arrows indicating upward and downward motion (no text or symbols)

Illustration of a trash bin with a downward arrow indicating waste or disposal (no text or symbols)

Diagram of a vehicle interior with a grid-patterned roof and directional arrows indicating movement or force (no text or symbols present)

Diagram showing a grid device above a trash can with an arrow indicating downward motion (no text or symbols)

Diagram of a mechanical component with labeled sections B and C, showing internal features (no text or symbols beyond labels)

Illustration of a rectangular storage unit with grid layout and top handle (no text or symbols)

Simple line drawing of a rectangular object with a handle, resembling a briefcase or folder (no text or symbols)

3D rendered mechanical component with a handle and central knob (no text or symbols)

Illustration of a cleaning brush with a handle and textured base (no text or symbols)

3D rendered mechanical component with two cylindrical parts and a flanged end (no text or symbols)

■ The design of this product is environmentally friendly.

All plastic parts are marked for recycling.

Technical illustration of two different vacuum cleaner components with labeled parts (no text or symbols present)

A Yedek filtre paketi VZ51PT1AFG

çindekiler:

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

3 Telescopic tube with sliding switch*

4 Telescopic tube with adjusting sleeve

5 Handle*

6 Flexible hose

7 Upholstery nozzle*

8 Crevice nozzle*

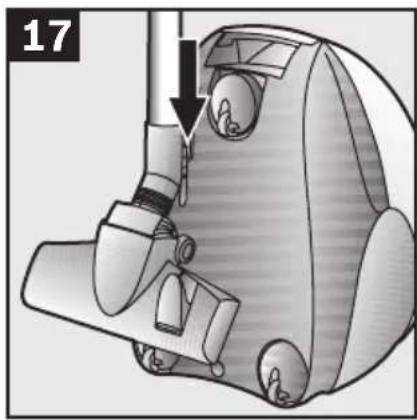

9 Parking aid

10 Power cord

11 Exhaust filter

12 On/off button with electronic suction regulator

13 Motor protection filter, washable

14 Storage aid (on underside of unit)

15 Dust bag

16 Dust bag compartment lid

17 Carrying handles (on the front and back)

18 Exhaust grille

19 Dust bag change indicator*

*Depending on equipment

Spare parts and accessories

Technical illustration of two different vacuum cleaner components with labeled parts (no text or symbols present)

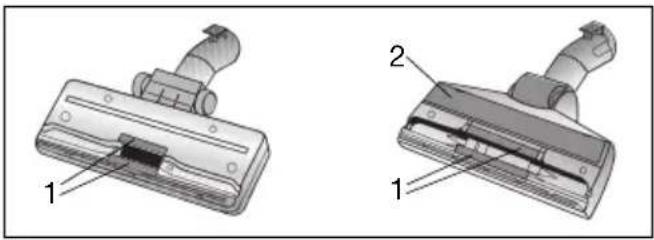

Filament lever (1) and polishing strips (2) can be obtained from the customer services and can also be replaced there

A Replacement filter pack VZ51PT1AFG

Contains:

5 self-sealing dust bags

1 micro-hygiene filter

B Textile filter (long-term filter) VZ10PT0TFG\*

Reusable filter with Velcro fastening.

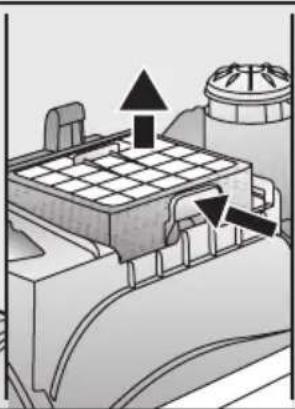

C HEPA filter VZ153HFB\*

Additional filter for cleaner exhaust air.

Recommended for allergy sufferers. Replace once a year.

D Micro active carbon filter VZ192MAF\*

Combination of micro filter and active carbon filter.

Combats unpleasant odours.

Replace twice a year. Replace carbon filter frame with micro filter frame.

Please note

It is not possible to combine a Hepa filter and an active carbon filter.

E TURBO UNIVERSAL® brush VZ102TBB\*

All in one brushing and vacuuming of short-pile pile rugs and carpets and all hard floor coverings. Especially suitable for picking up pet hair. The brush roller is driven by the air flow through the vacuum cleaner. No separate electrical connection is needed.

No electrical connection required.

F Hard-floor brush VZ123HD\*

For vacuuming hard floors (parquet flooring, tiles, lami nate, etc.)

G TURBO-UNIVERSAL® brush for upholstery VZ46001\*

All in one brushing and vacuuming of upholstered furniture, mattresses, car seats, etc. Especially suitable for picking up pet hair. The brush roller is driven by the suction of the air flow.

No separate electrical connection is needed.

*Depending on the model, special accessories are available in our After Sales Service.

Congratulations on your purchase of a Profilo VS6PT vacuum cleaner.

This instruction manual describes various VS6PT models, which means that some of the equipment features and functions described may not be available on your model. You should only use original Profilo accessories, which have been specially developed for your vacuum cleaner to achieve the best possible vacuuming results.

Please keep this instruction manual in a safe place. If you pass the vacuum cleaner on to someone else, please also pass on this instruction manual.

Intended use

This vacuum cleaner is intended for domestic use only, not for commercial use.

Only use this vacuum cleaner in accordance with the instructions in this instruction manual.

The manufacturer will not accept any responsibility for damage caused by improper use or incorrect operation. Therefore, you must note the following points.

The vacuum cleaner must only be operated with:

■ Manufacturer's original dust bags
■ Manufacturer's original replacement parts, accessories or special accessories

Safety information

This vacuum cleaner complies with the generally accepted standards of technology and relevant safety regulations.

■ Always observe the information on the rating plate when using the vacuum cleaner and connecting to the power supply.
■ Never use the vacuum cleaner without a dust bag fitted. => This can damage the appliance.
■ Only allow children to use the vacuum cleaner under supervision.
■ This appliance must not be used by children or persons with limited physical, sensory or mental abilities or with a lack of experience and knowledge (including children) unless they have been instructed in the use of the appliance by a responsible person.

The vacuum cleaner may not be used for:

■ cleaning persons or animals
■ vacuuming up:
- hazardous, sharp-edged, hot or red hot substances.
- damp or liquid substances
– highly flammable or explosive substances and gases
- ash, soot from tiled stoves and central heating systems
- toner dust from printers and copiers.

• Keep suction away from your head when using the handle, nozzles or pipe.
  => Risk of injury.

■ Stand the appliance on a firm, secure surface when vacuuming.
■ When vacuuming stairs, the appliance must always be lower down than you.
■ In the following cases, stop using the appliance immediately and contact the after-sales service:
- if the mains connection cable is damaged.
- if you have accidentally vacuumed up some liquid or liquid has entered the inside of the appliance
- if the appliance has been dropped.
■ Do not use the power cord to carry the vacuum cleaner.
■ Fully extend the power cord when using the vacuum cleaner continuously for several hours.
■ When disconnecting the appliance from the mains, pull on the plug, not the power cord.
■ Do not pull the power cord around sharp corners or allow it to become trapped.
■ Unplug the power cord from the mains before carrying out any work on the vacuum cleaner or its accessories.
■ Do not use the vacuum cleaner if it is damaged. Unplug the power cord from the mains if a fault is detected.
■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.
■ Protect the vacuum cleaner from outside weather conditions, moisture and sources of heat.
■ The vacuum cleaner is not suitable for use on building sites.
=>Vacuuming up building rubble could damage the appliance.
■ Switch off the appliance when it is not in use.
■ At the end of its life, the appliance should be rendered unusable, then disposed of in an appropriate manner.
■ Plastic bags and films must be kept out of the reach of children before disposal (risk of suffocation).
■ do not pour any flammable substances or substances containing alcohol onto the filters (filter bag, motor protective filter, exhaust filter, etc.).

Disposal information

■ Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can be recycled.

Dispose of packaging that is no longer required at an appropriate recycling point.

■ Used vacuum cleaners

Used vacuum cleaners still contain many valuable materials. Therefore, please take your used vacuum cleaner to your retailer or recycling centre to be recycled. For current disposal methods, please enquire at your retailer or your local council.

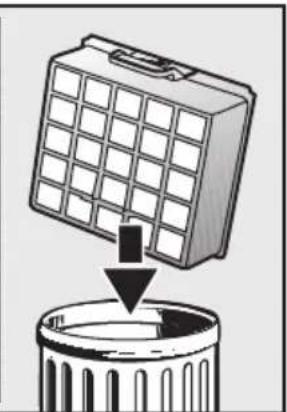

■ Disposal of filters and dust bags

Filters and dust bags are made from environmentally friendly materials.

As long as they do not contain substances that are not permitted to be disposed of in the household rubbish, you can dispose of them with your normal household rubbish.

Please note

- The mains socket must be protected by at least a 16 amp fuse.

If a fuse should blow when you switch on the appliance, this may be because other electrical appliances which have a high current draw are connected to the same power circuit.

To prevent the fuse from blowing, select the lowest power setting before switching the appliance on, and increase the power only once it is running.

Fold out picture pages.

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Before using for the first time

Figure 1\*

Push the handle onto the flexible tube and until it engages.

Figure 2\*

Push the crevice nozzle and upholstery nozzle back into the accessories holder as illustrated.

Setting up

Figure 3

a) Push the flexible hose adapter into the air intake opening on the vacuum cleaner lid until it engages.
b) To remove the flexible hose, press the two lugs together and pull the tube out.

Figure 4\*

Push the handle into the suction pipe/telescopic tube. To remove it, turn the handle slightly and pull it off the tube.

Figure 5\*

Insert the suction pipe/telescopic tube into the adapter of the floor tool.

To remove it, turn the tube slightly and pull it out of the floor tool.

Figure 6\*

To adjust the length of the telescopic tube, adjust the adjusting sleeve/sliding switch in the direction of the arrow and adjust the tube to the required length.

Figure 7

Holding the power cord by the plug, pull out the required length and plug it into the mains socket.

Figure 8

Press the on/off button in the direction of the arrow to switch your vacuum cleaner on/off.

Figure 9

Adjust the suction by turning the on/off button in the direction of the arrow.

Vacuuming

Figure 10

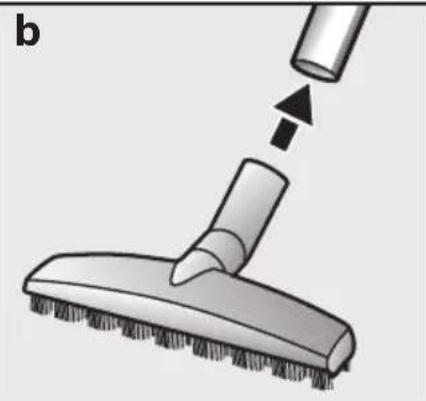

Adjusting the floor tool:

■ Rugs and carpets =>
■ hard floors =>

Figure 11

Remove the upholstery nozzle and crevice nozzle from the accessories holder as illustrated.

Figure 12\*

Attach the nozzles to the suction pipe or handle as required:

a) Crevice nozzle for vacuuming crevices and corners, etc.
b) Upholstery nozzle for vacuuming upholstered furniture, curtains, etc.
c) Furniture brush

For cleaning window frames, cabinets, mouldings, etc.

Figure 13

After use, push the crevice nozzle and upholstery nozzle back into the accessories holder as indicated.

Turbo brush

If your vacuum cleaner is equipped with a turbo brush, please consult the accompanying instruction manual for notes on use and maintenance.

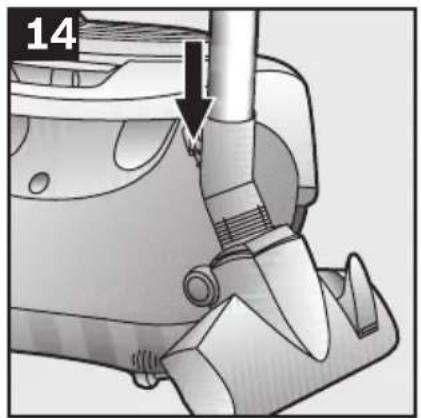

Figure 14

You can use the parking aid on the side of the vacuum cleaner if you wish to stop vacuuming for a short time. Once you have switched off the vacuum cleaner, slide the catch on the floor tool into the groove on the side of the appliance.

Figure 15

The appliance can also be carried using one of the two handles when vacuuming steps, for example.

When the work is done

Figure 16

Unplug the vacuum cleaner.

Tug the power cord briefly and let go. The cable then rewinds automatically.

Figure 17

To store or transport the vacuum cleaner, use the storage aid on the underside of the vacuum cleaner.

Stand the vacuum cleaner up on its end. Slide the catch on the floor tool into the groove on the underside of the appliance.

Replacing the dust bag

Figure 18\*

a) If the dust bag change indicator is completely yellow when the floor tool is lifted from the floor and the highest suction power is selected, the dust bag needs changing. Even if the dust bag is not full, it may still need changing, due to the type of dust which has been vacuumed. First check that the nozzle, suction pipe and flexible tube are not blocked, as this would also lead to dust bag change indicator being triggered.

b) The handle can easily be detached from the hose to remove blockages.

Figure 19

Open the lid by moving the locking lever in the direction of the arrow.

Figure 20

a) Seal the dust bag by pulling the sealing strip and then remove it.
b) Slide the new dust bag into the holder to the stop.
Caution: The lid can only be closed when a dust bag has
- been inserted.

Cleaning the motor protection filter

The motor protection filter should be cleaned regularly by knocking out the dirt and rinsing.

Figure 21

■ Open the dust bag compartment lid.
■ Pull out the motor protection filter in the direction of the arrow.
■ Clean the motor protection filter by tapping it.
■ If it is very dirty, the motor protection filter should be rinsed.
Now leave the filter to dry for at least 24 hours.
■ After cleaning, slide the motor protection filter into the vacuum cleaner and close the dust bag compartment lid.

Replacing the micro-hygiene filter

When should you change the micro-hygiene filter? when starting a newpack of bags

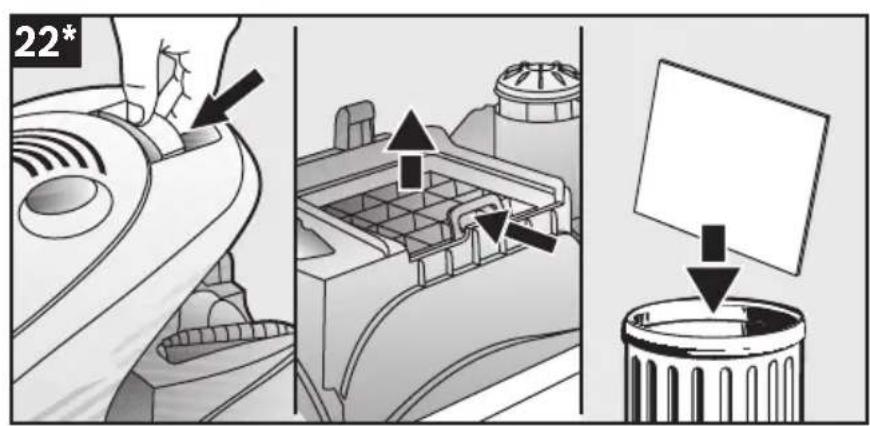

Figure 22\*

■ Open the dust bag compartment lid.
■ Release the filter holder by moving the locking lever in the direction of the arrow.
■ Remove the micro-hygiene filter. Insert the new micro-hygiene filter into the vacuum cleaner.
■ Reinsert the filter holder and clip into place.

Replacing the micro active carbon filter

If your vacuum cleaner is equipped with a micro active carbon filter, this should be replaced every six months.

Figure 23\*

■ Open the dust bag compartment lid.
■ Release the filter holder by moving the locking lever in the direction of the arrow.

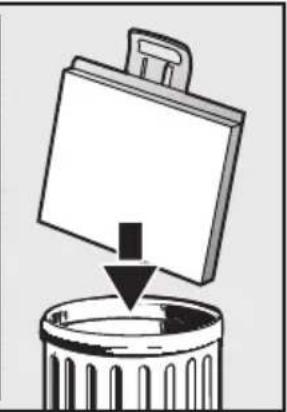

■ Remove the micro active carbon filter.
■ Insert the new micro active carbon filter.
■ Reinsert the filter holder and clip into place.

Replacing the Hepa filter

If your vacuum cleaner is equipped with a Hepa filter, this should be replaced once a year.

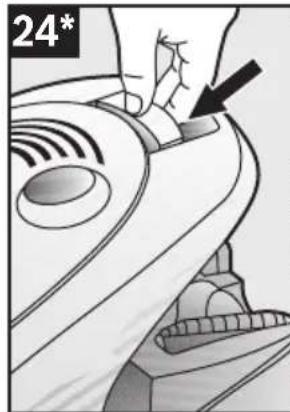

Figure 24\*

■ Open the dust bag compartment lid.

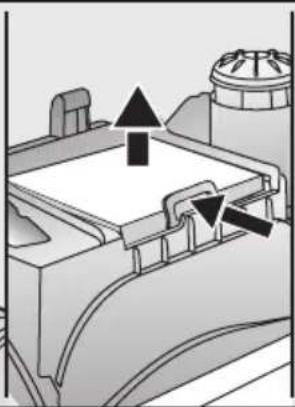

■ Release the Hepa filter by moving the locking lever in the direction of the arrow and remove it from the vacuum cleaner.
■ Insert the new Hepa filter and clip into place.

If you have used the vacuum cleaner for fine dust particles, clean the motor protection filter and, if necessary, replace the micro active carbon filter or Hepa filter.

Care

Always switch off the vacuum cleaner and disconnect the power cord from the mains before cleaning the appliance. The vacuum cleaner and plastic accessories can be cleaned with a commercial plastic cleaner.

Do not use a scourer, glass-cleaning agent or
- multipurpose cleaning product. Never immerse the vacuum cleaner in water.

The dust compartment can, if necessary, be cleaned with a second vacuum cleaner or simply wiped with a dry cloth or dusting brush.

Subject to technical modifications.

Описание прибора

Technical illustration of two mechanical components with labeled parts (1 and 2), no text or symbols present.

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Technical illustration of two different vacuum cleaner components with labeled parts (no text or symbols present)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Technical illustration of two different vacuum cleaner components with labeled parts (no text or symbols present)

1 fellr spicyd Quebec

HEATHERTON, Victoria 3202

Tel.: [phone]

Fax: [phone]

valid only in AUS

mailto:[e-mail]

www.siemens-home.com.au

BA Bosnia-Herzegovina, Bosna i Hercegovina

"HIGH" d.o.o.

Odobašina 57

71000 Sarajewo

Info-Line: 061 10 09 05

Fax: [phone]

mailto:[e-mail]

+ 7 snt/min (alv 23%)

+ 17 snt/min (alv 23%)

Kundendienst-Zentren • Central-Service-Depots • Service Après-Vente • Servizio Assistenza • Centrale Servicestation • Asistencia técnica • Servicevaerkter • Apparatservice • Huolto

FR France

BSH Electroménager S.A.S.

Old Wolverton Road Wolverton

Milton Keynes MK12 5PT

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit: www.siemens-home.cu.uk or call

Tel.:[phone]*

*Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A. B. E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

145 64 Kifisia

Greece – Athens

Tel.:[phone]

Fax: [phone]

North-Greece – Thessaloniki

Tel.:[phone]

Fax: [phone]

South-Greece – Heraklion/Kreta

Tel.:[phone]

Fax: [phone]

Central-Greece – Patras

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com

HK Hong Kong, 香港

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.:[phone]

Fax: [phone]

mailto:service.siemens@

bshg.com

www.siemens-home.com.hk

HR Hrvatska, Croatia

Andabaka d.o.o.

Gunduliceva 10

21000 Split

Info-Line: 021 481 403

Info-Fax: [phone]

mailto:[e-mail]

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and

Accessories

Tel.: [phone]

Fax: [phone]

www.siemens-home.com

IL Israel,

C/S/B Home Appliance Ltd.

Uliel Building

2, Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

LT Lietuva, Lithuania

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

LU Luxembourg

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.:[phone]

Fax:[phone]

mailto:[e-mail]

PL Polska, Poland

Union Industrial Building

Block A, #01-03

577177 Singapore

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.:[phone]

Fax:[phone]

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.:[phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.siemens-home.com

02/11

TR Garanti Şartları

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

Symbol of a trash bin crossed with two crossed lines, representing waste or discharge (no text or labels)

tr

"This appliance is labelled in accordance with the European directive 2002/96/EG concerning waste electrical and electronic equipment – WEEE."

The directive provides the framework for the return and recycling of used appliances as applicable throughout the EU."

ru
