Product Type	Bagless Cylinder Vacuum Cleaner
Model	VS7PT2520
Brand	Profilo
Dimensions (L x W x H)	430 x 260 x 330 mm
Weight	5.2 kg
Power Consumption	2000 W
Suction Power	400 AW
Dust Capacity	1.5 L
Filtration System	HEPA 13 Washable Filter
Operating Radius	9 m (cord length 6 m + hose 3 m)
Noise Level	78 dB(A)
Variable Suction Control	Yes, electronic slider on handle
Floor Nozzle	Multi-floor with brush on/off
Accessories Included	Crevice tool, upholstery tool, dusting brush, turbo brush
Bagless Design	Yes, easy-empty dust container
Replaceable HEPA Filter	Yes, washable and replaceable every 6 months
Cable Rewind	Automatic with foot pedal
Parking Position	Vertical parking for storage
Energy Class	A++
Colour	Black / Red

Frequently Asked Questions - VS7PT2520 Profilo

How do I empty the dust container?

Press the button on top of the container to release it from the vacuum. Hold it over a bin and press the bottom release lever to open the flap. Tap gently to remove all dust.

How often should I wash the HEPA filter?

Wash the HEPA filter under running water every 3 months. Let it air dry completely for 24 hours before reinstalling. Replace the filter every 6 months for optimal performance.

What should I do if the suction power drops?

Check for blockages in the hose, nozzle, or dust container. Empty the container if full. Wash or replace the HEPA filter. Also inspect the floor nozzle for tangled hair or debris.

Can I use the vacuum without a bag?

Yes, the VS7PT2520 is bagless. It uses a washable dust container and HEPA filter. Simply empty and clean the container as needed.

How do I adjust the suction power?

Slide the electronic suction control slider located on the handle. Slide forward for maximum suction on carpets, backward for gentle suction on curtains or delicate surfaces.

What is the cord length and can it be rewound automatically?

The power cord is 6 meters long, giving an operating radius of 9 meters. Yes, press the foot pedal to rewind the cord automatically.

How do I clean the turbo brush?

Remove the turbo brush from the wand. Use scissors to cut any hair or threads wrapped around the brush. Remove the brush cover if needed by sliding the latch. Clean with a dry cloth.

Is the vacuum suitable for pet hair?

Yes, the included turbo brush is ideal for removing pet hair from upholstery. The strong suction and HEPA filter also help capture allergens.

What should I do if the vacuum overheats?

If the thermal cut-out activates, switch off and unplug the vacuum. Check for blockages and empty the dust container. Let it cool for at least 30 minutes before restarting.

Where can I buy replacement filters?

Replacement HEPA filters and dust container parts are available from authorized Profilo dealers or online via the Profilo spare parts website. Use model number VS7PT2520 to find compatible parts.

USER MANUAL VS7PT2520 Profilo

Instructions for use

Line drawing of a vacuum cleaner with attached hose and handle (no text or symbols)

VS7PT...

Mechanical component diagram showing a threaded pipe inserted into a housing with an arrow indicating direction (no text or symbols present)

Diagram showing a cylindrical object being inserted into a tube, with arrows indicating the process (no text or symbols)

Illustration of a vacuum cleaner with a tool inserted, showing the tip and base (no text or symbols)

Illustration of a hand using a tool to cut or inspect the interior of a car (no text or symbols visible)

Diagram of a car interior showing a handle and seat, with a downward arrow indicating direction (no text or symbols present)

Diagram showing two hands holding a light bulb with downward arrows indicating process or alignment, alongside icons for circuit symbols and bar charts (no readable text)

Illustration of a mechanical component with an arrow indicating upward motion (no text or symbols)

Diagram showing a tool interacting with a device, no text or symbols present

Top-down diagram of a vacuum cleaner's internal compartments (no text or labels)

Illustration of a brush applying material to a surface, showing a tip and brush tip with an arrow indicating direction (no text or symbols)

Close-up of a vacuum cleaner's internal component being inserted, showing bulb and socket (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a car body panel (no text or symbols visible)

Diagram of a car electrical plug being inserted into a housing (no text or symbols visible)

Diagram of a vacuum cleaner's internal structure with a downward arrow indicating motion (no text or symbols present)

Close-up of hands using a mechanical component to adjust a component, with an inset showing a close-up of the tool (no text or symbols visible)

Technical diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

Technical diagram of a car body panel with two arrows indicating component alignment (no text or symbols present)

Diagram of a mechanical component with labeled sections B and C, showing internal features (no text or symbols beyond labels)

3D rendering of a rectangular plastic housing with internal grid pattern (no text or symbols)

3D rendering of a rectangular electronic device with mounting holes and a central display (no text or symbols visible)

3D rendered image of a mechanical clamp or lever component (no text or symbols visible)

Illustration of a tool applying adhesive to a rectangular surface with textured base (no text or symbols)

3D rendering of a vacuum cleaner component (no text or symbols visible)

■ The design of this product is environmentally friendly.

All plastic parts are marked for recycling.

Technical illustration of two mechanical components with labeled parts (1 and 2), no text or symbols present.

A Yedek filtre paketi VZ51PT1AFG

çindekiler:

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

1 Adjustable floor tool*
2 Hard-floor brush*
3 Telescopic tube with sliding switch*
4 Telescopic tube with adjusting sleeve
5 Handle
6 Flexible hose
7 Hard furnishings brush*
8 Upholstery nozzle*
9 Crevice nozzle*
10 Dust bag change indicator
11 Accessories compartment

12 Cover
13 Electronic slide control
14 Power cord
15 ON/OFF button
16 Parking aid
17 Exhaust filter
18 Storage aid (on underside of unit)
19 Motor protection filter
20 dust bag

*depending on equipment

Spare parts and accessories

Technical illustration of two mechanical components with labeled parts (1 and 2), no text or symbols present.

Filament lever (1) and polishing strips (2) can be obtained from the customer services and can also be replaced there

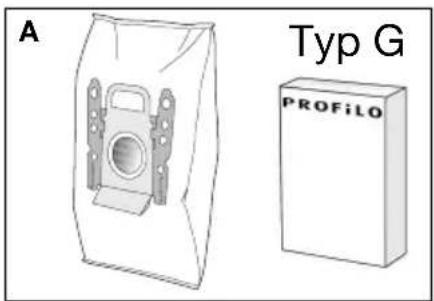

A Replacement filter pack VZ51PT1AFG

Contains:

5 self-sealing dust bags

1 micro-hygiene filter

B Textile filter (long-term filter) VZ10PT0TFG\*

Reusable filter with Velcro fastening.

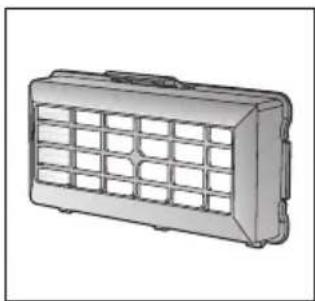

C HEPA filter (class H12) VZ152HFB\*

Recommended for allergy sufferers. Ensures very clean exhaust air. Replace annually.*

D Micro active carbon filter VZ193MAF\*

Combination of micro filter and active carbon filter.

Combats unpleasant odours. Replace annually.

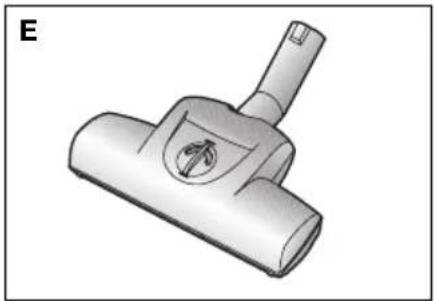

E TURBO UNIVERSAL® brush VZ102TBB\*

All in one brushing and vacuuming of short-pile pile rugs and carpets and all hard floor coverings. Especially suitable for picking up pet hair. The brush roller is driven by the air flow through the vacuum cleaner. No separate electrical connection is needed. No electrical connection required.

F Hard-floor brush VZ123HD\*

For vacuuming hard floors (parquet flooring, tiles, lami nate, etc.)

G Washing brush VZ103WD\*

Suitable for use on all hard floors, such as parquet, laminate, stone, wooden floorboards, tiles, etc. (test the moist cleaning cloths on an inconspicuous area before using on hard floors which require particular care). Removes large particles of dirt while the moist cleaning cloth cleans the floor at the same time.

*Depending on the model, special accessories are available in our After Sales Service.

Congratulations on your purchase of a Profilo VS7PT vacuum cleaner.

This instruction manual describes various VS7PT models, which means that some of the equipment features and functions described may not be available on your model. You should only use original Profilo accessories, which have been specially developed for your vacuum cleaner to achieve the best possible vacuuming results.

Please keep this instruction manual in a safe place. If you pass the vacuum cleaner on to someone else, please also pass on this instruction manual.

Intended use

This vacuum cleaner is intended for domestic use only, not for commercial use.

Only use this vacuum cleaner in accordance with the instructions in this instruction manual.

The manufacturer will not accept any responsibility for damage caused by improper use or incorrect operation. Therefore, you must note the following points.

The vacuum cleaner must only be operated with:

■ Manufacturer's original dust bags
■ Manufacturer's original replacement parts, accessories or special accessories

Safety information

This vacuum cleaner complies with the generally accepted standards of technology and relevant safety regulations.

■ Always observe the information on the rating plate when using the vacuum cleaner and connecting to the power supply.
■ Never use the vacuum cleaner without a dust bag fitted. => This can damage the appliance.
■ Only allow children to use the vacuum cleaner under supervision.
■ This appliance must not be used by children or persons with limited physical, sensory or mental abilities or with a lack of experience and knowledge (including children) unless they have been instructed in the use of the appliance by a responsible person.

The vacuum cleaner may not be used for:

■ cleaning persons or animals
■ vacuuming up:
- hazardous, sharp-edged, hot or red hot substances.
- damp or liquid substances
– highly flammable or explosive substances and gases
- ash, soot from tiled stoves and central heating systems
- toner dust from printers and copiers.

• Keep suction away from your head when using the handle, nozzles or pipe.
  => Risk of injury.

■ Stand the appliance on a firm, secure surface when vacuuming.
■ When vacuuming stairs, the appliance must always be lower down than you.
■ In the following cases, stop using the appliance immediately and contact the after-sales service:
- if the mains connection cable is damaged.
- if you have accidentally vacuumed up some liquid or liquid has entered the inside of the appliance
- if the appliance has been dropped.

■ Do not use the power cord to carry the vacuum cleaner.

■ Fully extend the power cord when using the vacuum cleaner continuously for several hours.

■ When disconnecting the appliance from the mains, pull on the plug, not the power cord.

■ Do not pull the power cord around sharp corners or allow it to become trapped.

■ Unplug the power cord from the mains before carrying out any work on the vacuum cleaner or its accessories.

■ Do not use the vacuum cleaner if it is damaged. Unplug the power cord from the mains if a fault is detected.

■ For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.

■ Protect the vacuum cleaner from outside weather conditions, moisture and sources of heat.

■ The vacuum cleaner is not suitable for use on building sites.

=>Vacuuming up building rubble could damage the appliance.

■ Switch off the appliance when it is not in use.

■ At the end of its life, the appliance should be rendered unusable, then disposed of in an appropriate manner.

■ Plastic bags and films must be kept out of the reach of children before disposal (risk of suffocation).

■ do not pour any flammable substances or substances containing alcohol onto the filters (filter bag, motor protective filter, exhaust filter, etc.).

Disposal information

■ Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can be recycled.

Dispose of packaging that is no longer required at an appropriate recycling point.

■ Used vacuum cleaners

Used vacuum cleaners still contain many valuable materials. Therefore, please take your used vacuum cleaner to your retailer or recycling centre to be recycled. For current disposal methods, please enquire at your retailer or your local council.

■ Disposal of filters and dust bags

Filters and dust bags are made from environmentally friendly materials.

As long as they do not contain substances that are not permitted to be disposed of in the household rubbish, you can dispose of them with your normal household rubbish.

Please note

- The mains socket must be protected by at least a 16 amp fuse.

If a fuse should blow when you switch on the appliance, this may be because other electrical appliances which have a high current draw are connected to the same power circuit.

To prevent the fuse from blowing, select the lowest power setting before switching the appliance on, and increase the power only once it is running.

Fold out picture pages.

Simple line drawing of an open book with a right-pointing arrow on the page (no text or symbols)

Before using for the first time

Figure

Push the handle onto the flexible hose until it engages.

Setting up

Figure

a) Push the flexible hose adapter into the opening on the vacuum cleaner until it engages.

b To remove the flexible hose, press the release button and pull the hose out.

Figure

Connect the handle and the telescopic tube together.

Figure

Connect the floor tool and the telescopic tube together.

Figure

To adjust the length of the telescopic tube, adjust the adjusting sleeve/sliding switch in the direction of the arrow and adjust the tube to the required length.

Figure

Take the mains plug, pull the mains cable to the required length and insert the plug into a socket.

Figure

Press the ON/OFF button in the direction of the arrow to switch your vacuum cleaner on.

Vacuuming

Figure 8

The required suction power can be selected infinitely variably by adjusting the slide control.

■ Lowest

suction range:

For vacuuming delicate fabrics, e.g. curtains.

■ Low

suction range:

For daily vacuuming of lightly soiled floors.

■ Medium

suction range:

For vacuuming durable floor coverings, hard floors and for heavily soiled surfaces.

■ High

suction range:

For vacuuming stubborn dirt and very heavily soiled surfaces.

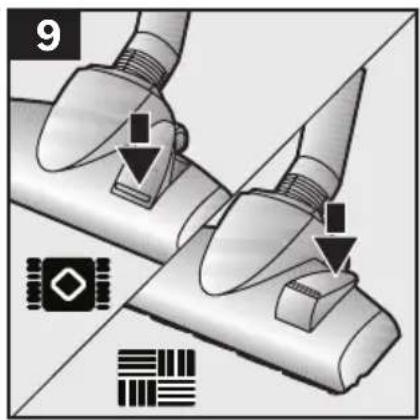

Figure 9

Adjusting the floor tool:

a) For vacuuming rugs and carpets =>

b For vacuuming hard floors =>

Turbo brush

If your vacuum cleaner is equipped with a turbo brush, please consult the accompanying instruction manual for notes on its use and maintenance.

Figure 10\*

Vacuuming with accessories

(attach to handle or suction pipe as required).

a) Crevice nozzle

For cleaning crevices and corners.

b) Upholstery nozzle

For cleaning upholstered furniture, curtains, etc.

c) Hard furnishings brush

For vacuuming picture frames, books, furniture requiring particular care, etc.

Figure 11

Other accessories that you do not need can be stored easily in the accessories compartment of the vacuum cleaner lid.

Figure 12\*

Hard-floor brush

■ For cleaning hard floor coverings (tiles, parquet flooring, etc.)

■ Connect the floor tool and the telescopic tube together.

Figure 13

Once you have switched off the vacuum cleaner, you can use the parking aid on the back of the vacuum cleaner if

you wish to stop vacuuming for a short time.

To do this, slide the catch on the floor tool into the groove on the back of the vacuum cleaner.

When the work is done

Figure

14

■ Unplug the vacuum cleaner.
■ Briefly pull the power cord and release. The cord rewinds automatically.

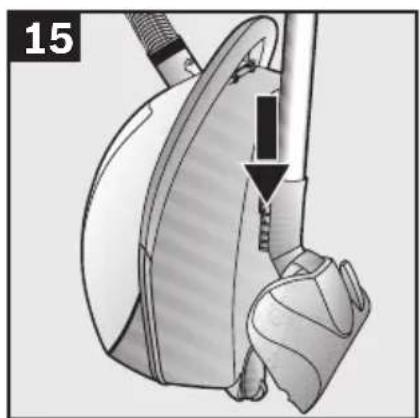

Figure

15

To store or transport the vacuum cleaner, use the storage aid on the underside of the vacuum cleaner.

Stand the vacuum cleaner up on its end. Slide the catch on the floor tool into the groove on the underside of the vacuum cleaner.

Changing the dust bag and filters

Replacing the dust bag

Figure

16

If the dust bag change indicator is completely yellow when the floor tool is lifted from the floor and the highest suction power is selected, the dust bag must be changed, even though it may not yet be full. In this case it is essential to change the dust bag due to the type of material it contains.

First check that the nozzle, suction pipe and flexible hose are not blocked, as this would also lead to the dust bag change indicator being triggered.

Figure

17

Open the lid by moving the locking lever in the direction of the arrow.

Figure

18

a) Seal the dust bag by pulling the sealing strip and then remove it.
b) Insert a new dust bag into the holder and close the dust bag compartment lid.

Caution: the lid will only close when the dust bag is inserted.

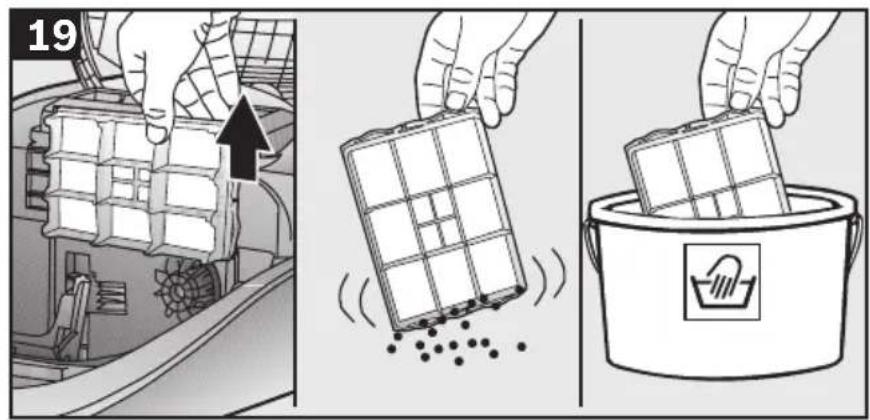

Cleaning the motor protection filter

The motor protection filter should be cleaned regularly by knocking out the dirt and rinsing.

Figure

19

■ Open the dust bag compartment lid (see Figure 17).
■ Pull out the motor protection filter in the direction of the arrow.
■ Clean the motor protection filter by tapping it.

*Depending on version

■ If it is very dirty, the motor protection filter should be rinsed.
The filter must then be left to dry for at least 24 hours.

■ After cleaning, slide the motor protection filter into the vacuum cleaner and close the dust bag compartment lid.

Replacing the micro-hygiene filter

Figure 20\*

■ Open the dust bag compartment lid (see Figure 17).
■ Release the filter holder by pressing the locking tab in the direction of the arrow
■ Remove the foam filter and micro-hygiene filter. Insert the new micro-hygiene filter and foam filter into the filter holder.
■ Insert the filter holder into the vacuum cleaner and clip into place.

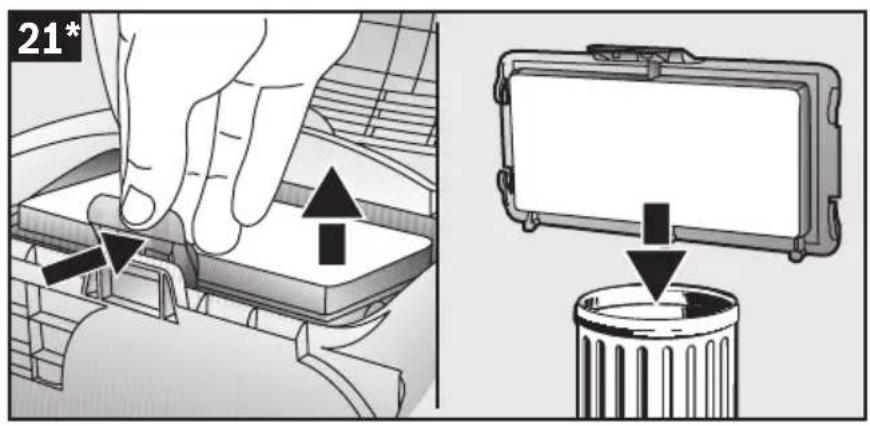

Replacing the micro active carbon filter

Figure 21\*

■ Open the dust bag compartment lid (see Figure 17).
■ Release the filter holder by moving the locking lever in the direction of the arrow.
■ Remove the micro active carbon filter.
■ Insert the new micro active carbon filter into the vacuum cleaner and clip into place.

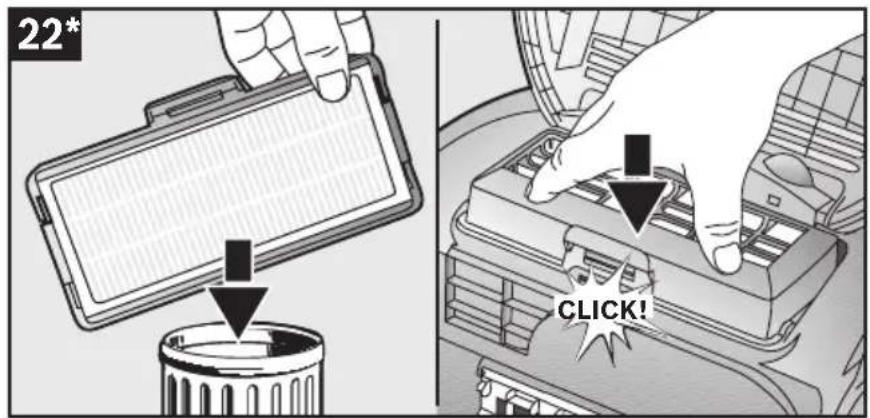

Replacing the HEPA filter

Figure 22\*

■ Open the dust bag compartment lid (see Figure 17).
■ Release the HEPA filter by pressing the locking tab in the direction of the arrow and remove it from the vacuum cleaner (see Figure 20).
■ Insert the new HEPA filter and clip into place.

If you have used the vacuum cleaner for fine dust particles, clean the motor protection filter by knocking out the dirt and, if necessary, replace the micro hygiene filter, active carbon filter or HEPA filter.

Care

Always switch off the vacuum cleaner and disconnect the power cord from the mains before cleaning the vacuum cleaner.

The vacuum cleaner and plastic accessories can be cleaned with a commercial plastic cleaner.

Do not use a scourer, glass-cleaning agent or all-
- purpose cleaning product.

Never immerse the vacuum cleaner in water.

The dust compartment can, if necessary, be cleaned with a second vacuum cleaner or simply wiped with a dry cloth or dusting brush.

Subject to technical modifications.

Описание прибора

Technical illustration of two different vacuum cleaner components with labeled parts (no text or symbols present)

Simple line drawing of an open book with a right-pointing arrow indicating rotation (no text or symbols)

Technical illustration of two mechanical components with labeled parts (1 and 2), no text or symbols present.

Simple line drawing of an open book with a right-pointing arrow indicating the page (no text or symbols present)

Simple line drawing of an open book with a right-pointing arrow indicating the page direction (no text or symbols)

Technical illustration of a mechanical component with a handle and labeled part (no text or symbols present)

HEATHERTON, Victoria 3202

Tel.: [phone]

Fax: [phone]

valid only in AUS

mailto:[e-mail]

www.siemens-home.com.au

BA Bosnia-Herzegovina, Bosna i Hercegovina

"HIGH" d.o.o.

Odobašina 57

71000 Sarajewo

Info-Line: 061 10 09 05

Fax: [phone]

mailto:[e-mail]

+ 7 snt/min (alv 23%)

+ 17 snt/min (alv 23%)

Kundendienst-Zentren • Central-Service-Depots • Service Après-Vente • Servizio Assistenza • Centrale Servicestation • Asistencia técnica • Servicevaerkter • Apparatservice • Huolto

FR France

BSH Electroménager S.A.S.

Old Wolverton Road Wolverton

Milton Keynes MK12 5PT

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit: www.siemens-home.cu.uk or call

Tel.:[phone]*

*Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A. B. E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

145 64 Kifisia

Greece – Athens

Tel.:[phone]

Fax: [phone]

North-Greece – Thessaloniki

Tel.:[phone]

Fax: [phone]

South-Greece – Heraklion/Kreta

Tel.:[phone]

Fax: [phone]

Central-Greece – Patras

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com

HK Hong Kong, 香港

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.:[phone]

Fax: [phone]

mailto:service.siemens@

bshg.com

www.siemens-home.com.hk

HR Hrvatska, Croatia

Andabaka d.o.o.

Gunduliceva 10

21000 Split

Info-Line: 021 481 403

Info-Fax: [phone]

mailto:[e-mail]

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and

Accessories

Tel.: [phone]

Fax: [phone]

www.siemens-home.com

IL Israel,

C/S/B Home Appliance Ltd.

Uliel Building

2, Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.com

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

LT Lietuva, Lithuania

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

LU Luxembourg

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.:[phone]

Fax:[phone]

mailto:[e-mail]

PL Polska, Poland

Union Industrial Building

Block A, #01-03

577177 Singapore

Tel.:[phone]

Fax: [phone]

mailto:[e-mail]

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.:[phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.siemens-home.com

02/11

TR Garanti Şartları

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

Symbol of a trash bin crossed with two crossed lines, representing waste or discharge (no text or labels)

tr

"This appliance is labelled in accordance with the European directive 2002/96/EG concerning waste electrical and electronic equipment – WEEE."

The directive provides the framework for the return and recycling of used appliances as applicable throughout the EU."

ru
