USER MANUAL FINEPIX F550EXR FUJIFILM

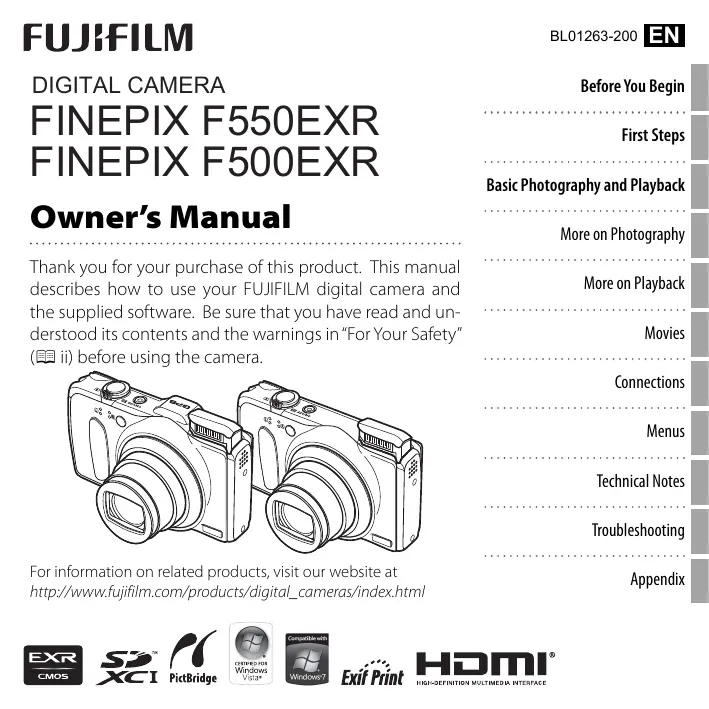

Owner’s Manual 8L01263-200 [AI Before You Begin Fit sen Be og and ra More on Ph Thank you for your purchase of this product. This manual describes how to use your FUJIFILM digital camera and the supplied software. Be sure that you have read and un- derstood its contents and the warnings in “For Your Safety" (E i before using the camera For information on related products, visit our website at http/mwufujiilm.com/products/digital_cameras/index.html = => /( Q

For Your Safety : Read Instructions A the safety and operat ing instructions should be read before the applance is operated + Retain Instructions The safety and operating instructions should be retained for future reference. : Heed Wamings Al wramings on the ap- plance and in the operating instructions sheud be adheredto. + follw Instructions À operating and use instructions should be followed

IMPORTANT SAFETY INSTRUCTIONS

Power Soures ni video product should be operated only om the type of power sauce indicated on the mañing label 1 eu are nat sur of the type of power supphy to your hame, consult your applänce dealer or lcal peer company. For videa products itend- € to operate om batery power, or other sources refer 1 the operating instructions. Grounding or Polariztion: This video product is equipped oith à polañzed ahernating- curent line plug (à plug having one blade vider than the othen This plug nil ft into the poser outlet on ane way. Thisis safety feature. 1f you ate unable to insert the plug fui into the outiet, try reversng the plug. 1F the plug should sl fai t fi, contact your lectrican to replace your obsolete out. Do not defea the safety purpose of the po- latized plug Alternate Wamings. This video. product à equipped with a three-wire grounding-type Plug, a plug having à thid (grounding) pin. This plug wil only fr into a grounding-type pouer outlet. This is a safety feature. you are unabl 10 insert the plug into the outet, contact your elctrician to replace your b50- lete auriet. Da not defeat the safety purpose ofthe grounding type plug Ouweloading: Do not overozd al ourlets and extension cords as 1h can resur i à ik of fire ar lectrie shock. Ventilation Sots and openings in the cabinet are prowded for ventilation, to ensure relable operation of the wideo product and to pro- ect it from overheating, and these openings us not be blocked or covered. The open- ings should never be blocked by placing the video product on à bed, sol, rug or oûher similar surface. This video product should not be placed in a buit-i installation such as à bookcase or rack unless proper ventilation & provided or the manufacturers instructions have been ad- hered to. This video product should never be placed near or over a radar or heat register. Attacments. Do not use attachments not recommended by the video product manu- facturer as they maÿ cause hazard Water and Moisture. Do not use his video product near water—for example, near à bath tub, wash bov, kitchen sink, or sun ub, in a et basement, or near à swimming pool and the like. Power-Cord Protection: Poner-supply cordes should be routed se that they are not likely to be waked on or pinched by items placed upon or against them, paying particular aitention 10 cords at plugs, convenience re- ceptacies and the point where they exit from the appliance. Accessories. Do not place this video product on an unstable cart, stand, tipod, racket, or table. The video product may fal, causing serious injury to à chid or ad, and serious damage to the applance. Use only with à ar, stand, tipod, bracket, or table recom mended by the manufactures or sold with the video product. Any mounting of the ap- lance should follow the manufactures in- Structions and should use a mounting acces s0rÿ recommended by the manufcturer An applance and cart combination _ should be moved with care. Quick stops,_exces- se force, and uneven surfaces may cause the appliance and cart combination 1 everturn.

For Your Safety Re mir 0) ntenna Groundimg a OU antenna or cable system is connected to the video product be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and buit- Up static charges, Section 810 ofthe National Electrical Code, ANSI/NFPA No. 70, provides information svih respect to proper ground ing of the mast and supporing structure, grounding of the lezdin wire te an antenna discharge uni, size of grounding conductors, location of antenna discharge urit, conne ion 10 grounding electrodes, and require- ments for the grounding electrode.

Ground amp Anterna tend PAS aorenna Dcharge Unit (NEC SECTION an0-20) Grond amp es Groundng Condutors Poe Senice Grourding Becrode Sem (NECART— PECÉEION 250.PARTH) 21 Power Lines: An outside antenna system should not be located in the viinity of over- head power lines or oüher elec light or power cuis, or where it can fa ito such power lines ar cicuits. Wen istaling an outside antenn system, extreme care should be taken to keep from touching such pour lines or circuits as contact with them might befatal Bed Unplug ts wideo product rom the wall outlet before cleaning. Do not use lig- id cleaners or aerosal leaners. Use a damp Cloth for cleaning, Object and Liquid Entry. Never push objects of any Kind into this video product through {openings as theÿ may touch dangerous vol age points ar short out pars that could result in a re or lecti shack. Never spl quid of any Kind on the video product. Lightning: For acided protection for this video product receiver during a ightning storm, or when it is left unattended and unused for lang perods af time, unplug it from the wall utlet and disconneet the antenna or cable system. This will prevent damage to the video product due to lighüning and power lie surges. TT] Serviing- Do not attempt to service this video product yourselas opening orremoving cov- rs may expose you ta dangerous voltage or other hazard, Refer al sendcing to qualied service personnel Damage Requring Service Unplug this video product fram the wall outlt and refer senvic- ing to qualfied service personnel under the following conditions Wen the power-supphy cord or plug is damaged. + Iliquid has been splled, or objects have Fallen inta the video product + Iühe video product has been exposed to rain or water + IFühe video product has been dropped or the cabinet has been damaged IFühe video product does not operate nor mal fallow the operating instructions, Ad- just only those controls that are covered by the operating instructions 35 an improper adjustment of other controls may resu in damage and ll often require extensive work by a qualfied technician to restor the video” product ta its normal operation. Wien the video product exhibits à distinct change in perfommance—this indicates à need for service. Replacement Parts. Wen replacement parts are required, be sure the service techmician has used replacement parts specified by the manufacturer or have he same characters As as the original part. Unauthorized sub- stitutions may resu in fre, electric shock or other hazatds. Safety Check Upon completion of any service or repair to this video product, ask the ser vice technician to perform safety checks to determine that the video product sin proper operating condition

Be sure to read these notes before use ZN WARNING [ Safety Notes Make sure that you notes and your Ouners Man + Aer rezding thes notes, store them in a safe place. boutthe cons Te Icons Row Belov are used In I document In indicated by the icon is ignor and the product is used y of the imjury or damage that can resui if the information Mme romans grorc Th con indicates that death or serious injury an result the

De tue the camera in the bathroom shower, This can cause Sen à fe or ec shock ver attempt to changer take apart the camera (never open| he case), Falure 10 observe ins précaution can cause fre 0 elcteshodk hou he case break pen este result alor ae acden | do ot touch the expesed parts, Faure to observe ii precar Ron coul esuin electric shock orin injury from touching the damage pars. Remove te battery mmediateh, taking cate 10 avoid injury or elec shock, and take he product 10 the point of purchase fr consultation. nur normanon is gnord Ts icon indicaes that personal jury or material dat The icons shovin below are used to indicate dons which ar to be observed. € ature ofthe instru De not change het ar dirt er pue connection con nd do ot place heavy objects on te comen cor, Th could damage the cord andeause fre are cord damaged contact your FUJFILM de rock. the Denotplcethecameraon am anstble surface, This can cause he camera to Blog one and ause ju Tango ons ei you tion l'mpartant Oman requrES e Ciuaricons ah à dlagona bar catedis probited (Prohbed'} on mdr Filed cles with an excamanon must be performed Regured} andere an action that ZN WARNING mie shock C act your FUJFILM dealer Ta problem anses turn Ve camera af remove te battery, nd | € ‘disconnect and unplug the AC er, Continued use Of he camera when emiing smake,s emittng any unusual| Asian oc ri any other abnormal state can cause a fre or le ever ae ae pures le mation. Do nor ue Me camera vhle you are walking ar dtking avehide. Ti sun ou aling don or being valve in a af aident Do ot touch any metal pars he camera during a understerm. his an cause an elec shock due to induced eurent fom the ighining ischarge De no use the Date except espece Load 1e DaNE 25 hou by the ndicator De nothe change ortae apart the ati De ot rap arsubiec | he batters taimpacts Do not tre he batery th metal prod es, Any ofthese actions can cause the barer to burst or ek and cause fe oi as a result. ie ares or Chow Red are camera, De not use voltage other than he power supply votage| De ot alerter on ar foreign abjects get bare and di oenerte ane. ck. Contact your FLFLM dealer de the camera, tu te camera cf onnect and unplug the AC pour adapte. Cantinued use of te camera can œause a fre or le: Tune shamm The use of oiherpomer sources an Cause are He are Jet and get contact pour eye, | <othing, Aus heat area with dan mater and seek med attention ral an emergency number right au,

ZN WARNING ZN auron Do mo ete charger t charge Dares ater than ose pe here, The suppled battery chager à or use oniy with the type ofbatery charge comennar paled th the camera. Lang fe charger to | ares or où bats can cause the battery 10 lea ui, overheat or ur De note hs camera in cations affected by où fume, steam bu mitrerdust This can cause à fe or elec shock en caring Uhe Date ist a dt camera or Ke in the hard case. Men strg te better, keep tn he hard ae. en discarding cover te battery terminal th inslation Comact with oûer metallc objects or battre couid cause the batery 1 nie or buts Do netleue camera rrervenelh tes, Do no leave the camera in loco veh Such as à ea or Get sunight, This can cause a fre router thereschefsmalcHldren, Ti jury the hands of à child. roger cou cause ea objet on Ve camera, Th can use Me heavy ebjectto ip over oral and cause injury eco memory cars out of te rend of mal Glen. memory cards at sma, they can be smalowed by children Be sur t store memory cads ou of the reach of small chi dren tn or cal an emergency number Ka chid swalous à memory card, seek medal aren Deco amer he AC dater Emme

84. De not ul on the connection card to dsconnect he AC power

adapter, Ts can damage tne power cod ar cables and cause A fe ol shock Do nt use the AC power dater when e plug damage re | lu sachet onnedtion ose, Mis could cause a fre or eleee shock Do not cover or rap te amer re pour arblanket, This can cause het 1 ng or cause are er da up and dirt the cas Then vou are dune amer ar vou de nt plan te ue te £amera fr an extended period remove the better and disconnect and unplag the ACpower adapter, Faure to do 50 can cause à Fe or let shock IA6106 202600

When haroing ends, unplug the charge from the pan socket. Leaing the chager lugged mo the power socket can cause atre Dash de tvapeunts arrete avesibe Take parier ate when photographinginfants and young chren. Ten a memory car remared the card ul omeutel tee 00 qui. Use pour gr to hold ad gent relese te car, injury cou resuk 0 those struck by he jected card > |810 Begues rule internal tin and kan For your cames. Bul-up of dus in your camera can cause a fe or electric shock Contact your FLUF LM de 9 every vo years ofchage Please not that is senice is no free

For Your Safe The Battery and Power Supphy Note: Check the type of bañtery used in your camera and read the appropriate sections. The folowing descries the proper use of batteries and how to prolong their. Incor- rect use can shorten battery fe or causeleak age, owetheating fre, or explosion. TEE] Read this section If your camera uses a rechargeable Liion battery. The battery is not charged at shipment. Charge the battery before use. Keep the bat teryin if case when nat in use. Im Notes onthe Battery The battery gradualh ses its charge when ox in use. Charge the batery one or two days before use. Battery fe can be extended by tuming the camera ofwhen notin use. Battery capacity decreases at low tempera- tures a depleted battery may not function at when cold. Keep à fuly charged spare bat- tery in à waim place and exchange as nec- essary, or keep the battery in your pocket or other warm place and insert in the camera only when shooting. De not place the bat- tery in direct contact math hand warmers or other heating devices, 1m Chargingthe Battery Charge the battery in the supplied battery Charger. Charging times wil increase at am bent temperatures below +10°C (+50°F) or above +35°C (+957). Do not attempt to charge the battery at temperatures above 40°C (4I04°F, at temperatures below D°C. {+32°P) the battery wi not charge Do not attempt to recharge à fui changed battery. The battery does not however need to be fully discharged before charging Thebattery maÿ be wa tothe touch imme- diatly after charging or use. Ti is normal. Im Battery Life A normal temperatures, the battery can be recharged about 300 mes, À notceable de- tease in the length of time the battery val hold à charge indicates that it has reached he end of ts service life and should be re- placed M Storage Performance may be impaied the battery is let unused for extended perods when fui charged. Run the battery flat before string. Ithe camera wi not beused fr an extended period, remove the battery and store it in à dry place with an ambient temperature of fiom +15%C to +25°C (+59 to +77°F), Do nat store in locations exposed 10 extremes of temperature. 1 Cautions: Handling the Battery + Donot transport ar store with metal objects such as necklaces or alpins + Do not expose to flame or heat + Do not disassemble or modify 2 Use with designated charger on. + Do not drop or subject to strong physical shock. + Do not expose to water. + Keep the terminal cean. 2 The battery and camera body may become warm ta the touch after extended use, This is normal. Read this section If your camera uses AÀ alkaline or rechargeable AA N-MH bat- tres. Information on compatible battery types may be found elsewhere in the camera manual 1m Cautions: Handling the Batteries + Do not expose to water, flame, or heat, or store in warm or hurmid conditions. + Donot transport ar store with metal objects such as necklaces or alpins : Do not disassemble or mochfy the batteries orbattery casing + Do not subject to strong physical shock. 2 Do not use batteries that are leaking, de- formed or dscolored. + Keep out of reach of infants and small chi dren. 2 Insert in the correct orientation.

For Your Safety 2 Do not mix eld and new batteries, batteries sith diferent charge levels, or batteres of different ypes. 2 the camera wil not be used for an extend- ed period, remove the battenes. Note that he camera clock il be reset 2 The batetes may be warm to the touch immediately after use. Turn the camera off and allow the batetes to cool before handling, + Battery capacity tend to decrease at low temperatures. Keep spare batteries in à pocket or ther wa place and exchange as necessary. Cold batteries may recover some ofther charge when warmed. + Fingerprints and other stains on the battery terminals can impair battery performance. Thoroughy clean the terminals with à sof, dry loth before inserting them in the Ithe batteries leak, clean the battery comparment through before in serting new batteries. I Auid from the battery comes into contact with skin or clothing, fush he affected area with rater. Huid enters F fush the M NMH Batteries The capacity of NEMH batteries may be temporriy reduced vihen ne, after long perds of disuse, or they ar repestedh recharged before being fly éscharged. is is normal and does not indicate à malfunc- tion. Capacy can beincreased by repestedh discharging the batteries using the discharge option in the camera setup menu and re- chatgig them using batery charge. GUTIOM: Do not use the discharge option sh alkaie bateris. The camera ras 2 small amount ofcurent even when of NEMH battre that have een lfin the camera for an extended pe- ried may be davin dem a the point that they na longerhol a charge. Battery per mance maÿ ako drop the batees are run dormi a device such a aflashght. Use the discharge option in the camera setup menu Lo discharge NEMH baies. Battles that m8 longer hold 2 chatge even after repeat- edly being discharged and recharged have reachedihe end of their service If and must berepiaced NEMH batteries can be recharged in a bat ty charger (sold separate). Batteries may. became warm to the touch after chargina. Refer to the instructions provided with the charger for more information. Use the char gerwith compatible battenes only. NEMH batteries gradualy lose their charge when notin use M Disposal Dispose of used batteries in accord with local regulations. Re section applis to all camera models. Use only FUJFILM AC power adapters desig- nated for use with this camera, Other adapte er could damage the camera. + The AC power adapter forindoor use an. + Be sure the DC plug is securely connected to the camera 2 Turn the camera off before disconnecting he adapter. Disconnect the adapter by the. Plug, notthe cable. + Donotuse with other devices. + Do not disassemble + Do nat expose to high heat and humidit + Donot subject te song physical shock. 2 The adapter may hum or become hat to the touch during use. This is normal. 2 I the adapter causes radio. interference, reorent ar relocate the receiving antenna

For Your Safety Do not aim the camera at extremely Eight light sources, such as the sun in à cloudiess sk. Falure to observe his precaution could damage the camera image sensor. GET Before taking photagraphs on important occasions (such as at weddings or before taking the camera on à tip), take à test shot and view the result in the LCD monitor to en sure that the camera is functioning normal. FUJFLM Corporation can not accept ab fer damage or lost profs incurred as a resur mer ere ES personaluse mag es recorded using your digital camera system cannot be used in ways that infinge copy- Fight ls without he consent of the ouner. Note that some restitions apply to the photographing of stage performances enter- tainments andexhibits, even win intended pure) or personal use. Users ae ao asted to note that the transfer of memory cards containing images or data protected under copyright laws is only permissible within the restrictions imposed by those copyright lan.

To ensure that Images are recorded conect, do not subject the camerato impact or physi cal shocks we images are being recorded Sd re even that te LCD monitor damaget are shouldbe taken to avoid contact ni lg ui crystal, Take the urgent action indicated should any af the following stuations rise 2 I liquid crystal comes in contact with your skin, clean the area it à cloth and then wash thoroughiy sh soap and running water. = Mliquid aystl entrs your eyes, us the af fected eye with clean water for at least 15 minutes and hen seek medical assistance, 21 liquid crystal is suallowed, rinse your mouth thoroughiy with water. Drink large quantitis of rater and induce vomiing, then seek medical assistance. Although the display is manufactured using extemely high-precsion technelogy. it may. contain pixel that are always orthat do not light. Thisis nota malfuncion, and images re- corded with te product are unaffected xD-Picture Card and SP. are trademarks Of FUIFILM Corporation. The sypefaces in- luded herein are solely developed by Dyna- Comuare Taiwan Inc. Macintosh, QuickTime, and Mac OS are trademarks of Apple Inc. in the USA. and other counres. Windows 7, Windows Vista, and the Windows logo are trademarks of the Microsoft greup of com panies. Adobe and Adobe Resder are either trademarks or registered trademarks of Ado- be Systems Incorporated in the US À and/or other countries. The SDHC and SDXC logos re trademaris of SD-3C, LLC. The HDMI lego à a trademark. Voulube is a trademark of Google Inc. Al other rade names mentioned in this manual are the trademarks or regis- tered trademarñs of their respective auners. FR n Camera may itetfere nt NOSpMaT Or aviation equipment. Consul with hospital or airine staff before using the camera in à hospital or on an aire. NTSC (National elewsion System Committee) is à color television telecsting specifcation adopted mainly in the USA, Canada, and Japan. PAL (Phases Alernation by Line is à color telesion system adopted main in __… countries and China Érmes EC DRE formatin which information stored ut pho- togrephs is used fo optimal cor reproduc- tien during printing PORTANT NOTICE Read Before Using the Software ect or naiect export, wale or par, of lcensed softuare vithout the permission of the applicable goveming bodies à pro- ibid

For Your Safety IMPORTANT. Read this section before using the toponyms includ- ‘edin this product. [ Toponym Data License Agreement Personal Use nb. You agree to use this Data together wi dial camera for the solely personal, non-commercil purposes for which you were licensed, and not for senice bureau, ime-shating or other Similar purposes. According}, but subject to the restrictions set forth inthefolowing paragraph, you may copy this Data only as necessary for your personal use t (vien it and (isa provided that you do ot remove anÿ copyright notices that appear and do not modif the Datain any way You agree not to otherwise reproduce, copy, modif, decomple,disassembl or reverse engineer any portion o this Data, and may not transfer or distribute it in any form, for any purpose, ex ept to the extent permitted by mandatory laws. Mul-dis sets may only be transfer or sol as a complete set as provided by FUJIFILM Corporation and not as à subset hereof Restrictions. Except where you have been special licensed to do 50by FUIFILM Corporation, and without img the preceding pars- graph, you may not () use this Data with any products, systems, or applications installed or otherwise connected to arin communication aith vehicles, capable af vehicle navigation postioning dispatch real time route guidance, feet management or similar apphcations, or (b) with or in communication with any positioning devices or any mo- bi or vireless-connected electronic ar computer deices, including without imitation celular phones, palmtop andhandheld computer, pagers, and personal digital assistants or PDA. Maming.The Data may contain inaccurate or incomplete information due to the passage of time, changing creumstances, sources used and he nature of collecting comprehensive geographi data, any of anhich may lead to incorrect results, Ho Warranty, This Data is provided to you as is’ and you agree 10 use ft your omm risk. FUJFLM Corporation and its icensors (and their lcensors and suppliers) make no quarantees, representations or war- ranties of any kind, express or implied, añsing by law or otherwise, including bu not imited to content, quality accuracy completeness, efectiveness, lab, tness for à particular purpose, usefuiness, Use or results to be obtained from this Data or that he Data or server il be uninterupted ar eror-ree. Disdaimer of Marany. FUFILN Corporaton AND ITS LICENSORS ANCLUDING THEIR LICENSORS AND. SUPPLERS) DISCLAIM AMF WRRANTIES, EXPRESS OR IMPLIED, OF. QUALITY, PERFORMANCE, MERCHANTABILIT, FITNESS FOR À PARTICULAR PURPOSE OR NON INFRNGEMENT. Same States, Terrtares and Counties do not alor certain arranty exelusions st that extent he above exclusion may not apphy t ou. Disdaimer of ability, FF Corporation AND IS LICENSORS (+ CLUDING THEIR LICENSORS AND SUPPLIERS) SHALL NOT BE LIABLE TO YOU:INRESPECT OF ANY CLAIM, DEMAND OR ACTION, RRESPECTIVE OOFTHE NATURE OF THE CAUSE OF THE CLAIM, DEMAND OR ACTION ALLEGING ANY LOSS, JURY OR DAMAGES, DIRECT OR INDIRECT, WHICH MAY RESULT FROM THE USE OR POSSESSION OF THE INFOR- MATION, OR FOR ANY LOSS OF PROFIT, REVENUE, CONTRACTS OR SAVNGS, OR AN OTHER DIRECT, INDIRECT, INCIDENT, SPECIAL OR CONSEQUENTIAL DAMAGES ARSING OUT OF YOUR USE OF OR INABILITYTO USE THIS INFORMATION, AN DEFECT IN THE INFORNA TION, OR THE BREACH OF THESE TERMS OR CONDITIONS, WHETHER IN AN ACTION IN CONTRACT OR TORT OR BASED ON A WARRANTY, EVE FUJFILM Corporation OR TS LICENSORS HAVE BEEN ADVSED OOFTHE POSSIBILITY OF SUCH DAMAGES. Some States, Temtones and Countries do na allow certain labily exclusions or damages imite- tions, s to that extent the above may not apply to you. sport Control. You agree not to export om anynhere any part of the Data provided 10 you or any direct product hereof exceptin comple ance with, and with all icenses and approval required under, appl- cable export laws, rules and regulations. Entre Agreement These terms and conditions consttute the entire agreement beteen FLJFLM Corporation {and ts icensos, nGud ing their bcensors and suppliers) and you pertaining 1 the subject matter hereo, and supersedes in their entry any and all written or oral agreement previous|yexsting berueen us th respect to such subject matter,

For Your Goerning Law, The above terms and conditions shal be govemed by he laws ofthe State of linois, Netherandk, without ging effect to {is conflict of bn provisions, or (the United Nations Convention fer Contracts for the International Sale of Goods, which 8 explictiy ex duded. You agree to subi te the juridiction of the State ofllinois, The Netherlands for any and all disputes, cims and actions arsing from arin connection with the Data provided to you hereunder. Seodetis The geodetic system used by ts device to record latitude andlongitude is WGS 84 Cepnige Me map ta included in his device are protected under copyright lan and except or personal use may not be employed atout pemision fthe copynght holder Haigation This device can nat be used for purposes of navigation. Licensed Software Holders NAVTEQ © 2010 NAVTEQ Allights reserved MAPS f | This service uses POI (Points Of Inter- owece et | et) of ZENRIN CO, LTD. POWERED 8 ZENRIN) Zéuanr s à ircemant of ZENRIN CO. LTD. © 2010 ZENRIN CO, LTD. AI rights reserved (OHer Majesty the Queen in Right of Canada, © Queens Printer for Ontario, © Canada Post Corporation, GeoBase*, © Department. of Natural Resources Canada, 21449, © United States Postal Service® 2010.the USPS. TE FCopngne Ensed on de provided under license from PSMA Australia Limited fwwwpsmacomau) use FO Bundesamt fur ich und Vermes sungswesen’ CT ETES Estonia Latvia, Lithuania Moldova, Poland, Slovenia and/ or Ukraine France Me folwing notice must appear on al copies ofthe Data and may also appear (on packaging: “source: © IGN France - BD ropos" Germany FDie Grundlagendstenviurdenme |Genehmigung der zuständigen Behorden lentnommen’or"Die Grundlagendaten luurden mi Genehmigung der zustaendi- gen Behoerden entnommen: resta Based upon Croun Copyright matenal Grecce FCopyrgnt Geomatie id Hungary FCopyrignt © 2003: Top Map Ha May FLa Banca Dati alana seta prodote usando qualenferimento anche cartograñia umerica ed al ratio prodotta € forita all Region Toscana Nonvey FCopyignt © 2000, Norviegian Mapping Jauthonty" Porugal FSource:1ge0E = Ponge” Spain Finformaciôn geogrfcz propiedad de Jeu" Sueden FBased upon electronic data O National Land Survey Sweden” Suitetand Fopograhsche Grundage: 0 Bundesam ur Landestopographie"

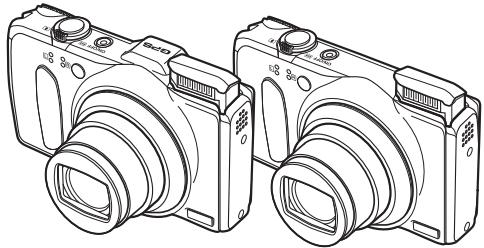

[About This Manual This manual is for use with FinePix F5S0EXR and FSOOEXR cameras. With the exceptions of the features listed below, operations for the two models are identical Model| Feature FinePix F550EXR FinePix FS00EXR EPS DETAIL INFORMATION

E3 47 Not available FINAL n Not available 2e Memory Cards Pictures can be stored in the camera internal memory or on optional SD, SDHC, and SDXC memory cards (53 12), referred to in this manual as"memory cards”

Before using the camera, read this manual and the warnings in “For Your Safe-

xii y" (ES ii). For information on specific topics, consult the sources below. Table of Contents CS xiv | Troubleshooting. E 110 The “Table of Contents” gives an! | Having a specific problem with the overview of the entire manual. The | | camera? Find the answer here. principal camera operations are list- ed here. Warning Messages and Displays … EE 116 Find out what's behind that flashing icon or error message in the display. © Temperature Warning The camera will turn off automatically before its temperature or the temperature of the battery rise above safe limits. Pictures taken when a temperature warning is displayed may exhibit higher levels of“noise"(mottling). Turn the camera off and wait for it to cool before turning it on again.

IFrequently-Used Buttons 1 Turning the Camera on in Playback Mode æ When the camera is off playback can be started by pressing the O1 button for about a second. “Van taking Pictures During Playback æ To return instantly to shooting mode, press the shutter button halfway. Shoot View oO) M Deleting Pictures ® M Silent Mode m To delete a picture, display it full frame and press the selector up (ff). BACK button to disable camera lights and sounds. æ Press and hold the DISP/

Focus Lock Exposure Compensation. % Macro Mode (Close-ups) . 4 Using the Flash (Super-Intelligent Flash) Ÿ Using the Self Timer … Recording GPS Data with Pictures (FSS0EXR Only). Intelligent Face Detection. Continuous Shooting Qu TOP n.. a FINAL n (FSODEXR Only) Su BEST FRAME CAPTURE (FSSDEXR Only) A AE KT (E550EXR On. 9 ELM SIMULATION BKT (FSSOEXR Onb)… DYNAMIC RANGE BKT (FSSDEXR Onh) 2 Face Recognition Adding New Faces. Viewing, Editing, and Deleting Existing Data Adding Faces Automatically More on Playback Playback Options. Continuous Shooting. % Favorites: Rating Pictures Playback Zoom … Muiti-Frame Playback. FA Deleting Pictures. E2 Image Search. PhotoBook Assist… Greating a PhotoBook. Viewing Photobooks Editing and Deleting Photobooks... Viewing Panoramas. Viewing Photo Information (FSS0EXR Only)

Technical Notes Optional Accessories … Accessories from FUJIFILM.. 107 Garing for the Camera. 108 Storage and Use 108 te and Sand. 108 Condensation. 108 Cleaning 109 Traveling 109 avi Troubleshooting Problems and Solutions. Warning Messages and Displays Appendix Tips and Tricks... Internal Memory/Memory Card Capa FinePix FSSOEXR. Specifications.

Before You Begin [Symbols and Conventions The following symbols are used in this manual © : This information should be read before use to ensure correct operation. ® : Additional information that may be helpful when using the camera. F3: Other pages in this manual on which related information may be found. Menus and other text in the LCD monitor are shown in bold. In the illustra- tions in this manual, displays may be simplified for explanatory purposes. ISupplied Accessories The following items are included with the camera: re<+ + Basic Manual NP-S0recharge- | BC-45W battery USB cable AN cable CD-ROM able battery charger (contains this manual) %e Attaching the Strap Attach the strap @ <@ : Sep as shown. ni dl) |

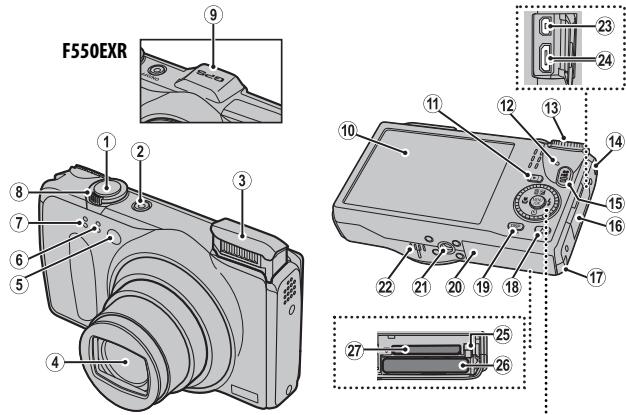

[Parts of the Camera For more information, refer to the page listed to the right of each item FSSOEXR Note: Unless otherwise noted, the illustrations in this manual shour the FSOOEXR. ?[ Move cursor up (exposure compensation) button (EA 35) À] & (delete) button (E2 xiï) MENU/OK button Move cursor left 7 Move cursor right & (mac) button (E2 36) | NN | 1 & (sh) button (E2 37) Command dial Move cursor down © (selftimer) button (E3 39)

A Shutter button. E:% (movie recording) button... ÆLoworr button EL Terminal cover … Era. EJ DC coupler cable cover. EE Lensandlens cover LE] # (photo mode) button EE] DSP (display)/BACK button Æirassistilluminator. {4 (silent mode) button’ Self-timer amp EE Microphone (R) EI] Battery-chamber cover. Microphone (L), El ipod mount IE 200m control … I Built-in GPS antenna (F550EXR only EE LCD monitor. EZ] Connector for HDMI cable. El 5 (playback) buttor EX Battery latch.. IE indicator lamp (see below) El Battery chamber. ÎE] Mode dial. .22 Ej]Memory cardslot. I Strap eyelet Press and hold the DISP/BACK button until 44 is displayed 2e The Indicator Lamp The indicator lamp shows camera status as follows: Indicatorlamp Camera status Glows green Focus locked Blinks green Blur, focus, or exposure warning. Picture can be taken. Blinks green and orange [Recording pictures. Additional pictures can be taken: Recording pictures. No additional pictures can be taken atthis time Glows orange Blinks orange [Flash charging flash will not fre when picture 15 taken. Blinks red Lens or memory error.

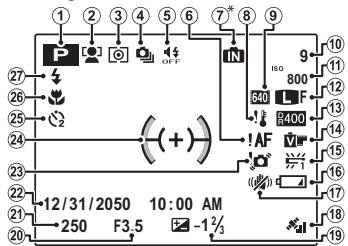

s ofth The following types of indicator may be displayed during shooting and play- back. Indicators vary with camera settings. | Camera Displays M Shooting ë 4213112050 @r250 F35 9®6® T® # Ja 10:00 AM m-14

A Shooting mode… I internal memory indicator” I Temperature warning. Movie mode. ; El iash mode E Number of available frames. .13 El Sensitivity. LE] image size/quality. LE Dynamic range . EL Film simulation. LE White balance. LU Battery level. EE] Dual 15 mode LE] GPS signal strength (F5S0EXR only) LE] Exposure compensation. ET aperture El] Shutter speed EP] Date and time. FE Blur waming. F7] Focus frame ET Self-timer indicator EX Macro (dose-up) mode. #2: indicate that no memory card inserted and hat picture vil bestored in the camer internal memory (E2 10.

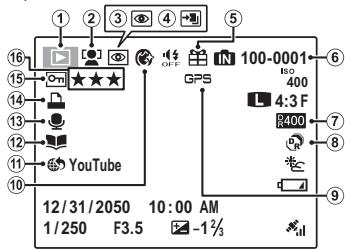

M Playback Lo] AE Pro focus mode, pro low-light mode. Dynamic range EE mode IE GPS data (F550EXR only) I] Portrait enhancer. El Mark for upload to. If] Photobook assist. ÎE Voice memo indicator. 21,53 EF] DPOF print indicator 43,92 [protected image +92 [favorites 17250 F35 A Paayback mode indicator.… elligent Face Detection indicator. EE red-cye removal indicator. 2e Battery Level Battery level is shown as follows: Indicator Description {white) [Battery partially discharged. white) [Battery more than half discharged. (ei) [Lowbattery. Charge as soon as possible. TI Binisred [Battery exhausted. Turn camera off and charge battery.

oftt iding and Viewing Indicators Press DISP/BACK to cycle through shooting and playback indicators as follows + Shooting: Indicators displayed/indicators hidden/best framing/HD framing/histo- gram (F550EXR only) : Playbadke: Indicators displayed/indicators hidden/# favorites (Æ2 53)/photo info (FSSOEXR only; 82161)

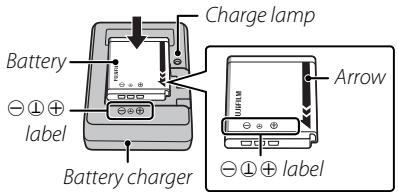

First Steps [Charging the Battery The battery is not charged at shipment. Charge the battery before use. 1 Place the battery in the supplied battery charger. Insert the battery in the orientation indicated by the 8 D@ labels. The camera uses an NP-50 recharge- able battery. 2 Plug the charger in. Plug the charger into a power outlet. The charging indicator will light. %o The Charging Indicator The charging indicator shows battery charge status as follows: Charge lamp Battery: Charging indicator Battery status Action Battery not inserted Insert the battery

Battery fully charged Remove the battery. On Battery charging. — Blinks Battery fault Unplug the charger and remove the battery.

Charging the Battery 3 Charge the battery. Remove the battery when charging is complete. See the specifications (ER 128) for charging times (note that charging times increase at low tem- | peratures) @ Unplug the charger when it is not in use. 8 First Steps

[lnserting the Battery and a Memory Card Although the camera can store pictures in internal memory, optional SD, SDHC, and SDXC memory cards (sold separately) can be used to store addi- tional pictures. After charging the battery, insert the battery and memory card as described below. 1 Open the battery-chamber cover. ® Be sure the camera is off before opening f the battery-chamber cover. ® Do not open the battery-chamber cover when the camera is on. Failure to ob- serve this precaution could result in dam- age to image files or memory cards. ® Do not use excessive force when handling the battery-chamber cover. 2 Insert the battery. Align the orange stripe on the battery with the orange Orange stripe battery latch and slide the battery into the camera, keeping the battery latch pressed to one side. Confirm that the battery is securely latched. ® Insert the battery in the correct orientation. Do nor use force or attempt to insert the battery upside down or back- RE A wards. The battery will slide in easily in the correct orien- atterylütch tation

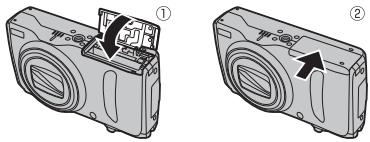

Inserting th and a Memory Card 3 Insert the memory card. Holding the memory card in the orientation shown at right, slide it in until it clicks into place at the back of the slot. © Be sure card is in the correct orientation: do not insert at an angle or use force. If the memory card is not correctly inserted or no memory card is inserted, fa will appear in the LCD monitor and internal memory will be used for re- cording and playback ® SD/SDHC/SDXC memory cards can be locked, making it impossible to format the card or to record or delete images. Before inserting an SD/SDHC/SDXC memory card, slide the write-protect switch to the unlocked position. 4 Close the battery-chamber cover. 10 First St

1serting the Battery an ® Using an AC Power Adapter + The camera can be powered by an optional AC power adapter and DC coupler (sold separately). See the manuals provided with the AC power adapter and DC coupler for details. + Depending on the country or region of sale, a demo mode slide show may start if the camera is tumed on while powered by an AC power adapter. Press the shutter button to end the show. 2e Removing the Battery and Memory Card Before removing the battery or memory card, turn the camera off and open the battery-chamber cover. To remove the battery, press the battery latch to the side, and Batterylatch slide the battery out of the camera as shown. Ne) 4 To remove the memory card, press it in and release it slowly. The card can then be removed by hand. When à memory card is removed, the card could come out of the slot too quickly. Use your finger to hold it and gently release the card. First Steps

Inserting the Battery and a Mem M Compatible Memory Cards FUJIFILM and SanDisk SD, SDHC, and SDXC memory cards have been ap- proved for use in the camera. A complete list of approved memory cards is available at http//www.fujifilm.com/support/digital_cameras/compatibility/. Operation is not guaranteed with other cards. The camera can not be used with xD-Picture Cards or MultiMediaCard (MMC) devices. Memory Cards - Do not turn the camera off or remove the memory card while the memory card is being formatted or data are being recorded to or deleted from the card. Failure to observe this precaution could damage the card + Format SD/SDHC/SDXC memory cards before first use, and be sure to reformat all memory cards after using them in a computer or other device. For more information on formatting memory cards, see "Æi FORMAT” (£Z 9°) + Memory cards are small and can be swallowed; keep out of reach of children. If a child swallows à memory card, seek medical assistance immediately. + miniSD or microSD adapters that are larger or smaller than the standard dimensions of an SD/SDHC/SDXC card may not eject normally; if the card does not eject, take the camera to an authorized service representative. Do not forcibly remove the card. + Do not affix labels to memory cards. Peeling labels can cause camera malfunction + Movie recording may be interrupted with some types of SD/SDHC/SDXC memory card. Use a eass@ card or better when shooting HD or high-speed movies,

nserting the Memory Card + The data in internal memory may be erased or corrupted when the camera is re- paired, Please note that the repairer will be able to view pictures in internal memory. - Formatting à memory card or internal memory in the camera creates a folder in which pictures are stored. Do not rename or delete this folder or use a computer or other device to edit, delete, or rename image files. Always use the camera to delete pictures from memory cards and internal memory; before editing or renaming files, copy them to a computer and edit or rename the copies, not the originals. ® Batteries + Remove dirt from the battery terminals with a clean, dry cloth. Failure to observe this precaution could prevent the battery from charging,. - Do not affix stickers or other objects to the battery. Failure to observe this precaution could make it impossible to remove the battery from the camera. + Do not short the battery terminals. The battery could overheat. + Read the cautions in“The Battery and Power Supply" (EE vi). + Use only battery chargers designated for use with the battery. Failure to observe this precaution could result in product malfunction. + Do not remove the labels from the battery or attempt to split or peel the outer casing,. + The battery gradually loses its charge when not in use. Charge the battery one or two days before use. First Steps 5

[Turning the Camera on and Off Shooting Mode Press the ON/OFF button to turn the camera on. The lens will extend and the flash will pop up. Press ON/OFF again to turn the camera off. © Switching to Playback Mode Press the D] button to start playback. Press the shutter button halfway to return to shooting mode. Playback Mode To turn the camera on and begin playback, press the DB] button for about a second. Press the D] button again or press the ON/OFF button to turn the camera off. ® Switching to Shooting Mode To exit to shooting mode, press the shut- ter button halfway. Press the B] button to return to playback.

Turning the Camera on and Off ® Forcibly obstructing the lens or flash could cause damage or product malfunction. © Fingerprints and other marks on the lens can affect pictures. Keep the lens clean. @ The ON/OFF button does not completely end the supply of power to the camera. ® Auto Power Off I The camera will turn off automatically if no operations are performed for the length of time selected for FH AUTO POWER OFF (EX 102). First Steps 15

[Basic Setup A language-selection dialog is displayed the first time the camera is turned on. Set up the camera as described below (you can reset the clock or change languages at any time using the Æ] DATE/TIME or @3 Æ#£/LANG. options in the setup menu; for information on displaying the setup menu, see page 98) 1 Highlight a language and press MENU/0K. ® Press DISP/BACK to skip the current step. Any steps you skip will be displayed the next time the camera is tumed on 2 The date and time will be displayed. Press the selector [rrmeemmenerser left or right to highlight the year, month, day, hour, or oi minute and press up or down to change. To changethe |""® QU 1 tm order in which the year, month, and day are displayed, highlight the date format and press the selector up or down. Press MENU/0K when settings are complete. 3 Power management options will be displayed. Press the selector up or down to highlight one of the following options and then press MENU/OK: + 0 POWER SAVE: Save battery power. + (6 CLEAR DISPLAY: Choose for a brighter, higher quality display. ® The Camera Clock Ifthe battery is removed for an extended period, the camera clock will be reset and the language-selection dialog will be displayed when the camera is turned on.

Basic Photography and Playback [Taking Pictures in (EXR AUTO) Mode This section describes how to take pictures in (EXR AUTO) mode. 1 Select mode. Turn the camera on and rotate the mode dial to ÆS. The display will appear in the LCD monitor. %e The eg Icon In B mode, the camera continuously adjusts focus and searches for faces, in- creasing the drain on the battery. 1@% is displayed in the LCD monitor. TE 2e EXR Icons (E2 23) The camera analyses the RESOLUTIONPRIORIMY] © (e scene and selects the HIGHISOBLOWNOIE) PR i: preferred EXR mode D-RANGE PRIORITY G %e Scene Icons (EZ 23) The camera automatically selects the appropriate scene. hs Scenel auto Se NIGHT |MACRO|BEACH |SUNSET|SNOW| SKY. |GREENERY AE Non-portrait (landscape) | 8 | O | @ 10161616 /|e o © En Normallighting | @O 00/80 | — [80/80/8080] 00 | 00 Backlightiny |@®@]0®] — | — ]S8@/6666/6®] 0® | 0® *1F © is displayed, the camera will take a series of shots (Advanced anti blur; E2 23) ® The mode selected may vary with shooting conditions. If the mode and subject do not match, select a mode (E2 22) or choose SP (Æ2 29) and select a scene manually.

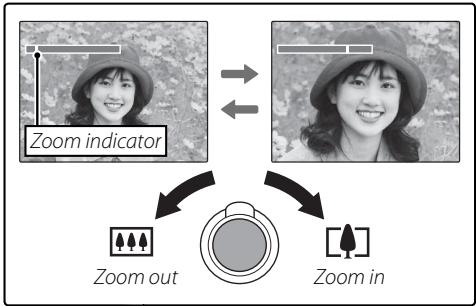

Taking Pictures in && (EXT AUTO) Mode 2 Frame the picture. Use the zoom control to frame the picture in the display. [ (LI Zoom out Zoomin %e Holdingthe Camera Hold the camera steady with both hands and brace your elbows against your sides. Shaking or unsteady hands can blur your shots. To prevent pictures that are out of focus or too dark (under- exposed), keep your fingers and other objects away from |\, the lens and flash. Basic Photography and Playback

3 Focus. Press the shutter button halfway to focus. Double ® The lens may make a noise when the camera focuses, =, 7 this is normal. If the subject is poorly lit, the AF-assist illuminator maylight;see"Æ AFILLUMINATOR"(E 103) > for information on disabling the illuminator. If the camera is able to focus, it will beep twice and the indicator lamp will glow green: Ifthe camera is unable to focus, the focus frame will turn red, !AF will be dis- played, and the indicator lamp will blink green. Change the composition or use focus lock (FA 33).

Taking Pictures in &8 (EXR AUTO) Mode 4 Shoot. Smoothly press the shutter button the rest of the way down to take the picture. y ® Ifthe subject is poorly lit, the flash may fire when the pic- c s ture is taken. For information on using the flash when lighting is poor, see “# Using the Flash (Super-Intelligent Flash)" (Es 37). %e The Shutter Button The shutter button has two positions. Pressing the shutter button halfway sets focus and exposure; to shoot, press the shutter button the rest of the way down. 20 jraphy and Playback

[Viewing Pictures Pictures can be viewed in the LCD monitor. When taking important photo- graphs, take a test shot and check the results. 1 Press the D] button. The most recent picture will be displayed: CAES 2 View additional pictures. Press the selector right to view pictures in the order 7 Er OE, recorded, left to view pictures in reverse order. ++) Press the shutter button to exit to shooting mode.

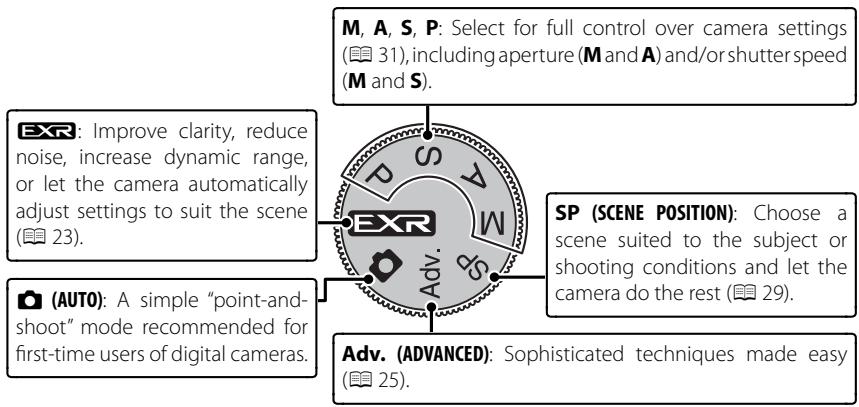

More on Photography [Shooting Mode Choose à shooting mode according to the scene or = type of subject. To select a shooting mode, align the mode icon with the mark next to the mode dial. improve clarity, reduce noise, increase dynamic range, or let the camera automatically adjust settings to suit the scene (E 23). M, AS, P: Select for full control over camera settings (2 31),includingaperture (Mand A)and/orshutterspeed (M and S). À AUTO} À simple “pointand- shoot’ mode recommended for fist-time users of digital cameras.

SP (SCENE POSITION}: Choose à scene suited to the subject or shooting conditions and let the camera do the rest (Æ2 29) Adv. (ADVANCED). Sophisticated techniques made easy (25).

ES (EXR AUTO/EXR Priority) Optimize settings for your current subject or improve clarity, reduce noise, or enhance dynamic range. Rotate the mode dial to and choose one of the following EXRR modes in the shooting menu Li (EXR AUTO) The camera automatically selects the scene and EXRR mode according to shooting conditions (EE 17). ® IF EM is selected for KA IMAGE SIZE in && mode, the camera will automatically select the optimal image size %© Advanced Anti Blur (F550EXR Only) When @ is displayed, the camera will take a series of exposures and combine them to form a single image, reducing"noise" (mottling) and blur. % Oisavailablewhen ON is selectedinthe shooting menu (E2 81) andthe flash (E 37)is offor set to auto. ® Some time may be required to combine the exposures into a single image. A single com- bined image may not be created ifthe subject or camera moves during shooting. Keep the camera steady during shooting and do not move the camera until shooting is complete. ® Frame coverage is reduced.

BEXR Priority Choose from the following options: + & (RESOLUTION PRIORITY): Choose for crisp, clear shots. + & (HIGH IS0 & LOW NOISE): Reduce noise in pictures taken at high sensitivities. + @ (D-RANGE PRIORITY): Increase the amount of detail visible in highlights. DYNAMIC RANGE (EE 83) can be set to AH (1600%) and Æ (800%).

Adv. ADVANCED This mode combines “point-and-shoot” simplicity with sophisti- cated photographic techniques. The [S] Adv. MODE option in the shooting menu can be used to choose from the following ad- vanced modes:

I E=< MOTION PANORAMA 360

Follow an on-screen guide to take photos that will au- tomatically be joined to form a panorama. The camera zooms all the way out and zoom remains fixed at the wid- est angle until shooting is complete. 1 To select the angle through which you will pan the camera while shoot- ing, press the selector down. Press the selector left or right to highlight an angle and press MENU/0K. 2 Press the selector right to view a choice of pan directions. Press the selec- tor left or right to highlight a pan direction and press MENU/OK. 3 Press the shutter button all the way down to start recording. There is no need to keep the shutter button pressed during recording.

Shooting 4 Pan the camera in the direction shown by the arrow. | gr Shooting ends automatically when the progress bar is full and the panorama is complete. ® Shooting ends if the shutter button is pressed all the way down during shooting. No panorama will be recorded if Progress bar the shutter button is pressed before the camera has been panned through 120°. | ® Panoramas are created from multiple frames, The camera may in some cases record an greater or lesser angle than selected or be unable to stitch the frames together perfectly. The last part of the panorama may not be recorded if shooting ends be- fore the panorama is complete. © Shooting may be interrupted ifthe camera is panned too quickly or too slowly. Pan- ning the camera in a direction other than that shown cancels shooting. @ The desired results may not be achieved with moving subjects, subjects close to the camera, unvarying subjects such as the sky or a field of grass, subjects that are in constant motion, such as waves and waterfalls, or subjects that undergo marked changes in brightness. Panoramas may be blurred if the subject is poorly lit. %e For Best Results For best results, move the camera in a small circle at à steady speed, keeping the camera horizontal and being careful only to pan in the direction shown by the guides. lfthe desired results are not achieved, try panning at a different speed. 26 More on Photogra

The camera takes up to three shots each time the shutter button is pressed, softening the background to emphasize the main subject. The amount of softening can be adjust- ed before shooting by pressing the selector left or right. Use for portraits or photos of flowers similar to those pro- duced by SLR cameras. ® Softening can not be applied to background objects that are too close to the main subject. If a message stating that the camera can not create the effect is displayed when the camera focuses, try backing away from your subject and zooming in. The camera may also be unable to soften the background if the subject is moving; if prompted, check the results and try again: More on Photograph

Each time the shutter button is pressed, the camera makes four exposures and combines them into a single photo- graph. Use to reduce noise and blur when photographing poorly lit subjects or static subjects at high zoom ratios. ® A single combined photograph may not be created with some scenes or if the subject or camera moves during shooting. Do not move the cam- era until shooting is complete

% PRO FOCUS/PRO LOW-LIGHT

To save unprocessed copies of pictures taken in these modes, select ON for the SAVE ORG IMAGE option in the setup menu (EE 104) ® Keep the camera steady during shooting, @ Frame coverage is reduced 28 More on Photog

The camera offers a choice of "scenes, each adapted to particular shooting conditions or a specific type of subject. Use the [SJ SCENE POSITION option in the shooting menu to choose the scene as- signed to the SP position on the mode dial. Scene Description DS NATURALS & [The camera takes two shots: one without the flash and one with. <@ NATURAL LIGHT [Capture natural fighting under low-ight conditions. © PORTRAIT Choose for portraits. ER (Choose for a smooth skin effect when shooting portraits 2 706 Choose when photographing dogs. ET Choose when photographing cats. A LANDSGPE [Choose for daylight shots ofbuildings and landscapes PR SPORT Choose when photographing moving subjects; € MIGRT Choose this mode for pooriy lit twilight or night scenes € NIGHT (TRIPOD) [Choose this mode for slow shutter speeds when shooting at night. pirewomes [510 Shuïter speeds are used to capture the expanding Burst oflight from a firework. &s SUNSET Choose this mode to record the vivid colors in sunrises and sunsets. Choose for crisp, clear shots that capture the brightness of scenes dominat- “&: SNOW ed by shining white snow. 2X BEACH Choose for crisp, clear shots that capture the brightness of sunlit beaches. < UNDERWATER Choose for when using an optional waterproof case to take photographs underwater. Z PARTY Capture indoor background lighting underlow-light conditions

Scene Description % FLOWER Choose for vivid close-ups of flowers. TT Take clear pictures of text or drawings in print %e 43 DOG/k8 CAT The camera focuses on the faces of dogs or cats that are facing the camera, and the self-timer menu offers a ©# AUTO RELEASE option that releases the shutter auto- maticallywhenapetisdetected(E 39). During playback, image search (ES 57) canbe used to search for pictures taken in either mode. ® Although camera can detect many different breeds of dogs and cats, results may vary with the breed and shooting conditions. The camera may fail to detect pets with dark-colored faces or long hair covering their entire face. If a dog or cat is not detected, the camera focuses on the subject at the center of the frame.

M MANUAL In this mode, you control both shutter speed and aperture. Press the selector up (Æs) to highlight shutter speed or aperture and use the command dial to adjust the high- lighted item. If desired, exposure can be altered from the value selected by the camera. Se The Exposure Indicator The amount the picture will be under- or over-exposed at cur- rent settings is shown by the exposure indicator.

À APERTURE PRIORITY AE

You choose the aperture using the command dial, while the camera 1ÿ adjusts shutter speed for optimal exposure. \ © If the correct exposure can not be achieved at the selected aperture, shutter speed will be displayed in red. Adjust aper- ture until the correct exposure is achieved. If the subject is ken outside the metering range of the camera, the shutter speed display will show “-—" Press the shutter button halfway to measure exposure again

You choose the shutter speed using the command dial, while the camera adjusts aperture for optimal exposure. ® If the correct exposure can not be achieved at the selected [5 shutter speed, aperture will be displayed in red. Adjust shut- ter speed until the correct exposure is achieved. If the subject ken is outside the metering range of the camera, the aperture display will show “F-—" Press the shutter button halfway to measure exposure again

The camera sets exposure automatically. © lfthe subject is outside the metering range of the camera, the shutter speed and aperture displays will show" Press the shutter button halfway to measure expo- sure again 32 More on Phot:

IFocus Lock To compose photographs with off-center subjects: 1 Focus: Position the subject in the focus frame (43) and press the shutter button halfway to lock focus and exposure. Focus and exposure will remain locked while the shutter button is pressed halfway (AF/AE lock). 2 Recompose: Keep the button pressed halfway. 3 Shoot: Press the button all the way down. More on Photograph: 3

%e Autofocus Although the camera boasts a high-precision autofocus system, it may be unable to focus on the subjects listed below. If the camera is unable to focus, focus on another subject at the same distance and use focus lock to recompose the photograph. + Very shiny subjects such as mirors or car bodies + Subjects that show litle contrast with the background + Fest-moving subjects. for example, subjects in clothing that is the same color + Subjects photographed through a window or other re- | asthe background) flectve object + Subjects positionedin front ofor behind a high-contrast + Darksubjects and subjects that absorb rather thanreflect | object that is also in the focus frame (for example, à light, such as hair or fur subject photographed against a backdrop of highly con- + Insubstantial subjects, such as smoke or lame. trastng elements) More on Photography

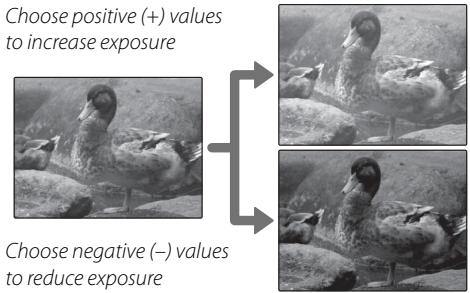

12 Exposure Compensation To adjust exposure compensation when photographing ÉA a

very bright, very dark, or high-contrast subjects, press the selector up (Ed). Press the selector up or down or use the command dial to choose an exposure compen- sation value and then press MENU/0K. Choose positive (+) values to increase exposure Choose negative (-) values to reduce exposure ® A 4 icon and exposure indicator are displayed at settings other than +0. Exposure compensation is not reset when the camera is turned off; to restore normal expo- sure control, choose a value of +0. ® Turn the flash off when using exposure compensation. More on Photography 35

1% Macro Mode (Close-ups) For close-ups, press the selector left ($) and select El When macro mode is in effect, the camera focuses on subjects near the center of the frame. Use the zoom =} control to compose pictures (EA 18). To exit macro mode, press the selector left ($) and select [ra OFF. Œu ® Use of a tripod is recommended to prevent blur caused by camera shake ® The shadow cast by the lens may appear in photographs taken with the flash at very short ranges. Zoom out or increase the distance to the subject. 3 More on Photography

(IE Using the Flash (Super-Intelligent Flash) When the flash is used, the cameras Super-Intelligent Flash system instantly analyzes the scene based on such factors as the brightness of the subject, its position in the frame, and its distance from the camera. Flash output and sensitivity are adjusted to ensure that the main subject is correctly exposed while preserving the effects of ambient background lighting, even in dimly-lit indoor scenes. Use the flash when lighting is poor, for example when shoot- ing at night or indoors under low light. Press the selector right (4) and choose from the follow- ing flash modes:

mess AUTOauroruss Option Desaiption AUTOUR The fash fires when required. Recommended in most situations. (AUTO FLASH) 8705 [Mheñashites whenevera pluies taken. Use for back subjects or fornatural (oRcEDHLASH [coloration when shooting in bright light. $5/æ [Capture both the main subject andtthe background under low Ight (note that (SLOW SYNCHRO)_|brightiy lit scenes may be overexposed)

4 Using the Flash (Super-Intelligent Flash %e Turning the Flash Off Lower the flash where flash photography is prohibited or to capture natural lighting under dim light. A tripod can be used to prevent blurring when lighting is poor. ® ifthe flash will fre, EB will be displayed when the shutter button is pressed halfway. At slow shutter speeds, l@ will appear in the display to warn that pictures may be blurredi use of a tripod is recommended ® The flash may fire several times with each shot. Do not move the camera until shooting is complete. ® The flash may cause vignetting, %e Usingthe Flash The flash is automatically raised and lowered when the camera is turned on and off. If the flash is lowered manually when the camera is on, it will remain slightly open so that it can be acti- vated by manually returning it to the fully raised position. %o Red-Eye Removal When Intelligent Face Detection (E3 43) and red-eye removal (EE 92) are on, red-eye removal is available in auto (&; RED EYE REDUC- TION), flash on (@#; FORCED FLASH), and slow sync (&; RED EYE & SLOW) modes. Red-eye removal minimizes “red-eye” caused when light from the flash is reflected from the subject's retinas as shown in the illustration at right. 38 More

[© Using the Self-Timer To use the self-timer, press the selector down (Ü) and 7 choose from the following options: o [Oo] Option Desaiption EC] [Self-timer off. Fe shutier is released automatically when the camera detects a human portrait

Se AUTO RELEASE | ect facing the camera. Use for portraits of babies The shutter is released ten seconds after the shutter button is pressed. Use for @ (1050 |self-portraits. The self-timer lamp on the front of the camera lights when the imer starts and begins to blink shortly before the photo is taken. Fe shutter is released to seconds after the shutter button is pressed Use to @ 0SO |reduce blur caused by the camera moving when the shutter button is pressed. The self-timer lamp will blink as the timer counts down. ® The self-timer can not be used with y BEST FRAME CAPTURE

[Recording GPS Data with Pictures (F550EXR Only) To record GPS data with new pictures, press the Æ bu 7 - ton and select one of the following options for Œ TON CATION SEARCH in the Æ-mode menu (EX 81). -+ PERMANENTLY ON: The camera continues to update GPS data even when turned off. The camera will be quicker to display GPS data when turned on, but the drain on the battery will increase. + WHEN SWITCHED ON: The camera updates GPS data only when on. The camera may need some time to acquire GPS data when turned on. This option is selected automatically at battery levels of 44 and below. ® GPS works best outdoors under clear skies. During shooting, GPS data are displayed in the monitor as shown at right. Signal strength is indicated by the number of bars; #, is displayed when the camera is searching for a signal and | if no signal is detected. The current location is shown by a place name or (if no place name is available) 57 . Location Signal by the longitude and latitude. strength ® The display of GPS information can be turned off by selecting OFF for ES LOCA- TION INFO (F2 99)

S Da Recording with Pictures (F550EXR Only ® Using GPS increases the drain on the battery, causing battery performance to drop at low temperatures. @ The receiver may have an error of a few hundred meters (yards) ® The camera may be unable to receive GPS data in some locations. lf possible, choose an outdoor location with few obstructions when turning the camera on. © The position recorded when a photo is taken may differ from the actual location if some time has passed since the camera was last able to update GPS data ® Select OFF for Æ LOCATION SEARCH (F2 99) and ES TRACKING DATA (EZ 100) in the setup menu when in a hospital and before takeoff and landing if traveling I by air. ® Place names are current as of the date on which the map database was created (Æ 127) and will not be updated to reflect any changes after that date. ® Comprehensive place name data are unavailable in some countries and regions. If no name is available, the latitude and longitude will be displayed for a few seconds. 2e Viewing GPS Data During playback, pictures for which GPS data exist are indicated GPS icon by a GPS icon. GPS data are shown for a few seconds each time _ = the picture is displayed More on Photography 41

Recording GPS Data with Pictures (

2e GPS The camera may be unable to receive GPS data if the antenna (F4 2) is obstructed or when underground, underwater, under a bridge or overpass, inside a vehicle, build- ing, tunnel, or metal briefcase, between tall buildings, or in the vicinity of cell phones or other devices that broadcast in the 1.5 GHz band. Obey all local regulations regarding the use of GPS devices. Note that the use of GPS devices is restricted in some countries, including the People's Republic of China. Before going abroad, consult with the embassy or a travel agent. The camera may display #] (no signal) in locations in which restrictions apply.

Intelligent Face Detection Intelligent Face Detection sets focus and exposure for human faces anywhere in the frame, preventing the camera from focusing on the background in group portraits. Choose for shots that emphasize portrait subjects. To use Intelligent Face Detection, press MENU/0K to dis- play the shooting menu and select ON for F3 FACE DETECTION. Faces can be detected with the camera in vertical or horizontal orientation: if a face is detected, it will be indicated by a green border. If there is more than one face in the frame, the camera will select the face closest to the center; other faces are indicated by white borders. ® In some modes, the camera may set exposure for the frame as a whole rather than the portrait subject. © lfthe subject moves as the shutter button is pressed, their face may not be in the area indicated by the green border when the picture is taken. More on Photograph) 4

LEA Continuous Shooting To capture motion in a series of pictures, press MENU/OK, F1 5 es) select FA CONTINUOUS in the shooting menu(EE 85), and choose from the options listed in this section == ® The flash turns off automatically. The previously selected flash mode is restored when OFF is selected for Æ4 CONTINUOUS. ® Frame rate varies with shutter speed ® Focus and exposure are determined by the first frame in each series. ® The number of pictures that can be taken in a single burst varies with the scene and camera settings. The number of pictures that can be recorded depends on the memory available. HO TOPn The camera takes photographs while the shutter button is pressed. To choose the frame rate and maximum number of shots per burst: 1 Press the selector right when the camera is in shooting Fes mode. 2 Highlight the current frame rate or number of shots and press the selector right, then press selector up or down to choose a new value and press MENU/OK to select. 3 Press DISP/BACK to return to shooting mode when settings are complete.

M à FINAL n (FS00EXR Only) The camera takes up to 40 pictures, but only the last shots are recorded. The number of shots recorded can be selected by press- ing the selector right while the camera is in shooting mode. & Only one photo is taken ifthe self-timer is used. M "s BEST FRAME CAPTURE (F550EXR Only) Le Upto40shots + Shutter button Shutter button pressed released

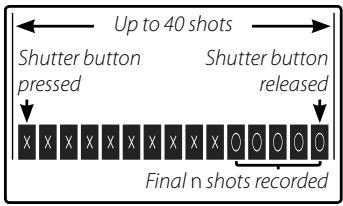

DD LEEETE) Final n shots recorded The camera takes a series of pictures, starting before and ending after the shutter button is pressed. To choose the frame rate and number of shots: 1 Press the selector right when the camera is in shooting mode. 2 Highlight the current frame rate and press the selector right, then press selector up or down to choose a new value and press MENU/0K to select. ® Some frame rates may reduce the number of shots available in Step 3 3 Highlight the number of shots and press the selector Shots per burst right. Press the selector up or down to choose the num- ber of shots in each burst and left or right to choose their distribution (the number on the left is taken before and the number on the right after the shutter button is pressed). Press MENU/OK when settings are complete. Distribution

4 Press DISP/BACK to return to shooting mode. 5 Take photographs. The camera begins re- Shutter button cording while the shutter button is pressed [Shutterbutton pressedallthe halfway, and completes the burst when the |P'essedhalfway way down shutter button is pressed all the way down. Theillustration shows a burst of eight shots, three before the shutter button is pressed and four after. “Before" “After” shots shots © Ifthe shutter button is pressed all the way down before the number of frames selected for the"before" portion is recorded, the remaining frames will be taken after the shutter button is pressed all the way down. © Ifthe shutter button is pressed halfway for an extended period, the camera may record the burst before the shutter button is pressed all the way down. I à AE BKT (F550EXR Only) Each time the shutter button is pressed, the camera takes three shots: one us- ing the metered value for exposure, the second overexposed by the amount selected for 1 AE BKT EV STEPS in the shooting menu (F3 87), and the third underexposed by the same amount (the camera may not be able to use the selected bracketing increment if the amount of over- or under- exposure ex- ceeds the limits of the exposure metering system).

M C9] FILM SIMULATION BKT (F550EXR Only) Each time the shutter button is pressed, the camera takes three shots at dif- ferent [D FILM SIMULATION settings (F2 81): &r PROVIA/STANDARD forthe first, dr Velvia/VIVID for the second, and ir ASTIA/SOFT for the third. I ET] DYNAMIC RANGE BKT (F550EXR Only) Each time the shutter button is pressed, the camera takes three shots at differ- ent Æ DYNAMIC RANGE settings (F3 83): 100% for the first, 200% forthe second, and 400% for the third (IF ISO can not exceed 3200; val- ues less than 400 are not available when KM is selected for 4 IMAGE SIZE).

[TE Face Recognition The camera can store information on the face and personal details (name, relationship, and birth date) of portrait sub- Le jects and assign these subjects priority for Intelligent Face Detection or display their names and other information Happy Birthday! during playback. Adding New Faces Follow the steps below to add faces to the face recognition database. 1 Select REGISTER. Select REGISTER for Æ] FACE RECOGNITION in the shooting menu ® To disable face recognition, select OFF. 2 Take a photograph. After checking that the subject is facing the camera, frame the subject using the guides and take the pho- tograph. ® Ifan error is displayed, take the photograph again

3 Enter face recognition data Press MENU/0K to display face recognition data and enter the following in- formation: - NAME: Enter a name of up to 14 characters and press MENU/OK. - BIRTHDAY: Enter the subjects date of birth and press MENU/0K. + CATEGORY: Choose the option that describes your relationship to the sub- ject and press MENU/OK. ® If you attempt to zoom in on the face of a person indicated by a green border in the face recognition database on their birthday, the camera will display their name and the message “Happy Birthday!”

Viewing, Editing, and Deleting Existing Data Follow the steps below to view, edit, or delete face recognition data. 1 Select VIEW & EDIT for Æ FACE RECOGNITION. 2 Select a face. 3 View or edit face recognition data. The name, category, or birth date can be edited as described in Step 3 of “Adding New Faces"(EA 50). To retake the photo, select REPLACING IMAGE and shoot a new portrait as described above. ® To delete face recognition data for the selected subject, select ERASE. Adding Faces Automatically To automatically add frequently-photographed subjects to the face recogni- tion database, select ON for AUTO REGISTRATION in the face recognition menu. Ifthe camera detects a face that has been photographed many times without being added to the database, it will display a message prompting you to create a new face recognition entry. Press MENU/0K and enter face recogni- tion data ® The camera may sometimes fail to recognize new faces automatically. If necessary, faces can be added manually using the REGISTER option:

%® Face Recognition The camera can store up to eight faces. If you attempt to add a ninth face, a confir- mation dialog will be displayed: use VIEW & EDIT to make room for new faces by deleting existing data. AUTO REGISTRATION is disabled if there are already data for eight faces. Whenintelligent Face Detection (FA 43)isonandthe frame contains multiple subjects from the face recognition database, the camera displays the name of the subject that will be used to set focus and exposure (the subject shown by the green frame) If no name is entered, the camera will show "—-" Subjects identified using face rec- ognition but not used to set focus and exposure are shown by orange frames, other subjects by white frames. ® The camera may fail to identify subjects in the face recognition database if they are not facing the camera or are only partly in the frame, or if details of the sub- jects'faces or expressions differ markedly from those in the database.

More on Playback [Playback Options To view the most recent picture in the LCD monitor, press the DB] button. CRE Press the selector right to view pictures in the order recorded, left to view pictures in reverse order. Keep the selector pressed to scroll rapidly to the desired frame. ® Pictures taken using other cameras are indicated by à À (‘gift image”) icon during playback. Continuous Shooting. In the case of pictures taken in continuous shooting mode, only the first frame of each series will be displayed. Press the selector down to view the other pictures in the series. _x Favorites: Rating Pictures To rate the picture currently displayed in full-frame playback, press DISP/BACK and press the selector up and down to select from zero to five stars.

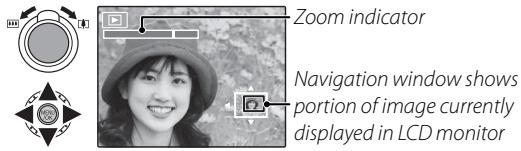

Play Playback Zoom Select [4] to zoom in on pictures displayed in single-frame playback; select F4 to zoom out. When the picture is zoomed in, the selector can be used to view areas of the image not currently visible in the display. ck Options à Zoom indicator Navigation window shows portion ofimage currently displayed in LCD monitor Press DISP/BACK to exit zoom. ® The maximum zoom ratio varies with image size. Playback zoom is not available with cropped or resized copies saved at a size of 9 or smaller. 5 More on Playback

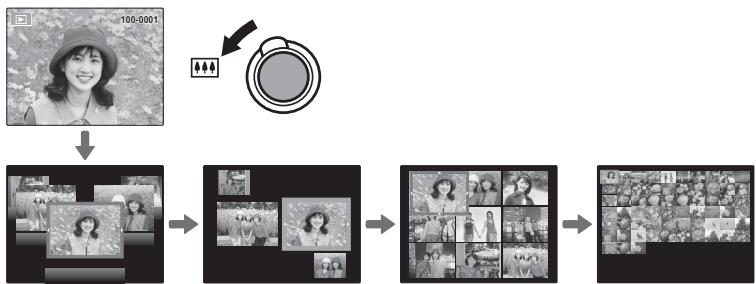

Multi-Frame Playback Selecting E# when a picture is shown full-frame in the LCD monitor displays the current image with previous and following images in the background Select EW to increase the number of images displayed to two, nine, or one hundred, [] to view fewer images. When two or more images are displayed, use the selector to highlight images and press MENU/0K to view the highlighted image full frame. In the nine- and hundred-frame displays, use the selector to view more pictures. More on Playback 55

Deleting Pictures To delete individual pictures, multiple selected À pictures, or all pictures, press MENU/OK, select @D ) = ERASE (EX 90),andchoosefromthe options be- = low. Note that deleted pictures can not be recov- = — ered. Copy important pictures to a computer or other storage device before proceeding. Option Description Press the selector left or right to scroll through pictures and press MENU/OK to delete the current picture (à confirmation dialog is not displayed) Highlight pictures and press MENU/OK to select or deselect (pictures that Are in a photobook or print order are shown by I). When the operation is complete, press DISP/BACK to display à confirmation dialog, then highlight OK and press MENU/OK to delete the selected pictures. A confirmation dialog will be displayed: highlight OK and press MENU/0K to delete all unprotected pictures (if a memory card is inserted, only the pic- fures on the memory card will be affected: the pictures in internal memory Are only deleted if no memory card is inserted). Pressing DISP/BACK cancels deletion; note that any pictures deleted before the button was pressed can not be recovered FRAME SELECTED FRAMES ALL FRAMES ® Protected pictures can not be deleted. Remove protection from any pictures you wish to delete (F2 92). ® fa message appears stating that the selected images are part of a DPOF print order, press MENU/OK to delete the pictures.

[E1 Image Search Search for pictures. 1 Select E IMAGE SEARCH in the playback menu (ES 90), highlight one of the following search criteria, and press MENU/OK: + BYDATE: Search by date. + BY GPS LOCATION NAME (FS50EXR Only}: Search by location name (location names that do not begin with a letter from A to Z are listed in the search conditions under “#"). - BYFACE: Search for faces from the face recognition database. - BY x FAVORITES: Search by rating. - BYSCENE: Search by scene. - BYTYPE OF DATA: Find all still pictures or all movies. - BY UPLOAD MARK: Find all pictures selected for upload to a specified desti- nation. 2 Select a search condition. Only pictures that match the search condition will be displayed. To delete or protect selected pictures or to view the search results in a slide show, press MENU/0K and choose Fi ERASE (EE 90), PROTECT (E3 92), or Fi SLIDE SHOW (ES 89).

PhotoBook Assist Create books from your favorite photos. Creating a PhotoBook 1 Select NEW BOOK for [J PHOTOBOOK ASSIST in the playback menu (EE 88) and choose from the following options: + SELECT FROM ALL: Choose from all available pictures. + SELECT BY IMAGE SEARCH: Choose from pictures matching selected search conditions (EE 57). ® Neither photographs Æ or smaller nor movies can be selected for photobooks. 2 Scroll through the images and press the selector up to select or deselect. To display the current image on the cover, press the selector down. Press MENU/OK to exit when the book is complete. ® The first picture selected becomes the cover image. Press the selector down to select a different image for the cover. 3 Select COMPLETE PHOTOBOOK (to select all photos or all photos match- ing the specified search conditions for the book, choose SELECT ALL) The new book will be added to the list in the photobook assist menu. @ Books can contain up to 300 pictures @ Books that contain no photos are automatically deleted

Viewing Photobooks Highlight a book in the photobook assist menu and press MENU/OK to display the book, then press the selector left or right to scroll through the pictures. _Editing and Deleting Photobooks Display the photobook and press MENU/0K. The following options will be dis- played; select the desired option and follow the on-screen instructions. - EDIT: Edit the book as described in“Creating a PhotoBook" (EX 58), + ERASE: Delete the book. % Photobooks Photobooks can be copied to a computer using the supplied MyFinePix Studio soft- ware.

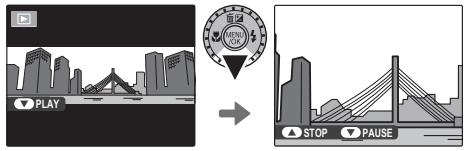

[Viewing Panoramas If you press the selector down when a panorama is displayed full frame, the camera will play back the picture from left to right or from bottom to top. To pause playback, press the selector down; press the selector down again to resume. To exit to full-frame playback, press the selector up while panorama playback is in progress. LES A ——

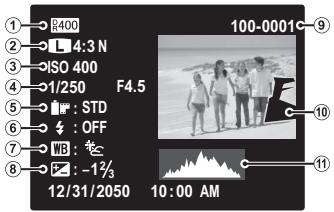

[Viewing Photo Information (F550EXR Only) Photo information can be viewed by pressing DISP/BACK to cycle through indi- cators (F3 6) until the following display appears: LS D Dynamic range @) Image size and quality Q@) Sensitivity @) Shutter speed/aperture @Film simulation @) Flash mode (D White balance @) Exposure compensation (@) Frame number ® (9 Picture (overexposed areas blink on and off) D Histogram °° Histograms Histograms show the distribution of tones in the im- LA age. Brighiness is show by the horizontal axs, the à © astèltés. number of pixels by the vertical axis. LA <—Pelbrighiness —> Shadows Highlights Optimal exposure: Pixels are distributed in an even Overexposed: Pixels are clustered on the right side of the graph Underexposed: Pixels are clustered on the left side of the graph

Movies [Recording Movies Press % to shoot a movie. During recording, the following indica- tors will be displayed and sound will be recorded via the built-in microphone (be careful not to cover the microphone during re- cording)

æ RECicon Number ofphotos that can be taken during recording Time remaining To end recording, press the % button again. Recording ends automatically when the movie reaches maximum length or memory is full. ® Zoom can be adjusted while recording is in progress. ® lfthe subject is poorly lit, the AF-assist lamp mary light to assist the focus operation: To turn the AF-assist lamp off, select OFF for Æ AF ILLUMINATOR in the setup menu (F2 103) ® Focus, exposure, and white balance are adjusted automatically throughout record- ing. The color and brightness of the image may vary from that displayed before recording begins. ® Sounds made by the camera may be recorded LC]

2 Taking Photographs During Recording Press the shutter button to take a photograph during recording ® If is selected for KB IMAGE SIZE, the picture will be recorded at size ÆX ® The photo is saved separately from the movie and does not appear as part of the movie. ® Photos can not be taken while a high-speed movie is being recorded @ The indicator lamp lights while movies are being recorded. Do not open the bat- tery chamber during shooting or while the indicator lamp is lit. Failure to observe this precaution could prevent the movie from being played back @ Vertical or horizontal streaks may appear in movies containing very bright subjects This is normal and does not indicate a malfunction: © The temperature of the camera may rise if it is used to record movies for an ex- tended period or if the ambient temperature is high. This is normal and does not indicate a malfunction Movie Frame Size Before recording, select a frame size using the Æi MOVIE MODE option in the shooting menu (F3 87). Option Description #31920 (1920 x 1080) [Full HD (High Definition). 521280 (1230x720) High Definition. HD GI0x 480) Standard definition. 15640 x 480 High speed movie. Sound is not recorded, and focus, exposure, and white balance are not adjusted automatically. Black bands appear at the top and bottom of movies recorded at ES320 x 112.

[Viewing Movies During playback, movies are displayed in the LCD monitor as shown at right. The following operations can be per- formed while a movie is displayed: Option Description Press the selector down to start playback. Press again to pause. While playback is paused, you can press the selec- or left or right to rewind or advance one frame at a time. Start/pause playback End pleybacW/| Lire [Presstheselectorup to end playback Press the selectorleft or right to adjust playback speed dur ing playback Press MENU/OK to pause playback and displey volume con- Krols. Press the selector up or down to adjust the volume land press MENU/OK to exit. Volume can also be adjusted from the setup menu. Adjust speed Adjust volume ®e Playback Speed Press the selector left or right to adjust playback speed. Speed is Arrow shown by the number of arrows (or 4). ï ® Do not cover the speaker during playback

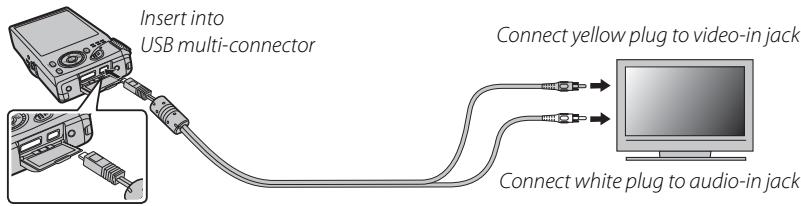

Connections [Viewing Pictures on TV Connect the camera to a TV to show pictures to a group. 1 Turn the camera off. 2 Connect the supplied A/V cable as shown below. Insert into USB multi-connector Connect yellow plug to video-in jack

NDS white plug to audio-in jack ® Image quality drops during movie playback

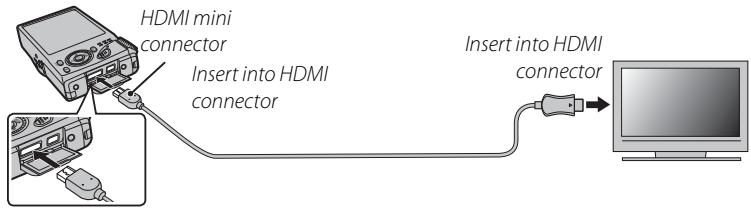

2e Connectingthe Camera to High Definition (HD) TVs An HDMI cable (available from third-party suppliers) can be used to connect the camera to High Definition (HD) devices (playback only). The USB and AMV cables can not be used while an HDMI cable is connected HDIMI mini jonnector Insert into HDMI Insert into HDMI connector connector lent ® When an HDMI cable is connected, pictures and sound are played back on the TV. ® When connecting cables, be sure the connectors are fully inserted. 3 Tune the television to the video or HDMI input channel. See the docu- mentation supplied with the television for details. 4 Press the D] button for about a second to turn the camera on. The camera monitor turns off and pictures and movies are played back on the TV. Note that the camera volume controls have no effect on sounds played on the TV; use the television volume controls to adjust the volume.

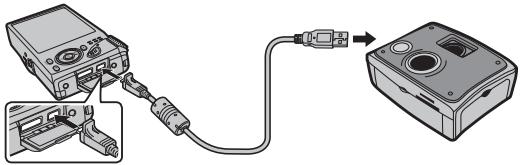

[Printing Pictures via USB If the printer supports PictBridge, the camera can be connected directly to the printer as shown below and pictures can be printed rc without first being copied to a computer. Note that depending on PictBridge the printer, not all the functions described below may be supported. 1 Connect the supplied USB cable as shown and turn the printer on 2 Press the D] button for about a second to turn the camera on. 3 Press the selector left or right to display a picture you wish to print. I 4 Press the selector up or down to choose the number of copies (up to 99). 5 Repeat steps 3-4 to select additional pictures. Press MENU/OK to display a confirmation dialog when settings are complete.

Printing Pictures via U 6 Press MENU/OK to start printing. Printing can be interrupted by pressing DISP/BACK, but note that some printers may not respond immediately. Ifthe printer stops before printing is complete, turn the camera off and then on again. 7 After confirming that PRINTING has cleared from the camera display, turn the camera off and disconnect the USB csable ® Pictures can be printed from internal memory or a memory card that has been formatted in the camera ® lfno pictures are selected, the camera will print one copy of the current picture. ® Page size, print quality, and border selections are made using the printer. % Printingthe Date of Recording To print the date of recording on pictures, press DISP/BACK in the PictBridge display and select PRINT WITH DATE [@ in the PictBridge menu (to print pictures without the date of recording, select PRINT WITHOUT DATE). Some printers do not support date printing. See the printer manual for details. 68 onnection:

Printing the DPOF Print Order The PRINT ORDER (DPOF) option in the playback menu can be used to create a digital "print order" for PictBridge-compatible printers (A 106) or de- vices that support DPOF. %e DPOF DPOF (Digital Print Order Format) is a standard that allows pictures to be " printed from "print orders"stored in internal memory or on a memory card. The information in the order includes the pictures to be printed and the DR6F number of copies of each picture. 1 Select playback mode and press MENU/OK to display the playback menu. 2 Highlight FA PRINT ORDER (DPOF) and press MENU/0K. 3 Highlight one of the following options and press MENU/OK: - WITH DATE CG: Print the date of recording on pictures. - WITHOUT DATE: Do not print the date of recording on pictures. ® Some printers do not support date printing. See the printer manual for details. 4 Press the selector left or right to display a picture you wish to add to or remove from the print order.

5 Press the selector up or down to choose the number of copies (up to 99) To remove a picture from the print order, press the selector down until the number of copies is zero. 6 Repeat Steps 4-5 to complete the print order and press MENU/0K when settings are complete. 7 À confirmation dialog will be displayed. Press MENU/0K to save the print order. ® Remove the memory card to create or modify a print order for the pictures in internal memory. ® Print orders can contain a maximum of 999 pictures. ® lfa memory card is inserted containing a print order created by another camera, a message will be displayed. Create a new print order as described above.

[Viewing Pictures on a Computer The supplied software can be used to copy pictures to a computer, where they can be stored, viewed, organized, and printed. Before proceeding, install the software as described below. Do Nor connect the camera to the computer until installation is complete. Windows: Installing MyFinePix Studio 1 Confirm that the computer meets the following system requirements: Windows 7! [Windows Vista! Windows XP! _. 3GHz Pentium 4 or better 2GHz Pentium 4 or better (24GHz Core 2 Duo or better)? (24GHz Core 2 Duo or better)? 512 MB or more fa 1SRormore {1 GB or more)? Free diskspace 15GB ormore 2GB or more video |” 1022x768 pixels or more with 24-bit color or better A graphics processing unit (GPU) that supports DirectX 7 or later F Built-in USB port recommended. Operation is not guaranteed with other USB ports Other |-Internet connection (broadband recommended) required to install NET Framework (if necessary), to use auto update feature, and when per- forming such tasks as sharing pictures on-line or via e-mail T Other versions of Windows are not supported. Only pre-installed operating systems are supported; operation is not guaranteed on home-built computers or computers that have been upgraded from earlier versions of Windows. 2 Recommended when displaying HD movies 2 Start the computer. Log in to an account with administrator privileges before proceeding

3 Exit any applications that may be running and insert the installer CD in a CD-ROM drive 2e Windows 7/Windows Vista If an AutoPlay dialog is displayed, click SETUP.EXE. A “User Account Control” dialog will then be displayed; click Yes (Windows 7) or Allow (Windows Vista) The installer will start automatically; click Install MyFinePix Studio and follow the on-screen instructions to install MyFinePix Studio. %e Ifthe Installer Does Not Start Automatically If the installer does not start automatically, select Computer or My Computer from the Start menu, then double-clickthe FINEPIX CD icon to open the FINEPIX CD window and double-click setup or SETUP.EXE. 4 f prompted to install Windows Media Player, DirectX, or .NET Framework, follow the on-screen instructions to complete installation. 5 Remove the installer CD from the CD-ROM drive when installation is com- plete. Store the installer CD in a dry location out of direct sunlight in case you need to re-install the software. Installation is now complete. Proceed to“Connecting the Camera” (EX 75).

Macintosh: Installing FinePixViewer 1 Confirm that the computer meets the following system requirements: CU [PowerPC or Intel (Core 2 Duo or better) os [Pre-installed copies ofMac OS Xversion 1039-10 (visit tip/wwwfuiim: com/support/digital_cameras/compatibility/ for more information) RAM {256 MB or more (IGB or more)” Free disk space A minimum of 200MB required for installation with 400ME available when FinePixViewer is running Video 800 x 600 pixels or more with thousands of colors or better Other Built-in USB port recommended. Operation is not guaranteed with other USB ports.

• Recommended when displaying HD movies. 2 After starting the computer and quitting any applications that may be run- ning, insert the installer CD in a CD-ROM drive and double-click Installer for Mac OS X 3 An installer installation. dialog will be displayed; click Installing FinePixViewer to start Enter an administrator name and password when prompted and click OK, then follow the on-screen instructions to install FinePixViewer. Click Exit to quit the installer when installation is complete.

4 Remove the installer CD from the CD-ROM drive. Note that you may be unable to remove the CD if Safari is running; if necessary, quit Safari before removing the CD. Store the installer CD in a dry location out of direct sun- light in case you need to re-install the software. 5 MacOS X 10.5 or earlier: Open the ‘Applications folder, start Image Capture, and select Preferences. from the Image Capture application menu. The Image Capture preferences dialog will be displayed; choose Other. in the When a camera is connected, open menu, then select FPVBridge in the “Applications/FinePixViewer" folder and click Open. Quit Image Cap- ture. Mac 05 X 10.6: Connect the camera and turn it on. Open the “Applications” folder and start Image Capture. The camera will be listed under DEVICES; select the camera and choose FPVBridge from the Connecting this cam- era opens menu and click Choose. Quit Image Capture. Installation is now complete. Proceed to“Connecting the Camera” (EX 75).

Connecting the Camera 1 fthe pictures you wish to copy are stored on a memory card, insert the card into the camera. ® Windows users may require the Windows CD when starting the software for the first time. ® Loss of power during transfer could result in loss of data or damage to internal memory or the memory card. Charge the battery before connecting the cam- era 2 Turn the camera off and connect the supplied USB cable as shown, making sure the connectors are fully inserted. Connect the camera directly to the computer; do not I use à USB hub or keyboard. 3 Press the [] button for about a second to turn the camera on. MyFinePix Studio or FinePixViewer will start automatically; follow the on-screen in- structions to copy pictures to the computer. To exit without copying pic- tures, click Cancel. ® If the software does not start automatically, it may not be correctly installed. Disconnect the camera and reinstall the software.

Viewing Pictures on a Compute For more information on using the supplied software, start the application and select the appropriate option from the Help menu. ® If a memory card containing a large number of images is inserted, there may be a delay before the software starts and you may be unable to import or save images. Use a memory card reader to transfer pictures, ® Make sure that the computer does not display a message stating that copying is in progress and that the indicator lamp is out before turning the camera off or discon- necting the USB cable (if the number of images copied is very large, the indicator lamp may remain lit after the message has cleared from the computer display). Failure to observe this precaution could result in loss of data or damage to internal memory or the memory card ® Disconnect the camera before inserting or removing memory cards. ® In some cases, it may not be possible to access pictures saved to a network server using the supplied software in the same way as on a standalone computer. @ The user bears all applicable fees charged by the phone company or Internet ser- vice provider when using services that require an Internet connection. 76 Connections

ewing Pictures on a Computer % Disconnecting the Camera After confirming that the indicator lamp is out, turn the camera off and disconnect the USB cable. 2e Uninstalling the Supplied Software Only uninstall the supplied software when it is no longer required or before begin- ning reinstallation. After quitting the software and disconnecting the camera, drag the“FinePixViewer’ folder from ‘Applications’ into the Trash and select Empty Trash in the Finder menu (Macintosh), or open the control panel and use “Programs and Features” (Windows 7/Windows Vista) or’Add or Remove Programs” (Windows XP) to uninstall MyFinePix Studio. Under Windows, one or more confirmation dialogs may be displayed: read the contents carefully before clicking OK. Connections 77

Using the Menus: Shooting Mode Options Control the camera sensitivity to light. Higher values can reduce blur; note, however, that mot- tling may appear in pictures taken at high sensitivities 100 —— 10 — 12800 Bright — Scene Dark Less noticeable + Noise (mottling) More noticeable Option Description auto Sensitivity is adjusted automatically in response to shooting conditions. AUTO (3200)/ AUTO (1600)/ [As above, except that sensitivity will not be raised above the AUTO (800)/ AUTO (400) value in parentheses. 12800/6400/3200/1600/800/ [Sensitivity is set to the specified value, which is shown in the 400/200/100 display. Menus 79

Using the Menus: Shooting Mode Choose the image size and aspect ratio at which pictures are record- ed. Large pictures can be printed at large sizes with no drop in quality, ve sal pictures require less memory, allowing more pictures tobe Sle Aspect ratio recorde. 2 Size Versus Aspect Ratio Size Option Prints at sizes up to 34x25 cm (13.5x 10in.) CM] 24X 18cm (95x7in) 5 17x13em(7x5in) Aspect ratio 4:3- Pictures have the same [322 Pictures have the same | 16:9: Suited for display on proportions as the camera | proportions as a frame of | High Definition (HD) devices | display. 35 mm film. 80 Menus

Using the Menus: Shooting Mode Capture motion ina series of pictures (ES 44). Choose from &, Qi, ,and'OFF (F550EXR) or @, @, and OFF (F500EXR). Select ON to enable advanced anti blur in && mode (ES 23). CHIFUMISMUUATION] Simulate the effects of different types of film, including sepia and black-and-white. Option Description Standard color reproduction. Suited to a wide range of subjects, from por- Sr PROVIA/STANDARD À to landscapes. de Velvia/VIVID JA high-contrast palette of saturated colors, suited to nature photographs. Êr ASTIA/SOFT JA soft-toned palette of less saturated colors. Êr B&W [Take pictures in black and white. Sr SEPIA Take pictures in sepia. Menus

Using the Menus: Shooting Mode Using the Shooting Menu To display the shooting menu, press MENU/OK in shooting D 1 mode. Highlight items and press the selector right to view options, then highlight an option and press MENU/ n OK. Press DISP/BACK to exit when settings are complete. Shooting Menu Options BIEXRIMODE: Choose an option for EXR mode (E2 23) Choose a scene for SP mode (E3 29) ISO] [CHAMSIAUTO) Control the camera sensitivity to light (E3 79). Choose how much image files are compressed. Option Description FINE Low compression. Select for higher image quality. NORMAL High compression. Select this option to store more pictures. 8 Menus

Using the Menus: Shooting Mode Control contrast. Higher values are recommended for scenes that include both sunlight and deep shade or for increased contrast with such subjects as sunlight on water, brightiy-lit autumn leaves, portraits taken against a blue sky, and white objects or people wearing white note, how- ever that motiling may appear in pictures taken at higher values. If AUTO is selected, the cam- era will automatically select values between 100% and 400% in response to shooting conditions. Option Description AUTO | ED 200% ê EXD 400% HE 100% [Increase contrast when shooting indoors or under overcast skies. Æs00% |Reduce loss of detail in highlights and shadows when photographing HE 160% _[high-contrast scenes. ® M 1600% and M 800% are available only when D-RANGE PRIORITY is selected in EXR mode and an option other than ge Velvia/VIVID or &r ASTIA/SOFT is selected for [2 FILM SIMULATION Simulate the effects of different types of film (E3 81) Menus

he Menus: Shooting Mode TBIWHITEBALANCE) STAUTO) IF AUTO does not produce natural colors (for example, when taking close-ups), select ©, and measure a value for white balance or choose the option that matches the light source. Option Description AUTO White balance adjusted automatically. a [Measure a value for white balance. Forsubjects in direct sunlight Forsubjects in the shade. Use under-daylight fluorescent lights. Use under-warm white fluorescent lignes. Use under-coo! white fluorescent lights. Use underincandescent lighting. Forundenwater photography [EPA ALES %e G: Custom White Balance Choose & to adjust white balance for unusual lighting conditions. White balance measure- ment options will be displayed: frame a white object so that it flls the LCD monitor and press the shutter button all the way down to measure white balance. + If"COMPLETED!"is displayed, press MENU/OK to set white balance to the measured value. + If"UNDER"is displayed, raise exposure compensation (£3 35) and try again + H'OVER‘is displayed, lower exposure compensation and try again For greater precision, adjust (3 FILM SIMULATION, 1$0, and Æf DYNAMIC RANGE before measuring white balance. ® At settings other than 9, auto white balance is used with the flash ® Results vary with shooting conditions. Play pictures back after shooting to check colors in the LCD monitor. 84 Menus

Using the Menus: Shooting Mode Capture motioninaseries of pictures (E2 44). Choose from %, or @, &, and OFF (F500EXR).

Gun, and OFF (F550EXR) Select ON to enable advanced anti blur in && mode (ES 23). FACEJDETIECTION, Choose whether the camera automatically detects and sets focus and exposure for human por- trait subjects (E2 43). Choose how the camera meters exposure when Intelligent Face Detection is off. Option Description Mu Automatic scene recognition is used to adjust exposure for a wide range of shooting conditions. ÎThe camera meters lighting conditions at the center of the frame. Recom- CI spor mended when the background is much brighter or darker than the main subject. Exposure is set to the average for the entire frame. Provides consistent expo- CIAVERAGE [sure across multiple shots with the same lighting, and is particularly effective for landscapes and portraits of subjects dressed in black or white. Menus 85

Using the Menus: Shooting Mode IBAFIMODE, This option controls how the camera selects the focus area for photographs. Regardless of the option selected, the camera will focus on the subject in the center of the frame when macro mode is on. Option Description IE] ŒNTER ÎThe camera focuses on the subject in the center ofthe frame. Eu When the shutter button is pressed halfway, the camera detects high-contrast subjects near the center of the frame and selects the focus area automatically D comnuous [Te came continuous) acjusts focus to reflect changes in Ihe distance to he subject in the focus frame. En madame [Poston the subjectinthe center focus area and press the selector ef Focus ill track the subject as it moves through the frame. ® Note that in [E] and FI] modes, the camera focuses continuously, increasing the drain on the battery, and that the sound of the camera focusing may be audible. DIFACERECOENITION) Add portrait subjects to the face recognition database. These subjects will be given priority during Intelligent Face Detection, and their names and other information can be viewed during playback (E2 52).

Using the Menus: Shooting Mode This option controls how the camera selects the focus area for movies. Option Description TE ŒNTER ÎThe camera focuses on the subjectin the center ofthe frame. D comnuous [ne cames continuous acjusts focus to reflect changes in Ihe distance to the subject in the focus frame. ® Note that in [E] mode, the camera focuses continuously, increasing the drain on the battery, and thatthe sound of the camera focusing may be audible. Choose the sie of the exposure bracketing increment used wnen 3 AE BKT is selected for E3 CONTINUOUS. Select from increments of #4EV, 424EV, and +1 EV (note that the camera may not be able to use the selected bracketing increment ifthe amount of over- or under- expo- sure exceeds the limits of the exposure metering system). Menus

[Using the Menus: Playback Mode The F-mode and playback menus are Used to manage the pictures in inter- nal memory or on the memory card. Usingthe F -Mode Menu To display Æ-mode menu playback options, press the 7 Æ button in playback mode. Highlight items and press the selector right to view options, then highlight an op- tion and press MENU/0K. Press DISP/BACK to exit when set- tings are complete. _Æ-Mode Menu Options. ENPHOTOEOOK ASSIS" Create books from your favorite photos (E2 58). EPHOTONAVIGATIONESS0EXRONIÿ) To show the direction and distance from your present position to the location where a picture was taken: Select an option other than OFF for (ES LOCATION SEARCH in the setup menu (FE 99) and confirm that the camera is receiving GPS data (E 40) 2Display a picture with a GPS icon. 3 Select FA PHOTO NAVIGATION in the playback menu. The approxi- mate direction and distance to the location where the picture was taken are displayed as shown, using the units selected for Skm/ mile in the setup menu (2 100). Distances over 1000 units are indi- cated by"> those under 100 units by"<’ ® Photo navigation ends when the next picture is displayed 88 Menus

Using the Menus: Playback Mode art. Press DISP/BACK at any time during the show to view on-screen help. The show can be ended at any time by pressing MENU/OK Option Description NORMAL Press selector left or right to go back or skip ahead one frame Select FADE-IN DEN or fade transitions between frames. NORMAL £7 As above, except that camera automatically zooms in on faces selected with FADE-IN C2 Intelligent Face detection. MULTIPLE Display several pictures at once. ®& The camera will not turn off automatically while a slide show is in progress. Menus

Using the Menus: Playback Mode Using the Playback Menu To display the playback menu, press MENU/0K in playback D mode. Highlight items and press the selector right to view options, then highlight an option and press MENU/ OK. Press DISP/BACK to exit when settings are complete. Playback Menu Options DIPHOTOBOOKASSIST Create books from your favorite photos (E3 58). FSPHOTONAVIGATIONI(ESSOEXR|On!y)) View the direction and distance from your present position to the location where a picture was taken (ES 88) AGESEARCE Search for pictures (E2 57) (EILERA | Delete all or selected pictures (E2 56). 90 Menus

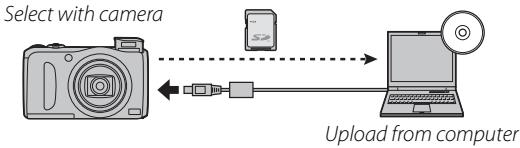

Using the Menus: Playback Mode Select pictures for upload to YouTube or Facebook using MyFinePix Studio (Windows only) M Selecting Pictures for Upload 1 Select YouTube to choose movies for upload to YouTube, FACEBOOK to choose photos and movies for upload to Facebook 2Press the selector left orright to display pictures and press MENU/OK to select or deselect. Press DISP/BACK to exit when all the desired pictures are selected ® Only movies can be selected for upload to YouTube. & During playback, selected pictures are indicated by F3 YouTube or Æ3 FACEBOOK icons. I RESET ALL: Deselecting All Pictures Choose RESET ALL to deselect all pictures. If the number of pictures affected is very large, à message will be displayed while the operation is in progress. Press DISP/BACK to exit before the operation is complete. M Uploading Pictures (Windows Only) Selected pictures can be uploaded using the YouTube/Facebook Upload option in MyFinePix Studio. Select with camera Upload from computer For information on installing MyFinePix Studio and connecting the camera to a computer, see “Viewing Pictures on a Computer" (E 71). SUIDE SHOW View pictures in an automated slide show IMULTIBLE)) Menus 91

Using the Menus: Playback Mode Ifthe current picture is marked with a E8? icon to indicate that it was taken with Intelligent Face Detection, this option can be used to remove red-eye. The camera will analyze the image: if red- eye is detected, the image will be processed to create à copy with reduced red-eye. 1 Display the desired picture. 2elect E3 RED EVE REMOVAL in the playback menu 3 Press MENU/OK. ® Red eye may not be removed ifthe camera is unable to detect a face or the face is in profile. Results may differ depending on the scene. Red eye can not be removed from pictures that have already been processed using red-eye removal or pictures created with other devices. ®& The amount oftime needed to process the image varies with the number of faces detected! & Copies created with E3 RED EYE REMOVAL are indicated by à F3 icon during playback (E|PROTECTI Protect pictures from accidental deletion: 1 Select E PROTECT in the playback menu 2Highlight one ofthe following options and press MENU/OK: + FRAME. Protect selected pictures. Press the selector left or right to view pictures and press MENU/OK to select or deselect. Press DISP/BACK when the operation is complete. - SETALL: Protect all pictures. - RESETALL: Remove protection from all pictures © Protected pictures will be deleted when the memory card or internal memory is formatted (88 99). 92 Menus

Using the Menus: Playback Mode Create a cropped copy of the current picture. 1 Display the desired picture. 2Select E3 CROP in the playback menu 3 Use the zoom control to zoom in and out and use the selector to scroll the picture until the desired portion is displayed! 4 Press MENU/OK to display a confirmation dialog) 5 Press MENU/OK again to save the cropped copy to a separate file. ® Larger crops produce larger copies; all copies have an aspect ratio of4:3. Ifthe size ofthe final copy will be 8, OK will be displayed in yellow. CSIRESIZE] Create a small copy of the current picture. 1 Display the desired picture. 2Select BB RESIZE in the playback menu. 3Highlight a size and press MENU/OK to display a confirmation dialog; 4 Press MENU/OK to save the resized copy to a separate file. ® The sizes available vary with the size ofthe original image. Menus 3

Using the Menus: Playback Mode BJIMAGE/ROTATE) Rotate pictures taken in tall orientation so that they are displayed in tall orientation in the LCD monitor. 1 Display the desired picture. 2Select I] IMAGE ROTATE in the playback menu 3 Press the selector down to rotate the picture 90° clockwise, up to rotate it 90° counterclock- wise. 4 Press MENU/OK The picture automatically be displayed in the selected orientation whenever it is played back on the camera ® Protected pictures can not be rotated. Remove protection before rotating pictures (82 92) ® The camera may not be able to rotate pictures created with other devices. (EICOPYS Copy pictures from internal memory to a memory card 1 Select FD COPY in the playback menu. | 2Highlight one ofthe following options and press the selector right: = AM INTERNAL MEMORY = © CARD: Copy pictures from internal memory to à memory card + À CARD = af INTERNAL MEMORY: Copy pictures from a memory card to internal memory. 3Highlight one ofthe following options and press MENU/OK: + FRAME. Copy selected pictures. Press the selector left or right to view pictures and press MENU/OK to copy the current picture. - ALLFRAMES: Copy all pictures ® Copying ends when the destination is full ® DPOF print information is not copied (E2 69) 94 Menus

Using the Menus: Playback Mode Add a voice memo to the current photograph. Holding the camera at a distance of about 20 cm, face the microphone and press MENU/OK to begin recording. Press MENU/OK again to end record- ing (recording ends automatically after 30 seconds) ® Voice memos can not be added to movies or protected pictures. Remove protection from pictures before recording voice memos. ®& Ifa voice memo already exists for the current picture, the options will be displayed. Select RE-REC to replace the existing memo. 2e Playing Voice Memos Pictures with voice memos are indicated by a @& icon during playback. To play the voice memo back, select PLAY for F3 VOICE MEMO in the playback menu. ® The camera may not play voice memos recorded with other devices. ® Do not cover the speaker during playback. RASEIFACEIRECOG) Remove face recognition links from the current image. When this option is selected, the cam- era will zoom in on an area in the current picture that it has matched with a face in the face recognition database. Ifthe match is not correct, press MENU/OK to remove the link to the face recognition database. or smaller. ® Face recognition links can not be removed from copies with a size of Select pictures for printing on DPOF- and PictBridge-compatible devices (FA 69) Menus 35

Using the Menus: Playback Mode Choose how High Definition (HD) devices display pictures with an aspect ratio of4:3 (this option is available only when an HDMI cable is connected). Select 16:9 to display the image so that it fils the screen with its top and bottom cropped out, 4:3 to display the entire image with black bands at either side.

& Photographs with an aspect ratio of 16:9 are displayed full screen, those with an aspect ratio of3:2 in a black frame. 96 Menus

[The Setup Menu _Using the Setup Menu 1 Display the setup menu.

1.1 Press MENU/0K to display the menu for the current

1.2 Press the selector left to highlight the tab for the

current menu! 13 Press the selector down to highlight #

1.4 Press the selector right to place the cursor in the setup menu:

2 Adjust settings. Highlight items and press the selector right to view options, then high- light an option and press MENU/0K. Press DISP/BACK to exit when settings are complete.

The Setup Menu Setup Menu Opti Set the camera clock (Æ2 16). Switch the camera clock instantly from your home time zone to the local time at your destina- tion when traveling. To specify the difference between local time and your home time zone: Highlight # LOCAL and press the selector right. 2 Use the selector to choose the time difference between local time and your home time zone in increments of 15 minutes 3 Press MENU/OK. To switch between local time and your home time zone, highlight + LOCAL or & HOME and press MENU/OK. Option Description Æ HOME Switch to the time currently selected for 8} DATE/TIME (see above). Hrog ve 10 local time. Ii option 5 selected, 4 and the time and dete wi be displayed in yellow for three seconds each time the camera is tumed on (ES 127) (EBISILENTIMODE! Select ON to disable the speaker, flash, and AF-assist illuminator in situations in which camera sounds or lights may be unwelcome (note that the flash will still fire in @4 mode). 38 Menus

The Setup Menu TIRESEN. Reset all settings except [6] DATE/TIME, and 8 VIDEO SYSTEM to default values THighlight B3 RESET and press the selector right to display à confirmation dialog. TIME DIFFERENCE, Æj BACKGROUND COLOR, 2 Highlight OK and press MENU/OK Ifa memory card is inserted in the camera, this option will format the memory card. Ifno mem- ory card is inserted, this option will format internal memory. Select OK to begin formatting. @ Al data—including protected pictures—will be deleted from the memory card or internal memory. Be sure important files have been copied to a computer or other storage device. @ Do not open the battery-chamber cover during formatting. (ESILOCATIONISEARCHI(ESS0EXR|Only) Turn the GPS receiver on or off (EZ 40). EILOCATIONINEONESSOEXR ON Iÿ) GETETTON) Select ON to display GPS data (ES 40). | Menus 99

The Setup Menu Select ON to record GPS data to a log file on the memory card (E2 40; be sure the clock is set to the correct time and date as described on page 16). Anew log file is created when ON is selected and once every 24 hours thereafter. Note that the camera will continue to update GPS data even when off increasing the drain on the battery. Choose OFF to disable GPS tracking, ® GPS logs can be viewed in MyFinePix Studio. ® SeeGPS” (82 42) for information on using GPS. ® The indicator lamp glows orange during recording GPS data even when the camera is turned off while ON is selected. Select OFF before removing the battery or memory card. Fallure to observe this precaution could damage the card ® Signal strength wil be displayed in yellow and GPS data will not be logged if the battery is low (2 or less), no memory card is inserted, or the memory card has less than 32 MB free. To resume the log, select ON after inserting à charged battery or a memory card with more than 32 MB free. ® GPS tracking may be interrupted during movie recording and playback. km/milé(F550EXR(On!ÿy)} Choose the units used for GPS information from km (m) (kilometers and meters), mi (ft) (miles and feet), or mi (yd) (miles and yards). Choose how long pictures are displayed in the LCD monitor after shooting Option Description 3SEC Pictures are displayed for three secondk (3 SEC) or 1.5 seconds (1.5 SEC) 1.5SEC JColors may differ slightiy from those in the final image. Z00M (CONTINUOUS)_ [Pictures are displayed untl the MENU/0K button is pressed OFF Pictures are not displayed after shooting, & OFF has no effect in continuous shooting mode. 100 Menus

The Setup Menu New pictures are stored in image files named using a four-digit file num- Frame number ber assigned by adding one to the last file number used. The file num- [x ssl ber is displayed during playback as shown at right. Æ1 FRAME NO. con- —— TT trols whether file numbering is reset to 0001 when à new memory card Directory file is inserted or the current memory card or internal memory is formetted. number number Option Description Numbering continues from the last file number used or the fist available ConriNuoUS file number, whichever is higher. Choose this option to reduce the num- ber of pictures with duplicate file names. Numbering is reset to 0001 after formatting or when a new memory card is inserted. ® Ifthe frame number reaches 999-9999, the shutter release will be disabled (ES 118). ® Selecting Œ RESET (3 99) sets Æ9 FRAME NO. to CONTINUOUS but does not reset the file number. ® Frame numbers for pictures taken with other cameras may differ. Adjust the volume of the sounds produced when camera controls are operated. Choose {mute) to disable control soundés. OFF (mute) Adjust the volume ofthe sounds produced when the shutter is released. Choose to disable the shutter sound. Menus 101

The Setup Menu (GEusropD)) Choose the sound made by the shutter. HIPUAYEACKVOLUME) (EE) Adjust the volume for movie and voice memo playback. ESILCDIBRIGHMNESS) (Eee) Control the brightness of the display. Choose the length of time before the camera turns off automatically when no operations are performed. Shorter times increase battery life: if OFF is selected, the camera must be turned off manually. Note that in some situations the camera turns off automatically even when OFF is selected. IDUALISIMODE; Choose whether image stabilization is performed at all times when the camera is in shooting mode (is CONTINUOUS), or only when the shutter button is pressed halfvay (tr SHOOT- ING ONLY). Choose OFF to turn image stabilization off when using a tripodl DIREDEVEREMOVA CERTETTON] Choose ON to remove red-eye effects caused by the flash when shooting with Intelligent Face Detection. ® Red-eye reduction is performed only when a face is detected, ® Red-eye removal is not available with RAW images. 102 Menus

The Setup Menu EDIGITAZOOM) IFON is selected, selecting [8] at the maximum optical zoom position will trigger digital zoom, Further magnifying the image. %e The Zoom ndicator y (l DIGITAL ZOOM on Em Opticalzoom ‘Digital zoom y (ol DIGITAL ZOOM off a

Optical zoom ® Digital zoom may end when another mode is selected ® Digital zoom produces lower quality images than optical zoom PSAFILLUMINATOR] IFON is selected, the AF-assist illuminator will light to assist autofocus. ® The camera may be unable to focus using the AF-assistilluminator in some cases. IFthe cam- era is unable to focus in macro mode, try increasing the distance to the subject ® Avoid shining the AF-assist illuminator directly into your subjects eyes. ENRAWIESS0EXR ON IS) Choose RAW+JPEG or RAW to record RAW pictures (note that because RAW data are not pro- cessed on the camera, RAW pictures must be copied to a computer for processing). IRAW+-JPEG is selected, JPEG copies will also be recorded. Choose OFF to record pictures in JPEG format on. ® To convert RAW files for display on a computer, use the supplied RAW File Converter software. ® Crop, resize, photo navigation, and red-eye removal options are not available with RAW im- ages during playback. The maximum zoom available when viewing RAW images is 3.2x. Menus 103

The Setup Menu MISAVE/ORGIIMAGE! Choose ON to save unprocessed copies of pictures taken using Æ3 RED EYE REMOVAL, 1 PRO LOW-LIGHT MODE, or 3 PRO FOCUS MODE (AJ/AUTOROTATEPE Choose ON to automatically rotate “tal” (portrait-orientation) pictures during playback. EIEACKGROUNDICOLOR| Choose a color scheme. Choose whether to display tool tips Choose a video mode for connection to a TV. Option Description wrsc Select this mode for connection to video devices in North America, the Canib- bean, parts of Latin America, and some East Asian countries. " Select this mode for connection to video devices in the United Kingdom and much of Europe, Australia, New Zealand, and parts of Asia and Africa. 104 Menus

The Setup Menu Optimize camera performance for increased battery life or display quality. Option Description Cf POWER SAVE Reduces LCD monitor refresh rate. IFno operations are performed for 105, the LCD monitor will dim to save power. Select this option to save power. & auroispar (O0: 5 option ra Brighter igher quality display. The LCD monttor wi dim to save power if no operations are performed for 30 s + vf POWER SAVE does not take effect when Intelligent Face Detection is on. ®æ Settings other than m3 POWER SAVE increase the drain on the battery: pay attention to bat- terylevel Menus

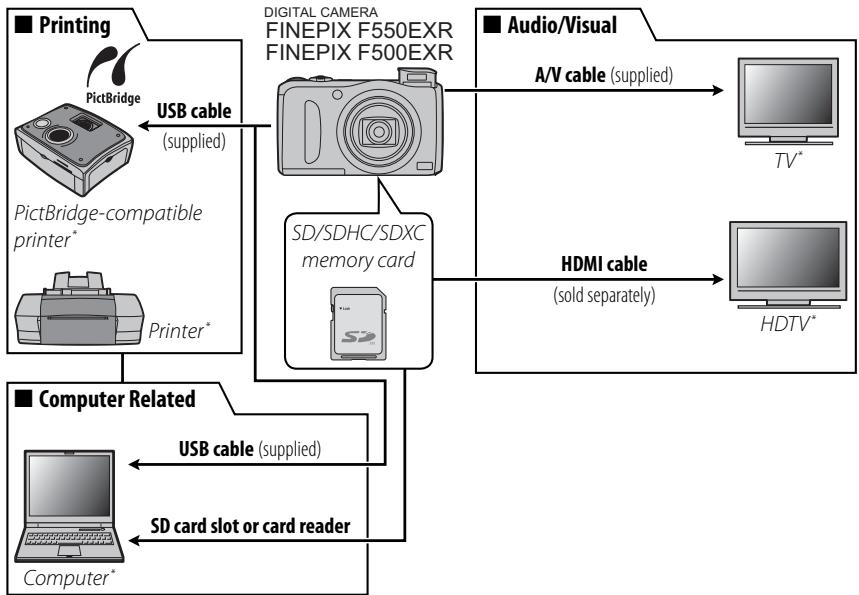

Technical Notes [Optional Accessories The camera supports a wide range of accessories from FUJIFILM and other manufacturers. DIGITAL CAUERA = FINEPIX F550EXR | Audio/Visual \

. AW cable (supplied) ictBridge > DS USB cable (supplied) TV° PictBridge-compatible printer" SD/SDHC/SDXC memory card HDMI cable D HDMicble (sold separately) —| Printer” HDTV° M Computer Related USB cable (supplied) _ SD card slot or card reader Enppr| Dertsoreneter 0 Computer

• Available separately.

Accessories from FUJIFILM The following optional accessories are available from FUJIFILM. For the lat- est information on the accessories available in your region, check with your local FUJIFILM representative or visit http//wwwr.fujifilm.com/products/digital_ cameras/index.html. Rechargeable i-ion batteries| NP-50: Additional large-capacity NP-50 rechargeable bat- Keries can be purchased as required BC-45W: Replacement battery chargers can be purchased ra as required. The BC-45W charges an NP-50 battery in D about 150 minutes at +20°C (+68°F) IAC-SVX requires CP-50 DC coupe: Use for extended playback or ACpouer when copying pictures to a computer (shape of adapter adapters land plug vary with region of sale) DCcouplers … |P-50: Connect the AC-SVX to the camera.

[Caring for the Camera To ensure continued enjoyment of the product, observe the following pre- cautions. Storage and Use If the camera will not be used for an extended period, remove the battery and memory card. Do not store or use the camera in locations that are: exposed to rain, steam, or smoke very humid or extremely dusty exposed to direct sunlight or very high temperatures, such as in a closed vehicle on a sunny day extremely cold subject to strong vibration exposed to strong magnetic fields, such as near a broadcasting anten- na, power line, radar emitter, motor, transformer, or magnet in contact with volatile chemicals such as pesticides next to rubber or vinyl products M Water and Sand Exposure to water and sand can also damage the camera and its internal circuitry and mechanisms. When using the camera at the beach or seaside, avoid exposing the camera to water or sand. Do not place the camera on a wet surface. I Condensation Sudden increases in temperature, such as occur when entering a heated building on a cold day, can cause con- densation inside the camera. If this occurs, turn the camera off and wait an hour before turning it on again. If condensation forms on the memory card, remove the card and wait for the condensation to dissipate.

Caring for the Camera Cleaning. Use a blower to remove dust from the lens and LCD monitor, then gently wipe with a soft, dry cloth. Any remaining stains can be removed by wiping gently with a piece of FUJIFILM lens-cleaning paper to which à small amount of lens- cleaning fluid has been applied. Care should be taken to avoid scratching the lens or LCD monitor. The camera body can be cleaned with a soft, dry cloth. Do not use alcohol, thinner, or other volatile chemicals. Traveling Keep the camera in your carry-on baggage. Checked baggage may suffer violent shocks that could damage the camera. Technical Notes 109

Troubleshooting [Problems and Solutions Power and Battery Problem Solution Charge te battery or insert fuly-charged spare battery (E2 7) ‘The camera does not inserted incorrectly: Reinsert in the correct orientation (F2 9). : tumon, : The battery-chamber covers not latched: Latch the battery-chamber cover (2 9). : The AC power adapter and DC coupler are connected incorrectiy: Reconnectthe AC power adapter and DC coupler. The battery runs doun quickiy. F The batteryis cold Warm the battery by placngitin a pot or other warm place andreinsert itin the camera immediately before taking a picture. Thereis dirt on the battery terminals: Clean the terminal with soft, dry cloth CLEAR DISPLAY is selected for FH POWER MANAGEMENT: Select 0 POWER SAVE to reduce the drain on the battery (22 105). : BS is selected for shooting mode: Select A0 mode to reduce the drain on the battery (2. - [I] CONTINUOUS or E:] TRACKING is selected for O8] AF MODE: Select à dif- ferent AE mode (E2 86). The battery has been charged many times: The battery has reached the end ofits charging life. Purchase à new battery + PERMANENTLY ON is selected for SWITCHED ON or OFF (£2 40,99). LOCATION SEARCH: Select WHEN RACKING DATA off (2 49, 100).

Problem Solution F Thebatteryis exhausted: Charge the battery or insert a fuly-charged spare battery (221 71. The camera tums of || rhe AC power adapter or DC coupler has been disconnected: Reconnect the AC pouer sudenb. adapter and DC coupler Charging does not start. |Reinsertthe battery inthe correct orientation and make sure that the charger is pluggedin (2 7). Chargings slow [Charge the battery at room temperature (E2 vi). The charging lamp lights, but the battery does not charge. E There is dirt on the battery terminal Clean the terminal with a sof, dry cloth The battery has been charged many times: The battery has reached the end ofits charging life. Purchase a new battery. Ifthe battery sil fils to charge, contact your FUJIFILM dealer. L The battery is too hot or too cold: Wait for the battery temperature to stabilize (EZ 7). Menus and Displays Problem Solution Menus and display are — notn English. Select ENGLISH for &3 Æ$E/LANG. (£2 16,98). Shooting Problem Solution No picture is taken when the shutter button is pressed. F Memoryis full: Insert a new memory card or delete pictures (E2 10,56) : Memory is not formatted: Format the memory ardor internal memory (£2 99). L There is dirt on the memory card contacts: Clean the contacts with a soft, dry coth. The memory card is damaged: Insert a new memory card (E2 10). The battery is exhausted: Charge the battery or inser a fuly-chargedspare battery (22 7). The camera has tumed off automatically: Turn the camera on (E2 14). The indicator lamp was orange when you attempted to record a panorama: Wait uni the indictorlamps tumns of (2 3).

Problem Solution The LCD monitor goes — data shonng,— [1e LC monitor may rie vil the fash chages. Ma for te fs charge (E2 37). Tic cmer docsnot— [” Mesubjectis dose to the camera: Select macro mode [E2 36. tas The subject is far away from the camera: Cancel macro mode (£2 36). " : The subject is not suited to autofocus: Use focus lock (E= 33). NF selected for ES IMAGE SIZE in #8 mode, he camera will optimize not only sens Pictures are not the ame se tivity and other settings, but also image size. To record all pictures at the same size, choose another shooting mode or select another option for KA IMAGE SIZE (22 80). Macro mode is not available. Choose a different shooting mode (EZ 22). Only one picture is taken. Oniy one picture will be taken ifthe seltimer s on when M is selected for EX CONTINU- JOUS. Tum the sel-timer off (E2 39). Gps he camera is slow to acquire GPS data: Some time may be needed to acquire GPS data immedi- ately after the camera or ER LOCATION SEARCH is turned on or if the camera has been unable to acquire GPS data for an extended period (22 40, 99). Intelligent Face Detection is not available. Intelligent Face Detection is not available in the current shooting mode: Choose a differ- ent shooting mode (22 22). No face is detected. E The subjects face is obscured by sunglasses, a hat, long hair, or other objects: Remove the obstructions. The subjects face occupies only a small area ofthe frame: Change the composition sothat the subjects face ocaupies a larger area ofthe frame (22 33). The subjects head tlted or horizontal Ask the subject to hod their head straight. The camera i Keep the camera level (E3 18). The subject face is poorty lit: Shoot in bright light.

Problem Solution Wrong subject is The selected subject is doser to the center of the frame than the main subject. Recompose the selected. picture ortu face detection off and frame the picture using focus oc (22 33). The flashs not available inthe current shooting mode: Choose adiferent Shooting mode &2) The battery is exhausted: Charge the battery rinsert a ful-charged spa battery (22 7). Theflash does notfe. | The cameras in continuous mode: Select OFF for EN CONTINUOUS (22 44) L The camera is in silent mode: Turn silent mode off (E= 98). The flash is not raised: aise te flash (22 37) E The desire flash mode not available in the current shooting mode: Choose ifetent Some sh modes are L shooting made (£2 22. notable. The camera is in silent mode: Turn silent mode off (£2 98). The flash does not fully E Thesubjectis notin range ofthe flash: Position the subject in range ofthe flash (22 126) The flash window is obstructed: Hold the camera correct} (E2 18). ightthe subject. Fast shutter speed selected: Choose a slower shutter speed (E2 31, 32). The lens is dirty: Clean the lens (EE 109). The lens blocked: Keep objects any from the lens (2 15). Piauresare blued.… | LAF is displayed during shooting and the focus frame is displayed in red: Check focus before shooting (2 116. 1 is displayed during shoctingr Use the flash ra ipod (2 38. FA slow shutter speed is selected at high temperatures. T1 normal and does notIndIe cted a malfunction. Pictures are mottled. The camera has been used continuously at high temperatures or a temperature wamn- ingis displayed: Turn the camera offand ai fort to cool down.

Problem Solution Power was interrupted during shooting. Before connecting the AC power adapter or DC coupler, Pictures are not recorded. |turn the camera off. Leaving the camera on can result in corupted files or damage to the memory lard or internal memory, Sounds made by the à Ê TNT OUS sectes r MOVIE AF MODE: Select a different AF mode rare recorded With || 20m as adjusted during shooting: Do not adjus zoom during shooting. : Intelligent Face Detection is on: Turn Intelligent Face Detection off (22 43). Playback Problem Solution Pique are grainy…— [Me pictures ere taken with a difrent male or model of came. No sound in movie F Playback volumes too low: AGust playback volume (2 102) The microphone was obstructed: Hold the camera corecty during recording (£2 18,62). playback. The speakers obstructed: Hold the amer corecty during playback (2 64). Selected pictures are not [Some ofthe pictures selected for deletion are protected. Remove protection using the device with deleted. Muhich itws original applied (E2 92). Flenumberngs — |Mhe batery-chambercoier vs apened we te camera es on. Tu te came of belre unerpectedy reset. opening the attery-chamber cover (22 14).

Connections/Miscellaneous Problem Solution E The cameras not properly connected Connectthe camera proper (2 65) An AN cable was connected during movie playbadk: Connect the camera once movie play- back as ended. No picture orsound.… | Input on the television is set to “TV”: Setinput to“ VIDEO" : The camera is not set to the correct video standard: Match the camera 8 VIDEO SYS- TEM setting to the TV (EZ 104). The volume on the TV to low: Ajust the volume No color Match the camera E VIDEO SYSTEM setting to the TV (E2 104). Te computer does not the camera and computer are comectiy connected (2 75). recognize the camera. CHAINE set bundied software to transfer pictures. Pictures nnotbe |: The camerais not properly connected: Connect the camera correcly (22 67). printed. The printer is off: Turn the printer on. Only one copy is printed/ the date is not printed. The printer is not PictBridge compatible. The camera is unre- E Temporary camera malfunction: Remove and reinsert the battery (E2 9) or disconnect and reconnect the AC power adapter/DC coupler. sponsive. The battery is exhausted: Charge the battery (£2 7) or insert a fully-charged spare battery (9) The camera does not [Remove and reinsert the battery (2 9) or disconnect and reconnect the AC power adapter/DC function as expected. |couple. the problem persists, contact your FUJIFILM dealer. Twant to use an AC power adapter and DC coupler overseas. (Check the label on the AC power adapter. The AC power adapter cn be used with voltages of 100 240V. Consult our travel agent or information on plug adapters. No sound. [Turn silent mode off (E= 98).

[Warning Messages and Displays The following warnings are displayed in the LCD monitor: Waming Description IE) Low battery. Charge the battery (A2 7) orinsert a fuly-charged spare battery (E2 9). 2 (binks red) Battery exhausted. Charge the battery (E2 7) orinserta fully-charged spare battery (22 9) w Slow shutter speed. Pictures may be blurred use the flash or trpod. UE he came can notfocus. Try one ofthe following solutions Use focus lock to focus on another subject at the same distance, then recompose the picture (isplayedinredwithred |”) focus frame) Fe _ Use macro mode to focus when taking dlose-ups (E2 36). perte or shutter speed |Thesubjectis too bright or too dark andthe picture will be over orunder-exposed. the subject displayed red is dark use the flash (2 37). FOCUS ERROR RO QER der malfunaton or moving parts oflens obstructed, Turn te amer ff and the on again,

E The memory card orintemal memory is not formatted or the memory card was for- matted in a computer or other device: Format the memory card or intemal memory using the 3 FORMAT option in the camera setup menu (£2 99). The memory card contacts require deaning; Clean the contacts with a sof, dry doth. 1f the message is repeated, format the ard (E2 99). IFthe message persists, replace the card. Camera malfunction: Contact FUJIILM dealer. PROTECTED CARD [The memory card is locked. Unlock the card (£2 10). BUY The memory td incorrect fomatteg, Use te camera t format the card (22 99). ù Turn the camera of and wait fort to oo! no action taken, the camera wi turn off auto maticalh

Warning Description The memory card is not formatted for use in the camera. Format the card (F2 99). he memory card contacts require dleaning or the memory card is damaged. Clean the contacts iwitha soft, dry cloth. fthe message isrepeated, formatthe card (EX 99). Ifthe message persists, CARD ERROR replace the card. incompatible memory card. Use a compatible card (22 12). Gamer malfunction. Contact FUJIFILM dealer. fn MEMORY FULL Æ MEMORY FULL

The memory card or intemal memory is full and pictures can not be recorded or copied. Delete pictures or insert a memory card with more free space. FULL

Memory card error or connection error: Reinsert the card or tum the camera off and then on again. 1fthe message persists, contact a FUJIFILM dealer. were error | Notenough memory remaining to record additional pictures: Dlete pictures orinsert a memory card with more free space. The memory card or internal memory is not formatted: Format the memory card or internal memory (2 99). E Thefileis corrupt or was not created with the camera: The file can notbe viewed. Reno error |" The memory card contacts require cleaning: Clean the ontats with a soft, dry doth. the message is repeated, format the card (£2 99). 1fthe message perssts, replace the card |: Camera malfunction: Contact à FUJIFILM dealer.

ÎThe camera has run out of frame numbers (current frame number is 999-9999). Format the memory card and select RENEW for E] FRAME NO. Take a picture to reset frame num- bering to 100-0001, then select CONTINUOUS for E3 FRAME NO. (E3 101).

[An attempt was made to choose a flash mode or adjust the volume with the camera in silent mode. Exit silent mode before choosing lash mode or adjusting the volume (E2 98). - À search has returned more than 30,000 results: Choose à search that returns fewer TOO MANYFRAMES || results. More than 999 images are selected for deletion: Choose fewer images. PROTECTED FRAME [A 2ftempt was made to delete, rotte, or add a voice memo to a protected picture. Remove protection and try again (£2 92). EH CAN NOT CROP __ | pictures can not be cropped. CANNOT CROP |The pictures damaged or was not created with the camera

HAN | attempt was made to create a resized copy at a size equal to or larger than the original. Choose a smaller size.

CANNOT ROTATE [An attemptwas made to rotate a picture that can not be rotated. 222 CAN NOT ROTATE [Movies can notbe rotated. Æ CANNOT EXECUTE [Red-eye removal can not be applied to the selected picture. 22 CANNOT EXECUTE … [Red-eye removal can not be applied to movies NO CARD No memory card inserted when ED COPY is selected, Insert a memory card

Warning Description Æ NO IMAGE M iecedforE COPY nt ed TS NOIMAGE e source selected for contains no images. Select diferent source. Error E The voice memo file is corrupt: The voice memo can not be played back. : Camera malfunction: Contact a FUJIFILM dealer.

he DPOF print order on the current memory card contains more than 999 images. Copy the pictures to internal memory and create a new print order. CAN NOT SET DPOF [The picture can not be printed using DPOF. % CANNOT SET DPOF | Movies can not be printed using DPOF. FA connection error occurred while pictures were being printed or copied to a computer or other COMMUNICATION ERROR léuice, Conf that the device istumed on and that the USB cable is connected. PRNTERERROR Péneroutof paper ain, oroterprte er. Crek per Ge prier manual or ER. To resume printing, turn the printer off and then tu it back on PRINTER ERROR —— [Printerout ofpaperorink, orother printererror. Check printer (see printer manual or details). RESUME? printing does not resume automatically, press MENU/OK to resume. An attempt was made to print a movie, a picture not created with the camera, or a picture in à format not supported by the printer. Movies and some pictures created with other devices can CANNOT BE PRINTED [not be printed ifthe picture is a stl picture created with the camera, check the printer manual to confirm thatthe printer supports the JFIF-JPEG or Exf-JPEG format. fit does not, the pictures can not be printed.

Appendix [Tips and Tricks The following tips and tricks will help you get the most from your camera. Choose the following settings for improved battery performance:

- To prevent blur caused by the camera moving when the shutter button is pressed, use the two-second timer. < To turn the timer off, press DISP/BACK.

Tips and Tricks Soaintelligent Face Detection] When ON is selected for F4 FACE DETECTION (E2 85), you can + Zoom in on faces when ZOOM(CONTINUOUS) is selected for Œ] IM- AGE DISP. (EZ 100) + Remove red-eye by selecting ON for Æ3 RED EYE REMOVAL (F2 92) Zoom in on faces during slide shows (F2 89) or by pressing the selector down during playback : Search for faces using E2 IMAGE SEARCH (2 57) + Grop the background from portraits using Ed CROP (E2 93). + Print one copy for each person in the photo. Playbadk

Tips and Tricks + To photograph backlit subjects, select [] SPOT for [5] PHO- TOMETRY (E 85) and position yoursubjectinthe center ofthe frame. + To photograph subjects that are in motion, select [E] CON- TINUOUS or E] TRACKING for E AF MODE (EE 86). + To photograph night scenes, select & HIGH ISO & LOW NOISE in © EXR MODE (£2 23) and turn the flash on (E2 37).

[internal Memory/Memory Card Capacity The following table shows the recording time or number of pictures available at different image sizes. All figures are approximate: file size varies with the scene recorded, producing wide variations in the number of files that can be stored. The number of exposures or length remaining may not diminish at an even rate. A limited number of test pictures can be taken when no memory card is inserted. M FinePix F550EXR Medium] Intemalmemon (approx. MB) 468 sc

I FinePix FSO0EXR Medium] Internal memon a (approx. 20) 468 sc

FINE NORMAL FINE NORMAL FINE NORMAL

Ê 4 9 990 1960 2000 3950 El 6 2 1330 2630 2670 5290 És 9 19 1990 3870 4010 7770 Tsec. 38 min. 76min. 14sec. 49 min 99 min. = 325ec M5 min, 232min. # [ES 640x480 86rmin. 172min IE 320x240° 1sec 172 min, 345 min. ES 320x112° 86 min. 172 min. 1 Use a tass@ card or better. Individual movies can not exceed 29 minutes in length 2 Individual movies can not exceed 115 minutes in length 3 Use a eass@ card or better. Individual movies can not exceed 30 seconds in length © Temperature Warning The camera will turn off automatically before its temperature or the temperature of the battery rise above safe limits. Pictures taken when a temperature warning is displayed may exhibit higher levels of“noise"(mottling). Turn the camera off and wait for it to cool before turning it on again.

Sensitivity Standard output senstivity equivalent to ISO 100, 200, 400, 800, 1600, 3200, 6400 (image size 22 0 6), 12800 (image size MR); AUTO, AUTO (400), AUTO (800), AUTO (1600), AUTO (3200) Metering 256-segment through-the-lens (TTL) metering; MULTI, SPOT, AVERAGE Exposure control Programmed AE; aperture-prority AE; shutter-prority AE; manual exposure Exposure compensation —2EV—+2EVin increments of $EV Picture stabilization Optical stabilization [image-sensor shift) Shutter speed {combined 85-10 s mechanical and electronic + +: 145-Ua0os + 135 has hs shutter) + S:25-Vames + Othermodes: 4 s-Vaoos Continuous F550EXR + @:Upto32framesat3,5,8orlifps + u:Borl6framesat3,5,8,0r11fps F500EXR 2 Qu: Up to 12 frames at3, 6, or 12 fps Focus + Mode: Center AF multi AF, tracking AF + Autofocus system: Contrast-detect TTL AF White balance Custom, auto, direct sunlight, shade, daylight fluorescent, warm white fluorescent, cool white fluorescent, incandescent, underwater Self-timer Off, 2 sec, 10 sec. auto shutter release (© and Éæ) Flash Auto flash; effective range when sensitiity is set to AUTO is approx. 15m-3.2m/04f.- 10.4. (wide angle), 90 cm 1.9 m/2.9ft.-6.2f. (elephoto) Flash mode Auto fl flash, off, low sync (red-eye removal off; auto with red-eye removal fl flash with red- eye removal, of, slow sync with red-eye removal (red-eje remoral on)

pecifications LCD monitor 3.0-in, 460k-dot color LCD monitor; frame coverage approx. 100% Movies + 1920: 1,920x 1,080 (10800, 30fps » ED 1280: 1,280 x 720 (720pl, 30fps =: 640 x 480 (VGA), 30fps + ES 640x480:80fps + ES 320x240: 160fps + ES 320x172:320 ps Note: ES, ÆD, and Æ movies are recorded with stereo sound. Languages Arabic, Bulgarian, Simplified Chinese, Traditional Chinese, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hebrew, Hungarian, Indonesian, Italian, Japanese, Kazakh, Korean, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian, Slovak, Spanish, Swedish, Thaï, Turkish, Ukrainian, Vietnamese Date map database was October 2010 created Input/output terminals AM QUT (aucio/deo output) NTSC or PAL output with monaural sound Digital input/output USB 2.0 High-Speed,shares AVV OUT connector, MTP/PTP HDMI output HDMI mini connector Power supply/other Power supply = NP-50 rechargeable battery = ACSVX AC power adapter and CP-50 DC coupler sold separate} Battery life lapproumate Battery type Approximate number of frames number offiames that can NP-50 (type supplied with camera) 300 be taken vith a fuly-charged battery) PA standard, measuredin haut) modeusing battery supplied with camera and SD memory card. Note: Number ofshots that can be taken with battery varies with battery charge level and will dedine at low temperatures.

Specifications Power supply/other Camera dimensions {\V x H x D) FS50EXR 103.5mm x 62.5 mm x 32.6mm/.1in.x 24in. X 1.2in, excluding projections minimum depth 2.9 mm/09 in.) FS00EXR 103.5mm x 59.2 mm x 32.6mm/0in.x 2.3in. X 1.2in, exdluding projections minimum depth 2.9 mm/09 in.) Camera weight Approx. 195 g/6.80z, exduding battery, accessories, and memory card [Shooting weight Approx. 215 g/7.5 02, including battery and memory card Operating conditions + Temperature: 0 TC +40°0/+32F— +104 = Humidity: 10-80% (no condensation) NP-50 rechargeable battery Nominal voltage DC3.6V Nominal capacity 1000 mAh Operating temperature _ 0° +40°0/+32F +104 F ensions (NX H xD) _354mm x 40.0mm x 6.6mm/1. Weight Approx. 189/0.607. BC45W battery charger Rated input 100V-240V AC, 50/60 Hz in. X 1.5in. X O-2in. Input capadty = 100 V:8.0VA + 240V:T2VA Rated output 42VDC, 550mA Supportedbatteries — NP-50 rechargeable batteries Charging time Approx. 150 minutes (+20 C/+68"F) ensions (NX H XD) 91mm X62mm X 23 mm/3.5in. x 24in. X0.9in, exduding projections Weight Approx. 67 g/2.3 0, excuding battery Operating temperature _ 0° +40°0/+32F +104 Weight and dimensions vary with the country or region of sale. 128 Appendi

Specifications M Notices + Specifications subject to change without notice; for the latest information, visit http:// www.fujifilm.com/products/digital_cameras/index. html. FUJIFILM shall not be held li- able for damages resulting from errors in this manual. + Although the LCD monitor is manufactured using advanced high-precision technol- ogy, small bright points and anomalous colors may appear, particularly in the vicinity of text. This is normal for this type of LCD monitor and does not indicate a malfunc- tion; images recorded with the camera are unaffected. - Digital cameras may malfunction when exposed to strong radio interference (e.g. electric fields, static electricity, or line noise). - Due to the type of lens used, some distortion may occur at the periphery of images. This is normal.

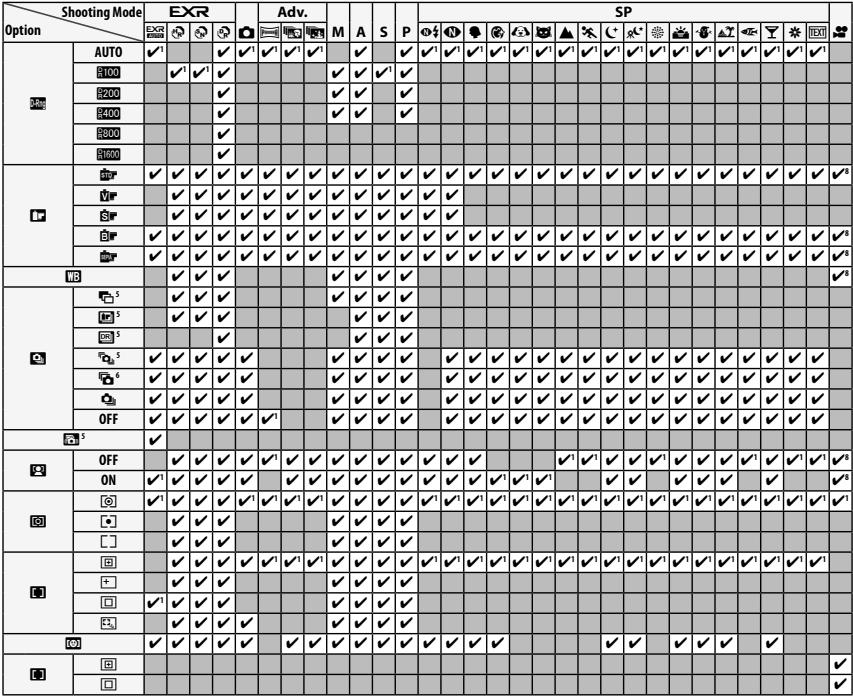

tions on Camera Settings s available in each shooting mode are listed below. The option

Ê (le) sl C] for selected shooting mode. ailable.

ngs before recording à movie.
