CMS0203 - Projector Accessories Chief - Free user manual and instructions

Product Type	Projector Mount
Brand	Chief
Model	CMS0203
Compatibility	Most projectors with 100mm x 100mm to 200mm x 200mm VESA patterns
Weight Capacity	50 lbs (22.7 kg)
Material	Steel with black powder coat finish
Dimensions (Mount Plate)	10.2 x 6.9 x 2.8 inches (259 x 175 x 71 mm)
Shipping Dimensions	12.5 x 8.5 x 4.0 inches
Net Weight	4.5 lbs (2.0 kg)
Color	Matte black
Tilt Adjustment	+15° to -15°
Swivel Adjustment	±10°
Roll Adjustment	±3°
Projection Distance	N/A (mount only)
Installation	Ceiling or wall mount with included hardware
Warranty	Limited lifetime warranty
Package Contents	Mount plate, ceiling bracket, hardware kit, installation manual
Safety Certification	UL listed
Maintenance	Wipe with dry cloth; check fasteners periodically
Repairability	Contact Chief customer service for replacement parts

Frequently Asked Questions - CMS0203 Chief

What is the weight capacity of the Chief CMS0203 mount?

The Chief CMS0203 supports projectors up to 50 lbs (22.7 kg).

What VESA patterns are compatible with this mount?

It is compatible with standard VESA patterns ranging from 100x100 mm to 200x200 mm.

Can the mount be used on a wall instead of a ceiling?

Yes, the CMS0203 can be installed on either ceiling or wall using the included hardware.

Does this mount allow tilt adjustment?

Yes, it offers +15° to -15° tilt for perfect projection angle.

What materials is the mount made of?

It is constructed from powder-coated steel for durability and a sleek black finish.

How do I clean the mount?

Clean with a soft dry cloth. Avoid using harsh chemicals or water.

Does the mount come with all necessary hardware?

Yes, it includes mounting plate, ceiling bracket, hardware kit, and manual.

What is the warranty period?

Chief offers a limited lifetime warranty on this product.

Is the mount UL listed?

Yes, it is UL listed for safety compliance.

Can I get replacement parts if needed?

Contact Chief customer service for replacement parts and support.

USER MANUAL CMS0203 Chief

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the primary Chief product to which an accessory and/or component is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief product which is attached to a primary Chief product, and may have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item designed to be attached or resting on an accessory or mounting system such as a video camera, CPU, screen, display, projector, etc.

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all accessories are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this accessory can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this accessory is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the accessory.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of

all components attached to the CMS Series Extension Column does not exceed 500 lbs (226 kg).

- The weight capacity of the CMS Series Extension Columns may be LIMITED to the lowest weight capacity of any other component, accessory or mounting system used with this accessory.

WARNING: Do not use this product outdoors.

WARNING: Use this accessory only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this accessory if it is damaged. Return the accessory to a service center for examination and repair.

NOTE: Chief CMS Series extension columns are Listed for use with all Listed Chief ceiling plates and mounts specified for use with 1-1/2" NPT following ANSI/ASME B1.20.1 (Schedule 40, 0.154" minimum thickness, steel or aluminum - ASTM B221) extension columns and the UL listed truss ceiling adapter accessory CMS380. CMS Series extension columns are suitable for a maximum 500 lbs (226 kg).

--SAVE THESE INSTRUCTIONS--

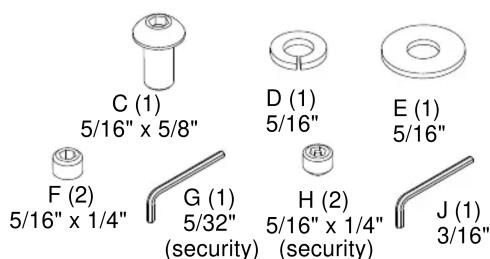

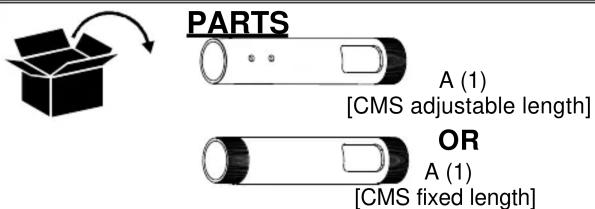

NOTE: Parts B-J are only included with adjustable length columns.

B (1)

FIXED LENGTH EXTENSION COLUMN

IMPORTANT ! : The following procedure assumes that the ceiling plate/adapter (not included) has been properly installed following instructions provided with ceiling plate/adapter.

NOTE: Intended for use with Chief accessories and mounts.

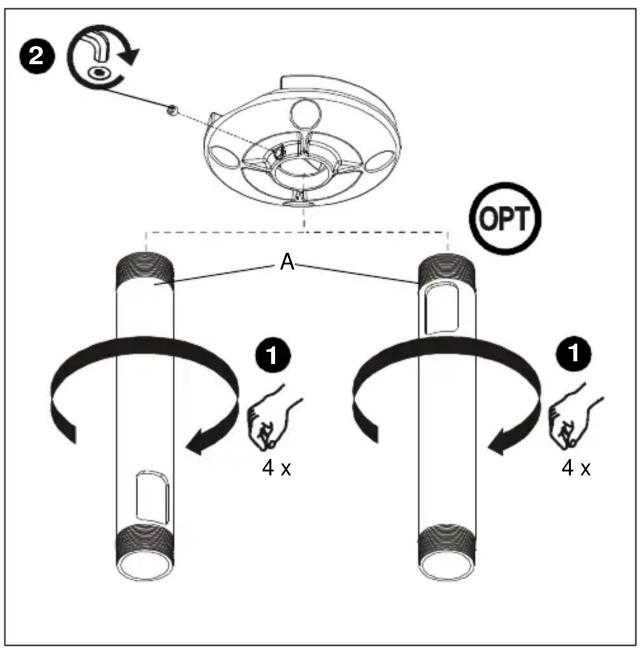

1. Install 1-1/2" NPT threaded column (A) into plate/adapter (See Figure 1). Securely tighten column.

2. Ensure column (A) engages four full threads into plate/adapter.

3. Ensure cable access opening is rotated to desired position (optional installation).

NOTE: Cable access opening provided on columns 9" or longer (229mm) in length. Optional installation used when cables must exit below plate/adapter.

Figure 1

1. Secure column (A) by tightening set screw in plate/adapter (See Figure 1).

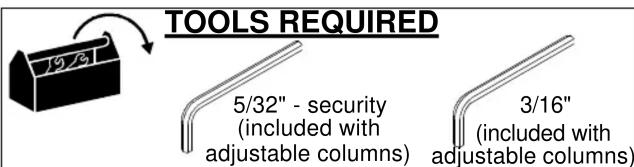

NOTE: Hex key and set screw provided with plate/adapter.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to the CMS Series Extension Column does not exceed 500 lbs (226 kg).

- The weight capacity of the CMS Series Extension Columns may be LIMITED to the lowest weight capacity of any other component or accessory used within the mounting system.

1. Install and secure projector/display mount (not included) to lower end of column (A) following instructions included with mount.

ADJUSTABLE LENGTH EXTENSION COLUMN

IMPORTANT ! : The following procedure assumes that the ceiling plate/adapter (not included) has been properly installed following instructions provided with ceiling plate/adapter.

NOTE: Intended for use with Chief accessories and mounts.

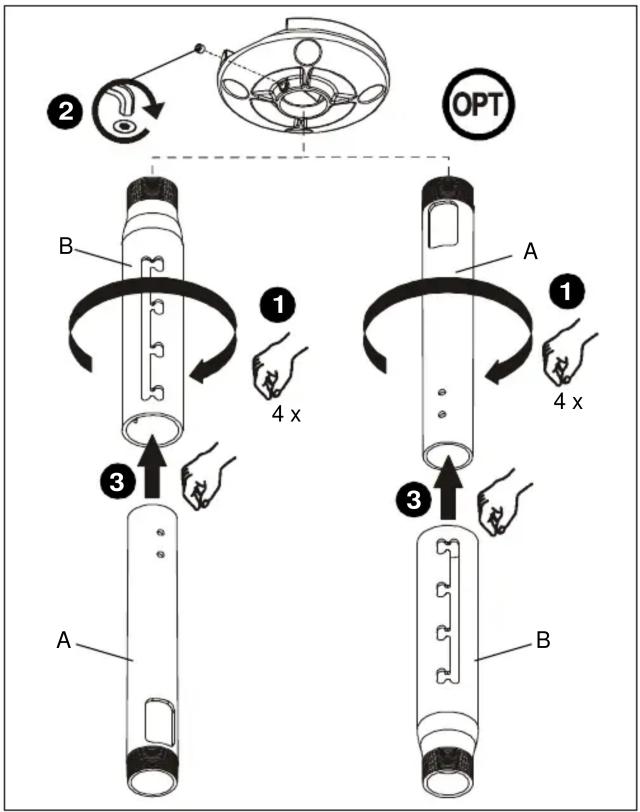

1. Install 1-1/2" NPT threaded column (A or B, as applicable) into plate/adapter (See Figure 2). Securely tighten column.

2. Ensure column (A or B, as applicable) engages four full threads into plate/adapter.

3. Ensure cable access opening is rotated to desired position (optional installation, column (A)).

NOTE: Cable access opening provided on columns 9" or longer (229mm) in length. Optional installation used when cables must exit below plate/adapter.

Figure 2

1. Secure column (A or B, as applicable) by tightening set screw in plate/adapter (See Figure 2).
   NOTE: Hex key and set screw provided with plate/adapter.

2. Install mating column (A or B, as applicable) (See Figure 2).

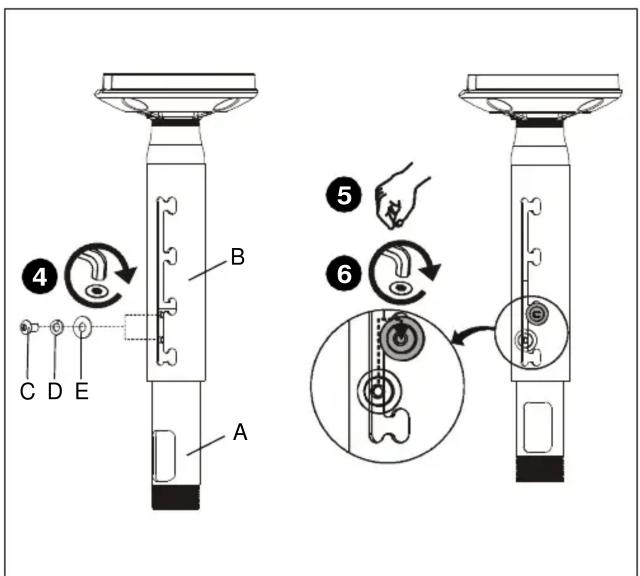

3. Using key (J), loosely install screw (C) through lock washer (D), flat washer (E), and outer column (B) into adjustment hole in inner column (A) (See Figure 3).

NOTE: Two adjustment holes provided in columns 6" or longer (152mm) in length. Either adjustment hole can be used to provide 1" (25mm) adjustment increments.

NOTE: Optional installation similar; not shown.

Figure 3

1. Adjust column (A or B, as applicable) to desired length, then rotate and lock into position (See Figure 3).

NOTE: Any locking slot can be used to provide 2" (51mm) adjustment increments.

1. Tighten screw (C) using key (J) (See Figure 3).

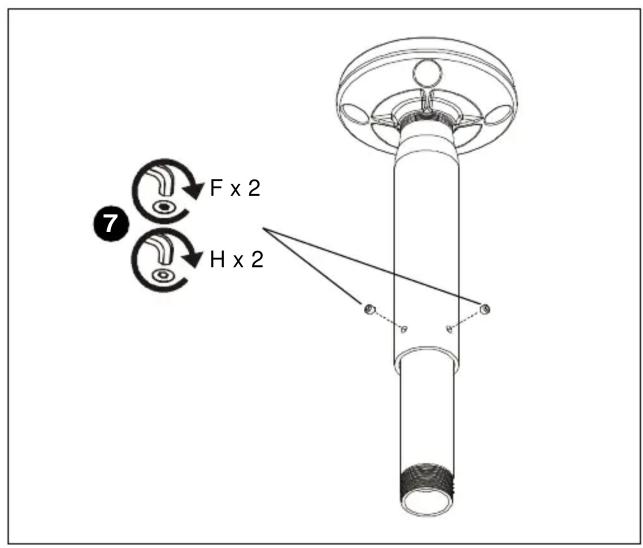

2. Install and tighten set screws (standard (F) or security (H), as desired) using key (G) (See Figure 4).

NOTE: Optional installation similar; not shown.

Figure 4

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to the CMS Series Extension Column does not exceed 500 lbs (226 kg).

- The weight capacity of the CMS Series Extension Columns may be LIMITED to the lowest weight capacity of any other component, accessory or mounting system used with this accessory.

1. Install and secure projector/display mount (not included) to lower end of column (A or B, as applicable) following instructions included with mount.

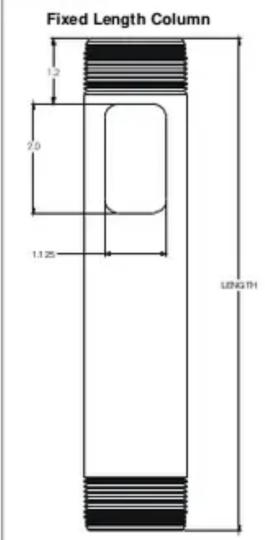

DIMENSIONS

Adjustable Length Column
