Product Type	Built-in Ceramic Glass Hob
Brand	Samsung
Model	C21RJAN
Number of Cooking Zones	2
Heating Technology	Radiant
Dimensions (Width x Depth x Height)	288 mm x 505 mm x 50 mm

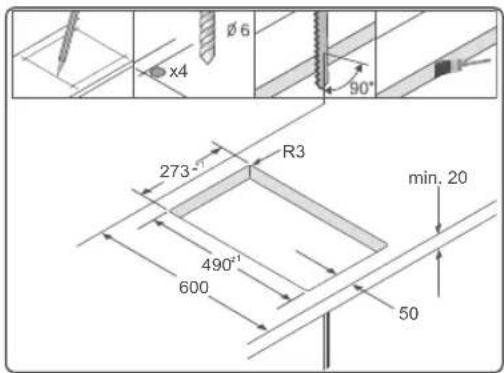

Worktop Cut-out Dimensions	273 mm x 490 mm, corner radius 3 mm
Net Weight	4.3 kg
Gross Weight	6.0 kg
Power Supply	230 V ~ 50 Hz
Maximum Connected Load	3.0 kW
Control Type	Touch control sensors
Child Safety Lock	Yes
Timer Functions	Safety shutoff and countdown timer
Residual Heat Indicator	Yes (display shows 'H')
Automatic Safety Shutoff	Yes (time depends on heat setting)

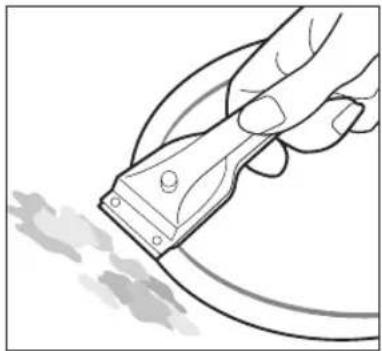

Cleaning	Ceramic glass cleaner and scraper for stubborn soiling

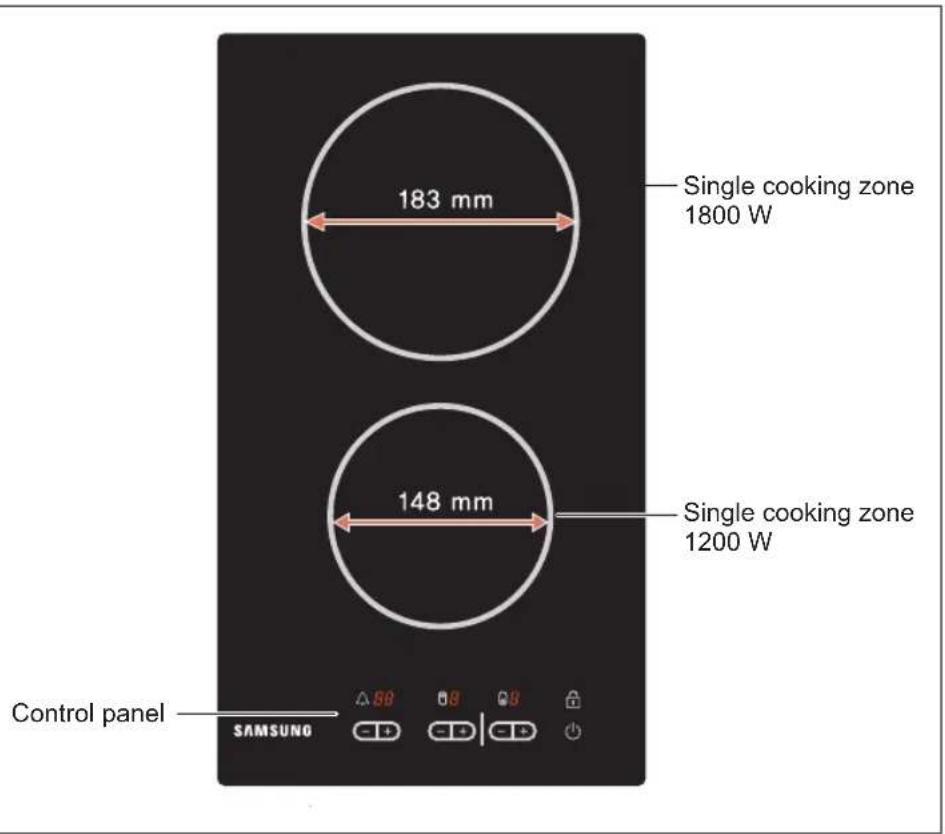

Cooking Zone 1 (Front)	148 mm diameter, 1200 W
Cooking Zone 2 (Rear)	183 mm diameter, 1800 W
Energy Consumption (Hob)	199.3 Wh/kg (per EN 60350-2)

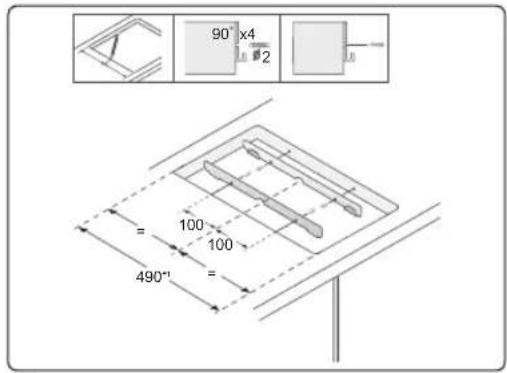

Included Accessories	Installation brackets and screws
Warranty	Standard manufacturer warranty (refer to manual)

Frequently Asked Questions - C21RJAN SAMSUNG

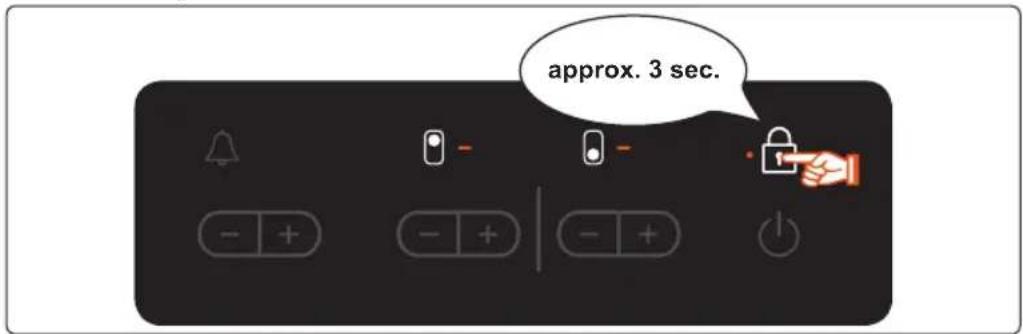

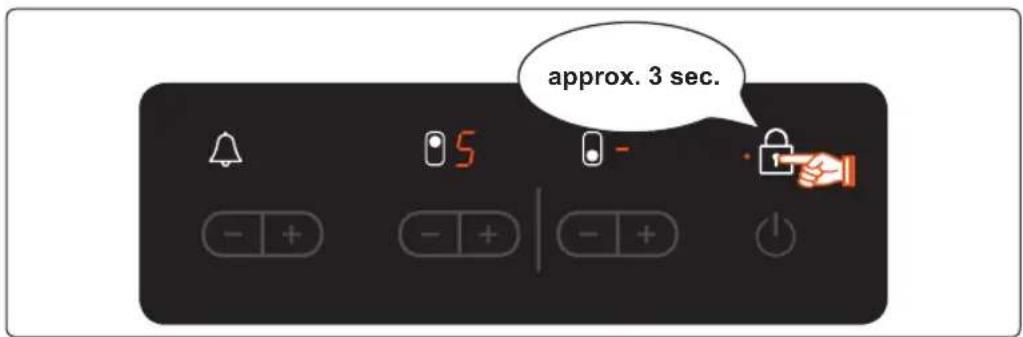

How do I activate the child safety lock on my Samsung C21RJAN hob?

Touch the lock sensor (padlock icon) for approximately 3 seconds. An acoustic signal confirms activation, and the displays show 'L'.

What should I do if a cooking zone does not heat up?

Check that the hob is switched on, the cooking zone is selected, and the fuse in your home electrical panel is intact. If the problem persists, contact Samsung service.

How do I clean the ceramic glass surface?

Clean when the surface is warm (not hot) using a damp cloth and a ceramic glass cleaner. For stubborn residues, use a glass scraper at an angle. Never use abrasive cleaners or scouring pads.

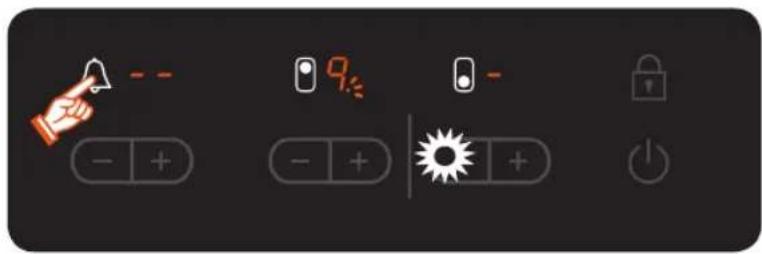

How do I set the safety shutoff timer for a cooking zone?

Select the desired cooking zone by touching the timer sensor repeatedly until its indicator flashes. Then use the + or - timer controls to set the desired time. After the time elapses, the zone switches off automatically.

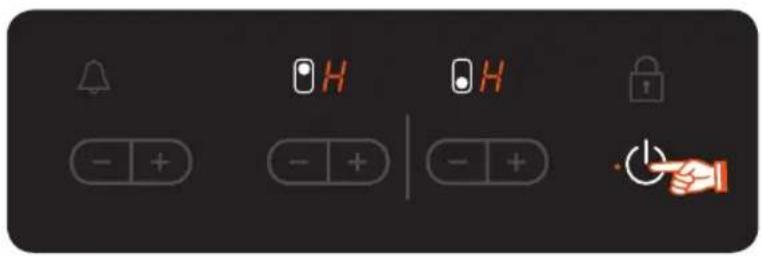

What does the 'H' symbol on the display mean?

'H' indicates residual heat in a cooking zone. The zone is still hot and there is a risk of burns. Do not touch the zone until the 'H' disappears.

Why does my hob shut off automatically?

The hob has a safety feature that switches off a cooking zone after a prolonged period without adjustment (e.g., 6 hours at settings 1-2). Also, if liquid overflows onto the control panel, the hob may shut off for safety.

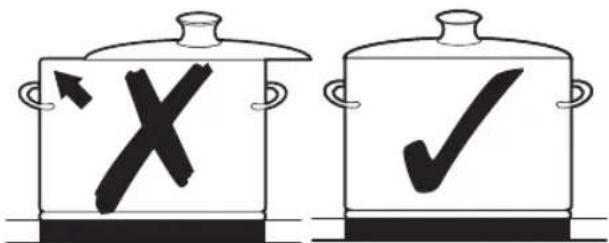

Can I use any type of cookware on this hob?

Use cookware with thick, flat bases that match the size of the cooking zone. Avoid cast iron pans or those with rough edges to prevent scratching the ceramic surface.

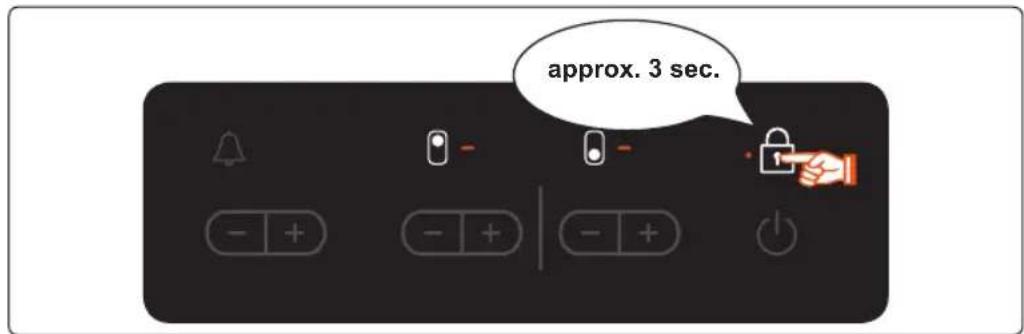

How do I unlock the control panel if it's locked?

Touch and hold the lock sensor for approximately 3 seconds until the indicator light goes out. The control panel will be unlocked.

Where can I find the model and serial number of my hob?

The model and serial number are listed on the rating plate located on the underside of the hob. Note these down before installation for future reference.

What does error code '5F' mean?

'5F' appears if a sensor is touched for longer than 10 seconds. To reset, press the On/Off sensor. Ensure the control panel is clean and dry.

USER MANUAL C21RJAN SAMSUNG

Black-and-white photo of a plated dish with cheese, mushrooms, and a teapot on a wooden table (no text or symbols visible)

C21RJAN

3D illustration of a rectangular electronic device with two circular holes on top (no text or symbols)

Technical line drawing of two mechanical components with mounting holes (no text or symbols)

Simple line drawing of a folded paper or sheet with three evenly spaced pins (no text or symbols)

3 Винтове

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Правилно!

Simple line drawing of a cooking pot with a 'X' mark inside, no text or symbols present

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Неправилно!

Управление на температурата

Line drawing of a hand using a power tool to clean or brush the brush (no text or symbols)

Abstract diagram with concentric curved lines and scattered gray shapes (no text or symbols)

За да избегнете повреда на уреда

Black-and-white photo of a plated dish with cheese, mushrooms, and a teapot on a wooden table (no text or symbols visible)

C21RJAN

Prije montiranja ili korištenja uređaja pročitajte upute kako bi se izbjegla opasnost od nezgoda ili oštećenja ploče za kuhanje. Piručnik spremite za buduću upotrebu.

Sadržaj

HR

Diagram showing two views of a folding table with an open lid, one with a magnified inset showing a detail (no text or symbols)

Dijelovi i značajke

HR

Illustration of a rectangular electronic device with two circular top holes (no text or symbols)

1 Staklokeramička ploča za kuhanje

Technical line drawing of two parallel metal profiles with mounting holes (no text or symbols)

2 Držači za postavljanje

Simple line drawing of a rectangular object with three vertical pins, no text or symbols present.

3 Vijci

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Ispravno!

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Pogrešno!

Korištenje ploče za kuhanje (nastavak)

• Posude i lonce uvijek stavite na zonu za kuhanje prije nego što je uključite.
• Prljave zone za kuhanje i prljave posude povećavaju potrošnju energije.
• Kad je to moguće, čvrsto i u potpunosti poklopite posude i lonce.
• Isključite zone za kuhanje prije kraja vremena za kuhanje kako biste preostalu toplinu iskoristili za otapanje hrane ili održavanje hrane toplom.

• Dno posude za kuhanje trebalo bi biti iste veličine kao i zona za kuhanje.
• Korištenje ekspres lonca smanjuje vrijeme kuhanja do 50%.

Korištenje senzorskog upravljanja na dodir

• Kako biste koristili senzorsko upravljanje na dodir, željenu ploču dotaknite vrhom kažiprsta dok zaslon ne zasvijetli ili se ne ugasi ili dok se ne aktivira željena funkcija.
• Prilikom rada s uređajem dodirujte samo jednu ploču odjednom. Ako je vaš prst na ploču položen previše ravno, mogao bi se aktivirati i susjedni senzor.

Korištenje ploče za kuhanje (nastavak)

HR

Upravljanje temperaturom

Kako biste postavili i podesili razinu snage za kuhanje (do) dodirnite gumbe za odgovarajuće zone za kuhanje (+, -)

Korištenje ploče za kuhanje (nastavak)

HR

Korištenje ploče za kuhanje (nastavak)

Illustration of a hand using a power tool to clean or brush the brush (no text or symbols visible)

Abstract diagram with concentric curved lines and scattered gray shapes, no text or symbols present

Black-and-white photo of a plated dish with cheese, mushrooms, and a teapot on a wooden table (no text or symbols visible)

C21RJAN

Diagram showing two views of a table with open lid and base, plus an inset view of a shelf or rack (no text or symbols)

MK

Делови и функции

MK

3D illustration of a rectangular electronic device with two circular holes on top (no text or symbols)

1 Керамичко-стаклена плотна

Technical line drawing of two mechanical components with mounting holes (no text or symbols)

Simple line drawing of a folded paper or sheet with three evenly spaced pins (no text or symbols)

3 Завртки

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Правилно!

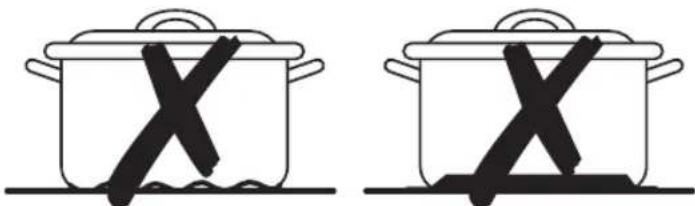

Two identical cooking pots with 'X' symbols crossed out, placed side by side (no text or labels)

Неправилно!

Illustration of a hand using a power tool to clean or smoke from a pipe (no text or symbols)

Abstract diagram with concentric arcs and scattered gray shapes, no text or symbols present

Black-and-white photo of a plated dish with cheese, mushrooms, and a teapot on a wooden table (no text or symbols visible)

C21RJAN

Diagram showing two views of a folding table with an open lid, including a close-up inset of the lid (no text or symbols present)

Illustration of a rectangular appliance with two circular cutouts on top (no text or symbols)

Technical illustration of two metal bracket components (no text or symbols)

2 Suporturi de instalare

Simple line drawing of a folded paper or sheet with three evenly spaced pins (no text or symbols)

3 Šuuburi

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Corect!

Simple line drawing of a cooking pot with a 'X' mark inside, no text or symbols present

Simple line drawing of a cooking pot with an 'X' mark on its side (no text or symbols)

Greşit!

Utilizarea plitei (continuare)

Utilizarea butoanelor tactile

Utilizarea plitei (continuare)

RO

Utilizarea plitei (continuare)

Utilizarea plitei (continuare)

RO

Cronometrul

Illustration of a hand using a power tool to clean or brush a white substance (no text or symbols visible)

Abstract diagram with concentric arcs and scattered gray shapes, no text or symbols present

Putere maximă 3,0 kW

Black-and-white photo of a plated dish with cheese, mushrooms, and a teapot on a wooden table (no text or symbols visible)

C21RJAN

Diagram showing two views of a table with open lid and base, including a close-up inset of a shelf detail (no text or symbols)

SR

Delovi i funkcije

SR

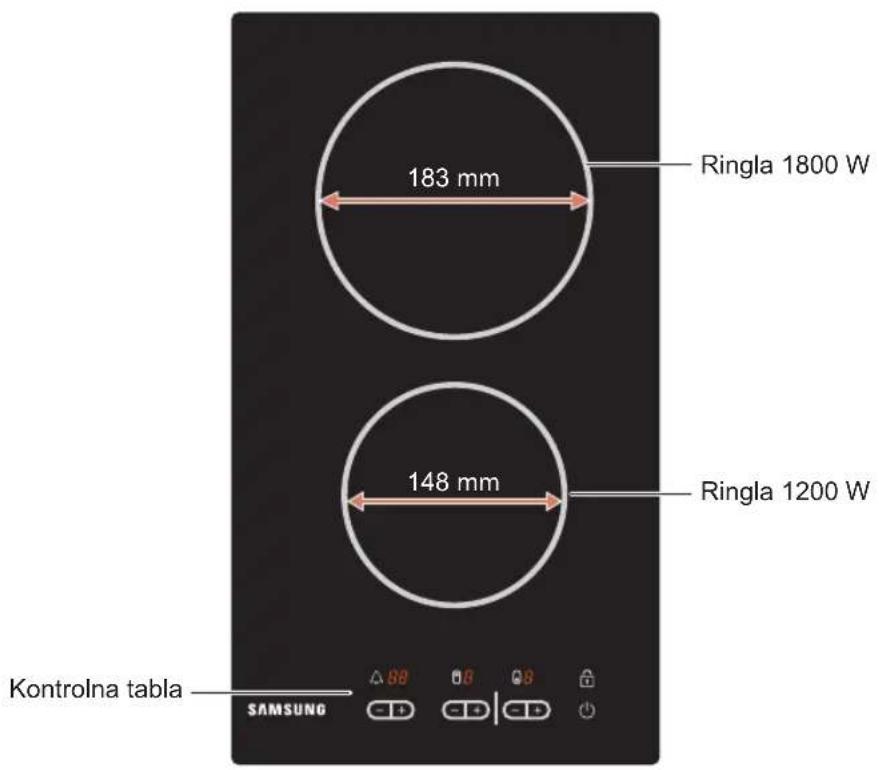

Ringle i kontrolna tabla

Illustration of a rectangular electronic device with two circular cutouts on top (no text or symbols)

1 Keramičko-staklena grejna ploča

Technical line drawing of two mechanical components with mounting holes (no text or symbols)

Simple line drawing of a folded paper or sheet with three vertical pins (no text or symbols)

3 Šrafovi

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Ispravno!

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Pogrešno!

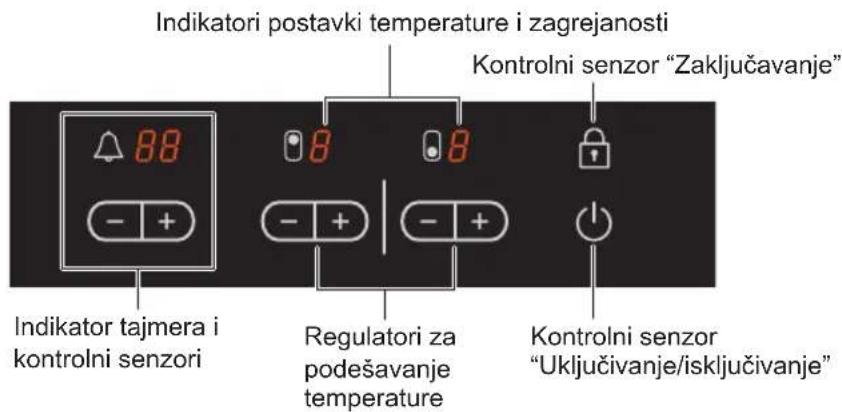

Korišćenje senzora kontrola koji se aktiviraju dodirom

Da biste koristili senzore kontrola koji se aktiviraju na dodir, pritisnite prstom i držite željenu tablu dok se odgovarajući displej ne uključi ili isključi, odnosno dok ne aktivirate željenu funkciju.

Kontrola temperature

Ako je temperatura postavljena na 9, a Vi želite da isključite grejač +pritisnite još jednom senzor i temperatura će biti postavljana na nulu.

Illustration of a hand using a power tool to clean or brush a white substance (no text or symbols)

Abstract diagram with concentric circles and scattered gray shapes, no text or symbols present

Black-and-white photo of a plated dish with cheese, mushrooms, and a teapot on a wooden table (no text or symbols visible)

C21RJAN

Diagram showing two views of a folding table with an open lid, one with a close-up view and the other with a flat base (no text or symbols)

Deli in funkcije

SL

Illustration of a two-tiered electrical heating box with circular cutouts (no text or symbols)

Technical line drawing of two parallel metal profiles with mounting holes (no text or symbols)

Simple line drawing of a folded paper or sheet with three evenly spaced pins (no text or symbols)

3 Vijaki.

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Pravilno!

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Simple line drawing of a cooking pot with a black 'X' symbol on its side (no text or symbols present)

Narobe!

Uravnavanje temperature

SL

Line drawing of a hand using a power tool to clean or brush the smoke (no text or symbols)

Abstract diagram with concentric arcs and scattered light shapes, no text or symbols present

Installation and Operating Instructions

Ceramic Glass Hob

Black-and-white photo of a plated dish with cheese, mushrooms, and a teapot on a wooden table (no text or symbols visible)

C21RJAN

To avoid the risk of accidents or damage to the hob, read all instructions before installing or using the appliance. Keep this manual for future reference.

Contents

EN

Using This Manual 3

Safety Instructions 4

Disposal Instructions....9

Installing the Hob....10

Safety instructions for the installer....10

Connecting to the outlet 10

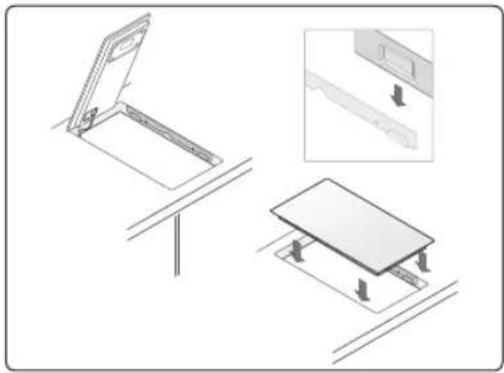

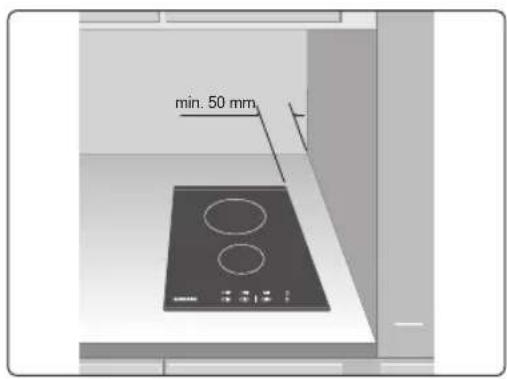

Installing into the countertop....11

Parts and Features .... 12

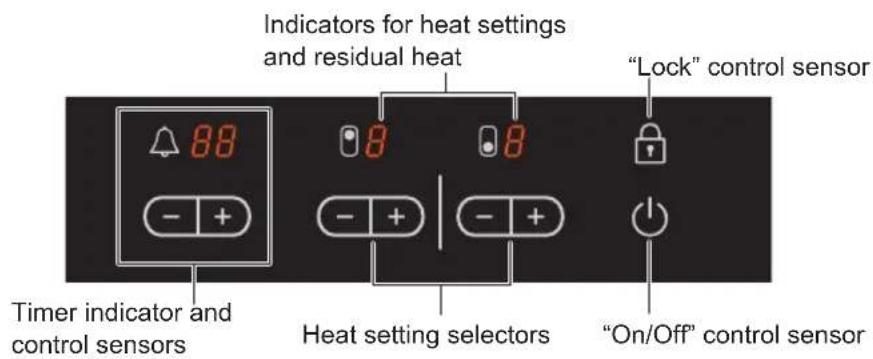

Cooking zones and control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Components 13

The key features of your appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Safety shutoff 15

Residual heat indicator. 15

Before You Begin 16

Initial cleaning 16

Hob Use 16

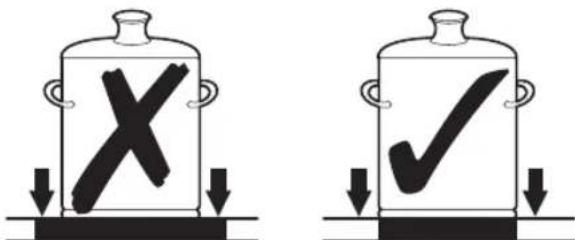

Using suitable cookware....16

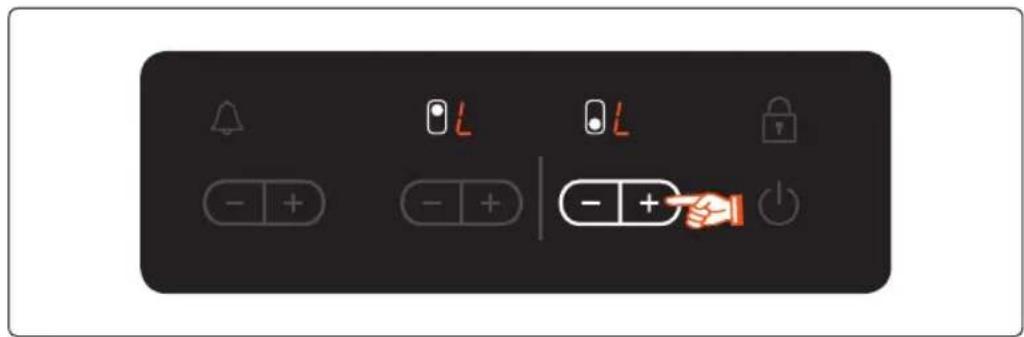

Using the touch control sensors .....17

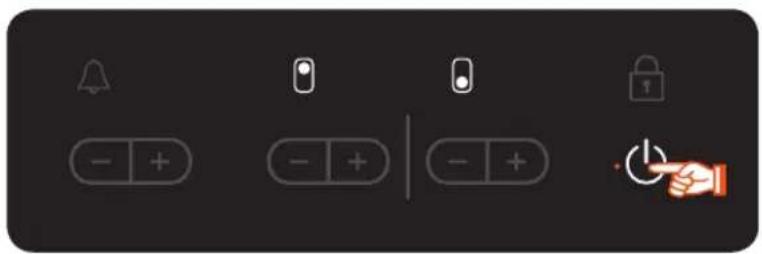

Switching the appliance on 18

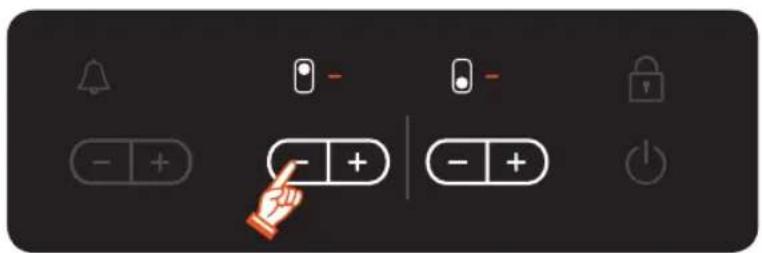

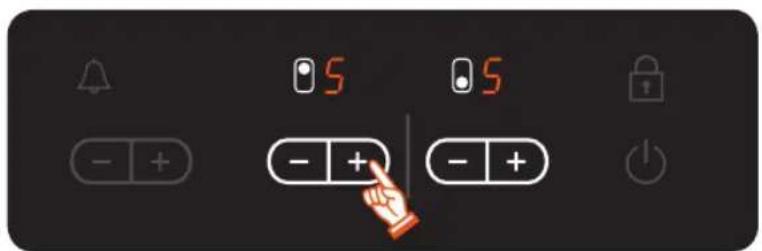

Temperature control 18

Switching the appliance off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Switching a cooking zone off. 19

Using the child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Locking and unlocking the control panel. 21

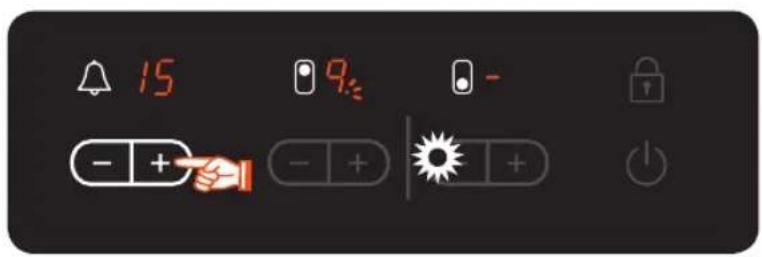

Timer. 22

Setting the safety shutoff. 22

Countdown timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Hob. 24

To avoid damaging your appliance. 25

Warranty and Service. 26

FAQs and troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Service....27

Technical Data 28

Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Appendix 30

Model name & serial number .30

Using This Manual

Please take the time to read this owner's manual, paying particular attention to the safety information contained in the following section, before using your appliance. Keep this manual for future reference. If transferring ownership of the appliance, please remember to pass the manual on to the new owner.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

The following symbols are used in the text of this Owner's Manual :

WARNING	Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION	Hazards or unsafe practices that may result in minor personal injury or property damage.
CAUTION	To reduce the risk of fire, explosion, electric shock, or personal injury when using your hob, follow these basic safety precaution

	Do NOT attempt.
	Do NOT disassemble.
	Do NOT touch.
	Follow directions explicitly.
	Unplug the power plug from the wall socket.
	Make sure the machine is grounded to prevent electric shock.
	Call the service center for help.
	Note
	Important

Safety Instructions

EN

The safety aspects of this appliance comply with all accepted technical and safety standards. However, as manufacturers we also believe it is our responsibility to familiarize you with the following safety instructions.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is defective, it must be replaced by a special cord or assembly available from the manufacturer or an authorised service agent. (Fixed wiring type model only)
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. (power cord type model only)
Appliance should allow the disconnection of the appliance from the supply after installation. The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.
WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the hob.
WARNING: Accessible parts may become hot during use. Young children should be kept away.

Safety Instructions (continued)

A steam cleaner is not to be used to clean the product.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the hob glass since they can scratch the surface, which may result in shattering of the glass.
☐ Appliance is not intended to be operated by means of an external timer or separate remote-control system.
WARNING: The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements inside the hob.
Children less than 8 years of age shall be kept away unless continuously supervised.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
WARNING: Danger of fire: do not store items on the cooking surfaces.
The temperature of accessible surfaces may be high when the appliance is operating.

Safety Instructions (continued)

EN

Keep the appliance and its cord out of reach of children less than 8 years.

CAUTION

Be sure the appliance is properly installed and grounded by a qualified technician.
The appliance should be serviced only by qualified service personnel. Repairs carried out by unqualified individuals may cause injury or serious malfunction. If your appliance is in need of repair, contact your local service centre. Failure to follow these instructions may result in damage and void the warranty.
Flush - mounted appliances may be operated only after they have been installed in cabinets and workplaces that conform to the relevant standards. This ensures sufficient protection against contact for electrical units as required by the essential safety standards.
If your appliance malfunctions or if fractures, cracks or splits appear:

• switch off all cooking zones;
• disconnect the hob from the mains supply; and
• contact your local service centre.

If the cooktop cracks, turn the appliance off to avoid the possibility of electric shock. Do not use your hob until the glass surface has been replaced.
☐ Do not use the hob to heat aluminium foil, products wrapped in aluminium foil or frozen foods packaged in aluminium cookware.
Liquid between the bottom of the pan and the hob can produce steam pressure. Which may cause the pan to jump.

Always ensure that the hotplate and the base of the pan are kept dry.

Safety Instructions (continued)

The cooking zones will become hot when you cook. Always keep small children away from the appliance.
Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.
This appliance is to be used only for normal cooking and frying in the home. It is not designed for commercial or industrial use.
☐ Never use the hob for heating the room.
Take care when plugging electrical appliances into mains sockets near the hob. Mains leads must not come into contact with the cooktop.
☐ Overheated fat and oil can catch fire quickly. Never leave surface units unattended when preparing foods in fat or oil, for example, when cooking chips.
★ Turn the cooking zones off after use.
Always keep the control panels clean and dry.
☐ Never place combustible items on the hob, it may cause fire.
There is the risk of burns from the appliance if used carelessly.
Cables from electrical appliances must not touch the hot surface of the hob or hot cookware.
☐ Do not use the hob to dry clothes.
WARNING: Users with Pacemakers and Active Heart Implants must keep their upper body at a minimum distance of 30 cm from induction cooking zones when turned on. If in doubt, you should consult the manufacturer of your device or your doctor. (Induction hob model only)

Safety Instructions (continued)

EN

Do not attempt to repair, disassemble, or modify the appliance yourself.
★ Always turn the appliance off before cleaning.
★ Clean the hob in accordance with the cleaning and care instructions contained in this manual.

Disposal Instructions

DISPOSING OF THE PACKAGING MATERIAL

EN

All materials used to package the appliance are fully recyclable. Sheet and hard foam parts are appropriately marked. Please dispose of packaging materials and old appliances with due regard to safety and the environment.

PROPER DISPOSAL OF YOUR OLD APPLIANCE

WARNING: Before disposing of your old appliance, make it inoperable so that it cannot be a source of danger.

To do this, have a qualified technician disconnect the appliance from the mains supply and remove the mains lead.

The appliance may not be disposed of in the household rubbish.

Information about collection dates and public refuse disposal sites is available from your local refuse department or council.

CORRECT DISPOSAL OF THIS PRODUCT (WASTE ELECTRICAL & ELECTRONIC EQUIPMENT)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

For information on Samsung's environmental commitments and product specific regulatory obligations e.g. REACH visit: samsung.com/uk/aboutsamsung/samsungelectronics/corporate citizenship/data_corner.html

Installing the Hob

EN

Important: Be sure the new appliance is installed and grounded only by qualified personnel.

Please observe this instruction. The warranty will not cover any damage that may occur as a result of improper installation.

Technical data is provided at the end of this manual.

Safety instructions for the installer

• With respect to fire protection, this appliance corresponds to EN 60 335 - 2 - 6. This type of appliance may be installed with a high cupboard or wall on one side.
• Drawers may not be fitted underneath the hob.
• The installation must guarantee shock protection.
• The kitchen unit in which the appliance is fitted must satisfy the stability requirements of DIN 68930.
• For protection against moisture, all cut surfaces are to be sealed with a suitable sealant.
• On tiled work surfaces, the joints in the area where the hob sits must be completely filled with grout.
• On natural, artificial stone, or ceramic tops, the snap action springs must be bonded in place with a suitable artificial resin or mixed adhesive.
• Ensure that the seal is correctly seated against the work surface without any gaps. Additional silicon sealant must not be applied; this would make removal more difficult when servicing.
• The hob must be pressed out from below when removed.

Connecting to the outlet

Before connecting, check that the nominal voltage of the appliance, that is, the voltage stated on the rating plate, corresponds to the available supply voltage. The rating plate is located on the lower casing of the hob.

The heating element voltage is AC230 V\~. This appliance is equipped with a cord that includes a grounding wire and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Once the hob is connected to the mains supply, check that all cooking zones are ready for use by briefly switching each on in turn at the maximum setting.

When the hob is powered on for the first time, all displays light and the child safety lock is activated.

Installing the Hob (Continued)

Installing into the countertop

Make a note of the serial number on the appliance rating plate prior to installation.

This number will be required in the case of requests for service and is no longer accessible after installation, as it is on the original rating plate on the underside of the appliance.

Pay special attention to the minimum space and clearance requirements.

Secure the brackets at both sides with the provided screws before mounting the hob onto the brackets.

Technical illustration showing two views of a folding table frame with an open lid, one with a close-up view and the other with a flat base (no text or symbols)

Parts and Features

EN

Cooking zones and control panel

Parts and Features (Continued)

Components

3D illustration of a rectangular electronic device with two circular holes on top (no text or symbols)

1 Ceramic Glass Hob

Technical line drawing of two mechanical components with mounting holes (no text or symbols)

2 Installation Brackets

Simple line drawing of a folded paper or sheet with three evenly spaced pins (no text or symbols)

3 Screws

Parts and Features (Continued)

EN

The key features of your appliance

• Ceramic glass cooking surface: The appliance has a ceramic glass cooking surface and four rapid - response cooking zones. The hob's powerful radiant heater elements significantly shorten the amount of time required for the zones to heat up.
• Touch control sensors: Your appliance is operated using touch control sensors.
• Easy cleaning: The advantage of the ceramic glass cooking surface and the control sensors is their accessibility for cleaning. The smooth, flat surface is easy to clean.
• On / Off sensor: The "On / Off" control sensor provides the appliance with a separate mains switch. Touching this sensor switches the power supply on or off completely.
• Control and function indicators: Digital displays and indicator lights provide information about settings and activated functions, as well as the presence of residual heat in the various cooking zones.
• Safety shutoff: A safety shutoff ensures that all cooking zones switch off automatically after a period of time if the setting has not been changed.
• Residual heat indicator: An icon for residual heat appears in the display if the cooking zone is so hot that there is a risk of burning.

Digital displays: The four display fields are assigned to the four cooking zones.

They show the following information:

• the appliance has been switched on,
• 1 to 2 selected heat settings,
• H residual heat,
• the child lock is activated; and
• 5F error message, the sensor has been touched for longer than 10 seconds.
• 05 error message, when the Hob is overheated because of abnormal operation.

Parts and Features (Continued)

Safety shutoff

If one of the cooking zones is not switched off or the heat setting is not adjusted after an extended period of time, that particular cooking zone will automatically switch itself off.

Any residual warmth will be indicated with H (for "hot") in the digital displays corresponding to the particular cooking zones.

The cooking zones switch themselves off at the following times.

Cooking setting 1 - 2 After 6 hoursCooking setting 3 - 4 After 5 hoursCooking setting 5 - 6 After 3 hoursCooking setting 7 - 9 After 1 hour

EN

If the Hob is overheated because of abnormal operation, B will be displayed. And the Hob will be switched off.

Should one or more of the cooking zones switch off before the indicated time has elapsed, see the section "Troubleshooting".

Other reasons why a cooking zone will switch itself off

All cooking zones will immediately switch themselves off if liquid boils over and lands on the control panel.

The automatic shutoff will also be activated if you place a damp cloth on the control panel. In both of these instances, the appliance will need to be switched on again using the main power sensor after the liquid or the cloth has been removed ⏻.

Residual heat indicator

When an individual cooking zone or the hob is turned off, the presence of residual heat is shown with an H (for "hot") in the digital display of the appropriate cooking zones. Even after the cooking zone has been switched off, the residual heat indicator goes out only after the cooking zone has cooled.

You can use the residual heat for thawing or keeping food warm.

Important: As long as the residual heat indicator is illuminated, there is a risk of burns.

Important: If the power supply is interrupted, the H symbol will go out and information about residual heat will no longer be available. However, it may still be possible to burn yourself. This can be avoided by always taking care when near the hob.

Before You Begin

EN

Initial cleaning

Wipe the ceramic glass surface with a damp cloth and ceramic hob glass cleaner.

Important: Do not use caustic or abrasive cleaners. The surface could be damaged.

Hob Use

Using suitable cookware

Better pans produce better results.

- You can recognise good pans by their bases. The base should be as thick and flat as possible.

- When buying new pans, pay particular attention to the diameter of the base. Manufacturers often give only the diameter of the upper rim.

- Pots with aluminium or copper bases can cause metallic discolouration on the ceramic glass surface. The discolouration is very difficult or impossible to remove.

- Do not use pans made of cast iron or which have damaged bases with rough edges or burrs. Permanent scratching can occur if these pan are slid across the surface.

- When cold, pan bases are normally bowed slightly inwards (concave). They should never be bowed outwards (convex).

- If you wish to use a special type of pan, for example, a pressure cooker, a simmering pan, or a wok, please observe the manufacturer's instructions.

Energy saving tips

You can save valuable energy by observing the following points.

Simple line drawing of a cooking pot with lid and side handles (no text or symbols)

Right!

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Simple line drawing of a cooking pot with a 'X' mark on its side (no text or symbols)

Wrong!

Hob Use (Continued)

• Always position pots and pans before switching on the cooking zone.
- Dirty cooking zones and pan bases increase power consumption.
- When possible, position the lids firmly on the pots and pans to cover completely.
- Switch the cooking zones off before the end of the cooking time to use the residual heat for keeping foods warm or for thawing.

• The base of the pan should be the same size as the cooking zone.
  • Using a pressure cooker reduces cooking times by up to 50 %

Using the touch control sensors

To operate the touch control sensors, touch the desired panel with the tip of your pointed finger until the relevant displays illuminate or go out, or until the desired function is activated.

Ensure that you are touching only one sensor panel when operating the appliance. If your finger is too flat on the panel, an adjacent sensor may be actuated as well.

Hob Use (Continued)

EN

Switching the appliance on

Touch the "Lock 🔒 sensor for approximately 3 seconds.

The appliance is switched on using the "On / Off ⏻" control sensor.

Touch the "On / Off ⏻" sensor.

The digital displays will show -

After the "On / Off ⏻" sensor has been actuated to switch on your appliance, a heat setting must be selected within approximately 10 seconds. Otherwise, the appliance will switch itself off for safety reasons.

Temperature control

For setting and adjusting the power level (☐ for cooking, touch the corresponding cooking zone's ☐, ☐ keys.

The first time ☐ is pressed, the heat level is set to 5.

The first time ⊕ is pressed, the heat level is set to 5.

Use the ☐ key to increase the heat setting and the ☐ key to decrease.

Hob Use (Continued)

Switching the appliance off

To completely switch off the appliance, use the "On / Off ⏻ control sensor.

Touch the "On / Off ⏻" sensor.

After switching off a single cooking zone or the entire cooking surface, the presence of residual heat will be indicated in the digital displays of the corresponding cooking zones in the form of an H (for "hot").

If the heat setting is at and ☐ you want to turn the ☐ burner off, the sensor can be touched one additional time, and the heat setting will go to zero.

For faster adjustment, keep your finger on the ☐ or ☑ sensor until the required value is obtained.

If more than one sensor is pressed for longer than 10 seconds, S will show in the heat setting display. To reset, touch the "On / Off" sensor.

Switching a cooking zone off

To switch off a cooking zone, return the setting to by using the control panel's heat setting and touch sensors ☐ or ☑

Hob Use (Continued)

EN

Using the child safety lock

You can use the child safety lock to safeguard against unintentionally turning on a cooking zone and activating the cooking surface. The lock control sensor can be used only when the power is on.

Switching the child safety lock on

1. Touch the 🔒 control sensor for approximately 3 seconds. An acoustic signal will sound as confirmation.

1. Touch any heat setting control sensor.

will appear in the displays, indicating the child safety lock has been activated.

Hob Use (Continued)

Switching the child safety lock off

1. Touch the control sensor for approximately 3 seconds. An acoustic signal will sound as confirmation.

EN

After switching off the appliance, child safety lock will be activated automatically within some minutes for safety reasons.

Locking and unlocking the control panel

At any stage during the cooking process, the control panel, with the exception of the "On / Off ⏻" control sensor, can be locked in order to prevent the settings from being changed unintentionally, for example, by wiping over the panel with a cloth.

1. Touch the lock control sensor for approximately 3 seconds.
   The indicator light in the lock control sensor will illuminate. The control sensors are now locked.
2. To unlock the control sensor, touch the lock control sensor again for approximately 3 seconds. The indicator light in the lock control sensor will extinguish.

Hob Use (Continued)

EN

Timer

There are two ways to use the timer:

Using the timer as a safety shutoff

If a specific time is set for a cooking zone, the cooking zone will shut itself off once this period of time has elapsed. This function can be used for multiple cooking zones simultaneously.

Using the timer to count down

The countdown timer cannot be used if a cooking zone has been switched on.

Setting the safety shutoff

The cooking zone(s) for which you want to apply the safety shutoff must be switched on.

1. Using the timer's control sensor 🔒, select the cooking zone for which the safety shutoff time is to be set.

After the first active cooking zone is selected, touching the timer's control sensor △ will cause the corresponding indicator to flash slowly.

will appear in the timer display.

The next active cooking zone is selected by touching the timer's control sensor again △.

1. Use the ☐ or ☑ timer setting control sensors to set the desired amount of time, for example, 15 minutes, after which the cooking zone will automatically switch itself off. The safety shutoff is now activated.

Hob Use (Continued)

To display the time remaining for any of the cooking zones, use the timer's control sensor. The corresponding control indicator will begin to blink slowly.

The settings are reset using the + or - timer setting control sensors. After the set period of time has elapsed, the cooking zone automatically switches itself off, an acoustic signal sounds as confirmation and the timer display indicates.

To make the settings more quickly, touch any of the + or - timer setting control sensors until the desired value is reached.

If the ⊙ timer setting control sensor is touched first, the time setting will begin at 99 minutes; if the + timer setting control sensor is touched first, the time setting will begin at 1 minute.

Countdown timer

For the countdown timer to be used, the appliance must be switched on but all the cooking zones must be switched off.

1. Touch the timer's control sensor △.

-- will appear in the timer display.

1. Set the desired period of time using the + or - timer setting control sensors.

The countdown timer function is now activated and the remaining time appears in the timer display.

To adjust the remaining time, touch the timer's control sensor and change the setting using the + or - timer setting control sensors 🔒

Suggested settings for cooking specific foods

The figures in the table below are guidelines. The heat settings required for various cooking methods depend on a number of variables, including the quality of the cookware being used and the type and amount of food being cooked.

Switch Setting Cookingmethod Examples for Use

9	Warming Sautéing Frying	Warming large amounts of liquid, boiling noodles, searing meat, (browning goulash,braising meat)
8	Intensive Frying	Steak, sirloin, hash browns, sausages, pancakes / griddle cakes
7
6 Frying Schnitzel / chops, liver, fish, rissoles, fried eggs
5	Boiling Cooking up to 1.5 l liquid, potatoes, vegetables
4
3 Steaming	Stewing Boiling	Steaming and stewing of small amounts of vegetables, boiling rice and milk dishes
2
1 Melting Melting butter, dissolving gelatine, melting chocolate

Note

• The heat settings indicated in the table above are provided only as guidelines for your reference.
• You will need to adjust the heat settings according to specific cookware and foods.

Cleaning and Care

EN

Hob

Important: Cleaning agents must not come into contact with a heated ceramic glass surface: All cleaning agents must be removed with adequate amounts of clean water after cleaning because they can have a caustic effect when the surface becomes hot. Do not use any aggressive cleaners such as grill or oven sprays, scouring pads or abrasive pan cleaners.

Clean the ceramic glass surface after each use when it is still warm to the touch. This will prevent spillage from becoming burnt onto the surface. Remove scales, watermarks, fat drippings and metallic discolouration with the use of a commercially available ceramic glass or stainless steel cleaner.

Light Soiling

1. Wipe the ceramic glass surface with a damp cloth.
2. Rub dry with a clean cloth. Remnants of cleaning agent must not be left on the surface.
3. Thoroughly clean the entire ceramic glass cooking surface once a week with a commercially available ceramic glass or stainless steel cleaner.
4. Wipe the ceramic glass surface using adequate amounts of clean water and rub dry with a clean lint - free cloth.

Stubborn Soiling

1. To remove food that has boiled over and stubborn splashes, use a glass scraper.
2. Place the glass scraper at an angle to the ceramic glass surface.
3. Remove soiling by scraping with the blade.

Glass scrapers and ceramic glass cleaners are available from specialty retailers.

Illustration of a hand using a power tool to clean or smoke from a pipe (no text or symbols)

Cleaning and Care (Continued)

Problem Dirt

1. Remove burnt-on sugar, melted plastic, aluminium foil or other materials with a glass scraper immediately and while still hot.

Important: There is a risk of burning yourself when the glass scraper is used on a hot cooking zone:

1. Clean the hob as normal when it has cooled down.

If the cooking zone on which something has melted has been allowed to cool, warm it up again for cleaning.

Scratches or dark blemishes on the ceramic glass surface, caused, for example, by a pan with sharp edges, cannot be removed. However, they do not impair the function of the hob.

Abstract diagram with concentric curved lines and scattered gray shapes, no text or symbols present

To avoid damaging your appliance

• Do not use the hob as a work surface or for storage.
• Do not operate a cooking zone if there is no pan on the hob or if the pan is empty.
• Ceramic glass is very tough and resistant to temperature shock, but it is not unbreakable. It can be damaged by a particularly sharp or hard object dropping onto the hob.
• Do not use pans made of cast iron or which have damaged bases with rough edges or burrs. Scratching may occur if these pans are slid across the surface.
• Do not place pans on the hob frame. Scratching and damage to the finish may occur.

- Avoid spilling acidic liquids, for example, vinegar, lemon juice and descaling agents, onto the hob frame, since such liquids can cause dull spots.

- If sugar or a preparation containing sugar comes into contact with a hot cooking zone and melts, it should be cleaned off immediately with a kitchen scraper while it is still hot. If allowed to cool, it may damage the surface when removed.

- Keep all items and materials that could melt, for example, plastics, aluminium foil and oven foils, away from the ceramic glass surface. If something of this nature melts onto the hob, it must be removed immediately with a scraper.

Warranty and Service

EN

FAQs and troubleshooting

A fault may result from a minor error that you can correct yourself with the help of the following instructions. Do not attempt any further repairs if the following instructions do not help in each specific case.

Warning: Repairs to the appliance are to be performed only by a qualified service technician. Improperly effected repairs may result in considerable risk to the user. If your appliance needs repair, please contact your customer service centre.

What should I do if the cooking zones are not functioning?

Check for the following possibilities:

• The fuse in the house wiring (fuse box) is intact. If the fuses trip a number of times, call an authorised electrician.
• The appliance is properly switched on.
• The control indicators in the control panel are illuminated.
  • The cooking zone is switched on.
• The cooking zones are set at the desired heat settings.

What should I do if the cooking zones will not switch on?

Check for the following possibilities:

• A period of more than 10 seconds has elapsed between when the On / Off button was actuated and the desired cooking zone switches on (see the section “Switching the appliance on”).
• The control panel is partially covered by a damp cloth or liquid.

What should I do if the display except for the residual warmth indicator suddenly disappears?

This could be a result of one of two possibilities:

• The On / Off sensor was accidentally actuated.
• The control panel is partially covered by a damp cloth or liquid.

What should I do if, after the cooking zones have been switched off, residual warmth is not indicated in the display?

Check for the following possibility:

- The cooking zone was only briefly used and therefore did not become hot enough. If the cooking zone is hot, please call the customer service centre.

What should I do if the cooking zone will not switch on or off?

This could be due to one of the following possibilities:

• The control panel is partially covered by a damp cloth or liquid.
  • The child safety lock is on.

What should I do if the 58 display is illuminated?

Check for the following:

- The control panel is partially covered by a damp cloth or liquid. To reset, press the "On / Off" control sensor.

Warranty and Service (Continued)

What does it mean when the burner does not glow red?

- The selected temperature of the cooking zone is maintained by a sensor that cycles the zone on and off, so the surface cooking area will not always glow red. If you select a low heat setting, the heat will cycle on and off more frequently than at higher settings. The heat also cycles on and off at the highest setting.

If you request a service call because of an error made in operating the appliance, the visit from the customer service technician may incur a charge even during the warranty period.

Service

Before calling for assistance or service, please check the section "Troubleshooting".

If you still need help, follow the instructions below.

Is it a technical fault?

If so, please contact your customer service centre.

Always prepare in advance for the discussion. This will ease the process of diagnosing the problem and also make it easier to decide if a customer service visit is necessary.

Please take note of the following information.

• What form does the problem take?
• Under what circumstances does the problem occur?

When calling, please know the model and serial number of your appliance. This information is provided on the rating plate as follows:

• Model description
  • S / N code (15 digits)

We recommend that you record the information here for easy reference.

Model:

Serial number:

When do you incur costs even during the warranty period?

• if you could have remedied the problem yourself by applying one of the solutions provided in the section "Troubleshooting".
• if the customer service technician has to make several service calls because he was not provided with all of the relevant information before his visit and as a result, for example, has to make additional trips for parts. Preparing for your phone call as described above will save you the cost of these trips.

Technical Data

EN

Appliance dimensions

Width 288 mm

Depth 505 mm

Height 50 mm

Worktop cut - out dimensions

Width 273 mm

Depth 490 mm

Corner radius 3 mm

Cooking rings

Position Diameter Power
Front 148 mm	1,200 W
Rear 183 mm	1,800 W

Connection voltage 230 V \~ 50 Hz

Maximum connected load power 3.0 kW

Weight : Net 4.3 kg

Gross 6.0 kg

Technical Data (Continued)

Product Information

Supplier's name Samsung Electronics co. Ltd.
Model identification C21RJAN
Type of hob Built-In
Heating technology Radiant cooking zones
Number of cooking zones and/or area 2
For circular cooking zones or area:diameter of useful surface area per electric heated cooking zone (∅)	∅ 15.0 cm, ∅ 18.5 cm
Energy consumption per cooking zone or area calculated per kg (ECelectric cooking)	∅ 15.0 cm : 196.4 Wh/kg∅ 18.5 cm : 202.3 Wh/kg
Energy consumption for the hob calculated per kg (ECelectric hob)	199.3 Wh/kg

* Data determined according to standard EN 60350-2 and Commission Regulations (EU) No 66/2014.

Energy saving tips

• Always position pots and pans before switching on the cooking zone.
- Dirty cooking zones and pan bases increase power consumption.
• Using a pressure cooker reduces cooking time.

Appendix

EN

Model name & serial number

Both the model name and the serial number are labeled underneath the cooktop base.

For later use, write down the information or attach the additional product label (located on the top of the product) onto the current page.

Model Name

Serial Number

Memo

EN

SAMSUNG

QUESTIONS OR COMMENTS?

COUNTRY CALL OR VISIT US ONLINE AT
BOSNIA 055 233 999 www.samsung.com/support
BULGARIA	*3000 Цена в мрежата0800 111 31 , Безплатна телефонна линия	www.samsung.com/bg/support
CROATIA 072 726 786 www.samsung.com/hr/support
CZECH	800 - SAMSUNG(800-726786)	www.samsung.com/cz/support
HUNGARY	0680SAMSUNG (0680-726-786)0680PREMIUM (0680-773-648)	www.samsung.com/hu/support
MONTENEGRO 020 405 888 www.samsung.com/support
POLAND	801-172-678* lub [phone]*Dedykowana infolinia do obsługi zapytańdotyczących telefonów komórkowych: 801-672-678* lub [phone]*(koszt połączenia według taryfy operatora)	www.samsung.com/pl/support
ROMANIA	*8000 (apel in retea)08008-726-78-64 (08008-SAMSUNG)Apel GRATUIT	www.samsung.com/ro/support
SERBIA 011 321 6899 www.samsung.com/rs/support
SLOVAKIA	0800 - SAMSUNG(0800-726 786)	www.samsung.com/sk/support
LITHUANIA 8-800-77777 www.samsung.com/lt/support
LATVIA 8000-7267 www.samsung.com/lv/support
ESTONIA 800-7267 www.samsung.com/ee/support
SLOVENIA	080 697 267 (brezplačna številka)	www.samsung.com/si

DG68-00139A-06
