Product Type	8-Bay Thunderbolt 3 NAS
Brand	Raidon
Model	GR8680-TB3
Interface	Thunderbolt 3 (USB-C compatible)
Supported Drives	8x 2.5/3.5" SATA HDD/SSD (removable trays)
RAID Modes	RAID 0, 1, 5, 10, JBOD (via MSU software)
Max Capacity	Up to 8 drives (any capacity)
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 47°C (-4°F to 116°F)
Cooling	Fan with automatic/speed control
Additional Ports	1x Mini DisplayPort, 1x Thunderbolt 3 port (for daisy-chaining)
Power Delivery	15W (5V/3A) via Thunderbolt port
Package Contents	GR8680-TB3 unit, Thunderbolt 3 cable, power cord, quick installation guide, screws and keys
Dimensions	Not specified in manual (typical for 8-bay: ~325x280x180 mm)
Weight	Not specified (approx. 4-6 kg)

Frequently Asked Questions - GR8680-TB3 Raidon

How do I set up RAID on the GR8680-TB3?

Use the Marvell Storage Utility (MSU) software. Connect the unit via Thunderbolt, install MSU from Raidon's website, then log in and navigate to Operation > Create Array. Select the drives, choose RAID level (e.g., RAID 5), stripe size, name, and submit. After creation, initialize and format the virtual disk in your OS.

Can I use different brands or capacities of hard drives?

For best performance and RAID stability, use drives of the same brand, model, and capacity. If mixing is unavoidable, the RAID volume will use the capacity of the smallest drive. For RAID 5, total capacity = (7 * smallest drive). Replacing a failed drive should match the original specs or be at least 20 GB larger.

What should I do if the fan alarm goes off?

The alarm indicates a fan failure or overheating. Press the mute button at the rear to silence the alarm. Check for blockages and ensure proper ventilation. If the problem persists, power off and contact Raidon support.

Is the GR8680-TB3 compatible with Windows and macOS?

Yes, it works with both. On Windows, you may need to approve the Thunderbolt device via the taskbar icon. On macOS, install the Marvell Storage Utility (MSU) and, for High Sierra or later, approve the kernel extension in Security & Privacy.

How do I connect multiple monitors?

Use the Thunderbolt port for host connection and the Mini DisplayPort for a monitor. For dual monitors, connect one monitor to the Thunderbolt B port and another to the Mini DisplayPort. The Thunderbolt port also supports daisy-chaining to other Thunderbolt or USB devices.

What is the maximum capacity supported?

There is no specified maximum per drive. The unit supports up to 8 SATA drives of any capacity. The total usable capacity depends on the RAID mode and drive sizes.

How do I format the drives after RAID creation?

After creating a virtual disk in MSU, open Disk Utility (macOS) or Disk Management (Windows). You'll see the new RAID volume. Erase/format it with your preferred file system (e.g., Mac OS Extended, NTFS) and partition scheme.

Can I use the GR8680-TB3 without RAID?

Yes, set it to JBOD (Just a Bunch Of Disks) mode in MSU. Each drive will appear individually and can be used independently.

What does the status indicator light mean?

Blue light always on: system ready. Blue flashing: data access. Purple flashing: RAID failed, HDD failure, fan failure, or overheating. Red light on HDD tray: no HDD detected or error. Refer to the manual for the full status table.

How do I safely disconnect the GR8680-TB3?

Always eject the drive from your operating system (e.g., right-click and 'Safely Remove' on Windows, drag to Trash on macOS) before turning off or unplugging the unit to prevent data loss.

USER MANUAL GR8680-TB3 Raidon

1. Operating Information ....1

2. Package Contents and Product Views ....1

3. Hardware Requirements and Precautions ......2

4. Hardware Installation....3

5. Troubleshooting Fan Errors....4

6. The MSU, and easy RAID configurator ....5

7. The Indication of HDD Status....11

8. Connect with other devices ....12

9. Common Technical Questions....13

Thank you for choosing the RAIDON product. This manual will familiarize you with the RAIDON GR8680-TB3 product. We recommend reading through this manual before using the RAIDON GR8680-TB3 product. The information provided in this manual was checked before publication, but the actual product specifications may have changed before shipping; Latest product specifications and updates can be found at www.RAIDON.com.tw. No separate notifications will be provided by our company. If you would like to receive the latest RAIDON product information, manuals, and firmware, or have any questions regarding RAIDON products, please contact your local supplier or visit www.RAIDON.com.tw for more information.

All product-related content in this manual are copyrighted by RAIDON TECHNOLOGY, INC.

1. Operating Information

Operating Temperature: 0 \~ 40 °C (32 \~ 104 °F)

Storage Temperature : -20 \~ 47°C (-4 \~ 116 °F)

Line Voltage : 100 \~ 240V AC

2. Package Contents and Product Views

Open the package and you shall find the following parts :

GR8680-TB3

GR8680-TB3 Product Unit x1(Removable Tray x8)

ThunderboltTM Cable x1

Power Cord x1

Quick Installation Guide x1

Screws & Keys

• Please check the product and accessories for any defect or missing parts. If you have any questions, please contact your product supplier.
• Please visit the official website - Download page (http://www.RAIDON.com.tw/RAIDON2016/download.php) to download drivers and other related resources.

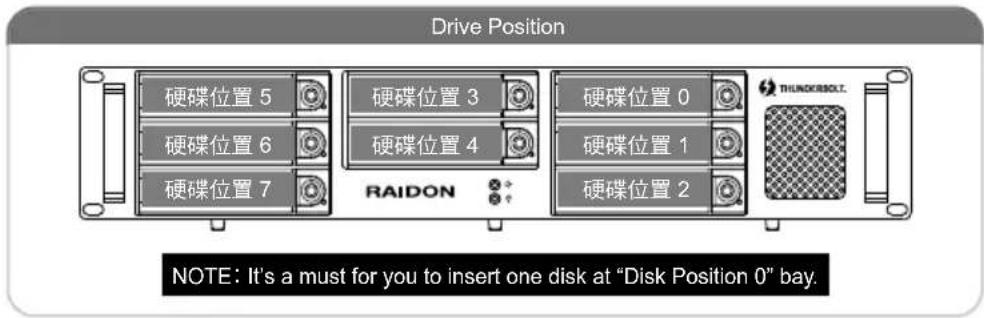

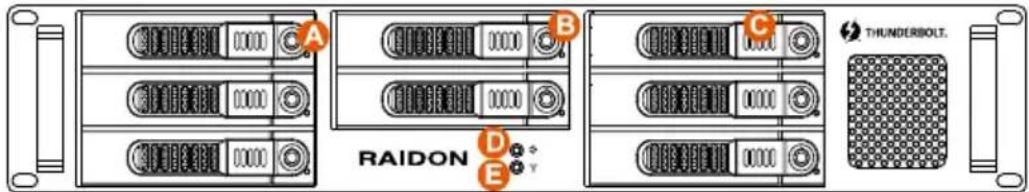

A B C RAIDON D E Y THUNDERBOLT.

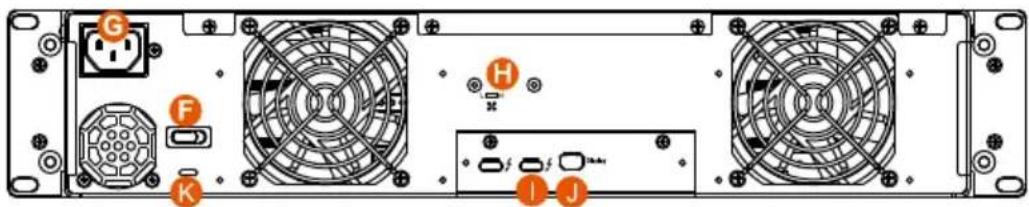

Diagram of a server rack with labeled components including power socket, fan, and drive indicators

A. HDD access light
B. HDD enclosure key lock
C. HDD enclosure button
D. Mute Switch

E. System status light
F. Power switch
G. Power socket
H. Fan speed switch

I. Thunderbolt™ port
J. Mini DisplayPort
K. Anti-theft lock

3. Hardware Requirements and Precautions

1. Only one interface connection may be used at once per computer system.
2. RAID volume formation utilizes the capacity of whichever hard drive has the smallest and then multiply that capacity by seven for RAID 5, eight for RAID 0, to form a large volume, therefore, it is recommended to only install hard drives of the same brand and specification for all drive position prior to use. Moreover, when you need to replace with a new hard drive, please be sure to purchase one with the same specification, capacity and brand. If these conditions can't be met, select one that's at least 20 GB greater in capacity.
3. The actual storage capacity of GR8680-TB3 recognized by the system may differ from the total capacity stated on the hard drives once the drives have been formatted.
4. Since GR8680-TB3 will delete all data files in your HDDs/SSDs at its first-time use, please be informed that you shall first save all your personal data files into a safe memory space before starting setting your new GR8680-TB3 to avoid any data loss during your start-up process.
5. Please make sure that the hard drives are free from bad blocks or defects prior to installation in order to avoid system crashes or data loss.

6. Whenever turning off or unplugging your GR8680-TB3 from your computer system, please always remember to safely remove it from your operating system first.

7. When your GR8680-TB3 connects to the computer system, please do not remove, insert or even swap any hard drive while data transfer is being performed.

8. It's prohibited to change the positioning of the drives once the initial installation has been completed as the changes made to the drive positions may destroy the RAID formation.
9. A WARNING to you if you plan to delete or switch your original RAID setting: If you plan to delete or switch your original RAID setting, please always duplicate your personal data before deleting or changing it.
10. In RAID 5 mode, the system allows one single hard drive failure. If multiple drive failures occur at once, it's likely that all data stored in the system have been destroyed or lost. In RAID 0 mode, if one hard drive failure occurs, then all data may be destroyed or lost.
11. Whenever turning off or unplugging the GR8680-TB3 from your computer system becomes necessary, always remember to safely remove it from your operating system first.
12. While the In-chassis temperature reaches up to 55 degree-C (131 degree-F), in order to get rid of the heat efficiently, your GR8680-TB3 will turn fan parts to full speed automatically.

And once the In-chassis temperature drops down to 50 degree-C (122 degree-F), you could then set fan speed at Fan Speed Switch manually to reduce its fan noise for a better green environment at both of a lower fan noise and the power saving.

1. It is highly recommended for users to back up important data contained within the GR8680-TB3 unit on a regular basis or whenever the user feels necessary to a remote or a separate storage device. RAIDON will not be responsible for any lost of data caused during the use of the unit or the recovery of the data lost.

4. Hardware Installation

Please follow the steps below to complete the hardware installation process:

Step 1 When you open the package, please immediately check the product and included parts for any damage or missing parts. If there is a problem with the product or included parts please contact your supplier immediately.
Step 2 Place the device on a flat, even surface. Make sure that the cooling fan is not blocked and there is sufficient surrounding space for cooling. (Keep away from water or other environments that may cause product damage)
Step 3 Please insert the key included with the parts pack into the keyhole to release the HDD enclosure handle and remove the HDD enclosure.

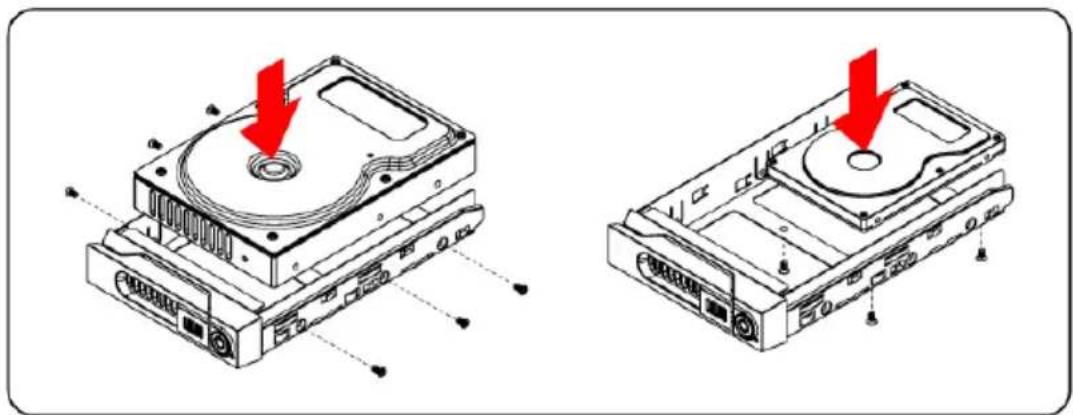

Step 4 Place the hard disk in the HDD enclosure and secure it in place with the included screws; this will prevent damage to the hard disk from external vibration.

Technical line drawings of a CD-ROM drive showing top and front views with red arrows indicating component alignment (no text or symbols)

Note: Please avoid using hard disk drives from different manufacturers or different models from the same manufacturer as this may impact system performance.

Step 5 Once the hard disk is installed, slide the enclosure into the system and close the handle.

Step 6 Select the appropriate cable from the accessories pack depending on the interface. Connect the GR4670-TB3 backplate connection port to the corresponding port on the computer.

Step 7 Connect the AC Power cable to the GR4670-TB3. Plug the connector into the power socket then start the system.

Step 8 Your operating system will automatically detect available capacity once the device finishes booting. Once the device has been detected, please follow instructions given by the operating system and format the system. Once the hard disk has been formatted, the GR4670-TB3 system can be used.

Step 9 If the computer is unable to detect the system, please install the drivers from official website - Download page (http://www.RAIDON.com.tw/RAIDON2016/download.php).

5. Troubleshooting Fan Errors

If the alarm indicator has lit up red and the audio alarm sounds, this could mean that either a system fan has stopped operating entirely. When this occurs, you may press the mute button at the rear of the system to shut off the audio alarm and power off the system immediately if in the allowed operational state to let the system cool. Check and see if the overall operation environment is well ventilated and make sure there are no blockages to the enclosed fan and then re-power on the system to continue use. If the problem persists, please turn off the system and contact your supplier or the RAIDON tech support for further assistance.

6. The MSU, and easy RAID configurator

Please visit the official website - Download page (http://www.RAIDON.com.tw/RAIDON2016/download.php) to download Marvell Storage Utility (MSU). After GR8680-TB3 connected to the computer and install the MSU, multiple RAID modes can be set up through the MSU.

A. Set up RAID Mode:

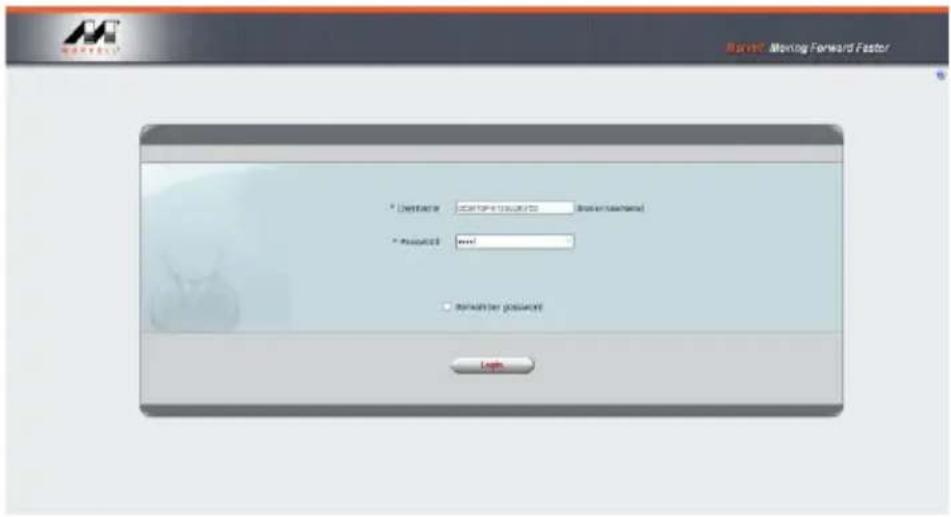

1. Use your Windows username and password to log into the MSU. If you have a username but no password, then leave the password field blank.

Service Forward Factor * Destination: 200701-200810 - Business Forward * Password: none! ■ Download for password Login

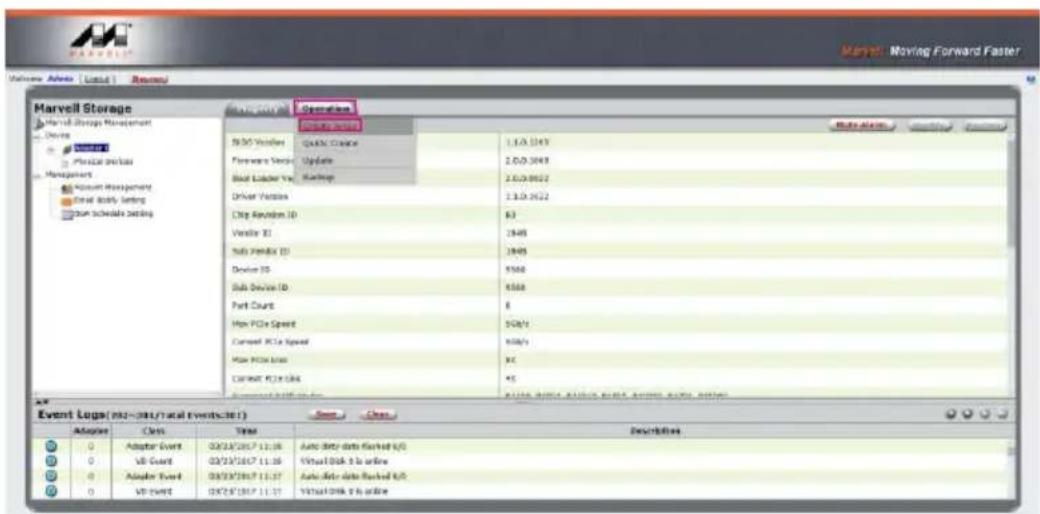

1. Click 【Operation】 and 【Create Array】.

Marvell Storage Marvell Storage Management Device Physical Shock Management Account Management Serial Shock Setting System Schedule Setting Event Logs (MX-391/real events.txt) Adapted Class Total Descriptions 0 Adapter Event Q3/23/2017 11:28 Auto Disk data backed 6/0 0 VD Guard Q3/23/2017 11:28 Virtual Disk 5 in online 0 Adapter Event Q3/23/2017 11:27 Auto Disk data backed 6/0 0 VD Event Q3/23/2017 11:27 Virtual Disk 5 in online

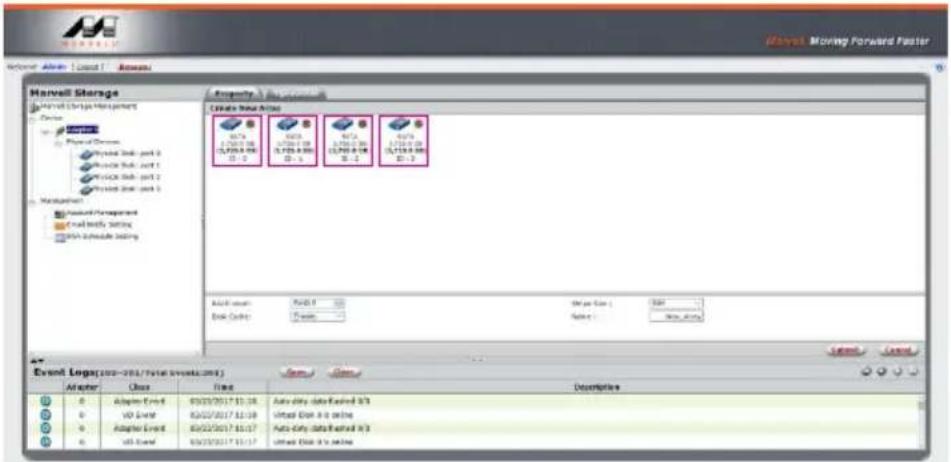

3. Click at the selected HDDs.

Harvell Storage Harvell Storage Management Device Physical Devices Physical Tools - part 2 Physical Tools - part 1 Physical Tools - part 2 Physical Tools - part 1 Manufacturer Standard Management Email Tokey Setting RNA Schedule Setting Event Log(s:00-05/7019/index.sseeds.com) Adapter Class Time Descriptions 0 Adapter Event 03/22/2017 10:38 Auto Only data Nexted 0/3 0 VIO Event 03/22/2017 10:39 Virtual Disk A: 6 cache 0 Adapter Event 03/22/2017 10:37 Auto Only data Nexted 0/3 0 VIO Event 03/22/2017 10:37 Virtual Disk A: 6 cache

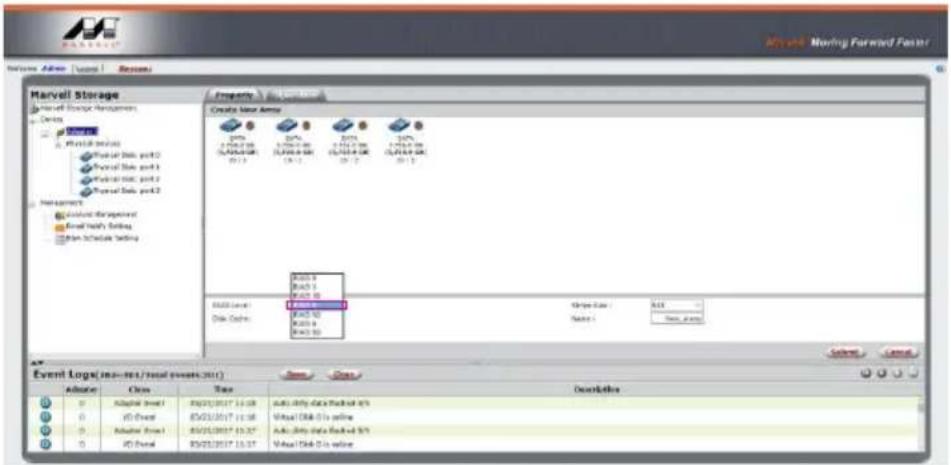

4. Select【RAID 5】(or other RAID).

Marvell Storage Marvell Storage Settings Options Create User Arms 10% 20% 30% 40% 50% 60% 70% 80% 90% 100% 110% 120% 130% 140% 150% 160% 170% 180% 190% 200% 210% 220% 230% 240% 250% 260% 270% 280% 290% 300% 310% 320% 330% 340% 350% 360% 370% 380% 390% 400% 410% 420% 430% 440% 450% 460% 470% 480% 490% 500% 510% 520% 530% 540% 550% 560% 570% 580% 590% 600% 610% 620% 630% 640% 650% 660% 670% 680% 690% 700% 710% 720% 730% 740% 750% 760% 770% 780% 790% 800% 810% 820% 830% 840% 850% 860% 870% 880% 890% 900% 910% 920% 930% 940% 950% 960% 970% 980% 990% 1000% Event Logs (ms= ms/total events, 251) Adminer Class Tase Description 1 Adaptive Event1 EN/25/25/25T 15:38 Auto Only data Backed 45% Virtual Disk Dia online 2 ID Event EN/25/25/25T 15:38 Auto Only data Backed 55% Virtual Disk Dia online 3 Adaptive Event1 EN/25/25/25T 15:37 Auto Only data Backed 55% Virtual Disk Dia online

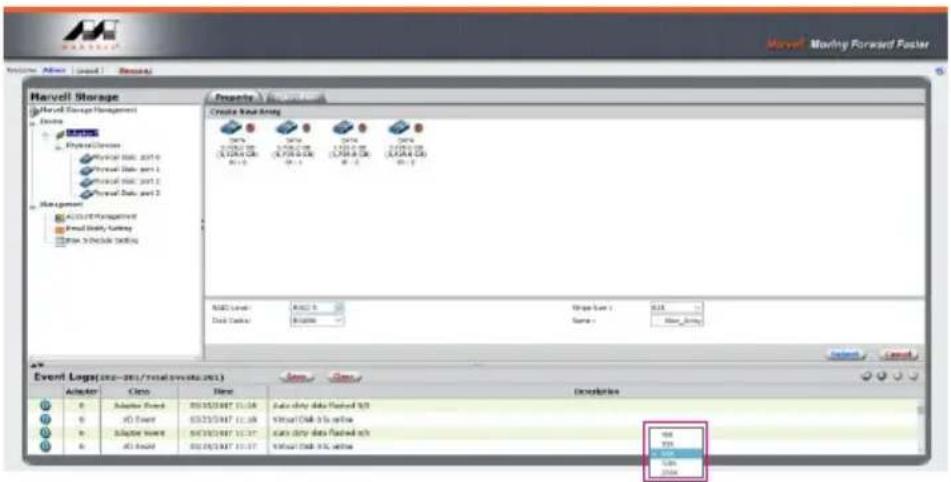

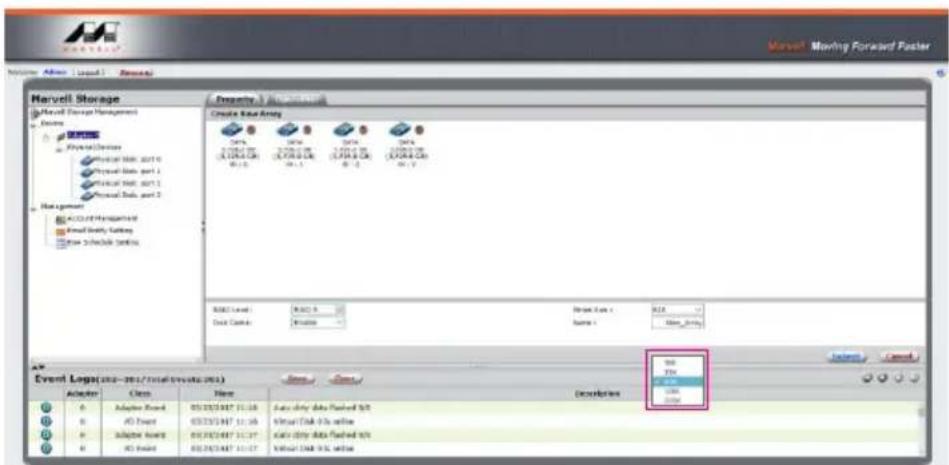

5. Setup Stripe Size.

Marvell Storage Marvell Storage Management Data MOS Physical Storage Physical Data, part 6 Physical Data, part 1 Physical Data, part 2 Physical Data, part 3 Management Active Management Fixed Data, Turkey Data & Control Tracking Create Event Log 3.0% 3.5% 4.5% 5.5% 6.5% 7.5% 8.5% 9.5% 10.5% 11.5% 12.5% 13.5% 14.5% 15.5% 16.5% 17.5% 18.5% 19.5% 20.5% 21.5% 22.5% 23.5% 24.5% 25.5% 26.5% 27.5% 28.5% 29.5% 30.5% 31.5% 32.5% 33.5% 34.5% 35.5% 36.5% 37.5% 38.5% 39.5% 40.5% 41.5% 42.5% 43.5% 44.5% 45.5% 46.5% 47.5% 48.5% 49.5% 50.5% 51.5% 52.5% 53.5% 54.5% 55.5% 56.5% 57.5% 58.5% 59.5% 60.5% 61.5% 62.5% 63.5% 64.5% 65.5% 66.5% 67.5% 68.5% 69.5% 70.5% 71.5% 72.5% 73.5% 74.5% 75.5% 76.5% 77.5% 78.5% 79.5% 80.5% 81.5% 82.5% 83.5% 84.5% 85.5% 86.5% 87.5% 88.5% 89.5% 90.5% 91.5% 92.5% 93.5% 94.5% 95.5% 96.5% 97.5% 98.5% 99.5% 100.5%

• The more Stripe Sizes helps a better data transfer for large data files which is good for video and audio editing works.

• The less Stripe Sizes helps a better efficiency at random files which is good for daily word processing, frequent read-&-write works.

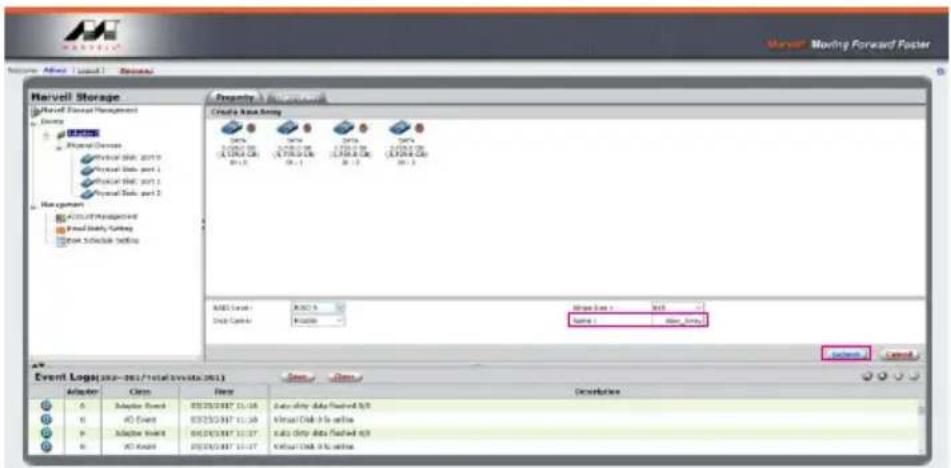

• Type Storage Name and Submit RAID setting.

Marvell Storage Marvell Forward Management History MOSO Physical Devices Physical Data 2019 Physical Data port 1 Physical Data port 2 Physical Data port 3 Management ACSLUT Management Focal Daily Running Focal Schedule Setting Create Data Store MOSO Physical Devices Physical Devices Physical Data Port 1 Physical Data Port 2 Physical Data Port 3 MOSO Data Center MOSO Data Center MOSO Data Center MOSO Data Center MOSO Data Center MOSO Data Center MOSO Data Center MOSO Data Center MOSO Data Center MOSO Data Center MOSO Data Center MOSO Data Center MOSO Data Center MOSO Data Center MOSO Data Center Event Log(s:202-203/total events:203) Adapter Cells Name Description A0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 A14 Event 6325G387 15:16 Auto-Only Data Flawed &5.9 A14 Event 6325G387 15:16 Virtual Disk & No online A14 Event 6325G387 15:17 Auto Only Data Flawed &5.9 A14 Event 6325G387 15:17 Virtual Disk & No online

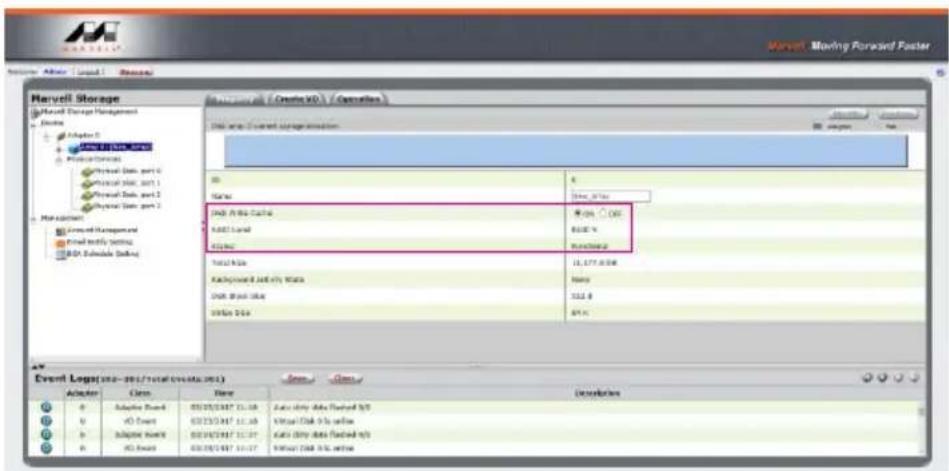

1. After submitting RAID setting:

Marvell Storage Harvell Storage Management Index Adapter 0 Marvell Storage Production Services Physical Data port 6 Physical Data port 1 Physical Data port 2 Physical Data port 3 Management Current Management Fixed notify setting Auto Schedule Setting Event Log(s): (sct - sct/total events.sct) Adapter Cells Date Details 0 Adaptive Event: 00:00:00'07 15:38 Data Only Data Flawed N/S 0 xD Event: 00:00:00'07 15:38 Virtual Disk N/S active 0 Adaptive Event: 00:00:00'07 15:37 Data Only Data Flawed N/S 0 xD Event: 00:00:00'07 15:37 Virtual Disk N/S active Event Log(s): (sct - sct/total events.sct) Editor Case Date Descriptions

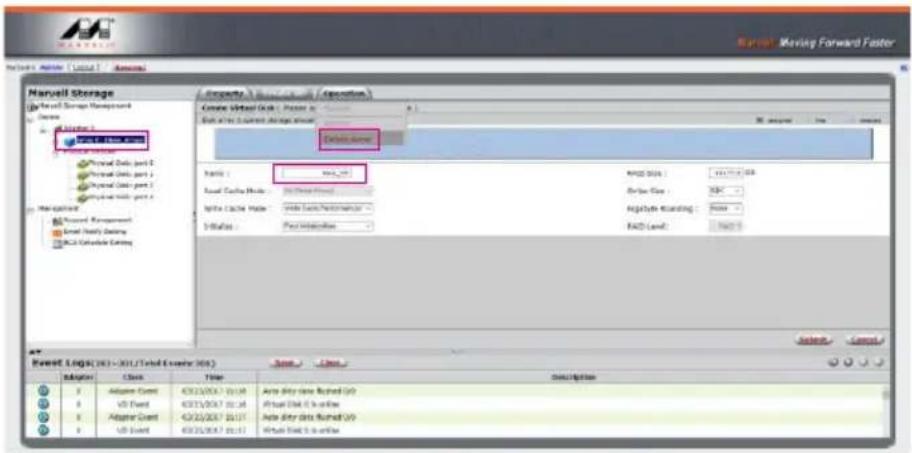

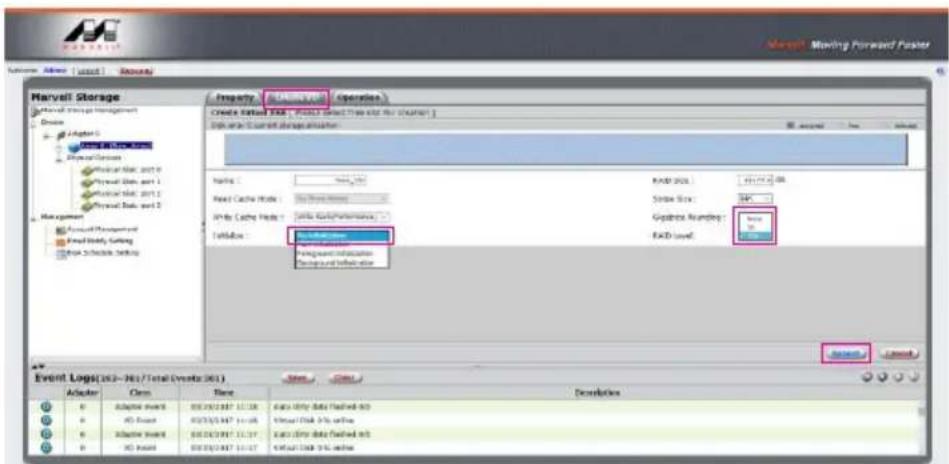

1. Click 【Create VD】, 【Initialize】option is set to 【No Initialization】; 【Gigabyte Rounding】options set to 【10G】, then click 【Submit】.

Harvell Storage Harvell Storage Management Device Adapter 0 Physical Data Physical Data: 2017.9 Physical Data: 2017.1 Physical Data: 2017.2 Management Account Management Food Security, Cutting Data Schedule Setting Property Properties Create Event: FAX® (FAX®) (FAX®) (FAX®) (FAX®) File name: C:\Users\Storage\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\Balance\ Balance Name: FAX® (FAX®) Fool Cache Mode: Only Cache Mode: Only Cache Performance: FAX® Level: FAX® Level: Logos Event Log(2017-202/Total Events (201)) Adapter Class Time Description 0 0 0 0 0 Adaptive Event: 03/30/2017 15:38 03/30/2017 16:38 03/30/2017 17:38 03/30/2017 18:38 03/30/2017 19:38 03/30/2017 20:38 Status: No data installed or Status: No data installed or Status: No data installed or Status: No data installed or Status: No data installed or Status: No data installed or Status: No data installed or Status: No data installed or Status: No data installed or Status: No data installed or Status: No data installed or Status: No data installed or Status: No data installed or Status: No data installed or Status: No data installed or Failure to update the event. Failure to update the event. Failure to update the event. Failure to update the event. Failure to update the event. Failure to update the event. Failure to update the event. Failure to update the event. Failure to update the event. Failure to update the event. Failure to update the event. Failure to update the event. Failure to update the event. Failure to update the event. Failure to update the event. Failure to update the event. Failure to update the event. Failure to update that is not available in this system. Failure to update that is available in this system. Failure to update that is available in this system. Failure to update that is available in this system. Failure to update that is available in this system. Failure to update that is available in this system. Failure to update that is available in this system. Failure to update that is available in this system. Failure to update that is available in this system. Failure to update that is available in this system. Failure to update that is available in this system. Failure to update that are available in this system. Failure to update that are available in this system. Failure to update that are available in this system. Failure to update that are available in this system. Failure to update that are available in this system. Failure to update that are available in this system. Failure to update that are available in this system. Failure to update that are available in this system. Failure to update that are available in this system. Failure to update that are available in this system. Failure to update that is available in this system. Failure to update that is available in this system. Failure to update that is available in this system. Failure to update that is available in this system. Failure to update that is available in this system. Failure to update that is available in this system. Failure to update that is available in this system. Failure to update that is available in this system. Failure to update that is available in this system. Failure to update that has been available in this system. Failure to update that has been available in this system. Failure to update that has been available in this system. Failure to update that has been available in this system. Failure to update that has been available in this system. Failure to update that has been available in this system. Failure to update that has been available in this system. Failure to update that has been available in this system. Failure to update that has been available in this system. Failure to update that has beenavailable on this system. Failure to update that has been available on this system. Failure to update that has been available on this system. Failure to update that has been available on this system. Failure to update that has been available on this system. Failure to update that has been available on this system. Failure to update that has been available on this system. Failure to update that has been available on this system. Failure to update that has been available on this system. Failure to update that has been available on this system. Failure to update that has been availableon this system. Failure to update that has been available on this system. Failure to update that has been available on this system. Failure to update that has been available on this system. Failure to update that has been available on this system. Failure to update that has been available on this system. Failure to update that has been available on this system. Failure to update that has been available on this system. Failure to update that has been available on this system. Failure to update that has been available onthis system. Failure to update that has been available onthis system. Failure to update that has been available onthis system. Failure to update that has been available onthis system. Failure to update that has been available onthis system. Failure to update that has been available onthis system. Failure to update that has been available onthis system. Failure to update that has been available onthis system. Failure to update that has been available onthis system. Failure to update that has been available onthis systems; Failure to update that has been available onthis systems; Failure to update that has been available onthis systems; Failure to update that has been available onthis systems; Failure to update that has been available onthis systems; Failure to update that has been available onthis systems; Failure to update that has been available onthis systems; Failure to update that has been available onthis systems; Failure to update that has been available onthis systems; Failure to update that has been available onthis systems; No change Event Log(2017-202/Total Events (201)) Save... Cancel Event Log(2017-202/Total Events (201))

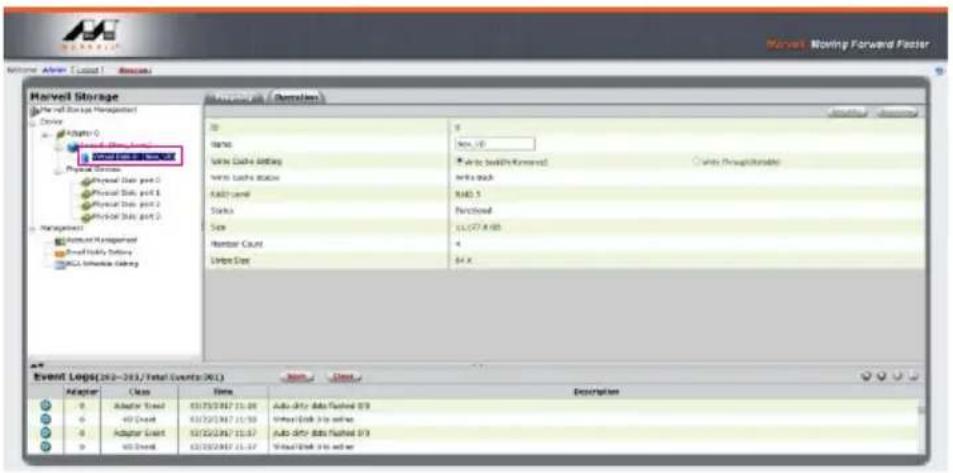

9. After submit, you get a New\_VD.

Harvell Storage Harvell Storage Management Driver: Adapter 0 Physical Data port 0 Physical Data port 1 Physical Data port 2 Physical Data port 3 Management: Physical Management Physical Data Settings MCA Infrastructure Setting Event Logs(202-203/Total Events(202)) Marker Name Units Cache Setting With Latch Status Add List Starks Size Member Count Large Size 8 New: 10 Active (default) Version1 Units Through(Start) Add Back RAG 1 Finished CLUSTA RAG 4 SAX Event Logs(202-203/Total Events(202)) Marker Name Units Description Adapter 0 Adapter 0 Cell Count Adapter Event Cell Count Adapter Event Adaptor Event Adaptor Event Adaptor Event Adaptor Event Adaptor Event Adaptor Event

P.S. VD is the abbreviation of Virture Disk.

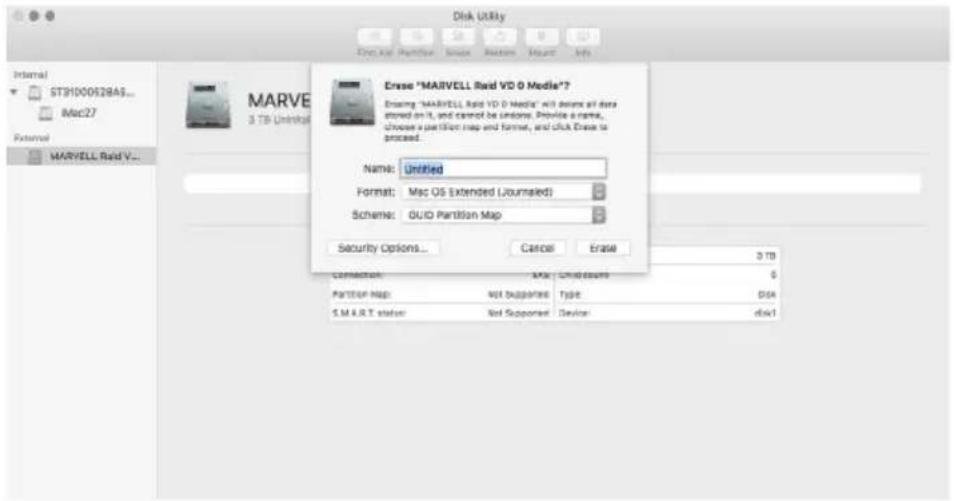

10. To initiate and format HDD/SSD at OS level.

Disk Utility Internal ST91000528A5... Mac27 External MARVELL Ravi V... MART 3 TB Un installed Erase "MARVELL Ravi V3.0 Media?" Erase: MARVELL Ravi V3.0 Media will ensure all data stored on it, and cannot be installed. Provide a name, choose a partition map and format, and click Erase to proceed. Name: Untitled Format: Mac OS Extended (Journalled) Scheme: GUID Partition Map Security Options... Cancel Erase 3 TB Connection: MAC Dircturns $ Partition Map: Not Supported Type: Disk S.M.R.T. status: Not Supported Device: disk1

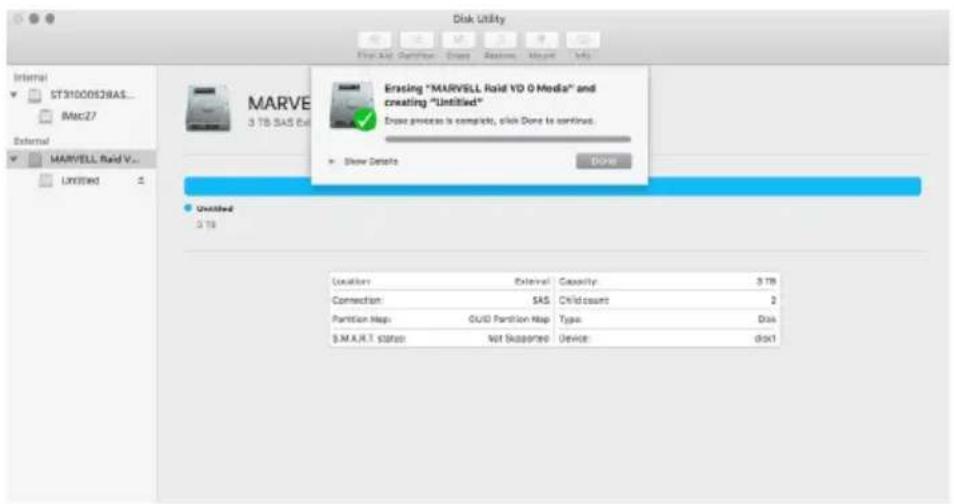

11. After completing the format, you could start using your GR8680-TB3.

Disk Utility Internal ST31000538AS... Mac27 External MARVELL Raid V... LIMITED MART Erasing "MARVELL Raid VD 0 Media" and creating "Untitled" Erase process is complete, click Done to continue. Show Details OK Unvisited 3 TB Location External Casality 3 TB Connection SAS Child count 2 Partition Map OLID Partition Map Type: Dias S.M.A.R.T. Status Not Supported Device:dias1

B. Delete a RAID for a new RAID setting

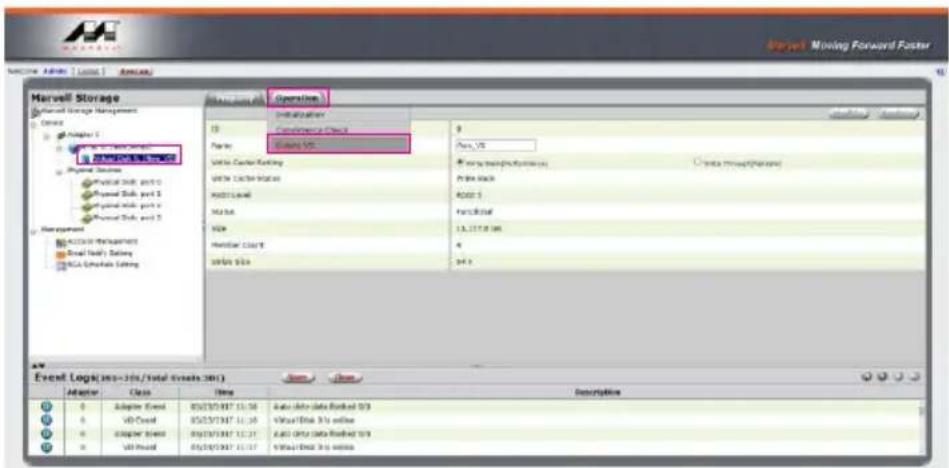

1. Click 【Operation】 and 【Delete VD】.

Marvell Storage Marvell Storage Management Source: Chapter 1 Program Files Physical Disk port 0 Physical Disk port 1 Physical Disk port 2 Management ACCEL Management Serial Data Delivery NCA Coordinate Ordering Status: Status Event Log(100-300/total events 200) Adapter Class Time Description 0 Adapter Event OS/OS/OS/OS/OS 10.56 Auto data feedback 079 0 VD Control OS/OS/OS/OS/OS 10.56 Virtual Disk 3 to online 0 Adapter Speed OS/OS/OS/OS/OS 10.57 Auto data feedback 078 0 VD Control OS/OS/OS/OS/OS 10.57 Virtual Disk 3 to online

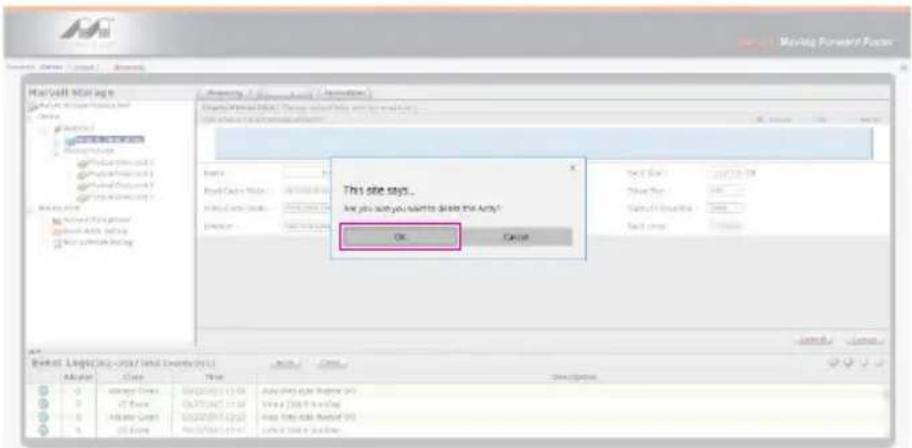

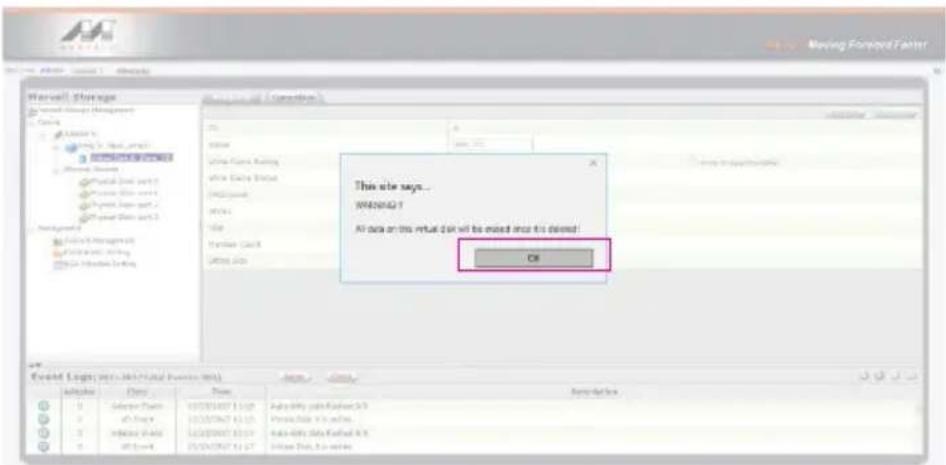

1. Click 【OK】 at first warning message.

This site says... WANNAQ 1 All data on this market can be mixed once it opened! Off

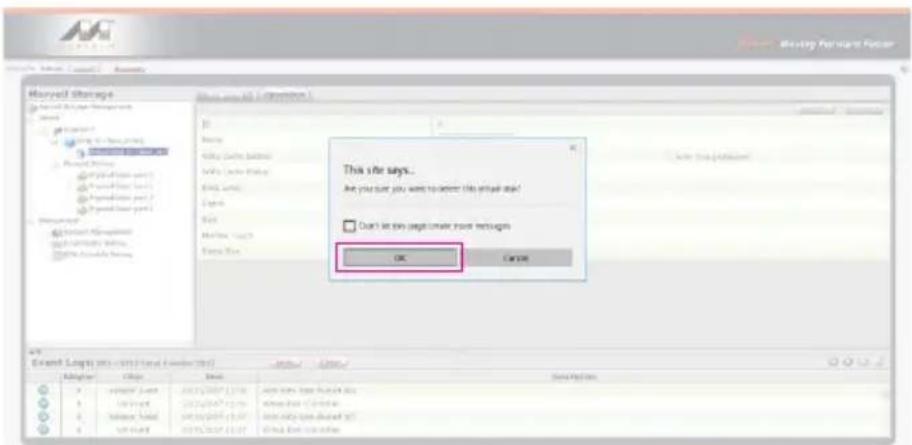

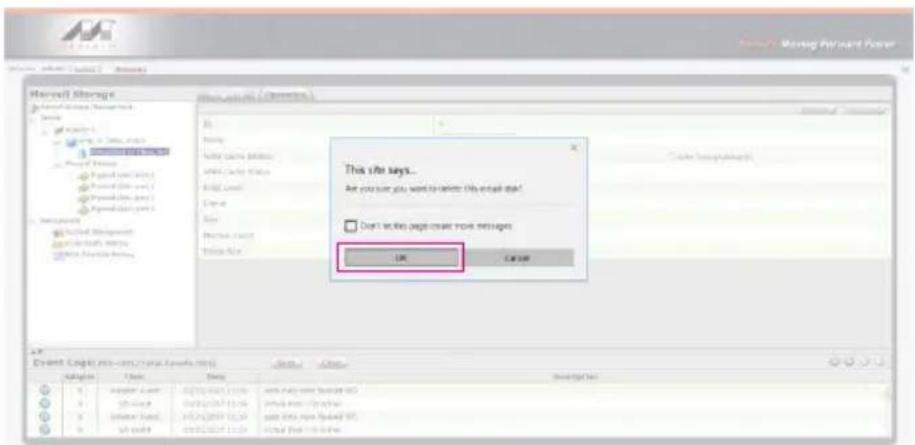

1. Click 【OK】 at the second warning message.

Microsoft Azure Storage This site says... Are you sure you want to select this email address! Don't let this page create more messages OK Cancel Expand Settings (1) (2) (3) (4) (5) Add Options Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add User Address Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add UserAddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Useraddress Add Usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usercapacity Add usage rights and rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rights rightsrightsalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesielesiasalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesiesalesialesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiasalesiaselsialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialesialessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaaaessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaalessaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLessssaaaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLleaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeassLaeslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaslaLeaseLaeslaLeaseLaeslaLeaseLaeslaLeaseLaeslaLeaseLaeslaLeaseLaeslaLeaseLaeslaLeaseLaeslaLeaseLaeslaLeaseLaeslaLeaseLaeslaLeaseLaeslaLeaseLaeslaLeaseLaeslaLeaseLaeslaLeaseLaeslsleaseLaeslsleaseLaeslsleaseLaeslsleaseLaeslsleaseLaeslsleaseLaeslsleaseLaeslsleaseLaeslsleaseLaeslsleaseLaeslsleaseLaeslsleaseLaeslsleaseLaeslsleaseLaeslsleaseLaeslsleaseLaeslsleaseLaeslsleaseLaeslsleaseLaeslsleaseLaeslsloeseLaeslsloeseLaeslsloeseLaeslsloeseLaeslsloeseLaeslsloeseLaeslsloeseLaeslsloeseLaeslsloeseLaeslsloeseLaeslsloeseLaeslsloeseLaeslsloeseLaeslsloeseLaeslsloeseLaeslsloeseLaeslsloeseLaeslsloeseLaeslsloeseLaeslsloeseLaeslslooseLaeslslooseLaeslslooseLaeslslooseLaeslslooseLaeslslooseLaeslslooseLaeslslooseLaeslslooseLaeslslooseLaeslslooseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeuseLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeusesLaeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laeuses Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laius Laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue laue lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauua lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauus lauua lauua lauua lauua lauua lauua lauua lauua lauua lauua lauua lauua lauua lauua lauua lauua lauua lauua lauua lauua lauua lauua lauua lauua lauua lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti last i lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti lasti last 10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

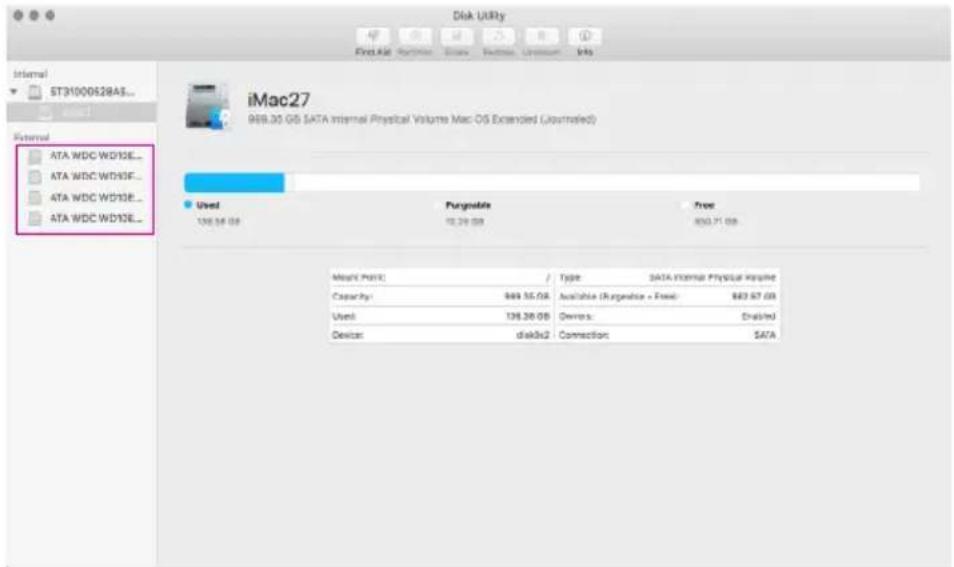

1. It returns to JBOD mode, you just have to format every individual HDD or just to set up another RAID.

Disk Utility File Edit View Insert Window Help Internal ST31000528A3... iMac27 949.35 GB SATA Internal Physical Volume Mac OS Extended (Journated) Internal ATA WDC WD13E... ATA WDC WD13F... ATA WDC WD13E... ATA WDC WD13E... Used Pargnable Free 106.54 GB 12.24 GB 850.71 GB Mnark Point: / Type: DATA Internal Physical Volume Capacity: 849.35 GB Available (Risperse + Fixed): $83.67 GB Used: 138.26 GB Devices: Disabled Device: disk3x2 Connection: SATA

Please refer to "RAIDON All TB2&TB3 RAID 5 Storage MSU User Manual.pdf" for the RAID setting.

1. The Indication of HDD Status

Status System indicator Light HDD Status Light Buzzer
No HDD detected Blue light always on Red light always on — —
RAID Failed Purole light flashing Red light always on YES
HDD failure Purole light flashing Red light always on YES
Data access	Blue light always on	Blue light flashing	— —
HDD idle Blue light always on Blue light always on — —
Rebuilding data - Source HDD	Blue light always on	Blue light flashing	— —
Rebuilding data - Target HDD	Blue light always on Purole light flashing — —
Fan failure	Purole light flashing	Blue light always on	YES
Overheat	Purole light flashing	Blue light always on	YES

8. Connect with other devices

1. TB port: Thunderbolt™ 3 ports can be connected to TB3, USB3.1 and Display port device. It is downward to support USB3.0 / USB2.0. This product can connect with different USB devices by USB Type C to Type A/B cable. It supports TB port power delivery (PD) function, which can provide 15W (5V / 3A) power output to support 5V / 3A rechargeable notebook computer use. There is no additional power supply need.
2. Mini Display port: configured with Mini Display Port connection port to provide additional screen output.

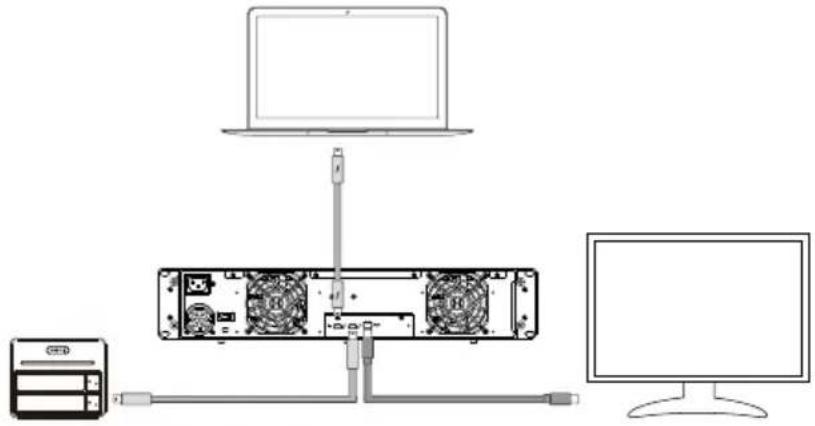

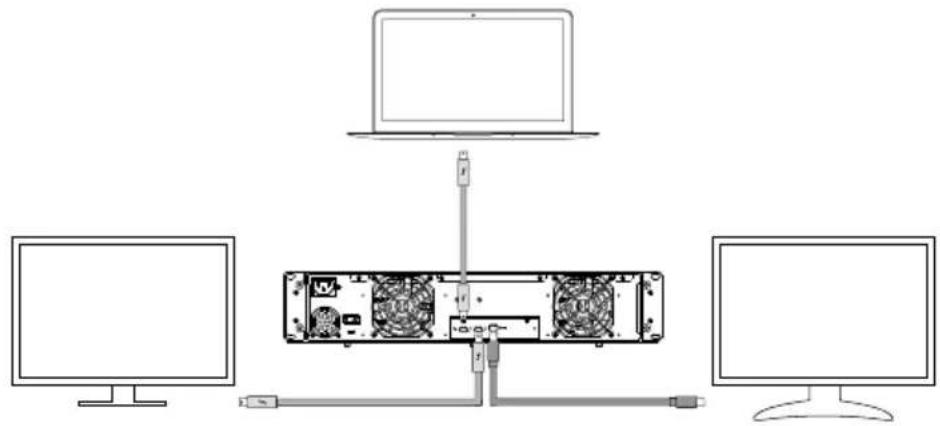

Two System Connections:

A. GR8680-TB3: Let its TB A port connect to Host (PC/Workstation/Server), TB B port to other Device (USB or TB), and mDP (Mini Display) port to monitor.

Diagram of a network device with monitor, tower, and server connected to a laptop (no text or labels)

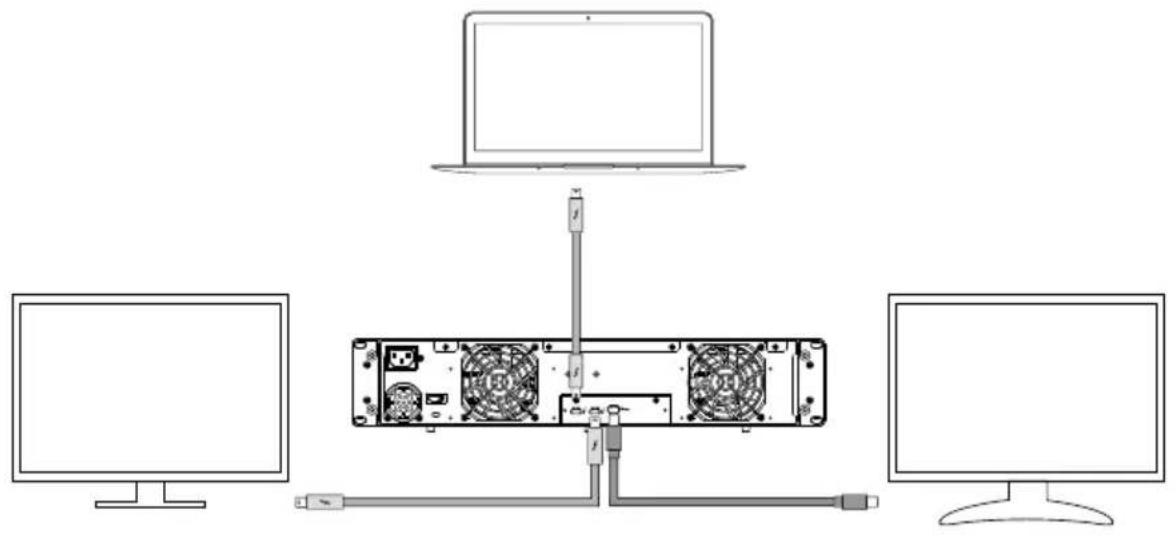

B. GR8680-TB3: Let its TB A port connect to Host (PC/Workstation/Server), TB B port to a monitor, and mDP port to the second monitor.

Diagram of a network device with three monitors connected to a central drive unit (no text or labels)

9. Common Technical Questions

1. GR8680-TB3 will always stay SLEEP Mode if (a) it doesn't connect it to Mac Computer, and (b) your Mac Computer is Power-Off.
2. GR8680-TB3 will also stay SLEEP Mode if your Mac Computer gets into SLEEP or IDLE Mode too.
3. In case if you use old HDDs which already have other RAID setting, we would strongly suggest you to first reset them with JBOD mode at your GR8680-TB3 before setting them to the RAID mode you will use GR8680-TB3.

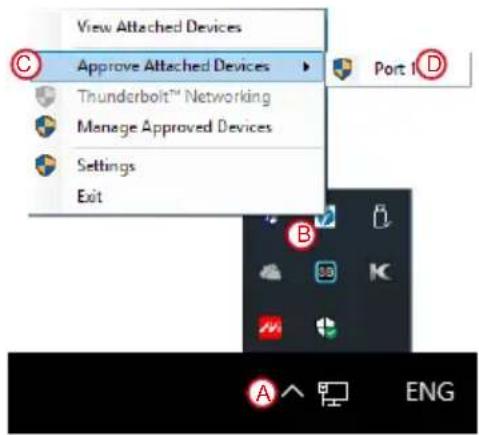

4. If the GR8680-TB3 is installed on the Windows OS but can not be connected, refer to the following steps:

A. Open the Windows Taskbar.
B. right-click the Thunderbolt™™ icon.
C. Select "Approve Attached Devices".
D. Select the port to which the device is connected.

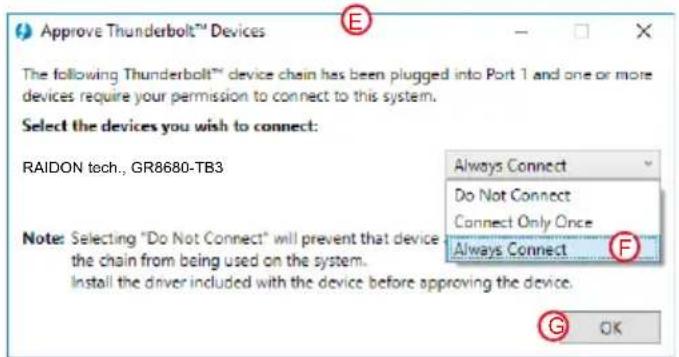

E. Wait for the dialog box "Approve Thunderbolt™™™ Devices" to appear.
F. Select "Always Connect"
G. Press "OK"。

View Attached Devices Approve Attached Devices Thunderbolt™ Networking Manage Approved Devices Settings Exit Port 1 D A ENG

Approve Thunderbolt™ Devices The following Thunderbolt™ device chain has been plugged into Port 1 and one or more devices require your permission to connect to this system. Select the devices you wish to connect: RAIDON tech., GR8680-TB3 Note: Selecting "Do Not Connect" will prevent that device the chain from being used on the system. Install the driver included with the device before approving the device. Always Connect Do Not Connect Connect Only Once Always Connect G OK

5. How to install software on macOS:

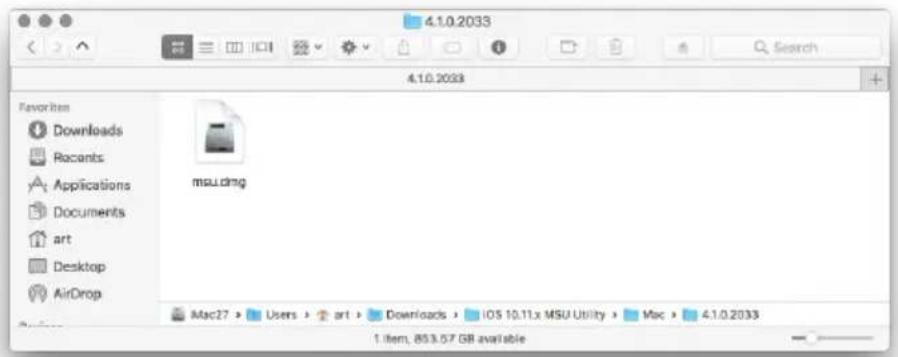

A. Unzip the downloaded tarball and execute msu.dmg.

4.1.0.2033 Search 4.1.0.2033 Favorites Downloads Racants Applications Documents art Desktop AirDrop msu.dmg Mac27 > Users > art > Downloads > iOS 10.11x MSU Utility > Mac > 4.1.0.2033 1 item, 853.57 GB available

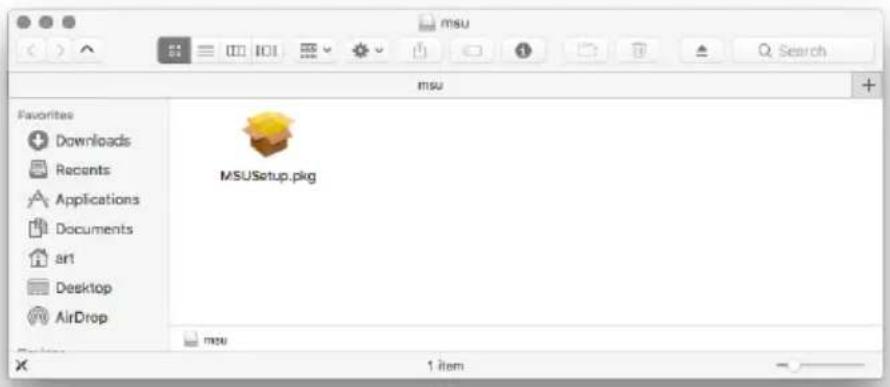

B. Get the installation program MSUSetup.pkg, execute the program, and enter the installation process.

msu Favorites Downloads Recents Applications Documents ar1 Desktop AirDrop MSUSetup.pkg msu 1 item

C. Follow the flow instructions and actual conditions to complete the installation.

Welcome to the Marshall Storage Utility Installer • Introduction • License • Destination Select • Installation Type • Installers • Summary You will be guided through the steps necessary to install the software. Browse Continue

Installation Market Change of Buy The installation was completed successfully. Introduction License Definition Select Installation Type Installation Summary The installation was successful. The software was installed.

1. There are three ways to start the program:

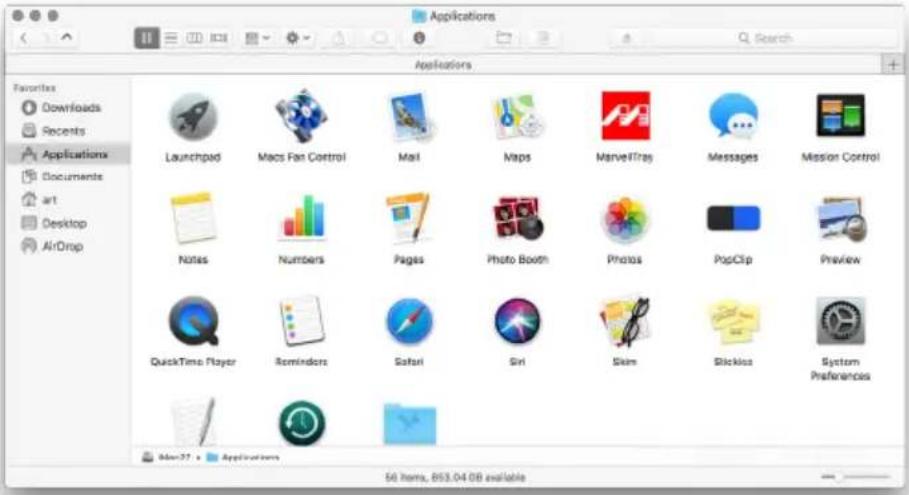

A. Find MarvellTray in the folder "Applications", hit the point and execute the program.

Applications Favorites Downloads Recents Applications Documents art Desktop AirDrop Launchpad Macos Fan Control Mail Maps MarvelTray Messages Mission Control Notes Numbers Pages Photo Booth Photos PopClip Preview QuickTime Player Reminders Safari Siri Skim Blockics System Preferences 60 items, 853.04 DB available

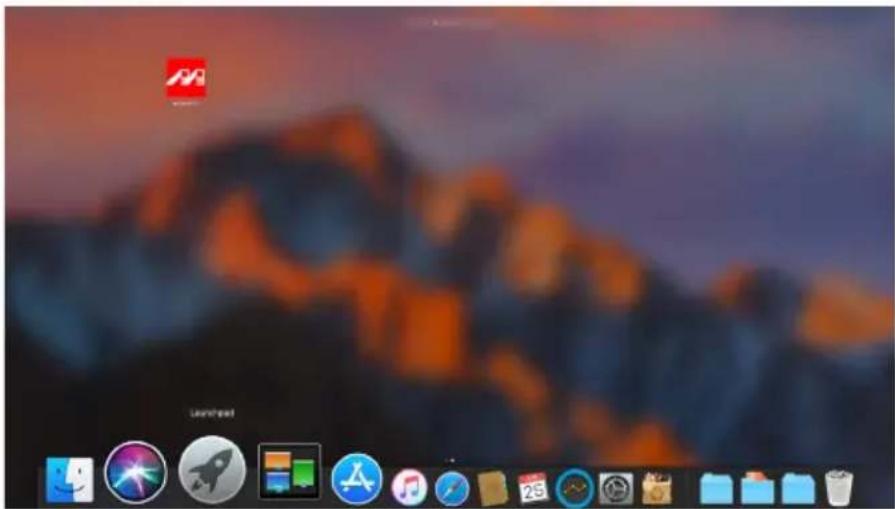

B. Hit the Launchpad on the Dock and hit the MarvellTray icon to execute the program.

Desktop screenshot showing macOS system icons and a 'Unreadout' status bar with '25' highlighted

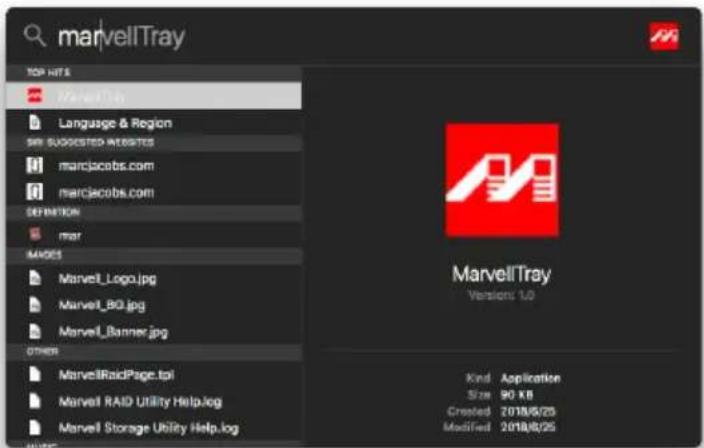

C. Using Spotlight's search function, type MarvellTray to find the program and press Enter to execute the program.

marvellTray TOP HITS MarvellTun Language & Region SIN SUGGESTED ITEMS marclacobs.com marclacobs.com DEFINITION mar MAYES Marvell_Logo.jpg Marvell_BO.jpg Marvell_Banner.jpg OTHER MarvellRaidPage.tol Marvell RAID Utility Help.log Marvell Storage Utility Help.log Kind Application Size 90 KB Created 2018/6/25 Modified 2018/6/25

1. The new macOS 10.13 (High Sierra) requires user approval before loading new, third-party kernel extensions:

A. Execute MarvellMvumi.pkg.
B. Appear from an unidentified developer warning, click on the lower right corner of the "OK."

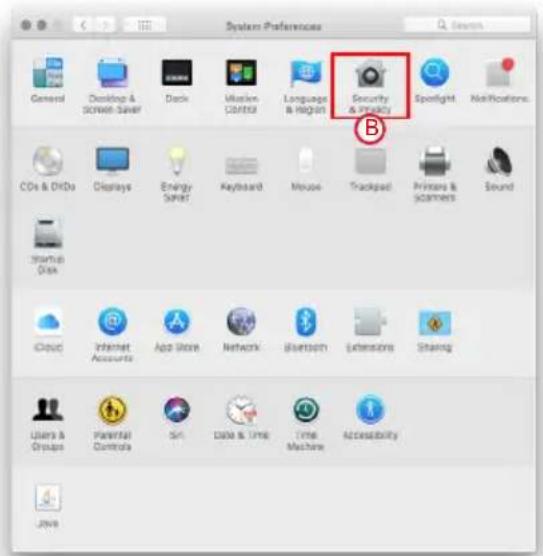

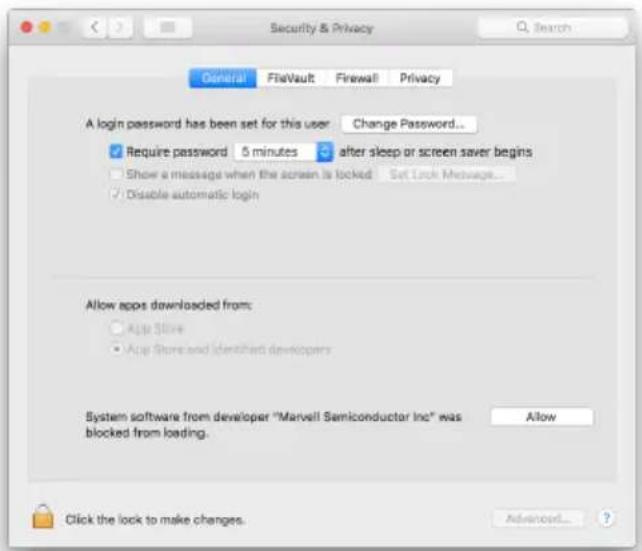

C. Open System Preferences, and go to Security & Privacy.
D. Click on the "Allow" button.

System Preferences General Desktop & Screen Server Dock Mission Control Language & Region Security & Privacy Spotlight Notifications CDs & DRDs Displays Energy Server Keyboard Mouse Trackpad Printers & scanners Sound Startup Disk Cloud Internet Accounts App Store Network Bluetooth Extensions Sharing Users & Groups Parental Controls Spin Data & Time Time Machine Accessibility Java

Security & Privacy General FileVault Firewall Privacy A login password has been set for this user Change Password... ✓ Require password 5 minutes ✓ after sleep or screen saver begins □ Show a message when the screen is locked Set Lock Message... ✓ Disable automatic login Allow apps downloaded from: ○ App Store ● App Store and identified developers System software from developer "Marvell Semiconductor Inc" was blocked from loading. Allow Click the lock to make changes. Advanced...

Note: If you can not click the allow button, click the lower left corner of the lock icon, and enter the administrator password.

關於這份手冊

Diagram of a server rack with labeled components including fans, switches, and ports

A. 硬碟讀取燈
B. 硬碟抽取盒鎖
C. 硬碟卡榫退出鍵
D. 靜音按鈕

Technical line drawings of a compact hard disk with red arrows indicating mounting points (no text or symbols present)

Microsoft Moving Forward Faster Market Manager | Local | Amounts Manvell Storage Initial Storage Management Device Mines Physical Devices Physical Data port 0 Physical Data port 1 Physical Data port 2 Physical Data port 3 Management Assistant Management Catal Supply Setting Data Schedule Setting Event Log(s:202-205/Total Events:202) Operator | Status | Time | Description 0 Adapter Event S2/20/2017 10:38 Auto-Duty data-Earnings A/S 0 VD Event S2/20/2017 10:39 Utras Disk 3.6 online 0 Adapter Event S2/20/2017 10:47 Auto-Duty data-Earnings B/S 0 VD Event S2/20/2017 10:47 Utras Disk 3.6 online

Marvell Storage Market Store Management History MOSO Physical Store Physical Data, port 0 Physical Data port 1 Physical Data port 2 Physical Data port 3 Not current Show the expected Show that's Setting Show schedule setting Create New Array 50% 5.0% 0.0% 0.0% 5.0% 0.0% 0.0% 5.0% 0.0% 0.0% 5.0% 0.0% 0.0% 5.0% 0.0% 0.0% 5.0% 0.0% 0.0% 5.0% 0.0% 0.0% 5.0% 0.0% 0.0%? 5.0% 0.0% 0.0% 5.0% 0.0% 0.0% 5.0% 0.0% 0.0% 5.0% 0.0% 0.0% 5.0% 0.0% 0.0% 5.0% 0.0% 0.0% 5.0% 0.0% 0.0% 5,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74,75,76,77,78,79,80,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100 Multi-Server Disk Center Multi-Server Disk Center Multi-Server Disk Center Multi-Server Disk Center Multi-Server Disk Center Multi-Server Disk Center Multi-Server Disk Center Multi-Server Disk Center Multi-Server Disk Center Multi-Server Disk Center Multi-Server Disk Center Multi-Server Disk Center Multi-Server Disk Center Multi-Server Disk Center Multi-Server Disk Center Multisector (ms=ms+ms/total events:201) Event Log(s):ms=ms+ms/total events:201) Address Class Time Description N ADAPOR Book1 85/23/2017 11:38 N VD Cloud 85/23/2017 11:38 N ADAPOR Book1 85/23/2017 11:37 N VD Cloud 85/23/2017 11:37 N ADAPOR Book1 85/23/2017 11:37 N VD Cloud

5. 設定 Stripe Size

Marvell Moving Forward Poster Volume: Admin | Load: 1 | Amount: 0 Marvell Storage Marell Storage Management Actions Physical Storage Physical Data: 2017 Physical Data: part 1 Physical Data: part 2 Hot Storage ACCOUNT Configuration Email Security Settings Show Schedule Parking Create Data Array 3.000 GB 3.000 GB 3.000 GB 3.000 GB 3.000 GB 3.000 GB 3.000 GB 3.000 GB 3.000 GB 3.000 GB 3.000 GB 3.000 GB 3.000 GB 3.000 GB 3.000 GB 4.00 GB 4.00 GB 4.00 GB 4.00 GB 4.00 GB 4.00 GB 4.00 GB 4.00 GB 4.00 GB 4.00 GB 4.00 GB 4.00 GB 4.00 GB 4.00 GB 4.00 GB 4.00 GB 4.00 GB

Marvell Storage Market Storage Management Device Chapter 0 Physical Storage Physical Data: 2017 Physical Data: 2017 Physical Data: 2017 Management External Management External Security External Settings Property Storage Operations Complex File Size: 54.8 GB PSCs (Current Designation) Name: PSCs (Current Designation) PSCs (Current Designation) PSCs (Current Designation) PSCs (Current Designation) PSCs (Current Designation) PSCs (Current Designation) PSCs (Current Designation) PSCs (Current Designation) PSCs (Current Designation) PSCs (Current Designation) PSCs (Current Designation) PSCs (Current Designation) PSCs (Current Designation) PSCs(2017-2018) / Total Events (2017) Event Log(s): 2017/Total Events (2017) Adapter Class Time Description 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Event Logs: 2017-2018 / Total Events (2017)

Microsoft Stock Exchange Event Log(s) (per 10^3/2017) (Data Options: Not) Add Back Close Discs Description Subdivers: Subdivers: Select Select Date Select Date Select Date Select Date Subdivers: Select Select Date Select Date Select Date Select Date Subdivers: Select Select Date Select Date Select Date Select Date Subdivers: Select Select Date Select Date Select Date Select Date Subdivers: Select Select Date Select Date Select Date Select Date This site says... MIDUOQ? All data on this retail store will be used since its closed! OK

1. 在第二條警告信息中點擊【OK】。

Microsoft Storage This site says... Are you sure you want to select this email draft? Don't in the past create more messages OK Cancel

4. 點擊【Operation】、【Delete Array】與【Submit】

Marvell Storage Market Storage Management Description Marvell Storage Physical Data: part 2 Physical Data: part 1 Physical Data: part 3 Capacity: 100% Capacity: 100% Data type: Current Storage Server Exhibit name Name: MSS_101 Rawal Cache Mode: D:\Current\Flow Inita Cache Mode: Inita Save Performance T-Status: First Information MSS Date: 11.17.17.16 Begin Case: 50K Aglective Recording: None MACD Level: MACD Event Log(s) (301 - 302) / Total Events (304) Operator Class Title Description Atray data flushed (0) Atray data is online Atray data flushed (0) Atray data is online

5. 在警告信息中點擊【OK】。

Microsoft Stock Exchange Manager This site says... Are you sure you want to share the Army? OK Cancel

Diagram showing network topology with a laptop, server, and monitor connected to internal hardware components

B. GR8680-TB3: TB A port 接 MB (Host), TB B port 接螢幕, mDP 接螢幕 (雙螢幕)

Diagram of a network device with two monitors, a central CPU socket, and a laptop above it (no text or labels)

9. 常見問題

Desktop screenshot with macOS and network icons, showing a cityscape background and application icons

QR code image containing encoded data, no visible human-readable text
