USER MANUAL VSR 352 BOMANN

VOLLRAUMKÜHLSCHRANKOLVRSAUHRCHRA

LARDERARDER

Black rectangular device with a metallic lens and green indicator light on the side (no visible text or symbols)

Instruction Manual Instruction M

DEUTSCHDEUTSCH

InhaltInhalt

Special safety Information for this Unit......Page 13

Unpacking the Appliance......Page 15

Appliance Equipment......Page 15

Installation......Page 15

Startup / Operation......Page 16

Cleaning and Maintenance......Page 18

Troubleshooting......Page 18

Technical Data......Page 19

Installation Installation

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in the Symbol Instructions for Usese Instructions for Use Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNINGING

This warns you of dangers to your health and indicates possible injury risks.

CAUTIONCAUTION

This refers to possible hazards to the machine or other objects.

NOTENOLtEhighlights tips and information.

General Notes General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, please also pass on the operating instructions.

NOTENOTE

The illustrations in this instruction manual can deviate from the original appliance.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any use other purpose. Any other use is not intended and can result in damages or personal injuries.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING

Do not allow small children to play with the foil.

There is a danger of suffocation!danger of suffocation!

Special safety Information for this Unit

- This unit is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING: WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery).
• Do not damage the refrigerant circuit.
• Do not operate any electrical devices inside the appliance.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance appliance way and understand the hazards involved.

- ChildrenShidrapt play with the appliance.

- Cleaning and user maintenance shall maintain a trade by children milkers, they are older 8 years and supervised.

- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.

- Use the provided collection points of electrical equipment for the disposal of the appliance.

CoolantCoolant

WARNINGING

The coolant circuit of this appliance contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged, regulated circuit is da

• avoid any open flames or ignition source,
• disconnect the plug,
• thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

Appliance Equipment Appliance Equipment

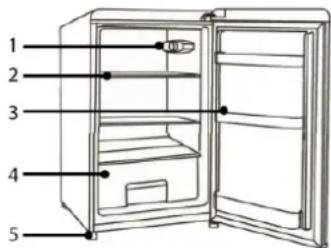

Appliance overviewAppliance overview

1 2 3 4 5

1 Temperature control / interior light
2 Glass shelves
3 Door storacke racks
4 Vegetable box
5 Feet

Delivery scope

3x Glass shelf, 1x vegetable box, 3x door storage rack, 1x egg tray, 1x door handle / handle cover incl. mounting screws

Installation

Unpacking the Appliance Unpacking the Appliance Conditions for the installation location

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTENOTE

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter “Cleaning and Maintenance”.

• Good ventilation is required around the appliance, in order to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Sufficient clearance is necessary.
• Gap to the back and to the side walls each approx. 10 cm;
• Place the appliance so that the appliance door can open without being impeded.

- Only install at a location with an ambient temperature suitable for the climate class of the appliance. For information on the climate class, please refer to the "EU Product Data Sheet" or to the rating label located in the interior or on the rear side of the appliance.

- Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust the feet accordingly (one or two adjustable feet depending on the model).

- Avoid the installation: Avoid the installation:

• near heaters, next to a stove, direct sunlight or any other heat sources;
• at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;
• near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages).
• Do not expose the appliance any weather.

Electrical connection Electrical connection

WARNING: WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric electric shockshock
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

- Make sure that the voltage supply matches the specifications on the rating label before connecting.

- Connect the mains cable to a properly installed and earthed wall outlet.

- If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Assembling the door handle Assembling the door handle

Position the handle and fix it with three screws on the door.

Put on the handle cover.

Attach the cover with a screw.

Startup / OperationStartup / Operation

Prior to first use Prior to first use

CAUTION:CAUTION

After transport, the appliance should be left standing upright for about 4 hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and Maintenance".

Starting the appliance Starting the appliance

• Connect the appliance to the power supply.
• Operate the temperature control. See also the section "Settings".

Settings

Setting [0] means that the appliance is in the off state. Turn the temperature control clockwise, starting from this setting; the appliance will turn on automatically.

The power levels [1–5] regulate the different values of the internal temperature.

Setting 0

Setting 1

Setting 5

Off state

Lowest setting

Highest setting

(warmest inside

(coldest inside

temperature)

temperature)

Note that the temperature will change depending on the ambient temperature, frequency of door opening and the amount of food in the appliance.

During initial operation, turn the temperature control to the highest setting first, until the appliance has reached the desired operating temperature. After-

wards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier.

Interior light Interior light

When opening the appliance door, the interior light will turn on automatically.

Storing foodStoring food

NOTE: Recommendation! Recommendation!

To guarantee that the temperature is low enough, you should pre-cool the appliance a few times before initial loading foods.

CAUTION:CAUTION:

Always pay attention to the storage instructions on the sales packaging.

Always store food covered or packed in order to prevent drying-out and transfer of odor or taste onto other food items. You may pack the food with e.g.

• Polyethylene plastic bags or foil

• Special plastic covers with elastic strip

- Plastic bowl with lid

- Aluminum foil

Recommendations Recommendations

• Store fresh packed items on the glass shelves, fresh fruits and vegetables in the vegetable box.
• Place bottles in the door storage rack.
• By the air circulation different climate zones arises.

- The coldest zone is located at the rear and the lower fridge part. Recommended for the storage of foods such as fish, sausages and meat.

- The warmest zone is located at the door and the upper fridge part. Suitable for the storage of e.g. cheese and butter.

- Let warm food cool down first.

Operating noise Operating noise

Type of soundT	Ca2O2UseC
Mumbling Compressor during its operation
Liquid sounds Circulation of the refrigerant
Click sounds	The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching off

To switch off the appliance turn the temperature control to the off state.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Disconnect the appliance from the power supply.
• Clean the appliance thoroughly (see "Cleaning and Maintenance").
• Leave open the appliance door to prevent unpleasant odours.

Tips for Energy saving

• Disconnect the appliance from the power supply, if it isn't in use.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure sufficient ventilation at the bottom and rear side. Never block ventilation openings.
• Allow warm dishes to cool down before putting into the appliance.
• Do not adjust the temperature colder than necessary.
• Do not open the door longer than necessary.
• The appliance should be defrosted regularly.
• The seal of the appliance door must be completely intact, so that the door closes properly.

WARNING: WARNING:

• Always disconnect the appliance from the power supply before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Risk steel electric shock damage the plastic parts.
• The appliance must be dry before restarting operation.

△ CAUTION:CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not damage the refrigerant circuit.

Cleaning the appliance Including InteriorCleaning the app

• Clean the appliance interior, the exterior surfaces, the accessories and the door seal regularly with warm water and mild detergent.
• Remove for that the appliance content and storage at a cool location.
• Clean the thaw water discharge channel / opening carefully e.g. with a pipe cleaner.
• After everything was thoroughly dried, you can restart the operation.

DefrostingDefrosting

The appliance has an automatic defrosting system. During defrosting water drops drains off at the back of the cooling chamber. The thaw water running through a channel, is collected in a drip tray located on the compressor, where it will evaporate. Make sure the water discharge opening does not get clogged. A light formation of ice on the interior back during operation is normal.

Lamp specifications: 220L240V940N6ax10Wx220

• Remove the lamp cover carefully.
• Change the bulb.
• Reattach the lamp cover properly.

Troubleshooting

Before you contact an authorized specialist

Problem	Cause / Action
Appliance is not working properly or at all	- Check the power supply / temperature setting / ambient temperature.- Unblock the ventilation openings, install the appliance freely.
Stored food is too warm	- Check the temperature setting / ambient temperature.- Open the door only as long as necessary interior sary.
Loud noise during operation	- Check the appliance position.- See the section “Operating noise”.
Water on the appliance bottom	Check the temperature setting / water discharge channel or opening.
Light does not work	- Check the power supply.- See “Changing the bulb”.

i NOTE:

If a problem still persists after following the steps above, contact your trader or an authorized technician.

Technical Data Technical Data

Electrical connElectrical connetion

Power voltage: 220-240 V\~ / 50 Hz

Connection power: 70 W

Dimension H x W x D / Weightension.H x.W x.D./Weight.

Appliance size: 87.0 x 55.0 x 56.8 cm

Net weight: ....approx. 28.0 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal Disposal

Meaning of the "Dustbin" Symbol Symbol "Dustbin"

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING: WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

EU Product Data Sheet EU Product Data Sheet

Product data sheet for household refrigerators/firewaters according to regulation (EU) No.14060/2010 on (EU) No. 1060/2010

BrandBrand		BOMANNBOMANN
ModelModel		VSR 352VSR 352
CategoryCategory		1
Energy Efficiency class ^2)		A++
Annual Energy consumption ^3)	kWh/a	88
Net capacity cooling total	l	130
- thereof cold storage compartment	l	-
- thereof wine storage compartment	l	-
- thereof cellar compartment	l	-
- thereof storage compartment for fresh-food	l	130
Net capacity freezing total	l	-
Star rating ^4)		-
Design temperature of other compartments	°C	-
Coldest storage temperature of wine storage compartment	°C	-
Frost-free		-
Temperature rise time	h	-
Freezing capacity	kg/24h	-
Climate class ^5)		N/ST
Noise emission	dB(A) re1 pW	40
Built-in		-
Wine storage appliance		-

1) Category: 1 = Refrigerator with one or more fresh-food storage compartments, 2 = Refrigerator-cellar, Cellar and Wine storage appliances, 3 = Refrigerator-chiller and Refrigerator with a 0-star compartment, 4 = Refrigerator with a one-star compartment, 5 = Refrigerator with a two-star compartment, 6 = Refrigerator with a three-star compartment, 7 = Refrigerator-freezer, 8 = Upright freezer, 9 = Chest freezer, 10 = Multi-use and other refrigerating appliances
2) A+++ (highest efficiency) to G (lowest efficiency)
3) Annual energy consumption „XYZ“ kWh per year based on standard test results for 24 h. Actual energy consumption will depend on how the appliance is used and where is located.
4)* = compartment: a frozen-food storage compartment in which the temperature is not warmer than -6°C

** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -12°C

*** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -18°C

(^**) = food freezer compartment in which the temperature is not warmer than -18^ and a min. freezing capacity in 24h

5) Climate class SN: ambient temperature of +10°C up to +32°C

Climate class N: ambient temperature of +16°C up to +32°C

Climate class ST: ambient temperature of +16°C up to +38°C

Climate class T: ambient temperature of +16°C up to +43°C

BOMANN®
