| Product Type | Tablet |
| Brand | ASUS |
| Model | ZenPad 10.1 (Z301ML/Z301M) |
| Display | 10.1-inch IPS |
| Resolution | 1280 x 800 pixels |
| Battery | Rechargeable Li-ion, 6000 mAh (typical) |
| Weight | Approx. 490 g |
| Dimensions | 251.6 x 172 x 8.2 mm |
| Operating System | Android (ASUS ZenUI) |
| Connectivity | Wi-Fi 802.11 b/g/n, Bluetooth 4.0 |
| USB Port | USB Type-C |
| Memory Card Support | microSD up to 128 GB |
| SIM Card | micro SIM (on selected models) |
| Camera | Front and rear cameras |
| Audio | Dual speakers with DTS-HD Premium Sound |
| Power Adapter | DC 5.2V 1A or DC 5V 2A |
| Special Features | ZenMotion, Splendid, AudioWizard, SuperNote, File Manager |
| Cleaning | Disconnect power, use soft dry cloth; avoid liquids |
| Safety | Do not disassemble, avoid moisture, use only approved accessories |
Frequently Asked Questions - ZenPad 10.1 ASUS
User questions about ZenPad 10.1 ASUS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Tablet in PDF format for free! Find your manual ZenPad 10.1 - ASUS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ZenPad 10.1 by ASUS.
USER MANUAL ZenPad 10.1 ASUS
No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").
ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2017 ASUSTeK COMPUTER INC. All Rights Reserved.
LIMITATION OF LIABILITY
Circumstances may arise where because of a default on ASUS' part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.
ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.
This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.
UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.
SERVICE AND SUPPORT
Visit our multi-language web site at: https://www.asus.com/support/
Contents
Conventions used....7
Care and safety....7
1 Get your Zen ready!
Parts and features....9
Installing a memory card....11
Removing a memory card....13
Installing a micro SIM card (on selected models)....15
Removing a micro SIM card (on selected models)....17
Charging your ASUS Tablet....19
Turning your ASUS Tablet on or off....22
Starting for the first time 23
ASUS ZenUI 24
Using your ASUS Mobile Dock (Optional)....25
Package contents 25
Parts and features....25

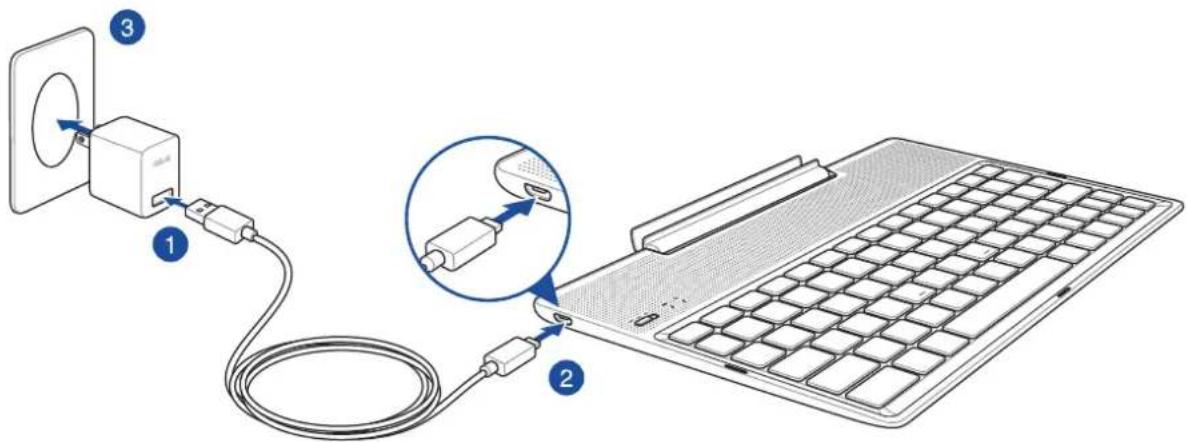

Charging your ASUS Mobile Dock....27
To pair your ASUS Tablet with ASUS Mobile Dock....28
To pair your Bluetooth devices with ASUS Mobile Dock....29
Docking your ASUS Tablet....30
Using the special keys....30
Undocking your ASUS Tablet 32

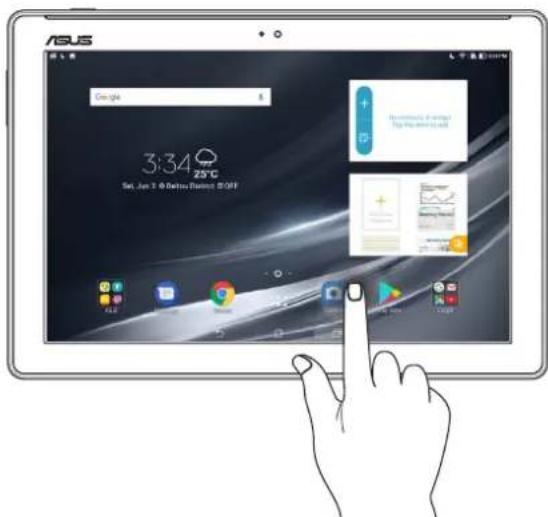

Using the touchscreen....33
ZenMotion 35
2 There's no place like Home
Zen Home features 37
Home screen 37
Personalizing your Home screen 39
App shortcuts and widgets....39
Wallpapers 40
Extended Home screen....41
Setting up the date and time....42
Setting up your ringtone and alert sounds....42
Quick settings 43
System notifications....44
Weather and Time 45
Weather....45
Clock....47
Lock Screen 50
Customizing your lock screen....50
Customizing the quick access buttons....51
Voice Search 52
Launching Voice Search....52
Customizing voice search results from the Tablet search group....53
3 Keeping in touch
Managing contacts 55
Launching the Contacts app....55
Contacts Settings 55
Setting up your profile ....55
Adding contacts....56
Customizing your contact's profile 56
Setting up your VIPs ....57
Adding an event to a contact....58
Marking your favorite contacts ....58
Importing contacts....59
Exporting contacts....59
Social networking with your contacts....60
Linking your contacts' info....60
Sending messages 61
Messenger....61
4 Your precious moments
Capture moments 63
Launching the Camera app ....63
Camera home screen 64
Photo Locations....64
Camera settings....65
Video settings....65
Others settings....65
Advanced camera features 66
Using the Gallery 73
Viewing files from your social network or cloud storage....73
Viewing the photo location....74
Sharing files from the Gallery....75
Deleting files from the Gallery....75
Editing images....75
Zooming in/out the thumbnails or images 75
Using MiniMovie....76
5 Work hard, play harder
Using a headset....79
Connecting the audio jack....79
Email 79
Setting up a Gmail account ....79
Do It Later....80
Adding to-do tasks 80
Prioritizing to-do tasks 80
Deleting to-do tasks....80
SuperNote 81
Creating a notebook 81

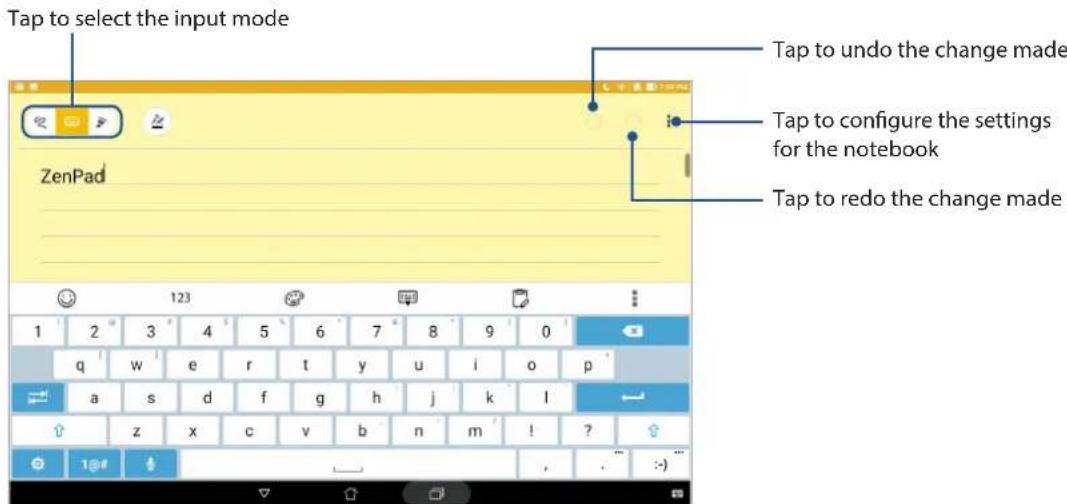

Understanding icons....82
Sharing a notebook on the Cloud....82
Sharing a note 82
File Manager....83
Accessing the internal storage 83
Accessing the external storage device....83
Accessing Cloud Storage 83
The Cloud....84
WebStorage 84

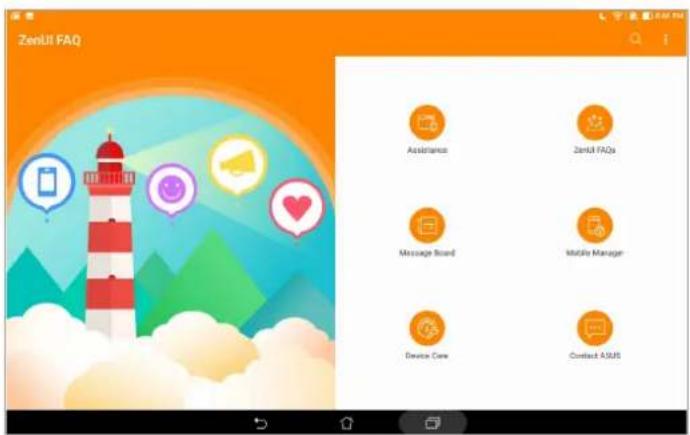

ZenUI FAQ 84
6 Staying connected
Wi-Fi 85
Enabling Wi-Fi 85
Connecting to a Wi-Fi network....85
Disabling Wi-Fi....86
Bluetooth....86
Enabling Bluetooth....86
Pairing your ASUS Tablet to a Bluetooth device....87
Unpairing your ASUS Tablet from the Bluetooth device....87
Airplane mode 88
Enabling Airplane mode....88
Disabling Airplane mode....88

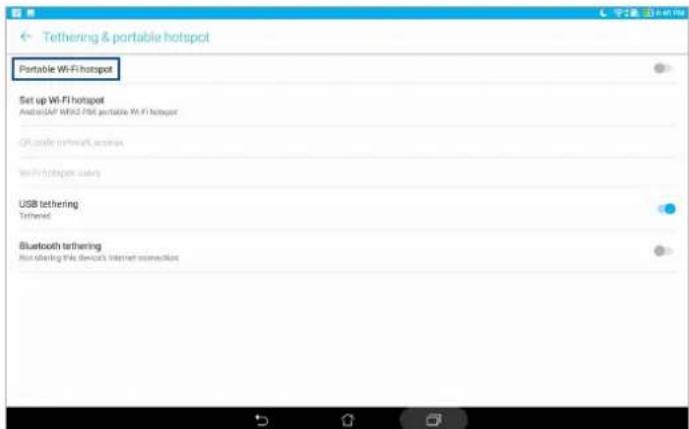

Tethering 88
USB tethering....89
Wi-Fi hotspot....89
Bluetooth tethering....90
PlayTo....90
Launching PlayTo from Quick settings 90
Launching PlayTo from Settings 90
7 Zen Everywhere
Special Zen Tools....91
Calculator 91
Quick Memo....92
Sound Recorder 93
AudioWizard....95
Splendid....95
Power Saver....98
8 Maintain your Zen
Keeping your device up-to-date....99
Updating your system 99
Storage....99
Backup and reset....99
Securing your ASUS Tablet....100
Knowing your ASUS Tablet identity....103
Appendix
Notices....105
Conventions used
To highlight key information in this manual, some text are presented as follows:
IMPORTANT! This message contains vital information that must be followed to complete a task.
NOTE: This message contains additional information and tips that can help complete tasks.
WARNING! This message contains important information that must be followed to keep you safe while performing tasks and prevent damage to your ASUS Tablet data and components.
Care and safety
Guidelines
Road safety comes first. We strongly recommend not to use your device when driving or operating any type of vehicle. This device should only be used in environments with ambient temperatures between 0°C (32°F) and 35°C (95°F). Turn off your device in restricted areas where the use of mobile devices is prohibited. Always obey rules and regulations when in restricted areas, such as in aircraft, movie theaters, in hospitals or near medical equipment, near gas or fuel, construction sites, blasting sites and other areas. Use only AC adapters and cables approved by ASUS for use with this device. Refer to the rating label on the bottom of your device and ensure that your power adapter complies with this rating. Do not use damaged power cables, accessories, and other peripherals with your device. Keep your device dry. Do not use or expose your device near liquids, rain, or moisture. You can put your device through x-ray machines (such as those used in conveyor belts for airport security), but do not expose the device to magnetic detectors and wands. The device screen is made of glass. If the glass gets broken, stop using the device and do not touch the broken glass parts. Immediately send device to ASUS-qualified service personnel for repairs. Do not listen at high volume levels for long periods to prevent possible hearing damage. Disconnect the AC power before cleaning your device. Use only a clean cellulose sponge or chamois cloth when cleaning your device screen. Send device for repair to ASUS-qualified service personnel only.
Proper disposal
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
DO NOT throw your device in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.
DO NOT throw the device in fire. DO NOT short circuit the contacts. DO NOT disassemble the device.
Get your Zen ready!
1
Parts and features
Take a hold of your device and have it up and running in a jiffy.
Model P00L
IMPORTANT!
- Keep the device, particularly the touch screen, dry all the time. Water or other liquids can cause the touch screen to malfunction.
- Avoid covering the ambient light sensor with your screen protector to ensure an accurate detection of ambient light for optimal display effect.
IMPORTANT!
- Keep the device, particularly the touch screen, dry all the time. Water or other liquids can cause the touch screen to malfunction.
- Avoid covering the ambient light sensor with your screen protector to ensure an accurate detection of ambient light for optimal display effect.
Installing a memory card
Your ASUS Tablet supports a microSD™, microSDHC™, and microSDXC™ memory card with up to 128 GB of capacity.
NOTE: Some memory cards may not be compatible with your ASUS Tablet. Ensure that you use only compatible memory cards to prevent loss of data, damage to your device, or memory card, or both.
WARNING! Be extra careful when handling a memory card. ASUS is not responsible for any data loss or damage incurred to your memory card.
To install a memory card:
- Orient your device as shown, then locate the groove and open the card slot cover.
WARNING!
- Be careful not to damage the slot cover or injure your fingernails when you remove the cover.
- Do not forcibly remove, shear, or distort the memory card slot cover.
- Align and insert a memory card into the memory card slot.
- Push the memory card all the way into the slot until it is seated firmly in place.
- Put back the card slot cover.
NOTE: After installing a formatted memory card, you can access its contents from ASUS > File Manager > MicroSD.
Model P028
To install a memory card:
- Align and insert a memory card into the memory card slot.
- Push the memory card all the way into the slot until it is seated firmly in place.
Removing a memory card
WARNING!
- Be extra careful when handling a memory card. ASUS is not responsible for any data loss or damage incurred to your memory card.
- Eject the memory card properly to safely remove it from device. To eject the memory card, go to Settings > Storage, then tap ▲ under Portable storage.
Model P00L
To remove a memory card:
- Orient your device as shown, then locate the groove and open the card slot cover.
WARNING!
- Be careful not to damage the slot cover or injure your fingernails when you remove the cover. • Do not forcibly remove, shear, or distort the memory card slot cover.
- Press the memory card to eject, then pull it out.
- Put back the card slot cover.
Model P028
To remove a memory card:
- Press the memory card to eject, then pull it out.
Installing a micro SIM card (on selected models)
Your micro SIM card slot supports WCDMA bands. Certain model supports WCDMA and LTE bands.
NOTE: To prevent connector damage, ensure to use a standard micro SIM card without a SIM adapter or the use of a cutter.
WARNING! Be extra careful when handling a micro SIM card. ASUS is not responsible for any data loss or damage incurred to your micro SIM card.
To install a micro SIM card:
- Orient your device as shown, then locate the groove and open the card slot cover.
WARNING!
- Be careful not to damage the slot cover or injure your fingernails when you remove the cover.
- Do not forcibly remove, shear, or distort the memory card slot cover.
- Align and insert a micro SIM card into the micro SIM card slot.
- Push the micro SIM card all the way into the slot until it is seated firmly in place.
- Put back the card slot cover.
Removing a micro SIM card (on selected models)
WARNING! Be extra careful when handling a micro SIM card. ASUS is not responsible for any data loss or damage incurred to your micro SIM card.
To remove a micro SIM card:
- Orient your device as shown, then locate the groove and open the card slot cover.
WARNING!
- Be careful not to damage the slot cover or injure your fingernails when you remove the cover.
- Do not forcibly remove, shear, or distort the memory card slot cover.
- Press the micro SIM card to eject, then pull it out.
- Put back the card slot cover.
Charging your ASUS Tablet
Your ASUS Tablet comes partially charged but you must charge it fully before using it for the first time. Read the following important notices and warnings before charging your device.
IMPORTANT!
- Use only the bundled AC power adapter and USB cable to charge your ASUS Tablet. Using a different AC power adapter and cable may damage your device.
- Peel off the protective film on the AC power adapter and USB cable before using it with your device.
- Ensure to plug the AC power adapter to a compatible power outlet. You can plug the AC power adapter to any compatible 100~240V outlet.
- The output voltage of the AC power adapter for this device is DC 5.2V, 1A (Z301ML, M1001ML, R1001ML, Z301M, M1001M, R1001M) or DC 5V, 2A (Z301MFL, M1001MFL, R1001MFL, Z301MF, M1001MF, R1001MF).
- When using your ASUS Tablet while plugged-in to a power outlet, the power outlet must be near your device and easily accessible.
- Do not use or expose your ASUS Tablet near liquids, rain, or moisture.
- Do not use your ASUS Tablet near heating equipment or in places where there is likelihood of high temperature.
- Keep your ASUS Tablet away from sharp objects.
- Do not place objects on top of your ASUS Tablet.
WARNING!
- While charging, your ASUS Tablet can become warm. This is normal. However, if your device becomes unusually hot, disconnect the USB cable from your device and send the device, including the AC power adapter and cable, to an ASUS-qualified service personnel.
- To prevent any damage to your ASUS Tablet, AC adapter, or USB cable, ensure that the USB cable, AC adapter, and your device are connected properly before charging.
To charge your ASUS Tablet:
- Connect the USB Type-C cable to the power adapter.
- Plug the USB Type-C connector into your ASUS Tablet.
- Plug the power adapter into a grounded power outlet.
IMPORTANT!
- Charge your ASUS Tablet for eight (8) hours before using it in battery mode for the first time. The status of battery charge is indicated by the following icons:
Low
Not Charging
Charging
Full
- When fully-charged, disconnect the USB cable from your ASUS Tablet first before unplugging the AC power adapter from the power outlet.
NOTE:
• You can use your device while charging but it may take longer to fully charge the device. • Charging your device via USB port of a computer may take longer to fully charge the device. - If your computer does not provide enough power for charging via USB port, charge your ASUS Tablet using the AC power adapter plugged to a power outlet instead.
Battery power conservation tips
The battery charge is the lifeline of your ASUS Tablet. Here are some battery power conservation tips that help preserve the power of your ASUS Tablet's battery.
- Close all running apps that are not in use.
- Activate Power Saving in ASUS Mobile Manager app.
- Set AudioWizard to Smart Mode. – Decrease brightness of display.
- Keep the speaker volume to a low level.
- Disable Wi-Fi feature.
- Disable Bluetooth feature.
- Disable PlayTo feature.
- Disable GPS.
- Disable the screen auto-rotate feature.
- Disable all auto-sync features in your device.
- When not in use, press the power button to put the device in sleep mode.
Turning your ASUS Tablet on or off
Turning your device on
To turn your device on, press and hold the power button until your device starts up.
Turning your device off
To turn your device off:
- If your screen is turned off, press the power button to turn it on. If your screen is locked, unlock the device screen.
- Press and hold the power button, then when prompted, tap Power off then tap OK.
Sleep mode
To put your device in sleep mode, press the power button once until the screen turns off.
Starting for the first time
When you turn your ASUS Tablet on for the first time, follow the onscreen instructions to select your language, select input methods, set up your mobile network, Wi-Fi, sync accounts, and configure your location services.
Use your Google or ASUS account to set up your device. If you do not have a Google or ASUS account yet, go ahead and create one.
Google Account
Using a Google Account allows you to fully utilize these Android OS features:
- Organize and see all your information from anywhere. • Automatically backup all your data. • Leverage Google services conveniently from anywhere.
ASUS Account
Having an ASUS Account allows you to enjoy the following perks:
• Personalized ASUS support service and warranty extension for registered products. • Free Cloud storage space. • Receive the latest device and firmware updates.
ASUS ZenUI
Explore the intuitive simplicity of ASUS ZenUI!
ASUS ZenUI is a charming and intuitive interface exclusively for ASUS Tablets. It provides you with special apps, which are integrated in or with other apps, to fit your unique individual needs and make your life easier while letting you have fun with your ASUS Tablet.
ZenUI FAQ
Find answers from FAQs (Frequently Asked Questions) or provide your feedback in the user forum.
Camera
With PixelMaster technology, capture those precious moments in vivid and high-quality photos and videos.
Clock
Customize the time zone settings, set alarms, and use your ASUS Tablet as a stopwatch using the Clock app.
Do It Later
Get hold of and act on your important emails, SMS messages, interesting websites, or other important tasks when it is more convenient for you to do so.
NOTE: Availability of ASUS ZenUI apps varies per region, SKU, and ASUS Tablet model. Tap ◆◆◆ from your Home screen to check the apps available on your ASUS Tablet.
Using your ASUS Mobile Dock (Optional)
Package contents
ASUS Mobile Dock
Micro USB cable
User Guide NOTE: If any of the items is damaged or missing, contact your retailer.
Parts and features
NOTE: The keyboard layout differs by model or region.
Two-color battery charge indicator
The two-color LED provides a visual indication of the battery's charge status. Refer to the following table for details:
| Color | Status |
| Solid Green | Fully Charged |
| Solid Orange | Charging |
| Blinking Orange | Low Battery |
| Lights off | Battery mode |
Keyboard indicator
The LED provides a visual indication of the pairing status. Refer to the following table for details:
| Color | Status |
| Blinking Blue | 1. Power on (lights off after two (2) seconds) |
| 2. Pairing successful (lights off after two (2) seconds) |
NOTE: In the event that your device becomes unresponsive to the pairing procedure after two (2) minutes, release and slide the Bluetooth pairing switch to the right again.
Left View
NOTE: This port is for charging only, not for data transfer.
Charging your ASUS Mobile Dock
To charge your ASUS Mobile Dock:
- Connect the micro USB cable to the power adapter.
- Plug the micro USB connector into your ASUS Mobile Dock.
- Plug the power adapter into a grounded power outlet.
NOTE: The input voltage of your ASUS Mobile Dock is DC 5.2V, 1A (Z301ML, M1001ML, R1001ML) or DC 5V, 2A (Z301MFL, M1001MFL, R1001MFL).
IMPORTANT!
- Use only the power adapter and USB cable of ASUS ZenPad 10 to charge your ASUS Mobile Dock. Using a different power adapter and cable may damage your device.
- Peel the protective film off from the power adapter and USB cable before charging your ASUS Mobile Dock to prevent risk of injury.
- Ensure that you plug the power adapter into a correct power outlet with the correct input rating. The output voltage of this adapter is DC 5.2V, 1A or DC 5V, 2A.
- When using your ASUS Mobile Dock while plugged into a power outlet, the grounded power outlet must be near the unit and easily accessible.
- Do not use or expose your ASUS Mobile Dock near liquids, rain, or moisture.
- Do not use your ASUS Mobile Dock near heating equipment or in places where there is a likelihood of high temperature.
- Keep your ASUS Mobile Dock away from sharp objects. Do not place heavy objects on top of your ASUS Mobile Dock.
NOTE:
Charging through the USB port of a computer may take longer to complete. If your computer does not provide enough power for charging your ASUS Mobile Dock, charge your device via the grounded power outlet instead.
To pair your ASUS Tablet with ASUS Mobile Dock
You may use your ASUS Mobile Dock to wirelessly connect with your ASUS ZenPad 10 via Bluetooth pairing. Refer to the following steps to learn how to establish this connection:
- Turn on your ASUS Mobile Dock and its Bluetooth function by pressing the switch all the way to the right and hold for five (5) seconds.
- Tap the notification to start pairing.
NOTE:
- Once paired, there is no need to pair your ASUS ZenPad 10 with ASUS Mobile Dock again. Power on your ASUS Mobile Dock and the Bluetooth connection is established automatically. You may also establish the Bluetooth connection by following the instructions on the next page.
To pair your Bluetooth devices with ASUS Mobile Dock
You may use your ASUS Mobile Dock to wirelessly connect with your Bluetooth devices via Bluetooth pairing. Refer to the following steps to learn how to establish this connection:
- Turn on your ASUS Mobile Dock and its Bluetooth function by pressing the switch all the way to the right and hold for five (5) seconds.
- Turn on the Bluetooth feature of your devices.
- Search for the name 1st Pairing ASUS Keyboard under the list of Bluetooth devices for pairing.
NOTE: If the Bluetooth feature of your device is turned on prior to step 1, refresh and search the list of detected devices again.
To disconnect the Bluetooth keyboard:
- Slide the switch off to disable the connection of the keyboard.
- Under Settings in your Tablet, disable the connection of the keyboard.
Docking your ASUS Tablet
To dock your ASUS Tablet:
- Put your ASUS Mobile Dock on a flat and stable surface.
- Align your ASUS Tablet with ASUS Mobile Dock.
- Firmly insert your ASUS Tablet into the hinge.
IMPORTANT! Always pick up the entire assembly from the bottom when your ASUS Tablet is attached to ASUS Mobile Dock.
Using the special keys
The special keys on your ASUS Mobile Dock have standalone functions and some must be used with the function key .
NOTE:
- The placement of the special keys on the Mobile Dock may vary with country or region, but their functions remain the same. • The function key feature is available on ASUS ZenPad 10.
Returns to previous page.
Activates sleep mode.
Toggles the internal wireless LAN ON or OFF.
Decreases the display brightness.
Increases the display brightness.
Captures the screen image.
Returns to the previous track when playing music.
Starts playing music from your playlist. Resumes or pauses the current playback.
Skips to the next track during playback.
Mutes the speaker.
Decreases the speaker volume.
Increases the speaker volume.
Launches the Settings screen.
Deletes texts.
Returns to Home Screen.
Activates the properties menu and is equivalent to : or ☑ on the screen.
Press and the arrow keys to scroll up and down or scroll to the start and end of a document or web page.
Undocking your ASUS Tablet
To undock your ASUS Tablet:
- Put the entire assembly on a flat and stable surface.
- Lift your ASUS Tablet from the bottom left corner to detach it from ASUS Mobile Dock.
Using the touchscreen
Use these gestures on the touchscreen to launch apps, access some settings, and navigate your ASUS Tablet.
Launching apps or selecting items
Do any of the following:
• To launch an app, simply tap on it. • To select an item such as in File Manager app, simply tap on it.
Moving or deleting items
Do any of the following:
• To move an app or widget, tap and hold then drag it to the location where you want it to be. • To delete an app or widget from the Home screen, tap and hold then drag it to Remove.
Moving through pages or screens
Do any of the following:
- Swipe your finger to the left or to the right to switch between screens or to flip through images in Gallery.
- Scroll your finger up or down to go through web pages or list of items.
Zooming in
Spread apart your two fingers on the touch panel to zoom in an image in Gallery or Maps, or zoom in a web page.
Zooming out
Bring together your two fingers on the touch panel to zoom out an image in Gallery or Maps, or zoom out of a web page.
ZenMotion
When your touch screen panel is off, with these easy and intuitive gestures, you can launch apps on your ASUS Tablet in a snap by simply writing down an alphabet.
| Gesture | Wi-Fi only models 3G / LTE models |
| W | Weather Weather |
| S | Camera - front lens Camera - front lens |
| e | Clock Clock |
| C | Camera Camera |
| Z | Gallery Gallery |
| V | Contacts Contacts |
There's no place like Home
2
NOTE: The screenshots in this manual are for reference only.
Zen Home features
Home screen
Get reminders of important events, app and system updates, weather forecasts, and text messages from people who really matter to you, right from your Home screen.
Swipe the Home screen to the left or right to display the extended Home screen.
NOTE: For details on adding more pages to your Home screen, see the Extended Home screen section.
Understanding notification icons
These icons are shown on the status bar and will guide you of the current status of your ASUS Tablet.
| Mobile network (on selected models)Shows the signal strength of your mobile network. | |
| Wi-FiShows the signal strength of your Wi-Fi connection. | |
| Wi-Fi HotspotShows that Wi-Fi hotspot of your ASUS Tablet is enabled. | |
| Battery lifeShows the battery status of your ASUS Tablet. | |
| MicroSD cardShows that a microSD card is inserted in your ASUS Tablet. | |
| Do Not Disturb modeShows that Do Not Disturb mode is enabled. | |
| ScreenshotsShows that you took screenshots of your ASUS Tablet. | |
| Airplane modeShows that your ASUS Tablet is in Airplane mode. | |
| Bluelight Filter modeShows that Bluelight Filter mode is enabled. | |
| NOTE: For more details, see the Bluelight Filter mode section. | |
| Vivid modeShows that Vivid mode is enabled. | |
| Customized modeShows that Customized mode is enabled. | |
| Download statusShows the download status of an app or file. |
Personalizing your Home screen
Stamp your own personality on your Home screen. Select an attractive design as your wallpaper, add shortcuts for quick access to your favorite apps, and add widgets for a quick review of important info. You can also add more pages so you can add and quickly access or view more apps or widgets on your Home screen.
App shortcuts and widgets
App shortcuts and widgets make it easier to quickly access your favorite items from your Home screen. You can add or remove your apps and widgets anytime you like, and you can also group your apps into one folder.
Adding app shortcuts and widgets
- Tap and hold an empty area on your Home screen and select Apps & widgets.
- From the Apps or Widgets tab, tap and hold an app or widget, then drag it to an empty area on your Home screen.
Removing app shortcuts and widgets
From your Home screen, tap and hold an app or widget, then drag it to Remove on top of your screen. The app that you have removed from your Home screen will remain in the All Apps screen.
Grouping your app shortcuts in a folder
Create folders to organize your app shortcuts on your Home screen.
- On your Home screen, tap and drag an app onto another app and a folder will appear.
- Open the new folder and tap the folder name to rename this folder if desired.
Wallpapers
Let your apps, icons, and other Zen elements sit on an attractively designed wallpaper. You may add a translucent background tint to your wallpaper for readability and clarity. You can also select an animated wallpaper to make your screen come alive.
Applying wallpaper and background tint
To apply wallpaper and background tint:
- Tap and hold an empty area on your Home screen and select Wallpapers.
- Select a wallpaper and select where you want to set your wallpaper: on your Home screen, Lock screen, or Home and lock screen.
- Adjust the transparency level of status bar or apply an effect to your wallpaper.
- When done, tap Apply.
Applying an animated wallpaper
To apply an animated wallpaper:
- Tap and hold an empty area on your Home screen and select Wallpapers.
- Tap Live Wallpaper and select an animated wallpaper to install it to your Home screen.
- Tap > Settings > Display > Wallpaper > Live Wallpapers, then select an animated wallpaper to set it as your Home screen wallpaper or Home and lock screen wallpaper.
Extended Home screen
Extending your Home screen
You can add more pages to extend your Home screen and put more app shortcuts and widgets on it.
- Tap and hold an empty area on your Home screen and select Home edit.
- Tap + to add a new page.
Tap to set a page as main Home screen
Setting up the date and time
By default, the date and time displayed on your Home screen automatically syncs when you are connected to the Internet.
To change the date and time settings:
- Launch the Settings screen by doing any of the following:
- Launch Quick settings then tap
- Tap > Settings.
- Scroll down the Settings screen and select Date & time.
- Slide Automatic date & time and Automatic time zone off.
- Select the time zone and manually set the date and time.
- You can opt to use the 24-hour format, if you prefer.
NOTE: For more details, see the Clock section.
Setting up your ringtone and alert sounds
Set up the sound for your notifications. You can also choose to enable or disable the touch sounds or screen locking sounds.
To set up the sound settings:
- Launch the Settings screen by doing any of the following:
- Launch Quick settings then tap
- Tap Settings.
- Select Sound & Vibration.
- Set up your preferred sound settings.
Quick settings
The Quick settings panel provides one-tap access to some of the wireless features and settings of your ASUS Tablet. Each of these features is represented by a button.
To launch the Quick settings panel, swipe down from the top of your ASUS Tablet.
NOTE: A blue button indicates that the feature is currently enabled while a gray button indicates a disabled feature.
Adding or removing buttons
To add or remove existing buttons from the ASUS Quick settings notification panel:
- Launch Quick settings then tap
- Tap and hold to drag a button to add or remove it from the ASUS Quick settings notification panel.
System notifications
From System notifications, you can see the latest updates done and system changes made on your ASUS Tablet. Most of these changes are data and system-related.
To launch the System notifications panel, swipe down from the top of your ASUS Tablet.
Weather and Time
Weather
Get real-time weather updates straight from your ASUS Tablet using the weather app. Using Weather, you can also check other weather details from around the world.
Launching the Weather app
From your Home screen, launch the Weather app using either of the following options:
Tap > Weather.
- From your ASUS Tablet's home screen, tap the weather icon.
Weather home screen
Set up and get your current location's weather updates as well as other parts of the world.
Getting the weather updates
Get real-time AccuWeather® updates every hour or up to 12 hours for your current location or other parts of the world. You can make plans for up to seven (7) days with the 7-day weather forecast or dress appropriately based on AccuWeather RealFeel® temperature. You can also get the real-time UV index or air pollution index, letting you take the necessary protective measures against harmful ultra-violet rays or air pollutants.
- Before getting the weather updates, ensure the following:
- Wi-Fi or mobile network (on selected models) is turned on when you are indoors and GPS is turned on when you are outdoors.
- Turn on the location access from ⋆> Settings > Location.
- Launch the Weather app.
- Tap ▪ > Edit locations then tap +
- In the search box, enter the city or area whose weather updates you want to search for.
- Wait for a while until your ASUS Tablet gets the weather information. The city or area's weather data will be added to your location list.
Clock
Customize the time zone settings of your ASUS Tablet, set alarms, and use your ASUS Tablet as a stop watch using the Clock app.
Launching Clock
Launch the Clock app using either of the following options:
- Tap > Clock.
- From your ASUS Tablet's home screen, tap the digital clock display.
World Clock
Tap to access the world clock settings of your ASUS Tablet.
Alarm clock
Tap to access the alarm clock settings of your ASUS Tablet.
Stopwatch
Tap to use your ASUS Tablet as a stopwatch.
Timer
Tap to access the timer feature of your ASUS Tablet.
NOTE: You may set multiple timer options for your ASUS Tablet.
Lock Screen
By default, the lock screen appears after turning on your device or waking it up from sleep mode. From the lock screen, you can proceed to your device's Android system by swiping on your touch screen panel.
Your device's lock screen can also be customized to regulate access to your mobile data and apps.
Customizing your lock screen
If you want to change your lock screen settings from the default Swipe option, refer to the following steps:
- Launch Quick settings then tap
- Scroll down the Settings screen and select Lock screen.
- In the next screen, tap Screen lock.
- Tap the screen lock option you would like to use.
NOTE: For more details, see the Securing your ASUS Tablet section.
Customizing the quick access buttons
Change the default settings and customize these buttons to launch other apps on the lock screen using the following steps:
- Launch Quick settings then tap
- Scroll down the Settings screen and select Lock screen.
- Tap Quick access.
- Under the Quick access screen, select which button you would like to customize.
- Tap the app you would like to preset on the quick access button you chose to configure.
NOTE: Scroll up or down to view the current list of apps you can preset.
Voice Search
Make voice commands to your ASUS Tablet then watch it listen and take action using the Voice Search app. Using Voice Search, you can make voice commands to accomplish the following:
• Search for data and information online or on your ASUS Tablet • Launch apps inside your ASUS Tablet • Get directions to a location
IMPORTANT! Your ASUS Tablet must be connected to the Internet to use some of the features.
Launching Voice Search
- Launch the Voice Search app by doing any of the following:
- Tap on the Google search bar.
- Tap > Voice Search.
- Start saying your voice command.
NOTE: Speak clearly and use concise phrases when talking to your ASUS Tablet. It also helps to start your commands with a verb related to the ASUS Tablet feature you want to use.
Customizing voice search results from the Tablet search group
If you want to set parameters for the voice search results gathered from your Google account and your ASUS Tablet's data, you may do so using the following steps:
- On your ASUS Tablet's Home screen, tap > Voice Search.
- Once your voice search results are shown, tap > Settings.
- Tap Tablet search and tick the box of the search groups you would like to include as source when using Voice Search.
Keeping in touch
3
Managing contacts
Organize your contacts and easily stay in touch with them. You can also sync your contacts with your email or social network accounts, link contacts' info for easy access in one place, or filter the contacts you want to keep in touch with.
Launching the Contacts app
To set up your Contacts settings, tap ▪ > Settings > Contact settings from the Contacts app.
Select how you would want to display your contacts: Only contacts with phones, Display source account, Sort list by (First/Last name), or View contact names as (First/Last names first).
Setting up your profile
Make your ASUS Tablet truly your own and set up your profile info.
- Launch the Contacts app then tap Set up my profile.
- Fill in your info such as mobile or home number. To add other info, tap Add another field.
- When you've completed your info, tap . √
Adding contacts
Add contacts to your device and fill in more important contact information such as contact numbers, email addresses, special events for VIPs, and more.
- Launch the Contacts app then tap . +
- Select Device.
NOTE:
• You can also save the contact to your email account. • If you don't have an email account, tap Add account then create one.
- Fill in the necessary information such as mobile or home number, email address, or group where you want to put the contact in.
- After filling in the information and you want to add more information, tap Add new.
- If you want to add other contact information, tap Add another field.
- When you've completed the info, tap . √
Customizing your contact's profile
Edit your contact's info, add a photo, or take a photo as a cover for your contact's profile.
- Launch the Contacts app then select the contact whose info or profile you want to edit or customize.
- Make the changes from the contact's profile page.
Setting up your VIPs
Group your contacts as VIPs to get notified about upcoming anniversaries, birthdays, and other important events.
Set up your VIP from the Groups screen
To set up your VIP from the Groups screen:
- Launch the Contacts app.
- Tap
- Tap and select the contact or contacts you want to group as VIPs, then tap +. The contact or contacts are added to your VIP list.
Adding an event to a contact
You can add an event to a contact such as anniversary, birthday, and other important events.
- Launch the Contacts app, tap the contact you want to add an event detail to, then tap
- In the contact's info screen, tap Add another field > Events.
- Select the date for the event, then tap Set.
- When finished, tap . √
Marking your favorite contacts
Set your frequently-accessed contacts as your favorites to be able to locate them quickly from the Contacts app.
- Launch the Contacts app.
- Tap > Favorites.
- Tap then tick the boxes of the contacts that you wish to add to Favorites.
- When done, tap . All contacts that you added appear on Favorites screen.
Importing contacts
Import your contacts and their respective data from one contact source to your ASUS Tablet, email account, or a micro SIM card.
- Launch the Contacts app then tap ▶ Manage contacts.
- Tap Import/Export then select where you would like to import your contacts from.
- Tap to select where you would like to save the contacts to.
- Tick to select the contacts that you wish to import and when done, tap Import.
Exporting contacts
Export your contacts to any of the storage accounts in your ASUS Tablet.
- Launch the Contacts app then tap ▶ Manage contacts.
- Tap Import/Export then select where you would like to export your contacts to.
- Tap to select where you would like to export the contacts from.
- Tick the contacts that you wish to export and when done, tap Export.
Social networking with your contacts
Integrating the social network accounts of your contacts makes it easier for you to view their profiles, news, and social feeds. Stay updated with the activities of your contacts in real time.
IMPORTANT! Before you can integrate social network accounts of your contacts, you need to log in to your social network account and sync its settings.
Syncing your social network account
Sync your social network account to add the social network accounts of your contacts to your ASUS Tablet.
- Do any of the following to launch the Settings app:
- Launch Quick settings then tap
- Tap Settings.
- From the Settings screen, tap your social network account under Accounts section.
- Tap Contacts to sync the social network accounts of your contacts.
- Launch the Contacts app to view your contacts list.
- To view only your contacts with social network accounts, tap Contacts to display then untick the other contact sources, leaving the social network name checked.
- When done, tap or anywhere on the screen.
Linking your contacts' info
When you add social network or email accounts, data from these accounts automatically sync with the Contacts app. In some instances, some contact info may appear in several places or under different name variations or nicknames in the Contacts app. You can manually link and unify all these info and put them under one place or profile.
- From the Contacts app, tap and hold the contact whose info you want to link, then select Link contact.
- Tap 📋 and select all the contact profiles that you think should be linked to one profile, then tap √
- Tap √ when finished and you can now view and retrieve all your contact's info under one profile.
Sending messages
Messenger
Messenger lets you send, promptly reply, or reply at a later time to important messages from your contacts in any of your SIM cards installed on your ASUS Tablet. You can also email your message threads or conversations to others to keep them in the loop.
NOTE: If you have more than one SIM card installed, you may need to select the SIM account that you're going to send your message from before you send out the message.
Launching the Messenger app
From your Home screen, tap ✦ Messenger.
Sending messages
- Launch the Messenger app then tap .
- In the To field, enter the number or contact name to select a contact from your list.
- Start composing your message in the Send message field.
- When you're done, tap to send the message.
Replying to messages
- Tap your message alert from your Home screen or Lock screen.
- Start composing your reply in the Type message field.
- When you're done, tap to send the message.
Blocking messages
Block spam messages such as sales ad messages, or messages from unwanted senders.
- From the Home screen, tap, then tap the thread of the sender that you don't want to receive any message from.
- Tap ▪ > People & options, then tap Block (phone number).
- Tap OK to confirm.
Forwarding a message
You can forward a message to others.
- From the Messenger app's home screen, tap to open the message thread.
- Tap and hold any of the messages from the thread, then tap on the top of the screen.
- Tap + to select a contact that you wish to forward the message to.
- When you're done, tap to send the message. If you have more than one SIM card installed, select the SIM account that you're going to send your message from in advance. The conversation will be forwarded as an MMS (Multimedia Messaging Service) message.
NOTE:
- Ensure that you have MMS subscription with your mobile service provider.
- Ensure that data access is enabled on your device. From your Home screen, tap ⚪⋯> Settings > More > Cellular networks, then slide Data enabled on.
• Mobile data and messaging rates apply when forwarding conversations to others.
Other messaging options
When you open a message thread, you can tap and do any of these other options below.
| Add contact | Tap to add this number to the Contacts app. |
| People & options | Tap to configure the general settings of the message thread. |
| Search | Tap and enter keywords in the Search field to search in the conversation. |
| Archive | Tap to archive the conversation. |
| Delete | Tap to delete the conversation. |
| Help & feedback Tap this option to learn more about the Messenger app and send feedback if you wish. | |
Your precious moments
4
Capture moments
Launching the Camera app
Capture images and record videos using your ASUS Tablet's Camera app. Refer to any of the steps below to open the Camera app.
From the lock screen
Drag down until the Camera app is launched.
From the home screen
Tap
Using the volume key
While your ASUS Tablet is in sleep mode, double-click the volume key to wake it up and immediately launch the Camera app.
NOTE: Before using the volume key to launch the Camera app, enable this function from Settings > Lock screen, then slide Instant Camera on.
Camera home screen
Your ASUS Tablet's camera is equipped with auto-scene detection and auto-image stabilizer features. It also features a video stabilization function that helps prevent shakiness while video recording.
Tap the icons to start using your camera and explore the image and video features of your ASUS Tablet.
Photo Locations
To enable the location tagging feature, refer to the following steps:
- Turn on the location access from Settings > Location.
- Ensure that you have shared your location to Google Map or Baidu.
- From the Camera app's home screen, tap the icon and activate Location services before you take the photo.
Camera settings
Adjust the appearance of your captured images by configuring your camera's settings using the steps below:
IMPORTANT! Apply the settings first before taking images.
- From the Camera app's home screen, tap the settings icon.
- Scroll down and configure the available options.
Video settings
Adjust the appearance of your recorded videos by configuring your camera's settings using the steps below:
IMPORTANT! Apply the settings first before taking images.
- From the Camera app's home screen, tap
- Scroll down and configure the available options.
Other settings
Adjust advanced settings to customize your camera.
IMPORTANT! Apply the settings first before taking images.
- From the Camera app's home screen, tap
- Scroll down and configure the available options.
Advanced camera features
Explore new ways of capturing images or videos and make captured moments extra special using the advanced camera features of your ASUS Tablet.
IMPORTANT! Apply the settings first before taking images. Available features may vary per model or by front/rear camera.
HDR
The HDR (High-Dynamic-Range) feature allows you to take more detailed images for low-light and highly contrasting scenes. HDR is recommended for use when taking images on brightly lit locations, helping balance out the colors produced on your image.
Capturing HDR photos
- From the Camera app's home screen, tap
- Tap to start capturing HDR photos.
Beautification
Have fun during and after taking photos of your family and friends using the Beautification feature of your ASUS Tablet. When enabled, this feature allows you to make live beauty enhancements on your subject's face before you press the shutter button.
Capturing Beautification photos
- From the Camera app's home screen, tap
- Tap to adjust the Beautification settings to apply to the photo.
- Tap to start capturing the photo.
NOTE: Drag towards the center of the screen to set a countdown timer.
Applying Beautification to photos
- Tap the thumbnail to select the photo.
Night
Take well-lit photos even in night time or low-light situations using the Night feature of your ASUS Tablet.
NOTE: Keep your hands steady before and while the ASUS Tablet is capturing the image to prevent blurry results.
Capturing Night photos
- From the Camera app's home screen, tap >night.
- Tap 📷 to start capturing Night photos.
Depth of Field
Take macro shots with a soft background using the Depth of Field. This feature suits close up photos of subjects for a more defined and dramatic result.
Capturing Depth of Field photos
- From the Camera app's home screen, tap >depth of Field.
- Tap 📷 to start capturing photos.
- Tap + or to increase or decrease the background blur.
- Tap √ to save the photo.
Effect
Take photos using different effects such as Pixelize, Cartoon, Vintage, LOMO, or other effects.
NOTE: Effect should be selected before taking the photo.
Capturing Effect photos
- From the Camera app's home screen, tap effect.
- Tap and select an effect to apply to the photo.
- Tap to start capturing photos.
Applying effects to photos
- Tap the thumbnail to select the photo.
- Tap the photo and tap to select your preferred effect, then tap to save the photo.
Selfie
Take advantage of your rear camera's high megapixel specs without worrying about pressing the shutter button. Using face-detection, you can set your ASUS Tablet to detect up to four faces using the rear camera then automatically capture your selfie or group selfie.
Capturing Selfie photos
- From the Camera app's home screen, tap Selfie.
- Tap to choose how many people should be included in the photo.
- Use the rear camera to detect faces and wait for your ASUS Tablet to start beeping, counting down until it captures the photo.
- Tap √ to save the photo.
Selfie Panorama
Capture selfies from various angles using Selfie Panorama. Images captured are automatically stitched together using this feature.
Capturing Selfie Panorama photos
- From the Camera app's home screen, switch to the front camera and tap
Panorama.
- Tap 📷 then pan your ASUS Tablet to the left or right to capture the image.
NOTE: While panning your ASUS Tablet, a timeline of thumbnails appears on your screen as it captures the image.
- Tap √ when finished.
GIF Animation
Create GIF (Graphics Interchange Format) images straight from your ASUS Tablet's camera using the GIF Animation feature.
Capturing GIF Animation photos
- From the Camera app's home screen, tap 📄 Animation.
- Long press to start capturing burst photo for GIF Animation.
- Make your preferred adjustments to the GIF Animation settings.
- Tap √ when finished.
Panorama
Capture images from various angles using Panorama. Images captured from a wide angle perspective are automatically stitched together using this feature.
Capturing panoramic photos
- From the Camera app's home screen, tap
Panorama.
- Tap 📷 then pan your ASUS Tablet to the left or right to capture the scenery.
NOTE: While panning your ASUS Tablet, a timeline of thumbnails appears on the lower part of your screen as it captures the scenery.
- Tap √ when finished.
Miniature
Simulate the tilt-shift effect of DSLR lenses via the Miniature feature. Using this feature allows you to focus on specific areas of your subject, adding a bokeh effect that can be used on both photos and video using your ASUS Tablet.
Capturing Miniature photos
- From the Camera app's home screen, tap Miniature.
- Tap ☐ or ☐ to select your focus area, then use your two fingers to adjust the focus area's size and position.
- Tap 4 to increase or decrease the background blur. Tap 4 to increase or decrease saturation.
- Tap 📷 to capture Miniature photos.
Time Rewind
After selecting Time Rewind, your shutter starts taking burst shots a few seconds before and after you actually press the shutter button. As a result, you get a timeline of images where you can choose the best image to save on your Gallery.
Capturing Time Rewind photos
- From the Camera app's home screen, tap 📄me Rewind.
- Tap to start capturing photos.
- The Time Rewind viewer appears onscreen on top of the captured photo. Rotate the button on the viewer to browse through the photos you just took.
NOTE: Tap Best to view the best photo suggestion from the timeline.
- Tap √ when finished.
Smart Remove
Eliminate unwanted details immediately after capturing the image using the Smart Remove feature.
Capturing Smart Remove photos
- From the Camera app's home screen, tap Smart Remove.
- Tap the camera icon to start capturing photos that can be edited using Smart Remove.
- On the captured photo, tap the outline around the detected moving object to delete it.
- Tap the checkmark to save the photo.
All Smiles
Capture the perfect smile or the wackiest facial expression from a range of photos using the All Smiles feature. This feature lets you take five consecutive photos after pressing the shutter button, automatically detecting faces on the image for comparison.
Capturing All Smiles photos
- From the Camera app's home screen, tap
Smiles.
- Tap the camera icon to start capturing photos that can be edited using All Smiles.
- Touch the subject's face, then select the subject's best facial expression.
- Swipe down from the top, then tap to save the photo.
Slow motion
The Slow motion video feature allows you to record videos for slow-motion playback.
Recording Slow motion videos
- From the Camera app's home screen, tap
Slow motion.
- Tap ● to start taking Slow motion videos.
Time Lapse
The Time Lapse video feature of your ASUS Tablet allows you to capture stills for automatic time lapse playback. In effect, events seem to move in a fast-forward manner though they actually occurred and were recorded between long intervals.
Recording Time Lapse videos
- From the Camera app's home screen, tap Time Lapse.
- Tap □ then select the time lapse interval.
- Tap ● to start taking Time Lapse videos.
Using the Gallery
View images and play videos on your ASUS Tablet using the Gallery app. This app also allows you to edit, share, or delete image and video files stored in your ASUS Tablet. From Gallery, you can display images in a slideshow or tap to view the selected image or video file.
To launch Gallery, tap Gallery.
Viewing files from your social network or cloud storage
By default, your Gallery displays all the media files on your ASUS Tablet according to their album folders.
To view the media files from other locations accessible via your ASUS Tablet:
- From the Gallery app's home screen, tap .
- Tap any of the following source locations to view their respective media files.
NOTE:
- You can download photos to your ASUS Tablet from your cloud account and use them as your wallpaper or a contact's cover image.
- For details on adding cover images to your contacts, see the Customizing your contact's profile section.
- For details on using photos or images as your wallpaper, see the Wallpapers section.
IMPORTANT! Internet connection is required for viewing photos and videos under My cloud.
Viewing the photo location
Enable the location access on your ASUS Tablet and get the location details on your photos. Your photos' location details include the area where the photos are taken, as well a map of the location via Google Map or Baidu (in China only).
To view the details of a photo:
- Launch the Gallery app, and select the photo whose details you want to view.
- Tap the photo then tap
Sharing files from the Gallery
- From the Gallery app's home screen, tap the folder where the files you want to share are located.
- After opening the folder, tap to activate file selection.
- Tap the files you want to share. A check mark appears on top of the image you have selected.
- Tap then select from the list where you want to share the images.
Deleting files from the Gallery
- From the Gallery app's home screen, tap the folder where the files you want to delete are located.
- After opening the folder, tap to activate file selection.
- Tap the files you want to delete. A check mark appears on top of the image you have selected.
- Tap
Editing images
The Gallery app also features its own image editing tools that you can use to enhance images saved in your ASUS Tablet.
- From the Gallery app's home screen, tap the folder where the files are located.
- After opening the folder, tap the image you want to edit.
- Once the image is opened, tap it again to show its functions.
- Tap to open the image editing toolbar.
- Tap any of the icons on the editing toolbar to apply changes to the image.
- Tap to save the photo.
Zooming in/out the thumbnails or images
From the Gallery screen or your selected image, spread apart your fingers on the touchscreen panel to zoom in. To zoom out, bring your fingers together on the touchscreen panel.
Using MiniMovie
Turn photos into a creative slideshow using the MiniMovie feature of the Gallery. MiniMovie contains a theme of slideshow presentations which you can immediately apply to selected photos.
To create a MiniMovie from a photo folder:
- From the Gallery app's home screen, tap >Albums.
- Select a photo folder then tap Auto MiniMovie.
- Select the MiniMovie theme you would like to use for your photo slideshow.
- After selecting a theme, tap to save or share the slideshow.
To create a MiniMovie from a selection of photos:
- From the Gallery app's home screen, tap >All photos.
- Tap ☑ to activate file selection.
- After selecting your photos, tap MiniMovie.
- Select the MiniMovie theme you would like to use for your photo slideshow.
- After selecting a theme, tap to save or share the slideshow. You can access your saved slideshows from ASUS > File Manager > Videos > MiniMovie.
Using a headset
Have the freedom to do other things while you're in a call or enjoy listening to your favorite music using a headset.
Connecting the audio jack
Insert the 3.5 mm headset jack into the audio port of your device.
WARNING!
- Do not insert other objects into the audio jack port.
- Do not insert a cable with electric power output into the audio jack port.
- Listening at a high volume for long periods can damage your hearing.
NOTE:
• We highly recommend using only compatible headsets or the bundled headset with this device. - Unplugging the audio jack while listening to music automatically pauses the music played. • Unplugging the audio jack while watching a video automatically pauses the video playback.
Setting up a Gmail account
Set up your Gmail account to get into Google-related services and apps as well as receive, send, and browse emails right from your ASUS Tablet.
- From the Home screen, tap Google > Gmail > Add an email address.
- Select Google.
- Key in your existing Gmail account and password, then tap Accept.
NOTE: When signing in, you have to wait while your device communicates with Google servers to set up your account.
Do It Later
Adding to-do tasks
Create important to-do tasks to organize your work or social activities in your professional or social life.
- From the Home screen, tap ASUS > Do It Later.
- Tap + then select or .
- Select a contact to message later or fill in the necessary information to add a task.
- When you're done, tap Done.
Prioritizing to-do tasks
Set the importance level of your to-do tasks so you can prioritize and act on them accordingly.
- From the Home screen, tap ASUS > Do It Later.
- Tap the task that you want to set as a top priority.
- Under the Importance field in the task screen, select High.
- When you're done, tap Done.
NOTE: High-priority to-do tasks are marked as ! on your Do It Later list. This allows you to quickly determine which to-do tasks need immediate actions.
Deleting to-do tasks
You can delete any completed, overdue, or unnecessary to-do tasks from the Do It Later app.
- From the Home screen, tap ASUS > Do It Later.
- Tap the task you want to remove from the list, then tap .
SuperNote
Turn note-taking into a fun and creative activity using SuperNote. This intuitive app allows you to create notes organized per notebook by directly writing or drawing on the touchscreen. While creating notes, you can also add multimedia files from other apps and share them via social networks or your cloud storage account.
Creating a notebook
To create new files using SuperNote, refer to the following steps:
- From the Home screen, tap ASUS > SuperNote, then tap
- Select a template and start writing your notes.
Understanding icons
Depending on your selected input mode, these icons appear as you take down your notes on SuperNote.
Select this type mode when you want to use the onscreen keyboard to enter your notes.
Select this write mode when you want to scribble or write your notes.
Select this draw mode when you want to create drawings or doodles.
When in write or type mode, tap this icon to select text weight and color.
When in draw mode, tap this icon to select the drawing tool to use, and the stroke color or size.
When in draw mode, tap this icon to erase some contents in your notes.
Tap this icon to take a photo or video, record audio, add timestamp, and more to your notes.
Tap this icon to add a new page to your notebook.
Sharing a notebook on the Cloud
You may share your notebook on the Cloud using the following steps:
- On the SuperNote home screen, tap and hold the notebook you would like to share.
- In the pop-up screen, tap Enable cloud sync.
- Input your ASUS WebStorage account's User name and Password details to proceed with syncing your notebook to the Cloud.
- Once the notebook has been successfully synced to the Cloud, the Cloud icon appears on top of the shared notebook.
Sharing a note
Aside from your notebook, you may also share individual notes from your SuperNote to your apps or Cloud storage account. To do this:
- Launch the notebook that contains the note you want to share.
- Tap and hold the note you want to share.
- In the pop-up screen, tap Share then select the type of file format you want to share it as.
- In the next screen, select the apps or Cloud storage account where you would like to share your note.
- Follow the succeeding instructions to complete sharing your selected note.
File Manager
Using File Manager allows you to easily locate and manage your data on the internal storage of your ASUS Tablet and its connected external storage devices.
Accessing the internal storage
To access the internal storage:
- Tap > File Manager.
Accessing the external storage device
To access the external storage device:
- Insert the microSD card into your ASUS Tablet.
- Tap > File Manager.
- Tap ≡ > MicroSD to view the contents of your microSD card.
Accessing Cloud Storage
IMPORTANT! Ensure that Wi-Fi or mobile network (on selected models) is enabled on your ASUS Tablet. For more details, see the Staying connected section.
To access files saved on your cloud storage accounts:
- Tap > File Manager.
- Tap ≡ then tap a cloud storage location under Cloud storage.
The Cloud
Back up your data, sync files among different devices, and share files securely and privately via a Cloud account such as ASUS WebStorage, Drive, OneDrive, and Dropbox.
WebStorage
Register for or sign in to WebStorage and get free cloud storage. Automatically upload newly captured photos for instant sharing, sync files among different devices, or share files via your WebStorage account.
IMPORTANT! Ensure that Wi-Fi or mobile network (on selected models) is enabled on your ASUS Tablet. For more details, see the Staying connected section.
ZenUI FAQ
Find answers from FAQs (Frequently Asked Questions) or directly interact with other ZenUI users to find and share solutions about ZenUI apps.
To access ZenUI FAQ:
- Tap >ZenUI FAQ.
- Tap ZenUI FAQs, then select the app that you want to find answers for.
Staying connected
6
Wi-Fi
The Wi-Fi technology of your ASUS Tablet gets you connected to the wireless world. Update your social media accounts, browse the Internet, or exchange data and messages wirelessly from your ASUS Tablet.
Enabling Wi-Fi
- Launch the Settings screen by doing any of the following:
- Launch Quick settings then tap
- Tap > Settings.
- Slide the Wi-Fi switch to the right to turn on the Wi-Fi.
NOTE: You can also enable the Wi-Fi from the Quick settings screen. For details on how to launch the Quick settings screen, see the Quick settings section.
Connecting to a Wi-Fi network
- On the Settings screen, tap Wi-Fi to display all detected Wi-Fi networks.
- Tap a network name to connect to it. For a secured network, you may be prompted to key in a password or other security credentials.
NOTE:
- Your ASUS Tablet automatically reconnects to the network that you connected with previously.
- Turn off the Wi-Fi feature when you are not using it to help save battery power.
Disabling Wi-Fi
- Launch the Settings screen by doing any of the following:
- Launch Quick settings then tap
- Tap > Settings.
- Slide the Wi-Fi switch to the left to turn off the Wi-Fi.
NOTE: You can also disable the Wi-Fi from Quick settings screen. For details on how to launch Quick settings screen, see the Quick settings section.
Bluetooth
Use the Bluetooth feature of your ASUS Tablet to send or receive files and stream multimedia files with other smart devices over short distances. With Bluetooth, you can share your media files with your friends' smart devices, send data for print with a Bluetooth printer, or play music files with a Bluetooth speaker.
Enabling Bluetooth
- Do any of the following to launch the Settings screen:
- Launch Quick settings then tap
- Tap > Settings.
- Slide the Bluetooth switch to the right to turn on the Bluetooth.
NOTE: You can also enable the Bluetooth from Quick settings screen. For details on how to launch Quick settings screen, see the Quick settings section.
Pairing your ASUS Tablet to a Bluetooth device
Before using the Bluetooth feature of your ASUS Tablet in full scale, you have to pair it first with the Bluetooth device. The ASUS Tablet automatically stores the pairing connection of the Bluetooth device.
- Turn on the Bluetooth of your ASUS Tablet to make it visible to other Bluetooth devices.
- On the Settings screen, tap Bluetooth to display all available devices.
IMPORTANT! If the device that you want to pair is not in the list, ensure to enable its Bluetooth feature.
- In the list of available devices, tap the Bluetooth device that you want to pair with.
- Ensure that the same pairing code is shown on both devices, then tap Pair.
NOTE: Turn off the Bluetooth feature when you're not using it to help save battery power.
Unpairing your ASUS Tablet from the Bluetooth device
- On the Settings screen, tap Bluetooth to display all available and paired devices.
- In the list of paired devices, tap the Bluetooth device that you want to unpair, then tap Forget.
Airplane mode
Airplane mode disables wireless communication, allowing you to use your ASUS Tablet safely while in-flight.
Enabling Airplane mode
- Launch the Settings screen by doing any of the following:
- Launch Quick settings then tap
- Tap Settings.
- Tap More and slide the Airplane mode switch to the right to turn on the Airplane mode.
NOTE: You can also enable the Airplane mode from the Quick settings screen. For details on how to launch the Quick settings screen, see the Quick settings section.
Disabling Airplane mode
- Launch the Settings screen by doing any of the following:
- Launch Quick settings then tap
- Tap > Settings.
- Tap More and slide the Airplane mode switch to the left to turn off the Airplane mode.
NOTE: You can also disable the Airplane mode from the Quick settings screen. For details on how to launch the Quick settings screen, see the Quick settings section.
Tethering
When Wi-Fi service is not available, you can use your ASUS Tablet as a modem or turn it into a Wi-Fi hotspot to get Internet access on your laptop, tablet, and other mobile devices.
IMPORTANT! Most mobile service providers may require a data plan for you to be able to use the tethering function. Contact your mobile service provider about availing of this data plan.
NOTE:
- Internet access via tethering may be slower than the standard Wi-Fi or mobile connection.
- Only a limited number of mobile devices can tether to your ASUS Tablet for Internet access.
- Turn off the tethering feature when you're not using it to help save battery power.
USB tethering
Enable USB tethering on your ASUS Tablet and share its Internet connection with other devices.
- Connect your ASUS Tablet to another device with a USB cable.
- When the Use USB for file transfer prompt appears, tap Yes.
- Do any of the following to launch the Settings screen:
- Launch Quick settings then tap
- Tap Settings.
- From the Settings screen, tap More > Tethering & portable hotspot, then slide USB tethering on.
Wi-Fi hotspot
Turn your ASUS Tablet into a Wi-Fi hotspot to link with other devices.
- Do any of the following to launch the Settings screen:
- Launch Quick settings then tap
- Tap Settings.
- Tap More > Tethering & portable hotspot > Set up Wi-Fi hotspot.
- Assign a unique SSID or network name and a strong 8-character password for your Wi-Fi hotspot. When done, tap Save.
- From the Tethering & portable hotspot screen, tap Portable Wi-Fi hotspot to turn on the Wi-Fi hotspot on your ASUS Tablet.
- Connect other devices to your ASUS Tablet's hotspot connection the same way you connect to a Wi-Fi network.
Bluetooth tethering
Enable Bluetooth tethering on your ASUS Tablet to share its Internet connection with other devices.
- Enable Bluetooth on your ASUS Tablet and the other device.
- Pair both devices.
NOTE: For more details, see the section "Pairing your ASUS Tablet to a Bluetooth device".
- From the Settings screen, tap More > Tethering & portable hotspot, then slide on Bluetooth tethering.
PlayTo
The PlayTo app lets you screencast your ASUS Tablet to a streaming-supported display. Doing this allows an external display to become a dual monitor or second screen for your ASUS Tablet.
IMPORTANT! Your external display must have Miracast™ or DLNA® technology to support the PlayTo app.
Launching PlayTo from Quick settings
- Set up the streaming-supported display you want to use with your ASUS Tablet.
- Launch Quick settings on your ASUS Tablet, then tap PlayTo.
- Refer to the SSID shown on your streaming-supported display and select the same SSID on your ASUS Tablet to start pairing.
Once the connection is made, your streaming-supported display shows the same content currently shown on your ASUS Tablet.
Launching PlayTo from Settings
- Tap > Settings.
- Tap More, then tap PlayTo.
- Refer to the SSID shown on your streaming-supported display and select the same SSID on your ASUS Tablet to start pairing.
Once the connection is made, your streaming-supported display shows the same content currently shown on your ASUS Tablet.
Zen Everywhere
7
Special Zen Tools
Calculator
One-swipe and a tap is all it takes to launch your Calculator. When you open the Quick settings panel, the Calculator icon is there visibly on top of the list. Tap it to get started with your computations.
Tap this to enable Calculator
Calculator screen
| sin | In | C | +/- | % | Rad | DEL | |
| cos | log | MC | 7 | 8 | 9 | ÷ | ( |
| tan | e | MR | 4 | 5 | 6 | × | ) |
| π | x^y | M- | 1 | 2 | 3 | - | = |
| n! | ✓ | M+ | 0 | 00 | . | + | |
Quick Memo
Quick Memo is a note-taking tool that gives you the freedom to either scribble or type down important notes you need to remember. After creating notes, you can share them via Share Link and social media sites or turn them into a task inside Do It Later.
To launch Quick Memo, tap Quick Memo.
Creating a sticky note
You can turn Quick Memo notes into a sticky note so you can view them anywhere on your ASUS Tablet. To create a sticky note, just tap on the pin icon on the upper right corner of Quick Memo after creating your note.
Sound Recorder
Record audio files using your ASUS Tablet by enabling the Sound Recorder app.
To launch Sound Recorder, tap: Sound Recorder.
Pausing a recording
During a paused recording, you can choose to resume, delete, or save the recording.
Recording list
From the recording list, you can play, share, delete, or rename a saved audio recording file. View your recording list at the bottom of the Sound Recorder main screen.
AudioWizard
AudioWizard allows you to customize the sound modes of your ASUS Tablet for a clearer audio output that fits actual usage scenarios.
Using AudioWizard
To use AudioWizard:
- Launch Quick settings then tap AudioWizard.
- In the AudioWizard window, tap the sound mode you want to activate.
Splendid
ASUS Splendid allows you to easily adjust the display settings. It enriches the color of your screen with its preset screen color modes.
Using Splendid
To use Splendid:
- Launch the Settings screen by doing any of the following:
- Launch Quick settings then tap
- Tap > Settings.
- Tap Display > Screen color mode and select any of these screen color modes: Balance, Bluelight Filter, Vivid, and Customized.
Balance mode
This mode provides a balanced display of color on your ASUS Tablet.
Bluelight Filter mode
This mode aims to reduce eye strain for a comfortable reading experience on your ASUS Tablet.
Vivid mode
This mode provides a fine-tuned color preset that enriches the screen color of your ASUS Tablet.
Customized mode
This mode allows you to adjust the screen display based on your preferred color temperature, hue, and saturation.
Power Saver
Fully maximize or extend the power of your ASUS Tablet even when it is idle or while it stays connected to your network. Smartly customize the power settings for your frequent activities such as reading emails or watching videos.
Setting up Power Saver
Optimize the power of your ASUS Tablet according to your needs with some smart power saving options.
- Tap > Mobile Manager > Power saver.
- Select any of these battery modes:
- Performance
- Normal • Power saving
- Super saving
- Customized
- For advanced settings, tap Smart switch for more options.
Customizing Power Saver
Set the brightness level for your frequent activities such as reading emails or ebooks, watching videos, browsing websites, and listening to music. You can also enable the power saving function for some apps or enable the auto-disconnection of your network when your ASUS Tablet is asleep.
- From Power Saver, tick Customized, then tap 📋.
- Select an activity, then make adjustments.
Keeping your device up-to-date
Keep your ASUS Tablet in the loop of Android system updates and upgraded apps and features.
Updating your system
- Tap > Settings.
- On the Settings screen, slide down then tap About.
- Tap System update then tap Check Update.
NOTE: You can preview the last time your ASUS Tablet's system was updated in Last check for update.
Storage
You can store data, apps, or files on your ASUS Tablet (internal storage), on an external storage, or on an online storage. You need an Internet connection to transfer or download your files on an online storage. Use the bundled USB cable to copy files to or from the computer to your ASUS Tablet.
Backup and reset
Back up data, Wi-Fi passwords, and other settings to Google servers using your ASUS Tablet.
- Tap > Settings > Backup & reset.
- From the Backup & reset window, you can:
- Backup my data: This feature backs up your data, Wi-Fi passwords, and other settings to Google servers when enabled.
- Backup account: Allows you to specify the account you wish to be associated when you save your backup.
- Automatic restore: This feature facilitates restoration of backed up settings and data when you reinstall an app. • Network settings reset: This will reset all network settings. • Factory data reset: Erases all data on tablet.
Securing your ASUS Tablet
Use the security features of your ASUS Tablet to prevent unauthorized access of information.
Unlocking your screen
When the screen is locked, you can open it with the security unlocking options that the ASUS Tablet offers you.
- Tap > Settings > Lock screen.
- Tap Screen lock then select an option to unlock your ASUS Tablet.
NOTE:
• For more details, see the Unlock screen options section. • To deactivate the unlock screen option that you set, tap None on the Choose screen lock screen.
Unlock screen options
Choose from these options to unlock your ASUS Tablet.
Swipe
Swipe up to unlock your ASUS Tablet.
Pattern
Slide your finger on the dots and create a pattern.
IMPORTANT! You can create a pattern with a minimum of four dots. Ensure to remember the pattern that you created to unlock your device.
PIN
Key in at least four numbers to set a PIN.
IMPORTANT! Ensure to remember the PIN that you created to unlock your device.
Password
Key in at least four characters to create a password.
IMPORTANT! Ensure to remember the password that you created to unlock your device.
Configuring the other screen security features
Aside from the mode of screen lock, you can also do the following on the Lock screen window:
- Quick access: Tap this to edit Quick access on the lock screen.
- Instant Camera: Slide the Instant Camera switch on to launch the Camera app even if your ASUS Tablet is in idle mode by pressing the volume button twice.
- Lock screen message: Tap this to edit and key in the information that you want to appear even when your screen is locked.
Knowing your ASUS Tablet identity
Know your ASUS Tablet's identity such as serial number or model number.
This is important, as when you lose your ASUS Tablet, you can contact your mobile carrier and provide the information to blacklist the unauthorized use of your ASUS Tablet.
To display your ASUS Tablet's identity:
- Tap > Settings.
- On the Settings screen, slide down then tap About. The About screen displays the status, legal information, model number, operating system version, hardware, and software information of your ASUS Tablet.
- To see the serial number of your ASUS Tablet, tap Status.
Appendix
Notices
Green ASUS notice
ASUS is devoted to creating environment-friendly products and packaging to safeguard consumers' health while minimizing the impact on the environment. The reduction of the number of the manual pages complies with the reduction of carbon emission.
For the detailed user manual and related information, refer to the user manual included in the ASUS Tablet or visit the ASUS Support Site at https://www.asus.com/support/.
ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.
Power Safety Requirement
Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75 mm² or H05VV-F, 2G, 0.75 mm².
For Model P00L
EU Radio Equipment Directive compliance
Simplified EU Declaration of Conformity
Hereby, ASUSTek Computer Inc. declares that the radio equipment type P00L is in compliance with Directive 2014/53/EU. Full text of EU declaration of conformity is available at
https://www.asus.com/support/. (Search for Z301ML, Z301MFL, M1001ML, M1001MFL, R1001ML, R1001MFL)
RF Output Table
| Items Maximum Radio-Frequency Output Power Table | |||
| Bluetooth | Bluetooth RF (2400~2483.5 MHz) | GSM Burst (1710~ | GSM 900 Burst (880~915; 925~960 MHz) |
| 9 (dBm) N/A (dBm) | |||
| Bluetooth 4.0-LE (2400~2483.5 MHz) GSM 1800 B | 1785; 1805~1880 MHz) | ||
| 9 (dBm) N/A (dBm) | |||
| WLAN | 2.4GHz 802.11b (2400~2483.5 MHz) | WCDMA | WCDMA Band I (1920~1980; 2110~2170 MHz) |
| 15.5 (dBm) 23.5 (dBm) | |||
| 2.4GHz 802.11g (2400~2483.5 MHz) WCDMA Band VIII (880~915; 927~960 MHz) | 915; 927~960 MHz) | ||
| 13.5 (dBm) 23.5 (dBm) | |||
| 2.4GHz 802.11n HT20 (2400~2483.5 MHz) | LTE | LTE Band I (1920~1980; 2110~2170 MHz) | |
| 12 (dBm) 23.5 (dBm) | |||
| 5GHz 802.11a (5150~5250; 5250~5350; 5470~5725 MHz) | LTE Band III (1710~1785; 1805~1880 MHz) | ||
| 12 (dBm) 23.5 (dBm) | |||
| 5GHz 802.11an HT20 (5150~5250; 5250~5350; 5470~5725 MHz) | LTE Band VII (2500~2570; 2620~2690 MHz) | ||
| 10.5 (dBm) 23.5 (dBm) | |||
| 5GHz 802.11an HT40 (5150~5250; 5250~5350; 5470~5725 MHz) | LTE Band VIII (880~915; 927~960 MHz) | ||
| 10.5 (dBm) 24 (dBm) | |||
| 5GHz 802.11ac HT80 (5150~5250; 5250~5350; 5470~5725 MHz) | LTE Band XX (832~862; 791~821 MHz) | ||
| N/A (dBm) 24 (dBm) | |||
The Wi-Fi operating in the band 5150-5350MHz shall be restricted to indoor use for countries listed in the table below:
| AT BE | BG CZ DK EE FR | ||||
| DE IS | IE IT EL ES CY | ||||
| LV | LI | LT | LU | HU | MT |
| NO PL | PT RO SI SK TR | ||||
| FI SE | CH UK HR |
RF Exposure Information
This ASUS product has been tested and meets applicable European SAR limits. The SAR limit is 2.0 W/Kg in countries that set the limit averaged over 10 grams of tissue. The specific maximum SAR values for this device are as follows:
Body: 1.59 W/Kg
When carrying this device or using it while worn on the body, either use an approved accessory such as a holster or otherwise maintain a distance of 0.5 cm from the body to ensure compliance with RF exposure requirements.
CE Marking
CE
Prevention of Hearing Loss
To prevent possible hearing damage, do not listen at high volume levels for long periods.
For France, headphones/earphones for this device are compliant with the sound pressure level requirement laid down in the applicable EN 50332-1:2013 and/or EN 50332-2:2013 standard required by French Article L.5232-1.
Premium Sound
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks, and DTS-HD Premium Sound is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
Coating notice
IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located.
Battery safety information
- Do not disassemble or open, crush, bend, or deform, puncture, or shred.
- Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse, or expose to water or other liquids, expose to fire, explosion or other hazard.
- Only use the battery with a charging system that has been qualified with the system per CTIA Certification Requirements for Battery System Compliance to IEEE 1725. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard.
- Promptly dispose of used batteries in accordance with local regulations.
- Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.
- Improper battery use may result in a fire, explosion, or other hazard.
- For those host devices that utilize a USB port as a charging source, the host device's user manual shall include a statement that the phone shall only be connected to CTIA-certified adapters, products that bear the USB-IF logo or products that have completed the USB-IF compliance program.
Rechargeable Battery Recycling Service in North America
For US and Canada customers, you can call 1-800-822-8837 (toll-free) for recycling information of your ASUS products' rechargeable batteries.
For Model P028
Federal Communications Commission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:
• This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment causes harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by doing one or more of the following measures:
• Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The country code selection is for non-US models only and is not available to all US models. Per FCC regulation, all Wi-Fi products marketed in the US must be fixed to US operation channels only.
For FCC and IC e-labelling information, please go to Settings > About > Regulatory information.
RF Exposure Information (SAR)
This device meets the government's requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
The exposure standard employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the EUT transmitting at the specified power level in different channels.
The highest SAR value for the device as reported to the FCC is 0.9 W/kg when placed next to the body.
The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this device is on file with the FCC and can be found at www.fcc.gov/general/fcc-id-search-page after searching on FCC ID: MSQP028.
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003.
This device complies with Industry Canada license-exempt RSS standard(s).
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter, except tested built-in radios.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. The IC ID for this device is 3568A-P028.
For FCC and IC e-labelling information, please go to Settings > About > Regulatory information.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has been evaluated for and shown compliant with the IC Specific Absorption Rate ("SAR") limits when installed in specific host products operated in portable exposure conditions.
Canada's REL (Radio Equipment List) can be found at the following web address: http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng
Additional Canadian information on RF exposure also can be found at the following web address: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
Canada, Industry Canada (IC) Notice
The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure. Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where required by the technology.
The Country Code Selection feature is disabled for products marketed in the US/Canada. For product available in the USA/Canada markets, only channel 1-11 can be operated. Selection of other channels is not possible.
This EUT is compliance with SAR for general population/uncontrolled exposure limits in IC RSS-102 and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528.
Caution
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; (ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall comply with the e.i.r.p. limit; and (iii) the maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate. (iv) the worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p elevation mask requirement set forth in Section 6.2.2(3) shall be clearly indicated. (v) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.
Warning
EU Radio Equipment Directive compliance
Simplified EU Declaration of Conformity
Hereby, ASUSTek Computer Inc. declares that the radio equipment type P028 is in compliance with Directive 2014/53/EU. Full text of EU declaration of conformity is available at https://www.asus.com/support/. (Search for Z301M, Z301MF, R1001M, R1001MF, M1001M, M1001MF)
RF Output Table
| Items Maximum Radio-Frequency Output Power Table | |||
| Bluetooth | Bluetooth RF (2400~2483.5 MHz) | GSM Burst (1710~ | GSM 900 Burst (880~915; 925~960 MHz) |
| 7.66 (dBm) N/A (dBm) | |||
| Bluetooth 4.0-LE (2400~2483.5 MHz) GSM 1800 | 1785; 1805~1880 MHz) | ||
| -0.29 (dBm) N/A (dBm) | |||
| WLAN | 2.4GHz 802.11b (2400~2483.5 MHz) | WCDMA | WCDMA Band I (1920~1980; 2110~2170 MHz) |
| 14.65 (dBm) N/A (dBm) | |||
| 2.4GHz 802.11g (2400~2483.5 MHz) WCDMA Band VIII (880~915; 927~960 MHz) | |||
| 14.73 (dBm) N/A (dBm) | |||
| 2.4GHz 802.11n HT20 (2400~2483.5 MHz) | LTE | LTE Band I (1920~1980; 2110~2170 MHz) | |
| 13.56 (dBm) N/A (dBm) | |||
| 5GHz 802.11a (5150~5250; 5250~5350; 5470~5725 MHz) | LTE Band III (1710~1785; 1805~1880 MHz) | ||
| 13.67 (dBm) N/A (dBm) | |||
| 5GHz 802.11an HT20 (5150~5250; 5250~5350; 5470~5725 MHz) | LTE Band VII (2500~2570; 2620~2690 MHz) | ||
| 13.67 (dBm) N/A (dBm) | |||
| 5GHz 802.11an HT40 (5150~5250; 5250~5350; 5470~5725 MHz) | LTE Band VIII (880~915; 927~960 MHz) | ||
| 13.92 (dBm) N/A (dBm) | |||
| 5GHz 802.11ac HT80 (5150~5250; 5250~5350; 5470~5725 MHz) | LTE Band XX (832~862; 791~821 MHz) | ||
| N/A (dBm) N/A (dBm) | |||
The Wi-Fi operating in the band 5150-5350MHz shall be restricted to indoor use for countries listed in the table below:
| AT BE | BG CZ DK EE FR | ||||
| DE IS | IE IT EL ES CY | ||||
| LV | LI | LT | LU | HU | MT |
| NO PL | PT RO SI SK TR | ||||
| FI SE | CH UK HR |
RF Exposure Information
This ASUS product has been tested and meets applicable European SAR limits. The SAR limit is 2.0 W/Kg in countries that set the limit averaged over 10 grams of tissue. The specific maximum SAR values for this device are as follows:
Body: 0.37 W/Kg
When carrying this device or using it while worn on the body, either use an approved accessory such as a holster or otherwise maintain a distance of 0 cm from the body to ensure compliance with RF exposure requirements.
CE Marking
CE
ENERGY STAR complied product
ENERGY STAR is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and practices.
All ASUS slate computers with the ENERGY STAR logo comply with the ENERGY
STAR standard, and the power management feature is enabled by default. The display will be automatically set to sleep within 10 minutes of user inactivity. Users can wake your computer by clicking the display or pressing the power button.
Please visit http://www.energystar.gov/powermanagement for detailed information on power management and its benefits to the environment. In addition, please visit http://www.energystar.gov for detailed information on the ENERGY STAR joint program.
Prevention of Hearing Loss
To prevent possible hearing damage, do not listen at high volume levels for long periods.
For France, headphones/earphones for this device are compliant with the sound pressure level requirement laid down in the applicable EN 50332-1:2013 and/or EN 50332-2:2013 standard required by French Article L.5232-1.
Premium Sound
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks, and DTS-HD Premium Sound is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.
Coating notice
IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located.
Regional notice for California
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Battery safety information
- Do not disassemble or open, crush, bend, or deform, puncture, or shred.
- Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse, or expose to water or other liquids, expose to fire, explosion or other hazard.
- Only use the battery with a charging system that has been qualified with the system per CTIA Certification Requirements for Battery System Compliance to IEEE 1725. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard.
- Promptly dispose of used batteries in accordance with local regulations.
- Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.
- Improper battery use may result in a fire, explosion, or other hazard.
- For those host devices that utilize a USB port as a charging source, the host device's user manual shall include a statement that the phone shall only be connected to CTIA-certified adapters, products that bear the USB-IF logo or products that have completed the USB-IF compliance program.
Rechargeable Battery Recycling Service in North America
For US and Canada customers, you can call 1-800-822-8837 (toll-free) for recycling information of your ASUS products' rechargeable batteries.
For Model DK02
EU Radio Equipment Directive compliance
Simplified EU Declaration of Conformity
Hereby, ASUSTek Computer Inc. declares that the radio equipment type ASUS_P00M is in compliance with Directive 2014/53/EU. Full text of EU declaration of conformity is available at https://www.asus.com/support/. (Search for DK02)
RF Output Table
| Items Maximum Radio-Frequency Output Power Table | |||
| Bluetooth | Bluetooth RF (2400~2483.5 MHz) | GSM Burst (1710~ | GSM 900 Burst (880~915; 925~960 MHz) |
| 2 (dBm) N/A (dBm) | |||
| Bluetooth 4.0-LE (2400~2483.5 MHz) GSM 1800 B | 1785; 1805~1880 MHz) | ||
| N/A (dBm) N/A (dBm) | |||
| WLAN | 2.4GHz 802.11b (2400~2483.5 MHz) | WCDMA and VIII (880~915; 927~960 MHz) | WCDMA Band I (1920~1980; 2110~2170 MHz) |
| N/A (dBm) N/A (dBm) | |||
| 2.4GHz 802.11g (2400~2483.5 MHz) WCDMA Band | |||
| N/A (dBm) N/A (dBm) | |||
| 2.4GHz 802.11n HT20 (2400~2483.5 MHz) | LTE | LTE Band I (1920~1980; 2110~2170 MHz) | |
| N/A (dBm) N/A (dBm) | |||
| 5GHz 802.11a (5150~5250; 5250~5350; 5470~5725 MHz) | LTE Band III (1710~1785; 1805~1880 MHz) | ||
| N/A (dBm) N/A (dBm) | |||
| 5GHz 802.11an HT20 (5150~5250; 5250~5350; 5470~5725 MHz) | LTE Band VII (2500~2570; 2620~2690 MHz) | ||
| N/A (dBm) N/A (dBm) | |||
| 5GHz 802.11an HT40 (5150~5250; 5250~5350; 5470~5725 MHz) | LTE Band VIII (880~915; 927~960 MHz) | ||
| N/A (dBm) N/A (dBm) | |||
| 5GHz 802.11ac HT80 (5150~5250; 5250~5350; 5470~5725 MHz) | LTE Band XX (832~862; 791~821 MHz) | ||
| N/A (dBm) N/A (dBm) | |||
CE Marking
CE
Power Safety Requirement
Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75 mm² or H05VV-F, 2G, 0.75 mm².
For use with UL listed I.T.E., ASUS Tablets series only.
Coating notice
IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located.
Model name: P00L (Z301ML, Z301MFL, M1001ML, M1001MFL, R1001ML, R1001MFL) P028 (Z301M, Z301MF, M1001M, M1001MF, R1001M, R1001MF) DK02
| Manufacturer: ASUSTeK Computer Inc. | |
| Address: 4F, No.150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN | |
| Authorised representative in Europe: | ASUS Computer GmbH |
| Address: HARKORT STR. 21-23, 40880 RATINGEN, GERMANY | |
- LIMITATION OF LIABILITY
- SERVICE AND SUPPORT
- CONTENTS
- GET YOUR ZEN READY
- PARTS AND FEATURES
- ASUS ZENUI
- USING YOUR ASUS MOBILE DOCK (OPTIONAL)
- USING THE TOUCHSCREEN
- THERE'S NO PLACE LIKE HOME
- ZEN HOME FEATURES
- PERSONALIZING YOUR HOME SCREEN
- WEATHER AND TIME
- LOCK SCREEN
- VOICE SEARCH
- KEEPING IN TOUCH
- MANAGING CONTACTS
- SENDING MESSAGES
- YOUR PRECIOUS MOMENTS
- CAPTURE MOMENTS
- USING THE GALLERY
- WORK HARD, PLAY HARDER
- USING A HEADSET
- DO IT LATER
- SUPERNOTE
- FILE MANAGER
- THE CLOUD
- ZENUI FAQ
- STAYING CONNECTED
- WI-FI
- BLUETOOTH
- AIRPLANE MODE
- TETHERING
- PLAYTO
- ZEN EVERYWHERE
- SPECIAL ZEN TOOLS
- MAINTAIN YOUR ZEN
- KEEPING YOUR DEVICE UP-TO-DATE
- APPENDIX
- NOTICES
- CONVENTIONS USED
- CARE AND SAFETY
- GUIDELINES
- PROPER DISPOSAL
- MODEL P00L
- IMPORTANT
- INSTALLING A MEMORY CARD
- WARNING
- MODEL P
- REMOVING A MEMORY CARD
- INSTALLING A MICRO SIM CARD (ON SELECTED MODELS)
- REMOVING A MICRO SIM CARD (ON SELECTED MODELS)
- CHARGING YOUR ASUS TABLET
- NOTE
- BATTERY POWER CONSERVATION TIPS
- TURNING YOUR ASUS TABLET ON OR OFF
- TURNING YOUR DEVICE ON
- TURNING YOUR DEVICE OFF
- SLEEP MODE
- STARTING FOR THE FIRST TIME
- GOOGLE ACCOUNT
- ASUS ACCOUNT
- TWO-COLOR BATTERY CHARGE INDICATOR
- KEYBOARD INDICATOR
- LEFT VIEW
- CHARGING YOUR ASUS MOBILE DOCK
- TO CHARGE YOUR ASUS MOBILE DOCK
- TO PAIR YOUR ASUS TABLET WITH ASUS MOBILE DOCK
- TO PAIR YOUR BLUETOOTH DEVICES WITH ASUS MOBILE DOCK
- TO DISCONNECT THE BLUETOOTH KEYBOARD
- DOCKING YOUR ASUS TABLET
- TO DOCK YOUR ASUS TABLET
- USING THE SPECIAL KEYS
- UNDOCKING YOUR ASUS TABLET
- TO UNDOCK YOUR ASUS TABLET
- LAUNCHING APPS OR SELECTING ITEMS
- MOVING OR DELETING ITEMS
- MOVING THROUGH PAGES OR SCREENS
- ZOOMING IN
- ZOOMING OUT
- ZENMOTION
- HOME SCREEN
- UNDERSTANDING NOTIFICATION ICONS
- APP SHORTCUTS AND WIDGETS
- ADDING APP SHORTCUTS AND WIDGETS
- REMOVING APP SHORTCUTS AND WIDGETS
- GROUPING YOUR APP SHORTCUTS IN A FOLDER
- WALLPAPERS
- APPLYING WALLPAPER AND BACKGROUND TINT
- APPLYING AN ANIMATED WALLPAPER
- EXTENDED HOME SCREEN
- EXTENDING YOUR HOME SCREEN
- SETTING UP THE DATE AND TIME
- SETTING UP YOUR RINGTONE AND ALERT SOUNDS
- QUICK SETTINGS
- ADDING OR REMOVING BUTTONS
- SYSTEM NOTIFICATIONS
- WEATHER
- LAUNCHING THE WEATHER APP
- WEATHER HOME SCREEN
- GETTING THE WEATHER UPDATES
- CLOCK
- LAUNCHING CLOCK
- WORLD CLOCK
- ALARM CLOCK
- STOPWATCH
- TIMER
- CUSTOMIZING YOUR LOCK SCREEN
- CUSTOMIZING THE QUICK ACCESS BUTTONS
- LAUNCHING VOICE SEARCH
- CUSTOMIZING VOICE SEARCH RESULTS FROM THE TABLET SEARCH GROUP
- LAUNCHING THE CONTACTS APP
- SETTING UP YOUR PROFILE
- ADDING CONTACTS
- CUSTOMIZING YOUR CONTACT'S PROFILE
- SETTING UP YOUR VIPS
- SET UP YOUR VIP FROM THE GROUPS SCREEN
- ADDING AN EVENT TO A CONTACT
- MARKING YOUR FAVORITE CONTACTS
- IMPORTING CONTACTS
- EXPORTING CONTACTS
- SOCIAL NETWORKING WITH YOUR CONTACTS
- SYNCING YOUR SOCIAL NETWORK ACCOUNT
- LINKING YOUR CONTACTS' INFO
- MESSENGER
- LAUNCHING THE MESSENGER APP
- REPLYING TO MESSAGES
- BLOCKING MESSAGES
- FORWARDING A MESSAGE
- OTHER MESSAGING OPTIONS
- LAUNCHING THE CAMERA APP
- FROM THE LOCK SCREEN
- FROM THE HOME SCREEN
- USING THE VOLUME KEY
- CAMERA HOME SCREEN
- PHOTO LOCATIONS
- CAMERA SETTINGS
- VIDEO SETTINGS
- OTHER SETTINGS
- ADVANCED CAMERA FEATURES
- HDR
- CAPTURING HDR PHOTOS
- BEAUTIFICATION
- CAPTURING BEAUTIFICATION PHOTOS
- APPLYING BEAUTIFICATION TO PHOTOS
- NIGHT
- CAPTURING NIGHT PHOTOS
- DEPTH OF FIELD
- CAPTURING DEPTH OF FIELD PHOTOS
- EFFECT
- CAPTURING EFFECT PHOTOS
- APPLYING EFFECTS TO PHOTOS
- SELFIE
- CAPTURING SELFIE PHOTOS
- SELFIE PANORAMA
- CAPTURING SELFIE PANORAMA PHOTOS
- GIF ANIMATION
- CAPTURING GIF ANIMATION PHOTOS
- PANORAMA
- CAPTURING PANORAMIC PHOTOS
- MINIATURE
- CAPTURING MINIATURE PHOTOS
- TIME REWIND
- CAPTURING TIME REWIND PHOTOS
- SMART REMOVE
- CAPTURING SMART REMOVE PHOTOS
- ALL SMILES
- CAPTURING ALL SMILES PHOTOS
- SLOW MOTION
- RECORDING SLOW MOTION VIDEOS
- TIME LAPSE
- RECORDING TIME LAPSE VIDEOS
- VIEWING FILES FROM YOUR SOCIAL NETWORK OR CLOUD STORAGE
- VIEWING THE PHOTO LOCATION
- SHARING FILES FROM THE GALLERY
- DELETING FILES FROM THE GALLERY
- EDITING IMAGES
- ZOOMING IN/OUT THE THUMBNAILS OR IMAGES
- USING MINIMOVIE
- CONNECTING THE AUDIO JACK
- SETTING UP A GMAIL ACCOUNT
- ADDING TO-DO TASKS
- PRIORITIZING TO-DO TASKS
- DELETING TO-DO TASKS
- CREATING A NOTEBOOK
- UNDERSTANDING ICONS
- SHARING A NOTEBOOK ON THE CLOUD
- SHARING A NOTE
- ACCESSING THE INTERNAL STORAGE
- ACCESSING THE EXTERNAL STORAGE DEVICE
- ACCESSING CLOUD STORAGE
- WEBSTORAGE
- ENABLING WI-FI
- CONNECTING TO A WI-FI NETWORK
- DISABLING WI-FI
- ENABLING BLUETOOTH
- PAIRING YOUR ASUS TABLET TO A BLUETOOTH DEVICE
- UNPAIRING YOUR ASUS TABLET FROM THE BLUETOOTH DEVICE
- ENABLING AIRPLANE MODE
- DISABLING AIRPLANE MODE
- USB TETHERING
- WI-FI HOTSPOT
- BLUETOOTH TETHERING
- LAUNCHING PLAYTO FROM QUICK SETTINGS
- LAUNCHING PLAYTO FROM SETTINGS
- CALCULATOR
- CALCULATOR SCREEN
- QUICK MEMO
- CREATING A STICKY NOTE
- SOUND RECORDER
- PAUSING A RECORDING
- RECORDING LIST
- AUDIOWIZARD
- USING AUDIOWIZARD
- SPLENDID
- USING SPLENDID
- BALANCE MODE
- BLUELIGHT FILTER MODE
- VIVID MODE
- CUSTOMIZED MODE
- POWER SAVER
- SETTING UP POWER SAVER
- CUSTOMIZING POWER SAVER
- UPDATING YOUR SYSTEM
- STORAGE
- BACKUP AND RESET
- SECURING YOUR ASUS TABLET
- UNLOCKING YOUR SCREEN
- UNLOCK SCREEN OPTIONS
- SWIPE
- PATTERN
- PIN
- PASSWORD
- CONFIGURING THE OTHER SCREEN SECURITY FEATURES
- KNOWING YOUR ASUS TABLET IDENTITY
- GREEN ASUS NOTICE
- ASUS RECYCLING/TAKEBACK SERVICES
- POWER SAFETY REQUIREMENT
- FOR MODEL P00L
- EU RADIO EQUIPMENT DIRECTIVE COMPLIANCE
- SIMPLIFIED EU DECLARATION OF CONFORMITY
- RF EXPOSURE INFORMATION
- CE MARKING
- CE
- PREVENTION OF HEARING LOSS
- COATING NOTICE
- BATTERY SAFETY INFORMATION
- RECHARGEABLE BATTERY RECYCLING SERVICE IN NORTH AMERICA
- FOR MODEL P
- FEDERAL COMMUNICATIONS COMMISSION STATEMENT
- RF EXPOSURE INFORMATION (SAR)
- CANADA, INDUSTRY CANADA (IC) NOTICES
- RADIO FREQUENCY (RF) EXPOSURE INFORMATION
- CANADA, INDUSTRY CANADA (IC) NOTICE
- CAUTION
- ENERGY STAR COMPLIED PRODUCT
- REGIONAL NOTICE FOR CALIFORNIA
- FOR MODEL DK
Brand : ASUS
Model : ZenPad 10.1
Category : Tablet
