Expertbook B3 - Tablet ASUS - Free user manual and instructions

Product type	Tablet
Brand	ASUS
Model	Expertbook B3
Dimensions (L x W x H)	256 x 168 x 9,2 mm
Weight	560 g
Power supply	USB-C power adapter 15 V / 1,2 A
Battery life	Up to 12 hours
Screen	10,5 inches IPS touchscreen
Screen resolution	1920 x 1200 pixels
Processor	Intel Celeron N4500
RAM	4 GB
Internal storage	64 GB eMMC
Wireless connectivity	Wi‑Fi 5, Bluetooth 5.0
Ports	1 x USB‑C, 1 x headphone jack 3,5 mm
Sensors	Accelerometer, gyroscope, ambient light sensor
Care and cleaning	Clean with a soft, dry cloth; avoid abrasive products
Security	Screen lock, data encryption, TPM module (depending on version)
Spare parts and repairability	Battery, screen and motherboard replaceable by an authorized repairer
General information	Manufacturer warranty: 2 years; manufacturer: ASUS

Frequently Asked Questions - Expertbook B3 ASUS

How to reset the ASUS Expertbook B3 tablet?

To reset the tablet, go to Settings > System > Reset options and choose Erase all data. Confirm the operation: the device will restart and return to factory settings.

How to extend battery life?

Reduce screen brightness, disable Wi‑Fi and Bluetooth when not in use, and enable Power saving mode in settings. Avoid letting the battery discharge completely regularly.

How to connect the tablet to a Wi‑Fi network?

Open Settings > Network and Internet > Wi‑Fi, turn on Wi‑Fi, select your network and enter the password. Click Connect.

Can I use a stylus with this tablet?

Yes, the tablet is compatible with Wacom AES active styluses. You can use one to write or draw on the touchscreen.

How to transfer files from a computer?

Connect the tablet to the computer via a USB‑C cable. On the tablet, select File transfer from the notifications. The computer will then recognize the tablet as a storage device.

What to do if the touchscreen stops responding?

Try restarting the tablet by holding the power button for 10 seconds. If the problem persists, check if the screen is clean and dry. A dirty or damp screen can affect touch sensitivity.

How to update the operating system?

Go to Settings > System > System updates then click Check for updates. If an update is available, follow the instructions to install it.

Does the tablet support desktop mode?

Yes, the tablet supports a simplified desktop mode. Connect a keyboard and mouse via Bluetooth or USB‑C, then enable Desktop mode in display settings for an experience similar to Windows.

How to clean the tablet without damaging it?

Turn off the tablet and unplug it. Use a slightly damp (plain water) microfiber cloth to wipe the screen and casing. Never use chemicals, alcohol, or abrasive cleaners.

Where to find the tablet's serial number?

The serial number (S/N) is usually found on the original packaging, under the tablet's stand (if present) or in system settings under About device > Status.

USER MANUAL Expertbook B3 ASUS

IN SEARCH OF INCREDIBLE

E-Manual

COPYRIGHT INFORMATION

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. ("ASUS").

ASUS PROVIDES THIS MANUAL "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Copyright © 2021 ASUSTeK COMPUTER INC. All Rights Reserved.

LIMITATION OF LIABILITY

Circumstances may arise where because of a default on ASUS' part or other liability, you are entitled to recover damages from ASUS. In each such instance, regardless of the basis on which you are entitled to claim damages from ASUS, ASUS is liable for no more than damages for bodily injury (including death) and damage to real property and tangible personal property; or any other actual and direct damages resulted from omission or failure of performing legal duties under this Warranty Statement, up to the listed contract price of each product.

ASUS will only be responsible for or indemnify you for loss, damages or claims based in contract, tort or infringement under this Warranty Statement.

This limit also applies to ASUS' suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible.

UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES; (2) LOSS OF, OR DAMAGE TO, YOUR RECORDS OR DATA; OR (3) SPECIAL, INCIDENTAL, OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES (INCLUDING LOST PROFITS OR SAVINGS), EVEN IF ASUS, ITS SUPPLIERS OR YOUR RESELLER IS INFORMED OF THEIR POSSIBILITY.

SERVICE AND SUPPORT

Visit our multi-language website at https://www.asus.com/support/.

Table of Contents

About this manual....7

Conventions used in this manual 8

Icons 8

Typography....8

Safety precautions....9

Using your ASUS Tablet 9

Caring for your ASUS Tablet....10

Proper disposal....11

Battery safety information....12

Chapter 1: Hardware Setup

Getting to know your ASUS Tablet and ASUS Mobile Dock......16

Front View....16

Rear View 16

Top View....18

Bottom View....19

Right View....20

Left View....23

Dual-orientation kickstand 24

Using the kickstand 25

Detachable Keyboard (on selected models)....26

ASUS Pen (on selected models)....29

Chapter 2: Using your ASUS Tablet and ASUS Mobile Dock

Getting started 32

Charge your ASUS Tablet 32

Lift to open the display panel 35

Press the power button....35

Gestures for the touch screen panel and touchpad 36

Using touch screen panel gestures....36

Using the touchpad....38

Using the keyboard....45

HotKeys 45

Function keys 46

Windows keys 46

Chapter 3: Working with Windows

Starting for the first time....48

Start menu 49

Windows apps ....51

Night Light 52

Connecting to wireless networks ....53

Wi-Fi....53

Bluetooth....54

Airplane mode....55

Turning your ASUS Tablet off....56

Putting your ASUS Tablet to sleep....57

Recovering your system....58

Performing a recovery option....59

Tips and FAQs

Useful tips for your ASUS Tablet....62

Hardware FAQs....64

Software FAQs....67

Appendices

Internal Modem Compliancy 70

Overview....70

Network Compatibility Declaration....71

Non-Voice Equipment....71

Federal Communications Commission Interference Statement....73

FCC Radio Frequency (RF) Exposure Caution Statement....74

RF Exposure Information (SAR)....75

Radiation Exposure Statement....75

Radio Frequency (RF) Exposure Information....76

Compliance Statement of Innovation, Science and

Economic Development Canada (ISED) 78

Prevention of Hearing Loss 80

Nordic Lithium Cautions (for lithium-ion batteries)....81

CTR 21 Approval (for ASUS Tablet with built-in Modem)....82

Declaration of Compliance for Product Environmental Regulation......84

EU REACH and Article 33....84

EU RoHS....84

Japan JIS-C-0950 Material Declarations 84

India RoHS 84

Vietnam RoHS 85

ASUS Recycling/Takeback Services 85

Rechargeable Battery Recycling Service in North America 85

Ecodesign Directive 85

ENERGY STAR Qualified Product 86

EPEAT Registered Products 86

Coating Notice....86

Regional notice for Singapore 87

Notices for removable batteries....87

Simplified EU Declaration of Conformity 88

Simplified UKCA Declaration of Conformity 88

RF Exposure information (SAR) 89

About this manual

This manual provides information about the hardware and software features of your ASUS Tablet and ASUS Mobile Dock (on selected models), organized through the following chapters:

Chapter 1: Hardware Setup

This chapter details the hardware components of your ASUS Tablet and ASUS Mobile Dock.

Chapter 2: Using your ASUS Tablet and ASUS Mobile Dock

This chapter shows you how to use the different parts of your ASUS Tablet and ASUS Mobile Dock.

Chapter 3: Working with Windows

This chapter provides an overview of using Windows in your ASUS Tablet.

Tips and FAQs

This section presents some recommended tips, hardware FAQs, and software FAQs you can refer to for maintaining and fixing common issues with your ASUS Tablet.

Appendices

This section includes notices and safety statements for your ASUS Tablet and ASUS Mobile Dock.

Conventions used in this manual

To highlight key information in this manual, some text are presented as follows:

IMPORTANT! This message contains vital information that must be followed to complete a task.

NOTE: This message contains additional information and tips that can help complete tasks.

WARNING! This message contains important information that must be followed to keep you safe while performing tasks and prevent damage to your ASUS Tablet's data and components.

Icons

The icons below indicate the devices you can use for completing a series of tasks or procedures on your ASUS Tablet.

= Use the touch screen panel.

= Use the touchpad.

= Use the keyboard.

Typography

Bold = This indicates a menu or an item that must be selected.

Italic = This indicates sections that you can refer to in this manual.

Safety precautions Using your ASUS Tablet

This ASUS Tablet should only be used in environments with ambient temperatures between 5°C (41°F) and 35°C (95°F).

Refer to the rating label on the bottom of your ASUS Tablet and ensure that your power adapter complies with this rating.

Your ASUS Tablet can get warm to hot while in use or while charging the battery pack. Do not leave your ASUS Tablet on your lap or near any part of your body to prevent injury from heat. When working on your ASUS Tablet, do not place it on surfaces that can block the vents.

Do not use damaged power cords, accessories, and other peripherals with your ASUS Tablet.

While powered on, ensure that you do not carry or cover your ASUS Tablet with any materials that can reduce air circulation.

Do not place your ASUS Tablet on uneven or unstable work surfaces.

You can send your ASUS Tablet through x-ray machines (used on items placed on conveyor belts), but do not expose them to magnetic detectors and wands.

Contact your airline provider to learn about related in-flight services that can be used and restrictions that must be followed when using your ASUS Tablet in-flight.

Caring for your ASUS Tablet

Disconnect the AC power and remove the battery pack (if applicable) before cleaning your ASUS Tablet. Use a clean cellulose sponge or chamois cloth dampened with a solution of nonabrasive detergent and a few drops of warm water. Remove any extra moisture from your ASUS Tablet using a dry cloth. Keep any liquids from entering the chassis or keyboard gap to prevent short circuit or corrosion.

Do not use strong solvents such as thinners, benzene, or other chemicals on or near your ASUS Tablet.

Do not place objects on top of your ASUS Tablet.

Do not expose your ASUS Tablet to strong magnetic or electrical fields.

Do not use or expose your ASUS Tablet near liquids, rain, or moisture.

Do not expose your ASUS Tablet to dusty environments.

Do not use your ASUS Tablet near gas leaks.

Do not place active electronic devices close to your ASUS Tablet to avoid electromagnetic wave interference to the display panel.

Do not use this ASUS Tablet for cryptocurrency mining (consuming a vast amount of electricity and time to gain convertible virtual currency) and/or related activities.

Proper disposal

Do not throw your ASUS Tablet and ASUS Mobile Dock in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

Do not throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

Battery safety information

Battery protection

- Frequently charging a battery under high voltage may shorten the battery life. To protect the battery, once the battery is fully charged, the system may stop charging when the battery power is between 90% and 100%.

NOTE: The initiate battery power charging capacity is usually set between 90% and 99%. Actual value may vary by models.

• Charging or storing a battery in high ambient temperatures may result in permanent damage to the battery power capacity and rapidly shorten battery life. If the battery temperature is too high, the system may reduce the battery power charging capacity or even stop charging to protect the battery.
• Battery power capacity may drop even when your device is powered off and disconnected from the AC power. This is normal as the system still draws a small amount of power from the battery.

Standard battery care

• If you are not using your device for a long period of time, ensure to charge the battery power to 50% then power off your device and disconnect the AC power adapter. Recharge the battery power to 50% every three months to avoid over-discharging and prevent damage to the battery.
• Avoid charging the battery at high voltage for a prolonged period of time to extend the battery life. If you are constantly using AC power for your device, ensure to discharge the battery power to 50% at least once every two weeks.
• It is recommended to store your battery at temperatures between 5°C (41°F) and 35°C (95°F) with the battery power at 50%.
• Do not leave your battery in damp environments. Exposure to damp environments may increase the battery over-discharging rate. Low temperature environment may damage the chemicals inside the battery while high temperature or overheating may result in a risk of explosion.
• Do not place your device or battery pack near radiators, fireplaces, furnaces, heaters, or any sources of heat with temperature exceeding 60°C (140°F). High temperature surrounding environment may result in an explosion or leakage that may cause fire.

Chapter 1: Hardware Setup

Getting to know your ASUS Tablet and ASUS Mobile Dock

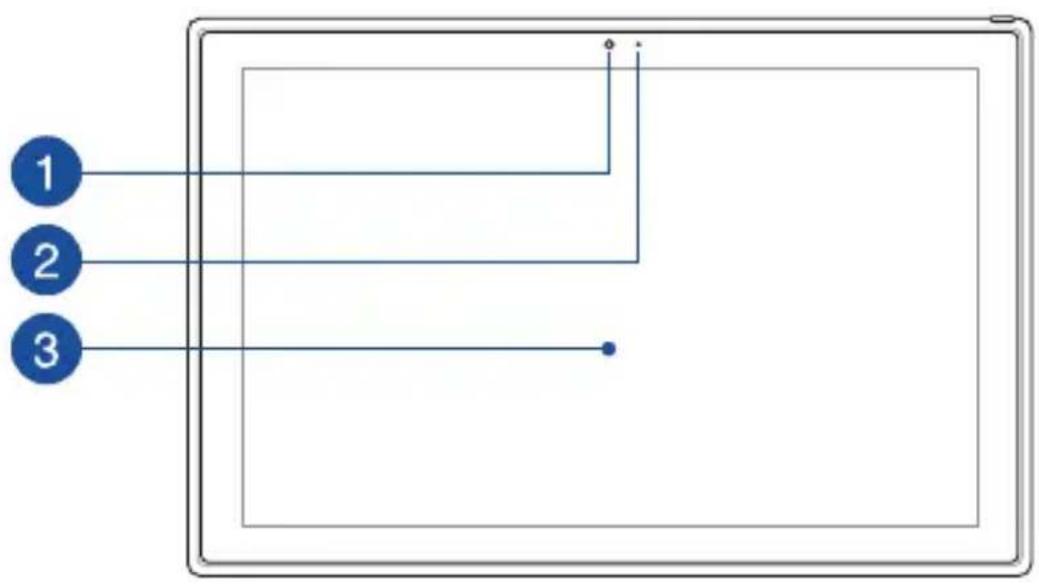

Front View

Rear View

1 Camera

The built-in camera allows you to take pictures or record videos using your ASUS Tablet.

2 Camera indicator

The camera indicator lights up when the built-in camera is in use.

3 Touch screen panel

This high-definition touch screen panel provides excellent viewing features for photos, videos, and other multimedia files on your ASUS Tablet. It also allows you to operate it using touch screen gestures.

NOTE: For more details, refer to the Using touch screen panel gestures section in this manual.

Top View

1 Audio speakers

The built-in audio speakers allow you to hear audio straight from your ASUS Tablet. Audio features are software-controlled.

2 Array microphones

The array microphones feature echo canceling, noise suppression, and beam forming functions for better voice recognition and audio recording.

3 Stylus storage

This slot allows you to store and charge the stylus pen at the same time.

Bottom View

1

Docking port

Connect your device to this port to support keyboard and touchpad functions.

2

Hinge holes

Align and insert the latch hooks into these holes to securely attach your device to the keyboard.

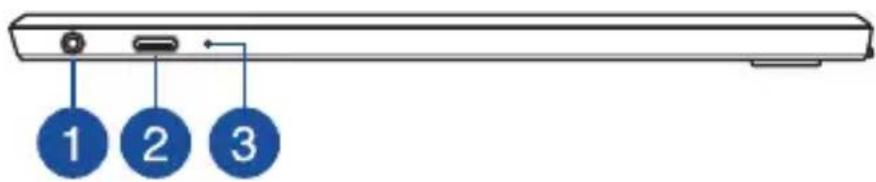

Right View

Headphone/Headset jack

This port allows you to connect amplified speakers or headphones. You can also use this port to connect your headset.

NOTE: This port does not support three-conductor 3.5 mm microphones.

USB 3.2 Gen 1 Type-C®/DisplayPort/Power (DC) input combo port

The USB 3.2 (Universal Serial Bus 3.2) Gen 1 Type-C® port provides a transfer rate of up to 5 Gbit/s and is backward compatible to USB 2.0. Use a USB Type-C® adapter to connect your ASUS Tablet to an external display. Insert the bundled power adapter into this port to charge the battery pack and supply power to your ASUS Tablet.

NOTE: Transfer rate of this port may vary per model.

WARNING! The adapter may become warm to hot while in use. Do not cover the adapter and keep it away from your body while it is connected to a power source.

IMPORTANT!

• It may take longer to fully charge your ASUS Tablet through a low-voltage power source.
• Use only the bundled power adapter to charge the battery pack and supply power to your ASUS Tablet.

Two-color battery charge indicator

The two-color LED provides a visual indication of the battery's charge status. Refer to the following table for details:

Color Status

Solid White: The ASUS Tablet is plugged to a power source and the battery power is between 95% and 100%.

Solid Orange: The ASUS Tablet is plugged to a power source, charging its battery, and the battery power is less than 95%.

Blinking Orange: The ASUS Tablet is running on battery mode and the battery power is less than 10%.

Lights off: The ASUS Tablet is running on battery mode and the battery power is between 10% to 100%.

Left View

1

Power button

Press the power button to turn your ASUS Tablet on or off. You can also use the power button to put your ASUS Tablet to sleep or hibernate mode and wake it up from sleep or hibernate mode.

In the event that your ASUS Tablet becomes unresponsive, press and hold the power button for at least four (4) seconds until your ASUS Tablet shuts down.

2

Volume button

This button turns the volume up or down on your ASUS Tablet.

Dual-orientation kickstand

Kickstand

The built-in kickstand allows you to prop up your ASUS Tablet and adjust the viewing angle.

Using the kickstand

Remove the kickstand Attach the kickstand

Detachable Keyboard (on selected models)

NOTE: The keyboard's layout may vary per model, region, or country.

1 Latch hooks

The latch hooks allow you to securely attach the device to the keyboard.

2 Docking connector

Securely attach the device to the keyboard by aligning the docking port on top of this connector.

3 Microphone indicator

This indicator lights up when the microphone is turned off.

4 Keyboard

The keyboard provides full-sized QWERTY keys with a comfortable travel depth for typing. It also enables you to use the function keys, allows quick access to Windows, and controls other multimedia functions.

NOTE: The keyboard layout differs by model or territory.

Touchpad

The touchpad allows the use of multi-gestures to navigate onscreen, providing an intuitive user experience. It also simulates the functions of a regular mouse.

NOTE: For more details, refer to the Using the touchpad section in this manual.

Capital lock indicator

This indicator lights up when the capital lock function is activated. Using capital lock allows you to type capitalized letters (such as A, B, C) using your ASUS Tablet's keyboard.

ASUS Pen (on selected models)

1 Right-click button

You can use this button to enable the right-click function.

2 Eraser button

You can use this button to enable the eraser function.

Chapter 2: Using your ASUS Tablet and ASUS Mobile Dock

Getting started

Charge your ASUS Tablet

A. Connect the AC power cord to the AC/DC adapter.

B. Connect the DC power connector into your ASUS Tablet's power (DC) input port.

C. Plug the AC power adapter into a 100V~240V power source.

Charge the ASUS Tablet for 3 hours before using it in battery mode for the first time.

NOTE: The power adapter may vary in appearance, depending on models and your region.

or

IMPORTANT!

Power adapter information:

• Input voltage: 100-240Vac - Input frequency: 50-60Hz • Rating output current: 3A (45W) • Rating output voltage: 15V

IMPORTANT!

• Locate the input/output rating label on your ASUS Tablet and ensure that it matches the input/output rating information on your power adapter. Some ASUS Tablet models may have multiple rating output currents based on the available SKU.
• Ensure that your ASUS Tablet is connected to the power adapter before turning it on for the first time. Always plug the power cord into a wall socket without using any extension cords. For your safety, connect this device to a properly grounded electrical outlet only.
• The socket outlet must be easily accessible and near your ASUS Tablet.
• To disconnect your ASUS Tablet from its main power supply, unplug your ASUS Tablet from the power socket.

WARNING!

Read the following precautions for your ASUS Tablet's battery:

• Only ASUS-authorized technicians should remove the battery inside the device (for non-removable battery only).
• The battery used in this device may present a risk of fire or chemical burn if removed or disassembled.
• Follow the warning labels for your personal safety.
• Risk of explosion if battery is replaced by an incorrect type.
• Do not dispose of in fire.
• Never attempt to short-circuit your ASUS Tablet's battery.
• Never attempt to disassemble and reassemble the battery (for non-removable battery only).
• Discontinue usage if leakage is found.
• The battery and its components must be recycled or disposed of properly.
• Keep the battery and other small components away from children.

Lift to open the display panel

Press the power button

Gestures for the touch screen panel and touchpad

Gestures allow you to launch programs and access the settings of your ASUS Tablet. Refer to the following illustrations when using hand gestures on your touch screen panel and touchpad.

NOTE: The following screenshots are for reference only. The touch screen panel's appearance may vary depending on model.

Using touch screen panel gestures

The gestures allow you to launch programs and access the settings of your ASUS Tablet. The functions can be activated by using the hand gestures on your ASUS Tablet's touch screen panel.

Tap/Double-tap Press and hold

- Tap an app to select it.

• Double-tap an app to launch it.

Press and hold to open the right-click menu.

Zoom in Zoom out

Spread apart your two fingers on the touch screen panel.

Bring together your two fingers on the touch screen panel.

Finger slide Drag

Slide your finger to scroll up and down and slide your finger to pan the screen left or right.

• Drag to create a selection box around multiple items.
• Drag and drop an item to move it to a new location.

Using the touchpad

Moving the pointer

You can tap anywhere on the touchpad to activate its pointer, then slide your finger on the touchpad to move the pointer onscreen.

Slide horizontally

Slide vertically

Slide diagonally

One-finger gestures

Tap/Double-tap

• Tap an app to select it. Double-tap an app to launch it.

Drag and drop

Double-tap an item, then slide the same finger without lifting it off the touchpad. To drop the item to its new location, lift your finger from the touchpad.

Left-click Right-click

Click an app to select it.

Double-click an app to launch it.

Click this button to open the right-click menu.

NOTE: The areas inside the dotted line represent the locations of the left mouse button and the right mouse button on the touchpad.

Two-finger gestures

Tap

Tap two fingers on the touchpad to simulate the right-click function.

Two-finger scroll (up/down) Two-finger scroll (left/right)

Slide two fingers to scroll up or down.

Slide two fingers to scroll left or right.

Zoom out Zoom in

Bring together your two fingers on the touchpad.

Spread apart your two fingers on the touchpad.

Drag and drop

Select an item then press and hold the left button. Using your other finger, slide on the touchpad to drag the item, lift your finger off the button to drop the item.

Three-finger gestures

Tap

Tap three fingers on the touchpad to launch the function you selected in Settings.

Swipe left/Swipe right

If you opened multiple apps, swipe three fingers left or right to switch between these apps.

Swipe up Swipe down

Swipe up to see an overview of all Swipe down to show the desktop. the apps currently opened.

Four-finger gestures

Tap

Tap four fingers on the touchpad to launch the function you selected in Settings.

Using the keyboard

HotKeys

The HotKeys on your ASUS Tablet's keyboard can trigger the following commands:

Turns the speaker on or off

Turns the speaker volume down

Turns the speaker volume up

Decreases display brightness

Increases display brightness

Enables or disables the touchpad

Toggles the display mode

NOTE: Ensure that the second display is connected to your ASUS Tablet.

Activates the Lock screen

Activates screen capture tool

Turns the microphone on or off

Function keys

Press to enable or disable the function keys feature.

When the function keys feature is enabled, you can also access HotKeys by holding down in combination with the top row keys.

Windows keys

There are two special Windows keys on your ASUS Tablet's keyboard used as below:

Launches the Start menu

Displays the drop-down menu*

* On selected models

Chapter 3:

Working with Windows

Starting for the first time

When you start your ASUS Tablet for the first time, a series of screens appear to guide you in configuring your Windows operating system. Follow the onscreen instructions to configure the following basic items:

• Personalize
• Get online
• Settings
• Your account

After configuring the basic items, Windows proceeds to install your apps and preferred settings. Ensure that your ASUS Tablet is kept powered on during the setup process. Once the setup process is complete, the Desktop appears.

NOTE: The screenshots in this chapter are for reference only.

Start menu

The Start menu is the main gateway to your ASUS Tablet's programs, Windows apps, folders, and settings. You can use the Start menu to do these common activities:

• Start programs or Windows apps
• Open commonly used programs or Windows apps
• Adjust ASUS Tablet settings
• Get help with the Windows operating system
• Turn off your ASUS Tablet
• Log off from Windows or switch to a different user account

Launching the Start menu

Tap the Start icon on your desktop.

Position your mouse pointer over the Start icon on your desktop then click it.

Press the Windows logo key on your keyboard.

Opening programs from the Start menu

One of the most common uses of the Start menu is opening programs installed on your ASUS Tablet.

Tap the program to launch it.

Position your mouse pointer over the program then click to launch it.

Use the arrow keys to browse through the programs.

Press to launch it.

Windows apps

NOTE: Some Windows apps require signing in to your Microsoft account before they are fully launched.

Launching Windows apps from the Start menu

Tap the app to launch it.

Position your mouse pointer over the app then click to launch it.

Use the arrow keys to browse through the apps. Press

to launch an app.

Night Light

Turning on Night Light reduces blue light emission and helps to protect your eyes. You may drag the slider to adjust the color temperature. The warmer the color temperature is, the less blue light is scattered.

NOTE: For more details on turning on and adjusting Night Light settings, please go to https://support.google.com/chromebook/answer/9145848.

With Night Light on and Color temperature set to the warmest, your ASUS Tablet is compliant with TÜV Low Blue Light Certification.

Please refer to the following tips to alleviate eye strain:

• Take some time away from the display if working for long hours. It is advised to take short breaks (at least 5 minutes) after around 1 hour of continuous working at the computer. Taking short and frequent breaks is more effective than a long break. - To minimize eye strain and dryness, rest your eyes periodically by focusing on objects that are far away. - Eye exercises help to reduce eye strain. Practice the following exercises often:

(1) Look up and down repeatedly

(2) Slowly roll your eyes

(3) Move your eyes diagonally

If eye strain persists, please consult a physician.

Connecting to wireless networks

Wi-Fi

Access emails, surf the Internet, and share applications via social networking sites using your ASUS Tablet's Wi-Fi connection.

IMPORTANT! Airplane mode disables this feature. Ensure that Airplane mode is turned off before enabling the Wi-Fi connection of your ASUS Tablet.

Connecting Wi-Fi

Connect your ASUS Tablet to a Wi-Fi network by using the following steps:

or

1. Click/Tap the Wi-Fi icon from the taskbar to enable Wi-Fi.
2. Select an access point from the list of available Wi-Fi connections.
3. Select Connect to start the network connection.

NOTE: You may be prompted to enter a security key to activate the Wi-Fi connection.

Bluetooth

Use Bluetooth to facilitate wireless data transfers with other Bluetooth-enabled devices.

IMPORTANT! Airplane mode disables this feature. Ensure that Airplane mode is turned off before enabling the Bluetooth connection of your ASUS Tablet.

Pairing with other Bluetooth-enabled devices

You need to pair your ASUS Tablet with other Bluetooth-enabled devices to enable data transfers. Connect your devices by using the following steps:

or

1. Launch Settings from the Start menu.
2. Select Devices > Bluetooth to search for Bluetooth-enabled devices. (for Windows 10)

Select Bluetooth & devices > Add device to search for Bluetooth-enabled devices. (for Windows 11)

1. Select a device from the list to pair your ASUS Tablet with the device.

NOTE: For some Bluetooth-enabled devices, you may be prompted to key in the passcode of your ASUS Tablet.

Airplane mode

Airplane mode disables wireless communication, allowing you to use your ASUS Tablet safely while in-flight.

NOTE: Contact your airline provider to learn about related in-flight services that can be used and restrictions that must be followed when using your ASUS Tablet in-flight.

Turning Airplane mode on/off

or

1. Launch Action Center from the taskbar.
2. Click/Tap the Airplane mode icon to enable or disable Airplane mode.

Turning your ASUS Tablet off

You can turn off your ASUS Tablet by doing either of the following procedures:

or

• Launch the Start menu, select the power icon, then select Shut down to perform a normal shutdown.
• From the log-in screen, select the power icon, then select Shut down.

Press Alt+F4 to launch the Shut Down Windows dialog. Select Shut down from the drop-down list, then select OK.

If your ASUS Tablet is unresponsive, press and hold the power button for at least four (4) seconds until your ASUS Tablet turns off.

Putting your ASUS Tablet to sleep

To put your ASUS Tablet to Sleep mode:

or

Launch the Start menu, select the power icon, then select Sleep to put your ASUS Tablet to sleep.

From the log-in screen, select the power icon, then select Sleep.

Press Alt+F4 to launch the Shut Down Windows dialog.

Select Sleep from the drop-down list, then select OK.

NOTE: You can also put your ASUS Tablet to Sleep mode by pressing the power button once.

Recovering your system

Using recovery options on your ASUS Tablet allows you to restore the system to its original state or simply refresh its settings to help improve performance.

IMPORTANT!

• Back up all your data files before performing any recovery option on your ASUS Tablet.
• Note down important customized settings such as network settings, user names, and passwords to avoid data loss.
• Ensure that your ASUS Tablet is plugged into a power source before resetting your system.

Windows allows you to perform any of the following recovery options:

- Keep my files - This option allows you to refresh your ASUS Tablet without affecting personal files (photos, music, videos, documents).

Using this option, you can restore your ASUS Tablet to its default settings and delete other installed apps.

- Remove everything - This option resets your ASUS Tablet to its factory settings. You must back up your data before performing this option.

- Advanced startup - Using this option allows you to perform other advanced recovery options on your ASUS Tablet such as:

- Using a USB drive, network connection, or Windows recovery DVD to start up your ASUS Tablet.

- Using Troubleshoot to enable any of these advanced recovery options: Startup Repair, Uninstall Updates, Startup Settings, UEFI Firmware Settings, Command Prompt, System Restore, and System Image Recovery.

Performing a recovery option

Refer to the following steps if you want to access and use any of the available recovery options for your ASUS Tablet.

1. Launch Settings > Update and security. (for Windows 10)

Launch Settings > System > Recovery. (for Windows 11)

1. Select the recovery option you would like to perform.

Tips and FAQs

Useful tips for your ASUS Tablet

To help you maximize the use of your ASUS Tablet, maintain its system performance, and ensure all your data are kept secured, here are some useful tips that you can follow:

• Update Windows periodically to ensure that your applications have the latest security settings.
• Use an anti-virus software to protect your data and keep this updated too.
• Unless absolutely necessary, refrain from using force shutdown to turn off your ASUS Tablet.
• Always backup your data and make it a point to create a backup data in an external storage drive.
• If you are not using your ASUS Tablet for a long period of time, ensure to charge the battery power to 50% then power off your ASUS Tablet and disconnect the AC power adapter.

- Disconnect all external devices and ensure you have the following items prior to resetting your ASUS Tablet:

- Product key for your operating systems and other installed applications

- Backup data

- Log in ID and password

- Internet connection information

- Visit our support site for troubleshooting and view some of the most frequently asked questions at https://www.asus.com/support.

Hardware FAQs

1. A black dot, or sometimes a colored dot, appears onscreen when I turn on the ASUS Tablet. What should I do?

Although these dots normally appear onscreen, they will not affect your system. If the incident continues and subsequently affects system performance, consult an authorized ASUS service center.

2. My display panel has an uneven color and brightness. How can I fix this?

The color and brightness of your display panel may be affected by the angle and current position of your ASUS Tablet. The brightness and color tone of your ASUS Tablet may also vary per model. You may use the function keys or the display settings in your operating system to adjust the appearance of your display panel.

3. How can I maximize my ASUS Tablet's battery life?

You can try doing any of the following suggestions:

• Use the function keys to adjust the display brightness.
• If you are not using any Wi-Fi connection, switch your system into Airplane mode.
• Disconnect unused USB devices.
• Close unused applications, especially those that take up too much system memory.

4. My battery charge indicator does not light up. What's wrong?

• Check whether the power adapter or battery pack is attached correctly. You may also disconnect the power adapter or battery pack, wait for a minute, then reconnect them again to the power outlet and ASUS Tablet.
• If the problem still exists, contact your local ASUS service center for assistance.

5. Why is my touchpad not working?

Press to enable your touchpad.

6. When I play audio and video files, why can't I hear any sound from my ASUS Tablet's audio speakers?

You can try doing any of the following suggestions:

- Press <F3> to turn up the speaker volume.

- Check if your speakers were set to mute.

- Check if a headphone jack is connected to your ASUS Tablet and remove it.

1. What should I do if my ASUS Tablet's power adapter gets lost or my battery stops working?

Contact your local ASUS service center for assistance.

1. My ASUS Tablet cannot do keystrokes correctly because my cursor keeps on moving. What should I do?

Make sure that nothing accidentally touches or presses on your touchpad while you type on the keyboard. You can also disable

your touchpad by pressing <F2>.

Software FAQs

1. When I turn on my ASUS Tablet, the power indicator lights up but nothing appears on my screen. What can I do to fix this?

You can try doing any of the following suggestions:

• Force shutdown your ASUS Tablet by pressing the power button for at least four (4) seconds. Check if the power adapter and battery pack are inserted correctly then turn on your ASUS Tablet.
• If the problem still exists, contact your local ASUS service center for assistance.

2. What should I do when my screen displays this message: "Remove disks or other media. Press any key to restart."?

You can try doing any of the following suggestions:

• Remove all connected USB devices then restart your ASUS Tablet.
• Remove any optical discs that are left inside the optical drive then restart.
• If the problem still exists, your ASUS Tablet might have a memory storage problem. Contact your local ASUS service center for assistance.

3. My ASUS Tablet boots slower than usual and my operating system lags. How can I fix this?

Delete the applications you recently installed or were not included with your operating system package then restart your system.

4. My ASUS Tablet does not boot up. How can I fix this?

You can try doing any of the following suggestions:

• Remove all connected devices to your ASUS Tablet then restart your system.
• If the problem still exists, contact your local ASUS service center for assistance.

5. Why can't my ASUS Tablet wake up from sleep mode?

• You need to press the power button to resume your last working state.
• Your system might have completely used up its battery power. Connect the power adapter to your ASUS Tablet and connect to a power outlet then press the power button.

Appendices

Internal Modem Compliancy

The ASUS Tablet with internal modem model complies with JATE (Japan), FCC (US, Canada, Korea, Taiwan), and CTR21. The internal modem has been approved in accordance with Council Decision 98/482/EC for pan-European single terminal connection to the public switched telephone network (PSTN). However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point. In the event of problems, you should contact your equipment supplier in the first instance.

Overview

On 4th August 1998, the European Council Decision regarding the CTR 21 has been published in the Official Journal of the EC. The CTR 21 applies to all non-voice terminal equipment with DTMF-dialling which is intended to be connected to the analogue PSTN (Public Switched Telephone Network).

CTR 21 (Common Technical Regulation) for the attachment requirements for connection to the analogue public switched telephone networks of terminal equipment (excluding terminal equipment supporting the voice telephony justified case service) in which network addressing, if provided, is by means of dual tone multi-frequency signalling.

Network Compatibility Declaration

Statement to be made by the manufacturer to the Notified Body and the vendor: "This declaration will indicate the networks with which the equipment is designed to work and any notified networks with which the equipment may have inter-working difficulties."

Statement to be made by the manufacturer to the user: "This declaration will indicate the networks with which the equipment is designed to work and any notified networks with which the equipment may have inter-working difficulties. The manufacturer shall also associate a statement to make it clear where network compatibility is dependent on physical and software switch settings. It will also advise the user to contact the vendor if it is desired to use the equipment on another network."

Up to now, the Notified Body of CETECOM issued several pan-European approvals using CTR 21. The results are Europe's first modems which do not require regulatory approvals in each individual European country.

Non-Voice Equipment

Answering machines and loud-speaking telephones can be eligible as well as modems, fax machines, auto-dialers and alarm systems. Equipment in which the end-to-end quality of speech is controlled by regulations (e.g. handset telephones and in some countries also cordless telephones) is excluded.

This table shows the countries currently under the CTR21 standard.

Country Applied More Testing

Austria1	Yes No
Belgium Yes No
Czech Republic No Not Applicable
Denmark1	Yes Yes
Finland Yes No
France Yes No
Germany Yes No
Greece Yes No
Hungary No Not Applicable
Iceland Yes No
Ireland Yes No
Italy Still Pending Still Pending
Israel No No
Lichtenstein	Yes No
Luxemburg	Yes No
The Netherlands1	Yes Yes
Norway	Yes No
Poland No Not Applicable
Portugal	No Not
Spain	No Not
Sweden	Yes No
Switzerland	Yes No
United Kingdom	Yes No

This information was copied from CETECOM and is supplied without liability. For updates to this table, you may visit

http://www.cetecom.de/technologies/ctr_21.html.

National requirements will apply only if the equipment may use pulse dialling (manufacturers may state in the user guide that the equipment is only intended to support DTMF signalling, which would make any additional testing superfluous).

In The Netherlands additional testing is required for series connection and caller ID facilities.

Federal Communications Commission Interference Statement

This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

WARNING! The use of a shielded-type power cord is required in order to meet FCC emission limits and to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

(Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the Federal Register, National Archives and Records Administration, U.S. Government Printing Office.)

This device operates within a 5.15-5.25 GHz frequency range and is restricted for indoor use only. Outdoor operation within 5150-5250 MHz is prohibited.

FCC Radio Frequency (RF) Exposure Caution Statement

WARNING! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the specific operating instructions for satisfying RF exposure compliance.

RF Exposure Information (SAR)

This device meets the government's requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.

The exposure standard employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the EUT transmitting at the specified power level in different channels.

Radiation Exposure Statement

The product complies with the Canada portable RF exposure limit set forth for an uncontrolled environment and is safe for intended operation as described in this manual. Further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available.

Radio Frequency (RF) Exposure Information

The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized.

This device has been evaluated for and shown compliant with the IC Specific Absorption Rate ("SAR") limits when operated in portable exposure conditions.

(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; (ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall comply with the e.i.r.p. limit; and (iii) the maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate. (iv) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

Warning

Compliance Statement of Innovation, Science and Economic Development Canada (ISED)

This device complies with Innovation, Science and Economic Development Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.

CAN ICES-003(B)/NMB-003(B)

Required for UL 1459 covering telecommunications (telephone) equipment intended to be electrically connected to a telecommunication network that has an operating voltage to ground that does not exceed 200V peak, 300V peak-to-peak, and 105V rms, and installed or used in accordance with the National Electrical Code (NFPA 70).

When using the ASUS Tablet modem, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• DO NOT use the ASUS Tablet near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
• DO NOT use the ASUS Tablet during an electrical storm. There may be a remote risk of electric shock from lightning.
• DO NOT use the ASUS Tablet in the vicinity of a gas leak.

Required for UL 1642 covering primary (non-rechargeable) and secondary (rechargeable) lithium batteries for use as power sources in products. These batteries contain metallic lithium, or a lithium alloy, or a lithium ion, and may consist of a single electrochemical cell or two or more cells connected in series, parallel, or both, that convert chemical energy into electrical energy by an irreversible or reversible chemical reaction.

• DO NOT dispose the ASUS Tablet battery pack in a fire, as they may explode. Check with local codes for possible special disposal instructions to reduce the risk of injury to persons due to fire or explosion.
• DO NOT use power adapters or batteries from other devices to reduce the risk of injury to persons due to fire or explosion. Use only UL certified power adapters or batteries supplied by the manufacturer or authorized retailers.

Power Safety Requirement

Products with electrical current ratings up to 6A and weighing more than 3Kg must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm ² or H05VV-F, 2G, 0.75mm ² .

TV Notices

Note to CATV System Installer—Cable distribution system should be grounded (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable – installation should include bonding the screen of the coaxial cable to the earth at the building entrance.

Macrovision Corporation Product Notice

This product incorporates copyright protection technology that is protected by method claims of certain U.S.A. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Prevention of Hearing Loss

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Nordic Lithium Cautions (for lithium-ion batteries)

CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions. (English)

CTR 21 Approval (for ASUS Tablet with built-in Modem)

Danish

The equipment has been approved in accordance with Council Decision 98/482/EC for pan-European single terminal connection to the public switched telephone network (PSTN). However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point.

In the event of problems, you should contact your equipment supplier in the first instance.

Finnish

Declaration of Compliance for Product Environmental Regulation

ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.

Please refer to http://csr.asus.com/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with.

EU REACH and Article 33

Complying with the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulatory framework, we publish the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.

EU RoHS

This product complies with the EU RoHS Directive. For more details, see http://csr.asus.com/english/article.aspx?id=35.

Japan JIS-C-0950 Material Declarations

Information on Japan RoHS (JIS-C-0950) chemical disclosures is available on http://csr.asus.com/english/article.aspx?id=19.

India RoHS

This product complies with the “India E-Waste (Management) Rules, 2016” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1% by weight in homogenous materials and 0.01% by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.

Vietnam RoHS

ASUS products sold in Vietnam, on or after September 23, 2011, meet the requirements of the Vietnam Circular 30/2011/TT-BCT.

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials.

Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

Rechargeable Battery Recycling Service in North America

For US and Canada customers, you can call 1-800-822-8837 (toll-free) for recycling information of your ASUS products' rechargeable batteries.

Ecodesign Directive

European Union announced a framework for the setting of ecodesign requirements for energy-related products (2009/125/EC). Specific Implementing Measures are aimed at improving environmental performance of specific products or across multiple product types. ASUS provides product information on the CSR website. Further information could be found at https://csr.asus.com/english/article.aspx?id=1555.

ENERGY STAR Qualified Product

ENERGY STAR is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy efficient products and practices.

All ASUS products with the ENERGY STAR logo comply with the ENERGY STAR standard, and the power management feature is enabled by default. The monitor is automatically set to sleep within 10 minutes of user inactivity; the computer is automatically set to sleep within 30 minutes of user inactivity. To wake your computer, click the mouse, press any key on the keyboard, or press the power button.

Please visit http://www.energystar.gov/powermanagement for detail information on power management and its benefits to the environment. In addition, please visit http://www.energystar.gov for detail information on the ENERGY STAR joint program.

NOTE: Energy Star is NOT supported on FreeDOS and Linux-based operating systems.

EPEAT Registered Products

The public disclosure of key environmental information for ASUS EPEAT (Electronic Product Environmental Assessment Tool) registered products is available at https://csr.asus.com/english/article.aspx?id=41. More information about EPEAT program and purchase guidance can be found at www.epeat.net.

Coating Notice

IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located.

Regional notice for Singapore

Complies with IMDA Standards DB103778

This ASUS product complies with IMDA Standards.

Notices for removable batteries

• Risk of explosion if battery is replaced by an incorrect type.
• The battery and its component must be recycled or disposed of properly.

Simplified EU Declaration of Conformity

ASUSTek Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Full text of EU declaration of conformity is available at https://www.asus.com/support/.

The WiFi operating in the band 5150-5350 MHz shall be restricted to indoor use for countries listed in the table below:

AT BE	BG CZ	DK EE FR
DE IS	IE IT EL	ES CY
LV	LI	LT	LU	HU	MT	NL
NO PL	PT RO	SI SK TR
FI SE	CH HR	JK(NI)

CE

Simplified UKCA Declaration of Conformity

ASUSTek Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of The Radio Equipment Regulations 2017 (S.I. 2017/1206). Full text of UKCA declaration of conformity is available at https://www.asus.com/support/.

The WiFi operating in the band 5150-5350 MHz shall be restricted to indoor use for the country listed below:

UK

RF Exposure information (SAR)

This device meets the EU requirements (2014/53/EU) on the limitation of exposure of the general public to electromagnetic fields by way of health protection.

The limits are part of extensive recommendations for the protection of the general public. These recommendations have been developed and checked by independent scientific organizations through regular and thorough evaluations of scientific studies. The unit of measurement for the European Council's recommended limit for mobile devices is the "Specific Absorption Rate" (SAR), and the SAR limit is 2.0 W/Kg averaged over 10 gram of body tissue. It meets the requirements of the International Commission on Non-Ionizing Radiation Protection (ICNIRP).

For next-to-body operation, this device has been tested and meets the ICNIRP exposure guidelines and the European Standard EN 50566 and EN 62209-2. SAR is measured with the device directly contacted to the body while transmitting at the highest certified output power level in all frequency bands of the mobile device.

A minimum separation distance of 1 cm must be maintained between the user's body and the device, including the antenna during body-worn operation to comply with the RF exposure requirements in Europe.
