USER MANUAL KMW 214 G Koenic

Front view of a white microwave oven with dual rotary gauges (Power, Time) and a blank screen, no visible text or symbols on the main body.

EN USER MANUAL

IMPORTANT SAFETY INSTRUCTIONS.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Risk of burning! Do not touch the product's hot surfaces. Heat rises from the product during use.

Caution! Hot surface!

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
  • Children shall not play with the product.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Warning! If the door or door seals are damaged, the oven must not be operated until it has been repaired by an authorised service agent.
• Warning! It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
• Warning! Liquids and other foods must not be heated in sealed containers since they are liable to explode.

• Warning! Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

• Only use utensils that are suitable for use in microwave ovens.

• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
  • If smoke is emitted switch off or unplug the product and keep the door closed in order to stifle any flames.
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• The oven should be cleaned regularly and any food deposits removed.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• The microwave oven shall not be placed in a cabinet. This product is intended to be used freestanding.
• Keep this product and its power cord out of reach of children under the age of 8.
• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.

- Caution! In order to prevent hazards from unintentional resetting of the protective temperature limiter, this product must not be powered by an external switching device such as a timer, or connected to a circuit which is regularly switched on and off by a device.

- The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

- Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

• Read this manual before first use thoroughly. It contains important information for your safety as well as for the use and maintenance of the equipment.
• Keep this manual for future reference and pass it on with the product.
  • Pay particular attention to the warnings on the product and in this manual.
• Use the product only for its intended purpose. Improper use may lead to hazards.
• In the event of improper use or wrong operation, we do not accept any liability for resulting damages.
• The use of accessories and components not expressly recommended by the manufacturer may result in injuries or damages and voids the warranty.
  • Never leave the product unsupervised while it is switched on.
• Do not place heavy objects on top of the product.
• Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
• Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
• The mains voltage must match the information on the rating label of the product.
• The power plug is used as the disconnect device. Please be sure that the power plug is in operable condition.
• Only unplug from the power socket can separate the product completely from the mains.

EN

- Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.

- Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.

• Only unplug from the power socket by the plug itself. Do not pull on the cord.

• Unplug the product ...

- when the product is not being used,

- in case of malfunctions,

- before attaching / detaching accessories and

- before cleaning the product.

- If the power cord or the casing of the product is damaged or if the product is dropped, the product may not be used before it is examined by an authorised service agent.

• Use this product in dry indoor areas only and never outdoors.

- Place the product on a flat, sturdy and slip-resistant surface.

- Protect this product from extreme heat and cold as well as from direct sunlight and dust.

- In order to reduce the risk of fire and electric shock, do not expose the product to fire (fireplace, grill, candles, cigarettes and so on) or water (water drops, water splashes, vases, tubs, ponds and so on).

- Warning! Do not use this product near water or heavy moisture; e.g. in a damp basement or beside a swimming pool or bathtub.

• This product is not intended for commercial use.

- It is designed for household use and similar applications only, such as for example:

- in employee cafeterias, in stores, offices and other working environments;

- by customers in hotels, motels and other residential facilities;

- in Bed and Breakfast establishments;

- in farm houses.

• Clean the product and all other accessories after each use.

• Follow the instructions in the chapter Cleaning and care.

CONGRATULATIONS

Thanks for your purchase of Koenic product. Please read this manual carefully and keep it for future reference.

INTENDED USE

This product is intended for defrosting, reheating and cooking food. Any other use may result in damage to product or injuries.

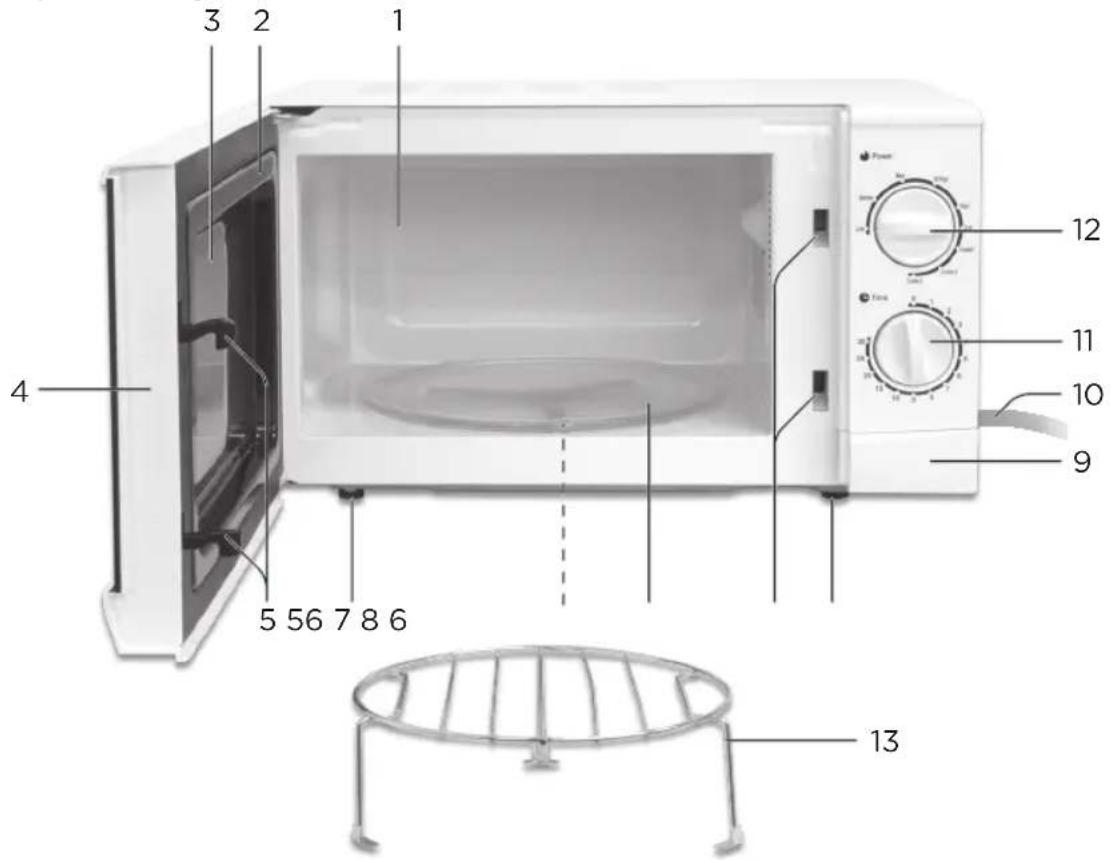

COMPONENTS

The product may be available in different colors.

1 2 3 4 5 56 7 8 6 5 56 7 8 6 10 11 12 9 13

1. Oven cavity
2. Door sealing
3. Door window
4. Door
5. Safety Interlock system

6. Feet

7. Turntable roller

8. Glass tray
9. Open door push button
10. Power cord with plug
11. TIME selector switch
12. POWER selector switch
13. Metal rack

BEFORE FIRST TIME USE

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter Cleaning and care.

INSTALLATION

White microwave oven with control knobs and front panel (no visible text or symbols)

1

Place the microwave on a flat, stable surface.

20 cm 10 cm 5 cm 5 cm

2

Leave space for sufficient airflow. 20 cm above the oven, 10 cm at the back, 5 cm at both side.

Close-up of a white electronic device with ventilation grilles and a control panel, showing no visible text or symbols.

3

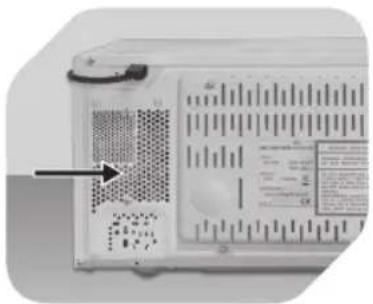

Do not cover or block any vents on the unit. Do not remove feet.

Close-up of a white electrical outlet plug with a black arrow pointing to its socket (no text or symbols visible)

4

Before use, plug in the unit. Unplug when not using for a long time.

NOTE

• Make sure that all packaging materials including tape are removed from the door, cavity, switches and accessories.
- Do not place the oven where heat, moisture or high humidity are generated, or near combustible materials.
- Do not operate the oven without turntable roller on the shaft and glass tray in proper positions.
- Make sure that the supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
- The mains plug must be readily accessible so that it can be easily disconnected in an emergency.

GROUNDING INSTRUCTIONS

• The supply cord of the oven is equipped with a plug with earth connection, which must be plugged into a properly installed and grounded wall outlet.
  • It is recommended that a separate circuit serving only the oven be provided.
• High voltage is dangerous and may result in fire or other accidents, causing property damage or injuries.
• Warning! Improper use of the grounding plug can result in a risk of electric shock.

CONTROL PANEL

Power Mid M High Defrost High Grill Combi.1 Combi.2 Combi.3 Low

Power selector switch

Turn switch to select power level for cooking or defrosting. Please refer to chapter MICROWAVE COOKING.

Time 0 1 2 3 4 5 6 7 8 9 10 15 20 25 30

Time selector switch

Use TIME selector switch to switch oven on or off (0). Turn clockwise to select cooking duration (minutes). To set short time periods, first turn switch to position 5, and then turn back to the desired lower setting. When cooking duration has elapsed (0), the oven will switch off automatically. You may terminate cooking process at any time by turning the switch manually back to position 0.

MICROWAVE COOKING

Power Mid M High Defrost Low M High High Grill Combi.1 Combi.2 Combi.3

Time 0 1 2 3 4 5 6 7 8 9 10 15 15 20 25 30

1

Use POWER selector switch to select power level.

2

Use TIME selector switch to set cooking duration.

Mode Power level

Low 18 %

Defrost 36 %

Med (medium) 58 %

M. High (medium-high) 81 %

High 100 %

GRILLING

Power Delros Low Med M High High Grill Combi.1 Combi.2 Combi.3

1

Use POWER selector switch to select grill.

Time 0 1 2 3 4 5 6 7 8 9 10 15 20 25 30

2

Use TIME selector switch to set cooking duration.

Mode Power level

Grill 100 %

COMBINATION COOKING

Power Mid M High High Grill Comb1 Comb2 Comb3 Defrost Low

1

Use POWER selector switch to select power level.

Time 0 1 2 3 4 5 6 7 8 9 10 15 20 25 30

2

Use TIME selector switch to set cooking duration.

Mode Power level Suitable for

Combi.1 30 % Microwave /	70 % Grill	Fish, potatoes au gratin
Combi.2 49 % Microwave /	51 % Grill	Omelette, baked potatoes
Combi.3 67 % Microwave /	33 % Grill	Poultry

UTENSILS GUIDE

Utensils Microwave Grill Combination
Heat-resistant glass yes yes yes
Non heat-resistant glass no no no
Heat-resistant ceramics yes yes yes
Microwave-safe plastic dish	yes no no
Kitchen paper yes no no
Metal tray no yes no
Metal rack no yes no
Aluminum foil & foil containers	no yes no

CLEANING AND CARE

- Warning! Unplug the product and let it cool down completely before cleaning. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.

- Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).

- Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly.

- Make sure that no water enters the product interior (for example, through the switch).

- Clean the cavity, the door seals and adjacent parts regularly with a damp cloth. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth.

- Wipe the cavity dry afterwards using a soft cloth.

- The glass tray can be removed for cleaning. Clean the tray in warm, soapy water or in the dishwasher.

- Clean the metal rack in warm, soapy water.

- The turntable roller and the cavity bottom should be cleaned regularly to prevent excessive noise. Simply use a mild detergent to wipe the surface and allow it to dry. If the turntable roller is removed for cleaning, make sure to re-insert it properly before next use.

- In the event that the light bulb inside the cavity must be replaced, please contact authorised service agent.

- Odours in the cavity can be neutralized by filling a microwave-suitable cup with water and lemon juice and boiling it in the microwave oven for 5 minutes.

SPECIFICATION

Rated voltage: 230-240 V\~, 50 Hz / Rated power input: 1200 W (Micro) 900 W (Grill) / Rated power output: 700 W / Operation frequency: 2450 MHz / Outside dimensions: 262 mm (H) x 452 mm (W) x 325 mm (D) / Turntable Diameter: ∅ 245 mm / Oven capacity: 20 L / Net weight: Approx. 11.3 kg

DISPOSAL

Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.
